Analysis on the Leakage and Rubbing Force of the Combined Finger Seal Based on Equivalent Dynamic Model Considering Thermal Effects

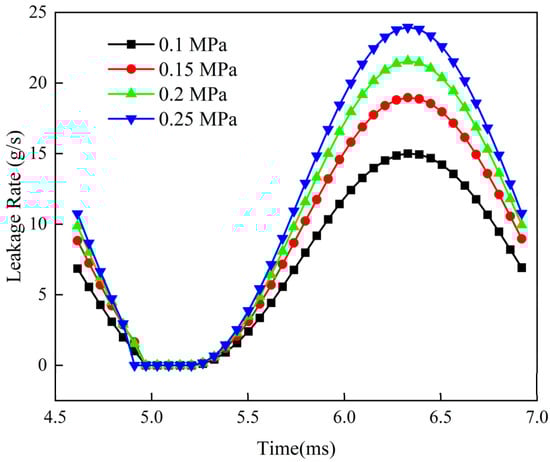

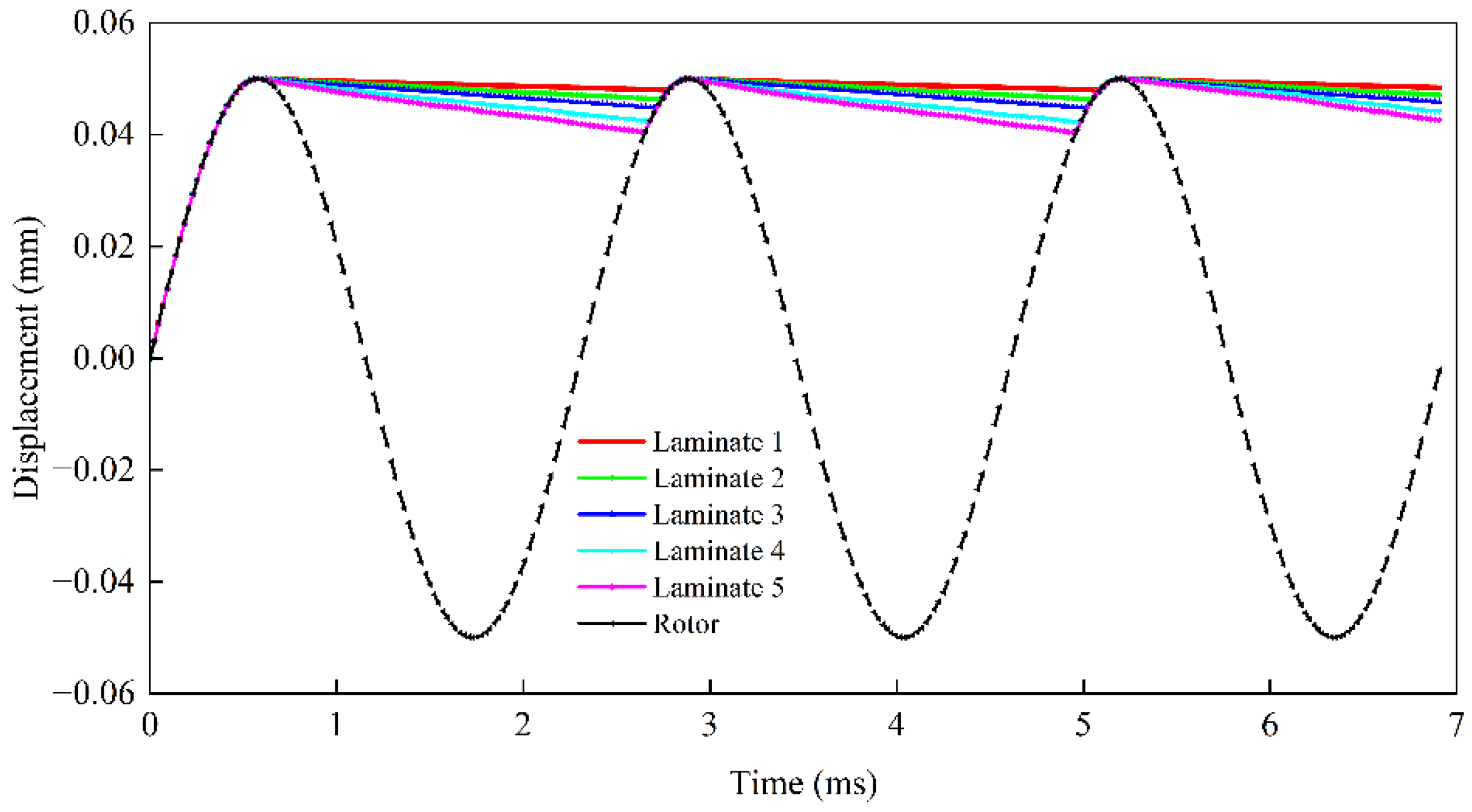

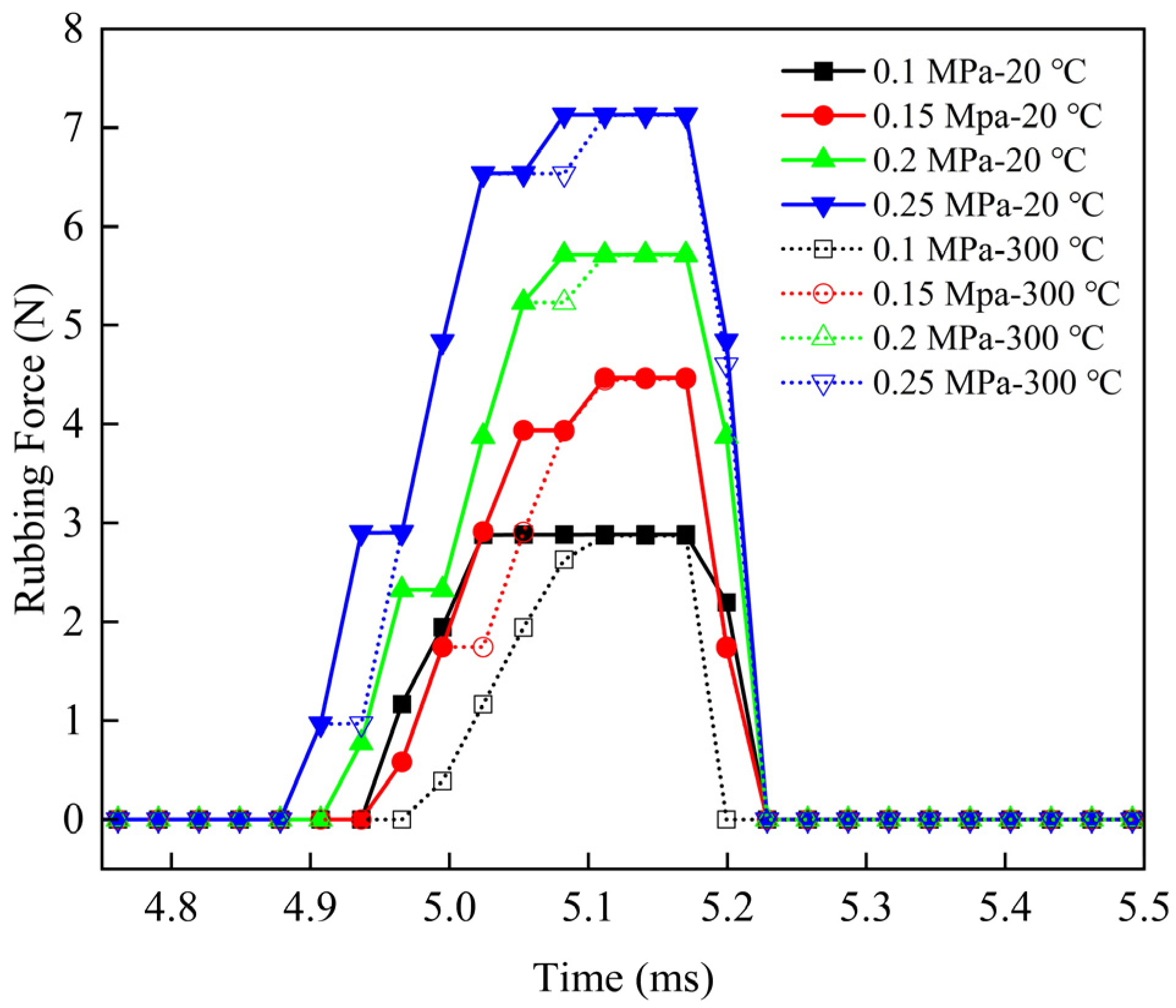

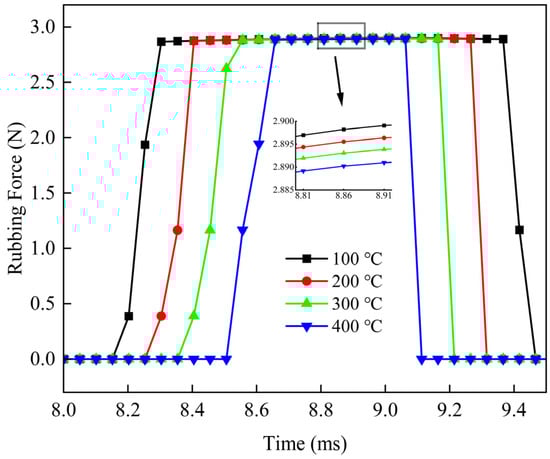

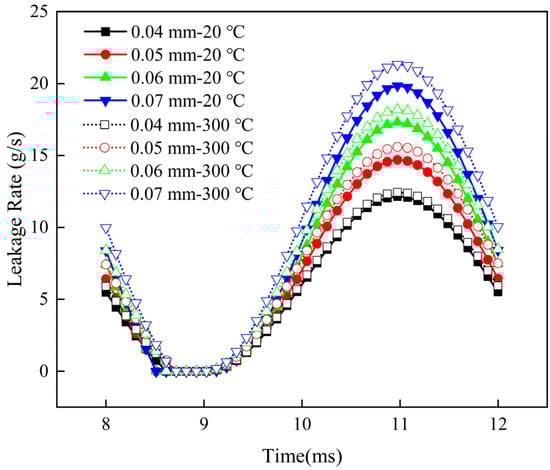

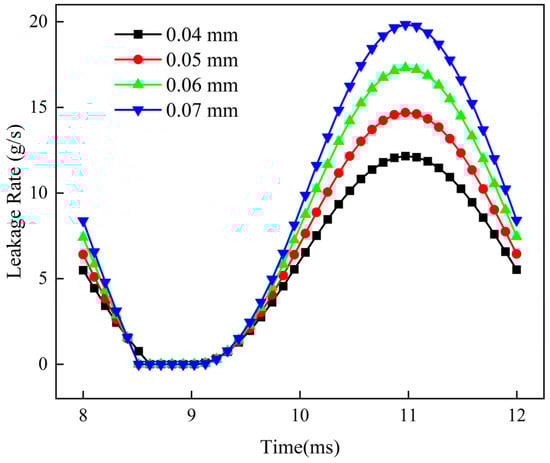

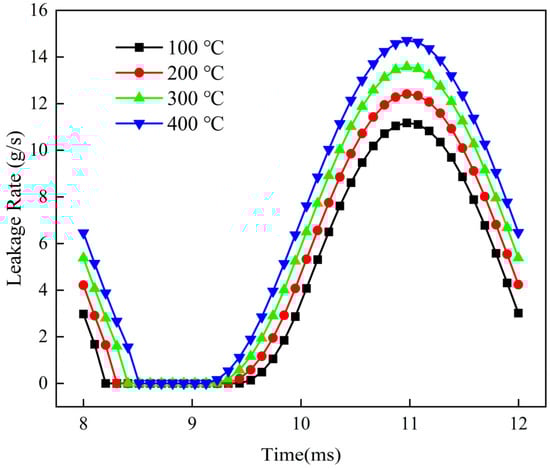

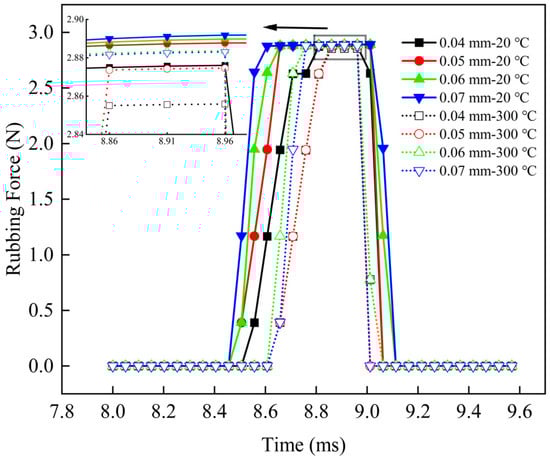

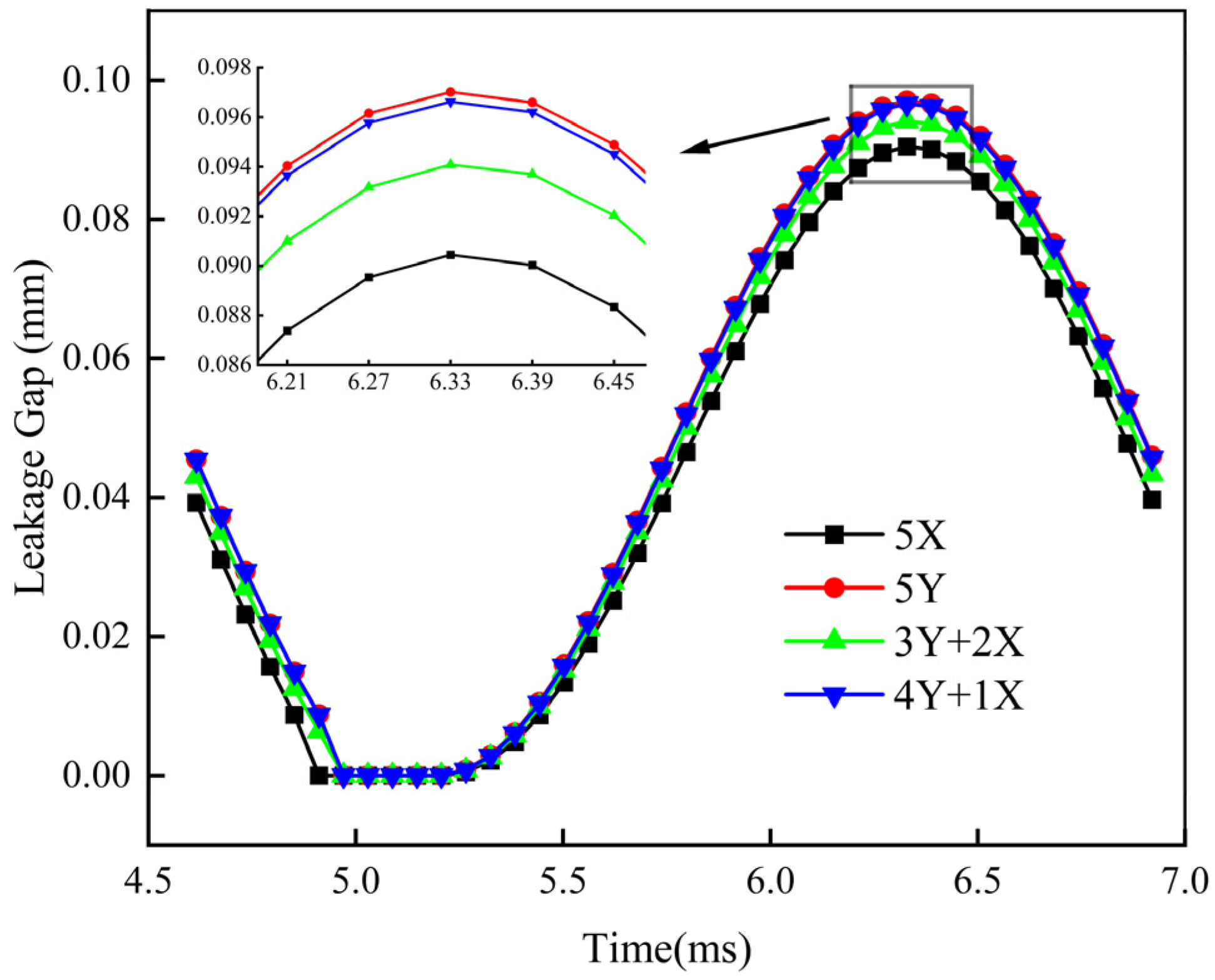

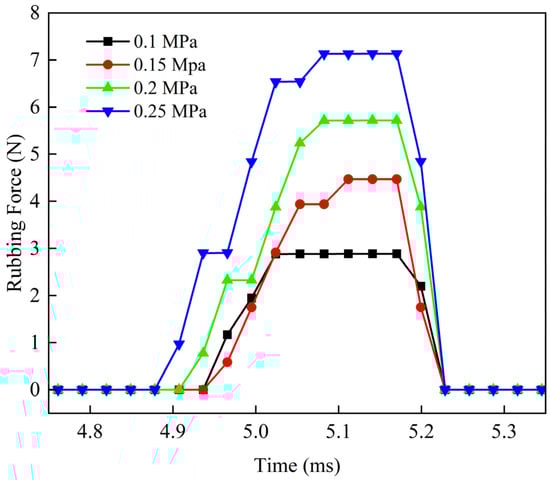

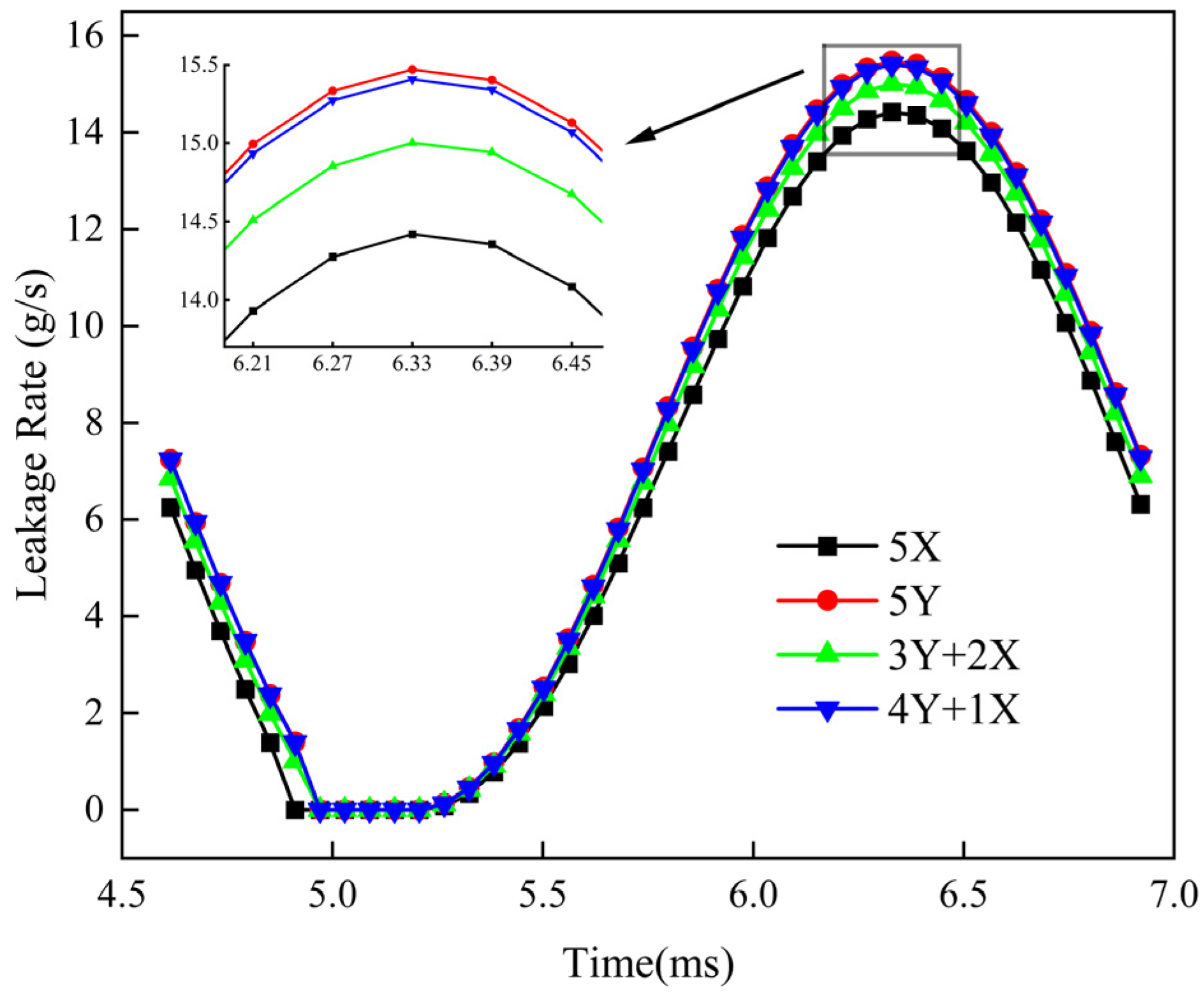

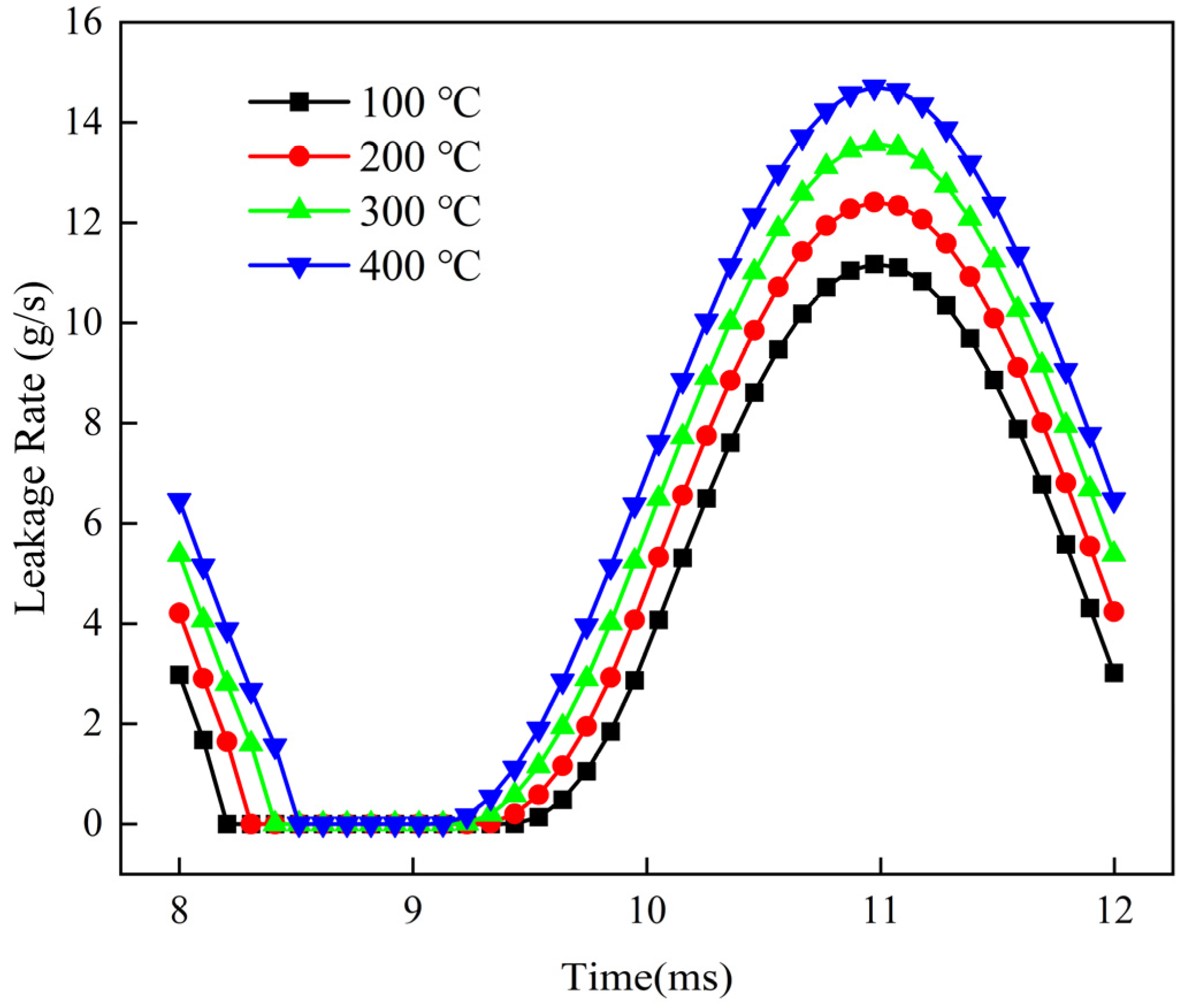

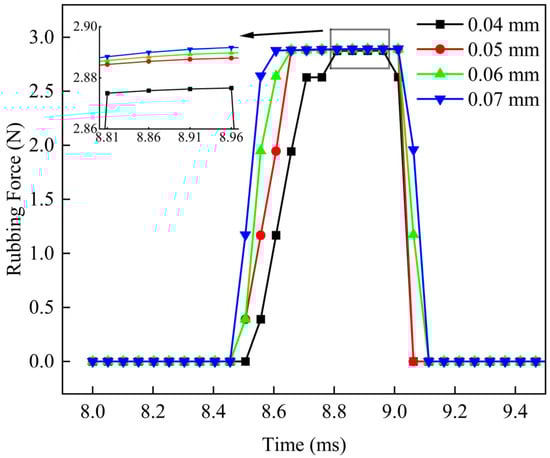

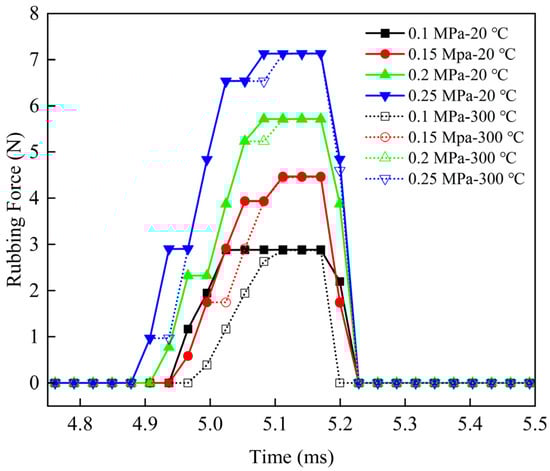

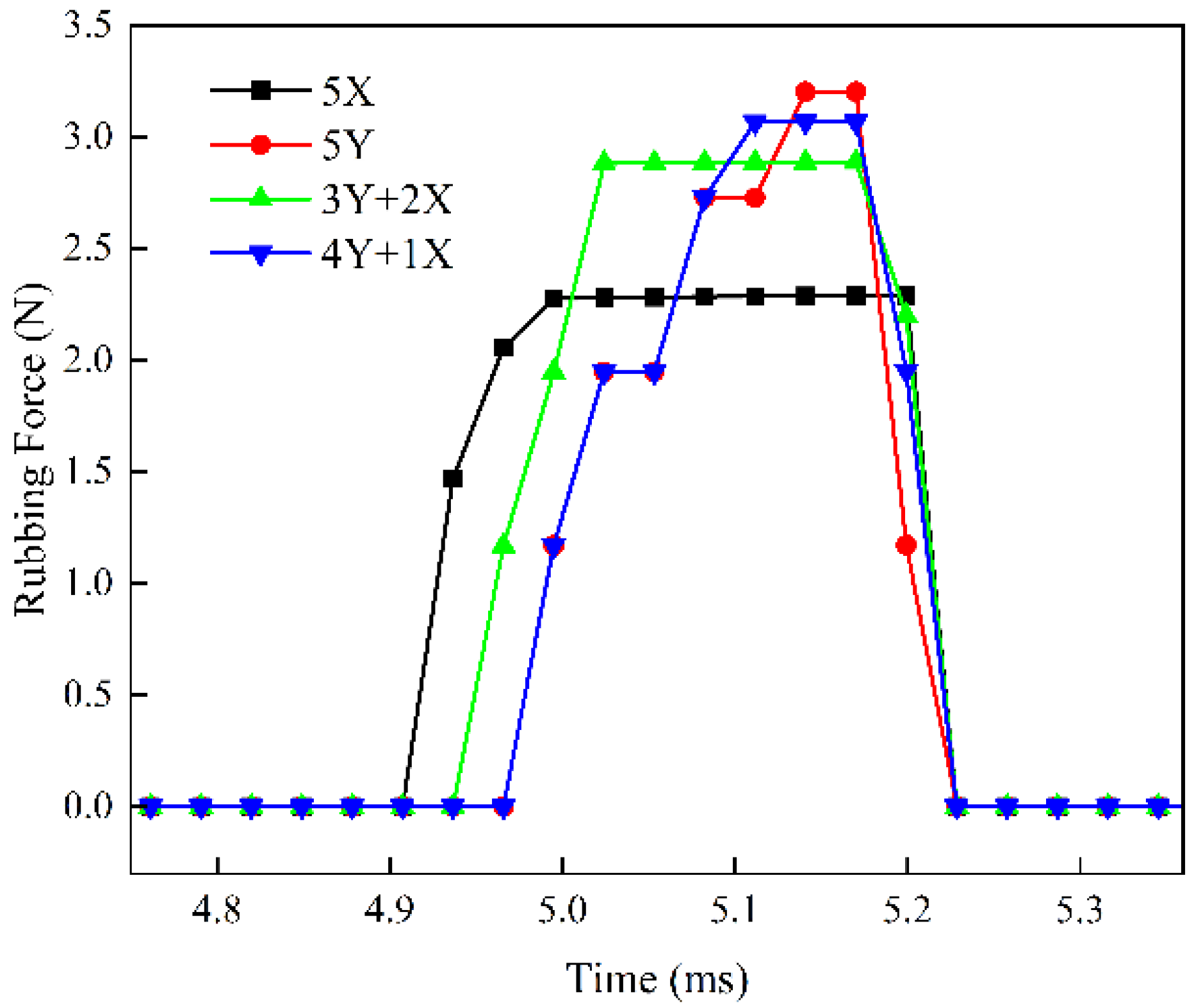

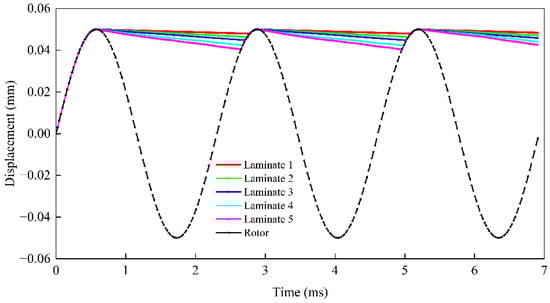

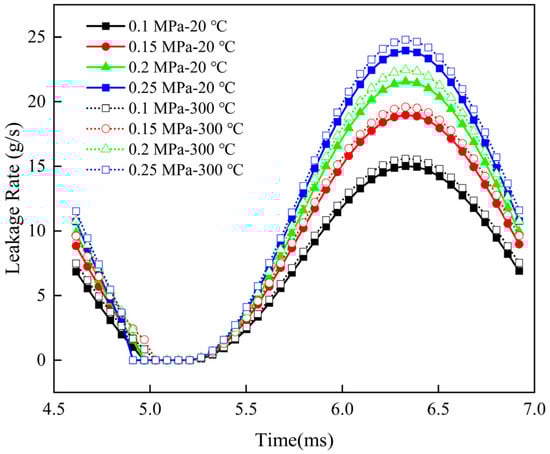

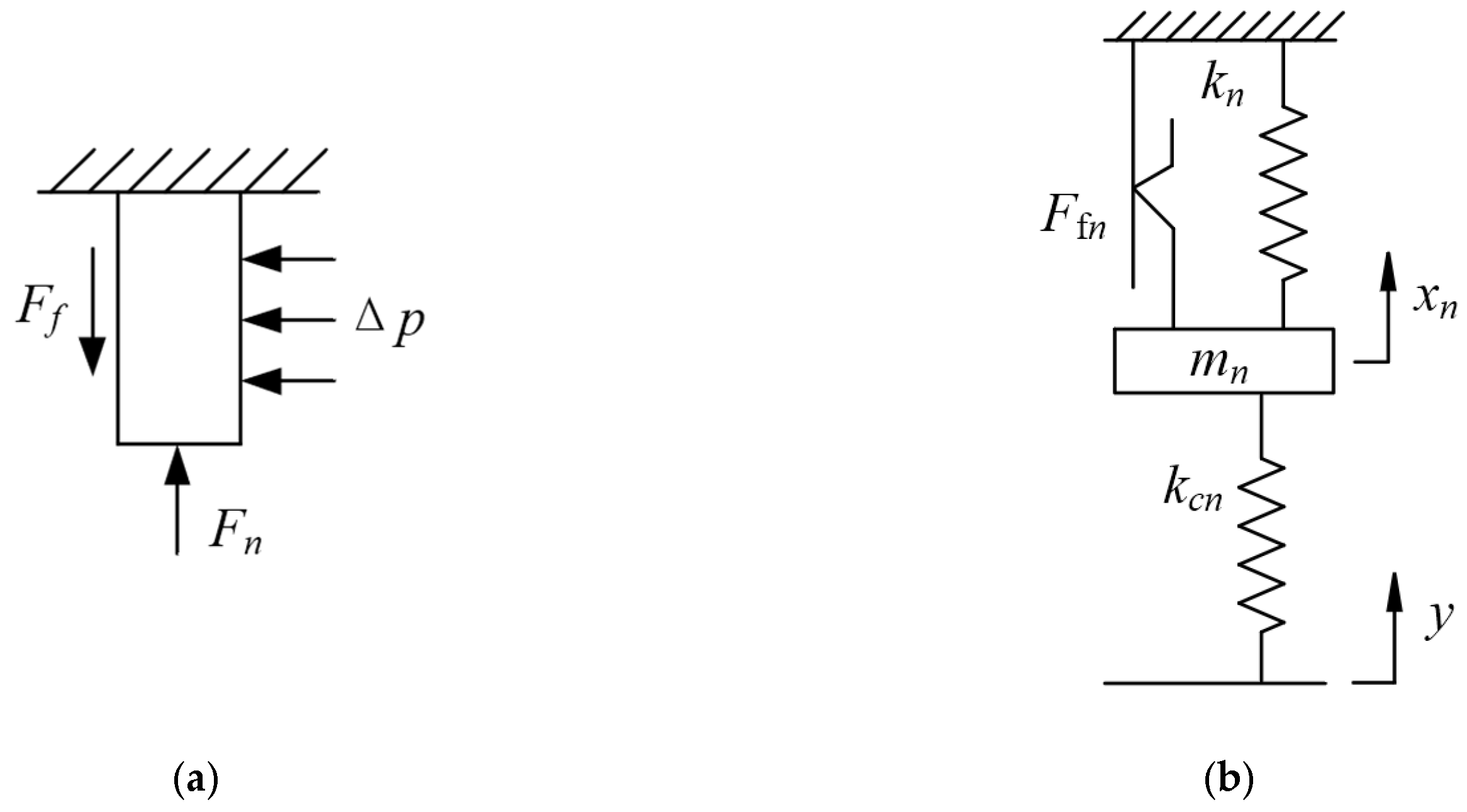

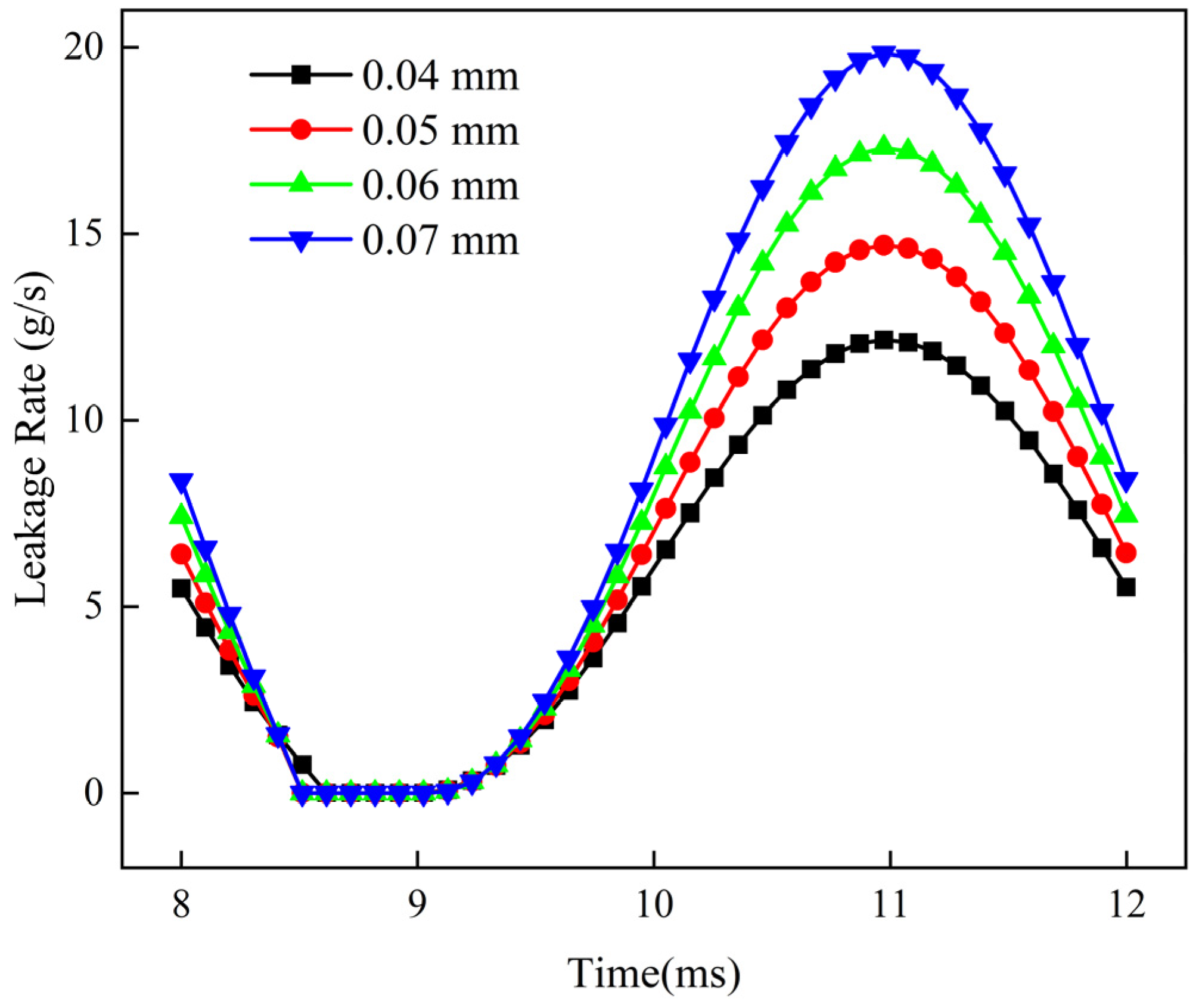

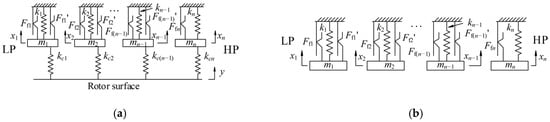

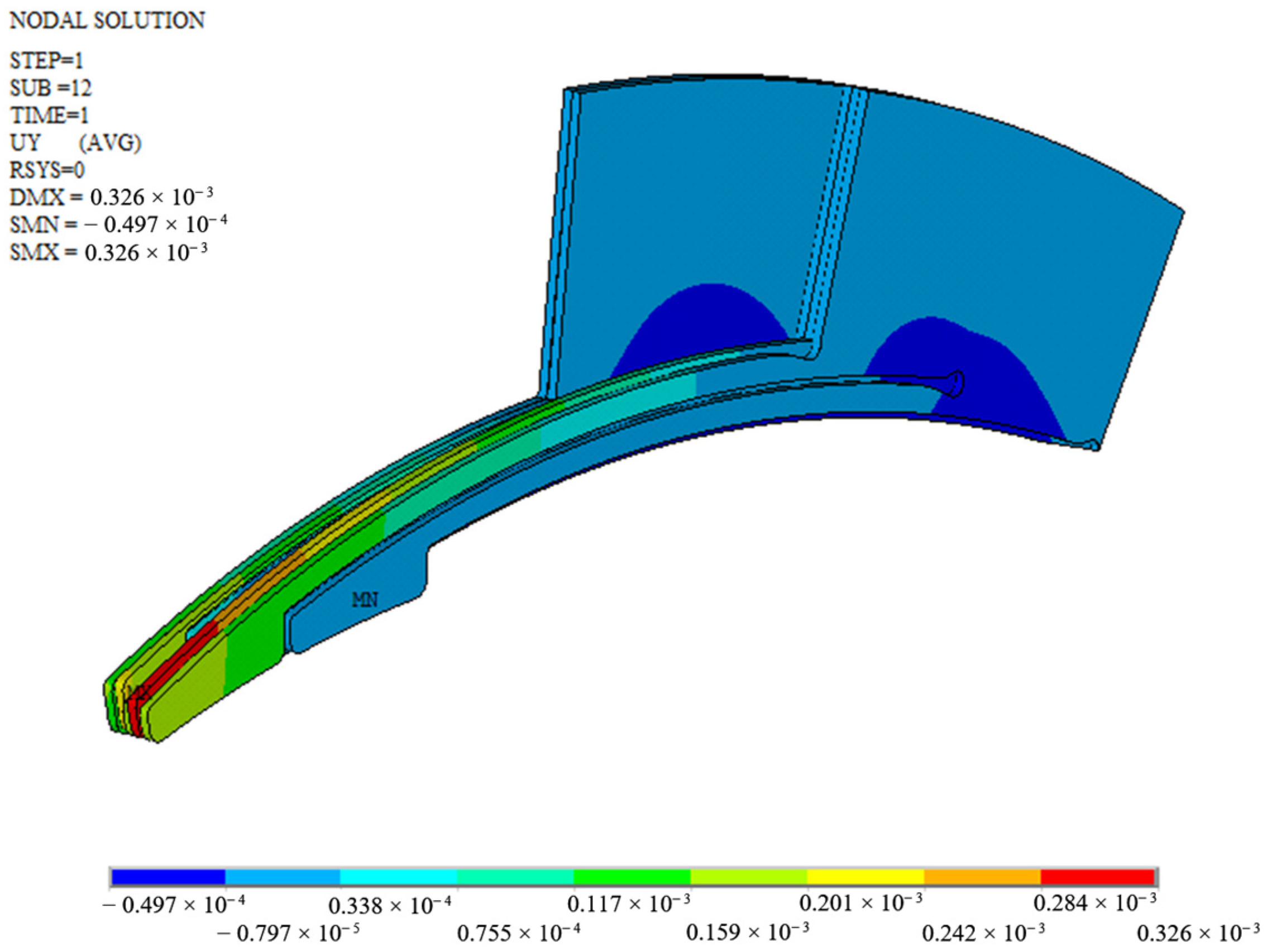

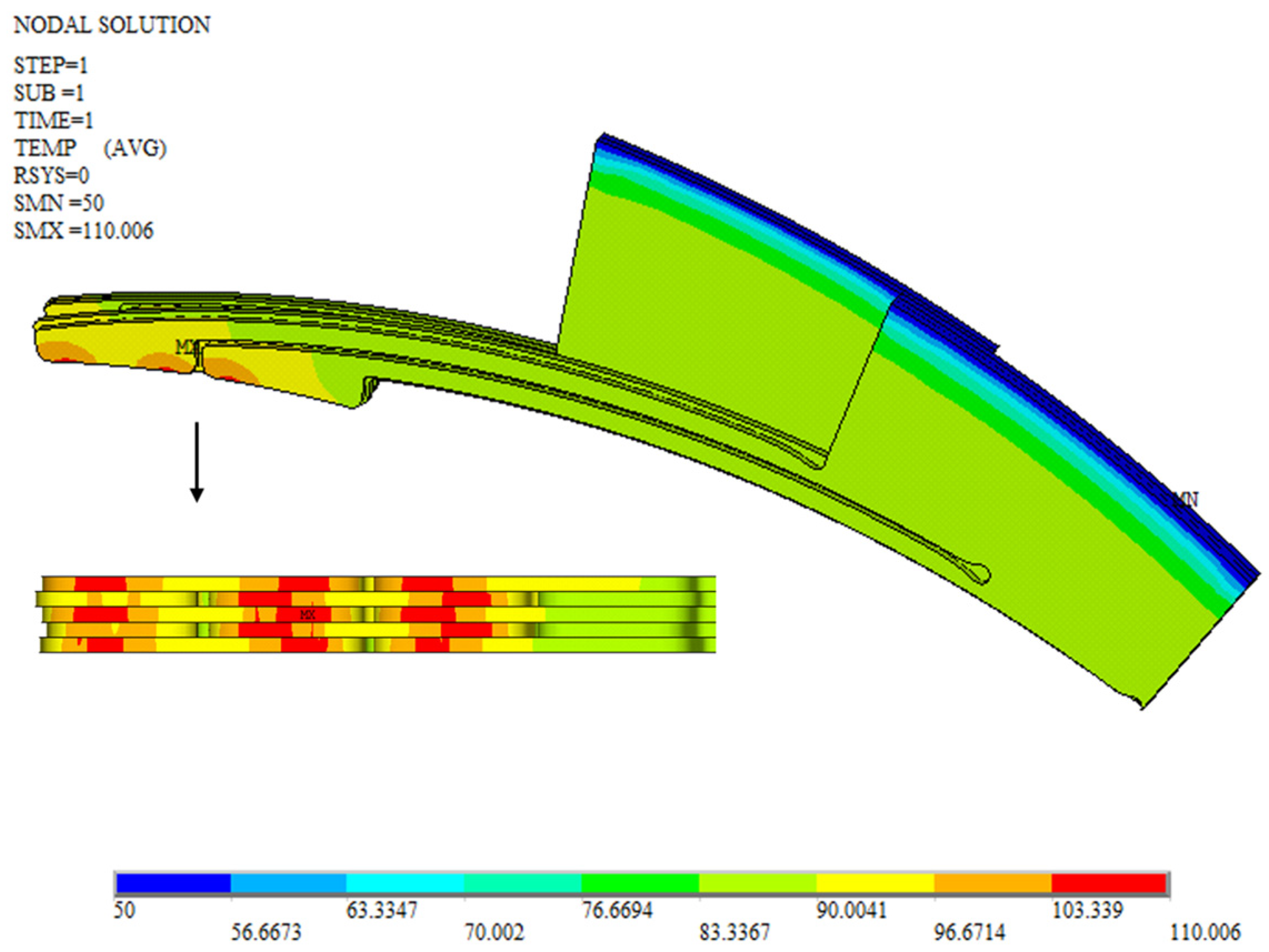

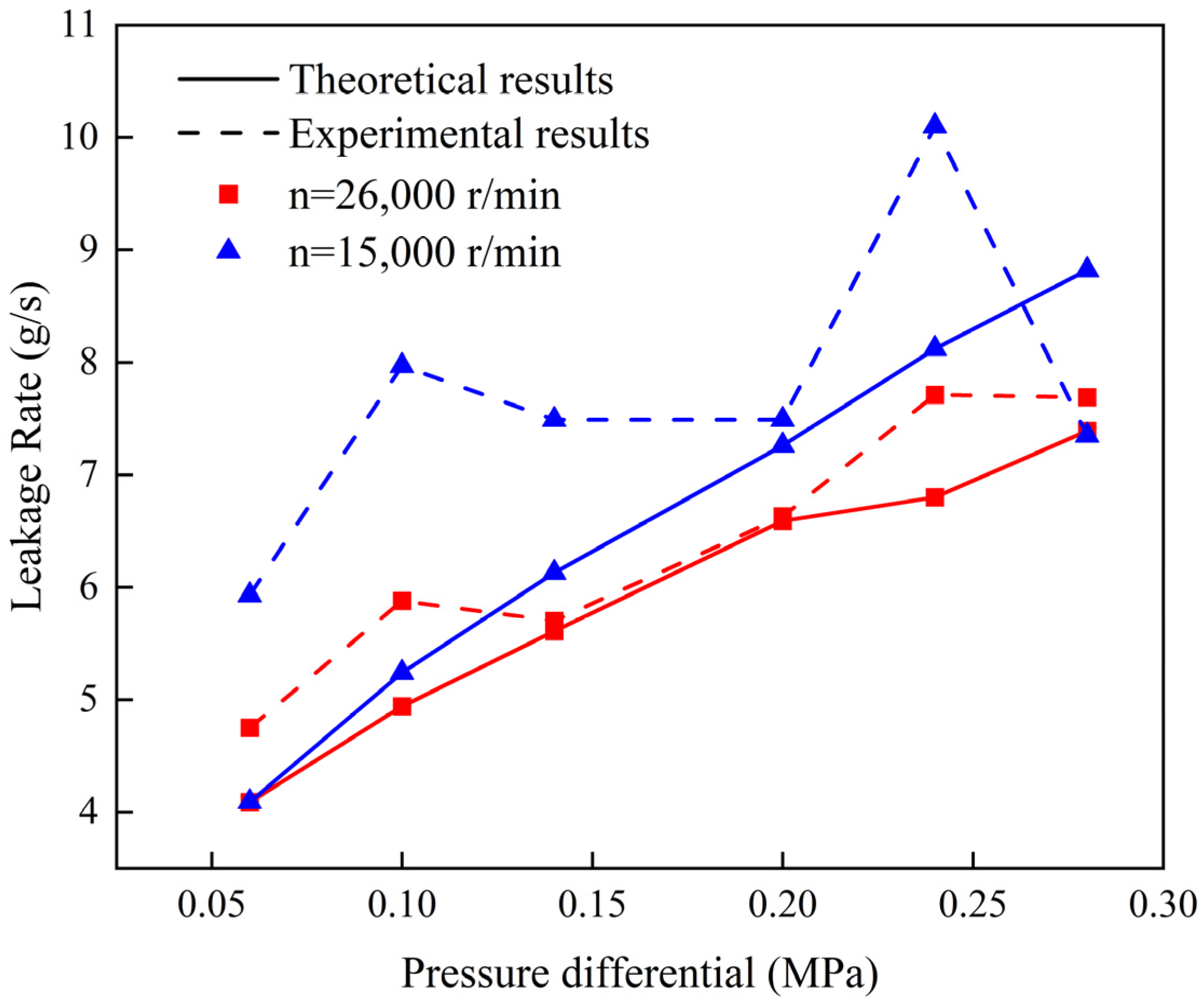

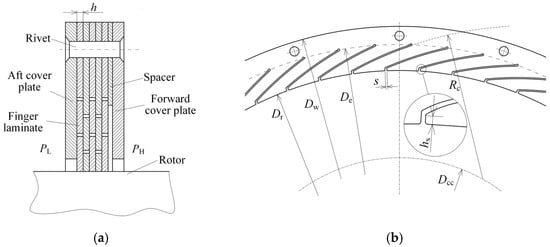

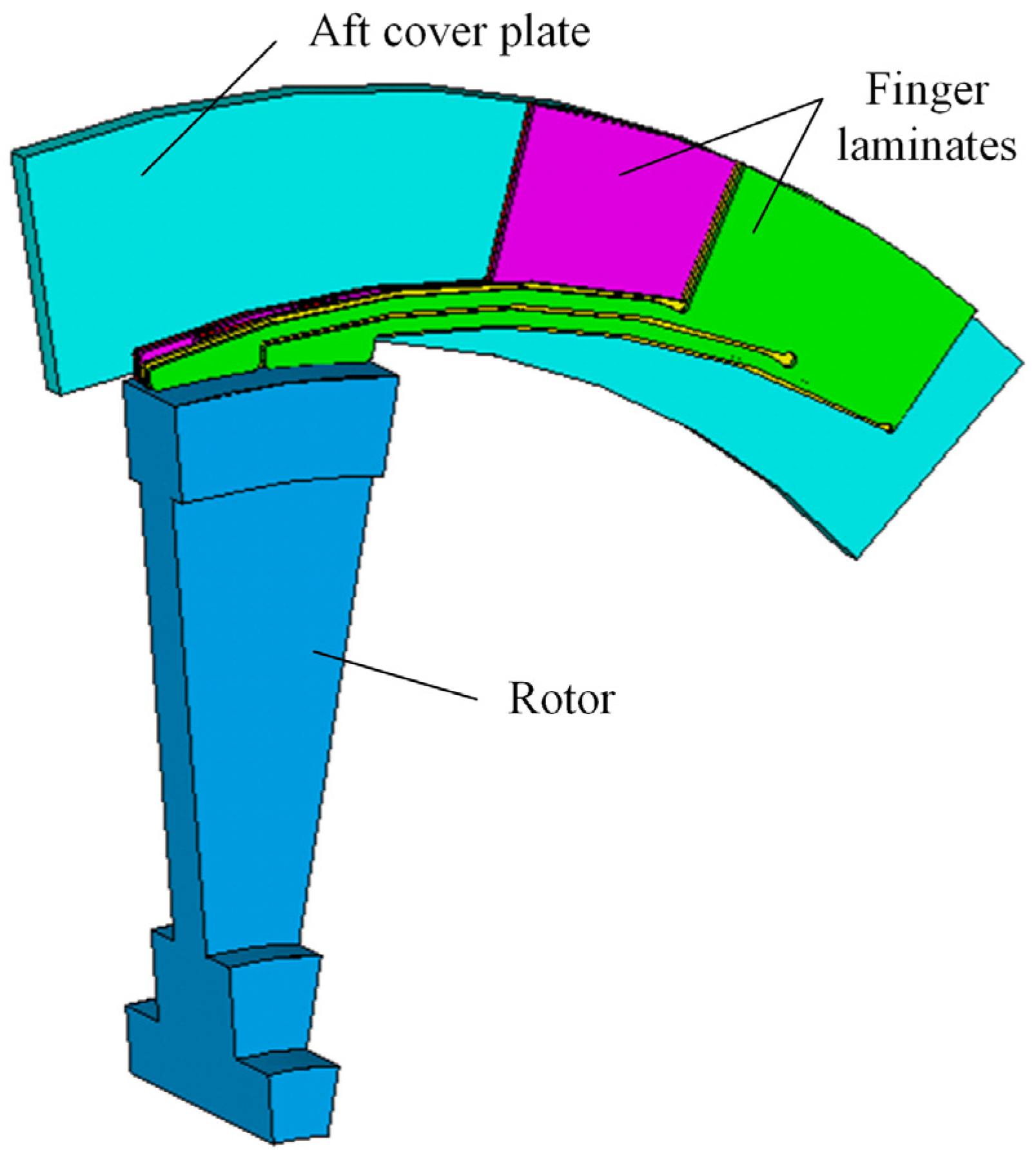

This study proposes a combined finger seal configuration composed of different structural laminates. An equivalent dynamic model of the finger seal system, accounting for thermal effects, is established. The effects of configuration type and operating conditions, including pressure differential, rotor displacement excitation, and temperature, on the dynamic leakage and rubbing force of the combined finger seal are investigated. The finger seal composed of two structural forms (X-type and Y-type) of finger laminates in this paper has a comprehensive advantage in leakage rate and rubbing force compared with the finger seal composed of a single structural seal slice. Compared with the leakage performance of the combined type of finger seals with different finger beam lengths, the maximum leakage rate of the 3Y+2X type finger seal proposed in this paper can be reduced by 29%. For the 3Y+2X finger seal structure and the calculation conditions (including pressure difference, displacement excitation and temperature) of this work, as the pressure difference increases, the seal leakage rate increases, and the peak value and impulse of the rubbing force also increase. The increase in rotor displacement excitation leads to an increase in both the leakage rate and the rubbing force. The increase in environmental temperature leads to an increase in leakage rate of the finger seal, but both the peak value of the rubbing force and the impact force reduce. Under different pressure differences and displacement excitation, the sealing leakage in a 300 °C high-temperature environment is slightly greater than that at normal temperature, but the friction force is less than that at normal temperature.
