Numerical and Geometric Analysis of Side-Wall Inclination Angle Effects on Longitudinal Hat-Stiffeners in Steel Plates

Abstract

Thin steel plates with stiffeners are widely employed in several branches of engineering, combining mechanical strength with low weight and serving as both structural and cladding components. However, the influence of the side-wall inclination angle of hat-stiffeners on the stiffness distribution and deflection patterns of steel plates remains insufficiently explored. This study conducts computational modeling to evaluate the deflection of thin steel plates reinforced with hat-stiffeners. The plates were considered simply supported and subjected to a uniformly distributed load. The Constructal Design method and the exhaustive search technique were employed, allowing for geometric evaluation and optimization. A fraction corresponding to 30% of the plate volume was removed and redistributed to generate longitudinal hat-stiffener geometries by varying its side-wall angle and thickness. The smaller base of the hat-stiffeners was imposed as a geometric constraint and therefore kept fixed. The results indicate a nonlinear trend between the side-wall angle, the moment of inertia, and the resulting deflection, leading to a new geometrical pattern that connects the angular inclination to the overall stiffness behavior of the plate. Angles between 105° and 130° provided the best performance, reducing the maximum deflection by 93.72% compared with the reference plate and improving it by around 7.5% relative to previous studies. These findings illustrate how geometric configuration can enhance performance in line with Constructal Design principles.

1. Introduction

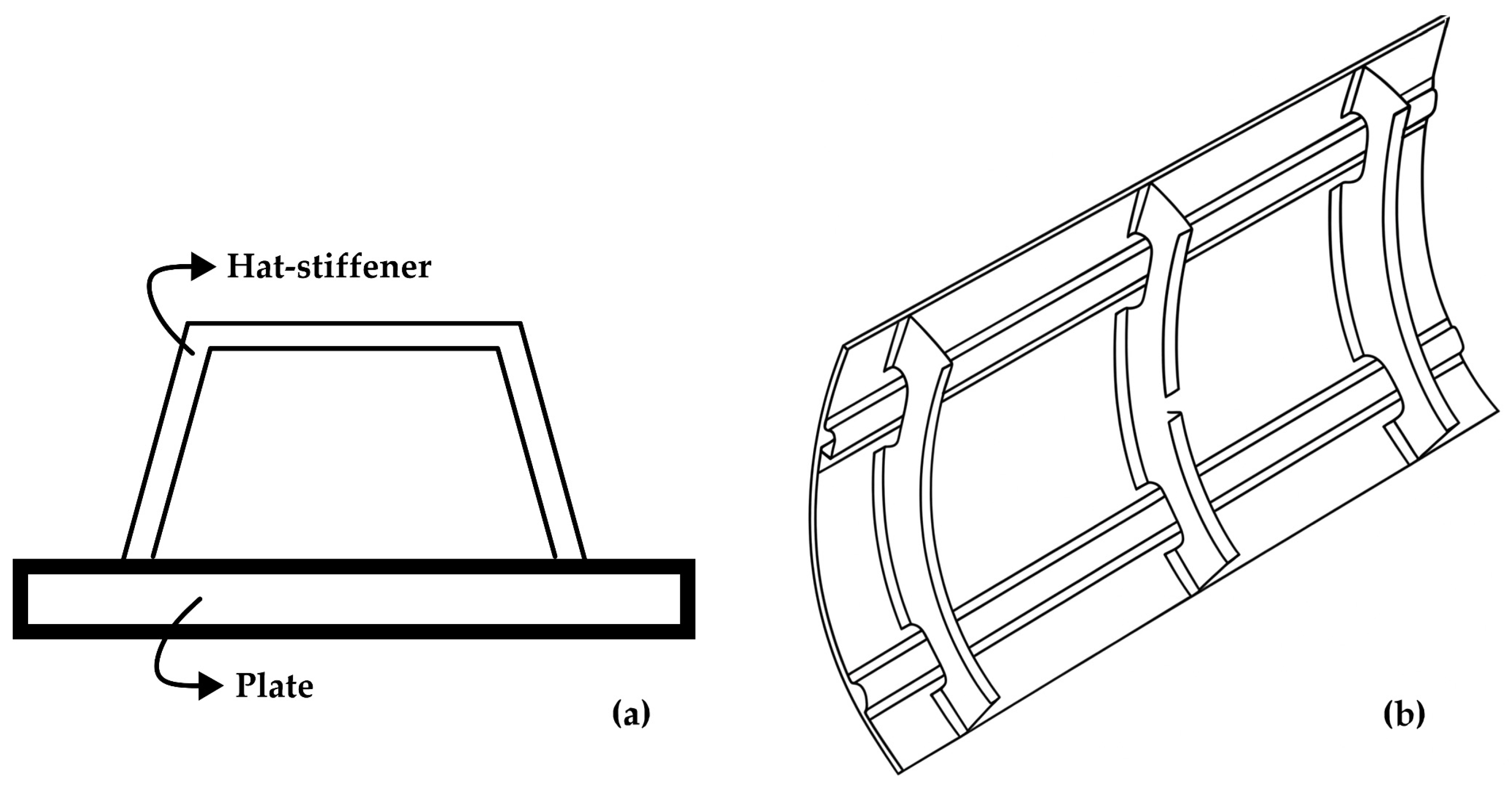

Metal plates are widely employed in several branches of engineering, typically serving both structural and cladding functions. The addition of stiffeners to these plates provides unique advantages in terms of structural efficiency and design, as it significantly increases strength while keeping the overall structural weight relatively low. Stiffened plates are commonly used in aerospace, marine, and civil engineering structures [1,2,3,4,5]. Various stiffener geometries exist, each imparting distinct characteristics to the mechanical behavior of the plate. In this study, the hat-stiffener type is adopted, as illustrated in Figure 1a. Figure 1b shows an application employing hat-stiffeners in an aircraft fuselage section.

Regarding the manufacturing of stiffened plates, the connection between the stiffener and the plate can be achieved through several joining methods, depending on the material type, the intended application, and the applicable design codes and standards. For metallic structures, conventional joining techniques such as welding and riveting are commonly employed [6,7,8,9]. The stiffeners themselves can be produced through different manufacturing processes, including profile extrusion or, in the specific case of hat-stiffeners, by sheet metal-forming operations such as stamping or bending [10,11,12].

Among the approaches to analyzing these structural components, computational modeling offers significant potential for simulating plates reinforced with hat-stiffeners, as it enables the development of different combinations of stiffener geometric parameters and the investigation of their effects. The Finite Element Method (FEM) has been extensively employed in studies of stiffened plates [13,14,15] and implemented in commercial software such as ANSYS and ABAQUS. Regarding the development of different combinations of stiffener geometric properties, the Constructal Design method, proposed by Adrian Bejan in 1996 [16,17,18,19,20], has proven to be an effective tool for geometric analysis in structural engineering problems [21,22,23]. This method is based on the Constructal Law, which states the following: “For a finite-size system to remain in operation, its geometric configuration must evolve continuously in order to provide the best flow access for currents flowing through the system” [16,17,18,19,20,24]. Bejan and Lorente [18] applied this concept to structural engineering, establishing that structures function as minimum-volume connections, allowing stresses to “flow” from one component to its neighbor, and that the most efficient use of material occurs when the maximum allowable stresses are uniformly distributed throughout the structure. It should be emphasized that for the Constructal Design method to be applied, it is necessary to define design variables and constraints. Furthermore, to investigate the influence of variations in the design variables and to identify the best geometry, appropriate performance indicators must be established [16,17,18,19,20,24,25].

The Constructal Design method has been employed for the development and evaluation of different stiffener geometries installed on plates subjected to bending through numerical simulation. Troina et al. [26] minimized the central deflection of plates subjected to bending due to a distributed load by optimizing I-type stiffeners of equal height, arranged both transversely and longitudinally. Similarly, Nogueira et al. [27] also minimized the maximum and central deflections of plates with I-type stiffeners but considering stiffeners of different heights. Furthermore, Pinto et al. [28] and Kucharski et al. [29] extended the analysis by simultaneously evaluating the maximum deflection and the von Mises stress in stiffened plates, demonstrating that the Constructal Design approach can enhance both stiffness and stress distribution efficiency through geometric evolution. Additionally, Lima et al. [30] applied the same methodology to investigate the elasto-plastic buckling of stiffened plates under uniaxial compression, confirming the potential of Constructal Design to improve the ultimate buckling performance of metallic structures.

In the field of stiffened plate analysis with hat-stiffeners, Tharian and Nandakumar [31,32] conducted a numerical investigation using the FEM and highlighted that hat-stiffeners exhibit higher torsional rigidity and a superior strength-to-weight ratio compared with open-section stiffeners, thereby demonstrating their structural superiority. Pal et al. [33] performed a numerical analysis of two plate configurations: one reinforced with hat-stiffeners and the other with I-type (flat) stiffeners. Boundary conditions and stiffener dimensions were varied while maintaining a constant volume, and the results indicated that the hat-stiffened plate exhibited smaller displacements. Virág and Szirbik [34] employed modal analysis to identify and eliminate vibration frequencies that could cause damage in a hat-stiffened plate. Tharian and Nandakumar [31] also carried out a structural analysis of bunkers and proposed a superelement formulation that reduces the computational cost of numerical analyses of hat-stiffened plates. Filippatos et al. [35] improved the efficiency of aerospace components incorporating hat-stiffeners. Raju et al. [36] investigated damage occurrence in ship structures made of composite materials reinforced with hat-stiffeners. More recently, using the Constructal Design method, Alves et al. [22,23] evaluated different longitudinal and transverse hat-stiffener geometries while keeping the side-wall inclination angle constant and identified the most effective configuration for reducing the deflections of a plate subjected to a distributed load.

In addition, several recent studies on hat-stiffened panels have predominantly focused on composite materials, exploring structural performance under various loading and environmental conditions. Sun et al. [37] developed FEM–Artificial Neural Network (ANN) hybrid approaches to predict the buckling and ultimate loads of composite hat-stiffened panels under in-plane shear, while Kumar et al. [38] proposed the Constrained Variational Asymptotic Method (C-VAM) to efficiently capture nonlinear buckling and delamination effects. Optimization-based analyses by Kumar et al. [39] and Kumar et al. [40] examined weight reduction, spacing, and geometric parameters, identifying closed-section stiffeners as optimal configurations for stiffness-to-weight improvement. Experimental validations by Kumar et al. [41], Kumar et al. [42], and Wang et al. [43] confirmed the strong agreement between FEM predictions and laboratory tests, especially for axial and edge compression scenarios.

In turn, interface and environmental effects have also been examined: Lei et al. [44] demonstrated that temperature and humidity significantly reduce bonding strength, whereas Liu and Guan [45] showed that inserting fillers in deltoid regions increases local stiffness and modifies failure modes. Complementary analytical contributions by Qiu [46] introduced equivalent stiffness formulations for simplified design assessments.

Given the relevance of hat-stiffened plates, this study proposes a geometric analysis and optimization of steel plates with longitudinal hat-stiffeners, simply supported and subjected to a uniformly distributed load. The Constructal Design method, combined with the exhaustive search technique, is employed with emphasis on varying the side-wall inclination angle of the stiffener while maintaining a constant material volume. The analysis of the generated configurations is carried out through a numerical model using the FEM, aiming to identify the configuration that minimizes the maximum deflection. To initiate the application of the Constructal Design method, a reference plate without stiffeners is adopted, and 30% of its volume is redistributed into stiffeners. To do so, the thickness of the reference plate is reduced, and stiffeners are generated by keeping the width of the smaller base constant while varying the side-wall inclination angle. Using a reference plate with dimensions of 2000 mm × 1000 mm, configurations with one to five hat-stiffeners can be generated, with thicknesses ranging from 4.75 mm to 12.7 mm. The computational model was developed via the FEM using the ANSYS Mechanical APDL 2024 R2 software package, with the SHELL281 finite element. One can note that the present investigation is an extension of the work previously published by Alves et al. [22].

It is worth emphasizing that in addition to the works already discussed, several other studies [47,48,49,50,51,52,53,54,55,56,57] have further explored the mechanical behavior of hat-stiffened plates made of composite materials, whereas thin steel plates with hat-stiffeners remain a relatively underexplored topic in the literature. This observation highlights the scientific motivation of the present study, which focuses on the geometric optimization of thin steel plates with hat-stiffeners and aims to extend the Constructal Design approach to metallic structures.

In summary, although recent advances have improved the understanding of hat-stiffened panels, almost all previous investigations considered the side-wall angle as a fixed geometric parameter. No systematic evaluation of this variable has been reported, especially for metallic plates. In contrast, the present work investigates the influence of side-wall angle under constant material volume, unveiling nonlinear correlations between the side-wall angle, the moment of inertia, and the resulting deflection. Thus, this study fills an important gap by linking the geometric evolution of the stiffener cross-section to the overall stiffness behavior, thereby broadening the Constructal Design framework for application to thin steel hat-stiffened plates.

2. Materials and Methods

2.1. Materials

Regarding material selection, this study adopts ASTM A36 [58] structural steel as a representative material to analyze the structural behavior of plates with hat-stiffeners, due to its wide range of applications in the civil, naval, and offshore industries, which employ stiffened plates to enhance strength and reduce structural weight. ASTM A36 structural steel provides a balanced combination of mechanical strength, weldability, availability, and cost, making stiffened plates fabricated from this steel a suitable choice for specific applications. Its relevance is demonstrated in naval applications, where it is used in hulls, decks, and bulkheads; in offshore platform modules; and in civil engineering, where this steel is employed in stiffened plates for bridge components, slabs, and floors, with stiffeners enhancing load-bearing capacity, controlling displacements, and reducing weight [23].

2.2. Methods

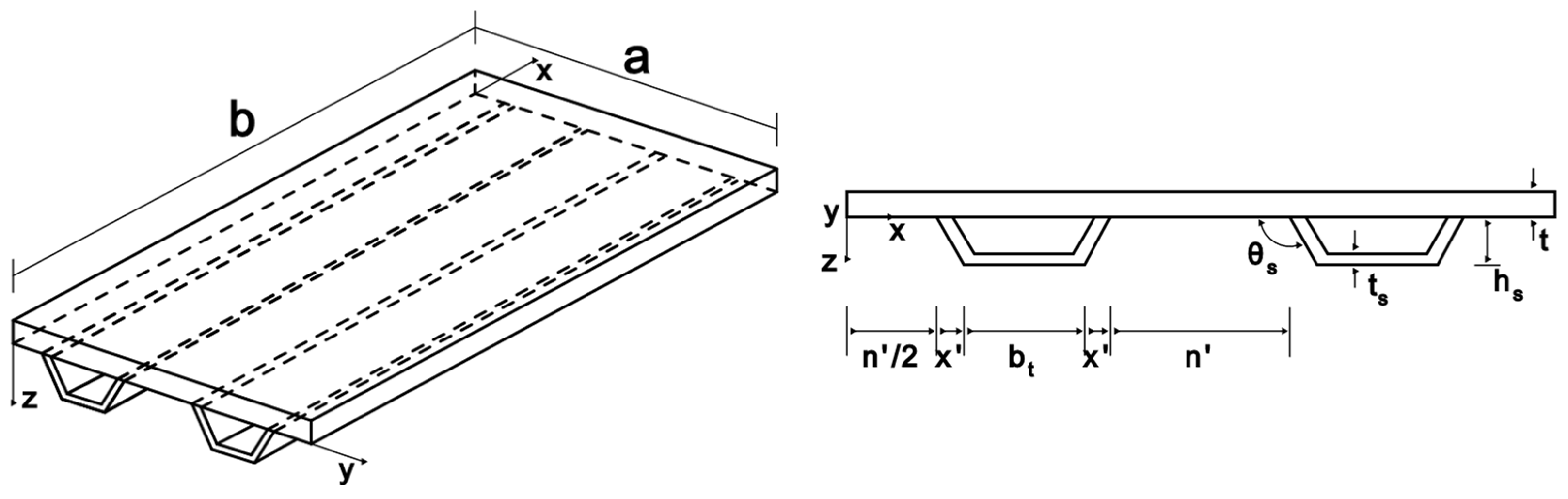

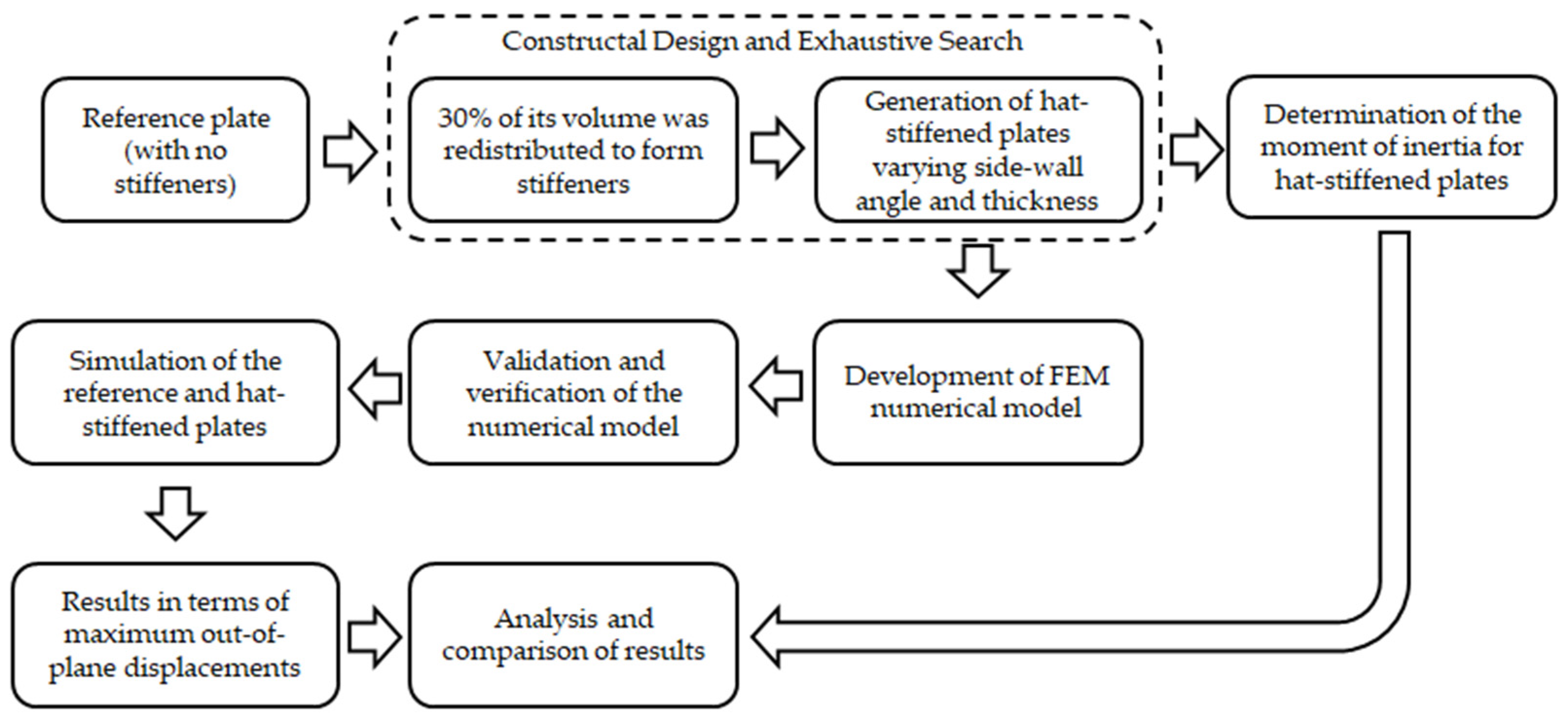

The application of the Constructal Design method requires the definition of local and/or global constraints. These constraints serve as limits for the variation in the defined degrees of freedom, generating multiple geometries and, ultimately, the definition of performance indicators, which can be maximized or minimized to improve the obtained results. It is important to emphasize, however, that the Constructal Design is not an optimization method per se but rather a tool for geometric evaluation. Therefore, to perform the optimization process, the Constructal Design method must be combined with an optimization technique, such as the exhaustive search method. In this context, during the geometric evaluation and optimization process, the Constructal Design method generates the search space (possible geometric configurations given the constraints and degrees of freedom), while the exhaustive search identifies the geometry that provides the best results [25]. To improve the understanding of the relationship between the stages of this work, Figure 2 presents the methodological framework.

In practical structural engineering applications, stiffened plates are supported along their edges, a condition that does not restrict rotational movement at the supports. This feature can be observed in ship deck structures, bridge panels, and steel slabs [23]. To reflect this condition in numerical simulations, the adopted boundary condition considers the plate as simply supported along its edges, i.e., vertical displacements are restrained, while rotations are allowed at the support points.

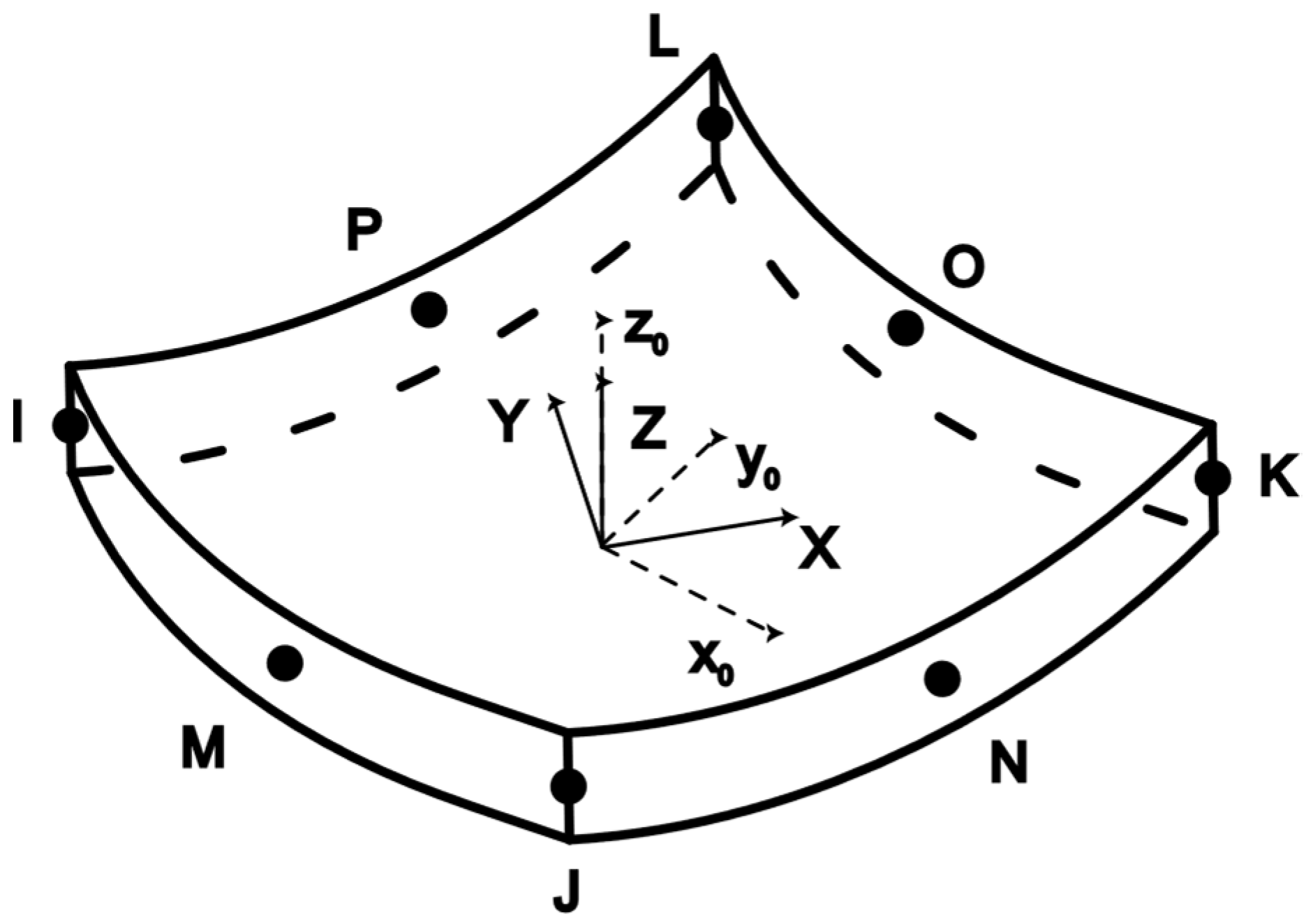

In the present study, the mechanical behavior of the generated configurations was investigated using the Finite Element Method (FEM) implemented via the commercial software ANSYS Mechanical APDL (version 2024 R2, ANSYS Inc., Canonsburg, PA, USA). The selected finite element was SHELL281, illustrated in Figure 3, which is suitable for the simulation of thin to moderately thick plates. This finite element has eight nodes and six degrees of freedom per node, consisting of three translations (U_x, U_y, and U_z) and three rotations (θ_x, θ_y, and θ_z) [59]. The SHELL281 finite element was adopted for both the plate and the hat-stiffeners, as in previous works [21,22,23,27]. In the FEM, displacements must be determined to obtain deflections, which are computed through the matrix manipulation of a system of algebraic equations [1,60,61]. To ensure that the computational model is correctly defined, validations and verifications were performed by comparing the results with references reported in the literature.

As previously mentioned, the application of the Constructal Design method begins with a reference plate, 30% of whose volume will be transformed into stiffeners. The dimensions of the reference plate are as follows: width a = 2000 mm; length b = 1000 mm; and thickness t_rp = 20 mm. Considering a and b as fixed constraints, the 30% volume fraction is removed from its thickness t_rp [21,23,26,27] and converted into stiffeners, resulting in plates with a thickness of t = 14 mm in which the hat-stiffeners are installed. It should be noted that this is not a material reduction but rather a redistribution (from the thickness of the reference plate to the stiffeners); hence, the total steel volume remains unchanged.

As stated earlier, the material adopted is ASTM A36 structural steel, with a Young’s modulus E = 200 GPa and Poisson’s ratio ν = 0.3 [62,63]; this material has also been employed in previous studies [21,23,26,27]. Regarding boundary conditions, a uniformly distributed load of 10 kPa was applied; this load level was chosen to ensure that the plate remains within the linear elastic regime [21,23,26,27]. The edges were considered simply supported, as explained earlier, reflecting practical structural engineering applications. Figure 4 presents a schematic drawing of the plate with two hat-stiffeners. The choice of hat-stiffener thickness was based on the commercially available plate thicknesses that could be used to fabricate these stiffeners. Therefore, the following values were adopted: t_s = 4.75 mm (3/16 in); t_s = 6.35 mm (1/4 in); t_s = 8.00 mm (5/16 in); t_s = 9.53 mm (3/8 in); and t_s = 12.7 mm (1/2 in). The stiffener side-wall angle θ_s was varied from 75° to 150° in increments of 5°. The width of the smaller base was fixed at b_t = 40 mm. Using these parameters, by selecting the plate thickness and varying the side-wall inclination angle, other geometric parameters such as the stiffener height and larger base width were determined, generating multiple geometric configurations.

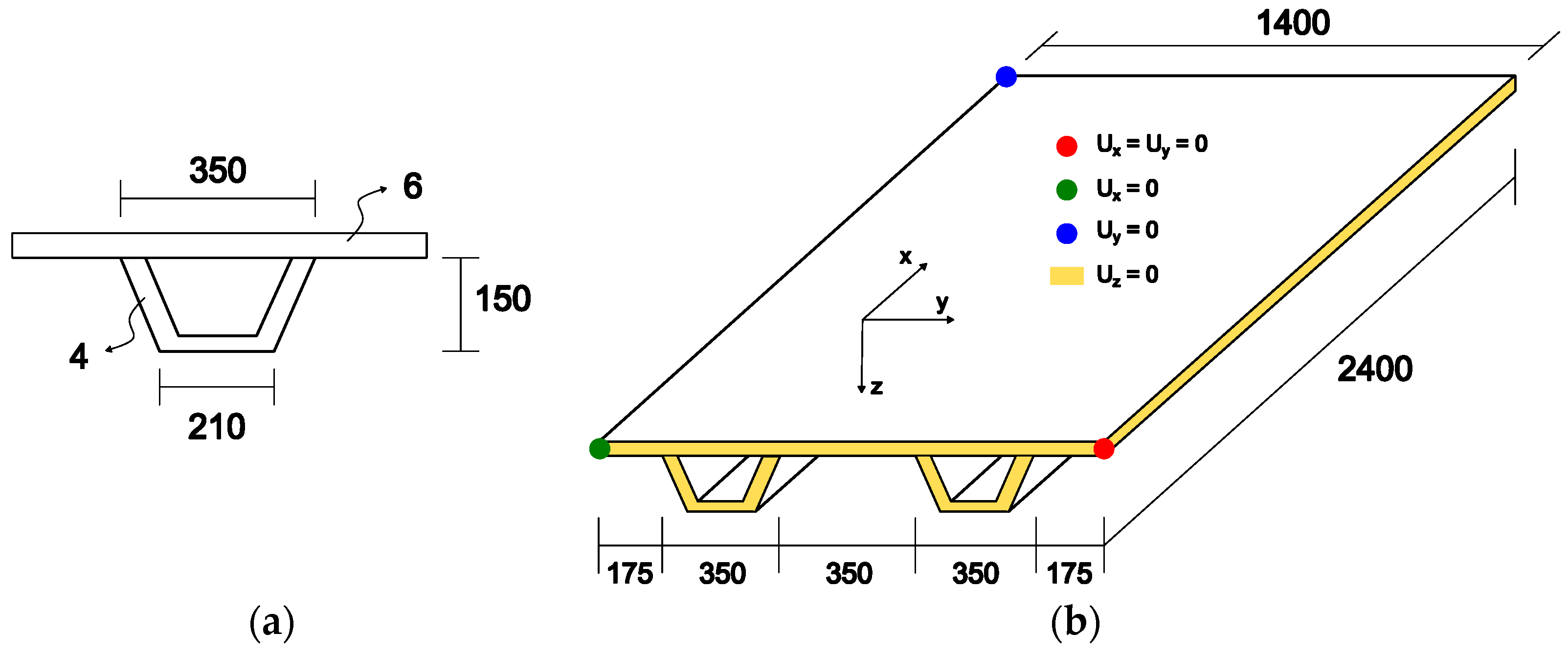

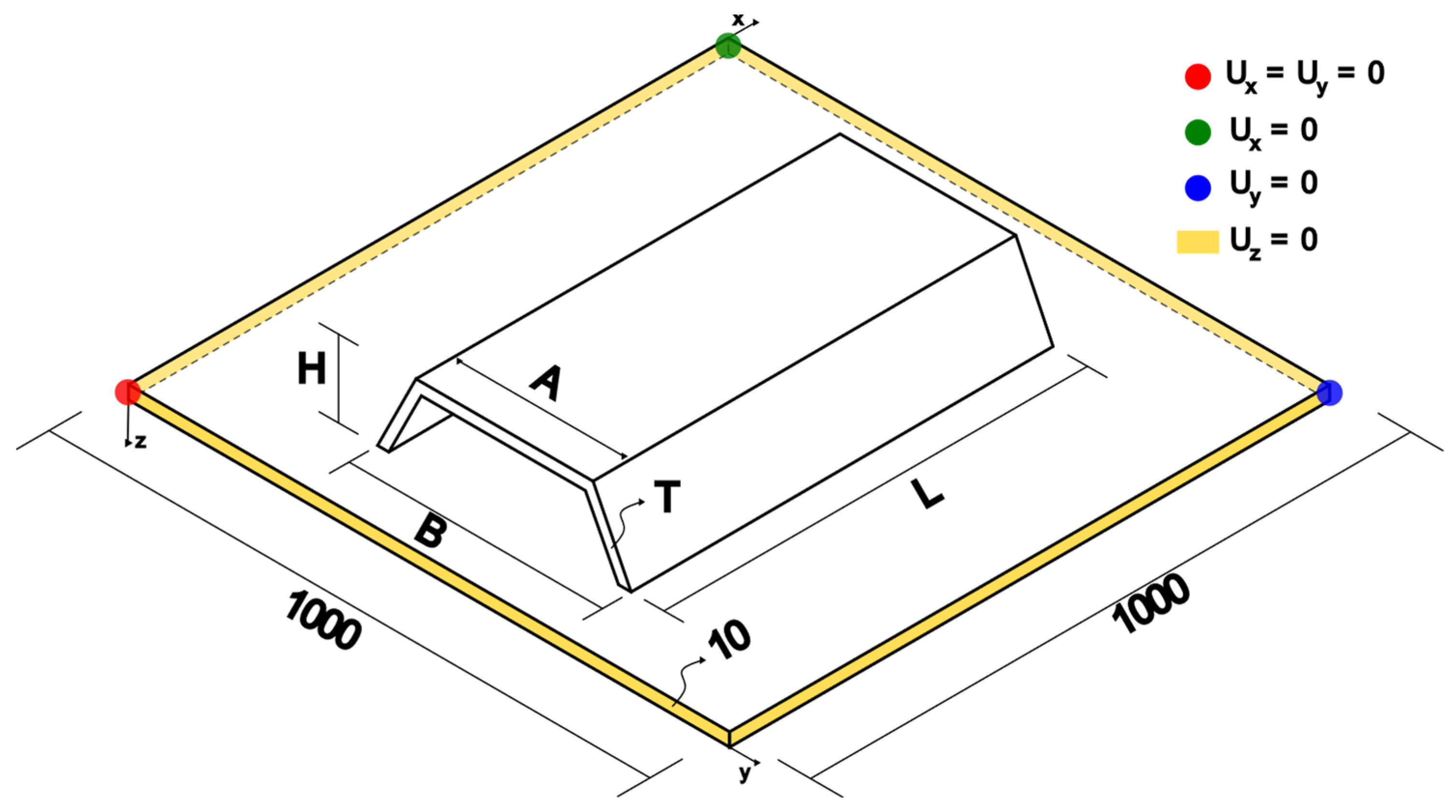

Considering that the analyzed plates could be joined with other plates in a practical application, the distance from the stiffener to the plate edge was set as half of the distance between the stiffeners on the plate. Figure 4 shows an example with two stiffeners, where n′ represents the distance between the stiffeners, and n′/2 represents the distance from the stiffener to the plate edge. In the case of a single stiffener, it was centered along the longer dimension of the plate.

Based on the defined spacing and obtained dimensions, cases with one to five hat-stiffeners placed on the plate were analyzed. The dimensions used for each geometric configuration of the plate and stiffeners, as well as the results in terms of the maximum deflection for each analyzed configuration, are presented in Appendix A, through

Table A1. Plates with a single hat-stiffener.

θs (mm)	ts (mm)	y′ (mm)	hs (mm)	${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$ (mm)	RD (%) ${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$	Ix (mm4)
90	4.75	0	611.5789	0.0778	−88.85	4.82 × 109
95	4.75	53.3026	609.2517	0.0654	−90.63	5.02 × 109
100	4.75	106.1996	602.2877	0.0471	−93.25	5.10 × 109
105	4.75	158.2883	590.7399	0.0438	−93.72	5.06 × 109
110	4.75	209.1723	574.6962	0.0863	−87.64	4.90 × 109
115	4.75	258.4644	554.2788	0.1549	−77.79	4.64 × 109
120	4.75	305.7895	529.6429	0.2580	−63.01	4.29 × 109
125	4.75	350.7873	500.9761	0.4166	−40.27	3.86 × 109
130	4.75	393.1154	468.4967	0.6946	−0.43	3.37 × 109
135	4.75	432.4516	432.4516	1.2555	79.98	2.85 × 109

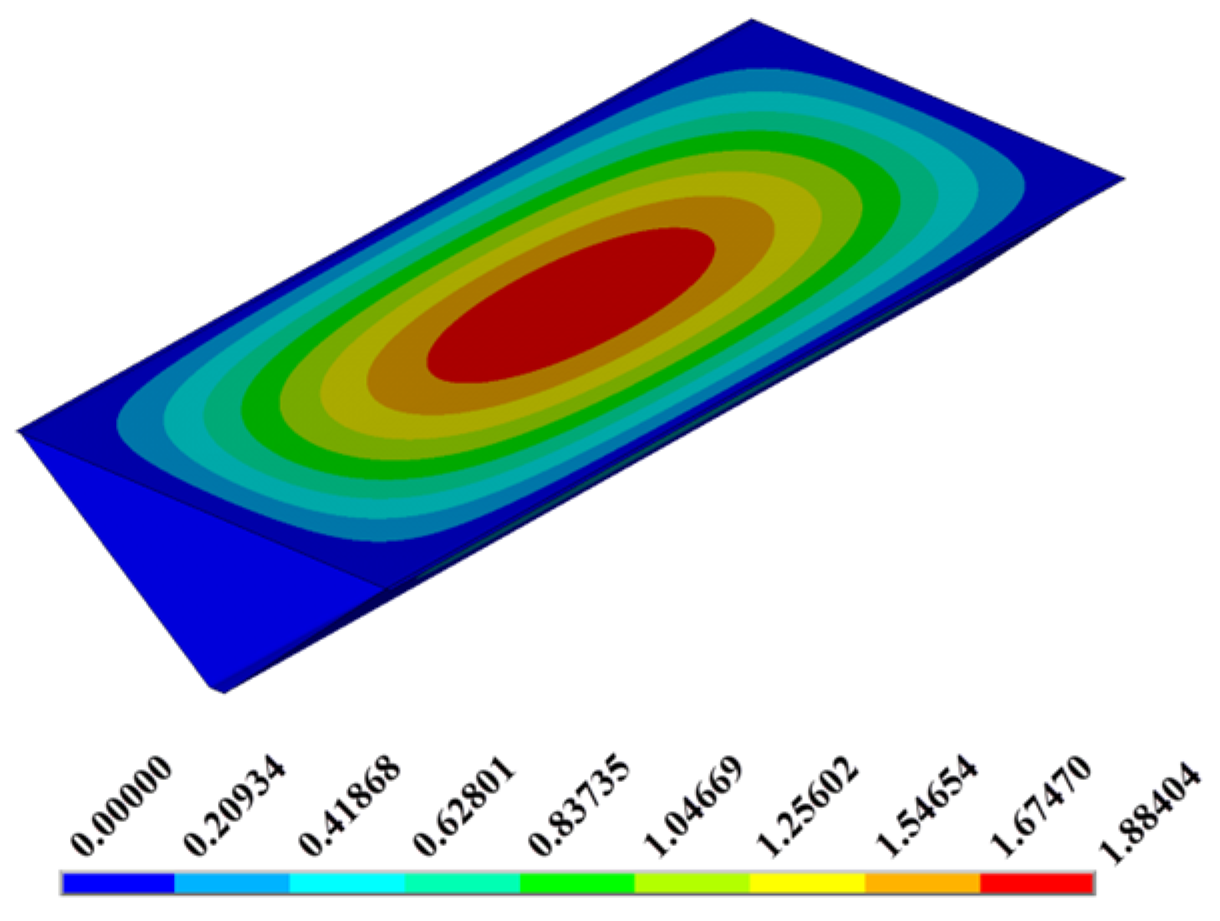

140	4.75	468.4967	393.1154	1.8840	170.08	2.33 × 109
90	6.35	0	452.4409	0.0830	−88.10	2.66 × 109
95	6.35	39.4328	450.7193	0.0739	−89.40	2.77 × 109
100	6.35	78.5655	445.5674	0.0610	−91.25	2.81 × 109
105	6.35	117.1003	437.0244	0.0489	−92.99	2.79 × 109
110	6.35	154.7439	425.1554	0.0537	−92.30	2.70 × 109
115	6.35	191.2098	410.0508	0.0842	−87.93	2.56 × 109
120	6.35	226.2205	391.8254	0.1288	−81.54	2.36 × 109
125	6.35	259.5095	370.6179	0.1900	−72.76	2.12 × 109
130	6.35	290.8234	346.5899	0.2728	−60.89	1.85 × 109
135	6.35	319.9241	319.9241	0.3851	−44.79	1.57 × 109
140	6.35	346.5899	290.8234	0.5409	−22.47	1.28 × 109
145	6.35	370.6179	259.5095	0.7559	8.37	9.95 × 108
90	8	0	355.0000	0.0899	−87.11	1.65 × 109
95	8	30.9403	353.6491	0.0827	−88.14	1.71 × 109
100	8	61.6451	349.6068	0.0733	−89.49	1.74 × 109
105	8	91.8808	342.9037	0.0643	−90.78	1.72 × 109
110	8	121.4172	333.5909	0.0576	−91.74	1.67 × 109
115	8	150.0295	321.7393	0.0699	−89.98	1.58 × 109
120	8	177.5000	307.4390	0.0950	−86.38	1.46 × 109
125	8	203.6196	290.7990	0.1295	−81.43	1.31 × 109
130	8	228.1896	271.9458	0.1750	−74.91	1.14 × 109
135	8	251.0229	251.0229	0.2329	−66.61	9.66 × 108
140	8	271.9458	228.1896	0.3098	−55.59	7.86 × 108
145	8	290.7990	203.6196	0.4076	−41.57	6.11 × 108
150	8	307.4390	177.5000	0.5321	−23.72	4.50 × 108
90	9.53	0	294.7954	0.0978	−85.98	1.14 × 109
95	9.53	25.6931	293.6736	0.0916	−86.87	1.19 × 109
100	9.53	51.1907	290.3168	0.0844	−87.91	1.20 × 109
105	9.53	76.2987	284.7505	0.0777	−88.86	1.19 × 109
110	9.53	100.8260	277.0170	0.0731	−89.52	1.15 × 109
115	9.53	124.5859	267.1754	0.0746	−89.30	1.09 × 109
120	9.53	147.3977	255.3003	0.0924	−86.76	1.01 × 109
125	9.53	169.0877	241.4822	0.1166	−83.29	9.04 × 108
130	9.53	189.4908	225.8264	0.1483	−78.74	7.88 × 108
135	9.53	208.4518	208.4518	0.1893	−72.86	6.65 × 108
140	9.53	225.8264	189.4908	0.2417	−65.35	5.41 × 108
145	9.53	241.4822	169.0877	0.3084	−55.79	4.20 × 108
150	9.53	255.3003	147.3977	0.3929	−43.68	3.09 × 108
90	12.7	0	216.2205	0.1188	−82.98	6.15 × 108
95	12.7	18.8449	215.3977	0.1138	−83.68	6.39 × 108
100	12.7	37.5463	212.9356	0.1096	−84.29	6.48 × 108
105	12.7	55.9620	208.8529	0.1068	−84.69	6.42 × 108
110	12.7	73.9518	203.1808	0.1063	−84.76	6.21 × 108
115	12.7	91.3787	195.9623	0.1090	−84.38	5.86 × 108
120	12.7	108.1102	187.2524	0.1188	−82.97	5.40 × 108
125	12.7	124.0190	177.1174	0.1363	−80.46	4.84 × 108
130	12.7	138.9838	165.6345	0.1589	−77.22	4.21 × 108
135	12.7	152.8910	152.8910	0.1879	−73.07	3.55 × 108
140	12.7	165.6345	138.9838	0.2247	−67.79	2.87 × 108
145	12.7	177.1174	124.0190	0.2713	−61.11	2.22 × 108
150	12.7	187.2524	108.1102	0.3301	−52.68	1.63 × 108

,

Table A2. Plates with two hat-stiffeners.

θs (mm)	ts (mm)	y′ (mm)	hs (mm)	${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$ (mm)	RD (%) ${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$	Ix (mm4)
90	4.75	0	295.7895	0.1347	−80.69	1.22 × 109
95	4.75	25.7798	294.6639	0.1119	−83.96	1.27 × 109
100	4.75	51.3633	291.2958	0.0936	−86.59	1.29 × 109
105	4.75	76.5559	285.7107	0.0827	−88.14	1.28 × 109
110	4.75	101.1660	277.9512	0.0800	−88.53	1.24 × 109
115	4.75	125.0060	268.0763	0.0923	−86.77	1.17 × 109
120	4.75	147.8947	256.1612	0.1065	−84.74	1.08 × 109
125	4.75	169.6579	242.2966	0.1188	−82.96	9.70 × 108
130	4.75	190.1298	226.5879	0.1248	−82.11	8.46 × 108
135	4.75	209.1547	209.1547	0.1224	−82.45	7.14 × 108
140	4.75	226.5879	190.1298	0.1190	−82.94	5.80 × 108
90	6.35	0	216.2205	0.1755	−74.84	6.63 × 108
95	6.35	18.8449	215.3977	0.1525	−78.14	6.88 × 108
100	6.35	37.5463	212.9356	0.1346	−80.70	6.98 × 108
105	6.35	55.9620	208.8529	0.1236	−82.27	6.92 × 108
110	6.35	73.9518	203.1808	0.1174	−83.17	6.69 × 108
115	6.35	91.3787	195.9623	0.1147	−83.56	6.32 × 108
120	6.35	108.1102	187.2524	0.1210	−82.66	5.82 × 108
125	6.35	124.0190	177.1174	0.1308	−81.25	5.22 × 108
130	6.35	138.9838	165.6345	0.1407	−79.83	4.55 × 108
135	6.35	152.8910	152.8910	0.1500	−78.50	3.83 × 108
140	6.35	165.6345	138.9838	0.1589	−77.22	3.11 × 108
145	6.35	177.1174	124.0190	0.1691	−75.75	2.41 × 108
150	6.35	187.2524	108.1102	0.1846	−73.54	1.76 × 108
90	8	0	167.5000	0.2222	−68.15	4.02 × 108
95	8	14.5986	166.8626	0.2000	−71.34	4.17 × 108
100	8	29.0861	164.9553	0.1821	−73.90	4.23 × 108
105	8	43.3522	161.7926	0.1707	−75.53	4.19 × 108
110	8	57.2884	157.3985	0.1639	−76.51	4.05 × 108
115	8	70.7886	151.8066	0.1606	−76.97	3.82 × 108
120	8	83.7500	145.0593	0.1602	−77.03	3.51 × 108
125	8	96.0741	137.2080	0.1623	−76.73	3.15 × 108
130	8	107.6669	128.3124	0.1669	−76.08	2.73 × 108
135	8	118.4404	118.4404	0.1743	−75.01	2.30 × 108
140	8	128.3124	107.6669	0.1859	−73.36	1.86 × 108
145	8	137.2080	96.0741	0.2029	−70.91	1.44 × 108
150	8	145.0593	83.7500	0.2294	−67.12	1.05 × 108
90	9.53	0	137.3977	0.2688	−61.46	2.72 × 108
95	9.53	11.9750	136.8749	0.2469	−64.61	2.82 × 108
100	9.53	23.8589	135.3103	0.2288	−67.20	2.86 × 108
105	9.53	35.5611	132.7160	0.2168	−68.92	2.83 × 108
110	9.53	46.9928	129.1116	0.2096	−69.96	2.73 × 108
115	9.53	58.0668	124.5246	0.2060	−70.47	2.57 × 108
120	9.53	68.6988	118.9899	0.2055	−70.54	2.37 × 108
125	9.53	78.8081	112.5496	0.2080	−70.19	2.12 × 108
130	9.53	88.3175	105.2527	0.2134	−69.40	1.84 × 108
135	9.53	97.1548	97.1548	0.2225	−68.10	1.54 × 108
140	9.53	105.2527	88.3175	0.2365	−66.09	1.24 × 108
145	9.53	112.5496	78.8081	0.2574	−63.10	9.55 × 107
150	9.53	118.9899	68.6988	0.2885	−58.65	6.92 × 107
85	12.7	−8.5509	97.7369	0.3937	−43.56	1.31 × 108
90	12.7	0	98.1102	0.3681	−47.23	1.39 × 108
95	12.7	8.5509	97.7369	0.3459	−50.42	1.44 × 108
100	12.7	17.0367	96.6197	0.3277	−53.02	1.46 × 108
105	12.7	25.3928	94.7672	0.3147	−54.89	1.44 × 108
110	12.7	33.5557	92.1935	0.3065	−56.07	1.39 × 108
115	12.7	41.4632	88.9181	0.3025	−56.63	1.30 × 108
120	12.7	49.0551	84.9660	0.3023	−56.66	1.19 × 108
125	12.7	56.2737	80.3672	0.3060	−56.13	1.06 × 108
130	12.7	63.0640	75.1568	0.3141	−54.98	9.20 × 107
135	12.7	69.3744	69.3744	0.3271	−53.11	7.67 × 107
140	12.7	75.1568	63.0640	0.3466	−50.31	6.14 × 107
145	12.7	80.3672	56.2737	0.3746	−46.30	4.68 × 107
150	12.7	84.9660	49.0551	0.4143	−40.61	3.35 × 107

,

Table A3. Plates with three hat-stiffeners.

θs (mm)	ts (mm)	y′ (mm)	hs (mm)	${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$ (mm)	RD (%) ${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$	Ix (mm4)
90	4.75	0	190.5263	0.1616	−76.83	5.50 × 108
95	4.75	16.6055	189.8013	0.1517	−78.26	5.72 × 108
100	4.75	33.0845	187.6318	0.1423	−79.60	5.80 × 108
105	4.75	49.3118	184.0343	0.1355	−80.58	5.75 × 108
110	4.75	65.1638	179.0362	0.1303	−81.33	5.56 × 108
115	4.75	80.5199	172.6755	0.1259	−81.96	5.26 × 108
120	4.75	95.2632	165.0006	0.1219	−82.53	4.84 × 108
125	4.75	109.2814	156.0700	0.1183	−83.04	4.34 × 108
130	4.75	122.4680	145.9516	0.1163	−83.32	3.78 × 108
135	4.75	134.7224	134.7224	0.1183	−83.05	3.18 × 108
85	6.35	−11.9822	136.9572	0.2568	−63.19	2.76 × 108
90	6.35	0	137.4803	0.2461	−64.72	2.93 × 108
95	6.35	11.9822	136.9572	0.2295	−67.10	3.04 × 108
100	6.35	23.8732	135.3917	0.2135	−69.39	3.08 × 108
105	6.35	35.5825	132.7958	0.2015	−71.11	3.05 × 108
110	6.35	47.0210	129.1892	0.1928	−72.36	2.95 × 108
115	6.35	58.1017	124.5995	0.1867	−73.24	2.78 × 108
120	6.35	68.7402	119.0614	0.1828	−73.79	2.56 × 108
125	6.35	78.8555	112.6173	0.1815	−73.98	2.29 × 108
130	6.35	88.3706	105.3160	0.1833	−73.72	1.99 × 108
135	6.35	97.2133	97.2133	0.1893	−72.87	1.67 × 108
140	6.35	105.3160	88.3706	0.2009	−71.20	1.35 × 108
145	6.35	112.6173	78.8555	0.2209	−68.34	1.04 × 108
150	6.35	119.0614	68.7402	0.2530	−63.73	7.53 × 107
85	8	−9.1514	104.6004	0.3493	−49.93	1.64 × 108
90	8	0	105.0000	0.3306	−52.60	1.74 × 108
95	8	9.1514	104.6004	0.3090	−55.70	1.80 × 108
100	8	18.2331	103.4048	0.2884	−58.66	1.83 × 108
105	8	27.1760	101.4222	0.2724	−60.95	1.80 × 108
110	8	35.9121	98.6677	0.2608	−62.62	1.74 × 108
115	8	44.3749	95.1623	0.2529	−63.75	1.64 × 108
120	8	52.5000	90.9327	0.2487	−64.35	1.50 × 108
125	8	60.2255	86.0110	0.2483	−64.41	1.34 × 108
130	8	67.4927	80.4347	0.2521	−63.86	1.16 × 108
135	8	74.2462	74.2462	0.2613	−62.54	9.73 × 107
140	8	80.4347	67.4927	0.2772	−60.26	7.82 × 107
145	8	86.0110	60.2255	0.3022	−56.68	5.99 × 107
150	8	90.9327	52.5000	0.3394	−51.35	4.32 × 107
85	9.53	−7.4023	84.6086	0.4281	−38.63	1.09 × 108
90	9.53	0	84.9318	0.4031	−42.21	1.15 × 108
95	9.53	7.4023	84.6086	0.3781	−45.80	1.19 × 108
100	9.53	14.7483	83.6415	0.3552	−49.08	1.21 × 108
105	9.53	21.9820	82.0378	0.3369	−51.71	1.19 × 108
110	9.53	29.0484	79.8098	0.3235	−53.63	1.15 × 108
115	9.53	35.8937	76.9743	0.3146	−54.89	1.08 × 108
120	9.53	42.4659	73.5531	0.3102	−55.53	9.87 × 107
125	9.53	48.7149	69.5721	0.3104	−55.50	8.79 × 107
130	9.53	54.5931	65.0615	0.3157	−54.75	7.59 × 107
135	9.53	60.0558	60.0558	0.3270	−53.12	6.33 × 107
140	9.53	65.0615	54.5931	0.3457	−50.45	5.06 × 107
145	9.53	69.5721	48.7149	0.3737	−46.43	3.85 × 107
150	9.53	73.5531	42.4659	0.4138	−40.68	2.76 × 107
80	12.7	−10.2001	57.8478	0.6005	−13.91	4.84 × 107
85	12.7	−5.1195	58.5166	0.5636	−19.21	5.26 × 107
90	12.7	0	58.7402	0.5319	−23.75	5.56 × 107
95	12.7	5.1195	58.5166	0.5041	−27.74	5.74 × 107
100	12.7	10.2001	57.8478	0.4803	−31.15	5.79 × 107
105	12.7	15.2031	56.7386	0.4613	−33.87	5.70 × 107
110	12.7	20.0903	55.1977	0.4474	−35.86	5.47 × 107
115	12.7	24.8247	53.2367	0.4389	−37.09	5.13 × 107
120	12.7	29.3701	50.8705	0.4356	−37.56	4.67 × 107
125	12.7	33.6920	48.1171	0.4379	−37.23	4.14 × 107
130	12.7	37.7574	44.9976	0.4463	−36.03	3.55 × 107
135	12.7	41.5356	41.5356	0.4613	−33.87	2.93 × 107
140	12.7	44.9976	37.7574	0.4842	−30.59	2.32 × 107
145	12.7	48.1171	33.6920	0.5164	−25.98	1.74 × 107
150	12.7	50.8705	29.3701	0.5594	−19.81	1.22 × 107

,

Table A4. Plates with four hat-stiffeners.

θs (mm)	ts (mm)	y′ (mm)	hs (mm)	${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$ (mm)	RD (%) ${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$	Ix (mm4)
90	4.75	0	137.8947	0.2501	−64.15	3.08 × 108
95	4.75	12.0183	137.3700	0.2294	−67.11	3.20 × 108
100	4.75	23.9452	135.7998	0.2079	−70.20	3.25 × 108
105	4.75	35.6898	133.1961	0.1902	−72.73	3.22 × 108
110	4.75	47.1628	129.5787	0.1761	−74.75	3.11 × 108
115	4.75	58.2768	124.9751	0.1653	−76.31	2.94 × 108
120	4.75	68.9474	119.4203	0.1577	−77.39	2.70 × 108
125	4.75	79.0932	112.9568	0.1539	−77.94	2.42 × 108
130	4.75	88.6370	105.6335	0.1548	−77.81	2.10 × 108
135	4.75	97.5063	97.5063	0.1619	−76.79	1.76 × 108
85	6.35	−8.5509	97.7369	0.3779	−45.83	1.52 × 108
90	6.35	0	98.1102	0.3564	−48.91	1.61 × 108
95	6.35	8.5509	97.7369	0.3280	−52.98	1.67 × 108
100	6.35	17.0367	96.6197	0.3002	−56.97	1.69 × 108
105	6.35	25.3928	94.7672	0.2779	−60.16	1.67 × 108
110	6.35	33.5557	92.1935	0.2610	−62.58	1.61 × 108
115	6.35	41.4632	88.9181	0.2492	−64.28	1.52 × 108
120	6.35	49.0551	84.9660	0.2422	−65.28	1.40 × 108
125	6.35	56.2737	80.3672	0.2402	−65.57	1.25 × 108
130	6.35	63.0640	75.1568	0.2437	−65.07	1.08 × 108
135	6.35	69.3744	69.3744	0.2537	−63.63	9.02 × 107
140	6.35	75.1568	63.0640	0.2717	−61.05	7.25 × 107
145	6.35	80.3672	56.2737	0.3001	−56.97	5.55 × 107
150	6.35	84.9660	49.0551	0.3425	−50.90	4.00 × 107
80	8	−12.8066	72.6296	0.5194	−25.55	8.15 × 107
85	8	−6.4277	73.4694	0.4834	−30.70	8.85 × 107
90	8	0	73.7500	0.4524	−35.14	9.38 × 107
95	8	6.4277	73.4694	0.4206	−39.70	9.70 × 107
100	8	12.8066	72.6296	0.3912	−43.92	9.79 × 107
105	8	19.0879	71.2370	0.3673	−47.35	9.66 × 107
110	8	25.2240	69.3023	0.3496	−49.88	9.30 × 107
115	8	31.1681	66.8402	0.3378	−51.58	8.74 × 107
120	8	36.8750	63.8694	0.3318	−52.43	8.00 × 107
125	8	42.3013	60.4125	0.3317	−52.45	7.12 × 107
130	8	47.4056	56.4958	0.3381	−51.54	6.14 × 107
135	8	52.1491	52.1491	0.3515	−49.60	5.11 × 107
140	8	56.4958	47.4056	0.3736	−46.44	4.08 × 107
145	8	60.4125	42.3013	0.4062	−41.77	3.10 × 107
150	8	63.8694	36.8750	0.4515	−35.27	2.21 × 107
80	9.53	−10.1929	57.8071	0.6060	−13.13	5.28 × 107
85	9.53	−5.1159	58.4755	0.5657	−18.91	5.73 × 107
90	9.53	0	58.6988	0.5305	−23.96	6.06 × 107
95	9.53	5.1159	58.4755	0.4979	−28.63	6.25 × 107
100	9.53	10.1929	57.8071	0.4692	−32.74	6.30 × 107
105	9.53	15.1924	56.6987	0.4459	−36.07	6.21 × 107
110	9.53	20.0762	55.1589	0.4289	−38.52	5.96 × 107
115	9.53	24.8072	53.1992	0.4181	−40.07	5.59 × 107
120	9.53	29.3494	50.8347	0.4133	−40.76	5.10 × 107
125	9.53	33.6683	48.0833	0.4149	−40.52	4.53 × 107
130	9.53	37.7309	44.9659	0.4233	−39.33	3.89 × 107
135	9.53	41.5064	41.5064	0.4389	−37.08	3.22 × 107
140	9.53	44.9659	37.7309	0.4632	−33.61	2.56 × 107
145	9.53	48.0833	33.6683	0.4973	−28.70	1.93 × 107
150	9.53	50.8347	29.3494	0.5430	−22.15	1.36 × 107
75	12.7	−10.1082	37.7243	0.7834	12.30	2.17 × 107
80	12.7	−6.7819	38.4618	0.7377	5.75	2.41 × 107
85	12.7	−3.4039	38.9065	0.6982	0.09	2.61 × 107
90	12.7	0	39.0551	0.6643	−4.78	2.75 × 107
95	12.7	3.4039	38.9065	0.6350	−8.97	2.83 × 107
100	12.7	6.7819	38.4618	0.6109	−12.42	2.84 × 107
105	12.7	10.1082	37.7243	0.5923	−15.09	2.79 × 107
110	12.7	13.3576	36.6998	0.5792	−16.98	2.67 × 107
115	12.7	16.5054	35.3960	0.5717	−18.04	2.48 × 107
120	12.7	19.5276	33.8227	0.5704	−18.24	2.25 × 107
125	12.7	22.4011	31.9921	0.5753	−17.53	1.98 × 107
130	12.7	25.1041	29.9180	0.5866	−15.91	1.69 × 107
135	12.7	27.6161	27.6161	0.6047	−13.32	1.38 × 107
140	12.7	29.9180	25.1041	0.6304	−9.63	1.08 × 107
145	12.7	31.9921	22.4011	0.6642	−4.78	8.01 × 106
150	12.7	33.8227	19.5276	0.7070	1.35	5.53 × 106

and

Table A5. Plates with five hat-stiffeners.

θs (mm)	ts (mm)	y′ (mm)	hs (mm)	${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$ (mm)	RD (%) ${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$	Ix (mm4)
85	4.75	−9.2660	105.9112	0.350849	−49.70	1.83 × 108
90	4.75	0	106.3158	0.335148	−51.96	1.95 × 108
95	4.75	9.2660	105.9112	0.3055	−56.20	2.02 × 108
100	4.75	18.4615	104.7006	0.2755	−60.51	2.05 × 108
105	4.75	27.5166	102.6932	0.2513	−63.98	2.02 × 108
110	4.75	36.3621	99.9042	0.2327	−66.65	1.96 × 108
115	4.75	44.9310	96.3548	0.2191	−68.59	1.84 × 108
120	4.75	53.1579	92.0722	0.2106	−69.81	1.69 × 108
125	4.75	60.9802	87.0888	0.2074	−70.27	1.51 × 108
130	4.75	68.3385	81.4426	0.2101	−69.88	1.31 × 108
135	4.75	75.1766	75.1766	0.2204	−68.41	1.10 × 108
80	6.35	−12.9347	73.3565	0.5189	−25.61	8.68 × 107
85	6.35	−6.4921	74.2047	0.4838	−30.64	9.44 × 107
90	6.35	0	74.4882	0.4529	−35.08	1.00 × 108
95	6.35	6.4921	74.2047	0.4176	−40.13	1.03 × 108
100	6.35	12.9347	73.3565	0.3842	−44.92	1.05 × 108
105	6.35	19.2790	71.9501	0.3572	−48.80	1.03 × 108
110	6.35	25.4765	69.9960	0.3371	−51.67	9.94 × 107
115	6.35	31.4801	67.5092	0.3235	−53.63	9.34 × 107
120	6.35	37.2441	64.5087	0.3161	−54.68	8.56 × 107
125	6.35	42.7247	61.0172	0.3150	−54.84	7.62 × 107
130	6.35	47.8801	57.0613	0.3207	−54.02	6.58 × 107
135	6.35	52.6711	52.6711	0.3340	−52.12	5.48 × 107
140	6.35	57.0613	47.8801	0.3563	−48.93	4.39 × 107
145	6.35	61.0172	42.7247	0.3896	−44.14	3.34 × 107
150	6.35	64.5087	37.2441	0.4368	−37.38	2.39 × 107
80	8	−9.5506	54.1644	0.6345	−9.04	4.95 × 107
85	8	−4.7936	54.7907	0.5919	−15.15	5.36 × 107
90	8	0	55.0000	0.5539	−20.59	5.67 × 107
95	8	4.7936	54.7907	0.5179	−25.75	5.85 × 107
100	8	9.5506	54.1644	0.4859	−30.35	5.90 × 107
105	8	14.2350	53.1259	0.4599	−34.07	5.80 × 107
110	8	18.8111	51.6831	0.4406	−36.84	5.58 × 107
115	8	23.2440	49.8469	0.4282	−38.62	5.23 × 107
120	8	27.5000	47.6314	0.4223	−39.47	4.77 × 107
125	8	31.5467	45.0534	0.4230	−39.35	4.23 × 107
130	8	35.3533	42.1324	0.4310	−38.22	3.63 × 107
135	8	38.8909	38.8909	0.4465	−35.99	3.01 × 107
140	8	42.1324	35.3533	0.4706	−32.53	2.39 × 107
145	8	45.0534	31.5467	0.5046	−27.67	1.80 × 107
150	8	47.6314	27.5000	0.5498	−21.18	1.28 × 107
75	9.53	−11.1186	41.4953	0.7668	9.92	2.82 × 107
80	9.53	−7.4598	42.3064	0.7161	2.66	3.13 × 107
85	9.53	−3.7441	42.7956	0.6721	−3.65	3.38 × 107
90	9.53	0	42.9591	0.6335	−9.19	3.57 × 107
95	9.53	3.7441	42.7956	0.5992	−14.11	3.67 × 107
100	9.53	7.4598	42.3064	0.5698	−18.32	3.69 × 107
105	9.53	11.1186	41.4953	0.5463	−21.69	3.63 × 107
110	9.53	14.6929	40.3683	0.5290	−24.16	3.47 × 107
115	9.53	18.1553	38.9341	0.5181	−25.72	3.25 × 107
120	9.53	21.4795	37.2037	0.5137	−26.36	2.95 × 107
125	9.53	24.6403	35.1900	0.5159	−26.05	2.61 × 107
130	9.53	27.6136	32.9086	0.5248	−24.77	2.23 × 107
135	9.53	30.3767	30.3767	0.5408	−22.47	1.84 × 107
140	9.53	32.9086	27.6136	0.5647	−19.05	1.45 × 107
145	9.53	35.1900	24.6403	0.5971	−14.40	1.08 × 107
150	9.53	37.2037	21.4795	0.6387	−8.44	7.55 × 106
75	12.7	−7.0513	26.3158	0.8760	25.57	1.21 × 107
80	12.7	−4.7309	26.8302	0.8340	19.56	1.34 × 107
85	12.7	−2.3745	27.1404	0.7973	14.30	1.44 × 107
90	12.7	0	27.2441	0.7656	9.76	1.51 × 107
95	12.7	2.3745	27.1404	0.7388	5.90	1.55 × 107
100	12.7	4.7309	26.8302	0.7167	2.75	1.55 × 107
105	12.7	7.0513	26.3158	0.6998	0.31	1.52 × 107
110	12.7	9.3180	25.6011	0.6879	−1.38	1.45 × 107
115	12.7	11.5139	24.6915	0.6814	−2.32	1.34 × 107
120	12.7	13.6220	23.5941	0.6802	−2.50	1.21 × 107
125	12.7	15.6266	22.3171	0.6844	−1.88	1.06 × 107
130	12.7	17.5122	20.8702	0.6943	−0.47	8.93 × 106
135	12.7	19.2645	19.2645	0.7099	1.77	7.25 × 106
140	12.7	20.8702	17.5122	0.7315	4.86	5.62 × 106
145	12.7	22.3171	15.6266	0.7592	8.83	4.12 × 106
150	12.7	23.5941	13.6220	0.7930	13.68	2.83 × 106

, organized by case. As can be observed in Appendix A, in some cases, certain geometric configurations had to be discarded due to physical interference between the stiffeners.

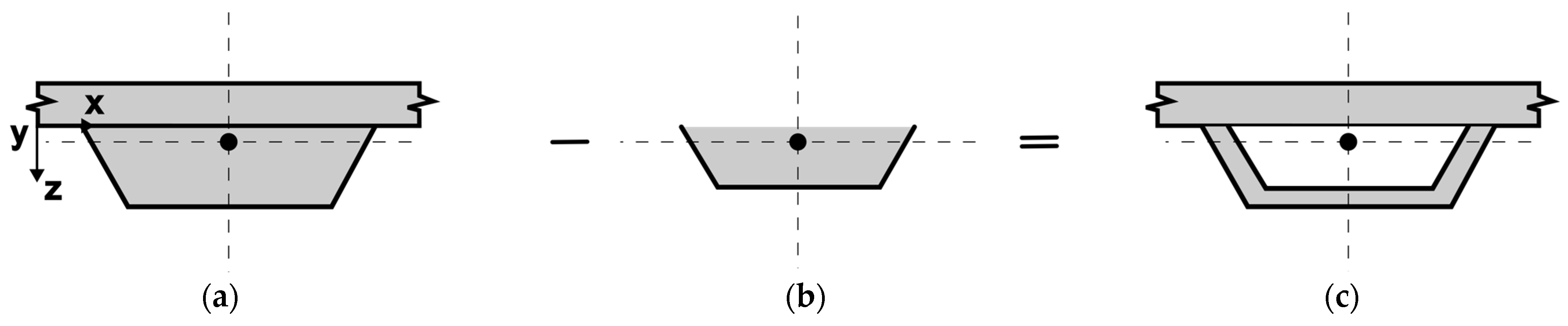

The moment of inertia of the geometries was determined as follows. Initially, the geometric centroid was obtained. Subsequently, the moment of inertia with respect to this centroid was evaluated for the external contour of the geometry, neglecting the hollow (void) region, as illustrated in Figure 5a. Thereafter, the moment of inertia associated with the centroid of the hollow region, depicted in Figure 5b, was computed and subtracted from the previously obtained value. In this manner, the effective moment of inertia of the adopted geometry was established, as shown in Figure 5c.

In summary, computational modeling was conducted in ANSYS APDL using the SHELL281 finite element, under linear elastic and static conditions. The non-stiffened reference plate (2000 mm × 1000 mm × 20 mm) and the hat-stiffened plates (2000 mm × 1000 mm × 14 mm) were considered as simply supported on all edges and subjected to a uniformly distributed pressure of 10 kPa. The material adopted corresponds to ASTM A36 steel, with a Young’s modulus of 200 GPa and Poisson’s ratio of 0.3. A structured quadrilateral mesh was used, and a mesh convergence analysis defined an element size of 10 mm, ensuring the independence of the numerical results from the spatial discretization. In total, 336 geometric configurations for hat-stiffened plates were simulated, combining variations in the number of longitudinal stiffeners (1 to 5), in the stiffener thickness (4.75 mm, 6.35 mm, 8.00 mm, 9.53 mm, and 12.7 mm), and in the side-wall inclination angle (75°, 90°, 105°, 120°, 135°, and 150°), maintaining a constant total volume equivalent to 30% of the reference plate redistributed into the stiffeners. The maximum displacement was numerically defined for each configuration, supporting the Constructal Design and Exhaustive Search procedures applied in this study.

3. Results

3.1. Results of Validation and Verification of Computational Model

The validation and verification procedures presented herein aim to ensure the accuracy of the proposed computational model and have been previously employed in [22,23].

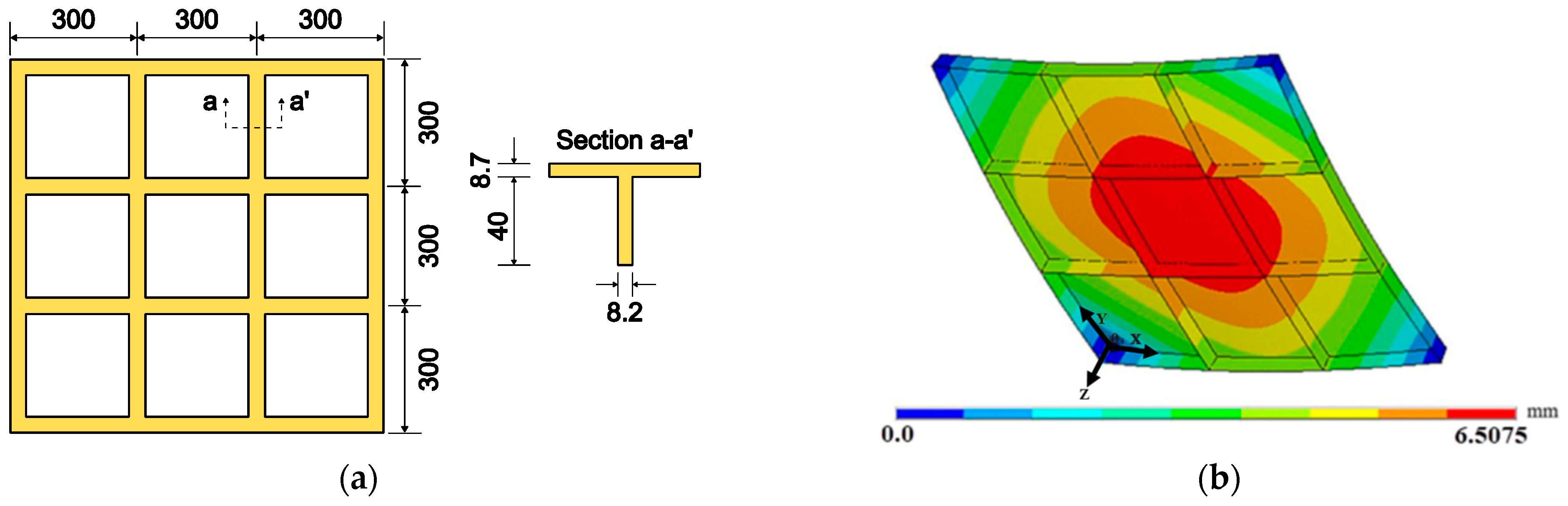

Starting with model validation, a numerical simulation was developed based on an experimental study conducted by Carrijo et al. [64]. This study aimed to evaluate the maximum central deflection of a plate with I-stiffeners, illustrated in Figure 6a. A uniformly distributed load of 0.96 kPa was applied to the stiffened plate, with simple supports applied at its four corners. The mechanical properties of the material used are as follows: E = 2.5 GPa and ν = 0.36. In the simulation, a regular converged mesh was adopted, consisting of square SHELL281 finite elements with an edge length of 2.436 mm. Figure 6b presents the distribution of out-of-plane displacements obtained from the numerical model. The experimental results obtained by Carrijo et al. [64] indicated a central deflection of U_z = 6.2200 mm. The numerical model predicted a central deflection of U_z = 6.5075 mm.

Subsequently, two computational model verifications were performed considering simply supported stiffened metallic plates. In the first case, the plate with two hat-stiffeners, modeled by Tharian and Nandakumar [32], which used the SHELL63 and SHELL93 finite elements, was reproduced using the SHELL281 finite element. The results, in terms of the maximum deflections, were compared. The geometric characteristics of the plate can be seen in Figure 7. The material used was steel, with properties E = 210 GPa and ν = 0.3. The loading consisted of a uniformly distributed load of 10 kPa.

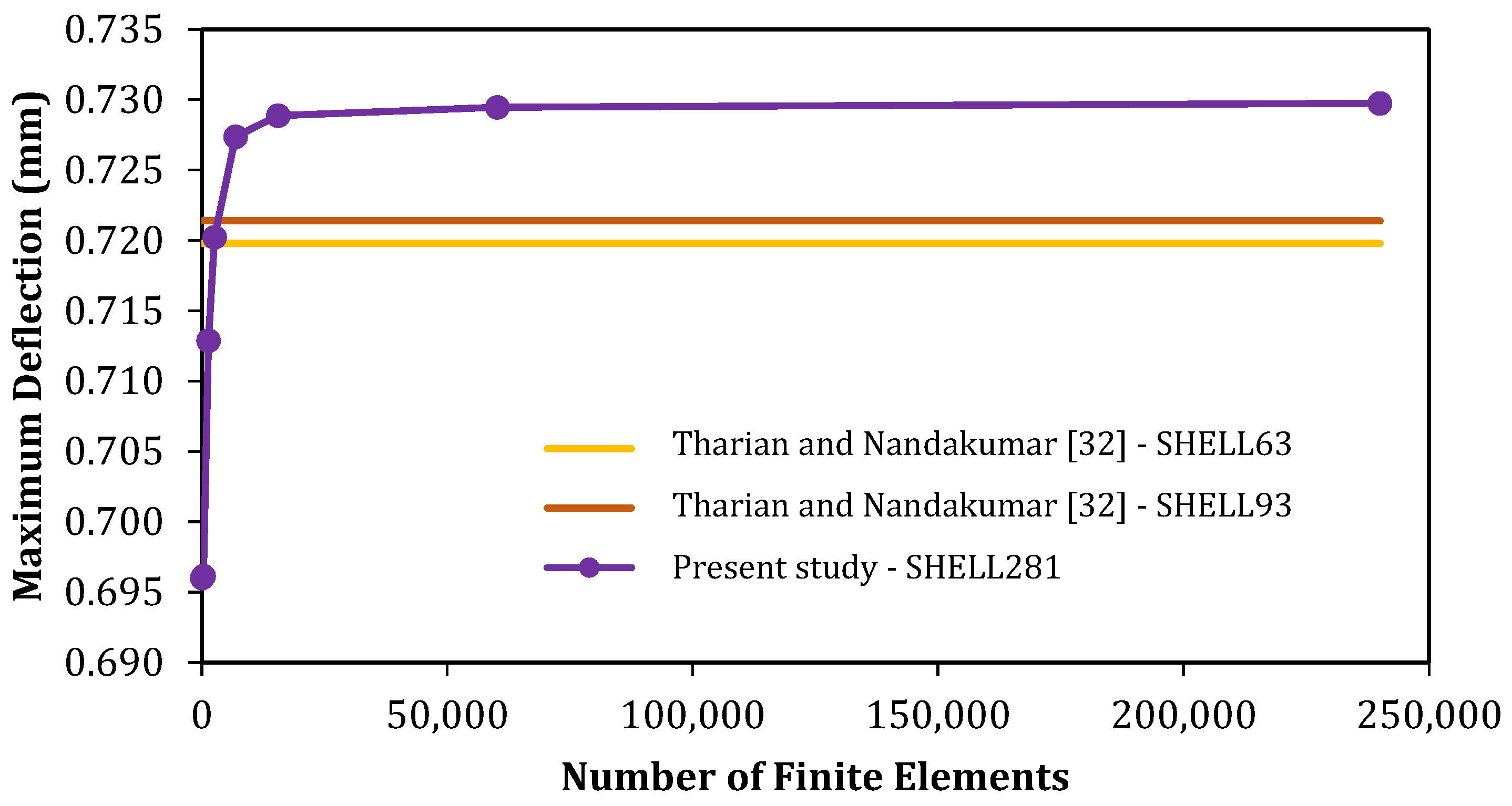

The performed mesh convergence test together with the results from Tharian and Nandakumar [32] are presented in Figure 8. The maximum displacements reported by Tharian and Nandakumar [32] were 0.7198 mm with the SHELL63 element and 0.7214 mm with the SHELL93 element, whereas the proposed model using square SHELL281 elements of 10 mm in a converged mesh yielded 0.7295 mm.

The second verification considered a plate with a hat-stiffener centered along the longer dimension of the simply supported plate, as shown in Figure 9. Pal et al. [33] analyzed this plate and evaluated 25 hat-stiffener configurations; the simulations were conducted using SHELL181 finite elements for the plate and BEAM3 finite elements for the stiffeners. It is noteworthy that Pal et al. [33] maintained the stiffener volume constant (320,000 mm³) while generating the 25 configurations, with the dimensions presented in

Table 1. The dimensions (in mm, see Figure 9) of the hat-stiffener for the second verification.

Case	Thickness (T)	Shorter Base (A)	Longer Base (B)	Height (H)	Length (L)
1	2	35	60	65	955.90
2	3	35	60	65	637.26
3	4	35	60	65	477.95
4	5	35	60	65	382.36
5	6	35	60	65	318.63
6	2	40	60	65	932.78
7	3	40	60	65	621.86
8	4	40	60	65	466.39
9	5	40	60	65	373.11
10	6	40	60	65	310.93
11	2	40	65	70	878.09
12	3	40	65	70	585.39
13	4	40	65	70	439.04
14	5	40	65	70	351.23
15	6	40	65	70	292.70
16	2	40	60	70	881.92
17	3	40	60	70	587.95
18	4	40	60	70	440.96
19	5	40	60	70	352.77
20	6	40	60	70	293.97
21	2	35	65	65	950.02
22	3	35	65	65	633.35
23	4	35	65	65	475.01
24	5	35	65	65	380.01
25	6	35	65	65	316.67

. The material used for both the plate and the stiffener was steel, with properties E = 200 GPa and ν = 0.3. The plate was subjected to a uniformly distributed load of 1 kPa. Mesh convergence tests were performed considering Case 1 from Table 1, defining a mesh composed of square SHELL281 finite elements with a size of 10 mm for all 25 cases.

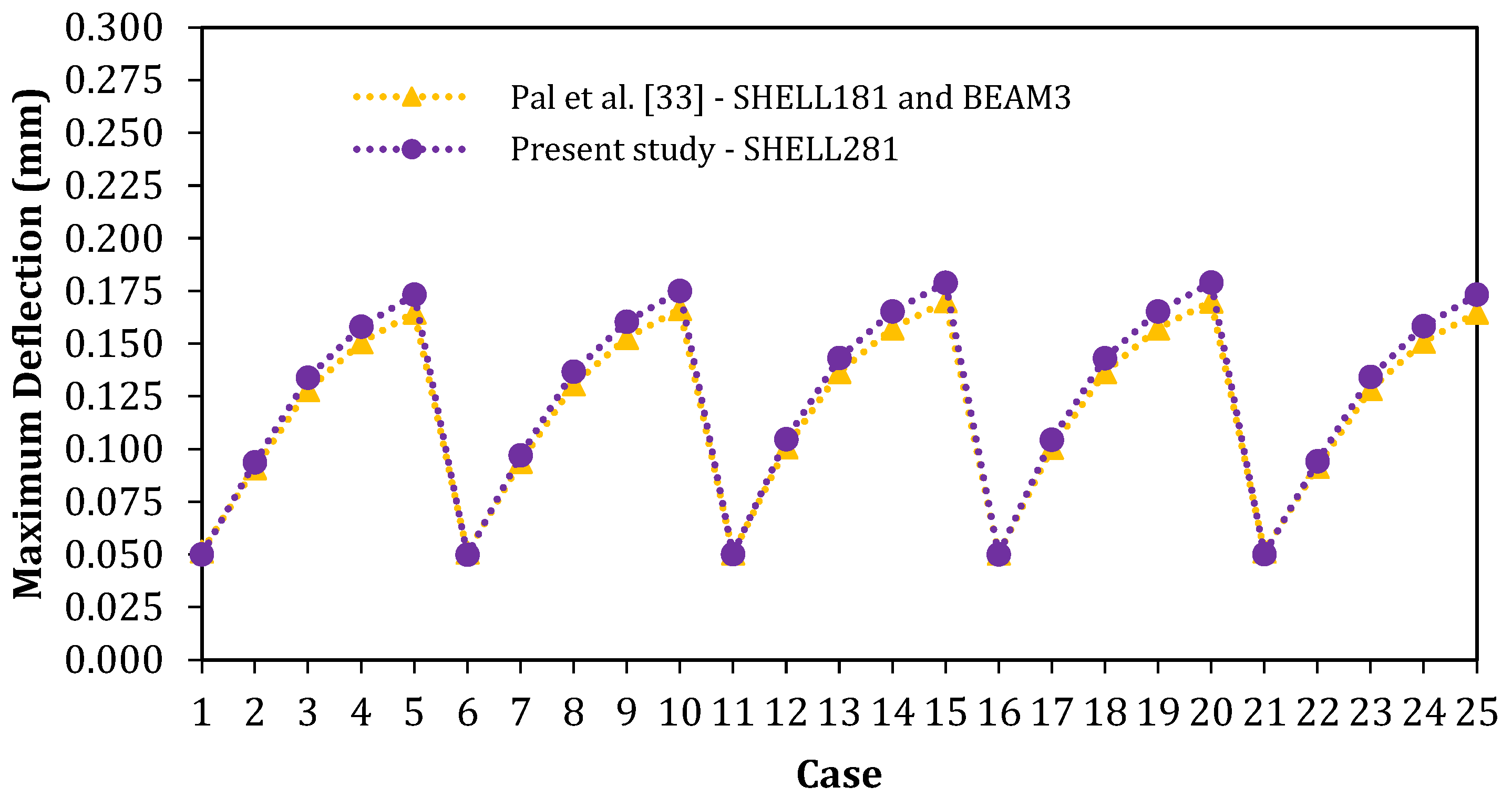

The results obtained by Pal et al. [33] and by the proposed numerical model are presented in Figure 10.

3.2. Results of Case Study

As previously explained, all geometric configurations of the longitudinal hat-stiffeners were derived from a reference plate without stiffeners while maintaining three conditions: (i) the total volume of the plates with stiffeners is the same as that of the reference plate without stiffeners, transforming 30% of the reference plate volume into hat-stiffeners but keeping the plate’s width and length unchanged; (ii) the angle of the hat-stiffeners’ side-walls varied between 75° and 150° in 5° increments, with stiffener thicknesses of 4.75 mm, 6.35 mm, 8.00 mm, 9.53 mm, and 12.7 mm; and (iii) the width of the stiffener’s smaller base must be fixed at b_t = 40 mm. Based on these conditions, the use of the Constructal Design method enabled the generation of geometric configurations of plates with one to five longitudinal hat-stiffeners, considering five different hat-stiffener thicknesses.

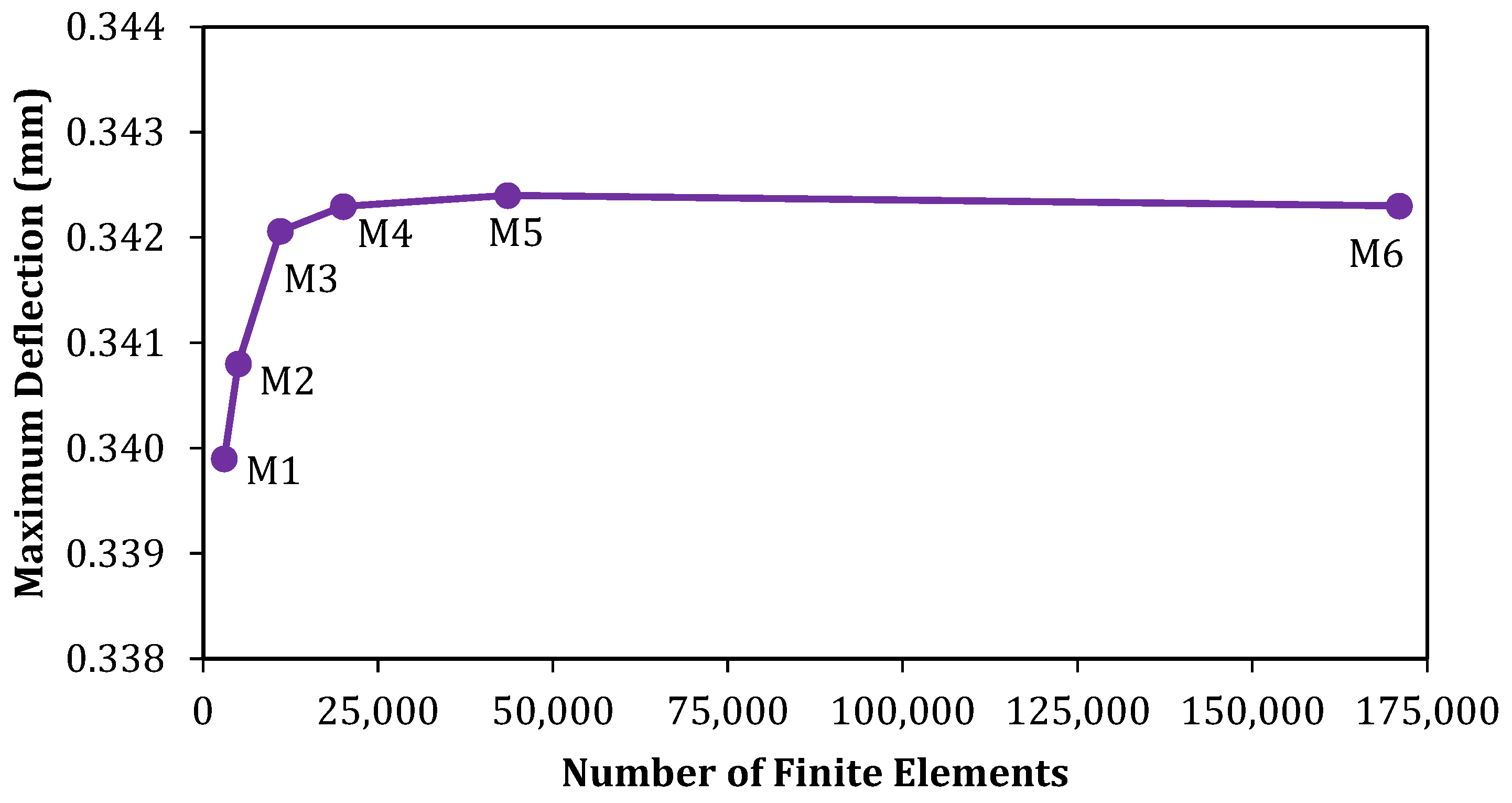

To determine the appropriate spatial discretization for all simulated hat-stiffened plates, a mesh convergence test was performed on the plate with the most complex geometry, i.e., the one with five hat-stiffeners. As in Alves et al. [22,26], SHELL281 finite elements with a square shape were used, with side lengths varying from 5 mm to 40 mm (M1 = 40 mm; M2 = 30 mm; M3 = 20 mm; M4 = 15 mm; M5 = 10 mm; and M6 = 5 mm). The results are shown in Figure 11, where it can be observed that the maximum plate deflection stabilizes starting from mesh M4. However, to avoid mesh dependency, mesh M5 with 10 mm elements was adopted for all numerical simulations.

The main purpose of employing the Constructal Design method by testing the angular variation in the stiffener walls is to enhance structural efficiency. In this study, efficiency is evaluated through the direct comparison of the maximum deflections obtained. Additionally, some results will be compared with the best outcomes reported by Alves et al. [22], who analyzed similar plates; however, in their study, the stiffener wall inclination angle was fixed at 120°, while the stiffener height was varied.

The numerical results obtained in terms of the maximum deflection of the hat-stiffened plates were recorded and are presented in Figure 12, Figure 13, Figure 14, Figure 15 and Figure 16 for plates with one to five longitudinal hat-stiffeners, respectively. Additionally, the maximum deflection of the reference plate (without stiffeners), U_z = 0.6976 mm, is also plotted in these figures.

For a general comparison,

Table 2. Best and worst results for each number of hat-stiffeners.

Number of Hat-Stiffeners	θs (°)	ts (mm)	hs (mm)	${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$ (mm)	RD (%) ${\mathit{U}}_{\mathit{z}}^{\mathit{m}\mathit{a}\mathit{x}}$	Ix (mm4)
1	105	4.75	590.7399	0.0438	−93.72	5.06 × 109
	140	4.75	393.1154	1.8840	170.08	2.33 × 109
2	110	4.75	277.9512	0.0800	−88.53	1.24 × 109
	150	12.7	49.0551	0.4143	−40.61	3.35 × 107
3	130	4.75	145.9516	0.1163	−83.32	3.78 × 108
	80	12.7	57.8478	0.6005	−13.91	4.84 × 107
4	125	4.75	112.9568	0.1539	−77.94	2.42 × 108
	75	12.7	37.7243	0.7834	12.30	2.17 × 107
5	125	4.75	87.0888	0.2074	−70.27	1.51 × 108
	75	12.7	26.3158	0.8760	25.57	1.21 × 107

presents the best and worst results obtained for each number of hat-stiffeners, including the geometric properties, the relative difference in the maximum deflection obtained in the stiffened plate simulation compared to the reference plate, and the moment of inertia of the structure with respect to the x-axis (see Figure 5).

4. Discussion

4.1. Discussion of Validation and Verification of Computational Model

The distribution of out-of-plane displacements obtained from the proposed numerical model (see Figure 6b) and the experimental results reported by Carrijo et al. [64] show a relative error of 4.58% between the numerical and experimental data, considering the central (maximum) deflection. It is important to note that, although there are some differences between this plate and the plate studied in the present work (dimensions, boundary conditions, material, and stiffener type), the numerical simulation of this case allowed for the assessment of whether the model can accurately capture the basic physical behavior of stiffened plates under bending. This serves as a representative validation, supporting the overall reliability of the proposed modeling strategy. Therefore, the computational model can be considered validated through a proof-of-concept approach, which is typically used when an exact experimental baseline is not available.

In turn, as shown in Figure 8, for the first verification of the computational model, using the results of Tharian and Nandakumar [32], the difference between the SHELL281 and SHELL63 elements was 1.35%, and it was 1.12% between the SHELL281 and SHELL93 elements. Both results confirm the validity of the proposed numerical model. In the second verification, the results obtained by Pal et al. [33] and those of the proposed model are as presented in Figure 9. Among all cases, the maximum relative difference was 5%, and the average relative difference was 3.3%, thereby confirming the accuracy of the proposed computational model. From these results, one can infer that the proposed numerical model was properly verified.

4.2. Discussion of Case Study

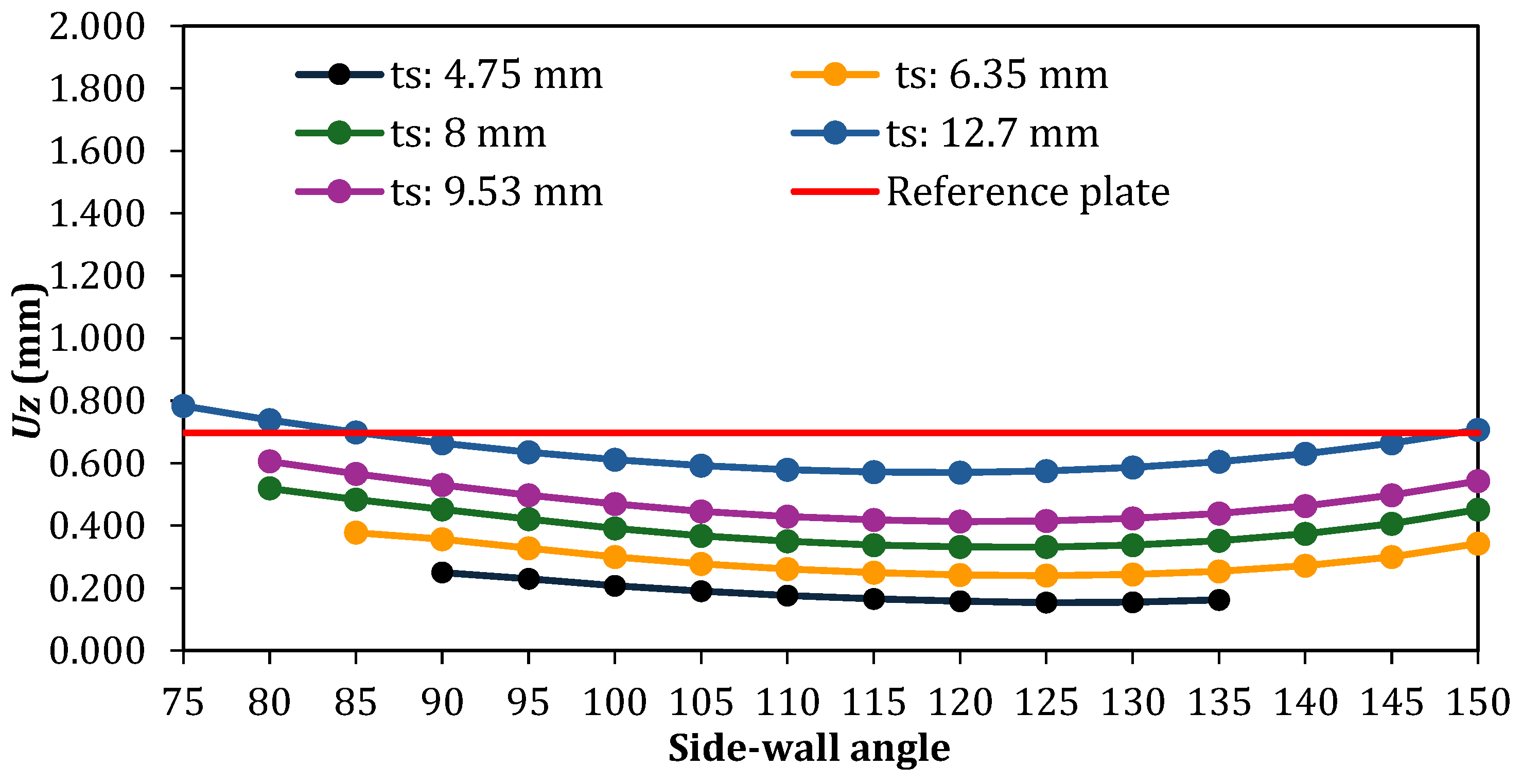

In general, from Figure 12, Figure 13, Figure 14, Figure 15 and Figure 16 it can be observed that, in all cases, the minimum deflection occurred when the smallest hat-stiffener thickness (t_s = 4.75 mm) was adopted, while the maximum deflection occurred when the largest hat-stiffener thickness (t_s = 12.7 mm) was employed.

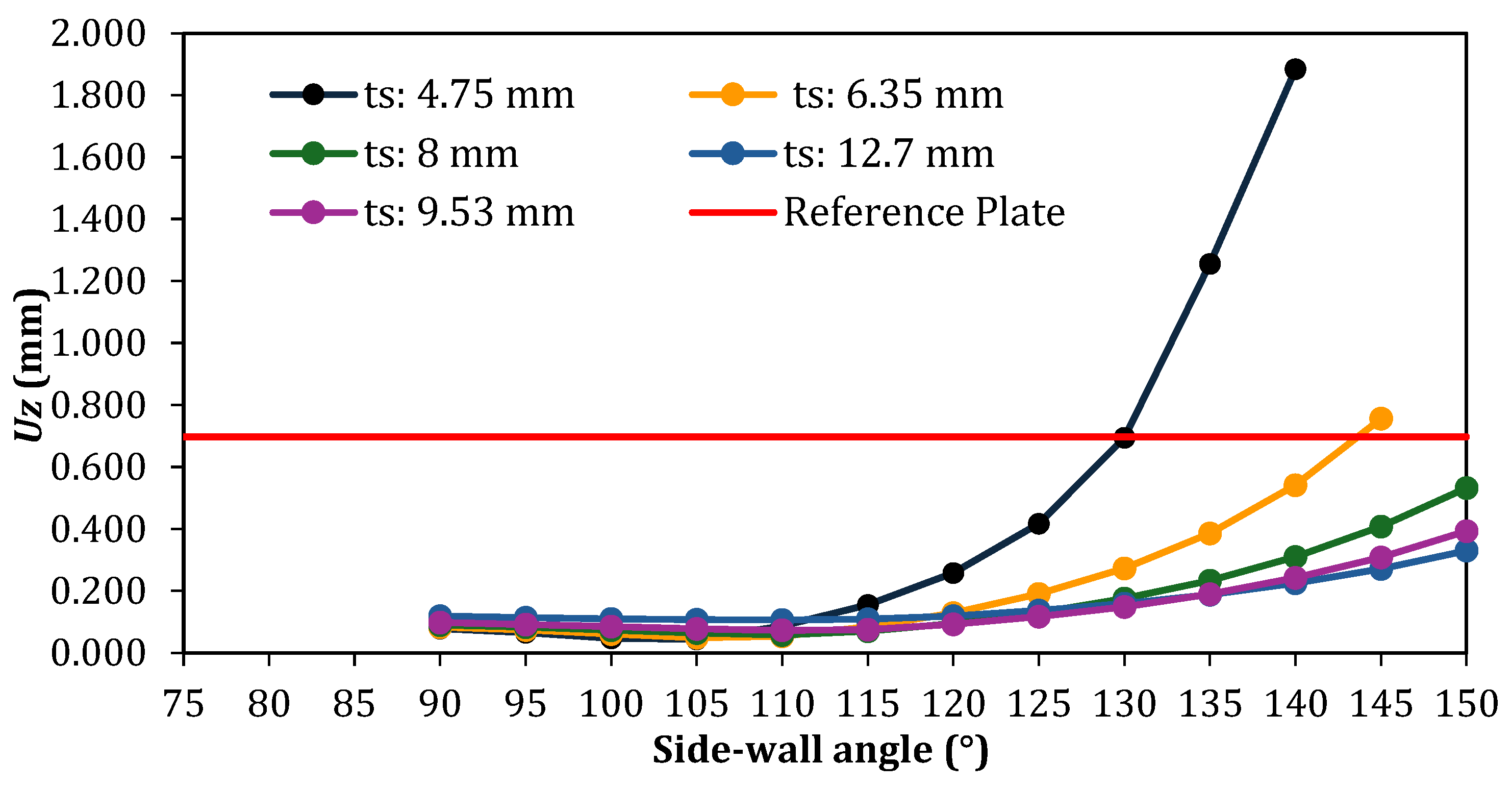

In the cases with a single stiffener (Figure 12), 60 geometric configurations were generated and analyzed. An atypical behavior was identified when compared to the other cases (Figure 13, Figure 14, Figure 15 and Figure 16). For all adopted t_s values, it was observed that increasing the inclination of the stiffener side-walls initially leads to a reduction in the maximum deflection. However, upon reaching a certain value of θ_s, in plates with smaller t_s, a sharp increase in the maximum deflection occurs. In plates with larger t_s, this effect is less pronounced, presenting a more gradual increase in the maximum deflection. Another important feature is that, for these cases, the sharp increase occurs within specific θ_s values depending on the adopted t_s value: θ_s = 105° for t_s = 4.75 mm and t_s = 6.35 mm and θ_s = 110° for t_s = 8.00 mm, t_s = 9.53 mm, and t_s = 12.7 mm. Regarding deflections, one can also note that most geometric configurations exhibited a maximum deflection smaller than that of the reference plate, except for the case with t_s = 4.75 mm and θ_s = 120°, which showed nearly the same out-of-plane displacement, as well as the cases with t_s = 4.75 mm and θ_s = 135° and 140° and the case with t_s = 6.35 mm and θ_s = 145°. The best result was obtained for t_s = 4.75 mm when the hat-stiffener side-walls have θ_s = 105°, reaching a reduction of 93.72% in the maximum deflection compared to the reference plate.

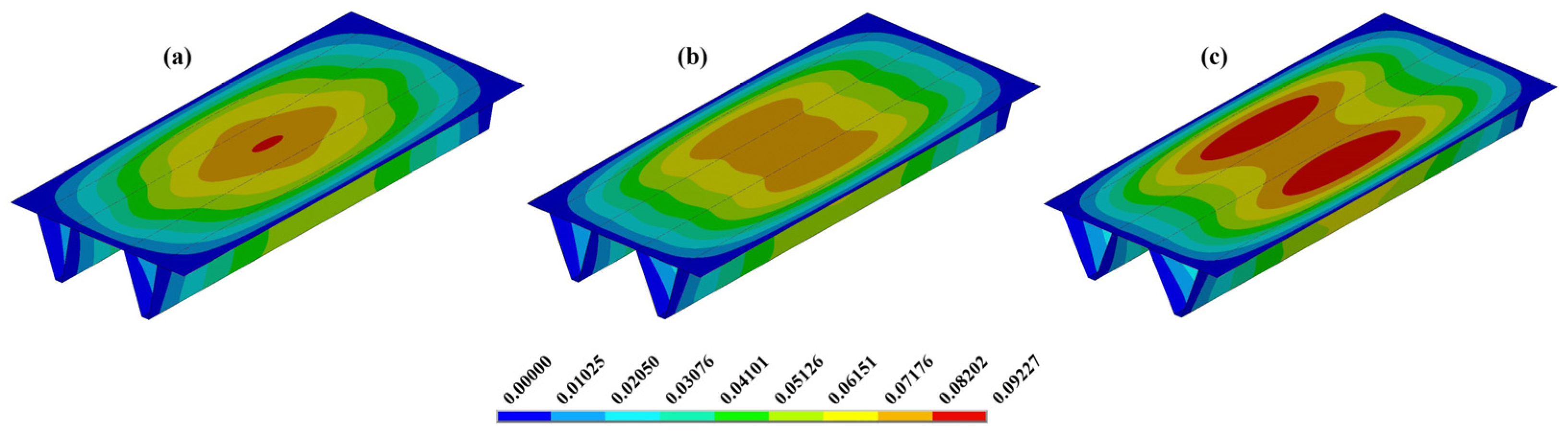

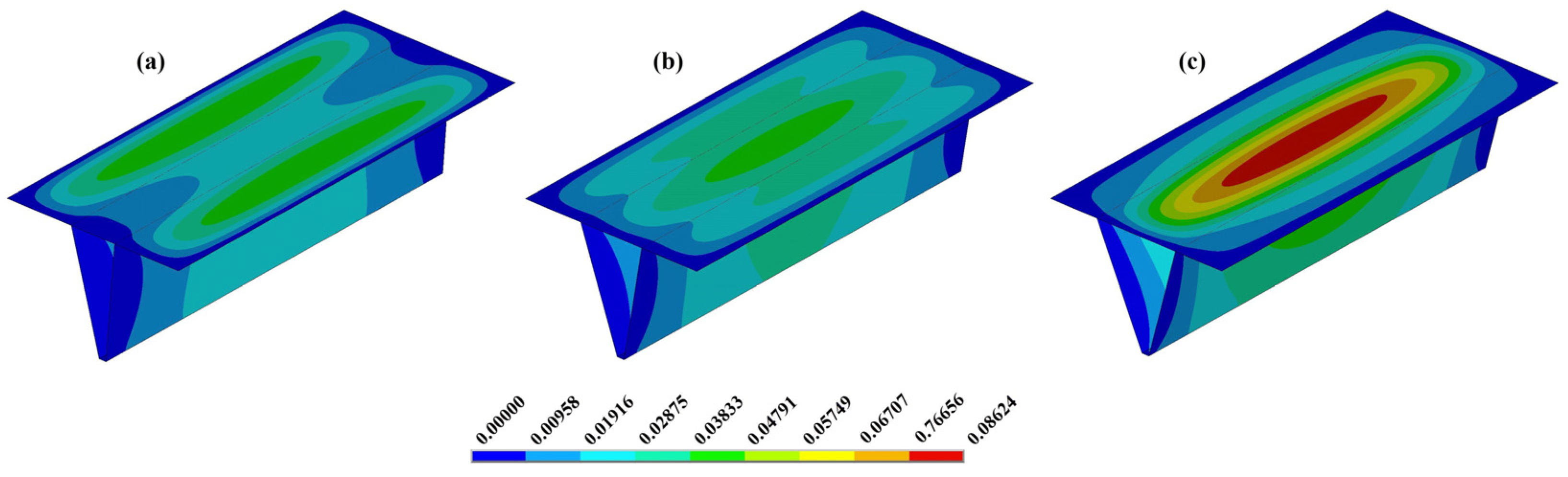

Figure 17 presents three cases with a single stiffener and t_s = 4.75 mm, allowing for a comparative analysis of the displacement behavior under different inclination angles of θ_s = 100° (Figure 17a), θ_s = 105° (Figure 17b), and θ_s = 110° (Figure 17c). In Figure 17b, the minimum maximum deflection occurred at θ_s = 105°, since this geometry provided the best balance between the length of the larger base (b_t + 2y′) and the dimension n’, resulting in a more uniform displacement distribution and the second highest moment of inertia among the cases with one stiffener (see Table A1). In contrast, Figure 17a shows the case with θ_s = 100°, where, despite having the greatest moment of inertia, displacement concentrations are observed in regions outside the stiffener (length n′). Finally, Figure 17c illustrates the configuration with θ_s = 110°, where a more pronounced displacement concentration shift to the region within the stiffener.

The analysis of the results presented in Table 2 indicates that the plate with one hat-stiffener (Case 1), a side-wall angle of θ_s = 105°, and a thickness of t_s = 4.75 mm achieved the best performance, resulting in a relative difference of −93.72% compared to the reference plate. As additional stiffeners are added, the performance tends to decrease, reaching −70.27% for the case with five hat-stiffeners.

For the remaining t_s values in the single hat-stiffener cases, a similar trend was observed: the configuration yielding the smallest maximum deflection is also characterized by one of the highest moments of inertia, generally associated with an angle of 105° (when t_s = 6.35 mm) or 110° (when t_s = 8.0 mm, t_s = 9.53 mm, and t_s = 12.7 mm).

By adding another stiffener to the plate, the cases with two stiffeners are obtained, with the results shown in Figure 13, resulting in 64 geometric configurations being generated and analyzed. The variation in the inclination angle of the hat-stiffener side-walls initially caused a decrease in the maximum deflections; however, upon reaching specific θ_s values, an increase in the maximum deflection occurred. The θ_s values where the change in behavior occurs are θ_s = 110° for t_s = 4.75 mm; θ_s = 115° for t_s = 6.35 mm; and θ_s = 120° for t_s = 8.00 m, t_s = 9.53 mm, and t_s = 12.7 mm. Here, a trend analogous to that of the single-stiffener cases is observed, with the three largest thicknesses producing the best results at the same side-wall angle. Furthermore, the configurations with t_s = 4.75 mm displayed a distinct response: following the change in trend and the subsequent increase in the maximum deflection, a slight stabilization was observed around θ_s = 130°. This stabilization suggests that, beyond θ_s = 130°, the geometry reaches a balance that restrains further displacement growth. In addition, and as in the single-stiffener investigation, all geometric configurations exhibited maximum deflections below those of the reference plate, contributing to improved structural performance. The best results were obtained for t_s = 4.75 with a side-wall angle of θ_s = 110°, representing a reduction of 88.53% in the maximum deflection compared to the reference plate. Figure 18 presents the results for t_s = 4.75 mm at side-wall angles θ_s = 105° (Figure 18a), θ_s = 110° (Figure 18b), and θ_s = 115° (Figure 18c). One can note that the geometric configuration generated at θ_s = 110° (Figure 18b) exhibited the best displacement distribution.

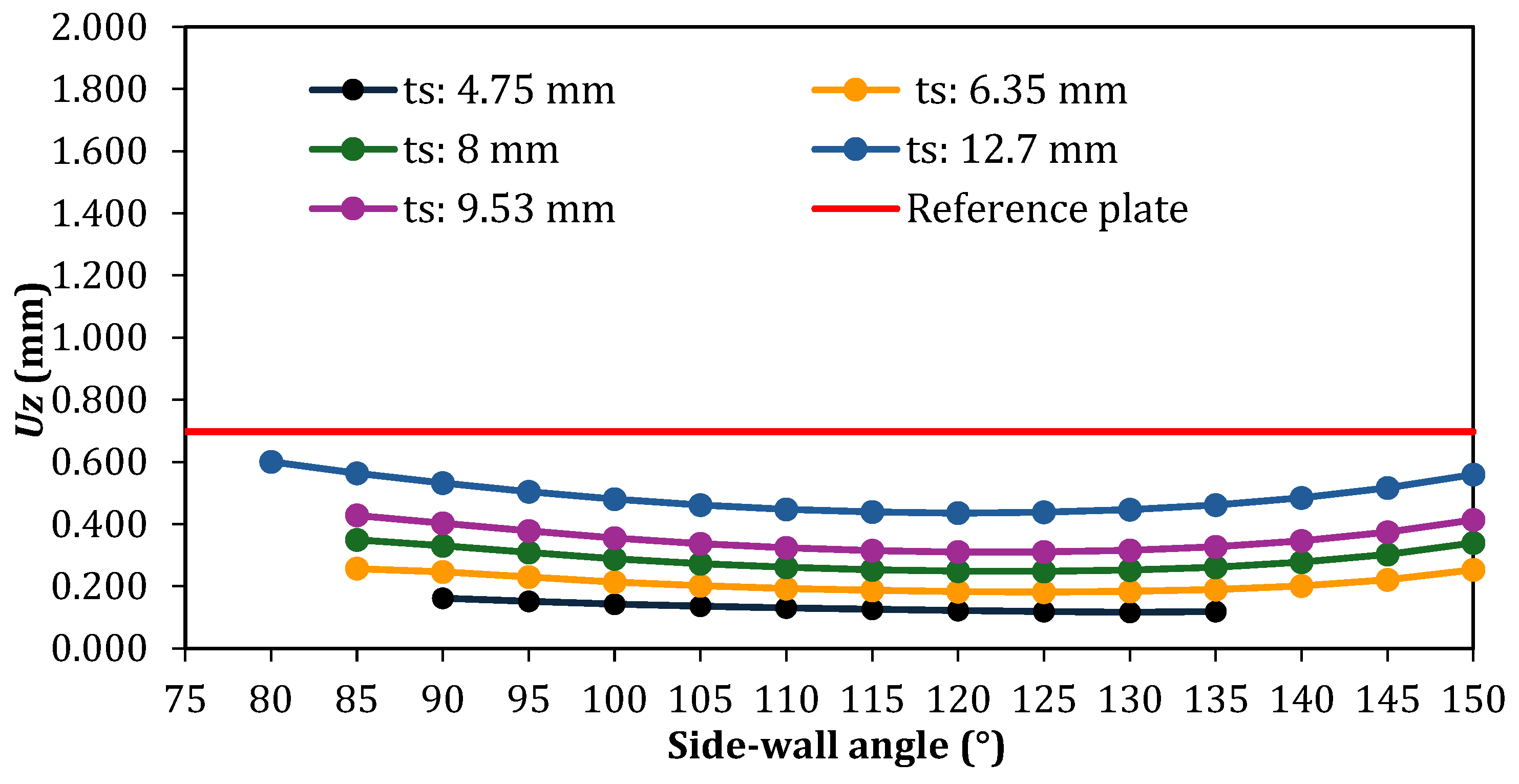

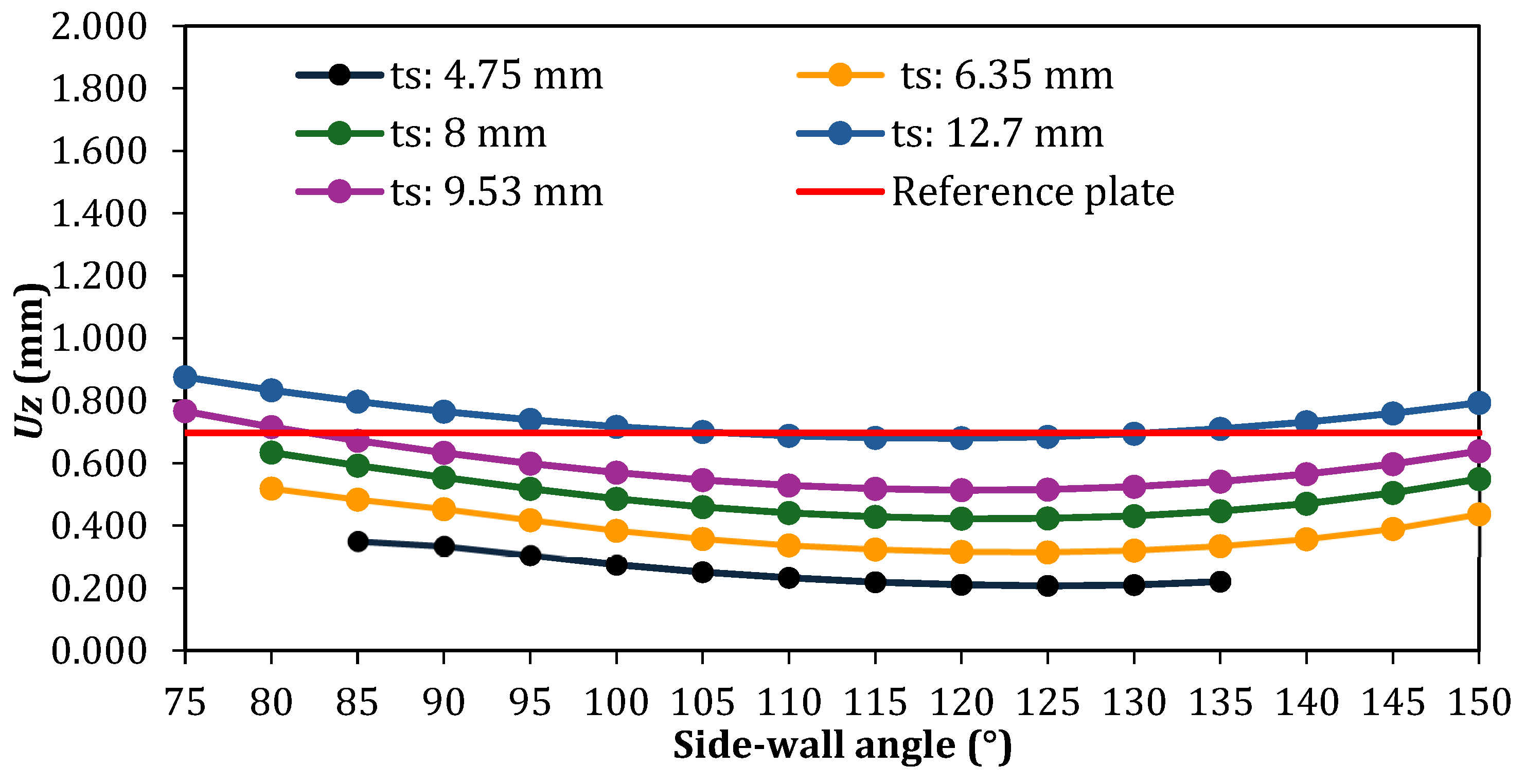

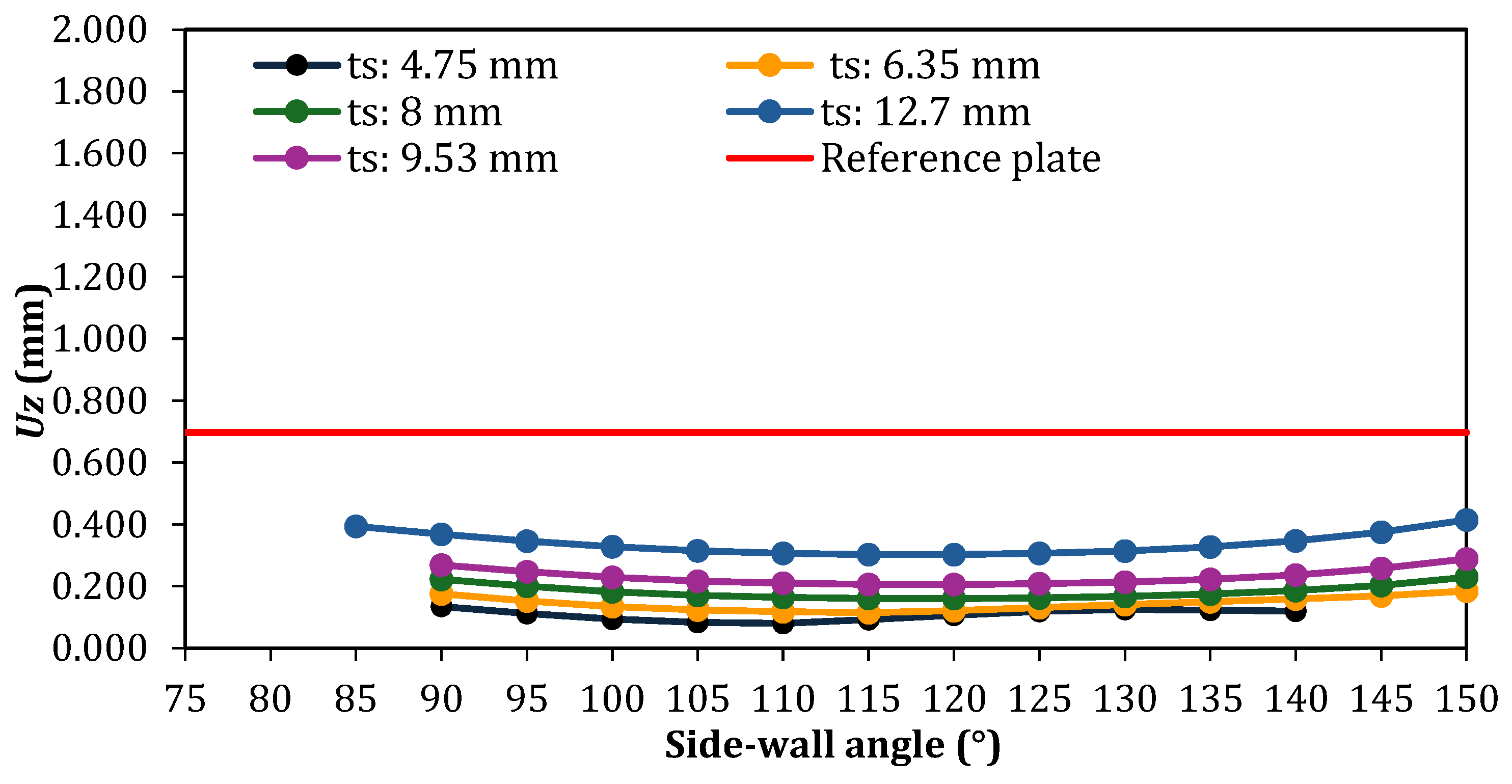

In the plates with three, four, and five hat-stiffeners, presented in Figure 14, Figure 15 and Figure 16, a total of 67, 70, and 73 geometric configurations were generated, respectively. In general, a more uniform structural behavior can be observed with respect to the maximum displacements induced by variations in the side-wall angles θ_s, compared to the single- and two-stiffener plates. The pattern already identified in certain thicknesses shown in Figure 12 and Figure 13 is repeated: increasing θ_s causes a reduction in the maximum deflection up to a specific θ_s value for each thickness, after which further increases in θ_s lead to an increase in the maximum deflection. These θ_s values corresponding to the behavioral change points in the plates with three, four, and five hat-stiffeners, for thicknesses of 6.35 mm, 8.0 mm, and 9.53 mm, are the same as those found in the two-stiffener plates, indicating stability in the relationship between θ_s variation and the number of hat-stiffeners on the plate. Regarding the maximum deflections, in the three- and four-stiffener plates, all geometric configurations exhibited maximum deflections below those of the reference plate. In the three-stiffener plates, the best result was obtained using a thickness of t_s = 4.75 mm with a side-wall angle of θ_s = 130°, representing a reduction of 83.32% in the maximum deflection compared to the reference plate. For the four- and five-stiffener plates, the best result was also obtained with t_s = 4.75 mm; however, at θ_s = 125°, these configurations represent improvements of 77.94% and 70.27% in the maximum deflection relative to the reference plate, respectively. To illustrate, Figure 19 presents the strain distributions for the four-stiffener plates, considering the smallest thickness, t_s = 4.75 mm, and the largest thickness, t_s = 12.75 mm. Side-wall angles of θ_s = 90°, θ_s = 110°, and θ_s = 135° were adopted for both thicknesses.

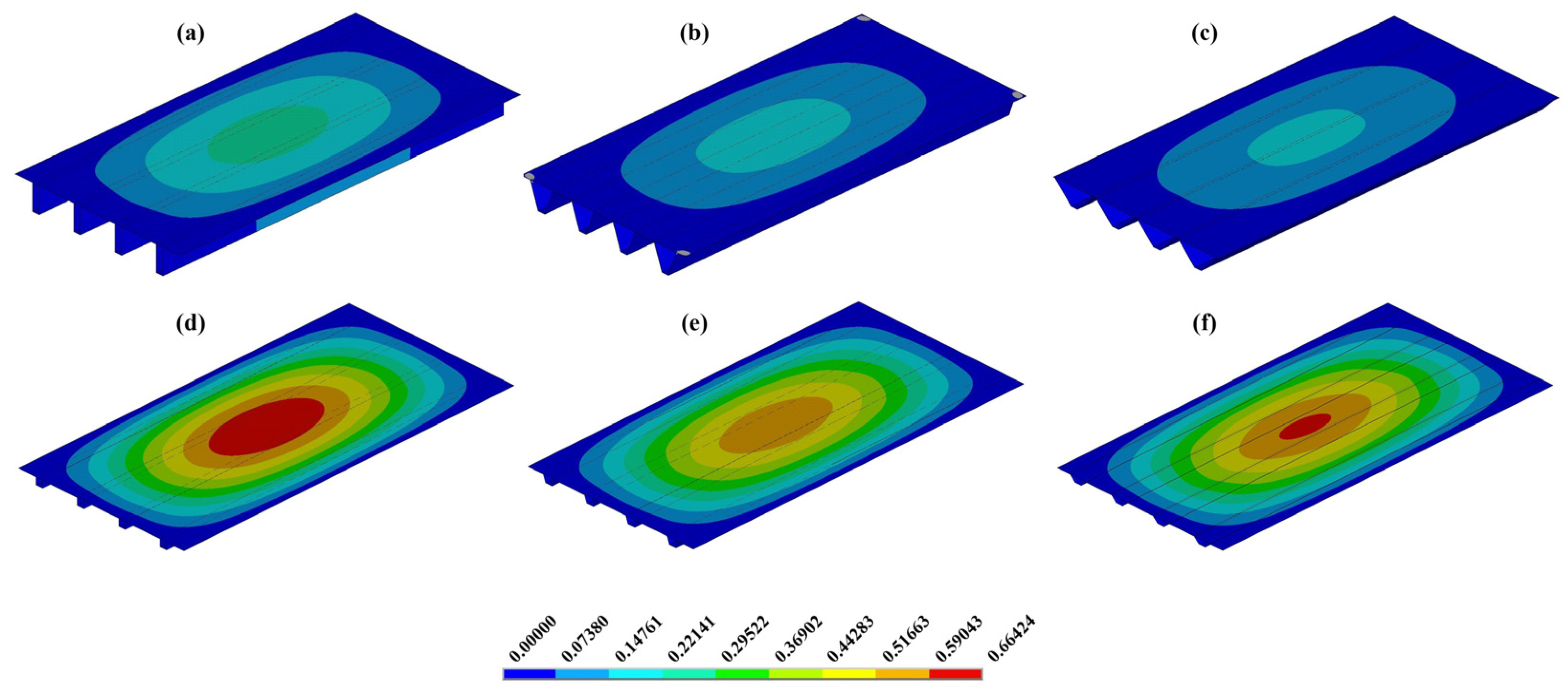

From Figure 19 it can be observed that when keeping the total steel volume constant, the use of thicker hat-stiffeners requires a reduction in their height. As a result, these configurations (Figure 19d–f) exhibit a displacement pattern more similar to that of the plate without stiffeners (reference plate). Conversely, when smaller thicknesses are adopted for the hat-stiffeners (Figure 19a–c), their height increases along with their moment of inertia, which enhances structural rigidity and explains the superior performance of these configurations.

4.3. Comparison with Results Reported by Alves et al. [22]

As mentioned earlier, Alves et al. [22] also studied plates with longitudinal hat-stiffeners. The methodology employed was similar to that used in the present study: the application of the Constructal Design method combined with the exhaustive search technique, the conversion of 30% of the plate volume into longitudinal stiffeners, and FEM simulation using the SHELL281 finite element. The applied loading, boundary conditions, and reference plate dimensions were also the same as those adopted in this study. The difference between the methodologies is that Alves et al. [22] fixed the side-wall angle at θ_s = 120° and defined height levels, allowing the minor and major base dimensions to vary. The similarities in the employed methodology allow for a comparison between the best results obtained in both studies.

In the study conducted by Alves et al. [22], relative differences with respect to the reference plate in improving the mechanical behavior (i.e., reducing the maximum displacement) were reported as −86.26%, −80.20%, −82.17%, −76.34%, and −67.61% for hat-stiffened plates with one to five stiffeners, respectively. When the results of the present study (see Table 2) are compared with those of Alves et al. [22], additional improvements of approximately 7.5%, 8.5%, 1.0%, 1.5%, and 2.5% are observed. Therefore, particularly for one- and two-stiffener plates, the effect of the side-wall inclination proves to be a relevant design parameter.

4.4. The Study of the Moment of Inertia of the Geometries Found

As shown in Table 2, the structure’s moment of inertia appears to be correlated with the magnitude of the maximum deflections observed. It can be seen in this direct comparison that the smallest deflections were obtained in geometric configurations that provided the highest moments of inertia. As the moment of inertia decreases, the deflections increase. This pattern is not observed in the case with a single stiffener, where the largest deflection occurred in a geometric configuration with a higher moment of inertia than those with multiple stiffeners. However, as illustrated in Figure 20, this geometric configuration compromised the stiffness provided by the stiffener, causing the plate with the added stiffener to behave similarly to the reference plate, albeit with a reduced thickness (due to the volume redistributed to form the stiffener), resulting in larger deflections.

Regarding the structure’s moment of inertia, it can be observed that, except in cases such as the one mentioned above, where the geometric configuration compromises the stiffener’s effectiveness, one of the fundamental parameters for increasing the structure’s stiffness is the stiffener height. Increasing the height tends to shift the structure’s centroid upward, enhancing the contribution of both the smaller base and the plate to the overall stiffness. This characteristic is evidenced by the fact that the largest moments of inertia were obtained in geometric configurations that produced stiffeners with the greatest heights.

However, a higher moment of inertia alone does not necessarily guarantee improved mechanical performance in terms of reducing the maximum out-of-plane displacement. The best geometries were observed to combine relatively high moments of inertia (though not always the highest) with a geometric configuration that promotes a more uniform distribution of displacements.

5. Conclusions

This study investigated the influence of the variation in the inclination angle of the side-walls of hat-stiffeners on the structural efficiency of stiffened steel plates. For this purpose, the Constructal Design method, combined with an exhaustive search technique, was employed, generating 336 geometric configurations that were analyzed using the FEM through ANSYS software. The stiffeners were longitudinally inserted, and the plates were considered simply supported under a uniformly distributed load of 10 kPa.

Considering that the primary purpose of using stiffeners in plates is to reduce deflection and improve the stiffness-to-weight ratio, the main objective of this work was to minimize displacements in plates with hat-stiffeners. The results showed that the majority of geometric configurations reduced displacements to below those obtained for the reference plate. The best performance was observed in the case of a single stiffener using a plate with thickness t_s = 4.75 mm and side-wall angle θ_s = 105°, leading to a 93.72% reduction in the maximum deflection compared to the reference plate (with no stiffeners but with the same amount of steel). This significant reduction highlights the importance of the strategic development of stiffeners focused on application.

The main scientific contributions of this work can be highlighted as follows:

• The application of the Constructal Design method together with exhaustive search proved to be an important tool for the evaluation and optimization of structures. While Constructal Design generates the search space (possible geometric configurations given the constraints and degrees of freedom), exhaustive search identifies the geometry that yields the best performance.
• The inclination angle of the side-wall of the hat-stiffener can influence its performance. Alves et al. [22] adopted θ_s = 120° and defined height levels. This difference allowed for a direct comparison of the results. The investigation developed in the present work identified a geometry that achieved an approximate 7.5% improvement over the best result obtained by Alves et al. [22] relative to the reference plate.
• The moment of inertia of the structure also strongly influences its performance regarding maximum displacements. Configurations exhibiting larger moments of inertia presented smaller deflections and taller stiffeners.
• Stiffener height emerges as an important parameter, since it shifts the structure’s centroid upward, enhancing the contribution of the minor base and the plate to the overall structural stiffness.
• A higher moment of inertia alone does not guarantee the best mechanical performance; while a sufficiently high value is important, other geometric characteristics of the hat-stiffened plate also play a crucial role in determining its overall behavior.
• The ideal combination of these factors leads to superior performance by promoting a more uniform distribution of displacements, which is in agreement with the Constructal principle.

The following applied results are noteworthy:

• A significant increase in the mechanical resistance of steel plates was obtained by converting 30% of their volume into stiffeners. In this study, the improvement corresponded to a 93.72% reduction in the maximum deflections.
• Increasing the resistance to deflection of plates without increasing the amount of material can lead to cost reduction.

Future research could expand these findings and further improve the results by investigating different loading types, boundary conditions, plate aspect ratios, hat-stiffener orientations, alternative volumetric fractions to be converted into hat-stiffeners, and variations in side-wall angles associated with other parameters.
