1. Introduction
The validation of Advanced Driver Assistance Systems (ADASs) usually consists of real-world driving tests. With the increasing complexity of ADASs and the resulting increased test effort, these tests are too costly from an economic point of view [
1]. More efficient approaches to safeguarding highly automated vehicles are provided by the German research project PEGASUS [
2]. In particular, the field of simulative validation offers automated and efficient methods. Especially, the scenario-based approach, where only specific safety-critical driving scenarios are simulated, reduces the test effort to a minimum [
3,
4,
5].
In such an approach, a simulation tool emulates the real ECU code with the automated driving function to perform software-in-the-loop simulation. The inputs for the simulated control device are generated by a simulation environment, including vehicle models and sensor models, as well as data from other ECUs installed in the system vehicle, also called ego vehicles. To ensure valid input data, the ego vehicle interacts with other traffic participants (road objects) in a virtual environment. The dynamics of the road objects, which ideally follow mathematical models depending on the described driving situations, are recorded by sensor models. Thus, a virtual world that is close to reality is processed and captured by the vehicle model.
Usually, the procedure is based on an ideal mathematical modeling of driving scenarios using physical parameters. For example, the cut-in maneuver in

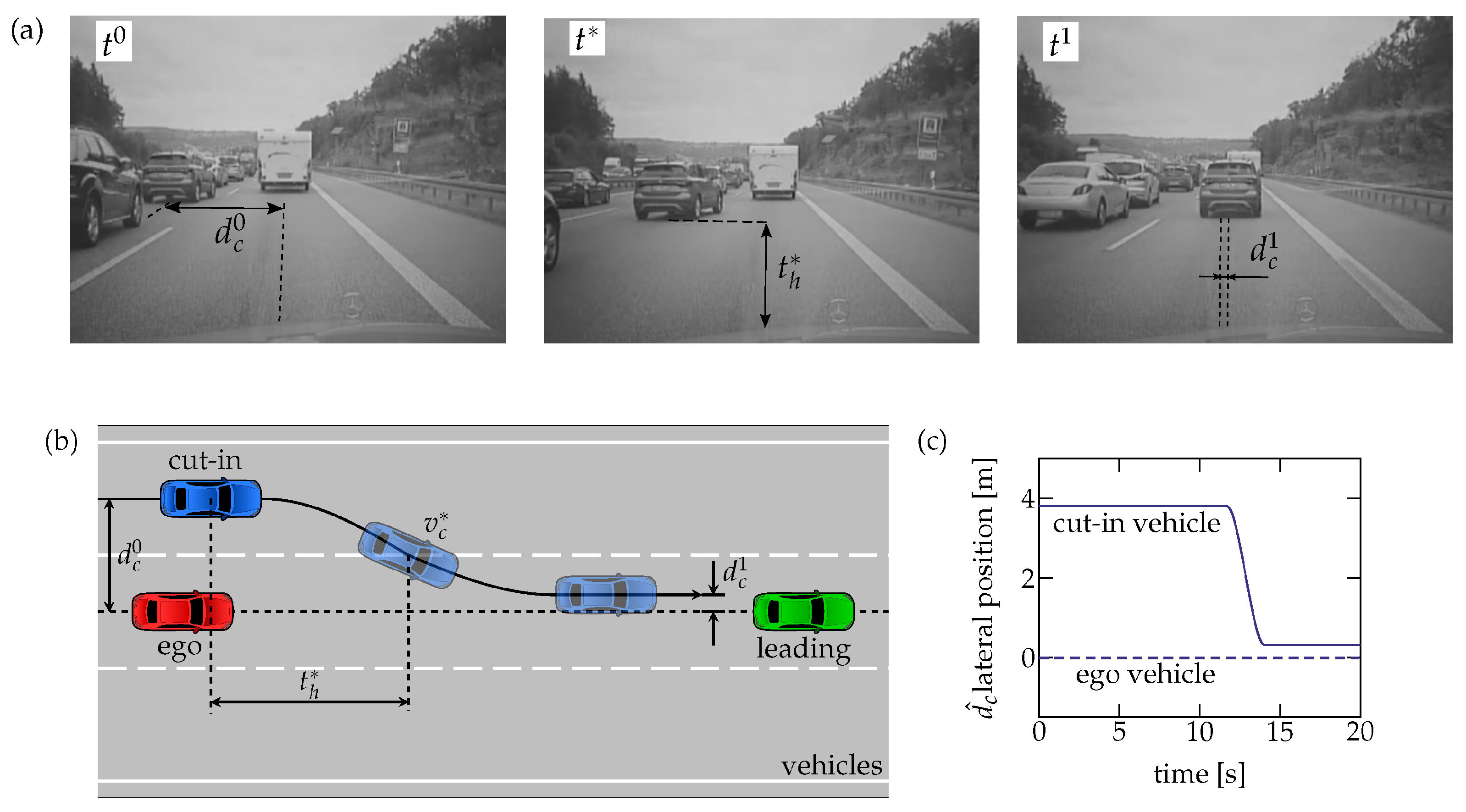

Figure 1a may be parameterized by an initial lateral displacement
of the cut-in vehicle (blue) with reference to the ego vehicle (red), headway time
, and velocity
when entering the ego lane and lateral distance
at the end of the maneuver; see also
Figure 1b. Up to 20 parameters are used to describe such a cut-in maneuver and need to be identified for observed instances from field measurements [
6].
A specific choice of these parameter values will then result in a specific trajectory representing a simplified real maneuver, as shown in
Figure 1c, which, however, is generally not able to represent all aspects of real traffic situations. Especially, unusual trajectories will appear, which can approximate observed trajectories only in a crude way, resulting in biased safety estimates. For example,

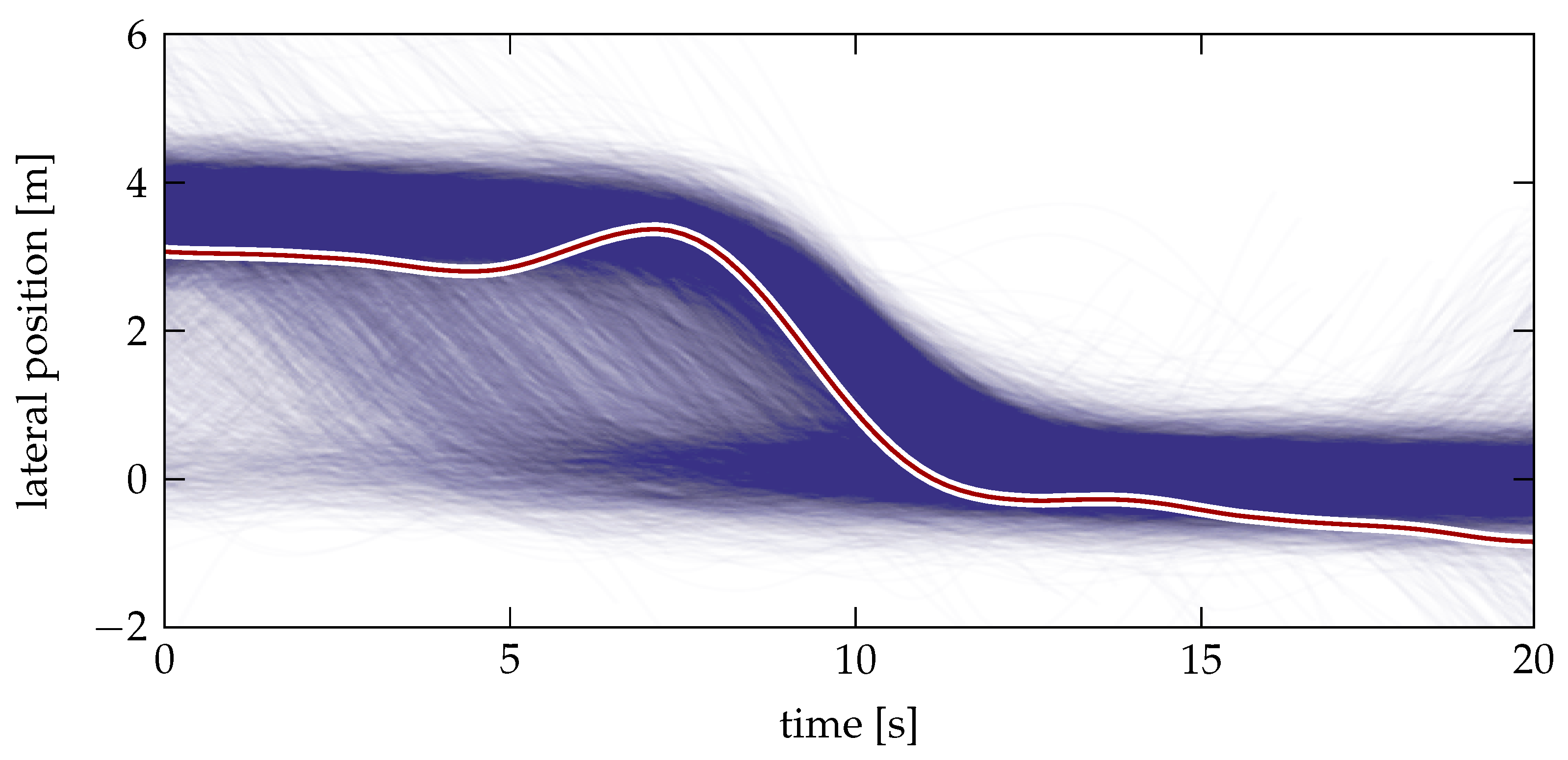

Figure 2 shows over 8000 real cut-in trajectories measured from real drives of a vehicle fleet. High-intensity sections indicate areas where data points occur more frequently. The majority of the maneuvers have an initial lateral offset of 3 to 4 m from the center of the lane of the ego vehicle before changing lanes, which corresponds approximately to the average lane width of German motorways. After a lane change, the cut-in vehicles are often located in the middle of the ego lane. The highlighted curve picks an arbitrary example trajectory, clearly demonstrating the large difference between the idealized lateral position behavior in
Figure 1c and real maneuvers. This demonstrates the need for more realistic approximations.
For safety assessment of ADASs, the generation of realistic maneuvers is not enough, their statistical properties also need to be retained. In the actual approach, the parameters of the idealized maneuvers (
Figure 1) are identified for a set of real measured drives on German highways (
Figure 2) and evaluated statistically [
6], as illustrated in
Figure 3a. The extracted probability densities are then used to generate a sample of parameter sets of any required size by Monte Carlo sampling [
7], reconstructing corresponding idealized maneuvers as time series and feeding a software-in-the-loop simulation model to evaluate the criticality of these maneuvers. The obtained criticalities can finally be analyzed to perform a safety assessment of the investigated ADAS software which, however, is only as reliable as the underlying maneuvers representing the real traffic situations.
In summary, the following problems and sources of error are associated with this idealized method:
- •
Low fitting errors require highly complex mathematical models describing maneuvers.
- •
Increasing mathematical complexity increases amount of input parameters to be identified.
- •
Modeling effort increases with number of logical scenarios to be investigated.
- •
Method is only applicable to clearly definable and separable driving situations.
Therefore, the present paper focuses on an alternative, AI-based approach for simulative validation of ADASs. In the newly developed methodology shown in

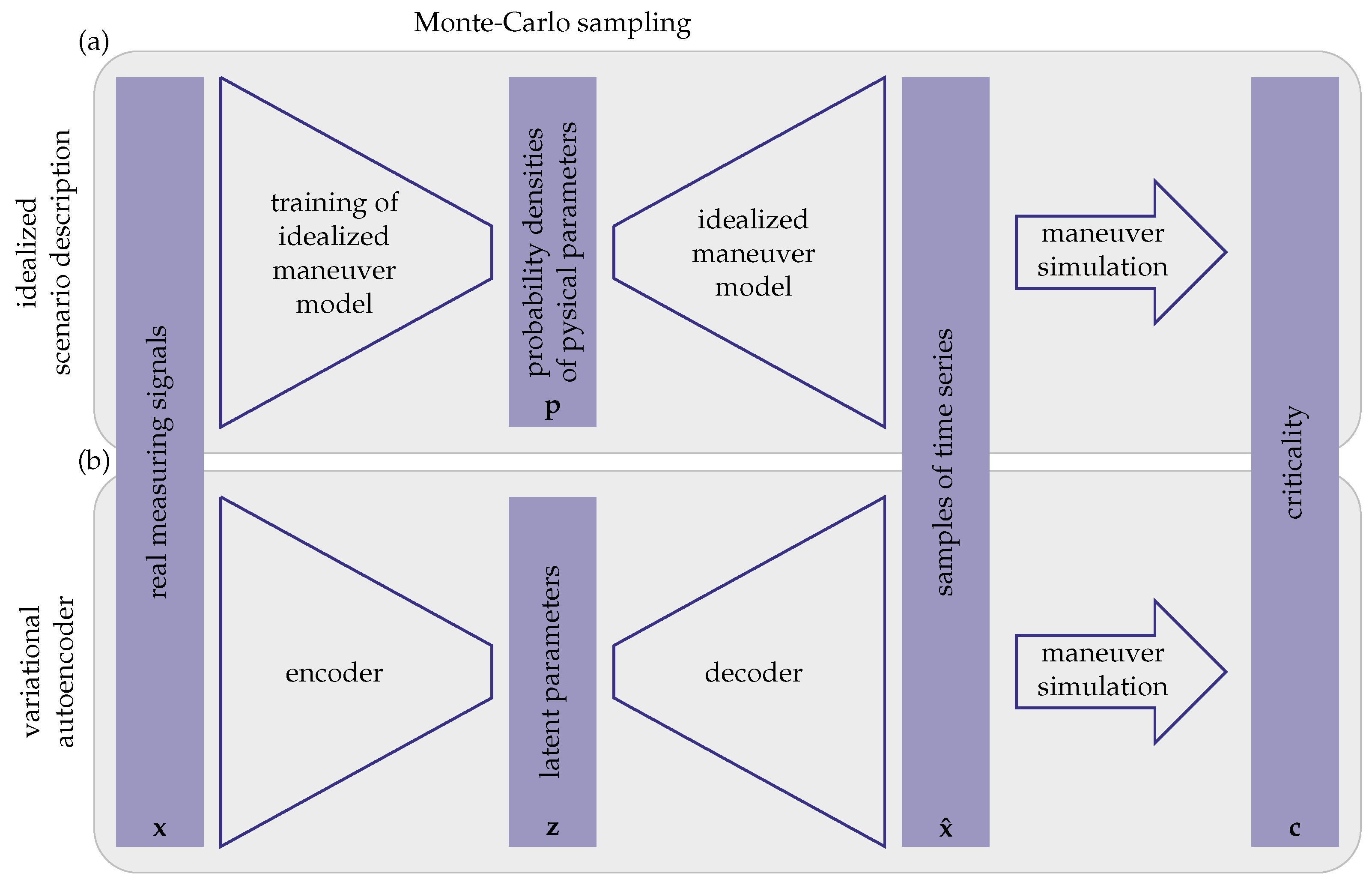

Figure 3b, mathematical maneuver modeling is replaced by a generative AI model in the form of a variational autoencoder. This model independently learns an efficient representation of the measured data, where the encoder network maps the given real measuring signals
into a low-dimensional space of latent parameters
, and the decoder network generates new but statistically identical samples of time series
. For safety assessment, Monte Carlo sampling may generate samples of latent variables
to be transformed to time series
by the decoder and used for simulation analogously, as in the state-of-the-art approach. However, the newly developed AI model is expected to learn all the major features of real driving data and represent them through latent distributions and the decoder network better than the currently used mathematical model with physical parameters.
In order to apply this approach, the measured data need to be preprocessed, which is shown in
Section 2 for the cut-in scenario. Next, the used variational autoencoder for generating realistic cut-in maneuvers is described in
Section 3. For the validation of statistical properties, the proposed model is applied to the cut-in scenario in
Section 4. Finally, the approximations by the AI model are compared with the current approach.
2. Data Preprocessing
The quality of a machine learning model depends largely on the data basis used. Therefore, suitable measurement signals for the considered driving maneuver must be selected and first preprocessed. The data are based on ECU signals from the ego vehicle and sensor information on objects in its immediate field of view. The control unit detects and records position and kinematics of such objects, where the available measurement data include, among others, the position () of an object relative to the ego vehicle and its absolute speed. The ECU has a sampling rate of 50 Hz, i.e., the time interval between two consecutive data points is s.
In the context of this work, the position of an object is represented by so-called L-shapes derived from three corners framing the vehicle; see

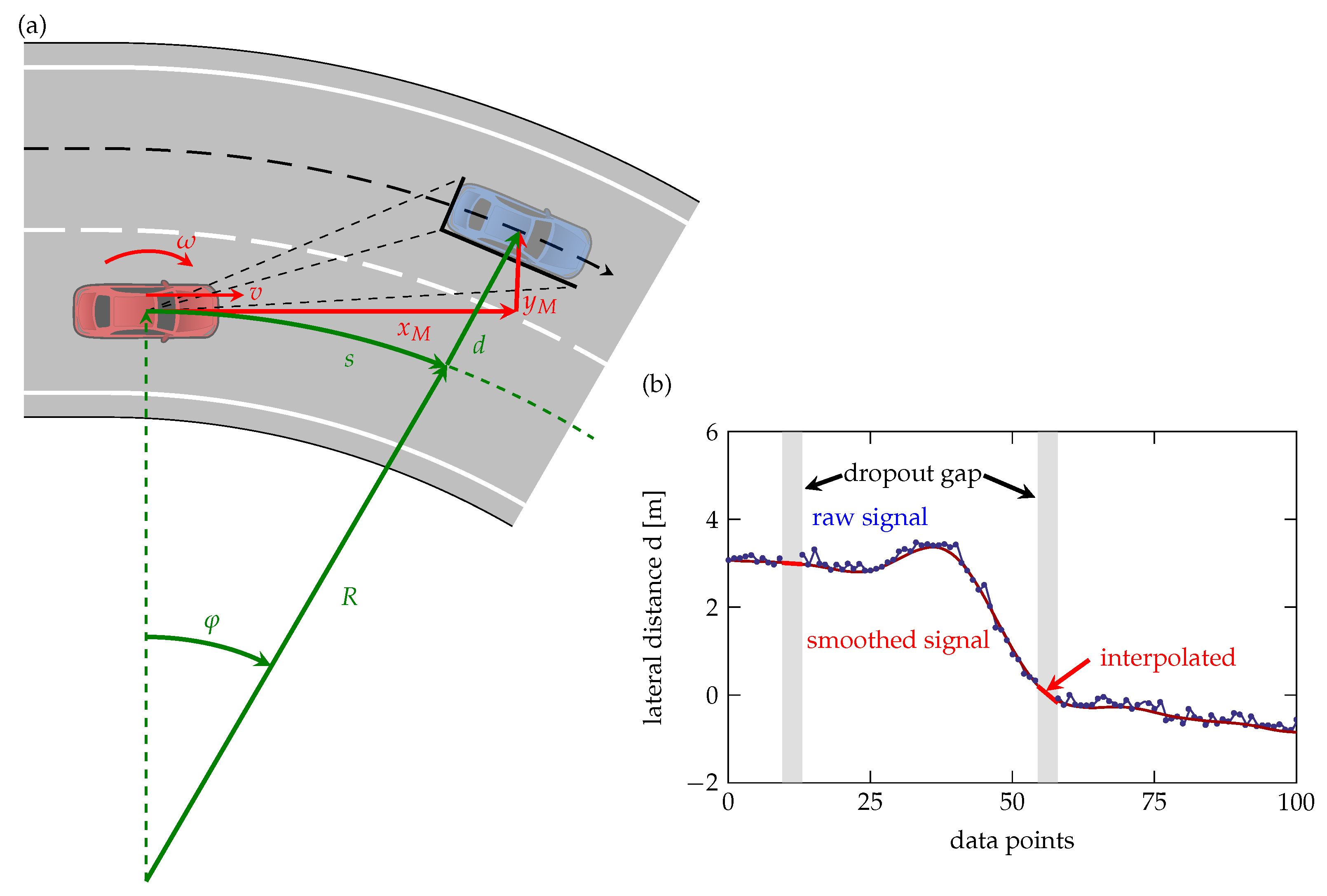

Figure 4a. From this simplified representation, the lateral position (
) of the center point relative to the center of the ego vehicle can be determined over the entire acquisition time. These raw signals (
Figure 4b) need to be preprocessed in several ways:
- (i)
Correction of curved roads.
- (ii)
Smoothing and removal of dropouts.
- (iii)
Downsampling data points.
The position of an object relative to the ego vehicle is influenced by the course of the road. When a vehicle in front of the ego vehicle drives on a curve with radius
R, the measured lateral distance
does not equal the lateral lane distance, which an ADAS has to react on; see
Figure 4a.
In order to eliminate the curvature effect, the following geometric relations between measured relative coordinates (
) and the real longitudinal and radial distances (
) may be considered:
From the ratio of the two equations, we obtain the angle
and, e.g., from the second equation in Equation (
1), the correction formula for the lateral lane distance
The required curve radius R may be estimated from the derivate of
resulting in
where actual ego velocity
v and angular velocity
are typically known quantities. It should be noted that Equation (
3) is valid for both right curves (
) and left curves (
).
The recording of data in real driving tests is carried out in continuous series of measurements. However, due to the dynamics of a traffic situation and a constantly changing vehicle environment, gaps, jumps, and the superimposition of high-frequency noise may appear, as shown in
Figure 4. Signals with such perturbations are not suitable, as training data for a generative AI model and must be removed [
8,
9]. In the following, signal snippets with a maximum length of
s are considered to ensure that a maneuver is complete. For signal gaps shorter than a tolerated length
(e.g.,
), linear interpolation between margin values is performed to reconstruct the missing signal values. While this approach can be assumed to be sufficient in the case of short signal gaps due to vehicle inertia, signals with larger gaps are discarded. In
Figure 4b, two gaps are highlighted in gray and the corresponding interpolation in red.
In addition to missing measured values, implausible signal changes in particular cause a reduction in signal quality. Therefore, smoothing with a Savitzky–Golay filter is used, which performs a local polynomial regression. Here fourth-order polynomials using a window with a fixed width of 13 signal values are sliding through the signal [
10]. After interpolation and application of the Savitzky–Golay filter, the red curve in
Figure 4b has no discernible noise anymore.
For the majority of common machine learning algorithms, it is necessary that all input data have the same dimension, which should not be too high, either. Filling missing signal values with predefined values such as zeros (zero padding) would correspond to incorrect maneuver characteristics. Therefore, and in order to reduce the number of data points, signals
with measured length
, are downsampled to a fixed size
data points by resampling the time series to
at time points
based on linear interpolation between measured data.
3. Variational Autoencoder for Generating Realistic Cut-In Maneuvers
The dataset presented in the previous section is used for training a generative AI model with the structure shown in
Figure 5. Formally, this task can be described as follows: The training data
x result from an unknown distribution
which must be learned by the generative model in order to be able to generate new comparable data
that follow the same probabilistics
. To generate new samples, a random sample
is taken from a known distribution
and then transformed by the generator
with internal parameters
to be learned. In principle, any generative model such as normalizing flows or generative adversarial networks may be used for this generative process. However, the different models are differently suited for specific tasks. Here, a variational autoencoder is used for the described process, which is briefly explained below.
A variational autoencoder (VAE) is a type of generative model that can learn to generate new data by capturing the underlying distribution of the training data [
11,
12]. VAEs are a variant of autoencoders consisting of an encoder and a decoder, as shown in

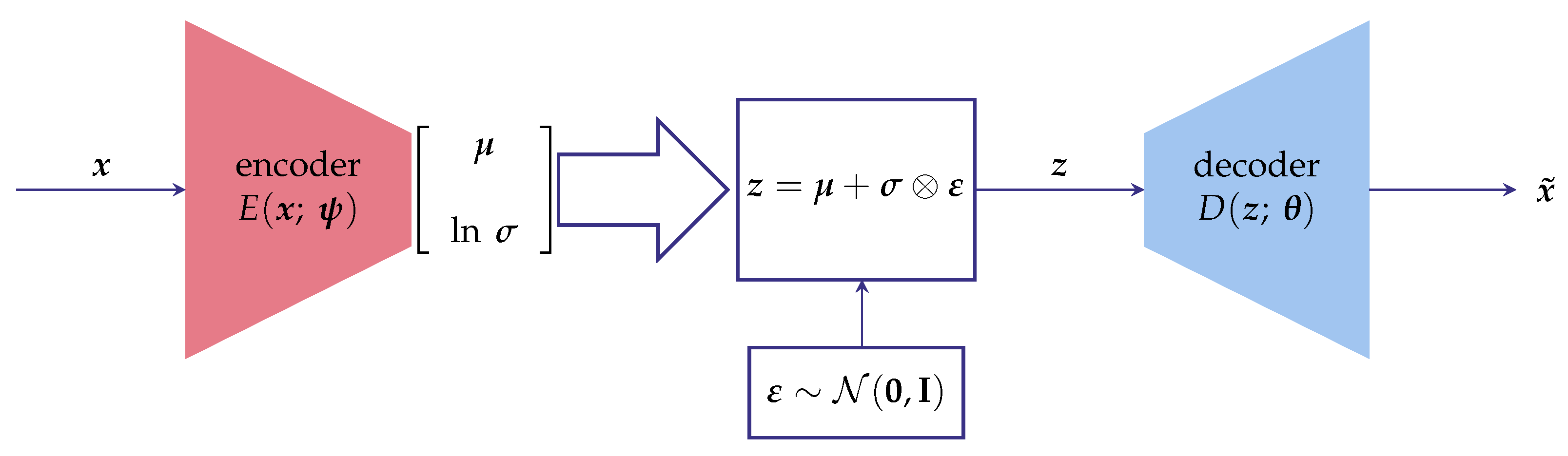

Figure 5. The main idea behind VAEs is to learn a low-dimensional latent representation of the input data that captures the essential features and variations in the data. This latent representation can then be used to generate new samples that resemble the original data distribution [
13].
More precisely, the encoder part
of a VAE maps the input data
x to a latent space representation
z. It typically consists of several layers of a neural network that progressively reduce the dimensionality of the data, ultimately producing the mean
and variance
of a multivariate Gaussian distribution in the latent space. The encoder can be represented as a function of
x, generating the mean and the natural logarithm of the variance, i.e.,
where parameters
summarize weights and biases of the artificial neural network. To generate a sample in the latent space, we need to obtain a latent vector
z that follows the desired distribution. However, to allow training by backpropagation and stochastic gradient descent, we cannot directly sample from the z-distribution. Instead, the reparametrization trick addresses this challenge by introducing a separate normally distributed random variable
(
0,
I), which is drawn from a multivariate standard Gaussian distribution. The vector
z in the latent space is then obtained by
where ⊗ is an element-wise multiplication of the two vectors
and
The decoder part of the VAE takes the latent vector z and maps it back to the input space, aiming at a reconstruction of the original data. It also consists of several layers of an artificial neural network with weights and biases summarized in parameter vector to upsample the latent vector and eventually generate a reconstructed output .
Now, with both parts of the neural network architecture, an end-to-end training of the VAE by a joint optimization, also called evidence lower bound optimization (ELBO), can be performed [
14]. Due to the random character of generating
z, outputs
and inputs
x cannot be compared on a one-to-one basis but only statistically. Therefore, the loss function consists of two terms: the reconstruction loss
, which measures how well the decoder can reconstruct the input data, and a regularization term, typically the Kullback–Leibler divergence (
), which encourages the approximate posterior distribution
to be close to a prior distribution
:
During the training process, the parameters of the encoder () and decoder () networks are learned by minimizing this loss function using gradient descent or a similar optimization algorithms like ADAM. Once the VAE is trained, it can generate new samples by sampling from the prior distribution and passing them through the decoder only.
Since the existing training data are multivariate time series signals, the model used must be able to correctly capture temporal dependencies within the data and take them into account when generating new data. Therefore, neural network topologies are needed that can recognize and learn temporal patterns in the training data. Both, convolutional neural networks and recurrent neural networks may be considered for the design of the variational autoencoder, since both network structures have proven to be suitable for tasks related to time series signals [
15,
16]. In the following, convolutional neural networks are chosen, as shown in
Figure 6.
The training data comprise
different features consisting of time series
namely time points
, lateral lane distances
, and velocities
of the cut-in vehicle. The training dataset consists of samples
with
, shown in
Figure 2. At this point, it should be mentioned that in the context of this work, the focus is on the lateral positions
.
In the first layer of the encoder, each of the three input channels is weighted with a sliding 3 × 1 convolution filter again producing time series with 100 elements, which are then summed up and biased to produce a new channel; and 100 such operations are performed to finally end up with 100 intermediate results, which are then processed element-wise with the nonlinear Rectified Linear Unit (ReLU) as the activation function. The second and third layer operate in a way with reduced numbers of filters, reducing the number of channels first to 50 and then to 25. The latter output is flattened to a 25 × 100 = 2500-dimensional vector and connected to the encoder output by a fully connected network, where d is the dimension of the latent space.

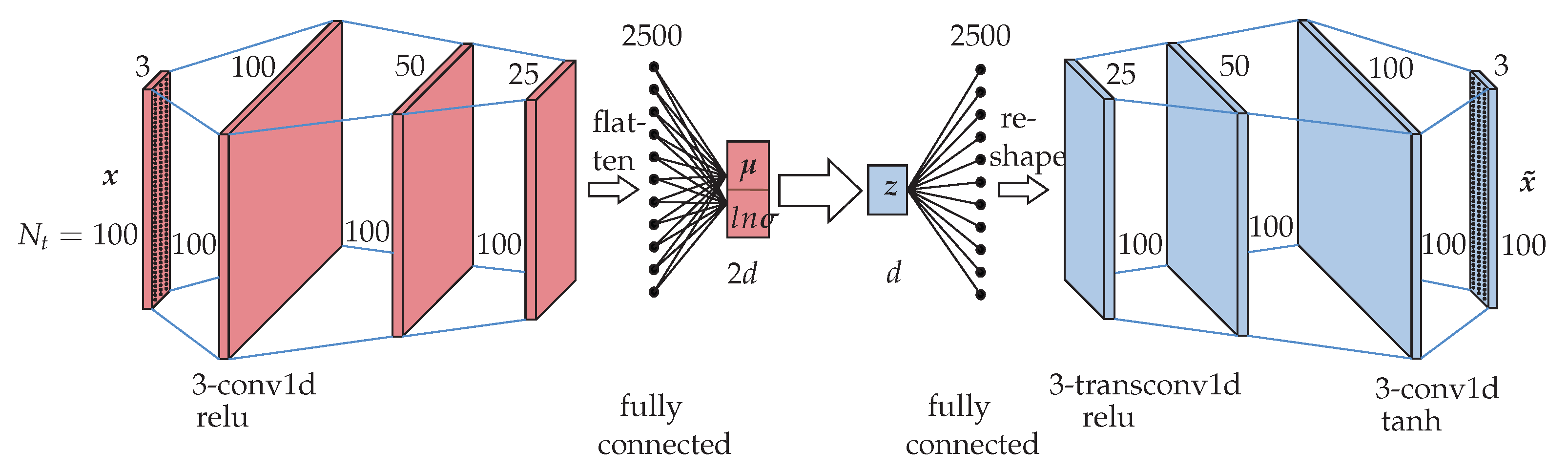

As shown in
Figure 6, the decoder has an almost symmetric structure in reverse order. Instead of the convolutional layers, transposed convolutional layers are used. The output of the decoder network corresponds to the reconstruction of the sample that was used as input for the variational autoencoder. The random input
is first enlarged to a 2500-dimensional vector by a fully connected layer, which is then reshaped to 25 channels of time series with 100 data points, respectively. This is enlarged to 50 and 100 channels by transposed convolution with 3 × 1 filters and ReLU activation functions, respectively. Finally, the 100 channels are reduced to three channels by convolution with 3 × 1 filters.
The total number of network parameters
and
of the variational autoencoder sums up to 227,603. Their training is carried out by an ADAM optimizer for a total of 700 epochs, where each epoch splits the total set of
input examples into minibatches of size 32. In order to improve training performance [
17], the features in Equation (
9) living on different scales are initially normalized with respect to signal amplitudes, respectively, such that all features have the same range [
]:
For comparibility of the output
with this normalized input
x, the
is applied element-wise to the last layer as the activation function. In order to generate trajectories similar to the measured ones in Equation (
9), these outputs
need to be a rescaled as follows:
4. Statistical Validation of VAE
The result of applying the above concept to cut-in maneuvers with latent space dimension
is not only optimal encoders (and especially decoders) for generating realistic maneuvers but also a sample
, with stochastic properties representing those of the input shapes
. Kernel Density Estimation (KDE) [
17,
18] may be used to fit coordinate-wise probability densities
and
to the elements of the encoder output in

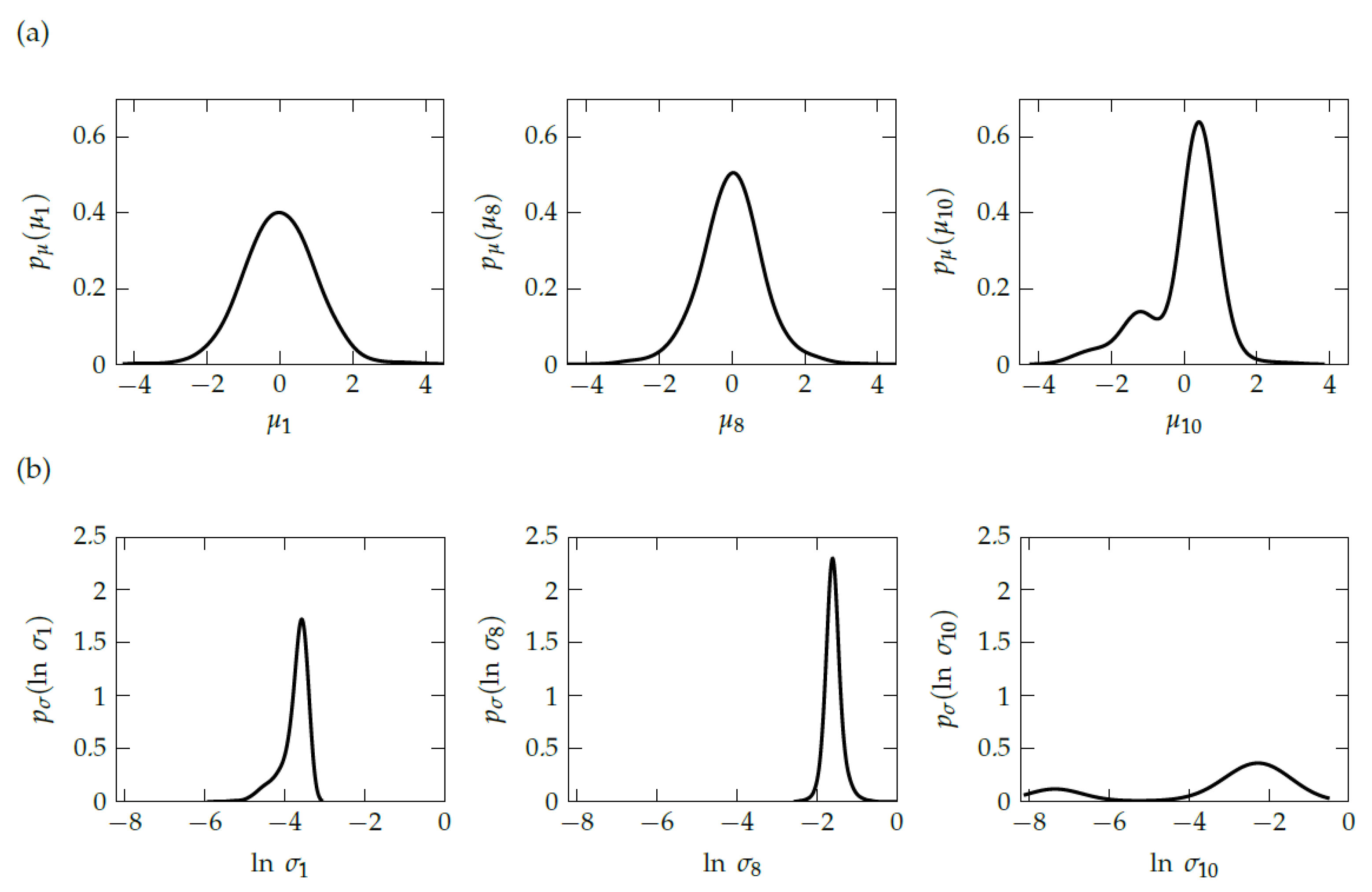

Figure 6. Some examples of these probability densities are shown in
Figure 7.
These density functions highlight that the encoder outputs for mean (
Figure 7a) and logarithmic variance (
Figure 7b) do not always follow a standard Gaussian distribution. Only
and
, approximately follow a Gaussian distribution, whereas, e.g.,
, looks like a mixture of two Gaussian distributions.
The process of generating statistically correct approximation samples , which is important for correct failure assessment of ADASs, is then as follows:
- (i)
Chose
according to their densities like those in
Figure 7;
- (ii)
Chose according to a standard Gaussian distribution;
- (iii)
Superpose these quantities according to Equation (
7) to obtain a sample
of latent variables;
- (iv)
Transform these latent variables with the decoder into normalized trajectories ;
- (v)
Rescale these trajectories by Equation (
11).

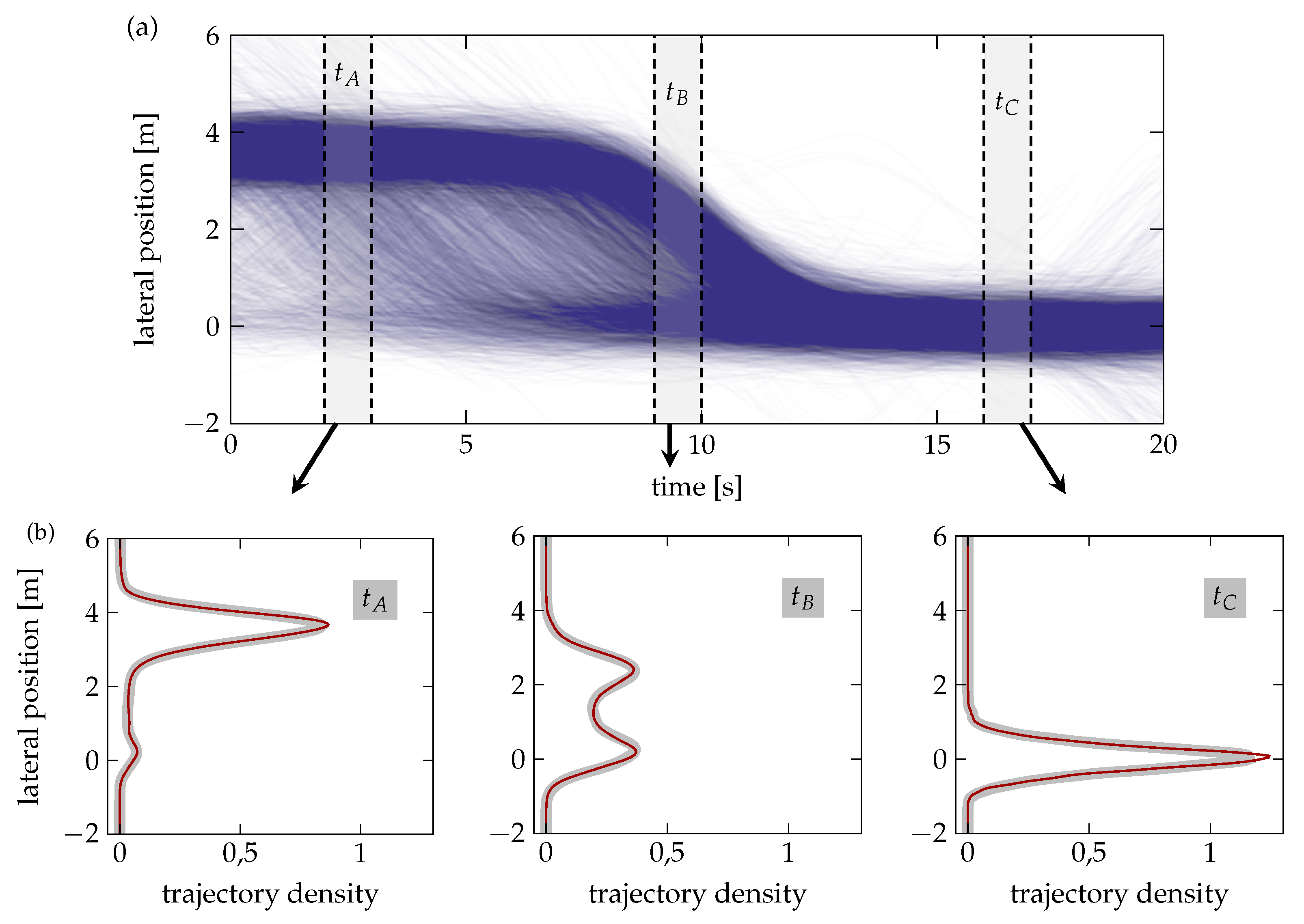

Figure 8a shows the set of the same number as
Figure 2 of randomly generated trajectories.
Obviously, the high-intensity areas of the lateral position over time match very well with the real driving data. From this visual inspection, it can already be concluded that the probability of occurrence for specific driving situations is learned by the model and maintained when generating new data samples. In order to check quantitatively whether the synthetic data have equal statistical properties, density functions for lateral position are determined with a KDE for three different time strips of 1s width.
Figure 8b proves that the statistical properties are almost equal for the time periods
,
, and
. This property is essential for the validation of ADASs on the basis of a randomized generation of test cases. If, for example, the model would give preference to more critical driving situations, which would then account for a much larger proportion of all test cases generated than is the case in the real driving data, the probability of failure of ADASs would be overestimated.
For a check of the statistical properties with respect to time behavior, another analysis is applied. For every data point
of the lateral distance time series, the mean and variances
are estimated. The resulting curves for mean and variance of the lateral position
d are illustrated in
Figure 9.

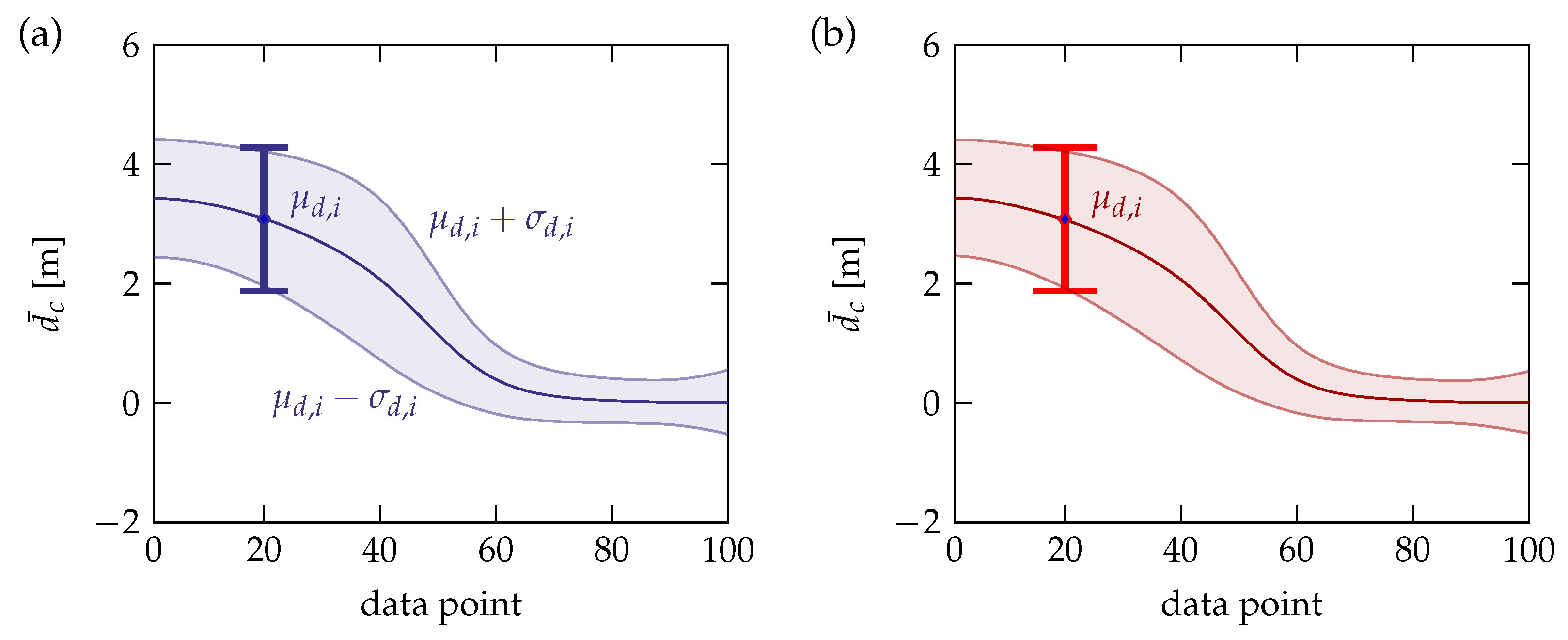

The filled areas mark the intervals [
],
for the measured cut-in data (
Figure 9a) and the generated trajectories (
Figure 9b). At the beginning of the maneuvers, the variation is higher than at the end, since the start point of the cut-in maneuver can differ within the lane widths on highways, whereas the goal of each maneuver is to reach the center of the ego lane at the end. Nevertheless, the comparison of measured and AI-generated trajectories highlights that the regions along time are almost identical, and no differences are visible.
Next, we may investigate if the generated trajectories not only fit statistical properties but also reflect the time characteristics of, e.g., the real cut-in maneuver highlighted in
Figure 2. Unfortunately, a direct comparison of a generated trajectory with a given real one is not possible due to the probabilistic character of VAEs. Therefore, the nearest neighbor of the real trajectory within the generated dataset
is searched, where the Euclidean distances of all data points of the time series are used as distance measure.

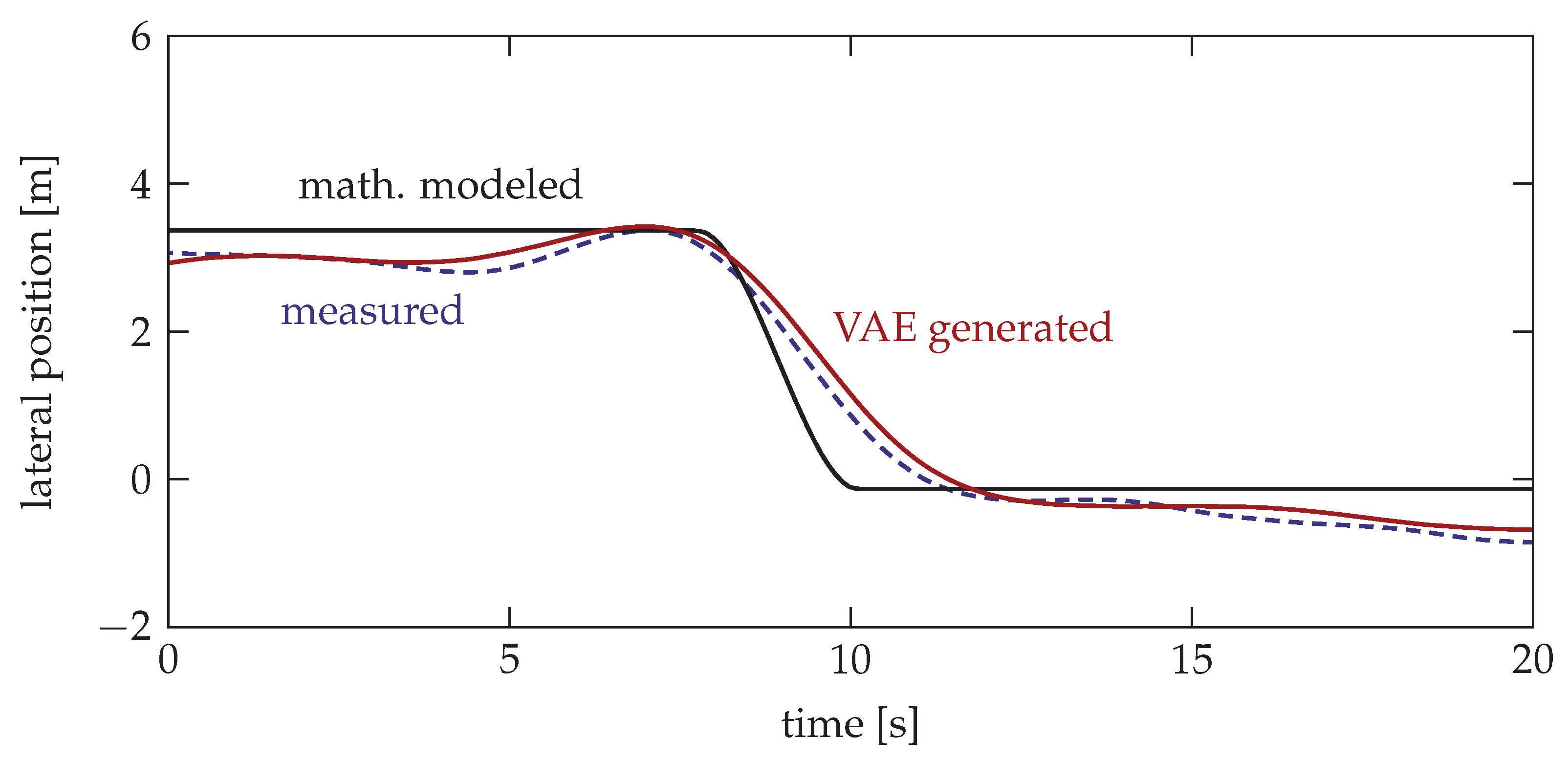

Figure 10 shows the original trajectory from
Figure 2 (blue dashed) and the closed neighbor (red) of all the synthetic motion curves in the generated dataset, which has great similarity to the measured cut-in trajectory.
It is particularly important to emphasize that this is a randomly generated curve and not just a reconstruction of the real trajectory determined, e.g., with a deterministic autoencoder. From the comparison shown, it can be concluded that the generative model is able to depict the real lateral trajectory more realistically than, e.g., the mathematical model [
6], using a third-order polynomial (black) and about 20 parameters, even though the latter curve was found by optimization as the closest approximation of the given measured trajectory. While the mathematical model can only depict the basic course of the lane change, the generative model can reproduce all the specific characteristics of the maneuvers. With about the same number of parameters being
and
, the AI model can apparently depict the real driving data more realistically than the mathematical model currently used.
