An Introduction to Quantum Mechanics Through Neuroscience and CERN Data
Abstract
:1. Introduction
- The wave–particle duality of nature. A wavelength (wave behavior) can be associated with a particle with mass through the de Broglie wavelength:
2. Materials and Methods
2.1. Motivation Likert Questionnaire
2.2. CMS Activities
3. Results
4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
Appendix A
- Objectives.
- 2.

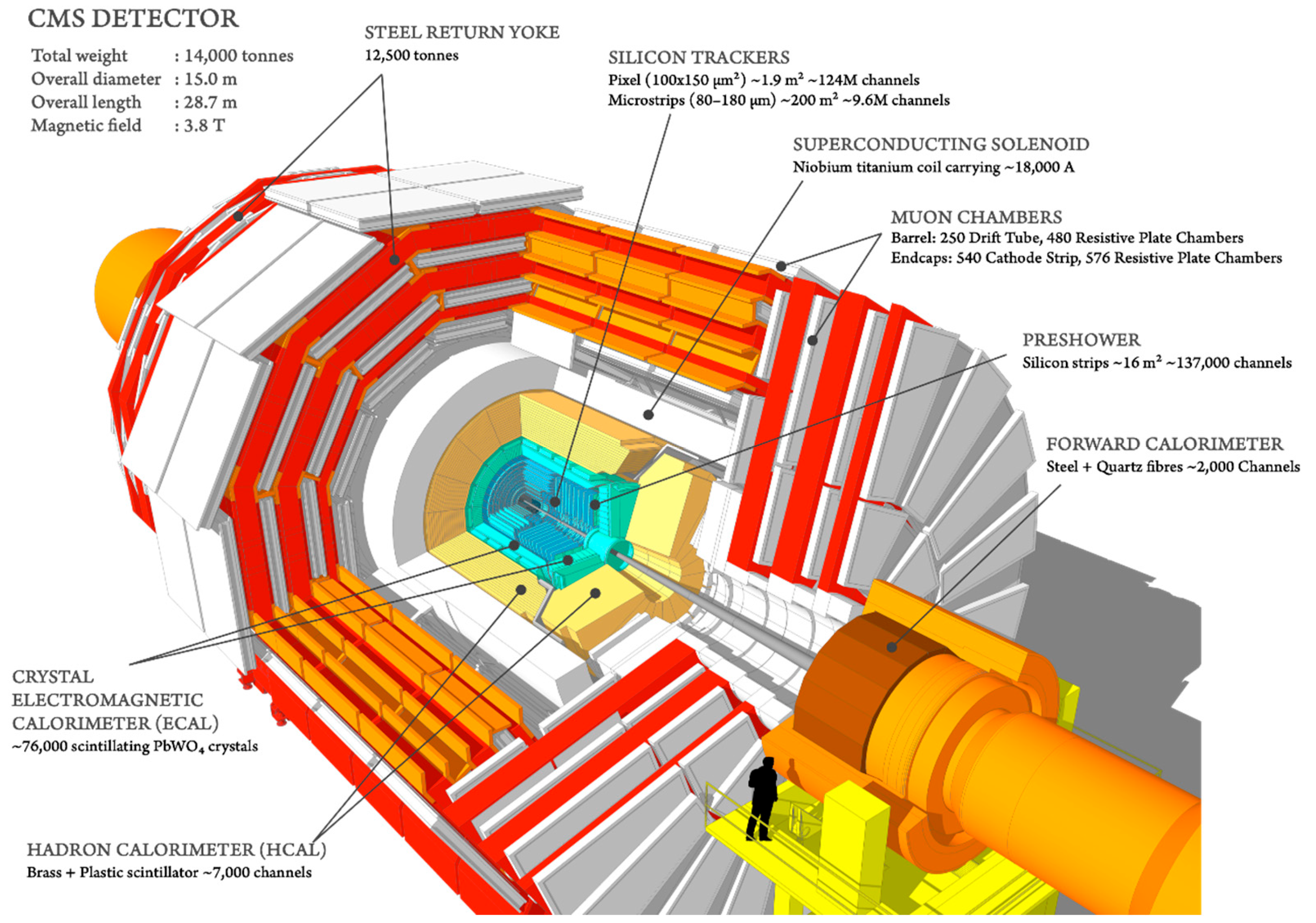

- CMS description.
- 3.

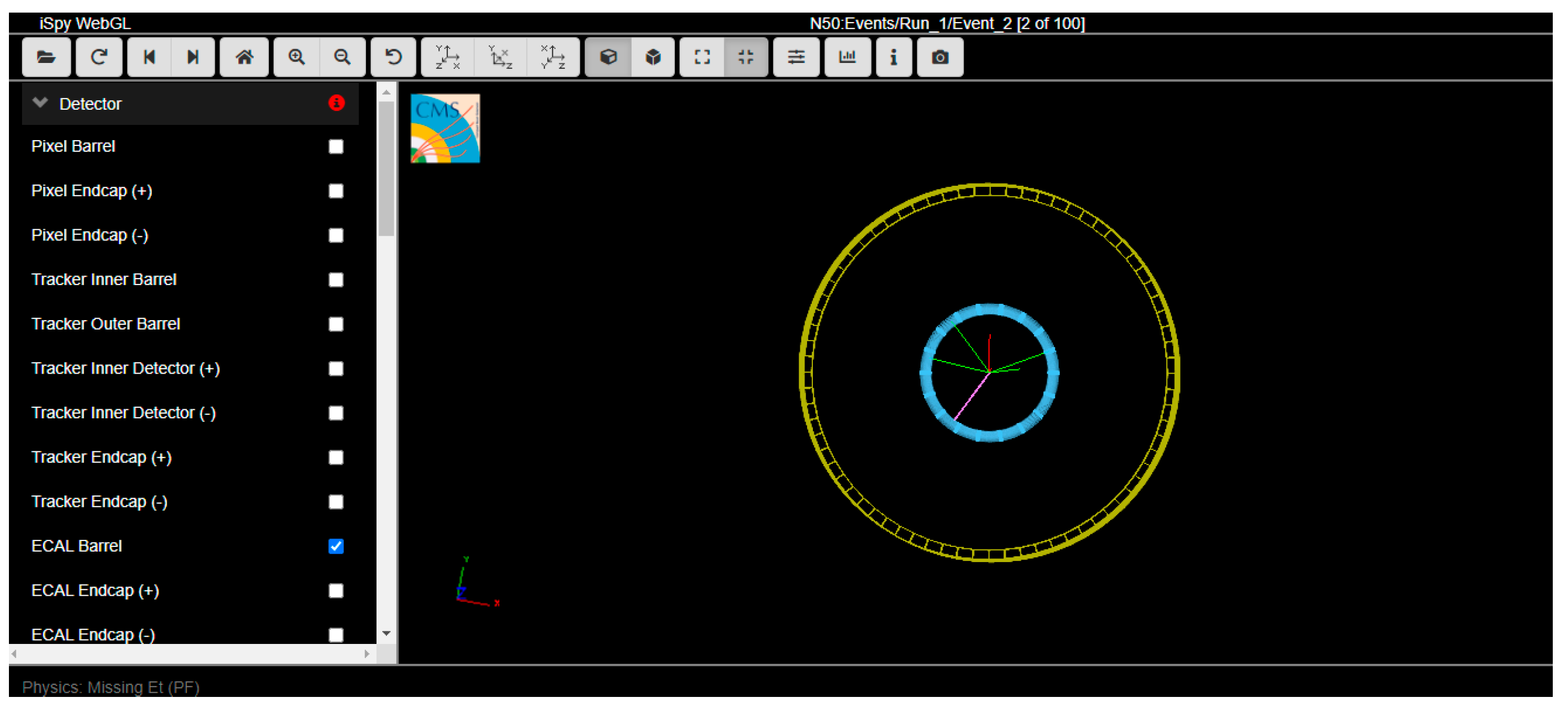

- Software and instructions.
- The color of the trace provided by the simulator:
- Direction of rotation or deviation of the particle:
- 4.
- Activities to solve.The proposed activities to be solved by the students were the following:
- 4.1

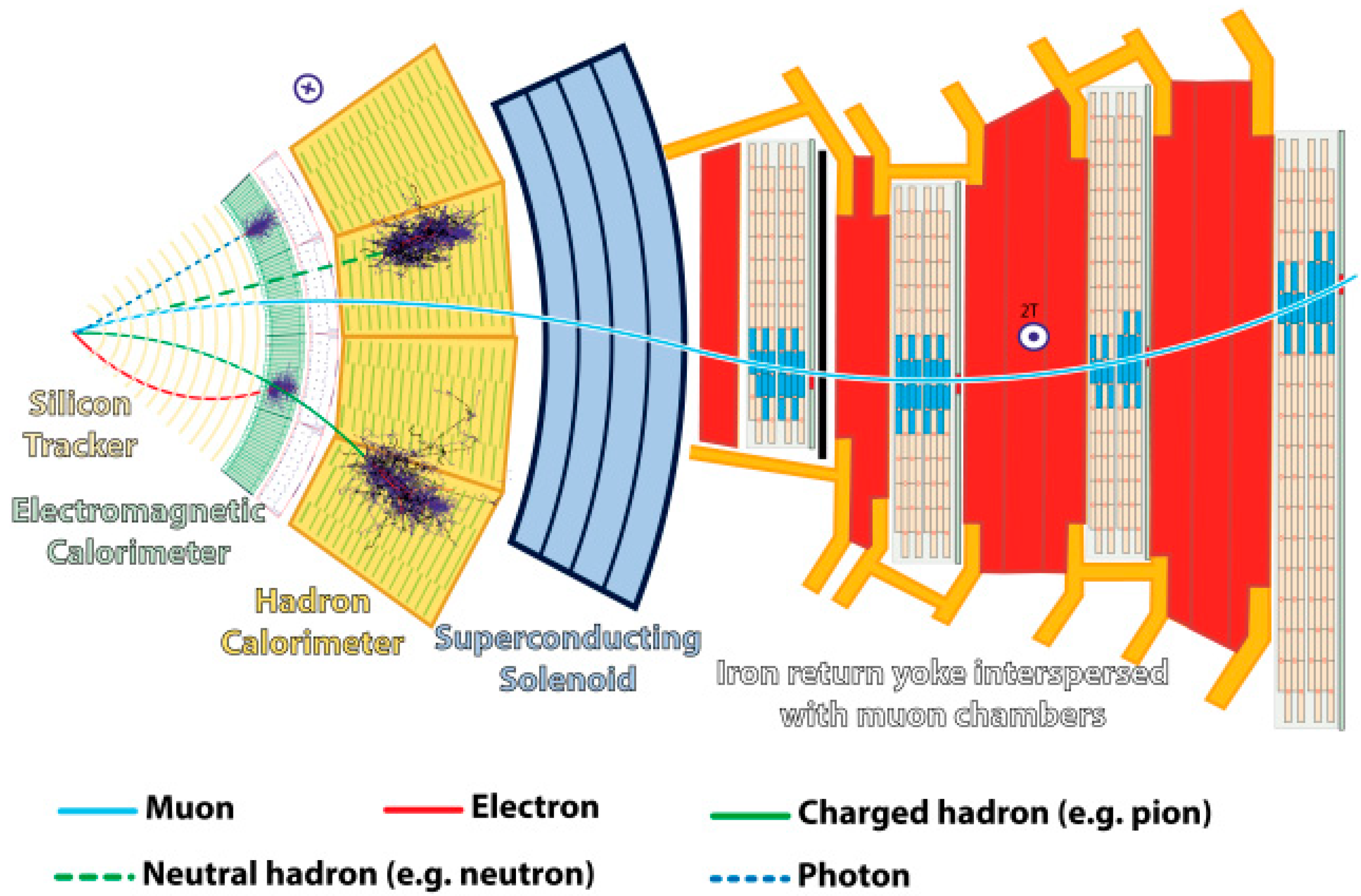

- Based on the analysis of the particles and their curvature in the presence of a magnetic field, determine the direction and orientation of the magnetic field. Sketch the detector and the magnetic field.
- 4.2
- Provide a brief description of the Standard Model of particle physics, highlighting its most notable features, such as particle mass, charge, and spin.
- 4.3
- CERN’s magnetic field strength currently reaches 8.33 T with current intensities of 11,850 A. Calculate the number of turns a solenoid with a diameter of 15 m would require to achieve this field strength.
- 4.4

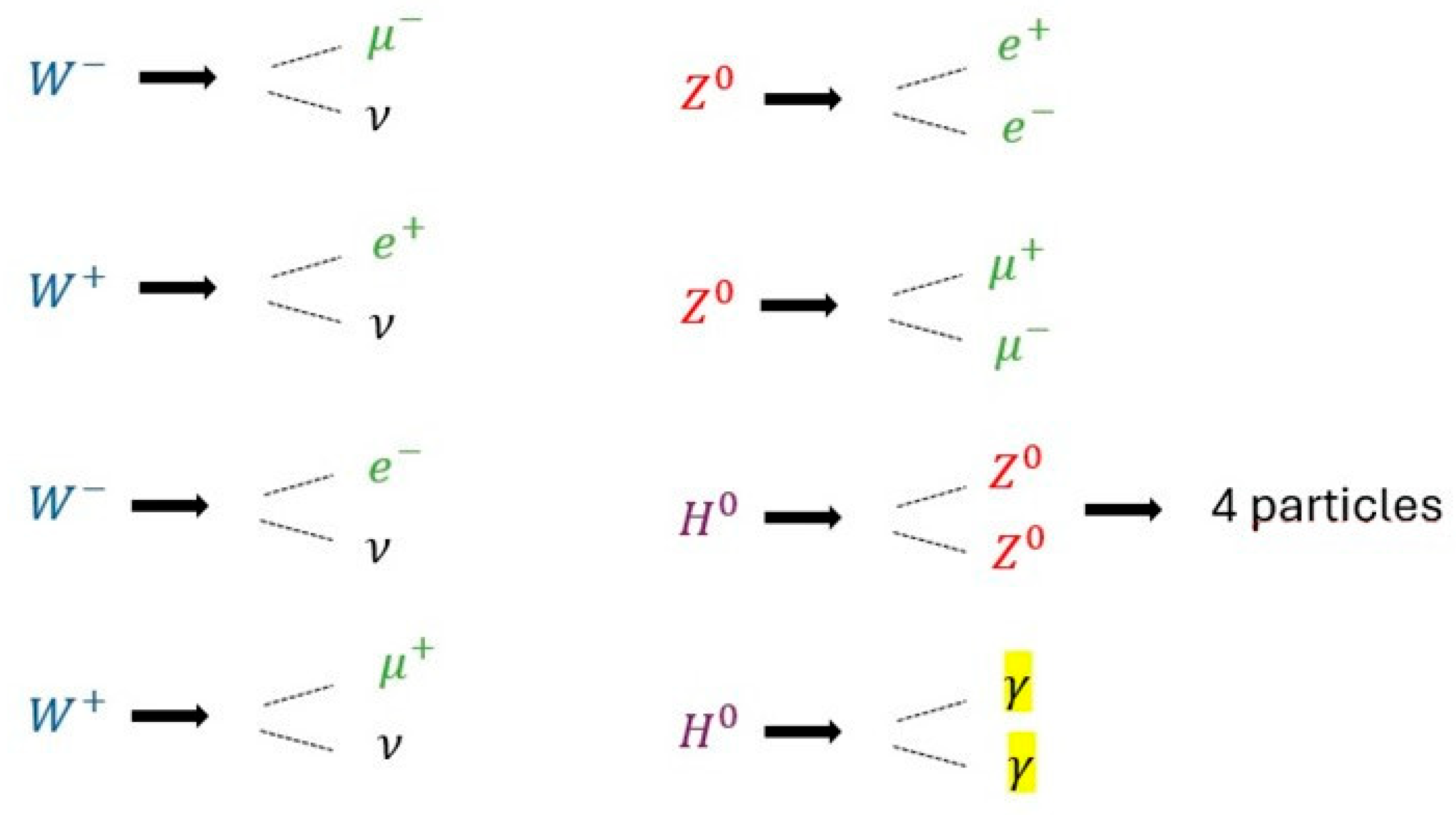

- From the final states visible in the simulator, deduce the initial states of the events.
- 4.5
- Investigate whether identical final states could originate from different initial states and connect this observation to the concept of probability.
- 4.6
- The Higgs boson has an approximate mass of 125 GeV. Determine how many times more massive the Higgs boson is compared to an electron.
- 4.7
- Select an event involving a clearly curved muon. Estimate the radius of curvature (consider that the electron detector has a radius of approximately 1.5 m). Given that the muon’s mass is approximately 106 MeV, its charge equals that of the electron, and the magnetic field strength is 3.8 T, calculate the muon’s velocity.
- 4.8
- Using the velocity calculated in the previous step, calculate the De Broglie wavelength associated with the muon.
- 4.9
- Determine the electric field strength necessary to prevent the muon from being deflected.
- 4.10
- Relate this practical activity to the theoretical principles required to complete it successfully.
References
- Stadermann, H.K.E.; Van Den Berg, E.; Goedhart, M.J. Analysis of secondary school quantum physics curricula of 15 different countries: Different perspectives on a challenging topic. Phys. Rev. Phys. Educ. Res. 2019, 15, 010130. [Google Scholar] [CrossRef]
- Bouchée, T.; Thurlings, M.; de Putter-Smits, L.; Pepin, B. Investigating teachers’ and students’ experiences of quantum physics lessons: Opportunities and challenges. Res. Sci. Technol. Educ. 2021, 41, 777–799. [Google Scholar] [CrossRef]
- Dunbar, K.N. The Biology of Physics: What the Brain Reveals About Our Understanding of the Physical World. Phys. Rev. Phys. Educ. Res. 2009, 1179, 15–18. [Google Scholar]
- Assem, H.D.; Nartey, L.; Appiah, E.; Aidoo, J.K. A Review of Students’ Academic Performance in Physics: Attitude, Instructional Methods, Misconceptions and Teachers Qualification. Eur. J. Educ. Pedagog. 2023, 4, 84–92. [Google Scholar] [CrossRef]
- Majidy, S. Addressing misconceptions in university physics: A review and experiences from quantum physics educators. arXiv 2024, arXiv:2405.20923. [Google Scholar]
- Bartley, J.E.; Riedel, M.C.; Salo, T. Brain activity links performance in science reasoning with conceptual approach. npj Sci. Learn. 2019, 4, 20. [Google Scholar] [CrossRef]
- Purves, D.; Cabeza, R.; Huettel, S.; LaBar, K.; Platt, M.L.; Woldorff, M. Principles of Cognitive Neuroscience, 3rd ed.; Panamericana: Madrid, Spain, 2013. [Google Scholar]
- Posner, M.I. Bridging Cognitive and Neural Aspects of Classroom Learning. AIP Conf. Proc. 2009, 1179, 39. [Google Scholar] [CrossRef]
- Brizendine, L. The Female Brain; Random House: Madrid, Spain, 2009. [Google Scholar]
- Geisler, S.; Rach, S.; Rolka, K. The relation between attitudes towards mathematics and dropout from university mathematics—The mediating role of satisfaction and achievement. Educ. Stud. Math. 2023, 112, 359–381. [Google Scholar] [CrossRef]
- Murre, J.M.J.; Dros, J. Replication and analysis of Ebbinghaus’ forgetting curve. PLoS ONE 2015, 10, e0120644. [Google Scholar] [CrossRef]
- Susanti, D.; Maulana, S.; Aroyandini, E.N. Exploring students’ openness traits for achieving meaningful learning in modern physics concepts. J. Phys. Conf. Ser. 2024, 2866, 012111. [Google Scholar] [CrossRef]
- Sitkey, M.; Jindrová, T. Misconceptions in Quantum Physics Arising from the Classical Physics. In Proceedings of the ICERI2020 Proceedings, Online Conference, 9–10 November 2020; pp. 2934–2938. [Google Scholar] [CrossRef]
- Banda, H.J.; Nzabahimana, J. The impact of Physics Education Technology (PHET) Interactive Simulation-Based Learning on motivation and academic achievement among Malawian physics students. J. Sci. Educ. Technol. 2022, 32, 127–141. [Google Scholar] [CrossRef] [PubMed]
- Baily, C.; Finkelstein, N.D. Teaching quantum interpretations: Revisiting the goals and practices of introductory quantum physics courses. Phys. Rev. Spec. Top.—Phys. Educ. Res. 2015, 11, 020124. [Google Scholar] [CrossRef]
- Swaab, D.F. We Are Our Brains: A Neurobiography of the Brain, from the Womb to Alzheimer’s; Allen Lane: London, UK, 2014. [Google Scholar]
- Ormrod, J.E. Human Learning, 4th ed; Prentice Hall: Madrid, Spain, 2012. [Google Scholar]
- Bouchée, T.; De Putter-Smits, L.; Thurlings, M.; Pepin, B. Towards a better understanding of conceptual difficulties in introductory quantum physics courses. Stud. Sci. Educ. 2021, 58, 183–202. [Google Scholar] [CrossRef]
- Vroom, V. Work and Motivation; Wiley & Sons: New York, NY, USA, 1964. [Google Scholar]
- McClelland, D. The Achieving Society; Free Press: Princeton, NJ, USA, 1961. [Google Scholar]
- Harlow, H.; Harlow, M.; Meyer, D. Learning motivated by a manipulation drive. J. Exp. Psychol. 1950, 40, 228–234. [Google Scholar] [CrossRef]
- Heider, F.; Benesh-Weiner, M. Fritz Heider: The Notebooks, Vol 3; Psychologie Verlags Union: Munich, Germany, 1988. [Google Scholar]
- Urhahne, D.; Wijnia, L. Theories of Motivation in Education: An Integrative Framework. Educ. Psychol. Rev. 2023, 35, 45. [Google Scholar] [CrossRef]
- Martín, H.R.; González, J.M.G. Snow white, the seven dwarfs and the photoelectric effect. Phys. Educ. 2023, 59, 015010. [Google Scholar] [CrossRef]
- Berry, T.; Mordijck, S. Wasted talent: The status quo of women in physics in the US and UK. Commun. Phys. 2024, 7, 77. [Google Scholar] [CrossRef]
- BenYishay, A.; Jones, M.; Kondylis, F.; Mobarak, A.M. Gender gaps in technology diffusion. J. Dev. Econ. 2019, 143, 102380. [Google Scholar] [CrossRef]
- Di Uccio, U.S.; Colantonio, A.; Galano, S.; Marzoli, I.; Trani, F.; Testa, I. Development of a construct map to describe students’ reasoning about introductory quantum mechanics. Phys. Rev. Phys. Educ. Res. 2020, 16, 010144. [Google Scholar] [CrossRef]
- Chiofalo, M.L.; Foti, C.; Michelini, M.; Santi, L.; Stefanel, A. Games for Teaching/Learning Quantum Mechanics: A Pilot Study with High-School Students. Educ. Sci. 2022, 12, 446. [Google Scholar] [CrossRef]
- Cwik, S.; Singh, C. Damage caused by societal stereotypes: Women have lower physics self-efficacy controlling for grade even in courses in which they outnumber men. Phys. Rev. Phys. Educ. Res. 2021, 17, 020138. [Google Scholar] [CrossRef]
- Maries, A.; Karim, N.I.; Singh, C. Active learning in an inequitable learning environment can increase the gender performance gap: The negative impact of stereotype threat. Phys. Teach. 2020, 58, 430–433. [Google Scholar] [CrossRef]
- Kalender, Z.Y.; Marshman, E.; Schunn, C.D.; Nokes-Malach, T.J.; Singh, C. Framework for unpacking students’ mindsets in physics by gender. Phys. Rev. Phys. Educ. Res. 2022, 18, 010116. [Google Scholar] [CrossRef]
- Sakuma, T.; McCauley, T. Detector and Event Visualization with SketchUp at the CMS Experiment. J. Phys. Conf. Ser. 2013, 513, 022032. [Google Scholar] [CrossRef]
- CMS Detector Slice. CMS-PHO-GEN-2016-001. 2016. Available online: https://cds.cern.ch/record/2120661 (accessed on 16 January 2025).
- iSpy WebGL. Available online: http://www.i2u2.org/elab/cms/ispy-webgl/# (accessed on 16 January 2025).
- iSpy WebGL. Available online: http://ispy-webgl-w2d2.web.cern.ch/ (accessed on 16 January 2025).
- Open Data Cern. Available online: http://opendata.cern.ch/record/5103 (accessed on 16 January 2025).
Item | Mean | Std. Deviation |
---|---|---|
Q1 | 2.38 | 1.220 |
Q2 | 4.16 | 0.968 |
Q3 | 3.43 | 1.128 |
Q4 | 3.78 | 1.183 |
Q5 | 3.78 | 1.140 |
Q6 | 3.90 | 1.136 |
Q7 | 3.69 | 1.281 |
Q8 | 3.73 | 1.118 |
Q9 | 3.54 | 1.184 |
Item | Gender | Mean | Std. Deviation | Std. Error Mean |
---|---|---|---|---|
Q1 | Female | 2.00 | 1.042 | 0.174 |
Male | 2.69 | 1.276 | 0.190 | |
Q2 | Female | 4.14 | 0.931 | 0.155 |
Male | 4.18 | 1.007 | 0.150 | |
Q3 | Female | 3.08 | 0.967 | 0.161 |
Male | 3.71 | 1.180 | 0.176 | |
Q4 | Female | 3.56 | 1.229 | 0.205 |
Male | 3.96 | 1.127 | 0.168 | |
Q5 | Female | 3.67 | 1.219 | 0.203 |
Male | 3.87 | 1.079 | 0.161 | |
Q6 | Female | 4.03 | 0.971 | 0.162 |
Male | 3.80 | 1.254 | 0.187 | |
Q7 | Female | 3.64 | 1.246 | 0.208 |
Male | 3.73 | 1.321 | 0.197 | |
Q8 | Female | 3.64 | 0.990 | 0.165 |
Male | 3.73 | 1.217 | 0.181 | |
Q9 | Female | 3.67 | 0.986 | 0.164 |
Male | 3.44 | 1.324 | 0.197 |
Kolmogorov–Smirnov * | Shapiro–Wilk | ||||||
---|---|---|---|---|---|---|---|
Item | Gender | Statistic | df | Sig. | Statistic | df | Sig. |
Q1 | Female | 0.222 | 36 | 0.000 | 0.835 | 36 | 0.000 |
Male | 0.159 | 45 | 0.006 | 0.894 | 45 | 0.001 | |
Q2 | Female | 0.267 | 36 | 0.000 | 0.812 | 36 | 0.000 |
Male | 0.260 | 45 | 0.000 | 0.760 | 45 | 0.000 | |
Q3 | Female | 0.216 | 36 | 0.000 | 0.908 | 36 | 0.006 |
Male | 0.196 | 45 | 0.000 | 0.855 | 45 | 0.000 | |
Q4 | Female | 0.186 | 36 | 0.003 | 0.883 | 36 | 0.001 |
Male | 0.249 | 45 | 0.000 | 0.806 | 45 | 0.000 | |
Q5 | Female | 0.191 | 36 | 0.002 | 0.865 | 36 | 0.000 |
Male | 0.209 | 45 | 0.000 | 0.860 | 45 | 0.000 | |
Q6 | Female | 0.239 | 36 | 0.000 | 0.830 | 36 | 0.000 |
Male | 0.230 | 45 | 0.000 | 0.810 | 45 | 0.000 | |
Q7 | Female | 0.253 | 36 | 0.000 | 0.862 | 36 | 0.000 |
Male | 0.209 | 45 | 0.000 | 0.829 | 45 | 0.000 | |
Q8 | Female | 0.226 | 36 | 0.000 | 0.891 | 36 | 0.002 |
Male | 0.232 | 45 | 0.000 | 0.844 | 45 | 0.000 | |
Q9 | Female | 0.271 | 36 | 0.000 | 0.859 | 36 | 0.000 |
Male | 0.169 | 45 | 0.002 | 0.881 | 45 | 0.000 |
Null Hypothesis | Sig. a,b |
---|---|
The distribution of Q1 is the same across categories of Gender. | 0.013 |
The distribution of Q2 is the same across categories of Gender. | 0.728 |
The distribution of Q3 is the same across categories of Gender. | 0.008 |
The distribution of Q4 is the same across categories of Gender. | 0.113 |
The distribution of Q5 is the same across categories of Gender. | 0.517 |
The distribution of Q6 is the same across categories of Gender. | 0.572 |
The distribution of Q7 is the same across categories of Gender. | 0.629 |
The distribution of Q8 is the same across categories of Gender. | 0.296 |
The distribution of Q9 is the same across categories of Gender. | 0.556 |
