Digital Quantum Simulation of Scalar Yukawa Coupling

Abstract

Motivated by the revitalized interest in the digital simulation of medium- and high-energy physics phenomena, we investigate the dynamics following a Yukawa interaction quench on IBM Q. Adopting the zero-dimensional version of the scalar Yukawa coupling model as our point of departure, we design low-depth quantum circuits, emulating its dynamics with up to three bosons. In the one-boson case, we demonstrate circuit compression, i.e., a constant-depth circuit containing only two controlled-NOT (CNOT) gates. In the more complex three-boson case, we design a circuit in which one Trotter step entails eight CNOTs. Using an analogy with the traveling salesman problem, we also provide a CNOT cost estimate for higher boson number truncations. Based on these circuits, we quantify the system dynamics by evaluating the expected boson number at an arbitrary time after the quench and the survival probability of the initial vacuum state (the Loschmidt echo). We also utilize these circuits to drive adiabatic transitions and compute the energies of the ground- and first-excited states of the considered model. Finally, through error mitigation, i.e., zero-noise extrapolation, we demonstrate the good agreement of our results with a numerically exact classical benchmark.

1. Introduction

The reinvigorated interest in digital quantum simulation (DQS) [1,2,3] has been chiefly motivated by the recent tantalizing progress in the development of quantum hardware based on superconducting [4], trapped-ion- [5], or neutral-atom systems [6]. This recent flurry of research activity in DQS was preceded by a large body of investigation pertaining to analog quantum simulators of many-body systems [3]. Both of these research strands have in large part been inspired by the pioneering assertion of Feynman that a generic quantum system could efficiently be simulated using a device whose operation is also governed by quantum mechanical laws [7]. Admittedly, the field of DQS has heretofore been dominated by the development and application of quantum algorithms for simulating purely fermionic systems [8,9,10,11,12,13,14,15,16,17,18]; this is related to the fact that, owing to the Pauli exclusion principle, simulations thereof typically require modest quantum hardware resources.

Unlike their purely fermionic counterparts, quantum many-body systems involving bosonic constituents (e.g., coupled boson–boson [19] or boson–fermion [20] systems) have infinite-dimensional Hilbert spaces that ought to be truncated if one aims to simulate such systems on either classical or quantum computers. Due to the inherently nontrivial problem of encoding bosonic states on qubit registers, the DQS of bosonic systems has heretofore received comparatively modest attention [20,21,22]. In particular, while many analog simulators of coupled boson–fermion models [23] have been proposed [24,25,26,27,28,29,30], only a handful of these models have been addressed in the DQS context as of yet [20,31].

Motivated primarily by the dearth of works pertaining to the DQS of coupled boson–fermion models, in this paper, we present a DQS of the non-equilibrium dynamics following a quench [32] of the scalar Yukawa interaction [33]. While our principal goal here is to demonstrate a DQS of a coupled boson–fermion model of physical interest—demonstrating in the process efficient schemes for a controlled truncation of (infinite-dimensional) bosonic Hilbert spaces—the present work also fits seamlessly into the emerging research area that pertains to the DQS of models from medium- and high-energy physics [31,34,35,36,37,38].

Yukawa-type interactions—first proposed for describing the nucleon–nucleon interaction mediated by pions [39]—involve fermion, antifermion, and boson degrees of freedom. Due to the limitations of current noisy intermediate-scale quantum hardware [40], here we investigate the low-energy limit of the scalar Yukawa coupling on a single lattice site, with low truncation numbers for the real scalar (boson) field. We show that, despite its inherent simplicity, the resulting zero-dimensional model shows nontrivial quantum dynamics. While the simplified, zero-dimensional version of the scalar Yukawa coupling model cannot be expected to lay out all relevant features of the actual physical phenomenon, our aim here, i.e., the second major goal of this work, is to use the DQS of this simple model as a test bed for state-of-the-art IBM Quantum (IBM Q) hardware [41].

By first making use of the local charge conservation in the system at hand, which permits a single-qubit encoding of the fermion–antifermion sector of the problem, we design low-depth quantum circuits that emulate the system dynamics with up to three bosons. We subsequently implement those circuits on IBM Q hardware [41], where CNOT is the representative two-qubit gate. We characterize the system dynamics for the initial vacuum state by computing the expected boson numbers and the survival probability of the initial state (the Loschmidt echo) [42] at an arbitrary time after the Yukawa interaction quench. In addition, we construct circuits for calculating the energies of the ground- and first-excited states using adiabatic state preparation [43,44]. We also provide benchmarks for the obtained results—in both the post-quench dynamics and adiabatic-state preparation parts of this work—by carrying out numerically exact evaluations of the aforementioned quantities on a classical computer. Finally, we perform error mitigation in the form of digitalzero-noise extrapolation [45,46], showing in this manner that our DQS results are in good agreement with the numerically exact classical benchmarks.

Using sophisticated circuit optimization techniques, in the one-boson case, we demonstrate circuit compression, i.e., we design a constant-depth circuit that contains only two CNOT gates (regardless of the total simulation time). In other words, in this case, we find a much more efficient realization than the conventional one in which the circuit depth linearly scales with the number of Trotter steps. This circuit compression is only possible for certain special types of the Hamiltonian system (coupled qubit) and have quite recently been discussed in the context of the transverse-field Ising- [47,48] and XY models [29] by means of Lie algebraic methods [49,50].

In the more nontrivial three-boson case—which in our state-encoding scheme corresponds to a three-qubit system—a compression to a constant-depth circuit is no longer possible. We show that in this case it proves beneficial to make use of the second-order Trotter–Suzuki product formula [51,52], which entails a symmetrized Trotter step; in this way, we design a circuit in which one Trotter step entails eight CNOTs. This last number is far below the maximal CNOTcost of a generic three-qubit gate (14)  [53,54].

We also address cases with larger boson number truncations by providing the CNOT cost estimate for the corresponding quantum circuits. We perform this based on an analogy of our circuit optimization with the traveling salesman problem (TSP) [55], adapting an idea proposed in ref. [56]. To this end, we make use of the exact solution of the TSP based on the Bellman–Held–Karp dynamic programming algorithm [57,58], as well as the Christofides algorithm, a polynomial-time heuristic that approximately solves the TSP on a metric graph [59]. Being polynomial in character, the latter can be utilized for much larger boson number truncations than the exact solution.

The remainder of this paper is organized as follows. In Section 2, we introduce the relevant fermion–boson system and its underlying Hamiltonian. Section 3 starts with a short introduction into our scheme for describing the system dynamics after an interaction quench via DQS, followed by a brief recapitulation of our adopted approaches for encoding fermion and boson states. At the end of this section, we also address the issue of the controllable truncation of the bosonic Hilbert space. Section 4 starts with the design of low-depth quantum circuits emulating the dynamics of the system, first in the two-qubit case and then in the three-qubit case. This is followed by an analysis of the CNOT cost for higher boson number truncations. Finally, this section ends with a brief review of the basic aspects of the zero-noise extrapolation technique of error mitigation. The principal results obtained for the system dynamics on IBM Q are presented in Section 5. We summarize the main findings and conclude the paper in Section 6. Some cumbersome derivations, as well as relevant mathematical and computational details, are relegated to Appendix A, Appendix B, Appendix C, Appendix D, Appendix E and Appendix F.

2. System and Hamiltonian

To set the stage for further considerations, we first introduce the system at hand and its fermion–boson Hamiltonian. We start by introducing the scalar Yukawa coupling model (Section 2.1) and then specialize to its single-site (zero-dimensional) version (Section 2.2).

2.1. Scalar Yukawa Coupling

The Yukawa interaction mechanism was originally introduced to describe the nuclear force between nucleons mediated by pions [39]. It later attracted interest in the context of the Standard Model of particle physics, where it describes the coupling between the Higgs field and massless quark and lepton fields (i.e., the fundamental fermion fields); the latter fermion fields acquire masses via the Higgs mechanism after electroweak symmetry breaking [33]. Interaction mechanisms somewhat analogous to Yukawa coupling are also of relevance in the context of strongly correlated condensed-matter systems [60].

In the following, we will be interested in the Yukawa-type interaction of a real scalar field $\varphi$ and a Dirac field $\psi$, described by the Hamiltonian [33]

$$H_{\mathrm{int}}=g\int d^3\mathbf{x}\overline{\psi }\psi \varphi ,$$

(1)

where g is the dimensionless coupling strength. While pions, which mediate the nucleon–nucleon interaction, are pseudoscalar mesons, we will assume a scalar interaction for the sake of simplicity. In our subsequent discussion, we adopt natural units, where $ħ=c=1$.

To perform a DQS of the real-time dynamics of scalar Yukawa coupling, we have to discretize the theory and select a convenient basis. While approaches that are directly based on the algebraic properties of the field operators do exist, in the following, we make use of an expansion in terms of creation and annihilation operators. We further select the momentum eigenstates $|\mathbf{p}\rangle$ as our preferred basis, as these these states are at the same time eigenstates of the non-interacting (free) part of the Hamiltonian of the system. Using the definition of the Fourier transform $\varphi (\mathbf{x})={(2\pi )}^{-3}\int d^3\mathbf{p}{e}^{i\mathbf{p}·\mathbf{x}}\varphi (\mathbf{p})$, one may rewrite the interaction Hamiltonian as

$$\begin{array}{ccc}\hfill H_{\mathrm{int}}& =& {\displaystyle \frac{g}{2}}\int {\displaystyle \frac{d^3\mathbf{p}}{{(2\pi )}^3}}\int {\displaystyle \frac{d^3{\mathbf{p}}^{\prime }}{{(2\pi )}^3}}\left[\overline{\psi }(\mathbf{p})\psi ({\mathbf{p}}^{\prime })\varphi (\mathbf{p}-{\mathbf{p}}^{\prime })+\mathrm{H}.\mathrm{c}.\right],\hfill \end{array}$$

(2)

with the boson and fermion/antifermion field operators in momentum space, respectively, being defined as [33]

$$\begin{array}{cc}\hfill \varphi (\mathbf{p})& ={\displaystyle \frac{1}{\sqrt{2{\omega }_{\mathbf{p}}}}}\left(b_{\mathbf{p}}+b_{-\mathbf{p}}^{†}\right),\hfill \\ \hfill \psi (\mathbf{p})& ={\displaystyle \frac{1}{\sqrt{2{\mathsf{\Omega }}_{\mathbf{p}}}}}\sum _s\left[a_{\mathbf{p}}^s{u}^s(\mathbf{p})+c_{-\mathbf{p}}^{s†}{v}^s(-\mathbf{p})\right],\hfill \end{array}$$

(3)

with the relativistic dispersion relations ${\omega }_{\mathbf{p}}^2=m^2+{\mathbf{p}}^2$ (for bosons) and ${\mathsf{\Omega }}_{\mathbf{p}}^2=M^2+{\mathbf{p}}^2$ (for fermions) [33]. By discretizing the integrals in Equation (2) and using Equation (3), one obtains the momentum space version of $H_{\mathrm{int}}$ in terms of creation/annihilation operators

$$\begin{array}{ccc}\hfill H_{\mathrm{int}}& =& {\displaystyle \frac{g{a}_l^{3/2}}{2}}\sum _{\mathbf{p},{\mathbf{p}}^{\prime }}\sum _{r,s}\{{\displaystyle \frac{1}{\sqrt{8{\mathsf{\Omega }}_{\mathbf{p}}{\mathsf{\Omega }}_{{\mathbf{p}}^{\prime }}{\omega }_{\mathbf{p}-{\mathbf{p}}^{\prime }}}}}\left(b_{\mathbf{p}-{\mathbf{p}}^{\prime }}+b_{{\mathbf{p}}^{\prime }-\mathbf{p}}^{†}\right)\hfill \\ & \times & \left[a_{\mathbf{p}}^{r†}{\overline{u}}^r(\mathbf{p})+c_{-\mathbf{p}}^r{\overline{v}}^r(-\mathbf{p})\right]\hfill \\ & \times & \left[a_{{\mathbf{p}}^{\prime }}^s{u}^s({\mathbf{p}}^{\prime })+c_{-{\mathbf{p}}^{\prime }}^{s†}{v}^s(-{\mathbf{p}}^{\prime })\right]+\mathrm{H}.\mathrm{c}.\},\hfill \end{array}$$

(4)

where $a_l$ is the lattice spacing.

Having discussed the interacting part of the full Hamiltonian of the system, writing down its free part $H_0$ still remains. The latter consists of the free Hamiltonians of the Dirac and Klein–Gordon fields in momentum space, i.e., $H_0=H_{\mathrm{Dirac}}+H_{\mathrm{KG}}$, where

$$\begin{array}{cc}\hfill H_{\mathrm{Dirac}}& =\int {\displaystyle \frac{d^{3}p}{{(2\pi )}^3}}{\mathsf{\Omega }}_{\mathbf{p}}\sum _s\left(a_{\mathbf{p}}^{s†}{a}_{\mathbf{p}}^s+c_{\mathbf{p}}^{s†}{c}_{\mathbf{p}}^s\right),\hfill \\ \hfill H_{\mathrm{KG}}& =\int {\displaystyle \frac{d^{3}p}{{(2\pi )}^3}}{\omega }_{\mathbf{p}}{b}_{\mathbf{p}}^{†}{b}_{\mathbf{p}}.\hfill \end{array}$$

(5)

2.2. Single-Site Model

Due to the technological limitations of current quantum hardware, it appears prudent to start investigating scalar Yukawa interactions on a single-lattice site with low truncation numbers for the real scalar. While for large lattices the gate cost of the time evolution scales more favorably in real space, the momentum space representation is still suitable for small lattices—especially in the extreme case of a single-site model. The single grid point in momentum space corresponds to a momentum below a certain small cutoff value for all particles, implying that all particles can be considered to be approximately at rest. While zero-dimensional, single-site models of this type are widely used in the context of the DQS of high/medium energy models [61,62], it is obvious that they cannot be expected to yield accurate results for any relevant physical observable. However, such “toy models” can still display nontrivial quantum dynamics and can thus be seen as a useful first step towards more complex simulations that should be achievable in the not-too-distant future.

As derived in Appendix A, the effective interaction Hamiltonian of our single-site model is given by

$$H_{\mathrm{int}}={\displaystyle \frac{\eta }{2}}\left(a^{†}a+c^{†}c-1\right)\left(b+b^{†}\right),$$

(6)

with $\eta \equiv 4mg{\beta }^{3/2}$ being the effective coupling strength. At the same time, the single-site version of the free Hamiltonian $H_0=H_{\mathrm{Dirac}}+H_{\text{Klein-Gordon}}$ is given by

$$H_0=M(a^{†}a+c^{†}c)+m{b}^{†}b.$$

(7)

The sum of the Hamiltonians in Equations (6) and (7), i.e., the total Hamiltonian $H_{\mathrm{tot}}=H_0+H_{\mathrm{int}}$, will be our point of departure in the following process for simulating the dynamics following a quench of the scalar Yukawa coupling.

3. DQS of Hamiltonian Dynamics and Encoding Fermion/Boson States on Qubits

To facilitate the discussion of the DQS of the Yukawa coupled system in the remainder of this paper, we begin with some general aspects of DQS and quantum circuit synthesis (Section 3.1). We then recapitulate the basic aspects of encoding the relevant particle states on qubits, both for fermions (Section 3.2) and bosons (Section 3.3). Finally, we discuss the truncation of the boson Hilbert space (Section 3.4).

3.1. Simulating the Dynamics after an Interaction Quench

For a quantum system described by a Hamiltonian $H_{\mathrm{sys}}$, the Loschmidt amplitude [32]

$$\mathcal{G}(t)=\langle {\psi }_{t=0}\left|e^{-i{H}_{\mathrm{sys}}t}\right|{\psi }_{t=0}\rangle$$

(8)

quantifies the deviation of the time-evolved state $|{\psi }_t\rangle \equiv e^{-i{H}_{\mathrm{sys}}t}|{\psi }_{t=0}\rangle$ from the initial state $|{\psi }_{t=0}\rangle$. The Loschmidt echo [42] $\mathcal{L}(t)\equiv {\left|\mathcal{G}(t)\right|}^2$, the survival probability at time t of this initial state, represents the most widely used quantity in describing dynamics following an interaction quench. In order to evaluate this last quantity, as well as the expected boson number, at time t after a Yukawa interaction quench, one first evaluates the time evolution operator of the system $U(t)\equiv e^{-i{H}_{\mathrm{tot}}t}$ by representing it in the form of a quantum circuit.

The unitary time evolution operator $U(t)$ corresponding to the Hamiltonian $H(t)$ satisfies the time-dependent Schrödinger equation in the operator form $\partial U/\partial t=-iH(t)U(t)$, with the initial condition $U(t=0)=\mathbb{1}$. We will hereafter adopt a time-independent Hamiltonian $H(t)=H_{\mathrm{sys}}$. By discretizing time into n steps of duration $\Delta t$, such that $t\equiv n\Delta t$ is the total evolution time, the time evolution operator can be expressed as

$$U(t)={(e^{-i{H}_{\mathrm{sys}}\Delta t})}^n.$$

(9)

The inherent tradeoff pertaining to such a decomposition is that a smaller time step corresponds to a longer circuit. The last expression for $U(t)$ is typically approximated using first-order Trotter–Suzuki-type decomposition [51,63]. For a time-independent Hamiltonian $H_{\mathrm{sys}}={\sum }_l{H}_l$, the latter approximates $exp(-i{H}_{\mathrm{sys}}t)$ by ${({\prod }_l{e}^{-i{H}_{l}t/n})}^n$, with the corresponding error being upper bounded by $\mathcal{O}(N{t}^2/n)$, where N is the number of qubits [1].

In the DQS context, time evolution operators are represented through quantum circuits that emulate the system dynamics and are decomposed into single-qubit and two-qubit gates. Typical single-qubit gates include the Pauli gates [64]

$$X=\left[\begin{array}{cc}0& 1\\ 1& 0\end{array}\right],Y=\left[\begin{array}{cc}0& -i\\ i& 0\end{array}\right],Z=\left[\begin{array}{cc}1& 0\\ 0& -1\end{array}\right],$$

(10)

the single-qubit rotation gates

$$R_x(\theta )=e^{-{\displaystyle \frac{i}{2}}\theta X},R_y(\theta )=e^{-{\displaystyle \frac{i}{2}}\theta Y},R_z(\theta )=e^{-{\displaystyle \frac{i}{2}}\theta Z},$$

(11)

as well as the Hadamard (H), phase (S), and $\pi /8$ (T) gates

$$H={\displaystyle \frac{1}{\sqrt{2}}}\left[\begin{array}{cc}1& 1\\ 1& -1\end{array}\right],S=\left[\begin{array}{cc}1& 0\\ 0& i\end{array}\right],T=\left[\begin{array}{cc}1& 0\\ 0& e^{i\pi /4}\end{array}\right].$$

(12)

The essential two-qubit gate is CNOT, whose matrix representation is

$$\mathrm{CNOT}=\left[\begin{array}{cccc}1& 0& 0& 0\\ 0& 1& 0& 0\\ 0& 0& 0& 1\\ 0& 0& 1& 0\end{array}\right].$$

(13)

Simulating the dynamics of a quantum many-body system on a classical computer is a nontrivial problem due to the large Hilbert space size that necessitates the allotment of a large amount of memory. The task of designing a circuit that emulates these same dynamics on a quantum computer [64] is exponentially hard, which is intimately related to exponential growth of a generic Hilbert space with the system size; e.g., in the case of interacting fermion systems, this is known to be an NP-hard problem [65,66]. What further complicates this task is the fact that near-term quantum hardware is both very limited in size and noisy [40]. Thus, the optimization of the quantum circuit emulating the dynamics of a relevant system—i.e., reducing its depth in order to obtain as shallow a circuit as possible—is a task of paramount importance for DQS.

3.2. Fermion State Encoding

In the familiar Jordan–Wigner (JW) encoding [67] of fermion states, due to the Pauli exclusion principle, the fermionic occupation numbers are restricted to the set $\{0,1\}$. This allows for a one-to-one mapping from the occupation number basis to the computational basis; a qubit in the state $|0\rangle$($|1\rangle$) corresponds to an empty (occupied) fermionic orbital. Therefore,

$$|f_{n-1}\dots f_1{f}_0\rangle \to |q_{n-1}\rangle \otimes \cdots \otimes |q_1\rangle \otimes |q_0\rangle ,$$

(14)

where $f_j$ is the occupation number of orbital j ($j=0,\dots ,n-1$) and $|q_j\rangle$ the corresponding qubit state [$f_j=q_j\in \{0,1\}$]. In Equation (14), the rightmost single-qubit state corresponds to the qubit 0, a convention that will hereafter also apply to operators.

The JW-type encoding requires $O(n)$ qubit operations to represent a fermionic operator, where n is the number of fermionic orbitals (or, in the problem at hand, momentum states of spin-up and spin-down particles/antiparticles). While the alternative, Bravyi–Kitaev encoding [10,68], reduces this cost to $O(\log n)$, in what follows, we will rely on the JW encoding as we will be concerned with Hamiltonians that are diagonal on the fermionic subspace in the occupation number basis.

The JW qubit mappings of fermionic operators are given by

$$\begin{array}{ccc}\hfill c_j^{†}& \equiv & {\displaystyle \frac{1}{2}}(X_j-i{Y}_j)\otimes Z_{j-1}\otimes \cdots \otimes Z_1\otimes Z_0,\hfill \end{array}$$

$$\begin{array}{ccc}\hfill c_j& \equiv & {\displaystyle \frac{1}{2}}(X_j+i{Y}_j)\otimes Z_{j-1}\otimes \cdots \otimes Z_1\otimes Z_0.\hfill \end{array}$$

(15)

Here, the operators $(X_j\pm i{Y}_j)/2$ change the occupation numbers of the target spin orbital, while the action of the string of Z operators amounts to computing the parity of the state.

3.3. Boson State Encoding

Bosonic creation/annihilation operators satisfy the commutation relation $[b_i,b_j^{†}]={\delta }_{ij}$ and, in contrast to fermions, commute on different sites. The main challenge in encoding bosonic states pertains to their unbounded occupation number, which forces us to impose an occupation number cutoff $\Lambda$. The encoding of a bosonic Fock state with cutoff $\Lambda$ requires $O(nlog\Lambda )$ qubits, where n is the number of bosonic modes. This scaling is achieved by representing the occupation numbers of the basis states of the truncated Fock space as binary strings and mapping the digits to individual qubits [20]. For a Fock state $|k\rangle$, where k is an integer whose binary decomposition reads

$$k=\sum _{j=0}^{N-1}{q}_j(k)2^j(q_j\in \{0,1\}),$$

(16)

the mapping is given by

$$|k\rangle \to |q_{N-1}\rangle \otimes \cdots \otimes |q_1\rangle \otimes |q_0\rangle .$$

(17)

The mapping of the truncated creation/annihilation operators to their pseudospin–$1/2$ (qubit) counterparts is then achieved by finding their corresponding Pauli basis representations for arbitrary truncations. For $\Lambda =2^N-1$, a bosonic creation operator can be represented as

$$b^{†}={\left({\displaystyle \frac{1}{2}}\right)}^N\sum _{k=1}^{\Lambda }\sqrt{k}\underset{j=0}{\overset{N-1}{⨂}}{F}_{j,k},$$

(18)

where $F_{j,k}$ is an operator defined as (for a detailed derivation, see Appendix B)

$$F_{j,k}=\left\{\begin{array}{cc}{I}_j+{(-1)}^{q_j(k)}{Z}_j\hfill & \mathrm{if}\exists m<j:q_m(k)=1\hfill \\ X_j+{(-1)}^{q_j(k)}i{Y}_j\hfill & \mathrm{if}\forall m<j:q_m(k)=0\hfill \end{array}\right..$$

(19)

When taking the expectation value $\langle b^{†}b\rangle$, we simply weight the probability that the k-th qubit is in state $|1\rangle$ by a factor of $2^k$.

Another often-used operator is the particle-number operator $b^{†}b$, which in the Pauli basis is given by

$$b^{†}b={\displaystyle \frac{1}{2}}\sum _{j=0}^{N-1}{2}^j{(I-Z)}_j.$$

(20)

3.4. Truncation of the Boson Hilbert Space

As discussed in Section 3.3, a truncation of the (infinite-dimensional) boson Hilbert space is required in order to perform a DQS with a finite number of qubits. The ideal truncation nontrivially depends on the initial state of the system $|{\psi }_{t=0}\rangle$, the coupling strength $\eta$, and the total simulation time t. Throughout this work, we focus entirely on interaction quenches starting from the vacuum state as the initial state of the system. This obviates the need to consider the dependence of the system dynamics following a quench on the initial state. While theoretical estimations of the truncation required to keep the truncation error below a certain threshold are known [31], we will rely on classical simulations of our few-qubit quantum systems in order to determine the ideal qubit requirements. Our algorithm works as follows:

• Define a high-resolution grid of the coupling strength and the time in the regime of interest.
• For each coupling strength, select an initial truncation with $N=1$ qubits ($\Lambda =1$).
• Simulate a Hamiltonian with a truncation using N and $N+1$ qubits on the time grid.
• Compute the fidelity between both simulations for each point on the time grid. This is achieved by extending the lower-dimensional state vector into the higher-dimensional Hilbert space using the zero state $|{\psi }_N\rangle \to |0\rangle \otimes |{\psi }_N\rangle$.
• If the fidelity falls below a certain threshold $1-ϵ$ at some point in time, the selected truncation is no longer appropriate. Then, increase the qubit number by one $(N\to N+1)$, save the qubit number along with the time point, and repeat steps 3, 4, and 5 until the desired fidelity is reached.

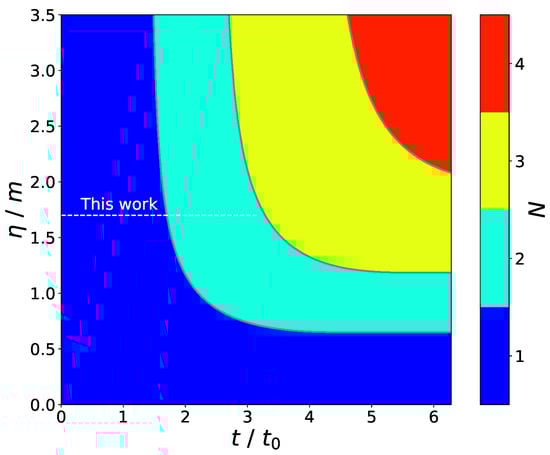

The results obtained using this algorithm are depicted in Figure 1. As can be inferred from the latter, with $\eta =1.7m$, we can simulate the dynamics of the system up to a time $t\approx 3t_0$, where $t_0=1/\sqrt{m^2+{\eta }^2}$, with an accuracy of $90\%$ using a boson truncation of $\Lambda =3$ ($N=2$). Bearing in mind the limited hardware resources of current quantum computers, we choose this system with a boson truncation of $\Lambda =3$ (i.e., two bosonic qubits) as our reference system for DQS on an IBM quantum computer. This system shows nontrivial dynamics, thus being a useful test bed for benchmarking purposes.

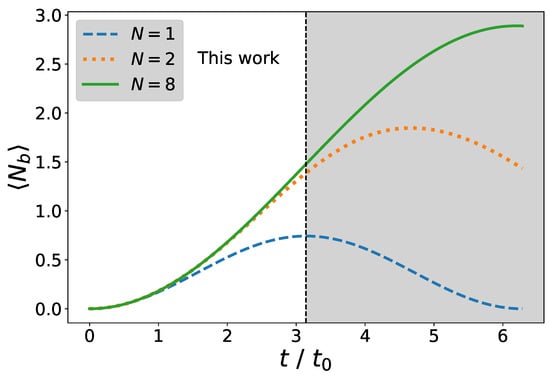

To examine how the truncation affects the dynamics of the system at hand, we perform classical simulations of the truncated system with $N=1$, $N=2$, and $N=8$ (cf. Figure 2). Here, the truncation at the large value $N=8$ is chosen in order to ensure that the system dynamics does not change upon a further increase in N. As expected, we find a large deviation in the average boson number between the $N=1$ (blue dashed curve) and $N=2$ (orange dotted curve) in the relevant time interval but a small deviation between the $N=2$ and $N=8$ case (green curve).

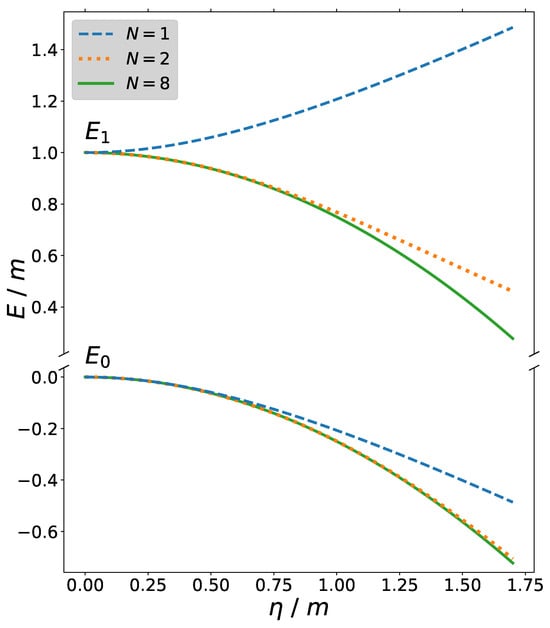

The error in the time evolution that stems from an inappropriate boson truncation is caused by the fact that the eigenvalues (energies) and eigenvectors of the untruncated Hamiltonian are poorly approximated. In Figure 3, we compare the energies of the ground state $E_0$ (the vacuum state) and the first excited state $E_1$ (the one-boson state) as a function of the interaction strength with different truncations. We find that the first excited state is poorly approximated in the $N=1$ scenario, which is not surprising, as the truncation should always be larger than the occupation number one wants to simulate. On the other hand, using a truncation of $\Lambda =3$ ($N=2$), we find excellent agreement with the ground-state energy and also reasonably good agreement with that of the first excited state.

4. Circuit Design

In the following, we describe the design of quantum circuits emulating the dynamics of the system at hand. We start with the constant-depth two-qubit circuit that corresponds to the one-boson exchange case (Section 4.1), followed by its three-qubit counterpart in the case of three-boson exchange (Section 4.2). We then carry out a detailed analysis of the CNOT cost estimate for higher boson number truncations (Section 4.3). Finally, we present the basic aspects of a specific error-mitigation technique—the (digital) zero-noise extrapolation—which we will employ in this work (Section 4.4).

Before embarking on the construction of specific circuits, we point out how a specific property of the system at hand—namely, the local charge conservation—allows us to encode the fermion–antifermion sector of the problem using only one qubit. Starting from a general expression originating from the JW mapping, namely

$$a^{†}a+c^{†}c-1={\displaystyle \frac{1}{2}}\left(IZ+ZI\right)=\left[\begin{array}{cccc}-1& 0& 0& 0\\ 0& 0& 0& 0\\ 0& 0& 0& 0\\ 0& 0& 0& 1\end{array}\right],$$

(21)

we restrict the system to the subspace with a total charge of $Q=0$. Truncating the fermion subspace to states with a vanishing total charge does not affect the behavior of the system as the Yukawa interaction conserves the total charge, which for our chosen initial state (the vacuum state) is equal to zero. This allows us to rewrite $a^{†}a+c^{†}c-1$ as

$$a^{†}a+c^{†}c-1=-Z,$$

(22)

which explains why the fermion–antifermion sector of the problem can be encoded using a single qubit.

Note that, in theory, one could completely spare the fermion–antifermion sector of the problem as the fermion and antifermion numbers are separately conserved in our single-site model (one can see this from Equations (6) and (7), as both $H_0$ and $H_{\mathrm{int}}$ are diagonal in the fermion number operator). Upon extension to multiple grid points with relativistic momenta, this would no longer hold, as only the charge remains conserved. This is the reason why we do not make use of the particle number conservation at this point and use the fermion–qubit as an additional source of noise.

4.1. Exchange of up to One Boson (Two-Qubit Circuit)

The next step is to apply both the fermion and boson mappings from Section 3.2 and Section 3.3, respectively, to obtain the qubit Hamiltonian. Here, we truncate the bosonic occupation number at $\Lambda =1$ such that $b+b^{†}=X$. By making use of Equation (22), the two contributions to the total qubit Hamiltonian $H_{\mathrm{tot}}=H_0+H_{\mathrm{int}}$ are given by

$$\begin{array}{ccc}\hfill H_0& =& -MIZ-{\displaystyle \frac{m}{2}}ZI+{\displaystyle \frac{1}{2}}\left(2M+m\right),\hfill \end{array}$$

(23)

$$\begin{array}{ccc}\hfill H_{\mathrm{int}}& =& -{\displaystyle \frac{\eta }{2}}XZ.\hfill \end{array}$$

(24)

The spectrum of the free Hamiltonian $H_0$ is symmetrized by dropping the constant term $(2M+m)/2$. This changes the time evolution only by an irrelevant global phase.

The general approach to perform the time evolution of such a Hamiltonian with non-commuting terms is based on the Trotter–Suzuki decomposition, also known as Trotterization. To be more specific, for the Hamiltonian $H_{\mathrm{tot}}=H_0+H_{\mathrm{int}}$ [cf. Equations (23) and (24)], our starting point is the standard second-order Trotter–Suzuki product formula [51,52]

$$e^{-i{H}_{\mathrm{tot}}\Delta t}=e^{-i{H}_0\Delta t/2}{e}^{-i{H}_{\mathrm{int}}\Delta t}{e}^{-i{H}_0\Delta t/2}+O(\Delta t^3),$$

(25)

where the free Hamiltonian $H_0$ is used for symmetrization as its cost in terms of CNOT gates is zero. The circuit for a single Trotter step, based on the “star” configuration of CNOT gates, is depicted in Figure 4.

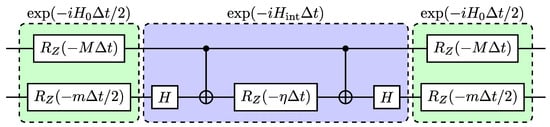

In the conventional scenario of using the product formula in Equation (25), one obtains a quantum circuit whose depth scales linearly with the number of steps. In other words, the circuit depth grows with the total simulation time, which in many systems limits feasible simulations to relatively short times. We show that for the system at hand—at least in the two-qubit case (i.e., in the case of up to one boson exchange)—we can defy this conventional scenario and design a constant-depth circuit. To this end, it is instructive to start by analyzing the transition zone between subsequent Trotter steps, which is represented by the following circuit:

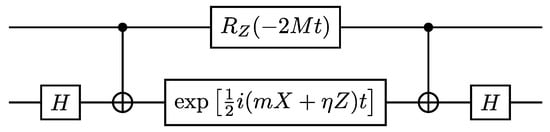

The simplification of the circuit in Figure 5 is made possible by simple properties of the CNOT gate—namely, its commutation with a z-rotation gate on the control qubit and with an x-rotation gate on the target qubit, as well as the fact that the CNOT gate is self-inverse. It is also worthwhile to point out that the occurrence of x-rotation gates on the target qubit wire in the last circuit originates from the identity $R_X(\theta )=H{R}_Z(\theta )H$, which follows from the fact that $X=HZH$.

From this last circuit, one can easily go back to the exact time evolution by taking the limit $\Delta t\to 0$, $n\to \infty$ while keeping $n\Delta t\equiv t$ constant. This approach yields the exact constant-depth quantum circuit that corresponds to infinitely many small time steps, i.e., to the finite evolution time t; this circuit is shown in Figure 6, where the top wire corresponds to the fermion and the bottom one to the boson. It should be emphasized that it is the specific form of the total Hamiltonian $H_{\mathrm{tot}}=H_0+H_{\mathrm{int}}$ in Equations (23) and (24) that allows one to perform circuit compression between different Trotter steps such that only two CNOT gates are required to perform an arbitrary number of steps.

At this point, the problem of decomposing the unitary two-qubit time evolution operator has been reduced to the decomposition of a single-qubit gate. To this end, we recast $exp\left[i(mX+\eta Z)t/2\right]$ by performing a $ZXZ$ Euler decomposition $R_Z(\alpha )R_X(\beta )R_Z(\alpha )$, where

$$\begin{array}{cc}\hfill \alpha & =-arctan\left[{\displaystyle \frac{\eta }{\omega }}tan\left({\displaystyle \frac{\omega t}{2}}\right)\right],\hfill \\ \hfill \beta & =-2arctan\left[{\displaystyle \frac{m}{\sqrt{{\eta }^2+{\omega }^2{cot}^2\left(\frac{\omega t}{2}\right)}}}\right],\hfill \end{array}$$

(26)

and ${\omega }^2=m^2+{\eta }^2$.

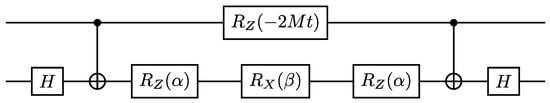

The final circuit, which emulates the system dynamics over a finite-evolution time t using only two CNOT gates, then assumes the form depicted in Figure 7. In connection with the form of this circuit, it is worthwhile to point out that circuit compressions of the type utilized here have quite recently been discussed in the context of interacting qubit arrays described by the transverse-field Ising and $XY$ models [49,50], paradigmatic models in condensed-matter physics. These models can be mapped to free fermionic models and are also known to be classically simulatable with polynomial resources [69]. It is thus interesting that the fermion–boson system under consideration offers another, much less common example—namely, that of an $XZ$-coupled pair of qubits, with mutually unequal external fields in the z-direction acting on either qubit [cf. Equations (23) and (24)]—where such a circuit compression is also possible.

4.2. Exchange of up to Three Bosons (Three-Qubit Circuit)

In order to describe an exchange of up to three bosons, two qubits are required to encode the bosonic Fock space. Using the bosonic qubit mapping, we modify the Hamiltonian as

$$\begin{array}{ccc}\hfill H_0& =& -MIIZ-{\displaystyle \frac{m}{2}}ZII-mIZI,\hfill \end{array}$$

(27)

$$\begin{array}{ccc}\hfill H_{\mathrm{int}}& =& -{\displaystyle \frac{\eta }{2}}\left[{\displaystyle \frac{1+\sqrt{3}}{2}}XIZ+{\displaystyle \frac{1-\sqrt{3}}{2}}XZZ+{\displaystyle \frac{1}{\sqrt{2}}}(XXZ+YYZ)\right].\hfill \end{array}$$

(28)

To perform the time evolution of this Hamiltonian, we start with Trotterization. As this Hamiltonian does not allow for the same efficient circuit compression as in the one-boson case, we have to be more careful in how we Trotterize. To reduce the error of a Trotter step to $O(\Delta t^3)$, we once again make use of the second-order Trotter–Suzuki product formula [cf. Equation (25)], also using the free Hamiltonian $H_0$ for symmetrization.

While a first-order Trotterization of $exp(-i{H}_{\mathrm{int}}\Delta t)$ requires eight CNOTs, we will instead construct an exact decomposition with the same gate count. The key idea is that $H_{\mathrm{int}}$ can be written as a tensor product of operators acting locally on the fermionic or bosonic registers. To calculate the matrix exponential, we may diagonalize these operators separately. The fermionic operator Z is already diagonal, leaving us with the task of diagonalizing $b+b^{†}$. We find $b+b^{†}=\mathcal{S}D{\mathcal{S}}^{†}$, where in the matrix forms D and $\mathcal{S}$ are given by

$$\begin{array}{ccc}\hfill D& =& \mathrm{diag}\left(-{\lambda }_{+},{\lambda }_{+},-{\lambda }_{-},{\lambda }_{-}\right),\hfill \end{array}$$

(29)

$$\begin{array}{ccc}\hfill \mathcal{S}& =& {\displaystyle \frac{1}{2}}\left(\begin{array}{cccc}-{\tilde{\lambda }}_{-}& {\tilde{\lambda }}_{-}& {\tilde{\lambda }}_{+}& -{\tilde{\lambda }}_{+}\\ 1& 1& -1& -1\\ -{\tilde{\lambda }}_{+}& {\tilde{\lambda }}_{+}& -{\tilde{\lambda }}_{-}& {\tilde{\lambda }}_{-}\\ 1& 1& 1& 1\end{array}\right),\hfill \end{array}$$

(30)

with ${\lambda }_{\pm }\equiv \sqrt{3\pm \sqrt{6}}$ and ${\tilde{\lambda }}_{\pm }={\lambda }_{\pm }/\sqrt{3}$.

The next step is to perform the Kraus–Cirac decomposition of $\mathcal{S}$, a transformation intimately related to the Cartan decomposition of the Lie algebra $su(4)$ [70,71]. In this manner, we find that (for a detailed derivation, see Appendix C)

$$S=(K_4\otimes K_3)exp(i\phi ZZ/2)(K_2\otimes K_1),$$

(31)

where the matrices $K_1,\dots ,K_4\in \mathrm{SU}(2)$ are given by

$$\begin{array}{ccc}\hfill K_1& =& {\displaystyle \frac{e^{i\pi /4}}{\sqrt{2}}}\left(\begin{array}{cc}i& 1\\ -i& 1\end{array}\right)=e^{-i\pi /4}{S}^{†}\sqrt{X},\hfill \\ \hfill K_2& =& {\displaystyle \frac{e^{i\pi /2}}{\sqrt{2}}}\left(\begin{array}{cc}1& 1\\ 1& -1\end{array}\right)={\displaystyle \frac{e^{i\pi /2}}{\sqrt{2}}}H,\hfill \\ \hfill K_3& =& {\displaystyle \frac{e^{i\pi /2}}{\sqrt{2}}}\left(\begin{array}{cc}{e}^{-i\phi }& -i{e}^{i\phi }\\ i{e}^{-i\phi }& -e^{i\phi }\end{array}\right)=e^{i\pi /2}Z\sqrt{X}{R}_Z(2\phi ),\hfill \end{array}$$

$$\begin{array}{ccc}\hfill K_4& =& \left(\begin{array}{cc}0& -1\\ 1& 0\end{array}\right)=e^{i\pi /2}Y,\hfill \end{array}$$

(32)

with $\phi =arctan\left[\sqrt{2}/(1+\sqrt{3})\right]$. The minimal circuit representation of $\mathcal{S}$ is depicted in Figure 8.

The next step is to express D [cf. Equation (29)] in the Pauli basis:

$$D=\sqrt{{\displaystyle \frac{3+\sqrt{3}}{2}}}ZI+\sqrt{{\displaystyle \frac{3-\sqrt{3}}{2}}}ZZ.$$

(33)

Then, the Hamiltonian $H_{\mathrm{int}}$ can be recast in the form

$$H_{\mathrm{int},}\mathrm{diag}={\displaystyle \frac{1}{2}}({\eta }_{-}ZZZ+{\eta }_{+}ZIZ),$$

(34)

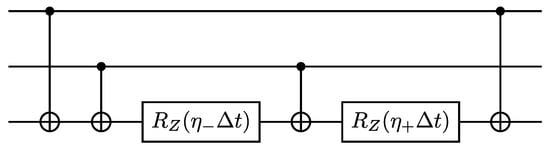

where ${\eta }_{\pm }=\eta \sqrt{(3\pm \sqrt{3})/2}$. The exact circuit for $exp(-i{H}_{\mathrm{int},}\mathrm{diag}\Delta t)$ is then given by Figure 9.

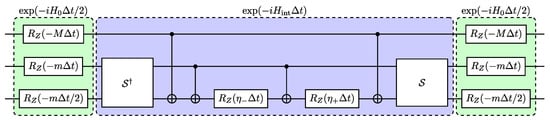

Finally, by combining the circuits shown in Figure 8 and Figure 9 with those corresponding to the free Hamiltonian $H_0$, we obtain the circuit that emulates a single Trotter step of the system under consideration; this circuit is depicted in Figure 10.

4.3. CNOT Cost Estimation for Higher Boson Number Truncations

For simulations with higher truncation numbers (or more grid points), a more systematic approach towards circuit optimization is required due to the rapidly increasing number of Pauli strings. Even when considering only a single grid point with a boson number truncation at $\Lambda =7$ (three bosonic qubits), a circuit optimization by hand in the problem under consideration becomes rather tedious. Namely, for different possible orderings of Pauli strings, we obtain different CNOT gate counts.

In what follows, we will focus on first-order Trotterization, which means that each Pauli string appears exactly once per Trotter step. All considerations in this section are based on the star+ancilla layout [56,64], which is depicted in Figure 11b. Using this circuit layout, we can simulate the time evolution of any Hamiltonian of the form

$$H=\underset{k=0}{\overset{n-1}{⨂}}{\sigma }_{c(k)}^k,$$

(35)

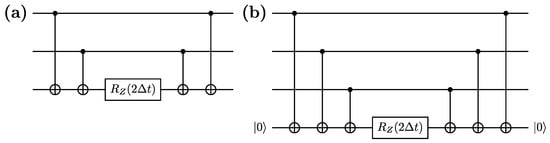

where ${\sigma }_{c(k)}^k\in \{I,X,Y,Z\}$ is a Pauli operator acting on the k-th qubit and H is given by a single Pauli string. The design of a quantum circuit emulating the time evolution governed by such a Hamiltonian is explained in Appendix D. For Hamiltonians with multiple non-commuting Pauli strings, we append the same circuit structure for each string and justify the circuit decomposition through the Trotter product formula.

Qubits with identity operations can be disregarded, and qubits with X or Y are transformed to Z using $X=HZH$ and $Y=SHZH{S}^{†}$. Whenever we deal with multiple non-commuting Pauli strings, we use Trotterization to recover the circuit structure from Figure 11b for each string.

For the sake of simplifying the analysis of the CNOT cost in this section, we ignore the fermionic qubit in the interaction Hamiltonian $H_{\mathrm{int}}$ and focus entirely on the bosonic term $H_{\mathrm{b}}\propto b+b^{†}$. In other words, our goal is therefore to estimate the CNOT cost of the circuit representation of $exp\left(-i{H}_{\mathrm{b}}\Delta t\right)$ for an arbitrary truncation $\Lambda$. We restrict ourselves to the case where the truncation can be expressed as $\Lambda =2^N-1$, where N is an integer corresponding to the amount of qubits forming the bosonic register. Let $S_N=\{P_1,P_2,\dots ,P_k\}$ denote the set of Pauli strings required to encode $b+b^{†}$. In Appendix E, we show that the number of Pauli strings k for a truncation to N qubits is given by

$$k=|S_N|=N{2}^{N-1}.$$

(36)

To find the optimal order of these strings, we use an approach based on an analogy with the TSP, adapting a technique proposed in ref. [56]. The formulation of this optimization task as a TSP works as follows. We first define a weighted, fully connected graph G with k nodes, where each node represents a Pauli string. We then set the edges between all nodes i and j with a weight given by $|P_i-P_j{|}_{\mathrm{CNOT}}$, where $|P_i-P_j{|}_{\mathrm{CNOT}}$ denotes the CNOT cost to implement the transition between the circuits representing $exp\left(-i{P}_i\Delta t\right)$ and $exp\left(-i{P}_j\Delta t\right)$. A graphical illustration of the definition of the transition zone is provided in Figure 12. In Appendix D we prove that the CNOT cost to implement such a transition is precisely given by the Hamming distance

$$|P_1-P_2{|}_{\mathrm{CNOT}}:=\sum _{i\in \left[N\right]}{1}_{P_1\left[i\right]\ne P_2\left[i\right]}={|P_1-P_2|}_{\mathrm{Ham}}.$$

(37)

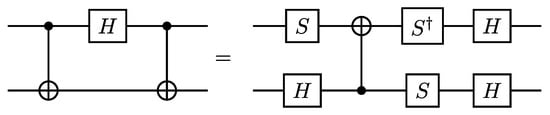

Note, that this distance metric differs from the one used in ref. [56], as we take additional gate identities into account, which can significantly reduce the CNOT cost, as explained in Appendix D.

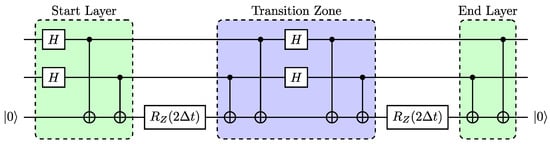

TSP aims to minimize the cost of a closed path visiting all nodes exactly once. For a circuit composed of k Pauli strings, there are $k-1$ transition zones. A closed path on the graph described above would, however, consist of k transition zones. In ref. [56], this issue is fixed by inserting an ancilla node, which is connected to all nodes with zero weights. Note that this approach ignores the CNOT cost of the start and end layers of the Trotterization circuit. In order to take also this cost into account, we find that the number of CNOTs to implement these layers is given by the Hamming weight

$$|P_j{|}_{\mathrm{Ham}}=\sum _{i\in \left[N\right]}{1}_{P_j\left[i\right]\ne I}.$$

(38)

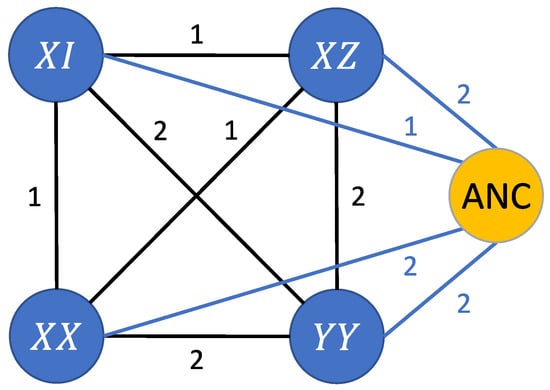

Therefore, we use the above equation to calculate the weights for the edges connecting the nodes of the original graph with the ancilla node.

The closed path on our modified graph now contains $k+1$ edges, of which two correspond to the start and end layers, meaning that we have $k-1$ transition zones, as desired.

Finally, to build the graph for the problem at hand, we need to know the Pauli strings explicitly. We generate the sets of Pauli strings recursively using

$$\begin{array}{ccc}\hfill S_{N+1}& =& S_N\otimes I\cup S_N\otimes Z\cup S({\sigma }_{+}^{\otimes N}\otimes {\sigma }_{-}+{\sigma }_{-}^{\otimes N}\otimes {\sigma }_{+}),\hfill \end{array}$$

(39)

with $S_1=\left\{X\right\}$, where the tensor product is performed element-wise (e.g., $S_N\otimes Z=\{P_1\otimes Z,\dots ,P_k\otimes Z\}$) and $S(O)$ denotes the set of Pauli strings building the operator O. A naive expansion of the last set $S({\sigma }_{+}^{\otimes N}\otimes {\sigma }_{-}+{\sigma }_{-}^{\otimes N}\otimes {\sigma }_{+})$ gives us $2^{N+1}$ different strings, where each character can be either X or Y. But as the operator is Hermitian, all strings with imaginary coefficients cancel out. These strings are precisely the ones with an odd number of Ys. This leaves us with a subset containing $2^N$ strings with an even number of Ys. An example of the completed graph for a truncation with two qubits is shown in Figure 13.

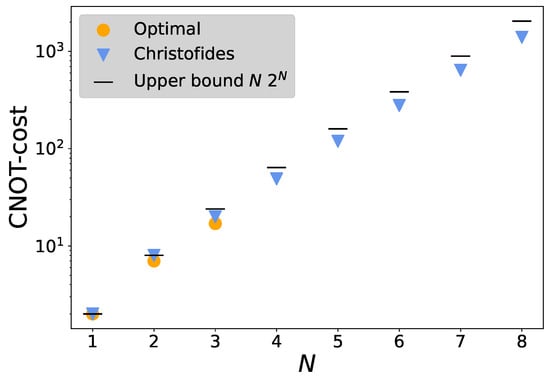

To solve the TSP exactly, we make use of the Bellman–Held–Karp dynamic programming algorithm [57,58], which scales in time with $\mathcal{O}(k^2{2}^k)$ and is implemented in the python_tsp package [72]. Due to the exponential growth of the number of Pauli strings, we are limited to truncations with $N\le 3$ ($\Lambda \le 7$). Because we are dealing with a metric graph, TSP can be $1.5$-approximated in polynomial time $\mathcal{O}(k^3)$ using the Christofides algorithm [59] which is implemented in the networkx package [73]. We utilize this heuristic to approximate the CNOT cost for truncations with $N\le 8$ ($\Lambda \le 255$). Finally, we compare the obtained results with an upper bound on the CNOT cost derived in Appendix F. The results obtained using all three methods are illustrated in Figure 14. While, needless to say, the Bellman–Held–Karp algorithm yields the best results, the Christofides heuristic outperforms the upper bound we propose. This suggests that a tighter bound on the CNOT cost can be found.

4.4. Error Mitigation by Digital Zero-Noise Extrapolation

Current NISQ devices, due to the limited number of qubits, do not allow one to perform full-fledged quantum error correction. As an alternative to error correction, various error-mitigation strategies have been proposed [45,46,74,75,76,77,78]. They all aim to identify the noiseless signal from a large number of noisy experimental repetitions.

In the present work, we focus on one specific error-mitigation strategy, namely digital zero-noise extrapolation (ZNE) [45,46,79]. Much like other error-extrapolation methods, ZNE make use of expectation values $E(\lambda )$, obtained at multiple different physical noise levels that are quantified by the dimensionless scale factor $\lambda$ (where $\lambda =1$ is the actual noise level of the physical hardware), to infer the noiseless expectation value $E(\lambda =0)$.

The basic idea of ZNE is to scale the noise of a quantum computation by means of unitary folding, i.e., replacing a unitary circuit U by

$$U\to U{(U^{†}U)}^n,$$

(40)

where n is a positive integer. While in an ideal circuit—where $U^{†}U={\mathbb{1}}_D$, where D is the dimension of the Hilbert space associated with all the qubits of the circuit—this folding operation has a trivial effect, one can expect that on a realistic (noisy) quantum computer that the same operation amounts to increasing the noise.

The unitary folding can be implemented in the guise of circuit folding and gate folding. In this work, we use circuit folding. To illustrate this approach, let us assume that we have a quantum circuit emulating the time evolution of a system, where each Trotter step (corresponding to the time $\delta t$) is described by the unitary U. Then, e.g., the state of the system at time $t=3\delta t$ is given by $|\psi (t)\rangle =UUU|\psi (t=0)\rangle$. To increase the noise in the circuit in order to perform ZNE, we are replacing $UUU$ with $UUU(U^{†}{U}^{†}{U}^{†})UUU$ (corresponding to $\lambda =3$) or with $UUU{((U^{†}{U}^{†}{U}^{†})UUU)}^2$ (corresponding to $\lambda =5$).

Assuming that the noise model for the relevant quantum circuit is that of a global depolarizing channel [64], the density matrix of the system can be represented as

$$\rho \stackrel{\mathrm{noisy}\mathrm{circuit}}{\to }pU\rho U^{†}+(1-p){\mathbb{1}}_D/D,$$

(41)

where $p\equiv {\prod }_j{p}_j$ is the product of the gate-dependent noise parameters $p_j\in [0,1]$ for all the gates in the given circuit. If all input gates are folded exactly n times (the corresponding value of the scale factor is $\lambda =2n+1$), in both the circuit- and gate-folding cases, one obtains

$$\rho \stackrel{\mathrm{noisy}+\mathrm{unitary}\mathrm{folding}}{\to }{p}^{\lambda }U\rho U^{†}+(1-p^{\lambda }){\mathbb{1}}_D/D,$$

(42)

i.e., an exponential scaling—in terms of the noise level $\lambda$—of the depolarizing parameters $p_j$ for each gate ($p_j\to p_j^{\lambda }$). Therefore, under the aforementioned initial assumption of depolarizing channel (which commutes with unitary operations), the unitary folding amounts to an exponential dependence of any expectation value $E(\lambda )$:

$$E(\lambda )=a+b{p}^{\lambda }.$$

(43)

The coefficients a and b can be determined by fitting the obtained numerical results to the last exponential ansatz, which is followed by a straightforward extrapolation to the noiseless case ($\lambda =0$).

In this work, we use a more general polynomial extrapolation to find the noiseless limit. In this case, one uses a polynomial of degree d as an ansatz:

$$E(\lambda )=E_0+\sum _{n=1}^d{c}_n{\lambda }^n,$$

(44)

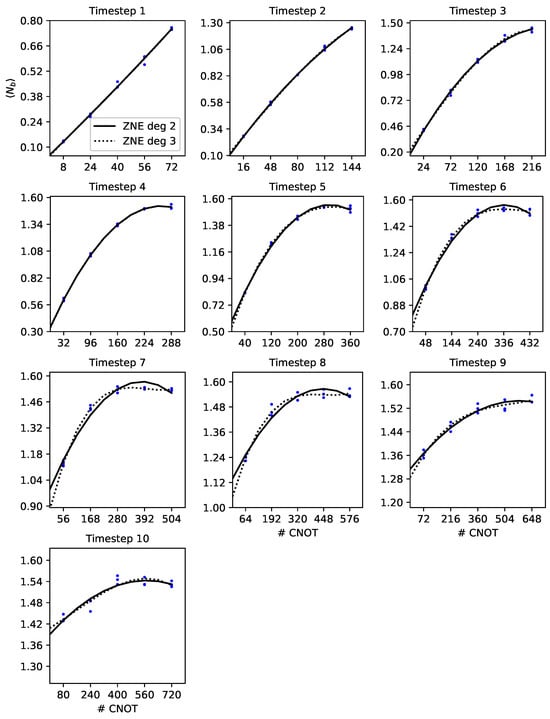

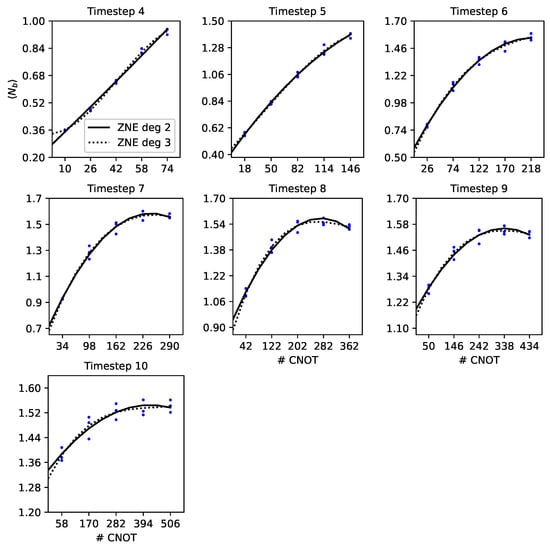

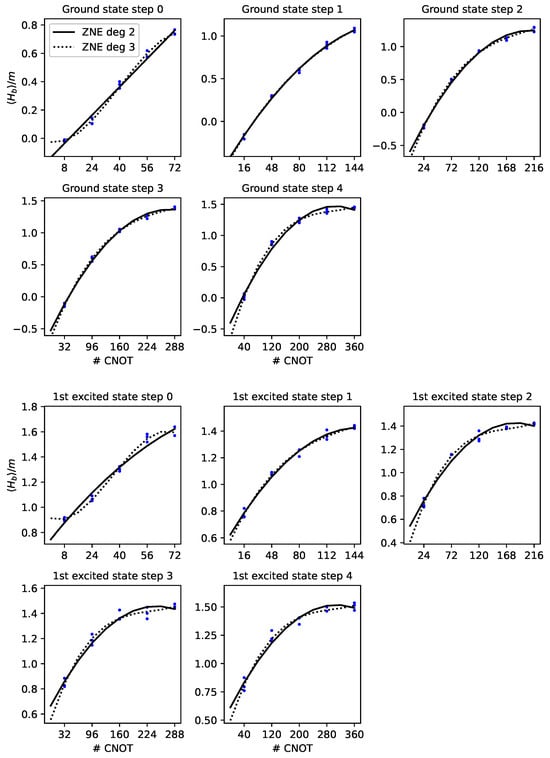

such that the intercept $E_0$ corresponds to the zero-noise limit. In the following, we consider extrapolations with $d=2$ and $d=3$.

5. DQS on IBM Q: Results and Discussion

In the following, we present and discuss the results obtained by running the designed quantum circuits emulating the system dynamics, both for the cases of up to one- and three-boson exchange processes, on IBM Q. We start with the results obtained for the Loschmidt echo (Section 5.1). We then present the results obtained for the boson occupation numbers (Section 5.2) and adiabatic state preparation (Section 5.3).

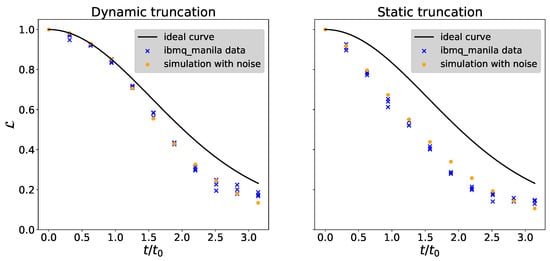

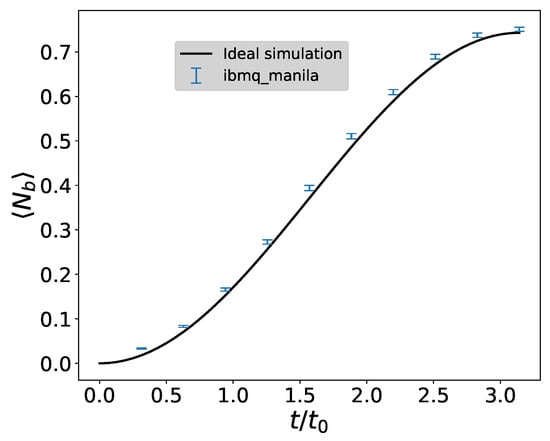

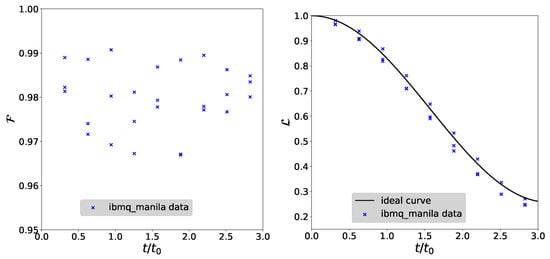

We benchmark the accuracy of our DQS by comparing the results obtained on the IBM Q processor [41] ibmq_manila with those resulting from a numerically exact treatment of the quantum dynamics governed by the truncated Hamiltonians of the model under consideration on a classical computer.

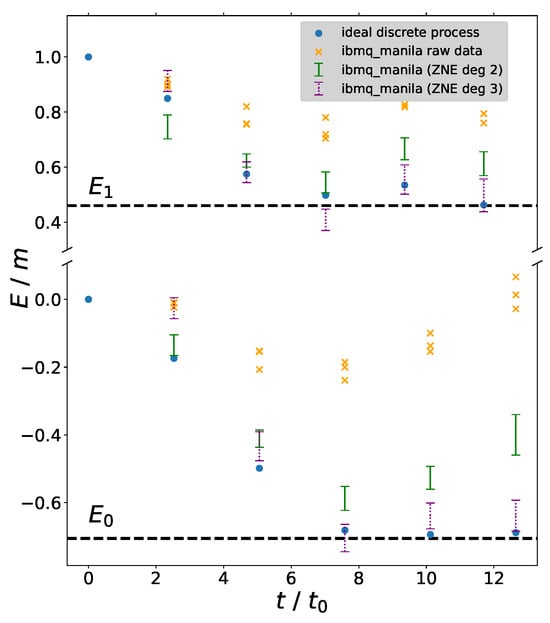

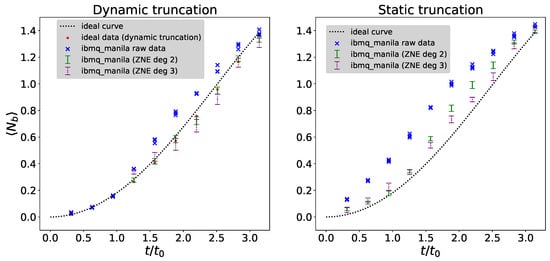

To demonstrate that our simplified, single-site model of scalar Yukawa coupling exhibits nontrivial quantum dynamics, we perform a DQS of this model, taking the vacuum state as the initial state of the boson–fermion system at hand. We construct the states $|\psi (t)\rangle$ of the system at different times t by applying the designed two- and three-qubit circuits that emulate the system dynamics following a Yukawa interaction quench at $t=0$. Finally, for each of those constructed states, we perform measurements that give us access to the desired quantities, bearing in mind the relevant expressions in the Pauli basis [cf. Equations (15) and (20)].

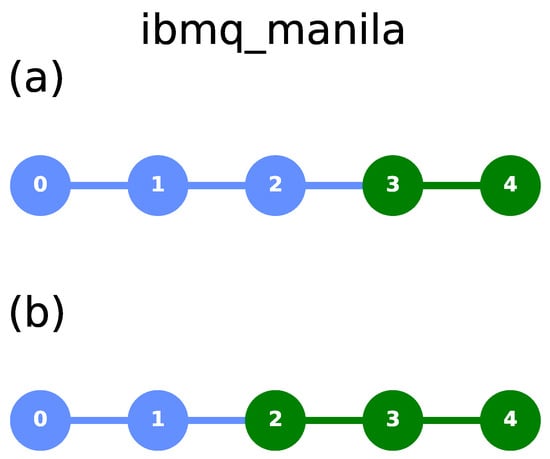

Given that the DQS of the single-site boson–fermion model under consideration only requires two- and three-qubit systems [cf. Section 4], for benchmarking purposes it was sufficient to make use of the freely available, five-qubit processor ibmq_manila [41]. The qubit connectivity graph (coupling map) of this quantum processor, with the corresponding enumeration of physical qubits, is depicted in Figure 15.

Generally speaking, the errors in numerical experiments on IBM Q devices strongly depend on the number of CNOT gates in the corresponding quantum circuit. The principal reason for this is that the CNOT gate error is an order of magnitude larger than that of single-qubit gates. Another reason is that the CNOT gate time is much longer than that of its single-qubit counterparts, which leads to the accumulation of errors due to energy relaxation and dephasing, these two processes being quantified by the respective decoherence times $T_1$ and $T_2$ [4]. Therefore, in order to minimize the error, in our DQS, we make use of the connected subsets of qubits with the smallest average CNOT error according to the calibration data from ref. [41]; from this, we found that for our three-qubit circuits, it is beneficial to use the qubit pairs $(2,3)$ and $(3,4)$.

The simulation parameters used for the following benchmarks are $M/m=7$ (nucleon/pion mass ratio), $\eta /m=1.7$, and $t_0\equiv 1/\sqrt{m^2+{\eta }^2}$. For the calculations of all following observables, we use the estimator primitive as well as the sampler primitive provided in qiskit_runtime [80]. This allows us to use the post-correction of all observables. We set $\mathtt{resilience}\_\mathtt{level}=1$, which performs a readout error correction on the measured observable. We ran each circuit on the IBM Q processor with 8192 shots.

The code used to produce the plots in this section can be found in the Supplementary Materials of this paper.

5.1. Loschmidt Echo and State Fidelity

We start by evaluating the Loschmidt echo, which in the problem under consideration is given by [cf. Equation (8)]

$$\mathcal{L}(t)=|\langle {\psi }_{t=0}|e^{-i(H_0+H_{\mathrm{int}})t}|{\psi }_{t=0}{\rangle |}^2,$$

(45)

and can be calculated by performing the reconstruction of the state of the system at time t using quantum state tomography algorithms [81]. In the problem at hand, the time evolution (DQS) circuits [cf. Section 4]—which emulate the dynamics governed by the total Hamiltonian $H_{\mathrm{tot}}=H_0+H_{\mathrm{int}}$ of the system after a Yukawa interaction quench at $t=0$, starting from the initial state $|{\psi }_{t=0}\rangle \equiv |{\psi }_0\rangle$—play the role of the required state preparation circuits.

Generally speaking, the objective of quantum state tomography is to reconstruct the density matrix $\rho$ that corresponds to the actual state of the system [64,82,83]. Because our quantum circuits do not involve any measurements, the state of the system can be described using the state vector formalism (recall that the density matrix corresponding to the pure state $|\psi \rangle$ is given by $\rho =|\psi \rangle \langle \psi |$). In general, to carry out quantum state tomography on an N-qubit system, one has to perform $3^N$ measurements for a generic mixed state [84,85].

Throughout this work, we used the pre-implemented tomography method from the qiskit-experiments package [86], which comes with different tomography fitters. More specifically, we used the linear_inversion fitter, based on the work of ref. [81], which is an efficient method for computing the maximum-likelihood quantum state given a set of measurement outcomes in a complete orthonormal operator basis.

Given the reconstructed density matrix of the final state, as well as the density matrices of the initial state and the ideal final state (obtained through classical simulation), we compute the Loschmidt echo and the fidelity of the evolved state starting from the general expression for the quantum state fidelity [87]

$$\mathcal{F}(\rho ,\sigma )={\left(\mathrm{Tr}(\sqrt{\sqrt{\rho }\sigma \sqrt{\rho }})\right)}^2,$$

(46)

where $\rho$ and $\sigma$ are the density matrices of the two mixed quantum states. In the special case of pure states—of interest in the problem at hand—the last general expression reduces to $\mathcal{F}(\rho ,\sigma )={\left|\langle {\psi }_{\rho }|{\psi }_{\sigma }\rangle \right|}^2$ (here, $\rho \equiv |{\psi }_{\rho }\rangle \langle {\psi }_{\rho }|$ and $\sigma \equiv |{\psi }_{\sigma }\rangle \langle {\psi }_{\sigma }|$ are the density matrices corresponding to the pure states $|{\psi }_{\rho }\rangle$ and $|{\psi }_{\sigma }\rangle$, respectively).

In the following, we make use of two different simulation schemes in order to increase the truncation number in the time evolution of the system. In the first scheme (static truncation), we use the same boson truncation throughout the entire time evolution process. In the second scheme (dynamic truncation), we start the time evolution with a lower truncation number (here, $N=1$) and then increase after a critical time, according to Figure 1. While in principle this increases the overall truncation error, the effect is negligible compared with the benefit of simulating time steps with lower-depth circuits.

In our dynamic truncation simulation scheme, we use the two-qubit circuit for the first three time steps and append the Trotterized three-qubit circuit starting from the fourth time step. We increase the truncation earlier than indicated in Figure 1 as we want to reach a state fidelity much higher than 90% at the point where the truncation is increased, such that the target accuracy of 90% can be achieved in the end.

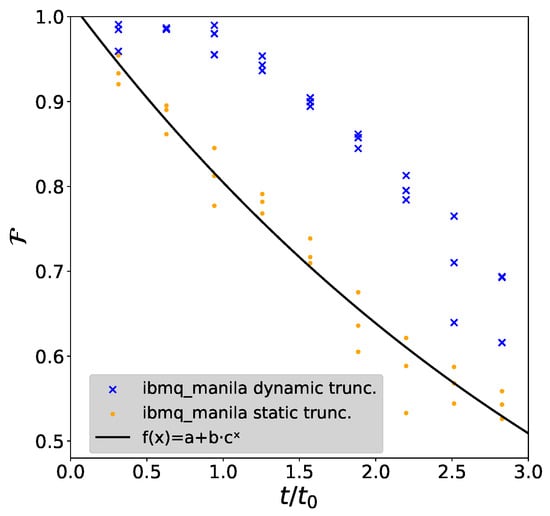

The obtained results for the state fidelities are shown in Figure 16 (left panel) and Figure 17 for the two- and three-qubit circuits, respectively. We repeat each experiment three times. As expected, for the two-qubit circuits, the fidelity remains constant at roughly $0.98$ on average for all ten time steps. This is the effect of our constant-depth circuit (i.e., circuit compression), leading to a high fidelity at all times. For the three-qubit case, we observe a fast decrease in the state fidelity from the beginning in the static truncation simulation, while for the dynamic truncation simulation, this decrease starts after three steps only in the scenario where we have to use the three-qubit circuits to simulate the system. This decrease in the fidelity can be attributed to the increase in noise in the quantum circuit when more gates are added. Under the assumption of a depolarization model [cf. Equation (41)], the fidelity drop can be fitted with an exponential function,

$$f(n)=a+b·c^n,$$

(47)

where n is the number of time steps. From the value of c, one can estimate the average error of applying the unitary evolution for one time step, which is given by $1-c$. From our fit, we find

$$c=0.925\pm 0.025.$$

(48)

In the right panel of Figure 16 and Figure 18, we show the results for the Loschmidt echo for the two- and three-qubit circuits. In the two-qubit case, we find good agreement between the ideal theory curve and the experimental data from the quantum processor. For the three-qubit case, we find a deviation, which increases with the number of time steps, as expected due to the accumulation of noise. Using the fit parameter from the fidelity experiments, we try to model the effect of depolarization noise on the Loschmidt echo (orange points in Figure 18). We accomplish this by calculating the noisy Loschmidt echo with the depolarized density matrix

$$\rho \to c^n\rho +{\displaystyle \frac{{(1-c)}^n}{8}}{\mathbb{1}}_8,$$

(49)

where c is given by Equation (48) and n denotes the n-th step. As can be seen from that plot, this model can qualitatively describe the deviation from the data compared with the ideal theory curve in the dynamic truncation time evolution as well as in the static one.

5.2. Boson Occupation Numbers

The obtained results in the two-qubit case are illustrated in Figure 19, which shows the expectation values of the boson number operator at an arbitrary time t after the quench. Apparently, the compressed circuit with only two CNOT gates [cf. Section 4.1] shows good agreement with the exact dynamics. The error bars in Figure 19 show the effect of shot noise in the quantum computation under the assumption of a normal distribution.

As derived in Section 3.4, the truncation error of the two-qubit simulation (i.e., one bosonic qubit) exceeds the accuracy threshold of 10% during the simulated time interval (cf. Figure 1). However, as also shown in this figure, a truncation with two bosonic qubits is sufficient to simulate the system with a fidelity of 90% in the time interval of interest.

We now proceed to extend our two-qubit time evolution circuit to a three-qubit system with two bosonic qubits. We compare the results of dynamic and static truncation, allowing the exchange of up to three bosons, in Figure 20. As can be inferred from this plot, the dynamic truncation approach offers a significant improvement compared with the naive static truncation for the raw data: the first three data points, for which we used the two-qubit circuits, are, as expected, in good agreement with the theory curve. From step 4 onwards, we observe a large deviation, similar to what happens in the static truncation case from the beginning of the evolution.

Even with the dynamic truncation we find a significant deviation between the theory curve and the data simulated by the quantum computer for larger time steps. In order to improve our results and reduce the error, we use the ZNE technique [cf. Section 4.4]. To perform the extrapolation, we measure five data points for different noise levels ($\lambda =1,3\dots 9$) and run each experiment three times.

We perform the ZNE using second- and third-order polynomial extrapolation by performing a linear least square fit to the data and compare them in Figure 20. The error bars are given by the standard deviation of the intercept that we extract from the fit. For the static truncation, we find that for the first three time steps, the second-order extrapolation performs better. Then, from step four onwards, it is beneficial to use the third-order extrapolation. For the static truncation, we observe the same behavior for small time steps. However, for larger time steps, the difference between both extrapolations is negligible.

In Figure 21 and Figure 22, we plot the number of CNOT gates vs. the measured bosonic occupation number, which was used to perform the ZNE. Comparing the second- and third-order extrapolations for the first time step in Figure 22, one can see that for small circuit noise, it can be beneficial to use the second-order extrapolation as the higher order extrapolation leads to an overfitting of the data. Furthermore, an increase in the number of CNOT gates leads to an increase in the occupation number due to more noise in the quantum circuit. At some point (more precisely, around a total number of 200 CNOT gates), the curve saturates at a value of $\langle N_b\rangle =1.5$. This is expected, as in the three-qubit case we have [cf. Equation (20)]

$$\langle N_b\rangle =1-\langle Z_1\rangle +{\displaystyle \frac{1-\langle Z_0\rangle }{2}}.$$

(50)

For a completely depolarized quantum device, we have $\langle Z_i\rangle =0$ and thus $\langle N_b\rangle =1.5$.

5.3. Adiabatic Preparation of the Ground and First Excited States

In this section, we apply the time evolution circuits to eigenstates of the free Hamiltonian $H_0$ to drive them adiabatically to eigenstates of the interacting theory, described by $H=H_0+H_{\mathrm{int}}$ [cf. Equations (6) and (7)]. Adiabatic state preparation is based on the adiabatic theorem of quantum mechanics [43]: a system which is in an eigenstate of a time-dependent Hamiltonian $H(t)=H_0+H_{\mathrm{int}}(t)$ at an initial time $t_0$, such that its time evolution is governed by the Schrödinger equation

$$i{\displaystyle \frac{\partial }{\partial t}}|\psi (t)\rangle =H(t)|\psi (t)\rangle ,$$

(51)

remains an eigenstate, provided that the change of $H(t)$ is “sufficiently slow”. (For an up-to-date review in the quantum computing context, see ref. [44]).

For our experiments, we made use of the fact that the fermionic particle number is conserved during the whole adiabatic process. Thus, we do not need to measure the fermionic qubit, although we keep it in the circuit as an additional source of noise like before. The bosonic Hamiltonian, for which we consider the adiabatic transition, is thus given by [cf. Equation (28)]:

$$\begin{array}{cc}\hfill H_b=& -{\displaystyle \frac{m}{2}}ZI-mIZ\hfill \\ \hfill & -{\displaystyle \frac{\eta }{2}}\left[{\displaystyle \frac{1+\sqrt{3}}{2}}XI+{\displaystyle \frac{1-\sqrt{3}}{2}}XZ+{\displaystyle \frac{1}{\sqrt{2}}}(XX+YY)\right]+{\displaystyle \frac{3}{2}}m,\hfill \end{array}$$

(52)

and we consider the full Hamiltonian $H=H_b\otimes {\mathbb{1}}_f$, where ${\mathbb{1}}_f$ denotes the identity operator acting on the fermionic qubit.

In order to find the ground and first excited state of the interacting single-site Yukawa theory, we start from the corresponding eigenstates of $H_0$ in Equation (7). These states can straightforwardly be prepared as $H_0$ is already diagonal. For instance, to prepare the state with one boson, we simply flip the corresponding qubit in the bosonic register using an X gate.

Once the desired eigenstate of $H_0$ is prepared, we drive an adiabatic transition using the same quantum circuit as for the time evolution in the three-qubit case (Figure 10), the only difference being that we increase the coupling strength $\eta$ with each time step.

Ideally, one would choose a large time interval divided into a large number of small steps in order to steadily increase coupling. However, as is evident from the benchmarks of the state fidelity in Figure 17, the state fidelity decreases significantly with each time step. Hence, we aim to perform the adiabatic transition using only five time steps, expecting to keep the fidelity of the final state on ibmq_manila above 70%. At the same time, the length of a time step is limited due to the Trotter error. Consequently, we make use of classical computation to determine the optimal time step $\Delta t$, taking the Trotter error into account, to achieve the best possible final state within five steps.

The optimized discrete processes for both states of interest are illustrated in Figure 23. We find that a total simulation time of roughly $t\approx 13t_0$ is sufficient to drive the system adiabatically into the eigenstates of the interacting theory. Discretizing that time into five time steps of the length $\Delta t=2.53t_0$ (ground state) and $\Delta t=2.34t_0$ (first excited state) suffices to achieve fidelities of the final state of about 99% for both states under consideration (blue dots in Figure 23).

From the calculation of the state fidelities on ibmq_manila in the previous section, we know that even only these five time steps are too many to produce meaningful results due to the accumulated gate errors. For this reason, we again employ the digital ZNE protocol to reduce the errors of the quantum circuits. In Figure 24, we show the data accumulation in order to perform the ZNE. Like before, we repeat each experiment three times and compare second-order and third-order polynomial extrapolation to extract the zero-noise limit of the bosonic Hamiltonian. As before, we find that, for small noise (first time step), the third-order extrapolation overfits the data [cf. Figure 24]. However, as can be seen in Figure 23, for larger time steps, the third-order extrapolation performs better than the second-order extrapolation.

As in the case of the bosonic expectation value in Section 5.2, we find an increase in the expectation value in the presence of additional noise. The energy saturates at an expectation value of ${\langle H\rangle }_b/m=1.5$ after roughly 200 CNOT gates. This is expected, as the three-qubit Hamiltonian has a constant term $H_b\propto 1.5m$.

6. Summary and Conclusions

In this paper, we investigated the non-equilibrium dynamics following a quench of Yukawa-type interaction and calculated the two lowest energies of the spectrum of the interaction Hamiltonian within the framework of digital quantum simulation. We showed that a single-site abstraction of scalar Yukawa coupling can successfully be simulated on the existing IBMQ hardware in the regime of low boson number exchange.

Using advanced circuit-optimization techniques—exemplified by the Kraus–Cirac decomposition—we designed low-depth quantum circuits for simulating the exchange of up to three bosons. In particular, in the one-boson case, we designed a constant-depth circuit with only two CNOT gates. This constitutes an example of circuit compression, which is only possible for certain special types of the underlying system Hamiltonian. In the three-boson case—where such a compression is not possible—we designed a circuit in which one Trotter step requires eight CNOT gates, which is far below the maximal CNOT cost of an arbitrary three-qubit gate (14 CNOTs) [53]. Finally, by making use of an analogy with the traveling salesman problem, we also derived a CNOT cost estimate for quantum circuits emulating the system dynamics for higher boson number truncations.

Based on the designed circuits, we characterized the dynamics inherent to the model at hand by computing the expected boson numbers at an arbitrary time after the quench. In addition, by performing state reconstruction using quantum state tomography algorithms, we recovered the Loschmidt echo, a quantity that characterizes the survival probability of the initial vacuum state of the system. Finally, we successfully reproduced an adiabatic process to compute the two lowest eigenvalues of the interacting theory. Using the zero-noise extrapolation technique of error mitigation, we demonstrated good agreement of our obtained results with numerically exact classical benchmarks. Our study could be extended in the future to multi-site realizations; this will require much larger quantum processors, ideally with a smaller two-qubit gate error and all-to-all connectivity [88].
