Selective Fluorimetric Detection of Pyrimidine Nucleotides in Neutral Aqueous Solution with a Styrylpyridine-Based Cyclophane

Abstract

A styrylpyridine-containing cyclophane with diethylenetriamine linkers is presented as a host system whose association with representative nucleotides was examined with photometric and fluorimetric titrations. The spectrometric titrations revealed the formation of 1:1 complexes with log K_b values in the range of 2.3–3.2 for pyrimidine nucleotides TMP (thymidine monophosphate), TTP (thymidine triphosphate) and CMP (cytidine monophosphate) and 3.8–5.0 for purine nucleotides AMP (adenosine monophosphate), ATP (adenosine triphosphate), and dGMP (deoxyguanosine monophosphate). Notably, in a neutral buffer solution, the fluorimetric response to the complex formation depends on the type of nucleotide. Hence, quenching of the already weak fluorescence was observed with the purine bases, whereas the association of the cyclophane with pyrimidine bases TMP, TTP, and CMP resulted in a significant fluorescence light-up effect. Thus, it was demonstrated that the styrylpyridine unit is a useful and complementary fluorophore for the development of selective nucleotide-targeting fluorescent probes based on alkylamine-linked cyclophanes.

1. Introduction

Nucleotides play a crucial role in several biological processes, for example as essential building blocks in DNA replication and RNA synthesis [1,2]. Furthermore, they are essential in cell signaling, metabolism, and enzyme reactions as cofactors for NAD⁺ and FAD and as energy carriers in the form of triphosphate nucleotides [3,4]. Therefore, the detection and monitoring of nucleotides are important tasks to contribute to the assessment and understanding of biochemical processes in living organisms [5,6,7,8,9]. Along these lines, photometric and electrochemical analysis, as well as ¹H NMR spectroscopic analysis, are routinely used methods for nucleotide detection; however, elaborate protocols, relatively expensive equipment, and limited sensitivity are drawbacks of these methods [10,11]. For this purpose, fluorescence spectroscopy is a useful and easily accessible analytical tool because it enables the efficient and sensitive detection of biologically relevant analytes with suitable fluorescent probes (chemosensors), which change their emission properties upon analyte binding [12,13,14,15,16,17,18,19,20]. Along these lines, fluorescent probes that can detect nucleotides by means of emission quenching or emission enhancement (light up) have been reported [21,22,23,24]. However, selective chemosensors for particular nucleotides are still needed, so the development of such fluorescent probes still represents a rewarding and challenging research field in chemistry [25,26,27].

The most abundant nucleotide is adenosine triphosphate (ATP), which plays an important role in the energy transport in living organisms [28,29] and as a main biochemical component in cancer cells, where it can either enhance or suppress tumor growth, depending on the concentration [30]. Consequently, several different methods and approaches for the efficient and selective detection of ATP have been reported [31,32,33,34,35,36,37,38]. On the contrary, the selective analysis and sensing of other nucleotides has been scarcely reported so far. For example, the selective photometric detection of thymidine triphosphate (TTP) relative to other mono-, di-and triphosphate nucleotides has been realized with gold nanoparticles and a p-xylylbis(Hg²⁺-cyclen) complex [39]. Likewise, cytidine triphosphate (CTP) has been shown to induce selective luminescence quenching of a terbium(III)-organic framework [40], and a polyhydroxy-substituted Schiff base receptor has been reported to be a selective fluorescent chemosensor for CTP and ATP [41]. More recently, a bisnaphthalimide receptor with a pyridine spacer has been introduced as a selective fluorescent probe for CTP [42]. Moreover, anthracene derivatives with two appended imidazolium groups have been reported whose emission is efficiently quenched by GTP [43].

In this context, fluorescent cyclophanes have been established as useful scaffolds for the development of host systems for inorganic and organic anions and may be applied in chemosensing, bioimaging, and drug delivery [44,45,46,47,48,49,50,51,52]. In particular, several phenyl- [53,54], naphthalene- [55], anthracene- [56,57,58], and acridine-based [59] cyclophanes, as well as metallocyclophanes [60], have been reported as hosts that strongly bind to nucleotides [25,61]. In seminal work, bisnaphthalenophanes with six amino-functionalities in the linking chains have been introduced as ideal host molecules for the efficient recognition of organic and inorganic phosphates [55]. Likewise, it has been shown that similar anthracene- [62] and pyrene-based [63,64,65] cyclophanes have the ability to discriminate between different nucleotide triphosphates by the selective complex formation and that these interactions may be used for fluorimetric detection of nucleotides [44,61]. Besides the recognition of single nucleotides, cyclophanes are also apt to bind preferentially to nucleobases in mismatched and abasic site-containing DNA [66,67,68,69].

Although some cyclophanes are already available for fluorimetric nucleotide detection, there is still room for further development. Specifically, variations of the aromatic unit appear promising because this part of the host molecule provides an essential binding site for π stacking with the nucleic base. Surprisingly, most employed aromatic subunits are fused polycyclic fragments with limited conformational flexibility, such as naphthalene or anthracene, whereas more flexible scaffolds with resembling π surface, such as stilbenes or styryl-substituted hetarenes, have not been employed for this purpose, so far. Along these lines, we proposed that the known 2-styrylpyridine unit may serve as a useful, complementary aromatic component in nucleotide-binding cyclophanes because it provides a flexible aromatic surface, which may enable a more variable π stacking, along with a decent dipole, which may increase the binding affinity by dipole-dipole interactions with the nucleic base. Herein, we report on the synthesis of a bis-styrylpyridine-based cyclophane, and demonstrate that it may be used for fluorimetric detection and differentiation of nucleotides at physiological pH.

2. Results

2.1. Synthesis

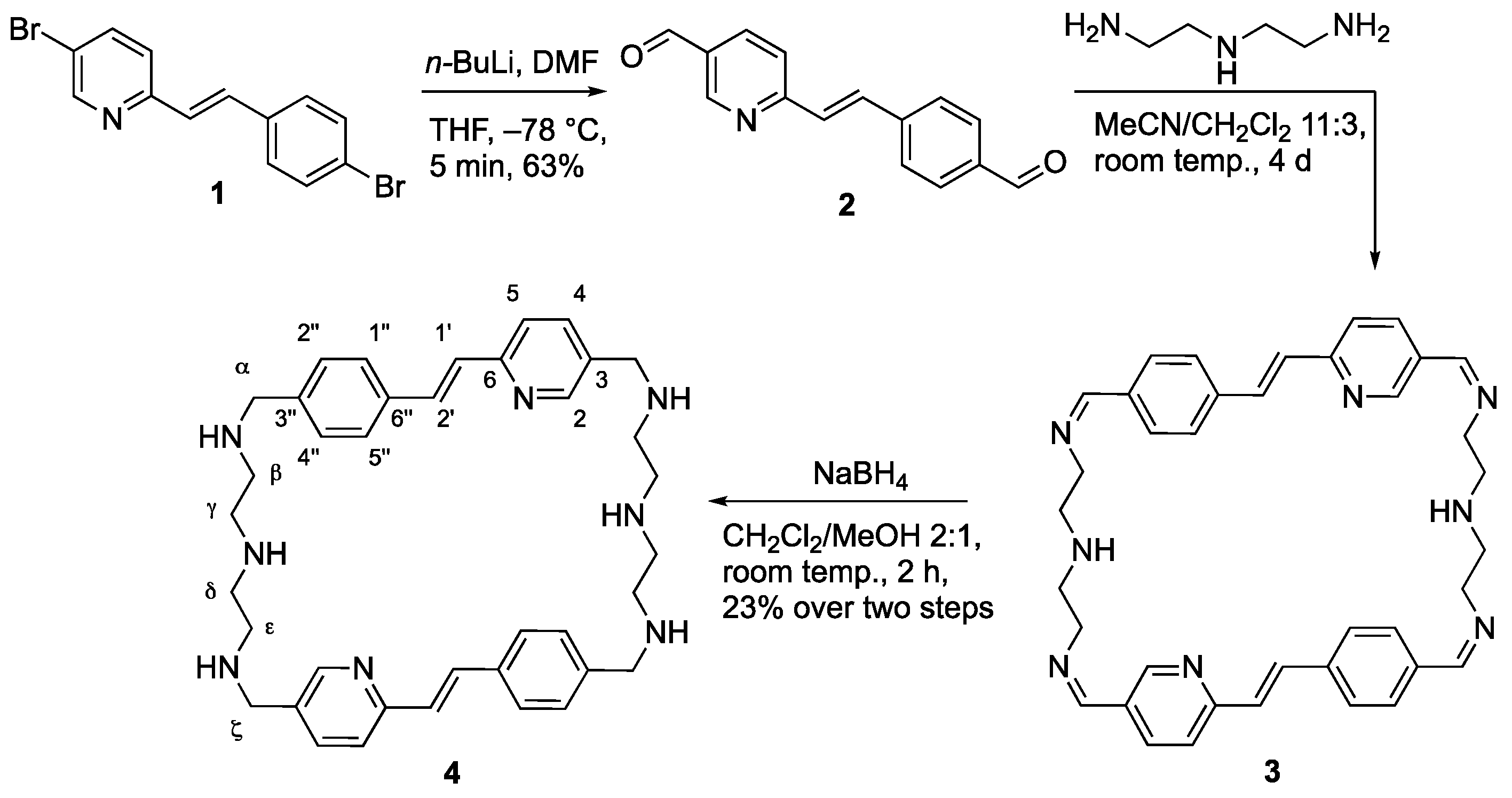

The known dibromostyrylpyridine derivative 1 [70] was formylated by lithium-halogen exchange with n-BuLi and subsequent reaction with DMF to the corresponding styrylpyridine bis-carbaldehyde 2 in 63% yield (Scheme 1, see Supplementary Materials). Condensation of the latter with diethylenetriamine and subsequent reduction of the tetraimine intermediate 3 with NaBH₄ gave the macrocyclic polyamine 4 in a yield of 23%. The known derivative 1 was synthesized by a varied procedure and identified by comparison with the literature data [71], and the new compounds 2 and 4 were identified and fully characterized by NMR spectroscopy (¹H, ¹³C, COSY, HSQC, and HMBC), elemental analyses, and mass spectrometry (Figures S2–S7). In all cases, the E-configuration of the alkene units in compounds 1, 2, and 4 were indicated by characteristic coupling constants of the alkene protons (³J_H–H = 16 Hz).

2.2. Solvent and pH-Dependent Absorption and Emission Properties

In the MeOH solution, cyclophane 4 exhibited an absorption maximum at λ_abs = 314 nm and a fluorescence maximum at λ_fl = 379 nm with low emission quantum yield (<0.01) (see Supplementary Materials).

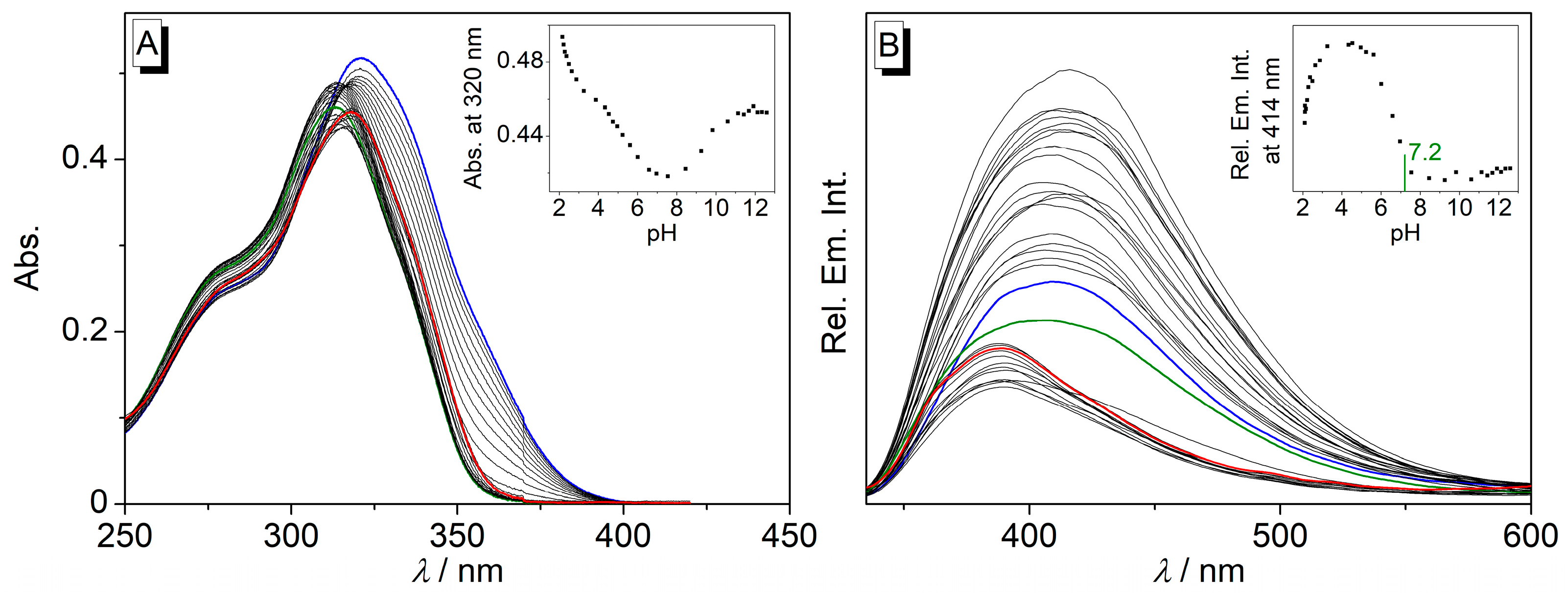

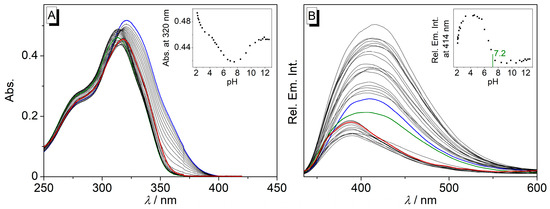

The pH dependence of the absorption properties of cyclophane 4 was determined by spectrometric acid-base titrations in Britton-Robinson buffer (Figure 1). At neutral pH, the absorption maximum was at λ_abs = 314 nm. The absorbance increased both at lower (pH < 5) and higher pH (>8) values, with the highest absorbance at pH 2. The absorption maximum also shifted with varying pH, from λ_abs = 321 nm at pH 2 to λ_abs = 314 nm at pH 7 and to λ_abs = 318 nm at pH 12. Furthermore, a slight shoulder at λ_abs = 364 nm was observed at pH 2, which steadily disappeared with increasing pH.

The data from the photometric titration were used to determine the pK_a values of 5.2 and 9.4. Another pK_a value was estimated to be in the range of 2–3, as has been usually observed for resembling cyclophanes with the same diethylenetriamine linker [62]; however, no adequate fit was obtained for this region, so a more accurate value was not available.

The emission spectrum of cyclophane 4 revealed a broad maximum at λ_fl = 410 nm at pH 2. With increasing pH to 4, the emission intensity firstly increased by a factor of ca. 2 and reached the highest intensity with a bathochromic shift of Δλ_fl = 5 nm. With the further addition of base (pH > 4), the fluorescence was strongly quenched by about 70% with a hypsochromic shift of the emission maximum of Δλ = 27 nm at pH 8.5. At pH > 9, the emission intensity remained low, with a slight increase in the emission after pH > 10. Most notably, at neutral pH, the emission of the styrylpyridine is already sufficiently quenched so this compound may be used as a fluorescence light-up probe for target nucleotides at a physiological pH range, that is, under conditions usually found in real biological samples.

2.3. Nucleotide-Binding Properties of 4

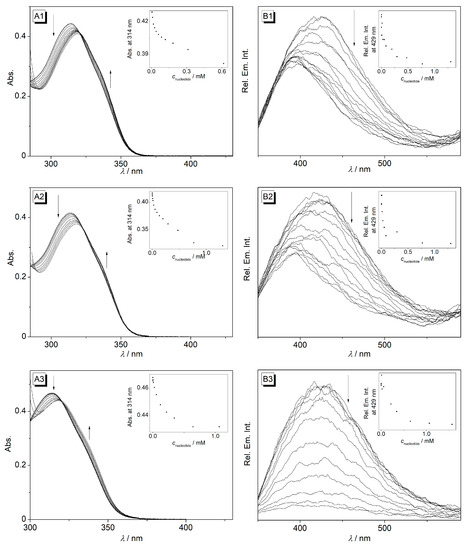

The association of the macrocyclic polyamine 4 with selected nucleotides was investigated by photometric and fluorimetric titrations with adenosine monophosphate (AMP), ATP, deoxyguanosine monophosphate (dGMP), thymidine monophosphate (TMP), TTP, and CTP in cacodylate buffer solution at pH 7.2, that is, conditions at which the emission is already very low (Figure 2 and Figure 3). Upon addition of AMP, ATP, and dGMP to 4, the absorbance (λ_max = 314 nm) decreased with the formation of a red-shifted absorption band (Δλ = 5 nm) and isosbestic points at λ = 323 nm, 320 nm, and 320 nm, respectively (Figure 2A). In the presence of these nucleotides, the already weak fluorescence of the cyclophane 4 was further quenched with different efficiencies, that is, with I/I₀ of 0.46 (AMP), 0.59 (ATP), and 0.04 (dGMP) at saturation (Figure 2B and Figure 4A). Moreover, the fluorescence maximum of styrylpyridine 4 was blue-shifted with Δλ = 34 nm on the addition of AMP and ATP, whereas no shift of the fluorescence maximum was observed with dGMP.

The binding constants were determined from the experimental binding isotherms of the photometric titrations. Thus, the experimental data were reasonably fitted to a 1:1 binding stoichiometry of nucleotide and 4 with logK_b values of 4.1, 5.0, and 3.8 for AMP, ATP, and dGMP, respectively (

Table 1. Absorption and emission properties of cyclophane 4 and its complexes with nucleotides, and the corresponding binding constants, logK_b.

	λabs/nm [a]	Δλabs/nm	λfl/nm [a]	Δλfl/nm	logKb [b]	I/I0
4	314 (4.67) [c]	–	429 (<0.01) [d]	–	–	–
4/TMP	317	3	384	−45	2.8 ± 0.1	2.72
4/TTP	317	3	384	−45	3.2 ± 0.1	2.43
4/CMP	314	–	388	−41	2.3 ± 0.1	1.23
4/AMP	319	5	395	−34	4.1 ± 0.1	0.48
4/ATP	319	5	395	−34	5.0 ± 0.1	0.54
4/dGMP	319	5	429	–	3.8 ± 0.1	0.10

^[a] In cacodylate buffer, pH 7.2; T = 20 °C. ^[b] Determined from the analysis of the fluorimetric titration data with Specfit/32^TM with adequate fits for complexes with 4:nucleotide ratio 1:1. K in M⁻¹. ^[c] Molar extinction coefficient ε, given as lg ε, ε in cm^–1 M^–1. ^[d] Fluorescence quantum yield, relative to naphthalene (ϕ_fl = 0.23 in cyclohexane, ref. [72]), λ_ex = 280 nm, estimated error: ± 10% of the given value.

). These values are in the same range of logK_b values for two resembling pyrene-based diethylenetriamine-cyclophanes with logK_b values of 3.00 and 4.15 with AMP, 5.48 and 5.55 with ATP and 3.51 and 4.50 with dGMP [63] and slightly higher than those observed with the resembling anthracene-based cyclophane with a logK_b value of 3.38 with ATP [62]. In comparison with mono- and triphosphate nucleotides, higher binding constants were also obtained with ATP as compared with AMP [63].

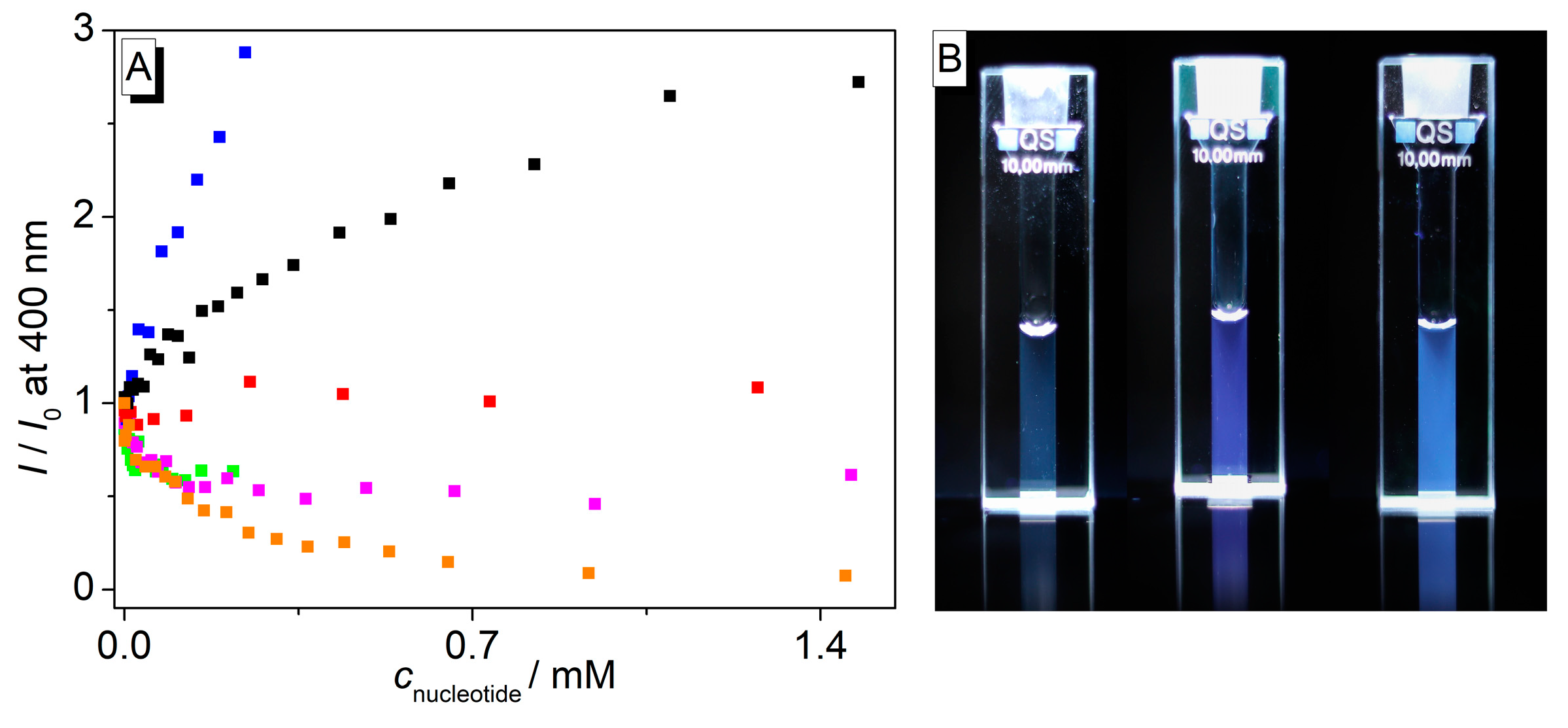

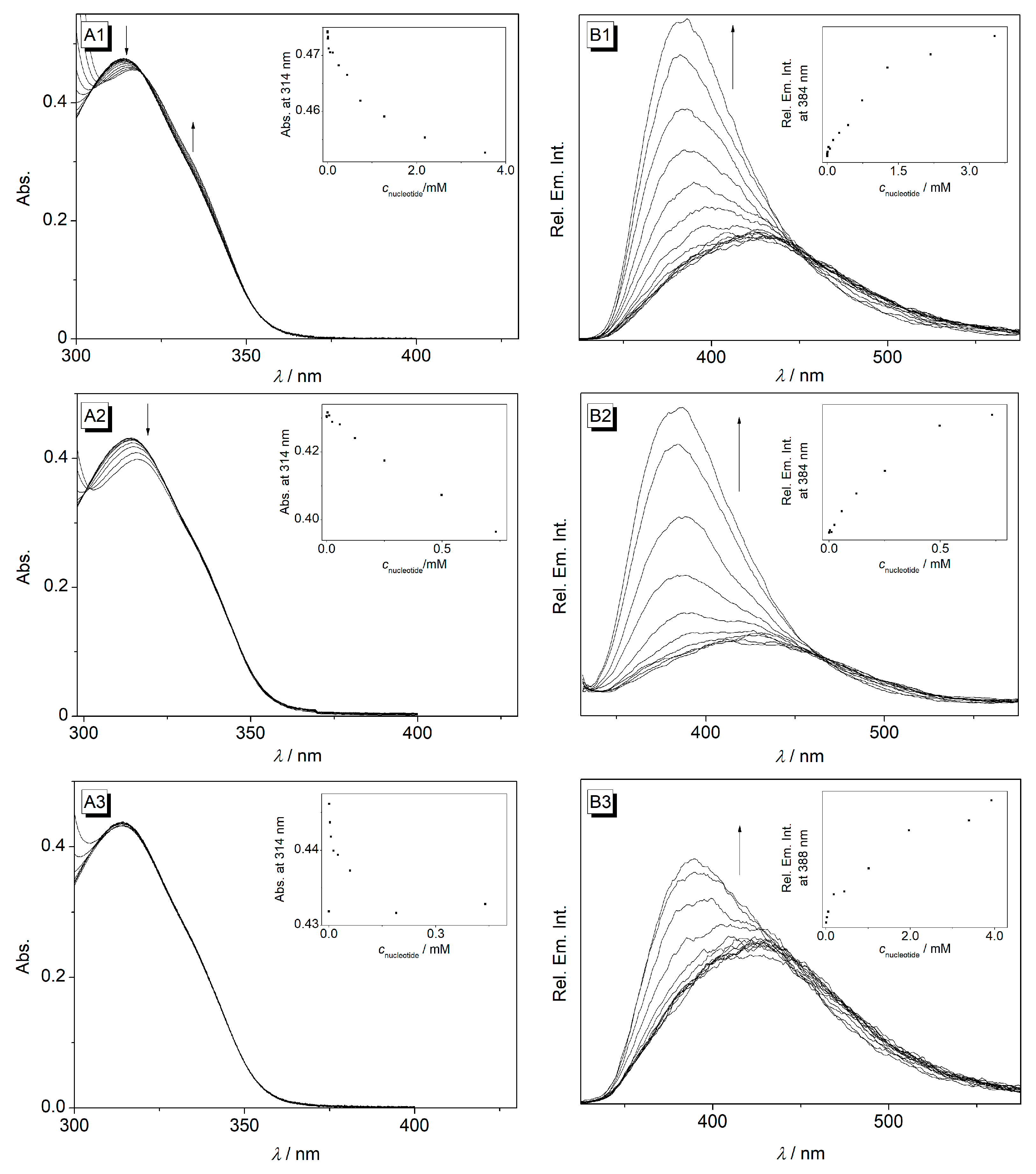

Titrations of the cyclophane 4 with TMP and TTP decreased the absorbance with red shifts of Δλ = 3 nm (Figure 3A). However, in contrast to titrations with the other nucleotides (see above), the addition of TMP and TTP resulted in a significant increase and blue shift (Δλ = 45 nm) of the fluorescence band (Figure 3B). The fluorescence light-up effect is more pronounced with TMP (I/I₀ = 2.72) than with TTP (I/I₀ = 2.43), respectively (Figure 4A). Upon the addition of CMP to 4, the absorption band remained essentially unchanged. At the same time, a fluorescence light-up effect was observed upon the addition of CMP along with a blue shift of the fluorescence maximum of Δλ = 41 nm; however, the increase of the fluorescence intensity (I/I₀ = 1.23) was less pronounced than the one with TMP and TTP (Figure 4). Notably, the increased emission intensity of compound 4 upon complex formation with the pyrimidine nucleotides can be seen with the naked eye (Figure 4B). From the fluorimetric titration data, the limit of detection (LOD) of 4 was estimated to be 0.09 μM, 0.02 μM, and 0.04 μM for TMP, TTP, and CMP, respectively (Table S1).

The binding isotherms were determined from the fluorimetric titration data as logK_b = 2.8, 3.2, and 2.3 for 1:1 complexes with TMP, TTP, and CMP, respectively (Table 1, Figure S1). For comparison, the reported logK_b values of resembling pyrene- and anthracene-based cyclophanes are 4.77 and 5.16 [63], and 3.60 [62] for complexes with TTP, that is, somewhat higher than the values for cyclophane 4. Furthermore, the binding constants for cyclophane 4 are higher for the complexes with purine nucleotides than for the pyrimidine nucleotides, which is in accordance with a literature-known pyrene-based cyclophane [63].

3. Discussion

The pK_a values of 2–3, 5.2, and 9.4 for cyclophane 4 are assigned to the eight available protonation sites, namely the amine and pyridine functionalities. Specifically, the pK_a values of the secondary amines fall in the range of the ones of similar, known amino-containing macrocyclic structures [63]. Accordingly, the pK_a values of the two central amino groups are estimated to be in the range of 2–3, and the pK_a value of 9.4 is assigned to the four lateral amino groups. In addition, the pK_a value of 5.2 relates to the two pyridine units, which is in accordance with the known pK_a value of 5.0 for 2-styrylpyridine [73].

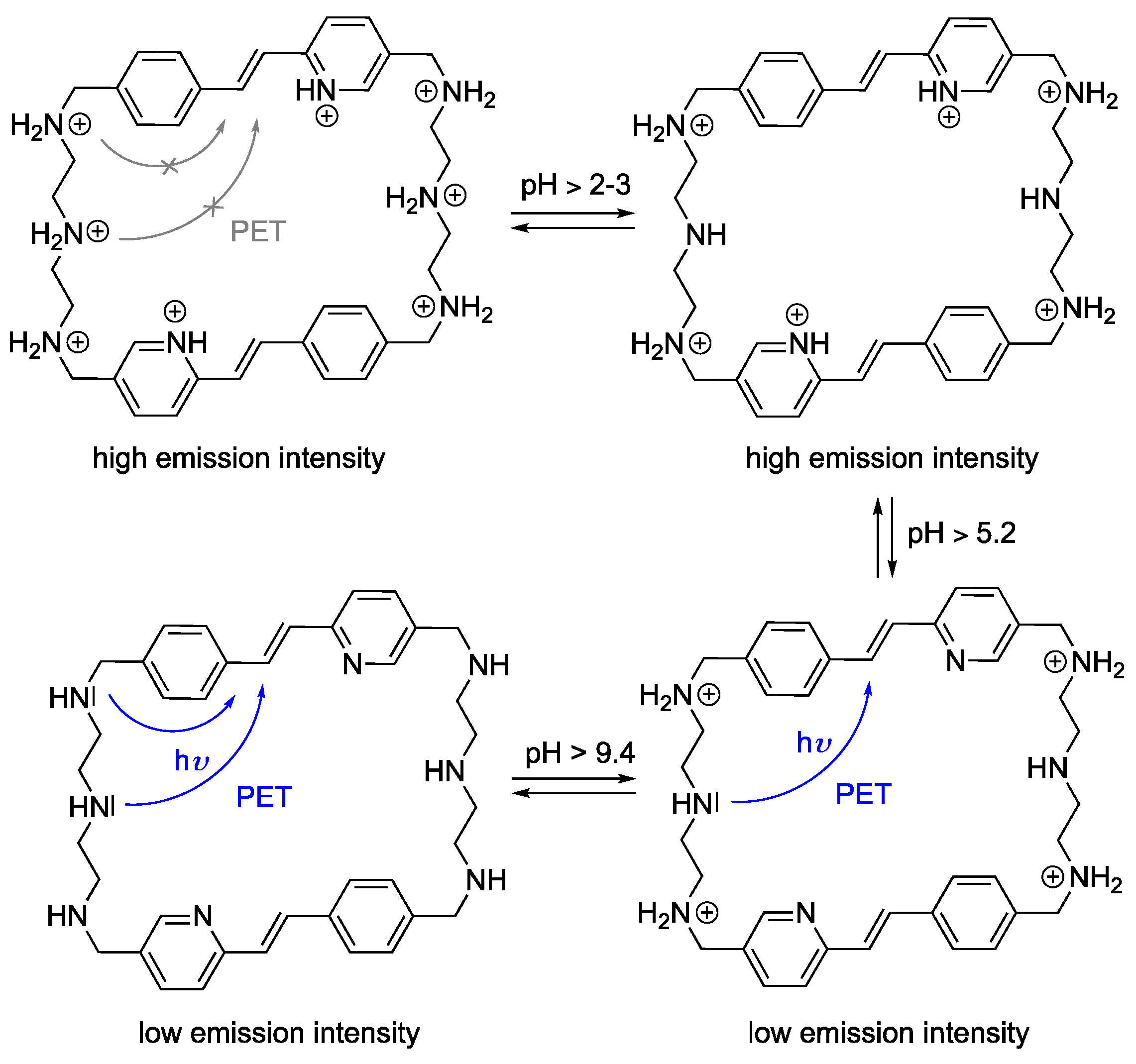

Overall, the acid-base titrations revealed the expected protolytic equilibrium resulting from the protonation of the amino functionalities and the pyridine unit in an acidic medium (Scheme 2). In particular, as has been shown for resembling fluorophore-containing polyamine-linked cyclophanes [62,74], the emission of the styrylpyridine is efficiently quenched by a photoinduced electron transfer (PET) reaction of the electron-donating amine functionalities with the excited fluorophore, whereas upon protonation this deactivation pathway is suppressed and the emission intensity increases significantly [75]. Apparently, the pyridine unit does not interfere with this general process; however, under acidic conditions, the formation of the corresponding pyridinium may be responsible for the shifts of the emission maximum at lower pH values [76].

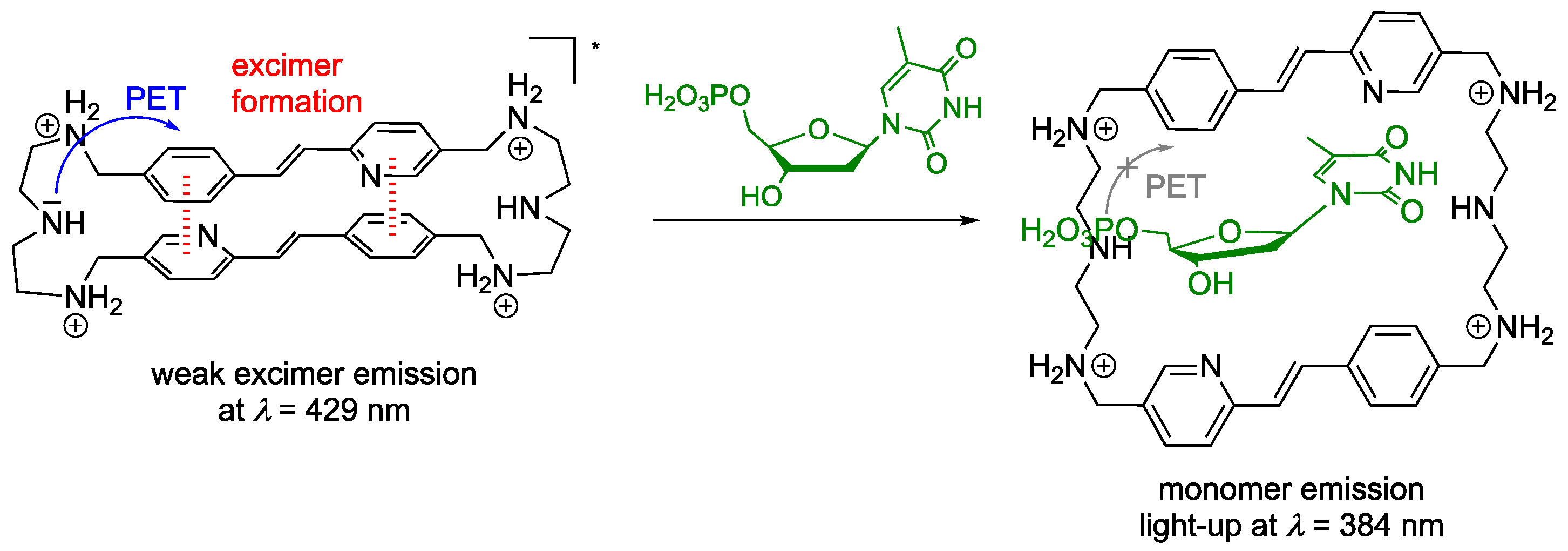

As compared with resembling anthracene- and pyrene-based cyclophanes, which show a fluorescence light-up effect upon complexation of TTP, CTP, and ATP and fluorescence quenching with GTP [62,63], cyclophane 4 exhibits a different dependence of the fluorimetric response on the type of nucleotide. Namely, a fluorescence enhancement occurs upon binding of pyrimidine nucleotides TMP, TTP, and CMP, whereas an effective quenching of the fluorescence results from association with purine nucleotides AMP, ATP, and dGMP. This observation may be explained by the specific pH- and structure-dependent emission properties of the cyclophane 4. Firstly, the amino functionalities of the linker units quench the emission of such cyclophanes by a PET reaction (see above) [62], which readily explains the low emission at the applied pH of 7.2. More importantly, cyclophane 4 exhibits two different emission maxima: a fluorescence maximum at λ = 429 nm in the unbound state and a blue-shifted one around λ = 384 nm upon complexation of the nucleotides. As it has been observed already with similar aminoalkyl-linked cyclophanes that these compounds tend to form emitting excimers [63], it is proposed that the red-shifted emission of 4 also originates from an intramolecular excimer formation between the two styrylpyridine units (Scheme 3). This proposal is in agreement with the excimer formation of resembling azastilbene-type derivatives, which is accompanied by a red shift of the emission maximum [77,78,79,80]. Upon binding of the pyrimidine nucleobases with the cyclophane 4, the emission increases as a result of the formation of the host-guest complexes, presumably because the complexation of the nucleotide involves hydrogen bonding with the amino functionalities [81,82], which in turn suppresses the PET quenching of the photoexcited fluorophore and leads to increased fluorescence intensity. In addition, the accommodation of the nucleotide in the cavity of the cyclophane also inhibits the excimer formation so only the blue-shifted monomer emission is detected. In contrast, the binding of purine nucleobases leads to emission quenching of cyclophane 4. This fluorescence quenching of cyclophane 4 by purine nucleotides may be explained by a different binding mode of the purine nucleotides ATP, AMP, and dGMP, as compared with one of pyrimidine nucleotides, which leads to a fluorescence enhancement upon formation of the cyclophane-nucleotide complex [83,84,85]. At the same time, it cannot be excluded that the purine nucleotides bind in a similar mode as the pyrimidine nucleotides and that the fluorescence quenching by ATP, AMP, and dGMP is just the result of a stronger quenching efficiency of the purine bases. Accordingly, the latter have a much lower reduction potential than the pyrimidine bases [86,87] and can, therefore, induce an efficient fluorescence quenching by a photoinduced electron transfer reaction with the excited styrylpyridine.

To the best of our knowledge, this is the first reported cyclophane-based fluorescent probe that can discriminate between purine and pyrimidine nucleobases based on a clear light-up effect induced by the latter. Nevertheless, a resembling anthracene-based derivative bearing two imidazolium-containing alkyl chains is known to show these properties [43]. Because of the significant light-up effect of 4 upon binding to TMP and TTP, cyclophane 4 may be employed as a fluorescent probe for the detection of thymine-based nucleotides. Notably, the detection of nucleotides is accomplished under physiological conditions at pH 7.2, rendering cyclophane 4 also interesting for biological applications. For comparison, only a few examples of cyclophanes have been explicitly reported that enable the detection of nucleotides at neutral pH [54,88], so there is still a demand to develop such recognition systems for nucleotides, that is, as the one reported herein, which operate in a physiological pH range.

4. Conclusions

The spectroscopic investigation of the nucleotide-binding properties of the cyclophane 4 revealed that purine bases AMP, ATP, and dGMP are binding upon fluorescence quenching, whereas in contrast, with pyrimidine bases TMP, TTP, and CMP, a clear, distinguishable fluorescence light-up effect was observed. Overall, we have demonstrated that the styrylpyridine unit is a useful and complementary fluorophore for the development of selective nucleotide-targeting fluorescent probes based on alkylamino-linked cyclophanes, especially considering the observation that this probe operates at the physiological pH range. Therefore, further studies of the particular binding modes as well as systematic variations of the substitution pattern, should enable the development of efficient chemical sensors for bioanalytical applications.

5. Materials and Methods

The commercially available chemicals (Alfa, Merck, Fluorochem, or BLDpharm) were of reagent grade and used without further purification. Nucleotides ATP (adenosine-5′-triphosphate disodium salt) and CMP (cytidine-5′-monophosphate disodium salt) were purchased from Feinbiochemika (Heidelberg, Germany), and nucleotides TMP (thymidine-5′-monophosphate disodium salt hydrate), TTP (thymidine-5′-triphosphate tetrasodium salt), AMP (adenosine-5′-monophosphate sodium salt) and dGMP (2′-deoxyguanosine-5′-monophosphate sodium salt hydrate) were purchased from Sigma-Aldrich (St. Louis, MO, USA). ¹H NMR spectra were recorded with a JEOL ECZ 500 (¹H: 500 MHz and ¹³C: 125 MHz) and a Varian VNMR S600 (¹H: 600 MHz and ¹³C: 150 MHz) at T = 25 °C. The ¹H NMR and ¹³C{1H} NMR spectra were referenced to an internal standard in CDCl₃ [TMS: δ(¹H) = 0.00 ppm, δ(¹³C) = 0.00 ppm]. Structures were assigned with additional information from gCOSY, gHSQC, and gHMBC experiments, and the spectra were processed with the software MestreNova. The mass spectra were recorded with a Finnigan LCQ Deca (driving current: 6 kV, collision gas: argon, capillary temperature: 200 °C, support gas: nitrogen) and an Orbitrap mass spectrometer Thermo Fisher Exactive (driving current: 3.5 kV, capillary temperature: 300 °C, capillary voltage: 45 V, injection rate: 5 μL/min, scanning range: 150−750 m/z, and resolution: ultra-high) and processed with the software Xcalibur. The CHNS analysis data were determined in-house with a HEKAtech EuroEA combustion analyzer. The melting points were measured with a melting point apparatus BÜCHI 545 (Büchi, Flawil, CH) and are uncorrected. The absorption spectra were recorded on a Varian Cary 100 Bio absorption spectrometer with Hellma quartz glass cuvettes 110-QS (layer thickness d = 10 mm). The emission spectra were recorded on a Varian Cary Eclipse fluorescence spectrometer with Hellma quartz glass cuvettes 115 FQS (layer thickness d = 10 mm). All measurements were recorded at T = 20 °C as adjusted with a thermostat if not stated otherwise. The sample solutions in the titration experiments were mixed with a reaction vessel shaker Top-Mix 11118 (Fisher Bioblock Scientific). E-Pure water was obtained with an ultrapure water system D 4632-33 (Wilhelm Werner GmbH, Leverkusen, D) with filters D 0835, D 0803, and D 5027 (2×).

Synthesis of (12E,25E)-1¹,3,6,9,14¹,16,19,22-Octaazapentacyclo-1,14(3,6)-Dipyridina-11,24(1,4)-Dibenzenacyclo-Hexacosaphane-12,25-Diene (4)

Under an argon gas atmosphere, a solution of 2 (100 mg, 420 μmol) in CH₂Cl₂ (15 mL) and MeCN (55 mL) was added dropwise to a solution of ethylentriamine (45.4 μL, 43.5 mg, 420 μmol) in MeCN (30 mL) at room temperature, and the mixture was stirred for 4 d at room temperature. Approximately half the volume of the solvent was removed under reduced pressure, and the precipitated solid was filtered off, washed with MeCN (2 × 10 mL), dried under reduced pressure (0.5 mbar, 1 h), and suspended in a mixture of CH₂Cl₂ (5 mL) and MeOH (2.5 mL). NaBH₄ (100 mg, 2.66 mmol) was added, and the mixture was stirred at room temperature for 3 h under an argon gas atmosphere. The solvent was removed under reduced pressure, and the remaining residue was dissolved in aqueous NaOH (20 mL, 1.0 M) and extracted with CHCl₃ (3 × 20 mL). The combined organic layers were dried with K₂CO₃ and filtered, and the solvent was removed under reduced pressure. The crude product was dissolved in CHCl₃ (5 mL), precipitated with hexane (25 mL), filtered off and recrystallized from toluene to give the product 4 as light yellow amorphous solid (60 mg, 97 µmol, 23%); mp 184–187 °C.-¹H NMR (500 MHz, CDCl₃): δ = 1.74 (br s, 6H, 6 × NH), 2.76–2.82 (m, 8H, 4 × CH₂, γ-H, δ-H, fornumbering, see Scheme 1), 2.83–2.92 (m, 8H, 4 × CH₂, β-H, ε-H), 3.77 (s, 8H, 4 × CH₂, α-H, ζ-H), 7.11, 7.12 (2 × d, ³J = 16 Hz, 2H, 1′-H), 7.16, 7.23 (2 × d, ³J = 8 Hz, 2H, 5-H), 7.26, 7.28 (2 × d, ³J = 8 Hz, 4H, 2″-H, 4″-H), 7.43, 7.45 (2 × d, ³J = 8 Hz, 4H, 1″-H, 5″-H), 7.52–7.57 (m, 2H, 4-H), 7.57, 7.60 (2 × d, ³J = 16 Hz, 2H, 2′-H), 8.52 (s, 2H, 2-H).-¹³C NMR (125 MHz, CDCl₃): δ = 48.3, 2 × 48.4 (4 × C, Cγ, Cδ), 48.8, 2 × 48.9 (4 × C, Cβ, Cε), 51.0 (2 × C, Cζ), 53.6 (2 × C, Cα), 121.8, 121.9 (2 × C, C5), 127.1, 127.2 (4 × C, C1″, C5″), 127.4, 127.5 (2 × C, C1′), 2 × 128.4 (4 × C, C2″, C4″), 132.0, 132.1 (2 × C, C2′), 2 × 134.2 (2 × C, C3), 2 × 135.4 (2 × C, C6″), 136.2, 136.3 (2 × C, C4), 140.7, 140.8 (2 × C, C3″), 2 × 149.4 (2 × C, C2), 154.5, 154.6 (2 × C, C6).-MS (ESI⁺): m/z (%) = 617 (100) [M + H]⁺.-El. Anal. for C₃₈H₄₈N₈ × H₂O calc. (%): C 71.89, H 7.94, N 17.65, found: C 72.11, H 7.68, N 17.07.
