Towards a Better Understanding of the Interaction of Fe66Cr10Nb5B19 Metallic Glass with Aluminum: Growth of Intermetallics and Formation of Kirkendall Porosity during Sintering

by
Dina V. Dudina
1,2,*,
Vyacheslav I. Kvashnin
1,
Alexander A. Matvienko
2,
Anatoly A. Sidelnikov
2,
Alexander I. Gavrilov
2,
Arina V. Ukhina
2,
Alberto Moreira Jorge, Jr.
3,4,5 and
Konstantinos Georgarakis
6
1
Lavrentyev Institute of Hydrodynamics SB RAS, Lavrentyev Ave. 15, 630090 Novosibirsk, Russia
2
Institute of Solid State Chemistry and Mechanochemistry SB RAS, Kutateladze Str. 18, 630090 Novosibirsk, Russia
3
Department of Materials Science and Engineering, Federal University of São Carlos, ViaWashington Luiz, km 235, São Carlos 13565-905, SP, Brazil
4
The Laboratory of Electrochemistry and Physical-Chemistry of Materials and Interfaces (LEPMI), Université Grenoble Alpes, Université Savoie Mont Blanc, CNRS, Grenoble INP, 38000 Grenoble, France
5
Science et Ingénierie des Matériaux et Procédés (SIMaP), Université Grenoble Alpes, CNRS, Grenoble INP, 38000 Grenoble, France
6
School of Aerospace, Transport and Manufacturing, Cranfield University, Cranfield MK43 0AL, UK
*
Author to whom correspondence should be addressed.
Chemistry 2023, 5(1), 138-150; https://doi.org/10.3390/chemistry5010011
Submission received: 6 December 2022 / Revised: 2 January 2023 / Accepted: 13 January 2023 / Published: 15 January 2023
(This article belongs to the Section Chemistry of Materials)
Browse Figures
Versions Notes

Abstract

:
Metallic-glass-reinforced metal matrix composites are a novel class of composite materials, in which particles of alloys with an amorphous structure play the role of reinforcement. During the fabrication of these composites, a crystalline metal is in contact with a multicomponent alloy of an amorphous structure. In the present work, the morphological features of the reaction products formed upon the interaction of Fe66Cr10Nb5B19 metallic glass particles with aluminum were studied. The composites were processed via spark plasma sintering (SPS), hot pressing or a combination of SPS and furnace annealing. The reaction products in composites with different concentrations of the metallic glass and different transformation degrees were examined. The products of the interaction of the Fe66Cr10Nb5B19 metallic glass with Al were observed as dense layers covering the residual alloy cores, needles of FeAl3 protruding from the dense shells as well as needles and platelets of FeAl3 distributed in the residual Al matrix. The possible role of the liquid phase in the structure formation of the reaction products is discussed. The formation of needle- and platelet-shaped particles presumably occurred via crystallization from the Al-Fe-based melt, which formed locally due to the occurrence of the exothermic reactions between aluminum and iron. At the same time, aluminum atoms diffused into the solid Fe-based alloy particles, forming an intermetallic layer, which could grow until the alloy was fully transformed. When aluminum melted throughout the volume of the composite during heating of the sample above 660 °C, a similar microstructure developed. In both Al–Fe66Cr10Nb5B19 and Al–Fe systems, upon the reactive transformation, pores persistently formed in locations occupied by aluminum owing to the occurrence of the Kirkendall effect.

1. Introduction

Traditional reinforcements in metal matrix composites (MMCs) are particles or fibers of crystalline nature. The promising alternative reinforcements are metallic glasses [1,2,3]. In metallic-glass-reinforced MMC, a crystalline metal is in contact with a metastable phase, a multicomponent alloy of an amorphous structure. Such systems are of fundamental interest as they present opportunities for studying the chemical interactions between a crystalline metal and an amorphous alloy [4,5,6,7,8]. Metallic glasses can act as glues for materials of different nature [9]. The crystalline and amorphous alloys can be joined together at low temperatures (for example, using high-frequency vibrations [10,11]) and upon heat treatment, such as sintering [3].
Interfaces are key elements of composite structures, ensuring their integrity and enabling the load transfer from the matrix to the reinforcement. The interactions between the phases determine the crystallographic nature of the interface and the thickness and structure of the reaction product layers. The efficiency of the load transfer from the matrix to the reinforcement depends on the physical and chemical bonding at the interface. Furthermore, the layers of the reaction products become additional reinforcing elements of the composite [12]. The reactive transformations at the metallic glass/metal matrix interface can lead to the spatial redistribution of the alloy components owing to the formation of intermetallic phases. In ref. [4], the formation of a dual-layer structure (composed of two intermetallics) was observed when a Ni-Nb amorphous alloy reacted with aluminum.
Field-assisted sintering [13,14] is often the technology of choice for consolidating materials containing metastable phases. Spark plasma sintering (SPS) has been used for obtaining bulk materials from metallic glass–metal mixtures [15,16,17,18,19]. The inherent local phenomena related to the direct passage of an electric current through the system during SPS should be taken into account when the structure formation mechanisms are investigated [15]. As the glassy phase contains metals, the products of its interaction with the metal matrix are intermetallic phases or solid solutions. The newly formed layers should repeat the surface morphology of the glassy particles as the absence of the crystalline and grain structure eliminates the possibility of reaction advancement in preferable directions or channels. However, in some cases, the interface between the matrix and the reaction product layer is not very smooth, the layer demonstrating protrusions [15].
The Fe66Cr10Nb5B19 glassy alloy is an attractive composition for practical purposes, as it can be obtained from commercially available alloys and is lean in the alloying elements [20,21]. It features high hardness and high corrosion resistance [21]. In the past few years, we have conducted investigations of the structural characteristics and mechanical properties of composites obtained by SPS of Al–Fe66Cr10Nb5B19 power mixtures [17,18,19]. The mechanical properties of these composites were found to be very sensitive to their phase composition and microstructure.
The present work deals with the structural evolution of Al–Fe66Cr10Nb5B19 composites having different concentrations of the Fe66Cr10Nb5B19 metallic glass. The goal of the present work was to study the chemical interaction of the Fe66Cr10Nb5B19 metallic glass with aluminum and the morphology of the resultant structures. In the Al-Fe system, the Kirkendall effect is well known [22,23,24]. At the Al/Fe interface, a reaction product of intermetallic nature forms. Al diffuses through an intermetallic reaction product layer, leaving vacancies in the aluminum particles. The vacancies further coalesce, forming pores. The Kirkendall porosity was observed in the annealed aluminum–steel joints; the pores were interconnected, forming a seam at the Al/θ phase (FeAl3) interface [25]. To the best of our knowledge, the Kirkendall effect in the Al–Fe66Cr10Nb5B19 system has not been previously reported. In this work, experiments were designed in such a way that the powder mixtures of the Al and Fe66Cr10Nb5B19 metallic glass reactants experienced high transformation degrees. This approach can help shed light on the mechanisms of the structural changes occurring during the fabrication of the composites by sintering and upon unexpected overheating during the performance.

2. Materials and Methods

Experiments were conducted with Al–Fe66Cr10Nb5B19 and Al-Fe powder mixtures. In order to prepare the mixtures, gas-atomized powders of Fe66Cr10Nb5B19 [20] (<45 μm and 20–40 μm fractions), an iron powder (carbonyl iron, particle size range 2.5–5 μm) and three aluminum powders (PAD-6, particle size range 3–10 μm; PAD-0, particle size range 3–30 μm; PA-4 grade, particle size range 10–45 μm) were used. All powders used in the present work had a spherical shape. The Al–Fe66Cr10Nb5B19 and Al-Fe mixtures were prepared by treatment in a custom-made horizontal low-energy mixing device. The glass transition temperature of the glassy Fe66Cr10Nb5B19 alloy is 521 °C and its crystallization temperature is 573 °C (determined at a heating rate of 10 °C min−1) [20]. The minor phase in the Fe66Cr10Nb5B19 powder is α-(Fe,Cr), which is present at a concentration of about 5 wt.% [26]. Sintering and annealing experiments described in the present work were conducted at temperatures above the crystallization temperature of the metallic glass.
Sintering of the powders was carried out using a SPS Labox 1575 apparatus (SINTER LAND Inc., Nagaoka, Japan) in vacuum at a uniaxial pressure of 40 MPa. Graphite tooling was used. The powder mixtures were placed in the dies 10 mm or 20 mm in diameter. The temperature during SPS was measured by a thermocouple inserted into a near-through hole in the die wall. The real temperature of the sintered sample is about 30 °C higher than the measured temperature for dies 10–20 mm in diameter in the temperature range of 500–600 °C, as determined experimentally by the onset of the rapid shrinkage of the Fe66Cr10Nb5B19 samples upon reaching the glass transition temperature. In the present work, the Al–Fe66Cr10Nb5B19 and Al-Fe mixtures were subjected to SPS at 570 °C, as measured by the thermocouple. The heating rate was 50 °C min−1. The holding time at the maximum temperature was 3 min or 20 min. Due to the high heating rates and short sintering times during SPS, the alloy Fe66Cr10Nb5B19 remained mainly amorphous, and only the very beginning of its crystallization could be expected. Selected sintered samples were further annealed in a vacuum furnace for 2 h at a temperature of 620 °C.
The powders were also consolidated by hot pressing (HP) using a facility developed at the Institute of Automation and Electrometry SB RAS, Novosibirsk, Russia. HP was conducted in an atmosphere of argon. The heating rate was the same as in the SPS experiments. A Fe–Al (3:2, mol.) mixture was consolidated at 650 °C and 3 MPa. The Al–20 vol.% Fe66Cr10Nb5B19 mixture was heated up to 660 °C under a pressure of 40 MPa. The heating was switched off once rapid displacement started upon melting of the aluminum contained in the mixture.
X-ray diffraction (XRD) patterns of the samples were recorded by a D8 ADVANCE diffractometer (Bruker AXS, Karlsruhe, Germany) with Cu Kα radiation.
The microstructure of the sintered and annealed samples was studied using scanning electron microscopy (SEM) using a TM-1000 Tabletop microscope (Hitachi, Tokyo, Japan) and a S-3400N microscope (Hitachi, Tokyo, Japan). Both fracture and polished surfaces of the samples were observed. Energy-dispersive spectroscopy (EDS) was conducted using a NORAN Spectral System 7 (Thermo Fisher Scientific Inc., Waltham, MA, USA) attached to the S-3400N microscope. The EDS point and line analyses were conducted on the polished surfaces.

3. Results

3.1. Phase Composition and Microstructural Features of Materials Obtained by Spark Plasma Sintering of Al-Fe66Cr10Nb5B19 Powder Mixtures

Figure 1a shows the microstructure of materials obtained by SPS of the Al–20 vol.% Fe66Cr10Nb5B19 mixture at 570 °C. The composite consists of the core–shell particles distributed in the residual Al matrix. The shells are the reaction products between the aluminum and the Fe-based alloy. In the XRD pattern of this material (Figure 2a), reflections of Al, FeAl3 and Fe2Al5 can be distinguished. It should be noted that the exact formula of the Al-rich phase in the Fe-Al system is Fe4Al13 [27,28]. However, in many publications related to the thermodynamic aspects, the synthesis of composites and the interfacial interaction between Al and Fe, the FeAl3 formula is still used.
The bright cores in Figure 1a represent the residual Fe-based alloy. It is seen that the surface of the shell is not smooth (inset in Figure 1a) and is covered by fine crystals of needle morphology. In the composite formed from the Al–50 vol.% Fe66Cr10Nb5B19 mixture, the shells of the particles touch each other, leaving only a few areas of unreacted metallic aluminum (Figure 1b). The aluminum phase was not detected by the XRD phase analysis in this material, which confirmed that the interfacial reactions led to the nearly full consumption of aluminum (Figure 2b). In the microstructure, islands of the residual Al matrix can still be found (Figure 3a). In the Al matrix, needles of a Fe-containing phase are distributed. In order to obtain information on the composition of the synthesized structures, an EDS analysis was conducted at specific points, as marked in Figure 3b. Point 1 corresponds to the needle structures in the Al matrix. Point 2 is in the residual matrix in an area free from inclusions. Point 3 is in the shell covering the alloy core, while point 4 is in the particle core (Fe-based alloy). The results of the EDS analysis are given in Table 1. It should be noted that boron is a light element and its quantitative analysis using the EDS method does not produce reliable results. Therefore, the data in Table 1 should be considered mainly as providing information on the presence of metallic elements and their ratios. Point 1 and point 2 show close concentrations of aluminum. Some needle structures located below the surface layer of Al (not visible on the cross-section) may have contributed to the results of the analysis. The material in point 3 contained aluminum at a concentration that was slightly higher than that required to form the FeAl3 (Fe4Al13) phase. Here, aluminum can participate in the formation of other intermetallics (of the Nb-Al and Cr-Al systems). However, they were present at concentrations that were too low to be detected by the XRD phase analysis. In point 4, Al was not found, and the Fe/Cr atomic ratio was 6.2, which is close to that in the starting alloy.
Figure 4 shows the results of the EDS analysis along a line crossing a particle core (region I), a shell of the reaction products (region II) and a residual matrix region (III). This analysis helps visualize the concentration changes along a line crossing two interfaces. The material in region I did not contain Al. In region II, Al, Fe and Cr were present. The presence of iron was also detected beyond the particle shell (region III). Signals coming from boron and niobium were very weak and were at the background level.
For the purpose of a comparative analysis, an experiment in the hot press was conducted, during which aluminum melted throughout the volume of the composite, partially squeezing out of the die. As seen in Figure 5, the microstructural features of the obtained material were very similar to those formed during SPS at a measured temperature of 570 °C (Figure 1 and Figure 3a): the products of interaction were visible in the form of a layer (the particle shell) and crystals of a needle shape.
In Figure 1b, pores can be seen between the particles of the core–shell structure, which implies that the diffusion of the aluminum into the alloy occurred faster than the diffusion of the alloy components into the aluminum. In order to obtain further confirmation of the preferential diffusion of the aluminum into the alloy particles, sintering of an Al–70 vol.% Fe66Cr10Nb5B19 mixture was carried out. A low concentration of aluminum in this mixture allowed us to obtain a structure in which the Al particles were surrounded by the metallic glass matrix. An Al powder with particles larger than those of the metallic glass was used for the preparation of the mixture. This allowed us to distinguish pores formed due to the Kirkendall effect and those formed because of the incomplete sintering of the glass particles by their size. Figure 6 demonstrates the fracture surface of the sintered material fabricated from the Al–70 vol.% Fe66Cr10Nb5B19 mixture. In this material, Al fully transformed into the intermetallic phases, as confirmed by the XRD analysis (Figure 7). The pores formed in locations of the Al particles throughout the compact (Figure 6a). It is seen that the walls of the pores were covered with needles (Figure 6b).

3.2. Structural Changes during Annealing of Preconsolidated Al-Fe66Cr10Nb5B19 Compacts

The formation of pores can be better traced if the compacts are heated without the application of pressure. The composite spark plasma sintered from the Al–20 vol.% Fe66Cr10Nb5B19 mixture (Figure 8a) was annealed in a furnace at 620 °C for 2 h. After SPS, no reaction product was present in the material, as confirmed by the XRD (Figure 9a). The fracture surface of the material formed after annealing is shown in Figure 8b. It is seen that the material was porous and was composed of nearly spherical particles surrounded by platelets and needle-shape crystals. In some cases, the core of the alloy particle was partially preserved (Figure 8c). The morphology of the needle-shape crystals present in the pores is shown in Figure 8d. As seen in the XRD pattern in Figure 9b, aluminum reacted with the alloy to form the FeAl3 and Fe2Al5 phases.

3.3. Microstructure of Materials Consolidated from Al-Fe Mixtures

In order to confirm the leading role of the interaction between aluminum and iron of the alloy in the structural changes in the composites upon sintering and annealing, experiments were conducted with Al-Fe mixtures. Figure 10a shows the microstructure of the materials sintered from an Al-Fe mixture having the same atomic ratio (4:1) as the Al–20 vol.% Fe66Cr10Nb5B19 composite. In this material, the FeAl3 and Fe2Al5 phases formed (Figure 11a). Along with equiaxed grains, platelet-shape (needle) particles were seen in the microstructure.
The formation of pores during sintering of the Al-Fe mixture under a low applied pressure was also confirmed (Figure 10b). At the selected processing temperature (650 °C), particles of iron and those of the synthesized Fe-Al intermetallics could not be sintered well. Therefore, a low applied pressure was used (3 MPa) to prevent damaging the skeleton and making it easier to observe the pores formed due to the Kirkendall effect. Pores 15–20 μm in diameter formed in locations of the Al particles. The walls of the porous skeleton were composed of iron and the intermetallic phases, and metallic aluminum was no longer present in the material (Figure 11b).

4. Discussion

The morphologies of the reaction products in the samples obtained by SPS and annealing accompanied by the reactive transformation demonstrated similarities (Figure 1, Figure 3a, Figure 5, Figure 6b and Figure 8c,d). It can be inferred that the needle and platelet morphologies were not characteristic of the certain sintering method. Rather, they were a feature of the reaction system, in which the ratio of Al/Fe was 3:1 or greater, at least locally and for a certain period of time (time of the experiment). Zhang et al. [29] discussed the possible morphology of the FeAl3 crystals, pointing to the fact that the needle and platelet morphology was typical for this intermetallic compound because of its low symmetry. The morphology of the proeutectic FeAl3 was found to depend on the cooling rate.
In the discussion of the influence of the processing parameters on the morphological features of the reaction products, the possibility of the formation of a liquid phase during the processing of the composites needs to be addressed. For composites obtained by SPS, the possibility of local overheating at the interparticle contacts exists and has been demonstrated for a number of systems [30,31]. So, the temperature uncertainty and the possibility of the local solid/liquid interaction are inherent to the processing of the composites by SPS. Furthermore, the interaction of the Fe66Cr10Nb5B19 metallic glass with aluminum should be described considering the fact that reactions of the formation of the Fe-Al intermetallics are exothermic and the temperature in the reaction zone can be higher than the furnace temperature. The standard heat of formation of FeAl3 and Fe2Al5 compounds is 112 kJ mol−1 and 188 kJ mol−1 (values per mole of compound), respectively [32]. The adiabatic combustion temperature of the iron–aluminum system transforming into FeAl3 is 1277 K. In the case of Fe2Al5, it is 1284 K. Therefore, under conditions realized in the present work, the following mechanisms of the formation of the FeAl3 intermetallic can be suggested. The initiation of the reaction between the alloy and aluminum resulting in the formation of FeAl3 leads to a release of heat, which causes a local rise in temperature and melting of aluminum in the vicinity of the reaction site. Iron atoms from the glass can diffuse into liquid aluminum. The formation of faceted FeAl3 crystals and needle-like structures occurs via crystallization from the Al-Fe-based melt upon cooling. At the same time, the aluminum atoms diffuse into the alloy and a FeAl3-based layer grows until the alloy is fully transformed. When cast iron corrodes in molten aluminum, a similar situation develops [33]. An Al-containing layer forms at the interface between the cast iron and the melt, while some iron dissolves into aluminum, which leads to the formation of FeAl3 needles in the aluminum matrix at a distance from the interface. The needles can also peel off the surface [30]. The formation of FeAl3 needles emanating directly from the shell of the particles in this work is consistent with results of Guan et al. [15], who reported the formation of protrusions (prominences) composed of FeAl3 at the interface between Fe-based metallic glass particles and aluminum in composites processed by SPS and hot rolling. It is possible to assume that such structures grow by means of the mechanism operating during the growth of whiskers from a layer experiencing compressive stresses upon the inward diffusion of species and the formation of an intermetallic compound [34].
The kinetics of the reaction of a solid spherical particle with smaller particles of another reactant can be described by a model developed by Carter [35]. In that model, the difference between the volume of the product and volume of the reactant consumed in the process is taken into account. The conversion degree is a key parameter in that model. In the present work, it was not possible to determine the exact conversion degree of the alloy by the XRD. If an Al-Fe alloy contains FeAl3 and Fe2Al5 phases, its analysis by the XRD becomes difficult, as reflections of these phases partially overlap [36]. Furthermore, the presence of four elements in the alloy complicates the kinetic analysis. In practice, it is rather difficult to obtain monosized spheres of the glassy alloy. The above considerations show that morphological studies and the experimental determination of the phase composition of the composites are of utmost importance for assessing their thermal stability and understanding their structural evolution upon heat treatment.

5. Conclusions

The morphological features of the products of the reaction between the Fe66Cr10Nb5B19 metallic glass and aluminum were examined. A series of composite samples were fabricated/annealed at measured (bulk) temperatures below the aluminum melting point.
The structural investigations allowed us to assume that the growth of the FeAl3 particles of needle and platelet morphologies occurred via crystallization from the Al-Fe-based melt, which formed locally due to the exothermic reactions between aluminum and iron. During SPS, the material can melt at the interparticle contacts, which is a feature of the electric-current-assisted sintering.
Aluminum atoms also diffused into the solid Fe-based alloy particles, enabling the growth of an intermetallic layer until the alloy particle was fully transformed. A similar microstructure developed when the composite was heated above 660 °C and the alloy particles reacted with molten aluminum.
In both Al–Fe66Cr10Nb5B19 and Al–Fe systems, upon the reactive transformation, pores persistently formed in locations occupied by the aluminum particles owing to the occurrence of the Kirkendall effect.

Author Contributions

Conceptualization, D.V.D., K.G. and V.I.K.; methodology, D.V.D. and A.A.M.; investigation, V.I.K., A.V.U. and A.I.G.; writing—original draft preparation, D.V.D., V.I.K. and A.A.M.; writing—review and editing, A.A.S., K.G. and A.M.J.J.; supervision, D.V.D.; project administration, D.V.D.; funding acquisition, D.V.D. All authors have read and agreed to the published version of the manuscript.

Funding

The support by the Ministry of Science and Higher Education of the Russian Federation, project #121032500062-4 (D.V.D. and A.I.G.) and project #121121600298-7 (D.V.D.), is gratefully acknowledged.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data required to reproduce the results of this study are provided in the Materials and Methods section.

Acknowledgments

The authors are grateful to Boris B. Bokhonov (ISSCM SB RAS) for his help with the SEM/EDS analysis of the samples.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Dudina, D.V.; Georgarakis, K.; Yavari, A.R. Metal matrix composites reinforced with metallic glass particles: State of the art. In Metal Matrix Composites; Davim, J.P., Ed.; Nova Science Publishers, Inc.: New York, NY, USA, 2012; pp. 1–30. [Google Scholar]
  2. Jayalakshmi, S.; Arvind Singh, R.; Gupta, M. Metallic glasses as potential reinforcements in Al and Mg matrices: A review. Technologies 2018, 6, 40. [Google Scholar] [CrossRef] [Green Version]
  3. Georgarakis, K.; Dudina, D.V.; Kvashnin, V.I. Metallic glass-reinforced metal matrix composites: Design, interfaces and properties. Materials 2022, 15, 8278. [Google Scholar] [CrossRef] [PubMed]
  4. Yu, P.; Zhang, L.C.; Zhang, W.Y.; Das, J.; Kim, K.B.; Eckert, J. Interfacial reaction during the fabrication of Ni60Nb40 metallic glass particles-reinforced Al based MMCs. Mater. Sci. Eng. A 2007, 444, 206–213. [Google Scholar] [CrossRef]
  5. Yu, P.; Venkataraman, S.; Das, J.; Zhang, L.C.; Zhang, W.; Eckert, J. Effect of high pressure during the fabrication on the thermal and mechanical properties of amorphous Ni60Nb40 particle-reinforced Al-based metal matrix composites. J. Mater. Res. 2007, 22, 1168–1173. [Google Scholar] [CrossRef] [Green Version]
  6. Wang, Z.; Georgarakis, K.; Nakayama, K.S.; Li, Y.; Tsarkov, A.A.; Xie, G.; Dudina, D.; Louzguine-Luzgin, D.V.; Yavari, A.R. Microstructure and mechanical behavior of metallic glass fiber-reinforced Al alloy matrix composites. Sci. Rep. 2016, 6, 24384. [Google Scholar] [CrossRef] [Green Version]
  7. Avettand-Fènoël, M.N.; Netto, N.; Simar, A.; Marinova, M.; Taillard, R. Design of a metallic glass dispersion in pure copper by friction stir processing. J. Alloys Compd. 2022, 907, 164522. [Google Scholar] [CrossRef]
  8. Wu, G.; Liu, C.; Brognara, A.; Ghidelli, M.; Bao, Y.; Liu, S.; Wu, X.; Xia, W.; Zhao, H.; Rao, J.; et al. Symbiotic crystal-glass alloys via dynamic chemical partitioning. Mater. Today 2021, 51, 6–14. [Google Scholar] [CrossRef]
  9. Fu, J.; Yang, J.; Wu, K.; Lin, H.; Wen, W.; Ruan, W.; Ren, S.; Zhang, Z.; Liang, X.; Ma, J. Metallic glue for designing composite materials with tailorable properties. Mater. Horiz. 2021, 8, 1690–1699. [Google Scholar] [CrossRef]
  10. Zhang, J.Y.; Zhou, Z.Q.; Zhang, Z.B.; Park, M.H.; Yu, Q.; Li, Z.; Ma, J.; Wang, A.D.; Huang, H.G.; Song, M.; et al. Recent development of chemically complex metallic glasses: From accelerated compositional design, additive manufacturing to novel applications. Mater. Futur. 2022, 1, 012001. [Google Scholar] [CrossRef]
  11. Liang, X.; Zhu, X.; Li, X.; Mo, R.; Liu, Y.; Wu, K.; Ma, J. High-entropy alloy and amorphous alloy composites fabricated by ultrasonic vibrations. Sci. China Phys. Mech. Astron. 2020, 63, 116111. [Google Scholar] [CrossRef]
  12. Dudina, D.V.; Georgarakis, K. Core–shell particle reinforcements—A new trend in the design and development of metal matrix composites. Materials 2022, 15, 2629. [Google Scholar] [CrossRef]
  13. Olevsky, E.A.; Dudina, D.V. Field-Assisted Sintering: Science and Applications; Springer International Publishing: Cham, Switzerland, 2018; 425p. [Google Scholar]
  14. Dudina, D.V.; Georgarakis, K.; Olevsky, E.A. Progress in aluminium and magnesium matrix composites obtained by spark plasma, microwave and induction sintering. Int. Mater. Rev. 2022, in press. [Google Scholar] [CrossRef]
  15. Guan, H.D.; Li, C.J.; Gao, P.; Prashanth, K.G.; Tan, J.; Eckert, J.; Tao, J.M.; Yi, J.H. Aluminum matrix composites reinforced with metallic glass particles with core-shell structure. Mater. Sci. Eng. A 2020, 771, 138630. [Google Scholar] [CrossRef]
  16. Wang, Z.; Xie, M.S.; Zhang, W.W.; Yang, C.; Xie, G.Q.; Louzguine-Luzgin, D.V. Achieving super-high strength in an aluminum based composite by reinforcing metallic glassy flakes. Mater. Lett. 2020, 262, 127059. [Google Scholar] [CrossRef]
  17. Dudina, D.V.; Bokhonov, B.B.; Batraev, I.S.; Amirastanov, Y.N.; Ukhina, A.V.; Kuchumova, I.D.; Legan, M.A.; Novoselov, A.N.; Gerasimov, K.B.; Bataev, I.A.; et al. Interaction between Fe66Cr10Nb5B19 metallic glass and aluminum during spark plasma sintering. Mater. Sci. Eng. A 2021, 799, 140165. [Google Scholar] [CrossRef]
  18. Dudina, D.V.; Bokhonov, B.B.; Batraev, I.S.; Kvashnin, V.I.; Legan, M.A.; Novoselov, A.N.; Anisimov, A.G.; Esikov, M.A.; Ukhina, A.V.; Matvienko, A.A.; et al. Microstructure and mechanical properties of composites obtained by spark plasma sintering of Al–Fe66Cr10Nb5B19 metallic glass powder mixtures. Metals 2021, 11, 1457. [Google Scholar] [CrossRef]
  19. Kvashnin, V.I.; Dudina, D.V.; Ukhina, A.V.; Koga, G.Y.; Georgarakis, K. The benefit of the glassy state of reinforcing particles for the densification of aluminum matrix composites. J. Compos. Sci. 2022, 6, 135. [Google Scholar] [CrossRef]
  20. Kuchumova, I.D.; Batraev, I.S.; Ulianitsky, V.Y.; Shtertser, A.A.; Gerasimov, K.B.; Ukhina, A.V.; Bulina, N.V.; Bataev, I.A.; Koga, G.Y.; Guo, Y.; et al. Formation of metallic glass coatings by detonation spraying of a Fe66Cr10Nb5B19 powder. Metals 2019, 9, 846. [Google Scholar] [CrossRef] [Green Version]
  21. Koga, G.Y.; Ferreira, T.; Guo, Y.; Coimbrão, D.D.; Jorge, A.M., Jr.; Kiminami, C.S.; Bolfarini, C.; Botta, W.J. Challenges in optimizing the resistance to corrosion and wear of amorphous Fe-Cr-Nb-B alloy containing crystalline phases. J. Non-Cryst. Solids 2021, 555, 120537. [Google Scholar] [CrossRef]
  22. Salamon, M.; Mehrer, H. Interdiffusion, Kirkendall effect, and Al self-diffusion in iron–aluminium alloys. Z. Für Met. 2005, 96, 4–16. [Google Scholar] [CrossRef]
  23. Gao, H.; He, Y.; Shen, P.; Zou, J.; Xu, N.; Jiang, Y.; Huang, B.; Liu, C.T. Porous FeAl intermetallics fabricated by elemental powder reactive synthesis. Intermetallics 2009, 17, 1041–1046. [Google Scholar] [CrossRef]
  24. Gao, H.Y.; He, Y.H.; Shen, P.Z.; Jiang, Y.; Liu, C.T. Effect of pressure on pore structure of porous FeAl intermetallics. Adv. Powder Technol. 2015, 26, 882–886. [Google Scholar] [CrossRef]
  25. Springer, H.; Kostka, A.; dos Santos, J.F.; Raabe, D. Influence of intermetallic phases and Kirkendall-porosity on the mechanical properties of joints between steel and aluminium alloys. Mater. Sci. Eng. A 2011, 528, 4630–4642. [Google Scholar] [CrossRef]
  26. Kuchumova, I.D.; Batraev, I.S.; Ukhina, A.V.; Borisenko, T.A.; Bulanova, U.E.; Ulianitsky, V.Y.; Dudina, D.V.; Shikalov, V.S.; Kosarev, V.F.; Bataev, I.A.; et al. Processing of Fe-based alloys by detonation spraying and spark plasma sintering. J. Therm. Spray Tech. 2021, 30, 1692–1702. [Google Scholar] [CrossRef]
  27. Li, X.; Scherf, A.; Heilmaier, M.; Stein, F. The Al-rich part of the Fe-Al phase diagram. J. Phase Equil. Diff. 2016, 37, 162–173. [Google Scholar] [CrossRef] [Green Version]
  28. Van Alboom, A.; Lemmens, B.; Breitbach, B.; De Grave, E.; Cottenier, S.; Verbeken, K. Multi-method identification and characterization of the intermetallic surface layers of hot-dip Al-coated steel: FeAl3 or Fe4Al13 and Fe2Al5 or Fe2Al5+x. Surf. Coat. Technol. 2017, 324, 419–428. [Google Scholar] [CrossRef]
  29. Zhang, N.; Hu, Q.; Ding, Z.; Lu, W.; Yang, F.; Li, J. 3D morphological evolution and growth mechanism of proeutectic FeAl3 phases formed at Al/Fe interface under different cooling rates. J. Mater. Sci. Technol. 2022, 116, 83–93. [Google Scholar] [CrossRef]
  30. Dudina, D.V.; Vidyuk, T.M.; Gavrilov, A.I.; Ukhina, A.V.; Bokhonov, B.B.; Legan, M.A.; Matvienko, A.A.; Korchagin, M.A. Separating the reaction and spark plasma sintering effects during the formation of TiC–Cu composites from mechanically milled Ti–C–3Cu mixtures. Ceram. Int. 2021, 47, 12494–12504. [Google Scholar] [CrossRef]
  31. Dudina, D.V.; Grigoreva, T.F.; Devyatkina, E.T.; Vosmerikov, S.V.; Ukhina, A.V.; Markushin, V.V.; Lyakhov, N.Z. Structural features of tantalum carbide-copper composites obtained by liquid phase-assisted spark plasma sintering. Ceram. Int. 2022, 48, 32556–32560. [Google Scholar] [CrossRef]
  32. Itin, V.I.; Naiborodenko, Y.S. High-Temperature Synthesis of Intermetallic Compounds; Tomsk State University Publishing: Tomsk, Russia, 1989; 214p. (In Russian) [Google Scholar]
  33. Wang, Q.; Yang, H.; Li, X.; Zhang, G. Study of corrosion mechanism of cast iron in molten aluminum. Mater. Res. Express 2020, 7, 016534. [Google Scholar] [CrossRef]
  34. Chason, E.; Jadhav, N.; Pei, F. Effect of layer properties on stress evolution, intermetallic volume, and density during tin whisker formation. JOM 2011, 63, 62. [Google Scholar] [CrossRef]
  35. Carter, R.E. Kinetic model for solid-state reactions. J. Chem. Phys. 1961, 34, 2010–2015. [Google Scholar] [CrossRef]
  36. Matysik, P.; Jóźwiak, S.; Czujko, T. Characterization of low-symmetry structures from phase equilibrium of Fe-Al system—Microstructures and mechanical properties. Materials 2015, 8, 914–931. [Google Scholar] [CrossRef] [PubMed]
Chemistry 05 00011 g001 550

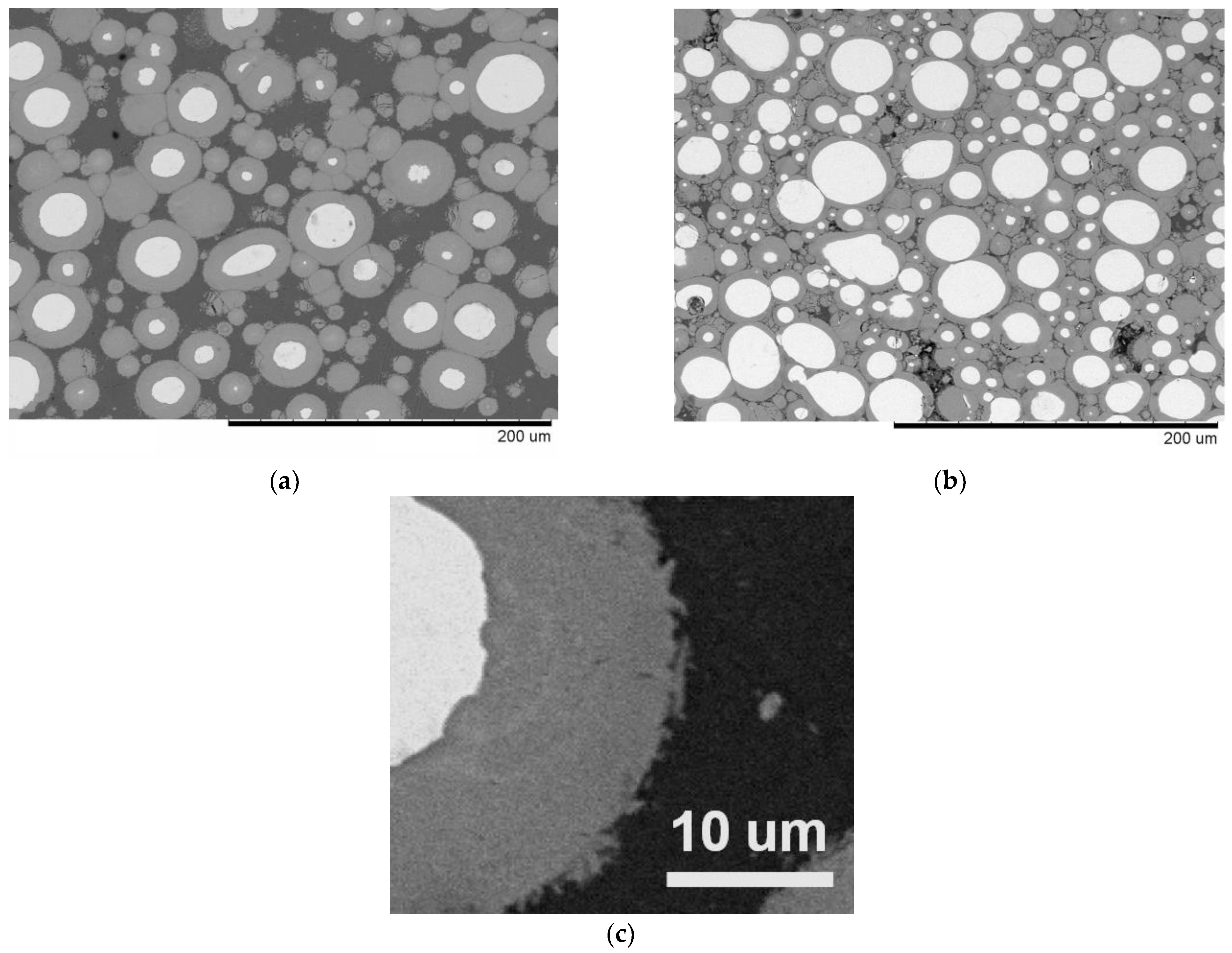

Figure 1. Microstructure of the composites obtained by spark plasma sintering (SPS) of Al–20 vol.% Fe66Cr10Nb5B19 (a) and Al–50 vol.% Fe66Cr10Nb5B19 (b) mixtures. The shell of a particle at a higher magnification (c). Al powder 3–10 μm. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. Back-scattered electron (BSE) images.
Figure 1. Microstructure of the composites obtained by spark plasma sintering (SPS) of Al–20 vol.% Fe66Cr10Nb5B19 (a) and Al–50 vol.% Fe66Cr10Nb5B19 (b) mixtures. The shell of a particle at a higher magnification (c). Al powder 3–10 μm. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. Back-scattered electron (BSE) images.
Chemistry 05 00011 g001
Chemistry 05 00011 g002 550

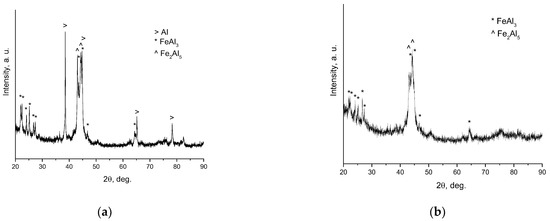

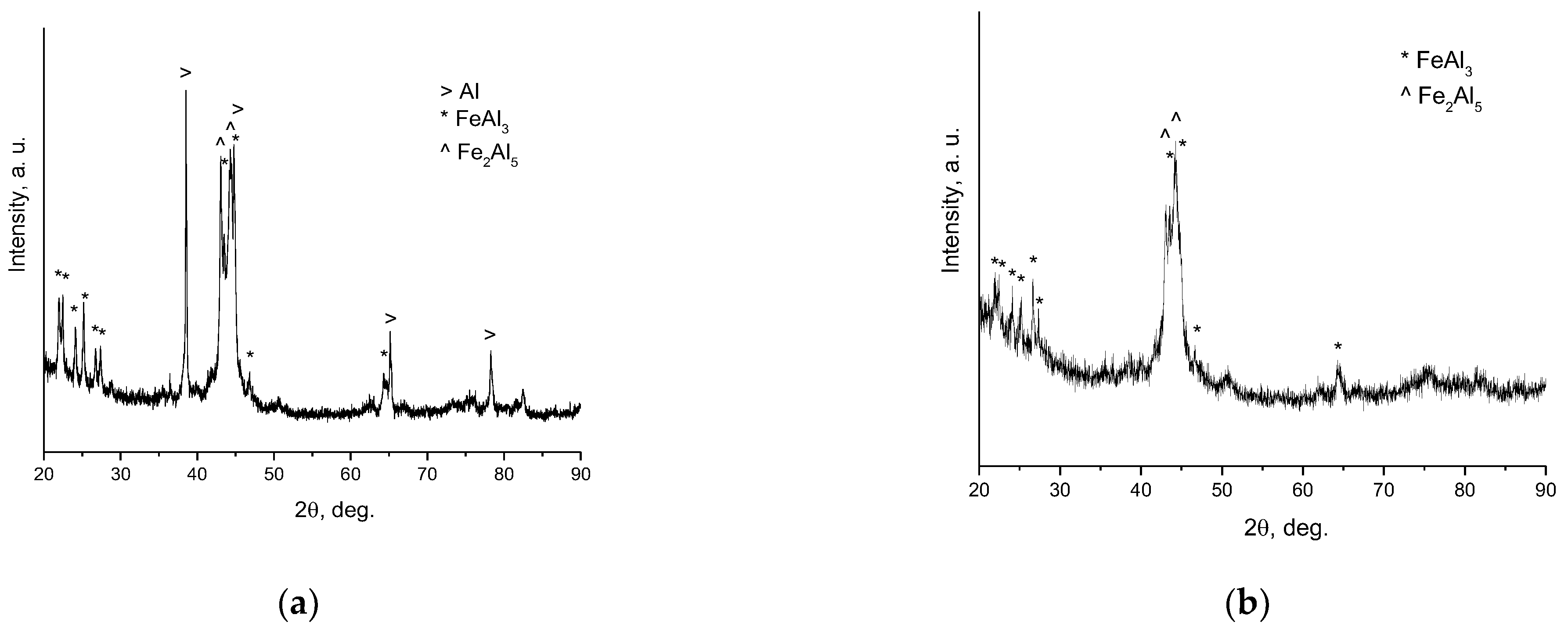

Figure 2. XRD patterns of the composites obtained by SPS of Al–20 vol.% Fe66Cr10Nb5B19 (a) and Al–50 vol.% Fe66Cr10Nb5B19 (b) mixtures. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa.
Figure 2. XRD patterns of the composites obtained by SPS of Al–20 vol.% Fe66Cr10Nb5B19 (a) and Al–50 vol.% Fe66Cr10Nb5B19 (b) mixtures. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa.
Chemistry 05 00011 g002
Chemistry 05 00011 g003 550

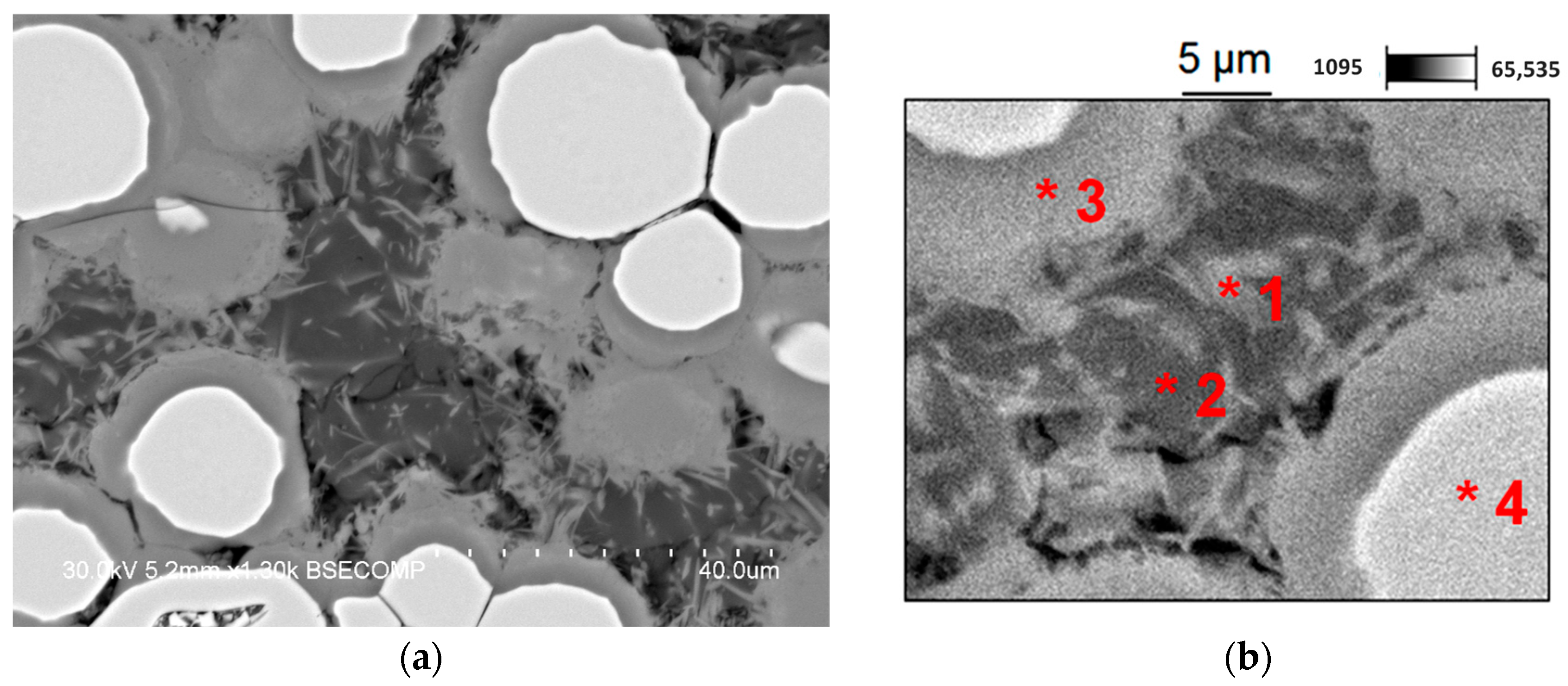

Figure 3. An area of the cross-section of the composite obtained by SPS of Al–50 vol.% Fe66Cr10Nb5B19 (a). SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. The points (1, 2, 3 and 4) in which the energy dispersive spectroscopy (EDS) analysis was conducted are marked in (b). BSE images.
Figure 3. An area of the cross-section of the composite obtained by SPS of Al–50 vol.% Fe66Cr10Nb5B19 (a). SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. The points (1, 2, 3 and 4) in which the energy dispersive spectroscopy (EDS) analysis was conducted are marked in (b). BSE images.
Chemistry 05 00011 g003
Chemistry 05 00011 g004 550

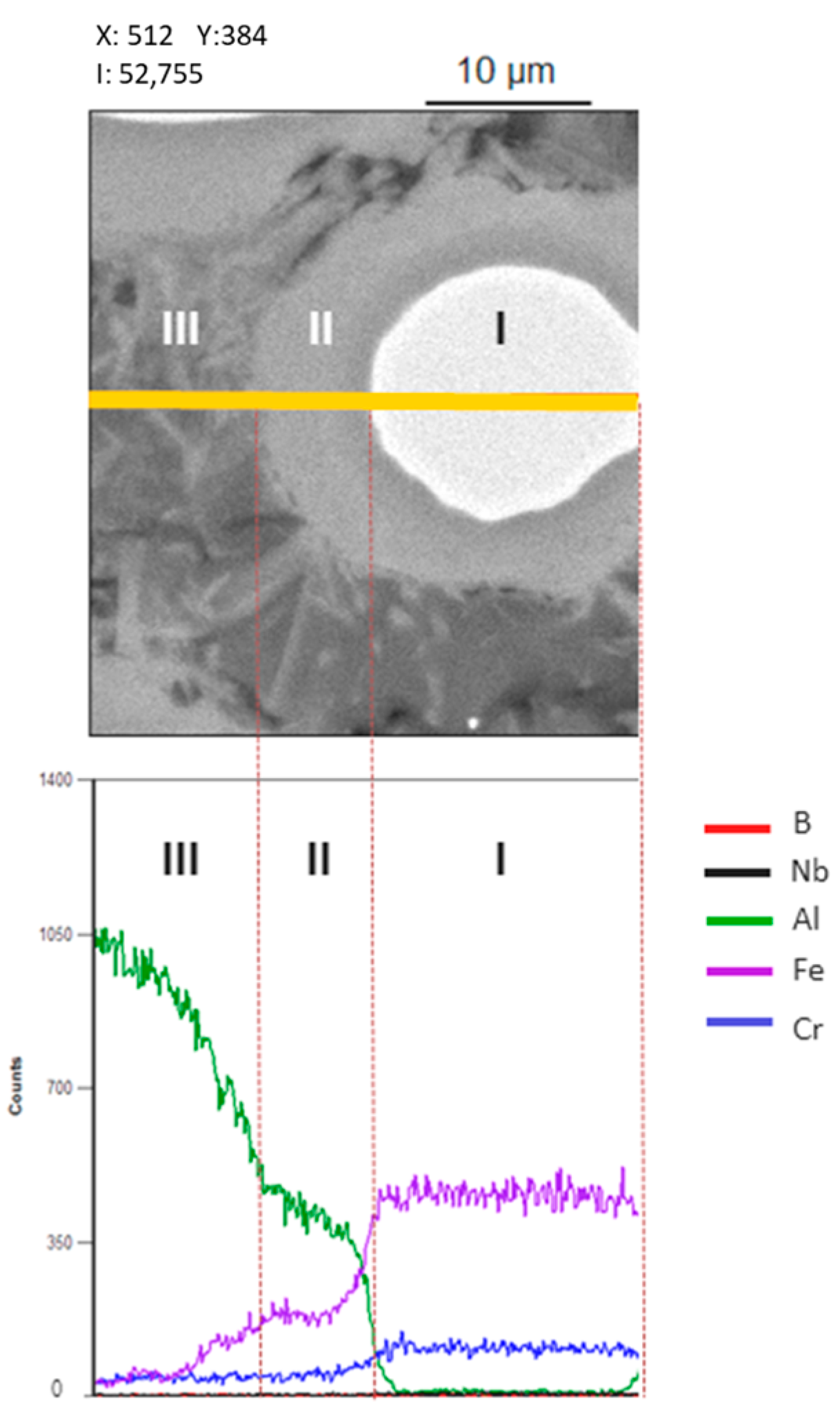

Figure 4. Line EDS of a partially reacted alloy particle in the residual Al matrix in the composite obtained by SPS of Al–50 vol.% Fe66Cr10Nb5B19. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa.
Figure 4. Line EDS of a partially reacted alloy particle in the residual Al matrix in the composite obtained by SPS of Al–50 vol.% Fe66Cr10Nb5B19. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa.
Chemistry 05 00011 g004
Chemistry 05 00011 g005 550

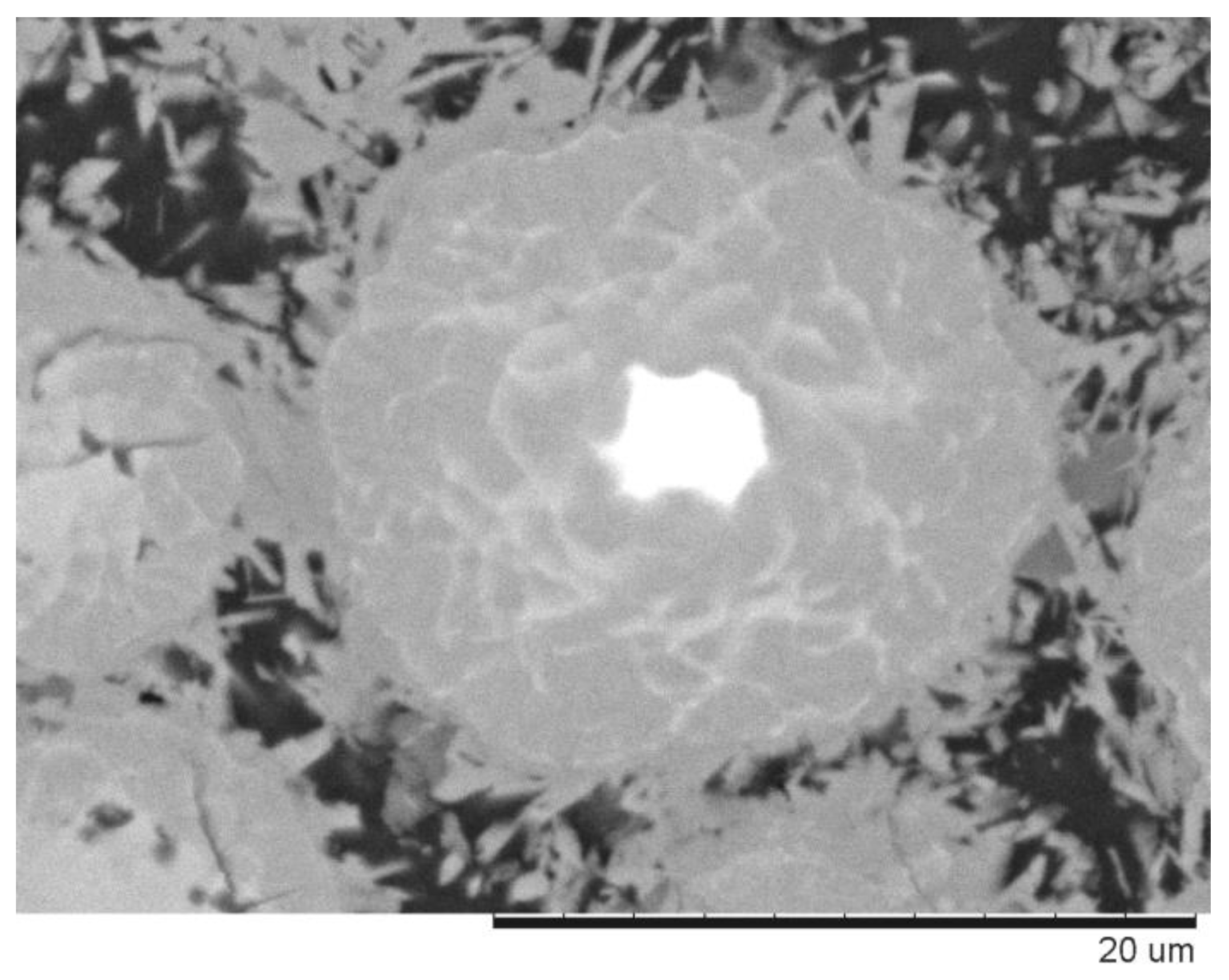

Figure 5. A core–shell particle in the microstructure of the composite formed during heating of the Al–20 vol.% Fe66Cr10Nb5B19 mixture in the hot press. HP conditions: temperature—above 660 °C, applied pressure—40 MPa. BSE image.
Figure 5. A core–shell particle in the microstructure of the composite formed during heating of the Al–20 vol.% Fe66Cr10Nb5B19 mixture in the hot press. HP conditions: temperature—above 660 °C, applied pressure—40 MPa. BSE image.
Chemistry 05 00011 g005
Chemistry 05 00011 g006 550

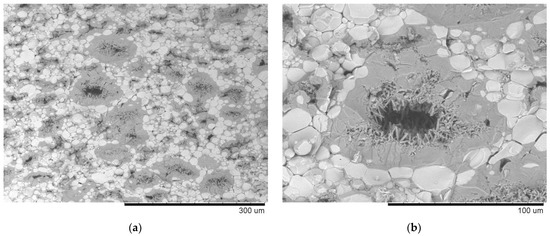

Figure 6. Fracture surface of the material obtained by SPS of Al–70 vol.% Fe66Cr10Nb5B19, (a,b) different magnifications. Al powder 10–45 μm. SPS conditions: temperature—570 °C, holding time—20 min, applied pressure—40 MPa. BSE images.
Figure 6. Fracture surface of the material obtained by SPS of Al–70 vol.% Fe66Cr10Nb5B19, (a,b) different magnifications. Al powder 10–45 μm. SPS conditions: temperature—570 °C, holding time—20 min, applied pressure—40 MPa. BSE images.
Chemistry 05 00011 g006
Chemistry 05 00011 g007 550

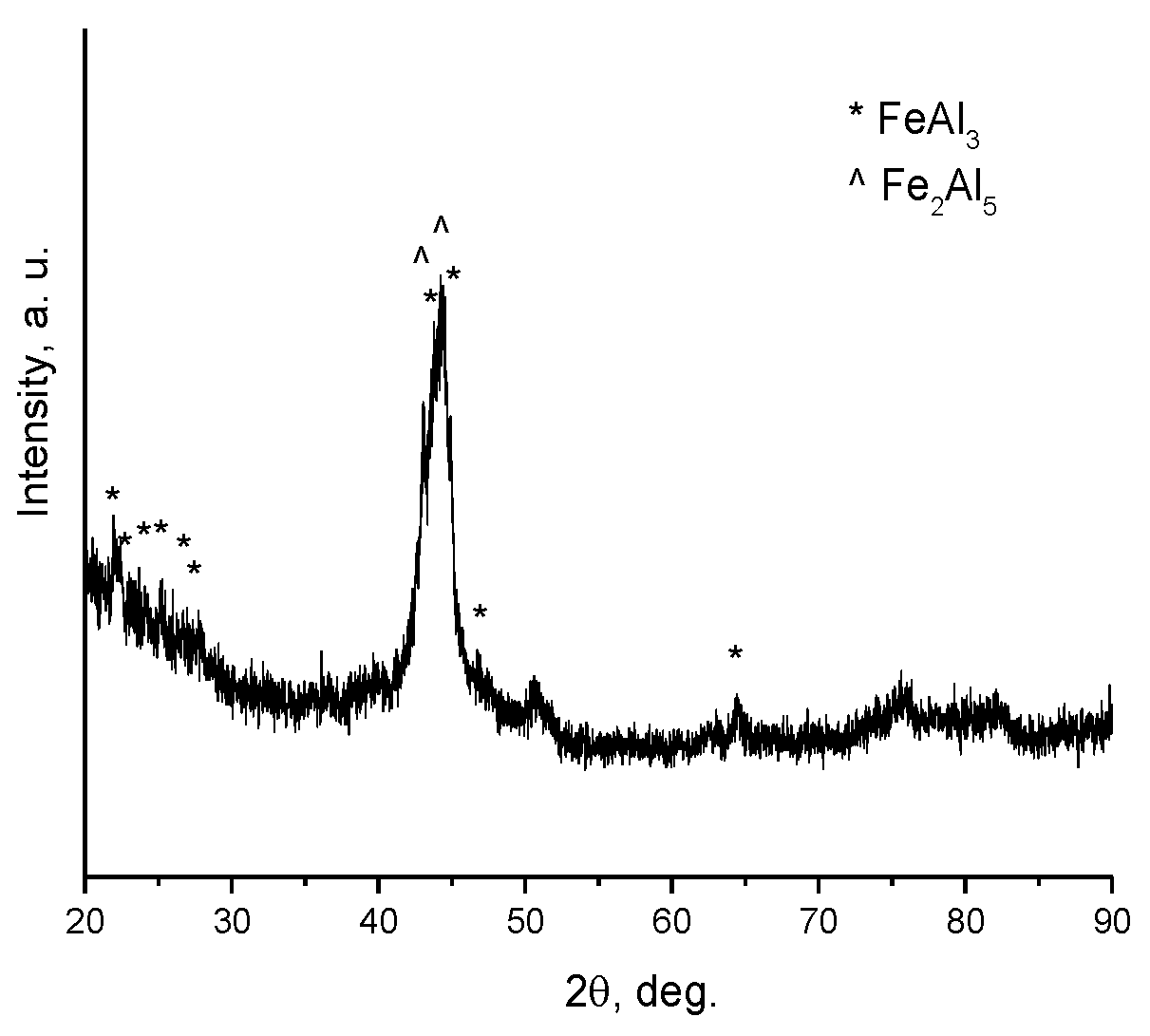

Figure 7. XRD pattern of the material obtained by SPS of Al–70 vol.% Fe66Cr10Nb5B19. SPS conditions: temperature—570 °C, holding time—20 min, applied pressure—40 MPa.
Figure 7. XRD pattern of the material obtained by SPS of Al–70 vol.% Fe66Cr10Nb5B19. SPS conditions: temperature—570 °C, holding time—20 min, applied pressure—40 MPa.
Chemistry 05 00011 g007
Chemistry 05 00011 g008 550

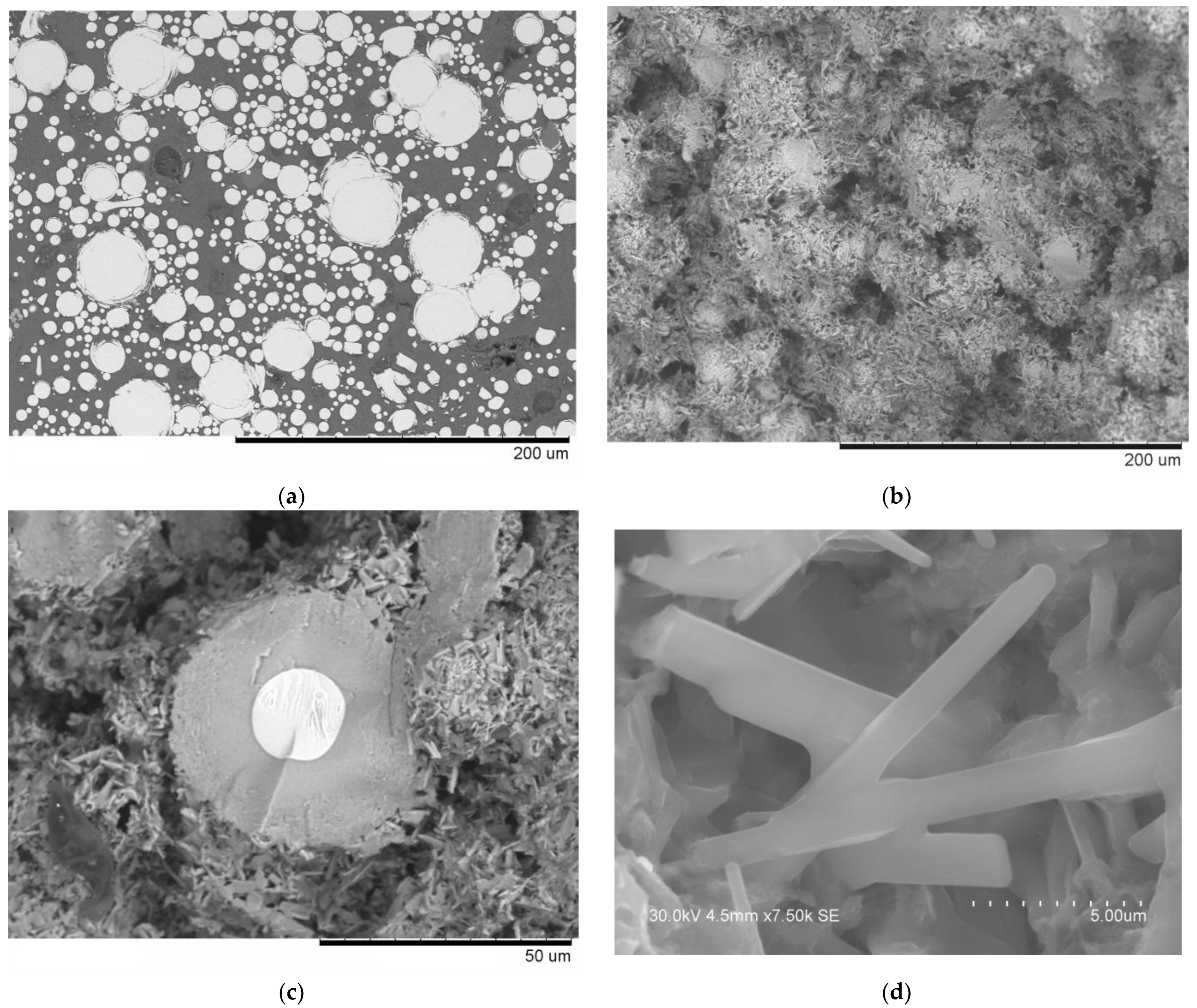

Figure 8. (a) Microstructure of the composite obtained by SPS of Al–20 vol.% Fe66Cr10Nb5B19. Al powder 3–10 μm. SPS conditions: temperature—500 °C, holding time—3 min, applied pressure—40 MPa. (b) Fracture surface of the composite obtained by SPS and further annealed at 620 °C for 2 h. (c) An area of the fracture surface showing an unreacted Fe-based alloy core surrounded by platelets and needles of the intermetallic products. (d) The product of interaction with needle morphology. (a–c) BSE images. (d) Secondary electron (SE) image.
Figure 8. (a) Microstructure of the composite obtained by SPS of Al–20 vol.% Fe66Cr10Nb5B19. Al powder 3–10 μm. SPS conditions: temperature—500 °C, holding time—3 min, applied pressure—40 MPa. (b) Fracture surface of the composite obtained by SPS and further annealed at 620 °C for 2 h. (c) An area of the fracture surface showing an unreacted Fe-based alloy core surrounded by platelets and needles of the intermetallic products. (d) The product of interaction with needle morphology. (a–c) BSE images. (d) Secondary electron (SE) image.
Chemistry 05 00011 g008
Chemistry 05 00011 g009 550

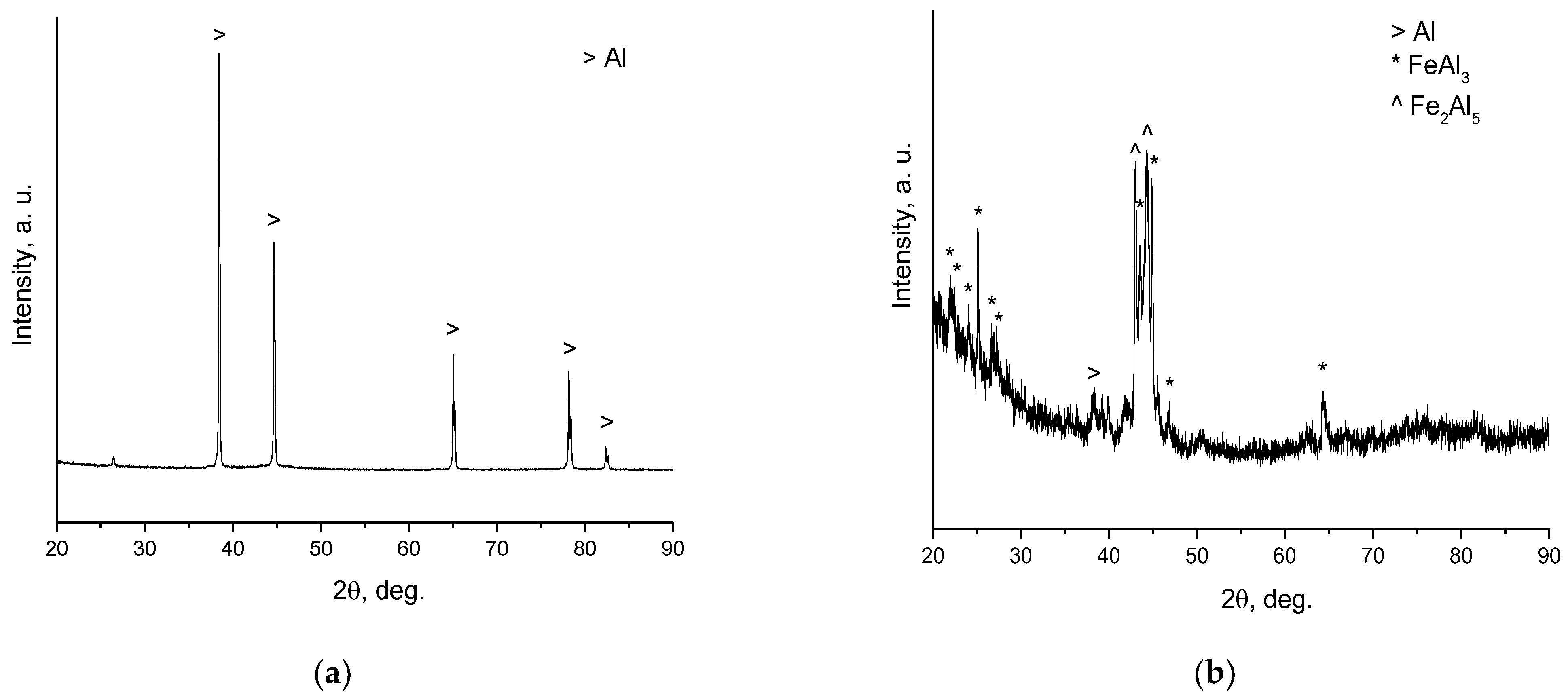

Figure 9. (a) XRD pattern of the composite obtained by SPS of Al–50 vol.% Fe66Cr10Nb5B19. SPS conditions: temperature—500 °C, holding time—3 min, applied pressure—40 MPa. (b) XRD pattern of the composite obtained by SPS and further annealed in vacuum at 620 °C for 2 h.
Figure 9. (a) XRD pattern of the composite obtained by SPS of Al–50 vol.% Fe66Cr10Nb5B19. SPS conditions: temperature—500 °C, holding time—3 min, applied pressure—40 MPa. (b) XRD pattern of the composite obtained by SPS and further annealed in vacuum at 620 °C for 2 h.
Chemistry 05 00011 g009
Chemistry 05 00011 g010 550

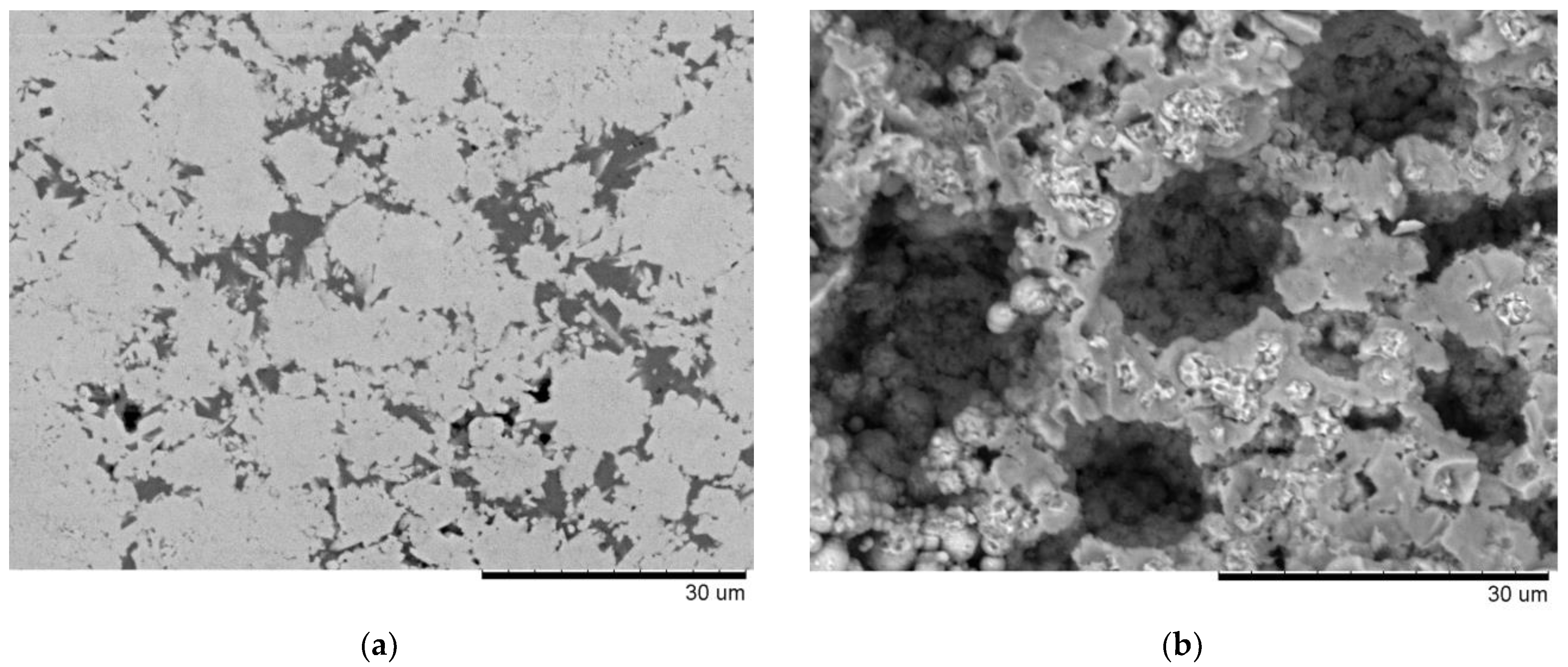

Figure 10. (a) Microstructure of the material obtained by SPS of Al-Fe (4:1 mol.) mixture. Al powder 3–10 μm. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. (b) Fracture surface of the material obtained by HP of the Al-Fe (3:2 mol.). Al powder 3–30 μm. HP conditions: temperature—650 °C, holding time—5 min, applied pressure—3 MPa. BSE images.
Figure 10. (a) Microstructure of the material obtained by SPS of Al-Fe (4:1 mol.) mixture. Al powder 3–10 μm. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. (b) Fracture surface of the material obtained by HP of the Al-Fe (3:2 mol.). Al powder 3–30 μm. HP conditions: temperature—650 °C, holding time—5 min, applied pressure—3 MPa. BSE images.
Chemistry 05 00011 g010
Chemistry 05 00011 g011 550

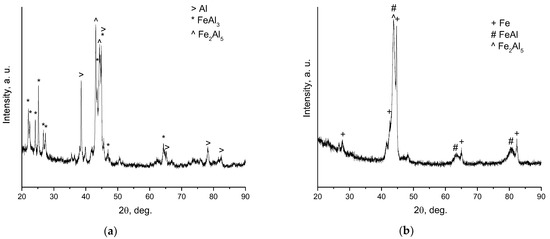

Figure 11. (a) XRD pattern of the material obtained by SPS of Al-Fe (4:1 mol.) mixture. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. (b) XRD pattern of the material obtained by HP of the Al-Fe mixture (3:2 mol.). HP conditions: temperature—650 °C, holding time—5 min, applied pressure—3 MPa.
Figure 11. (a) XRD pattern of the material obtained by SPS of Al-Fe (4:1 mol.) mixture. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa. (b) XRD pattern of the material obtained by HP of the Al-Fe mixture (3:2 mol.). HP conditions: temperature—650 °C, holding time—5 min, applied pressure—3 MPa.
Chemistry 05 00011 g011
Table
Table 1. Concentration of elements in points 1–4 marked in Figure 3b. Data for the Al–50 vol.% Fe66Cr10Nb5B19 composite. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa.
Table 1. Concentration of elements in points 1–4 marked in Figure 3b. Data for the Al–50 vol.% Fe66Cr10Nb5B19 composite. SPS conditions: temperature—570 °C, holding time—3 min, applied pressure—40 MPa.
PointConcentration, at.%
AlFeCrNbB
189.7 ± 0.49.4 ± 0.10.9 ± 0.1--
291.7 ± 0.47.1 ± 0.11.2 ± 0.1--
374.7 ± 0.420.3 ± 0.24.4 ± 0.10.6 ± 0.4-
4-80.2 ± 0.512.9 ± 0.22.2 ± 0.74.7 ± 1.9
