Synthesis of Nitroarenes by Oxidation of Aryl Amines

by
Antonella Capperucci
and
Damiano Tanini
*
Dipartimento di Chimica ‘Ugo Schiff’, University of Florence, Via della Lastruccia 3-13, 50019 Sesto Fiorentino (FI), Italy
*
Author to whom correspondence should be addressed.
Chemistry 2022, 4(1), 77-97; https://doi.org/10.3390/chemistry4010007
Submission received: 17 January 2022 / Revised: 26 January 2022 / Accepted: 2 February 2022 / Published: 7 February 2022
(This article belongs to the Special Issue 2021 Profile Papers by Chemistry' Editorial Board Members)
Browse Figures
Versions Notes

Abstract

:
Nitro compounds are an important class of organic molecules with broad application in organic synthesis, medicinal chemistry, and materials science. Among the variety of methodologies available for their synthesis, the direct oxidation of primary amines represents an attractive alternative route. Efforts towards the development of oxidative procedures for the synthesis of nitro derivatives have spanned over the past decades, leading to a wide variety of protocols for the selective oxidative conversion of amines to nitro derivatives. Methods for the synthesis of nitroarenes via oxidation of aryl amines, with particular emphasis on recent advances in the field, are summarised in this review.

1. Introduction

Nitro compounds occupy an important position in organic chemistry. Owing to their easy availability and their potential to be converted into a broad range of functional groups, nitro derivatives are widely employed in organic synthesis [1]. Nitroarenes are used as versatile building blocks for the synthesis of relevant chemicals, including pharmaceuticals [2,3], dyes [4,5], materials [6], and perfumes [7]. A number of nitro-containing compounds such as nitroxoline [8], nitrofural [9], nitrofurantoin [10,11], and chloramphenicol [12] are market-available drugs. Nitro derivatives also play a significant role in the development of mechanistic concepts [13]. A great deal of attention has thus been devoted to the development of practical and convenient methodologies for their synthesis. The synthesis of aromatic nitro compounds was reviewed almost ten years ago by Yan and Yang [14]. The “classical” route towards nitroarenes—relying on the electrophilic nitration of aromatic derivatives—is arguably one of the most extensively studied organic transformations. The harsh reaction conditions, along with the imperfect functional group tolerance and the poor regioselectivity, represent the main drawbacks of this route. Many aromatic nitro derivatives remain difficult to synthesise through such a route [15]. A broad range of alternative nitration reagents and methodologies—including transition-metal-catalysed ipso-nitration methodologies—have emerged as powerful tools for the synthesis of nitroarenes [14,16].

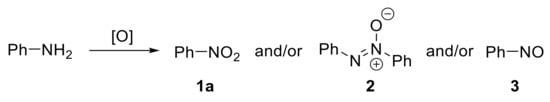

In this context, the direct oxidation of primary amines enables issues related to regioselectivity to be overcome and provides an attractive, alternative, and fascinating route for the synthesis of nitro derivatives. Several methods for the oxidative transformation of primary amines to nitro compounds have been developed over the past decades, and particular attention has been devoted to the investigation of environmentally benign protocols. One of the issues that should be considered when investigating the oxidation of amines is related to the selectivity of the process. For example, considering the oxidation of aniline to nitrobenzene, azoxybenzene 2 and nitrosobenzene 3 represent typical by-products that can be formed alongside the desired nitroarene 1a (Scheme 1).
This review focuses on oxidation-based methodologies for the conversion of aryl amines to nitroarenes. The scope and limitations of currently available procedures are presented with particular emphasis on mechanistic aspects.

2. Oxidation with Peroxyacids

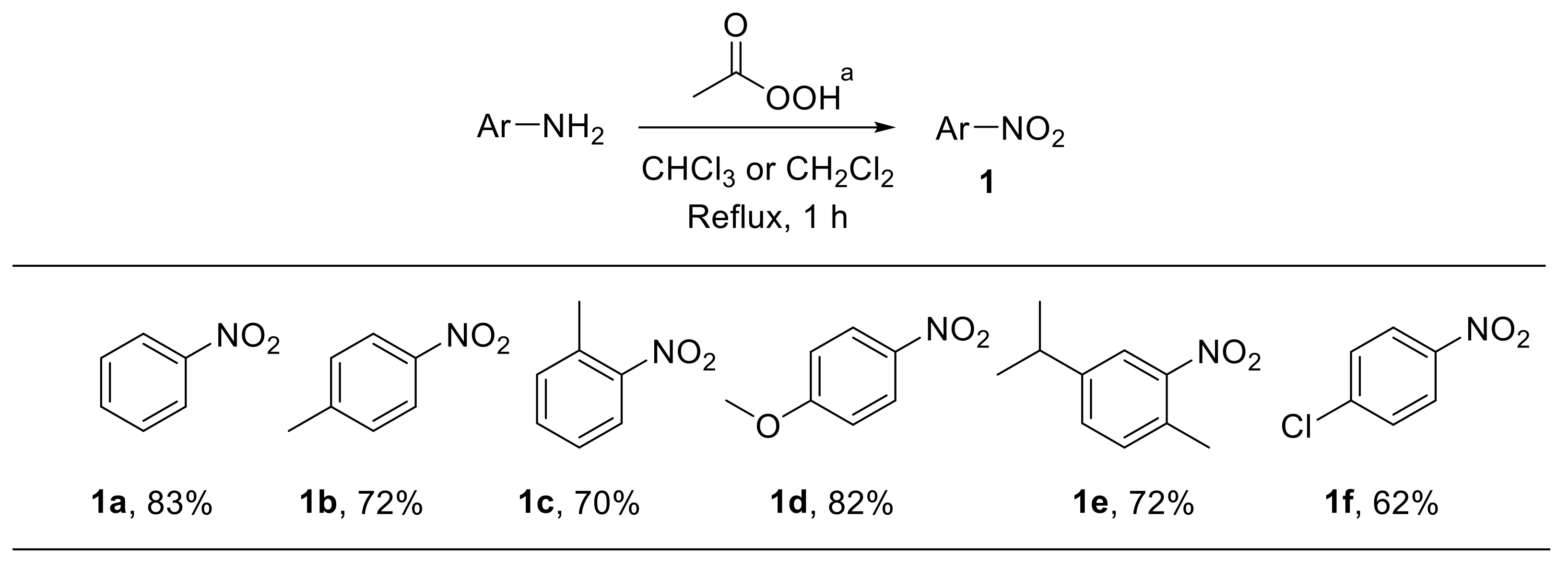

Peroxyacids have been largely employed as oxidising agents for the conversion of amines into the corresponding nitro derivatives. A number of methods relying on the reactivity of peroxyacids have consequently been reported. Problems related to the selectivity of oxidation-based routes for the synthesis of nitroarenes 1 were already documented at the beginning of the last century. For example, the reaction of aniline with peracetic acid was described as providing only an 11% yield of nitrobenzene 1a; azoxybenzene 2 represented the main reaction product [17,18]. In 1957, Emmons reported the synthesis of nitro derivatives 1a–f via oxidation of amines with anhydrous solutions of peracetic acid, freshly generated from acetic acid and hydrogen peroxide in the presence of catalytic amounts of sulfuric acid (Scheme 2) [19]. The reaction enabled the oxidation of a series of differently substituted anilines with good yield, although variable amounts of the corresponding azoxyarenes were detected. Notably, trifluoroperacetic acid led to higher yields and could also be used for the oxidation of weakly basic amines such as nitroaniline [20]. A limited number of nitroalkanes were also achieved upon oxidation of aliphatic amines with peracetic acid [19]. Oxidation of aniline to nitrobenzene has also been achieved by using the hexafluoroacetone–hydrogen peroxide complex, which behaves as an effective oxidising agent [21].

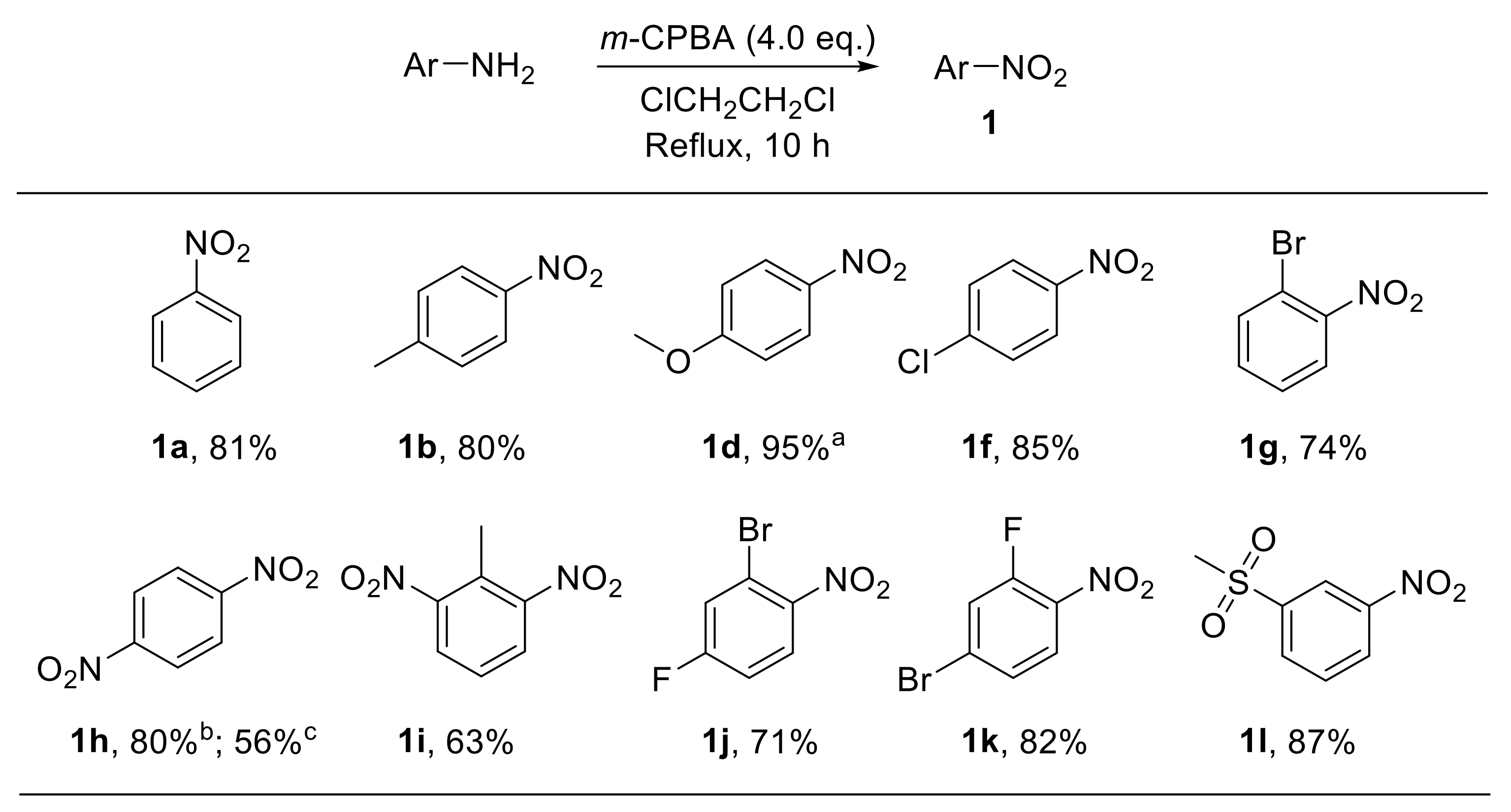

Several m-CPBA-based procedures for the conversion of a variety of amines into the corresponding nitro derivatives have been developed over the past decades. Such routes have been efficiently applied to aliphatic [22], steroidal [23], diamondoid [24], and aromatic amines [25]. For example, Liu et al. reported the synthesis of a broad range of variously substituted nitroarenes 1 through the oxidation of anilines with m-CPBA in 1,2-dichloroethane. This approach was amenable to both electron-rich and electron-poor substrates and proved to be scarcely sensitive to steric effects (Scheme 3) [25].

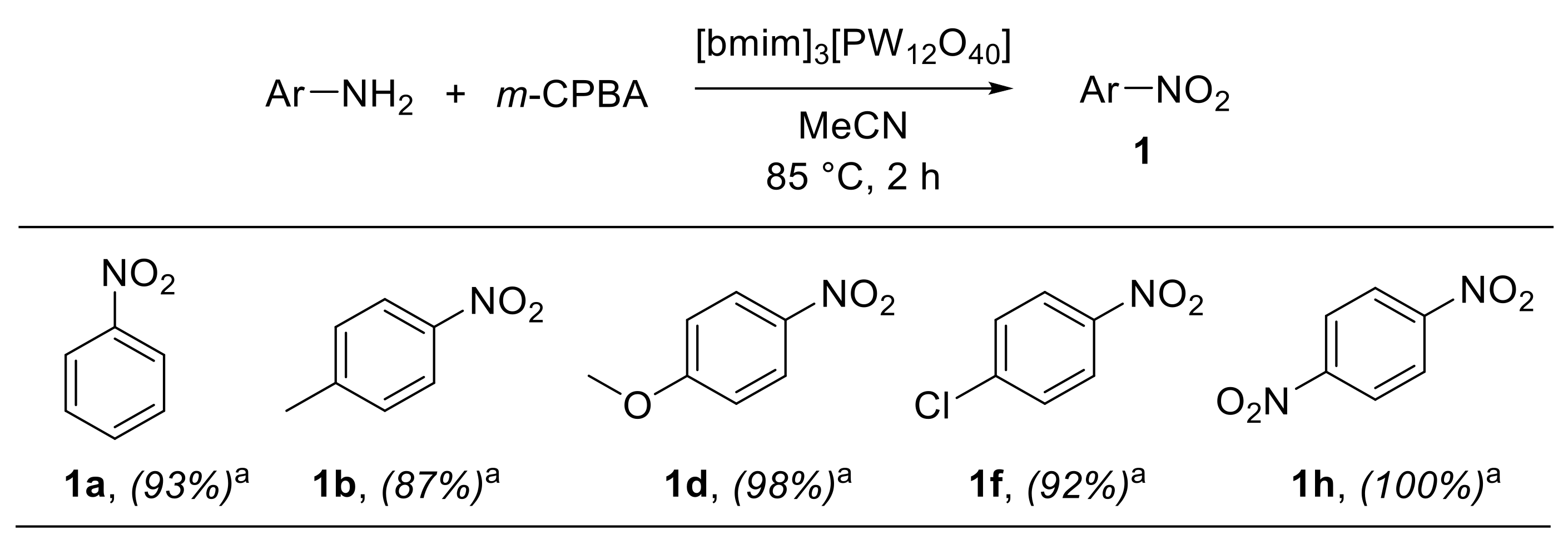

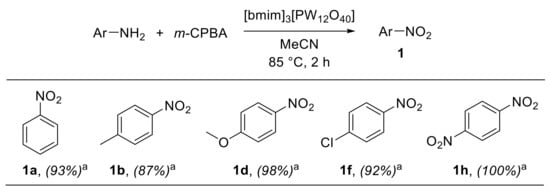

A convenient 1-butyl-3-methyl-imidazolium-phosphotungstate-catalysed procedure for the oxidation of anilines with m-CPBA was recently reported by Meenakshi et al. [26]. The combination of ionic liquids (ILs) and polyoxometalates (POMs) provides hybrid materials fixing Keggin ions in the solid state and retaining the properties of both organic cations of ILs and inorganic anions of POMs. Such immobilised polyoxometalate hybrid materials have been widely employed in heterogeneous catalysis [27,28]. In this context, Meenakshi et al. investigated the catalytic performances of various Keggin-ion-based hybrid materials in the oxidation of aryl amines. 1-Butyl-3-methyl imidazolium phosphotungstate hybrid materials [bmim]3[PW12O40], synthesised from 1-butyl-3-methyl imidazolium bromide (bmimBr) and H3PW12O40·nH2O, exhibited remarkable catalytic properties for the oxidative conversion of anilines into nitroarenes using m-CPBA in acetonitrile at 85 °C for 2 h (Scheme 4) [26]. The scope of the reaction proved to be broad, encompassing both electron-rich and electron-poor anilines, which could be converted into the corresponding nitroarenes with high selectivity and with only small amounts of azoxybenzenes being formed as side products. An additional interesting feature of this protocol was the possibility of easily recovering and reusing the catalyst three times, without significant loss of catalytic activity.

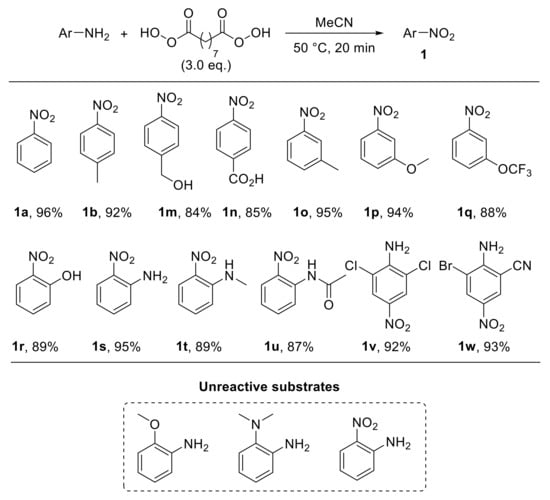

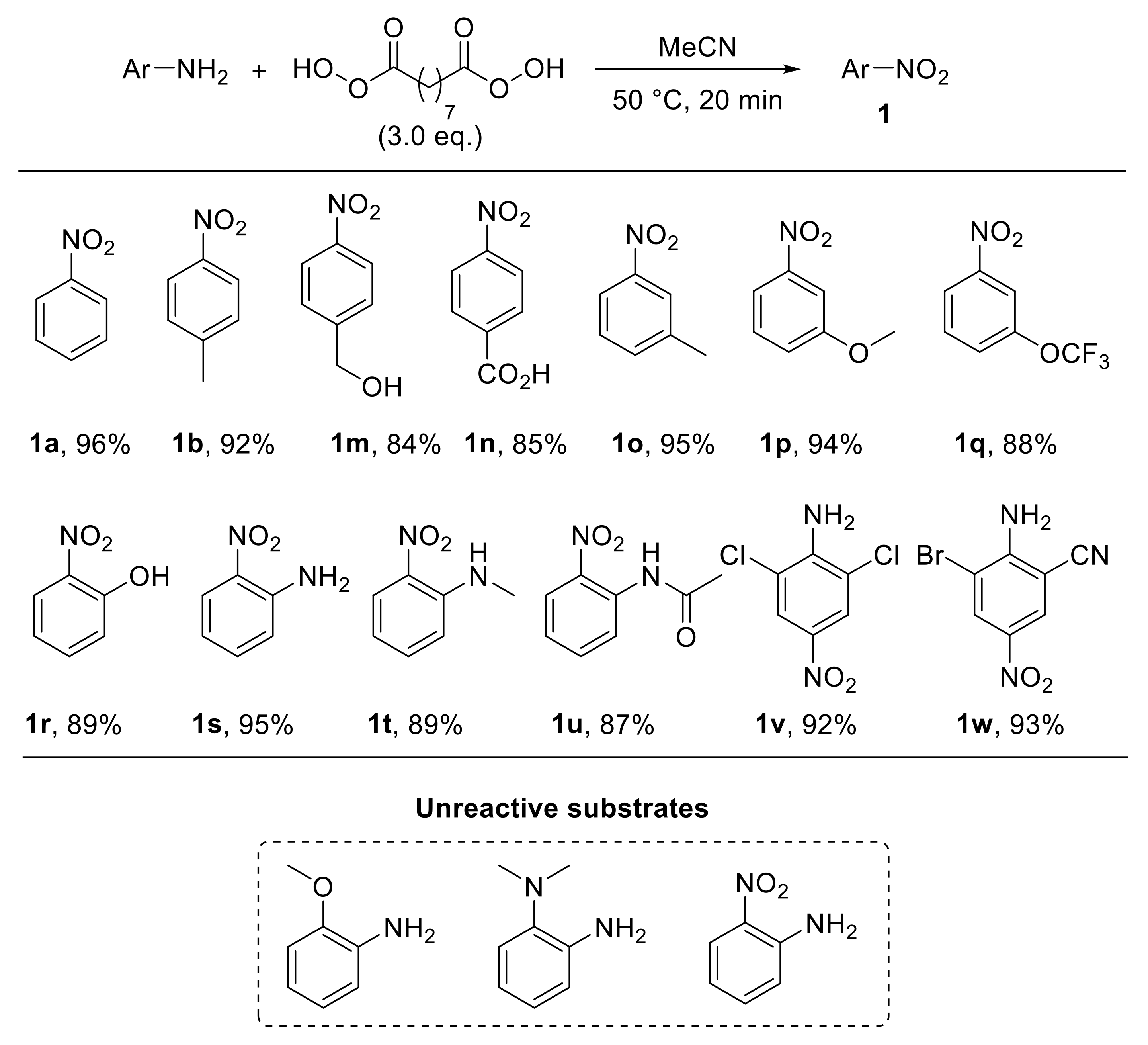

The use of nonanebis (peroxoic acid) as an oxidising agent towards anilines was also investigated [29]. Notably, such a diperoxy acid was proved to behave as an effective reagent for the conversion of aryl amines into nitroarenes under metal-catalyst-free conditions, and it exhibited significantly higher reactivity with respect to monoperoxy acids. The reaction, performed in acetonitrile at 50 °C, exhibited a broad scope, enabling the oxidation of a broad range of substituted anilines to provide the corresponding nitroarenes 1a,b,m–r with good yield (Scheme 5). An interesting feature of this protocol is related to the reactivity of ortho-substituted anilines. Indeed, amines bearing hydrogen(s) on a heteroatom at the ortho position smoothly undergo oxidation, affording the corresponding nitro derivatives. On the other hand, when an X-H moiety (X = NH, NR, O) is not present at the ortho position, the oxidation of the amino functionality does not occur. Thus, while 2-aminophenol was efficiently converted into 2-nitrophenol 1r upon reaction with nonanebis (peroxoic acid), 2-methoxyaniline proved to be unreactive under the same reaction conditions. Similarly, N1,N1-dimethylbenzene-1,2-diamine and 2-nitroaniline failed to undergo oxidation (Scheme 4, unreactive substrates). On the basis of these results, ortho-substituted nitroarenes 1r–u were efficiently achieved via oxidation of the corresponding anilines. Notably, the regioselectivity and chemoselectivity of the process allowed the preparation of 2-nitroaniline 1s from 1,2-diaminobenzene with excellent yield. The proposed explanation of the observed steric-hindrance-induced selectivity relies on the presence of hydrogen bonding interactions involving the ortho-XH group and the carbonyl oxygen of the diperoxy acid, which facilitate the oxidation reaction (Scheme 6) [29].

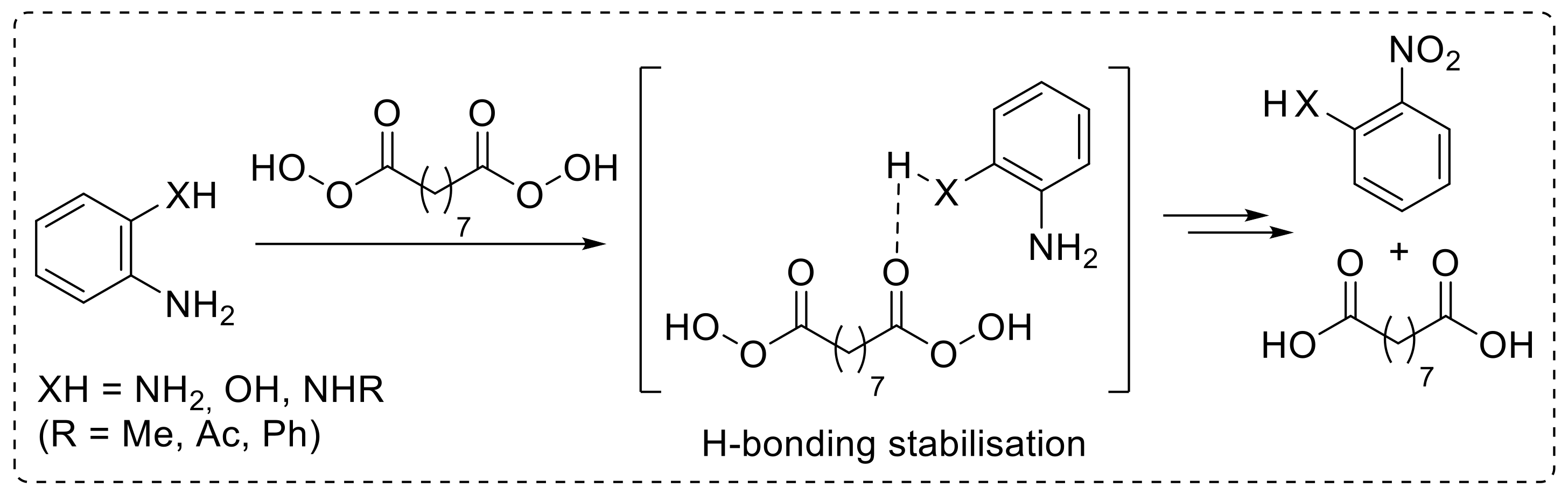

Additionally, such a steric-hindrance-induced regioselective and chemoselective oxidative approach was also employed for the synthesis of commercially important molecules such as 1v (dichloran, a fungicide) and 1w (used as an azo dye for nonlinear optics—NLO) by selective oxidation of the less hindered amino group of the corresponding diamine derivative (Scheme 5).

3. Oxidation with Tert-butyl Hydroperoxide

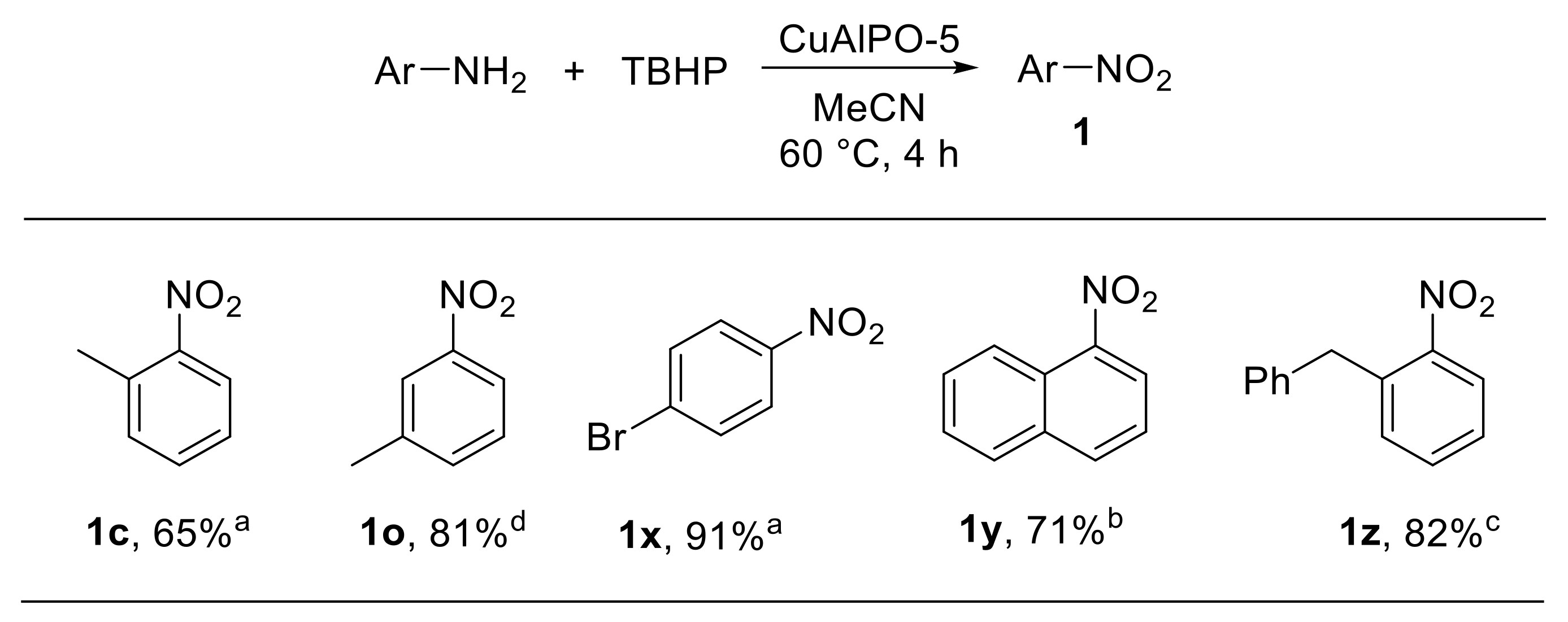

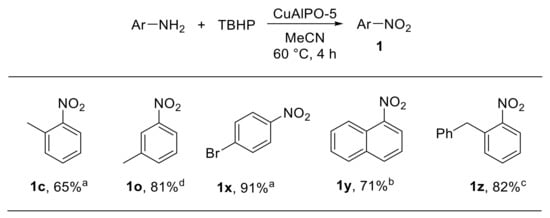

A number of metal-catalysed approaches for the oxidation of amines to nitro derivatives with tert-butyl hydroperoxide (TBHP) have been developed. The oxidation of aromatic amines using hierarchical micro-meso-macroporous CuAlPO-5 as the catalyst was reported by Ke et al. [30] Aluminophosphate zeolites are porous materials characterised by high thermal stability. Aluminium and/or phosphorus atoms in the aluminophosphate framework (AlPO-n) can be replaced with metal ions providing metal-doped aluminophosphate (MAlPO-n) materials. CuAlPO-5 zeolite was hydrothermally synthesised using a silane surfactant and 1,1,3,3-tetramethylguanidine as the structure-directing agent (SDA). The calcined CuAlPO-5 zeolite showed remarkable catalytic properties for the oxidation of bulky arylamines to the corresponding nitroarenes, using TBHP as the oxidant. The reaction scope was found to be broad, enabling the oxidation of anilines bearing substituents at different positions of the aromatic ring (Scheme 7). Notably, the CuAlPO-5 catalyst could be efficiently recovered and reused up to five times, enabling the oxidation of 4-bromoaniline to the corresponding nitroarene with excellent conversion and selectivity over the other oxidation products [30].

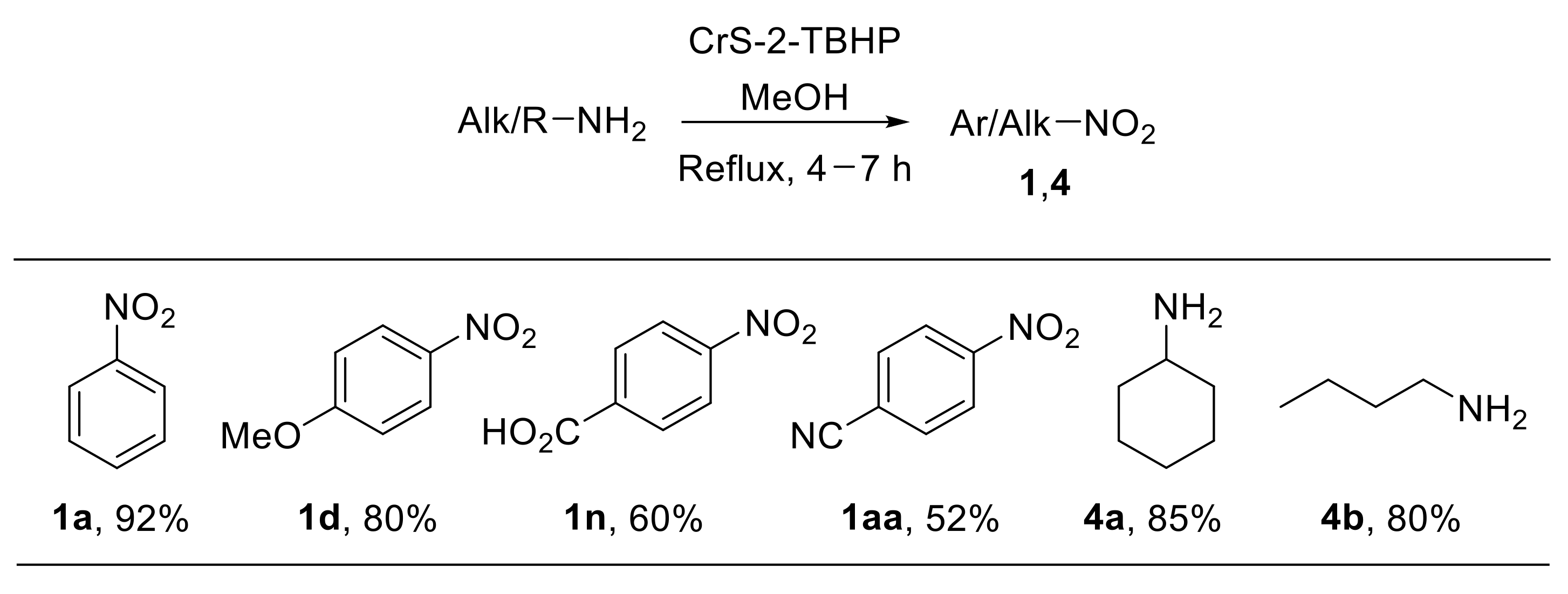

The use of chromium silicalite-2 (CrS-2) as a stable and recyclable catalyst for the direct oxidation of primary amines with TBHP was also described [31]. The chromium-containing medium-pore zeolite CrS-2 (Si:Cr > 140:1) efficiently catalyses the oxidation of a wide range of amines providing nitro derivatives with good yield. Notably, this heterogeneous catalyst enabled the oxidation of both aromatic and aliphatic amines to nitroarenes and nitroalkanes (Scheme 8). On the other hand, benzylamine provided benzaldoxime under the same reaction conditions. From the mechanistic point of view, the oxochromium (V) species of the zeolite framework are believed to promote the oxidation of the amine to the nitro derivative. Control experiments highlighted that such oxidation reasonably proceeds through hydroxylamine and nitroso intermediates [31].

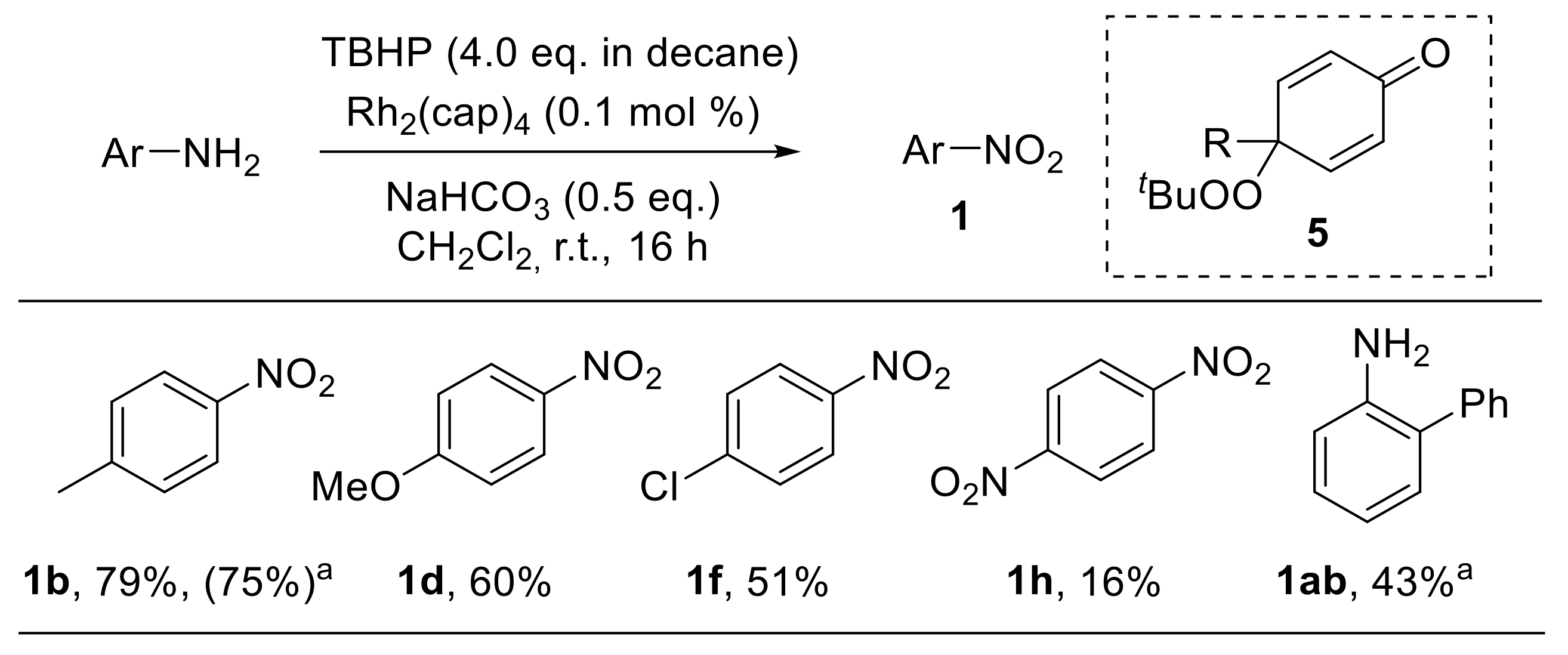

A rhodium-catalysed approach for the oxidation of substituted anilines with tert-butyl hydroperoxide (TBHP) was developed by Doyle et al. tert-Butylperoxy radicals, which behave as effective oxidants for phenols and anilines, can be easily generated from TBHP under dirhodium caprolactamate, Rh2(cap)4, catalysis. Anilines are preferentially oxidised to nitroarenes, although variable amounts of dienones 5, formed upon hydrolysis of the corresponding dienimines, were detected (Scheme 9). Anilines bearing electron-donating groups provided the corresponding nitro derivatives with higher yields (1b,d). On the other hand, both aromatic substituents in the ortho position (1a,b) and electron-withdrawing groups in the para position (1f,h) led to significantly reduced yields. The reaction mechanism reasonably proceeds through nitroso compounds; the formation of 5 suggests that, similarly to the related phenolic oxidation, the oxidation of anilines involves the hydrogen atom abstraction from the amino group followed by trapping by the peroxy radical at the nitrogen or at the para position. Notably, the application of this methodology to aliphatic primary amines enabled their conversion into carbonyl derivatives via oxidative removal of the amino group [32].

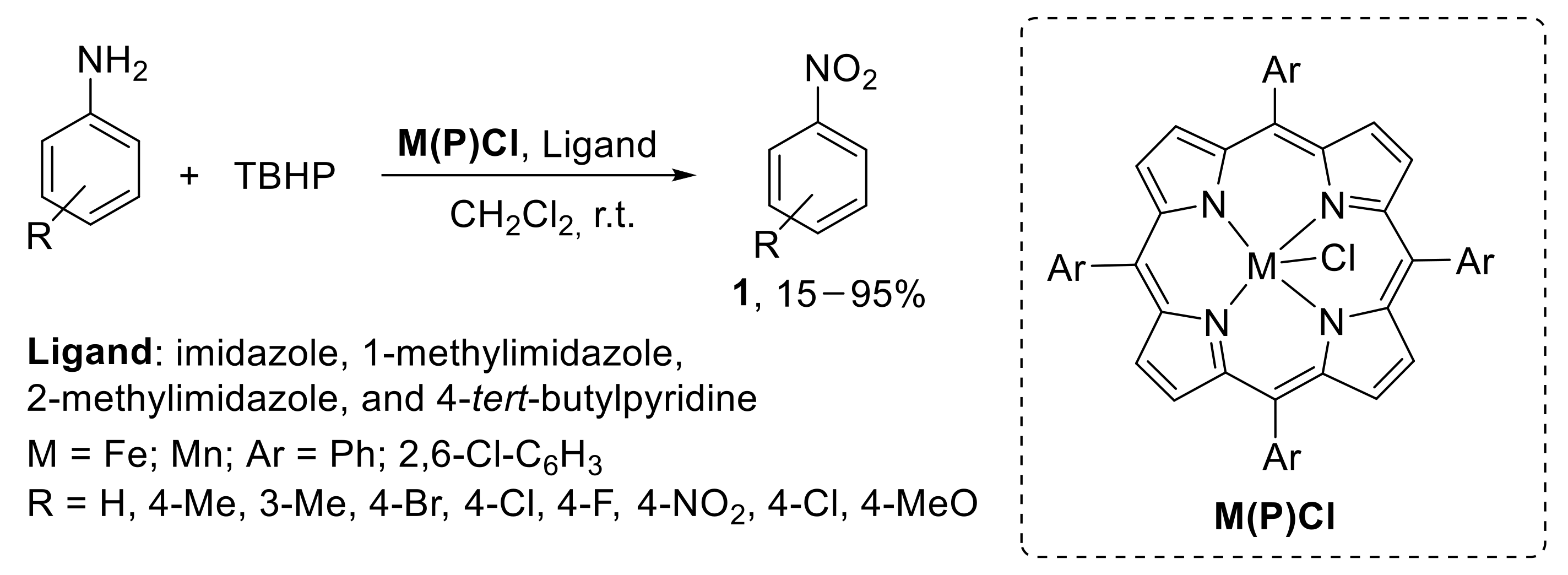

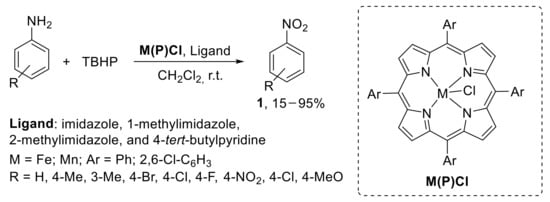

A metallo-porphyrins-catalysed protocol for the oxidation of anilines to nitroarenes with TBHP was also developed. Both iron (III) and manganese (III) tetraaryl porphyrins were employed as catalysts in the presence of various axial ligands including imidazole, 1-methylimidazole, 2-methylimidazole, and 4-tert-butylpyridine. The oxidation was conducted using TBHP in dichloromethane at room temperature. While the imidazole series gave similar results in terms of reaction yield, the more weakly coordinating 4-tert-butylpyridine proved to be less efficient. Additionally, the oxidation reaction was demonstrated to be less effective using Mn (III) complexes with respect to related Fe (III) complexes (Scheme 10) [33].

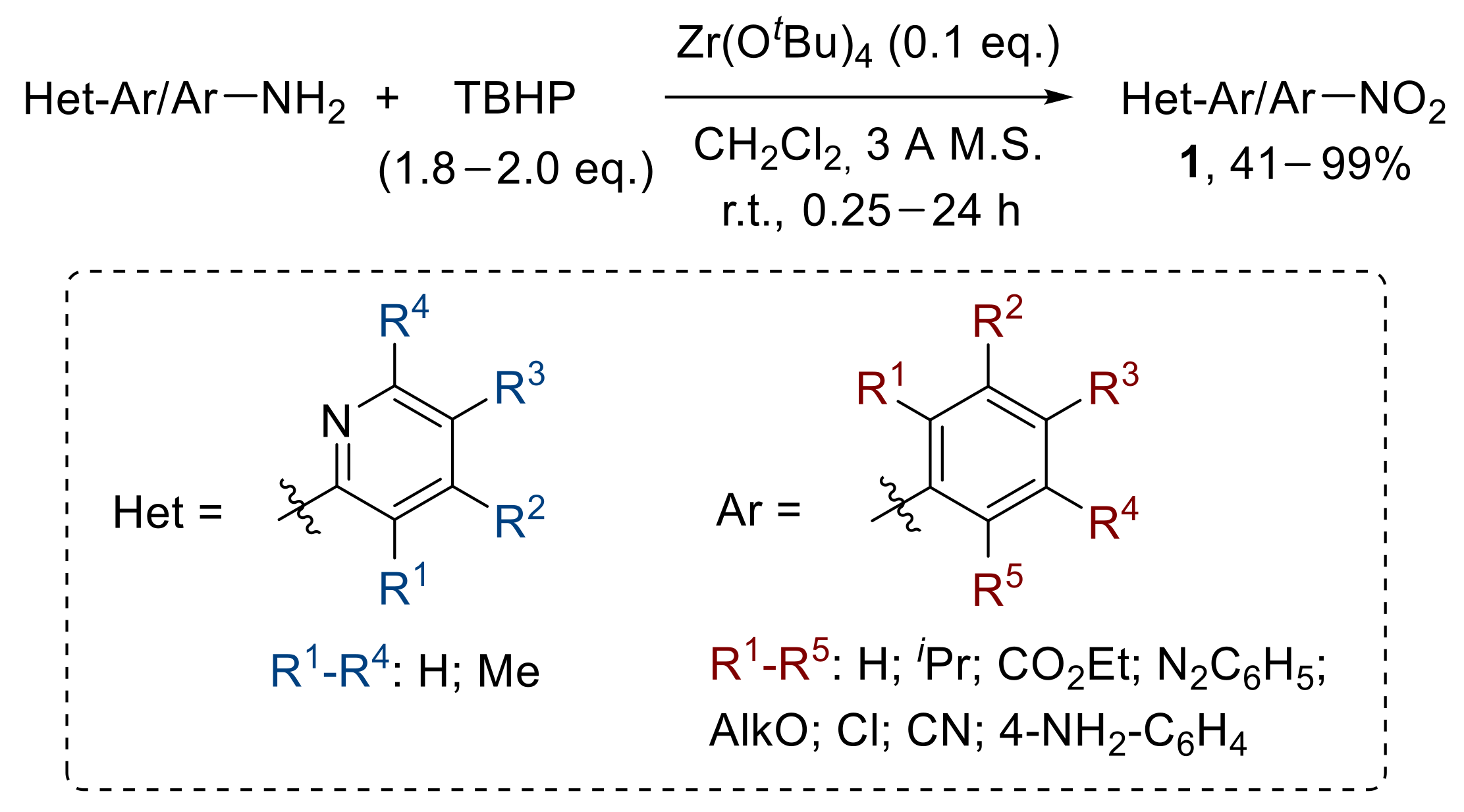

A zirconium-catalysed approach for the oxidative conversion of aryl amines to nitroarenes has also been described. A broad array of differently substituted anilines react with TBHP in the presence of catalytic amounts of Zr(OtBu)4 to generally afford good yields of the corresponding nitrobenzenes. The reaction was also extended to the oxidation of aminopyridines, which provided the related nitropyridines at lower yields (Scheme 11) [34].
Besides metal-catalysed procedures, a selective approach for the conversion of aryl amines to nitro derivatives using TBHP in the presence of catalytic amounts of potassium iodide was also developed. The reaction could be successfully applied both to electron-rich and electron-poor substrates, affording good yields of the corresponding nitroarenes [35].

4. Oxidation with Hydrogen Peroxide

Owing to their versatility, metal-catalysed routes for the oxidative conversion of amines to nitro derivatives with hydrogen peroxide have attracted considerable interest. Generally, the recycling performances of used catalysts were also investigated.

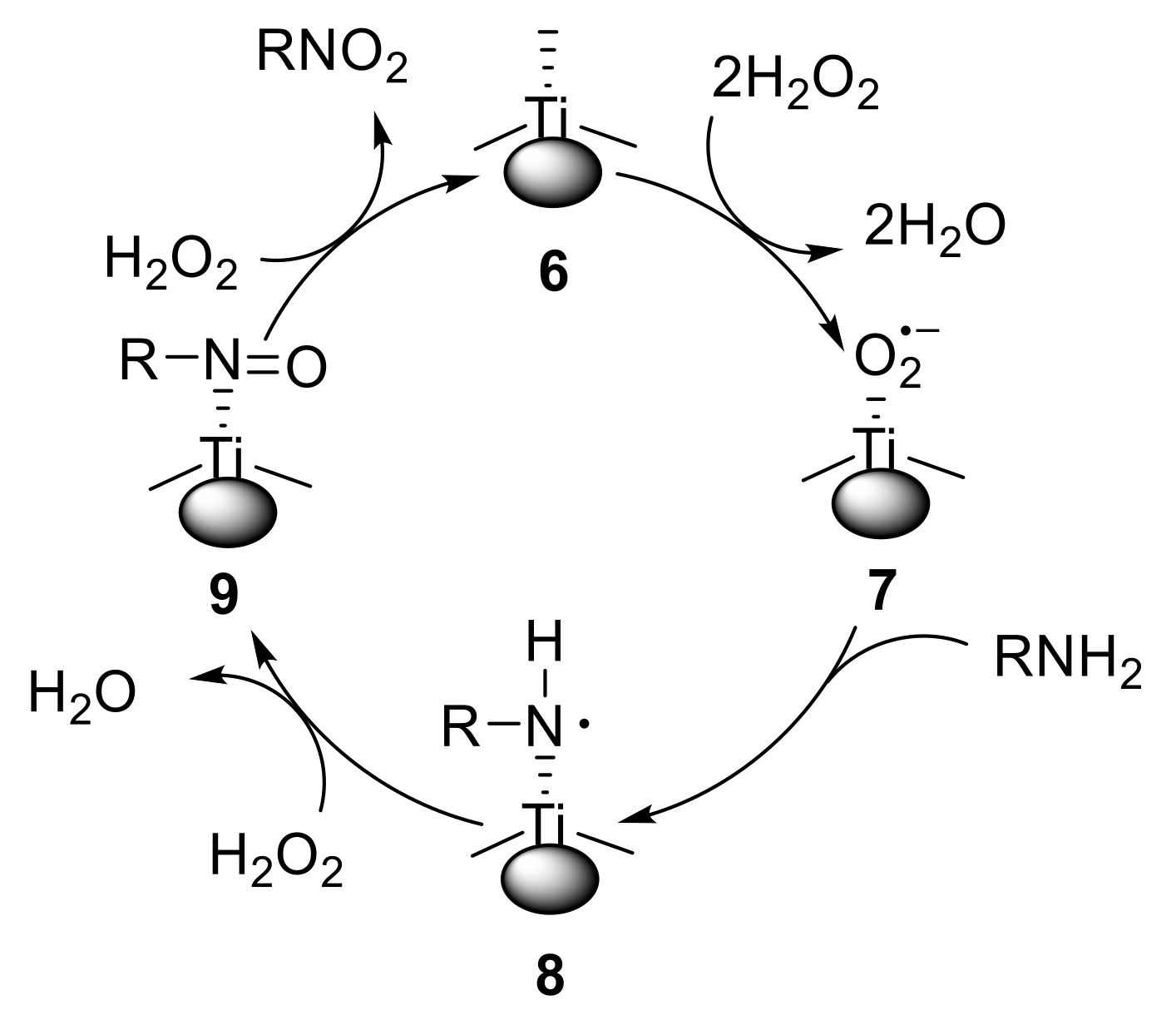

Dewkar et al. reported the use of a novel hydrated titanium matrix as a heterogeneous catalyst for the oxidation of primary amines using hydrogen peroxide. While aliphatic primary amines with α-CH bonds provided oximes along with the corresponding ketone, anilines were converted into nitroarenes [36]. This protocol proved to be amenable both to electron-poor and electron-rich anilines, giving the corresponding nitro compounds with high selectivity. The formation of variable amounts (0.37–9.01%) of azoxyarenes and nitrosoarenes was also observed. Notably, the catalyst could be easily recovered and successfully reused. The proposed catalytic cycle is reported in Figure 1. The radical anion 7, generated from 6 and H2O2, abstracts a hydrogen atom from the amine, affording a transient RNH• radical species 8. Species 8 is then oxidised to the nitroso derivative 9, which undergoes further oxidation to give the nitro compound 1 and regenerate the catalyst 6.
The use of calcium tungstate as a convenient and recoverable catalyst for the oxidation of organic compounds with H2O2 was reported by Kyler et al. An active homogeneous solution of pertungstate species, formed upon treatment of CaWO4 with H2O2 and stabilised with 9,10-phenanthroline, can be employed as an efficient catalyst for the oxidation of amines, alcohols, alkenes, and sulfides. This methodology was applied to the synthesis of nitrobenzene, 4-nitrotoluene, and 3-nitroisoxazole with 95%, 93%, and 85% yield, respectively. Notably, the catalyst could be easily recovered from the aqueous phase by filtration; no loss of catalytic activity was found after five cycles of oxidation. The approach was demonstrated to be easily scalable and could be used for the oxidation of p-toluidine at a kilogram scale leading to 4-nitrotoluene with 92% yield, with a > 99% recovery of the catalyst [37].
Heteropolyoxometalates have also been employed as catalysts for the oxidative conversion of amines into nitro derivatives. Ishii et al. reported that anilines react with hydrogen peroxide in the presence of peroxotungstophosphate, which can be prepared upon treatment of tungstophosphoric acid with H2O2 and cetylpyridinium chloride in water. Notably, the reaction temperature proved to be crucial for the selectivity of the process; indeed, while high temperatures (i.e., refluxing chloroform) provided good yields of nitroarenes, nitroso derivatives were formed when the reaction was performed at room temperature [38].

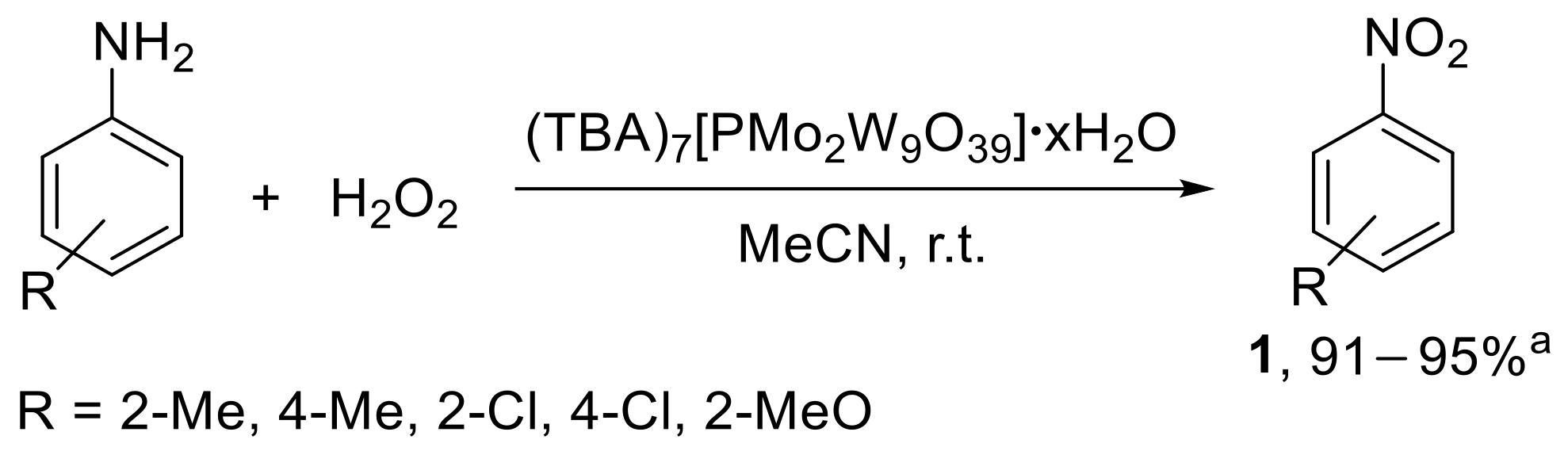

The oxidation of aryl amines was also performed under homogeneous conditions in the presence of a lacunary Keggin-type heteropolyanion having mixed tungsten and molybdenum addenda atoms [39]. The catalyst, easily prepared from K7[PMo2W9O39]•19H2O upon replacement of K+ with tetrabutylamonium ion, was employed to prepare methyl-, chloro-, and methoxy-substituted nitrobenzenes from the corresponding anilines, using H2O2 as the oxidant (Scheme 12).
Tundo, Aricò, et al. reported a heteropolyacid-catalysed oxidation of anilines to the nitroarenes with hydrogen peroxide in a multiphasic system, which comprises isooctane, Aliquat 336, and water. The nature of the heteropolyacid catalyst and the reaction temperature proved to be crucial for the selectivity of the oxidation process. Nitroarenes were selectively formed upon using HFePMo11VO40 as the catalyst at 60 °C; on the other hand, performing the reaction at 20 °C provided good yields of nitrosoarenes [40].
Newmann et al. also reported the use of a water-soluble “sandwich” type polyoxometalate catalyst, Na12[WZn3(H2O)2][(ZnW9O34)2], for the oxidation of organic compounds with hydrogen peroxide. Similarly to the above-described perfluoroketone-silicate-catalysed procedure, anilines were converted into the corresponding azoxy or nitro derivatives depending on the nature of substituents at the aromatic ring. Indeed, while hydroxy- and alkoxy-substituted electron-rich anilines as well as nitro-substituted electron-poor anilines gave nitroarenes, although with reduced conversion values, alkyl- and halo-substituted anilines efficiently yielded azoxyarenes. On the other hand, pyridine derivatives—especially electron-rich substrates—were converted into the corresponding N-oxides. Notably, the catalyst could be recovered by simple phase separation and reused in further oxidative cycles without significant loss in activity or selectivity [41].
The MoO3/KOH-catalysed oxidation of arylamines with hydrogen peroxide provides an efficient route to the corresponding nitroso-arenes. However, nitroarenes were obtained when (NH4)6Mo7O24·4H2O was used as the catalyst with 6.0 eq of H2O2. This protocol was applied to the synthesis of nitrobenzene, 1-chloro-4-nitrobenzene, and 1,4-dinitrobenzene with 66%, 92%, and 68% yields respectively [42].
Besides the above-described procedures, a number of transition-metal-free practical and efficient routes for the transformation of anilines to nitroarenes have recently emerged.

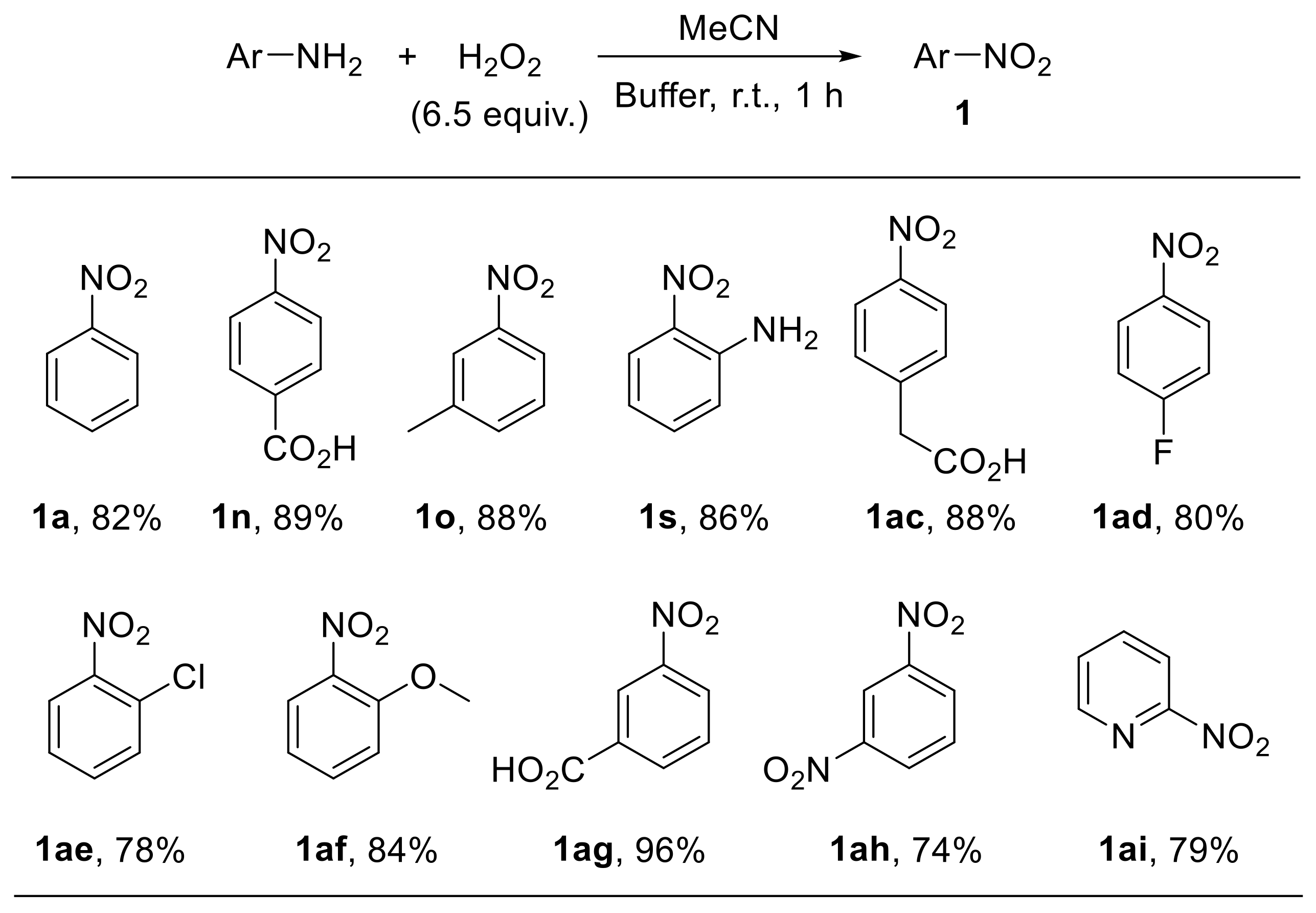

Voutyritsa et al. reported that anilines react with hydrogen peroxide in a mixture of acetonitrile and an aqueous buffer solution (0.6 M K2CO3, 4 × 10−4 M EDTA disodium salt, pH 11) providing the corresponding nitroarenes with good-to-high yield. The reaction is amenable to the oxidation of substrates bearing electron-withdrawing and electron-donating moieties at different positions of the aromatic ring (Scheme 13) [43].

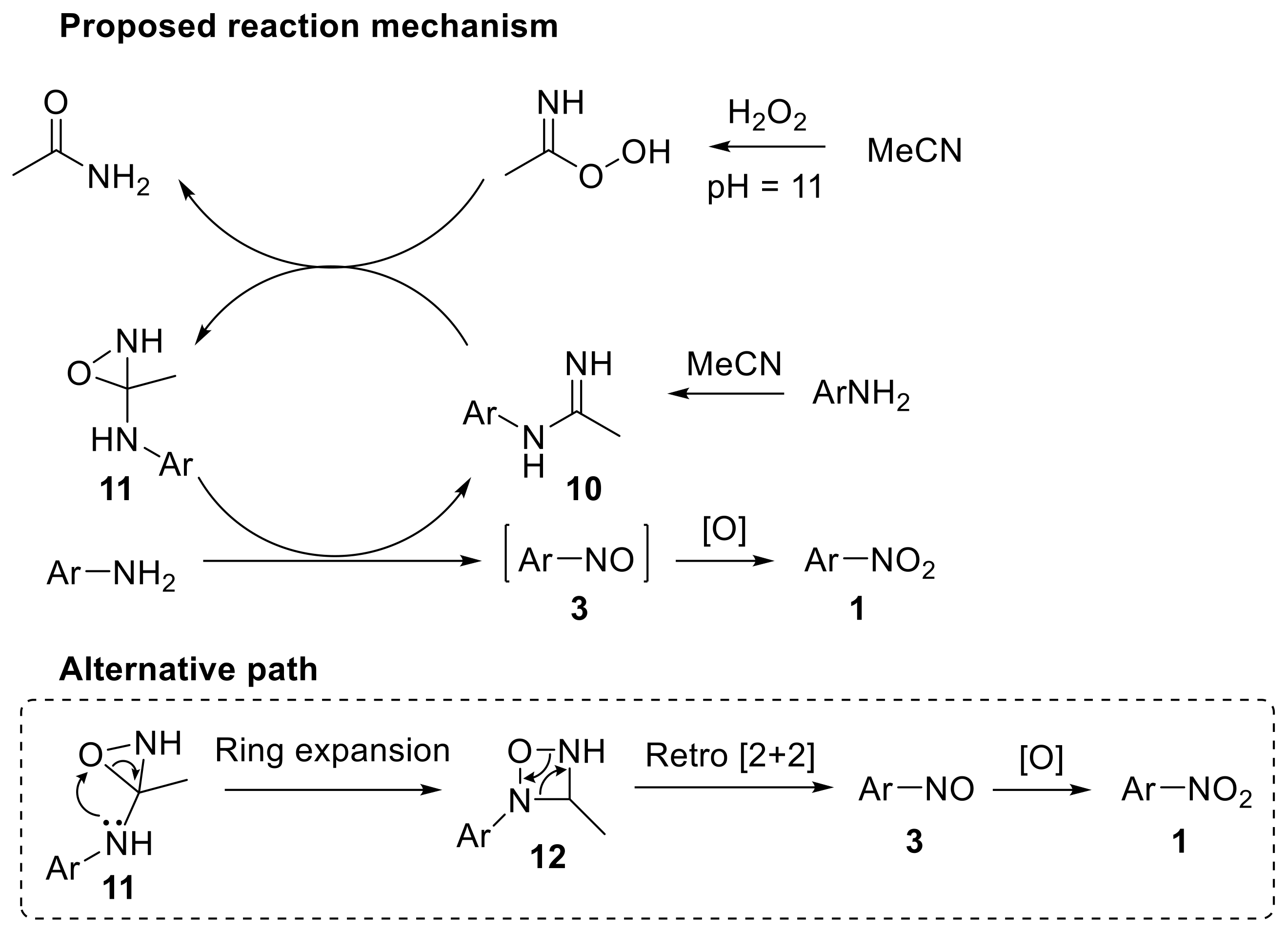

High resolution mass spectroscopy (HRMS)-based mechanistic studies provided insights into the nature of the intermediates involved. The reaction mechanism reasonably proceeds through the formation of benzimidine 10 from aniline and acetonitrile with hydrogen peroxide under the reaction conditions; the benzimidine 10 is then oxidised to oxaziridine 11 (Scheme 14). Nitrosobenzene 3 can be formed via two different paths involving i) the reaction of the aniline with oxaziridine 11, which behaves as the oxidant and ii) the ring expansion of 11 to the four-membered heterocyclic derivative 12, followed by a retro [2 + 2] cycloaddition to give the nitrosoarene 3. This latter pathway (alternative path in Scheme 14) is more likely to occur as no literature precedents report the oxidation of anilines to nitrosobenzene with oxaziridines. The final oxidation step converts the nitrosoarene 3 into the corresponding nitro derivative 1 [43]. Notably, when anilines were treated with hydrogen peroxide under similar reaction conditions but using a catalytic amount of 2,2,2-trifluoroacetophenone, azoxyarenes were selectively formed with good yield.

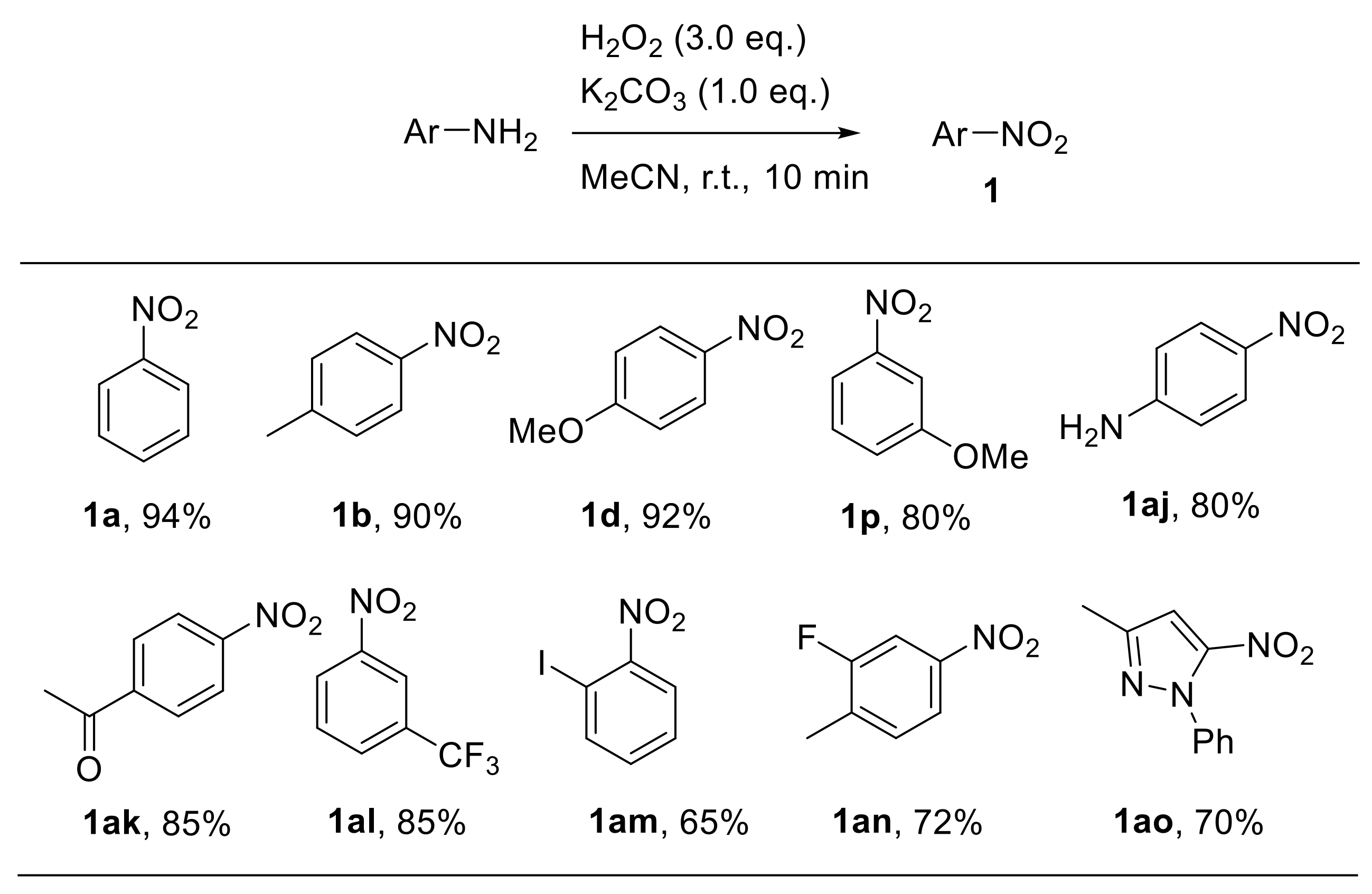

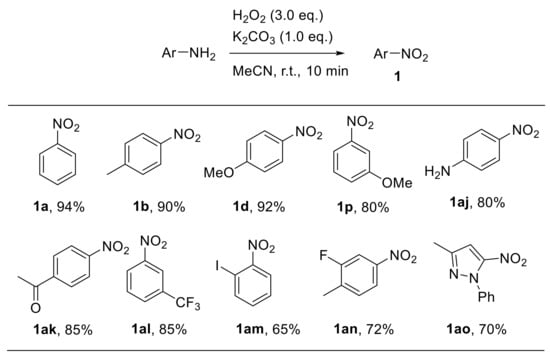

Sashidhara et al. recently described a base-promoted approach for the oxidative conversion of aryl amines to nitroarenes using hydrogen peroxide. The reaction quickly occurs at ambient temperature using acetonitrile as the solvent and K2CO3 as the base promoter [44]. Remarkably, the reaction scope proved to be broad, encompassing differently substituted substrates. Generally, electron-rich aryl amines gave the corresponding nitroarenes at higher yields compared with electron-poor anilines. The reaction was also extended to the oxidation of heteroaromatic amines (Scheme 15).
A polymer of a silane functionalised with octafluoroacetophenone was also used as a heterogeneous catalyst for the oxidation of alkenes and aromatic amines with hydrogen peroxide [45]. While pyridine derivatives were converted into the corresponding oxides, anilines gave azoxyarenes or nitroarenes, depending on the nature of the substituents onto the aromatic ring. Particularly, aniline and alkyl- and halo-substituted anilines provided dimeric azoxy derivatives with quantitative yields. On the other hand, when this perfluoroketone-silicate-catalysed approach was applied to electron-rich hydroxy-substituted anilines and electron-poor 3-nitroaniline, the corresponding nitroarenes were selectively obtained. Additionally, substrates bearing the nitro substituent ortho to the amino group proved to be unreactive, probably because of the presence of intramolecular hydrogen bonding between the amino and the nitro substituent [45].
Chalcogen-containing compounds have also been used as catalysts or promoters to accomplish a number of oxidative functional-group interconversions. In particular, a wide range of organoselenium-promoted oxidation methodologies have emerged as versatile synthetic transformations [46,47,48,49,50]. For example, selenium-catalysed routes for the oxidation of organic compounds including, among others, alkenes [50,51,52], alcohols [50,53], alkynes [50], and carbonyl derivatives [50] have been developed. Additionally, biologically relevant selenium-catalysed thiol-disulfide interconversions have been widely investigated over the past few years [54,55,56,57,58,59,60,61].

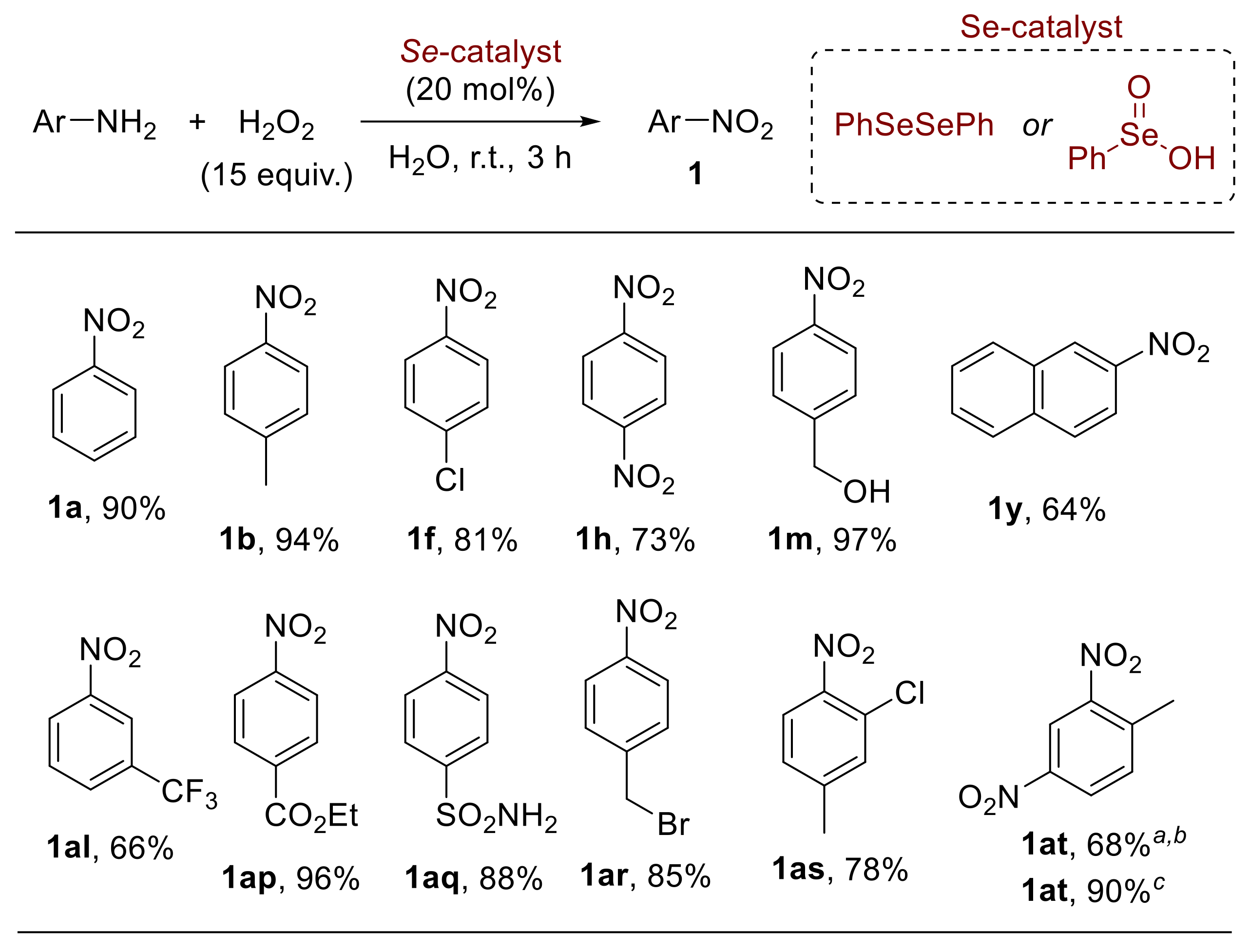

In this context, the selenium-catalysed oxidation of anilines has also been studied, enabling the development of selective procedures for the synthesis of nitroarenes [62], nitrosoarenes [63], and azoxyarenes [62,64]. Indeed, a broad array of differently substituted anilines were smoothly converted into the corresponding nitroarenes 1 upon reaction with hydrogen peroxide in the presence of diphenyl diselenide or benzeneseleninic acid (Scheme 16); the methodology encompasses both electron-rich and electron-poor substrates and can be efficiently applied to the synthesis of nitroarenes at a gram scale [62]. Amongst a variety of organoselenides investigated, diphenyl diselenide and benzeneseleninic acid gave better results in terms of yield and selectivity. On the other hand, the reaction of aniline with hydrogen peroxide in the presence of selenium dioxide (SeO2) or sodium selenite (Na2SeO3) provided a good yield of the corresponding azoxyarenes.

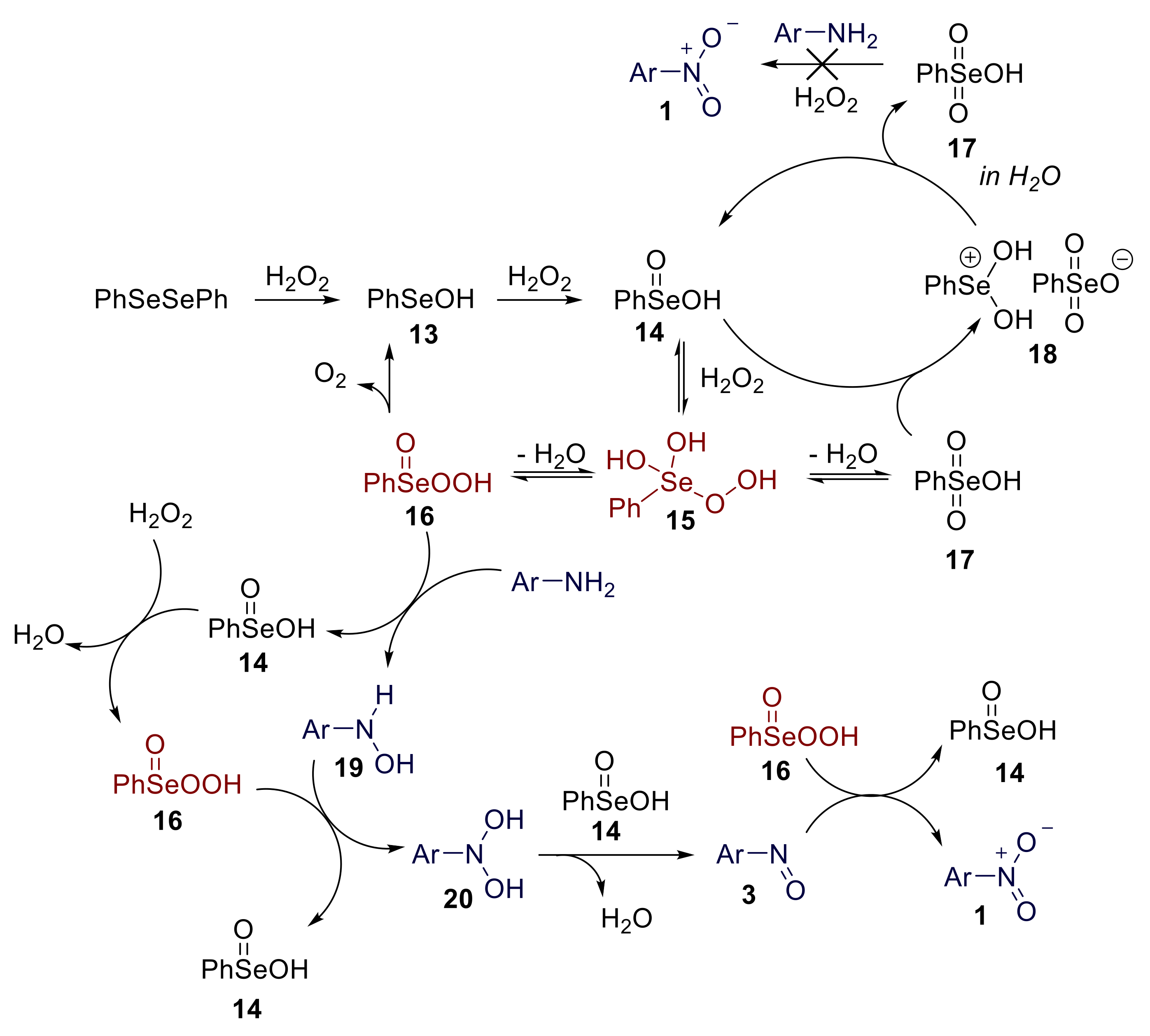

Control experiments and 77Se-NMR-based studies suggested that the reaction mechanism probably proceeds through Se (IV) species. The proposed mechanism is reported in Scheme 17. Diphenyl diselenide behaves as a precatalyst, and the first steps of the reaction mechanism involve its sequential oxidation to benzeneselenenic acid 13 and, finally, to benzeneseleninic acid 14. The latter is the active catalytic species involved in the oxidation of anilines. The reaction of 14 with hydrogen peroxide in water is expected to provide the peroxyselenurane 15, which can be dehydrated to afford peroxyseleninic acid 16 or selenonic acid 17. The reaction of selenonic acid 17 with seleninic acid 14 might also provide the selenonium salt 18, which, in aqueous solution, is readily reconverted into the parent acids 14 and 17. Both 15 and 16 are believed to behave as active oxidants. The reaction of aniline with 15 or 16 yields the hydroxylamine 19, which is further oxidised to dihydroxylamine 20. Benzeneseleninic acid is regenerated in both these steps. A benzeneseleninic-acid-mediated dehydration of 20 provides nitrosoarene. Finally, the reaction of nitrosoarene 3 with 16 provides nitroarene 1 and regenerates benzeneseleninic acid 14 [62]. Notably, while other selenium-mediated oxidation reactions of organic compounds (i.e., epoxidation of olefins) involve key Se (VI) species [65], the on water oxidation of anilines to nitroarenes proceeds through Se (IV) key oxidant species.

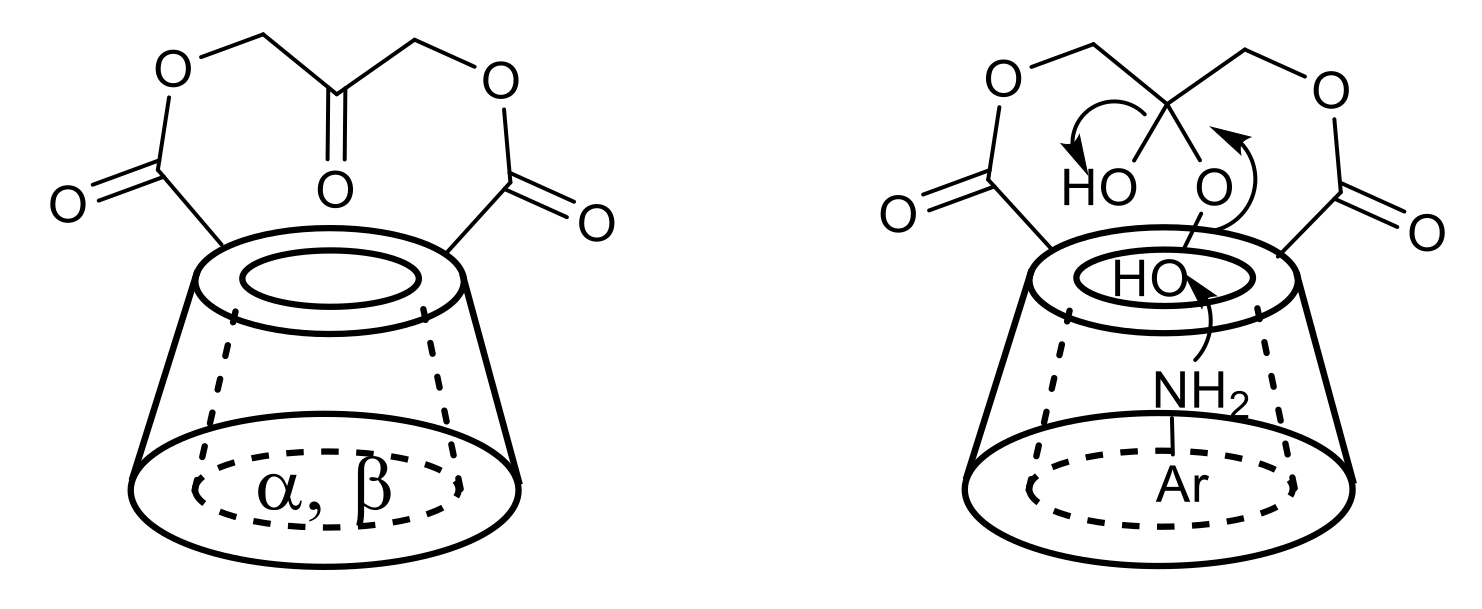

Marinescu et al. reported the synthesis of new α- and β-cyclodextrin derivatives with good enzyme-like activity in the oxidation of alcohols with H2O2 [66]. In this context, different cyclodextrin derivatives (Figure 2, left) have also been described to catalyse the oxidation of anilines to nitroarenes [67]. The mechanism proposed for the oxidation of anilines under cyclodextrins-catalysed conditions involves the reaction of hydrogen peroxide with the ketone moiety of the catalyst to form the peroxide adduct, which is the active oxidant species. The aniline, bound in the cavity of cyclodextrin (Figure 2, right), is oxidised to the corresponding hydroxylamine, which is subsequently converted to the nitroso derivative and then to the nitroarene [67].

5. Oxidation with Sodium Perborate

Sodium perborate (NaBO3·4H2O, SPB) has also been employed as an efficient oxidant for the conversion of anilines to nitroarenes. McKillop and Tarbin reported that anilines bearing electron-withdrawing groups are smoothly oxidised to the corresponding nitro derivatives upon reaction with sodium perborate in acetic acid at 50–55 °C. Electron-rich anilines provided lower yields of nitroarenes because of the formation of over-oxidised side products [68].

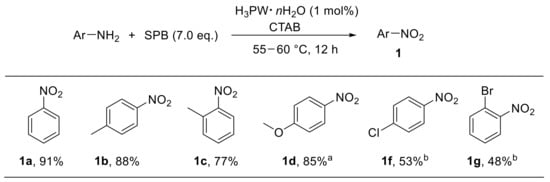

In this context, Firouzabadi et al. developed a convenient tungstophosphoric acid (H3PW·nH2O)-catalysed approach for the oxidation of anilines with sodium perborate in aqueous basic media. Cetyltrimethylammonium bromide (CTAB) was used as the micelle source [69]. Notably, this methodology proved to be particularly effective with electron-rich anilines, leading to the corresponding nitroarenes with good yield. On the other hand, substrates bearing electron-withdrawing substituents provided nitroarenes at lower yield (Scheme 18) [69].

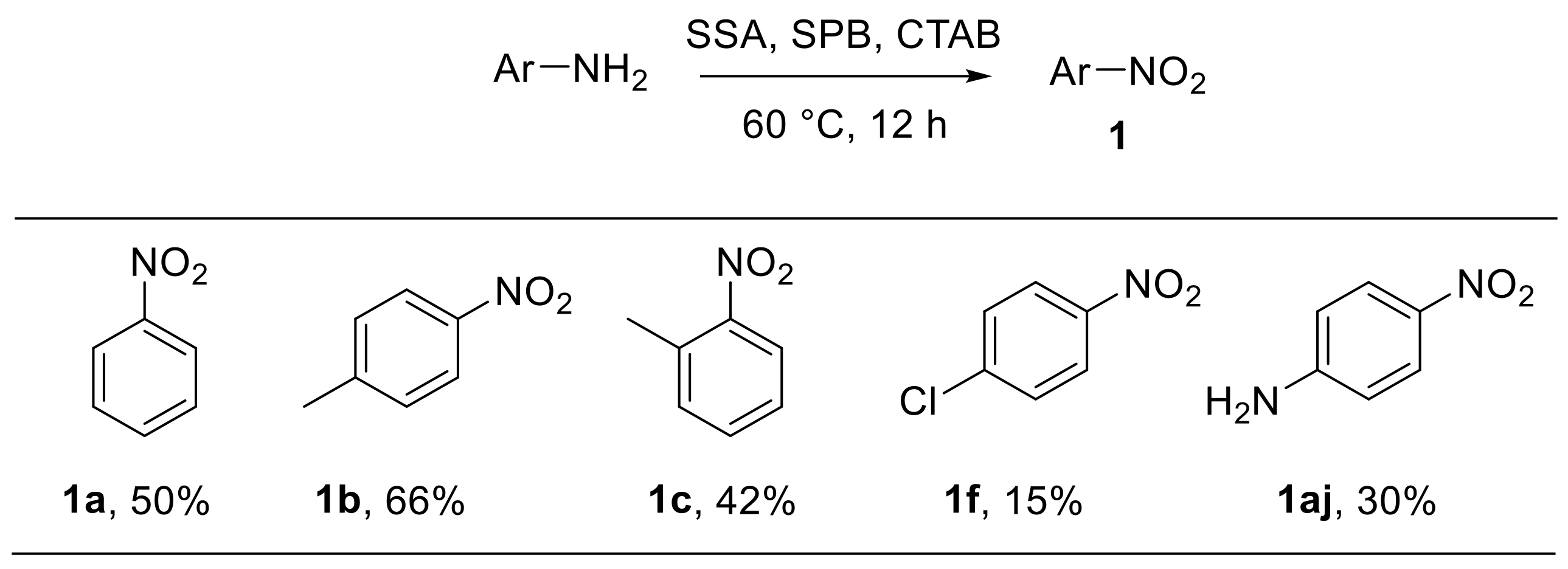

Habibi et al. reported the oxidative conversion of electron-rich anilines into the corresponding nitroarenes in micellar media using sodium perborate (NaBO3·4H2O) in the presence of catalytic amounts of silica sulfuric acid (SSA). Cetyltrimethylammonium bromide (CTAB) was used as a phase transfer catalyst in the optimised protocol (Scheme 19). The use of a cheap, safe, and easy to handle reagent such as SSA represents an advantage of this procedure which, however, is limited to anilines bearing electron-donating groups and cannot be extended to electron-poor substrates [70].

6. Oxidation with Dimethyldioxirane

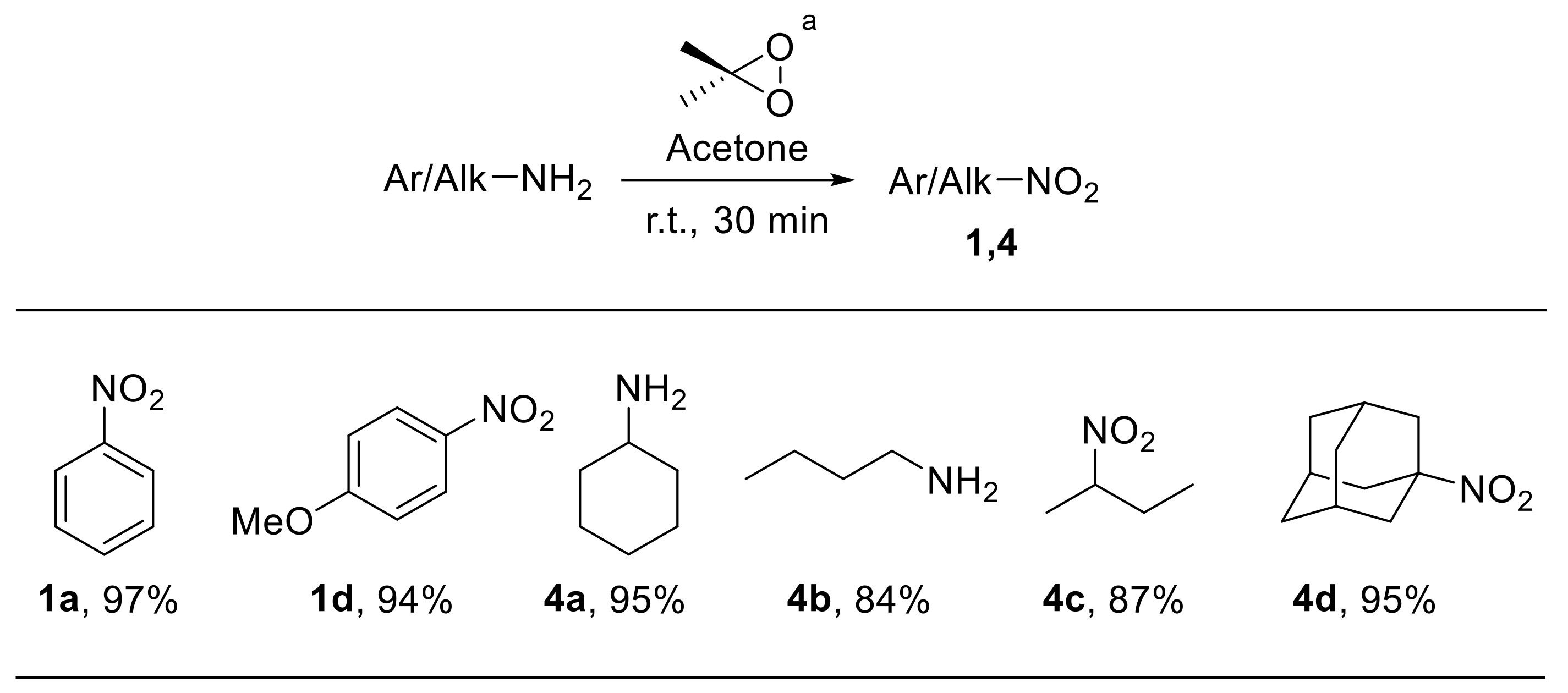

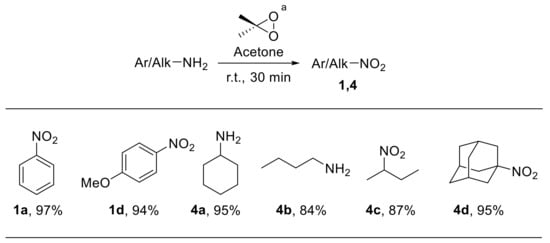

In 1986, Murray et al. described a rapid and efficient synthesis of nitro compounds through the oxidation of the corresponding anilines with dimethyldioxirane [71,72]. Solutions of dimethyldioxirane in acetone can be easily prepared using Oxone® as the oxidant [73]. Notably, this procedure could be applied both to aromatic and aliphatic amines, providing nitroarenes 1 and nitroalkanes 4 with high yield (Scheme 20). Zabrowski et al. also reported the oxidation of electron-rich anilines to nitroarenes upon using dimethyl dioxirane generated in situ from acetone and Oxone® under phase-transfer conditions [74].
The oxidation of anilines to nitroarenes was also performed using Oxone® in 5–20% aqueous acetone buffered with an excess of sodium bicarbonate. Lower yields were achieved when the reaction was conducted in the absence of acetone, thus suggesting a plausible formation of dimethyldioxirane as a competing oxidant in the presence of acetone [75].

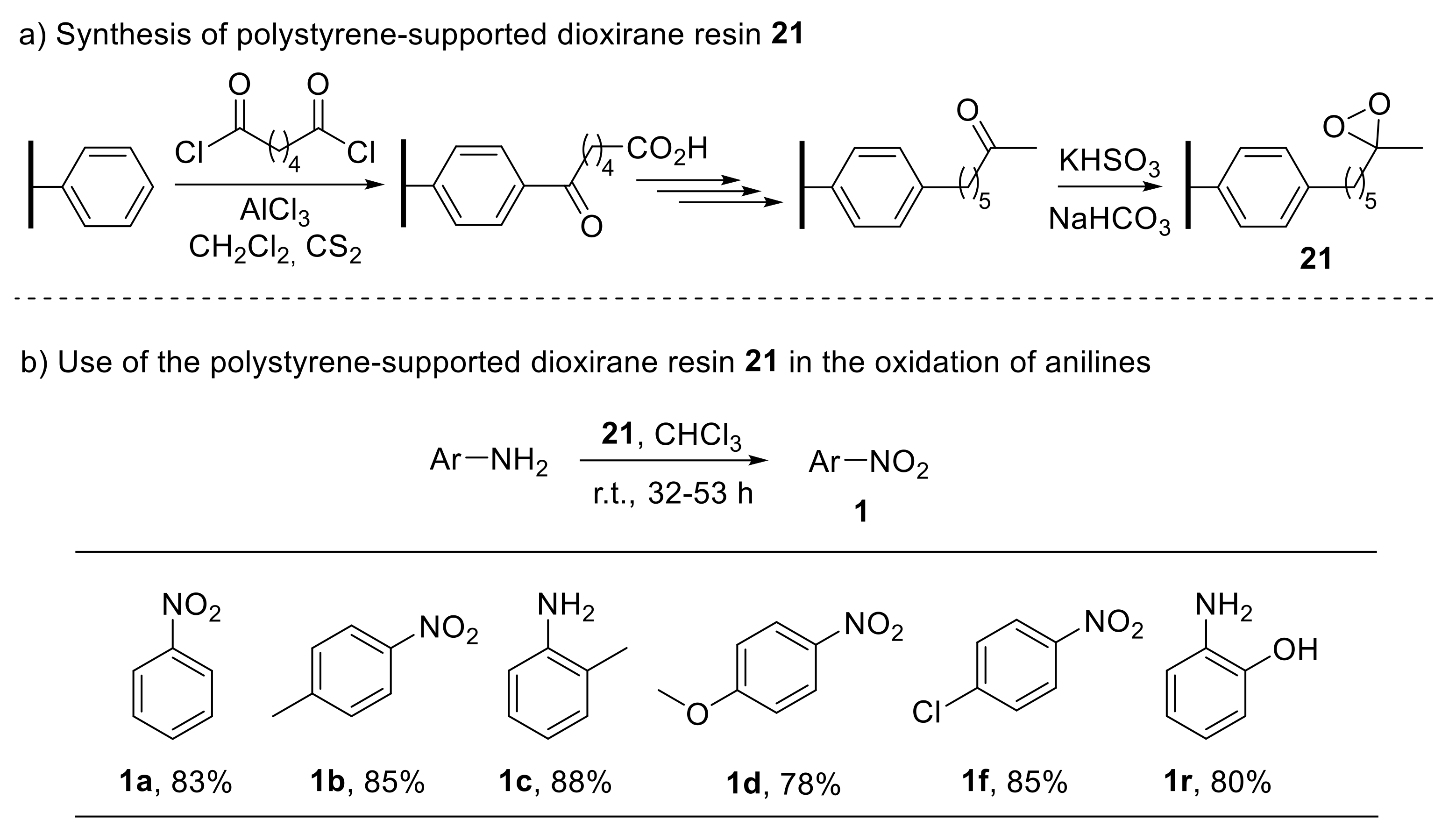

In this context, polystyrene-supported dioxirane has also been reported as a versatile, recyclable oxidising reagent to convert anilines into nitroarenes [76]. Some of the drawbacks related to the use of dimethyl dioxirane—such as its instability with respect to heat and light—can be overcome by incorporating the reagent function into a crosslinked styrene–divinylbenzene copolymer matrix. Such a polystyrene-supported dioxirane resin 21, prepared in six steps from styrene–divinylbenzene copolymer beads (Scheme 21a), proved to act as an efficient oxidant for the conversion of anilines into the corresponding nitroarenes (Scheme 21b). Notably, the dioxirane resin also enabled the oxidation of pyridine and lutidine into their N-oxides [76].

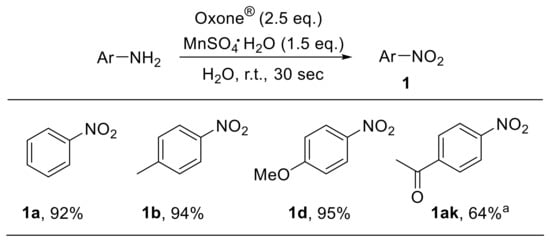

The use of a MnSO4/Oxone®/H2O system for the oxidation of organic compounds has been described. Manganese species, behaving as Lewis acids, facilitate the cleavage of oxygen–oxygen bonds during oxidation reactions. Such an oxidant also enabled the rapid and efficient conversion of anilines to nitroarenes (Scheme 22). Electron-rich substrates underwent oxidation in shorter times and with higher yields compared to electron-poor ones [77].

7. Oxidations with Other Oxidising Agents

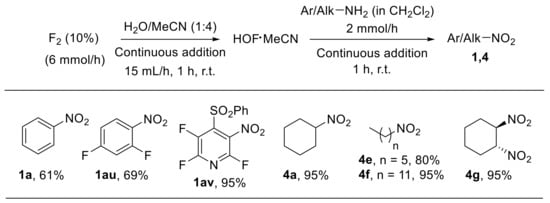

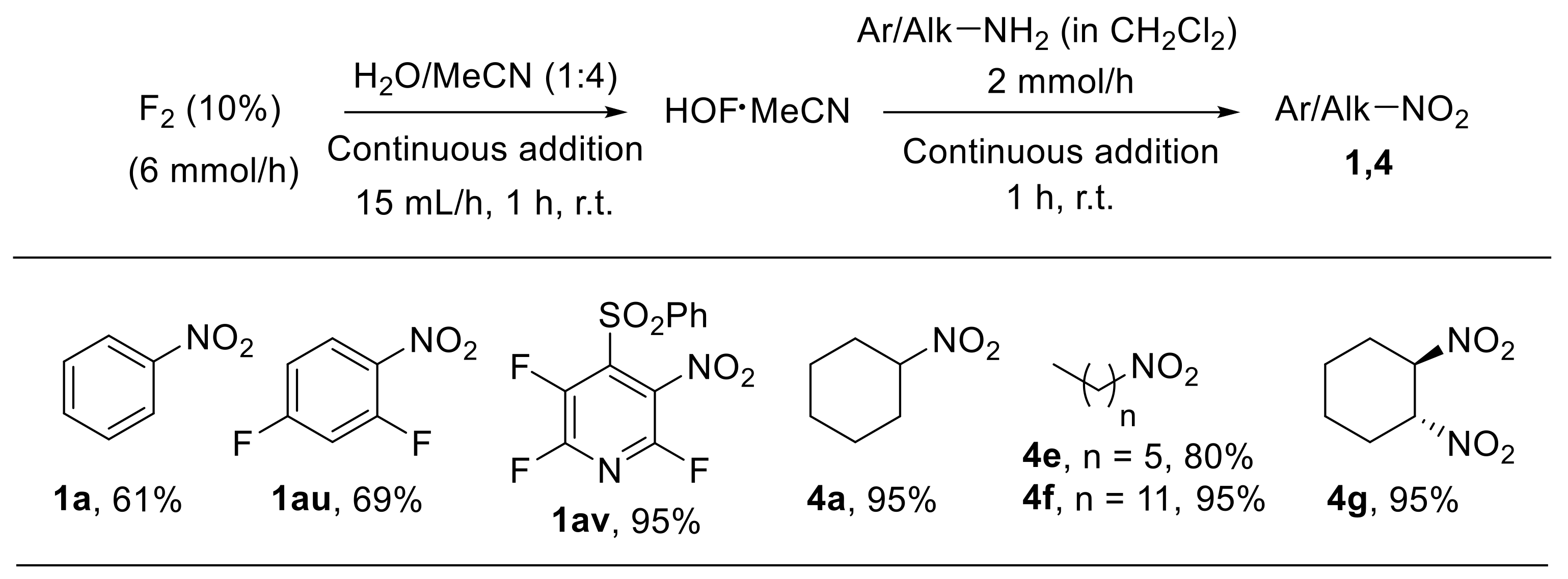

The HOF·MeCN complex is an effective oxygen transfer agent which has been employed in a wide variety of oxidative transformations, including oxidation of amines to nitro derivatives [78,79,80]. The by-product arising from reactions involving HOF·MeCN is HF, which, in principle, may be recovered and converted to fluorine by electrolysis. For this reason, such a complex is considered to have a low environmental impact. The relatively poor stability of the HOF·MeCN complex (half-life at room temperature of approximately 4 h) and the undesired transformations often occurring in highly concentrated oxidising media represent the main drawbacks of HOF·MeCN-based procedures. McPake et al. aimed to address these issues by developing a sequential continuous flow process for the oxidation of amines [81]. Fluorine and aqueous acetonitrile are reacted to generate HOF·MeCN, which is immediately treated with the amine in a single, sequential, two-step flow process. The methodology could be successfully applied to the oxidation of aliphatic and aromatic substrates providing high yields of the corresponding nitroalkanes and nitroarenes (Scheme 23). A related procedure was also employed for the oxidation of azides.

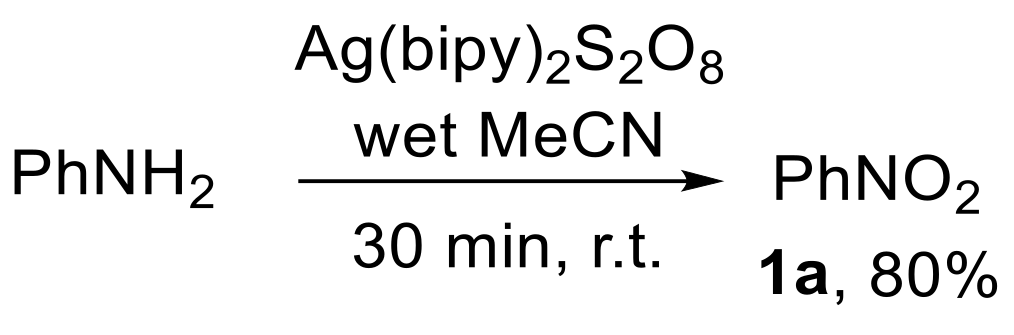

The oxidation of aniline with bis(bipyridine)silver(II) peroxydisulfate {[Ag(bipy)2]S2O8} has also been described (Scheme 24) [82,83]. However, the formation of an unidentified by-product along with nitrobenzene 1a was observed [82].

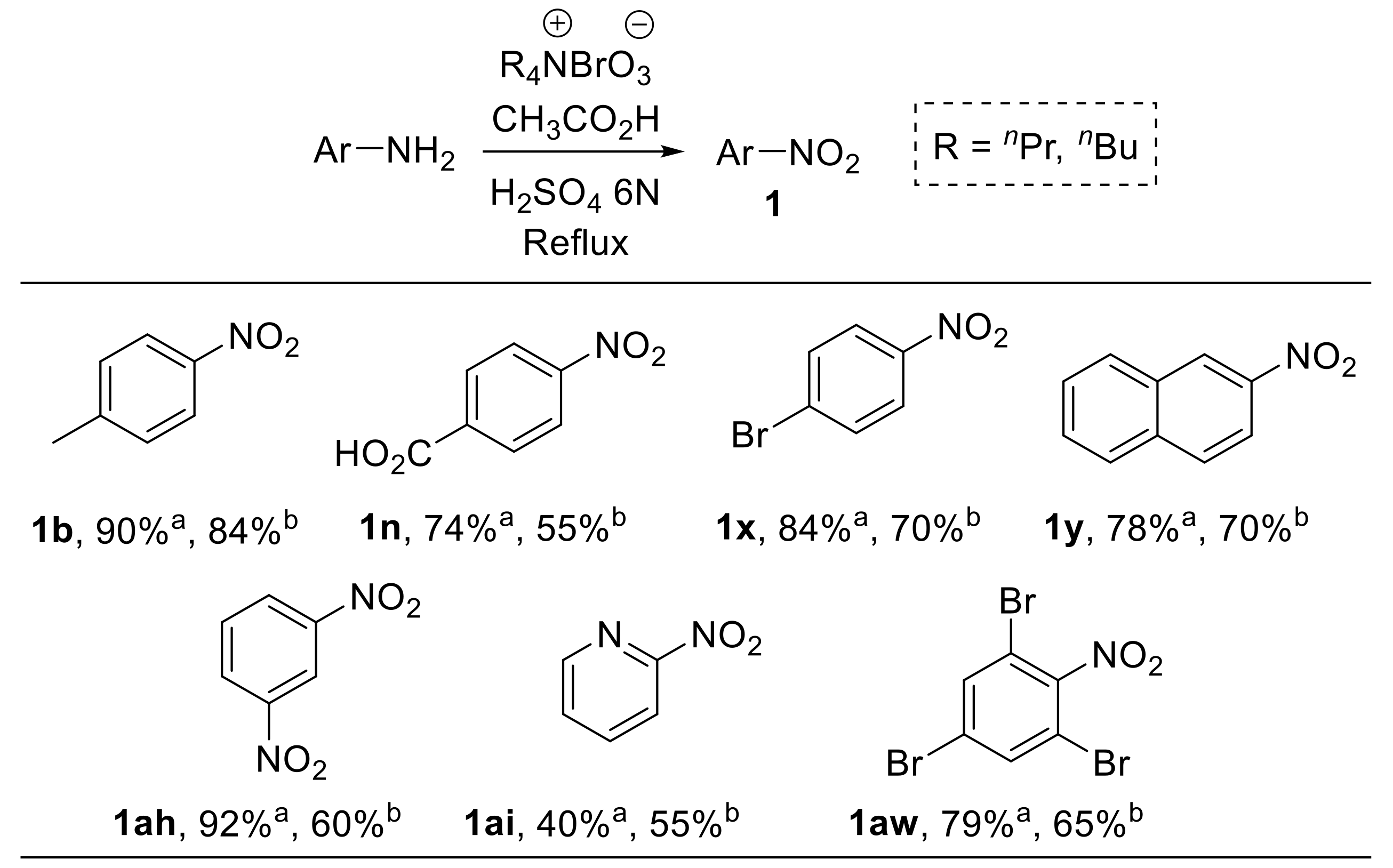

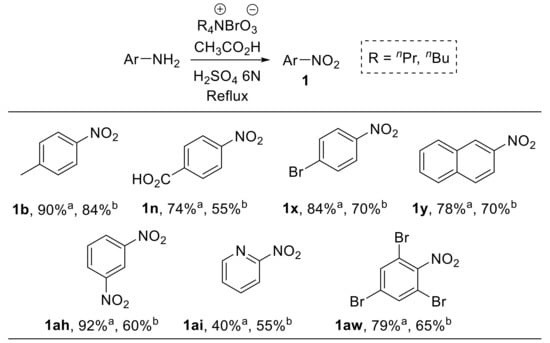

Das et al. reported the use of tetra-n-alkylammonium bromates as efficient and easy-to-handle oxidising agents for the conversion of arylamines into the corresponding nitroarenes (Scheme 25) [84].
Tetra-n-alkylammonium bromates were obtained upon treatment of the corresponding bromides with chlorine gas in an alkaline medium. The reaction showed a broad substrate scope; differently substituted nitrobenzenes, as well as 2-nitronaphthalene 1y and 2-nitropyridine 1a,i, were efficiently prepared by selective oxidation of the parent amine under the conditions reported in Scheme 25.

8. Conclusions and Perspectives

Nitro compounds are an important and versatile class of organic compounds. Owing to their applications, ranging from organic synthesis and materials science to medicinal chemistry and drug science, the development of practical and efficient methods for the synthesis of nitro compounds has attracted considerable interest. A wide variety of synthetic approaches have thus emerged over the past decades. In this context, the oxidation of amines is an alternative and valuable route towards nitro derivatives.
Oxidation-based methodologies do not suffer from regioselectivity issues; this represents their main advantage over some nitration strategies. On the other hand, significant historical drawbacks of oxidation-based approaches are related to the formation of mixtures of oxidised products (i.e.,—for the oxidation of aryl amines—nitroarenes, azoxyarenes, nitrosoarenes) and to the poor compatibility with respect to labile functional groups. A number of protocols for the oxidation of amines to nitro compounds have been developed, and considerable efforts have been devoted to addressing the above-mentioned limitations.
Focusing on nitroarenes, this review summarises the progress in their synthesis via oxidation of aryl amines. Efficient and convenient methods for the preparation of differently functionalised nitroarenes have been reported. The different reaction conditions, as well as the use of different catalysts and oxidising agents, enabled high selectivity and a rather broad functional-group tolerance to be achieved. A synthetic overview of some of the discussed methodologies, focusing on the catalyst, the oxidant, the scope, and limitations is reported in Table 1. Promoters, used in stoichiometric or superstoichiometric amounts, are reported in the second column.
However, broad though the developed routes are, some challenges remain. Further studies on the synthesis of heteroaryl nitro compounds via oxidation strategies would be desirable. Additionally, the development of selective procedures for the synthesis of amino-substituted nitroarenes represents a fascinating, yet difficult task. The investigation of the regiochemistry of the oxidation of diamines and polyamines under different reaction conditions is therefore an interesting research field.
On the other hand, additional efforts towards the development of additional catalysed, mild, environmentally benign protocols for the synthesis of nitro derivatives bearing valuable labile functional groups are needed. The environmental sustainability of processes is likely to attract growing attention. While catalyst recovery and recycling have been investigated and optimised, the purification of reaction products often relies on column chromatography, with the consequent use of large volumes of organic solvents and the production of significant amounts of solid waste.
Ideally, oxidation-based strategies could provide a versatile alternative for the synthesis of those chemicals that would be difficult to prepare through nitration methodologies.

Author Contributions

A.C. and D.T. conceptualised and wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Acknowledgments

We thank MIUR-Italy (Progetto Dipartimenti di Eccellenza 2018–2022 allocated to Department of Chemistry “Ugo Schiff”).

Conflicts of Interest

The authors declare no conflict of interest.
