Review

Cluster-Based Coordination Polymers of Mn/Fe-Oxo Pivalates and Isobutyrates †

by
Svetlana Baca
1,* and
Paul Kögerler
2
1
Institute of Applied Physics, Academiei 5, 2028 Chisinau, Moldova
2
Institute of Inorganic Chemistry, RWTH Aachen University, Landoltweg 1, 52074 Aachen, Germany
*
Author to whom correspondence should be addressed.
†
Dedicated to Professor Christoph Janiak on the occasion of his 60th birthday.
Chemistry 2021, 3(1), 314-326; https://doi.org/10.3390/chemistry3010023
Submission received: 5 February 2021 / Revised: 20 February 2021 / Accepted: 22 February 2021 / Published: 24 February 2021
(This article belongs to the Special Issue Coordination Polymers and Metal-Organic Frameworks: Structures and Applications—A Themed Issue in Honor of Professor Christoph Janiak on the Occasion of His 60th Birthday)
Browse Figures
Versions Notes

Abstract

:
Polynuclear coordination clusters can be readily arranged in cluster-based coordination polymers (CCPs) by appropriate bridging linkers. This review provides an overview of our recent developments in exploring structurally well-defined Mn/Fe-oxo pivalate and isobutyrate building blocks in the formation of CCPs assemblies with an emphasis on synthetic strategies and magnetic properties.

1. Introduction

Cluster-based coordination polymers (CCPs) have received significant attention over the past decade due to their promising potential as multifunctional materials for technological and industrial applications [1,2,3,4,5,6]. Typically, CCPs are constructed from metal coordination clusters that are bridged by polytopic organic ligands forming multidimensional systems such as one-dimensional (1D) chains, two-dimensional (2D) layers and three-dimensional (3D) metal–organic frameworks (MOFs) [7]. Two synthetic pathways have been explored by synthetic chemists for the fabrication of the CCPs. In formation reactions, one can utilize simple salts or presynthesized well-defined polynuclear metal clusters, following Robson’s classical node (typically consisting of a single metal ion) and spacer (polytopic coordination ligand) approach [8] or Yaghi and O’Keeffe’s “secondary building units” (SBUs, representing a rigid metal carboxylate cluster with external connectivity that mimics triangle, square, tetrahedral, hexagonal or octahedral patterns) strategy [9,10]. Later, Zaworotko et al. developed a design strategy that exploits metal–organic polyhedra as “supermolecular building blocks” (SBBs), which combine a greater range of scale (nanometer scale) and high symmetry and, thus, can afford improved control over the topology of the resulting coordination polymers [11].
To date, considerable efforts have been devoted to developing a range of CCPs by using rigid carboxylate clusters of paramagnetic transition metals as building units that contain multiple metal ions linked by multiple coordination ligands, especially for producing molecular magnetic arrays [12]. In comparison to other typically employed structural building blocks, polynuclear carboxylate-based clusters offer distinct advantages for engineering CCPs: (i) they can afford specific control over a CCPs’ topology through precise adjusting the coordination environment of metal ions and thus providing the easy accessibility of spacers to a vacant coordination site at the periphery of the cluster, to which a separate cluster can be attached; (ii) ease in managing and fine-tuning their shape and size via increasing or decreasing the nuclearity; (iii) and feasibility to vary their physical properties since their physical characteristics (magnetic, spectroscopic and redox behavior) can be determined and modified prior to network formation [4,5]. Furthermore, the carboxylate ligands can be partially substituted, e.g., by redox-active inorganic ligands such as magnetically functionalized polyoxoanions [13] or paramagnetic organic ligands [14,15,16,17]; thus, the final assemblies can reveal some additional properties and functions such as charge-state switching of magnetic ground states and anisotropy. Such tailor-made multidimensional CCPs can be applied in numerous important fields such as catalysis, gas storage, pharmaceuticals, etc. [18].
Mn/Fe-oxo carboxylate clusters incorporating multiple spin centers exhibit fascinating magnetic phenomena such as single-molecule magnet behavior (SMM) [19,20,21] and represent useful building blocks for the creation of Mn and Fe-based CCPs. In particular, Christou, Tasiopoulos et al. [22] prepared 3D CCPs with nanometer-sized channels that exhibit SMM characteristics and are based on large polynuclear {Mn19O10} acetate building units, [Mn19NaO10(OH)4(ac)9(pd)9(H2O)3]n and [Mn19NaO10(OH)4(ac)9(mpd)9(H2O)3]n (where Hac = acetic acid), using 1,3-propanediol (H2pd) and 2-methyl-1,3-propanediol (H2mpd). Later, fascinating extended networks based on polynuclear {Mn17O8} acetate building units connected by N3− or OCN− anions into 1D and 2D CCPs, namely [Mn17O8(ac)4(pd)10(py)6(N3)5]n, [Mn17O8(ac)4(mpd)10(py)8(N3)5]n and [Mn17O8(ac)2(pd)10(py)4(OCN)7]n have also been reported [23,24]. The use of such large polynuclear carboxylate building blocks offers additional possibilities for crystal engineering of interesting new materials with high porosity and could lead to attractive materials properties. This review provides an overview of our recent developments in exploring MnII,III-oxo and FeIII-oxo pivalate and isobutyrate building blocks with stable {M3(µ3-O)}, {M4(µ3-O)2} (M = Mn, Fe), {Mn6(µ4-O)2} or {Fe6(µ3-O)2} cores in the formation of CCPs assemblies with an emphasis on the synthetic strategies and magnetic properties.

2. Oxo-Trinuclear Mn/Fe-Based CCPs

Trinuclear oxo-centered carboxylate coordination clusters of general composition [M3(µ3-O)(O2CR)6(L)3]+/0 (where L = a neutral terminal ligand) are the most frequently used building blocks in the construction of CCPs. For assembling 1D oxo-trinuclear Mn/Fe CCPs, several synthetic strategies have been explored, e.g., using simple soluble metal salts or well-known pre-designed “basic carboxylate”, e.g., μ3-oxo trinuclear Mn/Fe carboxylate clusters. The combination of these starting materials with organic ligands, usually in “one-pot” syntheses at temperatures starting from room temperature and up to solvothermal conditions in different solvents, gave the expected CCPs. The first 1D CCP, [Mn3O(ac)7(Hac)]n, which is composed of [Mn3(μ3-O)(ac)6(Hac)] acetate clusters interlinked by acetate bridges, was reported by Hessel and Romers in 1969 [25], whereas Rentschler and Albores synthesized the first 1D CCP composed of [Fe3(μ3-O)(piv)6(H2O)]pivalate clusters interlinked by dicyanamide (dca) bridges in 2008, [Fe3O(piv)6(H2O)(dca)]n (where Hpiv = pivalic acid) [26].
Cronin, Kögerler et al. [27] suggested an effective route to assembling 1D CCPs through metal building block linkers in 2006. A helical {[(Fe3O(aa)6(H2O))(MoO4)(Fe3O(aa)6(H2O)2)]·2(MeCN)·H2O}n CCP (where Haa = acrylic acid) has been synthesized by linking the [Fe3O(aa)6(H2O)3]+ cations with [MoO4]2− dianions derived from (Bu4N)2[Mo6O19] in MeCN. As an extension, Bu et al. [28] in 2015, introduced [M(H2O)2(fa)4]2− formate building block linkers for connecting μ3-oxo trinuclear neutral [Fe3O(fa)7] formate clusters into {(NH4)2[Fe3O(fa)7]2[M(H2O)2(fa)4]}n CCPs (where Hfa = formic acid; MII = Fe; Mn; Mg) with the formation of anionic double-strained chains.
The family of 1D Mn and Fe pivalate or isobutyrate CCPs (Table 1) has been generated by using simple metal carboxylates or employing pre-designed oxo-trinuclear building blocks in reactions [29,30]. Thus, mixing a hot ethanol solution of hexamethylenetetramine (hmta) with MnII isobutyrate in tetrahydrofuran yields the chain coordination polymer {[Mn3O(is)6(hmta)2]·EtOH}n (where His = isobutyric acid) (1) [29]. This CCP comprises neutral mixed-valent μ3-oxo trinuclear [MnIIMnIII2O(is)6] clusters bridged by hmta into a linear 1D chain as shown in Figure 1. To model its magnetic behavior, an approximation considered two trimers coupled through MnIII and MnII ions (the Mn···Mn distances between clusters via hmta linkers are equal to 6.310 Å). For 1, the authors reported significant antiferromagnetic intracluster interactions between Mn spin centers with 2J1 = +32.5 K and 2J2 = −16.8 K, whereas the intercluster interactions through hmta spacers were found to be weakly ferromagnetic.
Combining the different pre-designed μ3-oxo trinuclear pivalate complexes such as [Fe3O(piv)6(H2O)3]piv·2(piv) and [Mn3O(piv)6(hmta)3]·n-PrOH in one-pot reactions with the same spacer (hmta) lead to the formation of heteronuclear Fe/Mn-oxo 1D CCPs [30]. The solvothermal reaction of these precursors in MeCN at 120 °C for 4 h gave a heterometallic chain polymer {[Fe2MnO(piv)6(hmta)2]·0.5(MeCN)}n (2), while refluxing in n-hexane resulted in the solvated heterometallic chain polymer {[Fe2MnO(piv)6(hmta)2]·Hpiv·n-hexane}n (3). Magnetic studies of 2 and 3 indicated dominant antiferromagnetic interactions between the metal centers with significant intercluster interaction through hmta spacer with the following exchange parameters: JMnII–FeIII = −17.4 cm−1 and JFeIII–FeIII = −43.7 cm−1 for 2; and JMnII–FeIII = −23.8 cm−1 and JFeIII–FeIII = −53.4 cm−1 for 3. All intercluster exchange interactions were modeled using a molecular field model approximation to give λmf = −0.219 mol cm−3 (2) and λmf = −0.096 mol cm−3 (3) [30].
In comparison to Baca and Kögerler’s approach, Kolotilov et al. [31,32,33,34] employed already preformed oxo-centered heterometallic trinuclear [Fe2MO(piv)6(Hpiv)3] (MII = Co, Ni) pivalates to isolate a series of heterometallic 1D CCPs formulated as {[Fe2CoO(piv)6(bpe)]·0.5(bpe)}n, [Fe2NiO(piv)6(bpp)(dmf)]n, {[Fe2NiO(piv)6(pnp)(dmso)]·2.5(dmso)}n, [Fe2NiO(piv)6(pnp)(H2O)]n, {[(Fe2NiO(piv)6)4(Et-4-ppp)6]·3(def)}n, and [Fe2NiO(piv)6(bpt)1.5]n (where bpe = 1,2-bis(4-pyridyl)ethylene, bpp = 1,3-bis(4-pyridyl)propane, pnp = 2,6-bis(4-pyridyl)-4-(1-naphtyl)pyridine, Et-4-ppp = 4-(N,N-diethylamino)phenyl-bis-2,6-(4-pyridyl)pyridine, bpt = 3,6-bis(3-pyridyl)-1,2,4,5-tetrazine).
The presence of three potential donor metal sites in the oxo-centered trinuclear carboxylate species makes this building block very attractive and useful for the construction of 2D CCPs. The first homometallic 2D {[Fe3O(ac)6(H2O)3][Fe3O(ac)7.5]2·7(H2O)}n cluster-based layer has been prepared by Long and coworkers [35] in 2007 from the reaction of a trinuclear iron acetate, [Fe3O(ac)6(H2O)3]Cl·6H2O, FeCl3·4H2O and sodium acetate in MeCN/water solution at room temperature in 4 months. The main feature of it is the formation of the “star” anionic layer of acetate-bridged [Fe3O(ac)6]+ clusters that contain in its channels cationic guest-trimer [Fe3O(ac)6(H2O)3]+ clusters. In 2009, Pavlishchuk et al. [36] reacted simple salt precursors, namely iron(III) nitrate nonahydrate and manganese(II) nitrate hexahydrate, with formic acid under heating to isolate the first heterometallic 2D CCP {[Fe3O(fa)6][Mn(fa)3(H2O)3]·3.5(Hfa)}n. This compound consists of trinuclear [Fe3O(fa)6]+ units linked by mononuclear [Mn(fa)3(H2O)3]− bridges into 2D honeycomb layers.
By refluxing the presynthesized pivalate complex compounds [Mn3O(piv)6(hmta)3]·n-PrOH and [Fe3O(piv)6(H2O)3]piv·2(Hpiv) in a hot toluene solution for 6 h, the new 2D heterometallic coordination polymer {[Fe2MnO(piv)6(hmta)1.5]·toluene}n (4) can be prepared [30]. In contrast to the above-mentioned 1D CCPs (1–3), in 4 hmta ligands, connect neighboring heterometallic {[Fe2Mn(μ3-O)(piv)6] pivalate clusters into a 2D corrugated layer as shown in Figure 2. The formed framework accommodates guest toluene molecules. In 4, the exchange interactions between MnII and FeIII were found to be antiferromagnetic (JMnII–FeIII = −13.3 cm−1; JFeIII–FeIII = −35.4 cm−1), with significant intercluster interactions through hmta (λmf = –0.051 mol cm−3). A series of 2D heterometallic pivalate CCPs built from [Fe2MO(piv)6] (MII = Co, Ni) clusters bridged by different polydentate polypyridyl-type linkers has also been reported by other groups [31,36,37,38].
In 2014, Baca and Kögerler et al. [39] reported the first 3D cluster-based coordination polymers, {[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n (5) and [Fe2CoO(piv)6(bpe)0.5(pyz)]n (6). Relative to the 1D and 2D CCPs, 3D structures based on Mn/Fe trinuclear oxo-clusters are rare: up to now, only three compounds were reported [39,40]. CCPs 5 and 6 consist of μ3-oxo-centered cationic homometallic [FeIII3(μ3-O)(piv)6]+ or neutral heterometallic [FeIII2CoII(μ3-O)(piv)6] coordination clusters bridged by different N,N′-donor ligands: 4,4′-bipyridine (4,4′-bpy) in case of 5, and 1,2′-bis(4-pyridyl)ethylene (bpe) and pyrazine (pyz) in case of 6. They were prepared in a “one-pot” solvothermal reaction in dichloromethane from [Fe6O2(OH)2(piv)12] and organic spacers, and, additionally, cobalt(II) pivalate was added in 6. It is worth noting that the mutual arrangement of three-connected [M3(μ3-O)(piv)6] nodes linked by a linear spacer determines the topology of the final CCPs. Here, neighboring μ3-oxo trinuclear clusters are mutually perpendicular, and the pair of clusters may be regarded as a pseudo-tetrahedral four-connected binodal building block, and as a result, 3D porous networks are formed. A 6-fold interpenetrated network with rare (8.3)-c (etc) topology can be observed in 5, and a three-fold interpenetrated network with (10.3)-b (ths) topology in 6 (Figure 3). Magnetic studies of 5 and 6 point to both ferro- and antiferromagnetic intra- and intercluster exchange interactions between the isotropic FeIII and/or the strongly anisotropic (octahedrally coordinated) CoII spin centers. In particular, the χmT value of 7.54 cm3 K mol−1 at 290 K, significantly smaller than the expected spin-only value of 13.1 cm3 K mol−1 for three isolated S = 5/2 centers (giso = 2.0) for 5, indicates dominant antiferromagnetic exchange interactions mediated by the central μ3-O within {Fe3(μ3-O)} unit (J1 = −0.1 cm−1 and J2 = −27.0 cm−1) and the 4,4′-bpy bridges (λmf = −0.609 mol cm−3, the Fe···Fe distances via 4,4′-bpy are equal to 11.347 and 11.380 Å). For 6, both contributions of the orbital momentum of CoII center in {Fe2Co} unit and intracluster (ferromagnetic) and intercluster (ferromagnetic) coupling within {Fe2Co} triangular unit and between them have been considered via the magnetochemical computational framework CONDON [41,42]. The exchange interaction parameters are JCoII–FeIII = +55.0 cm−1, JFeIII–FeIII = −122.0 cm−1 and λmf = +1.163 mol cm−3 (through the pyz ligand the M···M distances are 7.096 and 7.142 Å, and through the bpe spacer these distances equal 13.603 Å). Subsequently, a 3D CCP, {[NH4]2[Fe9O3(ac)23(H2O)]}n, with triangular [Fe3(μ3-O)(ac)6]+ cations and acetate as linkers between the units has been reported by Bu et al. [40]. Its structure exhibits a 4-fold interpenetrating 3D network with a rare eta-c4 net topology.

3. Oxo-Tetranuclear Mn/Fe-Based CCPs

Oxo-tetranuclear Mn and Fe carboxylate complexes often called “butterfly” clusters, possess a well-known {M4(μ3-O)2} core. The core comprises an inner “body” metal atoms doubly bridged by two μ3-oxo atoms, connected outwards to the remaining “wing” metal atoms. The core can also be considered as two edge-sharing {M3(μ3-O)} triangular units. Although the core can be considered as potential [M4O2(O2CR)x(L)y] nodes, only 1D CCPs from tetranuclear {Mn4(μ3-O)2} and {Fe4(μ3-O)2} carboxylate oxo-clusters have been reported thus far [29,43,44,45].
Christou and coworkers [44] first reported a 1D {Mn4O2}-based benzoate-bridged CCP formulated as [Mn4O2(ba)6(dbm)2(4,4′-bpy)]n (where Hba = benzoic acid; dbm = dibenzoylmethane) in 1994. Since then, only a few more {Mn4O2}-CCPs were reported. A 1D CCP, [Mn4O2(is)6(bpm)(EtOH)4]n (7), composed of mixed-valence tetranuclear [MnII2MnIII2(μ3-O)2(is)6(EtOH)4] isobutyrate building blocks bridged by 2,2′-bipyrimidine (bpm) linkers (Figure 4), has been identified in 2008 [29] (Table 1). The addition of an ethanol solution of bpm to Mn(II) isobutyrate in tetrahydrofuran solution directly results in the formation of 7. The temperature dependence of χT in 7 indicates dominant antiferromagnetic interactions inside the {Mn4} units with a value of 13.46 cm3 K mol−1 at 300 K that is close to the value expected for an uncoupled {MnII2MnIII2} system (χT = 14.75 cm3 K mol−1 for g = 2.00).
The first tetranuclear {Fe4O2}-based coordination polymer [Fe4O2(piv)8(hmta)]n (8) reported in 2011 by Baca and coworkers [43] was isolated from the reaction of the μ3-oxo trinuclear pivalate complex [Fe3O(piv)6(H2O)3]piv·2(Hpiv) with hmta in MeCN. In 8, tetranuclear [Fe4(μ3-O)2(piv)8] clusters are bridged by hmta ligands forming zigzag chains (Figure 5). Magnetochemical analysis of the {Fe4} butterfly-like CCP 8 indicates that the interactions between body-body FeIII ions were antiferromagnetic with a least-squares fit yielding Jbb = −22 cm−1.

4. Oxo-Hexanuclear Mn/Fe CCPs

One of the fascinating Mn oxo-carboxylate clusters used as building blocks in the construction of CCPs are hexanuclear clusters [Mn6O2(O2CR)10(L)4] (where L = neutral monodentate ligand) with a central {Mn6O2} core. The central mixed-valence [MnII4MnIII2(μ4-O)2]10+ core consists of six Mn centers, two MnIII and four MnII ions, arranged as two edge-sharing flattened Mn4 tetrahedra, with a μ4-O2− ion in the center of each tetrahedron. Peripheral ligation is provided by bridging carboxylate groups. Within the core, two central Mn atoms are in the formal oxidation state +3, and the four terminal Mn atoms are in the lower oxidation state +2. Careful choice of appropriate exo-bidentate spacer ligands with the selection of starting precursors and media solution allowed interlinking the {Mn6(μ4-O)2} oxo-clusters into 1D coordination polymeric chains, 2D layers or 3D frameworks.
The first 1D coordination polymers [Mn6O2(piv)10(Hpiv)2(4,4′-bpy)]n based on {Mn6O2} pivalate building blocks bridged by 4,4′-bipyridine (4,4′-bpy) were obtained by Yamashita et al. in 2002 [46]. Assembling of {Mn6O2} building clusters into coordination networks by shorter linkers was executed later. In 2008, Chen’s group isolated the propionate-bridged {[Mn6O2(O2CEt)10(H2O)4]·2(EtCO2H)}n CCP [47] and Tasiopoulos’s group in 2010 reported the acetato-bridged {[Mn6O2(ac)10(H2O)4]·2.5(H2O)}n CCP [48].
A new series of 1D CCPs based on the {Mn6(μ4-O)2} pivalate and isobutyrate clusters, namely {[Mn6O2(piv)10(Hpiv)(EtOH)(na)]·EtOH·H2O}n (9), [Mn6O2(piv)10(Hpiv)2(en)]n (10), {[Mn6O2(is)10(pyz)3]·2(H2O)}n (11), [Mn6O2(is)10(pyz)(MeOH)2]n (12), and {[Mn6O2(is)10(pyz)1.5(H2O)]·0.5(H2O)}n (13), {[Mn6O2(is)10(His)(EtOH)(bpea)]·His}n (14), (where na = nicotinamide, en = ethyl nicotinate, pyz = pyrazine, bpea = 1,2-bis(4-pyridyl)ethane) have been reported [49,50] (Table 1). All CCPs, except 10, have been prepared by the reaction of simple MnII pivalate or isobutyrate salts with the appropriate bridging ligand in different solvents: MeCN solution in case of 9 and 13, MeCN/EtOH (1:1 v:v) solution for 11, MeCN/MeOH (1:1 v:v) solution for 12, and thf/EtOH solution (1:1 v:v) for 14. CCP 10 was isolated from the reaction of [Mn6O2(O2CCMe3)10(thf)4] with ethyl nicotinate in decane. The spacer length and spacer flexibility have an important effect on the complex structures in these systems. The shorter pyz ligand connects neighboring {Mn6(μ4-O)2} clusters to form 1D zigzag chains in 11 (intercluster Mn···Mn: 7.288 Å), linear chains in 12 (intercluster Mn···Mn: 7.443 Å), and ladder-like chains in 13 (intercluster Mn···Mn: 7.415 and 7.480 Å). The na group links the {Mn6(μ4-O)2} clusters into linear chains in 10 (intercluster Mn···Mn: 8.690 Å), and finally, bpea bridges the {Mn6(μ4-O)2} clusters (intercluster Mn···Mn: 9.239 Å) in a unique meander-type chain as shown in Figure 6 in 14. Magnetochemical analysis of 9, 11, and 14 finds significant intercluster antiferromagnetic interactions through the shorter pyz and na linkers (λmf = −1.131 mol cm−3 (9), −1.508 mol cm−3 (11)), and the intercluster interaction via long bpea is negligible in 14. Within {Mn6} fragments, the intracluster interactions are antiferromagnetic with the best-fit parameters J1 = −1.61 cm−1, J2 = J3 = −0.89 cm−1 and J4 = −1.23 cm−1. Here J1 is the exchange coupling constant describing the nearest-neighbor MnIII···MnIII interactions through two μ4-O centers, J2 = J3—for MnIII···MnII interactions mediated by μ4-O and μ3-O centers and a carboxylate (J2) or a μ4-O center and a carboxylate (J3), and J4—for MnII···MnII interactions via a μ4-O center and a carboxylate group. We note that Ovcharenko et al. [51] linked the polynuclear {Mn6} pivalate fragments by nitronyl nitroxide radical (2,4,4,5,5-pentamethyl-4,5-dihydro-1H-imidazolyl-3-oxide-1-oxyl (NIT-Me) to isolate 1D molecular magnet {[Mn6O2(piv)10(thf)2(NIT-Me)] [Mn6O2(piv)10(thf)2(dcm)(NIT-Me)]}n with Tc = 3.5 K.
In contrast to hexanuclear {Mn6(μ4-O)2} building blocks, the use of hexanuclear {Fe6(µ3-O)2} building blocks in the design of CCPs is fairly scarce. Until now, only two such compounds have been published [52]. 1D zigzag chain coordination polymers [Fe6O2(O2CH2)(piv)12(diox)]n (15) (Figure 7) and [Fe6O2(O2CH2)(piv)12(4,4′-bpy)]n (16) (where diox = 1,4-dioxane; 4,4′-bpy = 4,4′-bipyridine) have been prepared from smaller pre-designed µ3-oxo trinuclear [Fe3O(piv)6(H2O)3]piv·2(Hpiv) or hexanuclear [Fe6O2(OH)2(piv)12] species by slow diffusion of MeCN into its solution in 1,4-dioxane (15) or heating starting [Fe6O2(OH)2(piv)12] and 4,4′-bpy in CH2Cl2/MeCN (16). Although the {Fe6} building blocks in 15 and 16 show the general similarity (Fe···Fe distances differ less than 0.015 Å from their averages), the observed magnetic low-field susceptibility displays strong differences, mainly from inter-{Fe6} cluster coupling mediated either by the diox (closest Fe···Fe contact: 7.171 Å) or the 4,4′-bpy (11.39 Å) linkers. The magnetism of the [Fe6O2(O2CH2)(piv)12] clusters was modeled assuming that the {Fe6} cluster consists of two identical isosceles Fe3(µ3-O) triangles with three exchange energies (J1–3) between the spin-only (S = 5/2; 6A1g) FeIII centers. CCPs 15 and 16 exhibit dominant antiferromagnetic interactions among the FeIII ions within the {Fe6} clusters (J1 and J2 between FeIII ions in {Fe3O} triangles and J3—between the triangles) and possible antiferromagnetic intercluster interaction (λmf) with the best-fit J1 = −30.82 cm−1, J2 = −14.43 cm−1, J3 = −11.75 cm−1 and λmf = −11.6 mol cm−3 for 15, and J1 = −32.77 cm−1, J2 = −14.11 cm−1, J3 = −10.57 cm−1 and λmf = −0.12 mol cm−3 for 16.
Using isonicotinamide (ina), Ovcharenko and co-workers in 2013 [53] prepared the first 2D pivalate CCPs based on a {Mn6O2} carboxylate motif, {[Mn6O2(piv)10(ina)2]·3(Me2CO)}n and {[Mn6O2(piv)10(ina)2]·2(EtOAc)}n. Employing the same ina spacer, an anhydrous [Mn6O2(piv)10(ina)2]n (17) CCP was obtained from the simple manganese(II) pivalate and ina in a mixture of MeCN/EtOH in 2014 [54] (Figure 8a). Similar to Ovcharenko’s CCPs, {Mn6} pivalate clusters are bridged via ina spacer ligands in a 2D polymeric (4,4) layer with a MnII···MnII distance of 9.279 and 9.357 Å. Two other 2D CCPs {[Mn6O2(piv)10(adt-4)2]·2(thf)}n (18) and {[Mn6O2(is)10(adt-4)2]·thf·3(EtOH)}n (19) were prepared from the reaction of a simple [Mn(piv)2] salt (18) or a hexanuclear [Mn6(is)12(His)6] isobutyrate cluster (19) and the bent, semi-rigid N,N′-donor aldrithiol (adt-4) spacer ligands in thf. Interestingly, four semi-rigid aldrithiol ligands joint the adjacent {Mn6} clusters in a different way: if in 18, a 2D polymeric layer with grid topology is formed, in 19, an intriguing bilayer framework occurs (Figure 8b). In 19, a pair of adt-4 ligands connect the neighboring {Mn6} isobutyrate clusters to form linear chains with a MnII···MnII distance of 10.537 Å between neighboring {Mn6} units. Another pair of adt-4 ligands double cross-link neighboring {Mn6} clusters from differently oriented chains (MnII···MnII: 10.873 Å) resulting in a rare 2D bilayer (Figure 8b). Thus, the hexanuclear [Mn6O2(is)10] isobutyrate clusters here serve as 3-connected T-shaped nodes and represent the first example of a CCP with such bilayer topology. Magnetic susceptibility measurements for 17–19 indicate a net of antiferromagnetic intracluster and intercluster exchange interactions, resulting in singlet ground states. An intracluster coupling scheme defines four types of exchange energies in {Mn6} clusters with the best-fit JMnIII–MnIII = −15.4 cm−1, JMnII–MnII = −1.9 cm−1, JMnIII–MnII = −2.8 cm−1, and JMnII–MnII,ext = +5.5 cm−1, resulting in an overall S = 0 ground state for each {Mn6} cluster. The molecular field parameter results in λ = −1.1 mol cm−3, indicating antiferromagnetic intercluster coupling.
The first example of 3D oxo-hexanuclear {Mn6} pivalate CCP appeared in 2004 when Ovcharenko et al. reported a honeycomb [Mn6O2(piv)10(NIT-Me)2]n motif [51]. The second 3D oxo-hexanuclear [Mn6O2(O2CCH2C6H5)10(pyz)2]n CCP was synthesized in 2012 by Ghosh and coworkers who used pyrazine (pyz) linker to connect {Mn6} phenyl acetate clusters into a diamond-like framework with a (6,4) topology [55].

5. Conclusions

Polynuclear MnII,III/FeIII-oxo pivalate and isobutyrate clusters recommend themselves as extremely versatile building blocks. Their ancillary coordinating ligands are sufficiently flexible to allow for the formation of a wide variety of structurally diverse and topologically interesting CCPs. Using metal-containing carboxylate building units ranging from trinuclear {M3O} to hexanuclear {M6O2} cores, 1D, 2D and 3D CCPs have successfully been isolated. We note that this robust and versatile materials platform, based on oxo-carboxylate coordination cluster structures, is particularly attractive in the field of “intelligent” multifunctional materials, including magnetic sensors and spintronic devices since the targeted molecular systems allow for a combination of their intrinsic stability and physical quantum characteristics with unique structural features. However, despite their prominent role at the forefront of magnetic materials research, significant efforts remain focused on developing and understanding their complex magnetic characteristics as well as establishing magneto-structural correlations for these systems.

Funding

This research in part was supported by the State Program of the National Agency for Research and Development of R. Moldova, grant number ANCD 20.80009.5007.15.

Acknowledgments

Svetlana Baca is grateful to the Alexander von Humboldt Foundation for Georg Forster Research Award.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, W.-X.; Liao, P.-Q.; Lin, R.-B.; Wei, Y.-S.; Zeng, M.-H.; Chen, X.-M. Metal cluster-based functional porous coordination polymers. Coord. Chem. Rev. 2015, 293–294, 263–278. [Google Scholar] [CrossRef]
  2. Kang, X.-M.; Tang, M.-H.; Yang, G.-L.; Zhao, B. Cluster/cage-based coordination polymers with tetrazole derivatives. Coord. Chem. Rev. 2020, 422, 213424. [Google Scholar] [CrossRef]
  3. Andruh, M. Oligonuclear complexes as tectons in crystal engineering: Structural diversity and magnetic properties. Chem. Commun. 2007, 2565–2577. [Google Scholar] [CrossRef]
  4. Roubeau, O.; Clérac, R. Rational assembly of high-spin polynuclear magnetic complexes into coordination networks: The case of a [Mn4] single-molecule magnet building block. Eur. J. Inorg. Chem. 2008, 4325–4342. [Google Scholar] [CrossRef]
  5. Jeon, I.R.; Clerac, R. Controlled association of single-molecule magnets (SMMs) into coordination networks: Towards a new generation of magnetic materials. Dalton Trans. 2012, 41, 9569–9586. [Google Scholar] [CrossRef]
  6. Shieh, M.; Liu, Y.-H.; Lia, Y.-H.; Lina, R.Y. Metal carbonyl cluster-based coordination polymers: Diverse syntheses, versatile network structures, and special properties. Cryst. Eng. Comm. 2019, 21, 7341–7364. [Google Scholar] [CrossRef]
  7. Batten, S.R.; Neville, S.M.; Turner, D.R. Coordination Polymers: Design, Analysis and Application; Royal Society of Chemistry: Cambridge, UK, 2008; pp. 1–471. [Google Scholar]
  8. Robson, R. A net-based approach to coordination polymers. J. Chem. Soc. Dalton Trans. 2000, 3735–3744. [Google Scholar] [CrossRef]
  9. Tranchemontagne, D.J.; Mendoza-Cortes, J.L.; O’Keeffe, M.; Yaghi, O.M. Secondary building units, nets and bonding in the chemistry of metal-organic frameworks. Chem. Soc. Rev. 2009, 1257–1283. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Eddaoudi, M.; Moler, D.B.; Li, H.; Chen, B.; Reineke, T.M.; O’Keeffe, M.; Yaghi, O.M. Modular chemistry: Secondary building units as a basis for the design of highly porous and robust metal-organic carboxylate frameworks. Acc. Chem. Res. 2001, 34, 319–330. [Google Scholar] [CrossRef]
  11. Perry, J.J.; Permana, J.A.; Zaworotko, M.J. Design and synthesis of metal–organic frameworks using metal–organic polyhedra as supermolecular building blocks. Chem. Soc. Rev. 2009, 38, 1400–1417. [Google Scholar] [CrossRef] [PubMed]
  12. Baca, S.G. The design of coordination networks from polynuclear Mn(II, III) and Fe(III) oxo-carboxylate clusters. In Advances in Chemistry Research; Taylor, J.C., Ed.; Nova Science Publishers: New York, NY, USA, 2018; Volume 43, pp. 81–130. [Google Scholar]
  13. Fang, X.; Kögerler, P. A polyoxometalate-based manganese carboxylate cluster. Chem. Commun. 2008, 3396–3398. [Google Scholar] [CrossRef] [PubMed]
  14. Vaz, M.G.F.; Andruh, M. Molecule-based magnetic materials constructed from paramagnetic organic ligands and two different metal ions. Coord. Chem. Rev. 2021, 427, 213611. [Google Scholar] [CrossRef]
  15. Ratera, I.; Veciana, J. Playing with organic radicals as building blocks for functional molecular materials. Chem. Soc. Rev. 2012, 41, 303–349. [Google Scholar] [CrossRef]
  16. Kahn, O. Chemistry and physics of supramolecular magnetic materials. Acc. Chem. Res. 2000, 33, 647–657. [Google Scholar] [CrossRef] [PubMed]
  17. Mccleverty, J.A.; Ward, M.D. The role of bridging ligands in controlling electronic and magnetic properties in polynuclear complexes. Acc. Chem. Res. 1998, 31, 842–851. [Google Scholar] [CrossRef]
  18. Farrusseng, D. (Ed.) Metal–Organic Frameworks. Applications from Catalysis to Gas Storage; Wiley-VCH Verlag & Co. KgaA: Weinheim, Germany, 2011; p. 392. [Google Scholar]
  19. Winpenny, R.E.P. (Ed.) Single-Molecule Magnets and Related Phenomena; Structure and Bonding; Springer: Berlin/Heidelberg, Germany, 2006; Volume 122. [Google Scholar]
  20. Gatteschi, D.; Sessoli, R.; Villain, J. Molecular Nanomagnets; Oxford University Press: New York, NY, USA, 2006. [Google Scholar]
  21. Gatteschi, D.; Sessoli, R.; Cornia, A. Single-molecule magnets based on iron(III) oxo clusters. Chem. Commun. 2000, 725–732. [Google Scholar] [CrossRef]
  22. Moushi, E.E.; Stamatatos, T.C.; Wernsdorfer, W.; Nastopoulos, V.; Christou, G.; Tasiopoulos, A.J. A Family of 3D coordination polymers composed of Mn19 magnetic units. Angew. Chem. 2006, 118, 7886–7889. [Google Scholar] [CrossRef]
  23. Moushi, E.E.; Stamatatos, T.C.; Wernsdorfer, W.; Nastopoulos, V.; Christou, G.; Tasiopoulos, A.J. A Mn17 octahedron with a giant ground-state spin: Occurrence in discrete form and as multidimensional coordination polymers. Inorg. Chem. 2009, 48, 5049–5051. [Google Scholar] [CrossRef]
  24. Moushi, E.E.; Stamatatos, T.C.; Wernsdorfer, W.; Nastopoulos, V.; Christou, G.; Tasiopoulos, A.J. 1-D coordination polymers consisting of a high-spin Mn17 octahedral unit. Polyhedron 2009, 28, 1814–1817. [Google Scholar] [CrossRef]
  25. Hessel, L.W.; Romers, C. The crystal structure of “anhydrous manganic acetate”. Recl. Trav. Chim. Pays-Bas 1969, 88, 545–552. [Google Scholar] [CrossRef]
  26. Albores, P.; Rentschler, E. Structural and magnetic characterization of a μ-1,5-dicyanamide-bridged iron basic carboxylate [Fe3O(O2C(CH3)3)6] 1D chain. Inorg. Chem. 2008, 47, 7960–7962. [Google Scholar] [CrossRef]
  27. Long, D.L.; Kögerler, P.; Farrugia, L.J.; Cronin, L. Linking chiral clusters with molybdate building blocks: From homochiral helical supramolecular arrays to coordination helices. Chem. Asian J. 2006, 1, 352–357. [Google Scholar] [CrossRef]
  28. Wu, Q.L.; Han, S.D.; Wang, Q.L.; Zhao, J.P.; Ma, F.; Jiang, X.; Liu, F.C.; Bu, X.H. Divalent metal ions modulated strong frustrated M(II)–Fe(III)3O (M = Fe, Mn, Mg) chains with metamagnetism only in a mixed valence iron complex. Chem. Commun. 2015, 51, 15336–15339. [Google Scholar] [CrossRef] [PubMed]
  29. Baca, S.G.; Malaestean, I.L.; Keene, T.D.; Adams, H.; Ward, M.D.; Hauser, J.; Neels, A.; Decurtins, S. One-dimensional manganese coordination polymers composed of polynuclear cluster blocks and polypyridyl linkers: Structures and properties. Inorg. Chem. 2008, 47, 11108–11119. [Google Scholar] [CrossRef]
  30. Dulcevscaia, G.M.; Filippova, I.G.; Speldrich, M.; Leusen, J.; Kravtsov, V.C.; Baca, S.G.; Kögerler, P.; Liu, S.X.; Decurtins, S. Cluster-based networks: 1D and 2D coordination polymers based on {MnFe2(μ3-O)}-type clusters. Inorg. Chem. 2012, 51, 5110–5117. [Google Scholar] [CrossRef] [PubMed]
  31. Polunin, R.A.; Kiskin, M.A.; Cador, O.; Kolotilov, S.V. Coordination polymers based on trinuclear heterometallic pivalates and polypyridines: Synthesis, structure, sorption and magnetic properties. Inorg. Chim. Acta 2012, 380, 201–210. [Google Scholar] [CrossRef]
  32. Lytvynenko, A.S.; Kiskin, M.A.; Dorofeeva, V.N.; Mishura, A.M.; Titov, V.E.; Kolotilov, S.V.; Eremenko, I.L.; Novotortsev, V.M. Redox-active porous coordination polymer based on trinuclear pivalate: Temperature-dependent crystal rearrangement and redox-behavior. J. Solid State Chem. 2015, 223, 122–130. [Google Scholar] [CrossRef]
  33. Sotnik, S.A.; Polunin, R.A.; Kiskin, M.A.; Kirillov, A.M.; Dorofeeva, V.N.; Gavrilenko, K.S.; Eremenko, I.L.; Novotortsev, V.M.; Kolotilov, S.V. Heterometallic coordination polymers assembled from trigonal trinuclear Fe2Ni-pivalate blocks and polypyridine spacers: Topological diversity, sorption, and catalytic properties. Inorg. Chem. 2015, 54, 5169–5181. [Google Scholar] [CrossRef] [PubMed]
  34. Lytvynenko, A.S.; Polunin, R.A.; Kiskin, M.A.; Mishura, A.M.; Titov, V.E.; Kolotilov, S.V.; Novotortsev, V.M.; Eremenko, I.L. Electrochemical and electrocatalytic characteristics of coordination polymers based on trinuclear pivalates and heterocyclic bridging ligands. Theor. Exp. Chem. 2015, 51, 54–61. [Google Scholar] [CrossRef]
  35. Zheng, Y.Z.; Tong, M.L.; Xue, W.; Zhang, W.X.; Chen, X.M.; Grandjean, F.; Long, G.J. A “Star” antiferromagnet: A polymeric iron(III) acetate that exhibits both spin frustration and long-range magnetic ordering. Angew. Chem. Int. Ed. 2007, 46, 6076–6080. [Google Scholar] [CrossRef]
  36. Lytvynenko, A.S.; Kolotilov, S.V.; Cador, O.; Gavrilenko, K.S.; Golhen, S.; Ouahab, L.; Pavlishchuk, V.V. Porous 2D coordination polymeric formate built up by Mn(II) linking of Fe3O units: Influence of guest molecules on magnetic properties. Dalton Trans. 2009, 3503–3509. [Google Scholar] [CrossRef]
  37. Polunin, R.A.; Kolotilov, S.V.; Kiskin, M.A.; Cador, O.; Mikhalyova, E.A.; Lytvynenko, A.S.; Golhen, S.; Ouahab, L.; Ovcharenko, V.I.; Eremenko, I.L.; et al. Topology control of porous coordination polymers by building block symmetry. Eur. J. Inorg. Chem. 2010, 5055–5057. [Google Scholar] [CrossRef]
  38. Dorofeeva, V.N.; Kolotilov, S.V.; Kiskin, M.A.; Polunin, R.A.; Dobrokhotova, Z.V.; Cador, O.; Golhen, S.; Ouahab, L.; Eremenko, I.; Novotortsev, V. 2D Porous honeycomb polymers versus discrete nanocubes from trigonal trinuclear complexes and ligands with variable topology. Chem. Eur. J. 2012, 18, 5006–5012. [Google Scholar] [CrossRef] [PubMed]
  39. Botezat, O.; van Leusen, J.; Kravtsov, V.C.; Filippova, I.G.; Hauser, J.; Speldrich, M.; Hermann, R.P.; Krämer, K.W.; Liu, S.-X.; Decurtins, S.; et al. Interpenetrated (8,3)-c and (10,3)-b metal–organic frameworks based on {FeIII3} and {FeIII2CoII} pivalate spin clusters. Cryst. Growth. Des. 2014, 14, 4721–4728. [Google Scholar] [CrossRef]
  40. Zhao, J.P.; Han, S.D.; Jiang, X.; Xu, J.; Chang, Z.; Bu, X.H. A three dimensional magnetically frustrated metal–organic framework via the vertices augmentation of underlying net. Chem. Commun. 2015, 51, 4627–4630. [Google Scholar] [CrossRef] [PubMed]
  41. Speldrich, M.; van Leusen, J.; Kögerler, P. CONDON 3.0: An updated software package for magnetochemical analysis - all the way to polynuclear actinide complexes. J. Comput. Chem. 2018, 39, 2133–2145. [Google Scholar] [CrossRef] [PubMed]
  42. van Leusen, J.; Speldrich, M.; Schilder, H.; Kögerler, P. Comprehensive insight into molecular magnetism via CONDON: Full vs. Effective Models. Coord. Chem. Rev. 2015, 289–290, 137–148. [Google Scholar] [CrossRef] [Green Version]
  43. Baca, S.G.; Filippova, I.G.; Keene, T.D.; Botezat, O.; Malaestean, I.L.; Stoeckli-Evans, H.; Kravtsov, V.C.; Chumacov, I.; Liu, S.-X.; Decurtins, S. Iron(III)-pivalate-based complexes with tetranuclear {Fe4(μ3-O)2}8+ cores and N-donor ligands: Formation of cluster and polymeric architectures. Eur. J. Inorg. Chem. 2011, 3, 356–367. [Google Scholar] [CrossRef]
  44. Wang, S.; Tsai, H.L.; Folting, K.; Martin, J.M.; Hendrickson, D.N.; Christou, G. Covalent linkage of [Mn4O2(O2CPh)6(dbm)2] into a dimer and a one-dimensional polymer (dbmH = dibenzoylmethane). Chem. Commun. 1994, 671–673. [Google Scholar] [CrossRef]
  45. Huang, D.; Zhang, X.; Ma, C.; Chen, H.; Chen, C.; Liu, Q.; Zhang, C.; Liao, D.; Li, L. Aggregation of tetranuclear Mn building blocks with alkali ion. Syntheses, crystal structures and chemical behaviors of monomer, dimer and polymer containing [Mn4(µ3-O)2]8+ units. Dalton Trans. 2007, 680–688. [Google Scholar] [CrossRef]
  46. Nakata, K.; Miyasaka, H.; Sugimoto, K.; Ishii, T.; Sugiura, K.; Yamashita, M. Construction of a one-dimensional chain composed of Mn6 clusters and 4,4′-bipyridine linkers: The first step for creation of “Nano-Dots-Wires”. Chem. Lett. 2002, 31, 658–659. [Google Scholar] [CrossRef]
  47. Ma, C.-B.; Hu, M.Q.; Chen, H.; Chen, C.N.; Liu, Q.T. Aggregation of hexanuclear, mixed-valence manganese oxide clusters linked by propionato ligands to form a one-dimensional polymer [Mn6O2(O2CEt)10(H2O)4]n. Eur. J. Inorg. Chem. 2008, 5274–5280. [Google Scholar] [CrossRef]
  48. Moushi, E.E.; Tasiopoulos, A.J.; Manos, M.J. Synthesis and structural characterization of a metal cluster and a coordination polymer based on the [Mn6(μ4-O)2]10+ unit. Bioinorg. Chem. Appl. 2010, 367128. [Google Scholar] [CrossRef]
  49. Malaestean, I.L.; Kravtsov, V.C.; Speldrich, M.; Dulcevscaia, G.; Simonov, Y.A.; Lipkowski, J.; Ellern, A.; Baca, S.G.; Kögerler, P. One-dimensional coordination polymers from hexanuclear manganese carboxylate clusters featuring a {MnII4MnIII2(μ4-O)2} core and spacer linkers. Inorg. Chem. 2010, 49, 7764–7772. [Google Scholar] [CrossRef]
  50. Darii, M.; Filippova, I.G.; Hauser, J.; Decurtins, S.; Liu, S.-X.; Kravtsov, V.C.; Baca, S.G. Incorporation of hexanuclear Mn(II,III) carboxylate clusters with a {Mn6O2} core in polymeric structures. Crystals 2018, 8, 100. [Google Scholar] [CrossRef] [Green Version]
  51. Ovcharenko, V.; Fursova, E.; Romanenko, G.; Ikorskii, V. Synthesis and structure of heterospin compounds based on the [Mn6(O)2Piv10]-cluster unit and nitroxide. Inorg. Chem. 2004, 43, 3332–3334. [Google Scholar] [CrossRef] [PubMed]
  52. Baca, S.G.; Secker, T.; Mikosch, A.; Speldrich, M.; van Leusen, J.; Ellern, A.; Kögerler, P. Avoiding magnetochemical overparametrization, exemplified by one-dimensional chains of hexanuclear iron(III) pivalate clusters. Inorg. Chem. 2013, 52, 4154–4156. [Google Scholar] [CrossRef] [PubMed]
  53. Fursova, E.Y.; Ovcharenko, V.I.; Bogomyakov, A.S.; Romanenko, G.V. Structure of the complex of hexanuclear manganese pivalate with isonicotinamide. J. Struct. Chem. 2013, 54, 164–167. [Google Scholar] [CrossRef]
  54. Malaestean, I.L.; Ellern, A.; van Leusen, J.; Kravtsov, V.C.; Kögerler, P.; Baca, S.G. Cluster-based networks: Assembly of a (4,4) layer and a rare T-shaped bilayer from [MnIII2MnII4O2(RCOO)10] coordination clusters. Cryst. Eng. Comm. 2014, 16, 6523–6525. [Google Scholar] [CrossRef]
  55. Kar, P.; Haldar, R.; Gómez-García, C.J.; Ghosh, A. Antiferromagnetic porous metal–organic framework containing mixed-valence [MnII4MnIII2(μ4-O)2]10+ units with catecholase activity and selective gas adsorption. Inorg. Chem. 2012, 51, 4265–4273. [Google Scholar] [CrossRef]
Chemistry 03 00023 g001 550
Figure 1. A linear 1D chain in {[Mn3O(is)6(hmta)2]·EtOH}n (1) CCP [29]. H atoms and solvent (EtOH) molecules are omitted for clarity. Color codes: C, gray; N, blue; O red sticks. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.
Figure 1. A linear 1D chain in {[Mn3O(is)6(hmta)2]·EtOH}n (1) CCP [29]. H atoms and solvent (EtOH) molecules are omitted for clarity. Color codes: C, gray; N, blue; O red sticks. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.
Chemistry 03 00023 g001
Chemistry 03 00023 g002 550

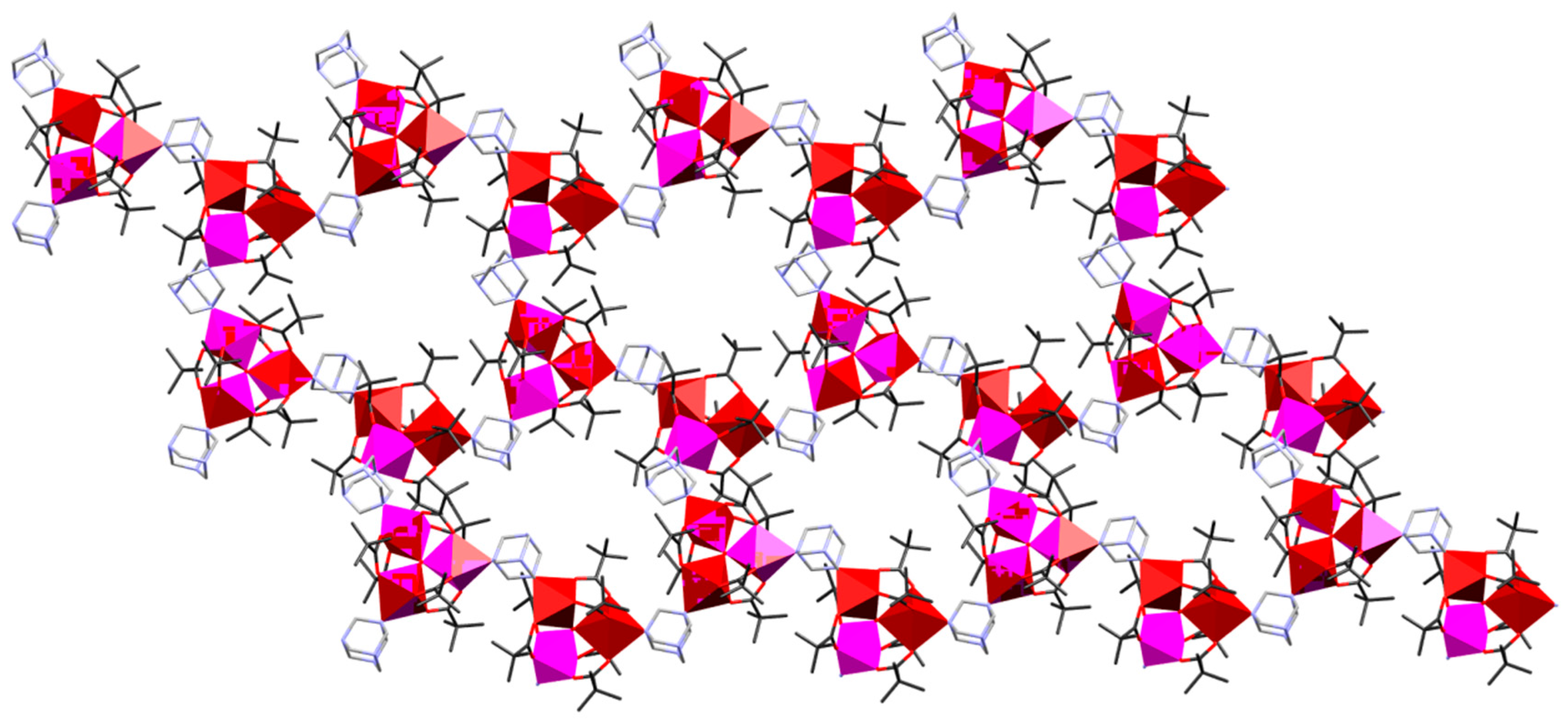

Figure 2. A heterometallic 2D layer in {[Fe2MnO(piv)6(hmta)1.5]·toluene}n (4) CCP [30]. H atoms and solvent toluene molecules are omitted for clarity. Color codes: C, gray; N, blue; O red sticks and Fe/Mn atoms are shown as brown/magenta coordination polyhedra. C atoms in carboxylates are shown as black sticks.
Figure 2. A heterometallic 2D layer in {[Fe2MnO(piv)6(hmta)1.5]·toluene}n (4) CCP [30]. H atoms and solvent toluene molecules are omitted for clarity. Color codes: C, gray; N, blue; O red sticks and Fe/Mn atoms are shown as brown/magenta coordination polyhedra. C atoms in carboxylates are shown as black sticks.
Chemistry 03 00023 g002
Chemistry 03 00023 g003 550

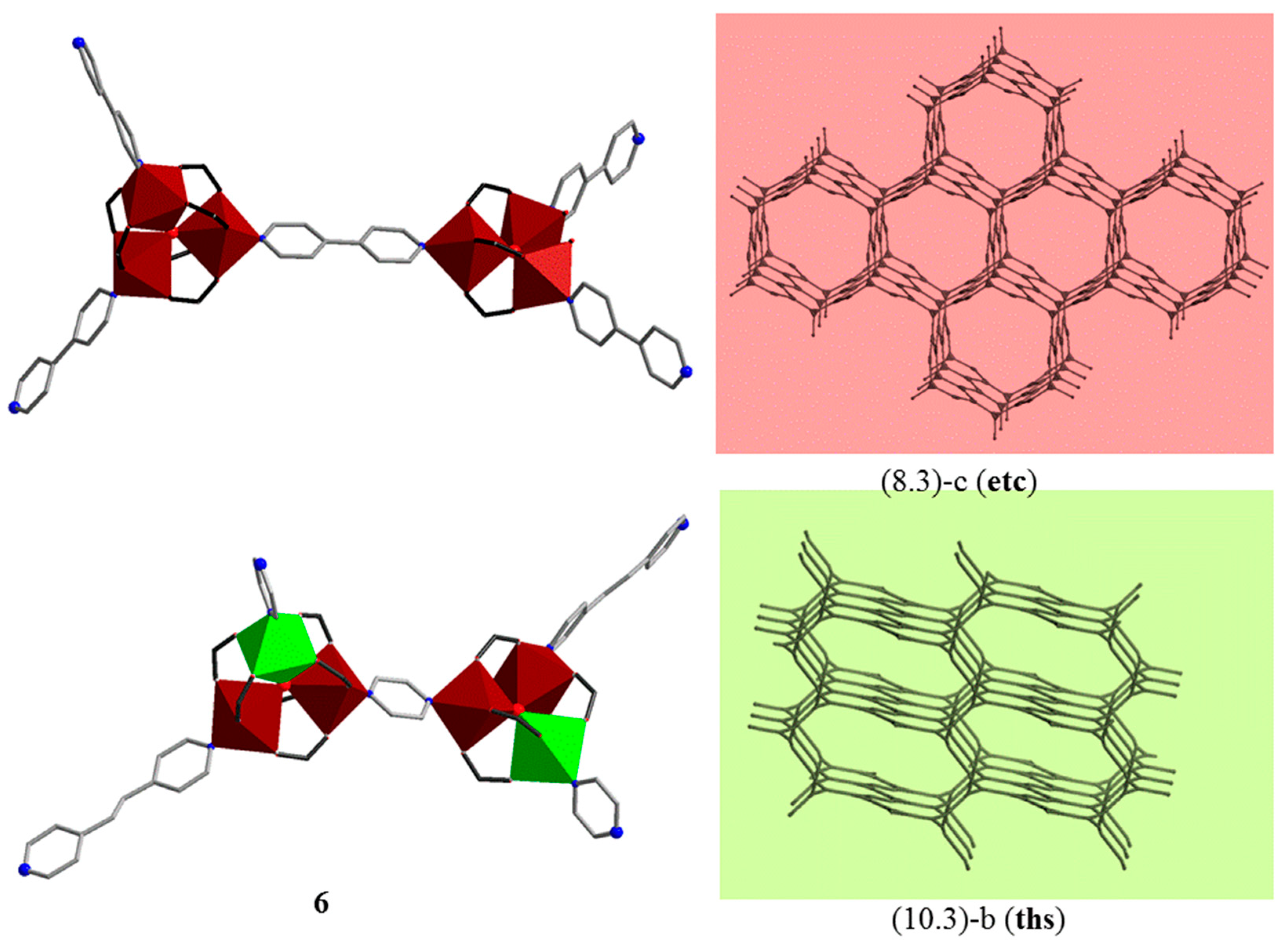

Figure 3. 3D layers in {[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n (5) and [Fe2CoO(piv)6(bpe)0.5(pyz)]n (6) CCPs [39]. H atoms and CMe3 groups are omitted for clarity. Color codes: Fe, brown; Co, green coordination polyhedra; C, gray sticks; N, blue; O red spheres. C atoms in carboxylates are shown as black sticks.
Figure 3. 3D layers in {[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n (5) and [Fe2CoO(piv)6(bpe)0.5(pyz)]n (6) CCPs [39]. H atoms and CMe3 groups are omitted for clarity. Color codes: Fe, brown; Co, green coordination polyhedra; C, gray sticks; N, blue; O red spheres. C atoms in carboxylates are shown as black sticks.
Chemistry 03 00023 g003
Chemistry 03 00023 g004 550

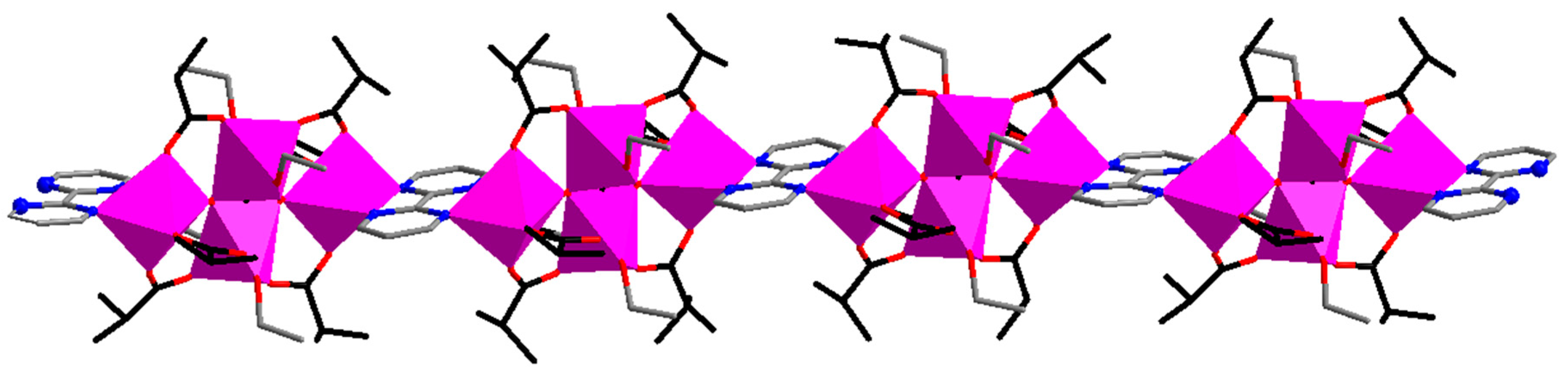

Figure 4. A linear 1D chain in [Mn4O2(is)6(bpm)(EtOH)4]n (7) CCP [29]. H atoms are omitted for clarity. Color codes: C, gray; O red sticks; N, blue spheres. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.
Figure 4. A linear 1D chain in [Mn4O2(is)6(bpm)(EtOH)4]n (7) CCP [29]. H atoms are omitted for clarity. Color codes: C, gray; O red sticks; N, blue spheres. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.
Chemistry 03 00023 g004
Chemistry 03 00023 g005 550
Figure 5. A zigzag 1D chain in [Fe4O2(piv)8(hmta)]n (8) CCP [43]. H atoms are omitted for clarity. Color codes: C, gray; O red sticks; N, blue spheres. C atoms in carboxylates are shown as black sticks, and Fe atoms are shown as brown coordination polyhedra.
Figure 5. A zigzag 1D chain in [Fe4O2(piv)8(hmta)]n (8) CCP [43]. H atoms are omitted for clarity. Color codes: C, gray; O red sticks; N, blue spheres. C atoms in carboxylates are shown as black sticks, and Fe atoms are shown as brown coordination polyhedra.
Chemistry 03 00023 g005
Chemistry 03 00023 g006 550
Figure 6. 1D meander-like chain in {[Mn6O2(is)10(His)(EtOH)(bpea)]·His}n (14) CCP [49]. H atoms and solvate His are omitted for clarity. Color codes: C, gray; O red sticks; N, blue spheres. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.
Figure 6. 1D meander-like chain in {[Mn6O2(is)10(His)(EtOH)(bpea)]·His}n (14) CCP [49]. H atoms and solvate His are omitted for clarity. Color codes: C, gray; O red sticks; N, blue spheres. C atoms in carboxylates are shown as black sticks, and Mn atoms are shown as magenta coordination polyhedra.
Chemistry 03 00023 g006
Chemistry 03 00023 g007 550
Figure 7. A 1D chain in [Fe6O2(O2CH2)(piv)12(diox)]n (15) [52]. H atoms are omitted for clarity. Color codes: C, gray; O red sticks. C atoms in carboxylates are shown as black sticks, and Fe atoms are shown as brown coordination polyhedra.
Figure 7. A 1D chain in [Fe6O2(O2CH2)(piv)12(diox)]n (15) [52]. H atoms are omitted for clarity. Color codes: C, gray; O red sticks. C atoms in carboxylates are shown as black sticks, and Fe atoms are shown as brown coordination polyhedra.
Chemistry 03 00023 g007
Chemistry 03 00023 g008 550
Figure 8. (a) A 2D (4,4) layer in [Mn6O2(piv)10(ina)2]n (17) CCP. (b) A rare T-shaped bilayer in {[Mn6O2(is)10(adt-4)2]·thf·3(EtOH)}n (19) CCP [54]. H atoms and solvent molecules are omitted for clarity. Color codes: C, gray sticks; O red; N, blue; S, yellow spheres. Mn atoms are shown as magenta coordination polyhedra.
Figure 8. (a) A 2D (4,4) layer in [Mn6O2(piv)10(ina)2]n (17) CCP. (b) A rare T-shaped bilayer in {[Mn6O2(is)10(adt-4)2]·thf·3(EtOH)}n (19) CCP [54]. H atoms and solvent molecules are omitted for clarity. Color codes: C, gray sticks; O red; N, blue; S, yellow spheres. Mn atoms are shown as magenta coordination polyhedra.
Chemistry 03 00023 g008
Table
Table 1. Cluster-based coordination polymers (CCPs) built up from Fe/Mn-oxo pivalates and isobutyrates.
Table 1. Cluster-based coordination polymers (CCPs) built up from Fe/Mn-oxo pivalates and isobutyrates.
CodeFormulaeOxo Building BlockLinker 1DimensionalityRefs
1{[Mn3O(is)6(hmta)2]·EtOH}n{MnIII2MnIIO}hmta1D[29]
2{[Fe2MnO(piv)6(hmta)2]·0.5(MeCN)}n{FeIII2MnIIO}hmta1D[30]
3{[Fe2MnO(piv)6(hmta)2]·Hpiv·n-hexane}n{FeIII2MnIIO}hmta1D[30]
4{[Fe2MnO(piv)6(hmta)1.5]·toluene}n{FeIII2MnIIO}hmta2D[30]
5{[Fe3O(piv)6(4,4′-bpy)1.5](OH)·0.75(dcm)·8(H2O)}n{FeIII3O}4,4′-bpy3D[39]
6[Fe2CoO(piv)6(bpe)0.5(pyz)]n{FeIII2CoIIO}bpe, pyz3D[39]
7[Mn4O2(is)6(bpm)(EtOH)4]n{MnIII2MnII2O2}bpm1D[29]
8[Fe4O2(piv)8(hmta)]n{FeIII4O2}hmta1D[43]
9{[Mn6O2(piv)10(Hpiv)(EtOH)(na)]·EtOH·H2O}n{MnIII2MnII4O2}na1D[49]
10[Mn6O2(piv)10(Hpiv)2(en)]n{MnIII2MnII4O2}en1D[50]
11{[Mn6O2(is)10(pyz)3]·2(H2O)}n{MnIII2MnII4O2}pyz1D[49]
12[Mn6O2(is)10(pyz)(MeOH)2]n{MnIII2MnII4O2}pyz1D[50]
13{[Mn6O2(is)10(pyz)1.5(H2O)]·0.5(H2O)}n{MnIII2MnII4O2}pyz1D[50]
14{[Mn6O2(is)10(His)(EtOH)(bpea)]·His}n{MnIII2MnII4O2}bpea1D[49]
15[Fe6O2(O2CH2)(piv)12(diox)]n{FeIII6O2}diox1D[52]
16[Fe6O2(O2CH2)(piv)12(4,4′-bpy)]n{FeIII6O2}4,4′-bpy1D[52]
17[Mn6O2(piv)10(ina)2]n{MnIII2MnII4O2}ina2D[54]
18{[Mn6O2(piv)10(adt-4)2]·2(thf)}n{MnIII2MnII4O2}adt-42D[54]
19{[Mn6O2(is)10(adt-4)2]·thf·3(EtOH)}n{MnIII2MnII4O2}adt-42D[54]
1 hmta = hexamethylenetetramine; 4,4′-bpy = 4,4′-bipyridine; bpe = 1,2′-bis(4-pyridyl)ethylene; pyz = pyrazine; bpm = 2,2′-bipyrimidine; na = nicotinamide; en = ethyl nicotinate; bpea = 1,2-bis(4-pyridiyl)ethane; diox = 1,4-dioxane; ina = isonicotinamide; adt-4 = aldrithiol.
