Article

Interactions of Small-Molecule Guests with Interior and Exterior Surfaces of a Coordination Cage Host

by
Christopher G. P. Taylor
1,
Jennifer S. Train
2 and
Michael D. Ward
1,*
1
Department of Chemistry, University of Warwick, Coventry CV4 7AL, UK
2
Department of Chemistry, University of Sheffield, Western Bank, Sheffield S3 7HF, UK
*
Author to whom correspondence should be addressed.
Chemistry 2020, 2(2), 510-524; https://doi.org/10.3390/chemistry2020031
Submission received: 15 May 2020 / Revised: 29 May 2020 / Accepted: 1 June 2020 / Published: 2 June 2020
(This article belongs to the Special Issue 2020 Profile Papers by Chemistry' Editorial Board Members)
Browse Figures
Versions Notes

Abstract

:
Coordination cages are well-known to act as molecular containers that can bind small-molecule guests in their cavity. Such cavity binding is associated with interactions of the guests with the surrounding set of surfaces that define the cavity; a guest that is a good fit for the cavity will have many favourable interactions with the interior surfaces of the host. As cages have exterior as well as interior surfaces, possibilities also exist for ‘guests’ that are not well-bound in the cavity to interact with the exterior surface of the cage where spatial constraints are fewer. In this paper, we report a combined solid-state and solution study using an octanuclear cubic M8L12 coordination cage which illustrates the occurrence of both types of interaction. Firstly, crystallographic studies show that a range of guests bind inside the cavity (either singly or in stacked pairs) and/or interact with the cage exterior surface, depending on their size. Secondly, fluorescence titrations in aqueous solution show how some flexible aromatic disulfides show two separate types of interaction with the cage, having different spectroscopic consequences; we ascribe this to separate interactions with the exterior surface and the interior surface of the host cage with the former having a higher binding constant. Overall, it is clear that the idea of host/guest interactions in molecular containers needs to take more account of external surface interactions as well as the obvious cavity-based binding.

Graphical Abstract

1. Introduction

As part of the study of coordination cages—hollow, self-assembled metal-ligand capsules—there is a great deal of emphasis on guest binding in the internal space [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29]. Functions such as catalysis [6,7,8,9,10,11,12], substrate transport [13,14,15,16], sensing [17] and enantioselective recognition and separation [18] are all based around guest binding inside the host cage, and consequently, a huge amount of work exists on the study of cage-based host/guest interactions. This includes the synthesis of cages that are engineered with interior binding sites to facilitate guest binding [19,20]; quantification of guest binding constants and analysis of the factors responsible for guest binding [21,22,23,24] including co-encapsulation of multiple guests [25,26,27]; and studies of how specific guests act as templates for host cage assembly [28,29].
Despite this focus almost exclusively on the cages’ interior spaces, more recently, attention has started to turn to their exterior surfaces, which may also possess the ability to interact with small-molecule guests. The cages reported from our group often—in addition to accommodating guests inside the cavities—bind anions in the ‘windows’ on cage surfaces, in regions close to metal cations where a large number of CH···X– hydrogen bonds can form between the cage surface and anions X– [30,31]. Nitschke [32] and Raymond [33] have likewise demonstrated interaction of small molecules or counter-ions with cage exterior surfaces.
It is almost a statement of the extremely obvious to point out that cage-based host/guest chemistry is not about the cage cavity per se but is really about the disposition of the interior surfaces which define the cavity. When guests bind inside a cage cavity, the cage/guest interactions responsible for the binding are interactions of the guest with the cage interior surfaces, whether they are hydrogen-bonding, van der Waals’ or hydrophobic interactions, and will be maximised when the guest size and shape are a good match for the cavity such that host and guest surfaces are complementary. However, these interior surfaces will be matched by chemically similar exterior surfaces which inevitably have a larger surface area. It follows that any small molecule/surface interactions that are responsible for guest binding inside a cavity could equally well apply to interactions with the exterior surface, so even if the guest is not a good shape/size match for the interior cavity, favourable interactions with the cage exterior are still possible. The number of favourable contacts will necessarily be smaller as the guest is not perfectly encapsulated, but the larger surface area of the cage exterior compared to its interior will mitigate this to some extent.
In our own recent research, we have identified examples of cage-based catalysis between neutral substrates interacting with the cage by the hydrophobic effect, and anions attracted to the cage surface via ion-pairing effects [31,34,35,36]. The most effective catalysis (examples of the Kemp elimination) occurs with the cavity-bound guest benzisoxazole, as shown by the fact that blocking the cage cavity with an inert inhibitor and displacing the benzisoxazole stops catalysis in this case [34]. However less dramatic—but still significant—catalysis occurs at the cage exterior surface in the case of (i) hydrolysis of phosphotriesters which bind only weakly or not at all in the cage cavity [35], and (ii) the aldol self-condensation of indane-1,3-dione [36]. In both of these cases, preventing the guest from entering the cage cavity by blocking the cavity with a competing inhibitor makes no difference to the catalysis rate. We have also noticed in our structural studies of cage/guest assembles that, in a few cases, ‘guest’ molecules in the crystal lattice can occupy positions in the lattice outside the cage cavities that allow them to interact with cage exterior surfaces as well as occupying the cage cavities [35,36,37].
A clear picture is emerging that the exterior surfaces of cages, and their interactions with guests, may be just as important as the cavity-based binding of guests which has been the dominant focus of cage-based host/guest chemistry. In this paper, we present a combined structural and solution study that extends this principle further, with a set crystal structures of host/guest complexes based on our M8L12 cubic host cage which show either interior, or exterior, guest binding (or both); and a set of solution spectroscopic titrations showing two-step behaviour which can be ascribed to distinct cavity-based and external surface-based guest binding events.

2. Materials and Methods

The Co(II)-based cages H (as the tetrafluoroborate salt) [38], HCo (as the chloride salt) [31] and the isostructural Cd(II) cage HCd [39] (see main text for definitions of these abbreviations) were prepared as previously described. All organic guest species were purchased from Sigma-Aldrich (Gillingham, UK). Instrumentation used for routine spectroscopic measurements was as follows: 1H-NMR spectroscopy, a Bruker Avance 400 MHz instrument; fluorescence spectra, a Horiba Jobin-Yvon Fluoromax 4 instrument (Northampton, UK). 1H NMR titrations and fluorescence titrations used to evaluate cage/guest binding were performed as described in previous papers [21,22,39,40]. Molecular volumes were calculated with SPARTAN18 [41].
The X-ray crystallographic data for the five cage/guest complexes reported in this paper were collected in Experiment Hutch 1 of beamline I-19 at the UK Diamond Light Source synchrotron facility [42] using the automatic sample-changing robot [43]. Full details of the instrumentation, methods used for data collection, and software used for the solution and refinement of the structures, are as recently published [37]. Crystallographic, data collection and refinement parameters are collected in Table 1 (see CIF for details, Supplementary Materials). CCDC deposition numbers: 2006973–2006977.

3. Results

3.1. The Cage Hosts

The set of host/guest structures we report here is based on the octanuclear cubic cage [Co8L12](BF4)16 (abbreviated as H, for ‘host’) that we have studied extensively [21,22,23,24,30,31,34,35,36,37,38,39,40] (Figure 1). It has a cavity volume of 409 Å3 [37]. We have found that the best way to introduce guests into the cavity to give single crystals of the adducts is to use the ‘crystalline sponge’ methodology pioneered by Fujita [44,45], in which we pre-prepare a batch of single crystals of the cage whose cavity is empty apart from solvent molecules, and immerse a crystal in a concentrated solution of the guest for several hours. In a significant number of cases, guests are taken up into the crystals without loss of crystallinity and the structure of the cage/guest complex can be determined [22,36,37,40].

3.2. Structures of Cage/Guest Complexes

The first example we describe is the complex of H with di(2-pyridyl)disulfide (G2Py) which we were interested in because of the possibility of cage-to-guest photoinduced electron transfer in the complex [39,40]; views of the structure are shown in Figure 2 and Figure 3. The guest is folded up inside the cavity with a C-S-S-C torsion angle of 76°, and the two pyridyl rings on the same side of the disulfide bond, affording the typical skewed chiral conformation [46]; Figure 2 shows a space-filling view of the guest inside a wireframe view of the cage. As is usual with a guest bound inside this cage, the guest is anchored by a collection of weak hydrogen-bonding interactions between the electron-rich S atom and a convergent set of inwardly-directed CH protons associated with the fac tris-chelate vertices, in a region of high positive electrostatic potential [47]. Thus, S(17G) forms CH···S interactions with H(54C) (2.82 Å), H(46F) (3.08 Å) and H(61D) (3.12 Å) as well as several longer interactions; and the adjacent pyridyl ring N atom N(11G) likewise forms some short CH···N contacts with, e.g., H(54F) (2.59 Å) and H(54C) (2.90 Å) (Figure 3). The equivalent H-bonding pocket at the diagonally opposite corner of the cage interior surface contains two MeOH molecules which likewise form CH···O interactions with the cage interior surface. The two pockets are crystallographically equivalent—there is an inversion centre in the cage/guest assembly—such that the content of the two binding pockets (one G2Py guest, or a pair of MeOH molecules) are disordered over both sites. As often happens in crystalline sponge experiments, the occupancy of the cage cavity is not complete: the site occupancy of G2Py is 0.28 per asymmetric unit (0.56 per complete cage), and the two MeOH molecules have site occupancies of 0.5 and 0.72 per asymmetric unit (totalling 2.44 MeOH molecules per complete cage).
The guest G2Py has a molecular volume of 209 Å2 and therefore occupies 51% of the cavity volume. The stoichiometry of H·(G2Py)0.5(MeOH)2.5 is a compositional average: if we assume that some of the cages may contain one G2Py guest in one pocket, and two MeOH molecules in the other as the maximum possible occupancy, the total volume of combined guests is 291 Å3, which would be 71% of the cavity volume. This is somewhat higher than the optimal range of 55% ± 9% for the volume of a guest (or combination of guests) compared to the volume of a host cavity [48,49], but significantly less than what we observed when a cavity contained a stacked pair of aromatic guests in close proximity [27].
The second example of a cavity-bound guest comes from 3,4,5,6-tetrachloro-1,2-benzoquinone (BQ), whose binding in a luminescent but isostructural M8L12 cubic cage was studied recently in the context of cage-to-guest photoinduced electron-transfer [39]. Figure 4 shows the structure of the complete cage/guest complex. The guest is disordered over two orientations, with a site occupancy of 0.25 in each position, giving 50% occupancy of the guest in the cavity overall. There are multiple CH···X (X = O, Cl) contacts between the interior surface of the cage and the BQ guest including O(21G)···(H53F), 2.83 Å; O(22G)···(H54F), 2.93 Å; and several CH···Cl contacts of < 3 Å. In this case the disc-like shape and rigidity of the guest prevents any one electron-rich atom from protruding into the H-bond donor pockets on the cage interior surfaces, as happens with more flexible guests [47], but the range of interactions between the cage interior surface and electron-rich guest atoms is clear. Importantly, the maximum dimension of 6.35 Å between atom centres on opposite sides of the guest, from Cl(23) to Cl(26), is small enough for the guest to fit without any difficulties; this distance may be compared to the separation of 7.71 Å between a para-oriented pair of nitrile N atoms in 1,2,4,5-tetracyanobenzene which fits inside the cage H [40], spanning the long diagonal; and the separation of 7.73 Å between the two most highly separated atoms of 4-methyl-7-amino-coumarin (amine proton, and carbonyl O atom) which—like many other coumarin derivatives—also fits inside the host cage H [37]. The molecular volume of BQ is 162 Å3, so in this 1:1 cage–guest complex, the cavity occupancy is 40%.
With 7-methoxycoumarin (MC), however, the additional size of the exocyclic substituent compared to 4-methyl-7-amino-coumarin (a CH3O substituent instead of an NH2 substituent at the coumarin C7 position) means that the molecule is now too long (ca. 9 Å) to fit inside the cage cavity even though, with a molecular volume of 176 Å3, it is only 43% of the cage cavity volume. The crystalline sponge experiment using crystals of H soaked in a concentrated solution of MC showed that the MC molecules, one per cage, were taken up into the lattice in the spaces between cage molecules with no uptake of MC into the cage cavity (Figure 5). The MC molecules form partially overlapping stacked pairs with a separation of ca. 3.6 Å between overlapping segments. Whereas one face of each MC is stacked with a symmetry-equivalent neighbour, the other face is in contact with the cages’ exterior surface via a collection of CH···O hydrogen bonds. These contacts involve the coumarin ester O atoms which form hydrogen bonds with pyrazolyl CH protons from one cage complex [O(17G)···H(23C), 2.46 Å; O(16G)···H(44F), 2.74 Å]; and the methoxy O atom which forms a pair of hydrogen bonds with two adjacent pyrazolyl CH protons from an adjacent cage exterior surface [O(25G)···H(44D), 2.77 Å; and O(25G)···H(43D), 2.78 Å]. All three oxygen atoms of the MC molecule therefore participate in CH···O interactions with the exterior surface of cage molecules in just the same way as do guests that lie inside the cage cavity.
Another feature of interest in this structure is that—since there was no uptake of the MC molecules into the cage cavity—the cavity of H is occupied with a network of hydrogen-bonded MeOH molecules. In other structures of cage H, we could generally identify two solvent molecules in the cage cavity (MeOH, water, dmf), one in each of the two H-bond donor pockets of the cage interior surface [21,38,39]. In one case when a pre-formed crystal of H had been soaked in water, we identified a cluster of ten hydrogen-bonded water molecules occupying the cavity, which provided interesting insights into the operation of the hydrophobic effect for guest binding in these cages [24]. In the structure of the H·MC adduct reported here, the use of synchrotron radiation and the resulting higher quality of the structure compared to those obtained with a standard laboratory diffractometer has allowed us to resolve a set of MeOH guest molecules in 4 positions in the asymmetric unit, which consists of half of a cage.
Two of these MeOH molecules are a closely-spaced disordered pair with a combined site occupancy of 1 per asymmetric unit; the other two have site occupancies of 0.75. Overall, the site occupancies of MeOH molecules in the four unique positions in the asymmetric unit [0.75, 0.75, 0.65 and 0.35 for O(11S), O(12S), O(13S) and O(14S), respectively] mean that there are 2.5 MeOH molecules per asymmetric unit, and the average occupancy of the complete cage cavity is therefore five MeOH molecules. However, this is a compositional average in the whole crystal and may reflect the fact that some cavities are fully occupied by six molecules with both O(11S) and O(12S) being present as well as the O(13S)/O(14S) disordered pair. We can see that the set of six MeOH molecules —when they are all present—forms a nicely hydrogen-bonded set (Figure 6) based on OH···O interactions between two pairs of MeOH molecules (signalled by O···O distances of 2.73 Å), and numerous CH···O interactions (signalled by C···O distances in the range 2.4–3 Å), between MeOH molecules and also between two of the MeOH molecules and the H-bond donor pockets of the cage surface (Figure 6b). A MeOH molecule has a volume of 40.7 Å3, so the combined set (244 Å3) occupies 60% of the cavity volume, within the optimal range of the Rebek occupancy rule [48,49].
Finally, in this section, we describe two structures containing acetophenone derivatives as guests—2-methylacetophenone (MA, volume 156 Å3) and 2-methoxyacetophenone (MOA, volume 165 Å3)—in which guests are present in the crystals at both types of site, i.e., within the host cavity and outside the host cavity. In both cases, these guests are small enough, and of the appropriate shape, for a π-stacked pair of guests, lying across an inversion centre, to lie inside the cavity with the carbonyl O atoms docked into the two H-bond donor pockets on the cage interior surface located at the convergent set of CH protons around the fac tris-chelate metal vertices. This arrangement is similar to what we recently observed with a variety of other substituted aromatic guests containing H-bond acceptor substituents that occupied the cavity of H in stacked pairs. Interestingly, the guest BQ, which has a very similar volume to these two, did not form stacked pairs in the cage cavity, presumably because its disc-like shape means that a stacked pair is not ideally matched to the slightly elongated shape of the cavity of H—which does, however, accommodate pairs of the more elongated molecules MA and MOA.
With guest MA, the site occupancy at each of the two equivalent sites inside H is 0.64, i.e., 1.28 MA guests inside each cavity on average (Figure 7a). The shortest CH···O contacts that these form to the cage interior surface are O(22G)···H(61D), 2.49 Å; and O(22G)···H(54C), 2.64 Å (shown in Figure 8a as dotted lines). This pair of guests occupies 76% of the cavity volume. This is considerably higher than usually found in cage/guest complexes but is facilitated by the close association of the guest pair by π-stacking as well as hydrogen-bonding interactions between the guests and the cage interior surface, both of which facilitate a high guest packing density [37,50]. In addition, MA molecules occupy spaces in the lattice outside the cages, one with unit occupancy (but disordered over two closely-spaced sites) and the other with 0.59 occupancy (shared with 0.41 of a MeOH molecule at the same position). As in the structure with guest MC, we see short CH···O contacts between the carbonyl O atom and externally-directed CH groups on the cage surface with H···O separations in the range 2.67–2.97 Å.
The guest MOA behaves very similarly with a stacked pair of guests inside the cavity (see Figure 7b; occupancy of 0.97 in each of the two equivalent positions) and one guest outside the cage with a site occupancy of 0.78. The interior guests form CH···O hydrogen-bond interactions between the carbonyl O atom O(23G) and CH protons around the cage interior H-bond donor pockets, with the shortest of these being O(23G)···H(54F), 2.48 Å; and O(23G)···H(54C), 2.53 Å (Figure 8b). The pair of guests gives a remarkably high cavity occupancy of 80%, which is still, however, some way short of the maximum we have seen of 87% [37]. The exterior guest is oriented such that it forms similarly short contacts to the cage exterior surface with O(23H)···H separations as short as 2.41 Å (to H13E) and 2.52 Å (to H24E).
Overall, this set of structures illustrates the point that was made in the introduction, which is that, whilst cage/guest interactions to the interior surface are involved in internal guest binding, cage/guest interactions can also occur to the exterior surface of host H. In the crystal structures, the most obvious weak interactions are, of course, directional hydrogen-bonding interactions, whereas, in aqueous solution, these will be insignificant because of solvation effects and it is the hydrophobic contacts between host and guest surfaces responsible for binding [21,22], but the same principle can apply—as we have already demonstrated in recent work on reactions between hydrophobic substrates and anions catalysed at the cage exterior surface [35]. In the next section, we show how one specific family of guests can form two distinct types of interaction with other cubic host cages isostructural to H, as shown by luminescence studies, and we propose that these relate to interactions of the guests with interior and exterior surfaces which have different photophysical consequences.

3.3. Cage/Guest Interactions in Solution Studied by Fluorescence Titrations

For the crystalline sponge studies reported above, we used [Co8L12](BF4)16 (H) exclusively, as this forms robust crystals which retain their crystallinity after prolonged soaking in concentrated guest solution. However, as the fluoroborate salt, this is completely insoluble in aqueous solution, so for the solution studies in this section, we converted this cage to its water-soluble chloride salt. In this section, therefore, HCo denotes the octanuclear Co(II) species [Co8L12]Cl16 in its water-solubilised form [31]. In addition, we employed a luminescent variant of this basic cage structure to allow use of luminescence titrations to probe cage/guest interactions. This is the fluorescent Cd8 cage [Cd8(LW)12](NO3)16 in which water-solubility is promoted by the hydroxymethyl groups attached to the pyridyl rings at the C4 position (see Figure 1); we denote this as HCd [39]. The interior cavity is structurally identical between HCo and HCd.
As guests for this solution study, we used some aromatic disulfides, including G2Py, which was also used for the structural studies described above, and GCl [bis-(4-chlorophenyl)disulfide]. Binding of these guests in the cage cavity was established initially by 1H NMR titrations using host HCo. The paramagnetism associated with the high-spin Co(II) ions disperses the 1H NMR signals over the range ca. −100 to +100 ppm, making gradual shifts of individual signals as a guest binds during a titration particularly easy to see [21,22,23,24,35,36,37,38]. The resulting plots of ∆δ as a function of added guest could—as usual—be fit to a 1:1 binding model, yielding binding constants of 2.5 × 103 M−1 for G2Py and 5.0 × 104 M−1 for GCl inside host HCo. The weaker binding of G2Py compared to GCl is consistent with the pyridyl groups providing greater water solubility for G2Py, i.e., it is less hydrophobic than GCl and hydrophobicity is a major contribution to guest binding in water [24].
We next investigated the effect of binding these disulfides on the luminescence of HCd by titrations of the cage with these disulfides in aqueous solution. Given that HCd has a naphthyl π-π* excited state which is a good excited-state electron donor [39], and the disulfides are electron-acceptors via the existence of RSSR/(RSSR)- couples [51], we would expect to see varying degrees of quenching of the host luminescence on guest binding depending on the excited-state redox potential of the host and the redox potential of the disulfide guest.
In all cases, unexpectedly, we observed clear two-step behaviour with an initial increase in luminescence intensity during the early stages of the titration as small amounts of guest were added, quickly followed by the expected progressive quenching. Examples are shown in Figure 9 and Figure 10. In the first case, on titration of the HCd cage with G2Py, an initial increase in fluorescence intensity of ca. 20% in the early stages of the titration (up to addition of ca. 1 equivalent of guest) is then followed by a > 50% reduction in fluorescence intensity as more guest is added (Figure 9). Very similar behaviour is shown by titration of HCd with GCl, with an initial increase in luminescence intensity of 20% followed by a decrease thereafter as the titration progresses (Figure 10). Solubility limitations of GCl prevent this from going to completion, but it is clear that the quenching of fluorescence intensity from the maximum is > 40% by the time the solubility limit of GCl was reached.
We have never seen this two-step change, i.e., an early-stage increase and then a slower decrease in luminescence, in any of our other recent work on measuring guest binding in cages of the H family using luminescence titrations [39,40,52]. It is not simply associated with very slow uptake of guest by the cage as each individual measurement did not change with time, and indeed, during the NMR titration of guest binding, we observed that guest exchange is fast on the NMR timescale with a single set of signals being observed for the cage at an weighted average position for the ‘free’ and ‘bound’ cage at each point during the titration. This new two-stage behaviour implies the presence of two different types of cage/guest interaction with different equilibrium constants and opposite effects: a stronger interaction leading to the increase in luminescence early in the titration as the first equivalent of guest is added, and a weaker interaction which dominates the later stages of the titration as more guest is added, and which leads to the quenching.
Given that guest binding inside the cavities of these cages is expected to provide efficient quenching because of the proximity of the guest to all members of the chromophore array [39,40], we suggest that the second (quenching) component is associated with the disulfide guest binding inside the cage cavity in the manner shown by the crystal structure above. Additional evidence for this comes from the observation that fitting this later part of the spectroscopic titration—the intensity decrease phase, starting from the maximum attained after 1 equivalent of guest—to a 1:1 binding model gives binding constants comparable to those obtained from the NMR titrations. For example, the luminescence quenching in Figure 9b could be fitted to a binding constant of 2.0 × 103 M−1 for the host/guest complex with G2Py (cf. 2.5 × 103 M−1 by 1H NMR using the Co8 cage HCo), and with the HCd/GCl titration, this intensity decay phase afforded a binding constant of 2 × 105 M−1. This is somewhat larger than the value of 5 × 104 M−1 obtained from the NMR titration of the HCo/GCl pair, but we note that HCo and HCd have different counter-ions (chloride vs. nitrate), which affects guest binding constants slightly [31,39]. Fitting the initial phase of the titration (increase in intensity) to a 1:1 binding model was more difficult, as there were few data points from this early stage and the change was basically linear up to addition of the first equivalent of guest, implying an equilibrium constant of >> 105 M−1 for this first interaction (given the concentration of HCd of 10 µM).
We suggest that the initial strong interaction is association of the guest with the exterior surface of the cage driven predominantly by the hydrophobic effect, in the same way that any hydrophobic species tends to aggregate in water. The small increase in luminescence could be explained by an increase in rigidity of the cage for which the majority of the excited states are quenched by non-radiative pathways including molecular vibrations. We have shown before that rigidification of a luminescent cage assembly using a non-chromophoric guest can lead to a modest increase in luminescence intensity [39], and this may compensate for any quenching effects associated with this exterior binding, given that a surface-bound guest will be remote from many of the naphthyl chromophores in the cage and, therefore, not quench them effectively compared to a cavity-bound guest. As guest concentration increases and the cavity starts to become significantly occupied, the quenching behaviour dominates in the later stages of the titrations because the cavity-bound guests are optimally positioned—as close to all of the chromophores in the cage as possible—for the maximum possible quenching effect. The fact that no cage/guest system shows complete quenching is ascribable to the equilibrium between cage/guest complexes and free cage: the limited solubility in water of these hydrophobic and, therefore, poorly water-soluble disulfides prevents the equilibria from being driven near to completion using a large excess of guest. Thus, there is always free (unquenched) cage present.

4. Discussion

Why the two-stage binding behaviour should occur with aromatic disulfides but not with any of the other guests whose binding has previously been examined using luminescence methods [39,40,52] is unclear. We note, however, that all of our previous examples of guest binding examined by luminescence methods have used relatively rigid or compact guests, whereas these disulfides have a more extended shape and greater conformational flexibility associated with torsions around C–S and S–S bonds. On this basis, we propose that, in addition to the cavity-binding of the guest as observed in the H/G2Py crystal structure, there also exists a favourable geometry for these guests to interact with the exterior surface in solution as we have seen in a few other crystal structures with different guests [35,36,37,38].
Overall, the combination of structural studies of host H with a range of small-molecule guests, and the unexpected two-stage luminescence behaviour observed in solution, are consistent with the simple principle that the exterior surfaces of cage hosts provide means for interacting with guests just as much as the interior surfaces do, as has been pointed out by Nitschke [32] and Raymond [33]. This emphasises recent results that we obtained using cages as catalysts for reactions with anions, with hydrophobic association of cage/substrate occurring even when cavity binding was not possible [35]. Synthetic capsule or cage-type hosts remain fascinating targets for study for many reasons and whilst their tailored internal spaces have a major role to play in their functional behaviour, the external surfaces are clearly also significant.

Supplementary Materials

The following are available online at https://www.mdpi.com/2624-8549/2/2/31/s1: crystallographic CIF and CIF-check files.

Author Contributions

Crystalline sponge experiments and X-ray crystallography: C.G.P.T.; fluorescence titrations: J.S.T.; and project conception, supervision and manuscript preparation: M.D.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We thank the Diamond Light Source for the X-ray beamtime (proposal MT19876) and the staff of beamline I-19 for their assistance. Jerico Piper is thanked for providing a sample of HCd. Miss Cristina Mozaceanu, Jerico Piper and Stephen Argent (University of Warwick), and Sarah Barnett (Diamond Light Source), are thanked for assistance with some of the X-ray data collections.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, D.; Ronson, T.K.; Nitschke, J.R. Functional Capsules via Subcomponent Self-Assembly. Acc. Chem. Res. 2018, 51, 2423–2436. [Google Scholar] [CrossRef] [PubMed]
  2. Yoshizawa, M.; Klosterman, J.K.; Fujita, M. Functional molecular flasks: New properties and reactions within discrete, self-assembled hosts. Angew. Chem. Int. Ed. 2009, 48, 3418–3438. [Google Scholar] [CrossRef] [PubMed]
  3. Vardhan, H.; Yusubov, M.S.; Verpoort, F. Self-assembled metal–organic polyhedra: An overview of various applications. Coord. Chem. Rev. 2016, 306, 171–194. [Google Scholar] [CrossRef]
  4. Cook, T.R.; Stang, P. Recent Developments in the preparation and chemistry of metallacycles and metallacages via coordination. Chem. Rev. 2015, 115, 7001–7045. [Google Scholar] [CrossRef] [PubMed]
  5. Chakrabarty, R.; Mukherjee, P.S.; Stang, P. Supramolecular Coordination: Self-Assembly of Finite Two- and Three-Dimensional Ensembles. Chem. Rev. 2011, 111, 6810–6918. [Google Scholar] [CrossRef] [Green Version]
  6. Otte, M. Size-Selective Molecular Flasks. ACS Catal. 2016, 6, 6491–6510. [Google Scholar] [CrossRef]
  7. Jing, X.; He, C.; Zhao, L.; Duan, C. Photochemical Properties of Host–Guest Supramolecular Systems with Structurally Confined Metal–Organic Capsules. Acc. Chem. Res. 2018, 52, 100–109. [Google Scholar] [CrossRef]
  8. Catti, L.; Zhang, Q.; Tiefenbacher, K. Advantages of catalysis in self-assembled molecular capsules. Chem. Eur. J. 2016, 22, 9060–9066. [Google Scholar] [CrossRef]
  9. Brown, C.J.; Toste, F.D.; Bergman, R.G.; Raymond, K.N. Supramolecular Catalysis in Metal–Ligand Cluster Hosts. Chem. Rev. 2015, 115, 3012–3035. [Google Scholar] [CrossRef]
  10. Fang, Y.; Powell, J.A.; Li, E.; Wang, Q.; Perry, Z.; Kirchon, A.; Yang, X.; Xiao, Z.; Zhu, C.; Zhang, L.; et al. Catalytic reactions within the cavity of coordination cages. Chem. Soc. Rev. 2019, 48, 4707–4730. [Google Scholar] [CrossRef]
  11. Gao, W.-X.; Zhang, H.-N.; Jin, G.-X. Supramolecular catalysis based on discrete heterometallic coordination-driven metallacycles and metallacages. Coord. Chem. Rev. 2019, 386, 69–84. [Google Scholar] [CrossRef]
  12. Hong, C.M.; Bergman, R.G.; Raymond, K.N.; Toste, F.D. Self-Assembled Tetrahedral Hosts as Supramolecular Catalysts. Acc. Chem. Res. 2018, 51, 2447–2455. [Google Scholar] [CrossRef] [PubMed]
  13. Grommet, A.B.; Nitschke, J.R. Directed Phase Transfer of an FeII4L4 Cage and Encapsulated Cargo. J. Am. Chem. Soc. 2017, 139, 2176–2179. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Garci, A.; Mbakidi, J.-P.; Chaleix, V.; Sol, V.; Orhan, E.; Therrien, B. Tunable Arene Ruthenium Metallaprisms to Transport, Shield, and Release Porphin in Cancer Cells. Organometallics 2015, 34, 4138–4146. [Google Scholar] [CrossRef]
  15. Mihara, N.; Ronson, T.K.; Nitschke, J.R. Different Modes of Anion Response Cause Circulatory Phase Transfer of a Coordination Cage with Controlled Directionality. Angew. Chem. Int. Ed. 2019, 58, 12497–12501. [Google Scholar] [CrossRef]
  16. Grancha, T.; Carne-Sanchez, A.; Hernández-López, L.; Albalad, J.; Imaz, I.; Juanhuix, J.; Maspoch, D. Phase Transfer of Rhodium(II)-Based Metal–Organic Polyhedra Bearing Coordinatively Bound Cargo Enables Molecular Separation. J. Am. Chem. Soc. 2019, 141, 18349–18355. [Google Scholar] [CrossRef]
  17. Saha, M.L.; Yan, X.; Stang, P. Photophysical Properties of Organoplatinum(II) Compounds and Derived Self-Assembled Metallacycles and Metallacages: Fluorescence and its Applications. Acc. Chem. Res. 2016, 49, 2527–2539. [Google Scholar] [CrossRef]
  18. Zhang, J.; Xie, S.; Zi, M.; Yuan, L. Recent advances of application of porous molecular cages for enantioselective recognition and separation. J. Sep. Sci. 2019, 43, 134–149. [Google Scholar] [CrossRef]
  19. Martí-Centelles, V.; Lawrence, A.L.; Lusby, P.J. High Activity and Efficient Turnover by a Simple, Self-Assembled “Artificial Diels–Alderase”. J. Am. Chem. Soc. 2018, 140, 2862–2868. [Google Scholar] [CrossRef] [Green Version]
  20. Custelcean, R.; Bonnesen, P.V.; Duncan, N.C.; Zhang, X.; Watson, L.A.; Van Berkel, G.; Parson, W.B.; Hay, B.P. Urea-Functionalized M4L6 Cage Receptors: Anion-Templated Self-Assembly and Selective Guest Exchange in Aqueous Solutions. J. Am. Chem. Soc. 2012, 134, 8525–8534. [Google Scholar] [CrossRef]
  21. Whitehead, M.; Turega, S.; Stephenson, A.; Hunter, C.A.; Ward, M.D. Quantification of solvent effects on molecular recognition in polyhedral coordination cage hosts. Chem. Sci. 2013, 4, 2744. [Google Scholar] [CrossRef] [Green Version]
  22. Turega, S.; Cullen, W.; Whitehead, M.; Hunter, C.A.; Ward, M.D. Mapping the Internal Recognition Surface of an Octanuclear Coordination Cage Using Guest Libraries. J. Am. Chem. Soc. 2014, 136, 8475–8483. [Google Scholar] [CrossRef] [PubMed]
  23. Cullen, W.; Turega, S.; Hunter, C.A.; Ward, M.D. Virtual screening for high affinity guests for synthetic supramolecular receptors. Chem. Sci. 2015, 6, 2790–2794. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Metherell, A.; Cullen, W.; Williams, N.H.; Ward, M.D. Binding of Hydrophobic Guests in a Coordination Cage Cavity is Driven by Liberation of “High-Energy” Water. Chem. Eur. J. 2017, 24, 1554–1560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Leenders, S.H.A.M.; Becker, R.; Kumpulainen, T.; De Bruin, B.; Sawada, T.; Kato, T.; Fujita, M.; Reek, J.N.H. Selective Co-Encapsulation Inside an M6L4 Cage. Chem. Eur. J. 2016, 22, 15468–15474. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Takezawa, H.; Murase, T.; Resnati, G.; Metrangolo, P.; Fujita, M. Halogen-bond-assisted guest inclusion in a synthetic cavity. Angew. Chem. Int. Ed. 2015, 54, 8411–8414. [Google Scholar] [CrossRef] [PubMed]
  27. Rizzuto, F.J.; Von Krbek, L.; Nitschke, J.R. Strategies for binding multiple guests in metal–organic cages. Nat. Rev. Chem. 2019, 3, 204–222. [Google Scholar] [CrossRef]
  28. Ibukuro, F.; Kusukawa, T.; Fujita, M. A Thermally Switchable Molecular Lock. Guest-Templated Synthesis of a Kinetically Stable Nanosized Cage. J. Am. Chem. Soc. 1998, 120, 8561–8562. [Google Scholar] [CrossRef]
  29. Johnson, D.W.; Raymond, K.N. The role of guest molecules in the self-assembly of metal—ligand clusters. Supramol. Chem. 2001, 13, 639–659. [Google Scholar] [CrossRef]
  30. Ward, M.D.; Hunter, C.A.; Williams, N.H. Coordination Cages Based on Bis(pyrazolylpyridine) Ligands: Structures, Dynamic Behavior, Guest Binding, and Catalysis. Acc. Chem. Res. 2018, 51, 2073–2082. [Google Scholar] [CrossRef] [Green Version]
  31. Cullen, W.; Metherell, A.J.; Wragg, A.B.; Taylor, C.G.P.; Williams, N.H.; Ward, M.D.; Metherell, A. Catalysis in a Cationic Coordination Cage Using a Cavity-Bound Guest and Surface-Bound Anions: Inhibition, Activation, and Autocatalysis. J. Am. Chem. Soc. 2018, 140, 2821–2828. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Rizzuto, F.J.; Wu, W.; Ronson, T.K.; Frantz, D.E. Peripheral Templation Generates an MII 6L4 Guest-Binding Capsule. Angew. Chem. Int. Ed. 2016, 55, 7958–7962. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Sgarlata, C.; Mugridge, J.S.; Pluth, M.D.; Tiedemann, B.E.F.; Zito, V.; Arena, G.; Raymond, K.N. External and Internal Guest Binding of a Highly Charged Supramolecular Host in Water: Deconvoluting the Very Different Thermodynamics. J. Am. Chem. Soc. 2010, 132, 1005–1009. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Cullen, W.; Misuraca, M.C.; Hunter, C.A.; Williams, N.H.; Ward, M.D. Highly efficient catalysis of the Kemp elimination in the cavity of a cubic coordination cage. Nat. Chem. 2016, 8, 231–236. [Google Scholar] [CrossRef] [PubMed]
  35. Taylor, C.G.P.; Metherell, A.J.; Argent, S.P.; Ashour, F.M.; Williams, N.H.; Ward, M.D. Coordination-Cage-Catalysed Hydrolysis of Organophosphates: Cavity- or Surface-Based? Chem. Eur. J. 2020, 26, 3065–3073. [Google Scholar] [CrossRef] [PubMed]
  36. Mozaceanu, C.; Taylor, C.G.P.; Piper, J.R.; Argent, S.P.; Ward, M.D. Catalysis of an Aldol Condensation Using a Coordination Cage. Chemistry 2020, 2, 22–32. [Google Scholar] [CrossRef] [Green Version]
  37. Taylor, C.G.P.; Argent, S.P.; Ludden, M.D.; Piper, J.R.; Mozaceanu, C.; Barnett, S.A.; Ward, M.D. One Guest or Two? A Crystallographic and Solution Study of Guest Binding in a Cubic Coordination Cage. Chem. Eur. J. 2020, 26, 3054–3064. [Google Scholar] [CrossRef]
  38. Tidmarsh, I.S.; Faust, T.; Adams, H.; Harding, L.P.; Russo, L.; Clegg, W.; Ward, M.D. Octanuclear Cubic Coordination Cages. J. Am. Chem. Soc. 2008, 130, 15167–15175. [Google Scholar] [CrossRef]
  39. Piper, J.R.; Cletheroe, L.; Taylor, C.G.P.; Metherell, A.; Weinstein, J.A.; Sazanovich, I.V.; Ward, M.D. Photoinduced energy- and electron-transfer from a photoactive coordination cage to bound guests. Chem. Commun. 2017, 53, 408–411. [Google Scholar] [CrossRef] [Green Version]
  40. Train, J.S.; Wragg, A.B.; Auty, A.J.; Metherell, A.; Chekulaev, D.; Taylor, C.G.P.; Argent, S.P.; Weinstein, J.A.; Ward, M.D. Photophysics of Cage/Guest Assemblies: Photoinduced Electron Transfer between a Coordination Cage Containing Osmium(II) Luminophores, and Electron-Deficient Bound Guests in the Central Cavity. Inorg. Chem. 2019, 58, 2386–2396. [Google Scholar] [CrossRef]
  41. Spartan ′18, Version 1; Wavefunction Inc.: Irvine, CA, USA, 2018.
  42. Allan, D.R.; Nowell, H.; Barnett, S.A.; Warren, M.R.; Wilcox, A.; Christensen, J.; Saunders, L.K.; Peach, A.; Hooper, M.T.; Zaja, L.; et al. A Novel Dual Air-Bearing Fixed-χ Diffractometer for Small-Molecule Single-Crystal X-ray Diffraction on Beamline I19 at Diamond Light Source. Crystals 2017, 7, 336. [Google Scholar] [CrossRef] [Green Version]
  43. Johnson, N.T.; Waddell, P.; Clegg, W.; Probert, M. Remote Access Revolution: Chemical Crystallographers Enter a New Era at Diamond Light Source Beamline I19. Crystals 2017, 7, 360. [Google Scholar] [CrossRef] [Green Version]
  44. Inokuma, Y.; Yoshioka, S.; Ariyoshi, J.; Arai, T.; Hitora, Y.; Takada, K.; Matsunaga, S.; Rissanen, K.; Fujita, M. X-ray analysis on the nanogram to microgram scale using porous complexes. Nature 2013, 495, 461–466. [Google Scholar] [CrossRef] [PubMed]
  45. Hoshino, M.; Khutia, A.; Xing, H.; Inokuma, Y.; Fujita, M. The crystalline sponge method updated. IUCrJ 2016, 3, 139–151. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Shimizu, T.; Isono, H.; Yasui, M.; Iwasaki, F.; Kamigata, N. Solid state optical activity of dichalcogenides: Isolation by chiral crystallization and determination of absolute configuration. Org. Lett. 2001, 3, 3639–3641. [Google Scholar] [CrossRef]
  47. Metherell, A.J.; Ward, M.D. Geometric isomerism in coordination cages based on tris-chelate vertices: A tool to control both assembly and host/guest chemistry. Dalton Trans. 2016, 45, 16096–16111. [Google Scholar] [CrossRef] [Green Version]
  48. Rebek, J.J. Molecular Behavior in Small Spaces. Acc. Chem. Res. 2009, 42, 1660–1668. [Google Scholar] [CrossRef]
  49. Mecozzi, S.; Rebek, J.J. The 55 % Solution: A Formula for Molecular Recognition in the Liquid State. Chem. Eur. J. 1998, 4, 1016–1022. [Google Scholar] [CrossRef]
  50. Puttreddy, R.; Beyeh, N.K.; Kalenius, E.; Ras, R.H.A.; Rissanen, K. 2-Methylresorcinarene: A very high packing coefficient in a mono-anion based dimeric capsule and the X-ray crystal structure of the tetra-anion. Chem. Commun. 2016, 52, 8115–8118. [Google Scholar] [CrossRef] [Green Version]
  51. Roos, G.; De Proft, F.; Geerlings, P. Electron Capture by the Thiyl Radical and Disulfide Bond: Ligand Effects on the Reduction Potential. Chem. Eur. J. 2013, 19, 5050–5060. [Google Scholar] [CrossRef]
  52. Taylor, C.G.P.; Piper, J.R.; Ward, M.D. Binding of chemical warfare agent simulants as guests in a coordination cage: Contributions to binding and a fluorescence-based response. Chem. Commun. 2016, 52, 6225–6228. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Chemistry 02 00031 g001 550
Figure 1. The octanuclear [Co8L12](BF4)16 cages used in this work (H, R = H [38]; Hw, R = CH2OH, [21]). (a) A sketch showing the approximate arrangement of metal ions and the structural formula of the bridging ligands, which span every edge of the cubic array of Co(II) ions; (b) a view of the cationic cage cavity with each ligand coloured separately.
Figure 1. The octanuclear [Co8L12](BF4)16 cages used in this work (H, R = H [38]; Hw, R = CH2OH, [21]). (a) A sketch showing the approximate arrangement of metal ions and the structural formula of the bridging ligands, which span every edge of the cubic array of Co(II) ions; (b) a view of the cationic cage cavity with each ligand coloured separately.
Chemistry 02 00031 g001
Chemistry 02 00031 g002 550
Figure 2. A view of the crystal structure of the complex of host H with guest G2Py (and two molecules of MeOH). The host cage is shown in wireframe and G2Py is shown space-filling (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey).
Figure 2. A view of the crystal structure of the complex of host H with guest G2Py (and two molecules of MeOH). The host cage is shown in wireframe and G2Py is shown space-filling (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey).
Chemistry 02 00031 g002
Chemistry 02 00031 g003 550

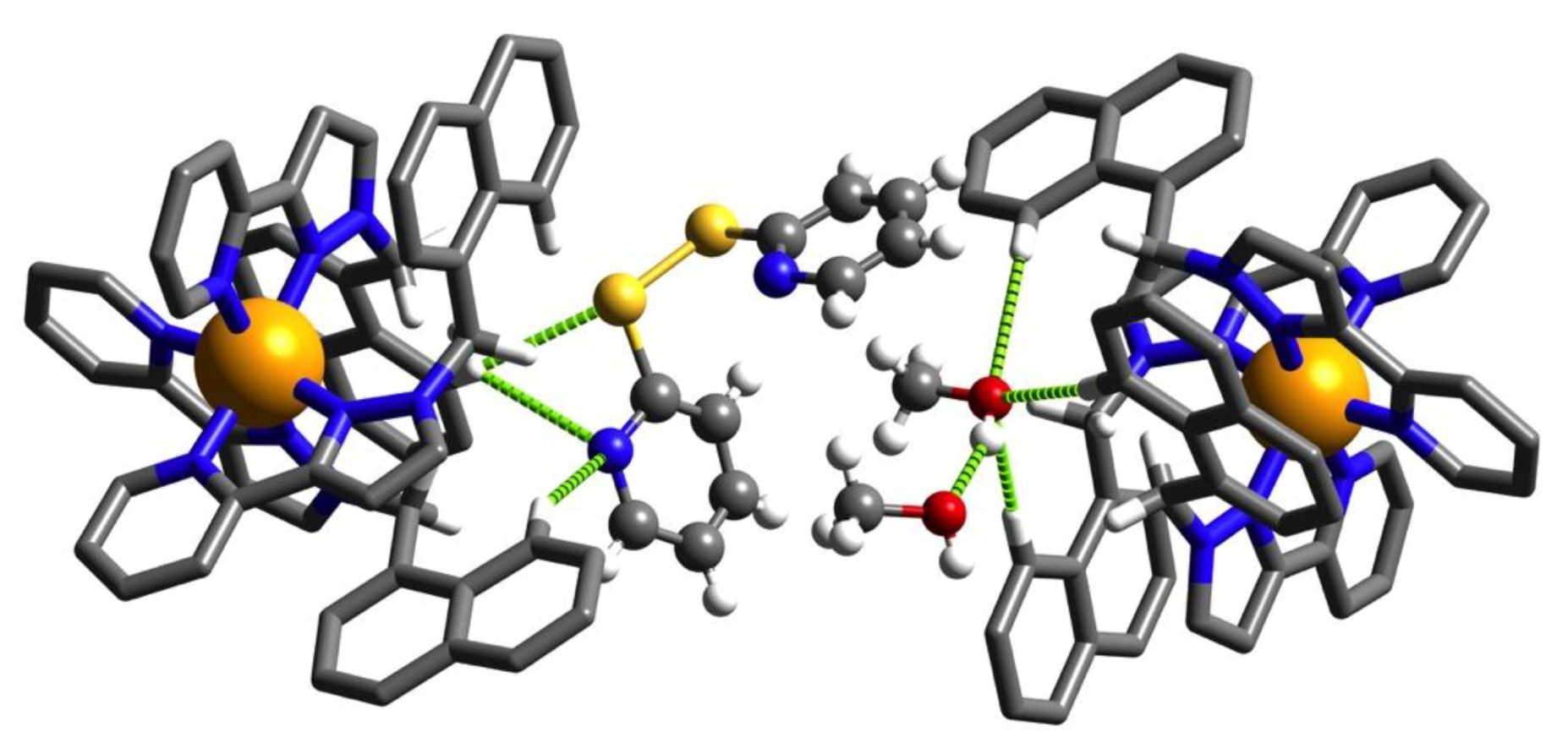

Figure 3. Partial view of the structure of the H/G2Py complex showing the network of CH···O contacts (shown by green dotted lines) between the G2Py and MeOH guests with a convergent set of CH groups associated with the cage interior surface around the two fac tris-chelate metal complex vertices of H.
Figure 3. Partial view of the structure of the H/G2Py complex showing the network of CH···O contacts (shown by green dotted lines) between the G2Py and MeOH guests with a convergent set of CH groups associated with the cage interior surface around the two fac tris-chelate metal complex vertices of H.
Chemistry 02 00031 g003
Chemistry 02 00031 g004 550
Figure 4. (a): A view of the crystal structure of the complex of host H with guest BQ. The host cage is shown in wireframe and G2Py is shown space-filling (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey; Cl atoms, green). (b): Alterative view of the complex emphasising the CH···O and CH···Cl interactions between cage and guest.
Figure 4. (a): A view of the crystal structure of the complex of host H with guest BQ. The host cage is shown in wireframe and G2Py is shown space-filling (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey; Cl atoms, green). (b): Alterative view of the complex emphasising the CH···O and CH···Cl interactions between cage and guest.
Chemistry 02 00031 g004
Chemistry 02 00031 g005 550

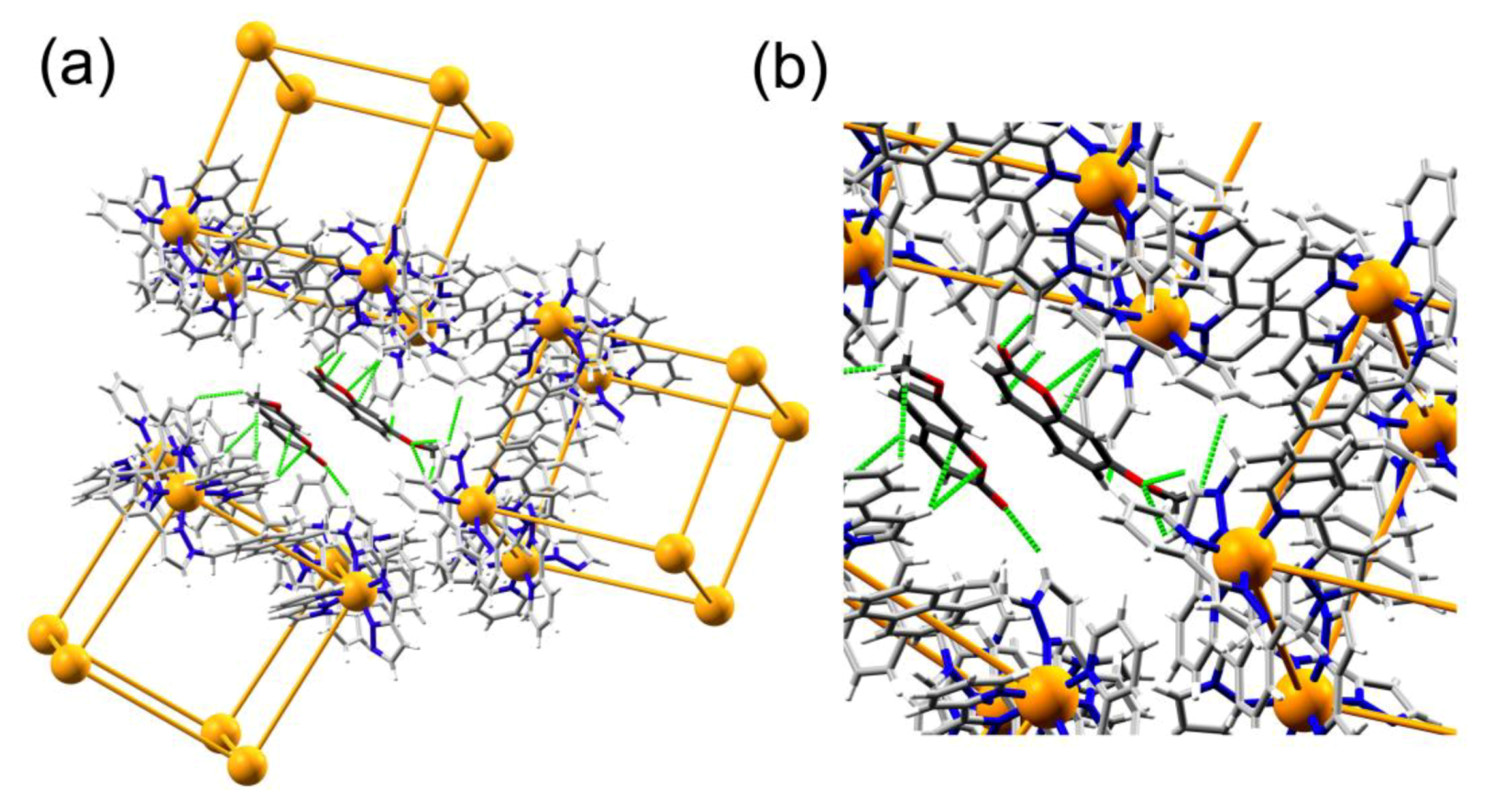

Figure 5. A view of the crystal structure of the complex of host H with guest MC, showing how a stacked pair of guests in the space between molecules of H forms a range of CH···O interactions with the cage exterior surfaces (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey). (a) A view showing the relationship of a stacked pair of MC molecules to three surrounding cage units; (b) a magnified view emphasising the interactions involving the MC units with exterior surfaces of nearby cage units.
Figure 5. A view of the crystal structure of the complex of host H with guest MC, showing how a stacked pair of guests in the space between molecules of H forms a range of CH···O interactions with the cage exterior surfaces (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey). (a) A view showing the relationship of a stacked pair of MC molecules to three surrounding cage units; (b) a magnified view emphasising the interactions involving the MC units with exterior surfaces of nearby cage units.
Chemistry 02 00031 g005
Chemistry 02 00031 g006 550

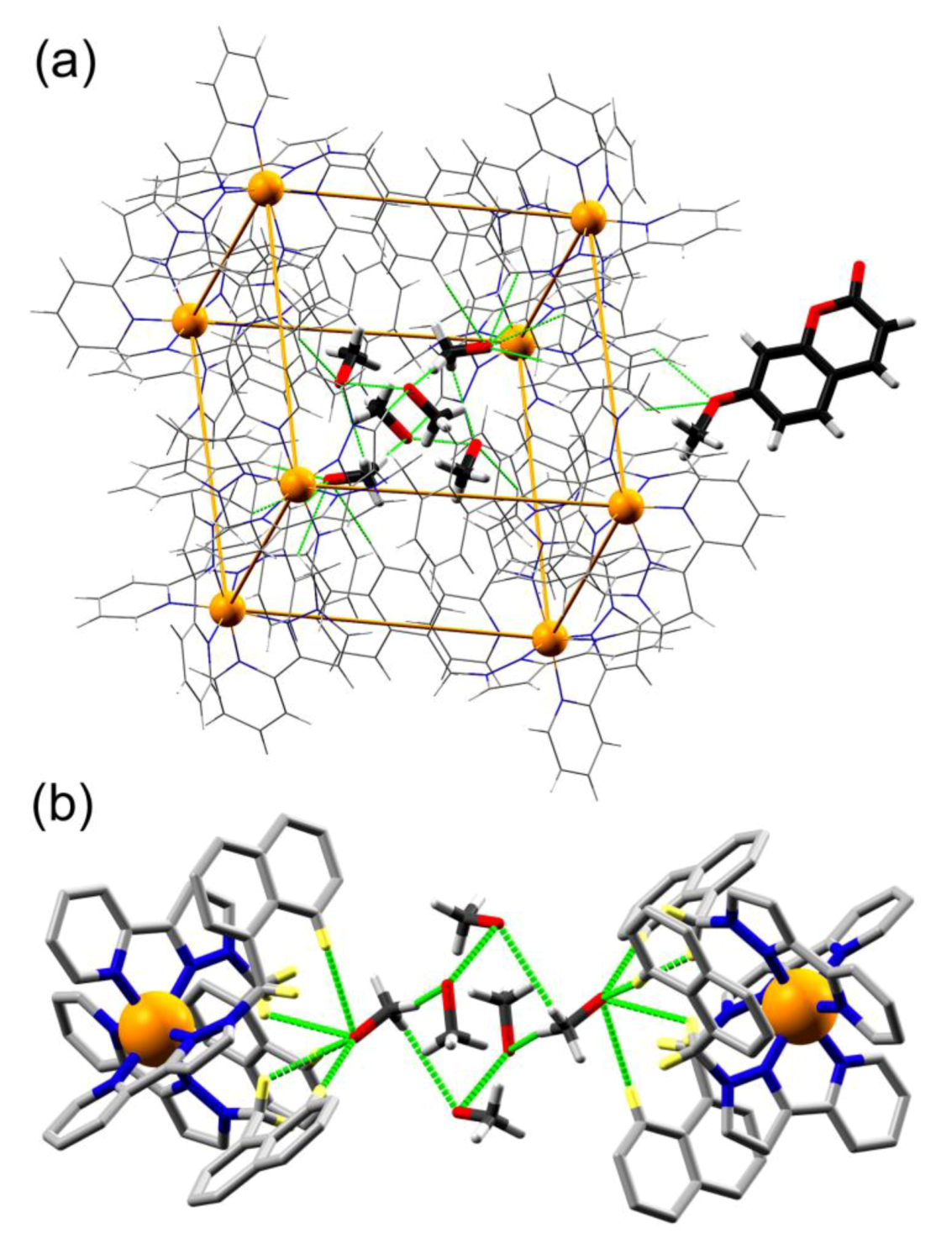

Figure 6. (a) A view of the cluster of six hydrogen-bonded MeOH molecules inside the cavity of H in the same crystal structure as shown in Figure 5, with one molecule of MC shown outside the cage (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey) and CH···O H-bonding interactions shown as green dotted lines. (b) An expanded view of the set of six MeOH molecules interacting with the two fac tris-chelate pockets on the cage interior surface.
Figure 6. (a) A view of the cluster of six hydrogen-bonded MeOH molecules inside the cavity of H in the same crystal structure as shown in Figure 5, with one molecule of MC shown outside the cage (N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey) and CH···O H-bonding interactions shown as green dotted lines. (b) An expanded view of the set of six MeOH molecules interacting with the two fac tris-chelate pockets on the cage interior surface.
Chemistry 02 00031 g006
Chemistry 02 00031 g007 550

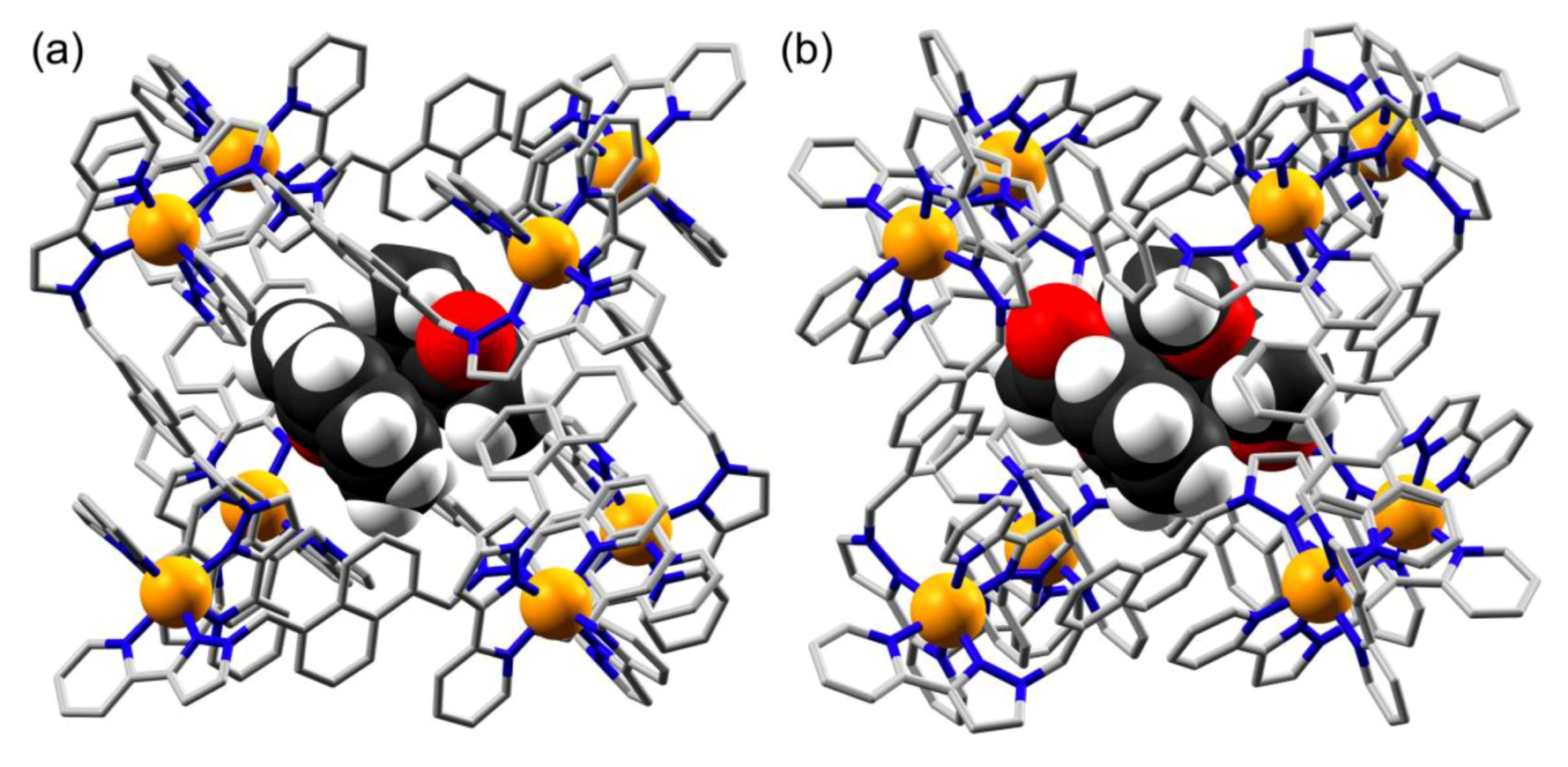

Figure 7. Views of the crystal structures of the complexes of host H (in wireframe) with a stacked pair of (a) guests MA and (b) guests MOA (guests shown space-filling: N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey).
Figure 7. Views of the crystal structures of the complexes of host H (in wireframe) with a stacked pair of (a) guests MA and (b) guests MOA (guests shown space-filling: N atoms, blue; O atoms, red; Co atoms, orange; C atoms, grey).
Chemistry 02 00031 g007
Chemistry 02 00031 g008 550
Figure 8. Partial views of the structures of (a) the H·MA complex and (b) the H·MOA complex showing the network of CH···O contacts (shown by green dotted lines) between the two crystallographically equivalent guests, and the convergent set of CH groups associated with the cage interior surface around the two fac tris-chelate metal complex vertices of H.
Figure 8. Partial views of the structures of (a) the H·MA complex and (b) the H·MOA complex showing the network of CH···O contacts (shown by green dotted lines) between the two crystallographically equivalent guests, and the convergent set of CH groups associated with the cage interior surface around the two fac tris-chelate metal complex vertices of H.
Chemistry 02 00031 g008
Chemistry 02 00031 g009 550
Figure 9. Change in intensity of luminescence from a solution of HCd in water (10 µM) during titration with bis(2-pyridyl)disulfide (G2Py). (a) Sequence of fluorescence spectra showing the rise and then decay of fluorescence (indicated by the black arrows) as portions of G2Py are added during the titration, with (inset) changes to peak intensity; (b) fitting of the luminescence decay during the second part of the titration to a 1:1 binding isotherm.
Figure 9. Change in intensity of luminescence from a solution of HCd in water (10 µM) during titration with bis(2-pyridyl)disulfide (G2Py). (a) Sequence of fluorescence spectra showing the rise and then decay of fluorescence (indicated by the black arrows) as portions of G2Py are added during the titration, with (inset) changes to peak intensity; (b) fitting of the luminescence decay during the second part of the titration to a 1:1 binding isotherm.
Chemistry 02 00031 g009
Chemistry 02 00031 g010 550

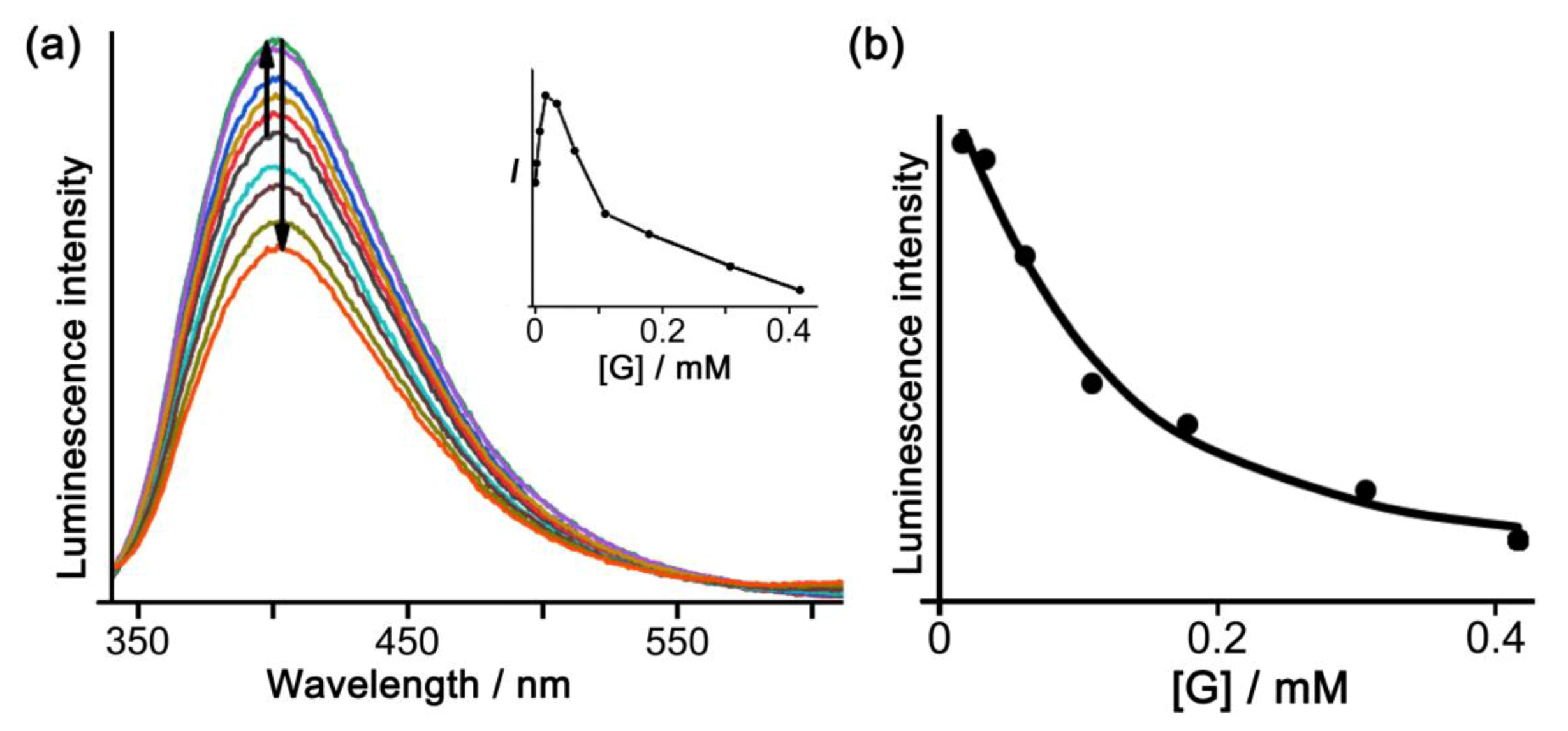

Figure 10. Change in intensity of luminescence from a solution of HCd in water (10 µM) during titration with bis(4-chlorophenyl)disulfide (GCl). (a) Sequence of fluorescence spectra showing the rise and then decay of fluorescence (indicated by the black arrows) as portions of GCl are added during the titration, with (inset) changes to peak intensity; (b) fitting of the luminescence decay during the second part of the titration to a 1:1 binding isotherm.
Figure 10. Change in intensity of luminescence from a solution of HCd in water (10 µM) during titration with bis(4-chlorophenyl)disulfide (GCl). (a) Sequence of fluorescence spectra showing the rise and then decay of fluorescence (indicated by the black arrows) as portions of GCl are added during the titration, with (inset) changes to peak intensity; (b) fitting of the luminescence decay during the second part of the titration to a 1:1 binding isotherm.
Chemistry 02 00031 g010
Table
Table 1. Summary of crystallographic, data collection and refinement parameters for the five crystal structures in this paper.
Table 1. Summary of crystallographic, data collection and refinement parameters for the five crystal structures in this paper.
GuestDi(2-pyridyl)disulfide3,4,5,6-Tetrachloro-1,2-benzoquinone
Empirical formulaC378.65H417.32B16Co8F64N73.08
O37.25S1.08		C377H416B16Cl2Co8F64N72O39
Formula weight8483.108511.09
T/K100(1)100(1)
Crystal systemMonoclinicMonoclinic
Space groupC2/cC2/c
Crystal size/mm30.1 × 0.1 × 0.10.1 × 0.1 × 0.1
a/Å32.81236(7)32.85880(17)
b/Å30.21497(6)30.06718(13)
c/Å40.09564(8)40.1053(2)
β/degrees96.33120(19)96.0585(5)
V/Å339509.35(10)39401.6(3)
Z44
ρcalc/g cm−31.4261.435
μ/mm−10.4100.415
RadiationSynchrotron (λ = 0.6889)Synchrotron (λ = 0.6889)
Reflections collected348244341329
Data/restraints/parameters62856/6404/242562724/5560/2167
Final R indexes [I ≥ 2σ(I)]R1 = 0.0672, wR2 = 0.2167R1 = 0.0829, wR2 = 0.2810
Final R indexes (all data)R1 = 0.0926, wR2 = 0.2358R1 = 0.1178, wR2 = 0.3061
7-Methoxycoumarin2-Methylacetophenone2-Methoxyacetophenone
C376H392B16Co8F64N72O33C407.8H417.66B16Co8F64N72
O31.03		C395.5H411B16Co8F64N72O35
8307.998684.258593.34
100(1)100(1)100(1)
MonoclinicMonoclinicMonoclinic
C2/cC2/cC2/c
0.15 × 0.12 × 0.10.04 × 0.03 × 0.030.04 × 0.04 × 0.04
33.04596(13)32.56923(10)32.8649(2)
30.13654(16)30.16165(10)29.89225(18)
39.97965(19)40.83634(17)40.5389(4)
96.4337(4)95.9061(3)95.9164(7)
39564.3(2)39902.31(19)39613.5(4)
444
1.3951.4461.441
0.3980.3980.401
Synchrotron (λ = 0.6889)Synchrotron (λ = 0.6889)Synchrotron (λ = 0.6889)
344542346719337691
62978/6651/251763534/7141/272763039/6014/2426
R1 = 0.0719, wR2 = 0.2392R1 = 0.0827, wR2 = 0.2704R1 = 0.0853, wR2 = 0.2817
R1 = 0.0971, wR2 = 0.2596R1 = 0.1201, wR2 = 0.2981R1 = 0.1351, wR2 = 0.3169

Share and Cite

MDPI and ACS Style

Taylor, C.G.P.; Train, J.S.; Ward, M.D. Interactions of Small-Molecule Guests with Interior and Exterior Surfaces of a Coordination Cage Host. Chemistry 2020, 2, 510-524. https://doi.org/10.3390/chemistry2020031

AMA Style

Taylor CGP, Train JS, Ward MD. Interactions of Small-Molecule Guests with Interior and Exterior Surfaces of a Coordination Cage Host. Chemistry. 2020; 2(2):510-524. https://doi.org/10.3390/chemistry2020031

Chicago/Turabian Style

Taylor, Christopher G. P., Jennifer S. Train, and Michael D. Ward. 2020. "Interactions of Small-Molecule Guests with Interior and Exterior Surfaces of a Coordination Cage Host" Chemistry 2, no. 2: 510-524. https://doi.org/10.3390/chemistry2020031

Article Metrics

Back to TopTop
