Excited States in Isobaric Multiplets—Experimental Advances and the Shell-Model Approach

Abstract

A review of recent advances in the study of the energy splitting between excited isobaric analogue states is presented. Some of the experimental developments, and new approaches, associated with spectroscopy of the most proton-rich members of isobaric multiplets, are discussed. The review focuses on the immense impact of the shell-model in the analysis of energy differences and their interpretation in terms of nuclear structure phenomena.

1. Introduction

The approximate charge symmetry and charge independence of the nucleon-nucleon (NN) interaction [1] results in elegant symmetries in the behaviour of the otherwise exceptionally complex nuclear system. Examining and exploiting these isospin-related symmetries, and determining the extent to which they are broken, has become a rich field of nuclear structure physics over the last 30 years. When the symmetries are slightly broken, this provides an opportunity to observe nuclear behaviour through the lens of the well-understood electromagnetic interaction, providing a probe of nuclear structure phenomena such as pairing, particle alignments, shape changes and radii. It may even be possible to learn about the charge-dependent components of the nuclear interaction itself. Moreover, it is possible to exploit the often near-perfect isospin symmetry between pairs of analogue states to extract information other phenomena; in this review such an example is provided in the study of neutron skins.

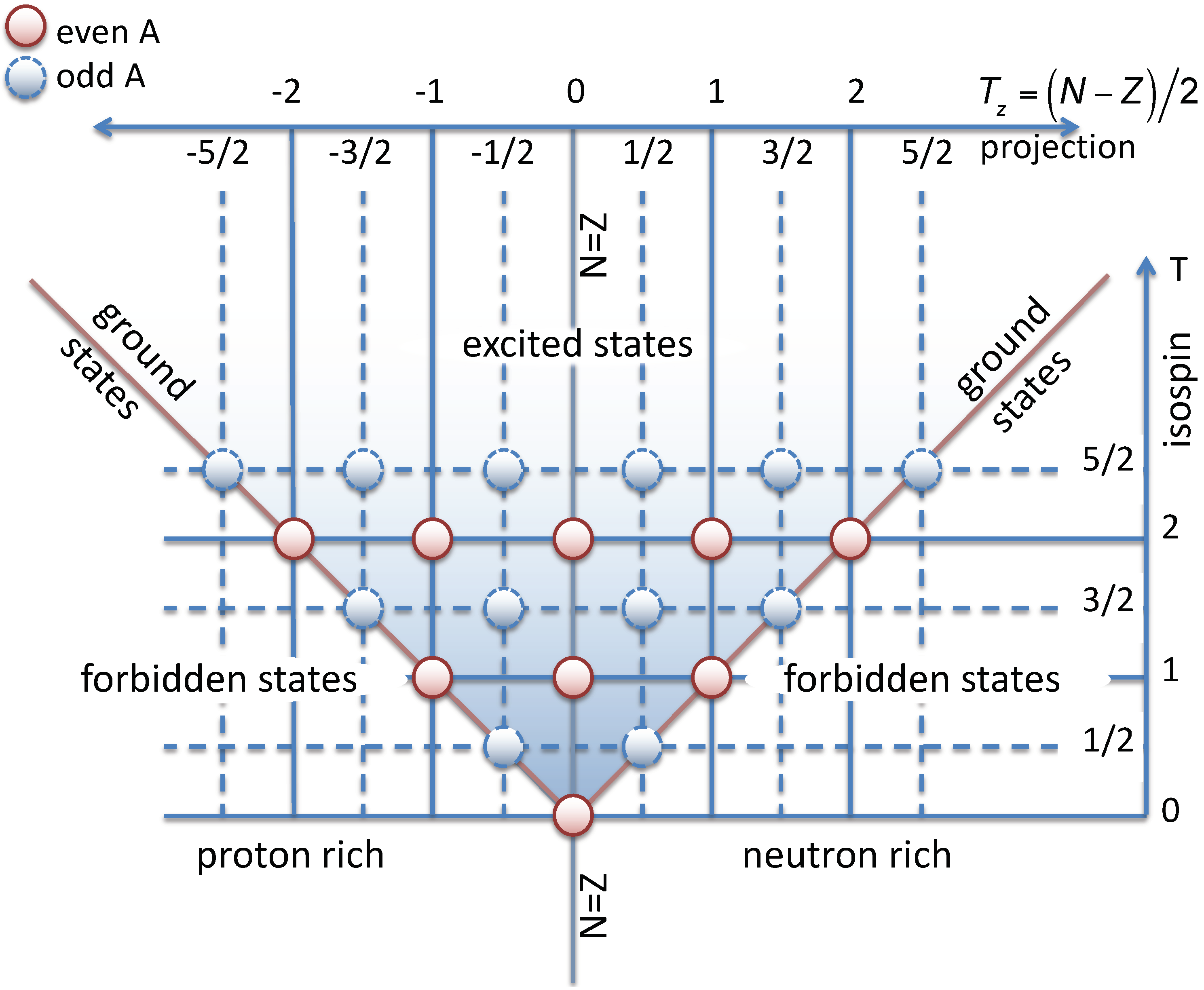

Wigner’s isospin concept [2] provided the conceptual and mathematical foundation for describing these symmetries. All states are assigned an isospin,$\mathbf{T}$, quantum number, T, with a projection defined by $T_z={\sum }_i{t}_z\left(i\right)=(N-Z)/2$, where N denotes the number of neutrons and Z the number of protons in a nucleus. In this formalism, the nucleon is treated as two states of the same particle with quantum number t and projection $t_z=\mp \frac{1}{2}$ for the proton/neutron respectively. With the concept of isospin established, we now have a powerful isospin classification scheme, which enables us to map out, in isospin space, the resulting symmetries—visualised in Figure 1. Crucially, the mathematical formalism of isospin enables the treatment of the two types of fermion in the same system, allowing predictions based on the assumption of pure isospin symmetry, and the tools to model the observed deviations from that symmetry.

This short review focuses on the energy differences between excited isobaric analogue states—i.e., analogue states of the same isospin T in different members of an isobaric multiplet (different $T_z$). With perfect isospin symmetry, and in the absence of electromagnetic effects, the excitation energies would be identical. In reality the electromagnetic effects, and any other isospin-non conserving interactions, such as charge-dependent nuclear forces, lift the degeneracy. The study, and modelling, of these differences is discussed here. Two types of energy difference are usually measured: mirror energy differences (MED) for mirror nuclei ($T_z=\pm T$) or triplet energy differences (TED) for isobaric triplets ($T=1$, $T_z=0,\pm 1$). MED and TED, the differences in excitation energy, $E^{*}$, are defined by:

$${\mathrm{MED}}_{J,T}=E_{J,T,T_z=-T}^{*}-E_{J,T,T_z=T}^{*},\mathrm{and}$$

(1)

$${\mathrm{TED}}_{J,T=1}=E_{J,T_z=-1}^{*}+E_{J,T_z=1}^{*}-2E_{J,T_z=0}^{*},$$

(2)

respectively, with J the total angular momentum quantum number.

Developments of experimental technique, especially in the $\gamma$-ray spectroscopy of excited states in proton-rich nuclei, have led to a wealth of new data in recent years, allowing for experimental measurements of MED, e.g., [3,4,5,6,7,8,9,10,11], and TED, e.g., [12,13,14,15]. It is, however, the interpretation of these observations through shell-model analysis that has energised this field of study (e.g., [16,17,18,19,20,21]). This has allowed detailed nuclear structure phenomena, and especially their evolution with angular momentum and excitation along the yrast line, to be investigated in detail. This review outlines some experimental advances in Section 2 including specific case studies. The shell-model approach is outlined in Section 3 and some recent advances, made through shell-model interpretation, are discussed in Section 4.

2. Advances in Experimental Techniques and Selected Case Studies

The key challenge, in experimental measurements of energy differences between excited states of isobaric multiplets, is the typically low cross sections for, or low production rates of, the required proton-rich (i.e., $Z\ge N$, $T_z\le 0$) nuclei. Two reaction mechanisms are generally employed: fusion-evaporation reactions with stable beams at near Coulomb-barrier energies and knockout reactions from relativistic radioactive beams. For fusion-evaporation reactions, the major difficultly is the low production cross section of the neutron-evaporation channels that lead to the required proton-rich systems, leading to cross sections often less than 1 $\mathsf{\mu }$b—i.e., representing a fraction of <$1\times {10}^{-6}$ of the total reaction cross section. The experimental challenge is therefore the clean selection of the reaction channel to remove the huge background from proton-emission channels. In the second method, knockout from fast radioactive beams, the knockout cross sections are reasonable (∼few mb) and the identification of the desired proton-rich fragment is straightforwardly achieved with post-target magnetic spectrometers. However, here the experimental challenge comes from the potentially low secondary beam rates and from performing high-resolution $\gamma$-ray spectroscopy at high beam velocities, v (v/$c\sim$0.35–0.55, where c is the speed of light), with the associated Doppler-broadening issues. Since the last reviews of this topic, e.g., [3,4], progress has been made in addressing these two sets of challenges, which have in turn led to advances in our understanding of MED and TED.

In the following Section 2.1, Section 2.2 and Section 2.3, three example cases studies are presented which highlight the recent experimental advances. The impact of these case studies on our shell-model based interpretation of isospin-symmetry breaking, in mirror nuclei and $T=1$ isobaric triplets, is discussed in Section 4.

2.1. Prompt Tagging of Fusion-Evaporation Channels and a Case Study: The A = 23, $T_z=\pm \frac{1}{2}$ Mirror Nuclei

In fusion-evaporation reactions, the required proton-rich nuclei are populated with low cross sections and, following the evaporation of at least one prompt neutron, often at the same time as evaporated charged particles. One method of selection of the desired reaction channel is to surround the target with high-efficiency neutron- and charged-particle detectors, in addition to the high-resolution $\gamma$-ray array. As a case study, we use the example of the mass number $A=23,T_z=\pm \frac{1}{2}$ mirror nuclei ${}^{23}$Mg/${}^{23}$Na [11]. This mirror pair was studied at GANIL (Grand Accélérateur National d’Ions Lourds), Caen, France, using an ${}^{16}$O beam on ${}^{12}$C target with the nuclei of interest populated through the $\alpha ,n$ and $\alpha ,p$ reaction channels, respectively. The prompt $\gamma$ rays were detected with the EXOGAM array [22]. The prompt evaporated neutrons were detected with the Neutron Wall [23], an array of 50 liquid scintillator detectors. The proton and alpha particles were detected with DIAMANT [24], an array of 80 CsI scintillators. These highly-efficient detectors enabled a clean channel selection through the full identification of all emitted particles, allowing for the event-by-event tagging of the $\gamma$ rays from the nuclei of interest. In this case study, the cleanliness of the channel selection allowed for the confident assignment of states in proton-rich ${}^{23}$Mg up to angular momentum/parity of $J^{\pi }={\frac{15}{2}}^{+}$, through a $\gamma$–$\gamma$ coincidence analysis and using comparisons with the mirror nucleus, on which an identical analysis was performed. The identification of these states enabled MED to be determined up to high spin, and this proved crucial in the subsequent shell-model analysis. The impact of this measurement, and of the resulting shell-model analysis, connected to radii and neutron skins, is discussed in Section 4.2.

For the study of heavier proton-rich or $N=Z$ nuclei, and especially where $N=Z$ beam/target combinations are not possible, prompt particle tagging of the nuclei of interest becomes more challenging due to very low production cross sections and the need to identify more than one evaporated neutron. The development of more efficient, highly modular, neutron detector arrays such as NEDA [25], coupled to the improvements in high-resolution and high-efficiency $\gamma$-ray measurement afforded by the AGATA $\gamma$-ray array [26], provide exciting possibilities (e.g., [27]). The recent in-beam spectroscopy of ${}^{88}$Ru [28] through a $2n$ evaporation channel, using the AGATA, DIAMANT, Neutron Wall and NEDA arrays, provides a characteristic example.

2.2. Decay Tagging of Fusion-Evaporation Channels and a Case Study: The $T_z=-1$ Nucleus ${}^{66}$Se

Instead of tagging the prompt emitted $\gamma$ rays by the prompt evaporated particles, an alternative approach to select the low cross-section neutron-evaporation channel of interest is to tag the $\gamma$ rays by the ground-state decay emissions characteristic of the nucleus of interest. For spectroscopy of $Z\ge N$ nuclei, a highly effective technique is recoil-beta tagging (RBT) [29,30], which takes advantage of cases where the ground state of the nucleus of interest ($N,Z$) $\beta$-decays to its isobaric analogue state in the $N+1,Z-1$ neighbour. Such decays are characterised by fast, superallowed, $\beta$-decays, with high $\beta$ end-point energy.

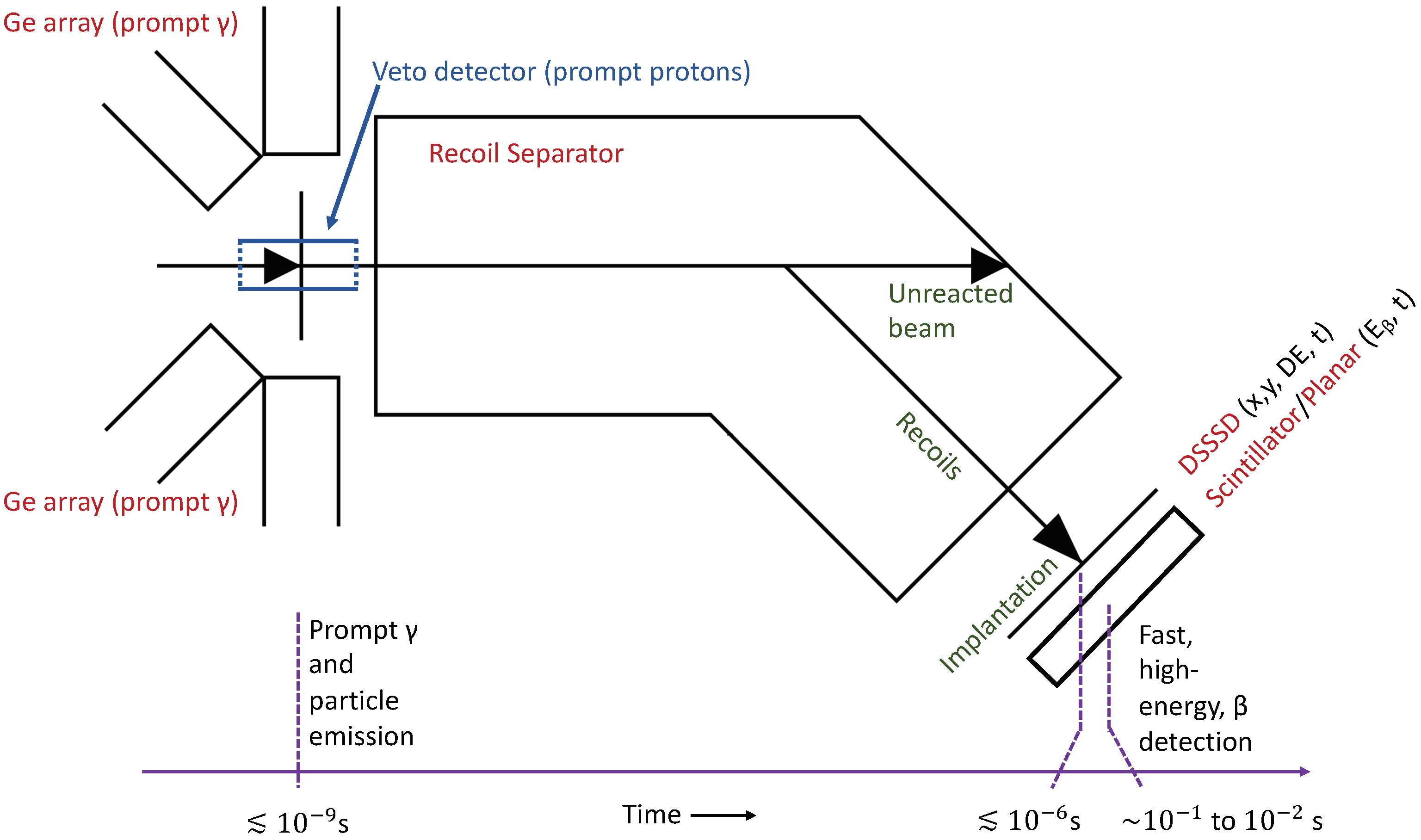

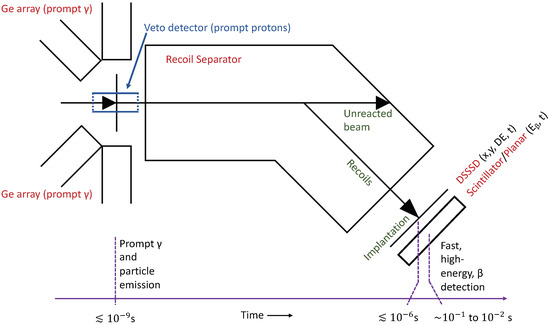

In the RBT approach, outlined in Figure 2, a triggerless data acquisition system is used to enable temporal correlation between prompt $\gamma$-ray emission at the target and the subsequent decays of the residual nuclear ground state. The recoiling nuclei are separated using a magnetic spectrometer and implanted in a highly pixellated double-sided silicon strip detector (DSSSD). The subsequent decay of the ground state of the implanted nucleus is detected in the same position as the implantation within the DSSSD and a second detector (a planar Ge detector or plastic scintillator) is used to measure the remaining energy of the $\beta$-decay A correlation in time of the three events (prompt emission, implantation and $\beta$-decay) and in position using the pixellated DSSSD, allows the selection of the proton-rich nucleus when a short correlation time (few 10 s of ms, typically) is required as well as a high-energy $\beta$-decay

The example of spectroscopy of $T_z=-1$${}^{66}$Se [12] is chosen as the case study for this technique. The experiment was performed at the at the University of Jyväskylä (JYFL) using the JUROGAMII $\gamma$-ray array and the RITU gas filled separator [31,32], in which ${}^{66}$Se was populated through a $2n$ evaporation channel. The fusion products were implanted in the DSSSD, which was followed by a planar Ge detector for detection of the high-energy positrons from the fast superallowed $\beta$-decay. A key component of this experiment was the inclusion of a high-efficiency veto detector to measure prompt charged particles—the UoYTube [33] detector. This is essential to help identify, and remove, contamination in the final spectrum coming from reaction channels with evaporation of one or more charged particles. The resulting clean spectrum identified decays from states with $J^{\pi }=2^{+}$, $4^{+}$ and $6^{+}$, which in turn enabled the completion of the full set of $T=1$ isobaric analogue states up to $6^{+}$ in the $A=66$ $T=1$ triplet, allowing the TED to be extracted. The impact of this result on the understanding of isotensor isospin non-conserving interactions, within the shell model description of TED, is discussed in Section 4.1.

Since the work on ${}^{66}$Se, the same RBT approach, including charged-particle vetoing, has been applied successfully at JYFL to identify the excited states in the $T_z=-1$ nuclei ${}^{70}$Kr [13] and ${}^{74}$Sr [15], and a programme using the same methodology is underway using the new MARA spectrometer [34], which additionally allows for mass selection and identification.

2.3. Knockout Reactions at Intermediate Energies and a Case Study: The $T_z=-2$ Nuclei ${}^{48}$Fe and ${}^{56}$Zn

Spectroscopy of the most proton-rich systems (i.e., $T_z\le -\frac{3}{2}$) presents significant challenges for fusion reactions, since evaporation of at least three neutrons will be required to access the nuclei of interest. Indeed the majority of the recent in-beam $\gamma$-ray spectroscopic studies of $T_z\le -\frac{3}{2}$ nuclei have been performed with one- (or two-) neutron knockout reactions from relativistic fragmentation beams. The knockout reaction, being a direct process, will populate specific, usually low-lying, states, those bound states for which there is a large spectroscopic overlap between the ground-state configuration of the beam and the final state of the residue, with respect to neutron removal from a specific orbital. Whilst the range of final states can be rather limited, compared with fusion reactions, the reactions (and final spectra) can be easier to interpret, especially when combined with cross-section calculations based on a reaction model using shell-model spectroscopic factors. This, in turn, helps give confidence to the $J^{\pi }$ assignment of the observed states, when comparing with the analogue states in the mirror nucleus. Moreover, population of high-J states in proton-rich systems is possible in specific conditions, e.g., through knockout from isomeric states (e.g., [7]) or through two-neutron removal from a beam species with a $J\ne 0$ ground state (e.g., [5]).

The case studies discussed here are the very recent works related to the observation of excited states in $T_z=-2$ nuclei ${}^{56}$Zn [9] and ${}^{48}$Fe [8]. These studies have enabled the examination of $T=2$, $T_z=\pm 2$, mirror pairs, providing stringent tests of the shell-model prescription for “distant” mirror pairs (large difference in $T_z$). In both of these examples, one-neutron knockout reactions were performed on odd-A relativistic fragmentation beams. For ${}^{56}$Zn [9], the experiment was performed at the RIBF facility (Radioactive Isotope Beam Factory), at the RIKEN Nishina Center, Japan. Fragmentation of a beam of ${}^{78}$Kr at 345MeV/u produced a secondary beam of ${}^{57}$Zn fragments, separated and identified using the BigRIPS spectrometer [35]. The Be reaction target was surrounded by the DALI2+ NaI $\gamma$-ray array [36] and the final knockout residues identified by the Zero Degree Spectrometer [35]. For ${}^{48}$Fe [8], the experiment was performed at NCSL (National Superconducting Cyclotron Laboratory, East Lansing, MI, USA). A primary beam of ${}^{58}$Ni at 160 MeV/u was used to create a ${}^{49}$Fe fragment beam, separated using the A1900 spectrometer [37]. The reaction target was surrounded by the GRETINA Ge $\gamma$-ray tracking array [38] and the final knockout residues identified by the S800 Spectrograph [39].

In both the above reactions, the ground-state of the beam species was $J^{\pi }={\frac{7}{2}}^{-}$, where the Fermi-level for the odd, unpaired, neutron was in the $f_{\frac{7}{2}}$ shell. In both cases, excited states of $J^{\pi }=2^{+}$, $4^{+}$, and $6^{+}$ were observed ($6^{+}$ is the highest-J state that can be populated directly). The predicted spectroscopic factors for both reactions suggest that the yrast and yrare states of $J^{\pi }=2^{+}$, $4^{+}$, and $6^{+}$ are expected to be directly populated, with strong populations of $6^{+}$ states, which matched the experimental observations [8,9]. It was not possible to identify decays from the yrare states in ${}^{56}$Zn, but the higher resolution of the $\gamma$-ray array in the ${}^{48}$Fe study enabled the yrare state decays to be tentatively identified.

In the ${}^{48}$Fe case, the experiment also used the “mirrored knockout” technique, which has proven to be especially powerful for the observation and assignment of analogue states in mirror pairs. In this approach, as well as using the ${}^{49}$Fe $-1n$ reaction, the mirror partner to ${}^{48}$Fe, ${}^{48}$Ti, was studied through a ${}^{49}$V $-1p$ reaction (this required a separate setting of the A1900 spectrometer). Since the two beam species, ${}^{49}$Fe and ${}^{49}$V, are also mirror nuclei, these reactions comprise a complete pair of “analogue” knockout reactions—i.e., reflected around the $N=Z$ line. Isospin symmetry also implies that the spectroscopic factor for each specific knockout path (removal from a specific orbital to a specific final state) should be essentially identical in both mirror nuclei, and this should, in turn, lead to very similar distributions of knockout strength when the mirror nuclei are studied in the same experimental conditions. Since the scheme of ${}^{48}$Ti is known, this helps considerably in the assignment of their analogue states in ${}^{48}$Fe. The mirrored knockout approach was first demonstrated in [6] and has been employed in a number of other cases [10,14,40].

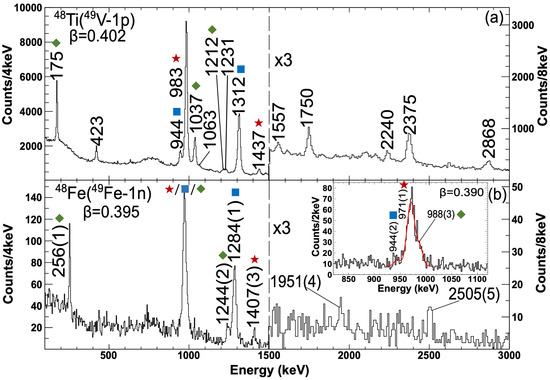

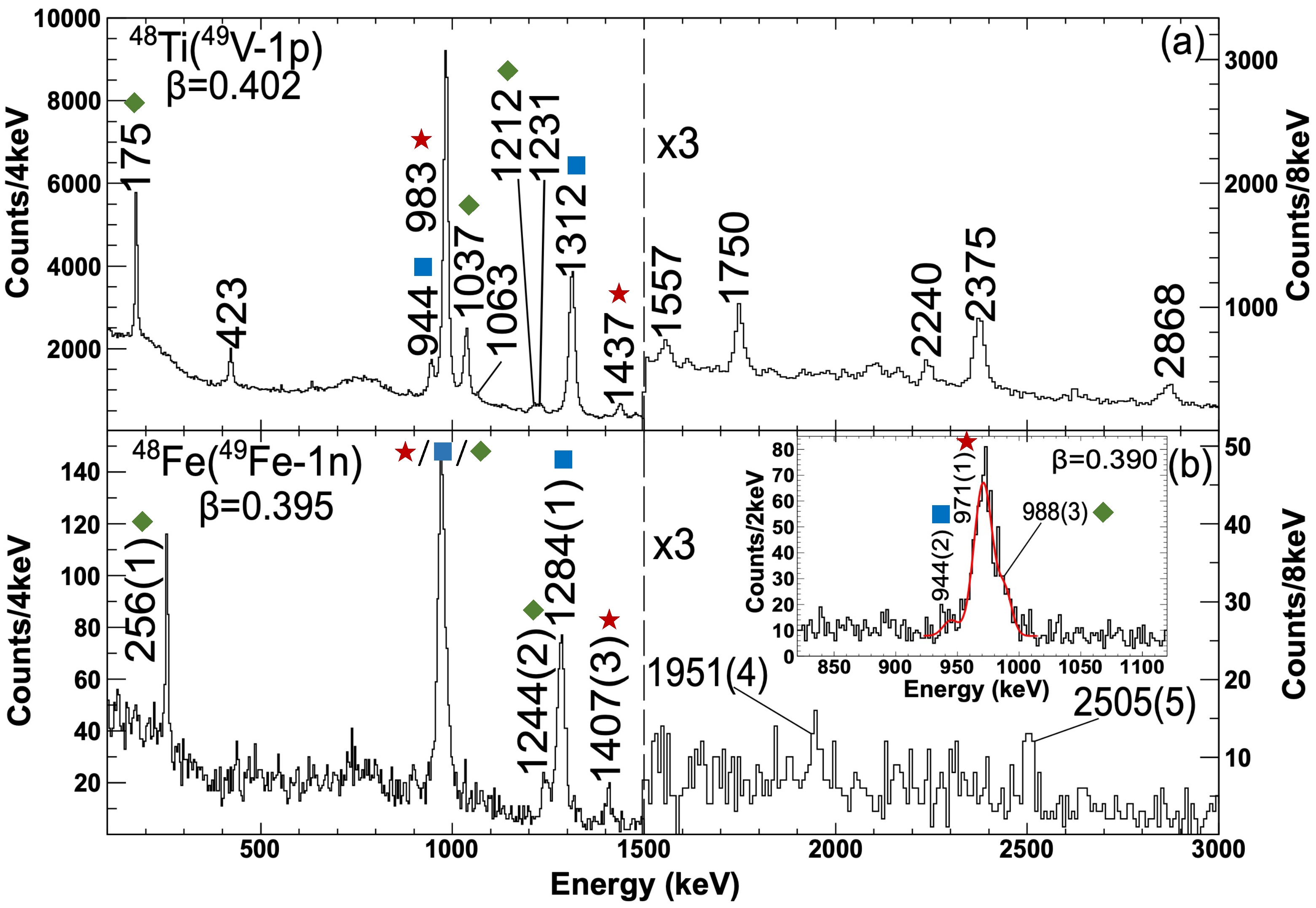

The spectra in Figure 3 show the resulting $\gamma$-ray spectra for this mirrored reaction: Figure 3a shows the ${}^{49}$V $-1p{\to }^{48}$Ti reaction and Figure 3b the mirrored ${}^{49}$Fe $-1n{\to }^{48}$Fe reaction. One can see very similar population distribution from the spectra. The spectra, as expected, are dominated by the decays from the $2_{1,2}^{+}$ states (labelled with blue squares), the $4_{1,2}^{+}$ states (green diamonds) and the $6_{1,2}^{+}$ states (red stars) [8,41]. The spectra also show the clear benefit of using a Ge $\gamma$-ray tracking array (i.e., GRETINA) for in-beam spectroscopy with relativistic beams. The position-sensitivity afforded by the pulse-shape-analysis approach allowed for accurate Doppler reconstruction (e.g., [38]), reducing the otherwise huge impact of Doppler broadening at these high fragment velocities.

The use of knockout reactions, and the mirrored-knockout technique, has provided a wealth of data on MED in the upper $f_{\frac{7}{2}}$ region which has, in turn, helped shed light on the role of isospin-non-conserving interactions in the shell-model analysis; see Section 4.1. The ${}^{56}$Zn case has also yielded information on how occupation of specific shell-model orbitals have a shape-driving effect; see Section 4.2.

3. Shell Model Approach for Energy Differences between Excited Analogue States

Without a reliable model to describe MED and TED as a function of J, the experimental observations of the variation of MED and TED with J cannot be interpreted in any physically meaningful sense. The shell-model approach to modelling MED and TED has transformed this field of research, allowing interpretation in terms of detailed nuclear structure phenomena including particle alignments and changes in nuclear shape/radii. Indeed, the happy coincidence that occurred around 20 years ago was that exceptionally powerful large-scale shell-model calculations were becoming available (e.g., [42,43]) in exactly the region where major experimental advances in the spectroscopy of mirror nuclei were taking place—i.e., the lower part of the $pf$ shell.

If perfect isospin symmetry between analogue states is assumed, and that the contributions to MED and TED are entirely related to electromagnetic effects, there are a number of effects that can contribute to MED/TED, and their variation with excitation energy/J, which can in principle be calculated in the shell-model approach. The key factor is the multipole effect of re-coupling the angular momentum of pairs of protons, resulting in a decrease in spatial overlap of the protons, with increasing coupled J, and hence a reduction in the Coulomb energy. This is straightforward to model in large-scale shell-model calculations through the application of Coulomb matrix elements, calculated in the usual harmonic oscillator (HO) basis, in addition to the nuclear effective interaction. Initial attempts to model MED, using just this approach, were only partially successful (e.g., [44,45]) and it was concluded from that analysis that additional ingredients (including of multipole origin) were missing in the model. Indeed, better agreement was obtained using “empirical” effective $f_{\frac{7}{2}}$ Coulomb matrix elements, extracted from the $A=42$ mirror nuclei (e.g., [46]) or sets of ad hoc Coulomb matrix elements derived from fits to the data in the centre of the $f_{\frac{7}{2}}$ shell [44].

It was clearly important to develop a consistent shell-model approach for prediction of MED and rooted correctly in the physics. The breakthrough came with the seminal work of Zuker et al. [16], in which multipole and monopole effects were treated together in the same shell-model prescription. The model was developed and tested using MED measured in the centre of the $f_{\frac{7}{2}}$ shell, with shell-model calculations performed with the ANTOINE code [42,43] in the full $pf$ space, using the mass-dependent effective interaction for the $pf$-shell, KB3G [47]. This model has formed the basis of the large-scale shell-model approach to MED and TED ever since; see, e.g., [3] for an earlier review. In this approach, the energy differences between analogue states within the shell model can be separated into four components, which can be calculated individually, so that the impact of each can be evaluated.

The first and last terms below are multipole terms. These can be calculated by determining the appropriate matrix elements of the interactions and calculating expectation values through first-order perturbation theory using a set of wave functions calculated in an isoscalar basis. The remaining two components are monopole terms, associated with bulk Coulomb effects and EM-induced shifts in single-particle energies. The four components are as follows.

3.1. Coulomb Multipole Interaction: $V_{CM}$

This multipole term accounts for the contribution of the two-body Coulomb interaction to the MED. The contribution to the MED or TED arises due to protons re-coupling angular momentum, with the resulting change in Coulomb energy, and the different numbers of active $pp$ pairs between the isospin-symmetric configurations of the isobaric analogue states. It is accounted for in the shell-model simply through the application of Coulomb matrix elements, calculated in a HO basis.

3.2. Single-Particle Contributions: $V_{ll}$ and $V_{ls}$

It was recognised by Zuker et al. [16] that the single-particle splitting between neutron and proton orbitals, induced by the Coulomb interaction, should be accounted for. In the shell model, this can be achieved through introducing shifts between the neutron and proton single particle levels before diagonalisation. The required Coulomb shifts ($V_{ll}$) can be determined through the formalism derived by Duflo and Zuker [48]. Since MED are normalised to the ground state, this term will only become significant where configurations change along the yrast line, and where there are different orbital occupancies between protons and neutrons. This term was eventually neglected by Zuker et al. [16], since they showed that other monopole effects (see Section 3.3) dominate in the specific region being tested. However, this will not always be the case, and the term is routinely included in MED calculations.

A second single particle term, not originally included by Zuker et al. [16], is the electromagnetic spin-orbit effect ($V_{ls})$. This is a purely electromagnetic effect, affecting both proton and neutron levels, associated with the spin magnetic moment of the nucleon interacting with the Coulomb field of the nucleus. The formalism was introduced by Nolen and Schiffer [49] in their description of Coulomb displacement energies. This effect, which has opposite signs for protons and neutrons, can be significant for MED, especially where occupancy of orbitals with $j=l+s$ and $j^{\prime }=l^{\prime }-s$ (where j, l and s are the total, orbital and spin angular momentum quantum numbers) are both changing (e.g., [50]).

In calculations of MED, both these effects are routinely included. Generally, however, these contributions are expected to cancel in TED calculations, due to the double-difference method of determining TED.

3.3. Radial Contribution: $V_{Cr}$

A major innovation, introduced by Lenzi et al. [51], and included in the prescription of Ref. [16], is the recognition that the nuclear radius may change along the yrast line with increasing excitation energy, resulting in a change in the bulk Coulomb energy. This, in turn, will contribute to the MED through the difference in Z between the mirror pair. It was recognised [16,51] that orbital radii depend on l and that, in the $f_{\frac{7}{2}}$ region, it was the changing occupancy of the low-l orbitals $p_{\frac{3}{2}}$ and $p_{\frac{1}{2}}$ which would drive the nucleus to larger radii.

Unlike the $V_{ll}$ and $V_{ls}$ terms above, for which the MED will depend on the difference between proton and neutron orbital occupancies, the $V_{Cr}$ term will depend on the average (proton plus neutron) occupancy of the two p orbits. The MED contribution due to the $V_{Cr}$ term is then calculated using

$${\mathrm{MED}}_{V_{Cr}}\left(J\right)=n\alpha \left[\left(\frac{m_{\pi }\left(gs\right)+m_{\nu }\left(gs\right)}{2}\right)-\left(\frac{m_{\pi }\left(J\right)+m_{\nu }\left(J\right)}{2}\right)\right]$$

(3)

where $m\left(J\right)$ is the total occupancy of the $p_{\frac{3}{2}}$ and $p_{\frac{1}{2}}$ orbitals for neutrons ($\nu$) and protons ($\pi$), and $n=2|T_z|$ accounts for the difference in Z between the mirror nuclei. The coefficient $\alpha$ was estimated in Ref. [3] as 200 keV, based on the $A=41$ mirror nuclei, and this number has been used extensively in the region. In the $f_{\frac{7}{2}}$ region, the occupancy of $p_{\frac{1}{2}}$ is often negligibly small, and so is neglected in the MED calculation. However, above $Z,N\sim 28$ it should be included (e.g., [9]). In the $sd$-shell the same formalism has been used (e.g., [11,52,53]), but instead tracking the occupancy of the $s_{\frac{1}{2}}$ orbital.

Again, as with the previous term, this effect cancels in the calculation of TED.

3.4. Isospin Non-Conserving (INC) Interaction: $V_B$

Zuker et al. [16] recognised that an additional multipole component is required, in the model, to account for the experimental MED and TED observed in the region (the inclusion of the HO Coulomb matrix elements were shown to be insufficient). Zuker et al. [16] extracted an additional effective INC interaction through comparing the HO Coulomb matrix elements with the MED and TED for the $A=42$ isospin triplet. An isovector matrix element, $V_B^{\left(1\right)}$ was derived for $f_{\frac{7}{2}}$ orbital the from the $A=42$, $T=1$ mirror nuclei and an isotensor $f_{\frac{7}{2}}$ matrix element $V_B^{\left(2\right)}$ extracted from the TED for $T=1$ triplet. These matrix elements were derived as a function of angular-momentum coupling J, and it was observed that the dominant components appeared to be at $J=2$ for $V_B^{\left(1\right)}$ and $J=0$ for $V_B^{\left(2\right)}$ and both of the order of +100 keV. It was observed [16] that these additional interactions, when included in the shell-model calculations, along with the first and third terms above, allowed for a very good description of the data available at the time. It was later noted [17], once more data became available, that an isovector INC matrix element of the order of −100 keV at $J=0$ gives essentially very similar results to the original value of +100 keV at $J=2$.

Whatever the origin of this effect, the inclusion of these additional effective isovector and isotensor interactions appeared to be an essential inclusion in the modelling of MED and TED, respectively, at least in the $f_{\frac{7}{2}}$ region. The importance of inclusion of such INC isovector and/or isotensor interactions has also been investigated in the $sd$ shell [11,52] and in the upper $pf$ shell (e.g., [18,21]).

4. Recent Advances Based on Shell-Model Analysis

The shell-model approach described in Section 3 has formed the backbone of this field of study over the last two decades. The strength of the shell-model prescription is the simultaneous inclusion of the multipole and monopole effects, since the relative scale of the contributions of the four components described in Section 3 changes from case to case. Examples of this are the $T=1$ and $T=2$ mirror nuclei with $A=48$ [8,54], one of which is a case study in Section 2.3. Each of these pairs of mirror nuclei, which lie in the exact centre of the $f_{\frac{7}{2}}$ shell, would also be “cross conjugate” nuclei in the assumption of a single isolated $f_{\frac{7}{2}}$ shell. In this extreme assumption, which is not bad for the $f_{\frac{7}{2}}$ shell, all multipole MED would be zero since the number of protons in one nucleus is the same as the number of proton holes in the mirror partner. In the case of the $T=1$, $A=48$ mirrors [54] this appears to be the case, and the experimental MED is largely accounted for by the monopole $V_{Cr}$ term. This nicely demonstrates the power of the approach in accounting for a range of phenomena.

In this Section, some of the latest developments in this field, specifically relating to shell-model analysis, are discussed, focussing in particular on the results from the case studies presented in Section 2.

4.1. Isospin-Non-Conserving Interactions

One of the key areas of study has been to map out the influence of the additional effective INC interactions (see Section 3.4). In the $f_{\frac{7}{2}}$ shell, a large amount of data have become available which has enabled a more complete numerical evaluation of the influence of these INC effects. In Refs. [17,18], all available MED and TED data in the $f_{\frac{7}{2}}$ shell (at that time) were gathered and modelled using a consistent shell-model approach. The shell-model MED and TED were then fitted to the experimental data, allowing the magnitude of the J-dependent INC terms $V_B^{\left(1\right)}$ and $V_B^{\left(2\right)}$ to vary freely; the former (isovector) term was derived from the MED and the latter (isotensor) term from the TED. The key results are shown in

Table 1. Data collected from Refs. [17,18]. The isovector $V_B^{\left(1\right)}\left(J\right)$ and isotensor $V_B^{\left(2\right)}\left(J\right)$ INC matrix elements, for $f_{7/2}$ pairs, extracted from fits across the whole $f_{7/2}$ shell (see text for details). For the full fits, a monopole centroid has been subtracted as part of the fitting process to allow the J-dependence to be fully evaluated. The numbers in the parentheses are the errors on the fitted values.

EXTRACTED${\mathit{V}}_{\mathit{B}}^{\left(\mathit{k}\right)}$PARAMETERS FOR THE${\mathit{f}}_{\frac{7}{2}}$ORBITAL
Matrix elements${\mathit{V}}_{\mathit{B}}^{\left(1\right)}$(keV)				Matrix elements${\mathit{V}}_{\mathit{B}}^{\left(2\right)}$(keV)
$J=0$	$J=2$	$J=4$	$J=6$	$J=0$	$J=2$	$J=4$	$J=6$
One-parameter fit
−79(6)	-	-	-	98(11)	-	-	-
Full fits: centroid-subtracted
−72(7)	32(6)	8(6)	−12(4)	113(18)	23(29)	5(24)	−21(22)

. The results of two types of fit are presented: one where a single $T=1$$V_B$ matrix element is considered (at a coupling of $J=0$) and the second where all four $T=1$ matrix elements $J=0,2,4,6$ were allowed to be non-zero. Only $f_{\frac{7}{2}}$ matrix elements were considered. See Refs. [17,18] for a full discussion of the analysis.

Two key results emerged from the analysis. Firstly, for the purpose of MED and TED, it is having the correct J-dependence of these matrix elements that is crucial in the determination of the theoretical MED and TED; the extracted results do indeed have a strong J-dependence. Secondly, it was shown that a single matrix element at $J=0$ gives, essentially, as good a fit as allowing all four matrix elements to vary. Hence a prescription in which a single $J=0$ INC matrix element ($V_B^{\left(1\right)}$ or $V_B^{\left(2\right)}$) is included is now the commonly used approach for modelling MED and TED (e.g., [8,9,10,11,18,52]). The results in Table 1 suggest that an isovector $J=0$ matrix element of the order of $-100$ keV is required for MED and an isotensor $J=0$ matrix element of the order of $+100$ keV is required for TED. These conclusions are essentially consistent with the original study of Zuker et al. [16]. Indeed, the fits in Ref. [17] indicates that a positive isovector matrix element at $J=2$ (as was originally extracted in [16]) has a similar effect as a negative matrix element at $J=0$. Again, the key contributor is the J-dependence, not the absolute magnitude, of these matrix elements.

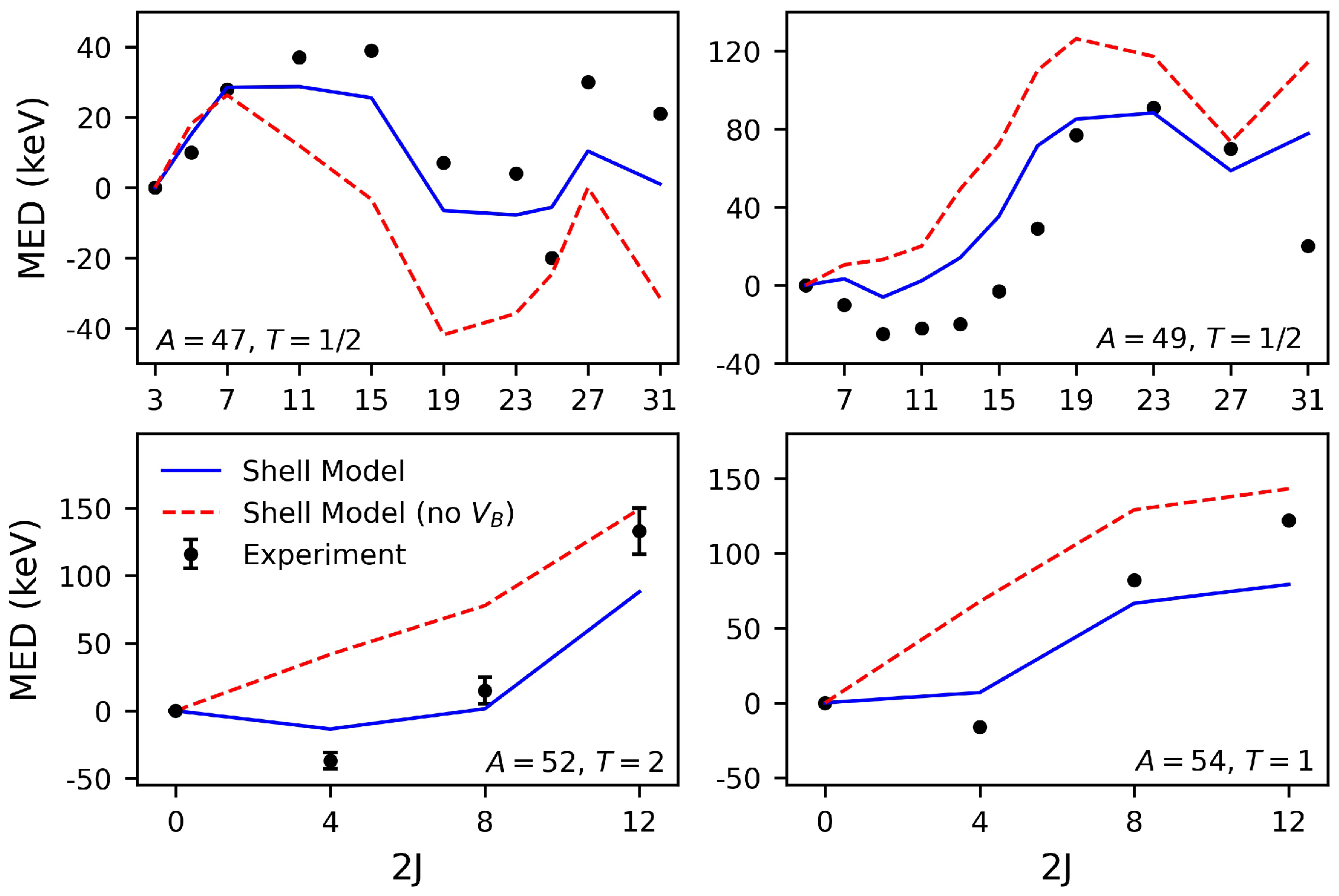

Figure 4 shows experimental and shell-model MED in the $f_{\frac{7}{2}}$ shell. The solid blue lines contain the full shell-model calculation, performed exactly as described in Section 3, with a single isovector $J=0$ matrix element of $V_B=-79$ keV, the figure extracted from the fits [17] (see Table 1). The red dashed lines show the calculations without $V_B$ included. It is clear from data like these the crucial role that this effective INC interaction has, especially at low J, in the description of MED in the $f_{\frac{7}{2}}$ region.

It is certainly of interest to understand the importance of this effect in other mass regions. In general, this is more challenging in regions where there are more orbitals in play and where the influence of the monopole contributions may be large. In the $sd$ shell, inclusion of the INC $V_B$ term also appears to be necessary, with matrix elements of the same order as described above [11,52]. In the upper $fp$ shell, it has been challenging to find a consistent picture for MED, and this remains an open question, e.g., [21]. However, a very recent analysis of the $A=58$, $T=1$ mirror nuclei has been performed [9], using the same modelling as that presented for the $A=56$, $T=2$ mirrors later in Section 4.2. In the $A=58$ mirror nuclei, the $f_{\frac{7}{2}}$ shell is expected to be almost fully filled and so the MED will be insensitive to the inclusion of $V_B$ in the $f_{\frac{7}{2}}$ orbital, but will be sensitive to its inclusion in the other $pf$ orbitals. The analysis indicated that a much better match to the experimental MED was obtained when a negative $J=0$ matrix element for $V_B$ was included for all the $fp$ orbitals.

The physical origin of the isovector INC interaction in the modelling of MED remains unclear, and the analysis presented in Reference [17] suggests that the matrix elements and their J dependence (see Table 1) cannot be reconciled easily with the properties of known nuclear charge-symmetry breaking interaction. This therefore points to other electromagnetic contributions missing in the model; see Ref. [17] for a discussion.

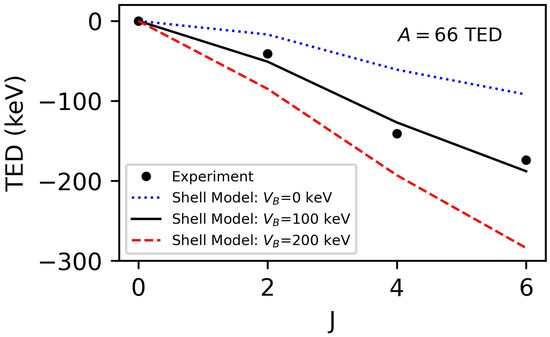

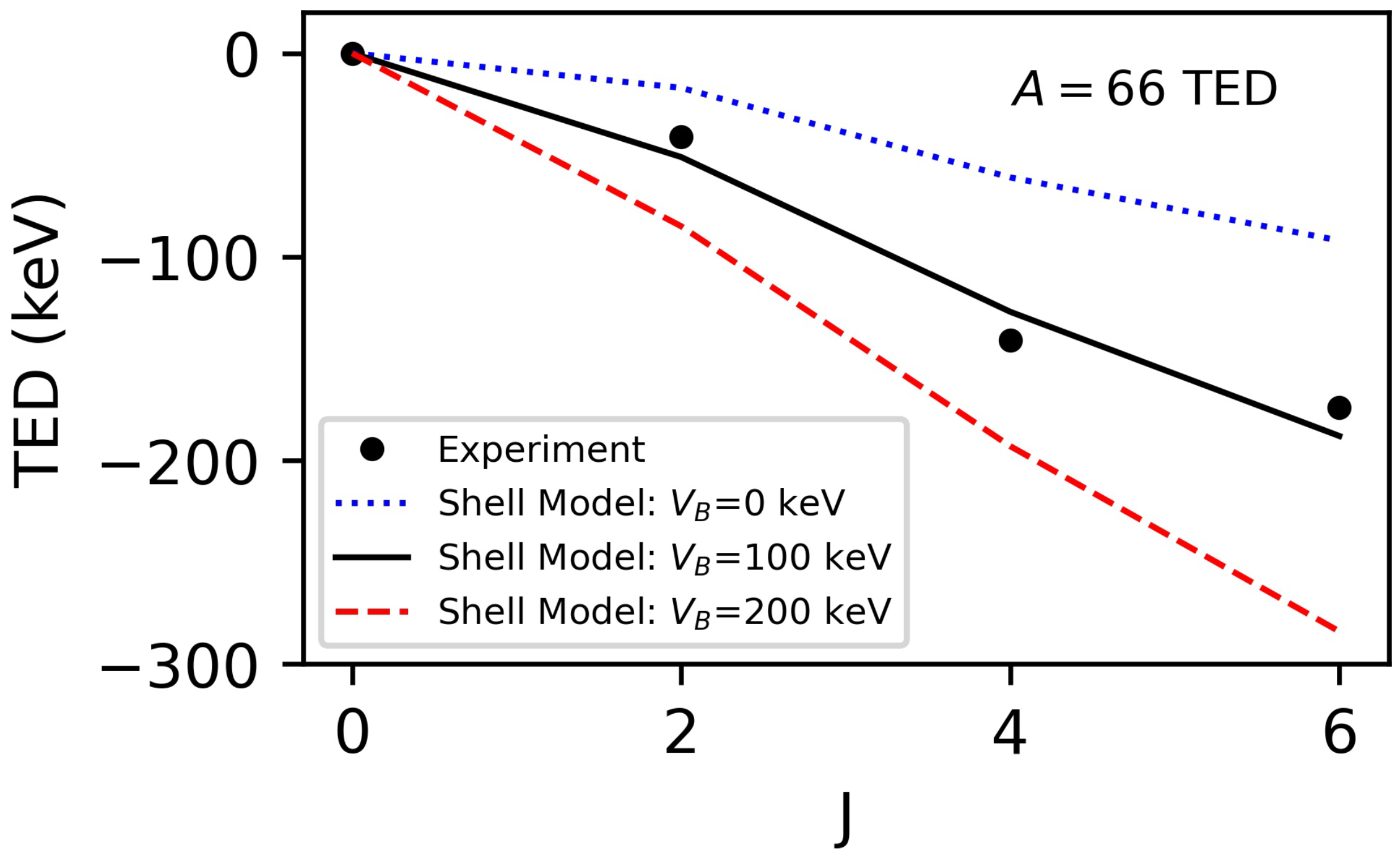

Turning to TED, and the impact of the isotensor INC interaction $V_B^{\left(2\right)}$, the case study of ${}^{66}$Se (Section 2) and the $A=66$, $T=1$ isobaric triplet provides a practical example. The successful spectroscopy of ${}^{66}$Se [12] up to $J^{\pi }=6^{+}$ completed the $T=1$ isobaric triplet and allowed for TED to be determined to $J^{\pi }=6^{+}$. The experimental data are presented in Figure 5. The large negative TED observed are typical of all $T=1$ triplets; see, e.g., [18]. Figure 5 also contains the result of the shell-model calculation performed following the prescription in Section 3 and using the JUN45 interaction [55]; see black line. The calculations were originally performed in Ref. [18], and updated for this review. The shell-model calculation does not contain calculations related to the two monopole components ($V_{Cr}$ and $V_{ll,ls}$) since these effectively cancel to zero due to the double-difference method of calculating the TED. Hence, only the two multipole interactions, $V_{CM}$ (Coulomb) and $V_B$ (INC), are relevant for this calculation. The shell-model results are plotted in Figure 5, for different strengths of the INC parameter $V_B^{\left(2\right)}$, for $J=0$ couplings. The blue dotted line shows $V_B=0$ (i.e., just $V_{CM}$ contributes), the black solid line has $V_B=+100$ keV and the red dashed line shows $V_B=+200$ keV. The calculation with $V_B=+100$ keV (black line) is consistent with the prescription in [16] and with the data in Table 1. The $V_B$ interaction was applied equally to all orbits in the $p_{\frac{3}{2}}{f}_{\frac{5}{2}}{p}_{\frac{1}{2}}{g}_{\frac{9}{2}}$ valence space although, in this case, it is the contribution from the $f_{\frac{5}{2}}$ that dominates [18].

Two conclusions can be drawn from the comparison with the shell-model results when $V_B=+100$ keV is applied. The first is that the agreement with experimental TED would fail badly without the inclusion of this additional effective isotensor INC term. Secondly, it can be shown from this analysis [18] that the two components, $V_{CM}$ (Coulomb) and $V_B$ (INC), have approximately the same magnitude when $V_B=+100$ is applied. This is not that surprising since, as noted above, it is the J-dependence of the matrix elements that influences the TED, and the Coulomb matrix elements generally vary by around 100 keV from $J=0$ to $J_{\max }$. The key point is that the contribution of the isotensor INC term, to the TED, is as large as that of the Coulomb two-body interaction.

Lenzi et al. [18] performed a similar analysis for all $T=1$ triplets between $A=22$ and $A=66$, using four different interactions, as appropriate to the valence space being used, and applying an isotensor $J=0$ matrix element of $V_B=+100$ keV in all orbitals. A remarkably consistent picture emerged, with observations very similar to that for $A=66$; i.e., that the $V_B$ contribution is significant, and required, across the full range of triplets studied. An important point to note is that, for TED, we have seen that the monopole terms of the shell-model prescription do not contribute significantly. Therefore, the TED is essentially only sensitive to multipole effects and thus represents an observable that can shed light on the nature of effective isospin-non conserving interactions. Since the size of the required $V_B$ interaction appears to be largely independent of mass region, orbital or shell-model interaction, it is natural to examine whether or not the true charge dependence of the nuclear interaction [1] could be the origin. It was shown by Ormand and Brown [56] that nucleon scattering data suggests that the $np$ nuclear interaction is approximately 2–3% stronger than the $pp$ and $nn$ interactions. The analysis of Reference [18] indeed indicated that the scale, and sign, of the effective isotensor interaction $V_B$ interaction appear to be approximately consistent with that estimate for the charge-dependence of the NN interaction. This indeed highlights the power of using energy differences, coupled to a reliable shell-model calculation, to probe effective nucleon interactions.

4.2. Nuclear Radii and Neutron Skins

In Section 3, it was demonstrated how occupation of low-l orbitals can contribute to MED and that this can be accounted for in the shell model through tracking of the total (proton plus neutron) occupation of low-l orbits: in the $f_{\frac{7}{2}}$ region this would be the occupancy of the $p_{\frac{3}{2}},p_{\frac{1}{2}}$ orbitals. This provides the first indication that MED can yield real physical insight into changes in nuclear radii.

Recently, Bonnard et al. [19] have investigated the role of the occupation of low-l “halo” orbitals in driving radii and on their influence in the development of neutron skins. They have been able to show that the effect on the total radius of occupation of one of the low-l orbitals is strongly dependent on the extent of the occupation of that orbital. For example, in the $f_{\frac{7}{2}}$ shell, the occupancy of the p orbits is generally expected to be low (the shell-model occupancies are ≪ 1). Moreover, the parameterisation of the $V_{Cr}$ term (see Section 3) has been optimised for that region. However, in heavier nuclei, once the $f_{\frac{7}{2}}$ shell is full, the occupancies of the p orbits will increase significantly, and the work of Bonnard et al. [19] suggests that the radial-driving effect of the p orbit will be significantly smaller in this circumstance.

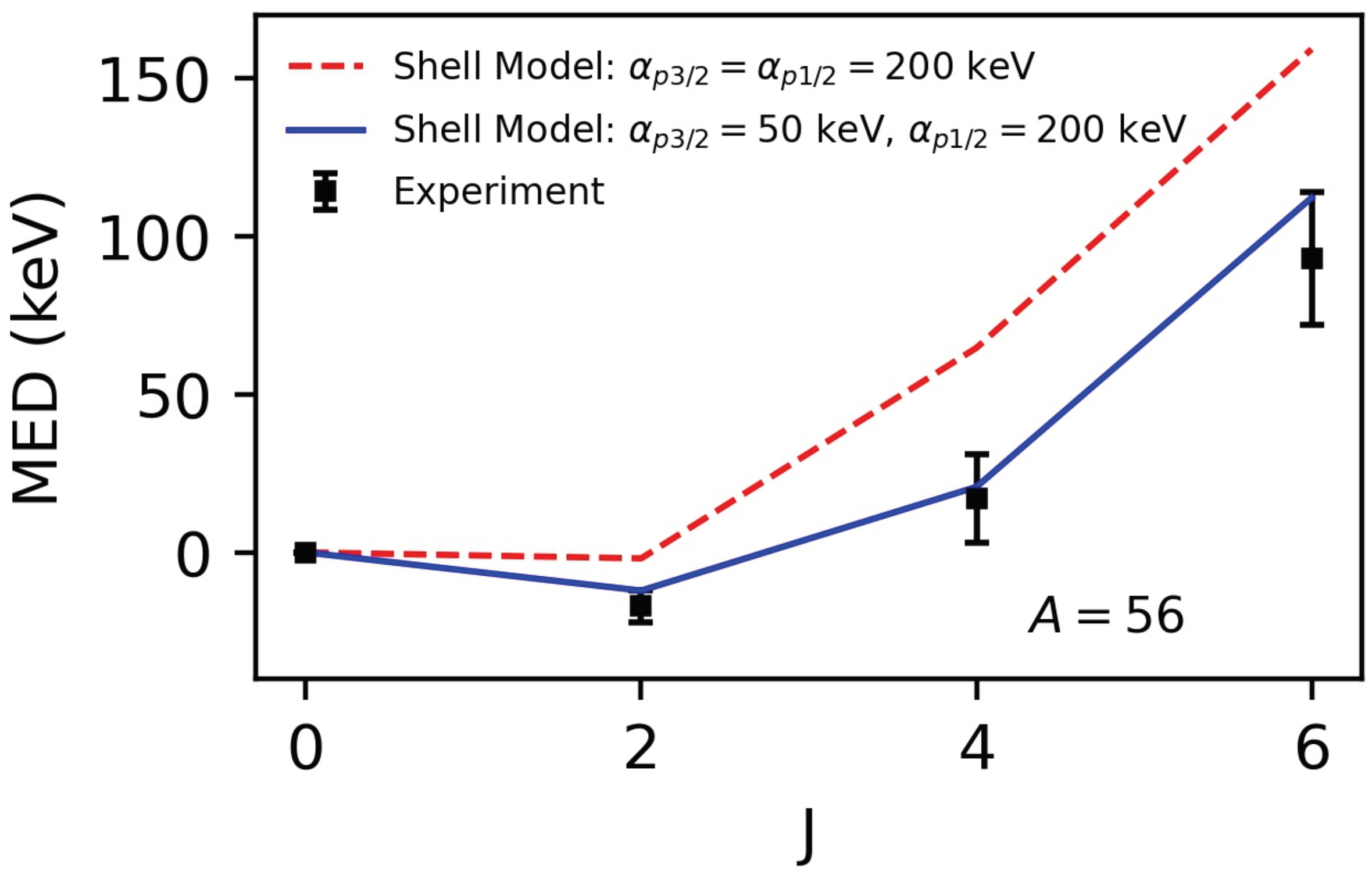

This has been investigated in the $A=56$, $T=2$ mirror nuclei following the spectroscopy of ${}^{56}$Zn [9], discussed as a case study in Section 2.3. Figure 6 shows the experimental MED compared with the shell-model calculations. These calculations have been performed with a modified KB3G interaction, KB3GR (Caurier, E.; Poves, A. Unpublished work) which has been optimised for this region. The calculation using the standard parameterisation for the radial term ($\alpha =200$ keV, see Equation (3)) is shown by the red dashed line. However, in this case, protons in ${}^{56}$Zn (and neutrons in its mirror, ${}^{56}$Fe) are already occupying the $p_{\frac{3}{2}}$ orbital, and the results of Reference [19] therefore imply that the radial term $V_{Cr}$ is likely to be overestimated. Therefore, in the analysis of the $A=56$ mirrors, Fernández et al. [9] reduced the $\alpha$ parameter (see Equation (3)) for the $p_{\frac{3}{2}}$ occupancies, from the standard value of 200 keV. The $\alpha$ parameter for the $p_{\frac{1}{2}}$, which remains largely unoccupied, was left unchanged. The results can be seen in Figure 6 where a smaller value of $\alpha =50$ keV is applied for the $p_{\frac{3}{2}}$ orbital; see solid blue line. This gives a much better description, in qualitative agreement with the results of Bonnard et al. [19]. It is also noteworthy that the multipole contributions to the MED for this mirror pair turn out to be small, due to particle-hole symmetry; both nuclei have two particles and two holes with respect to ${}^{56}$Ni. This makes this mirror pair sensitive to the remaining significant monopole contribution, $V_{Cr}$, making this an ideal test case to examine radial effects.

As well as the total nuclear radius having an impact on the Coulomb energy, and hence MED, for a mirror pair, any difference between the neutron and proton radii (i.e., neutron skin) could also have an effect on MED if, as isospin symmetry would suggest, the neutron radius of one member of a mirror pair is equal to the proton radius of the other. This idea, also inspired by the study in Ref. [19], was pursued in the analysis of the $A=23$ mirror nuclei by Boso et al. [11], work that was made possible by the spectroscopy of ${}^{23}$Mg, our remaining case study (see Section 2.1). The analysis was undertaken using a no-core shell-model approach based on the monopole-corrected interaction (MCI) [57], which contains all the necessary Coulomb and charge-symmetry breaking terms. The MCI matrix elements were computed using different size parameters for neutrons and protons (i.e., allowing for the possibility of different neutron and proton radii). Whilst the proton radius of ${}^{23}$Na is experimentally known, its neutron radius is not. The neutron radius (and hence neutron skin) was then determined following the method of Duflo and Zuker [48] by adjusting the neutron radius until the experimental ground state mirror displacement energy (MDE) is reproduced by the model. The method was then repeated state by state, in order to reproduce the MED, allowing for the variation of the skin thickness as a function of J for the excited states.

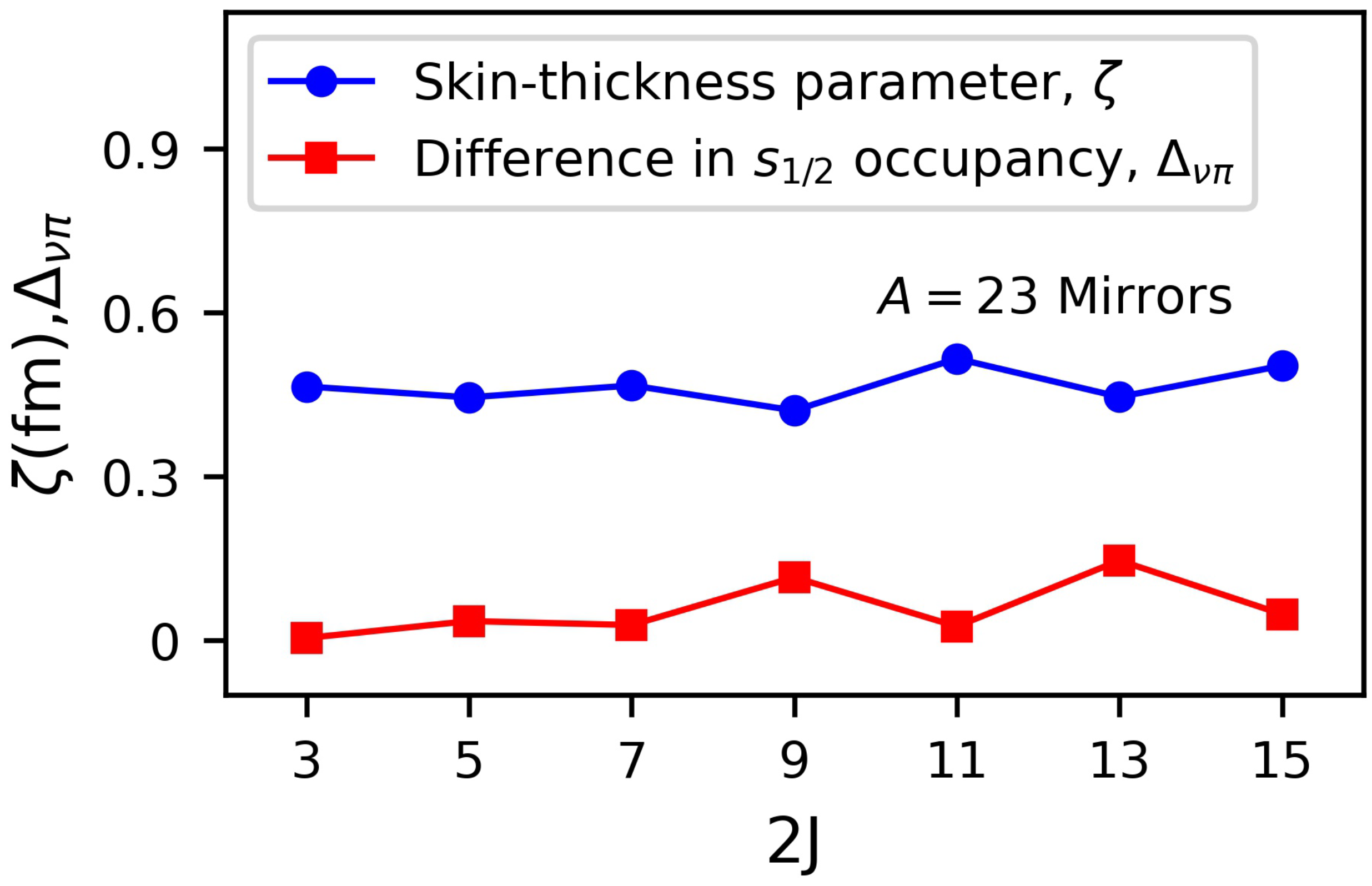

Full details can be found in Ref. [11] but the key results are shown in Figure 7. The neutron skin thickness parameter, $\zeta$, is plotted using the blue circles. $\zeta$, in the paramaterisation of Duflo and Zuker [48], is proportional to difference between the neutron and proton rms (root mean square) radii and is defined as $\zeta =\Delta r_{\nu \pi }A/\left(T_z{e}^{g/A}\right)$, where the exponential factor is a correction term, applied for light nuclei [48]. These results show that the neutron skin, as derived from the MED, varies significantly from state to state. This, in turn, implies neutron skin sizes, and their variation with excitation energy/J, can influence the MED and, if so, it is an effect currently not included in the MED models. Another key observation is that the skin thickness, has a correlation with the difference between the neutron and proton occupancies of the $s_{\frac{1}{2}}$ orbit. This difference is plotted as ${\Delta }_{\nu \pi }$ in Figure 7 (red squares). This analysis was repeated for a range of other odd-A mirror nuclei in the $sd$ shell, and similar variations of neutron-skin thickness with J were suggested by that analysis; see Ref. [11] for the full results and discussion. Inclusion of effects of this kind in the calculation of MED is clearly an exciting future topic for investigation.

5. Summary and Outlook

In this short review, some of the latest experimental advances have been presented. The advent of the new radioactive beam facilities will allow some of these techniques to be applied to allow spectroscopy of the most exotic proton-rich systems, or to perform high precision tests of the predictions that come from the isospin formalism. The high-intensity intermediate-energy fragmentation beams available at the upcoming FRIB (Facility for Rare Isotope Beams, East Lansing, MI, USA) and FAIR (Facility for Antiproton and Ion Research, Darmstadt, Germany) facilities are expected to have particular impact. Techniques such as those described Section 2.3, can be applied to access nuclei with large proton excess and pursue spectroscopy of mirror nuclei in the upper half of the $fpg$ region. The high-velocity beams also allow for a range of lifetime-measurement techniques to be applied, allowing for precision tests of the isospin-dependence of transition strengths. From a theoretical perspective, it will be especially important to develop a better understanding of the origin of the effective isovector isospin non-conserving (INC) interactions (see Section 4.1). Moreover, the link between mirror energy differences (MED) and radii/neutron skin is especially exciting and should be developed further in future shell-model work. As the study of energy splitting between isobaric multiplets develops in the future, the exciting developments in the shell-model, some of which have been discussed, will have crucial role to play.
