Treatment of Ferruginous Water in the Performance of Drip Irrigation Systems

Abstract

One of the most important advantages of drip irrigation is the possibility of achieving a high uniformity of water distribution. However, this uniformity can be reduced when using water with high iron content, which can cause drippers to clog. This study aimed to verify the efficiency of the chlorination, aeration, decantation and filtration processes carried out to remove the iron from irrigation water and to investigate the effect of iron on water distribution uniformity. Four similar irrigation systems with five models of drippers were installed. The results showed that (i) there was a significant difference in the drippers’ behavior in relation to susceptibility to clogging when using water with a high iron content; (ii) the use of disk filters alone was not able to promote significant reductions in the iron quantity as a way to prevent the clogging of drippers; and (iii) the use of aerators followed by sedimentation tanks made it possible to achieve a considerable improvement in the water application uniformity for drippers that were more sensitive to clogging caused by the use of water with high iron content.

1. Introduction

Dripper clogging is one of the biggest problems in drip irrigation systems, as even a small percentage of clogged drippers can create a major reduction in the uniformity of water application [1,2], with impacts on crop yield and production cost [3,4]. According to [5,6], biological clogging is the most likely cause of a low uniformity of water application in irrigation equipment.

The problem of sensitivity to clogging varies with the characteristics of the dripper [7] and the water used for irrigation, and drippers may become obstructed by physical, chemical and biological agents [4,8,9,10]. The identification of this issue can be a complex task, since the various agents present in the water can interact with each other to aggravate the problem [5].

In several regions of Brazil, water with high levels of iron is frequently found and this element can cause serious clogging problems. Ref. [11] found total Fe values of above 3 mg L⁻¹ in well water in the municipality of Congo-PB. Ref. [12] established that water that will be used without restriction in irrigation must have an iron concentration of lower than 0.1 mg L⁻¹. The use of water with an iron content higher than 1.5 mg L⁻¹ in drip irrigation systems presents a high risk of dripper clogging.

According to [12], iron in surface waters is generally found in the form of precipitate, while in the deeper layers of reservoirs with a lack of oxygen it can be found in the ferrous state (FeO). However, reduced iron (Fe²⁺), which is soluble, can oxidize when passing through a filtration system, becoming insoluble (Fe³⁺), and can end up precipitating and causing obstruction of the drippers [13].

Ref. [14] worked with drippers from five different manufacturers, which supplied water containing an iron content of 3.0 mg L⁻¹, and observed a reduction in flow rate of between 34% and 87% after 200 h of operation.

To avoid the precipitation of iron in the form of scale in the drippers, it can be precipitated and filtered before it enters the irrigation system by oxidizing it to an insoluble form through chlorination. However, care must be taken when applying chlorine to drip irrigation systems: Refs. [15,16] pointed out that extreme doses of chlorine can damage a dripper’s compensation membrane, affecting its regulation.

The introduction of aeration to the sedimentation tank is a simple and economical solution for eliminating suspended solids and some chemical precipitates, such as iron, which form when water is aerated [12,17,18]. The size of the tank depends on the volume of water to be treated, the size of the sediments present in the water and the desired quality at the outlet. The tanks are designed to ensure a certain amount of time for the water to remain in the tank, with periods of 15 to 60 min commonly adopted for laminar and turbulent flow decanters, respectively [19].

The aims of this study were to evaluate the uniformity of water application in drip irrigation systems and the efficiency of treatment processes involving chlorination, aeration, sedimentation and filtration in regard to removing excess iron from irrigation water, as well as their effects on changing the flow rates of five dripper models due to clogging.

2. Materials and Methods

The experiment was carried out near the Federal University of Viçosa, Brazil, where a surface water source was found with a total iron content greater than 1.5 mg L⁻¹, a suitable area was available for setting up the experiment and an artesian well with water with a low iron content was also present.

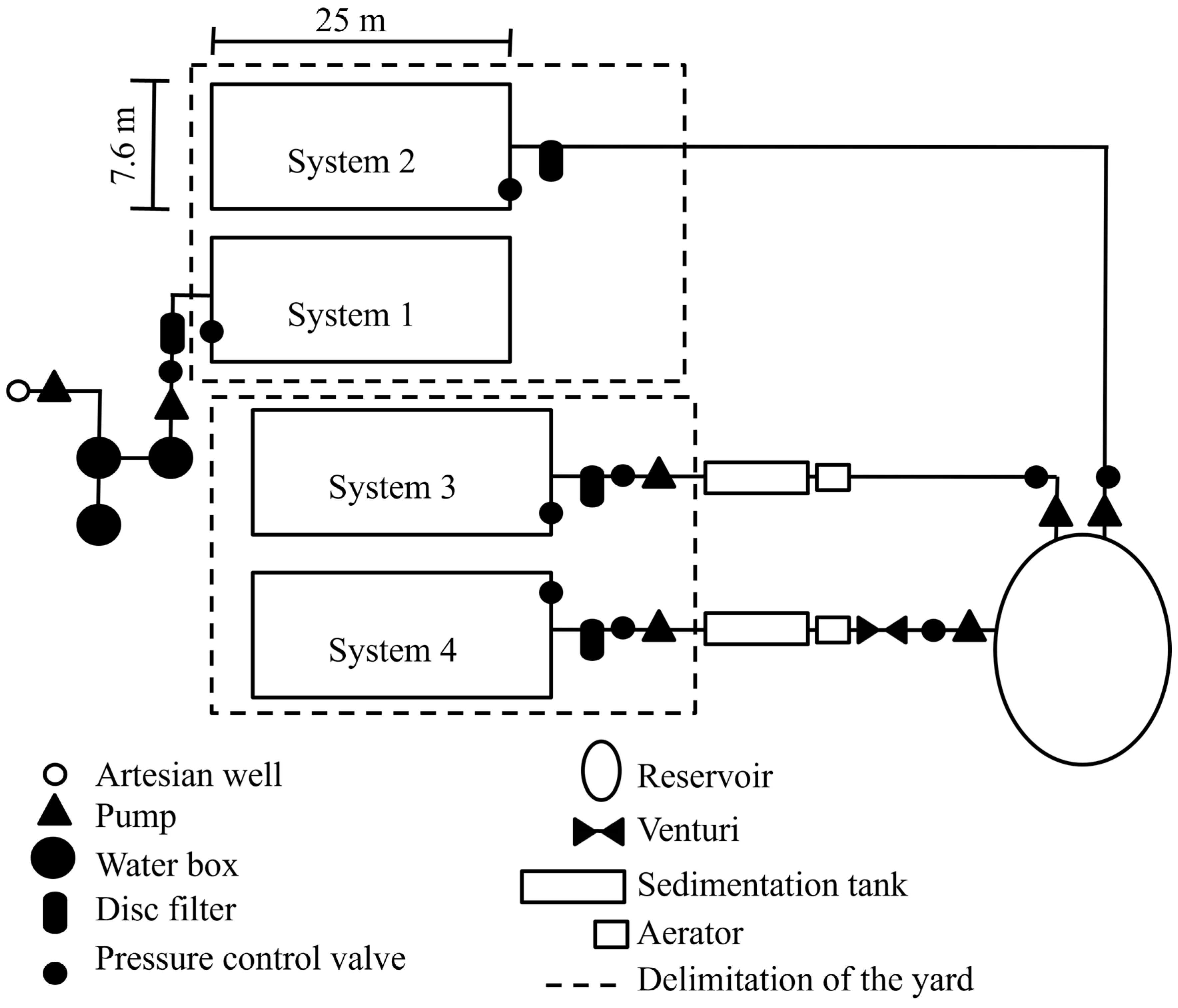

To carry out the experiment, four drip irrigation systems (each one applying one treatment) were installed, each occupying an area of 7.6 by 25 m. The systems were assembled using five dripper models (G1, G2, G3, G4 and G5) from five drip irrigation equipment manufacturers; the characteristics of these drippers, as provided by the manufacturers, are presented in

Table 1. Technical summary of the drip tube models used by different manufacturers.

Model	Type	Flow Rate (L h−1)	Internal Diameter (mm)	Outer Diameter (mm)	Pressure (kPa)	Dripper Spacing (m)
G1	Tape	0.74	15.8	–	68.67–98.1	0.20
G2	SC 1	2.30	13.7	16.0	49.05–392.4	0.75
G3	SC	3.40	13.7	16.0	58.86–392.4	1.00
G4	SC	2.30	13.7	16.0	58.86–392.4	0.75
G5	SC	2.10	14.8	16.0	49.05–343.3	0.75

¹ SC—self-compensating.

.

In order to facilitate the water distribution uniformity tests, the lines were extended transversely over eight smooth wire strands, spaced 3.00 m apart, and were stretched and leveled at approximately 1.5 m above the floor. In the manifold line of each irrigation system, which was 7.6 m long, 25 mm diameter PVC pipes were suspended over the first wire at a height of 1.5 m and 40 connectors were inserted in each line. For each dripper model, eight lateral lines of length 25 m were installed, with a spacing of 0.15 m between the lines for the same model and a distance of 0.40 m between the lines of one model and another, with a total of 40 lines.

The eight lines of the same model were inserted in sequence, with only their positioning being randomly selected (Figure 1); the exception was the “tape” type model, which was installed at the beginning or end of the line, since the recommended service pressure for this is 68.67 kPa, meaning that a pressure control valve and pressure measurement point are required beforehand to maintain the recommended service pressure.

Since the periodic opening of the end of the lateral lines of drippers can cause a reduction in clogging caused by the presence of iron in the irrigation water, automatic cleaning valves were installed in half of the lines (of each dripper model).

As the implementation involved four systems with 40 lines each, the total assembly consisted of 160 lines. All systems received filtration with 120 mesh disk filters with a capacity of 7.0 m³ h⁻¹. In System 3 (S3), filtration was associated with the aeration and decantation process and in S4, filtration was associated with aeration, decantation and chlorination. Figure 1 shows the assembly of the irrigation systems.

S1 was supplied with water from a well with a total iron content of less than 0.1 mg L⁻¹. The other three systems (S2, S3 and S4) were supplied with water from a reservoir with an iron content of between 2.6 and 4.0 mg L⁻¹, located 30 m away from the first yard.

The daily water application routine consisted of two intermittent periods of 4 h with a 2 h interval between applications. The total application time for the treatments was 300 h.

The system operated with a service pressure at the end of the lateral lines of between 98.1 and 117.72 kPa, except for the “tape” type model, which operated with a service pressure of 68.67 kPa. The filters were cleaned whenever there was a 20% drop in service pressure, measured at a valve installed after the filters.

In S3 and S4, which required aeration, two aerators were installed with four square trays (referred to here as “trays”) measuring 0.50 m on each side, overlapped and spaced 0.30 m apart. These aerators were sized according to the recommendations of [19] and installed inside 500 L boxes, which served as collection tanks. The water was pumped over the highest tray, fell into the collection tank and was then passed to a sedimentation tank.

The tanks were designed for clarification of colloidal waters, following the recommendations of [19], with an area of 3.0 m² for a flow rate of 3.20 m³ h⁻¹, a length:width ratio of 3:1 and a height of 1.0 m. The water retention time in the tank was approximately 1 h.

Chlorine application was continuous throughout the entire period of operation of S4. Sodium hypochlorite was used at a concentration of 12% (v/v) active chlorine. The product was diluted in water in a 50 L plastic box and injected into the piping after the pump and before the aerator, using a Venturi injector. The amount applied was monitored using a free chlorine analysis kit to maintain a free chlorine content of between 0.5 and 1.0 mg L⁻¹ at the ends of the lines.

At the beginning of the study, water samples were collected from the tanks and the reservoir and sent to the Water Quality Laboratory of the Soil Department at Universidade Federal de Viçosa, Brazil for analysis of calcium, magnesium, manganese and total solids, in accordance with the methodology described by [20]. Water samples were collected for analysis from all systems after every 50 h of operation at four points: at the intake, in the sedimentation tank, after the filtration system, and in the drippers located at the ends of the lines. From these samples, values for the total iron content, pH and water temperature were obtained.

Water distribution uniformity assessments (timepoints) and dripper flow measurements were performed on the first day and after every 50 h of system operation, giving a total of six assessments (0 to 250 h). In each assessment, water volumes were collected using a 250 mL graduated cylinder, and the flow rates for the eight drippers in each lateral line were calculated, with 320 drippers per system, according to the methodology proposed by [21] and modified by [22], over 3 min. In each plot, the flow rates of 32 drippers were measured, with eight drippers in each of the 4 lateral lines.

Based on the dripper flow rates, the distribution uniformity coefficient (DU) was calculated following the methodology proposed by [23]. According to [24], the average dripper flow rate can be considered a good parameter to evaluate changes in the proper functioning of the drippers. Distribution uniformity indicates how water is distributed in the irrigated area. The lower the DU values, the greater the difference in the water levels applied to each plant or unit of area.

The experiment was set up using a split-split-plot scheme, with the systems (S1, S2, S3 and S4) allocated to the plots, the equipment models (G1, G2, G3, G4 and G5) to the sub-plots and the different periods of flow and DU evaluation to the sub-subplots, where the latter were analyzed using a univariate scheme of repeated measures over time. To do this, a completely randomized design was used with four replications.

To compare the effect of the systems on the flow and DU of each dripper model, an analysis of variance and a Tukey test were performed. Prior to the analysis of variance, the variables were subjected to verification of the assumptions of normality (Shapiro–Wilk) and homoscedasticity (Levene). To assess the different evaluation periods, a sphericity test (Mauchly’s W) and correction of the degrees of freedom (Greenhouse–Geisser and Huynh–Feldt methods) were performed. For all procedures, a level of 5% for the type I error was considered. The statistical analysis were performed with SAEG 9.1 [25] and R 4.4.1 [26].

3. Results and Discussion

3.1. Water Analysis Results

The results of the water analysis showed average concentrations of 21.2 and 18.2 mg L⁻¹ for calcium and magnesium, respectively, not implying a risk of clogging of the drippers [12]. The same occurred for the manganese and total solids content, which were 0.08 and 29 mg L⁻¹, respectively.

Table 2. Results of analyses of water collected over time at intakes and at various points in systems 2, 3 and 4.

Iron Content in Irrigation Water (mg L−1)
Time of Operation (h)	Water Source		System 2		System 3			System 4
	1	2, 3 and 4	F *	Dr	St	F	Dr	St	F	Dr
0	<0.1	2.8	2.6	2.2	2.2	2.2	2.2	2.3	2.2	1.9
50	<0.1	4.0	3.9	3.7	3.3	3.4	3.4	3.8	3.4	3.4
100	<0.1	2.6	2.5	2.5	2.3	2.1	2.1	1.8	1.8	1.7
150	<0.1	3.0	2.8	2.0	2.4	2.4	2.3	2.8	2.7	2.5
200	<0.1	3.2	2.7	1.8	2.6	2.6	2.4	3.0	3.0	3.0
250	<0.1	2.8	2.6	1.6	2.5	2.5	2.3	2.9	3.3	3.1

* F = filter; Dr = dripper; St = sedimentation tank.

presents the results for the iron levels in water samples collected at the intake, in the sedimentation tanks, after the filters and in the pre-selected drippers located at the ends of the lateral lines. It can be seen from this table that the total iron level in the water from the reservoir varied over time at all collection points. A variation of 2.6 to 4.0 mg L⁻¹ in the total iron concentration at the intake was observed during the experiment. This variation is due to the process of iron solubilization in the soil, due to anaerobic conditions during rainy periods, which causes leaching and transport to the water table and subsequently to rivers and lakes [27].

A comparison of the results of the analyses of water collected after the filters in Table 2 with the results of the analyses of water collected at a previous point, either in the sedimentation tanks (Systems 3 and 4) or at the source (System 2) did not show significant reductions in the iron content, indicating that the filter did not remove this element. Similar results have previously been found in water samples collected in irrigation systems located in the northern region of the state of Espírito Santo, Brazil [28] and in the state of São Paulo [29], proving that sand, screen and disk filters were not efficient in removing this element.

A reduction in the total iron content was observed in water samples collected in the sedimentation tank (System 3, Table 2) in relation to those collected at the source, although this effect was not seen for System 4, where the water was treated with sodium hypochlorite. It should be noted that the water was held in the tank for one hour.

The water samples collected from the drippers located at the ends of the lateral lines for Systems 3 and 4 did not show reductions in the total iron content compared with those obtained at the previous collection point (after the filters). However, the opposite was found for System 2; this is probably due to the action of the decanters (Systems 3 and 4), which promoted the sedimentation of the particles inside the reservoir, while in System 2, sedimentation may have occurred inside the pipes and also due to the action of iron bacteria, which can produce mucilage to which the suspended particles bind, thus increasing clogging.

3.2. Flow Rate Variation of the Dripper Models Throughout the Evaluations

The flow rates of the drippers were determined for four dripper lines and eight sampling points per line during the seven timepoints. The Tukey test between the average flow rates of the drippers evaluated in the lines installed with and without an end-of-line cleaning valve showed a significant difference for 13 comparisons among the 140 analyzed. Of these thirteen, nine showed positive effects for the use of valves and four showed negative effects. The low number of occurrences (13) and their variability (nine with an increase and four with a decrease in flow) indicated that these differences should not be attributed to the use of valves. It is worth noting that the periodic opening of the end of the lateral line is effectively a preventive measure for the removal of sedimented particles inside the hoses; however, in the present study, the use of valves was not efficient in avoiding obstruction of the drippers.

Table 3. Analysis of variance for flow values.

Sources of Variation	Degrees of Freedom	Sum of Squares	Mean Square	F	Significance at 5%
System	3	4.6671	1.5557	65.72	*
Residue (a)	12	0.2840	0.0236
Model	4	803.5583	200.8896	17.777.84	*
Valve	1	0.03184	0.03118	2.81	*
Model × valve	4	0.2071	0.0517	4.57	*
Model × assessment	12	5.4318	0.4526	39.96	*
System × valve	3	0.0089	0.0029	0.26
Model × syst. × val.	12	0.1231	0.0102	0.91
Residue (b)	108	1.2234	0.0113
Assessment	6	5.0612	0.8435	125.09	*
Ass. × syst.	18	1.2732	0.0707	10.49	*
Ass. × model	24	2.5159	0.1048	15.54	*
Ass. × val.	6	0.1985	0.0330	4.90	*
Ass. × model × val.	24	0.4098	0.01707	2.53	*
Ass. × model × syst.	72	4.3111	0.0598	8.87	*
Ass. × syst. × val.	18	0.4748	0.02637	3.91	*
Ass. × val. × syst. × mod	72	0.4784	0.0066	0.98
Residue (c)	720	4.8551	0.0067
Total	1119

* significant at the 5% probability level.

presents the results of the analysis of variance for the flow values. The values analyzed here were significant for all variables separately at the 1% probability level. However, there were no significant differences for the interactions between the system × valve, model × system × valve or evaluation × valve × system × model.

Table 4. Average flow rates (L h⁻¹) of models G1 to G5 with valves in systems S1 to S4 and average results between systems for each model.

Model	System	Time (h)
		2	50	100	150	200	250	300
G1	S1	0.82 a	0.73 a	0.71 a	0.62 a	0.71 a	0.68 a	0.58 a
	S2	0.87 a	0.77 a	0.46 b	0.36 b	0.37 b	0.36 b	0.37 b
	S3	0.85 a	0.77 a	0.71 a	0.63 a	0.66 a	0.68 a	0.46 ab
	S4	0.80 a	0.75 a	0.77 a	0.75 a	0.79 a	0.71 a	0.60 a
G2	S1	2.26 a	2.24 a	2.25 a	2.23 a	2.24 ab	2.21 ab	2.09 c
	S2	2.23 a	2.29 a	2.28 a	2.32 a	2.35 a	2.35 a	2.49 a
	S3	2.34 a	2.22 a	2.29 a	2.33 a	2.25 ab	2.27 ab	2.29 b
	S4	2.32 a	2.23 a	2.22 a	2.21 a	2.16 b	2.14 b	2.06 c
G3	S1	3.39 a	3.50 a	3.38 a	3.25 ab	3.39 a	3.31 a	3.19 ab
	S2	3.31 a	3.40 a	3.16 b	3.15 b	3.08 b	2.94 b	2.80 c
	S3	3.41 a	3.48 a	3.42 a	3.34 a	3.20 ab	3.25 a	3.32 a
	S4	3.46 a	3.54 a	3.34 a	3.33 a	3.32 a	3.32 a	3.12 b
G4	S1	2.42 a	2.33 c	2.51 a	2.15 c	2.50 ab	2.37 b	2.31 b
	S2	2.25 b	2.17 c	2.26 b	2.27 bc	2.35 bc	2.19 c	2.21 b
	S3	2.48 a	2.67 b	2.41 ab	2.40 b	2.27 c	2.42 ab	2.56 a
	S4	2.51 a	2.92 a	2.52 a	2.60 a	2.58 a	2.54 a	2.58 a
G5	S1	2.17 a	2.12 ab	2.01 a	1.96 a	1.97 a	1.97 a	1.61 b
	S2	2.05 a	1.99 b	1.75 b	1.53 b	1.80 b	1.62 b	1.54 b
	S3	2.20 a	2.13 ab	2.01 a	1.97 a	1.88 ab	2.00 a	1.89 a
	S4	2.20 a	2.17 a	2.12 a	2.08 a	2.03 a	1.90 a	1.77 a

Means followed by the same letter vertically, for each model, do not differ significantly by the Tukey test at 5% probability.

presents the average flow rates measured in the lines installed with valves, for all dripper models used, and the respective average results between the systems. The average flow rates of the lateral lines that were not equipped with cleaning valves are not shown, since no statistical difference was found from an analysis of variance with 5% probability when they were compared with the use of valves. Since the dripper models had different flow rates, it was not possible to compare them with each other.

A comparison between the results for the systems in Table 4 indicates that model G1 had the lowest flow rates in system S2 for all evaluations performed after 100 h of operation, showing a difference from the other systems, except for S3, with 300 h of operation. In these two systems, partial and total clogging of the drippers was observed. The use of aerators and sedimentation tanks in S4, associated with the chlorination process, contributed to reducing the clogging problems in the drippers. All systems showed a tendency towards reduced flow rates over time, with the greatest variations occurring in systems S2 and S3, a finding that is in agreement with the results reported by [30]. In S1, the reduction observed in the last evaluation was caused by the development of algae at the water outlets of the drippers.

A significant difference was found for model G2 when comparing the average flow rates between the systems after 200 h of operation, with the lowest flow rate in system S4. This reduction may have been caused by the continuous use of chlorine causing damage to the dripper’s silicone diaphragm. Ref. [31] concluded that the effect of chemical damage to the drippers’ self-compensating membranes is manifested in the form of an expansion in their volume, which causes the membrane to press on the outlet orifice, reducing the dripper’s flow rate. Other studies [16,32,33] have also found a loss of pressure compensation capacity in drippers that were subjected to the action of chlorine.

In S2, an increase in the average flow rate was observed after 300 h compared to the initial flow rate, which was close to the nominal flow rate for this model. This increase in flow rate may have occurred due to the model’s self-cleaning mechanism. According to the manufacturer, “water enters the dripper through a filter designed to prevent dirt particles from entering the water passages; any particles that could cause clogging will be expelled through the wide water passages or will increase the differential pressure, causing the diaphragm to momentarily increase the cross-sectional volume of the water outlet and expel the dirt from the system”.

Since the water supplying this system had a high total iron content, favoring the growth of iron bacteria, the mucilage formed by these microorganisms inside the drippers may have contributed to the continuous operation of this self-cleaning mechanism, since such mucilage adheres strongly to the internal walls of the drippers, although the same effect was not observed for the other treatments due to the aeration and decantation processes used in systems S3 and S4, and the water with low iron content that was supplied to S1. Ref. [34] observed a reduction in flow rate for a similar model after 1200 h of operation, where the water supplying the system had a concentration of 0.05 mg L⁻¹ of Fe²⁺ and a low content of suspended solids. Ref. [35] observed a reduction in the flow rate for a dripper of around 6.13% using ferruginous water.

For model G3, a significant reduction in the average flow rate corresponding to system S2 was observed after 100 h of operation (Table 4). In S3, a reduction in flow rate was observed after 200 h of operation, although this increased in the following evaluations. System S1 had average flows between those of S4 and S3 in the last evaluation. In this evaluation, S2 continued to present the lowest flows. Finally, these results show that the preventive measures used to reduce clogging in the drippers were not efficient for this model.

In the first evaluation, a significant difference for model G4 was found when the average flow rates were compared between the systems. It was observed that the average flow rates were higher than the nominal flow rate of the dripper, except for the value found for system S2. Similar results were found in the following evaluations, with a variation of 2.15 L h⁻¹ in the fourth evaluation of system S1 to 2.92 L h⁻¹ in the second evaluation of system S4. This variation is excessive for a self-compensating model with a nominal flow rate of 2.30 L h⁻¹. According to the manufacturer, this variation occurred due to manufacturing problems with the batch used in this experiment, and had already been corrected. The lower values for systems S1 and S2 found in the last evaluation compared to systems S3 and S4 should not be attributed to clogging problems, considering the nominal flow rate of the dripper.

For system S2 of model G5, the average flow rate found in the first evaluation was lower in relation to the other systems, a trend that persisted over all the evaluations; this was due to the use of only a filter in this system, which was not efficient in avoiding obstructions arising from the precipitation of iron in the lines, combined with the presence of iron bacteria. In system S1, a reduction in flow rates was observed, which could have been due to partial clogging caused by algae.

Algae growth was noted in S1 (Table 4), which may have contributed to clogging in all dripper models in that system, with more significant reductions in flow rate for models G1 and G5. The use of a disk filter alone in system S2 was not efficient in preventing clogging with reduced flow rate in dripper models G1, G3 and G5, even though the latter two had self-cleaning mechanisms.

For model G2, an unexpected increase in flow occurred, a finding that was previously observed by [36]. Model G4 may be more resistant to clogging due to its construction characteristics, with a small reduction in the average flow. This difference in sensitivity to clogging for different dripper models was also suggested by [37], who considered the internal architecture of the drippers to be the determining factor in the characterization of the clogging process.

The aeration and sedimentation processes employed in system S4 were effective in mitigating clogging, indicating that pre-treatment of water can play a crucial role in reducing operational issues. These processes, in combination with chlorination, seem to provide a more stable environment for maintaining the performance of the drippers over extended periods.

Another important observation is that self-cleaning mechanisms may help alleviate clogging to some extent, as seen in system S2. However, these mechanisms were not always sufficient to prevent long-term performance degradation in the absence of adequate water treatment.

Additionally, the use of chlorine, while helpful in controlling microbial growth, could have a detrimental effect on certain dripper models, particularly in systems like S4, where continuous chlorination may cause material degradation of the drippers’ silicone diaphragm. This highlights the need for a balanced approach in water treatment, where chemical treatments must be carefully managed to avoid damage to the irrigation system’s components.

Overall, the study reinforces the idea that effective irrigation system management requires a comprehensive approach that combines appropriate water treatment techniques, dripper model selection and ongoing maintenance to minimize clogging and ensure optimal performance throughout the system’s lifespan.

3.3. Distribution Uniformity

Table 5. Analysis of variance in the DU values.

Sources of Variation	Degrees of Freedom	Sum of Squares	Mean Square	F	Significance at 5%
System	3	26,461.34	8820.44	906.14	*
Residue (a)	4	71.12	17.78
Model	4	17,821.44	4455.36	457.71	*
Assessment	6	10,713.06	1785.51	183.43	*
Assessment × model	24	7087.25	295.30	30.34	*
Assessment × system	18	11,621.65	645.64	66.33	*
Model ×system	12	21,432.39	1786.03	183.48	*
Assess. × model × syst.	72	9660.39	134.17	13.78	*
Residue (b)	136	1323.83	9.73
Total	279

* significant at the 5% probability level.

presents the results of an analysis of variance for the DU values. This analysis showed a significant difference at the 1% probability level for all sources of variation and their interactions. When performing the analysis, the DU values calculated for the lines with and without valves were considered as repetitions, since they did not differ from each other.

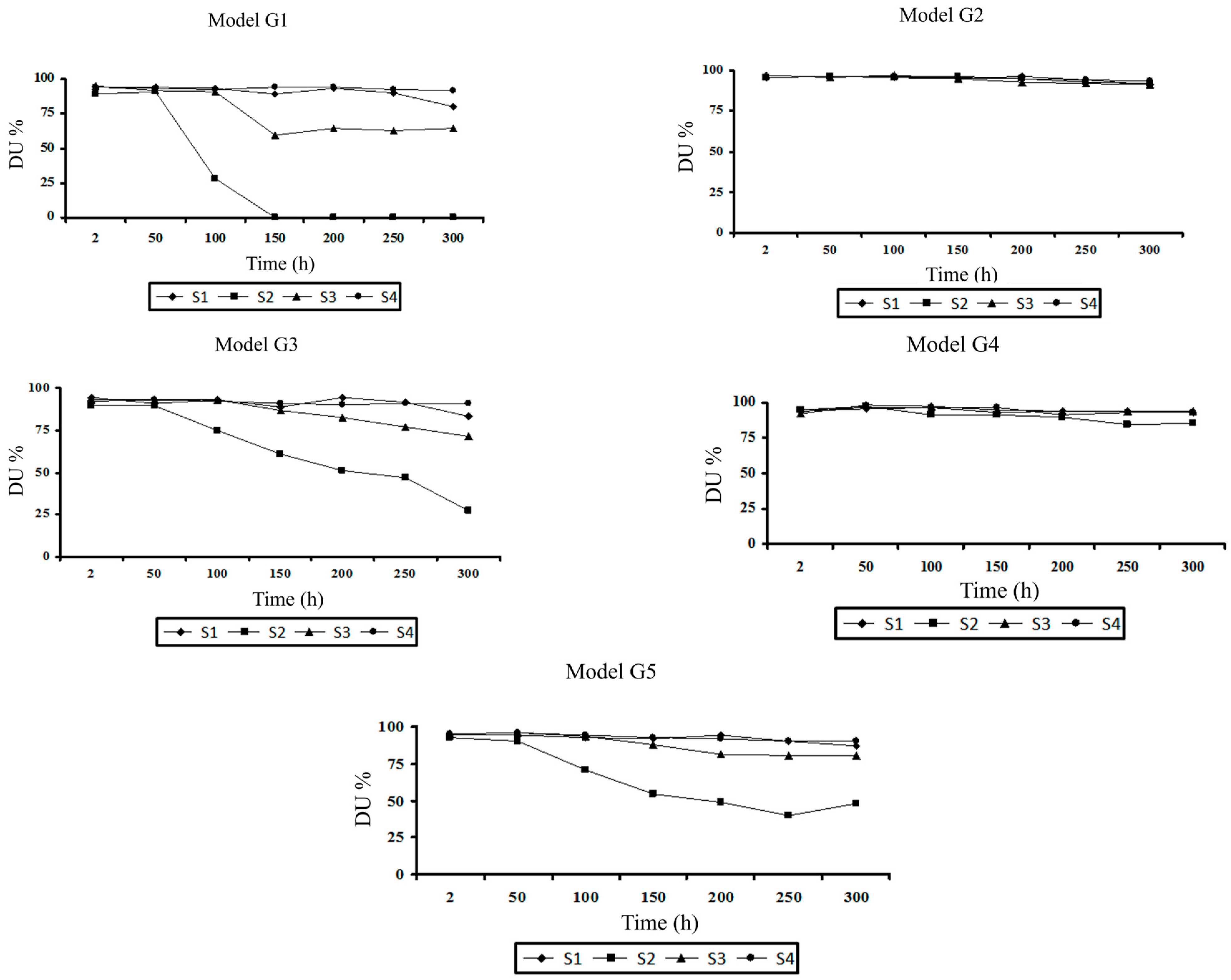

The DU values in the first two timepoints were higher than 90% for all models (Figure 2), which can be considered excellent according to the classification proposed by [21].

For an operating time of 100 h (third timepoint), a significant reduction was observed at a 5% probability level, using the Tukey test, in the uniformity in system S2 of models G1, G3 and G5, with values of 38%, 79% and 73%, respectively. In the other treatments, the DU remained above 90%, corresponding to the variations in flow rates in Table 4.

In the evaluation carried out after 150 h (fourth timepoint), models G1, G3 and G5 presented even lower results for S2, with values of 5%, 64% and 56%, respectively, which can be considered poor to unacceptable for a drip irrigation system. System S3 also presented a significant difference to model G1, with a value of 68%.

At 200 and 250 h, the trend towards the reduction in DU found at 150 h of operation for models G1, G3 and G5 continued, the results of which show the effects of using water with high iron content and highlight the differences between the models used in terms of resistance to clogging. Model G5 showed uniformity at 250 h, classified as good in system S3, without, however, differing statistically by the Tukey test at 5% probability from S1 and S4.

In the last timepoint (at 300 h), model G1 had the best DU values for systems S1 and S4 (Figure 2). In S1, a tendency towards a decrease in uniformity was observed, which may be explained by partial clogging caused by algae. The presence of these organisms in system S1 had already been observed at the beginning of the study. Model G2 (Figure 2) gave excellent DU values in all systems over 300 h of operation, despite the flow variations (Table 4). These variations were uniform in the drippers evaluated here and did not affect the uniformity of water distribution.

Model G3 showed drippers with total clogging in S2 at 300 h with DU values of 33.2%, caused by iron precipitation and the presence of iron bacteria. In S3, the use of a disk filter for aeration and decantation was not sufficient to avoid clogging in some drippers, which was caused by the high concentration of iron in the water. The best results for this model were observed in systems S1 and S4, with S1 indicating a tendency towards a reduction in flow, with a DU value of 82.8%, due to the development of algae.

The 90.4% DU obtained for S4 highlights the effect of chlorine treatment in association with filtration, aeration and sedimentation tanks. Model G4 (Figure 2) gave results that were similar to those of G2 for the 300 h operating time, with no significant difference in the DU values. For systems S1, S3 and S4, these values were classified as excellent, while for S2, the results were good; this model showed good uniformity in all systems in all timepoints.

Model G5 (Figure 2) gave the best results in the last timepoints (300 h) for systems S1, S3 and S4. It could also be observed that model G5 gave a higher value in the last timepoints (300 h) in relation to the evaluation carried out at 250 h, which was due to an increase in the flow of some drippers; this was probably due to an increase in pressure during the operation of the system or a movement in the lines, causing the removal of the particles that were obstructing the drippers.

Further research into the long-term effects of different water treatments on dripper materials and flow rates will be essential to refine these practices and develop more robust systems for agricultural use. Future studies could evaluate the impact of low DU values on crop yield and water consumption and how this may be important for water use efficiency in agriculture. Another important factor to be evaluated is how these indicators can be interpreted for different soil types, considering the redistribution of water in the soil profile.

4. Conclusions

This study highlights that different dripper models exhibit varying sensitivities to clogging, influenced not only by the water quality and system characteristics but also by the specific design features of each dripper. Significant differences in the behavior of the studied drippers were found in relation to the uniformity of water application and susceptibility to clogging in water conditions with high iron content. The use of automatic cleaning valves had no effect on the flow reduction for the drippers studied. The use of disk filters alone was not able to achieve reductions in iron content to prevent clogging. The use of aerators followed by sedimentation tanks gave a significant improvement in the uniformity of water application for “tape” type drippers, which are more sensitive to clogging caused by the use of water with high iron content. The use of aerators and sedimentation tanks in association with a chlorination process contributed to reducing the problems of dripper clogging and were suggested to be the best treatment among those studied here.
