# Adaptive Sparse Cyclic Coordinate Descent for Sparse Frequency Estimation

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Adaptive-Sparse Coordinate Descent Algorithm

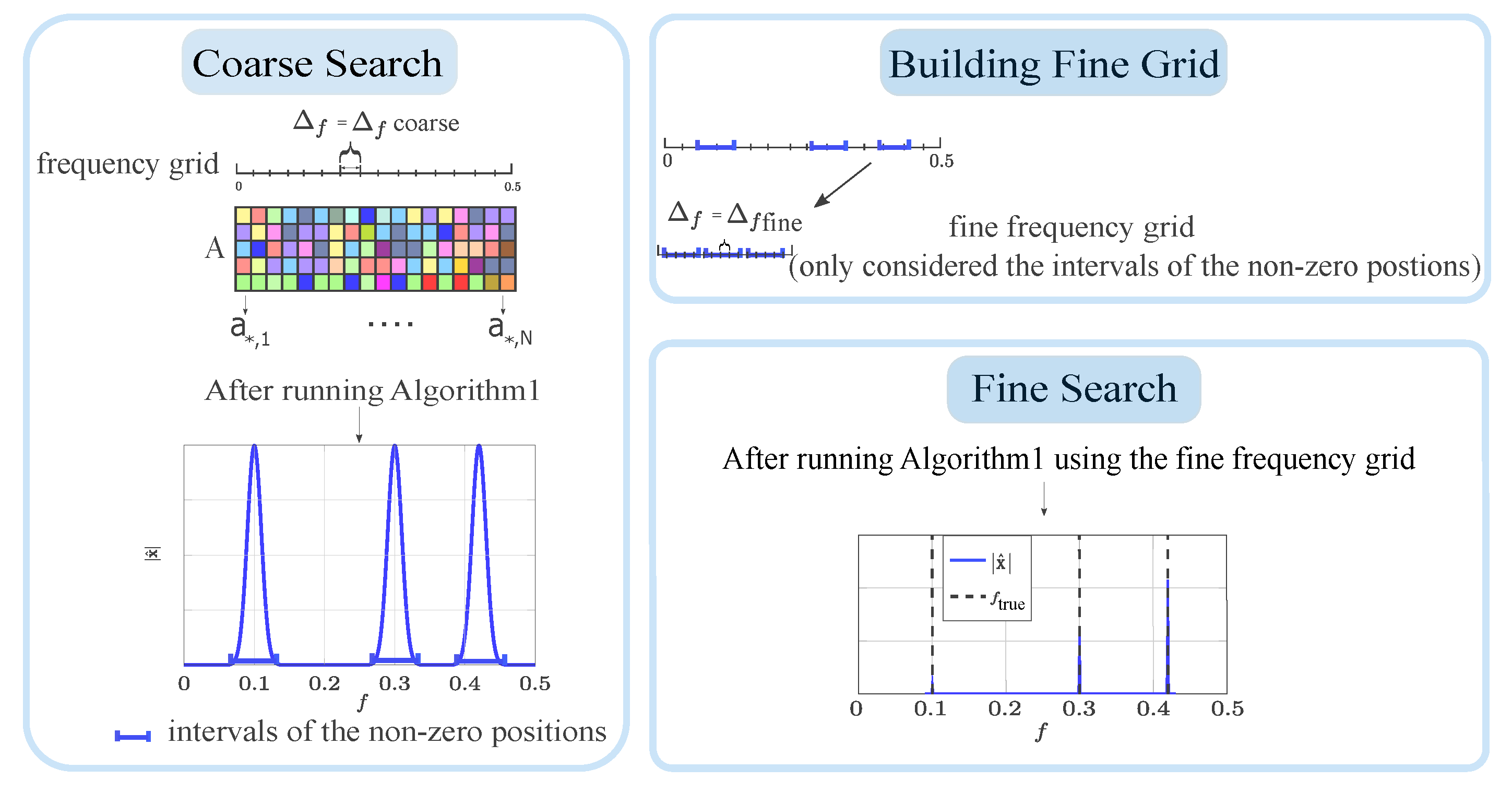

- In the first step, Algorithm 1 is run using a coarse grid. This means that the defined frequency spacing of the grid ${\Delta}_{f\mathrm{coarse}}$ uses a coarse grid spacing, which leads to a moderate number of columns of $\mathbf{A}$. After running the algorithm, the non-zero positions are detected. These positions are located in the non-zero intervals around the peaks of the estimated vector $\widehat{\mathbf{x}}$. This is the reason why we performed a peak search and detected the beginnings and ends of these intervals.
- In the second step, we again run Algorithm 1, but in this case, the frequency grid is constructed only considering the intervals detected in the first step and using a frequency spacing ${\Delta}_{f\mathrm{fine}}$. This considerably reduces the number of grid points (i.e., number of columns of the matrix $\mathbf{A}$) that need to be considered, resulting in a reduction of the required number of mathematical operations.

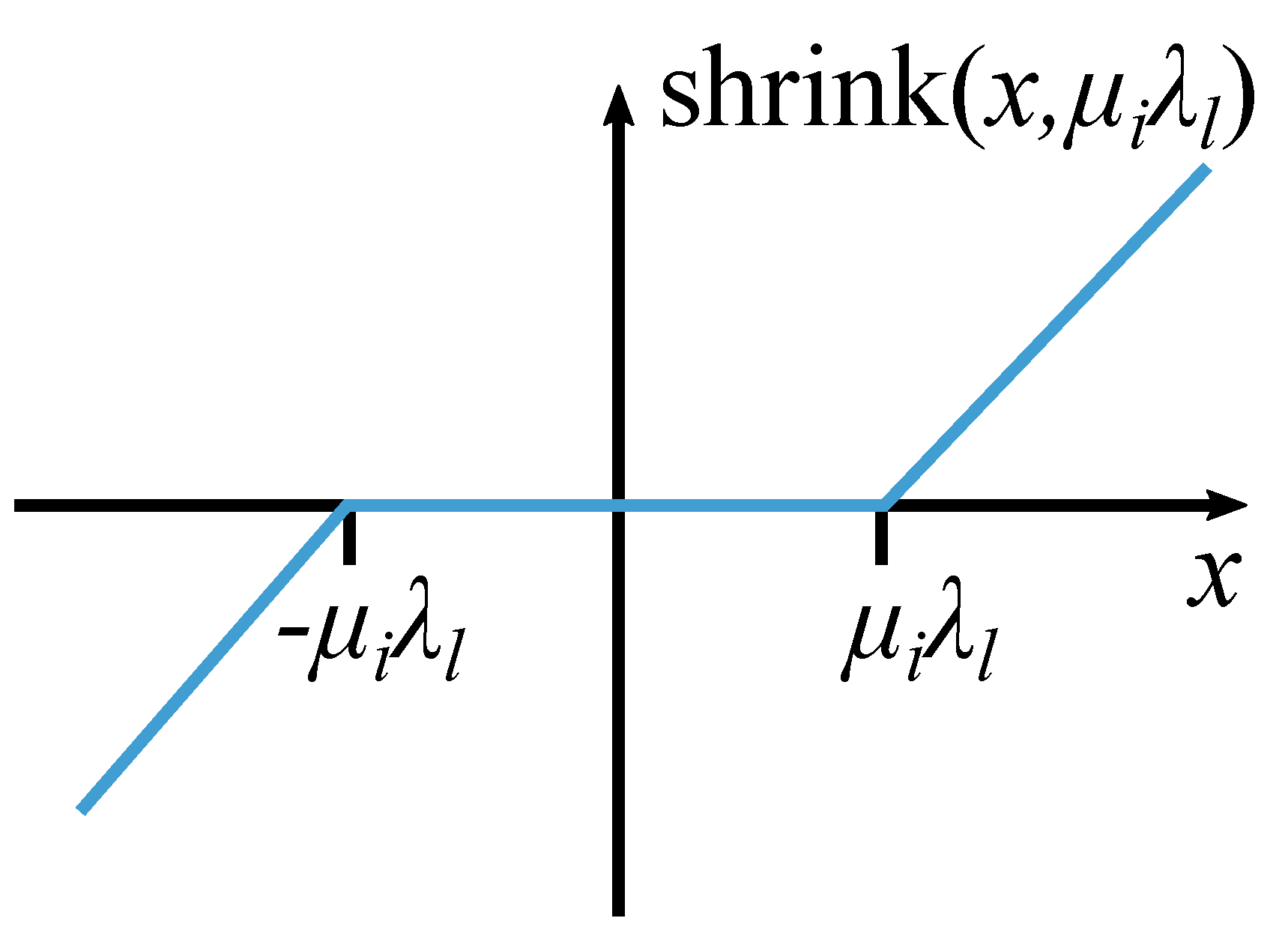

**Algorithm 1**Sparse cyclic coordinate descent (SCCD) for frequency estimation [12]**Input:**$\mathbf{b}$, $\lambda =[{\lambda}_{1},\dots ,{\lambda}_{L}]$, ${\Delta}_{f}$, N, $\theta $, p**Output:**$\widehat{\mathbf{x}}$, set of detected frequencies1: ${\widehat{\mathbf{x}}}^{\left(0\right)}\leftarrow \mathbf{0}$ 2: $\mathbf{r}\leftarrow \mathbf{b}$ 3: $l=1$ ▹ Index for $\lambda $ 4: **for**$k=1\dots K$**do**▹K as pre-set maximum of iterations 5: $i\leftarrow \left(\right(k-1\left)\phantom{\rule{4.pt}{0ex}}\mathrm{mod}\phantom{\rule{4.pt}{0ex}}N\right)+1$ ▹ cyclic processing 6: ${\mathbf{a}}_{*,i}={[{e}^{j2\pi i{\Delta}_{f}0},\dots ,{e}^{j2\pi i{\Delta}_{f}m},\dots ,{e}^{j2\pi i{\Delta}_{f}M-1}]}^{T}$ 7: ${\mu}_{i}\leftarrow 1/{\u2225{\mathbf{a}}_{*,i}\u2225}_{2}^{2}=1/M$ 8: ${\widehat{x}}_{i}^{\left(k\right)}\leftarrow \mathrm{shrink}({\widehat{x}}_{i}^{(k-1)}+{\mu}_{i}{\mathbf{a}}_{*,i}^{H}\mathbf{r},{\mu}_{i}{\lambda}_{l})$ 9: $\mathbf{r}\leftarrow \mathbf{r}-{\mathbf{a}}_{i}({\widehat{x}}_{i}^{\left(k\right)}-{\widehat{x}}_{i}^{(k-1)})$ 10: **if**$i=1$**and**${\u2225{\widehat{\mathbf{x}}}^{k}-{\widehat{\mathbf{x}}}^{k-N+1}\u2225}_{1}<\theta $**then**11: $P=\mathrm{AbsPeakPositions}\left({\widehat{\mathbf{x}}}^{k}\right)$ 12: **if**$\left|P\right|<p$**then**13: $l\leftarrow \mathrm{min}(L,l+1)$ 14: **else return**frequencies corresponding to P15: **end if**16: **end if**17: **end for**

Algorithm 2 Adaptive-SCCD for frequency estimation |

Input:$\mathbf{b}$, $\lambda =[{\lambda}_{1},\dots ,{\lambda}_{L}]$, $\theta $, $p,{\Delta}_{f},{\Delta}_{f\mathrm{coarse}}$ |

Output: set of detected frequencies $\widehat{\mathbf{f}}$ |

1: $N=0.5/{\Delta}_{f\mathrm{coarse}}$ |

2: $\left[\widehat{\mathbf{x}}\right]$ = SCCD ($\mathbf{b}$, $\lambda $, ${\Delta}_{f\mathrm{coarse}}$, $N,\theta ,p$) |

3: $[\mathbf{s},\mathbf{e}]$ = FindNonZeroPositions$(\widehat{\mathbf{x}},{\Delta}_{f\mathrm{coarse}}$) |

4: ${\Delta}_{f\mathrm{fine}}={\Delta}_{f}$ |

5: $\mathrm{grid\_fine}=$ BuildGrid$(\mathbf{s},\mathbf{e}$, ${\Delta}_{f\mathrm{fine}})$ |

6: $N=\mathrm{size}\left(\mathrm{grid\_fine}\right)$ |

7: $[{\widehat{\mathbf{x}}}_{\mathrm{fine}},\widehat{\mathbf{f}}]$ = $\mathrm{SCCD\_fine}(\mathbf{b}$, $\lambda $, $\mathrm{grid\_fine}$, $N,\theta ,p$) |

Algorithm 3 FindNonZeroPositions |

Input:$\widehat{\mathbf{x}},{\Delta}_{f\mathrm{coarse}}$ |

Output:$\mathbf{s},\mathbf{e}$ |

1: ${f}_{\mathrm{grid}}=0:{\Delta}_{f\mathrm{coarse}}:0.5$ |

2: $\left[\mathrm{pks},\phantom{\rule{4.pt}{0ex}}\mathrm{loc}\right]=\mathrm{AbsPeakPositions}\left(\widehat{\mathbf{x}}\right)$ |

3: $\tilde{\mathbf{x}}=\mathrm{abs}\left(\widehat{\mathbf{x}}\right)$ |

4: $\mathrm{dx}=\left[0\phantom{\rule{0.277778em}{0ex}}\mathrm{diff}\left(\tilde{\mathbf{x}}\right)\right]$ |

5: $P=\mathrm{length}\left(\mathrm{pks}\right)$ |

6: $\mathrm{start}=\mathrm{zeros}(P,1)$ |

7: $\mathrm{end}=\mathrm{zeros}(P,1)$ |

8: for $k=1\dots P$ do |

9: $\mathrm{start}=\mathrm{find}(({f}_{\mathrm{grid}}<{f}_{\mathrm{grid}}\left(\mathrm{loc}\left(k\right)\right))\phantom{\rule{0.277778em}{0ex}}\&\phantom{\rule{0.277778em}{0ex}}(\mathrm{dx}<=0))$ |

10: if isempty(start) then |

11: start = 1 |

12: end if |

13: $\mathbf{s}\left(k\right)=\mathrm{start}$ |

14: $\mathrm{end}=\mathrm{find}(({f}_{\mathrm{grid}}>{f}_{\mathrm{grid}}\left(\mathrm{loc}\left(k\right)\right))\phantom{\rule{0.277778em}{0ex}}\&\phantom{\rule{0.277778em}{0ex}}(\mathrm{dx}>=0))$ |

15: if isempty(end) then |

16: end = 1 |

17: end if |

18: $\mathbf{e}\left(k\right)=\mathrm{end}$ |

19: end for |

Algorithm 4 Buildgrid |

Input:$\mathbf{s},\mathbf{e},{\Delta}_{f\mathrm{fine}}$ |

Output:$\mathrm{grid\_fine}$ |

1: $\mathrm{grid\_fine}=\left[\phantom{\rule{0.277778em}{0ex}}\right]$ |

2: ${f}_{\mathrm{grid}}=0:{\Delta}_{f\mathrm{fine}}:0.5$ |

3: $\mathrm{grid\_endpoint}=\mathrm{sort}\left({f}_{\mathrm{grid}}\left(\mathbf{e}\right)\right)$ |

4: $\mathrm{grid\_startpoint}=\mathrm{sort}\left({f}_{\mathrm{grid}}\left(\mathbf{s}\right)\right)$ |

5: for $j=1\dots \mathrm{length}\left(\mathbf{s}\right)$ do |

6: $\mathrm{grid\_fine}=[\mathrm{grid\_fine},\mathrm{grid\_startpoint}\left(j\right):{\Delta}_{f\mathrm{fine}}:\mathrm{grid\_endpoint}\left(j\right)]$ |

7: end for |

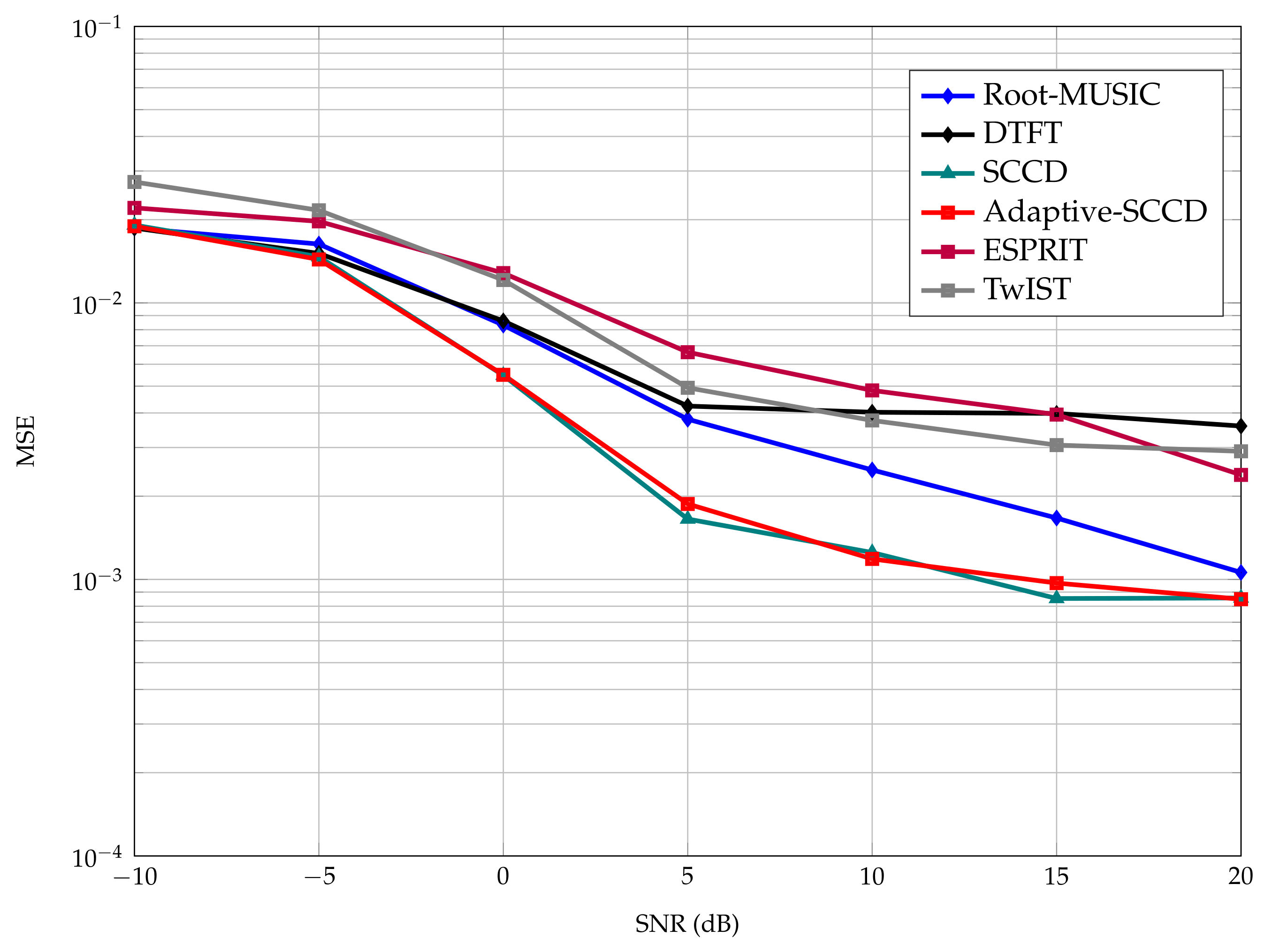

## 3. Results

`rootmusic`built in MATLAB and considering autocorrelation matrices of size $M/2\times M/2$ for Root-MUSIC and also for ESPRIT. In the case of the algorithm TwIST, the parameter $\tau $ was set to 5.

## 4. Materials and Methods

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

SCCD | Sparse Cyclic Coordinate Descent |

MUSIC | Multiple Signal Classification |

ESPRIT | Estimation of Signal Parameters via Rotational Invariance techniques |

EVD | Eigenvalue decomposition |

SNRs | Signal to noise ratios |

OMP | Orthogonal Matching Pursuit |

IHT | Iterative Hard Thresholding |

LASSO | Least Absolute Shrinkage and Selection operator |

BPDN | Basis Pursuit Denoising |

LBI | Linearized Bregman iterations |

RIP | Restricted Isometry Property |

MC | Mutual Coherence |

LS | Least square |

RICs | Restricted Isometry constants |

CORDIC | Coordinate Rotation Digital Computer |

## References

- Schmidt, R. Multiple emitter location and signal parameter estimation. IEEE Trans. Antennas Propag.
**2011**, 34, 276–280. [Google Scholar] [CrossRef] [Green Version] - Rao, B.D.; Hari, K.V.S. Performance Analysis of Root-MUSIC. IEEE Trans. Acoust. Speech Signal Process.
**1989**, 37, 1939–1949. [Google Scholar] [CrossRef] - Roy, R.; Kailath, T. ESPRIT-estimation of signal parameters via rotational invariance techniques. IEEE Trans. Acoust. Speech Signal Process.
**1989**, 37, 984–995. [Google Scholar] [CrossRef] [Green Version] - Stoica, P.; Moses, R.L. Spectral Analysis of Signals; Prentice Hall, Inc.: Upper Saddle River, NJ, USA, 2005. [Google Scholar]
- Haardt, M.; Nossek, J.A. Unitary ESPRIT: How to obtain increased estimation accuracy with a reduced computational burden. IEEE Trans. Signal Process.
**1995**, 43, 1232–1242. [Google Scholar] [CrossRef] - Malioutov, D.; Çetin, M. Sparse Signal Reconstruction Perspective for Source Localization with Sensor Arrays. IEEE Trans. Signal Process.
**2005**, 53, 3010–3022. [Google Scholar] [CrossRef] [Green Version] - Angelosante, D.; Giannakis, G.B.; Sidiropoulos, N.D. Estimating Multiple Frequency-Hopping Signal Parameters via Sparse Linear Regression. IEEE Trans. Signal Process.
**2010**, 58, 5044–5056. [Google Scholar] [CrossRef] [Green Version] - Liu, S.; Hu, Q.; Li, P.; Zhao, J.; Wang, C.; Zhu, Z. Speckle Suppression Based on Sparse Representation with Non-Local Priors. Remote Sens.
**2018**, 10, 439. [Google Scholar] [CrossRef] - Liu, S.; Liu, M.; Li, P.; Zhao, J.; Zhu, Z.; Wang, X. SAR Image Denoising via Sparse Representation in Shearlet Domain Based on Continuous Cycle Spinning. IEEE Trans. Geosci. Remote Sens.
**2017**, 55, 2985–2992. [Google Scholar] [CrossRef] - Liu, Y.; Chen, X.; Ward, R.K.; Wang, Z.J. Medical Image Fusion via Convolutional Sparsity Based Morphological Component Analysis. IEEE Signal Process. Lett.
**2019**, 26, 485–489. [Google Scholar] [CrossRef] - Austin, C.D.; Ash, J.N.; Moses, R.L. Parameter estimation using sparse reconstruction with dynamic dictionaries. In Proceedings of the 2011 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Prague, Czech Republic, 22–27 May 2011; pp. 2852–2855. [Google Scholar] [CrossRef]
- Garcia, Y.; Lunglmayr, M. Sparse Cyclic Coordinate Descent for Efficient Frequency Estimation. In Proceedings of the IEEE 8th International Workshop on Computational Advances in Multi-Sensor Adaptive Processing (CAMSAP), Le gosier, Guadeloupe, 15–18 December 2019; pp. 440–444. [Google Scholar] [CrossRef]
- Pati, Y.C.; Rezaiifar, R.; Krishnaprasad, P.S. Orthogonal matching pursuit: Recursive function approximation with applications to wavelet decomposition. In Proceedings of the 27th Asilomar Conference on Signals, Systems and Computers, Pacific Grove, CA, USA, 1–3 November 1993; pp. 40–44. [Google Scholar] [CrossRef] [Green Version]
- Blumensath, T.; Davies, M. Iterative thresholding for sparse approximations. J. Fourier Anal. Appl. Vol.
**2008**, 14, 629–654. [Google Scholar] [CrossRef] [Green Version] - Hastie, T.; Tibshirani, R.; Wainwright, M. Statistical Learning with Sparsity: The Lasso and Generalizations; Chapman & Hall/CRC: New York, NY, USA, 2015. [Google Scholar]
- Chen, S.S.; Donoho, D.L.; Saunders, M.A. Atomic decomposition by basis pursuit. SIAM J. Sci. Comput.
**1998**, 20, 33–61. [Google Scholar] [CrossRef] - Cai, J.F.; Osher, S.; Shen, Z. Linearized Bregman iterations for compressed sensing. Math. Comput.
**2009**, 78, 1515–1536. [Google Scholar] [CrossRef] - Eldar, Y.; Kutyniok, G. Compressed Sensing: Theory and Applications; Cambridge University Press: Cambridge, UK, 2012. [Google Scholar]
- Foucart, S.; Rauhut, H.A. Mathematical Introduction to Compressive Sensing; Birkhäauser: Basel, Switzerland, 2013. [Google Scholar]
- Ben-Haim, Z.; Eldar, Y.; Elad, M. Coherence-based performance guarantees for estimating a sparse vector under random noise. IEEE Trans. Signal Process.
**2010**, 58, 5030–5043. [Google Scholar] [CrossRef] [Green Version] - Friedman, J.; Hastie, T.; Höfling, H.; Tibshirani, R. Pathwise coordinate optimization. Ann. Appl. Stat.
**2007**, 1, 302–332. [Google Scholar] [CrossRef] [Green Version] - Zoubir, A.M.; Koivunen, V.; Ollila, E.; Muma, M. Robust Statistics for Signal Processing; Cambridge University Press: Cambridge, UK, 2018. [Google Scholar]
- Lorenz, D.; Wenger, S.; Schöpfer, F.; Magnor, M. A sparse Kaczmarz solver and a linearized Bregman method for online compressed sensing. In Proceedings of the IEEE International Conference on Image Processing (ICIP), Paris, France, 27–30 October 2014; pp. 1347–1351. [Google Scholar]
- Lunglmayr, M.; Hiptmair, B.; Huemer, M. Scaled linearized Bregman iterations for fixed point implementation. In Proceedings of the 2017 IEEE International Symposium on Circuits and Systems (ISCAS), Baltimore, MD, USA, 28–31 May 2017; pp. 1–4. [Google Scholar] [CrossRef]
- Garcia Guzman, Y.; Lunglmayr, M. Implementing Sparse Estimation: Cyclic Coordinate Descent vs. Linearized Bregman Iterations. In Proceedings of the 2019 11th International Symposium on Image and Signal Processing and Analysis (ISPA), Dubrovnik, Croatia, 23–25 September 2019; pp. 335–340. [Google Scholar] [CrossRef]
- Spectral Analysis of Signals: Resource Page. Available online: http://www2.ece.ohio-state.edu/~randy/SAtext/ (accessed on 1 February 2021).
- Bioucas-Dias, J.M.; Figueiredo, M.A. A new TwIST: Two-step iterative shrinkage/thresholding algorithms for image restoration. IEEE Trans. Image Process.
**2007**, 16, 2992–3004. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Two-step Iterative Shrinkage/Thresholding Algorithm for Linear Inverse Problems (TwIST). Available online: http://www.lx.it.pt/~bioucas/TwIST/TwIST.htm (accessed on 1 February 2021).
- Rife, D.C.; Boorstyn, R.R. Multiple tone parameter estimation from discrete-time observations. Bell Syst. Tech. J.
**1976**, 55, 1389–1410. [Google Scholar] [CrossRef] - Garcia, Y.; Kovács, P.; Huemer, M. Variable Projection for multiple frequency estimation. In Proceedings of the 2020 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), Barcelona, Spain, 4–8 May 2020; pp. 4811–4815. [Google Scholar] [CrossRef]
- Stoeckle, C.; Munir, J.; Mezghani, A.; Nossek, J.A. DoA Estimation Performance and Computational Complexity of Subspace- and Compressed Sensing-based Methods. In Proceedings of the 19th International ITG Workshop on Smart Antennas (WSA), Ilmenau, Germany, 3–5 March 2015; pp. 1–6. [Google Scholar]

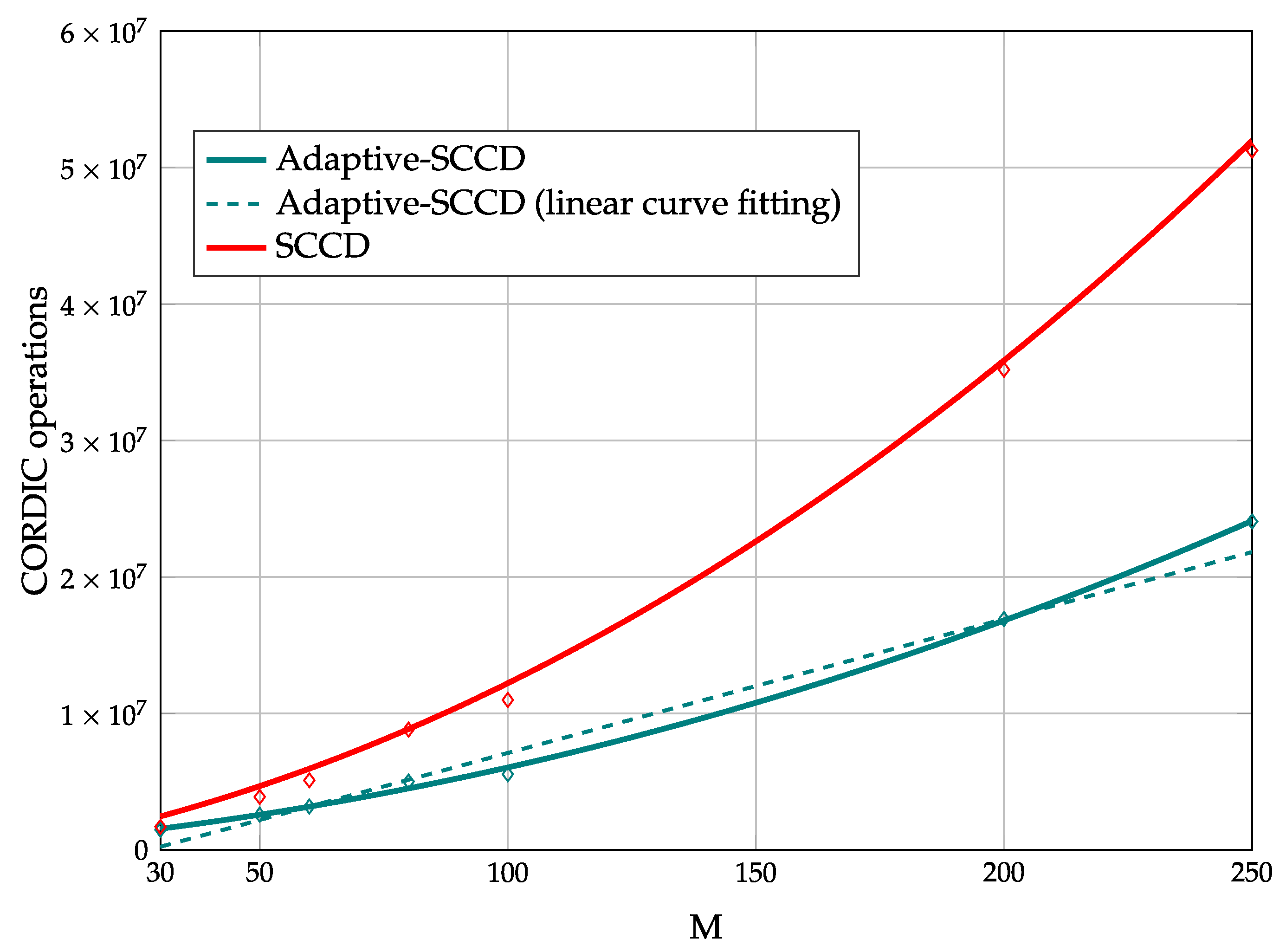

**Figure 5.**CORDIC operations versus M for a scenario with SNR = 10 dB, $p=5$ normalized frequencies, and ${\Delta}_{f\mathrm{coarse}}=1/4M$. For analyzing the complexity of the algorithms, a second-order polynomial in M was used. In addition, a linear fitting is also provided for Adaptive-SCCD.
