Hydrogen Embrittlement Susceptibility of New Generation Advanced High-Strength Steels for Automotive Applications

Abstract

The adoption of advanced high-strength steels (AHSS) in the automotive industry has significantly increased in recent years driven by weight reduction and enhanced crashworthiness. Hot dip galvanised sacrificial coatings are regularly applied to these steels for corrosion protection. In this investigation, the scanning vibrating electrode technique (SVET) demonstrated that hydrogen evolution on the steel substrate is taking place when these sacrificial coatings are damaged during service, increasing the risk of hydrogen embrittlement. The hydrogen embrittlement susceptibility of a new generation of nano-precipitate ferritic, FNP, AHSS have been studied and compared against conventional dual phase ferritic-martensitic, FM, AHSS at equivalent strength levels. Hydrogen permeation tests have shown that FNP AHSS have lower effective diffusion coefficients, D_eff, than FM AHSS at equivalent strength levels. At 800 MPa strength levels D_eff were 1.68 × 10⁻⁷ cm²/s and 1.87 × 10⁻⁷ cm²/s for FNP800 and FM800, respectively. At higher strength levels, 1000 MPa, D_eff were 7.45 × 10⁻⁸ cm²/s and 1.45 × 10⁻⁷ cm²/s for the FNP1000 and FM1000, respectively. Slow strain-rate tests (SSRT) showed that FNP AHSS displayed over 35% higher resistance to hydrogen embrittlement than conventional FM AHSS. Quantitative fractographic analyses confirmed that the new ferritic nano-precipitate microstructure retains much more ductile behaviour than conventional martensitic-ferritic even under the most severe hydrogen charging conditions tested.

1. Introduction

The use of advanced high-strength steels (AHSS) in vehicle structures, chassis, and suspension components have significantly increased in recent decades from an average 2% to >15%, driven by enhanced manufacturability, crashworthiness, and weight reduction potential. Typical automotive components manufactured with AHSS include A-pillars, B-pillars, floor and roof cross members, front and back crush box, battery packages, suspensions arms, and many others [1,2,3,4].

Conventional Dual-Phase AHSS is widely used in safety cage components, outer body, and floor panels [5]. Its microstructure comprises an array of second-phase martensite embedded in a ferrite matrix with strength levels typically increasing up to 1000 MPa, as martensite and bainite volume fraction increases [6,7]. The presence of ferrite and martensite improves the work-hardening characteristics as strain is concentrated in the softer ferrite phase, increasing resistance to localised thinning [7].

In more recent years, a new generation of AHSS has been developed with improved hole expansion and fracture toughness characteristics. These new AHSSs have a fine-grained microstructure with nominally 100% ferrite. Within this ferrite matrix are interphase precipitated (IP) carbides and carbonitrides of Nb, Ti, V, and Mo. Whilst some of these micro-alloy precipitates promote grain refinement, a substantial amount of strength from precipitation strengthening is gained from these carbonitrides [8,9]. As the micro-alloy elements are typically added in quantities that are stoichiometric (or greater), they combine fully with the available carbon to ensure the microstructure contains virtually no Fe₃C. The absence of hard second phases (martensite, bainite, Fe₃C) inhibits void nucleation and suppresses fracture during loading, offering an advantage of greatly improved stretch-flangeability over multi-phase AHSS [10,11].

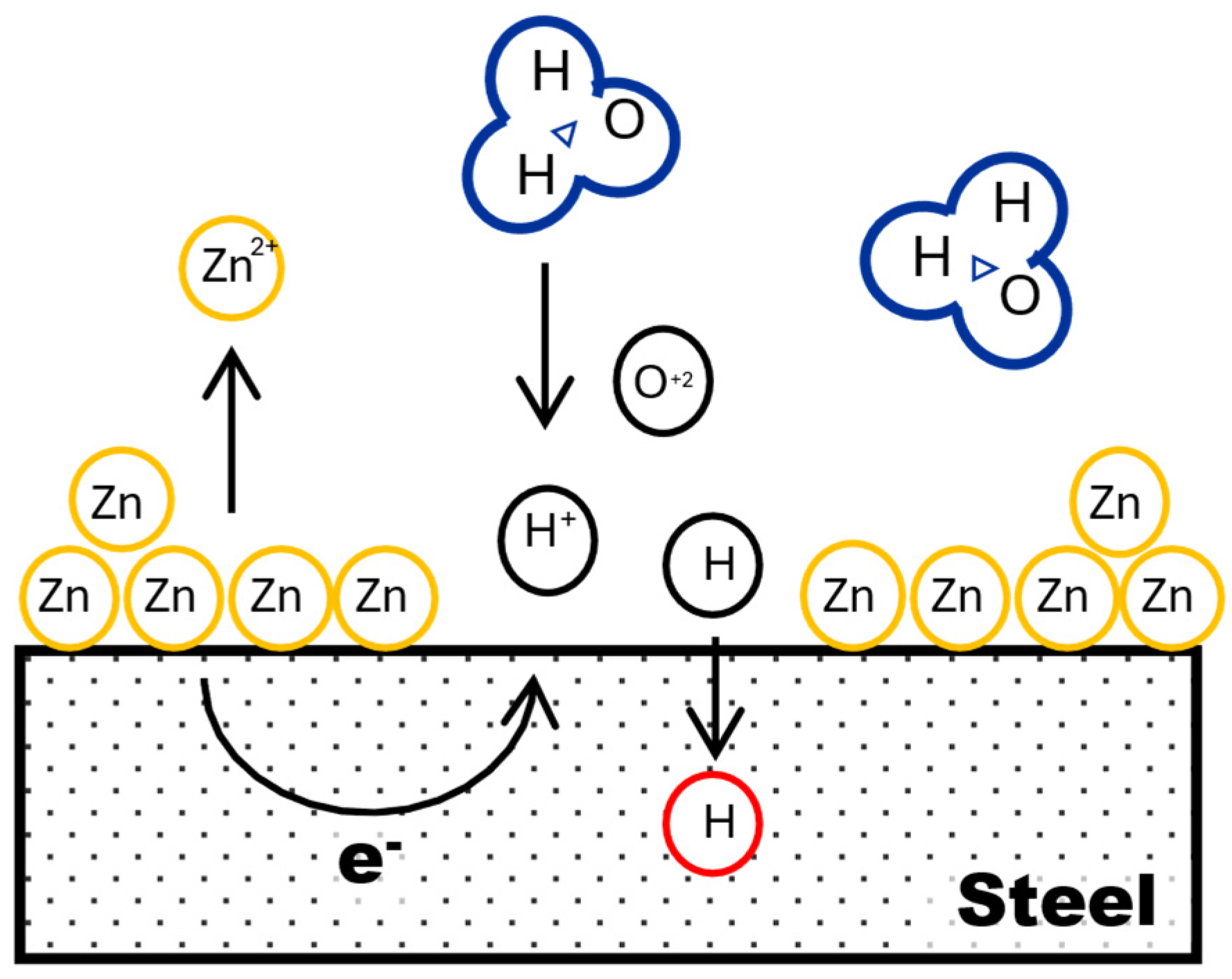

Sacrificial galvanic coatings are commonly applied to these steel components to protect them from rust and corrosion. Zn-based galvanised coatings are the most accepted in the automotive industry [12]. However, should these coatings become damaged during service, a galvanic cell could be generated in the presence of an electrolyte such as salty water, as depicted in Figure 1. Whilst anodic reactions arise in the sacrificial zinc coating (Equation (1)) the steel substrate becomes the cathode where hydrogen evolution takes place (Equation (2)). Other cathodic reactions could take place (Equations (3) and (4)), depending on local pH levels.

Zn → Zn²⁺ + 2e⁻

(1)

H⁺ + e⁻ → H

(2)

O₂ + 2H₂O + 4e⁻ → 4OH⁻

(3)

2H⁺ + ½O₂ + e⁻ → H₂O

(4)

At the cathodic surface atomic hydrogen can be absorbed directly beneath the steel substrate following the coupled discharge-recombination mechanism [13,14]. Over time hydrogen diffuses within the steel microstructure in sufficient quantities, increasing the risk to hydrogen embrittlement (HE) and its associated deterioration of mechanical properties.

Automotive steel grades considered in the present study are also regularly used in the galvanised condition, and it is therefore important to understand how hydrogen evolution and uptake take place when the sacrificial coating becomes damaged in service. The Scanning Vibrating Electrode Technique, SVET, has been shown to be an effective technique to quantify galvanic corrosion on hot-dipped galvanised steels [15,16].

Ingress of atomic hydrogen into the steel greatly lowers its strength, ductility, and toughness, causing it to fail under loads well below those expected during service. Proposed HE mechanisms for steels are either based on lattice decohesion, where diffusing hydrogen weakens lattice bonds, or hydrogen-induced plasticity, where diffusing hydrogen reduces the stress required for formation and motion of crystal imperfections associated with plastic deformation, such as dislocations [17,18,19]. It is also recognised that hydrogen embrittlement susceptibility increases with strength levels. Nonetheless, hydrogen diffusivity within the steel microstructure plays a key role [20]. In the present study, the hydrogen embrittlement susceptibility of the latest generation ferritic nano-precipitate (FNP) is compared to that of more conventional dual-phase ferritic-martensitic (FM) AHSS at equivalent strength levels via use of slow strain-rate (tensile) tests (SSRT), with hydrogen diffusion coefficients measured using the well-established potentiostatic permeation technique [21].

2. Materials and Methods

2.1. Materials

AHSS considered in the current work include conventional ferrite-martensite dual-phase steels with strength levels of 800 and 1000 MPa, identified as FM800 and FM1000. The new generation ferritic nanoprecipitate AHSS at equivalent strength levels were identified as FNP800 and FNP1000, respectively. Chemical compositions for these steels are displayed in

Table 1. Alloy chemistry for the steels studied in this work (figures in mass-percent).

Steel	C	Si	Mn	Cr	Mo	Nb	Ti	V	B
FM800	0.136	0.236	1.692	0.553	0.003	0.024	0.021	0.003	0.0002
FNP800	0.0611	0.189	1.373	0.016	0.141	0.061	0.002	0.212	0.0002
FM1000	0.149	0.041	2.222	0.548	0.005	0.014	0.026	0.006	0.0001
FNP1000	0.1037	0.201	1.396	0.023	0.292	0.05	0.003	0.286	0.0002

, with baseline mechanical properties assessed via conventional tensile tests shown in

Table 2. Baseline average mechanical properties of the studied steels.

Product	Rp0.2 [MPa]	Rm [MPa]	Ag [%]	A50 [%]
FM800	488 (±2)	782 (±4)	12.5 (±0.1)	19.7 (±0.3)
FNP800	747 (±12)	826 (±5)	9.3 (±0.3)	17.2 (±1.5)
FM1000	700 (±5)	1027 (±9)	7.8 (±0.3)	13.5 (±0.4)
FNP1000	862 (±8)	982 (±3)	8.2 (±0.1)	16.7 (±0.3)

. Microstructural characterisation was carried out using a Zeiss Evo scanning electron microscope (Carl Zeiss Industrielle Messtechnik GmbH, Oberkochen, Germany) operating at 20 kV accelerating voltage, 100–150 pA probe current. Grain size analysis was performed via the linear intercept method using Matlab (R2019b) software [6,22]. The typical microstructure of the FM steels can be seen in Figure 2, with the darker regions showing the ferrite (α) phase, and the lighter regions the martensite (α′) phase. Relative volume fractions of each phase were estimated using segmentation technique in ImageJ (1.52q) software [23]. Martensite volume fractions were 40% and 55% for FM800 and FM1000, respectively. These values were comparable with the figures obtained from the literature [24,25]. The FNP steels appear to have a 100% ferrite microstructure and an average grain size of 2.3 µm (diameter). There is little evidence of any Fe₃C formations, either lamellar or globular, as shown in Figure 3.

2.2. Effect of Galvanic Corrosion upon Hydrogen Evolution

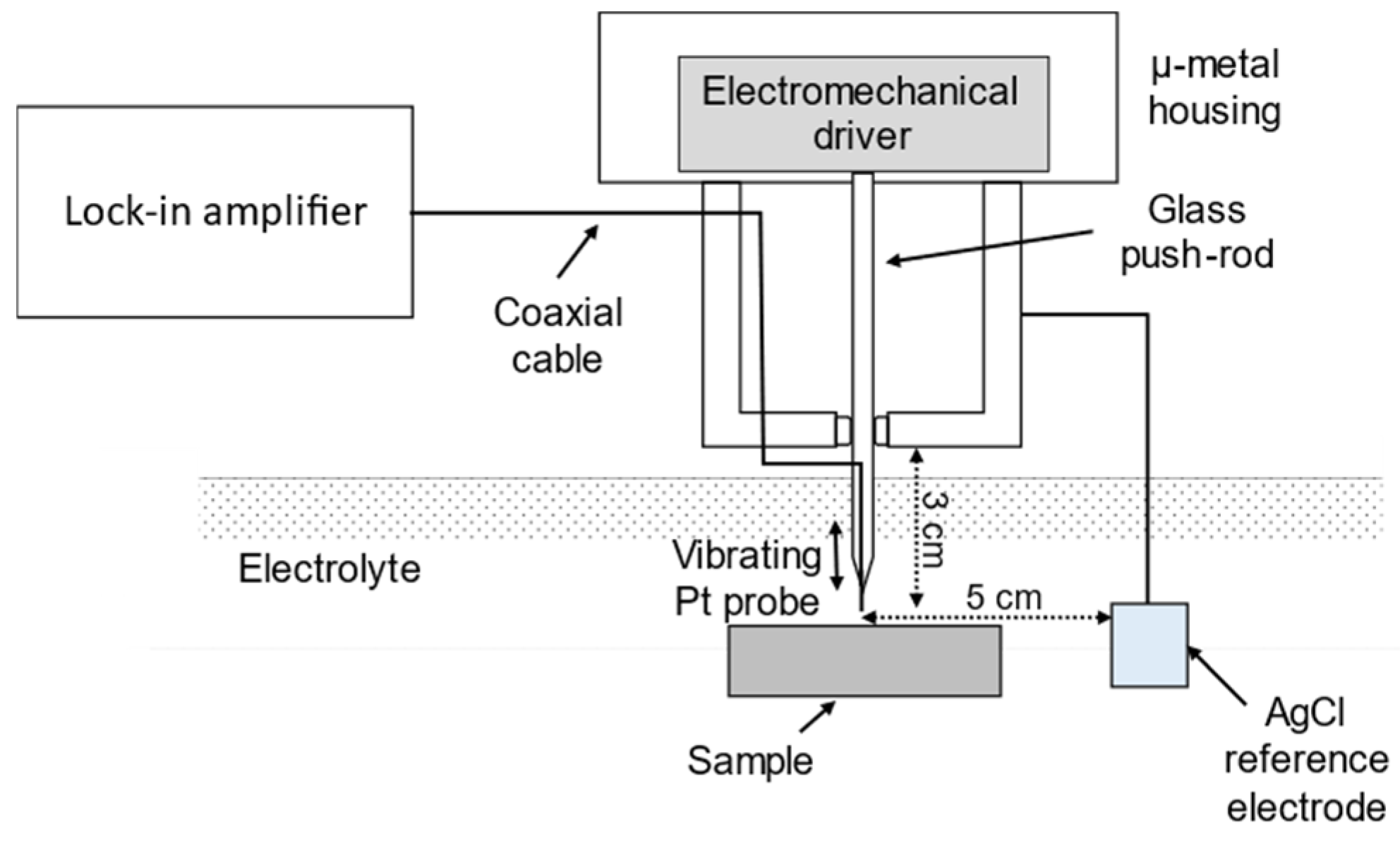

To examine the impact of galvanic corrosion on hydrogen evolution, the local anodic and cathodic current densities during immersion in 0.1 M NaCl solutions were quantified using a scanning vibrating electrode technique (SVET). One half of the surface of a 30 × 30 mm zinc-coated coupon was ground with P1200-grit silicon carbide grinding paper to expose the steel substrate (using ethanol as lubricant to avoid inducing corrosion prior to immersion). SVET measurements were undertaken using a probe tip 250 µm in diameter, mounted on a moving coil electromagnetic driver connected to a 140 Hz vibrating probe [15,16,26]. Figure 4 shows a schematic of the SVET tip and housing. Scans were undertaken every 30 min over the course of 24 h to provide a series of spatial and time-resolved current density measurements along the axis of measurement, J_z, across the surface. Data post-processing was performed using Golden Surfer 10 (10.7.972) and Matlab software.

2.3. Hydrogen Diffusion

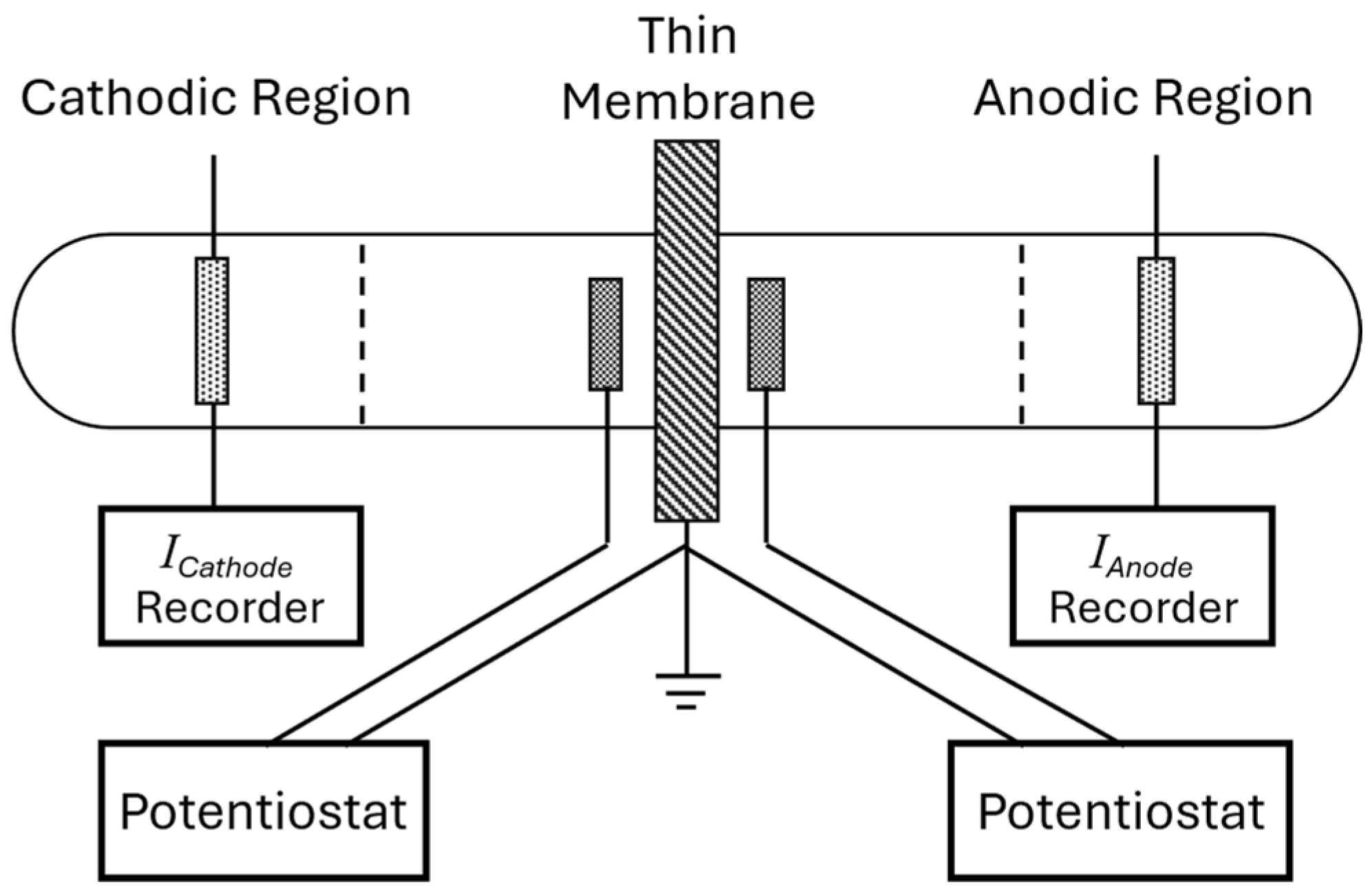

Hydrogen diffusion coefficients were measured using a Devanathan–Stachurski cell [21] as depicted schematically in Figure 5.

Permeation samples had nominal thickness of 0.8 mm with charging surface area of 2.011 cm². The charging cell contained a 3.5% NaCl + 3 g/L NH₄SCN, pH 4.56, while the oxidation cell contained 0.1 M NaOH solution, pH 13. A charging potential of −1050 mV vs. saturated calomel electrode (SCE) was applied after preliminary desorption cycles were completed, typically after 14 h. As diffusing hydrogen is oxidised it generates a corresponding measurable current until it reaches steady state, generating a characteristic permeation curve. The current I_t, at time t, is converted to a hydrogen permeation flux, J_t, with the following equation [27]:

J_t = (I_t/A)/F

(5)

where A is the surface area exposed to the electrolyte in the oxidation cell, and F is the Faraday constant (96,485 coulombs/mol). The lag time, t_lag, described as the time taken when J_t/J_∞ = 0.63, was used to calculate the effective diffusion coefficient, D_eff, according to the following equation:

D_eff = L²/(6t_lag)

(6)

where L is the membrane thickness in cm. The surface concentration of hydrogen at the charging side was calculated according to the following equation:

C₀ = (J_∞L)/D

(7)

The values obtained for these parameters from the experimental data, along with membrane thickness, were then input to a bespoke Matlab script [1] used to simulate the perfect ‘Fickian’ curve for a given sample as a comparison to the curve obtained from the experimental data. For potentiostatic charging the transient of the permeation flux according to Fick’s diffusion laws is recreated by the following equation:

$$J_t={\displaystyle \frac{D_{\mathit{eff}}{C}_0}{L}}\left\{1+2\sum _{n=1}^{\infty }\cos \left(\pi n\right)\mathrm{Exp}\left({\displaystyle \frac{-D{n}^2{\pi }^{2}t}{L^2}}\right)\right\}$$

(8)

2.4. Embrittlement Indices, EI, and Slow Strain-Rate Test, SSRT

For its relative simplicity and reproducibility [28] mechanical property degradation due to hydrogen was assessed using slow strain-rate tensile tests, SSRT. Sample nominal thickness was 0.8 mm and the total length 64 mm. SSRTs were carried out at a nominal strain rate of 8.33 × 10⁻⁶/s. This strain rate is around 10,000 times slower than that used in standard tensile tests on production material (e.g., [29]) and is of an order that is fairly typical of SSRT which is widely used in studying the deleterious effects of hydrogen on mechanical properties [28]. The slow strain rate is essential in allowing sufficient opportunity for hydrogen to diffuse to all parts of a sample, accumulating and interacting with regions of high stress or microstructural imperfections [30,31,32,33]. Tests at higher strain rates raise the chances of fracture occurring only at regions directly adjacent to the charging medium [34], raising the possibility that key microstructural differences may be overlooked. Furthermore, dislocation motion itself can act as a hydrogen transport mechanism, necessitating strain rates as low as practicable [35]. For SSRT involving hydrogen charging in this work, a bespoke cell was placed around the sample gauge length with approximately 30 mL of 3.5% NaCl + 3 g/L NH₄SCN. Samples were potentiostatically polarised at −1050 mV versus a saturated calomel reference electrode, SCE, with a platinum foil counter electrode. After loading the sample and charging apparatus to the tensile test machine (Instron 8516 (Instron, Norwood, MA, USA)) hydrogen charging was undertaken in situ for 2 h prior to straining and was maintained throughout the duration of the test. The hydrogen embrittlement index, EI, was assessed according to the decrease in time to failure, TTF, calculated according to the following equation:

Embrittlement Index = (Time to failure in air − Time to failure in hydrogen)/Time to failure in air

(9)

Student’s t-test was used to determine whether there were statistically significant differences between test populations. Comparing the means of the two data populations enables calculation of a test statistic, t, through the equation:

t = ((m₁ − m₂))/(s√((1/n₁ 1/n₂)))

(10)

where m₁ and m₂ represent the means of the two data sets, and n₁ and n₂ the number of measurements in each set. s is calculated from the standard deviations of the two populations:

s² = (s₁² + s₂²)/2

(11)

where s₁ and s₂ represent the standard deviations of the two data sets. The test statistic, t, is then compared with tabulated values for a 95% confidence level with ((n₁ − 1) + (n₂ − 1)) degrees of freedom. If the test statistic < t-distribution, with a 95% confidence level the datasets belong to the same population, i.e., acceptance of the null hypothesis [36].

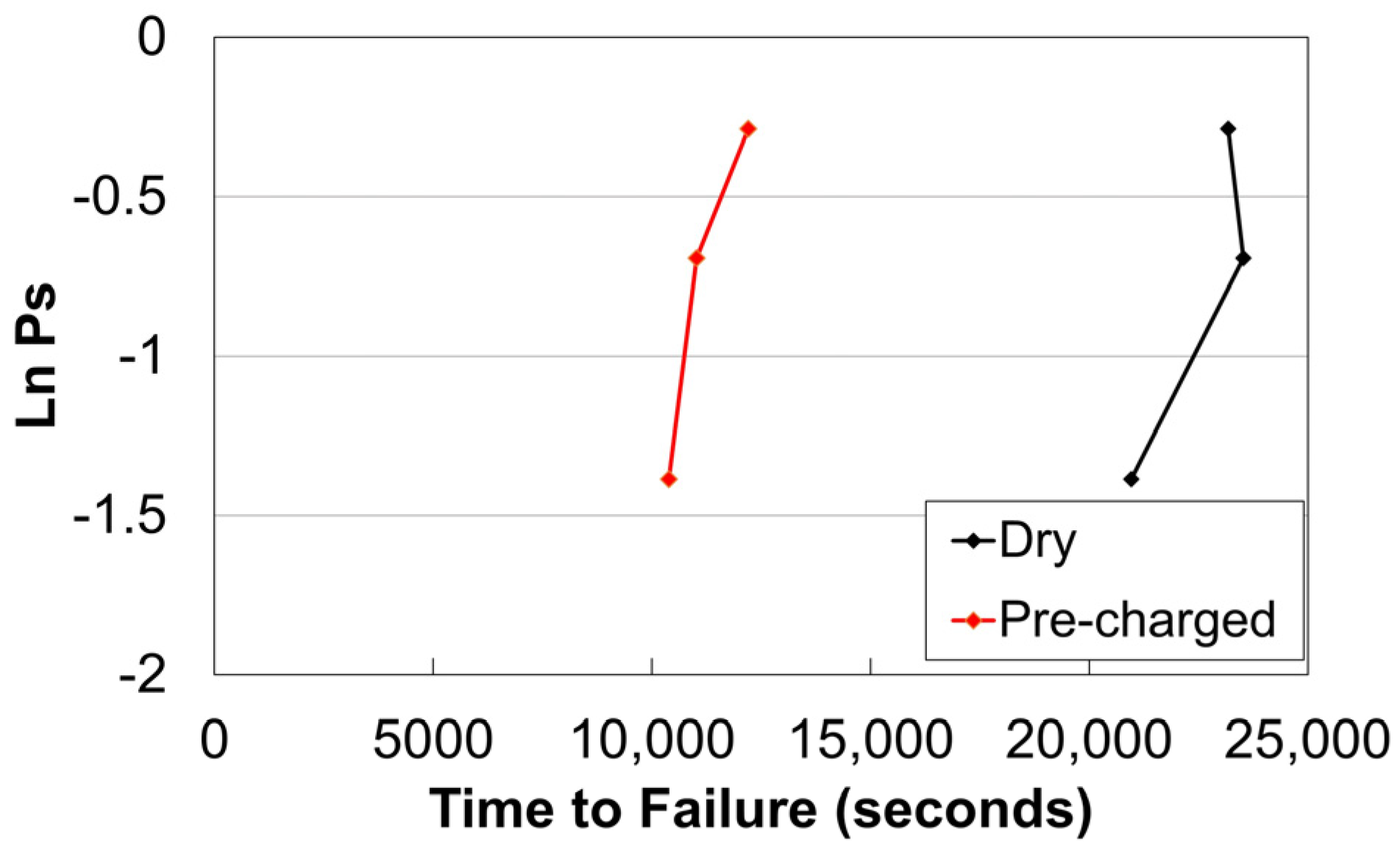

Weibull distributions were used to show the probability of survival of a group of specimens before failure through hydrogen embrittlement. The time-to-failure data for each set of product–test condition pairs was compared with a mean time to failure of the uncharged condition for each of the steels. The Weibull model was adapted for analysis through brittle failure, in showing that the probability of a specimen not failing within a specified time, t, is calculated according to the following equation [36]:

P_(s) = 1 − P_(f) = e^−xt

(12)

where P_(s) is the probability of survival, P_(f) the probability of failure, and x the shape parameter known as the Weibull slope. x is the probability per unit time, t, that a crack forms of sufficient severity to cause failure of the specimen and is deduced from the negative gradient of a plot of ln P_(s) versus t. As there is a minimum time for a critical crack to initiate, t_i, the graph is displaced along the time axis by this amount, i.e., when P_(s) = 1, ln P_(s) = 0, and t = t_i, modifying Equation (12) to become [37]:

P_(s) = 1 − P_(f) = e^{−x(t−t_i)}

(13)

2.5. Fractography

Fracture surface analysis was undertaken by SEM across the entire fracture surfaces of selected samples (1 × “dry” specimen per steel, 2 × hydrogen-charged specimens per steel). Images were then stitched and analysed using ImageJ software. Regions of the fracture surface were assigned a colour depending on the dominant features observed in a particular location. Quasi-cleavage (QC) facets and regions of intergranular (IG) fracture represented a more brittle fracture mode, whereas micro void coalescence (MVC), shear voids, and tear ridges (TR) occurred in more ductile failures. Trans-granular (TG) cracks can be found in both ductile and brittle regions, and typically occur where both mechanisms are present, as shown in Figure 6. Fractographic quantitative assessment was carried out using Matlab software to count the pixels from each assigned colour for each fractograph and summarise as percentages.

3. Results and Discussion

3.1. Galvanic Corrosion and Hydrogen Evolution

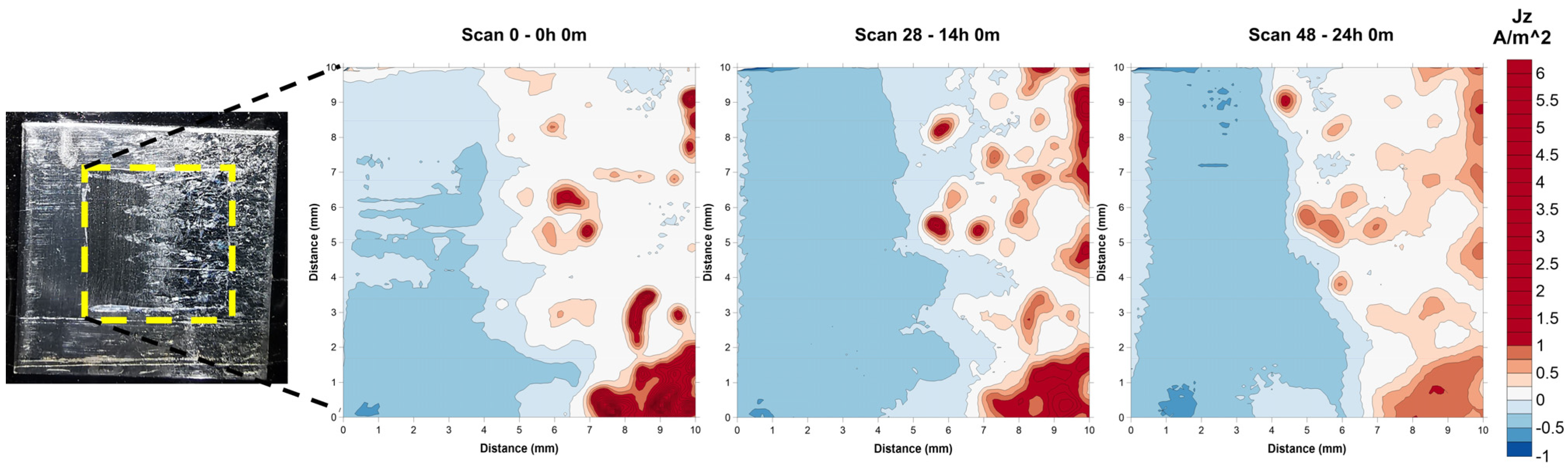

Figure 7 shows a selection of contour plots of SVET scan data displaying regions of cathodic (blue) and anodic (red) activity as galvanic corrosion process in the relatively weak 0.1 M NaCl solution. Regions with relatively high localised anodic activity, current density up to 6.01 A/m², take place as the Zn sacrificial coating is corroded in a localised manner. At the exposed steel substrate a wide region with cathodic current densities (blue) is shown with a maximum cathodic current density of −0.53 A/m². This current density is indicative of cathodic polarisation at the steel surface that promotes hydrogen evolution, albeit in competition with a diffusion-limited oxygen reduction reaction [38]. After 2.5 h, the anodic regions (red) begin to expand, but with lower intensity, indicating that localised pitting has ceased and corrosion of the zinc has become more general. The cathodic regions periodically develop some localised regions of increased cathodic current density, particularly after about 14 h, peaking around 20 h. After 24 h, both anodic and cathodic activity had reduced intensity from peak current densities in these localised, previously high-intensity regions. Figure 8 shows the averaged anodic and cathodic current densities, I_a and I_c, respectively, calculated according to Equation (14) (the equivalent for anodic current density with respect to time, J_at, calculated using J_z(x,y) > 0).

$$I_c=A.J_{\mathit{ct}}\ge \underset{0}{\overset{\mathrm{y}}{\int }}{\int }_0^{\mathrm{x}}\left[J_{z\left(x,y\right)}<0\right]\mathrm{dx} \mathrm{dy}$$

(14)

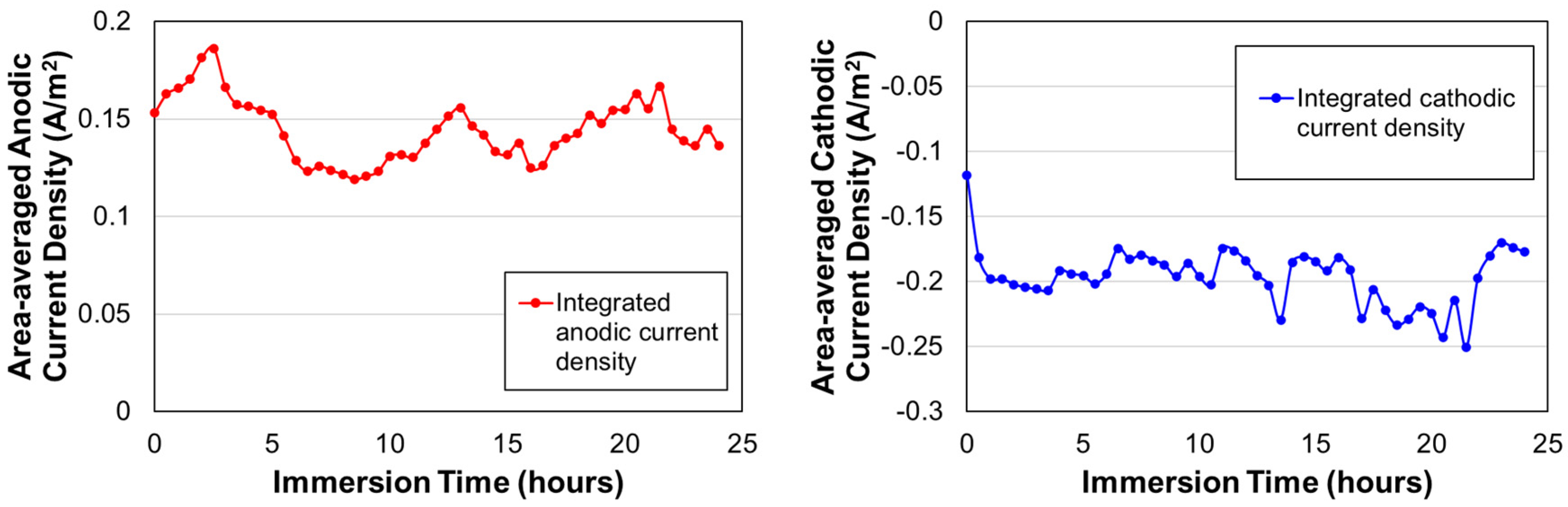

The measured total anodic current density shows greater stability over the 24 h duration of the test than the maximum current density plot, indicating there is significant sacrificial corrosion of the zinc coating as the immediate pitting behaviour subsides and continues throughout. Cathodic current density measurements show a degree of fluctuation but measure consistently higher than the anodic current density, as illustrated in Figure 8. The most strongly cathodic areas showed current density below −0.3 A/m², of a similar order to cathodic current densities seen during potentiostatic hydrogen charging (at −1050 mV SCE in 3.5% NaCl) for both permeation and slow strain-rate tests. By applying Faraday’s Law, it is possible to calculate an estimate for the total hydrogen evolved at the exposed steel surface according to equation:

$$Q ={\int }_{t=0}^{t=t_m}{J}_{\mathit{ct}} . \mathrm{dt}$$

(15)

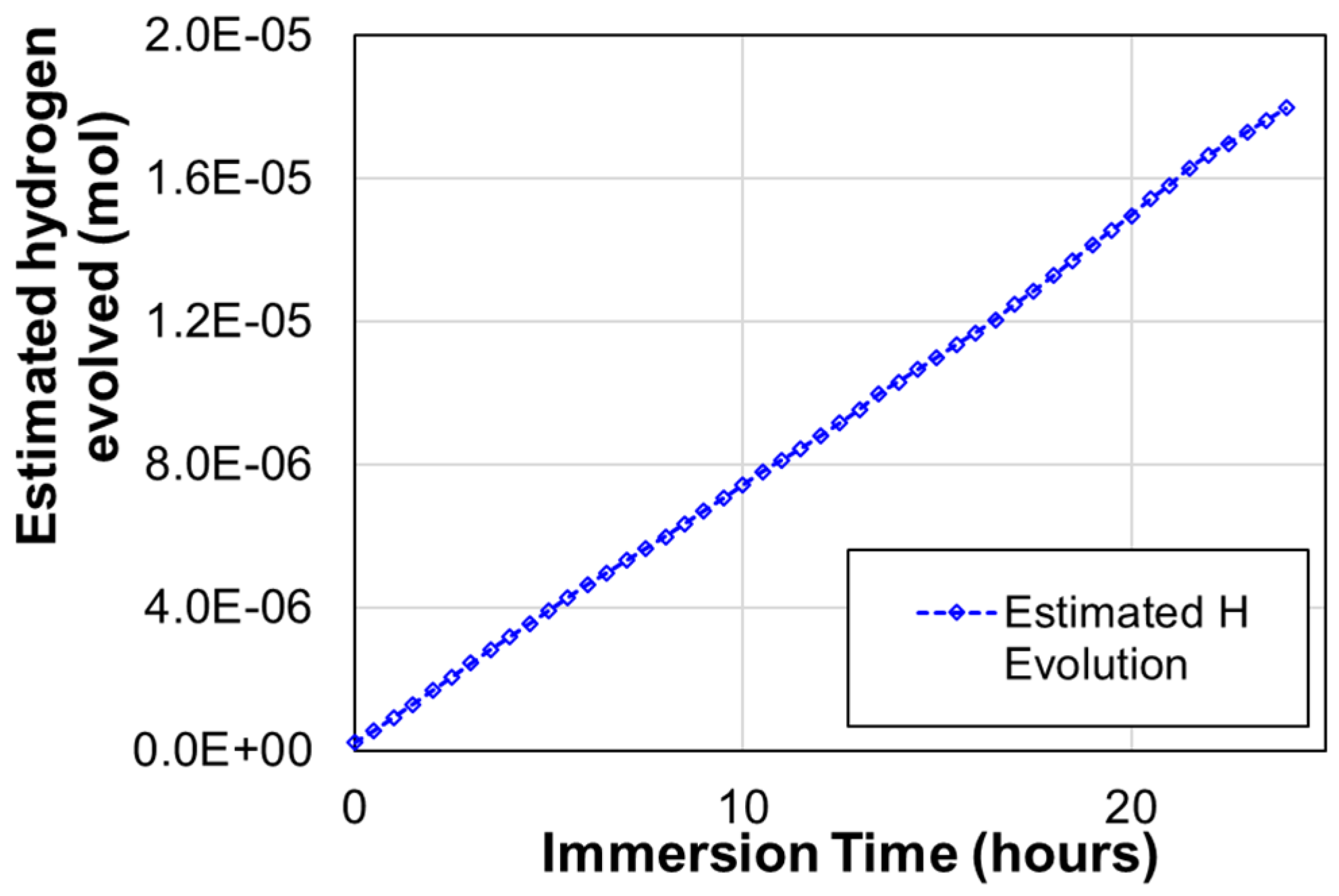

where Q is the total charge in C/m² and t_m the scan time in seconds, with integration performed numerically and assuming that J_ct is constant between scans. Figure 9 shows calculated values for hydrogen evolved at the exposed steel surface over the duration of the experiment. The total hydrogen evolved over 24 h was >1.6 × 10⁻⁶ mols.H.

3.2. Hydrogen Diffusion

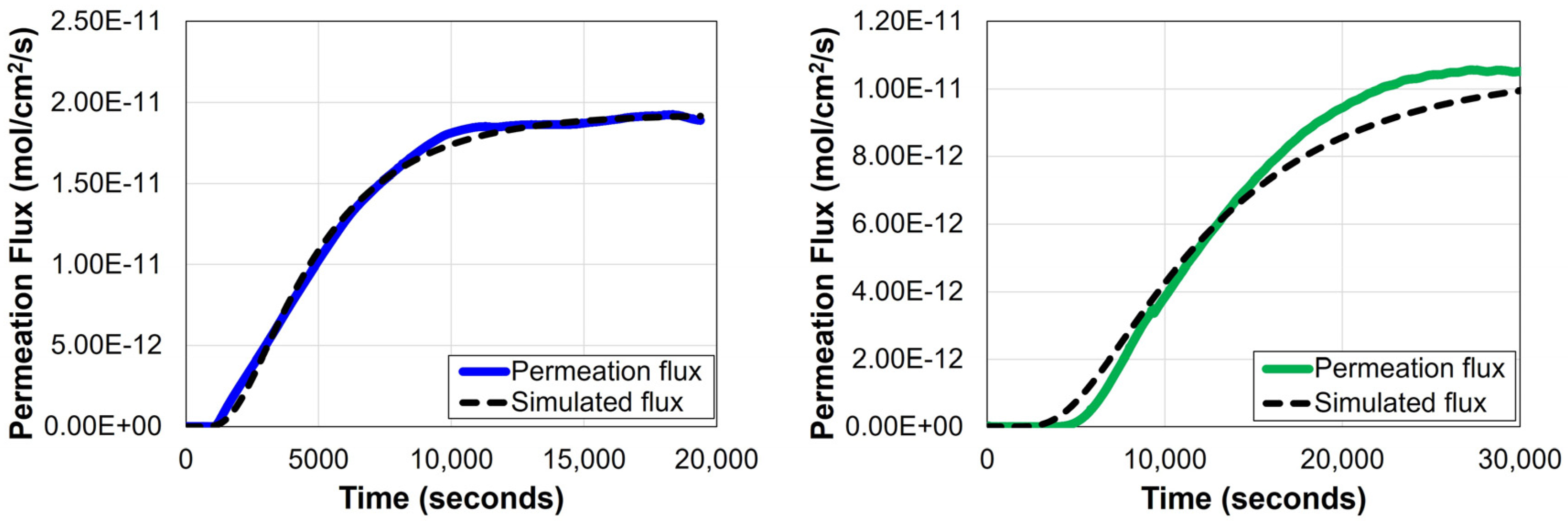

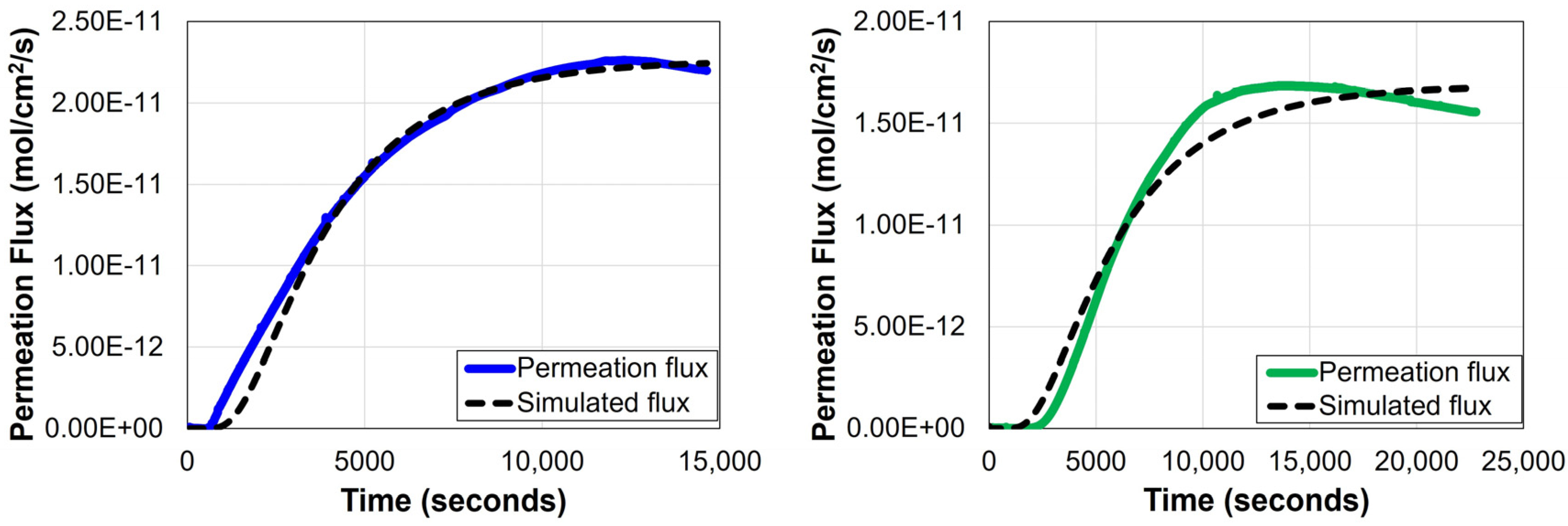

Permeation curves for FM800 and FNP800 AHSS are shown in Figure 10. For FM800 the breakthrough time, t_b, was 1033 s, the lag time, t_lag, was 4397 s, and the maximum flux, J_∞, was 2.2 ×10⁻¹¹ mol/cm²/s. The calculated mean effective diffusion coefficient, D_eff, was 1.87 × 10⁻⁷ cm²/s, and the maximum hydrogen concentration at the charging surface, C₀, was 8.51 × 10⁻⁶ mol/cm². The FNP800 steel showed a t_b value of 3373 s, a t_lag of 6682 s, and J_∞ of 1.68 × 10⁻¹¹ mol/cm²/s. The calculated mean effective diffusion coefficient, D_eff, was 1.68 × 10⁻⁷ cm²/s, and the maximum hydrogen concentration at the charging surface, C₀, was 8.21 × 10⁻⁶ mol/cm².

For AHSS at 1000 MPa strength, permeation curves in Figure 11 show that the FM1000 steel had t_b of 1481 s, a t_lag of 5445 s, and a J_∞ of 1.93 × 10⁻¹¹ mol/cm²/s. The calculated mean effective diffusion coefficient, D_eff, was 1.45 × 10⁻⁷ cm²/s, and the maximum hydrogen concentration at the charging surface, C₀, was 9.14 × 10⁻⁶ mol/cm². The FNP1000 AHSS had t_b of 6628 s, a t_lag of 13,944 s, J_∞ of 1.20 × 10⁻¹¹ mol/cm²/s, D_eff of 7.45 × 10⁻⁸ cm²/s, and C₀ of 1.54 × 10⁻⁵ mol/cm². Figure 12 shows the differences between effective diffusion coefficient calculated from data obtained in permeation tests.

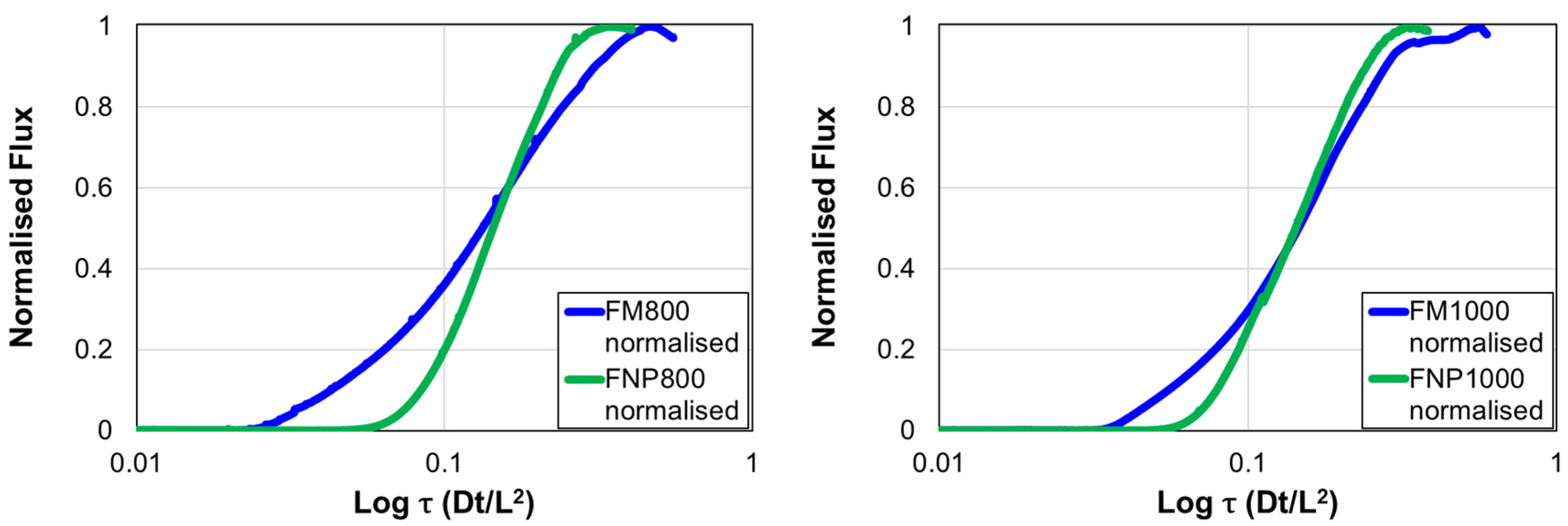

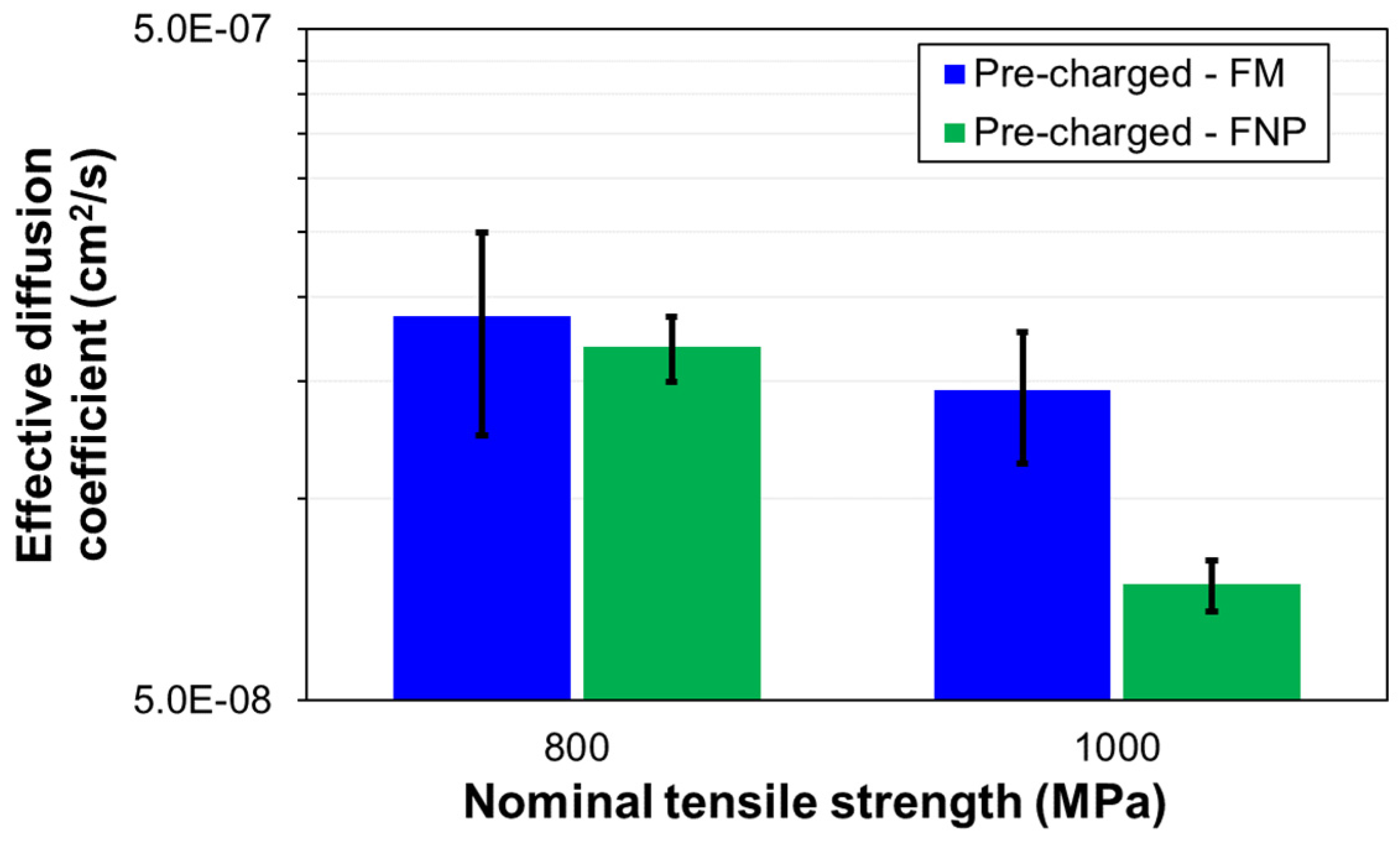

The fully ferritic FNP steels have shown to have much lower effective diffusivities than the equivalent ferrite-martensite FM steels at same strength levels. FNP steels exhibit clear differences between the permeation curves simulated according to Fick’s laws and the measured permeation flux, as shown in Figure 10 and Figure 11. The initial rising transient is displaced to a longer (delayed) breakthrough time, t_b, before rising more steeply than the simulated Fick’s curves. This increase in t_b has been previously reported to be caused by a higher overall hydrogen trap density [39,40]. Permeation curves for FM steels at equivalent strength levels did not show a delay in t_b, indicating that the FNP steels contain a greater trap density than the equivalent strength FM steels.

As diffusible hydrogen saturates the irreversible traps before filling reversible traps or diffusing through the lattice, the overall hydrogen diffusivity is impacted to a greater degree by the presence of irreversible traps compared to reversible ones [41]. The overall shape of the permeation curve between t_b and J_∞, however, is unlikely to be influenced by the presence of strong traps [42]. FNP steels might contain a relatively high density of irreversible trap sites, not necessarily high densities of reversible trap sites.

FNP steels are alloyed with Nb, V, and Mo resulting in the formation of nano precipitates including NbV, NbVMo, and carbide/carbo-nitride. It has been reported that such precipitates could act as irreversible traps, particularly if precipitates are very fine [17]. Depover [43,44,45] showed that Ti, V, Mo carbides are able to trap a significant amount of hydrogen in steels containing 0.1–0.3 wt.% C [46], and direct observation of hydrogen (in the form of deuterium) trapped at microalloy carbide nanoprecipitates has been reported by Takahashi (via gas charging) [47] and Chen (via electrolytic charging) [48]. Whilst grain refinement has been shown to increase hydrogen trapping through increase in grain boundary area [49], the lower relative diffusivity of the FNP steels and shape of the permeation transients suggest a much larger impact of the presence of nanoprecipitates in the microstructure. The lower relative diffusivity of the FNP steels could be associated with the presence of these nanoprecipitates in the microstructure.

FM steels with shallower permeation transients indicate the presence of low irreversible trap densities and higher density of reversible traps, more clearly illustrated in “normalised” permeation curves seen in Figure 13. FM steels contain substantial volume fractions of martensite, formed via a displacive transformation, resulting in high dislocation densities. Numerous studies have shown that dislocations represent reversible hydrogen traps, decreasing the gradient of the rising transient, but not impacting the overall effective diffusivity, D_eff, to the same degree as irreversible traps [50,51,52,53].

3.3. Slow Strain-Rate Tests and Fractography

Engineering stress and strain (or in this case percent elongation) are the standard measures by which mechanical properties for automotive steels are specified and the parameters against which they are tested. Without the use of extensometry (particularly reduction-in-width) due to the presence of the hydrogen charging apparatus it was not possible to calculate the instantaneous cross-sectional area of the sample during the test, required to calculate true stress.

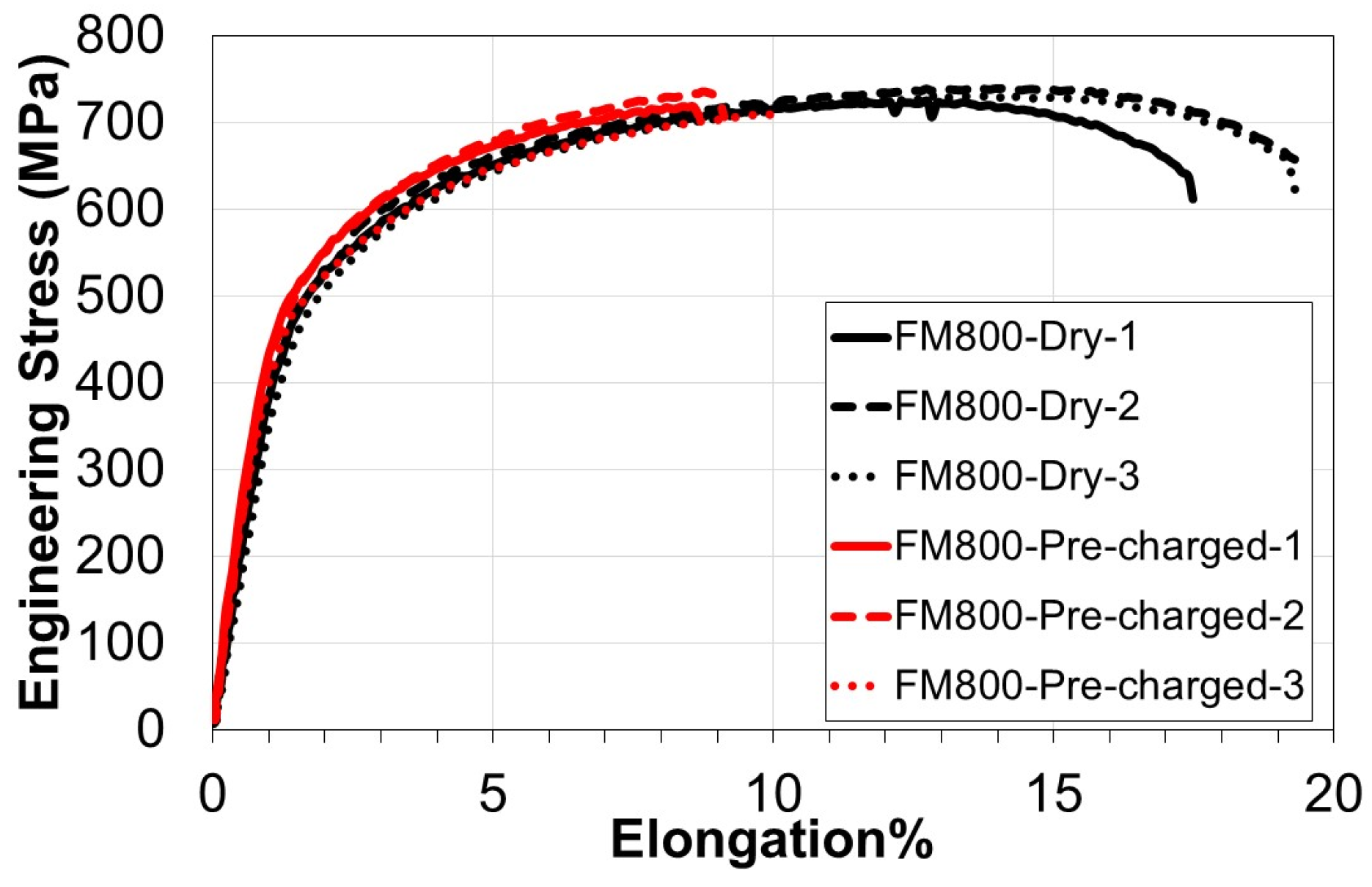

A considerable reduction in ductility for FM800 steel due to hydrogen charging can be seen in Figure 14. The mean total elongation dropped from 18.9%, in the dry condition, to 9.4% in the hydrogen-charged condition. The mean TTF value for the dry condition was 6.3 h, reducing to 3.1 h for the dry and hydrogen-charged condition, respectively. Weibull plots in Figure 15 showed that TTF values were consistent for each test condition. Student’s t-test results showed with a 95% confidence that there is a statistically significant difference between the two populations, dry and hydrogen-charged conditions.

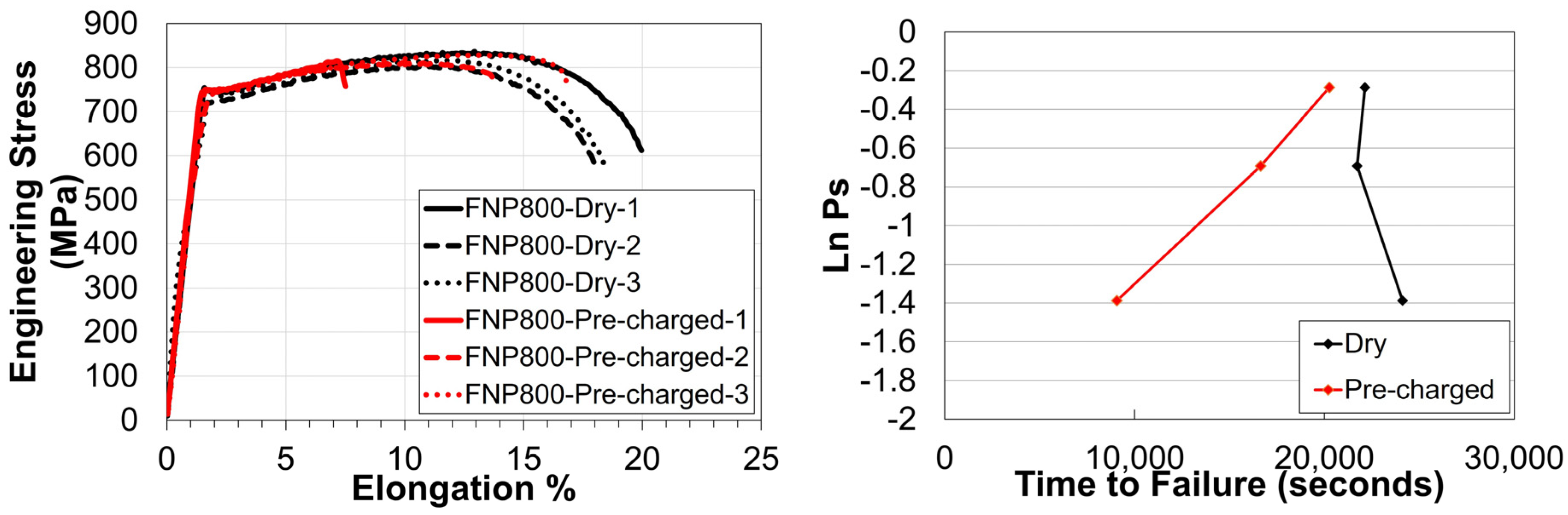

Figure 16 shows FNP800 mean total elongation dropped from 18.9%, in the dry condition to 12.8%, in the hydrogen pre-charged condition, although one of the tests (pre-charged test 3) appears to have persisted to a significantly higher elongation than the others for the same conditions. It could be argued that the reduction in ductility during the pre-charged tests on FNP800 is within the scatter of the dry test condition, showing substantially less obvious reduction in elongation than for the equivalent strength FM steel. Student’s t-test results showed with a 95% confidence that there was no statistically significant difference between the conditions tested, although the Weibull suggests two distinct populations when compared according to TTF.

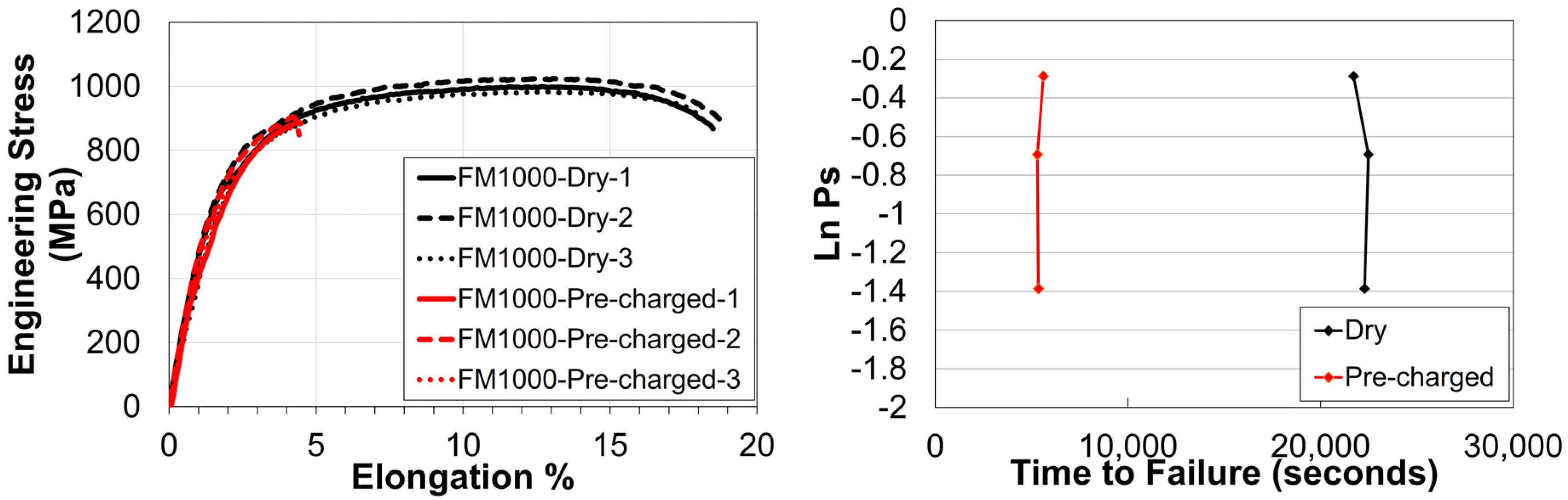

SSRT curves for FM1000 are shown in Figure 17. A severe loss of ductility is shown for the hydrogen charged condition, with mean total elongation dropping from 18.5%, in dry tests, to just 4.6% for hydrogen charged tests. The mean TTF was reduced from 22,158 s to 5418 s. FM1000 experienced a large drop in performance in the presence of hydrogen, and this is validated in the output of the t-tests. FNP1000 SSRT curves are shown in Figure 18. The mean total elongation was reduced from 17.4% to 10.0%, for the dry and hydrogen-charged conditions, respectively. TTF mean values decreased from 20,762 s in the dry condition to 11,633 s for the hydrogen-charged condition.

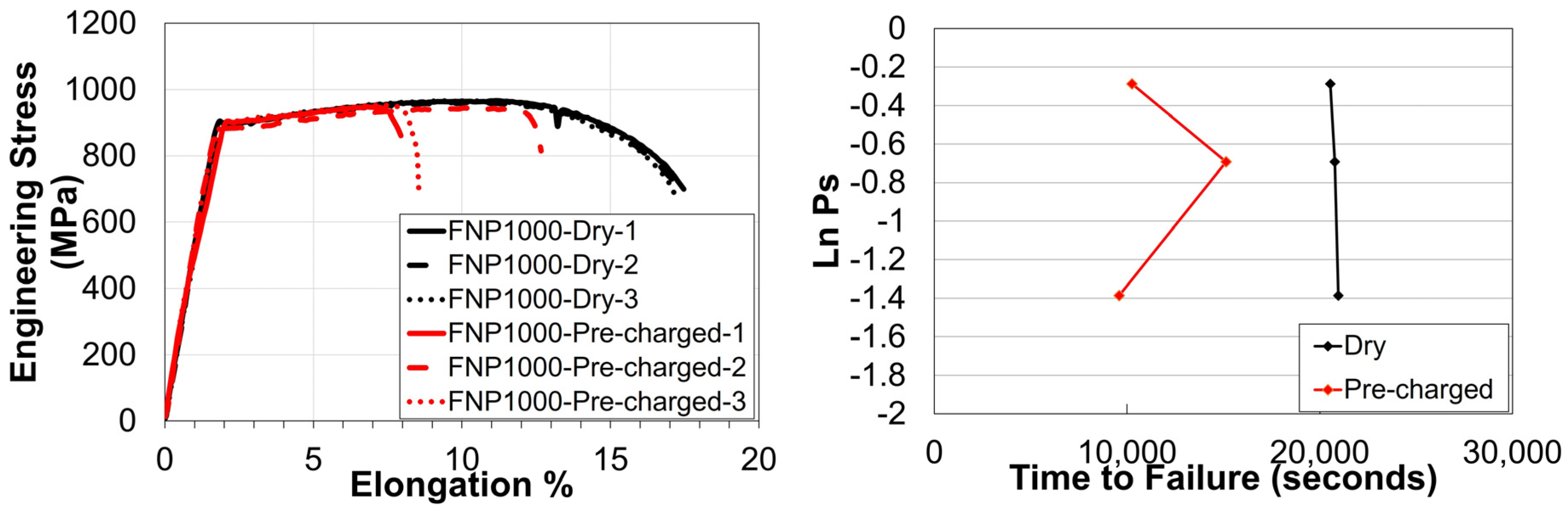

Embrittlement indices for all AHSSs considered are summarised in

Table 3. Mean embrittlement indices and output from Student’s t-test for SSRTs. All t-tests based on time-to-failure in the pre-charged versus dry conditions.

Product	Mean Embrittlement Index %	t-Statistic	p-Value	Power
FM800	50.30% (±3.5%)	11.773	2.98 × 10−4	1
FNP800	32.40% (±16.7%)	2.168	0.096	0.38
FM1000	75.60% (±0.6%)	66.706	3.03 × 10−7	1
FNP1000	43.80% (±11.5%)	5.186	6.58 × 10−3	0.97

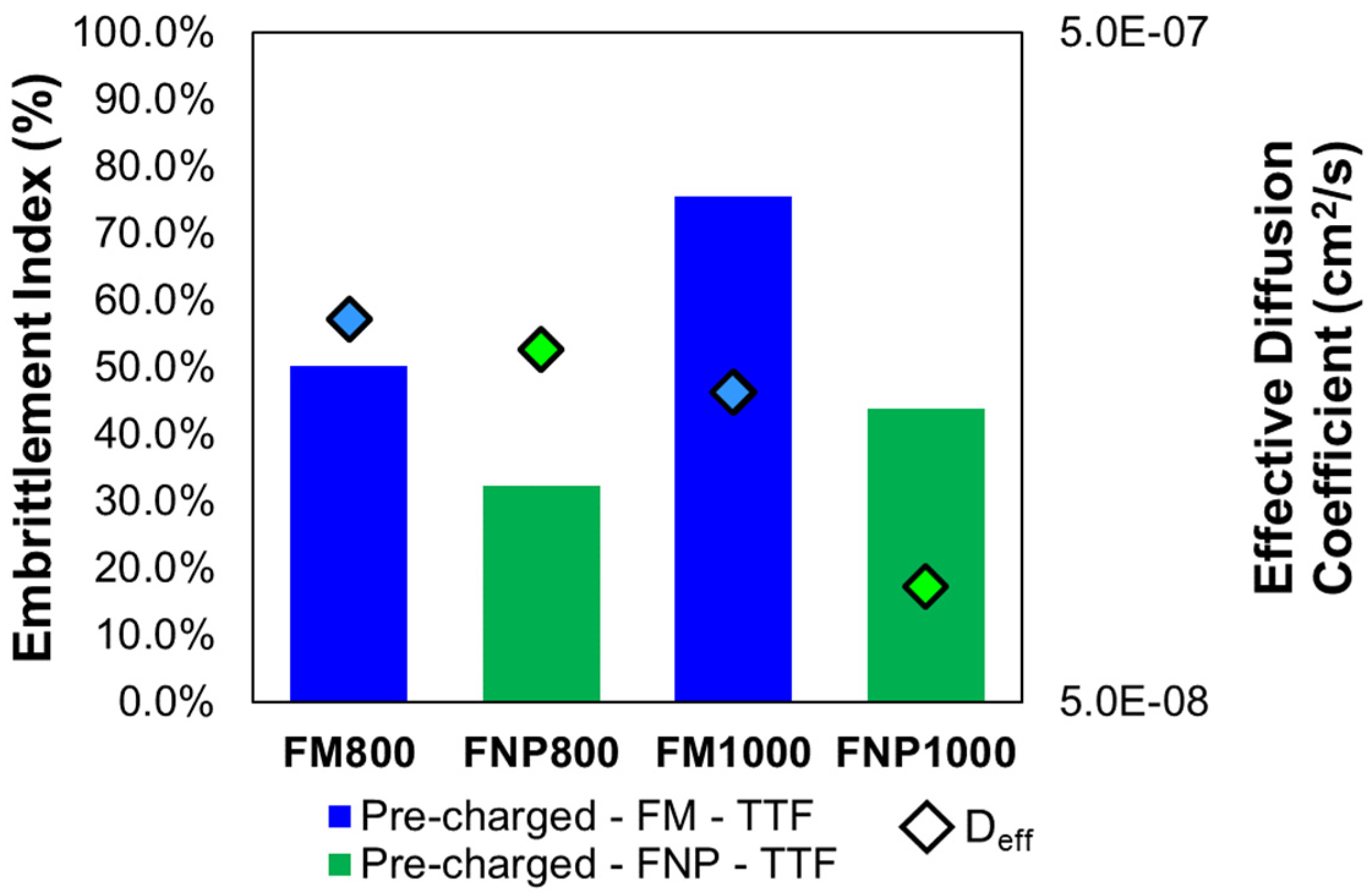

. It is clear that at a given strength level, the fully ferritic FNP AHSS showed significantly lower hydrogen embrittlement susceptibility than the conventional ferritic-martensitic FM AHSS. It is notable that within strength levels this shows a clearer correlation with the relative effective diffusivity as shown in Figure 19. Differences in hydrogen embrittlement susceptibility between FNP and FM steels at equivalent strength levels are due to the distinctive microstructures.

Several studies on dual-phase steels have shown that the ferrite-martensite microstructure may be inherently susceptible to hydrogen embrittlement. Koyama [54] found that hydrogen charging facilitates the nucleation of cracks in the martensite phase by decreasing the critical strain required for such an initiation (via the mechanism known as hydrogen-enhanced decohesion (HEDE)), promoting cracking at the ferrite/martensite boundaries, and trans-granular failure. Takashima [55] also found that where stress is sufficiently high, cracks will propagate through the martensite, avoiding the ferrite phase and causing a unique fracture surface with irregular roughness. Trans-granular cracking in the ferrite phase and cracking at ferrite/martensite boundaries are mechanisms more commonly associated with hydrogen-enhanced localised plasticity (HELP).

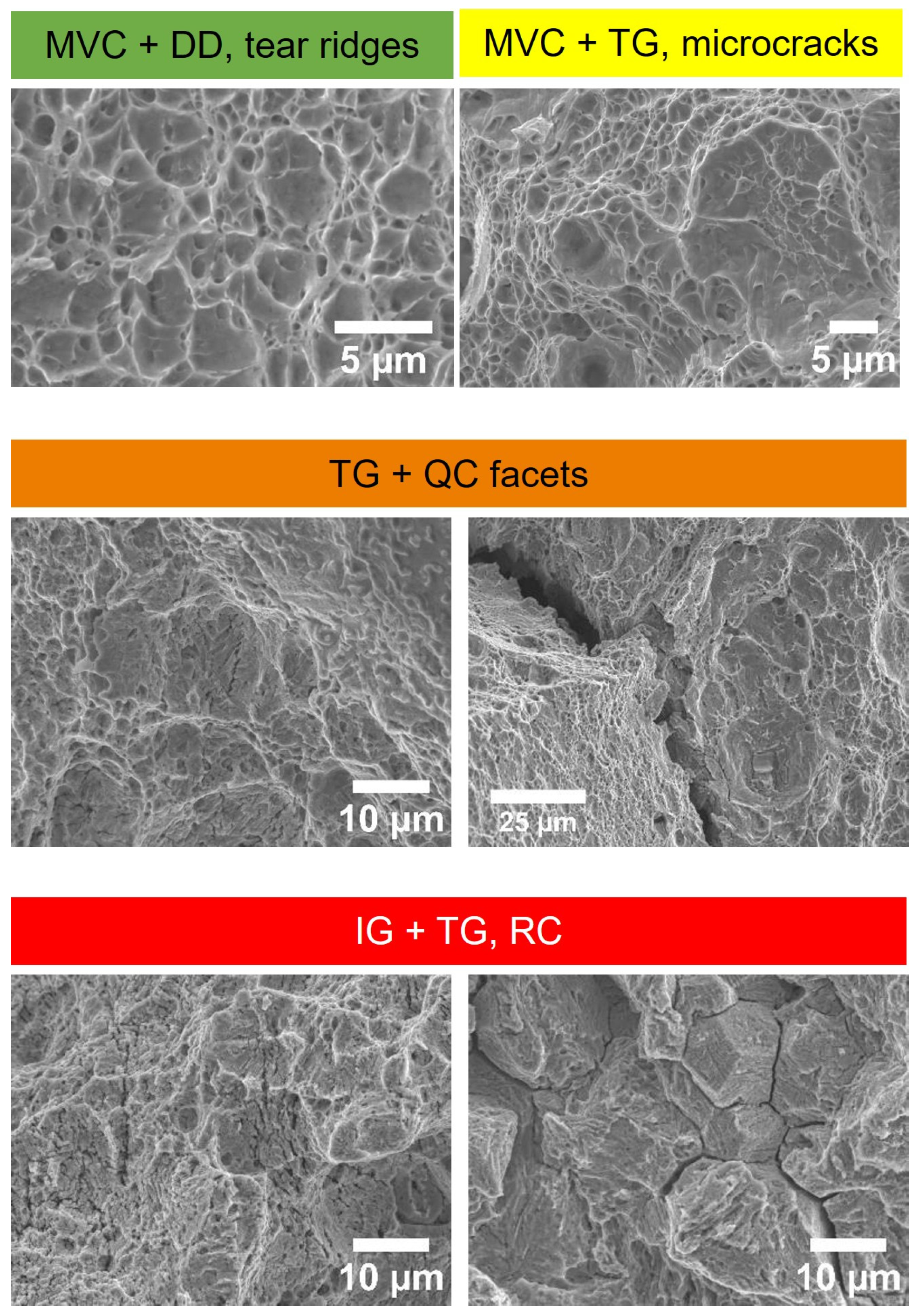

Evidence for these mechanisms in the FM AHSS can be found in the fractographic analysis. Fracture surface features, categorised and assigned colours according to the logic described in Figure 6, are summarised in

Table 4. Surface feature classification within fractured SSRT specimens.

	Dry Condition		Hydrogen-Charged Condition
FM800		100%		0%
		0%		79%
		0%		4%
		0%		17%
FNP800		100%		11%
		0%		53%
		0%		15%
		0%		21%
FM1000		99%		0%
		1%		2%
		0%		79%
		0%		19%
FNP1000		99%		14%
		1%		38%
		0%		16%
		0%		30%

. For all specimens tested in the dry condition, virtually the entire surface shows the presence of micro-void coalescence (MVC), considered to be typical of plastic deformation. In contrast, regions with the highest hydrogen concentrations closest to the charging surfaces possess widespread quasi-cleavage (QC) and intergranular cracking (IG), both indicative of a decohesion initiation and propagation. Regions further from the charging surfaces there is still the presence of (MVC), but with widespread trans-granular (TG) cracks.

Brittle fracture features are more prevalent in the FM steel than the FNP steels of equivalent strength levels, with increased visible damage near the charging surfaces. There is a greater prevalence of visible damage towards the specimen centres and comparatively more widespread transverse cracks, contributing to FM1000 showing nearly 100% prevalence of brittle features. In the most severely embrittled FM1000, QC facets are still apparent even at the very centre of the specimen. However, the presence of TG cracks and MVC in regions also containing QC might suggest that hydrogen may be lowering the critical stress for dislocation motion, proposed in the HELP mechanism [54].

Mixed modes of fracture are also observed in the single-phase FNP steels, but not to the extent observed in the FM steels. With EI of 32% and 44% for FNP800 and FNP1000, respectively, typically brittle fracture features covered up to 36% and 46%, respectively. However, only at the regions adjacent to the charging surfaces where hydrogen concentrations are at a maximum, are features such as QC and IG prevalent, in stark contrast to the equivalent FM specimens. Differences in embrittlement index and fracture features observed between FNPs and FMs steels are a clear indication of the inherently better performance of the FNP microstructure in presence of hydrogen. The microalloy precipitates and their interface with the ferrite matrix in FNP steels lowers the hydrogen available to cause damage via trapping and virtually eliminates the presence of hard second phases and associated interfaces where damage initiation could occur. Furthermore, precipitation strengthening inhibits dislocation motion, assisting in sressing the HELP mechanism [56]. Conversely, with a continuous supply of hydrogen these very hard nanoprecipitates may themselves act as crack initiation sites as the local hydrogen concentration and stress concentration exceed critical thresholds [57,58]. In the FM microstructure hydrogen trapping occurs primarily due to dislocations present in high density within the martensite phase. This presents FM steels with two problems: firstly, during pre-charging the hydrogen uptake is at its highest within the martensite phase providing high local hydrogen concentrations at potential crack initiation sites [54,59]; secondly, at the onset of deformation strain is concentrated in the ferrite phase, which then begins to occlude greater concentrations of hydrogen as dislocation density rises, rendering it less effective at arresting cracks that may initiate in the martensite phase [54,55].

Differences in resistance to degradation do not result exclusively from lower effective diffusivity per se, but from a combination of lower local diffusivity through presence of strong traps and the fully ferritic microstructure being inherently more resilient than the dual-phase microstructure containing martensite. In other words, there are differences in critical hydrogen concentration between the two microstructures.

4. Conclusions

This study has compared the hydrogen embrittlement susceptibility of ferrite nano-precipitate to that of conventional ferritic-martensitic advanced high-strength steels (AHSS) of equivalent strength levels via slow strain-rate tests. Hydrogen diffusion coefficients were measured and compared via use of potentiostatic permeation. As these steels are often used with a hot-dipped zinc coating, the Scanning Vibrating Electrode Technique, SVET, was used to quantify the cathodic polarisation of a steel substrate due to galvanic corrosion of a sacrificial zinc coating, and the prospective hydrogen evolution was assessed.

Carried out SVET scans have shown that hydrogen evolution, due to galvanic corrosion, takes place on the steel substrate when the Zn sacrificial coating becomes damaged in 0.1 M NaCl solution. The measured current density at the most strongly cathodic regions was equivalent to that for potentiostatic charging at −1050 mV (SCE) in a 3.5% NaCl + 3 g/L NH₄SCN solution used for both the hydrogen permeation and slow strain-rate tests.

Hydrogen permeation tests have shown that FNP AHSS have lower effective diffusion coefficients, D_eff, than FM AHSS of equivalent strength level. At 800 MPa the mean strength levels D_eff were 1.68 × 10⁻⁷ cm²/s for the FNP800, and 1.87 × 10⁻⁷ cm²/s for the FM800. At higher strength levels, 1000 MPa, D_eff was 7.45 × 10⁻⁸ cm²/s for the FNP1000 and 1.45 × 10⁻⁷ cm²/s for the FM1000, respectively. FNP1000 lower D_eff values are attributed to the high density of micro-alloyed carbide nanoprecipitates that behave like irreversible hydrogen traps. This was shown in the permeation curves deviations from simulated lattice diffusion curves where the breakthrough time, t_b, was much longer that those for the modelled Fick’s equation.

For a given strength level, FNP AHSS were substantially more resistant to hydrogen embrittlement than conventional FM AHSS. The FNP800 and FNP1000 showed embrittlement indices of 32% and 44%, respectively. Meanwhile, FM800 and FM1000 had embrittlement indices of 50% and 76%, respectively, under the same conditions. These differences in susceptibility are attributed to the lower diffusivity found in FNP steels. For higher diffusivity there is increased susceptibility to hydrogen embrittlement for both FNP and FM AHSS.
