Spontaneous Grafting of OH-Terminated Molecules on Si−H Surfaces via Si–O–C Covalent Bonding

Abstract

The surface functionalization of oxide-free hydrogen-terminated silicon (Si−H) enables predictably tuning its electronic properties, by incorporating tailored functionality for applications such as photovoltaics, biosensing and molecular electronics devices. Most of the available chemical functionalization approaches require an external radical initiator, such as UV light, heat or chemical reagents. Here, we report forming organic monolayers on Si–H surfaces using molecules comprising terminal alcohol (–OH) groups. Self-assembled monolayer (SAM) formation is spontaneous, requires no external stimuli–and yields Si–O–C covalently bound monolayers. The SAMs were characterized by X-ray photoelectron spectroscopy (XPS) to determine the chemical bonding, by X-ray reflectometry (XRR) to determine the monolayers thicknesses on the surface and by atomic force microscopy (AFM) to probe surface topography and surface roughness. The redox activity and the electrochemical properties of the SAMs were studied using cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS). The availability and the ease of incorporating OH groups in organic molecules, makes this spontaneous grafting as a reliable method to attach molecules to Si surfaces in applications ranging from sensing to molecular electronics where incorporating radical initiator setups is not accessible.

1. Introduction

Silicon (Si) is the most commonly used semiconductor in the current electronic devices’ technologies, due to its low cost, abundance and intriguing semiconducting properties [1,2,3,4,5]. Although, the semiconducting electronic properties of Si are desired, the surface of Si is covered, at ambient conditions, by an electrically insulating thin layer of oxide that masks its electronic properties [6,7,8,9]. In addition, modifying Si with self–assembled monolayers (SAMs) has received much attention due to its applications in many fields including biosensors [10,11], energy harvesting devices [12,13,14] and molecular electronics [15,16,17].

Earlier, hydroxyl-terminated molecules such as alkyl silanols have been utilized to form self-assembled monolayers (SAMs) on SiO_x surfaces. Although this method is rapid, the formed SAMs suffered from poor uniformity due to the formation of undesired polysilanol networks that hinder the electron transfer at the molecule-electrode interface [2,18]. Thus, modification of the Si surfaces with molecules while avoiding the interference of the insulating surface oxides is desired for better performing devices and wider range of application. In this context, crystalline Si requires etching the oxide layer by fluoride ions (e.g., HF and NH₄F) in order to expose the Si–H surface and its semiconducting properties but etched Si–H surfaces have short lifespan stability towards re-oxidation and require surface functionalization to protect them against oxidation.

During last two decades, oxide-free silicon (Si−H) surface modification with organic molecules has emerged as a viable path in tuning the electronic properties of Si, in addition to protecting the semiconductor from oxidation. In most cases, forming SAMs on Si–H requires a catalyst to initiate a radical on the Si surface (or on the molecule), followed by a polymerization chain reaction that forms a complete molecular film on the surface [19,20,21,22,23,24]. Typical functionalization molecules are alkenes or alkynes, which form covalent Si−C bonding with Si surfaces when aided by UV light [25,26,27], heat [9,27,28] or harsh chemical reagents [28,29,30]. Although, these SAMs are of good quality, the requirement of UV or heat sources adds complications, which may hinder specific applications, such as in the field of molecular electronics where the incorporation of bulky setups is often not viable [15,16,31,32,33].

Recently, we have demonstrated that spontaneous nanoscale corrosion of Si–H surfaces leads to disulfide bond breaking and enables the formation of high-quality SAMs of thiols and disulfides on Si [16,34]. In this study, we turn our attention to OH contact groups as they are commonly available functionalities that could broaden the source of the organic molecules that can form monolayers on Si. Khung et al. have used thermal and UV-assisted protocols to attach OH-terminated alkynes to Si(111)–H surfaces, showing that thermal energy can catalyze the grafting process through generating reactive silyl radicals that form a Si–O–C linkage via nucleophilic reaction between the OH group of organic molecule and the Si–H surface [35]. Also, Fontanesi et al. [36] have used ferrocene methanol to form a redox active monolayer on Si–H surfaces using heat for two hours at 56 °C. Also, in molecular electronics studies, rigid norbornylogous bridge (NB) molecules are widely used. On metals, these NBs form SAMs with restricted molecular rotations [31,33,37], as compared to alkane monolayers, which are the typical molecules used to form monolayers on surfaces.

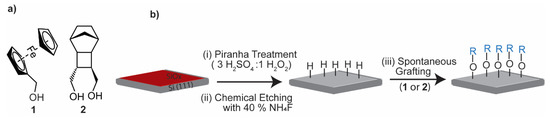

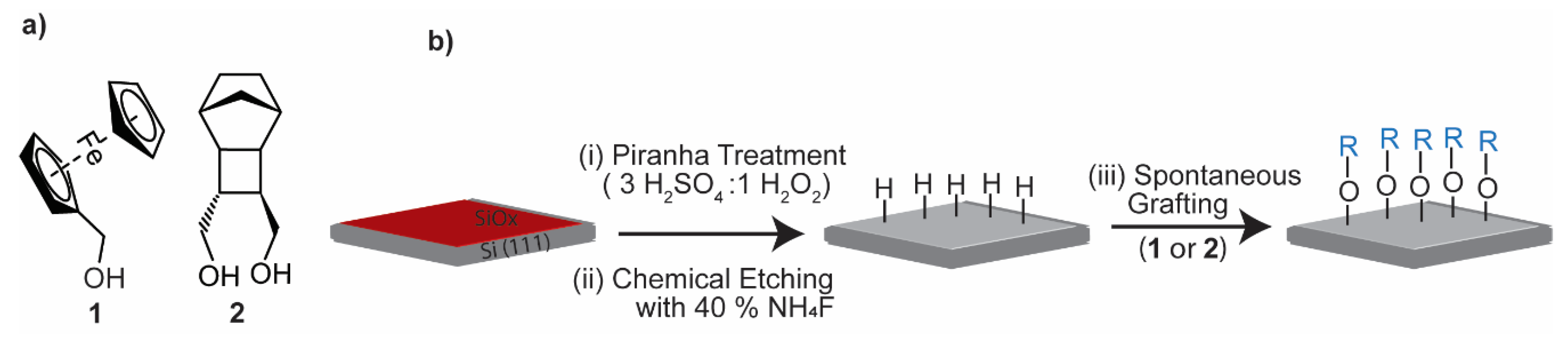

Here, we test whether molecules with OH groups can spontaneously react with Si–H surfaces. We use ferrocene methanol which is a redox active molecule terminated by one OH groups and an NB molecule terminated by two OH groups (Figure 1). We successfully demonstrate that spontaneous grafting of OH-terminated molecules enables forming SAMs on Si–H via Si–O–C covalent bonding without any external catalysis. The OH-functionalized surfaces were characterized using X-ray photoelectron spectroscopy (XPS), to investigate the chemical bonding, with AFM to study the surface topography and with X-ray reflectometry (XRR) to measure the monolayer thickness. Cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS) are used to electrochemically assess the formation of the monolayers.

2. Materials and Methods

2.1. Chemicals and Reagents

Sulfuric acid (Puranal TM, 95–97%), hydrogen peroxide (30 wt.% in water), ammonium fluoride (Puranal TM, 40 wt.% in water) and ferrocene methanol (97%) were purchased from Sigma Aldrich (New South Wales, Australia) and used without any further purification. The synthesis of norbornylogous bridge (NB) 2 has been reported elsewhere [37]. Dichloromethane (DCM), isopropyl alcohol (IP) and ethanol were purified by distillation before use. Silicon wafers were purchased from Siltronix, S.A.S. (Archamps, France). The p-type silicon was highly doped (boron), with nominal resistivity between 0.007 and 0.013 Ω cm and wafer thickness of 500 ± 25 µm. Wafers were oriented ±0.5° away from the (111) plane. Milli-Q water (>18 MΩ cm) was used for all cleaning procedures and to prepare electrolytic solutions.

2.2. Surface Preparation and Functionalization

P-type Si wafers were cut into samples of approximately 1×1 cm, washed with DCM, IP and water, then treated with in a piranha solution for 30 min at 130 °C (a mixture of concentrated sulfuric acid and 30% hydrogen peroxide, 3:1, v:v, respectively). The wafers were then rinsed with water before being etched for 13 min in a deoxygenated solution of ammonium fluoride (40%). After ammonium fluoride etching, the Si–H surfaces were rinsed quickly with Milli-Q water once, followed by DCM three times and finally blown with N₂ gas before dipping in the grafting solution. The spontaneous grafting involved only dipping the Si electrode in a 5 mM solution of 1 dissolved in DCM or 2 dissolved in dimethylformamide (DMF) for 12 h to allow the SAM formation. The electrodes were then washed with DCM, followed by drying under a stream of Ar gas before further analysis.

2.3. Atomic Force Microscopy Imaging

Atomic force microscopy (AFM) images were acquired using a Bruker dimension microscope, operating in tapping mode. The FastScan head was used and the resolution was set to 512 points/line with scan rate of 0.5 Hz and all images were recorded using silicon nitride cantilevers (TESPA from Bruker (Singapore), with a spring constant of 20 N m⁻¹) at room temperature, in air. Bruker’s Nanoscope Software was used to analyze the surface roughness by measuring the root mean square, R_q, deviation in the height of the Si surfaces.

2.4. X-ray Photoelectron Spectroscopy (XPS) Analysis

XPS measurements were performed on a Kratos Axis Ultra DLD spectrometer (Shimadzu, Manchester, UK), using a monochromatic Al-Kα (1486.6 eV) irradiation source operating at 150 W. Spectra of Si 2p (90–110 eV), C 1s (277–300 eV) and S 2p (163−164 eV) were taken in normal emission, with the main chamber at or below 7 × 10⁻⁹ Torr. Data files were processed using CasaXPS© software and the reported XPS energies are binding energies expressed in eV. After background subtraction (Shirley), spectra were fitted with Voigt functions. To correct for energy shifts caused by adventitious charging, all peak energies were corrected by applying a rigid shift to bring the C 1s emission to 284.7 eV.

2.5. X-ray Reflectometry (XRR) Analysis

A Panalytical Ltd. X’Pert Pro (ANSTO, Australia) was used to record XRR spectra at the silicon–air interface. The spectrometer was fitted with a Cu Kα (λ = 1.54 Å) source and the X-ray beam was focused using a Göbel mirror and collimated using fixed slits of 0.1 mm. Further details for the XRR measurements can be found in the supporting information.

2.6. Electrochemical Measurements

All electrochemical measurements were performed with a CHI650 electrochemical workstation (CH Instruments, Austin, TX, USA), using a conventional three-electrode single-compartment cell. The functionalized Si surface act as the working electrode versus a of Ag/AgCl reference electrode in a saturated solution of potassium chloride (KCl) and a platinum wire as the counter electrode. CV measurements were carried out in aqueous solution of 1 M sodium perchlorate (NaClO₄), and EIS measurement are carried out in 1 mM solution of hexaammineruthenium(III) chloride (in 10 mM KCl) All potentials are reported against the Ag/AgCl reference electrode.

3. Results and Discussion

3.1. Surface Characterization

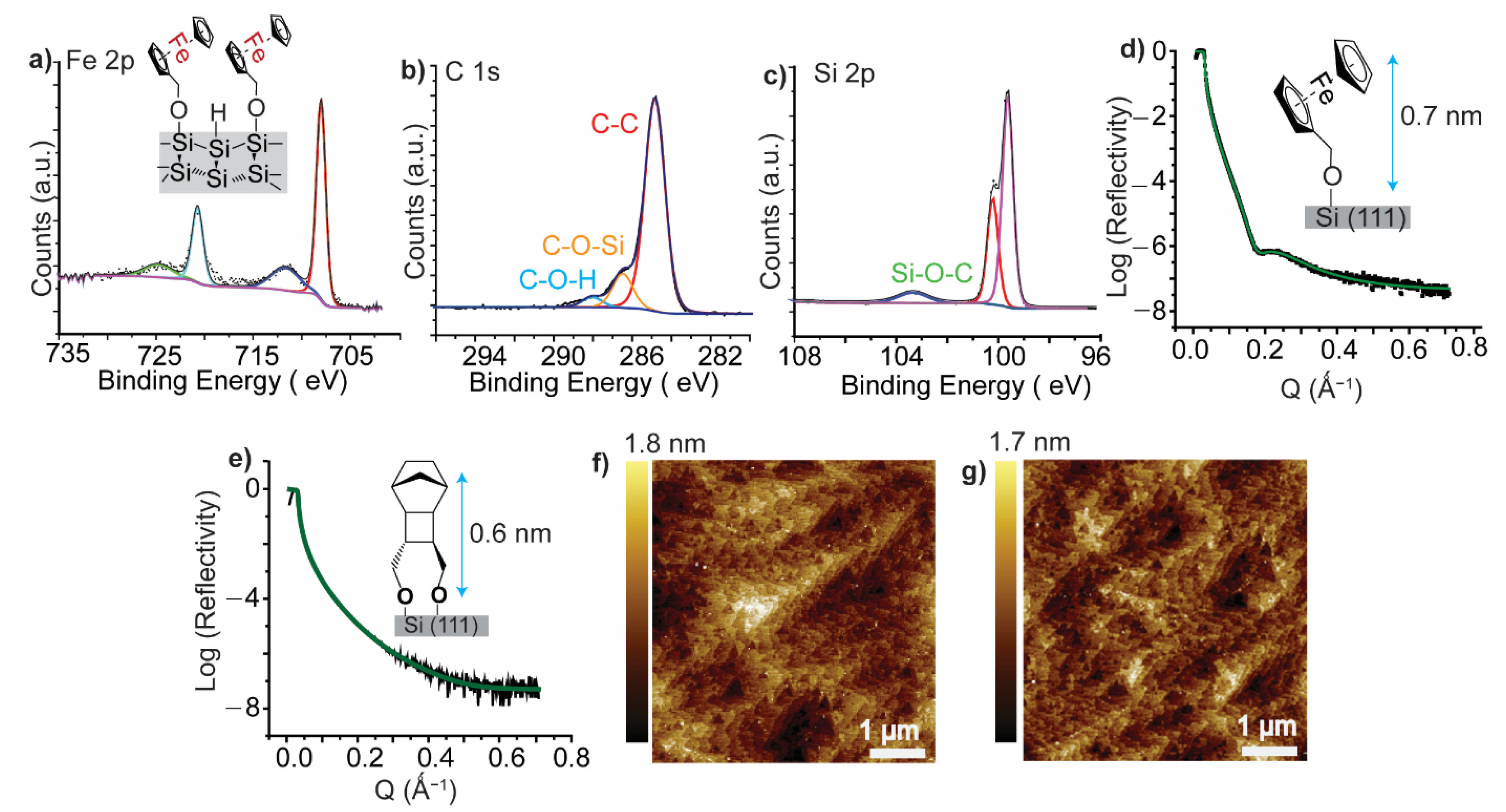

Figure 2a shows the Fe 2p signal from the iron metal center in the ferrocene moiety of 1 on p-type Si with two spin-orbit splits. The peaks at 707.2 eV and 720.3 eV are assigned to the Fe 2p_3/2 and Fe 2p_1/2, for low and high energy spins, respectively, fitted with a Shirley background subtraction and an energy difference of 13.1 eV. The peaks at 711.6 eV and 724.7 eV correspond to the Fe 2p_3/2 and Fe 2p_1/2 for low and high energy emissions, respectively, from the Fe⁺² spins. Figure 2b shows the high-resolution C 1s spectrum of 1 fitted into 3 peaks (Figure 2b). The peak at 284.8 eV is ascribed to the C–C bonding, the peak at 286.5 eV is assigned to the carbon adjacent to the Si-bound hydroxyl group (Si–O–C) and the peak at 288.0 eV corresponds to the carbon adjacent to a free hydroxyl group that is probably physically adsorbed (HO–C–). Further, fitting the Si 2p high resolution envelope showed three peaks, with the main emission composed of one spin-orbit split with two peaks at 99.7 eV and 100.0 eV, corresponding to the Si 2p_3/2 and Si 2p_1/2 for low and high energy spins, respectively. The peak at 103.0 eV is assigned to the Si that bound to 1 via Si–O–C covalent bonds (Figure 2c). No emission was observed at 103 eV for a Si–H surface that was analyzed after etching and before the spontaneous grafting step (Figure S1). Thus, XPS analysis of the SAM of 1 on Si–H surfaces indicates a covalent C–O–Si bonding. Detailed XPS analysis for the Si 2p signal from a bare Si–H surface and an Si–H surface that is functionalized with 1 shows that the Si 2p emission, from the Si–O–R functionalized surface, is centered at BE of 99.7 eV while the Si 2p emission from bare Si–H is centered at 99.5 eV (Figure S2). This is suggests that chemical modification of Si–H surfaces with organic molecules lead to orbital hybridization between the energy levels of Si and that of the molecule creating new electronic states a at the interface, consistent with observations for the effect of other monolayers on the semiconducting properties of Si [38]. XRR analysis for SAMs of 1 and 2 on Si–H surface demonstrated the presence of a molecular film on the surface with a thickness comparable to the theoretical lengths of the molecules used. Figure 2d, e shows molecular films of 0.7 nm and 0.6 nm thickness for the SAM formed from 1 and 2, respectively. XRR analysis details and fitting parameters are discussed in supporting information (Table S1). AFM imaging for the functionalized Si–H surfaces shows smooth edges and individual flat terraces of roughness ~0.2 nm (Figure 2e,f), consistent with results from typical alkyne/alkene monolayers formed on Si–H [16,34]. Further, AFM images for non-functionalized Si–H surfaces (Figure S3) showed minimal change after functionalization demonstrating that the monolayers are formed smoothly without causing any dramatic changes to the crystalline Si surface.

3.2. Electrochemical Characterization of The Formed Monolayers

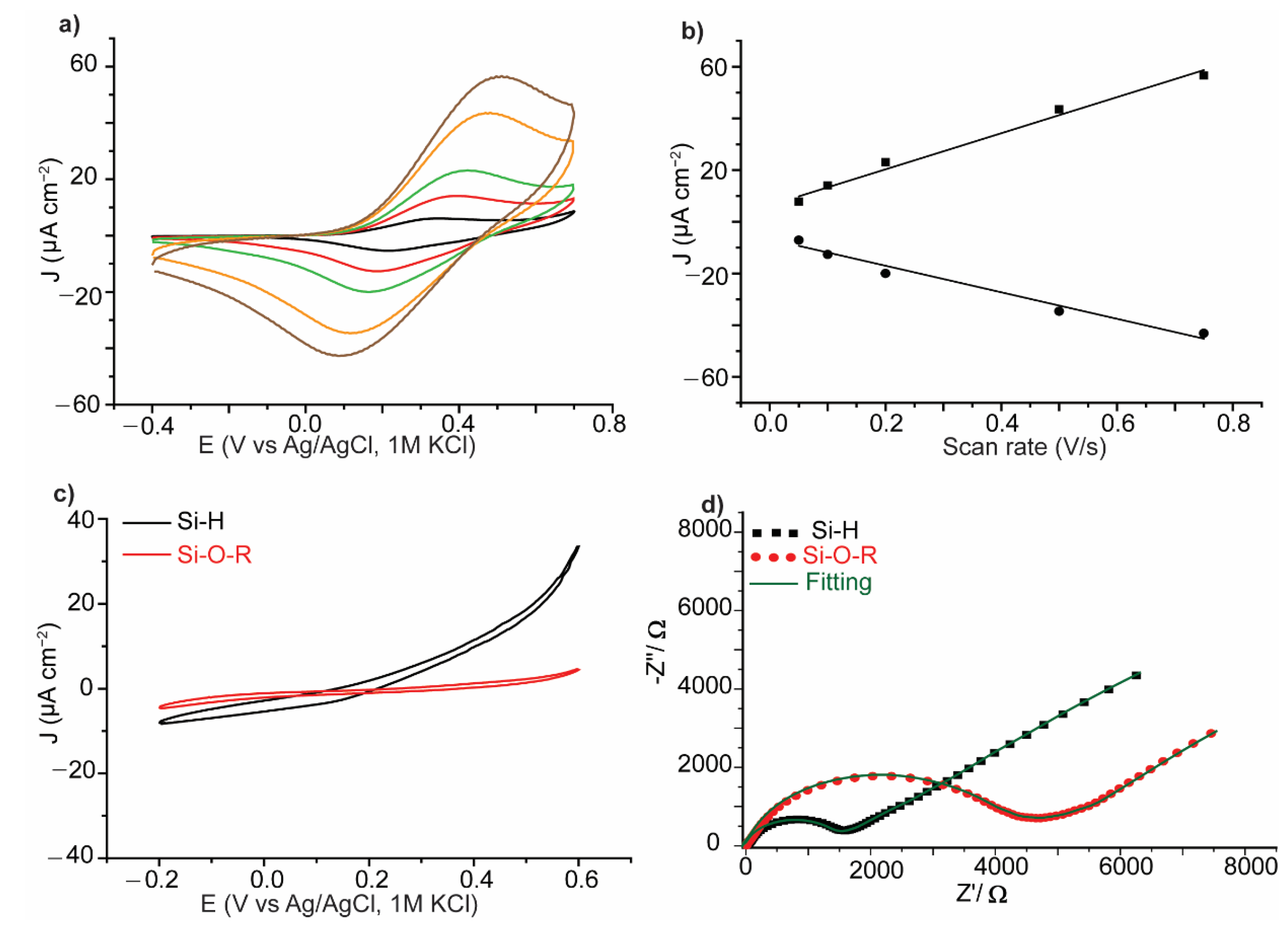

The SAMs on 1 and 2 formed by spontaneous grafting for 12 h at ambient conditions, are characterized by cyclic voltammetry (CV) and electrochemical impedance spectroscopy (EIS). Figure 3a shows CVs for the formed SAM of 1, at different scan rates, with the characteristic redox peaks of the ferrocene moiety, consistent with voltammetry measurements for monolayers formed on Si–H by other means such as UV light that was reported by Fontanesi et al. [36]. The evolution of the peak current versus the scan rates shows a linear relationship, indicating the formation of a surface-bound system. The CV for the SAM of 2 on Si–H showed stable voltammetric current in contrary to the unmodified Si–H surface tested in the same electrolyte. The latter showed an increase in the voltammetric current and is attributed to anodic oxidation of the Si surface. This suggests that the SAM of 2 protects the Si surface form oxidation, within the potential window investigated, in aqueous medium (Figure 3c). EIS measurements in the presence of a redox active ruthenium hexamine solution showed that upon the formation of a SAM of 2 the resistance increases, indicating that the monolayer is packed in way that relatively blocks the redox active solution from reaching the electrode surface and consequently increasing the resistance of 2 on Si showed high electrode resistance. The Nyquist plots in Figure 3d are fitted to equivalent circuit models using the complex non-linear least-square (CNLS) technique using the Randles circuits (Figure S4) which models redox-active species in a diffusion system. C_dl represents the double layer capacitance, R_s and R_ct represent the solution and charge transfer resistances, respectively and Ws1 represent the Warburg diffusion element of the redox species in the electrolyte solution. R_ct of ~1187 Ω and ~4571 Ω for the bare Si–H and the functionalized Si surface respectively, is expected on the basis that a monolayer can partially block charge transfer at the interface and therefore increase the charge transfer resistance.

We conclude here that the spontaneous reaction of OH groups with H–terminated Si is a highly efficient approach to prepare molecular films on Si–H surfaces. While the mechanism of the reaction is not yet well understood, the covalent attachment has been previously demonstrated for thermal grafting of OH–terminated molecules and the spontaneous grafting of graphene oxide films on Si (111) surfaces [39]. In the former, the reaction is thought to be due to a nucleophilic attack of the O lone pair on the Si (111) followed by the loss of H₂ gas to yield Si–O–R monolayers [36]. In the latter, the reaction was explained by a dehydration reaction forming a Si–C=C monolayers [40]. Our XPS results demonstrate the presence of Si–O–C at the interface which is not accompanied by SiOx as demonstrated by AFM. We therefore lean toward a mechanism that involves nucleophilic attack by the O lone pair on Si surface holes. Further work will need to test the effect of the Si doping type (p or n-type) and concentration, as well as the effect of the solvent on the efficiency of the grafting. These parameters will necessarily change the concentration of surface holes which, in turn, will affect the efficiency of the nucleophilic attack.

4. Conclusions

We have demonstrated the formation of SAMs on Si by simply incubating freshly etched Si–H surfaces in a solution containing OH-terminated molecules. The grafting process is spontaneous and does not require any catalyst, a significant advantage over more established Si modification chemistry that typically requires an external radical initiator such as UV, heat or chemical reagents. The fact that OH groups are widely accessible and can be easily incorporated in molecules, makes this spontaneous grafting method appealing for connecting molecules to Si surfaces in applications ranging from sensing to molecular electronics.
