Surfaces 2019, 2(2), 229-240; https://doi.org/10.3390/surfaces2020018

Article
Nitrogen-Doped Ordered Mesoporous Carbons Supported Co3O4 Composite as a Bifunctional Oxygen Electrode Catalyst
1
State Key Laboratory of Chemical Resource Engineering, Beijing Engineering Center for Hierarchical Catalysts, Beijing University of Chemical Technology, No. 15 Beisanhuan East Road, Beijing 100029, China
2
IC2MP, UMR-CNRS 7285, University of Poitiers, F-86022 Poitiers CEDEX, France
*
Author to whom correspondence should be addressed.
Received: 20 February 2019 / Accepted: 26 March 2019 / Published: 29 March 2019

Abstract

:
It is increasingly useful to develop bifunctional catalysts for oxygen reduction and oxygen evolution reaction (ORR and OER) for fuel cells, metal-air rechargeable batteries, and unitized regenerative cells. Here, based on the excellent conductivity and stability of ordered mesoporous carbons, and the best ORR and OER activity of Co3O4, the composite Co3O4/N-HNMK-3 was designed and manufactured by means of a solvothermal method, using ordered N-doped mesoporous carbon (N-HNMK-3) as substrate, and then the bifunctional electrocatalytic performance corresponding to ORR, OER in alkaline media was carefully investigated. The results showed that Co3O4/N-HNMK-3 composite, a non-precious metal centered electrocatalyst, displayed excellent ORR performance (activity, selectivity, and stability) close to that of commercial 20 wt.% Pt/C and a promising OER activity near 20 wt.% RuO2/C. The outstanding bifunctional activities of Co3O4/N-HNMK-3 was assessed with the lowest △E value of 0.86 V (EOER,10 mA cm−2-EORR,−3 mA cm−2) with respect to the two commercial precious metal-based electrocatalysts.
Keywords:
Ordered mesoporous carbon; nitrogen doping; cobalt-based electrocatalyst; bifunctional oxygen electrode; solvothermal method

1. Introduction

Hydrogen is deemed as the best way for renewable sources energy-storage to replace petroleum-based energy resources because of its high calorific value, abundant reserve, and near zero release. Yet, both the oxygen reduction reaction (ORR) and oxygen evolution reaction (OER) individually play crucial roles in fuel cells for the practical application of hydrogen, and water electrolysis for the high-efficiency production of high-purity hydrogen [1,2,3,4]. Recently, unitized regenerative cells (URCs), integrating water electrolysis and fuel cell in one setup, have attracted increasing attention due to potential applications in aviation, submarines and transportation as a mobile power source. This issue remains key to exploring high performance and low cost. In terms of electrocatalytic activity, Pt/C and Ru-/Ir oxides are generally considered to be the most advanced electrochemical oxygen catalysts for the ORR and OER processes, respectively. However, high cost, low methanol tolerance, and poor stability continue to hamper practical marketing development [5]. Therefore, it remains a big challenge to develop promising bifunctional oxygen electrodes for the development of URCs.
Among non-precious metal electrocatalysts being developed such as cobalt-based chalcogenides, CoSe2, CoS, and Co3O4, show outstanding performance toward oxygen electrode reactions including activity, selectivity, and durability in alkaline media [6,7,8,9]. However, cobalt-based chalcogenide electrocatalysts have a low electrical conductivity and per se a negative effect on the performance of the electrocatalyst. On the other hand, ordered mesoporous carbon as a conductive substrate has attracted more attention because of large surface, high conductivity and long durability. [10,11,12,13]. In addition, the doping heteroatom, such as nitrogen [14,15], phosphor [16,17], sulfur [18] and boron [19], can further improve electrocatalytic performance towards oxygen electrode reactions due to new active species. In a previous report, we developed N-doped ordered mesoporous carbons (CMK-3) with high ORR activity, long stability, and outstanding methanol tolerance in 0.1 M KOH [20]. Therefore, it is possible to explore high-performance, low-cost electrocatalysts using N-doped ordered mesoporous carbon as a substrate to support cobalt-based chalcogenides.
Here, we manufactured the N-doped ordered mesoporous carbon substrate (N-HNMK-3) for Co3O4 composite (Co3O4/N-HNMK-3) by means of a solvothermal route using the home-made ordered mesoporous carbon as carbon source, melamine as a nitrogen source, cobalt acetate as a cobalt source, and urea as the precipitating agent. Figure 1 describes the corresponding synthesis process. In addition, we carefully examined the bifunctional electrocatalytic performance of ORR and OER processes in alkaline media using the rotating disc electrode technique. The compound, based on non-precious metals, shows a promising electrocatalytic performance.

2. Materials and Methods

2.1. Chemicals

Cobalt acetate (Co(CH3COO)2·6H2O), urea (CO(NH2)2), HNO3 (6M), melamine (C3H6N6), and ethanol (C2H5OH) were A.R. grade and were directly used as received from Beijing Chemical Co. Ltd (Beijing, China). CMK-3 was synthesized as reported previously [20].

2.2. Synthesis of Nitrogen-Doped Ordered Mesoporous Carbon (N-HNMK-3)

Nitrogen-doped ordered mesoporous carbon was fabricated by post-treated nitrogen doping method using ordered mesoporous carbon (CMK-3, surface area, 1247.5 m2/g; pore volume, 1.5 mL/g) as carbon source, and melamine as nitrogen source. To obtain HNMK-3, CMK-3 (0.5002 g) was dispersed in 6.0 M HNO3 (50.0 mL) under vigorous stirring at 70 °C for 3 h, and the resulting suspension was cleaned to neutral pH using deionized water. Thereafter, 0.5000 g HNMK-3 and 2.5000 g melamine were then mixed during grinding to form the homogeneous mixture. Finally, the obtained mixture was calcined in a nitrogen atmosphere at 900 °C for 4 h to produce nitrogen-doped ordered mesoporous carbon (N-HNMK-3).

2.3. Synthesis of Co3O4/N-HNMK-3 Electrocatalyst

Co3O4/N-HNMK-3 electrocatalyst was carefully generated via the solvothermal route using N-HNMK-3 as conductive support; Co(CH3COO)2 as cobalt source, and CO(NH2)2 as the precipitating agent. Typically, 0.0175 g of the as-prepared N-HNMK-3 was dispersed in ethanol (40.0 mL) by ultrasound for 2h to form the suspension A. Simultaneously, 1.50 g Co(Ac)2 (6.0 mmol) was added in deionized water (40.0 mL) and ultra-sonicated for 20 min to form solution B. Then suspension A and solution B were mixed and ultrasonicated again to produce another suspension. At this point 0.72 g CO(NH)2 was added under vigorous stirring at 80 °C for 24 h to produce a suspension, which was heated at 150 °C in a Teflon-lined stainless-steel autoclave for 3 h. The cooled product was centrifuged and washed with deionized water and ethanol three cycles, and dried at 60 °C overnight. The collected final product was Co3O4/N-HNMK-3. In addition, Co3O4, as a reference, was prepared in the same procedure without N-HNMK-3.

2.4. Characterization

The materials phase was characterized by Rigaku UItima III XRD (Rigaku Corporation, Tokyo, Japan) with Cu Kα radiation (λ = 0.154 nm) at 5 min−1 per 2θ. The morphologies were analyzed by Zeiss Supra 55 SEM(Carl Zeiss Jena, Oberkochen, German), a JEOL JEM-2012 TEM (JEOL, Tokyo, Japan), and HRTEM (JEOL, Tokyo, Japan) with a line resolution of 0.19 nm was used. Raman spectra were examined via a Nanofinder 3.0 Raman spectrometer with a He-Ne laser beam of 532 nm. Binding energies of chemical species were collected by XPS using VG ESCALAB 2201 XL spectrometer (Thermo VG Scientific, West Sussex, England).

2.5. Electrochemical Measurements

All electrochemical tests were performed in a standard three-electrode system on the Chen Hua electrochemical workstation (CH Instruments Ins., Shanghai, China) at 25 °C. Here, a saturated calomel electrode and a Pt-wire were employed as the reference and counter electrodes, respectively. In this work, all potentials were referred to a reversible hydrogen electrode (RHE): ERHE = ESCE + 0.99 V (0.1 M KOH); and ERHE = ESCE + 1.06 V (1.0 M KOH).
Prior to catalyst deposition, the GC disk was polished with γ-alumina (5A), and successively ultra-sonically treated in water, and then ethanol for one min in each solvent. The ink was prepared by mixing the catalyst powder (6.7 mg), Nafion (5 wt.%) (40 μL), ethanol (300 μL), deionized water (1160 μL) and ultra-sonicated for 40 min. 4.2 μL of the ink was deposited onto the GC disk (4.0 mm, diameter) with a catalyst mass loading of 150 μg cm−2. The electrolyte was degassed with argon and oxygen for 30 min before cyclic voltammetry (CV) tests. Also, two benchmarks: 20 wt.% Pt/C (Johnson Matthey) and RuO2/C were prepared as references with a corresponding loading of 60 μg cm−2 for Pt, and RuO2.
In the ORR test, the LSV curves were recorded in O2-saturated 0.1 M KOH by scanning the disc potential vs. RHE from 0.95 V to 0.15 V at 5 mVs−1 with the electrode rotated at 2500, 2025, 1600,1225, 900, 625, and 400 rpm, and analysis performed using the Koutecky-Levich (K-L) equation:
1 j = 1 j k + 1 j d = 1 j k + 1 B ω 1 2
where:
B = 0.62 nF C 0 D 0 2 / 3 v 1 / 6
j k = n F k C 0
j, jk, jd are the corresponding measured, kinetic and diffusion limiting current densities, respectively [5]; C0 and D0 were the saturated concentration, and the diffusion coefficient of O2 (1.14 × 10−6 mol cm−3 and 1.73 × 10−5 cm s−1) in 0.1 M KOH, v was the kinetic viscosity coefficient (0.01 cm2 s−1).
In the RRDE test, the HO2% and the number of electrons transferred(n) was calculated by the following two equations:
H O 2 % = 200 I R / N I D + I R / N
n = 4 I D I D + I R / N
where ID, IR and N is disk current, ring current and collection efficiency (0.424), respectively.
For the OER tests, measurements were carried out in O2-saturated 1.0 M KOH with a rotating speed of 1600 rpm at a scan rate of 5 mV s−1 from 1.0 V to 1.65V vs. RHE.

3. Results and Discussion

3.1. Structure, Morphology, and Chemical Composition

Figure 2 shows the powder PXRD patterns of N-HNMK-3, Co3O4, and Co3O4/N-HNMK-3. Compared to CMK-3, the peak of N-HNMK-3 samples at 23.8°/2θ shifts to a lower angle with a higher degree of graphitization, which could be the result of a change in electron distribution following the incorporation of the heteroatom on the surface of carbon materials [21]. Based on the Bragg equation, a series of Bragg reflection peaks in Co3O4 and Co3O4/N-HNMK-3 samples correspond to (111), (220), (311), (400), (511), and (440) crystal faces, that match well with the cubic spinel phase Co3O4 (ICDD PDF card No. 42-1467). This means that the urea-assisted solvothermal method is an available way to prepare the Co3O4/N-HNMK-3 composite.
Figure 3 displays the morphologies and microstructures of Co3O4 and Co3O4/N-HNMK-3 samples. The Co3O4 sample shows different rod-shape in size, Figure 3a. In comparison, the Co3O4 particles, in Co3O4/N-HNMK-3 composite, are well-dispersed and supported on N-HNMK-3 substrate, Figure 3b,c. In addition, the average particle size for Co3O4 was 20–30 nm, Figure 3c. The HRTEM image of Co3O4 reveals three lattice distances such as 0.286, 0.244 and 0.202 nm, which individually correspond to (220), (311) and (400) Co3O4 crystal planes, Figure 3d.
In addition, Figure 4 shows the Raman spectra of N-HNMK-3, Co3O4, and Co3O4/N-HNMK-3 samples as well as the corresponding fitting profiles of N-HNMK-3 and Co3O4/N-HNMK-3. One observes two characteristic bands for N-HNMK-3, and Co3O4/N-HNMK-3 centered at 1358 (D peak) and 1590 (G peak) cm−1. The former peak (D peak) refers to sp3-like C atoms defect sites, whereas the latter (G peak) refers to sp2 C=C stretching mode [22]. Remarkably, other peaks were detected at 192, 468, 516 and 677 cm−1, assessing the presence of Co3O4 [23]. The intensity ratio of two bands (ID/IG) illustrates the disordered degree of carbonization. A ratio of 2.96 for N-HNMK-3, and 2.78 for Co3O4/N-HNMK-3 suggest that the incorporation of Co3O4 decreases the disordered degree, increasing the conductivity of the substrate.
Surface elemental properties and electronic valence states were further characterized by XPS. A survey spectrum of Co3O4/HNMK-3 displays the existence of C 1s, N 1s, O 1s, Co 2p signals at 284.5, 399.9, 530.5, 780.1 and 796.2 eV, respectively, as shown in Figure 5a. The corresponding atomic percentage of every element of different samples, N-HNMK-3 has a similar nitrogen content with Co3O4/HNMK-3, as summarized in Table 1. In the C1s high-resolution XPS spectrum, shown in Figure 5b, the prominent peak centered at 284.6 eV corresponds to sp2-hybridised carbon atoms in graphitic structure. The series of fitted peaks at 285.7, 288.3, and 288.6 eV are attributed to C=N, O-C=O and C-N, respectively. The XPS spectra of C=N and C-N further assess the presence of N-dopant atoms. As to Co2p spectrum, Figure 5c there are two peaks centered at 779.7 and 795.1 eV attributed to Co 2p3/2 and 2p1/2 signals, with an energy separation of 15.4 eV, evidencing the presence of Co3O4 in the composites [24]. Two nitrogen species detected in the N 1s high resolution, shown in Figure 5d, at ~398.6 eV and 400.2 eV are assigned to pyridine and Pyrrole-N. Previous results already demonstrated that pyridine N is an active site for the ORR [25]. The relative content of Pyrrole-N in Co3O4/HNMK-3 sample is 70.2%, which is higher than that of Pyridine-N (29.8%). It’s worth noting that N-HNMK-3 and Co3O4/HNMK-3 samples have similar N content.

3.2. Electrocatalytic ORR Performance

The ORR performance of Co3O4/N-HNMK-3 composite was determined by RDE technique, and compared to two commercial reference materials: Pt/C and RuO2/C. Figure 6 displays the activity towards ORR in 0.1 M KOH electrolyte. Specifically, Figure 6a,b show the ORR activity difference among five samples: N-HMNK-3, physical mixture of N-HMNK-3 and Co3O4, Co3O4/N-HMNK-3 composite, Pt/C, and RuO2/C. Herein, it is observed that the Co3O4/N-HMNK-3 composite has a much higher ORR activity compared to N-HMNK-3, the physical mixture, and RuO2/C, and close to Pt/C. Interestingly, the Co3O4/N-HNMK-3 composite shows much better ORR activity than the mechanical mixture (Co3O4 +N-HNMK-3). This difference in the ORR activity results from the possible synergistic effect between two compositions, and from the high dispersion of Co3O4 on the N-HNMK-3 substrate. In addition, cyclic voltammetry measurement, shown in Figure 6c, was conducted to gain deeper insight into the ORR process. In the O2-saturated electrolyte there is a cathodic peak centered at 0.75 V, which is absent in the Ar-saturated electrolyte. The onset potential of Co3O4/N-HMNK was detected at 0.90 V vs. RHE. The ORR hydrodynamics on Co3O4/N-HNMK-3 between 400 rpm to 2500 rpm is shown in Figure 6d with well-defined sigmoidal curves. The electron transfers number (n) was estimated through the slopes of fitted K-L plots, see the inset in Figure 6d. Within the applied electrode potential from 0.2 to 0.5 V, the estimated transfer number (n) per O2 molecule was ca. 3.94, suggesting a 4-electron transfer pathway. Meanwhile, we used the RRDE to calculate the hydrogen peroxide and electron transfer number in Figure S1 (See Supporting Information). The low hydrogen peroxide below 15% and transfer number beyond ca. 3.75 in the range of 0.1–0.75 V suggested a close 4-electron transfer pathway.
In addition to activity, the selectivity (tolerance to small organics) and the stability are two other key parameters for a high performance electrocatalyst. Figure 7a depicts the electrocatalytic selectivity in the presence and the absence of 3.0 M methanol in 0.1 M KOH electrolyte. After the addition of 3 M methanol, no significant change was observed in the polarization curves in Ar- and/or O2-saturated electrolyte, see the inset in Figure 7a. In O2-saturated electrolyte Co3O4/N-HNMK-3 showed a complete tolerance to methanol. In contrast, as it is well established, Pt/C has no selectivity towards the ORR in presence of methanol, since this material develops a mixed potential due to methanol oxidation and oxygen reduction. Furthermore, the stability test, as demonstrated by chronoamperometry, Figure 7b, was conducted at 0.70 V/RHE, and revealed that, after 18000 s, the ORR activity of Co3O4/N-HNMK-3 dropped 18.2% against 23.9% on Pt/C. Meanwhile, CVs with multiple cycles in oxygen- saturated solution for ORR were shown in Figure S2 (See Supporting Information), after the accelerated aging test, the reduction potential only shifts 36 mV to a negative region for 1500 cycles.

3.3. Electrocatalytic OER Performance

The OER plays a crucial role in water electrolysis and metal-air batteries’ systems [26]. In particular, high-performance OER electrocatalysts aim at reducing energy costs to produce high purity hydrogen and promote the development of URCs. Figure 8 shows the activity of Co3O4/N-HNMK-3 compared to N-HNMK-3, physical mixture of Co3O4 + N-HNMK-3, Pt/C, and RuO2/C in 1.0 M KOH. Apart from RuO2/C, the Co3O4/N-HNMK-3 has the highest OER activity with a higher current density of 19.56 mA cm−2 at 1.65 V, lower overpotential (365 mV) at the current density of 10 mA cm−2, a value close to the best OER electrocatalyst RuO2/C. The Tafel plots for the OER kinetics are shown in Figure 8b. The slope of 93 mV dec−1 for Co3O4/N-HNMK-3 is higher than that of 74 mV dec−1 for RuO2/C, and lower than that of the physical mixture. In addition, the OER stability test, via CV, performed on Co3O4/N-HNMK-3 is shown in Figure 8c,d. No significant variation was observed after 1500 cycles, and to some extent, Co3O4/N-HNMK-3 showed a ca. 4.1% increase in the overpotential at 10 mA cm−2 after 1500 cycles. The results confirm that Co3O4/N-HNMK-3 is quite durable for the OER in 1.0 M KOH electrolyte.

3.4. The Bifunctional ORR/OER Performance

The overvoltage between ORR and OER is an important parameter to evaluate the bifunctional electrocatalytic activity of the material. The corresponding data are summarized in Table 2. The ΔE value is defined as the difference in potential between the OER current density of 10.0 mA cm−2 and the ORR current density of −3.0 mA cm−2. Among the listed catalysts [27,28,29,30,31,32] reported in the literature, Co3O4/N-HNMK-3 shows the best and promising bifunctional activity with a minimum ΔE value, which is attributed to the interaction developed between Co3O4 species onto N-doped ordered mesoporous carbons.

4. Conclusions

In this paper, a nitrogen-doped ordered mesoporous carbons supported Co3O4 composite (Co3O4/N-HNMK-3) was prepared through a solvothermal method. The Co3O4/N-HNMK-3 composite showed a much higher ORR performance, which was close to that of the commercial Pt/C in 0.1 M KOH. An excellent OER performance near commercial RuO2/C in 1.0 M KOH was also obtained. Interestingly, Co3O4/N-HNMK-3 has outstanding bifunctional activity with a much lower △E value between EOER,10 mA cm−2-EORR,−3 mA cm−2 as compared to Pt/C and RuO2/C in alkaline medium. Undoubtedly, the synthesis method developed here to obtain the oxygen electrode based on Co3O4/N-HNMK-3, with non-precious metals will promote the practical development of fuel cells, water electrolysis and unitized regenerative cells.

Supplementary Materials

The following are available online at https://www.mdpi.com/2571-9637/2/2/18/s1, Figure S1. (a) Ring (top) and disk (down) current density from RRDE measurements of Co3O4/N-HNMK-3 samples after annealing at different temperature in O2-saturated 0.1 M KOH at 25 °C with a sweep rate of 5 mV s−1 at a rotating speed of 1600 rpm; (b) Molar fraction of HO2 formation and electron transfer number n from rotating ring-disk electrode (RRDE) curves in (a). Figure S2. (a) CVs of Co3O4/N-HNMK-3 from 0.1 V to 1.0 V at 100 mV s−1 in O2-saturated 0.1 M KOH from 1st cycle to 1500th cycle; (b) LSVs of Co3O4/N-HNMK-3 from 0.1 V to 1.0 V at 5 mV s−1 in O2-saturated 0.1 M KOH from 1st cycle to 1500th cycle.

Author Contributions

Methodology, N.A.-V. and Y.F.; formal analysis, S.Z., G.Y. and H.Z.; investigation, J.W.; writing—original draft preparation, J.W. and S.Z.; writing—review and editing, N.A.-V., D.L., P.T., and Y.F.; supervision, Y.F.; project administration, Y.F.

Acknowledgments

This work is supported by the National Natural Science Foundation of China, and the Fundamental Research Funds for the Central Universities (12060093063). H.H. Zhong specially thanks the financial support from China Scholarship Council (201806880040).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Carmo, M.; Fritz, D.L.; Mergel, J.; Stolten, D. A comprehensive review on PEM water electrolysis. Int. J. Hydrogen 2013, 38, 4901–4934. [Google Scholar] [CrossRef]
  2. Postole, G.; Auroux, A. The poisoning level of Pt/C catalysts used in PEM fuel cells by the hydrogen feed gas impurities: The bonding strength. Int. J. Hydrogen 2011, 36, 6817–6825. [Google Scholar] [CrossRef]
  3. Zhang, X.; Chan, S.H.; Ho, H.K.; Tan, S.-C.; Li, M.; Li, G.; Li, J.; Feng, Z. Towards a smart energy network: The roles of fuel/electrolysis cells and technological perspectives. Int. J. Hydrogen 2015, 40, 6866–6919. [Google Scholar] [CrossRef]
  4. Qiao, S.Z.; Jiao, Y.; Zheng, Y.; Jaroniec, M. Design of electrocatalysts for oxygen- and hydrogen-involving energy conversion reactions. Chem. Soc. Rev. 2015, 44, 2060–2086. [Google Scholar]
  5. Sui, S.; Wang, X.; Zhou, X.; Su, Y.; Riffat, S.; Liu, C.-J. A comprehensive review of Pt electrocatalysts for the oxygen reduction reaction: Nanostructure, activity, mechanism and carbon support in PEM fuel cells. J. Mater. Chem. A 2017, 5, 1808–1825. [Google Scholar] [CrossRef][Green Version]
  6. Feng, Y.; He, T.; Alonso-Vante, N. In situ free-surfactant synthesis and ORR-electrochemistry of carbon-supported Co3S4 and CoSe2 nanoparticles. Chem. Mater. 2007, 20, 26–28. [Google Scholar] [CrossRef]
  7. Xu, X.; Liang, H.; Ming, F.; Qi, Z.; Xie, Y.; Wang, Z. Prussian Blue Analogues Derived Penroseite (Ni,Co)Se2 Nanocages Anchored on 3D Graphene Aerogel for Efficient Water Splitting. ACS Catal. 2017, 7, 6394–6399. [Google Scholar] [CrossRef]
  8. Zhong, H.; Campos-Roldán, C.A.; Zhao, Y.; Zhang, S.; Feng, Y.; Alonso-Vante, N. Recent Advances of Cobalt-Based Electrocatalysts for Oxygen Electrode Reactions and Hydrogen Evolution Reaction. Catalysts 2018, 8, 559. [Google Scholar] [CrossRef]
  9. Jia, X.; Gao, S.; Liu, T.; Li, D.; Tang, P.; Feng, Y. Controllable Synthesis and Bi-functional Electrocatalytic Performance towards Oxygen Electrode Reactions of Co3O4/N-RGO Composites. Electrochim. Acta 2017, 226, 104–112. [Google Scholar] [CrossRef]
  10. Tan, H.; Li, Y.; Jiang, X.; Tang, J.; Wang, Z.; Qian, H.; Mei, P.; Malgras, V.; Bando, Y.; Yamauchi, Y. Perfectly ordered mesoporous iron-nitrogen doped carbon as highly efficient catalyst for oxygen reduction reaction in both alkaline and acidic electrolytes. Nano Energy 2017, 36, 286–294. [Google Scholar] [CrossRef]
  11. Shen, H.; Gracia-Espino, E.; Ma, J.; Tang, H.; Mamat, X.; Wagberg, T.; Hu, G.; Guo, S. Atomically FeN2 moieties dispersed on mesoporous carbon: A new atomic catalyst for efficient oxygen reduction catalysis. Nano Energy 2017, 35, 9–16. [Google Scholar] [CrossRef]
  12. Jiang, T.; Wang, Y.; Wang, K.; Liang, Y.; Wu, D.; Tsiakaras, P.; Song, S. A novel sulfur-nitrogen dual doped ordered mesoporous carbon electrocatalyst for efficient oxygen reduction reaction. Appl. Catal. B: Environ. 2016, 189, 1–11. [Google Scholar] [CrossRef]
  13. Ferrero, G.A.; Fuertes, A.B.; Sevilla, M.; Titirici, M.-M.; Solis, M.S. Efficient metal-free N-doped mesoporous carbon catalysts for ORR by a template-free approach. Carbon 2016, 106, 179–187. [Google Scholar] [CrossRef][Green Version]
  14. Zhang, J.; Zhao, Z.; Xia, Z.; Dai, L. A metal-free bifunctional electrocatalyst for oxygen reduction and oxygen evolution reactions. Nat. Nanotechnol. 2015, 10, 444–452. [Google Scholar] [CrossRef]
  15. Mengxia, S.; Changping, R.; Yan, C. Covalent entrapment of cobalt-iron sulfides in N-doped mesoporous carbon: Extraordinary bifunctional electrocatalysts for oxygen reduction and evolution reactions. ACS Appl. Mater. Interfaces 2015, 7, 1207. [Google Scholar]
  16. Lei, W.; Deng, Y.-P.; Li, G.; Cano, Z.P.; Wang, X.; Luo, D.; Liu, Y.; Wang, D.; Chen, Z. Two-Dimensional Phosphorus-Doped Carbon Nanosheets with Tunable Porosity for Oxygen Reactions in Zinc-Air Batteries. ACS Catal. 2018, 8, 2464–2472. [Google Scholar] [CrossRef]
  17. Chai, G.-L.; Qiu, K.; Qiao, M.; Titirici, M.-M.; Shang, C.; Guo, Z.X. Active sites engineering leads to exceptional ORR and OER bifunctionality in P,N Co-doped graphene frameworks. Environ. Sci. 2017, 10, 1186–1195. [Google Scholar] [CrossRef][Green Version]
  18. Patra, S.; Choudhary, R.; Roy, E.; Madhuri, R.; Sharma, P.K.; Sharma, D.P.K. Heteroatom-doped graphene ‘Idli’: A green and foody approach towards development of metal free bifunctional catalyst for rechargeable zinc-air battery. Nano Energy 2016, 30, 118–129. [Google Scholar] [CrossRef]
  19. Han, J.-S.; Chung, D.Y.; Ha, D.-G.; Kim, J.-H.; Choi, K.; Sung, Y.-E.; Kang, S.-H. Nitrogen and boron co-doped hollow carbon catalyst for the oxygen reduction reaction. Carbon 2016, 105, 1–7. [Google Scholar] [CrossRef]
  20. Zhong, H.; Zhang, S.; Jiang, J.; Feng, Y. Improved Electrocatalytic Performance of Tailored Metal-Free Nitrogen-Doped Ordered Mesoporous Carbons for the Oxygen Reduction Reaction. ChemElectroChem 2018, 5, 1899–1904. [Google Scholar] [CrossRef]
  21. Zhao, X.; Wang, A.; Yan, J.; Sun, G.; Sun, L.; Zhang, T. Synthesis and Electrochemical Performance of Heteroatom-Incorporated Ordered Mesoporous Carbons. Chem. Mater. 2010, 22, 5463–5473. [Google Scholar] [CrossRef]
  22. Granozzi, G.; Balbuena, P.B.; Ma, J.; Habrioux, A.; Luo, Y.; Ramos-Sanchez, G.; Calvillo, L.; Alonso-Vante, N. Electronic interaction between platinum nanoparticles and nitrogen-doped reduced graphene oxide: Effect on the oxygen reduction reaction. J. Mater. Chem. A 2015, 3, 11891–11904. [Google Scholar]
  23. Wang, C.; Shi, P.; Yao, W. Synergistic effect of Co3O4 nanoparticles and graphene as catalysts for peroxymonosulfate-based orange II degradation with high oxidant utilization efficiency. J. Phys. Chem. C 2016, 120, 336–344. [Google Scholar] [CrossRef]
  24. Wu, Z.-S.; Ren, W.; Wen, L.; Gao, L.; Zhao, J.; Chen, Z.; Zhou, G.; Li, F.; Cheng, H.-M. Graphene Anchored with Co3O4 Nanoparticles as Anode of Lithium Ion Batteries with Enhanced Reversible Capacity and Cyclic Performance. ACS Nano 2010, 4, 3187–3194. [Google Scholar] [CrossRef]
  25. Liu, Y.; Ai, K.; Lu, L. Polydopamine and Its Derivative Materials: Synthesis and Promising Applications in Energy, Environmental, and Biomedical Fields. Chem. Rev. 2014, 114, 5057–5115. [Google Scholar] [CrossRef]
  26. Gorlin, Y.; Jaramillo, T.F. A Bifunctional Nonprecious Metal Catalyst for Oxygen Reduction and Water Oxidation. J. Am. Chem. Soc. 2010, 132, 13612–13614. [Google Scholar] [CrossRef] [PubMed]
  27. Wang, D.; Chen, X.; Evans, D.G.; Yang, W. Well-dispersed Co3O4/Co2MnO4 nanocomposites as a synergistic bifunctional catalyst for oxygen reduction and oxygen evolution reactions. Nanoscale 2013, 5, 5312. [Google Scholar] [CrossRef]
  28. Ge, X.; Liu, Y.; Goh, F.W.T.; Hor, T.S.A.; Zong, Y.; Xiao, P.; Zhang, Z.; Lim, S.H.; Li, B.; Wang, X.; et al. Dual-Phase Spinel MnCo2O4 and Spinel MnCo2O4/Nanocarbon Hybrids for Electrocatalytic Oxygen Reduction and Evolution. ACS Appl. Mater. Interfaces 2014, 6, 12684–12691. [Google Scholar] [CrossRef] [PubMed]
  29. Lee, D.U.; Kim, B.J.; Chen, Z. One-pot synthesis of a mesoporous NiCo2O4 nanoplatelet and graphene hybrid and its oxygen reduction and evolution activities as an efficient bi-functional electrocatalyst. J. Mater. Chem. A 2013, 1, 4754. [Google Scholar] [CrossRef]
  30. Liu, S.; Bian, W.; Yang, Z.; Tian, J.; Jin, C.; Shen, M.; Zhou, Z.; Yang, R. A facile synthesis of CoFe2O4/biocarbon nanocomposites as efficient bi-functional electrocatalysts for the oxygen reduction and oxygen evolution reaction. J. Mater. Chem. A 2014, 2, 18012–18017. [Google Scholar] [CrossRef]
  31. Qian, L.; Lu, Z.; Xu, T.; Wu, X.; Tian, Y.; Li, Y.; Huo, Z.; Sun, X.; Duan, X. Trinary Layered Double Hydroxides as High-Performance Bifunctional Materials for Oxygen Electrocatalysis. Adv. Mater. 2015, 5, 1500245. [Google Scholar] [CrossRef]
  32. Wang, Y.; Ding, W.; Chen, S.; Nie, Y.; Xiong, K.; Wei, Z. Cobalt carbonate hydroxide/C: An efficient dual electrocatalyst for oxygen reduction/evolution reactions. Chem. Commun. 2014, 50, 15529–15532. [Google Scholar] [CrossRef] [PubMed]

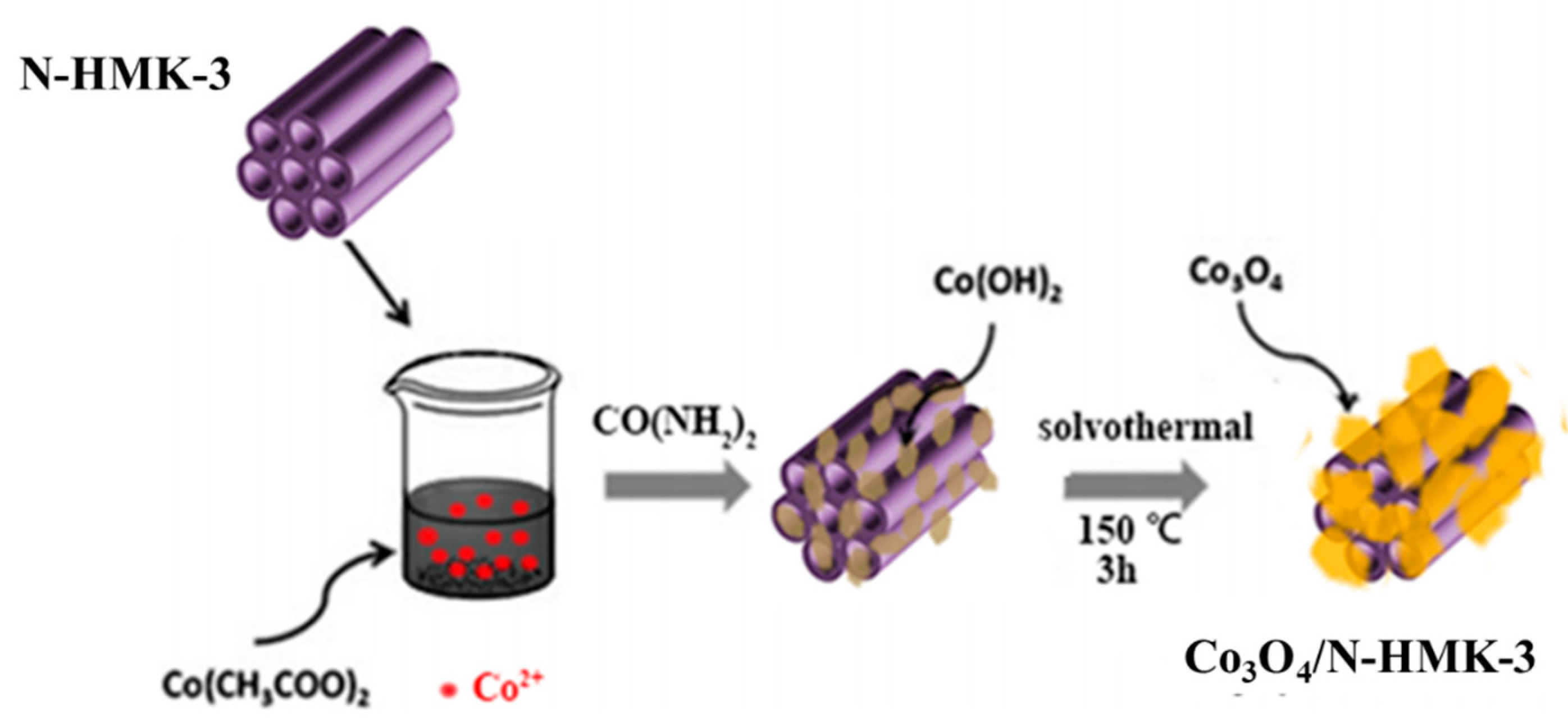

Figure 1. Schematic on preparation process of Co3O4/N-HNMK-3.
Figure 1. Schematic on preparation process of Co3O4/N-HNMK-3.
Surfaces 02 00018 g001

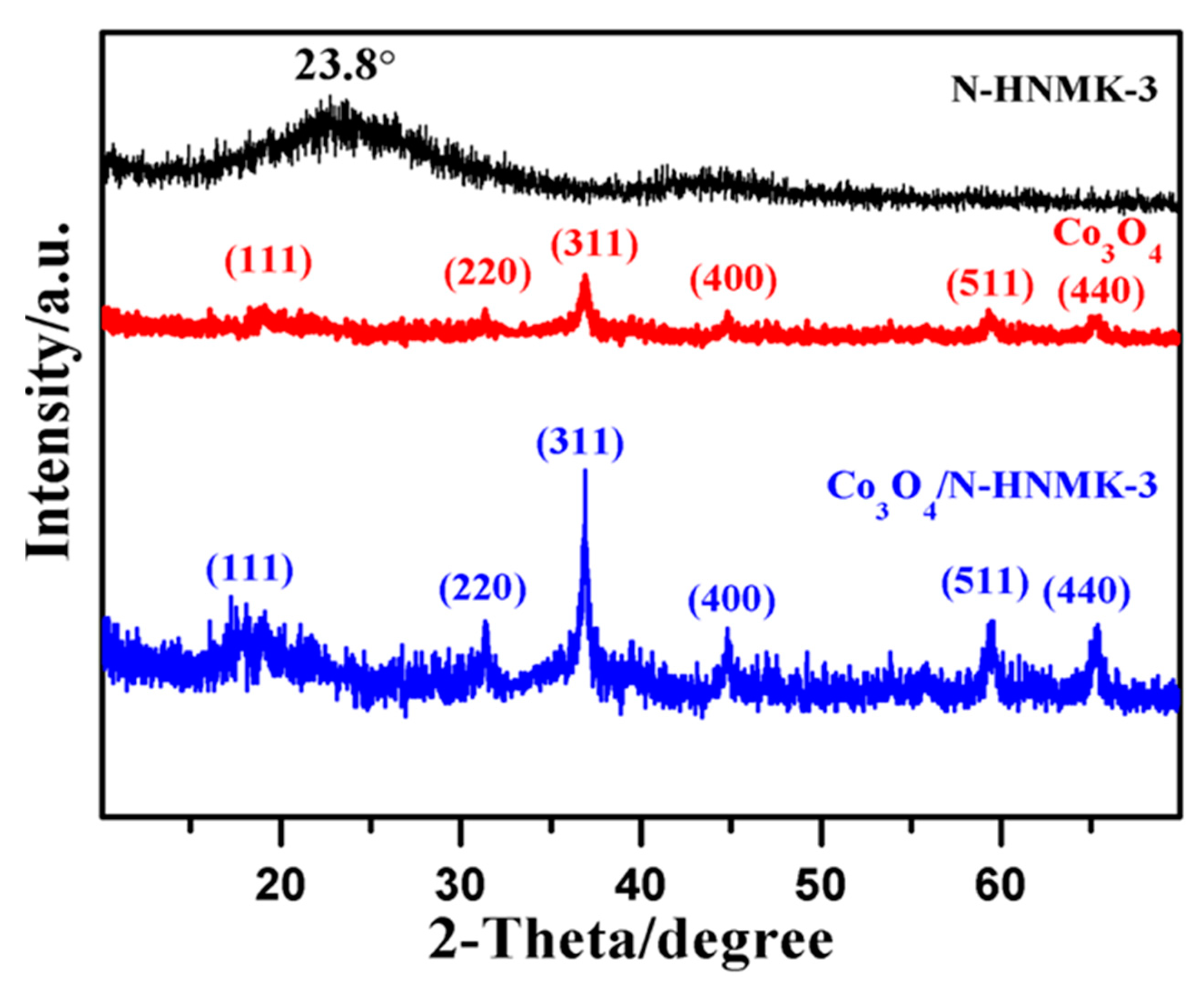

Figure 2. Powder XRD patterns of N-HNMK-3, Co3O4, and Co3O4/N-HNMK-3 composite.
Figure 2. Powder XRD patterns of N-HNMK-3, Co3O4, and Co3O4/N-HNMK-3 composite.
Surfaces 02 00018 g002
Figure 3. (a) The SEM images of Co3O4, (b) Co3O4/N-HNMK-3. (c) TEM and (d) HRTEM images of Co3O4/N-HNMK-3.
Figure 3. (a) The SEM images of Co3O4, (b) Co3O4/N-HNMK-3. (c) TEM and (d) HRTEM images of Co3O4/N-HNMK-3.
Surfaces 02 00018 g003

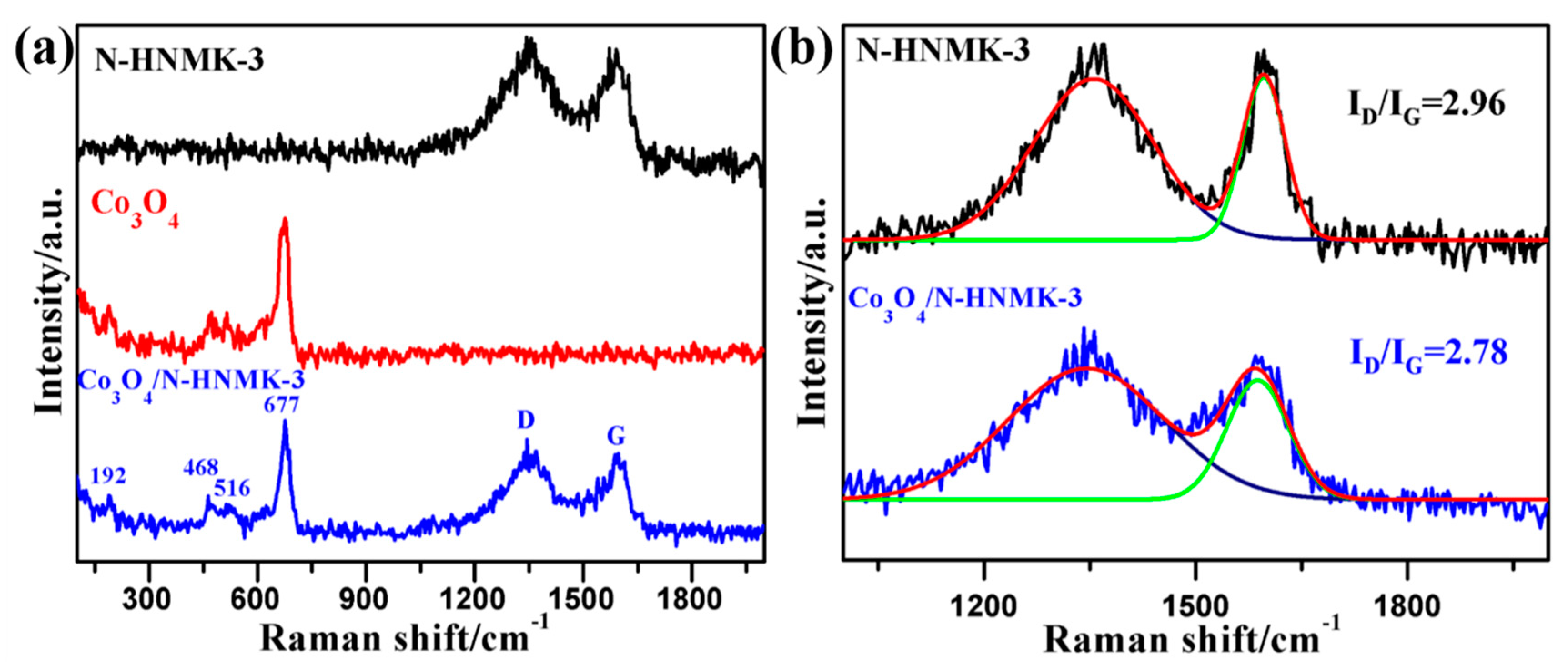

Figure 4. (a) Raman spectra of N-HNMK-3, Co3O4 and Co3O4/N-HNMK-3. (b) The corresponding Raman fitting profiles of N-HNMK-3 and Co3O4/N-HNMK-3.
Figure 4. (a) Raman spectra of N-HNMK-3, Co3O4 and Co3O4/N-HNMK-3. (b) The corresponding Raman fitting profiles of N-HNMK-3 and Co3O4/N-HNMK-3.
Surfaces 02 00018 g004

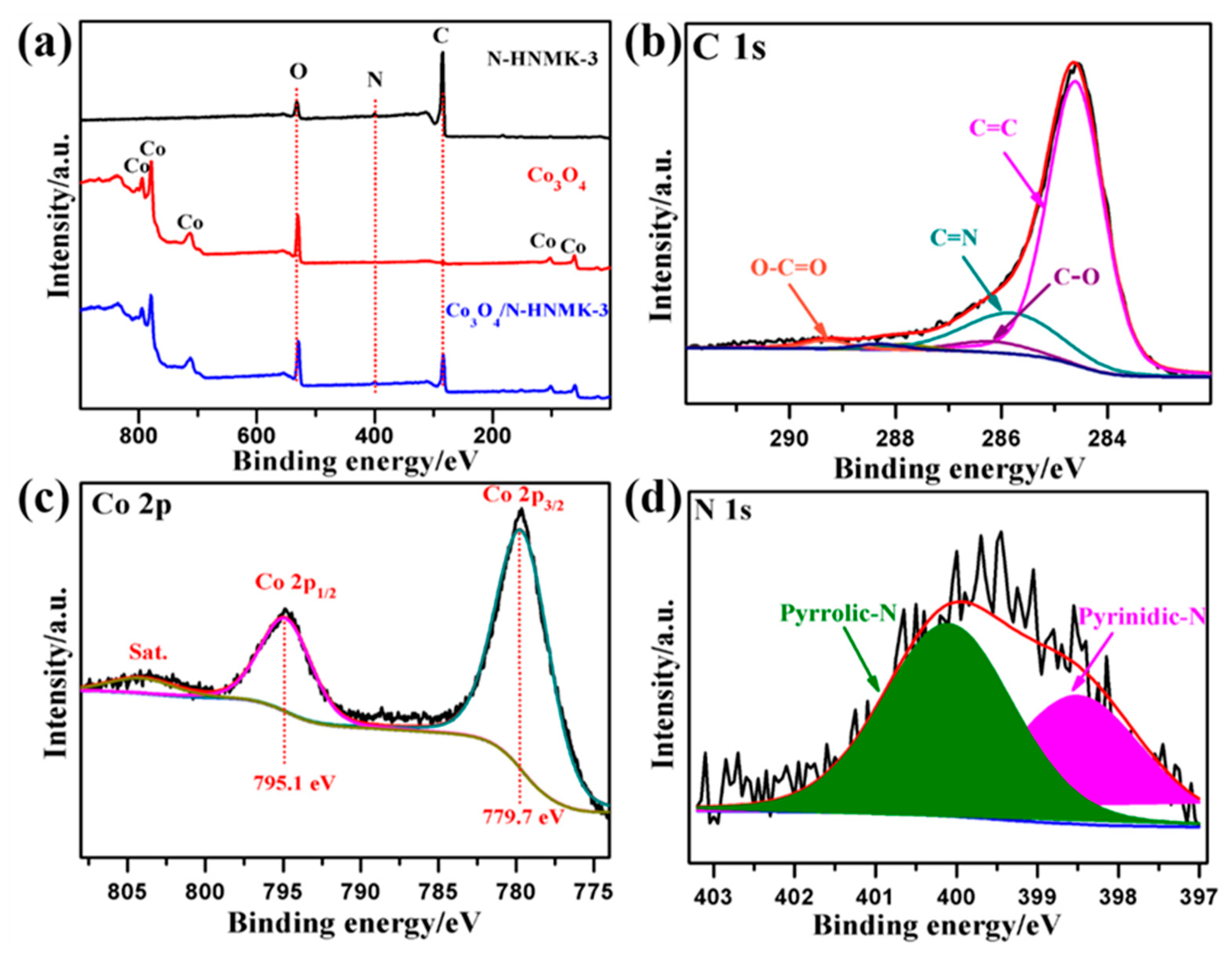

Figure 5. (a) XPS survey scan of samples: N-HNMK-3, Co3O4 and Co3O4/N-HNMK-3; XPS spectra of (b) C 1s; (c) Co 2p; (d) N 1s of Co3O4/N-HNMK-3.
Figure 5. (a) XPS survey scan of samples: N-HNMK-3, Co3O4 and Co3O4/N-HNMK-3; XPS spectra of (b) C 1s; (c) Co 2p; (d) N 1s of Co3O4/N-HNMK-3.
Surfaces 02 00018 g005
Figure 6. (a) ORR polarization curves of N-HNMK-3, Co3O4+N-HNMK-3 (physical mixture), Co3O4/N-HNMK-3, Pt/C, and RuO2/C at 1600 rpm in O2-saturated 0.1M KOH; (b) the limited current density at 0.50 V/RHE and half-wave potential from (a); (c) CV curves of Co3O4/N-HNMK-3 in Ar- and O2-saturated 0.1M KOH; (d) ORR polarization curves of Co3O4/N-HNMK-3 at various rotation rates, the inset shows the corresponding K-L plot of Co3O4/N-HNMK-3.
Figure 6. (a) ORR polarization curves of N-HNMK-3, Co3O4+N-HNMK-3 (physical mixture), Co3O4/N-HNMK-3, Pt/C, and RuO2/C at 1600 rpm in O2-saturated 0.1M KOH; (b) the limited current density at 0.50 V/RHE and half-wave potential from (a); (c) CV curves of Co3O4/N-HNMK-3 in Ar- and O2-saturated 0.1M KOH; (d) ORR polarization curves of Co3O4/N-HNMK-3 at various rotation rates, the inset shows the corresponding K-L plot of Co3O4/N-HNMK-3.
Surfaces 02 00018 g006

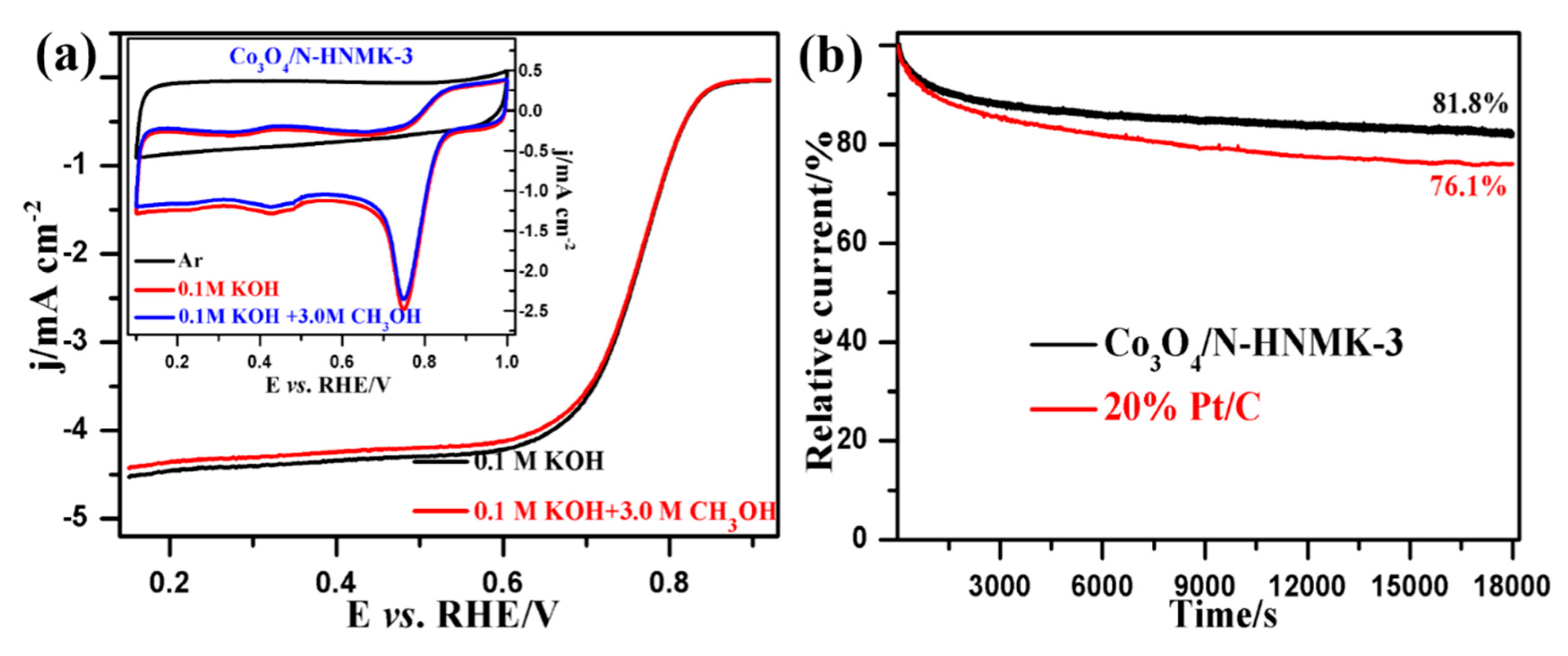

Figure 7. (a) CV and LSV curves of Co3O4/N-HNMK-3 in O2- saturated with or without 3.0M methanol in 0.1 M KOH; (b) The durability test of Co3O4/N-HNMK-3 and 20 wt.% Pt/C at 0.70 V in O2-saturated 0.1 M KOH at 1600 rpm.
Figure 7. (a) CV and LSV curves of Co3O4/N-HNMK-3 in O2- saturated with or without 3.0M methanol in 0.1 M KOH; (b) The durability test of Co3O4/N-HNMK-3 and 20 wt.% Pt/C at 0.70 V in O2-saturated 0.1 M KOH at 1600 rpm.
Surfaces 02 00018 g007

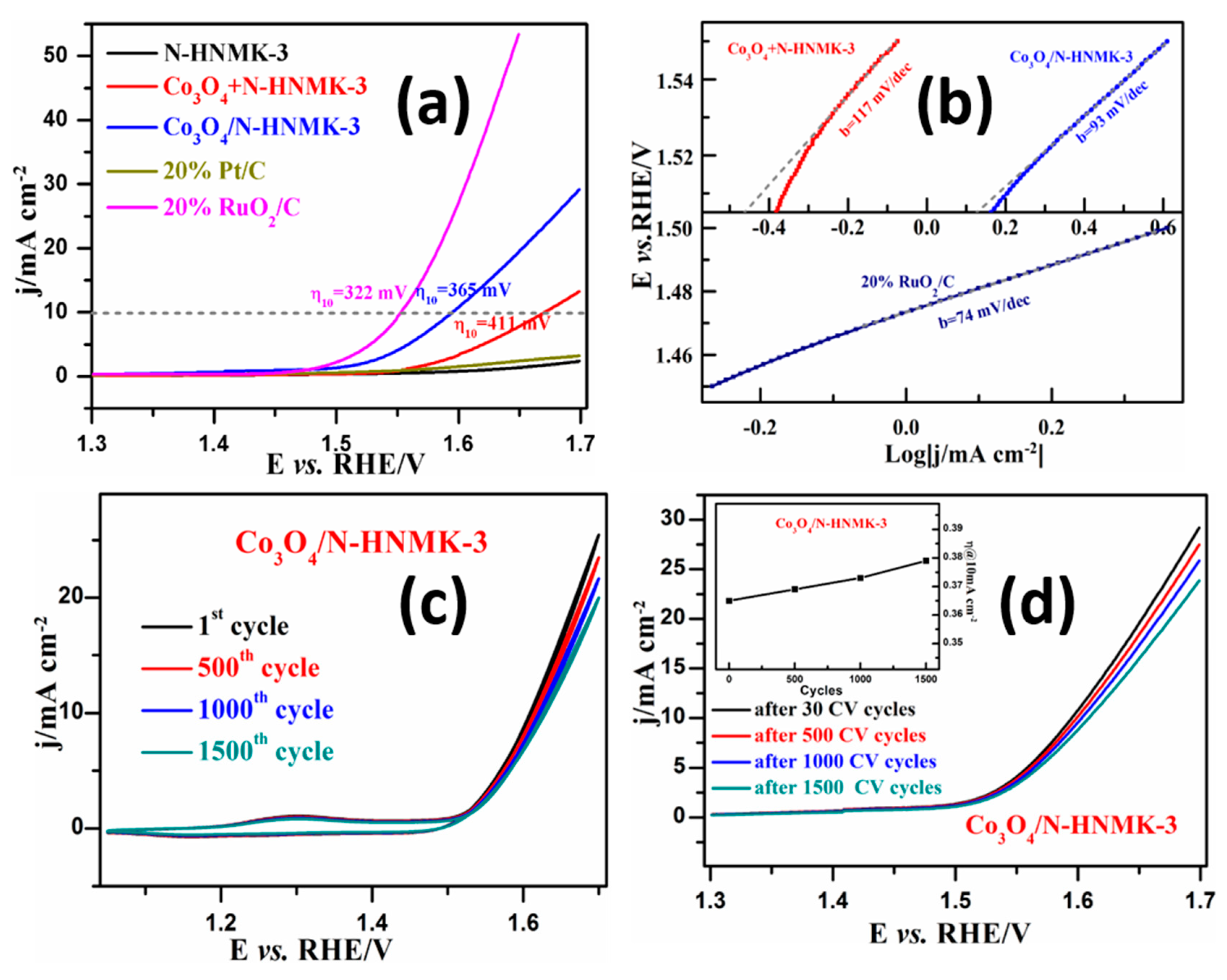

Figure 8. (a) LSV curves of N-HNMK-3, Co3O4 + N-HNMK-3 (physical mixture), Co3O4/N-HNMK-3, 20 wt.% Pt/C, and 20 wt.% RuO2/C towards the OER in O2-saturated 1.0 M KOH at 5 mV s−1 and 1600 rpm; (b) Tafel plots of each samples derived from curves in (a); (c) CVs of Co3O4/N-HNMK-3 from 1.05 V to 1.70 V at 200 mV s−1 in O2-saturated 1.0 M KOH from 1st cycle to 1500th cycle; (d) LSV curves of Co3O4/N-HNMK-3 from 1.30 V to 1.70 V at 5 mV s−1, the inset presents the variation of ƞ10 at different CV cycles.
Figure 8. (a) LSV curves of N-HNMK-3, Co3O4 + N-HNMK-3 (physical mixture), Co3O4/N-HNMK-3, 20 wt.% Pt/C, and 20 wt.% RuO2/C towards the OER in O2-saturated 1.0 M KOH at 5 mV s−1 and 1600 rpm; (b) Tafel plots of each samples derived from curves in (a); (c) CVs of Co3O4/N-HNMK-3 from 1.05 V to 1.70 V at 200 mV s−1 in O2-saturated 1.0 M KOH from 1st cycle to 1500th cycle; (d) LSV curves of Co3O4/N-HNMK-3 from 1.30 V to 1.70 V at 5 mV s−1, the inset presents the variation of ƞ10 at different CV cycles.
Surfaces 02 00018 g008
Table 1. The element amount (at. %) in N-HNMK-3, Co3O4 and Co3O4/N-HNMK-3 samples.
Table 1. The element amount (at. %) in N-HNMK-3, Co3O4 and Co3O4/N-HNMK-3 samples.
SamplesC NCoOPyridinic-NPyrrolic-N
N-HNMK-388.82.6 8.631.268.8
Co3O4 42.857.2
Co3O4/N-HNMK-360.62.29.427.829.870.2
Table 2. The oxygen bifunctional electrocatalytic performance of catalysts prepared in this work compared with other bifunctional catalysts from the literature.
Table 2. The oxygen bifunctional electrocatalytic performance of catalysts prepared in this work compared with other bifunctional catalysts from the literature.
CatalystsE vs. RHE
at j = −3 mA cm−2
E vs. RHE
at j = 10 mA cm−2
ΔE
(E[email protected] mA cm−2)-(E[email protected]−3 mA cm−2)
Refs.
N-HNMK-30.692.131.44This work
Co3O4+N-HNMK-30.561.691.13This work
Co3O4/N-HNMK-30.731.590.86This work
20% Pt/C0.812.071.26This work
20% RuO2/C0.441.551.11This work
Co3O4/Co2MnO40.681.771.0927
MnCo2O4/Nanocarbon0.791.750.9628
NiCo2O4/Graphene0.601.681.0829
CoFe2O4/Biocarbon0.691.670.9830
O-NiCoFe-LDH0.621.671.0531
Co(OH)2CO3/C0.811.730.9232
