Interface Behaviour and Work Function Modification of Self-Assembled Monolayers on Sn-Doped In2O3

Department of Materials and Earth Sciences, Technische Universität Darmstadt, Otto-Berndt-Straße 3, 64287 Darmstadt, Germany
*
Author to whom correspondence should be addressed.
Surfaces 2019, 2(2), 241-256; https://doi.org/10.3390/surfaces2020019
Received: 11 March 2019 / Accepted: 25 March 2019 / Published: 29 March 2019
  |
PDF [3340 KB, uploaded 29 March 2019]
  |

Abstract

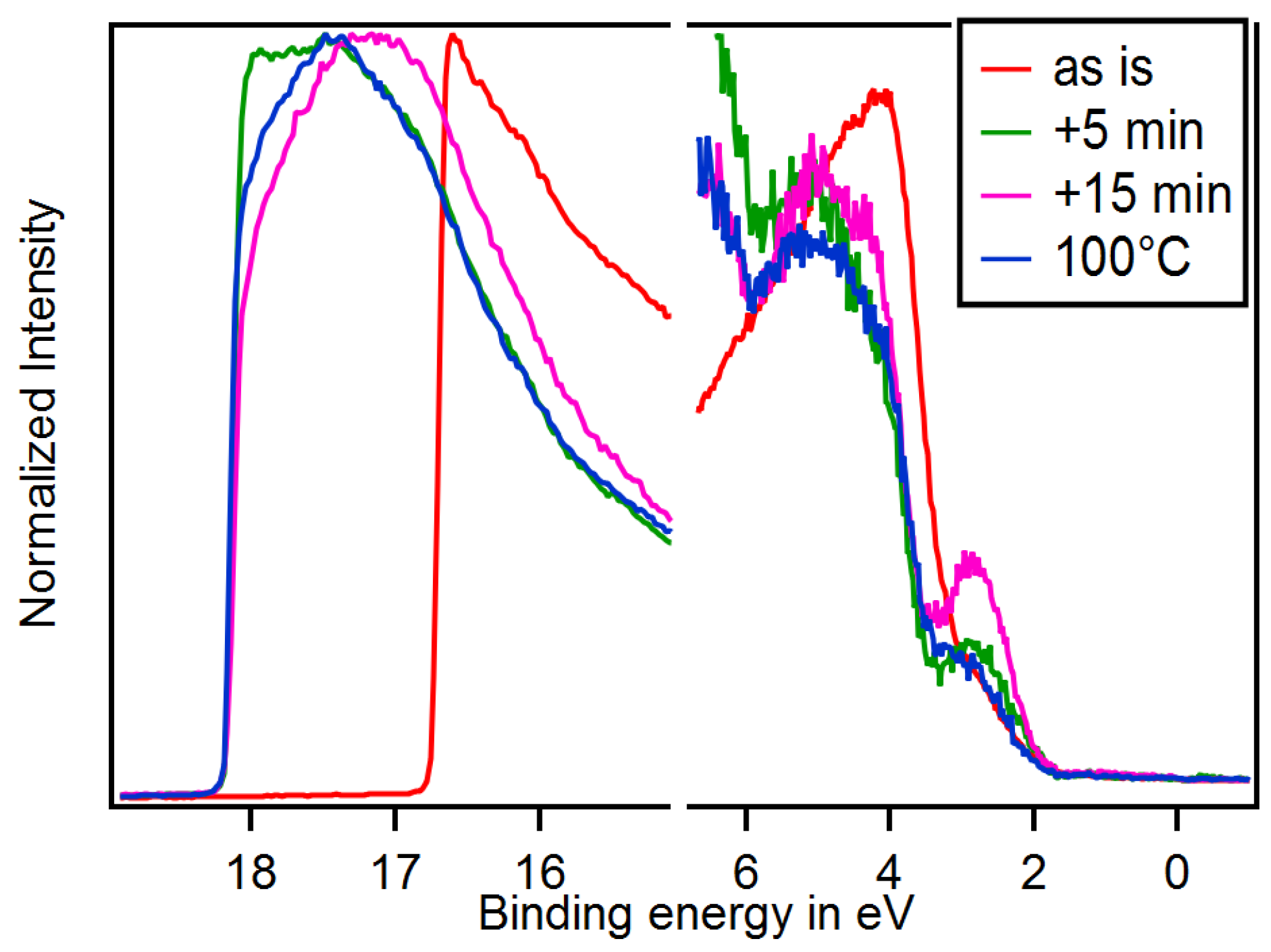

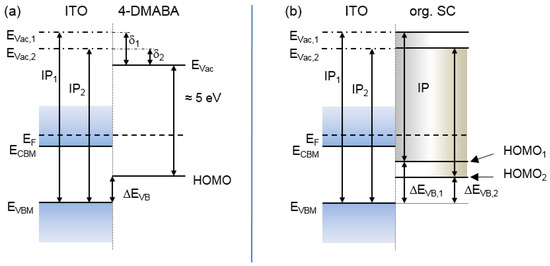

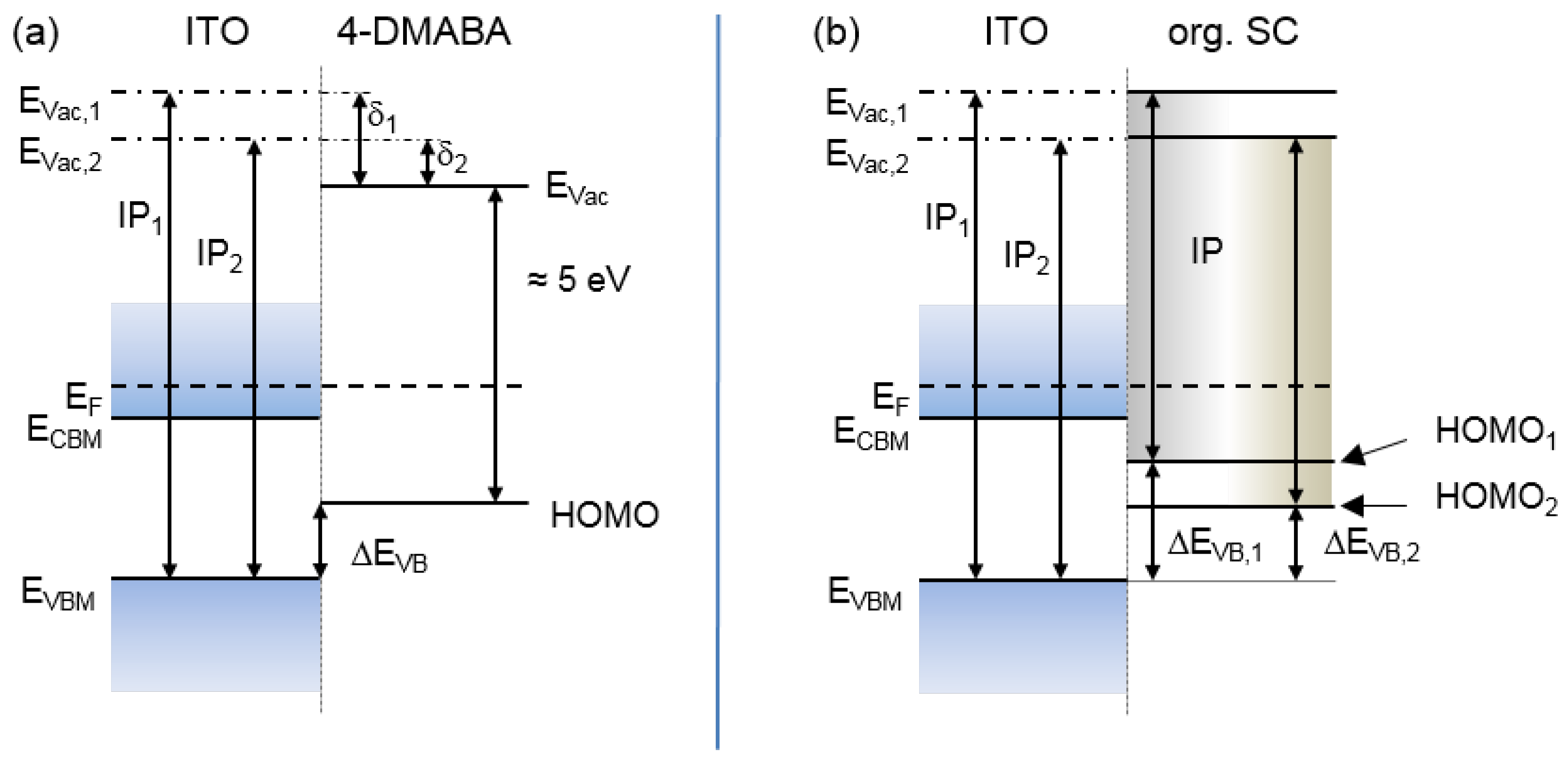

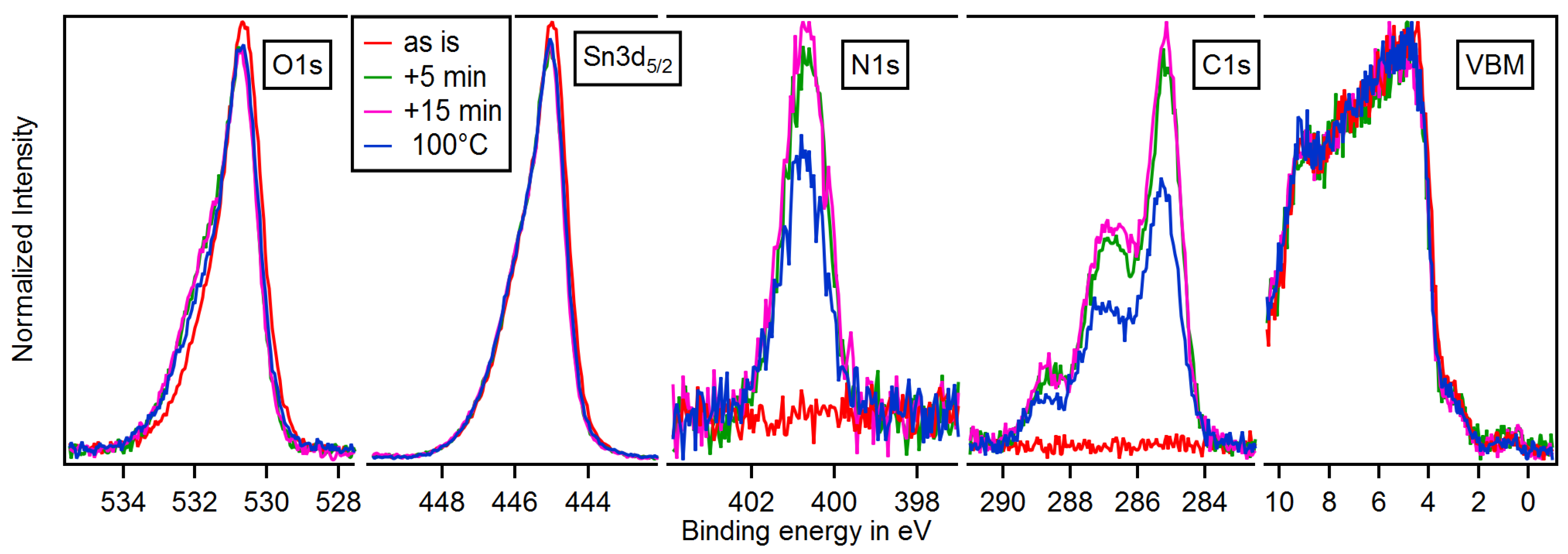

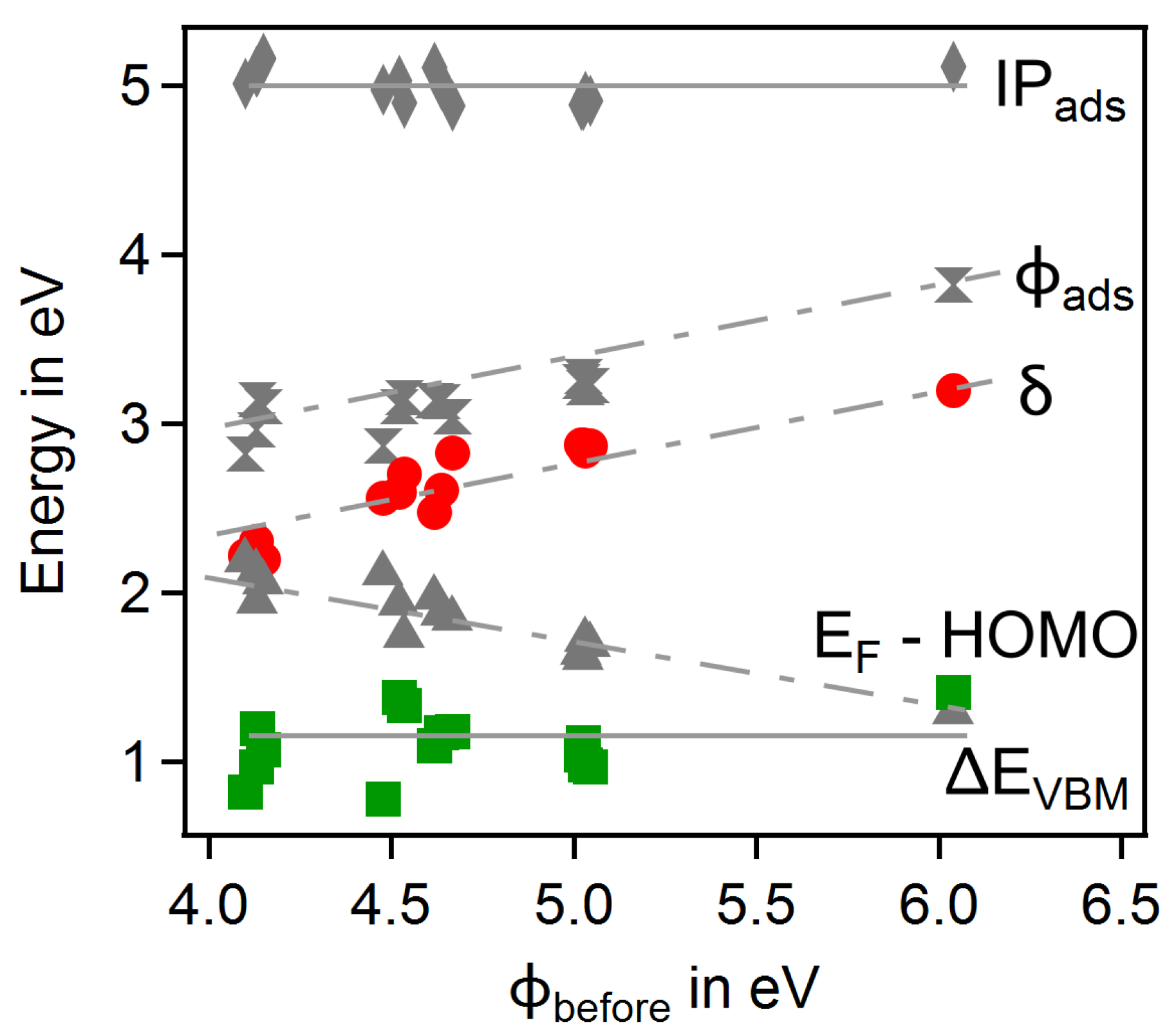

The modification of the work function of Sn-doped In2O3 (ITO) by vacuum adsorption of 4-(Dimethylamino)benzoic acid (4-DMABA) has been studied using in situ photoelectron spectroscopy. Adsorption of 4-DMABA is self-limited with an approximate thickness of a single monolayer. The lowest work function obtained is 2.82 ± 0.1 eV, enabling electron injection into many organic materials. In order to identify a potential influence of the ITO substrate surface on the final work function, different ITO surface orientations and treatments have been applied. Despite the expected differences in substrate work function and chemical bonding of 4-DMABA to the substrate, no influence of substrate surface orientation is identified. The resulting work function of ITO/4-DMABA substrates can be described by a constant ionization potential of the adsorbed 4-DMABA of 5.00 ± 0.08 eV, a constant band alignment between ITO and 4-DMABA and a varying Fermi energy in the ITO substrate. This corresponds to the behaviour of a conventional semiconductor heterostructure and deviates from the vacuum level alignment of interfaces between organic compounds. The difference is likely related to a stronger chemical bonding at the ITO/4-DMABA interface compared to the van der Waals bonding at interfaces between organic compounds. View Full-Text
Keywords: ITO; work function; self-assembled monolayer; band alignment ITO; work function; self-assembled monolayer; band alignment
Figures

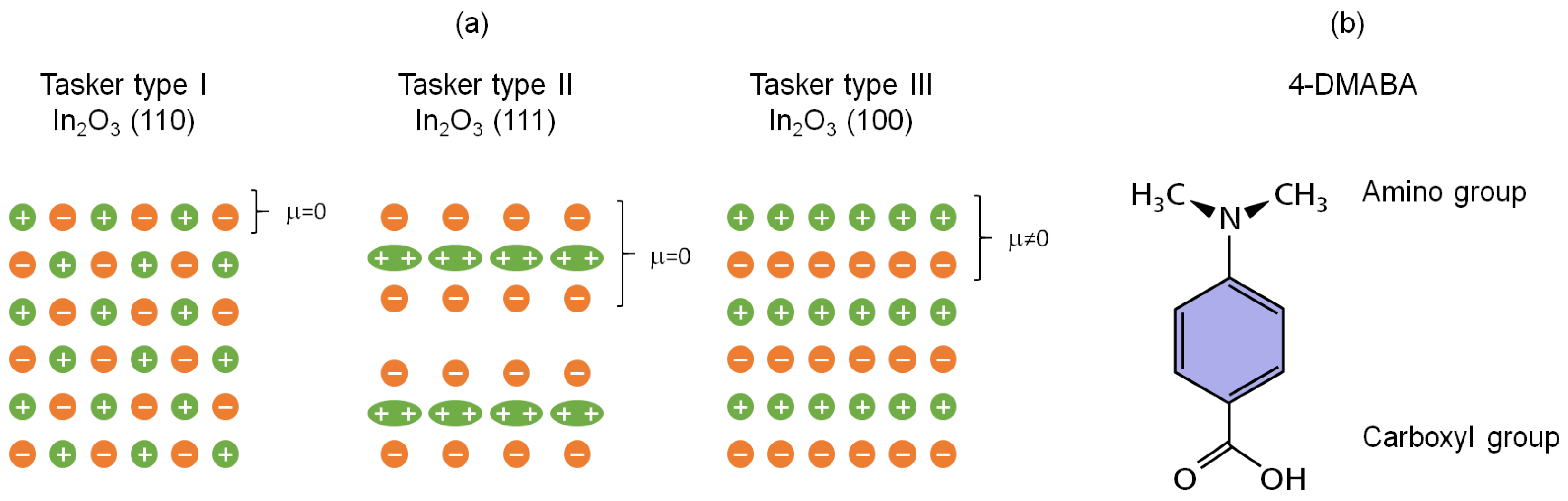

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Hubmann, A.H.; Dietz, D.; Brötz, J.; Klein, A. Interface Behaviour and Work Function Modification of Self-Assembled Monolayers on Sn-Doped In2O3. Surfaces 2019, 2, 241-256.
