Integrated Low-Cost Lighting Filters for Color-Accurate Imaging in a Cultural Heritage Context

Abstract

Color accuracy is both important and elusive in cultural heritage imaging. An established method for improving color accuracy is dual-RGB imaging, where RGB images of an object are captured sequentially under two different conditions and then combined. As part of an initiative to increase accessibility to color-accurate imaging, the use of lighting filters with the dual-RGB method is investigated. Gel lighting filters are low-cost and can be directly integrated into an imaging workflow by placing them in front of the existing light sources. This research found that color accuracy can be increased by using lighting filters, but it can also be decreased by a poor selection of filter combinations. The identity of the best-performing filters is highly dependent on the light source and can be affected by the pixels selected to represent the color target. Current simulation approaches are insufficient to predict which filters will increase color accuracy. While lighting filters are a promising method for accessible multispectral imaging, their practical implementation is complex and requires further research and adjustments to the method.

1. Introduction

Accurate color capture is essential in cultural heritage imaging, most obviously for documenting and digitizing visual artworks such as paintings, dyed materials, and illuminated manuscripts. Color can also be used as an analytical tool, for example, to assess fading after an artifact is placed on display or to document changes from before and after a conservation treatment. As more art and artifacts are being made available for viewing online and in digital archives, the way that color is represented can significantly impact how large populations interact with cultural heritage.

In this article, the term color accuracy is used in the same way as it is defined in the Federal Agencies Digital Guidelines Initiative (FADGI) Technical Guidelines for Digitizing Cultural Heritage Materials [1], referring to the encoded color, rather than the perceptual color of a digital or printed copy. The issue of displaying a copy to match the physical scene will not be discussed here. Color accuracy is assessed using $\Delta E_{00}$, a metric that quantifies the perceptual difference between colors. The FADGI guidelines outline acceptable color tolerances, which vary by quality and materials. The tightest requirements (4-star) require a mean $\Delta E_{00}\le 2$ and a 90th percentile of ≤ 4 [1].

FADGI was first formed in 2007, motivated by a need to define a set of unified recommendations and benchmarks for digitizing cultural heritage. It now includes many U.S. Federal cultural heritage institutions. There are two groups within FADGI: the Still Image Working Group and the Audio-Visual Working Group. The Still Image Working Group published the Technical Guidelines for the Still Image Digitization of Cultural Heritage Materials (available at www.digitizationguidelines.gov). These guidelines provide a common benchmark, identifying areas of concern and providing metrics to evaluate image quality, including color accuracy. In the FADGI guidelines, the quality of an image is described using a four-star system, where one star indicates an image that is appropriate only for generating a reference for locating an original, if higher quality is unattainable. Four stars describe an image quality that is the current state of the art. The technical guidelines contain useful information regarding every step of an imaging workflow, and the website contains many other useful resources for cultural heritage professionals interested in establishing or improving an imaging workflow [1].

One of the main issues that hinders color-accurate imaging is metamerism. Metamerism occurs when two objects appear to be the same color in one condition but different colors in another condition. This can happen in two ways: (1) through a change in lighting or (2) through a change in observer. In imaging, this means that when the same object is captured under different lighting conditions, the images can contain noticeably different colors, even after white balancing. Additionally, since the spectral sensitivities of nearly all cameras are not linearly related to the spectral sensitivities of the human eye, materials that match in color to the human eye can resolve as different colors in an image, and vice versa. Metamerism is especially prevalent in cultural heritage imaging because many pigments and materials are highly susceptible to metamerism [2]. Color cameras were initially designed to capture natural materials and scenes, which can differ greatly in spectral characteristics from pigments and dyes. These spectral differences are the source of metamerism.

One way to address these issues is to use multispectral imaging (MSI). MSI is not consistently defined across disciplines. Here, we define multispectral MSI as a system that captures at least two spatial dimensions and at least four spectral bands. Most MSI systems used in cultural heritage are designed to capture information in the UV, visible, and IR ranges. However, some systems are designed specifically for color reproduction and are limited to the visible spectrum. The main advantage of MSI for color reproduction is that a greater number of channels provides more information about the spectral reflectance or transmittance of the object being imaged, reducing metamerism-related issues. The color for a standard observer and under a standard illuminant can then be calculated. While MSI can be used to capture either reflectance or transmittance, the methods used in this paper are designed for reflective objects.

MSI channels can be created in several ways [3] but can generally be divided into light-based [4,5] or filter-based technologies [6,7,8,9]. MSI methods can be further classified as either narrowband or wideband [10]. Narrowband techniques generally involve capturing small portions of the visible spectrum at a time, and interpolating as necessary to generate a direct estimation of spectral characteristics. Wideband techniques capture large portions of the visible spectrum under different conditions and generally require an empirically fit model to estimate color or spectral reflectance.

Dual-RGB is an MSI method that utilizes a commercial RGB camera to take two sets of RGB images under different conditions, resulting in six wideband channels, which are then transformed into a single, color-mastered image. A brief overview of dual-RGB imaging can be found in this technical report [11]. Like most wideband methods, dual-RGB fits a color transformation empirically, causing the quality of the results to depend greatly on the materials used. However, an investigation into the impact of camera brand determined that it was not a practically significant factor [4].

Previous implementations of dual-RGB have used either camera filters [12,13,14] or LED light sources [4,5,15,16]. Camera filters are a familiar tool that can be inexpensive, depending on the material. However, with dual-RGB, the camera filters must be switched out between each image, which can cause misregistration errors due to handling. Tunable LEDs, on the other hand, can often be controlled remotely, reducing the possibility of registration error. Furthermore, small shifts in lighting have less of an impact on the final image than small movements of the camera. However, most high-quality tunable LEDs are expensive.

Much of the recent dual-RGB research has been focused on making the method more accessible [4,15]. The goal is to create a system that is low-cost, easy-to-use, easy-to-integrate, and high-quality. At the moment, it is generally intended to be used with flat, matte objects. One of the main benefits of dual-RGB imaging is that RGB cameras are already present in most cultural heritage institutions and are familiar tools. As part of this initiative, a free, open-source software, BeyondRGB, was developed to process dual-RGB image sets, eliminating the need for expensive software [17]. Low-cost lighting is one of the few remaining barriers to a fully accessible dual-RGB imaging method.

This paper investigates the possibility of using theatre lighting filters for dual-RGB imaging. Theatre gel filters are available at very low cost and have a wide variety of spectral characteristics. They are easily integrated into an imaging pipeline, simply by attaching them to the existing lights. The quality, accessibility, and feasibility will be assessed to determine whether lighting filters are a suitable solution for accessible dual-RGB imaging.

2. Materials and Methods

2.1. Filter Selection

To narrow the wide variety of available theatre gel filters, an exhaustive search simulation was created in Matlab to identify a small selection of filters to obtain for physical testing. Two filter datasets, containing spectral transmittance information for the Roscolux and Lee Designers Edition filters, were used in the simulation. Polarizers, neutral-density filters, filters with less than a 40% transmittance, and filters that lowered any camera signals to less than 10% were excluded, leaving 227 filters that were used in the simulation [18]. To ensure that the filters would be a good selection for a wide variety of camera models, 60 camera sensitivities obtained from the open-source Image Engineering database were used [19]. The spectral power distributions of 5 lights used for imaging in cultural heritage institutions were used, all ranging between 5000 K and 5600 K CCT. The lights are summarized in

Table 1. Description of the lights used during the filter selection simulation. Only the spectral data was obtained and used for these lights.

Light Brand and Model	Correlated Color Temperature
ColorBurst Systems SpectraCore 180 LED	5000 K
Digital Transitions Photon	5600 K
Godox ML60bi	5600 K
Broncolor Pulso F4 Strobe	5600 K
Genaray PortaBright Bi-ColorLED	5000 K

. Spectral reflectances of three color targets were used. The X-Rite Color Checker SG (CCSG) (Grand Rapids, MI, USA) was used as a calibration target, as it is widely available and contains a wide range of colors. The Avian Rochester Next Generation Target (NGT) (Rochester, NY, USA) and an artist paint target (APT), made custom within the Rochester Institute of Technology were selected for verification, as they encompass colors and reflectances common in cultural heritage documents and paintings. Since dual-RGB uses an empirically fit model, the calibration target is used to generate the model, but the verification targets are used to assess it in order to reduce issues with overfitting. Reference reflectance values for all three targets were obtained using an X-Rite i1Profiler spectrophotometer (Grand Rapids, MI, USA) in M0 measurement mode.

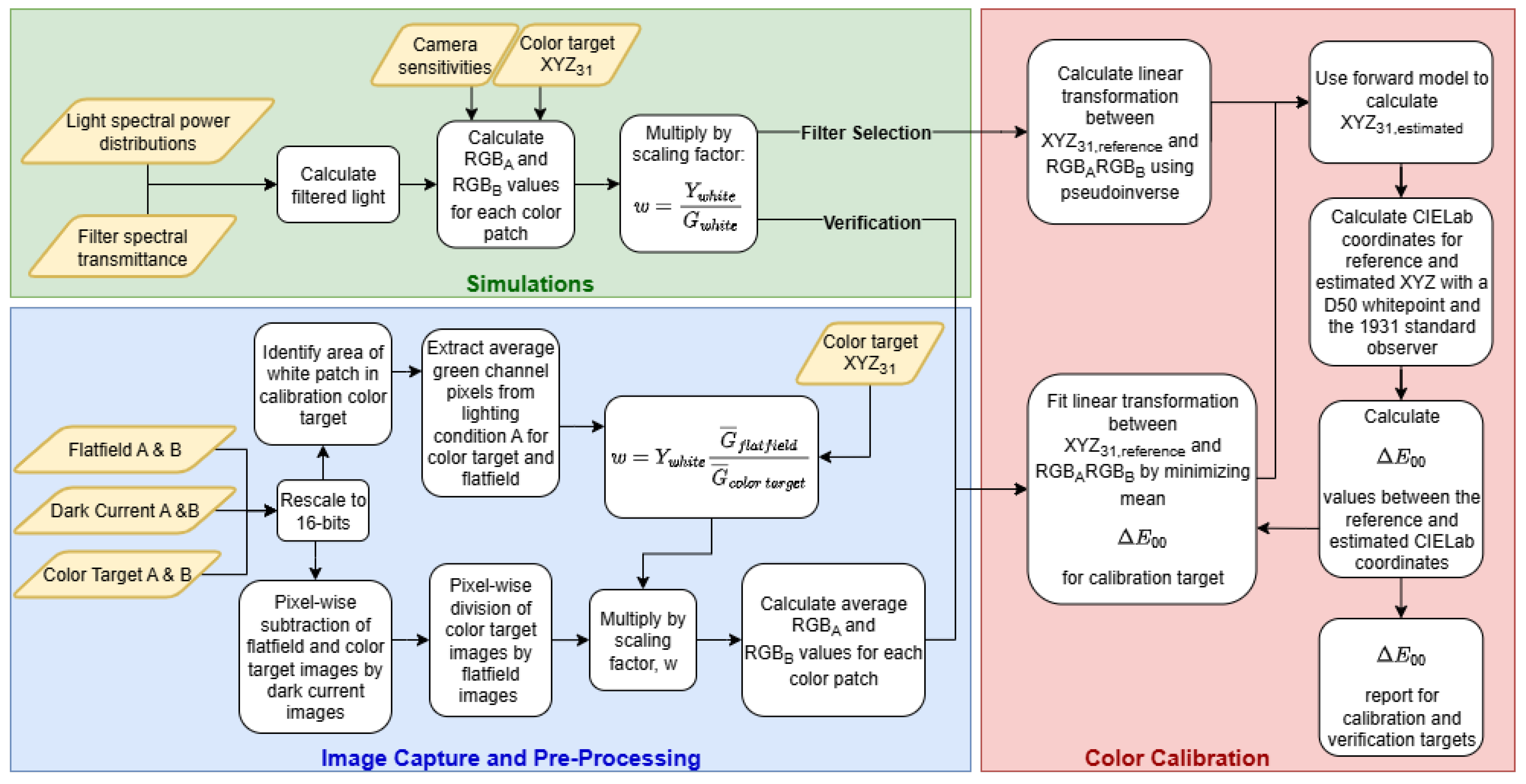

The simulation pipeline is summarized in Figure 1. The spectral characteristics of the filters, cameras, color patches, and lights were multiplied wavelength-by-wavelength and integrated to obtain camera signals for each color patch. These were rescaled by the ratio between the measured luminance and average signal of the green channel for the white patch. This was completed for each combination of filter pair, light, and camera (25,878 filter pairs, 5 lights, 60 cameras). Due to the memory required for these calculations, a pseudo-inverse was used to generate the transformation matrix, rather than a non-linear optimization.

The transformation matrix for the filter selection simulation is a $3\times 6$ matrix describing the contribution of each channel to the $XY{Z}_{31}$ values, fit to the reference calibration target data, and simulated camera signals for each patch. When applied to a 6-channel signal, it provides estimated $XY{Z}_{31}$ coordinates. $\Delta E_{00}$ values are calculated for the verification targets with a D50 whitepoint and the 1931 standard observer. The $\Delta E_{00}$ values are used to describe the color differences between the estimated and reference colors on the targets. The minimum, mean, 90th percentile, and maximum $\Delta E_{00}$ values were summed to generate a ranking index for each filter pair [5]. Nine filters were purchased based on the results. These were further supplemented with eight filters already available within the lab.

2.2. Image Capture

These 17 filters were tested in every pairwise combination, as well as paired with unfiltered light, for a total of 153 pairs per light. Two different lights were used with the filters: first, Broncolor Pulso G strobes, and second, a D50 approximation with tunable LEDs. Traditional single-RGB capture was used for comparison. The lights were set up in a copy stand setup with the lights at a 45° angle. The filters were attached to the lights with magnets and manually changed between images.

All images were captured with a Canon EOS 5D Mark II camera in raw format and processed in BeyondRGB 2.0. The software requires three types of images captured under the same lighting and camera settings. The first type is an image of a flat, white board, which is used for post-camera flatfielding [20]. These images account for lighting non-uniformities due to the camera optics or variation in light across the scene and are referred to as the flatfield images for the remainder of this paper. It should be noted that these images are not flatfielded themselves but rather are used to apply the flatfield to the other images. Second, a dark current image was captured with the lens cap on. The third type was an image containing color targets, which can also contain the object to be documented. Additional images containing other objects of interest can also be processed as needed.

The exposure was set to be the highest exposure without overexposure to improve the signal-to-noise ratio. Given that the transmittance of each filter differs, it was necessary to first identify the highest exposure for each filter and the highest exposure for the unfiltered light. This was done by examining the flatfield images and ensuring the camera signals remained below saturation for all channels. For the tunable LEDs, exposure was adjusted by changing the shutter speed. For the Broncolor strobes, the exposure was adjusted by F-stop. All images were captured at base ISO.

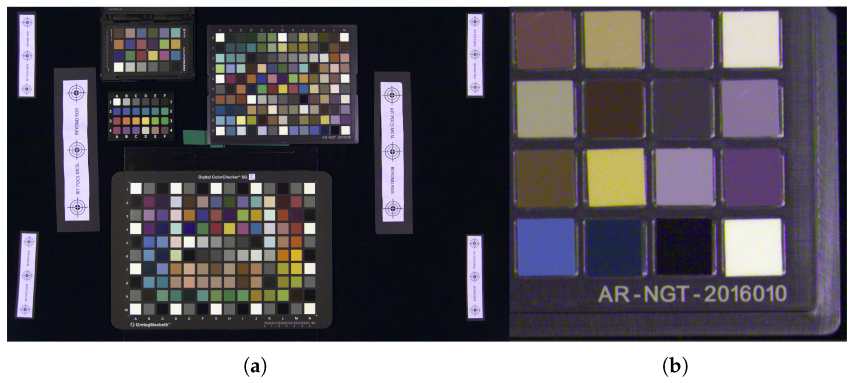

The color target images contained the same CCSG and NGT targets that were used in the filter selection simulation. The targets were placed as close to the center of the frame as possible to minimize any specular highlights and manually adjusted as needed to ensure that no highlights were visible in the image, as this would interfere with the color calibration. Registration targets were also placed within the scene to help the BeyondRGB software register the two captures.

2.3. Image Processing

The images for every pairwise combination of filters were processed using the BeyondRGB software. An overview of the software can be found here: [17,21]. A brief overview of the pipeline can be seen in Figure 1.

The images are rescaled to fit the full 16-bit range of the output TIFF. Dark current correction is applied to account for fixed-pattern noise through pixel-wise subtraction, and post-camera flatfielding is applied by pixel-wise division to account for non-uniformities introduced by lighting and camera optics. These are rescaled to account for the luminance of the flatfield board by multiplying by the ratio of the average green channel signal for the white patch area of the flatfield compared to the color target and multiplying by the known luminance of the white patch.

The transformation matrix is determined by minimizing the mean $\Delta E_{00}$ values for the calibration target. This matrix is a $4\times 6$ matrix, allowing for an offset for each channel:

$$XY{Z}_{estimated}=M_{\mathrm{rows}1-3}\left(RG{B}_{A}RG{B}_B-M_{\mathrm{row}4}^T\right).$$

(1)

To reduce color artifacts and visible noise, an initial matrix is predefined within the BeyondRGB pipeline as [22]

$$M_{initial}=\left[\begin{array}{cccccc}0.1& 0.1& 0.25& 0.5& 0.1& 0.1\\ 0.1& 0.1& 0.25& 0.1& 0.1& 1.0\\ 0.1& 0.1& 0.25& 0.1& 0.1& 0.5\\ 0.01& 0.01& 0.01& 0.01& 0.01& 0.01\end{array}\right]$$

(2)

Color differences are calculated in the same way as the filter selection simulation. A report on the color differences for the calibration and verification targets is output, along with a color-mastered TIFF in the ProPhoto gamut.

2.4. Verification

To evaluate whether the simulation can provide a good prediction of the filter performance, another simulation was run using the measured spectral characteristics of the Broncolor strobes, filters, and Canon camera. In this simulation, the transformation matrix was a $4\times 6$ matrix optimized for the minimum mean color difference using a pseudoinverse as the initial matrix to account for scaling differences. If the simulation has a good prediction, there should be a linear relationship between the simulated and physical results. Some differences in slope are expected, since the simulation does not account for the quantization of camera signals or exposure steps.

2.5. Role of Generative AI

Generative AI was used to build Matlab functions to visualize the data. It was not used in any other capacity.

3. Results

3.1. Comparison of Filter Pairs

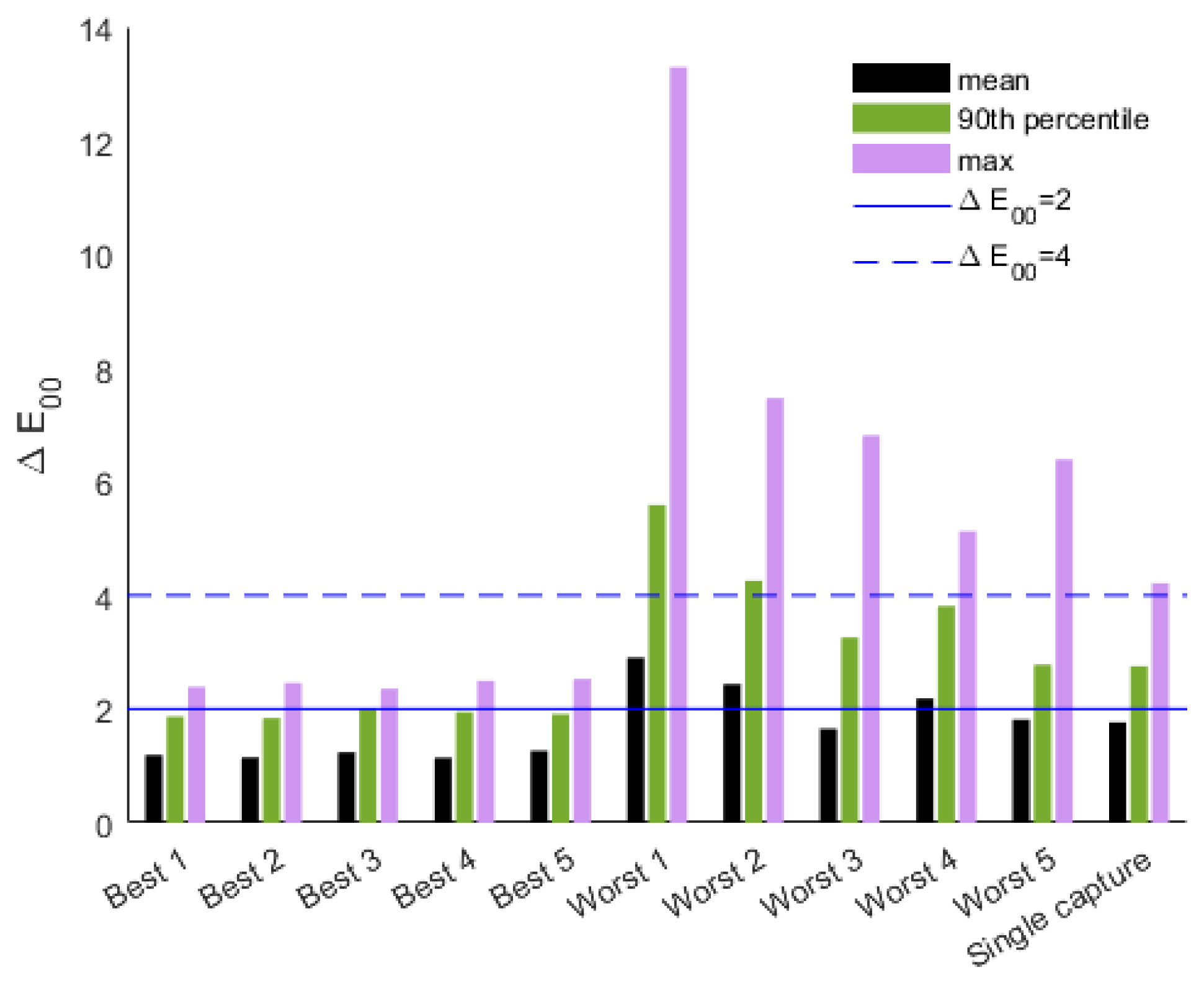

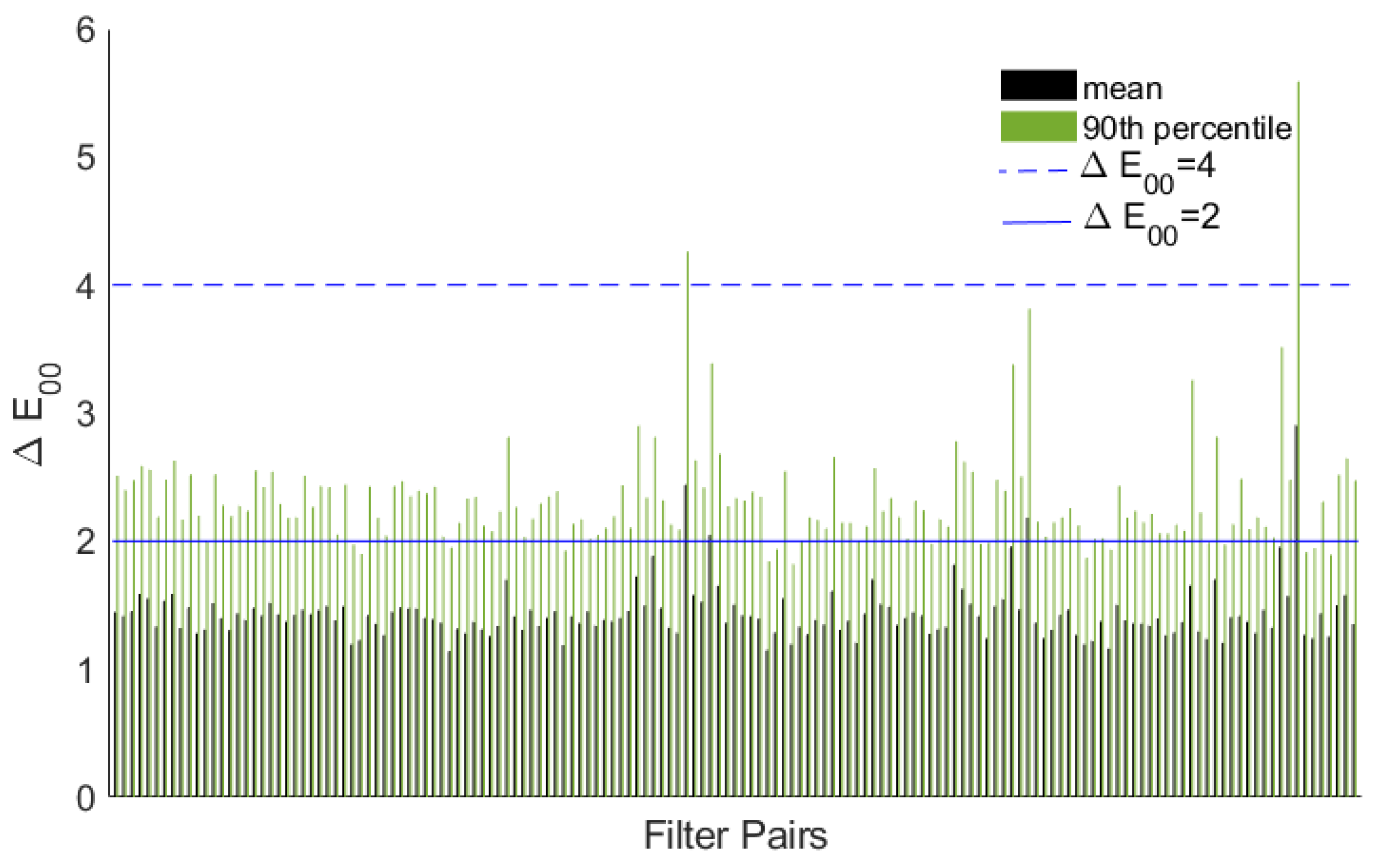

The color accuracy of each dual-RGB lighting condition is evaluated by comparing the mean, 90th percentile, and maximum $\Delta E_{00}$ values for the verification target (NGT). A bar chart summarizing the performance of all the filter pairs with the Broncolor strobes can be found in Figure A1. They can be ranked by summing the minimum, mean, 90th percentile, and maximum $\Delta E_{00}$ values together. Figure 2 shows the five top- and bottom-ranked filters for the Broncolor strobes, as well as the color-accuracy of the traditional, single-capture method.

Almost all of the filter pairs result in high color accuracy, as does the single-capture method. All but three of the conditions meet the FADGI four-star color accuracy parameters of a mean $\Delta E_{00}\le 2$ and a 90th percentile of $\Delta E_{00}\le 4$. It is not surprising that the single-capture method has such high color accuracy. Broncolor strobes are widely used within the cultural heritage community and are known to be excellent for color reproduction.

The top five filter pairs have noticeably higher color accuracy than the single-capture technique, while the bottom five have lower color accuracy. The filter is crucial for improving color accuracy. A poor selection can not only decrease color accuracy compared to regular single capture methods but also introduce a higher chance of misregistration errors and noise due to the higher number of channels and optical distortions.

3.2. Comparison of Lights

Given that the Broncolor strobes provide good color accuracy even with the single-capture technique, it is unsurprising that most filter pairs also provide high color accuracy. To assess how the light source impacts color accuracy, the same filter pairs were combined with a tunable LED approximation of illuminant D50. In addition, because the materials were readily available, the unfiltered Broncolor strobes and the accompanying incandescent modeling light were assessed as a dual-RGB lighting pair.

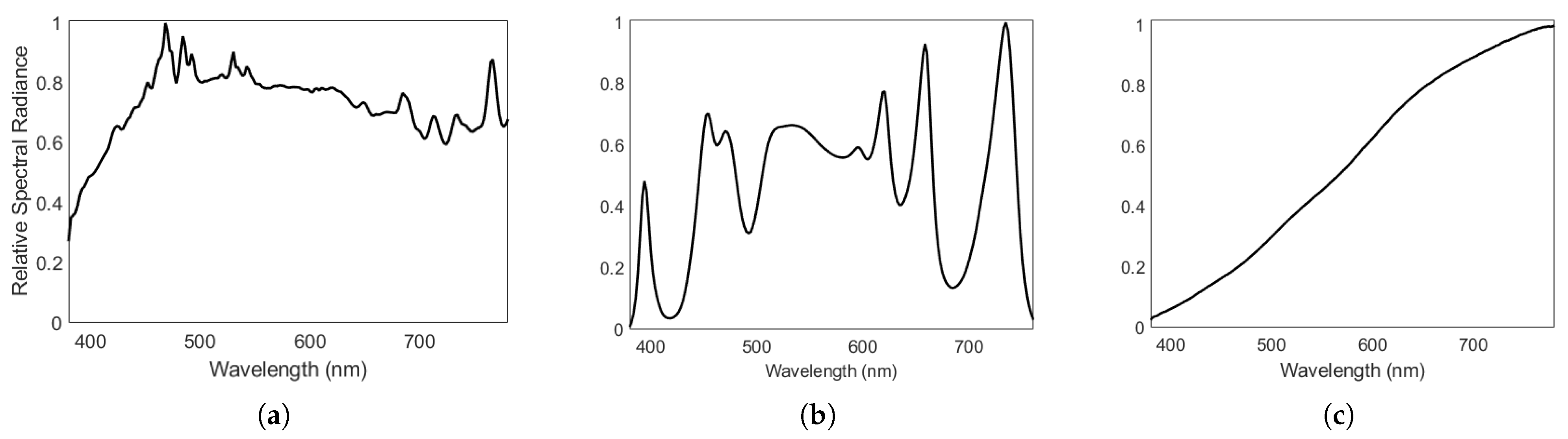

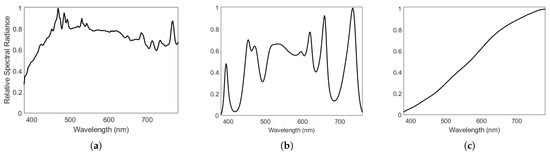

Figure 3 shows the spectral power distributions of the Broncolor strobes, the tunable LEDs, and the Broncolor modeling lamp.

3.2.1. Tunable LEDs

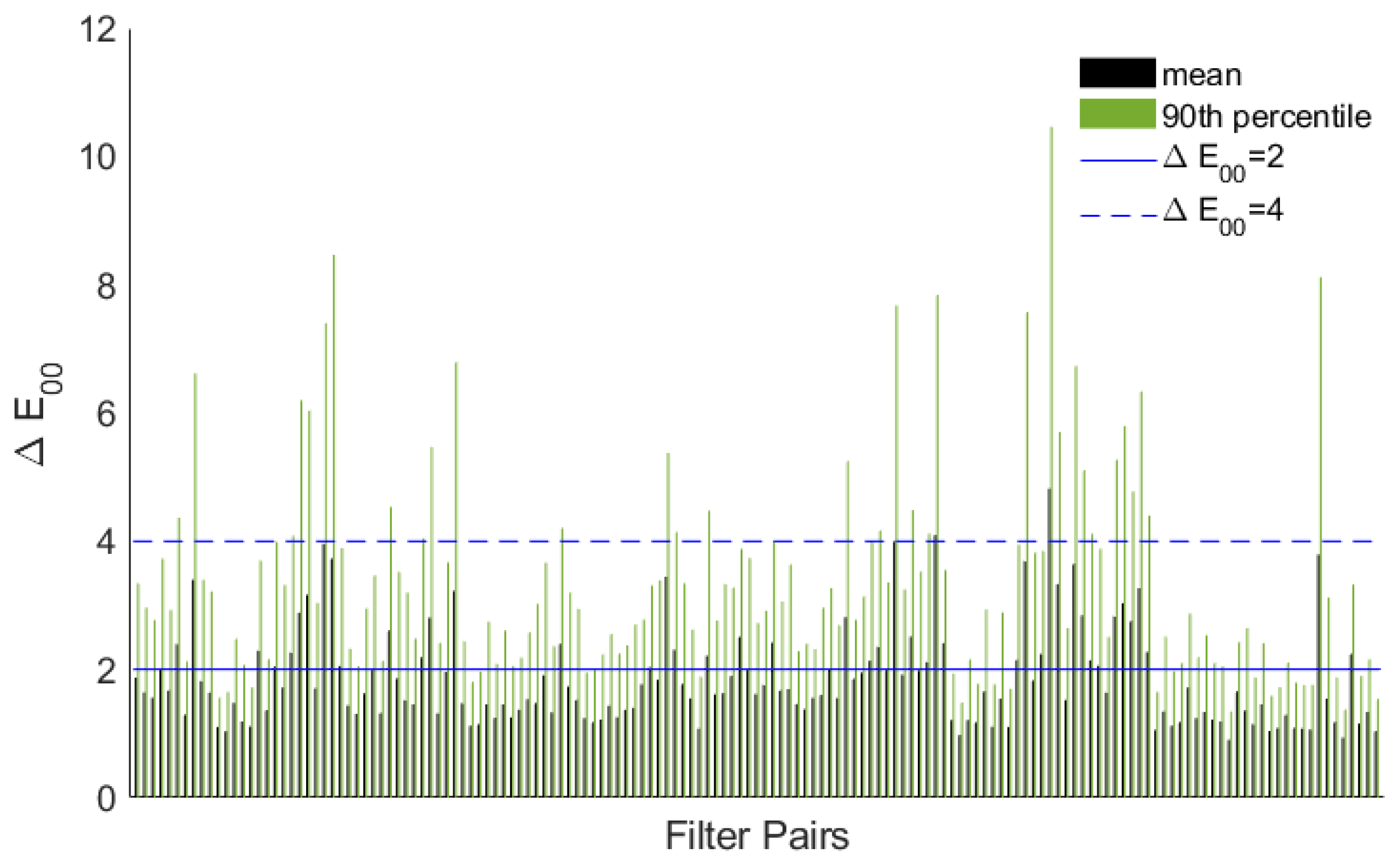

A bar chart summarizing the mean and 90th percentile $\Delta E_{00}$ values for each filter pair combined with the LED light can be found in Figure A2. A little under one-third of the filter pairs do not meet the four-star color accuracy criteria with this light.

It should be noted that the strobe and LED image sets were taken at slightly different distances to accommodate for intensity differences between the light sources. Furthermore, the color targets are not in the exact same position between the lighting conditions, though in both cases, care was taken to minimize specular reflections. These differences in setup may be responsible for small differences in color accuracy. Large differences, however, can be attributed to the light source.

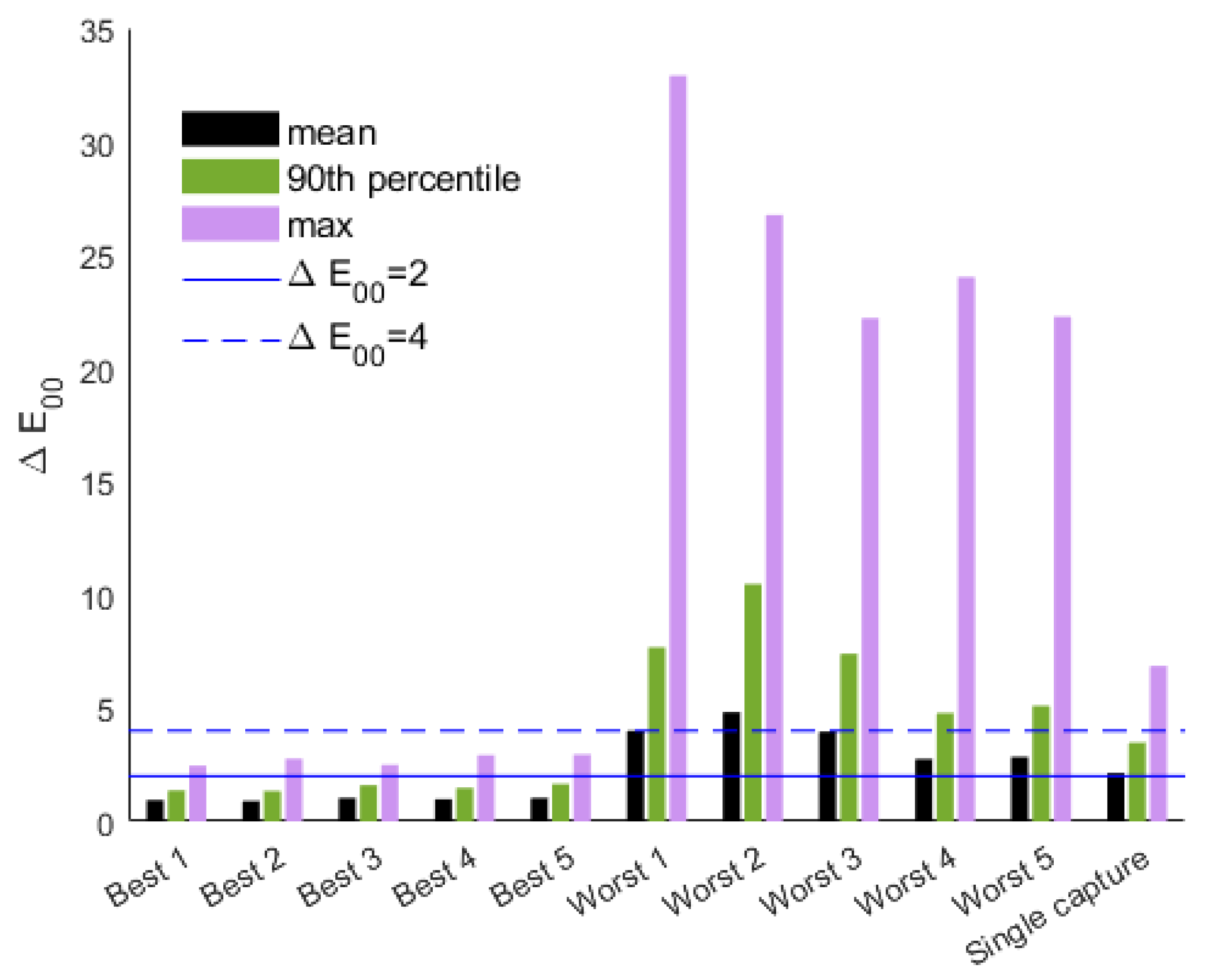

Figure 4 summarizes the color accuracy for the top- and bottom-ranked filter pairs and the single-capture method using the tunable LED light. These filter pairs are labeled Best and Worst, 1 through 5, for ease of understanding. These are not the same filter pairs ranked highest and lowest for the Broncolor strobes.

The top five filter pairs obtain a similar color accuracy to the top five with the Broncolor strobes. The single capture is a little worse, just missing the four-star color accuracy parameters, with a mean $\Delta E_{00}=2.14$. The most noticeable difference is with the bottom five filter pairs. With massive maximum $\Delta E_{00}$ values and large means and 90th percentiles, these bottom five filter pairs result in terrible color accuracy.

The selection of light greatly affects the color accuracy in the dual-RGB method. Compared to the Broncolor strobes, the choice of filters is even more crucial with the tunable LEDs. A poor selection can result in terrible color accuracy. However, a good selection can provide a significant improvement over the single-capture method.

3.2.2. Strobe and Modeling Lamp

The final lighting considered was a pairing of the Broncolor strobes with the accompanying modeling lamp. One of the advantages of this condition is that the exposures are adjusted via aperture for the strobe but shutter speed for the modeling lamp. This means that the maximum exposure without overexposure could be obtained for both lights simultaneously, despite differences in radiance, increasing the signal-to-noise ratio for all channels. Figure 5 summarizes the color accuracy using this method compared to single capture with the Broncolor strobes.

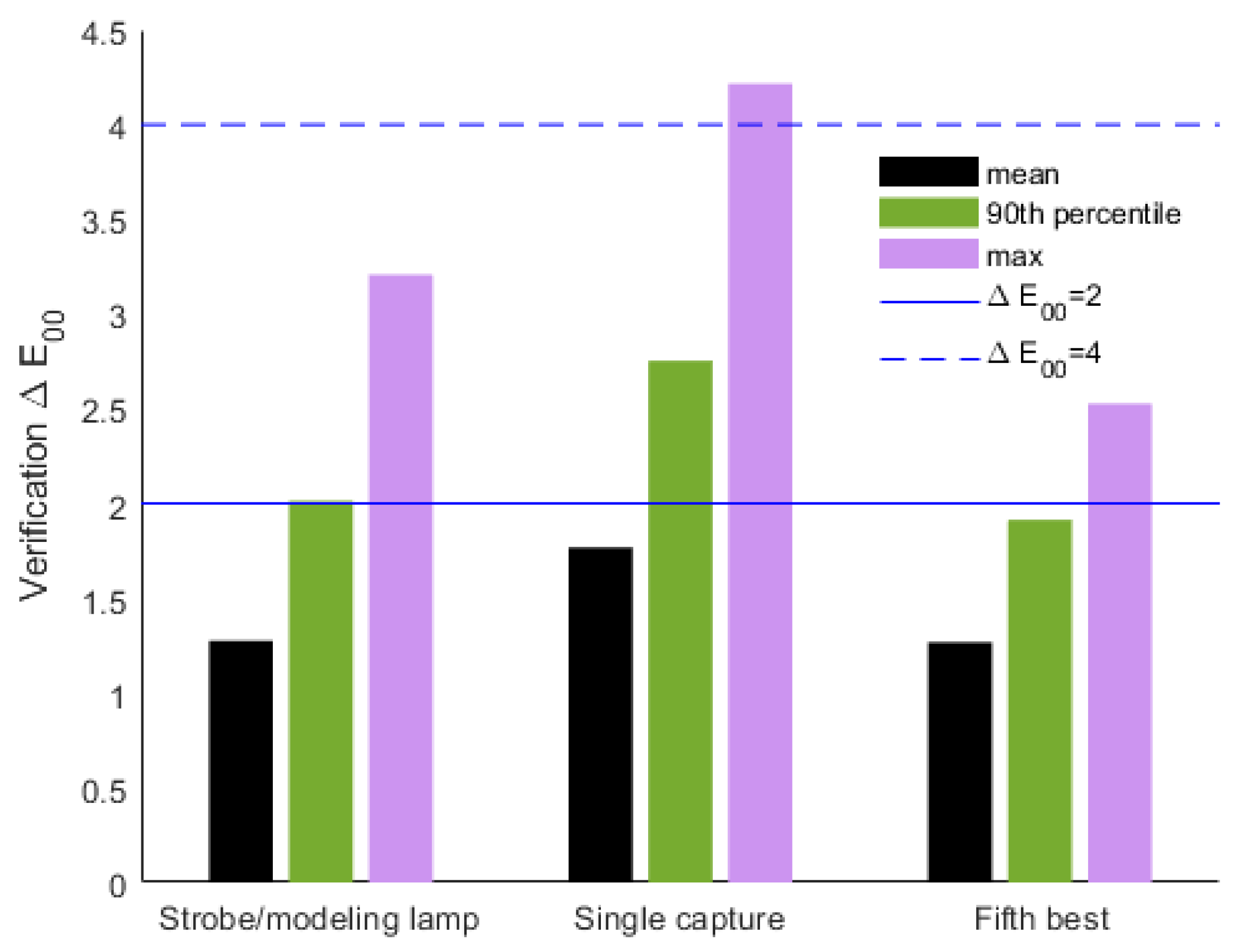

There is a slight increase in color accuracy using the dual-RGB method with the strobe and modeling light compared to the single-capture method. With respect to the mean and 90th percentile $\Delta E_{00}$, the color accuracy is similar to the fifth top-ranked filter pair using the Broncolor strobes.

3.3. Pixel Selection

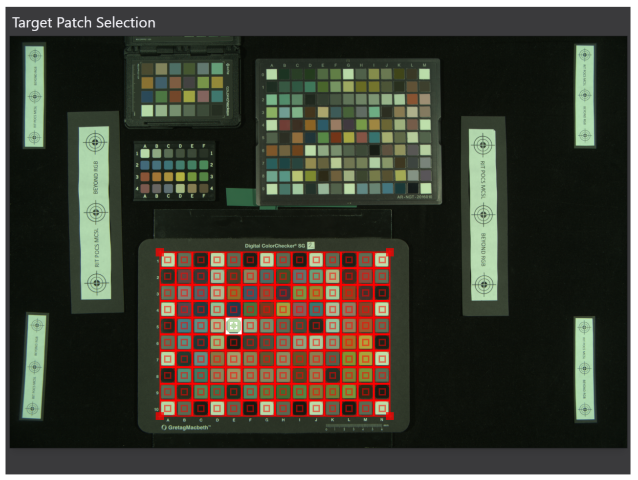

In BeyondRGB, the color target patches are manually selected using a grid and coordinate system, as shown in Figure 6. These pixels are averaged and then used to fit a transformation and calculate color differences.

There is some variation in the exact pixels that a user may select while keeping the selection area within the color patches. Ideally, the variation in camera signals within a patch would be negligible, and the exact pixels would not significantly impact the results. However, this is not the case.

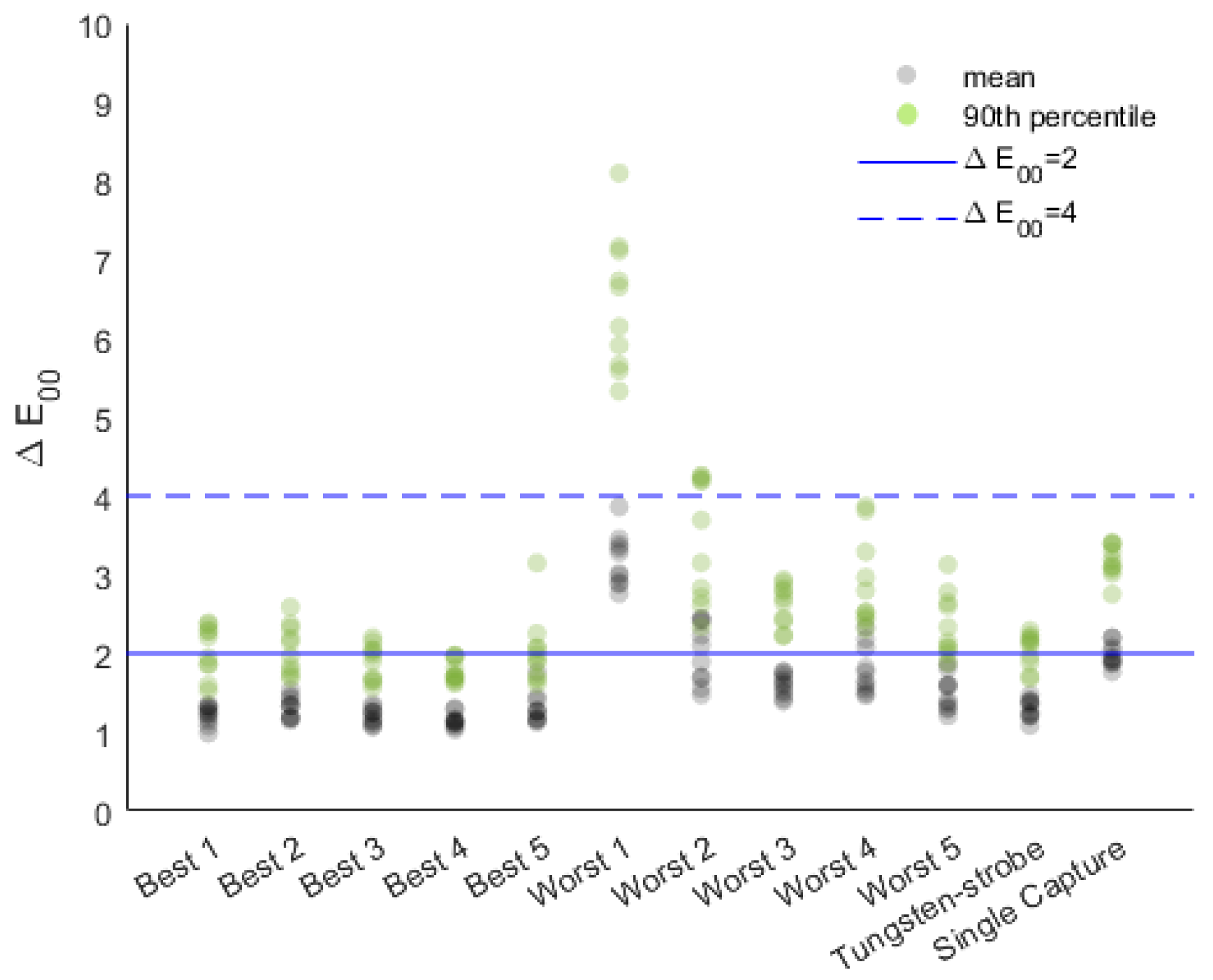

The top- and bottom-ranked filter pairs were processed ten times each, with different pixel selections each time. Figure 7 shows the impact of selecting different pixel areas on the mean and 90th percentile $\Delta E_{00}$ values.

The pixel selection can significantly impact the final results, though the degree depends on the filter pairs. This has two major implications. First, the top- or bottom-performing filter pairs may change if the input pixels change, leading filters that generally perform well to perform poorly, and vice versa. Second, some filter pairs will generate very noisy images that are unsuitable for cultural heritage documentation.

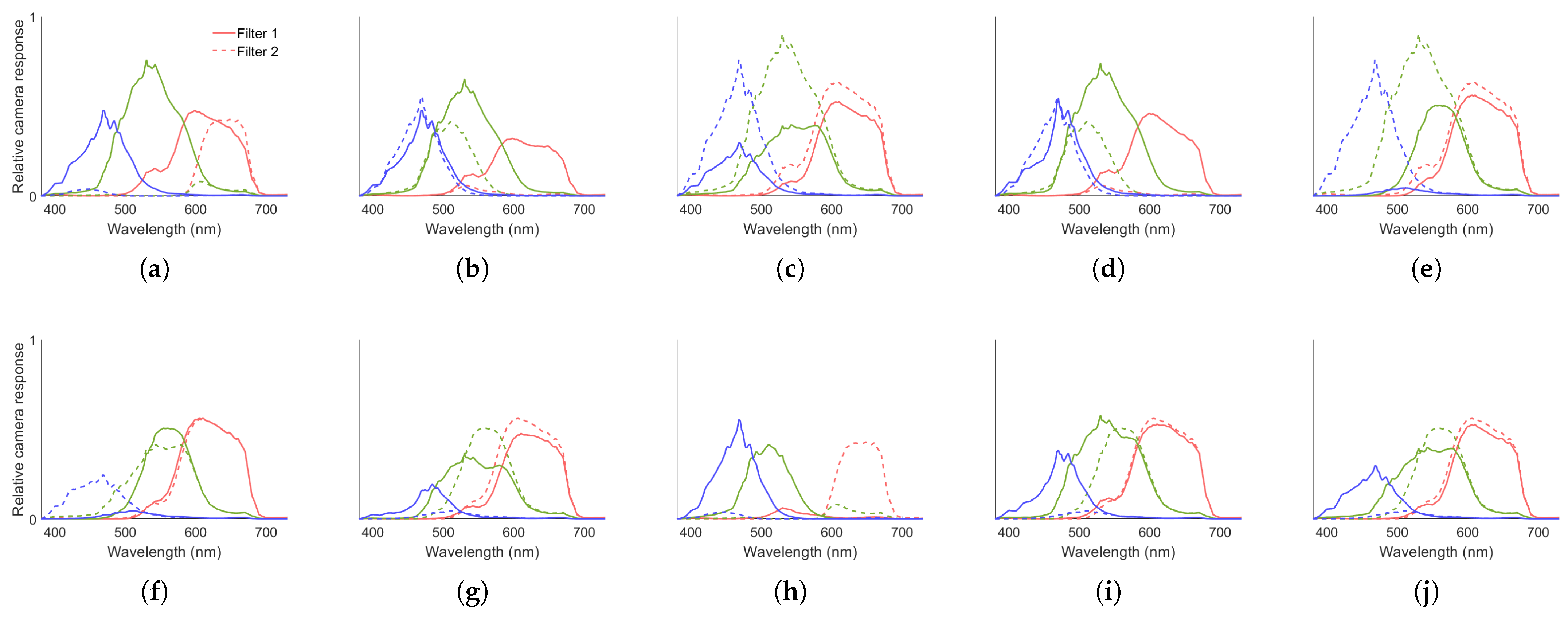

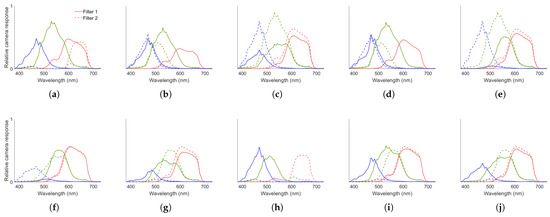

In general, the bottom five filters are more impacted than the top five filters. An explanation is found in the relative camera responses for each filter pair. Figure 8 shows the relative camera responses normalized to the unfiltered Broncolor strobe, and

Table 2. Identity of five top- and bottom-performing filter pairs for Broncolor Pulso G strobes.

Rank	Top-Ranked	Bottom-Ranked
1	Lee 245/Lee 113	Rosco 15/Rosco 312
2	Lee 731/Lee HT118	Rosco 15/Lee 441
3	Unfiltered/Lee 004	Lee 113/Lee HT118
4	Rosco 87/Lee HT118	Rosco 15/Lee 442
5	Unfiltered/Rosco 15	Rosco 15/Lee 004

displays the identity of each filter pair.

Two apparent factors should be noted, both of which reduce the number of effective channels. The first is the maximum response for each channel. While the overall camera signal can be increased through exposure adjustments, the relative signal between channels cannot be changed. A low maximum response results in a low signal-to-noise ratio, increasing the variation in digital count for that channel. The second factor is the similarity between channels. When two channels are nearly identical in shape, the camera signals will be highly redundant. This can cause the optimization to oscillate between the two channels, often reaching a large, but opposite contribution between the channels in the transformation matrix. This amplifies any differences between the images, resulting in high noise and other visible color artifacts. The issue is discussed in detail in Bern’s review on image quality degradation caused by color transformations in multispectral imaging [22]. While BeyondRGB does use a predefined initial matrix to reduce this effect, some of the final matrices do display these large, opposite contributions.

When both of these issues are present, they conflate, resulting in unpredictable color differences and noisy images. The worst-ranked filter pair is a good example of this. The two red channels are nearly identical, while both blue channels have a low relative sensitivity. Accordingly, the pixel selection has a very large influence on the color difference values, as shown in Figure 7. Figure 9 shows the color artifacts and noise resulting from this combination.

Table 2 shows that several of the filters are present in more than one pair. See, for example, that Rosco 15 appears in four of the five bottom-ranked filter pairs. However, when paired with the unfiltered camera sensitivities, the Rosco 15 filter is ranked as the fifth best. Similarly, the first two top-ranked pairs contain Lee 113 and Lee HT118, respectively. However, the third bottom-ranked filter is the combination of these two. Two filters performing well independently does not indicate that they will be a good pair, in large part due to the factors of redundancy and maximum response, discussed above. In the case of the Rosco 15 filter (yellow), there is very little signal for the blue channel, while the red channel is left relatively unchanged. When paired with other filters that have similar characteristics, there is a low signal-to-noise ratio in the short wavelengths and high redundancy in the long-wavelengths, for example, in the bottom-most ranked filter pair. The combination of Lee 113 (red) and Lee HT118 (teal) only has three effective channels due to low transmittance, and the remaining three channels primarily contribute noise.

3.4. Verification Simulation

The filter selection simulation described in the Methods used a wide variety of lights, filters, and cameras to try to locate filter pairs that would be ideal in most cultural heritage settings. The results from that simulation do not provide a good prediction of how the filter pairs perform with the Broncolor strobes or the tunable LEDs. For filters to be a reasonable solution to low-cost dual-RGB imaging, predicting the optimal filter pairs must be possible.

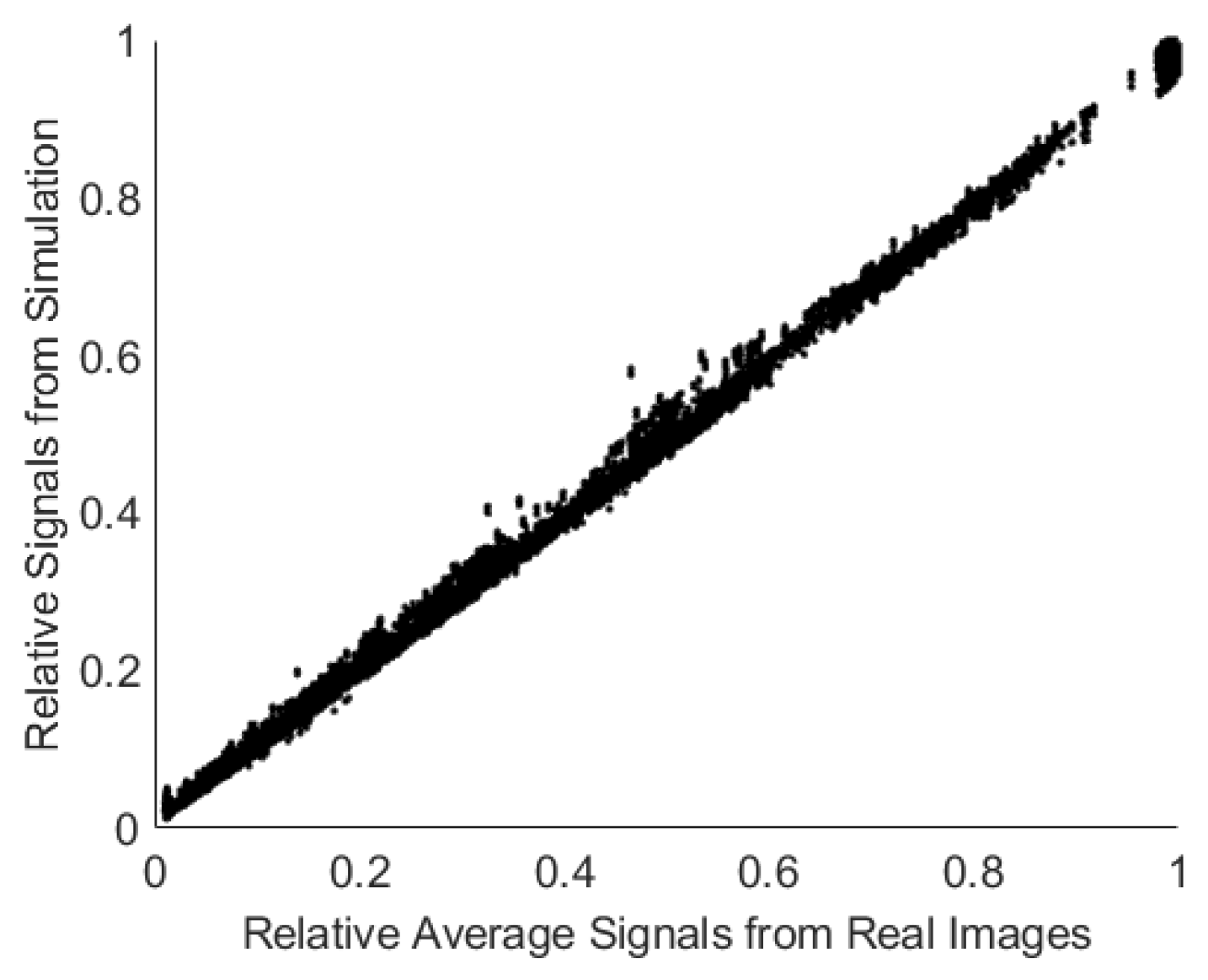

As described in Section 2.3, the verification simulation uses measurements from Broncolor strobes, the Canon camera, and available filters as an input. It follows the same processing steps as BeyondRGB as much as possible. This simulation is capable of predicting the camera signals very well. There are some differences in scale due to exposure steps when working with a real camera, which were not replicable in the simulation. When normalized by the maximum signal, the relationship between the simulated and average real camera signals is highly linear, as shown in Figure 10.

After the camera signals are simulated, the linear transformation matrix is fit by non-linear optimization. This transformation converts the camera signals into 1931 tristimulus values. Figure 11 shows the estimated $XYZ$ values as calculated in the simulation, compared to the BeyondRGB output from the real images.

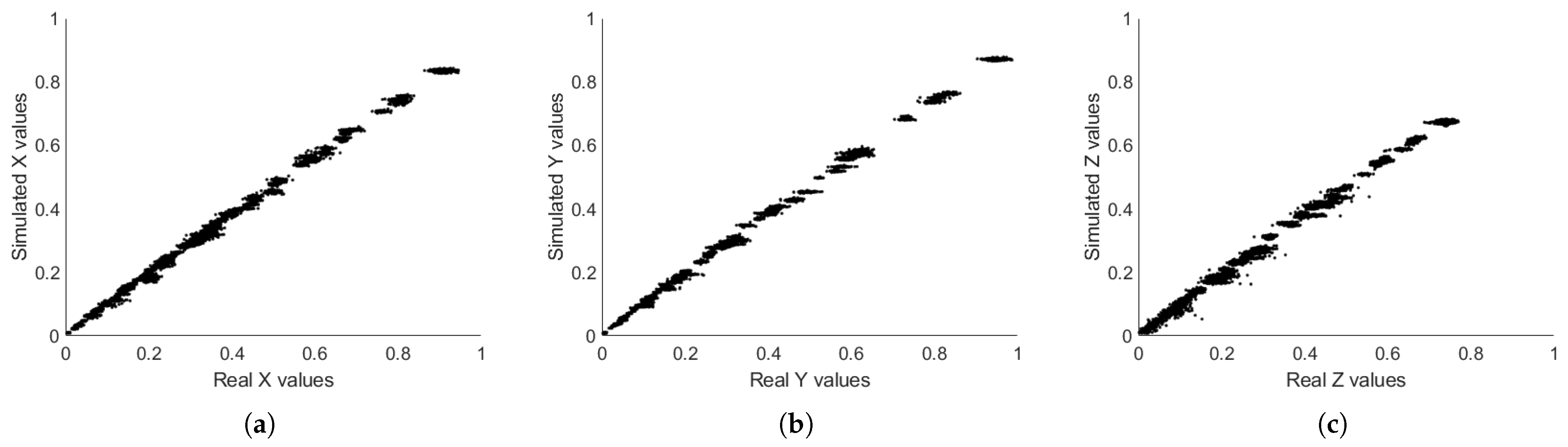

The relationship between the simulated and real $XYZ$ estimates is linear but has a lot of variation. This is partly due to the factors discussed in Section 3.3. Unlike the real images, the simulation does not contain any noise, so the relative magnitude or shape of the camera responses does not generate noise in the predicted results. Some of the variation may also be caused by the scaling differences between the initial matrices for the optimization. These differences necessitated a different initial starting matrix, which could result in different local minima.

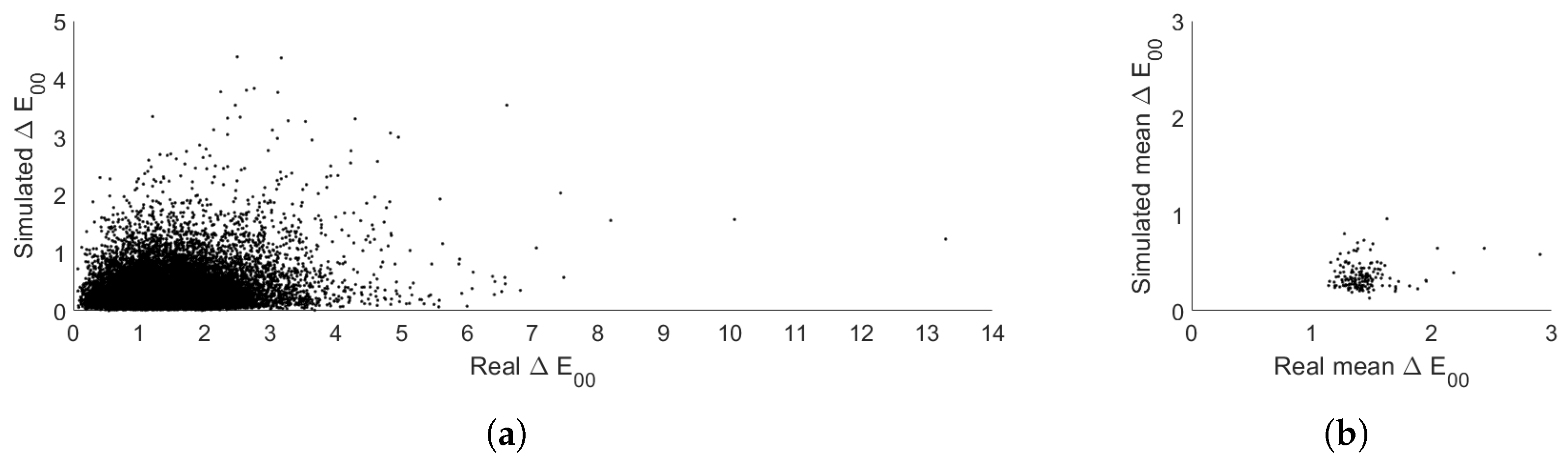

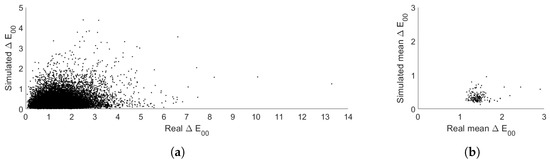

Unfortunately, this mostly linear relationship between the 1931 tristimulus estimates is insufficient to accurately predict $\Delta E_{00}$ with consistent accuracy. The calculation of $\Delta E_{00}$ between two $XYZ$ values includes several transformations, including compression, expansion, and rotation, in order to describe a roughly perceptually uniform space. This means that the color difference depends not just on the magnitude of the differences between the tristimulus values but also on the exact coordinates. Therefore, even small differences between the $XYZ$ estimates compared to the reference values can result in large color differences, and vice versa. Figure 12 shows the lack of correlation between the simulated and real $\Delta E_{00}$ values.

The simulation tends to underestimate the $\Delta E_{00}$ values compared to the values obtained from the real images. This is, in part, because the simulation is not subject to noise or geometry effects such as gloss and lighting non-uniformities. Unfortunately, the simulation is the worst at predicting mean $\Delta E_{00}$ values for the filter pairs with the highest color differences in reality. Therefore, the simulation cannot be used to select optimal filters.

4. Discussion

The context of this research is within the field of accessible color-accurate imaging. The main aspects for consideration are ease of integration, ease of use, cost, and quality.

The dual-RGB method is inherently more accessible than most multispectral imaging methods, as almost all the materials required are already on hand in most imaging studios. The BeyondRGB software further increases accessibility by being free, open-source, and user-friendly. Gel filters can be obtained at a very low cost compared to imaging-quality tunable LEDs. Furthermore, filters can easily be incorporated into an existing workflow with minimal disruption, allowing for both traditional single capture and dual-RGB capture by simply attaching the filters to the existing lights. With tunable LEDs, the lights must be replaced entirely. Compared to camera filters, lighting filters reduce registration errors due to optics and handling. In general, gel filters can also be obtained at a lower price than camera filters. Gel filters are, therefore, a good solution in terms of ease of integration, ease of use, and low cost. However, several issues hinder the practical implementation of this method with regard to quality.

The color accuracy of each filter pair depends greatly on the spectral characteristics of the light source used. Some filter pairs obtained high color accuracy with both the Broncolor strobes and the tunable LEDs, but the identity of these pairs was not consistent across both light sources. Knowing the spectral power distribution of the light source is essential for selecting optimal filter pairs. Unless this information has been openly published, the light must be measured using a spectroradiometer or similar instrument. Many cultural heritage institutions do not have access to such instruments. Alternatively, with further research, several combinations of filter pairs could be identified for popular or low-cost light sources. However, this approach would require that cultural heritage institutions purchase both the lights and lighting filters, increasing cost and decreasing the ease of integration.

A tool that can accurately identify optimal filter pairs for a given light source is necessary for lighting filters to be a feasible dual-RGB option. The results show that, while some filter pairs can provide high color accuracy, other filter pairs may greatly decrease color accuracy. Without a tool to sort through these options, cultural heritage institutions risk purchasing filter pairs that decrease color accuracy while increasing image noise. The verification simulation could not accurately predict filter performance. While the simulation could easily predict the average camera signals from the color targets, it fell short of predicting the 1931 tristimulus values and the $\Delta E_{00}$ color differences.

Another barrier to using lighting filters is the trade-off between channel redundancy and low maximum signals. Both of these issues contribute to calibration inconsistency and image noise. Since the two conditions utilize the same light source and camera, there will always be some degree of redundancy between the channels. The only way to reduce the redundancy is to reduce the light by introducing a filter and therefore reduce the maximum signal. This issue is exacerbated when the transmittance of one filter is much higher than the other.

Despite the complications discussed above, there is still value in pursuing this method further, especially considering the very low cost associated with gel filters. Further, the results show that a greater improvement is possible for the tunable LEDs than the Broncolor strobes compared to the single capture method. This may indicate that the gel–filter dual-RGB method is the most beneficial for light sources with generally poor color rendition, which is also where an improvement in color accuracy is the most necessary.

To address the issue of finding the spectral power distribution of a light source, a resource can be created to direct cultural heritage professionals to publicly available databases or to low-cost alternative light sources with known spectral characteristics. The simulation must be adjusted to be an appropriate prediction tool. This may be done by increasing the transmittance threshold or introducing a threshold to minimize redundancy between channels. Alternatively, instead of trying to model each step of the process, thus accumulating error in each calculation, the simulation could instead identify desirable characteristics for the filters. Additionally, changes can be made to the pipeline in BeyondRGB to reduce some of the variation caused by pixel selection and increase the generalization of the math, for example, by allowing for different exposures in each condition, removing channels with low signal or high redundancy, adjusting the initial matrix based on channel characteristics, or minimizing for noise in addition to color difference.

5. Conclusions

The integration of gel lighting filters into an imaging setup is explored as an accessible solution for improved color accuracy using the dual-RGB method. Gel filters are highly accessible but vary somewhat unpredictably with regards to quality.

Two factors were identified that are believed to cause a decrease in color accuracy and an increase in noise: (1) low maximum relative signals between the six channels and (2) high redundancy between two or more channels.

Although this method has several barriers that are yet to be resolved, it is worth pursuing further due to the very low costs associated with gel filters. In addition, some filter pairs significantly improved the color accuracy, especially with the tunable LED source, which suggests that this method may be the most suitable with light sources that have poor color rendition, where an improvement in color accuracy is the most necessary.

Some barriers that have been identified include the following: (1) Many cultural heritage institutions are not able to measure the spectral characteristics of their light sources. (2) Absorption filters inherently have a trade-off between maximum channel signal and redundancy. (3) The simulation introduced in this paper is unable to predict the performance of filter pairs, even when provided with the spectral power distribution of the light source and the spectral sensitivities of the camera.

In order for gel filters to be a practical solution, identifying filter pairs with good performance is imperative. Future work will look into various methods for accurately predicting the performance of filter pairs.
