The Case History of an Insect Infestation Revealed Using X-ray Computed Tomography and Implications for Museum Collections Management Decisions

Abstract

The protection of cultural heritage and property is a significant and critical task that requires collaboration and expertise in a variety of disciplines. Of the many risk factors, insect infestation is one cause of deterioration and loss. At a large, state university, disparate departments, ranging from Facilities Management to the Entomology Department and Veterinary Medicine, assisted the university museum in identifying a drywood termite infestation, determining the extent of loss and developing a plan to prevent or mitigate future infestations. Our group was able to determine the extent and severity of a drywood termite infestation in the museum storage vault through visual inspection and X-ray computed tomography (CT). This paper describes the process and heuristics of identifying and estimating the amount of active/inactive termite infestations in the art frames as well as visualizing a 3-dimensional structure to learn the extent of infestation. This interdisciplinary collaboration and effectual use of tomography enabled our group to determine the condition of several art frames through non-invasive means and develop a plan of action to identify and prevent future insect incursions within the museum.

1. Introduction

Termites are a diverse group of insects best known for the pest status attributed to a small portion of the over 3000 described species [1,2]. There are 28 invasive species known to be transported by human commercial activity, with the most notorious being the West Indian drywood termite, Crytotermes brevis (Walker) [3]. Drywood termites (family: Kaoltermitidae) obtain all the water required to sustain life from their food and the atmosphere while completing their entire life history inside a single piece of wood [1]. C. brevis evolved in the deserts of western South America, enabling them to survive the dry conditions of the built environment [4], and is known for feeding on works of art that are purchased, traded and maintained in personal or public collections [3].

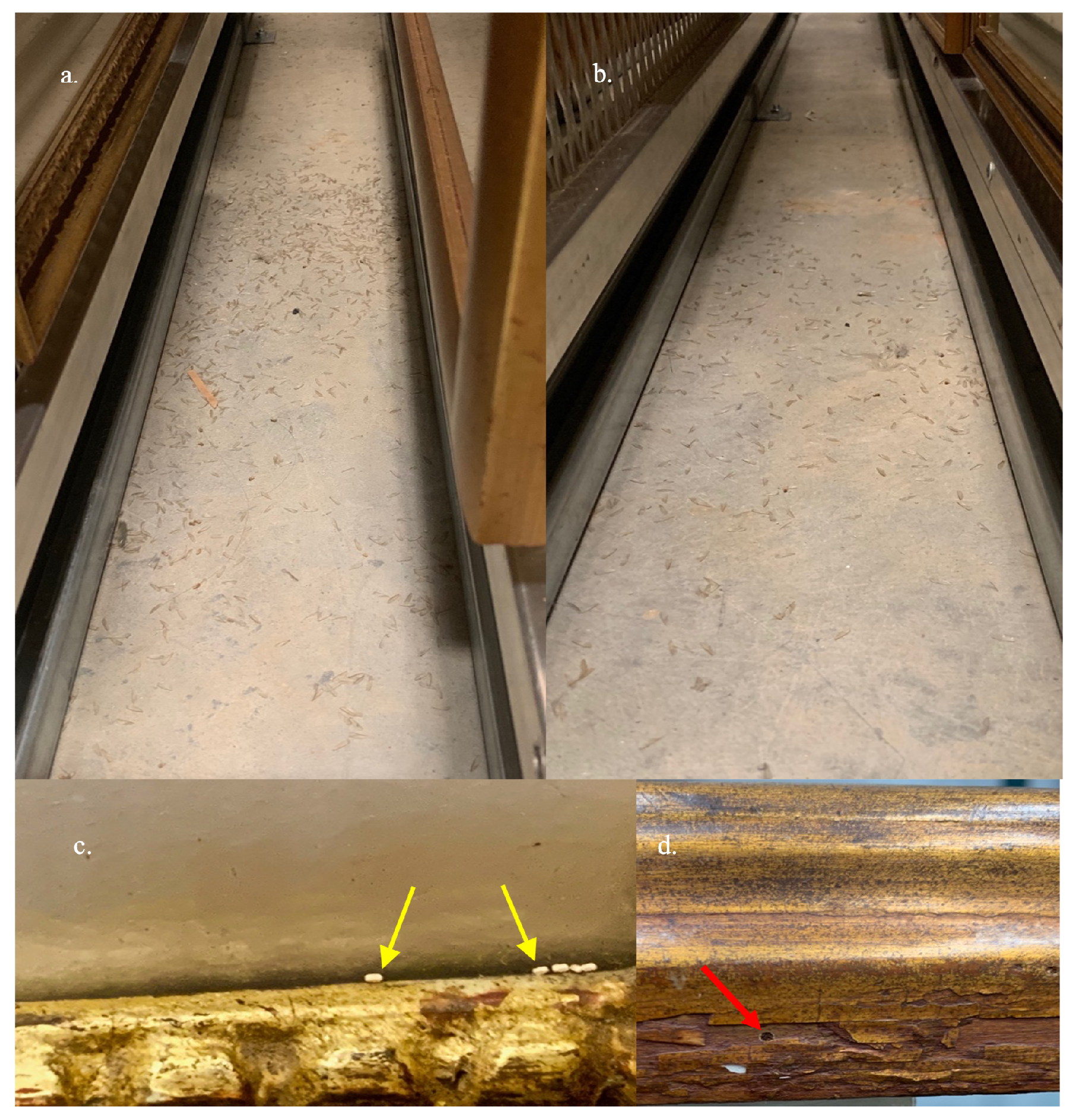

In April of 2019, as part of the Standard Operating Procedure (SOP) of the University of Georgia (UGA) Termite Management Demonstration Project, the Household and Structural Entomology Research Program (HSERP) at the University of Georgia (UGA) received notice from the Facilities Management Division (FMD) of a termite infestation at the Georgia Museum of Art (GMOA). HSERP inspectors were directed to an assembly of insect wings on the floor of the GMOA collections vault (Figure 1a,b). A tentative, on-site identification was drywood termites based on examination of the wings and a few desiccated adult termites. Visual inspection of the art frames stored in the immediate vicinity resulted in the identification of a few drywood termite fecal pellets on two picture frames (Figure 1c). The upper-most frame was identified as infested through observation of one small (1 mm diameter) ‘knock-out hole’ (Figure 1d). These observations led to discussions with the GMOA staff, College of Veterinary Medicine, and the Entomology Department in a collaborative effort to determine the extent of the termite damage to that frame and the extent of infestation to other items in the vault. The infested frame housed a gouache painting on paper created sometime in the mid-19th to early 20th century by British-born American artist George Henry Boughton. The frame itself was made of gilded wood and manufactured in the latter half of the twentieth century. Unlike many of the other frames that were stored in close proximity, which is ornately carved and date as far back as the 18th century, the infested frame is of a simple design and relatively new. The entire collection of framed works on paper housed in this area of the vault is on extended loan to the museum from an individual collector. The museum’s staff, responsible for protecting all works under its stewardship, required information on the scope and potential for spread of the newly discovered infestation to enumerate an appropriate course of action.

The immediate question concerned the painting and its potential for being damaged by the termites. The probability of damage to the painting was small, given that the infestation was undoubtedly initiated prior to receiving the loan and had been ongoing for at least 15 years, the length of time that the art was in the vault. The decision was to err on the side of caution and isolate the painting from the frame. The process of removing the painting revealed numerous drywood termite fecal pellets—six-sided, dry and hard—resembling and having the texture of grains of sand, which confirmed the infestation. The next question involved justification for salvaging the frame and reviewing options for exterminating the insects without damage to the frame. Determining the extent of the infestation was not possible without dismantling the frame, and, therefore, the option of X-ray computed tomography was pursued with the cooperation of the UGA School of Veterinary Medicine who provided access to their Siemens Somatom Sensation 64 slice CT scanner.

2. Methods and Materials

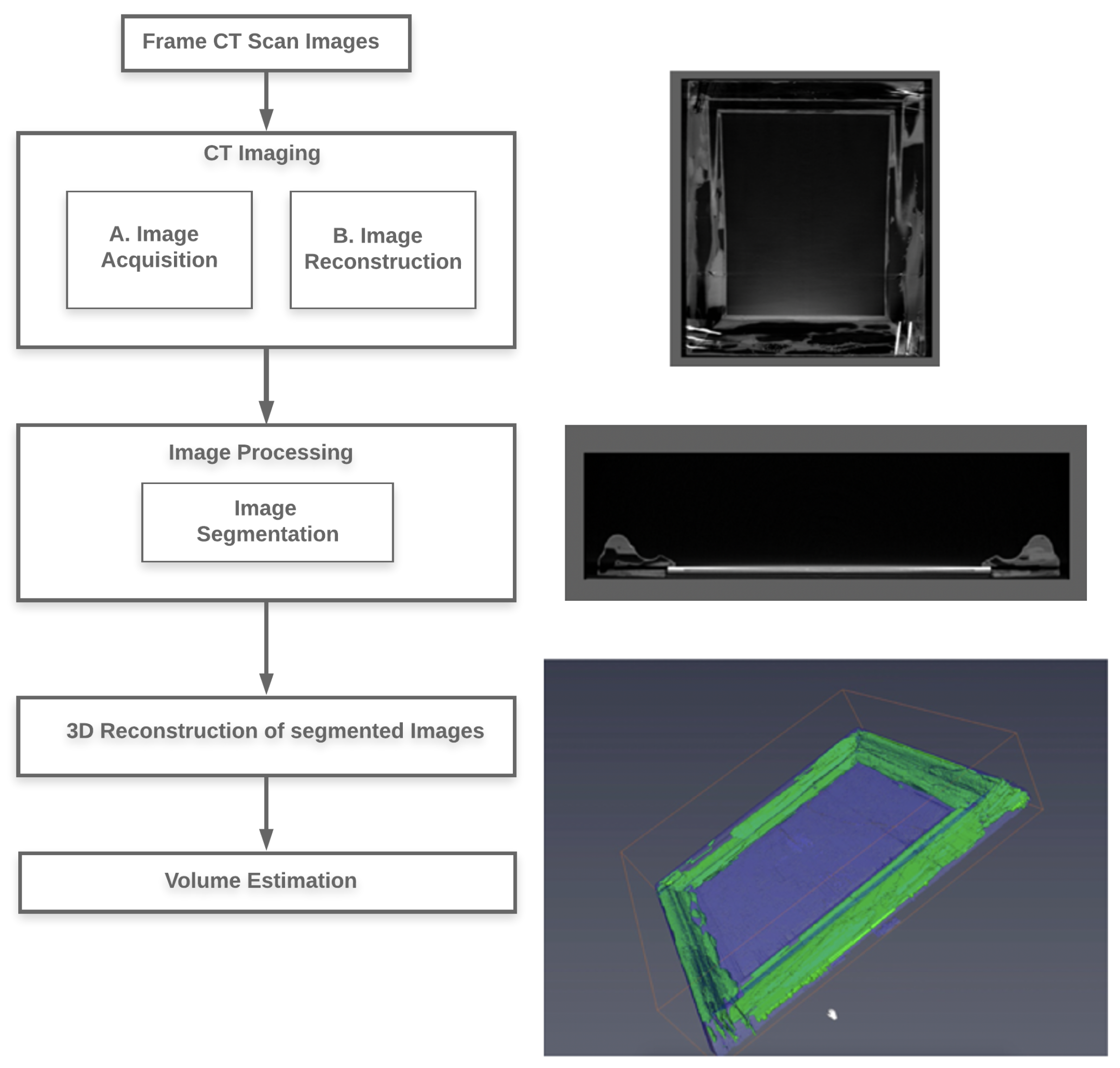

The termite-infested frame and 4 additional frames suspected of being compromised by insects were scanned, using the Siemens Sensation 64 CT unit, which was designed for animal tissues, not wood or works of art [5]. The 3D reconstruction of the art frame’s internal structure involved two basic steps: CT imaging and image processing. The process used to generate the 3D renditions is outlined in Figure 2.

2.1. CT Imaging

The DICOM images generated by the Siemens Sensation 64 CT were on a transverse plane, using an X-ray tube current of 152 mA and peak voltage of 120 kVP to a focal spot of 1.2 mm that was rotated clockwise (source-to-detector distance = 104 cm and source-to-sample distance = 57 cm) to obtain 1040 images per art frame. The exposure time for each image was 190 ms, generating an image of 512 × 512 pixels with pixels sized at 1.27 mm${}^2$, providing an image thickness of 0.6 mm. We examined several programs for manipulating the CT images, including Slicer 3D and Osirix MD, before deciding on Avizo [6]. Avizo provided a user-friendly interface and the option for easy manipulation of the data to create digital models, revealing the extent of the insect feeding activity, presence of live insects, and metrics for calculating the volume of wood removed.

2.2. Image Processing

All fields and options we mention can be viewed in tree form in the Project View window on the Avizo main page. Individual DICOM images were imported to the Avizo Program, using the ‘$File/OpenData$’ option and saved in the $.am$ format. In the Project View option, we created a new object ‘$OrthoSlice$’ to visualize each DICOM image as an orthogonal slice. The ‘$BoundingBox$’ option was used to remove the CT scan bed area and other extraneous parts from all DICOM images. The bounding box was a rectangular, axis-aligned volume in 3D space that encompassed the object of interest [6], in our case, the art frame. We next created a label object using the field ‘Labels’ and attached it to the $.am$ data to permit image segmentation on a defined series of DICOM images, in our case, each of the four art frames. Image segmentation can be achieved by the threshold technique, boundary based methods, region-based methods, and hybrid techniques [7]. We used the threshold technique [8] to generate segmentation maps that identified objects into Regions of Interest (RoI) including the following titles:

• Exterior—the area outside of the picture frame. Areas marked as ‘Exterior’ did not
• contribute to calculation of volume attributed to the wooden frame or insect activity;
• Interior—the wooden area of the picture frame;

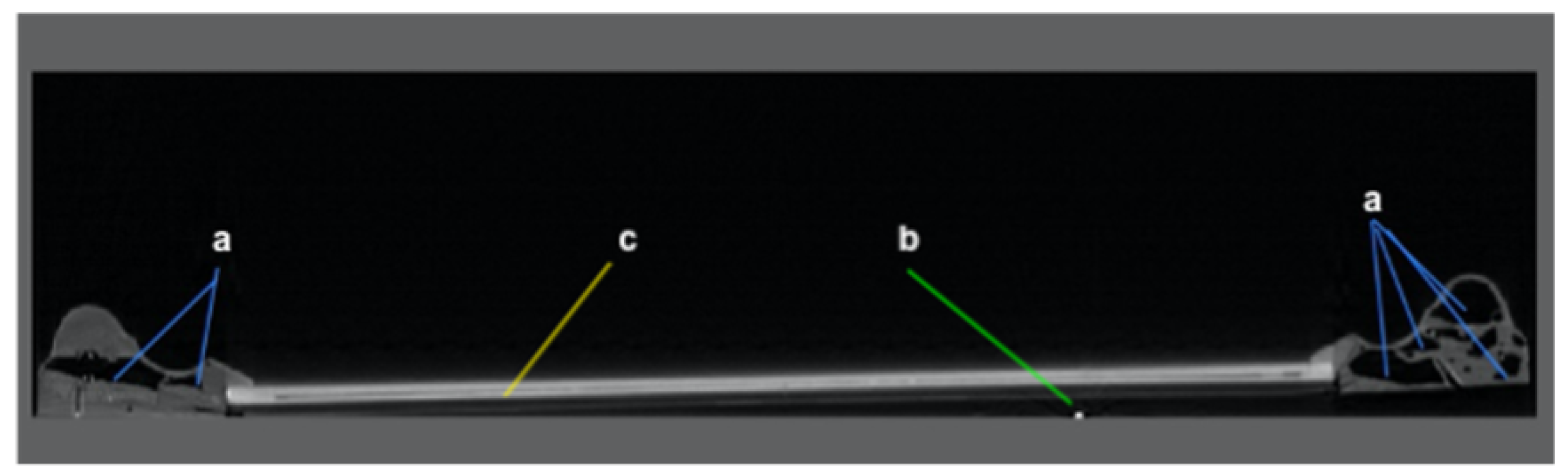

• Insect activity—areas selected from the interior RoI representing wood missing due to feeding and excavation. The presence of live insects was revealed by high intensity pixels not attributed to the RoI ‘nails’ and were placed in the ‘Insect Activity’ RoI (Figure 3a);
• Nails—any metal object captured inside the art frames was marked as ‘Exterior’ (Figure 3b);
• Assumption—data assumed to connect galleries not shown in individual images and
• confirmed by visual examination of the actual wooden frame;
• Other anomalies—any area in non-wooden structures of an art frame (Figure 3c).

Segmentation was accomplished at the basic unit of a pixel. The $Threshold$, and $MagicWand$ tools in the $SegmentationEditor$ were used to select a defined range of pixel intensity for each RoI. The Avizo program has the option to provide a range of 8-bit signed integers to automatically assign pixels to a RoI, using the $MagicWand$ tool. $Threshold$, and $MagicWand$ both provide a multi-handled slider bar to select a range of pixel intensities for each RoI from a histogram of pixel intensity values that are applied to all images within the bounding box. The unpredictable pattern of insect activity proved difficult for both the $Threshold$ and $MagicWand$ tools to correctly identify all insect-related pixels in an image. Thus, individual images were examined to identify the missed pixels in each RoI, and manual selection was performed using the $Brush$ tool in the $SegmentationEditor$ to connect any program-missed pixels. Manual image segmentation using the $Brush$ tool was a time-consuming task to connect insect galleries in all four frames, respectively. Yet, there was considerable time savings in using those tools to properly identify 80% of the pixels in the insect activity RoI.

2.3. 3D Image Reconstruction

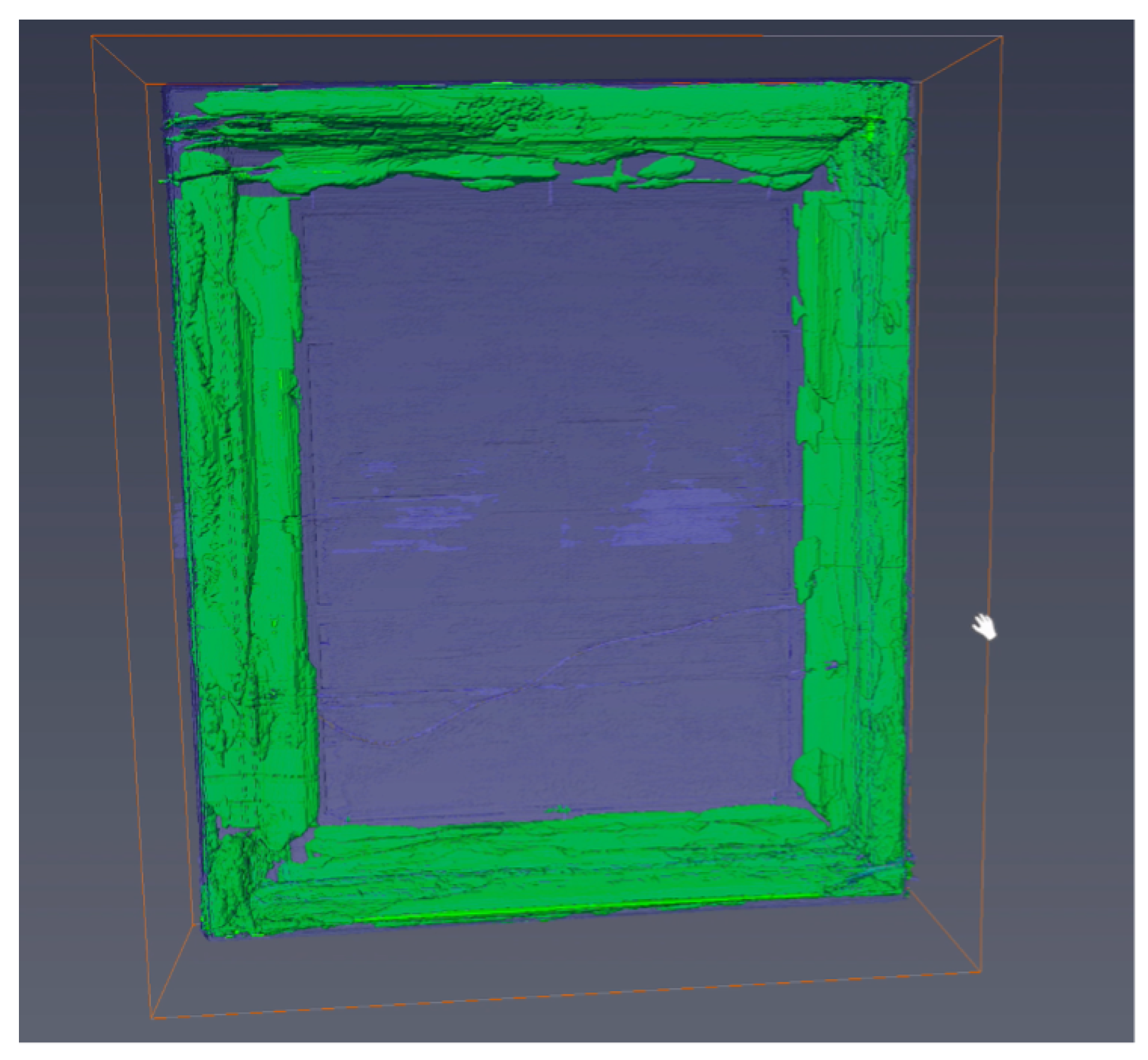

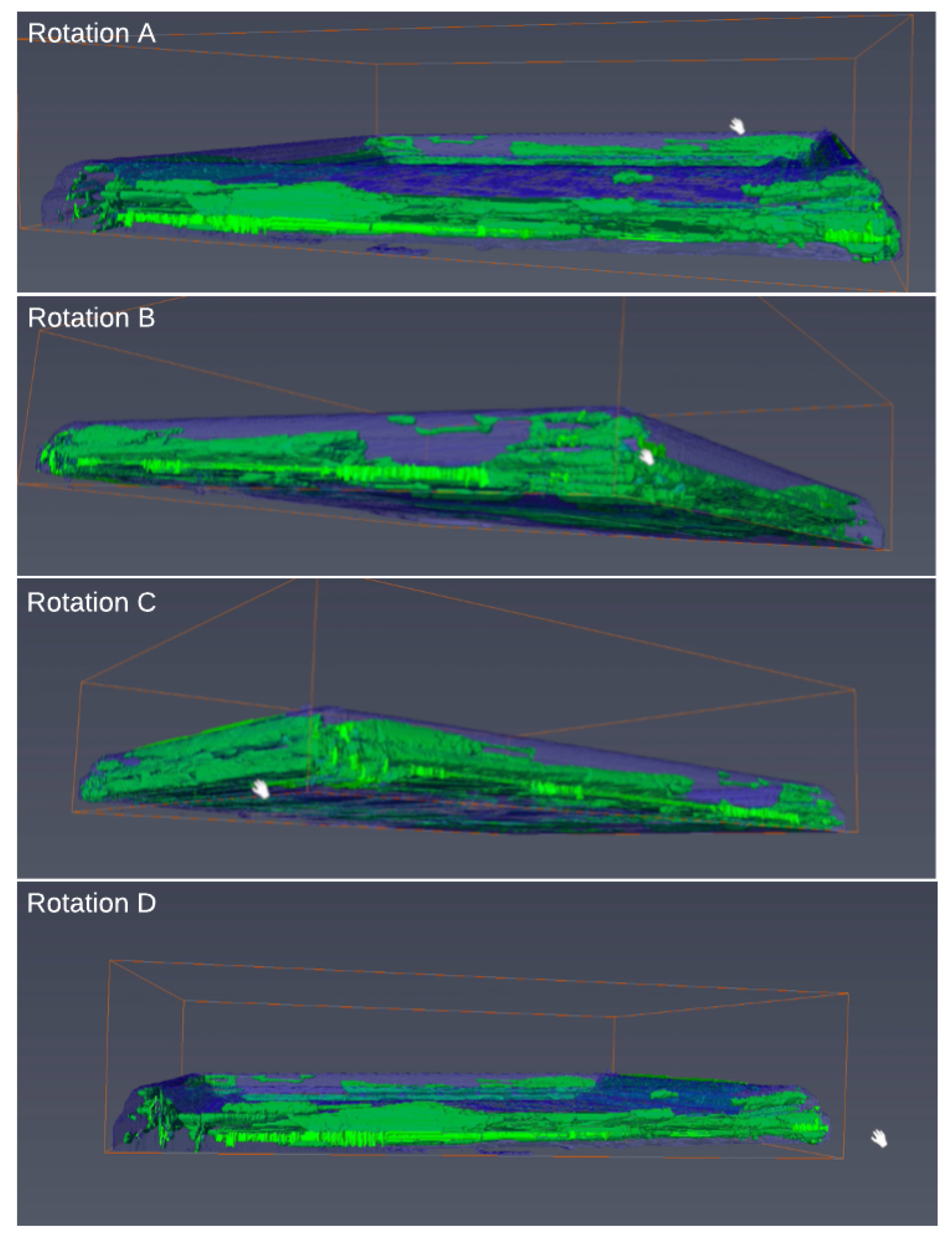

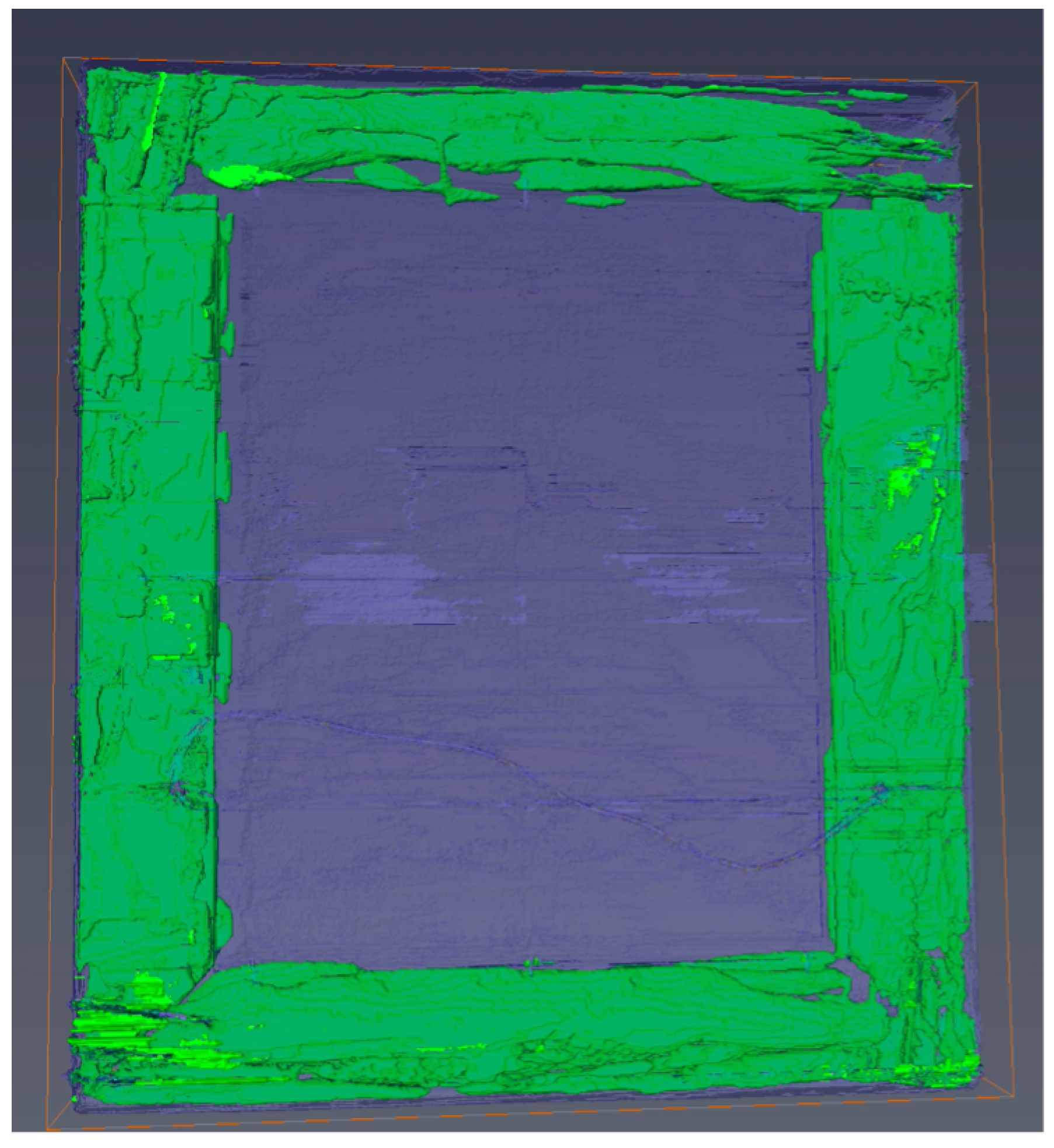

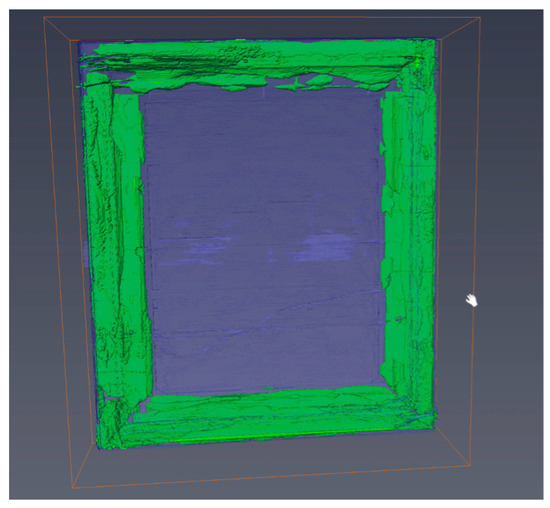

A 3D structure was assembled from the segmented regions, using the ‘$GenerateSurface$’ field. We created a ‘$GenerateSurface$’/‘$SurfaceView$’ object and attached it to the ‘$Labels$’ field, which allowed creation of 3D renditions of the art frame by selecting RoI in ‘$SurfaceView$’ object properties. Figure 4, Figure 5 and Figure 6 depicts 3D views assembled from the segmented regions.

2.4. Volume Estimation

The volume of wood removed was determined using the volume and statistics measurement feature of Avizo [6] under ‘$Segmentation/MaterialStatistics$’ with units set in the Unit Management option. RoI volume was determined by multiplying the pixel count by the distance between images (0.6 mm) to obtain a 1.27 × 1.27 × 0.6 mm${}^3$ voxel. Related voxels within each bounding box were summed to generate a volume. The percentage of volume removed by insects (V) was calculated using the following formula:

$$\begin{array}{cc}\hfill V_{\%}=& \frac{t{a}_{totalinsectactivitypixels}}{t{b}_{totalwoodenframepixels}}\ast 100\hfill \end{array}$$

(1)

$$\begin{array}{cc}\hfill & t{a}_{totalinsectactivitypixels}=q+r\hfill \end{array}$$

(2)

$$\begin{array}{cc}\hfill & t{b}_{totalwoodenframepixels}=p+q+r\hfill \end{array}$$

(3)

where

• V is the proportional volume of wood removed by insects;
• p is the sum of pixels from the interior RoI;
• q is the sum of pixels from the insect activity RoI;
• r is the pixel volume from RoI insect assumptions.

3. Results and Discussion

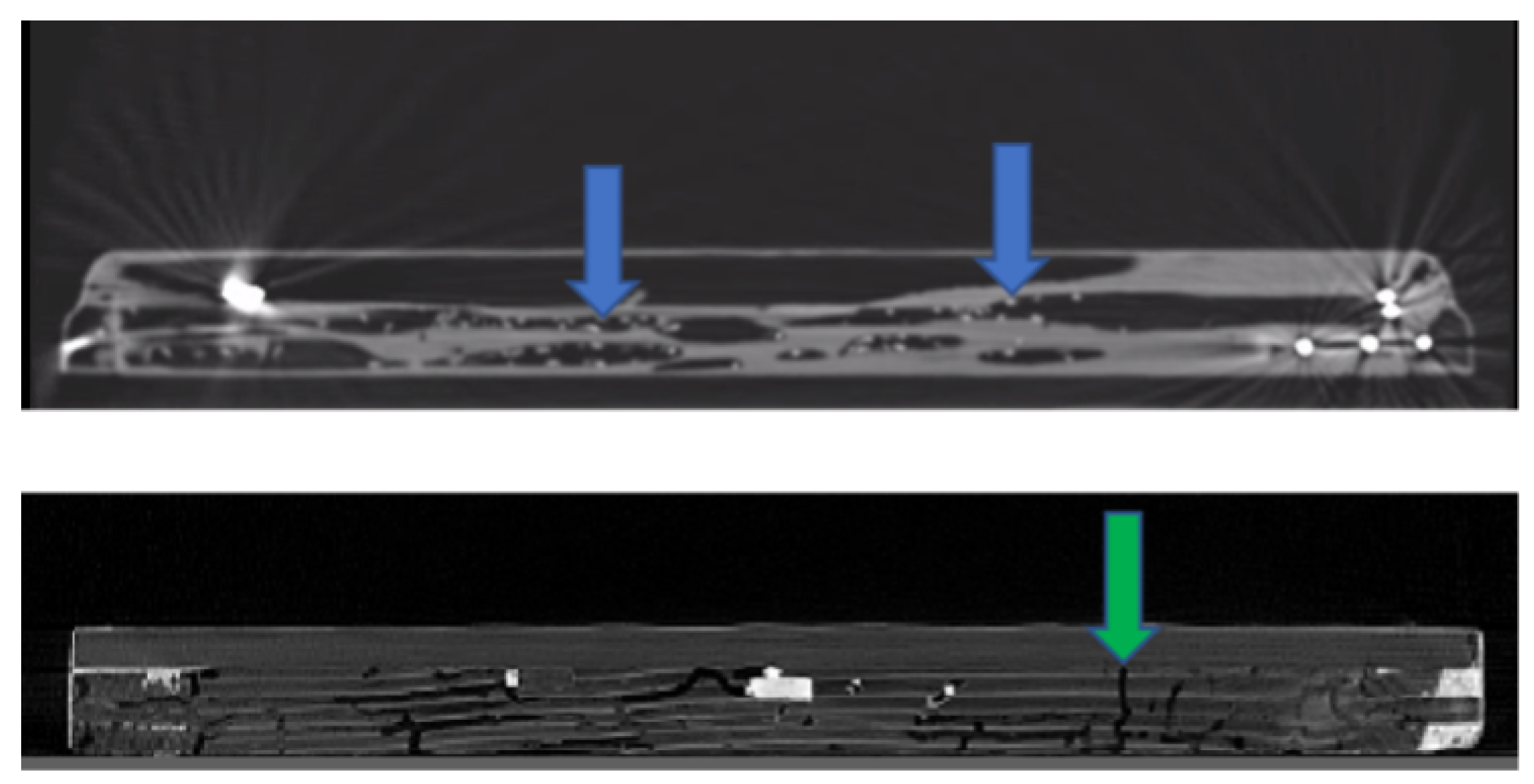

The CT scans of art frames illuminated individual termites (Figure 7) in the infested frame, corroborating previous work that active insect infestations can be identified using that technology [9], while providing confidence in declaring the four other frames infestation-free without destructively sampling those frames or works of art. In addition, we could categorize the current or former insect activity in each frame as beetles or termites based on the morphology of the galleries (Figure 7). The percentage of wood volume removed by termite activity in the infested frame was 23.62% (refer

Table 1. Summary of pixel counts used to calculate the percent volume of wood removed, using the Avizo program.

Material	Material Color	Pixel Count	Volume in cm${}^3$
Wooden  Frame	Blue, Transparent	8,433,205	8161.14
Insect Activity	Light Green, Solid Color	2,609,172	2525.00
V%	$23.62$

), while the percentages of loss in the four frames formerly infested with beetles amounted to 1.2%, 1.7%, 0.016% and 0%, respectively. That 23.62% represents a significant amount of loss in the art frame infested with termites. Yet, with the exception of a few locations sporting 2 mm diameter knock-out holes along the frame exterior, the art frame appeared intact and its exterior aesthetic quality was not diminished. Except for a few locations where the wood was very thin below the surface gilding, there was no serious structural compromise. The volume of wood removed was calculated to be 2525.0 cm${}^3$, assuming 1 voxel represents 0.00096 cm${}^3$ (1.27 × 1.27 × 0.6 mm${}^3$).

The desiccated adult specimens (swarmers) collected on the initial inspection verified the insects as Cryptotermes brevis (Walker), the West Indian drywood termite. The biology of this insect clearly indicated the possibility that the adults that exited the infested picture frame could infest other wooden objects in the vault. This fact provoked the collections’ management staff to review and augment their Integrated Pest Management (IPM) plans and to begin developing a Standard Operating Procedure (SOP) for inspecting and possibly quarantining framed works, textiles, folk art and possibly furniture or any other objects that might be susceptible to insect infestation, before bringing these works into the collection storage rooms.

The collections management staff worked with the deputy director and curator in consultation with a local fine arts conservator to develop an action plan to safeguard the work of art housed within the infested frame and to protect other historical frames and works of art stored in the same vault. The staff was particularly concerned about the materials in this storage room because the majority of the objects are works on paper housed in antique wooden frames, some dating as early as the eighteenth century. In addition, the infested work and the other works of art in this storage room are not owned by the museum, but on extended loan from a private collection. Thus, the museum staff needed to make a formal proposal to the lender for the treatment of the objects. The museum staff reviewed treatment suggestions from the Entomology Department and a fine arts conservator, and considered several methods of treatment, including freezing the objects or placing them in an anoxic environment and using nitrogen gas to exterminate the insects [10,11,12]. Heating the work to an extreme temperature to kill the termites was not considered, as that approach would have a negative effect on the wood and gilding.

Regarding the infested frame, with permission from the lender, the work of art was removed from the frame and the infested frame was immediately removed from the museum building. Given the amount of insect damage to the frame, its owner decided to donate it to the Department of Entomology for study. Weighing the time and cost associated with treatment of the numerous other frames in the collection and the current curatorial preference to have works on paper stored in archival boxes rather than in the antique frames, the staff of the museum decided to unframe the over 1000 works on paper in the vault and return the frames to the lender. Unframing the works of art has the added benefit of making them more accessible for examination by researchers. This approach also removed the risk of further swarms of the termites that may have infested additional frames in the collection.

4. Conclusions

The employment of X-ray technologies with wooden artifacts or in situ logs for non-destructive identification of insect activity continues to show a broad range of applications [13,14,15,16]. This study demonstrates that computed tomography using medical-grade equipment and commercially available computer programs can provide a reliable method of screening works of art made of wood or housed in wood frames for the presence of active insect infestation. The philosophy of Integrated Pest Management (IPM) describes a biology-centric, multidisciplinary, collaborative effort to mitigate depredations caused by pest infestations [17,18]. Museum programs must, within the constraints afforded by operating budgets, protect their holdings from pests; this case history provides a blueprint for establishing agreements to facilitate IPM efforts.

The cryptic nature of wood-infesting insects and the determination of active infestations has long vexed museums and collectors [19]. The storage room that was the focus of the insect infestation described in this work provided environmental conditions (70 ${}^{\circ }$F range +/− 5 ${}^{\circ }$F and RH 44–57%) intended to safely maintain the works of art while allaying pest populations. A cautionary tale arises from the fact that those conditions that were meant to safeguard the collection from insect infestations, mold and other dangers were sufficient for the West Indian drywood termite colony to maintain their life support requirements for 15 years in museum custody, illustrating the need to be proactive when accepting art into a collection. The biology of this notoriously invasive termite hints that those aforementioned relatively low temperature and humidity conditions undoubtedly contributed to the slow growth and reproduction of this infestation [20,21]. The time frame from acquisition until identification of the infestation is within the 7–30 year age limit for termite adults [22]. However, no adult termites (king or queen) were observed when the art frame was dismantled. The release of alates (winged adults) by this colony suggests that the original king and queen, brought in with the frame, expired, which triggered production of swarmers whose flight led to the identification of the presence of this enigmatic infestation [23]. The museum decision-making process was aided by the accumulation of entomological evidence that the insects were brought into the storage room over a decade earlier, rather than initiated while in museum custody.

The CT scan of the infested frame illuminated individual termites (Figure 7), corroborating previous studies that live, wood-infesting insects can be identified using X-ray technology [9]. Comparing images of the termite-infested frame to the other four art frames allowed the designation of the other frames as infestation-free without destructive sampling. In addition, we could determine the causal agent as beetles based on the morphology of the galleries (Figure 7). Lastly, the tomography using a commercially available program on images taken with a medical-grade scanner demonstrated that the volume of wood removed by termite activity in the infested art frame was a significant amount although the frame showed little to no damage to the exterior surface. The information obtained by CT imaging provided a valuable, non-invasive methodology for identifying areas of interest important in the decision-making process when planning restoration, remediation, archiving and/or accepting art objects into a collection. For over a year, the COVID-19 global pandemic caused museums closures across the world. Extended museum shutdown possesses risk to increased pest infestation [24]. However, in some instances, the closures afforded museum staff the time to thoroughly examine and clean their collections, thereby preventing possible insect infestations. The non-invasive techniques discussed in this paper can help identify active insect activity in museum collections. We recommend museums to consider establishing an IPM partnership with organizations that have a CT scanner, an entomologist, and tomography programmer when developing SOPs to screen acquisitions and identify active infestations in current collections. The collaboration of specialists in various disciplines and the use of advanced technological tools can greatly enhance the preservation of our shared cultural heritage.
