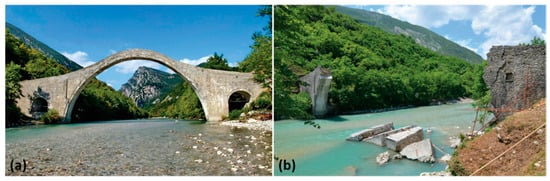

The Plaka Bridge in Epirus: An Evaluation of New Building Materials for Its Restoration
Abstract
:1. Introduction

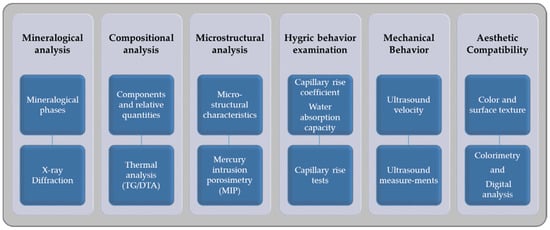

2. Materials and Methods
3. Results and Discussion
3.1. Characterization of Historical and Quarry Stones—Evaluation of Their Compatibility
3.1.1. Stone Samples’ Description
3.1.2. Mineralogical and Compositional Analysis
3.1.3. Microstructural Analysis of Compact Historical Stone and Quarry Stone
3.1.4. Hygric Behavior of Historical and Restoration Stones Through Capillary Rise Tests
3.1.5. Mechanical Behavior of Compact Historical and Quarry Stones through Ultrasound Velocity Measurements
3.1.6. Aesthetic Compatibility of Historic Stone and Quarry Stone in Relation to Color and Surface Morphology Characteristics
3.2. Evaluation of Restoration Mortars

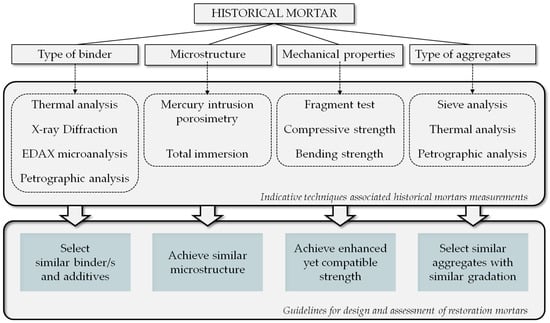

3.2.1. Design of Restoration Mortars—Compatibility and Performance Criteria
3.2.2. Fresh Mortar Characteristics
3.2.3. Study of Chemical Evolution with Time
3.2.4. Analysis of Microstructural Characteristics
3.2.5. Analysis of Mechanical Characteristics
3.2.6. Adherence of the Different Mortars to the Quarry Stone as a Substrate—Pull-Off Resistance
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Solla, M.; Riveiro, B.; Lorenzo, H.; Armesto, J. Ancient stone bridge surveying by ground-penetrating radar and numerical modeling methods. J. Bridge Eng. 2013, 19, 110–119. [Google Scholar] [CrossRef]
- Oliveira, D.V.; Lourenço, P.B.; Lemos, C. Geometric issues and ultimate load capacity of masonry arch bridges from the northwest Iberian Peninsula. Eng. Struct. 2010, 32, 3955–3965. [Google Scholar] [CrossRef] [Green Version]
- Witzany, J.; Cejka, T.; Zigler, R. Failure resistance of the historic stone bridge structure of Charles Bridge. I: Susceptibility to nonstress effects. J. Perform. Constr. Facil. 2008, 22, 71–82. [Google Scholar] [CrossRef]
- Conde, B.; Díaz-Vilariño, L.; Lagüela, S.; Arias, P. Structural analysis of Monforte de Lemos masonry arch bridge considering the influence of the geometry of the arches and fill material on the collapse load estimation. Constr. Build. Mater. 2016, 120, 630–642. [Google Scholar] [CrossRef]
- Witzany, J.; Cejka, T.; Zigler, R. Failure resistance of historic stone bridge structure of Charles bridge. II: Susceptibility to floods. J. Perform. Constr. Facil. 2008, 22, 83–91. [Google Scholar] [CrossRef]
- Papayianni, I.; Pachta, V.; Alexiou, A. Study of the constructing materials, techniques and pathology symptoms of the stone bridge DeBosset in Kefalonia. In Proceedings of the 5th International Conference on Arch Bridges, Madeira, Protugal, 12–14 September 2007. [Google Scholar]
- Přikryl, R.; Weishauptová, Z.; Novotná, M.; Přikrylová, J.; Št’astná, A. Physical and mechanical properties of the repaired sandstone ashlars in the facing masonry of the Charles Bridge in Prague (Czech Republic) and an analytical study for the causes of its rapid decay. Environ. Earth Sci. 2011, 63, 1623–1639. [Google Scholar] [CrossRef]
- Costa, C.; Arêde, A.; Morais, M.; Aníbal, A. Detailed FE and DE modelling of stone masonry arch bridges for the assessment of load-carrying capacity. Procedia Eng. 2015, 114, 854–861. [Google Scholar] [CrossRef]
- Tran, V.H.; Vincens, E.; Morel, J.C.; Dedecker, F.; Le, H.H. 2D-DEM modelling of the formwork removal of a rubble stone masonry bridge. Eng. Struct. 2014, 75, 448–456. [Google Scholar] [CrossRef] [Green Version]
- Manos, G.C.; Simos, N. The Structural Performance of Stone Masonry Bridges (No. BNL-113148-2016-BC; Brookhaven National Laboratory (BNL): Upton, NY, USA, 2016.
- Moropoulou, A.; Lampropoulos, K.; Sotiropoulos, P.; Papageorgiou, C. The Plaka Bridge in Epirus: Ground penetrating radar prospection of surviving parts of the collapsed bridge, to provide structural information for its reconstruction. In Nondestructive Evaluation and Monitoring Technologies, Documentation, Diagnosis and Preservation of Cultural Heritage; Osman, A., Moropoulou, A., Eds.; Springer Nature Switzerland AG: Cham, Switzerland, in print.
- Hyz, A.; Karamanis, K. Epirus: Introducing the Region. In Creative Industries in Greece; Hyz, A., Karamanis, K., Eds.; Palgrave Macmillan: Cham, Switzerland, 2016; pp. 49–72. [Google Scholar]
- Karaveziroglou-Weber, M.; Stavrakakis, E.; Karayianni, E. Damages on existing stone bridges in Greece. In Proceedings of the 2nd International Conference on Arch Bridges, Venice, Italy, 6–8 October 1998; Sinopolis, A., Ed.; pp. 361–367. [Google Scholar]
- Stathopoulou, E.K.; Georgopoulos, A.; Panagiotopoulos, G.; Kaliampakos, D. Crowd Sourcing Lost Cultural Heritage. ISPRS Ann. Photogramm. Remote Sens. Spat. Inf. Sci. 2015, 295–300. [Google Scholar] [CrossRef]
- Gkolias, I. The Bridge of Plaka: The NTUA Contribution towards Its Restoration; NTUA: Athens, Greece, 2018. [Google Scholar]
- Armaly, M.; Blasi, C.; Hannah, L. Stari Most: Rebuilding more than a historic bridge in Mostar. Mus. Int. 2004, 56, 6–17. [Google Scholar] [CrossRef]
- Giannakopoulou, S.; Damigos, D.; Kaliampakos, D. The socioeconomic value of the Plaka Bridge in mountainous Epirus. In Proceedings of the 19th International Conference on Cultural Economics, Valladolid, Spain, 21–24 June 2016. [Google Scholar]
- UNI. Beni culturali—Malte Storiche e da Restauro—Metodi di Prova per la Caratterizzazione Chimica di Una Malta—Analisi Chimica. UNI 11189, 2006. [Google Scholar]
- Moropoulou, A.; Bakolas, A.; Bisbikou, K. Characterization of ancient, byzantine and later historic mortars by thermal analysis and X-ray diffraction techniques. Thermochim. Acta 1995, 269, 779–795. [Google Scholar] [CrossRef]
- CNR-ICR. Normal 34/91: Analysis of Clay Materials by XRD Rome; Consiglio Nazionale delle Ricerche and Istituto Centrale del Restauro (CNR-ICR): Rome, Italy, 1991. [Google Scholar]
- CNR-ICR. Normal 4/80: Distribution of Pore Volume as a Function of Pore Diameter C.N.R.-I.C.R.; Consiglio Nazionale delle Ricerche and Istituto Centrale del Restauro (CNR-ICR): Rome, Italy, 1980. [Google Scholar]
- British Standards Institution. EN15801: 2010: Conservation of Cultural Property-Test Methods-Determination of Water Absorption by Capillarity; European Commitee for Standardisation: Brussels, Belgium, 2010. [Google Scholar]
- British Standards Institution. EN15886:2010: Conservation of Cultural Property-Test Methods-Colour Measurement of Surfaces; European Commitee for Standardisation: Brussels, Belgium, 2010. [Google Scholar]
- British Standards Institution. EN1015-3:2007: Methods of Test for Mortar for Masonry—Part 3. Determination of Consistence of Fresh Mortar (by Flow Table); European Commitee for Standardisation: Brussels, Belgium, 2007. [Google Scholar]
- British Standards Institution. EN1015-6:2007: Methods of Test for Mortar for Masonry—Part 6: Determination of Bulk Density of Fresh Mortar; European Commitee for Standardisation: Brussels, Belgium, 2007. [Google Scholar]
- British Standards Institution. EN1015-8:2007: Methods of Test for Mortar for Masonry—Part 8. Determination of Retained Water of Fresh Mortar; European Commitee for Standardisation: Brussels, Belgium, 2007. [Google Scholar]
- British Standards Institution. EN1015-11:2007: Methods of Test for Mortar for Masonry—Part 11. Determination of Flexural and Compressive Strength of Hardened Mortars; European Commitee for Standardisation: Brussels, Belgium, 2007. [Google Scholar]
- British Standards Institution. EN1015-12:2007: Methods of Test for Mortar for Masonry—Part 12. Determination of Adhesive Strength of Hardened Rendering and Plastering Mortars on Substrates; European Commitee for Standardisation: Brussels, Belgium, 2007. [Google Scholar]
- Oliveira, D.V.; Costa, V.M.; Sousa, J.F.; Lourenço, P.B. Diagnosis and repair of a historic stone masonry arch bridge. In Proceedings of the 6th International Conference on Arch Bridges (ARCH’10), Fuzhou, China, 11–13 October 2010; pp. 817–822. [Google Scholar]
- Karagiannis, N.; Karoglou, M.; Bakolas, A.; Moropoulou, A. Building materials capillary rise coefficient: Concepts, determination and parameters involved. In New Approaches to Building Pathology and Durability; Delgado, J.M.P.Q., Ed.; Springe: Singapore, 2016; pp. 27–44. [Google Scholar]
- Moropoulou, A.; Bakolas, A.; Delegou, E.T.; Moundoulas, P.; Apostolopoulou, M. Characterization of the historical mortars of the Plaka bridge and proposal for a new restoration mortar. In The Bridge of Plaka: The NTUA Contribution towards Its Restoration; NTUA: Athens, Greece, 2016; pp. 237–257. [Google Scholar]
- Apostolopoulou, M.; Aggelakopoulou, E.; Bakolas, A.; Moropoulou, A. Compatible Mortars for the Sustainable Conservation of Stone in Masonries. In Advanced Materials for the Conservation of Stone; Hosseini, M., Karapanagiotis, I., Eds.; Springer: Cham, Switzerland, 2018; pp. 97–123. [Google Scholar]
- Frankeová, D.; Slížková, Z.; Drdácký, M. Characteristics of mortars from ancient bridges. In Historic Mortars; Springer: Dordrecht, The Netherlands, 2012; pp. 165–174. [Google Scholar]
- Bakolas, A.; Biscontin, G.; Contardi, V.; Franceschi, E.; Moropoulou, A.; Palazzi, D.; Zendri, E. Thermoanalytical research on traditional mortars in Venice. Thermochim. Acta 1995, 269, 817–828. [Google Scholar] [CrossRef]
- Oleson, J.P.; Brandon, C.; Cramer, S.M.; Cucitore, R.; Gotti, E.; Hohlfelder, R.L. The ROMACONS Project: A contribution to the historical and engineering analysis of hydraulic concrete in Roman maritime structures. Int. J. Naut. Archaeol. 2004, 33, 199–229. [Google Scholar] [CrossRef]
- Moropoulou, A.; Bakolas, A.; Anagnostopoulou, S. Composite materials in ancient structures. Cem. Concr. Compos. 2005, 27, 295–300. [Google Scholar] [CrossRef]
- Vintzileou, E.; Gianellos, C.; Adami, C.E.; Tsakanika, E. Documentation of building materials mechanical characteristics. In The Bridge of Plaka: The NTUA Contribution towards Its Restoration; NTUA: Athens, Greece, 2016; pp. 227–235. [Google Scholar]
- Apostolopoulou, M.; Aggelakopoulou, E.; Siouta, L.; Bakolas, A.; Douvika, M.; Asteris, P.G.; Moropoulou, A. A methodological approach for the selection of compatible and performable restoration mortars in seismic hazard areas. Constr. Build. Mater. 2017, 155, 1–14. [Google Scholar] [CrossRef]
- Moropoulou, A. Reverse engineering to discover traditional technologies: A proper approach for compatible restoration mortars. In PACT No. 58; Conseil de l’Europe: Athens, Greece, 2000; pp. 81–107. [Google Scholar]
- Moropoulou, A.; Bakolas, A.; Moundoulas, P.; Aggelakopoulou, E. Reverse engineering: A proper methodology for compatible restoration mortars. In Proceedings of the Workshop on Repair Mortars for Historic Masonry, TC RMH, Delft, The Netherlands, 26–28 Jaunary 2005; pp. 25–28. [Google Scholar]
- Maravelaki-Kalaitzaki, P.; Bakolas, A.; Moropoulou, A. Physico-chemical study of Cretan ancient mortars. Cem. Concr. Res. 2003, 33, 651–661. [Google Scholar] [CrossRef]
- Aggelakopoulou, E.; Bakolas, A.; Moropoulou, A. Properties of lime-metakaolin mortars for the restoration of historic masonries. Appl. Clay Sci. 2011, 53, 15–19. [Google Scholar] [CrossRef]
- Vejmelková, E.; Keppert, M.; Keršner, Z.; Rovnaníková, P.; Černý, R. Mechanical, fracture-mechanical, hydric, thermal, and durability properties of lime-metakaolin plasters for renovation of historical buildings. Constr. Build. Mater. 2012, 31, 22–28. [Google Scholar] [CrossRef]
- Gameiro, A.; Santos Silva, A.; Faria, P.; Grilo, J.; Branco, T.; Veiga, R.; Velosa, A. Physical and chemical assessment of lime-metakaolin mortars: Influence of binder:aggregate ratio. Cem. Concr. Compos. 2014, 45, 264–271. [Google Scholar] [CrossRef]
- Moropoulou, A.; Bakolas, A. Range of acceptability limits of physical, chemical and mechanical characteristics deriving from the evaluation of historic mortars. In PACT. No. 56; Conseil de l’Europe: Athens, Greece, 1998. [Google Scholar]
Sample | Sample Description |
---|---|
SH1 | Compact stone, most dominant type of the bridge’s building stones |
SH2 | Compact stone, most dominant type of the bridge’s building stones |
PH1 | Porous stone, used as filling material at interior of bridge’s main body |
R_S | Freshly cut stone from nearby quarry “Dafnoula stone” |
Sample | Mineralogical Composition |
---|---|
SH1 | Quartz, calcite, albite, anorthite, chlorite, montmorillonite–chlorite, muscovite, biotite, illite, chrysotile, lizardite, chlorite–serpentine |
PH1 | Calcite, quartz |
R_S | Quartz, albite, calcite, anorthite, montmorillonite–chlorite, illite, lizardite |
Sample | Mass Loss (%) in Different Temperature Ranges | |||
---|---|---|---|---|
<120 °C | 120–200 °C | 200–600 °C | >600 °C | |
SH1 | 0.35 | 0.10 | 0.72 | 11.46 |
R_S | 0.45 | 0.11 | 1.01 | 7.67 |

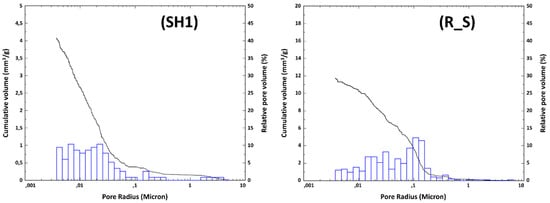

Sample | Total Cumulative Volume (mm3/g) | Specific Surface Area (m2/g) | Average Pore Radius (μm) | Total Porosity (%) | Bulk Density (g/cm3) |
---|---|---|---|---|---|
SH1 | 4.08 | 0.71 | 0.023 | 1.07 | 2.61 |
R_S | 11.74 | 1.03 | 0.108 | 3.03 | 2.58 |
Sample | Average Specific Weight (g/cm3) | Standard Deviation |
---|---|---|
SH_1 | 2.61 | 0.02 |
SH_2 | 2.60 | 0.01 |
PH_1 | 2.02 | 0.96 |
PH_2 | 1.26 | 0.13 |
R_S | 2.59 | 0.01 |

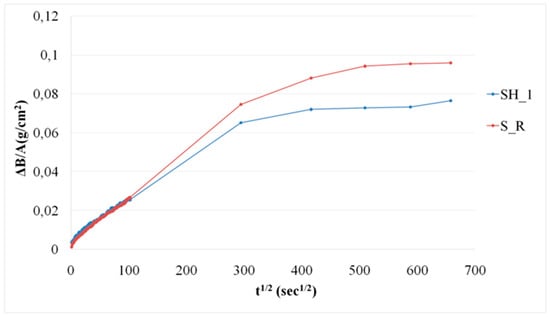

Sample | CRC (g/(cm2sec1/2)) | St.dev. | Average WACcap (%) | St.dev. |
---|---|---|---|---|
SH | 2.00·10−4 | 0 | 0.643 | 0.068 |
R_S | 2.33·10−4 | 5.8·10−5 | 0.864 | 0.090 |
Sample | Average Ultrasound Velocity (m/s) | Standard Deviation |
---|---|---|
SH_1 | 4265.21 | 260.41 |
SH_2 | 4535.05 | 177.81 |
R_S | 4397.47 | 250.75 |
Sample | L | Standard Deviation | a | Standard Deviation | b | Standard Deviation |
---|---|---|---|---|---|---|
SH1 | 63.20 | 1.63 | −1.21 | 0.37 | 1.07 | 0.58 |
SH2 | 63.09 | 1.60 | −0.98 | 0.50 | 2.36 | 1.80 |
R_S | 57.49 | 1.65 | −1.77 | 0.17 | 0.98 | 0.42 |
Sample Comparison | ΔΕ | ΔΕ*94 | ΔC*2,1 | ΔH*2,1 |
---|---|---|---|---|
Comparison of R_S with SH1 | 5.74 | 2.91 | 0.41 | 0.39 |
Comparison of R_S with SH2 | 5.82 | 3.19 | −0.53 | 1.50 |
Restoration Mortar | Lime Powder | Natural Hydraulic Lime NHL3.5 | Metakaolin | Natural Pozzolan | Siliceous Sand (0–2 mm) | Mix Sand | Superplasticizer (%w/w of dry mortar) | Addition of Additives |
---|---|---|---|---|---|---|---|---|
L_M8.5 | 16.5 | - | 8.50 | - | 75 | - | - | NO |
L_M8.5_s | 16.5 | - | 8.50 | - | 75 | - | 0.05 | NO |
NHL_M1 | 24.00 | 1.00 | - | 75 | - | - | NO | |
Pl.Br.1 | 18.75 | 4.17 | 12.5 | - | 64.58 | 0.05 | YES | |
Pl.Br.2 | 18.75 | 4.17 | 12.5 | - | 64.58 | 0.05 | NO |
Restoration Mortar | W/B | Flow Table (cm) | Bulk Density (g/cm3 ) | Retained Water (%) |
---|---|---|---|---|
L_M8,5 | 1.10 | 15.50 | 1.88 | 93.77 |
L_M8,5s | 1.01 | 15.10 | 1.92 | 94.56 |
NHL_M1 | 0.74 | 15.00 | 2.04 | 92.41 |
Pl.Br.1 | 0.69 | 16.50 | 1.82 | 99.02 |
Pl.Br.2 | 0.65 | 16.80 | 1.97 | 89.88 |
Restoration Mortar | Mass loss (%) in Different Temperature Ranges (°C) | Inverse Hydraulicity Ration | |||||
---|---|---|---|---|---|---|---|
Days | <120 °C | 120–200 °C | 200–600 °C | 600–1000 °C | 370–470 °C | ||
L_M8,5 | 14 | 0.97 | 0.96 | 2.28 | 8.19 | 0.45 | 2.94 |
L_M8,5 | 28 | 0.99 | 1.05 | 2.32 | 8.28 | 0.51 | 2.90 |
L_M8,5 | 90 | 0.90 | 0.99 | 2.31 | 8.06 | 0.27 | 2.66 |
L_M8,5_s | 14 | 1.02 | 1.26 | 2.92 | 7.16 | 0.89 | 2.18 |
L_M8,5_s | 28 | 0.94 | 0.98 | 2.72 | 8.75 | 0.62 | 2.84 |
L_M8,5_s | 90 | 1.01 | 0.81 | 2.21 | 9.29 | 0.00 | 3.08 |
NHL_M1 | 14 | 1.13 | 0.84 | 2.04 | 7.56 | 0.62 | 3.35 |
NHL_M1 | 28 | 0.83 | 0.52 | 1.86 | 7.62 | 0.62 | 4.33 |
NHL_M1 | 90 | 0.70 | 0.47 | 2.03 | 8.40 | 0.00 | 3.36 |
Pl.Br.1 | 14 | 0.53 | 0.59 | 4.23 | 16.66 | 1.33 | 4.77 |
Pl.Br.1 | 28 | 0.69 | 0.67 | 3.93 | 17.83 | 1.11 | 5.11 |
Pl.Br.1_ons | 28 | 0.45 | 0.49 | 4.07 | 18.29 | 1.10 | 5.29 |
Pl.Br.1 | 90 | 0.79 | 0.89 | 4.06 | 16.40 | 0.63 | 3.80 |
Pl.Br.2 | 14 | 0.63 | 0.58 | 2.65 | 17.91 | 0.71 | 7.11 |
Pl.Br.2 | 28 | 0.55 | 0.50 | 2.10 | 18.08 | 0.42 | 8.29 |
Pl.Br.2 | 90 | 0.72 | 0.73 | 2.68 | 17.87 | 0.00 | 5.24 |

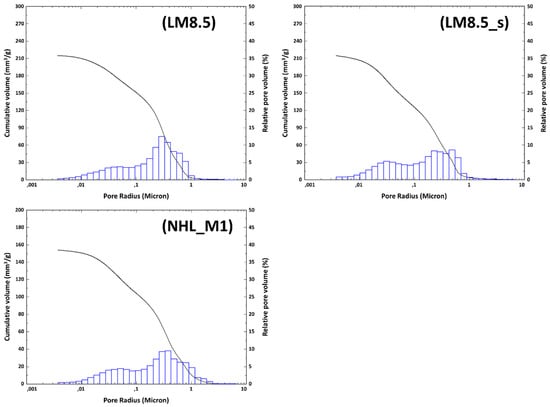

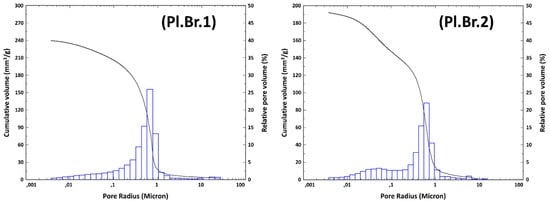

Sample | Total Cumulative Volume (mm3/g) | Specific Surface Area (m2/g) | Average Pore Radius (μm) | Total Porosity (%) | Bulk Density (g/cm3) |
---|---|---|---|---|---|
L_M8,5 | 228.16 | 9.79 | 0.62 | 36.40 | 1.60 |
L_M8,5s | 214.58 | 9.06 | 0.48 | 34.87 | 1.62 |
NHL_M1 | 153.97 | 4.66 | 0.37 | 28.58 | 1.86 |
Pl.Br.1 | 239.44 | 4.34 | 0.66 | 37.16 | 1.55 |
Pl.Br.2 | 192.16 | 4.85 | 0.63 | 32.91 | 1.71 |
Historical mortars | 194–418 | 19.5–49.5 | 0.013–0.047 | 31.6–48.1 | 1.11–1.63 |
Restoration Mortar | Age (days) | Flexural Strength (Mpa) | StDev | Compressive Strength (Mpa) | StDev |
---|---|---|---|---|---|
L_M8,5 | 14 | 0.92 | 0.08 | 5.25 | 0.47 |
28 | 1.58 | 0.07 | 6.65 | 0.45 | |
90 | 1.37 | 0.21 | 5.90 | 0.14 | |
L_M8,5_s | 14 | 1.31 | 0.48 | 6.33 | 0.73 |
28 | 1.75 | 0.16 | 9.27 | 0.53 | |
90 | 1.12 | 0.66 | 7.47 | 0.39 | |
NHL_M1 | 14 | 1.24 | 0.04 | 2.87 | 0.10 |
28 | 1.31 | 0.06 | 4.48 | 0.10 | |
90 | 1.62 | 0.13 | 5.52 | 0.17 | |
Pl.Br.1 | 14 | 0.46 | 0.02 | 0.00 | 0.00 |
28 | 1.41 | 0.15 | 2.83 | 0.21 | |
90 | 2.83 | 0.12 | 7.08 | 0.26 | |
Pl.Br.2 | 14 | 0.84 | 0.12 | 2.80 | 0.06 |
28 | 0.85 | 0.04 | 4.83 | 0.18 | |
90 | 0.83 | 0.14 | 7.67 | 0.36 |

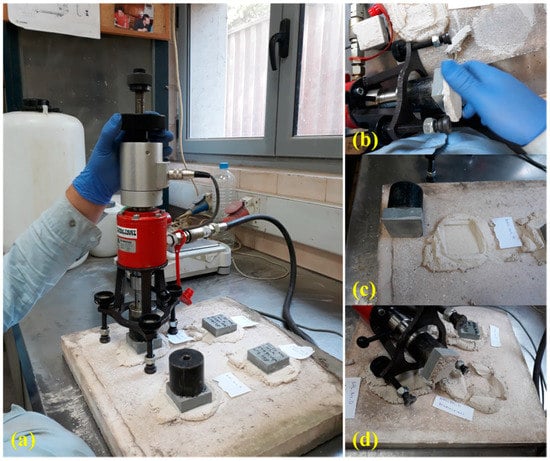

Mortar | Pull-off Force (kN) | Mortar Adhesive Strength (MPa) | Area of Detachement |
---|---|---|---|
NHL_M1 | 0.229 | 0.09 | Mortar and stone detached from upper surface of pavement stone, mortar presents adhesion to stone tile after detachment (Figure 9d) |
Pl.Br.1 | 0 | 0 | Mortar completely detached from pavement stone – then easily detached manually from stone tile (Figure 9b) |
Pl.Br.2 | 0.371 | 0.15 | Stone tile and upper part of mortar were detached from lower part of mortar and pavement stone (as in Figure 9d) |
