SideLengthIndependent Motif (SLIM): Motif Discovery and Volatility Analysis in Time Series—SAX, MDL and the Matrix Profile^{ †}
Abstract
:1. Introduction

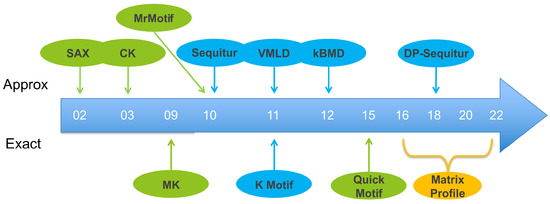

1.1. Literature Review

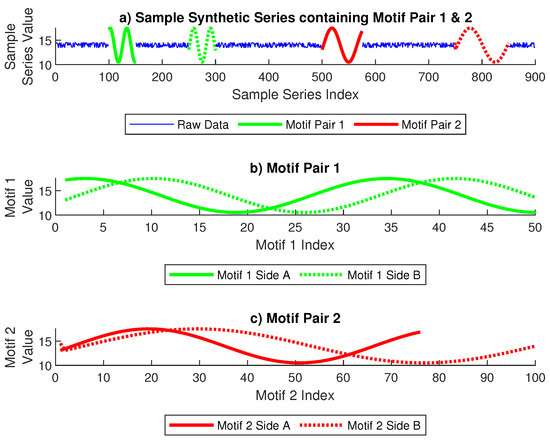

1.2. Contribution
2. Methodology
2.1. Underlying Algorithms

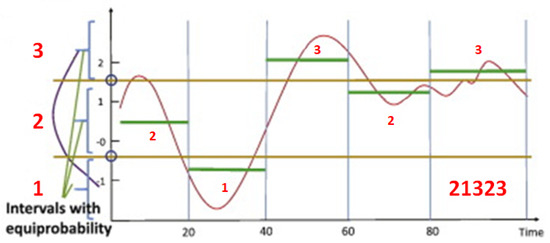

2.1.1. Symbolic Aggregate Approximation (SAX)
2.1.2. Minimum Description Length (MDL)

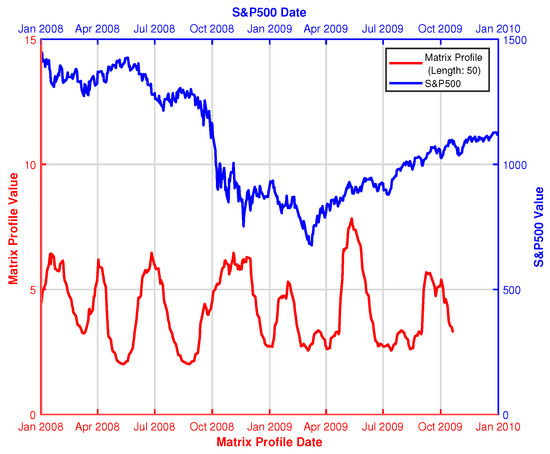

2.1.3. Matrix Profile (MP)
2.2. Combined Methodology

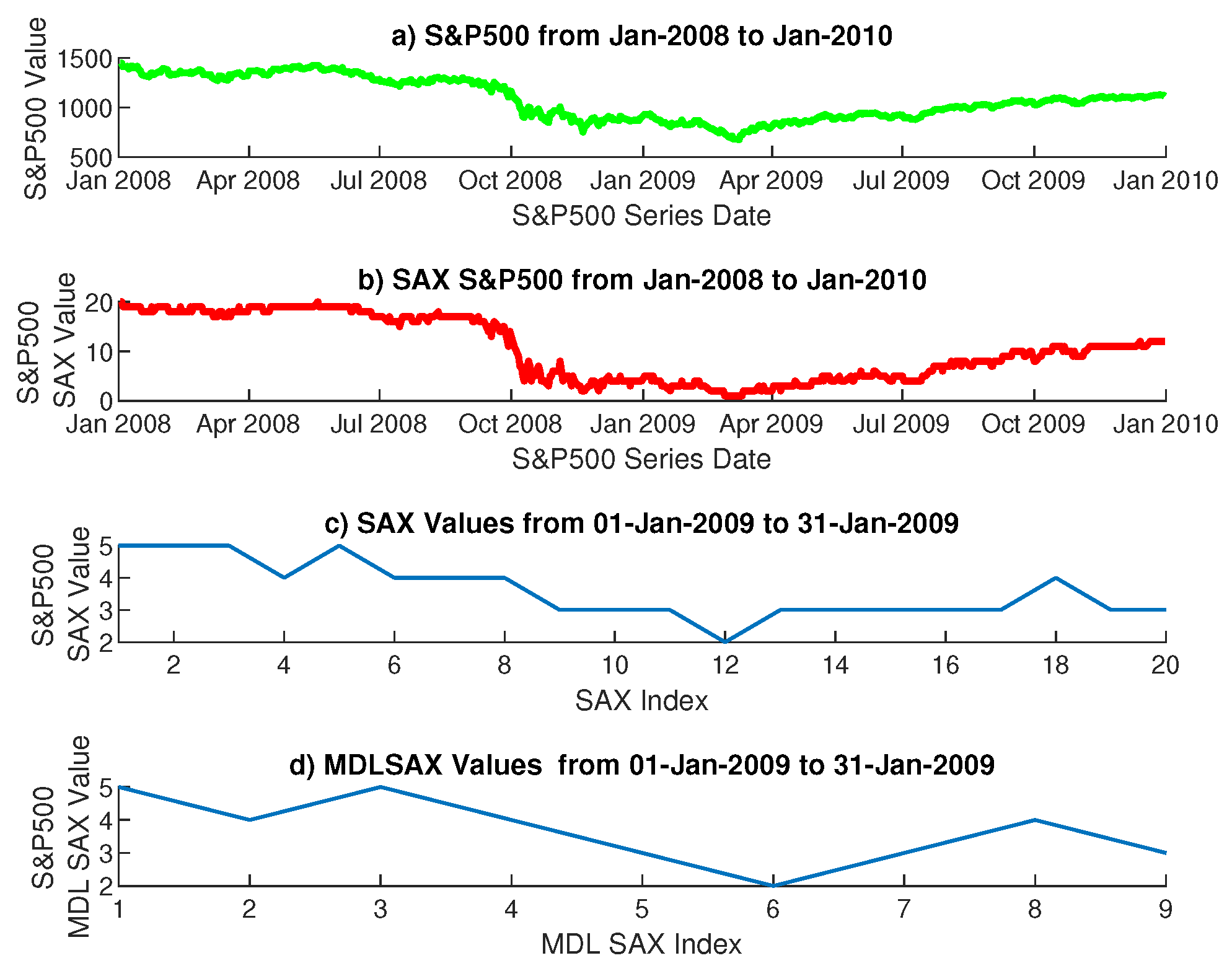

2.2.1. Application of MDL to SAX strings

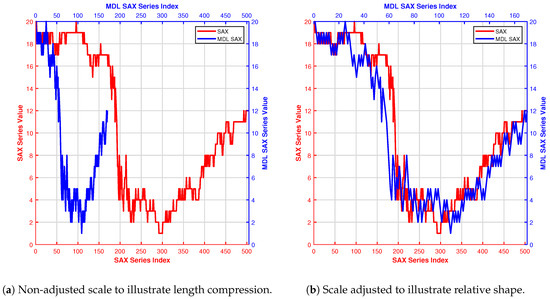

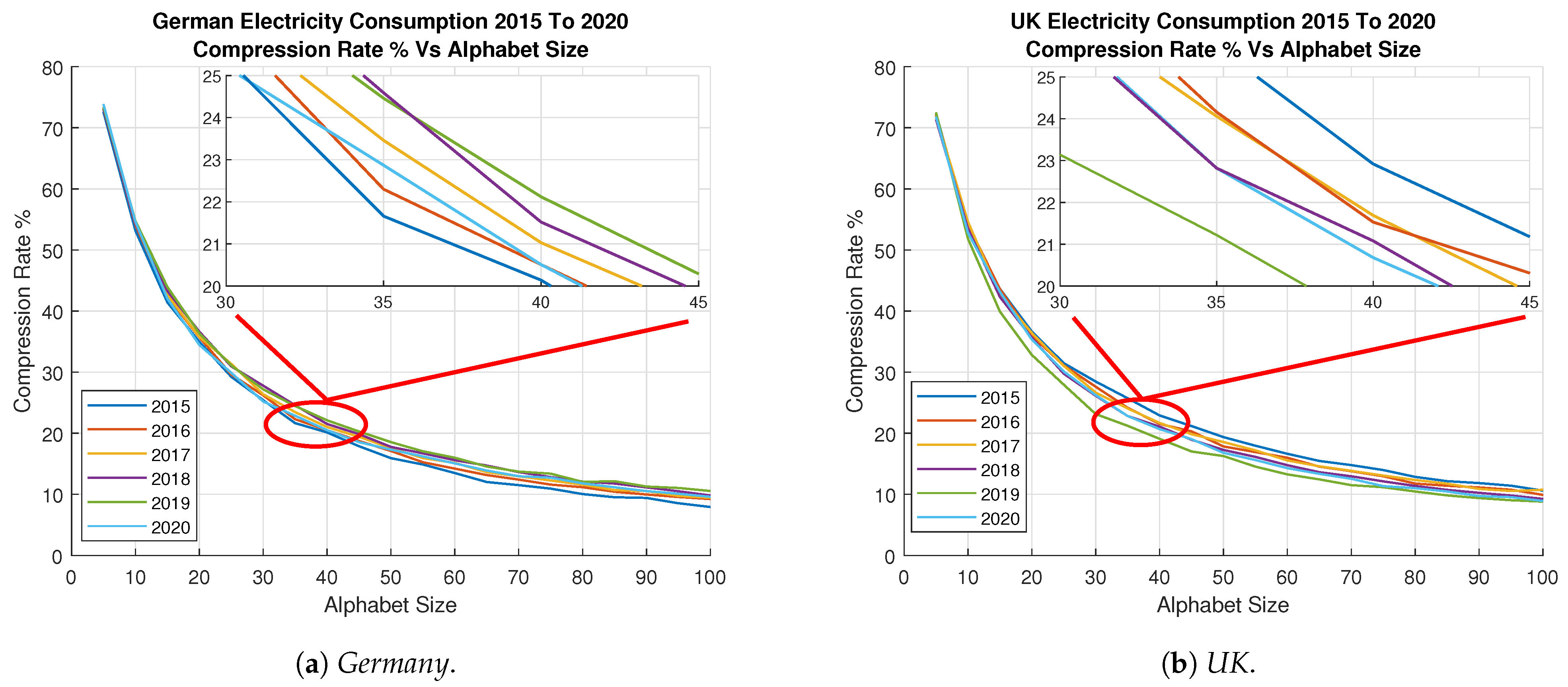

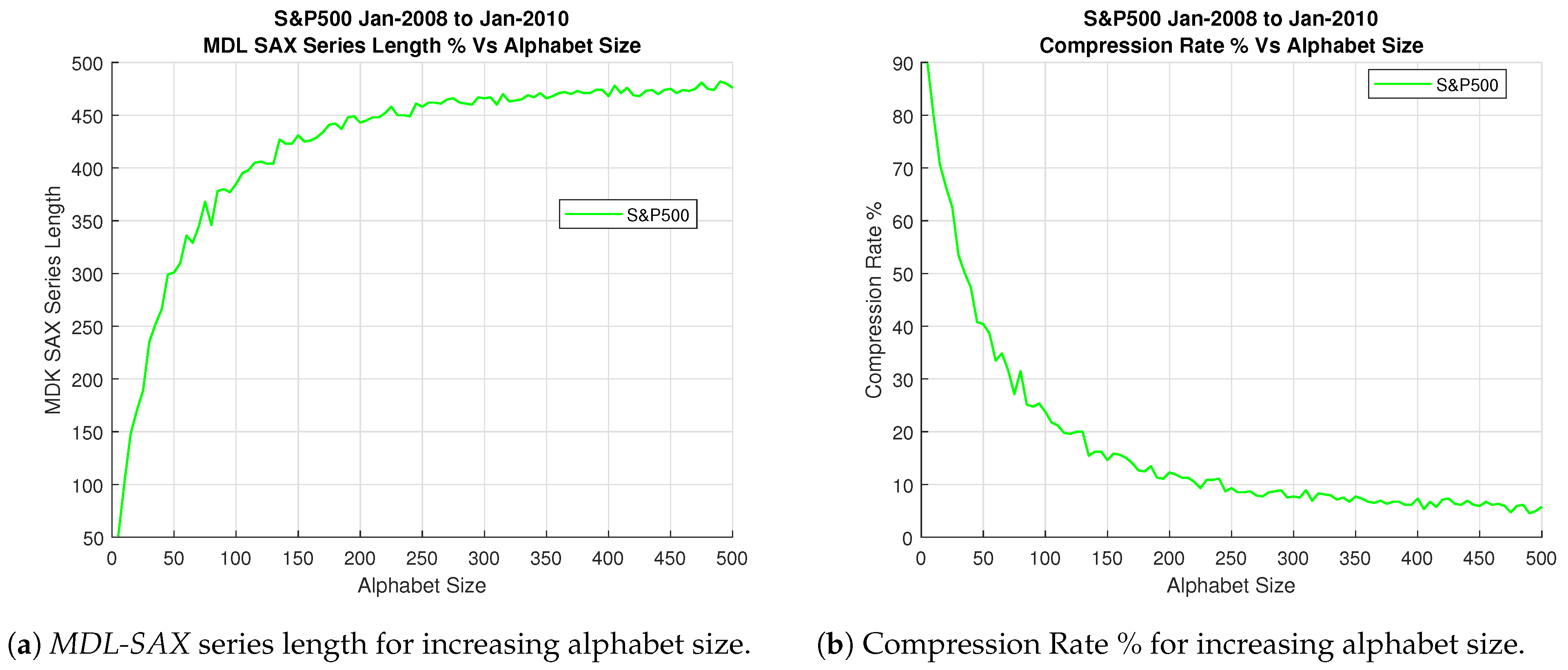

2.2.2. Hyperparameter Selection: Influence of Alphabet Size Choice upon MDL Compression Rate
2.2.3. Motif Discovery
2.2.4. Independent SideLength Motif Discovery Process
Algorithm 1: SideLengthIndependent Motif (SLIM) pseudocode.
Data: Input raw time series
Result: Candidate motif locations with variable sidelength
Step A: Transform raw input series into a suitable SAX representation
Step B: Compress the SAX series using MDL to create an MDLSAX series
Step C: MDLSAX series serves as input to the MP algorithm creating an
MDLSAXMP series
while examining MDLSAXMP series do

end
2.2.5. Advantages
 Permits identification of motif pairs in which the length of each side is independent.
 Properties of the underlying algorithms are inherited.

 Dimensionality reduction of SAX (if required).

 Efficiency and scalability of the MP.
 Is independent of SAX and MP versions used and so can take advantage of further improvements to these algorithms.
3. Results and Discussions
3.1. Finance
3.1.1. SideLengthIndependent Motif Discovery
3.1.2. Alternative Motif Identification Algorithms Comparison

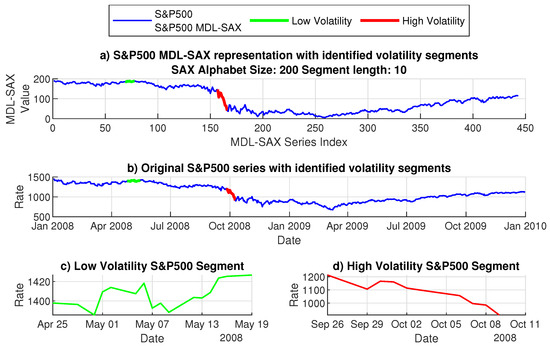

3.1.3. Localised Volatility Analysis
3.2. Energy Sector

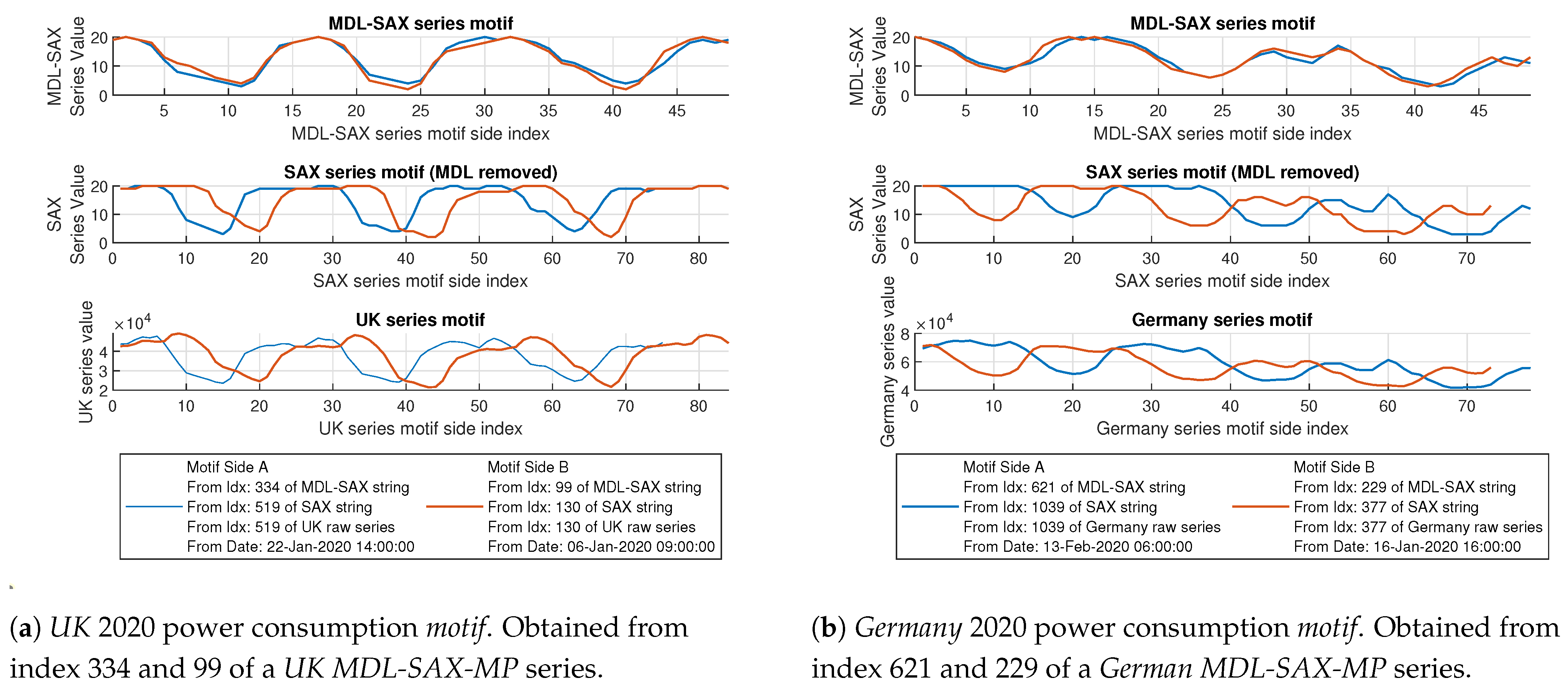

3.2.1. SideLengthIndependent Motif Discovery

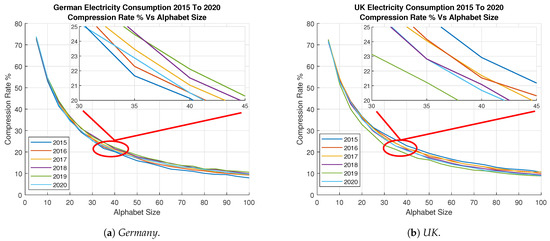

3.2.2. Globalised Volatility Analysis
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
Abbreviations
SLIM  SideLengthIndependent Motif
SES  Simple Exponential Smoothing
ARIMA  Autoregressive Integrated Moving Average
SVR  Support Vector Regression
WIG20  Warsaw stock exchange index
SAX  Symbolic Aggregate Approximation
MDL  Minimum Description Length
MP  Matrix Profile
MPI  Matrix Profile Index
SFA  Symbolic Fourier Approximation
S&P500  Standard and Poor’s 500
