Photocatalytic H2 Production on Au/TiO2: Effect of Au Photodeposition on Different TiO2 Crystalline Phases

Department of Chemical Sciences, University of Catania, Viale A. Doria 6, 95125 Catania, Italy
Author to whom correspondence should be addressed.
J 2022, 5(1), 92-104;
Received: 30 December 2021 / Revised: 14 January 2022 / Accepted: 19 January 2022 / Published: 24 January 2022


In this work, we investigated the role of the crystalline phases of titanium dioxide in the solar photocatalytic H2 production by the reforming of glycerol, focusing the attention on the influence of photodeposited gold, as a metal co-catalyst, on TiO2 surface. We correlated the photocatalytic activity of 1 wt% Au/TiO2 in anatase, rutile, and brookite phases with the structural and optical properties determined by Raman spectroscopy, N2 adsorption–desorption measurements, UV–vis Diffuse Reflectance Spectroscopy (UV–vis DRS), X-ray photoelectron spectroscopy (XPS), Photoluminescence spectroscopy (PL), and Dynamic Light scattering (DLS). The best results (2.55 mmol H2 gcat−1 h−1) were obtained with anatase and gold photodeposited after 30 min of solar irradiation. The good performance of Au/TiO2 in anatase form and the key importance of the strong interaction between gold and the peculiar crystalline phase of TiO2 can be a starting point to efficiently improve photocatalysts design and experimental conditions, in order to favor a green hydrogen production through solar photocatalysis.

1. Introduction

Nowadays, the transition towards a more carbon-free society is a key point of technological and socio-economic progress. The environmental concerns related to the depletion of natural resources and atmospheric pollution require sustainable and green solutions. The development of new technologies based on renewables is the main road to drive the environmental transition. In this context, hydrogen is a promising energy carrier and can be the leading actor of the green innovation [1] Unfortunately, until now, hydrogen has been mostly produced in a not sustainable way, namely, through the steam reforming of hydrocarbons, which requires fossil fuels and causes relevant CO2 emissions [2].
In the last years, photocatalytic hydrogen production has received increasing attention due to its green potentiality. Since the pioneering work of Fujishima and Honda in the 1972 [3], scientific research has focused its attention on photocatalytic hydrogen production by water splitting or photoreforming of organic substrates [4,5]. This latter process is promising for a carbon-neutral vision, because the obtained CO2 can be easily reconverted, even through the solar photocatalytic process, in bio-substrates [6]. Therefore, the sustainability of the process strongly depends on the choice of the organic substrates [7]. Many works reported the use of alcohols such methanol or ethanol or acids such as lactic or acetic acid, or also carbohydrates such as glucose as substrates [8,9,10,11].
Recently, the valorization of glycerol has attracted a growing interest, due to its large production as a by-product of biodiesel [12]. Furthermore, the photoreforming of glycerol (Reaction (1)) allows obtaining a high amount of hydrogen for each glycerol molecule [13,14].
C3H8O3 + 3H2O → 7H2 + 3CO2
The most used semiconductor material in photocatalysis is certainly titanium dioxide (TiO2, titania). It has been largely investigated since the 1970s and is used in many applications [15,16,17,18,19]. It exists in three principal crystalline phases: anatase, rutile, and brookite. The first one is the most used in photocatalysis thanks to its chemico-physical properties [20]. Anatase has a tetragonal arrangement, is stable at room temperature, and is also the least dense among the three phases; this favors the mobility of charge carriers (photoelectrons and photoholes), which is an important parameter that explains its large use in photocatalysis [20]. Similar to the anatase, also the rutile phase has a tetragonal arrangement; however, it is more packed compared to anatase and thus generates a greater thermodynamic stability but also a greater density [21]. Finally, brookite is the least investigated crystalline form of TiO2 due to its low stability and the difficulty to obtain it as a pure phase. Brookite possesses an orthorhombic arrangement and an intermediate density amongst those of the three TiO2 crystalline forms (3.7 g/cm3 for anatase, 4.23 g/cm3 for rutile, and 4.12 g/cm3 for brookite) [22].
The photocatalytic activity of TiO2 is strongly affected by two important issues: poor visible light absorption and high charge carrier recombination rate [23]. For these reasons, the presence of a co-catalyst, generally a noble metal, is usually required for photocatalytic hydrogen production. Many works reported that the presence of these metals on the surface of semiconductors promotes hydrogen evolution because they play the role of charges “accumulators”, being centers of electrons release necessary for proton reduction [24]. This leads to an improved charge carrier separation and to a higher photocatalytic activity.
Among the noble metals, gold also allows exploiting its surface plasmon resonance (SPR) effect that enhances visible light absorption and charges generation around the TiO2 surface [25,26,27,28,29,30]. Furthermore, as reported [31,32,33], the combination of a good interaction between gold and TiO2 and the Au SPR effect allowed obtaining a high photocatalytic H2 production under solar/visible irradiation, sometimes higher than that obtained with the other noble metal co-catalysts used for this reaction, such as Pt, Pd, or Ag. Finally, the chemico-physical properties of gold can be more easily tuned compared to those of the other noble metals, depending on the particular preparation method employed for gold deposition, i.e., deposition–precipitation, sol–gel, laser ablation, colloidal impregnation, etc. [31]. All these features make gold an ideal co-catalyst for TiO2 for the photoreforming and water splitting reactions.
On the basis of the above considerations, in our work, we investigated hydrogen evolution through the photoreforming of glycerol using Au/TiO2 photocatalysts prepared by photodeposition of gold on the three crystalline phases of TiO2. We explored in detail the modifications of the structural and optical properties due to gold photodeposition on the TiO2 phases and how these modifications affected the photocatalytic H2 evolution. The main novelty of the present work is the focus on the parameters that influence gold photodeposition on the different TiO2 polymorphs and their correlation with the photocatalytic activity in the photoreforming reaction. The solar photodeposition here proposed, can be considered an easy and sustainable route to prepare gold-based photocatalysts; it does not require peculiar thermal treatments or the use of expensive or toxic chemicals. Furthermore, it is also characterized by a high versatility: indeed, the same photoreactor can be used for both the materials’ synthesis and the photocatalytic tests.

2. Materials and Methods

2.1. Samples Preparation

Anatase, rutile, and brookite, titania were used as purchased (Sigma-Aldrich, Buchs, Switzerland). Tetrachloroauric acid (HAuCl4, Merck KGAA, Darmstadt, Germany) was solubilized in water, and a 5 g/L solution was used as a precursor of gold co-catalysts. For gold deposition, the method described by Williams G., Seger B., and Kama P. [34] was slightly modified. In a typical procedure, 0.2 g of TiO2 powder was suspended in 35 mL of ethanol and put in a home-made jacketed batch Pyrex reactor, keeping the stirring at 800 rpm and the temperature at 25 °C. Then, a stoichiometric amount of HAuCl4 (to obtain a final Au content of 1 wt%) was added, and the suspension was purged with argon for 1 h in order to remove the oxygen inside the reactor. Then, a solar lamp (OSRAM Vitalux, OSRAM Opto Semiconductors GmbH, Leibniz, Regensburg Germany, 300 W, irradiance of 10.7 mW/cm2) was turned on for 30 min. This irradiation process generated the charge carriers (photoelectrons and holes) on TiO2. The holes were scavenged by ethanol, whereas the photoelectrons were able to reduce the Au3+ ions. This process can be summarized with the following reactions:
TiO2 + hν(solar) → TiO2(h+ e)
TiO2(h+ e) + EtOH → TiO2(e) + EtOH+
TiO2(e) + Au3+ → TiO2 + Au
Finally, the obtained powders were centrifuged and dried in an oven at 70 °C for 12 h. For comparison, bare titanium dioxide samples were used as purchased. Furthermore, for the most performing phase, the Au content and the time of irradiation in the photoreduction process were modified in order to find the best experimental conditions that promoted the final photocatalytic activity.

2.2. Samples Characterizations

The textural properties of the samples were analyzed by N2 adsorption–desorption isotherms, carried out with a Micromeritics Tristar II Plus 3020 (Micromeritics Instrument Corp., Norcross, GA, USA) after an outgassing at 60 °C overnight. The Braunauer–Emmet-Teller (BET) theory, for the determination of the surface area, and the Barret–Joyner–Halenda (BJH) theory, for the determination of pore size distribution, were applied. The optical properties of the samples were investigated by UV–vis DRS (Diffuse Reflectance Spectroscopy), carried out with a JASCO V-670 (Jasco Europe S.R.L., Cremella, Italy) equipped with an integration sphere and using barium sulphate as a reflectance standard. The optical band gaps were estimated with the TAUC plot according with the Kubelka–Munk theory [35]. Dynamic Light Scattering (DLS) measures were carried out with a HORIBA (Horiba UK Limited, Kyoto Close, Moulton Park, Northampton, UK) Scientific nano particle analyzer SZ-100 in disposable PMMA cuvettes. Raman spectra were acquired by a WITec alpha 300 confocal Raman system (WITec Wissenschaftliche Instrument und Technologie GmbH, Ulm, Germany) with the experimental conditions described in the ref. [11]. X-ray photoelectron spectroscopy (XPS) was carried out with a K-Alpha X-ray photoelectron instrument (Thermo Fisher Scientific, Waltham, MA, USA), using the carbon 1s band at 284.9 eV (due to adventitious carbon) as a reference. Photoluminescence spectroscopy (PL) was performed with a Perkin Elmer LS45 luminescence Spectrometer (Perkin Elmer, Inc., Waltham, MA, USA).

2.3. Photocatalytic Experiments

The photocatalytic tests were performed using the same Pyrex jacketed batch reactor and solar lamp employed for sample preparation. In these experiments, 50 mg of powder was suspended in 50 mL of a water–glycerol solution (45 mL and 5 mL respectively) under constant stirring at 800 rpm, and the temperature was kept at 35 °C. The suspension was purged 1 h with argon, and then the solar lamp was turned on for 4 h. The amount of hydrogen produced was evaluated with a gas chromatograph (Agilent 6890, Agilent Technologies, Santa Clara, CA, USA) equipped with a packed column (Carboxen 1000) and a TCD detector. Argon was used as the gas carrier. For H2 quantification, a 0.5 mL aliquot of reaction gases was withdrawn using a syringe (Hamilton Gastight 1001, Hamilton, Bonaduz AG, Switzerland) and injected in the GC. For the reusability tests, after each run, the photocatalyst was centrifuged, washed with water, dried at room temperature, and then re-used.

3. Results and Discussion

3.1. Photocatalytic Activity

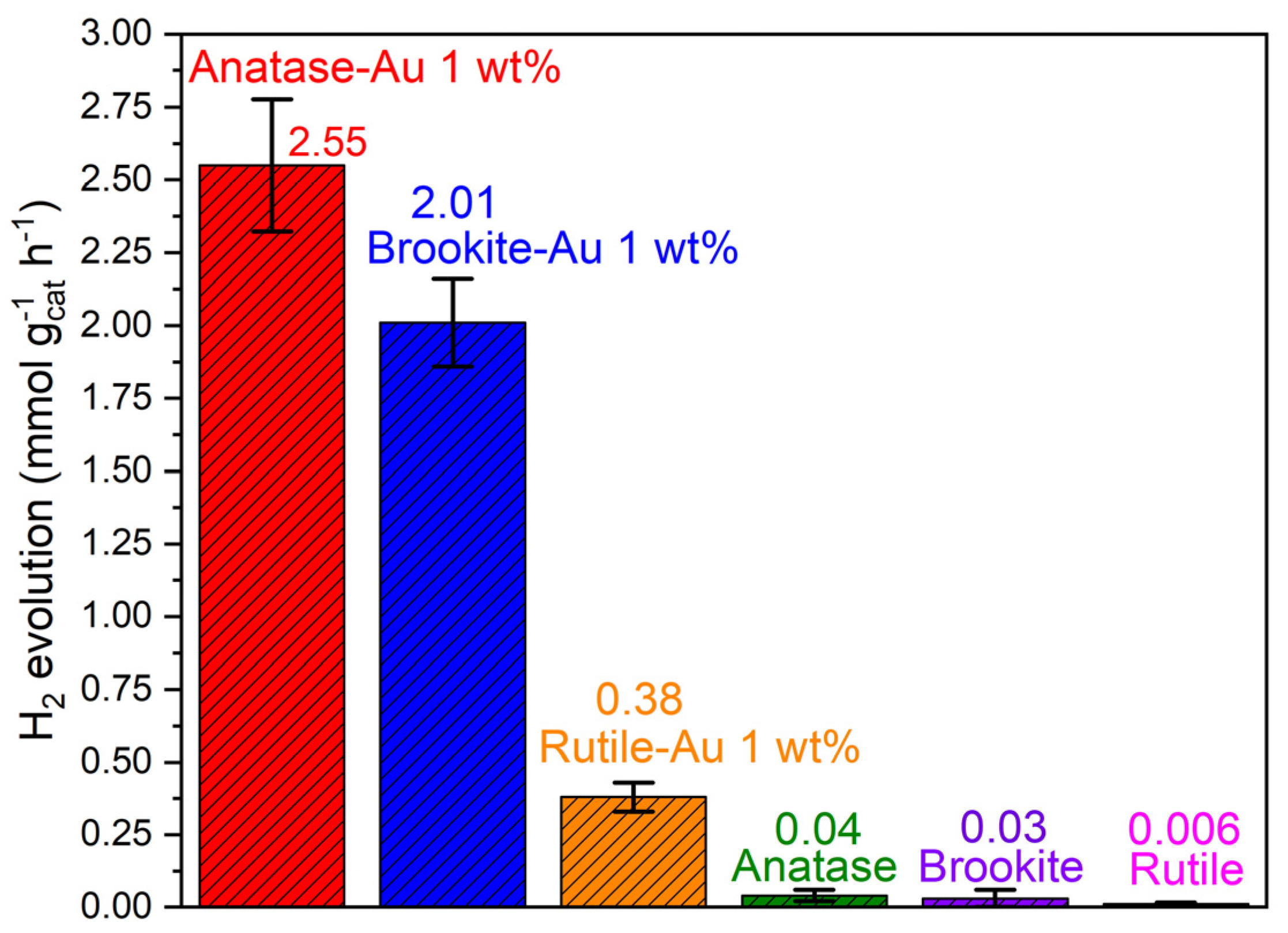

Figure 1 reports the photocatalytic activity data related to hydrogen evolution over the investigated TiO2 and Au/TiO2 samples. The best result was obtained with the Anatase–Au sample, which produced 2.55 mmol gcat−1 h−1 of hydrogen after 4 h of solar light, followed by the Brookite–Au and Rutile–Au samples (2.01 and 0.38 mmol gcat−1 h−1, respectively). As expected, the bare oxides (anatase, brookite, and rutile) were almost inactive in the solar photoreforming reaction. Interestingly, for all the three TiO2 phases, the addition of gold resulted in a significant increase of H2 evolution (more than 60 times) compared to that achieved with the unmodified oxides. The interaction between gold and TiO2 was better exploited when TiO2 was in anatase form, whereas rutile TiO2 gave the lowest photoactivity. This was in accordance with previous literature reports, pointing to the anatase form as the best support phase for gold [36,37].

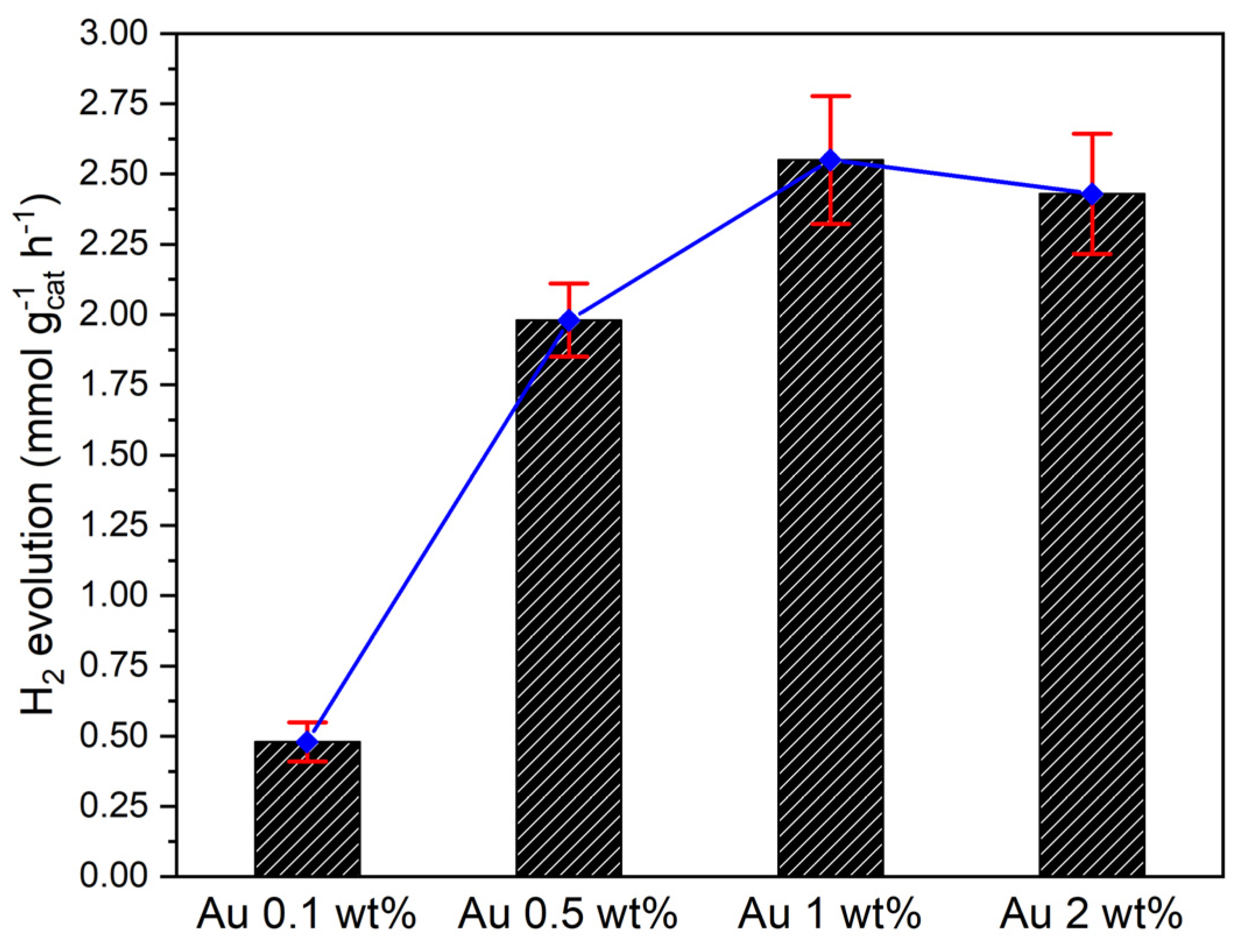

Figure 2 reports the trend of the photocatalytic activity as a function of the gold content on anatase. In this case, it is clear how, in our experimental conditions, the optimal amount of gold was 1 wt%.
This behavior can be rationalized considering that with photodeposition here used to prepare the Au/TiO2 samples, an amount of gold higher than 1% can be detrimental, leading to an agglomeration of gold particles [38]. Moreover, a higher concentration of gold precursor resulted in a lower Au reduction efficiency in the photodeposition process [38]. However, considering the high cost of gold, the use of a relative low Au amount (0.5 or 1 wt%) can be highly positive in terms of the overall process sustainability.
Another key parameter of the photodeposition technique is the time of irradiation/deposition employed in the preparation of the supported Au photocatalysts. Table 1 summarizes the evolution of H2 amounts on 1 wt% Au/TiO2 anatase samples varying the solar irradiation times.
It is possible to note that the best photocatalyst was obtained with an irradiation time of 30 min. Reasonably, lower times were not sufficient to reduce all the gold precursor, whereas higher times favored the agglomeration of gold particles.

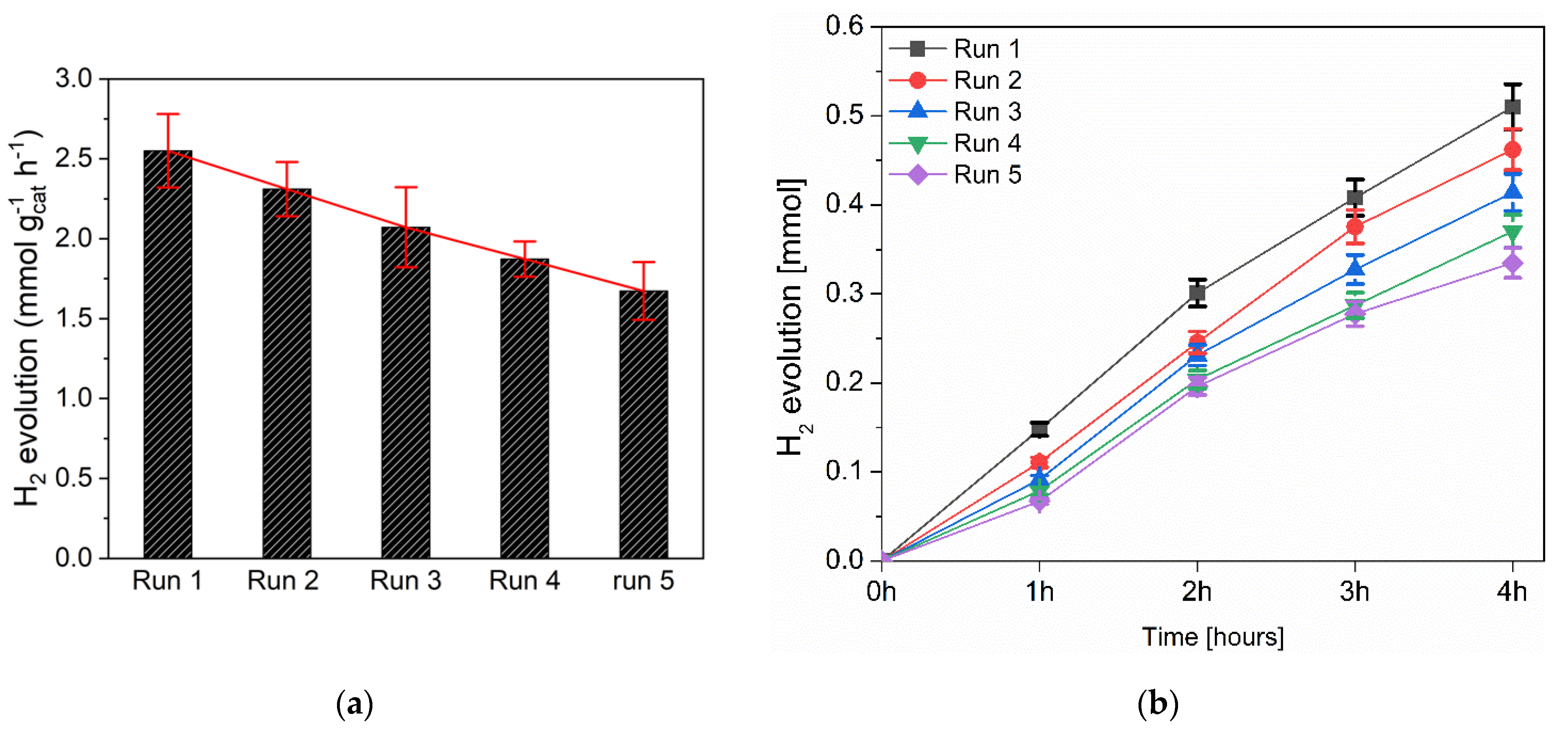

Reusability tests were carried out to check the stability of the Anatase–Au 1 wt% sample, and the results are shown in Figure 3a,b. At the end of each run, the sample was centrifugated, dried at room temperature, and re-used without thermal treatments.
The catalytic stability of Au/TiO2 anatase was good until the third run; afterwards, there was a more substantial decrease of H2 production, and in the fifth run, the photoactivity decreased by about 30% compared to the first run. The activity loss can be reasonably ascribed to the difficulty to recover all the powders after each consecutive test. However, a loss of efficiency due to the progressive aggregation of the gold particles on the surface of TiO2 as a consequence of protracted solar irradiation cannot be excluded [39].

3.2. Samples Characterization

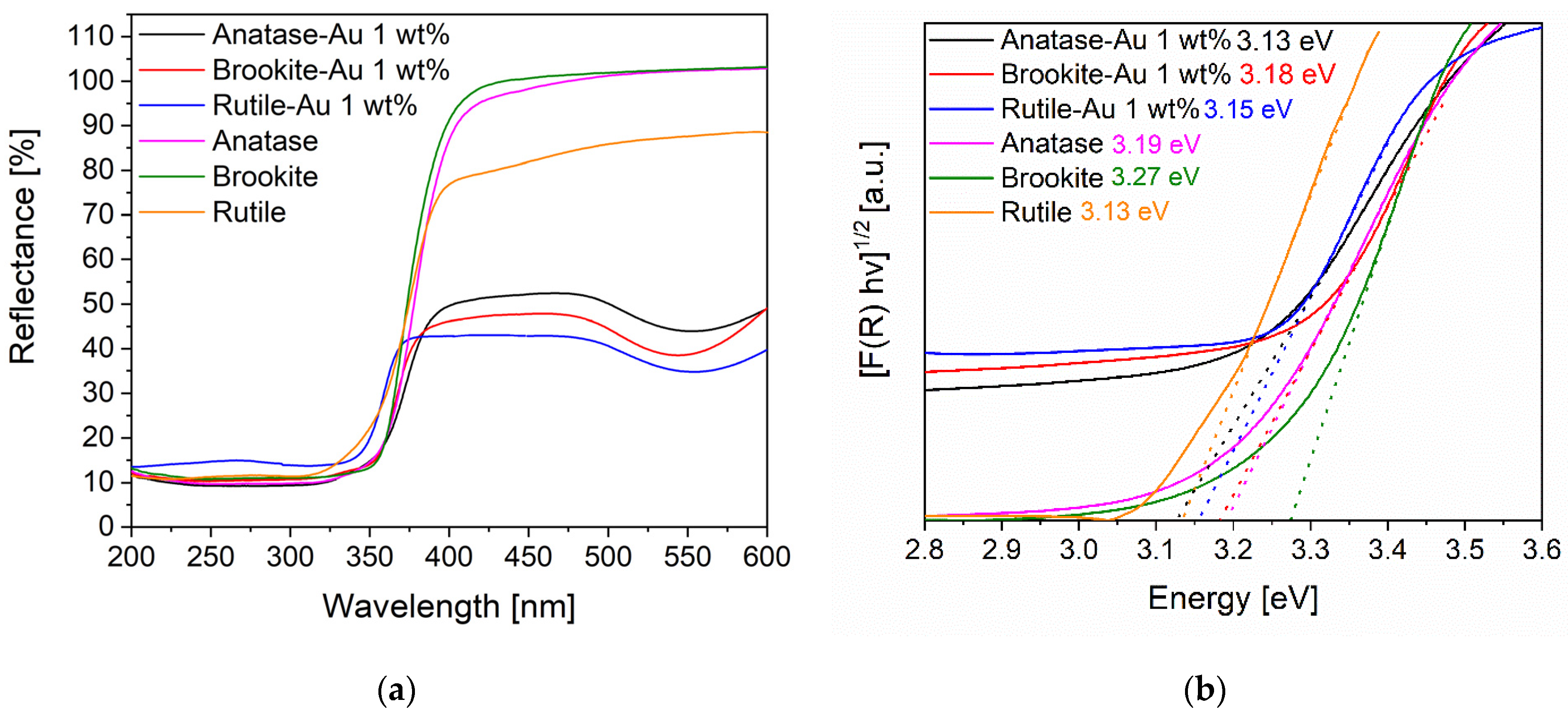

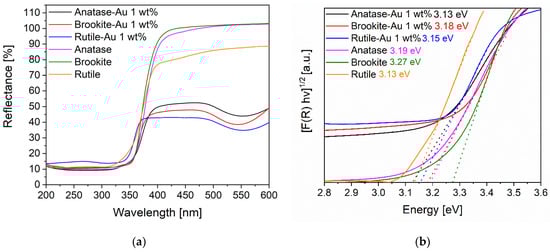

Figure 4 shows the UV–vis DRS spectra of the investigated samples (a) and the corresponding TAUC plots determined with the Kubelka–Munk function (b) to estimate the optical band gap of the samples.
No significant differences in the UV–vis DRS spectra were detected among the three TiO2 phases, whereas for all the gold-based samples, the presence of the surface plasmonic resonance (SPR) band of gold was evident at around 550 nm. This additional light absorption in the visible portion can be one of the crucial features that explain the significant enhancement of the photocatalytic activity due to the addition of gold on TiO2. Furthermore, on anatase and brookite samples, the presence of gold determined a slight decrease of the band gap values (Figure 4b) compared to those of the corresponding unmodified oxides. On the contrary, the rutile-based Au sample showed similar values as bare rutile, indicating the smallest interaction between gold and TiO2 in the rutile phase, as also confirmed by the photocatalytic data. The SPR band was at 552 nm for the Au/TiO2 anatase, at 554 nm for the Au/TiO2 rutile, and at 542 nm for the Au/TiO2 brookite. This indicated that Au particle size was in the range 5–10 nm [37,40]. The correlation between the SPR band and gold size is influenced by the dielectric constant of the surrounding medium [37,40]; therefore, when gold is deposited on an oxide (such as TiO2), the wavelength of SPR is almost independent of Au particle size, contrary to what observed for unsupported gold (e.g., present as a colloidal solution). For the Au/TiO2 samples, the optical features of gold as well as the final photocatalytic H2 production were mainly related to the strength of the metal–support interaction.

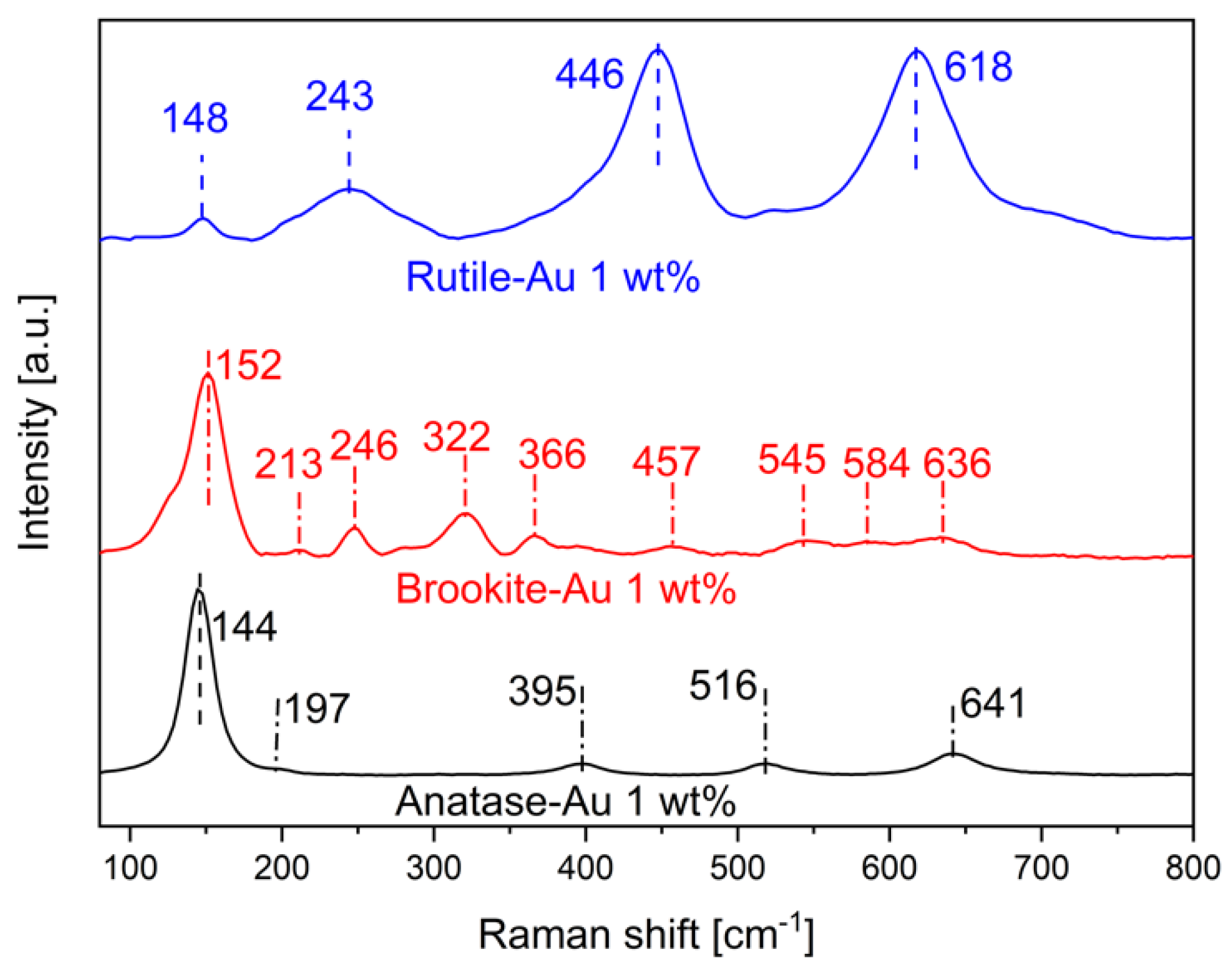

The Raman spectra of the Au/TiO2 samples are reported in Figure 5. Gold deposition on titania surface did not change the crystalline structures of the bare oxides, being the spectra similar to those of pure anatase, rutile, and brookite, respectively (Figure S1).
In particular, for the anatase phase, we observed signals at 144 cm−1, 197 cm−1, 395 cm−1, 516 cm−1, and 641 cm−1, related to Eg, Eg, B1g, A1g + B1g, and Eg, vibrational modes, respectively [41]. Regarding the rutile form, four different signals were detected at 148 cm−1, 446 cm−1, 618 cm−1, and 243 cm−1, assigned to the B1g, Eg, A1g modes and to a multi-phononic process, respectively [42]. Finally, a multitude of modes were detected in the brookite phase, assigned to A1g (152 cm−1, 246 cm−1, 636 cm−1), B1g (213 cm−1, 322 cm−1), B2g (366 cm−1, 457 cm−1, 584 cm−1), and B3g (545 cm−1) [43]. The pure brookite phase was verified by the presence of the typical band at 152 cm−1 and the absence of the vibrational mode at 516 and 446 cm−1 of anatase and rutile, respectively.
The DLS (Dynamic Light Scattering) and N2 adsorption–desorption results for the investigated samples are reported in Table 2. Interestingly, a correlation existed between these features and the photocatalytic activity. In fact, the anatase phase showed the highest value of BET surface area (53 m2/g), followed by the brookite (46 m2/g) and finally by the rutile (38 m2/g) phases. In accordance, the DLS values ascribed to the hydrodynamic radius of the Au/TiO2 samples followed a reverse trend compared to the surface area, being 184 nm, 200 nm, and 840 nm, for anatase, brookite, and rutile, respectively, similar to those of the bare oxides. As largely reported in the literature [44,45], a high surface area, in this case also favored by a small hydrodynamic radius, favors photocatalytic H2 production, being this a surface reaction. This is another important feature that allowed obtaining the highest H2 evolution on the Au/TiO2 anatase sample. This sample, in fact, showed the highest surface area and the lowest hydrodynamic radius.
An interesting aspect is related to the BET surface area values after gold photodeposition, which slightly increased, probably thanks to the partial surface reduction of titania, as also observed previously, adopting the same photoreduction synthesis [46]. Finally, no particular variations were detected in the samples regarding the pore size. All photocatalysts were mesoporous, with pores in the range of 20–25 nm.
The surface properties of the Au/TiO2 samples determined by x-ray photoelectron spectroscopy (XPS) are reported in Table 3 and Figure S2. For all samples, the Au 4f7/2,and the Au 4f5/2 spin-orbit components located at about 83.6 eV and 87.3 eV, respectively, were the typical signals of the Au0 state [47], pointing to a complete photoreduction of the gold salt precursor on the surface of TiO2 (see page 3, Reactions (2)–(4). The measured surface content of gold was similar (0.84–0.86 wt%) to the nominal one (1 wt%), highlighting that all the deposited gold was on the surface of TiO2. The Ti 2p bands located at 458.8 eV and 464.8 eV for the anatase–Au sample were ascribed to Ti 2p3/2 and Ti 2p1/2, respectively, and are the fingerprints of Ti4+ in a tetragonal structure [48]. Consequently, the rutile–Au sample showed similar bands, whereas for the brookite–Au catalyst, these bands were slightly shifted (459.1 eV and 465.1 eV, respectively) due to the orthorhombic arrangement of brookite [49]. Finally, in the O 1s region, the band at about 530 eV and the component at about 532 eV were assigned to lattice oxygen in TiO2 and to surface oxygen of hydroxyl species [50]. No significant differences were detected in the Ti and O regions considering the bare TiO2 supports.

3.3. Strong Metal Support Interaction (SMSI) between Gold and TiO2

The photodeposition of gold on TiO2 gave the best results with the anatase phase, a gold content of 1 wt%, and a time of irradiation/deposition of 30 min. Under these experimental parameters, a satisfactory H2 production was obtained, which was higher or comparable to those of the other Au/TiO2-based samples reported in the literature for the solar/visible photoreforming reaction (Table 4), although an accurate comparison is very difficult due to the various experimental conditions adopted by different research groups.
On the basis of the results of this work and of those reported in the literature [51,52,53,54,55,56], it is clear that the good interaction between gold and anatase favored H2 evolution, and this is the most important feature that directly affects H2 production, whereas the gold particle size played a minor role. This differentiates the catalytic behavior of gold-based samples in photocatalysis. Conversely, indeed, in thermocatalytic applications, the gold dimensions are crucial in order to have a good activity [57,58]. Moreover, the use of TiO2 with a mixed phase (TiO2 P25 is the most used “standard” sample, where however the anatase (80%) is preponderant with respect to the rutile (20%) phase) did not substantially improve H2 evolution, being the values reported in the literature (Table 4) similar to or lower than those of the Au/TiO2 anatase samples, as confirmed also in our experimental conditions, where the Au/TiO2 P25 photocatalyst, prepared with the same experimental procedures reported in the Section 2.1 gave an H2 production of 2.49 mmol g−1 h−1, slightly lower than that of Au/TiO2 anatase (2.55 mmol g−1 h−1).
The here investigated photodeposition method led to a strong metal–support interaction (SMSI) with the anatase phase, with respect to the brookite and rutile phase. The higher hydrodynamic radius and the lower surface area of these latter crystalline phases compared to those of anatase did not favor an efficient gold deposition, thus explaining the lower activity. On the contrary, with the anatase, the combination of a high SMSI and an increased solar photoactivity, caused by the surface plasmon resonance effect of gold, resulted in a good H2 production. Furthermore, as confirmed by the literature data (Table 4), the photocatalytic activity did not seem to be correlated with gold dimensions but appeared to be driven by the interaction between the gold co-catalyst and the TiO2 crystalline phase.

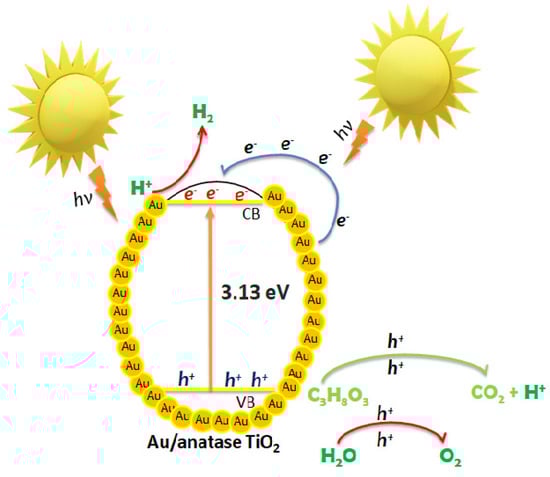

Figure 6 shows the proposed reaction mechanism considering the obtained data. In particular, the UVA portion (in accordance with the obtained optical bandgap values) of solar irradiation led to the formation of holes (h+) and photoelectrons in the valence (VB) and in the conduction (CB) bands of TiO2, respectively, (Reaction (5). The visible light portion of solar irradiation activated the surface plasmon resonance effect of gold deposited on the surface of TiO2, and allowed the injection of further electrons in the conduction band of TiO2 (Reaction (6)). In this way, the photoelectrons and the electron coming from the Au SPR were able to efficiently reduce the proton from water (Reaction (7)), whereas the holes oxidized glycerol (hole scavengers), promoting the photoreforming (Reaction (8)) as well as the oxidation of water (Reaction (9)) [26,59]. In this way, charge carrier recombination (a common reason of photocatalysts deactivation) was strongly reduced, improving H2 evolution.
TiO2 + hν(solar) → TiO2(h+VB + eCB)
Au/TiO2+ hν(solar) → TiO2(e from SPR)
2H+ + eCB + eSPR → H2
C3H8O3 + 14h+VB + 3H2O → 14H+ + 3CO2
H2O + 2 h+VB → 2H+ + 1/2O2
The charge carrier separation was also improved by the presence of gold on TiO2. This was verified by photoluminescence (PL) characterization, whose results are illustrated in the Figure 7. All samples showed four bands related to the band-to-band emission of TiO2 (388 nm), the self-trapped excitons localized on the surface of titania (420 nm), and the presence of oxygen vacancies and defects in TiO2 (485 and 525 nm) [60,61]. It is possible to note that the presence of gold led to a decrease of the intensity of these bands and that the Au/anatase TiO2 sample showed the lowest PL bands intensity. A lower PL intensity is generally related to a lower recombination rate of light-generated charge carriers [61], confirming that with the anatase form, the strong interaction with gold allowed a better improvement of charge carrier separation compared to Au/brookite TiO2 and Au/rutile photocatalysts. This is another key feature that clarifies the higher H2 production obtained with the gold/anatase sample with respect to the other investigated powders.
Finally, compared to the other preparation methods used for the preparation of gold/titania photocatalysts, such as–deposition-precipitation, laser ablation, sol–gel, etc. [51,62], photodeposition certainly is an easy one-step preparation technique that avoids the addition of other chemicals and thermal treatments and that owns a promising versatility for possible scale-up applications. In fact, the photoreactor can be used for both materials synthesis and photocatalytic tests. Furthermore, the use of glycerol as a sustainable organic substrate of photoreforming and the exploitation of solar light are promising aspects that will provide a high sustainability of the overall process for green hydrogen production.

4. Conclusions

In this work, we investigated the performance in hydrogen evolution from solar photoreforming of glycerol of Au/TiO2 samples prepared through the photodeposition of gold on different titanium dioxide phases. Very promising results were obtained using the anatase phase, with 2.55 mmol gcat−1 h−1 of evolved hydrogen. The rutile phase showed the lowest photocatalytic activity due to its biggest hydrodynamic radius and lowest surface area compared to the anatase and brookite phases, which inhibited the interaction with gold. The best amount of gold was 1 wt% on TiO2 anatase. The solar photodeposition method is promising for gold deposition on a semiconductor surface avoiding expensive procedures and thermal treatments. Finally, the use of solar light efficiently activated the gold surface plasmon resonance effect, with the double positive effect of favoring the interaction with anatase and the absorption of solar light, boosting up H2 production.

Supplementary Materials

The following are available online at, Figure S1: Raman spectra of bare anatase, rutile, and brookite TiO2; Figure S2: XPS spectra of the analyzed samples.

Author Contributions

Conceptualization, S.A.B. and R.F.; investigation, S.A.B., R.F. and M.C.; writing—original draft preparation, S.A.B.; writing—review and editing, R.F. and S.S.; supervision, R.F. and S.S. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.


R.F. thanks the PON “AIM” of the European Social Found (ESF) (CUP:E66C18001220005), S.S. thanks the University of Catania (Piano della ricerca 2020–2022) for the support to this research work.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Armaroli, N.; Balzani, V. The Future of Energy Supply: Challenges and Opportunities. Angew. Chem. Int. Ed. 2007, 46, 52–66. [Google Scholar] [CrossRef]
  2. Holladay, J.D.; Hu, J.; King, D.L.; Wang, Y. An overview of hydrogen production technologies. Catal. Today 2009, 139, 244–260. [Google Scholar] [CrossRef]
  3. Fujishima, A.; Honda, K. Electrochemical Photolysis of Water at a Semiconductor Electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef] [PubMed]
  4. Yadav, A.A.; Hunge, Y.M.; Kang, S.-W. Porous nanoplate-like tungsten trioxide/reduced graphene oxide catalyst for sonocatalytic degradation and photocatalytic hydrogen production. Surf. Interfaces 2021, 24, 101075. [Google Scholar] [CrossRef]
  5. Hunge, Y.M.; Yadav, A.A.; Mathe, V.L. Photocatalytic hydrogen production using TiO2 nanogranules prepared by hydrothermal route. Chem. Phys. Lett. 2019, 731, 136582. [Google Scholar] [CrossRef]
  6. Bellardita, M.; García-López, E.I.; Marcì, G.; Nasillo, G.; Palmisano, L. Photocatalytic Solar Light H2 Production by Aqueous Glucose Reforming. Eur. J. Inorg. Chem. 2018, 2018, 4522–4532. [Google Scholar] [CrossRef][Green Version]
  7. Zinoviev, S.; Müller-Langer, F.; Das, P.; Bertero, N.; Fornasiero, P.; Kaltschmitt, M.; Centi, G.; Miertus, S. Next-Generation Biofuels: Survey of Emerging Technologies and Sustainability Issues. ChemSusChem 2010, 3, 1106–1133. [Google Scholar] [CrossRef]
  8. Bahadori, E.; Ramis, G.; Zanardo, D.; Menegazzo, F.; Signoretto, M.; Gazzoli, D.; Pietrogiacomi, D.; Di Michele, A.; Rossetti, I. Photoreforming of Glucose over CuO/TiO2. Catalysts 2020, 10, 477. [Google Scholar] [CrossRef]
  9. Lakhera, S.K.; Rajan, A.; Rugma, T.P.; Bernaurdshaw, N. A review on particulate photocatalytic hydrogen production system: Progress made in achieving high energy conversion efficiency and key challenges ahead. Renew. Sustain. Energy Rev. 2021, 152, 111694. [Google Scholar] [CrossRef]
  10. Huang, H.; Feng, J.; Zhang, S.; Zhang, H.; Wang, X.; Yu, T.; Chen, C.; Yi, Z.; Ye, J.; Li, Z.; et al. Molecular-level understanding of the deactivation pathways during methanol photo-reforming on Pt-decorated TiO2. Appl. Catal. B Environ. 2020, 272, 118980. [Google Scholar] [CrossRef]
  11. Fiorenza, R.; Balsamo, S.A.; Condorelli, M.; D’Urso, L.; Compagnini, G.; Scirè, S. Solar photocatalytic H2 production over CeO2-based catalysts: Influence of chemical and structural modifications. Catal. Today 2021, 380, 187–198. [Google Scholar] [CrossRef]
  12. Chilakamarry, C.R.; Mimi Sakinah, A.M.; Zularisam, A.W.; Pandey, A.; Vo, D.-V.N. Technological perspectives for utilisation of waste glycerol for the production of biofuels: A review. Environ. Technol. Innov. 2021, 24, 101902. [Google Scholar] [CrossRef]
  13. Hidalgo-Carrillo, J.; Martín-Gómez, J.; Morales, J.; Espejo, J.C.; Urbano, F.J.; Marinas, A. Hydrogen Photo-Production from Glycerol Using Nickel-Doped TiO2 Catalysts: Effect of Catalyst Pre-Treatment. Energies 2019, 12, 3351. [Google Scholar] [CrossRef][Green Version]
  14. Christoforidis, K.C.; Fornasiero, P. Photocatalytic Hydrogen Production: A Rift into the Future Energy Supply. ChemCatChem 2017, 9, 1523–1544. [Google Scholar] [CrossRef][Green Version]
  15. Padmanabhan, N.T.; John, H. Titanium dioxide based self-cleaning smart surfaces: A short review. J. Environ. Chem. Eng. 2020, 8, 104211. [Google Scholar] [CrossRef]
  16. Li, R.; Li, T.; Zhou, Q. Impact of Titanium Dioxide (TiO2) Modification on Its Application to Pollution Treatment—A Review. Catalysts 2020, 10, 804. [Google Scholar] [CrossRef]
  17. Gopinath, K.P.; Madhav, N.V.; Krishnan, A.; Malolan, R.; Rangarajan, G. Present applications of titanium dioxide for the photocatalytic removal of pollutants from water: A review. J. Environ. Manag. 2020, 270, 110906. [Google Scholar] [CrossRef]
  18. Nabi, I.; Bacha, A.-U.-R.; Ahmad, F.; Zhang, L. Application of titanium dioxide for the photocatalytic degradation of macro- and micro-plastics: A review. J. Environ. Chem. Eng. 2021, 9, 105964. [Google Scholar] [CrossRef]
  19. Fiorenza, R.; Sciré, S.; D’Urso, L.; Compagnini, G.; Bellardita, M.; Palmisano, L. Efficient H2 production by photocatalytic water splitting under UV or solar light over variously modified TiO2-based catalysts. Int. J. Hydrogen Energy 2019, 44, 14796–14807. [Google Scholar] [CrossRef]
  20. Labat, F.; Baranek, P.; Adamo, C. Structural and Electronic Properties of Selected Rutile and Anatase TiO2 Surfaces: An ab Initio Investigation. J. Chem. Theory Comput. 2008, 4, 341–352. [Google Scholar] [CrossRef]
  21. Sikora, R. Ab initio study of phonons in the rutile structure of TiO2. J. Phys. Chem. Solids 2005, 66, 1069–1073. [Google Scholar] [CrossRef]
  22. Di Paola, A.; Bellardita, M.; Palmisano, L. Brookite, the Least Known TiO2 Photocatalyst. Catalysts 2013, 3, 36–73. [Google Scholar] [CrossRef][Green Version]
  23. Fujishima, A.; Rao, T.N.; Tryk, D.A. Titanium dioxide photocatalysis. J. Photochem. Photobiol. C Photochem. Rev. 2000, 1, 1–21. [Google Scholar] [CrossRef]
  24. Linsebigler, A.L.; Lu, G.; Yates, J.T. Photocatalysis on TiO2 Surfaces: Principles, Mechanisms, and Selected Results. Chem. Rev. 1995, 95, 735–758. [Google Scholar] [CrossRef]
  25. Wibowo, D.; Muzakkar, M.Z.; Saad, S.K.M.; Mustapa, F.; Maulidiyah, M.; Nurdin, M.; Umar, A.A. Enhanced visible light-driven photocatalytic degradation supported by Au-TiO2 coral-needle nanoparticles. J. Photochem. Photobiol. A Chem. 2020, 398, 112589. [Google Scholar] [CrossRef]
  26. Fiorenza, R.; Bellardita, M.; D’Urso, L.; Compagnini, G.; Palmisano, L.; Scirè, S. Au/TiO2-CeO2 catalysts for photocatalytic water splitting and VOCs oxidation reactions. Catalysts 2016, 6, 121. [Google Scholar] [CrossRef][Green Version]
  27. Greco, E.; Balsamo, S.A.; Maccarrone, G.; Mello, D.; Ciliberto, E.; Shang, J.; Zhu, T. Gold-core lithium-doped titania shell nanostructures for plasmon-enhanced visible light harvesting with photocatalytic activity. J. Nanoparticle Res. 2020, 22, 164. [Google Scholar] [CrossRef]
  28. Mohite, V.S.; Mahadik, M.A.; Kumbhar, S.S.; Hunge, Y.M.; Kim, J.H.; Moholkar, A.V.; Rajpure, K.Y.; Bhosale, C.H. Photoelectrocatalytic degradation of benzoic acid using Au doped TiO2 thin films. J. Photochem. Photobiol. B Biol. 2015, 142, 204–211. [Google Scholar] [CrossRef]
  29. Mohazzab, B.F.; Jaleh, B.; Nasrollahzadeh, M.; Issaabadi, Z.; Varma, R.S. Laser ablation-assisted synthesis of GO/TiO2/Au nanocomposite: Applications in K3[Fe(CN)6] and Nigrosin reduction. Mol. Catal. 2019, 473, 110401. [Google Scholar] [CrossRef]
  30. Fadaee Takmil, N.; Jaleh, B.; Feizi Mohazzab, B.; Khazalpour, S.; Rostami-Vartooni, A.; Hong Chuong Nguyen, T.; Cuong Nguyen, X.; Varma, R.S. Hydrogen production by Electrochemical reaction using waste zeolite boosted with Titania and Au nanoparticles. Inorg. Chem. Commun. 2021, 133, 108891. [Google Scholar] [CrossRef]
  31. Kumaravel, V.; Mathew, S.; Bartlett, J.; Pillai, S.C. Photocatalytic hydrogen production using metal doped TiO2: A review of recent advances. Appl. Catal. B Environ. 2019, 244, 1021–1064. [Google Scholar] [CrossRef]
  32. Huang, L.; Liu, X.; Wu, H.; Wang, X.; Wu, H.; Li, R.; Shi, L.; Li, C. Surface state modulation for size-controllable photodeposition of noble metal nanoparticles on semiconductors. J. Mater. Chem. A 2020, 8, 21094–21102. [Google Scholar] [CrossRef]
  33. Lettieri, S.; Pavone, M.; Fioravanti, A.; Santamaria Amato, L.; Maddalena, P. Charge Carrier Processes and Optical Properties in TiO2 and TiO2-Based Heterojunction Photocatalysts: A Review. Materials 2021, 14, 1645. [Google Scholar] [CrossRef] [PubMed]
  34. Williams, G.; Seger, B.; Kamat, P.V. TiO2-Graphene Nanocomposites. UV-Assisted Photocatalytic Reduction of Graphene Oxide. ACS Nano 2008, 2, 1487–1491. [Google Scholar] [CrossRef]
  35. Makuła, P.; Pacia, M.; Macyk, W. How To Correctly Determine the Band Gap Energy of Modified Semiconductor Photocatalysts Based on UV–Vis Spectra. J. Phys. Chem. Lett. 2018, 9, 6814–6817. [Google Scholar] [CrossRef][Green Version]
  36. Martins, P.; Kappert, S.; Nga Le, H.; Sebastian, V.; Kühn, K.; Alves, M.; Pereira, L.; Cuniberti, G.; Melle-Franco, M.; Lanceros-Méndez, S. Enhanced Photocatalytic Activity of Au/TiO2 Nanoparticles against Ciprofloxacin. Catalysts 2020, 10, 234. [Google Scholar] [CrossRef][Green Version]
  37. Chen, W.-T.; Chan, A.; Al-Azri, Z.H.N.; Dosado, A.G.; Nadeem, M.A.; Sun-Waterhouse, D.; Idriss, H.; Waterhouse, G.I.N. Effect of TiO2 polymorph and alcohol sacrificial agent on the activity of Au/TiO2 photocatalysts for H2 production in alcohol–water mixtures. J. Catal. 2015, 329, 499–513. [Google Scholar] [CrossRef]
  38. Kimling, J.; Maier, M.; Okenve, B.; Kotaidis, V.; Ballot, H.; Plech, A. Turkevich Method for Gold Nanoparticle Synthesis Revisited. J. Phys. Chem. B 2006, 110, 15700–15707. [Google Scholar] [CrossRef]
  39. Zhang, D.-F.; Li, S.; Xu, Q.-H.; Cao, Y. Aggregation-Induced Plasmon Coupling-Enhanced One- and Two-Photon Excitation Fluorescence by Silver Nanoparticles. Langmuir 2020, 36, 4721–4727. [Google Scholar] [CrossRef]
  40. Kowalska, E.; Mahaney, O.O.P.; Abe, R.; Ohtani, B. Visible-light-induced photocatalysis through surface plasmon excitation of gold on titania surfaces. Phys. Chem. Chem. Phys. 2010, 12, 2344. [Google Scholar] [CrossRef][Green Version]
  41. Ohsaka, T.; Izumi, F.; Fujiki, Y. Raman spectrum of anatase, TiO2. J. Raman Spectrosc. 1978, 7, 321–324. [Google Scholar] [CrossRef]
  42. Challagulla, S.; Tarafder, K.; Ganesan, R.; Roy, S. Structure sensitive photocatalytic reduction of nitroarenes over TiO2. Sci. Rep. 2017, 7, 8783. [Google Scholar] [CrossRef] [PubMed]
  43. Xu, J.; Li, K.; Wu, S.; Shi, W.; Peng, T. Preparation of brookite titania quasi nanocubes and their application in dye-sensitized solar cells. J. Mater. Chem. A 2015, 3, 7453–7462. [Google Scholar] [CrossRef]
  44. Liu, B.; Liu, L.-M.; Lang, X.-F.; Wang, H.-Y.; Lou, X.W.D.; Aydil, E.S. Doping high-surface-area mesoporous TiO2 microspheres with carbonate for visible light hydrogen production. Energy Environ. Sci. 2014, 7, 2592. [Google Scholar] [CrossRef]
  45. Schwarze, M.; Klingbeil, C.; Do, H.U.; Kutorglo, E.M.; Parapat, R.Y.; Tasbihi, M. Highly Active TiO2 Photocatalysts for Hydrogen Production through a Combination of Commercial TiO2 Material Selection and Platinum Co-Catalyst Deposition Using a Colloidal Approach with Green Reductants. Catalysts 2021, 11, 1027. [Google Scholar] [CrossRef]
  46. Balsamo, S.A.; Fiorenza, R.; Condorelli, M.; Pecoraro, R.; Brundo, M.V.; Lo Presti, F.; Sciré, S. One-Pot Synthesis of TiO2-rGO Photocatalysts for the Degradation of Groundwater Pollutants. Materials 2021, 14, 5938. [Google Scholar] [CrossRef]
  47. Casaletto, M.P.; Longo, A.; Martorana, A.; Prestianni, A.; Venezia, A.M. XPS study of supported gold catalysts: The role of Au0 and Au species as active sites. Surf. Interface Anal. 2006, 38, 215–218. [Google Scholar] [CrossRef]
  48. Bian, Z.; Zhu, J.; Wang, S.; Cao, Y.; Qian, X.; Li, H. Self-Assembly of Active Bi2O3/TiO2 Visible Photocatalyst with Ordered Mesoporous Structure and Highly Crystallized Anatase. J. Phys. Chem. C 2008, 112, 6258–6262. [Google Scholar] [CrossRef]
  49. Fiorenza, R.; Bellardita, M.; Balsamo, S.A.; Spitaleri, L.; Gulino, A.; Condorelli, M.; D’Urso, L.; Scirè, S.; Palmisano, L. A solar photothermocatalytic approach for the CO2 conversion: Investigation of different synergisms on CoO-CuO/brookite TiO2-CeO2 catalysts. Chem. Eng. J. 2022, 428, 131249. [Google Scholar] [CrossRef]
  50. Zhu, J.; Yang, J.; Bian, Z.-F.; Ren, J.; Liu, Y.-M.; Cao, Y.; Li, H.-X.; He, H.-Y.; Fan, K.-N. Nanocrystalline anatase TiO2 photocatalysts prepared via a facile low temperature nonhydrolytic sol–gel reaction of TiCl4 and benzyl alcohol. Appl. Catal. B Environ. 2007, 76, 82–91. [Google Scholar] [CrossRef]
  51. Gupta, B.; Melvin, A.A.; Matthews, T.; Dash, S.; Tyagi, A.K. TiO2 modification by gold (Au) for photocatalytic hydrogen (H2) production. Renew. Sustain. Energy Rev. 2016, 58, 1366–1375. [Google Scholar] [CrossRef]
  52. Waterhouse, G.I.N.; Wahab, A.K.; Al-Oufi, M.; Jovic, V.; Anjum, D.H.; Sun-Waterhouse, D.; Llorca, J.; Idriss, H. Hydrogen production by Tuning the Photonic Band Gap with the Electronic Band Gap of TiO2. Sci. Rep. 2013, 3, 2849. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Seh, Z.W.; Liu, S.; Low, M.; Zhang, S.Y.; Liu, Z.; Mlayah, A.; Han, M.Y. Janus Au-TiO2 photocatalysts with strong localization of plasmonic near-fields for efficient visible-light hydrogen generation. Adv. Mater. 2012, 24, 2310–2314. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, R.; Fang, S.-Y.; Dong, C.-D.; Tsai, K.-C.; Yang, W.-D. Enhancing hydrogen evolution of water splitting under solar spectra using Au/TiO2 heterojunction photocatalysts. Int. J. Hydrogen Energy 2021, 46, 28462–28473. [Google Scholar] [CrossRef]
  55. Priebe, J.B.; Radnik, J.; Lennox, A.J.J.; Pohl, M.-M.; Karnahl, M.; Hollmann, D.; Grabow, K.; Bentrup, U.; Junge, H.; Beller, M.; et al. Solar Hydrogen Production by Plasmonic Au–TiO2 Catalysts: Impact of Synthesis Protocol and TiO2 Phase on Charge Transfer Efficiency and H2 Evolution Rates. ACS Catal. 2015, 5, 2137–2148. [Google Scholar] [CrossRef]
  56. Marchal, C.; Piquet, A.; Behr, M.; Cottineau, T.; Papaefthimiou, V.; Keller, V.; Caps, V. Activation of solid grinding-derived Au/TiO2 photocatalysts for solar H2 production from water-methanol mixtures with low alcohol content. J. Catal. 2017, 352, 22–34. [Google Scholar] [CrossRef]
  57. Fiorenza, R. Bimetallic Catalysts for Volatile Organic Compound Oxidation. Catalysts 2020, 10, 661. [Google Scholar] [CrossRef]
  58. Ishida, T.; Murayama, T.; Taketoshi, A.; Haruta, M. Importance of Size and Contact Structure of Gold Nanoparticles for the Genesis of Unique Catalytic Processes. Chem. Rev. 2020, 120, 464–525. [Google Scholar] [CrossRef][Green Version]
  59. Panagiotopoulou, P.; Karamerou, E.E.; Kondarides, D.I. Kinetics and mechanism of glycerol photo-oxidation and photo-reforming reactions in aqueous TiO2 and Pt/TiO2 suspensions. Catal. Today 2013, 209, 91–98. [Google Scholar] [CrossRef]
  60. Serpone, N.; Lawless, D.; Khairutdinov, R. Size Effects on the Photophysical Properties of Colloidal Anatase TiO2 Particles: Size Quantization versus Direct Transitions in This Indirect Semiconductor? J. Phys. Chem. 1995, 99, 16646–16654. [Google Scholar] [CrossRef]
  61. Chen, Y.; Wang, Y.; Li, W.; Yang, Q.; Hou, Q.; Wei, L.; Liu, L.; Huang, F.; Ju, M. Enhancement of photocatalytic performance with the use of noble-metal-decorated TiO2 nanocrystals as highly active catalysts for aerobic oxidation under visible-light irradiation. Appl. Catal. B Environ. 2017, 210, 352–367. [Google Scholar] [CrossRef]
  62. Ayati, A.; Ahmadpour, A.; Bamoharram, F.F.; Tanhaei, B.; Mänttäri, M.; Sillanpää, M. A review on catalytic applications of Au/TiO2 nanoparticles in the removal of water pollutant. Chemosphere 2014, 107, 163–174. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Hydrogen evolution on the investigated samples after 4 h of solar irradiation.
Figure 1. Hydrogen evolution on the investigated samples after 4 h of solar irradiation.
J 05 00006 g001
Figure 2. Influence of the amount of gold deposited on anatase TiO2 versus H2 production.
Figure 2. Influence of the amount of gold deposited on anatase TiO2 versus H2 production.
J 05 00006 g002

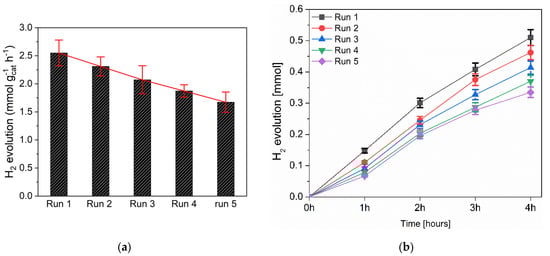

Figure 3. (a) Photocatalytic activity of Anatase–Au 1 wt% on five subsequent runs, (b) H2 evolution in each hour of the stability tests.
Figure 3. (a) Photocatalytic activity of Anatase–Au 1 wt% on five subsequent runs, (b) H2 evolution in each hour of the stability tests.
J 05 00006 g003
Figure 4. (a) UV–vis DRS measurements in R%, (b) Kubelka–Munk functions for the estimation of the optical band gap of the investigated samples.
Figure 4. (a) UV–vis DRS measurements in R%, (b) Kubelka–Munk functions for the estimation of the optical band gap of the investigated samples.
J 05 00006 g004
Figure 5. Raman spectra of the samples containing the gold particles.
Figure 5. Raman spectra of the samples containing the gold particles.
J 05 00006 g005

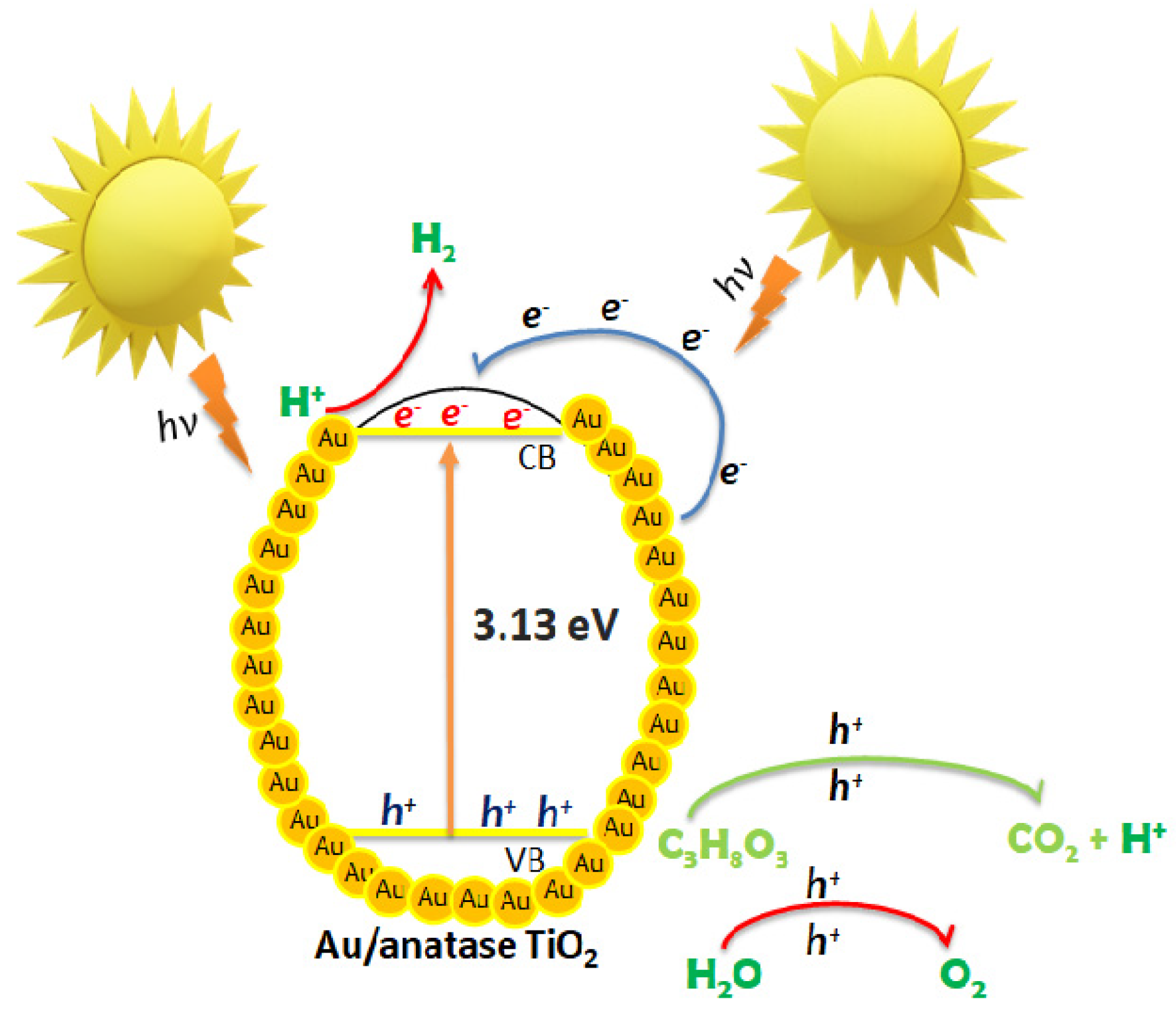

Figure 6. Proposed reaction mechanism.
Figure 6. Proposed reaction mechanism.
J 05 00006 g006

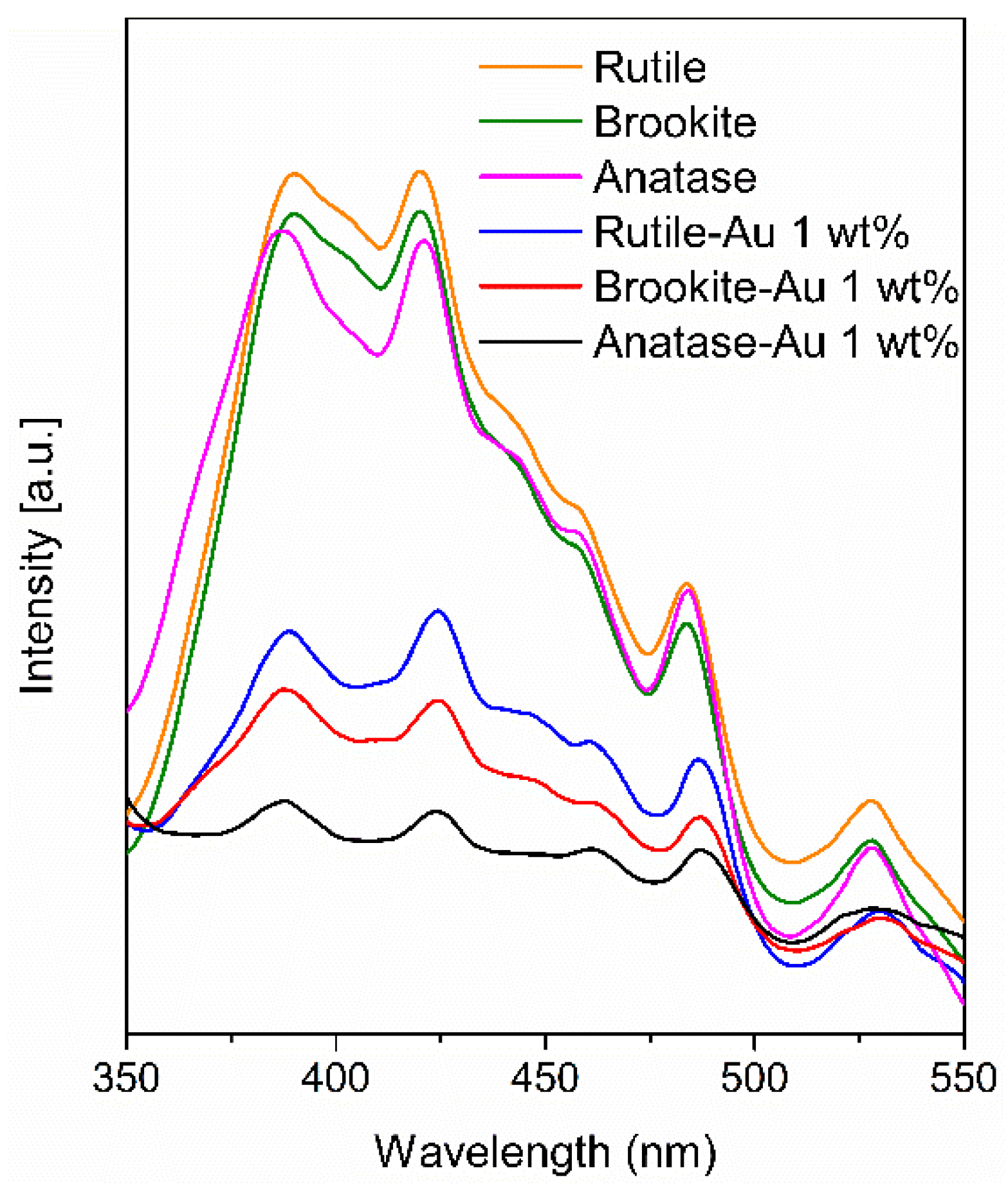

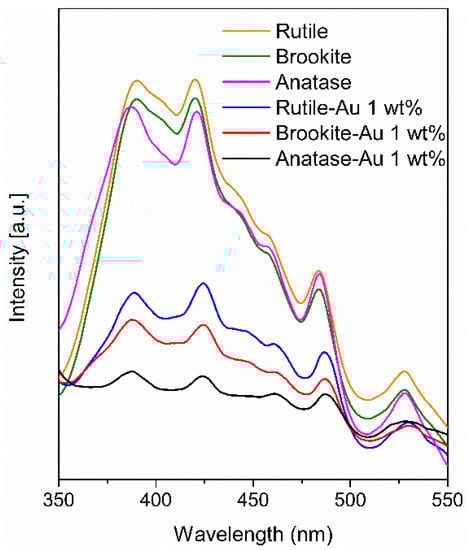

Figure 7. Photoluminescence spectra of the analyzed samples (excitation wavelength of 320 nm).
Figure 7. Photoluminescence spectra of the analyzed samples (excitation wavelength of 320 nm).
J 05 00006 g007
Table 1. Different irradiation–deposition times during the preparation of 1 wt% Au/TiO2 anatase and their effect on the photocatalytic activity.
Table 1. Different irradiation–deposition times during the preparation of 1 wt% Au/TiO2 anatase and their effect on the photocatalytic activity.
Irradiation Time [min]H2 Amount [mmol gcat−1 h−1]
152.24 ± 0.21
302.55 ± 0.24
452.14 ± 0.19
601.83 ± 0.16
Table 2. Hydrodynamic radii, surface areas, and mean pore diameters of the investigated samples.
Table 2. Hydrodynamic radii, surface areas, and mean pore diameters of the investigated samples.
SamplesDLS 1 (nm)SBET (m2/g)dp 2 (nm)
Anatase–Au 1 wt%184 55;20
Rutile–Au 1 wt%84040;25
Brookite–Au 1 wt%2004924
1 Hydrodynamic radius measured by Dynamic Light Scattering. 2 Average pore diameters determined with the Barret–Joyner–Halenda (BJH) method.
Table 3. XPS analysis of the Au-based samples.
Table 3. XPS analysis of the Au-based samples.
SampleAu 4f BEAu Content (wt%)Ti 2p BEO 1s BE
Table 4. Comparison of the solar/visible hydrogen evolution data from photoreforming on various Au/TiO2-based samples.
Table 4. Comparison of the solar/visible hydrogen evolution data from photoreforming on various Au/TiO2-based samples.
SampleGold Deposition Method and Au SizeH2 Evolved 1Photocatalytic Conditions 2Ref.
1 wt% Au/TiO2 anatasePhotodeposition,
5–10 nm
2.5300 W solar lamp; 5 mL glycerolthis work
2 wt% Au/TiO2 anataseDeposition–precipitation, 6 nm0.4Natural sunlight; 5 mL ethanol[52]
1 wt% Au/TiO2 anataseSol-gel,
70 nm
2.0500 W tungsten halogen lamp with a cut-off filter (λ > 400 nm), 10 mL isopropanol[53]
2 wt% Au/TiO2 P25Wet impregnation,
10 nm
2.7300 W solar lamp; 10 mL methanol[54]
0.94 wt% Au/TiO2 P25Sol immobilization,
9 nm
1.2Vis. Light filtered 400–700 nm; 5 mL methanol[55]
0.5 wt% Au/TiO2 P25Solid grinding,
23 nm
0.5150 W Ceramic-Metal-Halide Lamp (solar light simulation), methanol 1% vol. [56]
1 Amount in mmol gcat−1 h−1; 2 irradiation source and sacrificial agent used in the photocatalytic experiments.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Balsamo, S.A.; Sciré, S.; Condorelli, M.; Fiorenza, R. Photocatalytic H2 Production on Au/TiO2: Effect of Au Photodeposition on Different TiO2 Crystalline Phases. J 2022, 5, 92-104.

AMA Style

Balsamo SA, Sciré S, Condorelli M, Fiorenza R. Photocatalytic H2 Production on Au/TiO2: Effect of Au Photodeposition on Different TiO2 Crystalline Phases. J. 2022; 5(1):92-104.

Chicago/Turabian Style

Balsamo, Stefano Andrea, Salvatore Sciré, Marcello Condorelli, and Roberto Fiorenza. 2022. "Photocatalytic H2 Production on Au/TiO2: Effect of Au Photodeposition on Different TiO2 Crystalline Phases" J 5, no. 1: 92-104.

Article Metrics

Back to TopTop
