Key Targets for Improving Algal Biofuel Production

Abstract

A number of technological challenges need to be overcome if algae are to be utilized for commercial fuel production. Current economic assessment is largely based on laboratory scale up or commercial systems geared to the production of high value products, since no industrial scale plant exits that are dedicated to algal biofuel. For macroalgae (‘seaweeds’), the most promising processes are anaerobic digestion for biomethane production and fermentation for bioethanol, the latter with levels exceeding those from sugar cane. Currently, both processes could be enhanced by increasing the rate of degradation of the complex polysaccharide cell walls to generate fermentable sugars using specifically tailored hydrolytic enzymes. For microalgal biofuel production, open raceway ponds are more cost-effective than photobioreactors, with CO₂ and harvesting/dewatering costs estimated to be ~50% and up to 15% of total costs, respectively. These costs need to be reduced by an order of magnitude if algal biodiesel is to compete with petroleum. Improved economics could be achieved by using a low-cost water supply supplemented with high glucose and nutrients from food grade industrial wastewater and using more efficient flocculation methods and CO₂ from power plants. Solar radiation of not <3000 h·yr⁻¹ favours production sites 30° north or south of the equator and should use marginal land with flat topography near oceans. Possible geographical sites are discussed. In terms of biomass conversion, advances in wet technologies such as hydrothermal liquefaction, anaerobic digestion, and transesterification for algal biodiesel are presented and how these can be integrated into a biorefinery are discussed.

1. Introduction

Fuel must be affordable and will always be compared to petroleum-based fuel, both in terms of cost and in overall performance. Whilst it is currently economical to produce algae for food or high value products, there are a number of cost constraints which limit their present use as a fuel feedstock, such as key issues around nutrient supply, harvesting, and dewatering [1,2]. Given the wide range of variation in the chemical composition of algae, the potential exits to generate a diversity of fuel types from them such as bioethanol [3], biohydrogen [4], biomethane [5], bio-oil [6], and biodiesel [7]. All algae share one common feature though, and that is a high water content. This is generally an undesirable component to have in any fuel type and therefore technologies that rely on a low water content, such as fast pyrolysis (FP) used to generate bio-oils, for example, become economically challenging because of the cost implications involved in drying the material. Fast pyrolysis, although suitable for use with relatively dry biomass (moisture content <5%) such as lignocellulosic material [8], is generally unsuitable for wet algae both in terms of the energy required and the products that are generated which cause fouling of the reactors. Out of practical necessity, therefore, this limits the choice for fuel production to wet technologies such as fermentation, hydrothermal liquefaction, or biodiesel generation from solvent extracted oils. In this review we will consider the types of algae that could be used, i.e., large ‘seaweed-type’ and microscopic single cell algae, the cost implications in growing and harvesting, and the current state of the art in biomass to fuel conversion technologies.

2. Algal Taxonomy

There is considerable debate as to the actual number of algal species that exist with conservative estimates of ~250,000 species, with others putting this figure likely closer to 1.5 million species [9]. Certainly, the advancement in molecular genetics is likely to unveil more complexities and perhaps add further numbers to this total [10]. Algal taxonomy is a key discipline in phycology and is critical for algal genetics, physiology, ecology, applied phycology, and particularly bio-assessment. In many ways, the taxonomy of the algae is in a state of flux and is being driven by rapid molecular techniques that have become available in recent years. The classification below into nine divisions (phyla) incorporate the older classifications into Red algae, Green algae, and Brown algae, since the latter are grouped under Heterokontophyta and include other major groups such as the Diatoms (with a silica based ‘shell’ and Golden algae or Chrysophyta) (

Table 1. Classification overview of algae. Constructed from [11,12].

Cyanophyta, blue-green algae or cyanobacteria.       Chlorophyta-green algae             Charaphyta       Rhodophyta, red algae       Cryptophyta, cryptomonads       Dinophyta, dinoflagellates       Heterokontophyta, heterokonts which includes:                  Phaephyceae (Brown algae),                  Bacilliarophyceae (Diatoms)                  Chrysophyceae (Golden algae)             Haptophyta, haptophytes             Chlorarachniophyta, chlorarachniophytes              Euglenophyta, euglenoids

) [11,12]. Cyanophyta are prokaryotic (relatively simple internal differentiation) and hence considered as photosynthetic bacteria rather than ‘true’ algae that are eukaryotic containing complex inner membrane compartments. In terms of human usage, the main algal groups are the Chlorophyta, Rhodophyta, and Phaephyceae [13].

This classification is based mainly on a combination of ultrastructural and biochemical features. The terms ‘microalgae’ and ‘macroalgae’, whilst of no taxonomic value, are useful concepts to divide this diverse group of organisms into functional categories. Microalgae (often single cells or clusters of cells) have received considerable attention for high value product generation [14] (e.g., astaxanthin, polyunsaturated fatty acids). In addition, many have high lipid yields, making them suitable for use in biodiesel generation [15]. Macroalgae, on the other hand, are often rich in carbohydrates and low in lipids and are sometimes referred to as ‘seaweeds’ though this is not strictly true. They are largely used as food sources and grown on an industrial scale, particularly in the Far East, including China and Indonesia [16].

3. Growing Algae—Requirements and Cost Implications

3.1. Macroalgae Production

By 2025, world production of seaweeds is forecasted to reach US$ 30.2 billion compared with US$ 6 billion in 2014 (FAO, Food and Agriculture Organization ^Ŧ), with 95% of this production coming from Asia. China alone accounts for 57% of the world production of algae (in 2018), with Indonesia also being a major producer (29%) (

Table 2. Global production of algae. (^Ŧ modified from FAO, 2018).

Country	Seaweed Production (Million Tonnes)	World Production (%)
China	18,506	57.3
Indonesia	9320	28.9
Republic of Korea	1711	5.3
Phillipines	1478	4.6
DPR Korea	553	1.7
Japan	89	1.2
Malaysia	174	0.5
Zanzibar/Tanzania	103	0.3
Chile	21	<0.1
Vietnam	19	<0.1
India	5	<0.02
Russian Federation	5	<0.02
Others	21	<0.1

).

Currently, more than 500 species of seaweeds, belonging to 100 genera, are collected and utilized, although only 33 genera of seaweeds (mainly red and brown) are harvested and/or farmed commercially worldwide [17] and some of the major crops are listed in

Table 3. Major species of macroalgae cultivated and their main products harvested. Modified from [20].

Species	% World Production	Major Product Harvested
Eucheuma sp	34	Carrageenan
Laminaria japonica	28	Human food
Gracilaria sp	14	Agar
Undaria pinnatifida	9	Human food
Porphyria sp	7	Human food
Kapphaphycus alvarezii	6	Carrageenan
Sargassum fusiforme	1	Human food
Others    Macrocystis pyrifera    Enteromorpha clathrate    Codium fragile    Monostroma nitidum    Chondracanthus chamissoi	<1	Alginate Bioactive Skin care Human food Human food

. Eucheuma sp are harvested for carrageenan and account for over a third of all algae grown, with Laminaria japonica cultivated for human food being in second place.

Gracilaria is grown mainly for agar production, with particularly important economic value to Chile [18]. Overall, about 80% of macroalgae produced is used for human consumption (particularly in the Far East) or for flavouring. The remaining 20% is used for extraction of hydrocolloids, animal feeds, and fertilizers [19]. Red and brown seaweeds account for 97.4% of global production [20], with red seaweed production up by 84% in the period 2010–2014 and predicted to continue to be the biggest growth sector up to 2025. Brown seaweed production has also increased by 47% in the same period. Contrarily, global green seaweeds production decreased 30% between 2010–2014. Africa produces mainly red seaweeds, while Europe mainly produces brown. Asia and America produce both red and brown seaweeds, although the former has seen an increase in red seaweeds production in recent years. In Europe, Canada, and Latin American, seaweed industries still rely largely on harvesting natural resources [21].

Macroalgae are generally harvested in coastal waters so there are no costs associated with nutrient supply for growth, and the main costs are labour-related harvesting. Expansion of seaweed production would benefit from a better understanding of operational costs, yields, and ecological impact of seaweeds farms, as well as regulatory factors such as marine licensing laws [22].

3.2. Microalgae Production

Algae are eukaryotic photosynthetic organisms that utilise their photosynthetic capability to fix CO₂, initially into carbohydrate precursors, and then metabolise these into the whole spectrum of macromolecules found in plant cells, such as membrane and storage lipids, proteins, nucleic acids, and polysaccharide cell walls. This type of growth is sometimes referred to as autotrophic growth. It is useful for synchronising growth as most cells divide at the same time leading to a step-wise increment in the population, e.g., Chlorella vulgaris [23]. However, many algae can be grown in no or low light conditions where they will utilise an external carbon source such as acetate or glucose for growth in much the same way as animal cells would, and this is referred to as heterotrophic growth [24]. Commonly, both autotrophic and heterotrophic approaches are used together, i.e., providing a light and external carbon source, and this is called mixotrophic growth. Chlamydomomas reinhardtii, for example, is commonly grown in Tris-acetate-phosphate (TAP) medium together with light exposure [25,26]. The cells divide rapidly and asynchronously reaching saturation (35 × 10⁶ cell mL⁻¹) within 4–5 days. Recently, the addition of phenolics (particularly salicylic acid and aspirin) have been shown to stimulate cell division significantly in Chlamydomomas and may be a useful tool to achieve higher biomass in a shorter time period [26]. In Chlorella, growth rates show a doubling time of ~8 h [27]. The fastest growing alga is Picochlorum renovo that has a double time of just 2.2 h, which is ~5–10 times faster than many algae [28]. Commercially, the scale up of autotrophic cultures for industrial use is time consuming and requires a significant area for production plants. However, growing an inoculum heterotrophically, which, although carries an initial higher cost, markedly increases cell densities and reduces subsequent production times. This approach has been suggested for the scale up of Chlorella for ‘seeding’ photobioreactors for industrial scale production [29].

3.3. Economics of Microalgae Production

In contrast to macroalgal farming, the cultivation of microalgae is typically more controlled by using either open raceway ponds with stirrer paddles to aid circulation or else enclosed photobioreactors using polyethylene or tubular constructions [30]. No industrial scale plant exits dedicated to algal biofuel production, so economic assessment is largely based on laboratory scale up or commercial systems geared to the production of high value products. A useful assessment method is termed net energy ratio (NER) of biomass products [1] and is defined as the sum of the energy used for cultivating, harvesting, and drying divided by the energy content of the dry biomass. NER values <1 indicates a process which produces more energy than it consumes. Using this approach, in general, raceway ponds typically have NER < 1, whereas photobioreactors are >1, thus favouring the former as the method of choice.

Improved economics could be achieved by using a low-cost water supply, readily available CO_2, nutrients, and solar radiation of <3000 h·yr⁻¹. This latter point favours the set up of production sites in regions between approximately 30° north and 30° south of the equator [1]. Low cost water supplies could include seawater or brackish water or non-potable water where the algae could also serve a bioremediation role [31]. Marginal land would be preferable so as not to compete with food production and the topography not elevated from the water source, as this will incur a 6% consumption of energy in pumping for every 100 m elevation [32]. Carbon dioxide, purified from power stations, could be used, or better still the untreated flue gas, though this may contain contaminants which negatively impact algal growth [33]. It has been estimated that to replace fossil fuel with algal biomass for the EU alone, 25 million tonnes of nitrogen and 4 million tonnes of phosphorus per annum would be required. This is more than double the current EU capacity for fertilizer production. The base cost of production in an idealised raceway pond is estimated to be ~1.6–1.8 €·kg⁻¹ (with CO₂ being ~50% of the costs) with projected costs, through cheaper sources of inputs dropping to ~0.3–0.4 €·kg⁻¹ [2]. To mitigate costs further, nutrients could be found in lower-value sources like wastewaters such as poultry litter or milk waste, which can greatly reduce the water and fertilizer demands for algal culture, and their integration for biofuel production has been strongly promoted recently [34]. Many algae require other specialist additions to the medium, e.g., diatoms which contain an outer ‘shell’ of silica will require this element to be added to the growth medium [35]. Algae that grow in brackish or highly saline media will require additional NaCl, such as Dunaliella [36]. In addition to macronutrient requirement (N, P, K), optimal growth may require supplementation with a wide range of micronutrients such as those found in Hutner’s trace elements solution that contains H₃BO₃, ZnSO₄ (7H₂O), MnCl₂, CoCl₂, FeSO₄, CuSO₄, and (NH₄)₆ (Mo₇O₂)₄ [25]. Optimising nutrient strategies for microalgal cultivation has recently been reported for the production of biofuel substrates like starch and lipids [37].

3.4. Potential Areas for Mass Algal Production for Global Biofuels Production

Estimations of biofuel production vary widely and by orders of magnitude. A figure that is generally quoted is 5000–10,000 gallons·acre⁻¹·yr⁻¹ (equivalent to 4.7–9.4 million L·km⁻²), though a figure of 8027 million L·km⁻² has been touted (BARD Algae, 2009). For microalgal biofuel production to reach 10% of EU transportation fuel demand, an area three times the size of Belgium (equivalent to ~92,000 km² has been reported (Flynn K, 2017-web page link). In order not to compete with food or impinge upon urban areas, deserts with oceanic coast lines and low population density could be considered. Among these are the Arabian Desert (2.3 million km²), the Namib Desert (81,000 km²), and the Kutch district, Gujarat, India (46,000 km², of which 7500 km² is desert).

The Arabian Desert has two coastal regions, the Red Sea and the Persian Gulf [38]. In the former, winter temperatures are lower in January in the northern area (Al Wajh) ~18 °C, while in the southern region (Jizan) it is ~27 °C at this time. August mean temperatures are in the region of 30–34 °C, though much higher are often recorded. On the Persian Gulf side, higher average summer temperatures of ~37 °C are recorded. Average rainfall per year over the region is <100 mm, though regional variation is apparent. Growing algae in open raceway ponds at depths of typically 0.5 m would present challenges with evaporation and salt concentration if using seawater.

The Namib Desert in southern Africa is the world’s oldest desert and lies on the western coast at the tip of the continent [39]. Rainfall is sparse and highly unpredictable, ranging from 5 mm in the west to 85 mm on the eastern flank. Temperatures are much cooler than those of the Arabian Peninsula, with mean coastal temperatures in the region of 10–16 °C, although inland areas reach low thirty degrees in the summer. Much of the coastal region is frequently covered in fog and the Atlantic winds have created sand dunes up to 300 m high. Productivity could be impeded at low temperatures and for every 100 m in height above sea level there is a 6% energy cost of algal biomass, raising additional challenges. In addition, the expansion of the desert into the sea would present long term challenges for the establishment of an algal plant facility.

The Gulf of Kutch, in Gujarat, in the north western region of India, is highlighted as an area for tidal energy generation [40]. The average rainfall is higher than both the Arabian Desert and Namib Desert at ~140 mm per year, with an average mean temperature of 28 °C. These two factors make it more suitable geographically for growing microalgae, though the infrastructure on the Arabian Peninsula for process oil is well advanced and would offer other advantages.

For biofuel production, therefore, algae that can grow in seawater, tolerate high temperatures, and have high lipid contents (>50%) would be primary candidates. At present, microalgae are grown commercially for their high value products and not as sources of biofuel and the main species are listed in

Table 4. Main cultivated microalgal species and their key products. Modified from [41].

Species	Phylum	Product	Application
Arthrospira platensis	Cyanophyta	Phycocyanin, biomass	Health food, cosmetics
Aphanizomenon flos-aquae	Cyanophyta	Protein. Essential fatty acids, ꞵ-carotene	Health food, food supplement
Lyngbya majuscule	Cyanophyta	Immune modulators	Pharmaceuticals, nutrition
Chlorella spp	Chlorophyta	Biomass, carbohydrate	Animal nutrition, food supplement
Dunaliella salina	Chlorophyta	carotenoids	Health foods
Haematococcus pluvialis	Chlorophyta	astaxanthin	Pharmaceuticals, feeds
Scenedesmus spp	Chlorophyta	Protein	Aquaculture, human nutrition
Odontella aurita	Heterokonta-	EPA	Pharmaceuticals, cosmetics
Phaedactylum tricomutum	Heterokonta	Lipids, fatty acids	Nutrition, fuel production
Schizochytrium spp	Heterokonta	DHA and EPA	Food supplement, beverage
Nannochloropsis oculata	Heterokonta	biomass	Larval/juvenile marine fish food
Nannochloropsis spp	Heterokonta	EPA	Pharmaceuticals food supplement
Porphyridium cruentum	Rhodophyta	polysaccharides	Pharmaceuticals, cosmetics
Isochrysis galbana	Haptophyta	Fatty acids	Animal nutrition
Crypthecodinium cohnii	Dinoflagellata	DHA	Infant health and nutrition, brain development

and have multiple applications in human nutrition as food supplements or as nutraceuticals.

4. Harvesting, Dewatering, and Drying of Microalgae

Harvesting and dewatering costs have been estimated to be in the range of 20–30% of total production costs, but recent modelling has put this figure much lower and in the range of 3–15%, with values in the range of 0.5–2 €·kg⁻¹ of algae and 0.2–5 kWh·kg⁻¹ algae for dilute cultures from open raceway ponds. For closed systems of the PBR-type, the costs decrease to 0.1–0.6 €·kg⁻¹ and energy costs to 0.1–0.7 kWh·kg⁻¹ [2]. However, the capital costs of the latter exceed those of the open pond systems. Although high cell densities cultures can be achieved, the bulk of the culture is actually the aqueous phase. So, in open ponds, yields are often in the region of 0.5 g·L⁻¹, and for photobioreactors ~5 g·L⁻¹ giving % yields of 0.05–0.5% of the total weight of the culture [42]. Inevitably, this will require the separation of the biomaterial from the aqueous phase. This can be achieved in several ways, but each will carry a cost consideration and or a contamination challenge that needs to be overcome. Four main procedures are typically deployed [43,44], namely, centrifugation, flocculation (induced by either chemical and/or biological agents), froth flotation, and physical methods. It should be noted that centrifugation is still generally required after flocculation, so these two methods are co-deployed.

4.1. Centrifugation

Because of the density of the cells, centrifugation to sediment the cells as a pellet need only be low speed. In the lab, typically this is around 500–1000 g for a few minutes (where g is the force per unit mass due to the gravity at the Earth’s surface) [45]. The aqueous phase can they be decanted off. When microalgae are produced for high-value products, harvesting is done by centrifugation. The advantages of centrifugation are that it can be used continuously for large scale processing with high recoveries, however, the capital costs are too expensive and energy-intensive if biomass is to be used for low-value products such as biofuels. To overcome this, flocculation could be deployed.

4.2. Flocculation

This involves the aggregation of cells together in clusters and leads to precipitation from the water phase. The principle of flocculation lies in the observation that algal cells display an overall net negative charge on their surface and hence repel each other in suspensions [43]. Once neutralised, the cells collide and agglomerate under Van der Vaals forces, resulting in precipitation. Chemicals or other agents (e.g., biological agents) can facilitate this neutralisation of charge and so bring about cell clustering. Sometimes this phenomenon can be observed by the simple interruption to the supply of CO₂ (which causes an increase in pH) to the medium, and this results in the spontaneous aggregation of cells (typical pH > 9.0) called auto-flocculation and is indeed the cheapest approach, since nothing else is required. However, not all cultures auto-flocculate and so have to be encouraged to do so by chemical application such as chitosan, alum, and ferric chloride.

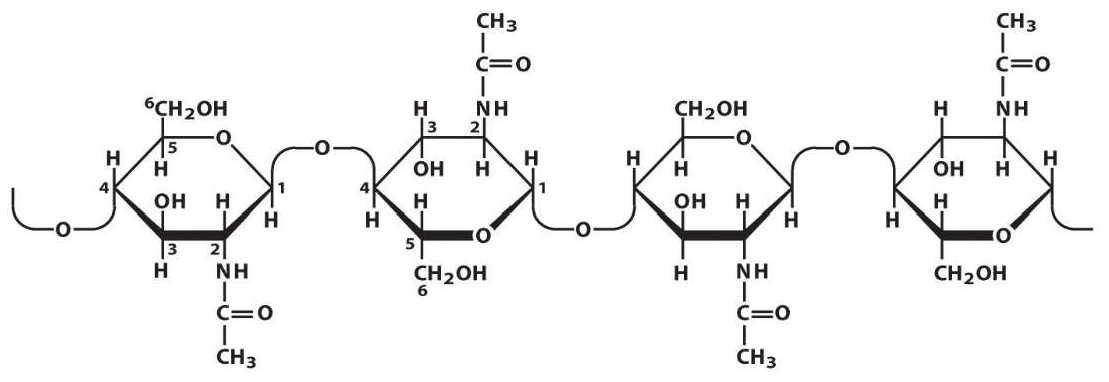

Chitosan is a derivative of chitin, the polysaccharide that forms the exoskeleton of arthropods such as crustacea and insects. It consists essentially of a cellulose structure involving ꞵ-1, 4 linkages of glucose in which the C2-OH is replaced with an acetylated amino group (Figure 1).

Chitosan is formed from the de-acetylation of the chitin and is a positively charged biopolymer [46]. Chitosan is a very efficient flocculant but it works only at low pH, but pH in microalgal cultures is relatively high [47]. Other flocculating agents alternatives include cationic starch [43], which works over a broader range than chitosan [28] and poly-gamma-glutamic acid (produced by Bacillus subtilis) [48].

Microalgae flocculation can also occur naturally caused by extracellular polymers and/or info-chemicals secreted into the medium, and this is called bio-flocculation [49], with some species flocculating more readily than others [50]. Info-chemicals have been identified in terrestrial plants such as methyl jasmonate that signal herbivorous attack between plants [51]. Since algae also contain a range of phytohormones, in principle, these could have roles in intercellular communication in the aquatic environment. Phenolic compounds are known to control the rate of cell division in Chlamydomonas and are particularly stimulated by salicylic acid [26]. Other biological agents in the water column such as bacteria and fungi can also induce bio-flocculation of microalgae. This opens the possibility of adding such biological agents to microalgal cultures and inducing flocculation without recourse to using chemical treatments that may have benefits but could also interfere with other applications, especially when used for human products or as feeds.

The term ‘alum’ usually refers to a hydrated double sulphate salt of aluminium with the general formula XAl (SO₄)₂×12H₂O, where X is a monovalent cation such as potassium or ammonium with the former being the most widely used [52]. This pre-concentration of cells could significantly reduce operational costs, but centrifugation is still necessary. Flocculation typically increases the concentration by a factor of 20–100 resulting in the formation of a slurry of 10–50 g·L⁻¹ and makes the subsequent centrifugation step more cost effective because the aggregates are large and the volume of water to be processed is lower. However, the use of metal complexes leads to their elevated levels in algal biomass and this may have a negative impact on their intended use (e.g., as feed) or as feedstock for bioenergy, where the presence of metals ions has been shown to have a negative impact on pyrolysis.

The Ca²⁺ ions of calcium phosphate agglomerate cells by binding to their negatively charged surfaces [53]. However, the declining phosphate reserves coupled with increased cost of purchase make this an unsustainable approach. Magnesium hydroxide or brucite could be used, as the Mg²⁺ also flocculates cultures by forming inorganic precipitates. Although these have a low toxicity, it is nevertheless preferable to remove them.

In summary, flocculation has a low energy demand and low equipment cost but its drawback is the recovery of flocculants. Therefore, in terms of overall costs it is similar to mechanical harvesting.

4.3. Froth Flotation

Froth flotation is a process developed for the separation of minerals, however, its principles can be exploited to achieve separation of particles in the size range form 50–400 microns which includes microalgae [44]. It relies on the hydrophobic surface chemistry and when air bubbles are passed through the sample that bind to these surfaces brings about separation of cells into a foam at the surface. Enhanced flotation recovery of >98% has recently been reported by the combined use of Al³⁺ as a coagulant combined with cetyltrimethylammonium bromide (CTAB) [54]. Economic assessment of these methods is ongoing.

4.4. Physical Methods

Electromagnetic pulses to neutralise the surface charge of microalgal cells and induce flocculation have been demonstrated. Magnetic nanoparticles have also been investigated to harvest microalgae. Magnetite (Fe₂O₃) nanoparticles adsorbed directly onto cell surfaces can be separated from the medium by applying a magnetic field, combining flocculation and separation into a single process [55]. Variations in adsorption between species have been observed and can be improved by coating the nanoparticles with cationic polymers. Importantly, nanoparticles can be recovered after harvesting and subsequently re-used [56].

Despite the numerous harvesting methods that are possible and listed above, currently no large scale assessment has been undertaken to compare these methods and to perform mass and energy balance calculations [57]. Therefore, comparative technique studies at scale will need to be undertaken to address this knowledge gap.

5. Added and High-Value Products from Algae

Whilst the focus of this review is on biofuels, it is important to recognise that algae are a major source of many important products used in the cosmetic, pharmaceutical, and nutraceutical sectors and command a significant price. Thus, it is conceivable that biofuels could be generated as co-products or by-products of these industries, thus leading to subsidising the costs for biofuel production. Base commodities such as fuels/energy, feed, and bioremediation are considered high volume low cost (<£1·kg), while added value chemicals can fetch £1–5, and specialty products £5–1000·kg⁻¹ or in the case of nutraceutical/cosmeceuticals applications often >£2000·kg⁻¹. Currently, the UK capacity for seaweed production is ‘positioned’ between the ‘added value commodities’ and ‘specialty products’, with values between £1–1000 per kg. A comprehensive coverage of the range of products extracted and used from algae is outside the scope of this review, so instead it will focus on some key developments in this sector. Some of the major products are used for health food supplements (e.g., omega-3-fatty acids), food and other ingredient additives (hydrocolloids), and bio-actives used in the cosmeceuticals and nutraceuticals industries (e.g., astaxanthin).

5.1. Omega-3 Fatty Acids

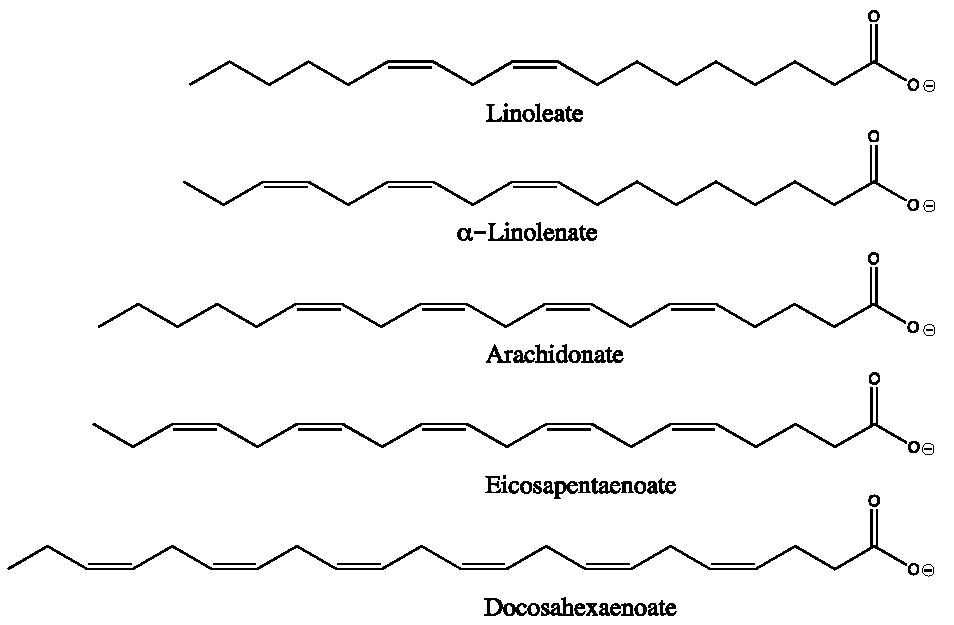

Arachidonic acid, AA (20:4 Δ^5,8,11,14), eicosapentaenoic acid, EPA (20:5 Δ^5,8,11,14,17), and docosahexaenoic acid, DHA (22:6 Δ^{5,8,11,14,17,19}), are essential fatty acids required for neurological development, especially in neonates, and play a crucial role in maintaining a healthy immune system [58]. Microalgae are the primary producers of omega-3 fatty acids (Figure 2) in the marine eco-system and can be produced from both photoautotrophic (e.g., Nannochloropsis, Tetraselmis, Isochrysis, Pavlova, and Phaeodactylum) and heterotrophic (e.g., Schizhochytrium, Crypthecodinium) modes of cultivation. Despite extensive research on production of AA/EPA/DHA from microalgae, production at a commercial scale is still in its infancy and represents only a small share in the market and remains expensive compared to fish oil. The price of EPA/DHA produced from microalgae is ~$1500 per kg, whereas the fish oil-based product is ~$750 per kg. This is due to the fact the microalgae require supplementation of heavy loads of organic carbon and use energy intensive downstream processing techniques, such as centrifugation and high pressure homogenisation.

5.2. Squalene

Squalene (2,6,10,15,19,23-hexamethyl-6,6,10,14,18,20-tetracosahexene) is a naturally occurring triterpenoid with the molecular formula C₃₀H₅₀ synthesised from isoprene, a C5- building unit derived from mevalonic acid [59,60]. Squalene has many beneficial properties and appears to act as a natural antioxidant because it acts as an effective quencher of singlet oxygen and lowers lipid peroxidation, hence its use in anti-aging skin creams [61]. It is widely considered to be the active ingredient in olive oil and could play a key role in the healthy Mediterranean diet. Squalene is present in high quantities in deep-sea sharks and accounts for 40–70% of shark liver oil and about 50% of global production [62]. However, the widespread killing of sharks for their liver has attracted negative press and alternatives are actively being sought. Squalene is present in vegetable oils and is extracted commercially from olive oil [63], which contains 564 mg per 100 g. Significant levels of squalene have been detected in microalgae and macroalgae [64], and these could be a future source of this product if rapid screening methods could be developed to identify high yielding algae. Alternatively, improving squalene production through up-regulation of genes that lead to its synthesis or down-regulation of genes for its degradation is possible [60].

5.3. Pigments

Algae contain a wide variety of pigments, such as chlorophyll (a, b, and c), carotenoids, and phycobiliproteins, which exhibit a range of colours [65]. Concerns around the safety of synthetic dyes has led to a societal shift towards the use of natural sources from plants and algae and are being used in nutraceutical, cosmetics, and pharmaceutical industries.

Astaxanthin (ASX), a xanthophyll carotenoid, is a secondary metabolite naturally synthesised by a number of bacteria, microalgae, and yeasts. The unicellular green microalgae Haematococcus pluvialis, with an ASX content of 1–5%, is recognised as the best biological source of this compound and is the only commercialised microalga used to produce it [66]. ASX possesses various health benefits and has been shown to have important dermatological applications. ASX has also been approved as a colour additive in fish feeds and as a dietary supplement for human consumption, with an advised daily intake of 0.034 mg·kg⁻¹ body weight [67]. In addition, supercritical CO₂ extracts from H. pluvialis have been granted “novel food” status by the Food and Drug Administration (Silver Spring, MD, USA).

Phycoerythrin (PE) is a red protein–pigment complex from the light-harvesting phycobiliprotein family, present in red algae [68] and cryptophytes, and is an accessory pigment to chlorophyll, the primary photosynthetic pigment. It is composed of a protein to which is covalently bound a chromophore called phycobilin. Unlike chlorophyll, in which the chromophore tetrapyrrole ring is a closed macrocyclic ring, chelating Mg at the centre, in PE it is an open chain tetrapyrrole lacking a bound metal. Porphyridium marinum could be potentially used as a source of bioactive phycoerythrin protein for a wide range of applications in fluorescence spectroscopy, as a colour agent for milk-based products, and more widely in cosmetic and pharmaceutical applications [69].

Phycocyanin is a pigment–protein complex from the light-harvesting phycobiliprotein family, along with allophycocyanin and phycoerythrin, and is an accessory pigment [70]. All phycobiliproteins are water-soluble, in contrast to carotenoids that are hydrophobic and form clusters that adhere to the membrane called phycobilisomes. Phycocyanin is typically light blue in colour, absorbing orange and red light, particularly near 620 nm, and emits fluorescence at about 650 nm.

5.4. Hydrocolloids

Hydrocolloids are used in the food, cosmetic, and medical industries [71]. Alginates and fucoidan are extracted from brown seaweeds, while carrageenan and agar are extracted from red seaweeds [72]. These three polysaccharide components bind water and form hydrogels, which are then used as additives and stabilizers in different market sectors. Alginates are used in food and drink products as thickeners, gelling, and stabilizers, while carrageenans are used in the dairy sector as stabilizer [73]. Other industrial uses include shampoos and toothpastes. Agar (Agarose) is a versatile food addictive (thickening and emulsifying agent) as it has no taste, smell, or colour, and is widely used as laboratory cultivation medium for microbes.

5.5. Phlorotannins

Phlorotannins are metabolites of brown algae that have gained particular attention due to their specific bioactivities that include antioxidant, antiproliferative, or antidiabetic properties and hence are of pharmacological interest [74]. They are generally dark brown in colour and are responsible for the poor digestibility of seaweeds in AD reactors [75]. Hence, their extraction from the tissue prior to AD not only aids that process but also generates an important chemical stream for potential human health applications. The underpinning chemistry relates to the phenolic rings acting as stabilisers for free radicals through the delocalised π electron system, thus reducing the propagation of undesirable reactions.

6. Types of Biofuel from Algae

6.1. Bioethanol

In the USA, corn is the major feedstock for ethanol production, while in Brazil it is sugarcane. These countries combined account for ~84% of global ethanol production, with the EU being at ~5% (

Table 5. Major global producers of bioethanol (^¶ from afdc.energy.gov, accessed on 19 September 2021).

Country	Production 2019 (Billions L)
USA	15.78
Brazil	8.57
EU	1.44
China	0.90
Canada	0.50
Rest of the World	1.84

).

The yield of ethanol (L·ha⁻¹) varies from crop to crop, e.g., wheat (2590 L·ha⁻¹), cassava (3310 L·ha⁻¹), corn (up to 4020 L·ha⁻¹), and sugar beet (up to 6680 L·ha⁻¹) [76]. Algal yields are 7 to 21 times higher and in the range of 46,760–140,290 L·ha⁻¹), making them prime targets for exploitation [3]. Microalgae are good sources of carbohydrate (predominatly starch) for fermentation such as Chlorella vulgaris (55%), Chlamydomonas reinhardtii (60%), Scenedesmus obliquus (52%) [77], although cost factors in growth and harvesting are still currently prohibitive.

Bioethanol production from several macroalgae has also been reported [3] (

Table 6. Bioethanol yields from selected algae. Modified from [3].

Group	Species	Ethanol Yield g·g−1 Sugar	Theoretical Yield (%)
Chlorophyta	Enteromorpha intestinalis	0.21	42
	Ulva fasciata	0.45	88
	Ulva lactuca	0.47	92
	Ulva pertusa	0.47	91
Heterokontophyta
	A. crassifolia	0.38	75
	L. hyperborea	0.43	84
	S. sagamianum	0.35	69
	S. japonica	0.41	81
	U. pinnatifida	0.14	28
Rhodophyta	G. elegans	0.38	74
	G. amansii	0.47	92
	G. verrucose	0.43	84
	K. alverzii	0.25	49
	P. palmata	0.17	34

). Ethanol yields on g·g⁻¹ sugar basis vary from 0.14 to 0.47 and theoretical yields from as low as 28% (Ulva pinnatifida) to 92% Ulva lactuca and Gracilaria amansii. Gracilaria is grown principally for agar and the waste pulp is disposed of as waste. However, it contains sufficient cellulose that its fermentation with Saccharomyces cerevisiae can yield ethanol at levels similar to corn (0.48 g·g⁻¹ sugar) and newspaper waste (0.39 g·g⁻¹ sugar) [78]. Again, there is no current commercial production of bioethanol from macroalgae due to prohibitively high production costs.

6.2. Conversion of Sugars to Paraffins

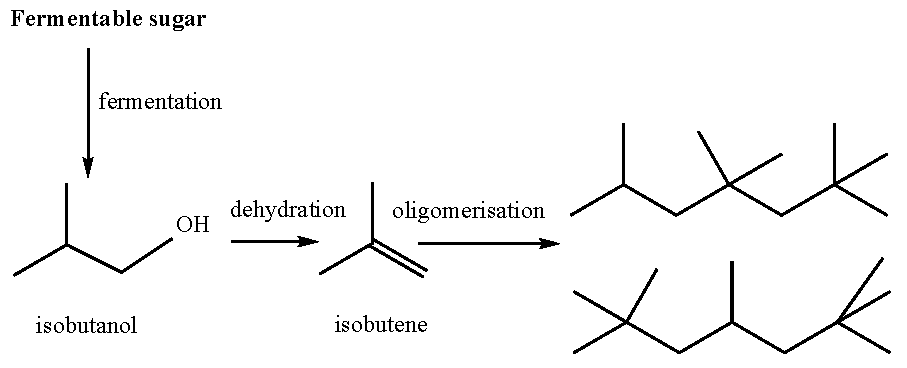

Sugars can also be used as a potential source of fuels through fermentation and hydro-processing. Cellulose could supply monomeric glucose when hydrolysed, producing C6 glucose. Sugars are first fermented to iso-butanol then dehydrated to isobutene that then require oligomerisation and hydrogenation to yield C12 iso-paraffins [79] (Figure 3). To date, the entire process of converting algal sugars to jet fuel has not been fully documented. Recalcitrance of many macroalgae caused by the difficulties to ferment complex polysaccharide cell walls and the presence of inhibitors (e.g., phlorotannins in brown algae) makes starch-rich microalgae a better proposition as a feedstock for this process.

6.3. Anaerobic Fermentation

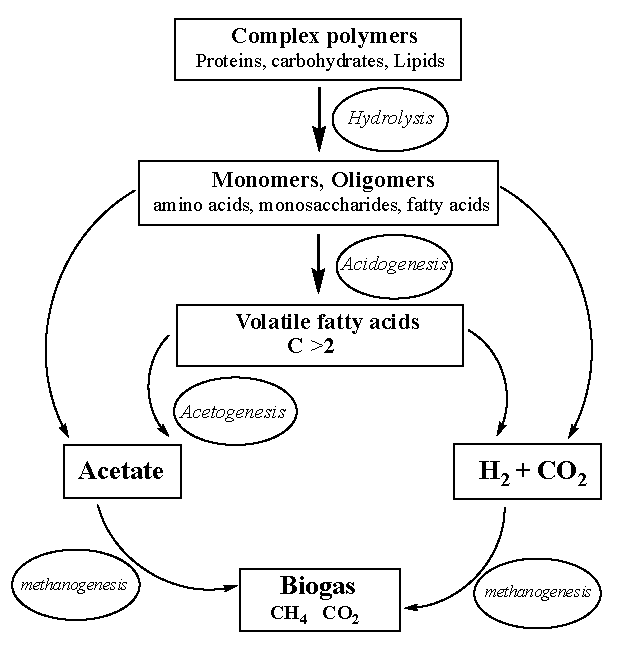

Anaerobic digestion (AD) is the degradation of organic matter from a range of feedstocks such as sewage, food waste, and agricultural residues into two principle products, namely, biogas and digestate (both solid and liquid states). Three phases are generally recognised in this process of transformation (Figure 4).

Phase 1 is the hydrolysis step which results in the generation of the monomeric building blocks, namely ‘sugars’ such as glucose, galactose, and fructose from polysaccharides and amino acids from cleavage of the peptide bonds in proteins. Lipids are de-esterified into their constituent fatty acids (typically C₁₆–C₁₈ chain length fatty acid) and glycerol or glycerol phosphate derived from phospholipids.

Phase 2, acidogenesis, is the generation of short chain fatty acids (monocarboxylic acids, sometimes called volatile fatty acids), e.g., propionate (C₃), butyrate (C₄), and valerate (C₅) from precursor monomers of carbohydrate, protein, and lipid origin generated in phase 1. The process of generating acetate (C₂) is sometimes referred to separately as acetogenesis.

Phase 3 is the final step is the conversion of acetate to methane (CH₄) and is performed by methanogenic bacteria in the culture. The end products are, therefore, a complex mixture of organic molecules with the biogas being composed of varying proportions of CH₄ and CO₂ and H₂. The proportion of CH₄ in the biogas is estimated as the biomethane potential (BMP) of the feedstock. The biogas produced from the AD of seaweed typically contains CH₄ 50–70%, CO₂ 30–45%, H₂ < 2%, and H₂S < 3.5% [5]. Currently, acetic acid, butyric acid, and hydrogen are mostly produced by petrochemical reforming, and they serve as precursors of ubiquitous petrochemical derived products. Thus, AD is an important sustainable process that could be used for the synthesis of valuable chemicals, i.e., an alternative to a petrochemical refinery.

6.4. AD of Macroalgae

The hydrolysis of seaweed cell walls that are composed of complex polysaccharides (e.g., alginates) is often a rate-limiting step in AD. Increasing the surface area for microbial attack through torrefaction is often performed to increase biomethane yield but also chemical pre-treatment, through acid digestion, is also frequently performed to increase digestibility [81].

AD is largely the method of choice for biomass of high-water content because it does not require de-watering and drying, which has associated energy costs. In addition, all the organic carbon is utilised rather than specific sub-sources such as oil for biodiesel formation, hence biogas systems tend to yield more energy per hectare than liquid biofuel systems [82]. Currently, biofuel from seaweed AD is perhaps the closest to industrial exploitation [5]. For example the gross energy yields from the cultivation and AD of Saccharina latissima, at 186 GJ·ha⁻¹·yr⁻¹, were higher than those based on the current liquid biofuel systems such as ethanol from sugarcane (135 GJ·ha⁻¹·yr⁻¹) and biodiesel from palm oil (120 GJ·ha⁻¹·yr⁻¹) [5]. Overall, the energy potential of marine biomass is estimated to be >100 EJ·yr⁻¹, with substantially lower yields for terrestrial biomass (22 EJ·yr⁻¹) or municipal solid waste (7 EJ·yr⁻¹) [83].

Yields of biomethane from seaweed AD vary widely, mainly due to compositional differences, with brown algae generally producing higher yields than those from green algae. The yield of CH₄ from a range of macroalgae is the region of 0.12 to 0.48 m³·kg⁻¹.VS (

Table 7. Biomethane yields from selected macroalgae. Modified from [82].

Genus	Methane Yield (L·g·VS−1)
Gracillaria	0.28–0.40
Laminaria	0.23–0.30
Sargassum	0.06–0.19
Macrocystis	0.14–0.40
Ulva	0.31

), where VS is the amount of volatile solids. Biogas yields from digestion of many algae are substantially below the theoretical maximum and typically <50% of that from common commercial feedstocks, while BMP varies across species between 19–81% of theoretical yields [82]. There are several explanations for the low methane yield that include (a) cell wall structure, (b) polysaccharides that are not readily hydrolysed, (c) polyphenols, (d) organic sulphur compounds, (e) other antimicrobial and toxins, (f) C:N ratio, and (g) heavy metals [5].

A number of chemical constituents in seaweeds are known to inhibit AD, and pre-treatment to remove them can lead to increased biomethane generation [84]. The high sulphur concentration in seaweed can also lead to the production of H₂S that lowers BMP and elevates SO₂ emissions on biogas combustion [85]. The concentration of H₂S in biogas can be reduced by the addition of metal ions such as iron or by gas scrubbers, but both increase production costs. Phenolic compounds, which are particularly abundant in brown algae, also reduce the BMP of seaweed extracts and appear to have a negative impact on bacterial membranes and negatively affect degradation of the more complex polysaccharides rather than hydrolysis of simpler molecules [5].

A recent techno-economic assessment of seaweed feedstock for AD found that for seaweed combined with food waste, cattle slurry and grass, a financial incentive of between 0.85 and1.17 €·m⁻³ was needed for viability, compared to the wholesale methane sales price of 0.2 €·m⁻³ [86]. Improving cell wall digestibility using tailored enzymes may help improve biomethane yields. A biomass productivity of over 73.5 t dry mass·ha⁻¹·yr⁻¹ with a methane yield of 285 m³·t⁻¹ dry mass would make electricity production from macroalgae profitable, and this might be achieved using fast-growing macroalgae, such as Ulva [87].

6.5. AD of Microalgae

Whereas carbohydrates are the main constituents of macroalgae (typically ~50%), microalgae are generally richer in proteins (up to 50%) with significant levels of storage lipid (oils) ranging from 20–50% or even higher. The relative quantities of carbohydrates, proteins, and lipids affect BMP, with lipids giving higher yields [5]. Triglycerides and long chain fatty acids (LCFAs) have a high methane potential, but can cause blockages and inhibit bacterial growth [5]. A high protein content can reduce the C:N ratio and lead to excessive (toxic) NH₄ production from the degradation of amino acids and thereby result in lower methane production. However, despite these drawbacks, in general, higher biogas yields are reported for microalgae with yields of up to 88% of the theoretical methane potential [88]. As with macroalgae, cell wall degradability plays an important role with easily degradable species lacking a cell wall (e.g., Dunaliella salina) or a protein-based cell wall lacking hemicellulose or cellulose (e.g., Chlamydomonas reinhardtii), Euglena gracilis) having a higher BMP than species containing these components, e.g., Parachlorella kessleri and Scenedesmus obliquus [89]. The study suggests that various pre-treatment steps are required to enhance the hydrolysis and promote AD. Indeed, CH₄ from AD of algae residues after lipid removal is required for net gains in energy and AD is a vital part of algal biodiesel processing [5]. Recently, we have shown that AD pre-treatment of seaweeds resulted in the subsequent generation of bio-oil, with characteristics more similar to petroleum with increased aromatic content and decreased anhydro-sugar content (Wahab M et al., in press Figure 5).

6.6. Biohydrogen—Manipulation of Photosynthesis for Hydrogen Generation

Hydrogen (H₂) has a high calorific value of ~122 kJ·g⁻¹ and greater heating efficiency ~2.75-fold than hydrocarbon fuels [90]. The major route for its generation is from steam reforming, which accounts for ~50% production through using syngas, natural gas, coal and waste biomass [91]. These processes operate at a high temperature (970–1100 °K) and release a significant level of CO₂ [92]. Hydrogen can also be generated from gasification (coal and biomass gasification), H₂O electrolysis, partial oxidation, pyrolysis, and biological methods. Since combustion of H₂ generates H₂O, it is viewed as a clean technology [93]. Approximately 120 million tonnes are produced annually from coal, oils, or chemicals, with China being the major player (22 million tonnes pa).

Hydrogen can also be produced from biological systems from photosynthesis, including photosynthetic bacteria (prokaryotic organisms) and microalgae (eukaryotic organisms), and from fermentation under certain conditions [94]. The usual gaseous product of photosynthesis in microalgae under aerobic conditions is O₂. This is derived from the photolytic cleavage of H₂O in the oxygen evolving complex [95]. This series of reactions involves 4 photons (excitons) causing a loss of 4 electrons from 2H₂O molecules utilising the oxidation state of Mn, which goes from overall Mn⁰ to Mn⁴⁺. The electrons from H₂O feed into tyrosine in the subunit of photosystem II (PS11), whereby Photosystem II and Photosystem I are a series of electron carrying components that shuttle electrons on to acceptor NADP⁺. From PSII, electrons flow through a range of carrier molecules and onto the cytochrome b₆f complex (Figure 6). From there, electrons are passed onto PS1 via plastocyanin (PC) and ultimately the electrons pass onto the Fe-S protein, ferredoxin, and then on to NADP⁺, reducing it to NADPH. This reductant is used to drive many biosynthetic activities in the cells. However, under conditions of low O₂, the electrons are channelled to an [Fe-Fe] hydrogenase enzyme, which utilises H⁺ and the electron source to generate H₂ [4].

The hydrogenase is O₂ sensitive and is normally outcompeted when O₂ is available. Since this mode of formation involves the electron transport chains of PS II and PS I, it is referred to as direct photolysis H₂ production or photo-fermentation. During the light induced electron flow through, PSII and PSI H⁺ are pumped from the cytochrome b₆f complex. These protons, together with those generated in photolysis, give rise to a H⁺ gradient and it is the net movement of these protons through the ATP-ase enzyme complex that gives rise to the formation of adenosine triphosphate (ATP) where the energy of movement of a proton (proton motive force) is just energetically sufficient to couple ADP (adenosine diphosphate) and Pi (inorganic phosphate) together to make ATP [96].

Indirect photolysis for H₂ production involves the same electron transport chain as in direct photolysis [94] (Figure 6). However, there is no electron flow through PS II required (hence not directly light requiring) and the O₂ is depleted by catabolism of fuel molecules in the tricarboxylic acid (TCA) and glycolytic pathways. The electrons are channelled from NADPH onto plastoquinone (PQ) and via the cytochrome b₆f complex on to plastocyanin (PC). From here, the electrons flow as described above onto the hydrogenase to generate H₂. Sulphur depletion promotes this route of electron flow by inhibiting the oxygenic pathway in PSII. Both direct and indirect pathways have been demonstrated in several microalgae, including Chlamydomonas, Chlorella, and Scenedesmus sp [94].

In recent years, the research focus has shifted onto firstly understanding the catalytic mechanism of hydrogenase and then to attempt genetic intervention to improve hydrogen production efficiency. Ten classes of hydrogenase are recognised and grouped into 3 families dependent type and arrange of metal ligands at the active site viz. [Fe-Fe]-hydrogenase, [Ni-Fe]-hydrogenase, and Fe-hydrogenase [97]. In microalgae, mainly [Fe-Fe]-hydrogenase are nuclear encoded but reside in the chloroplast and are monomeric 45–50 KDa proteins (where 1 Da = 1 g mol⁻¹ for practical purposes) containing two Fe atoms at the catalytic site unit, linked via a sulphur bridge. Some variability in O₂ sensitivity has been reported, with C. pyrenoidosa (IC₅₀ of >21%) having a significantly higher tolerance compared with other microalgae that were typically <1%. As commented upon earlier, pre-treatment of algal biomass to degrade cell walls enhances the fermentative H₂ productivity up to 50–70%. In addition, genetic manipulation of microalgae using genes from methanotrophs (methane utilising bacteria-such as Methylacidiphilum fumariolicum) to increase O₂ tolerance and enhance biohydrogen production could be an approach [98].

It should be pointed out, however, that the generation of NADPH is of paramount significance for cell survival, since it is the ubiquitous molecule used in nearly all biosynthetic pathways. In that regard, there will always be a limitation on how much the diversion of electrons to hydrogen production can be tolerated in microalgae.

6.7. Fast Pyrolysis

Pyrolysis is a thermo-conversion technique performed at temperatures of around 500–600 °C, in the absence of oxygen and at atmospheric pressure that has proved valuable for generating bio-oils from dry (<5% moisture) lignocellulosic material with gas and biochar also being formed [99]. The proportions of these products vary depending on reactor conditions, with a higher heating rate and shorter residence times favouring the formation of higher levels of bio-oil [100]. For example, fast pyrolysis (FP) of Chlorella vulgaris and Dunaliella salina at 500 °C temperature gave 49.2% and 55.4% bio-oil yields, respectively [101]. The bio-oil product from fast pyrolysis of microalgae is characterized by a low oxygen content with a higher heating value of 29 MJ·kg⁻¹, a density of 1.16 kg·L⁻¹, and a viscosity of 0.10 Pa s. These properties make it more suitable for fuel oil use than fast pyrolysis oils from lignocellulosic materials [102]. Although fast and intermediate pyrolysis of algae is possible at lab a scale level (providing valuable information on product generation e.g., [45]), it is, however, more limited in its application at the large scale required to generate bio-oils because of the cost implications in drying the material prior to thermal treatment.

6.8. Hydrothermal Liquefaction

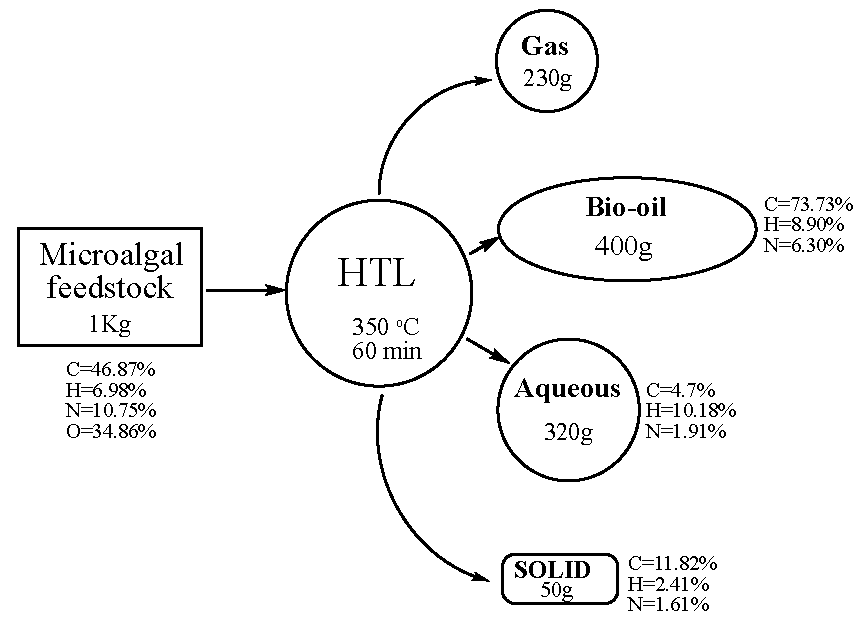

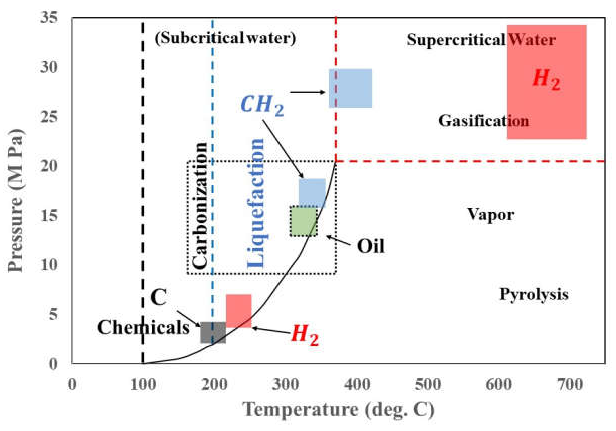

An alternative thermal treatment to FP has evolved in recent years, in which water is used as the solvent for disruption. Therefore, the process can handle the high-water content of algae, although prior concentration of the biomass is still desirable. Hydrothermal liquefaction (HTL) is carried out in water at temperatures in the range of 280–370 °C and high pressures (10–25 MPa) (Figure 7) generating bio-oil as a main product along with the gaseous, aqueous, and solid phase by-products [103].

Three major steps have been identified: depolymerisation, decomposition, and recombination [104]. Macromolecules depolymerise into their constituent of building blocks (monomers or oligomers) and decompose via multi-pathway routes (e.g., cellulose degrades to glucose and undergoes dehydration to produce anhydro-sugars and the amino acid tyrosine degrades to generate aromatic hydrocarbons). The products generated are often highly reactive and recombine (polymerise) to generate further chemicals. A mass balance for Spirulina is given in Figure 8.

Since biomass is a complex mixture of macromolecules, the reaction chemistry and mechanisms of liquefaction are consequently also complex [6]. One of the major benefits of HTL is the consumption of only 10–15% of the energy in the feedstock, thus giving energy efficiencies in the range of 85–90%. HTL can recover more than 70% of the feedstock carbon content which can be utilised for the carbon capture procedures. The bio-oil generated by HTL is also superior in quality to that generated from fast pyrolysis in most parameters, except for its S content and viscosity (

Table 8. Composition of bio-oil from pyrolysis and HTL. Modified from [103].

Elemental Composition	HTL	Pyrolysis
C (wt %)	73	58
H (wt %)	8	6
O (wt %)	16	36
S (wt %)	<45	29
Moisture	5.1	24.8
HHV (MJ Kg−1)	35.7	22.6
Viscosity (cPs)	15,000	59

) [103].

Improving the hydrocarbon contents in the bio-oil could be achieved through the use of nickel-based zeolites [105]. The oil yield from HTL is generally higher than from pyrolysis process, e.g., pyrolysis of Spirulina platensis at 500 °C was 29% whereas the bio-oil yield from HTL at 350 °C was 41% [106]. The typical energy content of microalgae is approximately 20 MJ·kg⁻¹, the heating value of the biocrude oil is close to that of petroleum oil [103]. Figure 8 shows mass and energy balance, and atomic balance of the hydrothermal liquefaction of Spirulina platensis where the bio-oil formed is the major product.

From HTL, the aqueous phase, nutrients, and CO₂ generated can be recycled back for algae cultivation, thus reducing the shortfalls of the HTL process economy. Most studies have focused on batch HTL systems, but in order to make the process commercially viable a continuous system is desirable and the issues that need to be addressed have been reviewed [107]. The conventional HTL is unsuitable for high value product recovery but this could be overcome using a two-stage sequential hydrothermal liquefaction (SEQHTL) process which operates at reduced temperature and pressure to aid recovery of thermolabile products prior to generating bio-oil [108].

Microwave assisted HTL has also been examined [109], as has the application of HTL using macroalgae [110]. However, the economy of the process is still questionable due to the utilization of higher pressure conditions. Another current significant disadvantage of the HTL is the expensive of the reactors [111]. Reduction of cost of HTL processing of microalgae and use of catalysts to upgrade the biocrude oil quality are key targets for improvement.

7. Algal Oils and Biodiesel Production

Many microalgae are rich in triacylglycerols (oils) and the composition of the cell can vary from typically around 15% up to 60% by weight. Environmental stress can lead to the stimulation of oil production such as nutrient depletion, often involving nitrogen starvation. In general, freshwater algae tends to accumulate fatty acids in the C18 series, containing one to three double bonds in the acyl chain (18:1, 18:2, and 18:3), whilst many from the marine environment accumulate long chain polyunsaturated fatty acids in the C20 series (e.g., 20:4 (AA), 20:5 (EPA), and 22:6 (DHA), see Figure 2). The basic pathway for oil synthesis involves the two-step acylation of glycerol 3-phosphate to yield phosphatidic acid (PA). The PA is then hydrolysed by a phosphatase to produce diacylglycerol (DAG), which then undergoes acylation at the sn-3 position to form triacylglycerol (TAG) (Figure 9) [112]. Additional reactions have been characterised in oilseeds that may also occur in algae that are involved in the synthesis of PUFAs and their subsequent incorporation into TAGs [113]. These include cross reactions between phospholipids (principally phosphatidylcholine, PC) and diacylglycerol catalysed by phospholipid diacylglycerol acyl transferase (PDAT), DAG-PC interchange (catalysing a reversible reaction between CDP-choline (a cytidine activated form of choline) and DAG), a transacylase that catalyses the formation of TAG from two molecules of DAG and acyl exchange that involves the high turnover of acyl groups at position sn-2 of PC with acyl groups in the acyl-CoA pool. In oil seeds, these reactions largely take place in the endoplasmic reticulum, although in algae evidence exists that these pathways may operate in the chloroplast [112].

Polyunsaturated fatty acids are undesirable components of fuel, as they are more prone to oxidation. Therefore, leading to the production of short chain aldehydes and ketones can have corrosive enhancing properties [68,70]. The oxidative stability of 18:2, 18:3, 20:4, and 22:6 is linearly related to the number of bis-allylic motifs and reveals that oxidisability increases approximately 2-fold for each active bis-allylic methylene group, thus 22:6 is 5 times greater than 18:2 [75]. Production of high levels of monounsaturated acyl chains oils is therefore more desirable. This could be achieved by genetic manipulation and downregulation of the genes involved in PUFA synthesis. Interestingly, the enzymes involved in synthesising PUFAs (elongases and desaturases) are decreased in response to nitrogen limitation [71] and indeed stress appears to lower PUFA production in algae in general [70]. By contrast, low temperature appears to favour the synthesis of more highly unsaturated fatty acids in algae [68]. Therefore, a combination of genetic and environmental manipulation could result in the production of highly stable oils for use in high temperature environments, such as the combustion engine. The production of monounsaturated oils will be aided by the fact that several desaturases and elongases have been characterised from microalgae [72,73] and their sequence data could hence be used to downregulate their activity, leading to lower PUFA content. This will be particularly important if marine strains of algae are going to be utilised for biodiesel production.

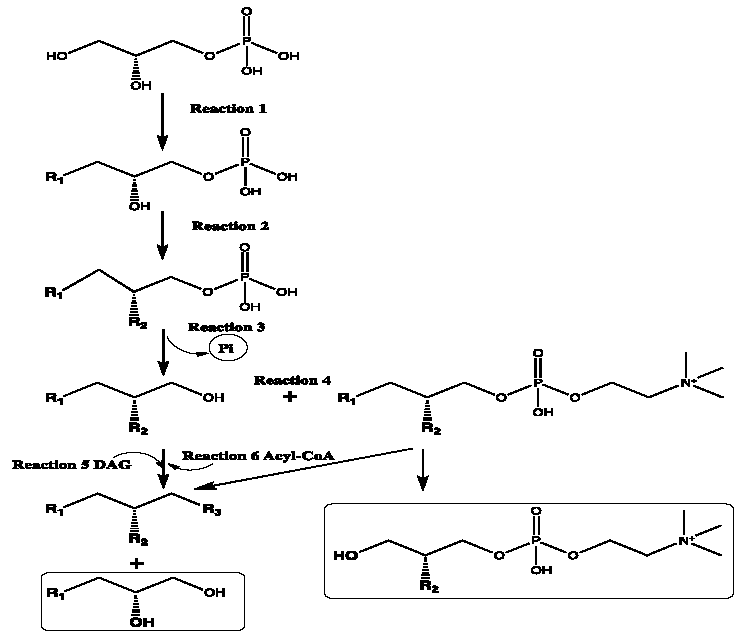

Reactions 1 and 2 are catalysed by separate acyltransferases using acyl-CoA substrates. Reaction 3 is the hydrolysis of the phosphate group by a phosphatase. Reaction 4 is catalysed by a phospholipid, diacylglycerol acyltransferase (PDAT), that results in the formation of triacylglycerol and lyso-phospholipid. Reaction 5 is a transacylase reaction and reaction 6 is catalysed by diacylglycerol acyltransferase (DGAT).

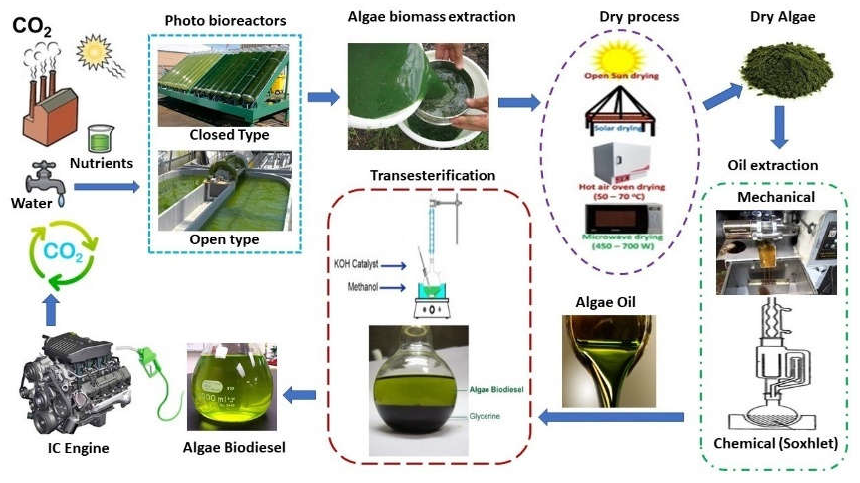

A visual overview of the process of biodiesel production is given is Figure 10.

Conventional diesel is composed of hydrocarbons (oxygen free) derived from the fractional distillation of crude petroleum. By contrast, the chemistry of algal oils is quite different and they are composed predominantly of triacylglycerols (~95%), with small amounts of diacylglycerol and phospholipids (~5% combined) [114]. These natural products contain oxygen in the form of the ester bonds formed between the carboxylic acid of the fatty acid and the glycerol backbone [68].

Triacylglycerols have high boiling points and flash points and are generally converted to biodiesel for efficient use in combustion engines [68]. This involves the transesterification of the oil, usually with methanol, under anhydrous conditions in the presence of a catalyst (either a base such as NaOH or an acid such as H₂SO₄). This reaction forms a biphasic mixture with an upper methyl ester fraction and a lower glycerol phase.

Acid catalysts are minimally affected by unesterified fatty acids [115], so are often used when their level is >1%, and because they require a higher temperature and longer reaction times than alkaline catalysts, the process is more expensive [116]. The methyl ester can be blended with conventional diesel, typically in the range of 5–20%. The generated fatty acid methyl esters (FAMEs) are then separated from the glycerol by-product, washed to remove traces of catalyst, dried, and used as biodiesel [69]. Algal biodiesel has been generated from various species with Botryococcus braunii, Nanocholoropsis oculata, and Dunaliella salina showing oil yields >50% [117].

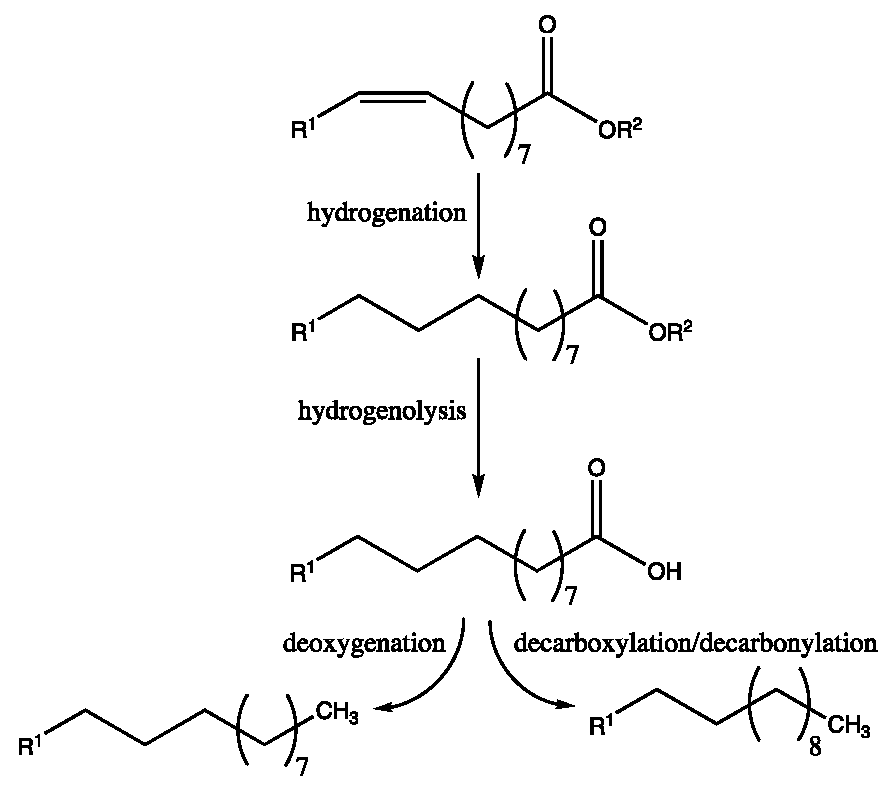

In order to decrease the oxygen content in natural fatty acids and their derivatives technologies around hydrotreatment have been developed which aim to reduce the number of double bonds in the starting material and remove the O atoms in the carboxyl end of the molecule through decarboxylation/decarbonylation [118] (Figure 11).

7.1. Terpenoid ‘Oils’

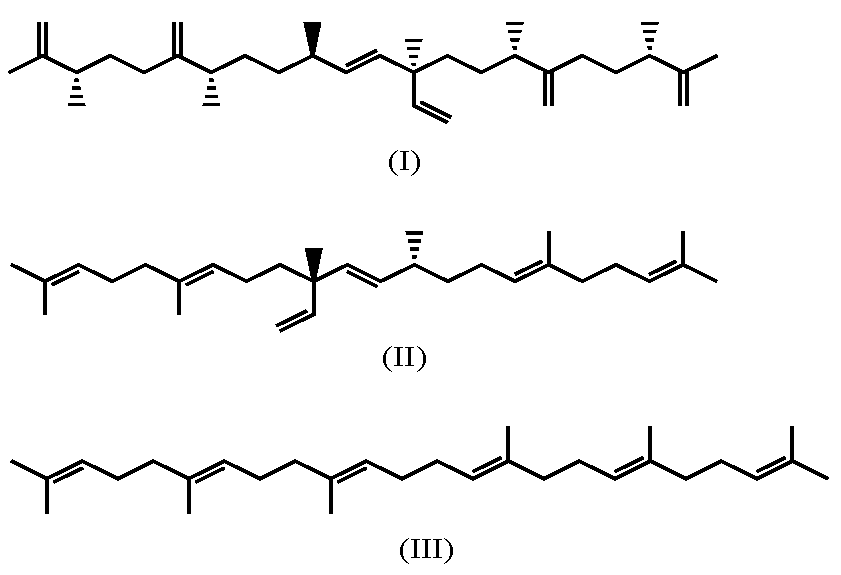

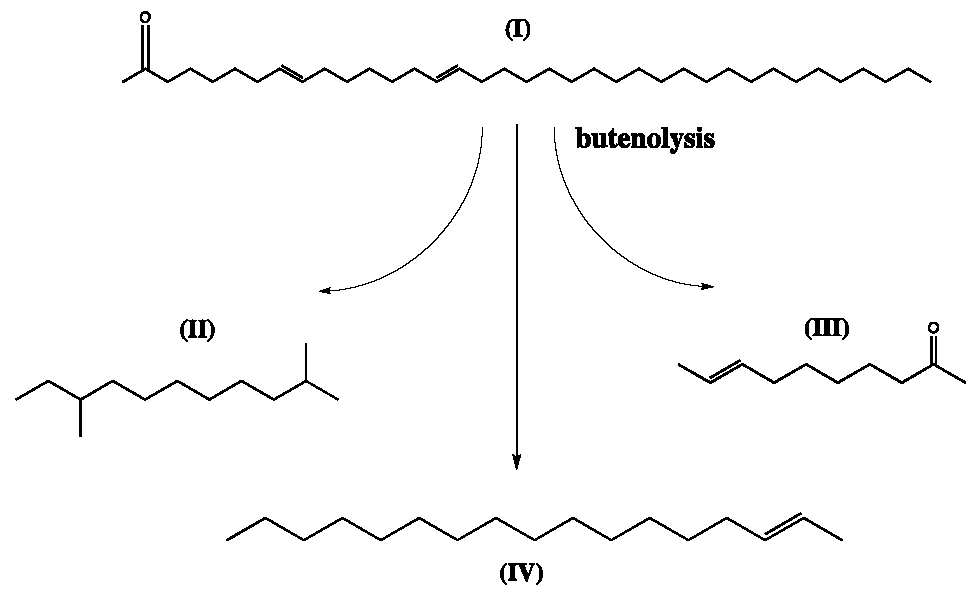

Whilst the majority of oils produced in algae are triacylglycerols, the notable exception and the one that has been well researched is the ‘oil’ extracted from the Chlorophyte, Botryococcus braunii. This organism is the single largest contributor to crude oil and is a major component of oil shales. Instead of accumulating acyl-lipids, this species accumulates a range of linear and monocyclic terpenes, termed botryococcenes, to levels of up to 70% (Figure 12, structures (I) and (II)).

Squalene, a well-known precursor for plant sterols, is synthesised by squalene synthase, and this appears to also play a role in the production of botryococcenes, with which they share many structural similarities (Figure 9, structure III) [82]. However, in Botryococcus, botryococcenes consist of up to ten compounds (C_n H_2n; n = 30–34), representing 25–40 of its dry weight. Hydrocracking of the extracted ‘oil’ yielded 15% of an aviation fuel, 15% diesel fuel with ~67% in the gasoline fraction [82]. The aviation fuel fraction met density and aromatic content specifications. Pre-treatment with hydrogen and prolonging the reaction time improved the yield of desired products. Hydro-processing requires a significant amount of hydrogen gas, although hydrothermal decarboxylation of fatty acids and their derivatives have been achieved using a platinum/carbon infiltrated (Pt/C) catalyst in water at 330 °C and 370 °C without the need for added hydrogen [65].

7.2. Alkenones

To date, only a few members in the class of algae, Prymnesiophyceae (Haptophyta), have been shown to accumulate a rather unusual lipid, termed long-chain alkenones [119]. The chain length typical is in the range of C₃₅–C₄₁, which is around twice the chain length of typical acyl fatty acids. In addition, they contain trans double bonds that are spaced 5 carbons apart in contrast to the methylene interrupted systems in fatty acids, which also favour the cis orientation (Figure 2). The number of double bonds vary from 2–4 and the level of unsaturation is known to be linked to the water temperature, with higher temperatures favouring the synthesis of more saturated species. In Isochrysis galbana, under conditions aimed to stimulate lipid accumulation, the alga accumulated 29% of the dry weight as these products [120]. The high melting points (~70 °C) make alkenones unsuitable for biodiesel production. Alkenones can be separated from fatty acids by a saponification-based method [80]. Subsequent butenolysis of the alkenones (using 2-butene) generated a range of fuel jet range hydrocarbons principally, 2,9-undecane (43%), 2-heptadecene (28%) and 8-decen-2-one (12%) as a mixture of cis and trans isomers (Figure 13) [80]. The tandem production of biodiesel from the fatty acids and jet fuel from the alkenones opens the possibility of a two-fuel generating system from a single algal feedstock.

7.3. Biodiesel Fuel Characteristics

The fuel properties of biodiesel from selected algal species are shown in

Table 9. Algae biodiesel fuel properties.

Algal Species	Viscosity (cst) at 40 °C	Specific Gravity	Cloud Point (°C)	Pour Point (°C)	Flash Point (°C)	Cetane Number	Calorific Value MJ·kg
Chlorella protothecoides	2.8	0.867	−27	−11	124	52	40
Tolypothrix	4.1	0.857	7.38	1.19	-	58	-
Dunaliella salina	2.40	0.8513	0	−6	129	50	34
Spirogyra	4.4	0.884	3	−7	78	-	13.62
Botryococcus braunii	5.35	0.853	-	-	138	-	50
Chlorella vulgaris	4.8	0.870	0	−11	140	60	17.44
Cladophora	3.8	0.892	-	−12	110	60	17.44
Kirchneriella lunari	4.15	0.882	-	-	-	51	41.50
Nannochloropsis oculata	5.76	0.854	3.39	−4	180	46	16.80
Entromorpha	3.12	0.862	−1	−6	194	50	39.760
Stoechospermum marginatum	4.84	0.890	-	-	128	63	42.05
Neochloris oleoabundans	5.54	0.887	−10	−12	126	55	39.76
Crypthecodinium cohnii	5.06	0.912	16.1		95	46	39.86
Fossil diesel	2.3	0.830	-	-	60	56	43.25
ASTM standard	1.9–6.0	0.86–0.9	-	-	>52	40 min

Data adapted from [7,121,122,123,124].

. High fuel viscosity increases flow resistance and affects the fuel atomisation and combustion rate [121]. Both Dunaliella salina and Chlorella protothecoides have viscosities close to fossil fuel values, but the majority listed are significantly higher but within acceptable ranges. Flash points (the lowest temperature at which the liquid will evaporate enough to form a combustible concentration of gas) are also generally higher than the standard limit (>52 °C), making them less hazardous.

They all show good ignition quality (indicated by a high cetane number), which is higher than diesel fuel and minimum standard limits, and good low temperature flow properties. The energy content is generally lower than conventional diesel, but Chlorella protothecoides, Stoechospermum marginatum, Neochloris oleoabundans, and Crypthecodinium cohnii algae biodiesel calorific values are close to fossil diesel (Table 9) [125].

7.4. Algae Biodiesel Engine performance

The engine brake thermal efficiency (BTE) refers to the conversion of fuel energy into useful work [126]. The BTE of microalgal biodiesels fuel varies with different algal species and engine operating parameters including exhaust gas recirculation (EGR) and additive, as summarised in

Table 10. Engine characteristics of various algal biodiesels.

Algae Types	Performance	Emissions
Botryococcus braunii	➢ BTE increased by adding TiO2-SiO2 nano-particle as additive	➢ CO, HC and NOx emissions decreased ➢ CO2 and smoke increased
Spirulina	➢ BTE reduced by 3% but increased with addition of 15% hydrogen ➢ BTE reduced with increases blend%	➢ CO2 emission rose with increased blend% but reduced with raised engine load ➢ 36% reduction in CO2 was observed with 15% addition of hydrogen ➢ 19% reduction in NOx was observed but increased 1.9% with hydrogen addition ➢ Smoke reduced by 23% whereas it increased with hydrogen addition
Chlorellaprotothecoides	➢ BTE increased by 5% as compared to diesel ➢ BTE increased with EGR by 6%	➢ CO emission reduced by 23% for B100 and 43% with EGR ➢ 62% reduction in CO2 was found with B100 ➢ HC decreased by 48% with EGR ➢ NOx reduced by 7.4% with B100 and 18% with EGR
Chlorella vulgaris	➢ B20 shows higher BTE than other blends ➢ BTE decreased with rise blend%	➢ CO decreased by 20% for B20 ➢ Average 1.5% CO2 decreased for all blends ➢ HC emission was found to be lower by 3% ➢ No significant changes was observed in NOx emissions
Scenedesmus sp.	➢ B25 and B50 show 0.3% and 0.5% lower BTE than diesel	➢ CO decreased by 23% and 40% for B25 and B50 ➢ Average reduction in NOx was noticed by 15%

Data combined from several sources (see [127,128,130,131,132].

. When compared to fossil diesel fuel, the BTE of pure, undiluted algal biodiesel (B100, where 100 = 100%) obtained from Scenedesmus sp is reduced [127,128] because of its higher viscosity, resulting in an inappropriate mixing of fuel and air, leading to late combustion during the expansion stroke. Botryococcus braunii derived algae biodiesel at 20% level blended with fossil diesel (B20) shows a slight increment in the BTE [129]. However, biodiesels produced from Spirulina, Chlorella protothecoides, and Chlorella vulgaris algae show an increased BTE with B20 compared to diesel and B100 [130,131], thereby increasing the fuel atomisation and improving combustion efficiency [132].

7.5. Algae Biodiesel Engine Emissions

A list of engine BTE performance characteristics and emissions for 5 algal species is presented in Table 10. In terms of engine out emissions, algal biodiesel generally shows lower emissions of CO, hydrocarbons (HC), and nitrous oxides (NOx) compared to fossil diesel fuel, although this is species specific (see Table 10 for details). Carbon dioxide (CO₂) is the by-product of full combustion and is essential for the creation of ozone [126]. The rate at which CO₂ is produced by an engine is determined by several parameters, including engine speed, combustion chamber geometry, air velocity, and fuel properties. CO₂ emission are generally found to be lower than diesel fuel with all types of algae biodiesel [127]. With the addition of 15% hydrogen, Spirulina biodiesel shows a 36% reduction in CO₂, whereas, it is further reduced by 62% with Chlorella protothecoides-derived biodiesel with EGR dilution [130]. Chlorella vulgaris, Scenedesmus sp, and Botryococcus braunii, algal-derived biodiesels, all show lower CO, HC, and NOx emissions and smoke as compared to fossil diesel [132] (Table 10). Overall, the fuel characteristics of algal biodiesel are highly favourable for use as an engine fuel.

7.6. Algal Biodiesel Cost

The current cost of petroleum oil is ~$100 per barrel (equivalent to $0.62 per L). In contrast, algal biofuel is ~$8.72 per L. Thus, in order for it to effectively compete, the cost reduction will need to be lowered by an order of magnitude. Recently, developments by ExxonMobil in generating a Nanochloropsis gaditana strain engineered with a double oil content (up from 20% to 40%) coupled with improved lipid extraction, using impinging jet mixers to introduce turbulent solvent mixing with algae without recourse to prior lipid extraction [133], may aid in reducing costs.

8. Integrated Biorefinery Approaches

It is evident from the analysis of individual technologies cited above that fuel production, e.g., bioethanol, biohydrogen, bio-oil, or biodiesel, are uneconomical on their own because of the costs associated with nutrient supply, harvesting, and processing. Therefore, integrated approaches whereby multiple products (co-products) and water/nutrient re-cycling take place is going to be essential to improve efficiency and make the process economically viable. Indeed, high value products extracted from algae are currently economical and may be an underlaying driver for the generation of subsidised fuel in the future, i.e., the fuel is a by-product of high value chemical production. The major hurdle faced by the microalgae cultivation process is the limited bio-mass concentration in the mature culture limited to around 3 g·L⁻¹ compared to 30–100 g·L⁻¹ biomass concentration of heterotrophic bacteria [134]. While many schemes exist for the flow of potential products from algae, few actually outline an integrated scheme defining the technologies required at each step. Here, we propose a possible biorefinery scheme, based firstly on the extraction of a high value product (e.g., pigments, FFA etc.) (Figure 14). The residue left behind is then used for fuel production and is subjected to AD, which generates a liquid digestate from which nutrients can be stripped using struvite precipitation and recycled back into the growth medium.

During AD, biogas (~70% methane) is generated and can be used as a source of CH₄, while the residual CO₂ is recycled for algal growth. The solid digestate is then subjected to HTL, producing a mixture of bio-oil, char, gases and aqueous, with the latter being rich in nutrients and recyclable. The char can be used as a soil ameliorator and the CH₄ recovered from the gas and CO₂ recycled as described above. The bio-oil can be used as a heating fuel and or a chemical stream.

Hydrothermally produced bio-oils show a lower oxygen content (16%) than that produced via fast pyrolysis (36%) and a higher heating value (35.7 MJ×kg⁻¹ c.f. 22.6 MJ×kg⁻¹) and higher viscosity (15,000 cPs compared to 9 cPs, where cP is in centipoise units of 1 cm⁻¹·g·s⁻¹ and water at 20 °C is 1cP) [103]. The main product is the high value chemical, and the co-products are biochar, biogas, bio-oil, and nutrients. The sequential extraction of valuable compounds from microalgae makes the biorefinery proposition appealing for waste minimisation, revenue diversification, and complete feedstock utilisation. Detailed techno-economic, environmental, and lifecycle assessment would be required for this biorefinery protocol. In a recent techno-economic evaluation of an algal biorefinery based on extraction of oil for biodiesel followed by sequential extraction of high value products concluded that, with the existing downstream-processing techniques, the microalgae bio-refinery approach is not sustainable and feasible [135].

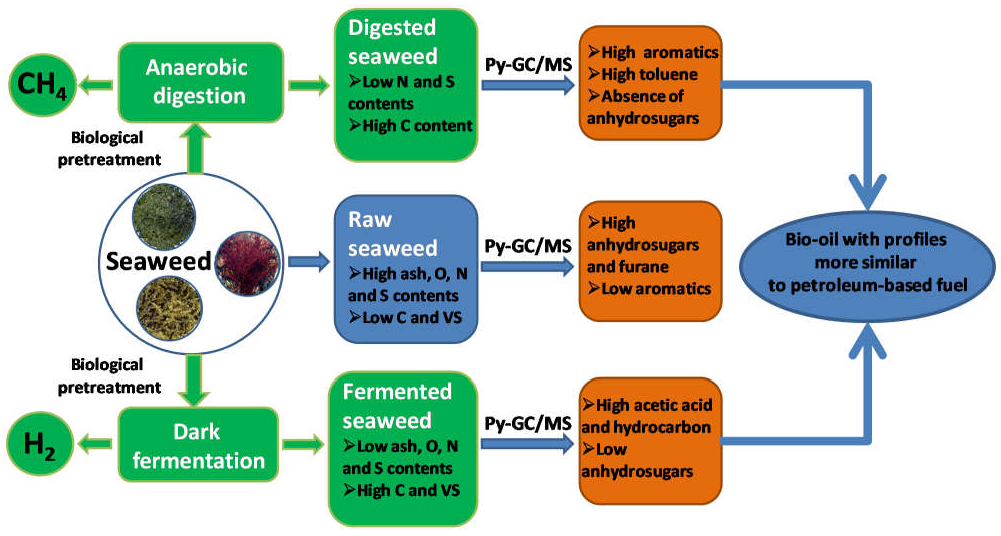

The possibility also exists to utilize AD digestates of seaweeds as sources of nutrients for microalgal culture to reduce costs. Macroalgae biomass is suitable for anaerobic digestion (AD). However, in order to promote the sustainability of an algal biorefinery, the valorisation of seaweed digestate, as a secondary resource for energy and nutrient recovery, is required to increase yields and co-products that would improve the overall efficiency of the system. Recently, we have shown that anaerobic digestion (AD) and dark fermentation (DF) of seaweeds (Laminaria, Ascophyllum, and Chaetomorpha) is an alternative ‘green’ pre-treatment to improved subsequent bio-oil quality following pyrolysis (Wahab, M et al., Energy Conversion and Management, in press). The bio-oil was richer in hydrocarbons (including toluene) and lower in anhydro-sugars than the raw seaweed feedstock derived bio-oil, and therefore more similar to petroleum-based profiles. The liquid digestate was also able to support the growth of Chlorella sorokiniana at levels equivalent to or better than standard TAP medium, with the triacylglycerols being enriched in monounsaturated fatty acids suitable for biodiesel generation. Overall, the results indicate that using AD of seaweed solid digestates can generate improvements in the quality of products obtained by pyrolysis and the liquid digestate can positively influence the growth of microalgae and its products.

In another algal biorefinery scenario, dilute acid pre-treatment was shown to improve the utilisation of algal biomass by hydrolysing carbohydrates into fermentable sugars, making the lipids and proteins easier to extract [136]. Following solid–liquid separation, the ethanol generated and the remaining lipids were sequentially recovered from the fermentation broth by thermal treatment and solvent extraction. The techno-economic analysis indicated a fuel reduction cost by $0.95 per gallon gasoline equivalent (GGE), which is a 9% reduction compared to the previous biorefinery scenario.

9. Conclusions

Macroalgae (‘seaweeds’) are predominantly grown for human consumption and for high value extractives. In terms of biofuel, the most promising processes are anaerobic digestion for biomethane production and fermentation for bioethanol. Currently, both processes are limited by the slow rate of degradation of the complex polysaccharide cell walls. Research effort in this area should therefore be focused on producing a cocktail of cell wall degrading enzymes (predominantly hydrolytic in nature) and have specificity for the algae being digested. This will involve undertaking detailed biochemical studies of the cell wall degrading enzymes, characterizing them, and using genetic engineering techniques to overexpress and bulk produce them. Since most macroalgae are harvested form coastal waters, nutrient costs are not generally a factor and indeed in areas where there is extensive run off of fertilisers from agricultural land, high productivity has been observed. Starch-rich microalgae are also suitable for bioethanol production and are amenable to genetic manipulation to regulate starch levels. Hydrothermal liquefaction of both micro- and macro-algae also has potential, though existing reactors are expensive as are the costs associated generating the high pressures required. The bio-oil formed is unstable and requires upgrading, bringing additional costs. In desert areas, the potential is there to utilise the sun’s rays as a heat source to achieve liquefaction, thereby reducing costs, and should be considered for further development.

Biohydrogen is less appealing as an energy source from algae, due to the limited nature of its production imposed by the necessity of the organisms to generate high levels of ATP from photosynthesis for growth.

Microalgae, unlike macroalgae, are often characterised by a high lipid content and are therefore suited to the production of biodiesel. In order to compete with petroleum, cost reductions of an order of magnitude need to be made. Economic assessments for growing microalgae favour the open raceway system and using non-potable water sources, such as seawater, brackish water, or wastewater, particularly those from food industries which contain nutrients and would reduce production costs. Improving the harvesting of microalgae through more efficient flocculation methods would also help reduce dewatering costs. Such costs could also be reduced further by using more efficient lipid extraction systems such as jet mixers.

In the search to find locations for where to locate large scale production sites and not compete with arable land or disrupt urban populations, deserts have an appeal. However, they are not without their challenges such as hostile environment (e.g., sandstorms), extreme temperatures, little or no nearby infrastructure, or giant sand dunes (e.g., Namib desert). The identification of naturally occurring high lipid strains that can have significant tolerance to temperature changes and changes in salinity would be favourable and could be identified through extensive species profiling in geographical regions of interest. Genetic engineering of microalgae to obtain these traits is possible (ExxonMobil have generated a high oil yielding Nanochloropsis (increased from 20% to 40% oil content, see webpage references), though public acceptance of the introduction of such organisms into the wider environment will likely be met by some resistance.

Overall, the commercial challenges for algal biofuel production remain but are not insurmountable. It is likely that the incremental improvement in growing, harvesting, extraction, and biomass conversion technologies will reach a favourable tipping point and this time frame will be accelerated as the inevitable cost of petroleum, either directly or indirectly, through taxation/carbon trading starts taking effect.

10. Webpage Links

^Ŧ Food and Agriculture Organization of the United Nations, Rome, 2018. 124. Ferdouse F, Lovstad Holdt, S, Smith, R, Murua and Yang Z. https://www.proquest.com/openview/63a9872d1ea30c63f92d5d8acfcd6e35/1?pq-origsite=gscholar&cbl=237312 (accessed on 31 August 2021).

^¶ Global ethanol production by country or region https://afdc.energy.gov (accessed on 19 September 2021).

* BARD Algae claim 8,571,428 gallons of algae oil per acre https://www.greentechmedia.com/articles/read/8571428-gallons-of-algae-oil-per-acre (accessed on 28 August 2021).

^ƚ Flynn Kevin, Swansea University, https://www-2018.swansea.ac.uk/press-office/news-archive/2017/algalbiofuelproductionisneitherenvironmentallynorcommerciallysustainable.php (accessed on 31 August 2021).

ExxonMobil generate high oil yielding Nanochloropsis gaditana using genetic manipulation. https://corporate.exxonmobil.com/Energy-and-innovation/Advanced-biofuels/Advanced-biofuels-and-algae-research#Biofuelsresearchportfolio (accessed on 29 August 2021).
