Natural Recovery and Liming Effects in Acidified Forest Soils in SW-Germany

Abstract

In the state of Baden-Wuerttemberg, Southwest-Germany, a large-scale forest liming trial was government-funded in 1983 and a lime treatment was carried out in autumn 1983 until early winter 1984. Repeated liming was applied in 2003. The limed sites and adjacent control plots were surveyed repeatedly: in 2003 before the second lime application and again in 2010 and 2015. Research of this scope presents a rare opportunity to evaluate firstly the long-term development of acidified soils with their potential for natural recovery on established control plots, and secondly the long-term effects of repeated lime application—at a collective of study sites of various growth regions and soil properties. A natural recovery in soil pH was observed since 2003, on average limited to an increase of 0.2–0.4 pH units in the forest floor and 0.1–0.3 pH units in the mineral soil until 2015. The majority of the organic layers still show very strong or extreme acidity with a pH value 3.9 on average and in the mineral soil with pH values between 3.8 and 4.6 on average. The exchangeable cations calcium and magnesium slightly increased also, although the base saturation remained <20% by 2015. The exchangeable acid cation concentrations indicated no significant changes and thus no recovery. The lime treatment greatly accelerated the rise in pH by 1.2–1.3 units and base saturation by 40–70% in the organic layer, as well as 0.3–1.2 pH units and base saturation by 7–50% in mineral soil. These effects were decreasing (yet still significant) with depth in the measured soil profile as well as with time since last treatment. Changes in soil cation exchange capacity after liming were significant in 0–5 cm mineral soil, below that they were negligible as the significant increase in base cations were accompanied by decreasing acid cations aluminum and iron (III) especially in the upper soil profile. Additionally, a decrease of forest floor and an enrichment of organic carbon and nitrogen in the mineral topsoil tended to follow liming at some sites. Overall the liming effects had a high variability among the study sites, and were more pronounced in the more acidic and coarser textured sites. Liming of acidified forest soils significantly adds to natural recovery and therefore helps to establish greater buffering capacities and stabilize forest nutrition for the future.

1. Introduction

Forest soils in Central Europe underwent acidification in the 20th century, which was primarily due to anthropogenic emissions of SO₂ and NO_X that became acidic compounds in precipitation as well as dry deposition, and depletion of organic matter from topsoil [1,2]. In the 1970s–1980s a phenomenon of “forest dieback”—a new challenge due to deteriorating forest crown condition—was identified. Over time, several ecological effects of the acidifying agents sulfur, nitrogen as well as ozone have been identified: harmfully affected assimilation organs of trees, damaged tree roots with declining fine root biomass, changes in ectomycorrhizal associations and in fine root distributions, magnesium deficiencies in acidified soil and nutrient imbalances due to nitrogen eutrophication [3,4] and [5] (p. 30). Earthworms—important ecosystem engineers—are also known to avoid acidic (pH < 3.6) and high aluminum content soils [6]. The overall functioning of the forest ecosystems has been shown to be impeded in acidified conditions [7].

The acid-base status of forest soils is typically evaluated by the pH, base saturation and reciprocal to it the exchangeable acid cations Al, Fe, Mn and H. Acidified soils experience a reduction in their natural acid neutralization capacity (ANC) as the pH decreases and with it the soils’ buffering range shifts [8]. For forest soils in Southwest Germany a distinct change of pH values between the years 1927 and 1997 was reported with a pH reduction of up to 2 pH units in the top-soils [9]. Many soils have left the silicate buffer range and reached pH values buffered by aluminum-oxides and aluminum-hydroxides, with potentially adverse effects on plant roots and soil organisms, as well as hampered phosphorus availability [10,11] and [12] (pp. 94–96). Since the long-term buffering of acids in soils depends on the weathering rate of primary minerals, in carbonate-free soils the base cations Ca, Mg, K and Na—also important tree nutrients—are being released from silicate and clay minerals and leached, leading to further nutrient imbalances in already base poor soils [8,13].

Due to legislative measures such as the Convention on Long-Range Transboundary Air Pollution of the United Nations Economic Commission for Europe [14] the emissions of SO₂ have been successfully reduced, however a legacy of S compounds is still stored in soil and delays the recovery from acidification. On the other hand, in many regions, the deposition on N compounds NO_3- and NH₄₊ remains high, and continues to impact the forest ecosystems. Meanwhile, also Ca and Mg deposition rates have been decreasing [2,13,15]. Forest soil inventories in Germany prove that soil acidification still is an ongoing process with decreasing base saturations in the mineral subsoil (below 5 cm) while pH values showed a slight recovery in the topsoils and no changes in the subsoils at unlimed sites [12] (pp. 93–116).

Since natural soil development and, in this case, recovery is expected to be a slow process, forest soil liming may be an effective counter-measure to help alleviate the consequences of soil acidification [16]. Liming is the application of buffering compounds—most commonly calcite (calcium carbonate, limestone and CaCO₃) and dolomite (CaMg(CO₃)₂)—in order to restore acid deposition impaired soils [17]. In Finland and Sweden liming was studied extensively already in 1950s for its potential to accelerate N-mineralization in the organic soil [18]. In Germany lime application has been a wide-spread forestry practice since the mid-1980s to compensate acid inputs and remediate acidified soils, in order to improve the forest stand vitality [5] (pp. 38–39). A great number of studies have attempted to characterize the effects of liming. In a meta-study on liming and wood-ash treatment effects on forest ecosystems Reid and Watmough [17] showed that the most significant impacts of liming were on soil pH and foliar Ca concentrations, best predicted by the soil type and time since treatment, and by the treatment dose and type respectively. Other important indicators of liming success were base-saturation, as well as various tree growth measures. Meanwhile a number of studies reported no significant liming effect at all. Šrámek et al. [19] showed significant increase of soil pH as well as exchangeable Ca and Mg up to five years after liming in upper soil horizons, with the effect decreasing ten years after treatment. Ouimet and Moore [20] found similar effects seven years after liming, along with a slight decrease in exchangeable K and strongly decreased exchangeable acidity—with an increased lime dose. In a study that found increased soil profile pH as well as changes in sorption complex of the forest floor 16 years since last liming Drápelová et al. [10] pointed out the role of site soil properties, climate and tree species composition in the outcome of liming in a study, which found increased soil profile pH as well as changes in sorption complex of the forest floor 16 years since treatment. Saarsalmi et al. [18] showed decreased acidity and improved base saturation in the organic layer and topsoil of Norway spruce and Scots pine stands even 20 years after liming. Similarly, Court et al. [13] observed a trend of increased pH, base saturation, Ca, Mg as well as decreasing exchangeable Al more than 20 years after lime application in beech stands. Increased tree growth was also noted in this study, likely due to the improved soil chemical and biological properties even 40 years after. In Germany the results of the second national forest soil inventory (NFSI) of 2006–2008 also showed overall positive liming effects on forest soil acid-base as well as nutrient status since the first survey in 1987–1992, noting also a decrease in N stocks in the organic layer with an increase in the 0–30 cm mineral soil [21] (p. 157). This observation was attributed to increased soil pH stimulating the microbial activity and decomposition of organic matter, with no notable change in the C/N ratio.

Thus the relevance of forest liming lies in its potential to both restore and preserve the sustainability of soils’ functionality: acid buffer capacity, nutrient supply for forest growth, leading to improved structural integrity of the ecosystem. Meanwhile, as the acid deposition distinctly decreased since the 1980s it might currently be sufficiently counteracted and buffered by natural soil weathering, whereby a trend reversal from deposition driven acidification to a natural recovery might have taken place. With this in mind, the soil chemical parameters and their temporal development were studied at ten long-term lime treated research sites in the Southwest-German state of Baden-Wuerttemberg in order to answer the following questions:

• Has natural recovery of acidified forest soils taken place since 1980s, and to what extent?
• Has liming been an effective counter-measure to forest soil acidification?
• What site parameters dictate the extent of change in soil acidity status in case of (1) and (2)?

2. Materials and Methods

2.1. Site Description

The ten study sites are located in the SW-German state of Baden-Wuerttemberg, first described by Littek [22] (pp. 1–8, 14) and Wilpert et al. [23] (pp. 1, 7–22). They were initially selected in 1983 according to the following criteria: porous, non-waterlogged, severely acidified soils on sandstone substrates in the regions of Black Forest, Forest of Odes and Neckarland, as well as on Pleistocene deposits in Alpine foothills, with larger, homogeneous stands (10–50 ha) of Norway spruce (Picea abies) in pure stands or mixed with Silver fir (Abies alba), Scots pine (Pinus sylvestris), Douglas fir (Pseudotsuga menziesii) and European beech (Fagus sylvatica), with the age of the stand being 40–90 years. Excluded were the areas of nature conservation, water protection, special biotopes (e.g., capercaillie habitats), protected forests, other study sites, as well as previously limed areas. With regard to the tree vitality, severely damaged stands with tree needle loss >40% were also excluded from selection. Directly adjacent to an untreated “control” plot a “limed” plot was established by applying a calcium carbonate CaCO₃ in mixture with 4–8% MgO, 3% P₂O₅ and 6–10% K₂O (“Kohlensaurer Kalk 121/123/127”, lime grade 95% < 3.15 mm and 70% < 1.0 mm) from autumn 1983 until early winter 1984. The dose was established site-specific according to the pH, humus form and tree species surveyed in 1983, and was no higher than 3.5 Mg ha⁻¹, in most cases between 2.5 and 3 Mg ha⁻¹. This comparably low dosage was chosen in order to avoid overly high mobilization of the humus layer and undesirable nutrient leaching in the groundwater and surface waters. This also meant that any changes in the soil acidity status were expected to progress slowly over several years.

In 2003 a second treatment of 6 Mg ha⁻¹ dolomite lime with 55% CaCO₃ and 35% MgCO₃ (“CaMg(CO₃)₂ 55/35”, lime grade 90% < 0.1 mm) was applied. The dolomite lime was seen to buffer acid deposition effectively and to react slower than the previously applied calcium carbonate mixture, with milder effects on humus, and was therefore chosen to be applied in larger doses.

It is important to note that the study sites have been considered as praxis-fertilization trials, meaning that the scientific investigations have accompanied the regular forest management practices (moderate thinning of stands, storm damage response, natural regeneration or planting, etc.). A recent comprehensive inventory of these sites was conducted in 2015 and their updated description is shown in

Table 1. Study sites and their key parameters in 2015.

Site	Latitude (°)	Longitude (°)	Altitude (m asl)	Plot size (ha)		Substrate	Soil type 1	Texture 2	Humus type 3	Stand type 4	Stand age	Grouping 5
				Control	Limed
Bad Waldsee	47°50′	9°41′	580	4	22	Glacial till	cambisol	LS	mull - moder mull	PI-FA	70	G1
Ellwangen	49°01′	10°10′	490	10	15	Sandstone	stagnosol	SL	mull	PI	100	G1
Freuden-stadt	48°26′	8°25′	740	8	21	Sandstone	cambisol	SL	mull - mor moder	AB-PI	100	G1
Heidelberg	49°30′	8°47′	490	2	3	Sandstone	podsol	SL	mull	PI	70	G1
Ochsen-hausen	48°06′	10°02′	620	5	17	Periglacial gravel	cambisol	L	mull - moder mull	PI	90	G1
Herzogen-weiler	48°01′	8°20′	950	8	20	Sandstone	stagnosol	LS-SL	mull - moder mull	AB-PI	90	G2
Horb	48°28′	8°32′	630	8	21	Sandstone	cambisol	LS	mull	AB-PI	100	G2
Hospital	48°07′	9°41′	650	3	5	Glacial till	stagnosol	SiL-L	mull - mor moder	PI-FA	110	G2
Wangen	47°47′	9°45′	710	6	22	Glacial till	umbrisol	SiL-L	mor moder	PI	100	G2
Weithard	47°58′	9°17′	630	1	6	Glacial till	stagnosol	CL-L	mull - mor moder	PI	100	G2

¹ dominating soil type according to FAO 2014 (World Reference Base For Soil Classification); ² mean textural classes according to FAO [24] (pp. 25–29): LS = Loamy sand, SL = Sandy loam, L = Loam, SiL = Silty loam, CL = Clay loam; ³ dominating humus forms according to Ad-hoc-Arbeitsgruppe Boden (German soil classification) [25] (pp. 303–310); ⁴ PI = Picea abies, AB-PI = mixed Abies alba and Picea abies, PI-FA= mixed Picea abies and Fagus sylvatica; ⁵ Grouping according to K-means Cluster Analysis (see statistical analyses).

. A map of study site locations is shown in Appendix A (Figure A1).

2.2. Soil Sampling and Laboratory Methods

The sampling methods of the different sampling periods of 1985–2015 are described in

Table 2. Soil sampling design in the 1980s (as described in Wilpert et al. [23]), 2003, 2010 and 2015.

	1985/86 and 1989	2003	2010	2015
Sample layout within plot	3-10 (O-layer) and 6–10 (mineral soil) samples in 10 m distance along a random diagonal line	1 sample at 5 randomly distributed points plus 5 samples at 0, 80, 160, 240 and 320 gradian in 5 m distance from a soil profile	1 sample at 5 randomly distributed points	1 sample at 5 randomly distributed points
Sampled soil layers	O-layer a 0–4 cm b 5–10 cm a	O-layer c 0–5 cm d 5–10 cm d 10–30 cm d 30–60 cm d	O-layer c 0–5c m d 5–10 cm d 10–30 cm d 30–60 cm d	O-layer c 0–5 cm d 5–10 cm d 10–20 cm d 20–30 cm d 30–60 cm d
Instrument	a: scraper b: 100 cm3 soil sample ring	c: 200 cm3 soil sample ring d: Eijkelkamp root auger (diameter 8 cm, length 15 cm)	c: 200 cm3 soil sample ring d: Eijkelkamp root auger (diameter 8 cm, length 15 cm)	c: 200 cm3 soil sample ring d: Eijkelkamp root auger (diameter 8 cm, length 15 cm)
No. of replicates	1 mixed sample	1 mixed sample	4 individual samples	5 individual samples

The first sampling period was 1985 and 1986, a further sampling campaign was completed in 1989/90. Three to ten samples of O-layer and six to ten samples of the mineral soil were collected and then mixed into a single sample for the laboratory analysis. The results comparing the development at control and limed plots between these two sampling campaigns have been published in Wilpert et al. [23] (pp. 30–45). The control plot pH-KCl in mineral topsoil was pH 3.0, i.e., in the Al and Al-Fe buffer range, meanwhile at limed plots it had increased by average 0.9 pH units in 1985/86 and 0.2 pH units by 1989/90 in 0–4 cm topsoil, while in 4–10 cm topsoil only by 1989/90 an increase by 0.2 pH units was observed. The pH-H₂O was reported to be 0.5–1 pH units higher than pH-KCl, with 10–20% less change after treatment. While at control plots the O-layer thickness tended to increase, at limed plots it had decreased, and liming had increased the variability of C-content in 4–10 cm mineral soil with little change in average C-content. Control plot exchangeable cations (CEC) and exchangeable cations were analyzed only in 1989/90 samples, where base saturation improved significantly by 17% after lime treatment (though with high variance) especially exchangeable Ca and slightly less exchangeable Mg, with little change in exchangeable K. Meanwhile exchangeable Al and H had decreased. Limed plot CEC had overall increased by 14%.

The second sampling was carried out in April until October 2003, i.e., twenty years after the first liming and before the second treatment campaign. A soil sample per depth class was taken at five randomly distributed points across a plot as well as in five directions from an established soil profile, then mixed into a single sample. In March–October 2010—seven years after the second liming event—soil sampling was done at four randomly distributed points per treatment plot. The final soil sampling campaign was carried out in March until June 2015—twelve years since the second lime application—at five randomly distributed points per plot.

The soil samples were dried at 60 °C and ground in a mill with a 2 mm sieve.

The following soil chemical parameters were considered in our investigation: pH-H₂O and pH-KCl were measured with a glass electrode in 1:5 (mineral soil) and 1:10 (O-layer) solution with H₂O and 1 M KCl; mineral soil exchangeable cations Ca²⁺, Mg²⁺, K⁺, Al³⁺, Fe³⁺ (μmol_c g⁻¹) and their sum CEC (including cations Na⁺, Mn²⁺ and H⁺) as well as the calculated mineral soil base saturation (%) were determined via percolation with 1 M NH₄Cl-solution and extract analysis with ICP-OES; total N and total C (g kg⁻¹) were measured in dry combustion (Wösthoff in 1980s, Leco CN 2000 in 2003, Vario Max Elementar in 2010–2015) and C/N ratio was calculated; total Ca, Mg, K, Al and Fe (g kg⁻¹) in the O-layer only were determined in aqua regia extract; organic layer stocks (t ha⁻¹) were calculated form dried soil samples of defined sampled area. The methodology of our laboratory analyses was according to “Handbuch Forstliche Analytik” (“Handbook of Forest Analysis”; HFA) by the Forest Analysis Advisory Committee (GAFA) [26,27,28]. Our original data is available as Tables S1–S3 in Supplementary Materials.

It was assumed that the mineral soil bulk density remained stable during the different sampling periods at the study sites, and therefore the element concentrations may be directly compared between the sampling years and between the directly adjacent treatment variants without considering element stocks.

The element concentrations in 2015 were aggregated from 10–20 to 20–30 cm depth samples into 10–30 cm according to fine earth stocks for better comparison with the previous sampling periods. pH values were aggregated after conversion into H⁺ concentration (mol L⁻¹) and subsequent reconversion into pH. Bulk density and fine earth stocks were estimated only in 2015 from soil sample volume, weight and coarse soil fraction.

2.3. Statistical Analysis

The statistical evaluations were conducted using R 3.6.3 (R Core Team 2019).

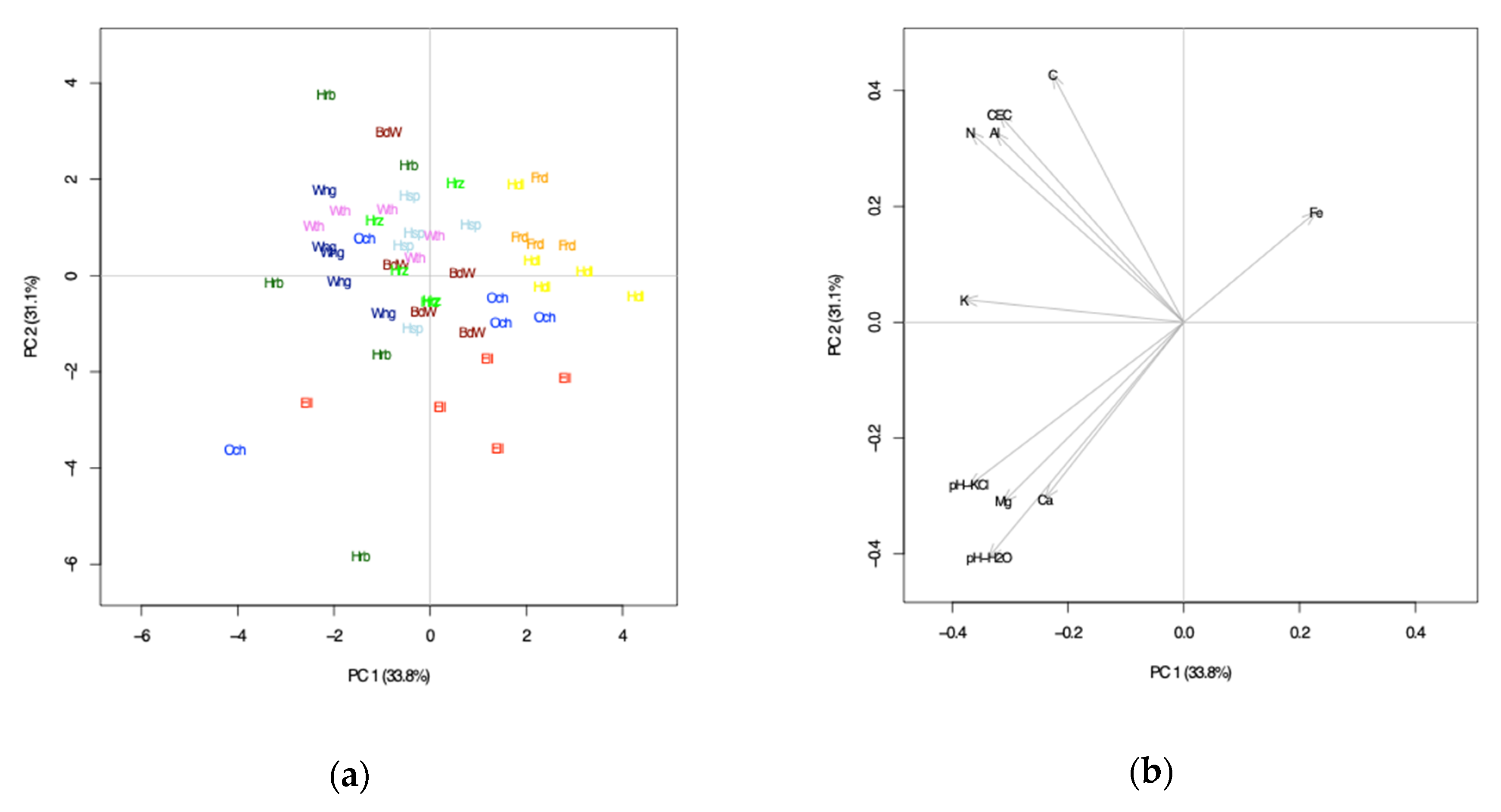

First of all, a K-means cluster analysis (CA) was conducted in order to explore the similarity of sites by their soil chemical parameters at 0-30 cm control plot mineral soil (aggregated, sampling campaign 2015, n = 49), whereby the exchangeable cation as well as C_tot and N_tot concentrations were calculated in stocks (t ha⁻¹) according to fine earth stocks for better site comparability. The optimal number of clusters, i.e., groups of sites was determined to be 2; Group 1 contains the study sites “Bad Waldsee”, “Ellwangen”, “Freudenstadt”, “Heidelberg” and “Ochsenhausen” (n = 5), and Group 2 the sites “Herzogenweiler”, “Horb”, “Hospital”, “Wangen” and “Weithard” (n = 5; Table 1). Additionally a principal component analysis (PCA) was run in order to confirm the CA results, as well as determine the most relevant soil chemical principal components (PC) of these site groups. The first two PCs explained 64.9% of the variability in data, and were pH-H₂O, pH-KCl and K⁺ (t ha⁻¹; PC-1), C_tot (t ha⁻¹) and CEC (μmol_c g⁻¹; PC-2; Figure 1).

Group 1 (G1) includes the sites with predominantly “sandy soils” and is characterized with lower CEC, lower C_tot stocks, lower K⁺ stocks and higher Al³⁺ stocks in the upper mineral soil compared to Group 2 (G2) of predominantly finer textured “silty/clay loam soils”. For both study site groups pH-H₂O of 4.0–4.4 was similar in 0-30 cm mineral soil, whereas pH-KCl was 3.3–3.6 at G1 and 3.5–3.7 at G2 sites, i.e., comparably higher.

The statistical analysis was applied to both site groups separately. Due to small sample size in the sampling campaigns (n < 30 per depth class) as well as a lack of normal distribution in some of the data, non-parametric statistical tests were chosen. In order to compare the difference in group-means between sampling years (separately for control and lime treatments) Friedman test for repeated (dependent) measurements was applied. To find differences between control and lime treatments within a sampling year Mann–Whitney U test for independent samples was used. The significance level was chosen p < 0.05.

To estimate the natural recovery as well as the effects of lime application over time, i.e., the difference between two sampling periods within a study site group, a relative response ratio (RR_r) was calculated for each of the relevant site parameters based on methodology in Hedges et al. [29] and Reid and Watmough [17]:

RR_r = (t2/t1) – 1,

(1)

where t1 = site plot average (arithmetic mean) in previous sampling period, t2 = site plot average in following sampling period. In case of already relative (C/N), log-transformed (pH) and discontinuous (base saturation) variables an absolute RR_a was calculated as difference between previous and following sampling year or limed and control treatment.

RR_a = t2 – t1

(2)

3. Results

Since the 1980s sampling design and data set was not comparable with the subsequent campaigns from 2003 until 2015, we were not able to analyze statistically the changes in soil chemical properties of the entire measured soil profile of our studied sites for the period 1980s until 2003. Nevertheless with the sampling data of 2003 we can evaluate the liming effects in this initial study period on soil properties with the direct comparison of control and limed plots. From 2003 on we can describe the development of soil chemical properties with respect to liming effects in great detail. In this context we will first of all present the changes in soil acidity status with focus on pH values, base saturation and cation exchange capacities as well as the exchangeable cations concentrations. Secondly the development of soil nutrient status with focus on carbon and nitrogen are outlined. A complete list of parameter means (with standard deviations) as they developed over time and after lime treatment is available as Table S4 (G1) and S5 (G2) in Supplementary Materials. The parameter response ratio (RR) means, SD and ranges are fully detailed in Tables S6 (G1) and S7 (G2) of Supplementary Materials.

3.1. Liming Effects in 2003

In 2003—twenty years after the first lime treatment in 1983—no significant differences could be seen in soil pH or base saturation between the control and limed plots. The mean values at limed plots tended to be higher for both parameters, especially in the O-layer (pH) and 0–5 cm mineral soil (BS), however the confidence intervals of both control and lime treatment overlap. Similarly, sum CEC by 2003 was comparable throughout the entire soil profile also. G2 site 0–5 cm mineral soil sample exchangeable Ca as well as C_tot and N_tot were significantly increased—a potential residual effect of lime application in 1983—yet even here the increase in CEC was only slight and not significant. G1 site limed plot O-layer total Al and total Fe concentrations were significantly higher compared to control, although again without any notable influence on the pH or CEC.

3.2. Soil Acidity Status Development between 2003 and 2015

3.2.1. pH Values

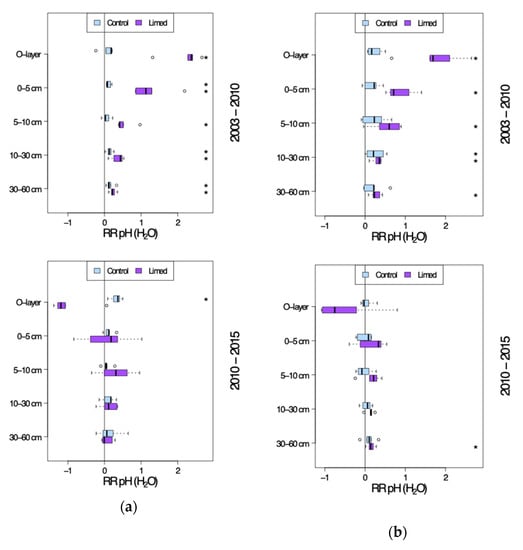

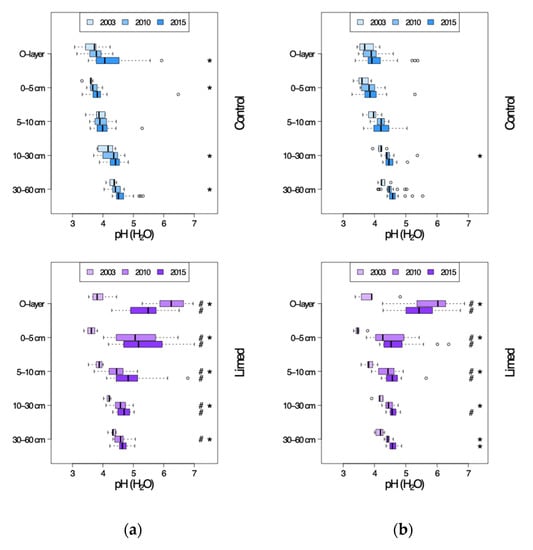

A tendency towards natural recovery of soil pH-H₂O was observed between 2003 and 2015 in the entire soil profile of G1 study sites (Figure 2a) from group average pH 3.5 to pH 3.9 in the O-layer, and from pH 3.5–4.3 to pH 3.9–4.6 in the 0–60 cm mineral soil. The rate of response (RR) was significant in 0–5 cm and 10–60 cm mineral soil by 2010 (RR_a 0.1–0.2 pH units), and in the O-layer by 2015 (RR_a 0.3 pH units) (Figure 3a). At G2 sites (Figure 2b) the natural recovery was significant in O-layer (RR_a 0.2 pH units) and 10–30 cm mineral soil (RR_a 0.3 pH units) between 2003 and 2010. By 2015, however, this recovery was no longer significant. The G2 group average shifted from pH 3.7 to pH 3.9 in the O-layer, and from pH 3.6–4.3 to pH 3.8–4.6 in the 0–60 cm mineral soil in the period from 2003 until 2015.

At lime treated plots pH-H₂O has been increasing significantly in the entire soil profile of both G1 and G2 sites between 2003 and 2010, i.e., in the first 7 years since second lime application by 0.2–2.2 pH units at G1 and 0.2–1.7 pH units at G2—the RR decreasing with depth (Figure 3a,b). Between 2010 and 2015 the rise in limed mineral soil pH-H₂O was again comparable to that of control plots with group average 0.1–0.3 (G1) and 0.1–0.2 (G2) pH unit increase in the mineral soil profile, although in the O-layer the pH is once again decreasing by mean 1.0 (G1) and 0.5 (G2) pH units. While the difference between the control and limed plots was significant in all G1 measured soil profile depths in 2010, the treatment effect has lost its significance in 30–60 cm mineral soil by 2015, i.e., the period 7–12 years since the last lime application. At G2 sites the liming effect reached significance only down to 10 cm mineral soil by 2010, moving further down in the soil profile to 30 cm mineral soil by 2015.

Similar development in both natural recovery and liming effects over time was seen also in pH-KCl (see Appendix B

Table A3. G1 study site parameter pH-KCl, Mg, K, Na, Fe, Mn, H, C and N response ratios (RR) to time in 2003-2015.

Parameter	Unit	Depth	Period	Treatment	RR Mean	RR SD	RR Range
C/N		O-layer	2003–2010	Control	−1.88	1.88	−3.97–0.74
C/N		O-layer	2003–2010	Limed	0.29	3.28	−3.61–5.23
C/N		O-layer	2010–2015	Control	−0.19	1.77	−2.96–1.7
C/N		O-layer	2010–2015	Limed	2.89	3.84	0.04–9.08
C/N		0–5 cm	2003–2010	Control	0.22	2.25	−1.9–3.92
C/N		0–5 cm	2003–2010	Limed	−0.59	1.52	−3.18–0.8
C/N		0–5 cm	2010–2015	Control	0.45	4.24	−2.28–7.9
C/N		0–5 cm	2010–2015	Limed	−1.37	2.63	−4.89–2.1
C/N		5–10 cm	2003–2010	Control	−0.08	2.43	−2.25–3.35
C/N		5–10 cm	2003–2010	Limed	1.59	2.06	−0.35–4.25
C/N		5–10 cm	2010–2015	Control	−0.01	3.74	−4.63–5.45
C/N		5–10 cm	2010–2015	Limed	−0.95	1.87	−3.13–1.85
C/N		10–30 cm	2003–2010	Control	−2.5	4.15	−8.8–0.7
C/N		10–30 cm	2003–2010	Limed	1.65	2.09	−1.98–3.07
C/N		10–30 cm	2010–2015	Control	0.39	2.04	−1.92–2.81
C/N		10–30 cm	2010–2015	Limed	−0.94	2.6	−3.54–2.72
C/N		30–60 cm	2003–2010	Control	−4.3	6.68	−14.57–2.6
C/N		30–60 cm	2003–2010	Limed	2.41	4.18	−2.9–7.32
C/N		30–60 cm	2010–2015	Control	−0.07	3.08	−3.51–4.6
C/N		30–60 cm	2010–2015	Limed	−1.68	2.3	−4.3–1.2
Ctot	g/kg	O-layer	2003–2010	Control	0	0.26	−0.24–0.38
Ctot	g/kg	O-layer	2003–2010	Limed	0.28	0.81	−0.36–1.52
Ctot	g/kg	O-layer	2010–2015	Control	−0.12	0.09	−0.22–−0.01
Ctot	g/kg	O-layer	2010–2015	Limed	0.12	0.3	−0.25–0.58
Ctot	g/kg	0–5 cm	2003–2010	Control	0.31	0.46	−0.33–0.97
Ctot	g/kg	0–5 cm	2003–2010	Limed	0.61	0.51	0.1–1.35
Ctot	g/kg	0–5 cm	2010–2015	Control	0.28	0.52	−0.22–1.11
Ctot	g/kg	0–5 cm	2010–2015	Limed	0.08	0.17	−0.08–0.34
Ctot	g/kg	5–10 cm	2003–2010	Control	0.19	0.36	−0.22–0.64
Ctot	g/kg	5–10 cm	2003–2010	Limed	0.28	0.23	0.01–0.64
Ctot	g/kg	5–10 cm	2010–2015	Control	0.24	0.64	−0.27–1.33
Ctot	g/kg	5–10 cm	2010–2015	Limed	0.19	0.23	−0.03–0.54
Ctot	g/kg	10–30 cm	2003–2010	Control	0.17	0.4	−0.28–0.8
Ctot	g/kg	10–30 cm	2003–2010	Limed	0.11	0.26	−0.23–0.34
Ctot	g/kg	10–30 cm	2010–2015	Control	−0.01	0.22	−0.21–0.3
Ctot	g/kg	10–30 cm	2010–2015	Limed	0.07	0.37	−0.33–0.67
Ctot	g/kg	30–60 cm	2003–2010	Control	0.28	0.43	−0.13–0.97
Ctot	g/kg	30–60 cm	2003–2010	Limed	0.23	0.64	−0.27–1.34
Ctot	g/kg	30–60 cm	2010–2015	Control	−0.08	0.27	−0.46–0.24
Ctot	g/kg	30–60 cm	2010–2015	Limed	0.06	0.4	−0.34–0.63
Fe	g/kg	O-layer	2003–2010	Control	0.53	0.85	−0.2–1.81
Fe	g/kg	O-layer	2003–2010	Limed	0.17	0.67	−0.66–0.84
Fe	g/kg	O-layer	2010–2015	Control	0.39	0.65	−0.06–1.5
Fe	g/kg	O-layer	2010–2015	Limed	−0.2	0.28	−0.39–0.29
Fe3+	µmolc/g	0–5 cm	2003–2010	Control	0.79	0.92	−0.01–1.92
Fe3+	µmolc/g	0–5 cm	2003–2010	Limed	−0.26	0.52	−0.88–0.3
Fe3+	µmolc/g	0–5 cm	2010–2015	Control	0.38	1.84	−0.6–3.67
Fe3+	µmolc/g	0–5 cm	2010–2015	Limed	−0.44	0.6	−0.87–0.59
Fe3+	µmolc/g	5–10 cm	2003–2010	Control	4.06	4.22	−0.18–9.36
Fe3+	µmolc/g	5–10 cm	2003–2010	Limed	1.47	2.36	−0.36–5.51
Fe3+	µmolc/g	5–10 cm	2010–2015	Control	−0.35	0.39	−0.61–0.33
Fe3+	µmolc/g	5–10 cm	2010–2015	Limed	−0.49	0.61	−0.85–0.58
Fe3+	µmolc/g	10–30 cm	2003–2010	Control	5.71	10.38	−0.34–23.98
Fe3+	µmolc/g	10–30 cm	2003–2010	Limed	1.66	1.51	−0.01–3.93
Fe3+	µmolc/g	10–30 cm	2010–2015	Control	−0.42	0.13	−0.52–−0.26
Fe3+	µmolc/g	10–30 cm	2010–2015	Limed	−0.41	0.59	−0.91–0.59
Fe3+	µmolc/g	30–60 cm	2003–2010	Control	21.11	27.42	−0.26–67.57
Fe3+	µmolc/g	30–60 cm	2003–2010	Limed	17.86	13.04	1.53–37.78
Fe3+	µmolc/g	30–60 cm	2010–2015	Control	−0.66	0.28	−0.95–−0.26
Fe3+	µmolc/g	30–60 cm	2010–2015	Limed	−0.56	0.49	−0.93–0.28
H+	µmolc/g	0–5 cm	2003–2010	Control	0.54	0.61	−0.05–1.44
H+	µmolc/g	0–5 cm	2003–2010	Limed	−0.64	0.35	−1–−0.13
H+	µmolc/g	0–5 cm	2010–2015	Control	0.07	0.33	−0.39–0.51
H+	µmolc/g	0–5 cm	2010–2015	Limed	6.1	14.51	−0.9–32.04
H+	µmolc/g	5–10 cm	2003–2010	Control	0.23	0.58	−0.4–1.05
H+	µmolc/g	5–10 cm	2003–2010	Limed	−0.15	0.55	−0.62–0.8
H+	µmolc/g	5–10 cm	2010–2015	Control	0.34	0.68	−0.26–1.5
H+	µmolc/g	5–10 cm	2010–2015	Limed	−0.05	0.79	−0.75–1.14
H+	µmolc/g	10–30 cm	2003–2010	Control	−0.28	0.63	−0.93–0.38
H+	µmolc/g	10–30 cm	2003–2010	Limed	−0.27	0.5	−0.75–0.49
H+	µmolc/g	10–30 cm	2010–2015	Control	2.41	3.63	−0.42–8.15
H+	µmolc/g	10–30 cm	2010–2015	Limed	1.24	2.63	−0.35–5.91
H+	µmolc/g	30–60 cm	2003–2010	Control	−0.5	0.4	−0.96–−0.05
H+	µmolc/g	30–60 cm	2003–2010	Limed	1.16	3.69	−0.73–7.75
H+	µmolc/g	30–60 cm	2010–2015	Control	2.76	5.44	−0.37–12.4
H+	µmolc/g	30–60 cm	2010–2015	Limed	0.57	0.68	−0.5–1.07
K	g/kg	O-layer	2003–2010	Control	0.22	0.38	−0.1–0.86
K	g/kg	O-layer	2003–2010	Limed	0.13	0.23	−0.08–0.48
K	g/kg	O-layer	2010–2015	Control	0.07	0.21	−0.16–0.34
K	g/kg	O-layer	2010–2015	Limed	−0.04	0.24	−0.25–0.34
K+	µmolc/g	0–5 cm	2003–2010	Control	0.15	0.66	−0.4–1.18
K+	µmolc/g	0–5 cm	2003–2010	Limed	0.69	0.98	−0.19–1.95
K+	µmolc/g	0–5 cm	2010–2015	Control	0.46	0.34	−0.02–0.82
K+	µmolc/g	0–5 cm	2010–2015	Limed	0	0.25	−0.36–0.29
K+	µmolc/g	5–10 cm	2003–2010	Control	0.07	0.39	−0.31–0.68
K+	µmolc/g	5–10 cm	2003–2010	Limed	0.27	0.45	−0.15–0.89
K+	µmolc/g	5–10 cm	2010–2015	Control	0.26	0.44	−0.12–1.02
K+	µmolc/g	5–10 cm	2010–2015	Limed	−0.03	0.23	−0.24–0.34
K+	µmolc/g	10–30 cm	2003–2010	Control	0.39	0.69	−0.33–1.1
K+	µmolc/g	10–30 cm	2003–2010	Limed	0.1	0.41	−0.34–0.77
K+	µmolc/g	10–30 cm	2010–2015	Control	0.1	0.27	−0.17–0.45
K+	µmolc/g	10–30 cm	2010–2015	Limed	0.04	0.14	−0.2–0.15
K+	µmolc/g	30–60 cm	2003–2010	Control	0.53	0.95	−0.38–1.57
K+	µmolc/g	30–60 cm	2003–2010	Limed	0.25	0.53	−0.33–0.93
K+	µmolc/g	30–60 cm	2010–2015	Control	0.08	0.24	−0.27–0.32
K+	µmolc/g	30–60 cm	2010–2015	Limed	−0.12	0.16	−0.2–0.16
Mn	g/kg	O-layer	2003–2010	Control	0.5	1.03	−0.2–2.26
Mn	g/kg	O-layer	2003–2010	Limed	1.25	0.56	0.41–1.85
Mn	g/kg	O-layer	2010–2015	Control	0.62	0.56	−0.01–1.45
Mn	g/kg	O-layer	2010–2015	Limed	0.01	0.56	−0.37–1
Mn2+	µmolc/g	0–5 cm	2003–2010	Control	1.56	1.81	−0.21–4.42
Mn2+	µmolc/g	0–5 cm	2003–2010	Limed	1.3	1.84	−0.61–4.32
Mn2+	µmolc/g	0–5 cm	2010–2015	Control	7.57	15.79	−0.56–35.76
Mn2+	µmolc/g	0–5 cm	2010–2015	Limed	2.79	5.69	−0.21–12.95
Mn2+	µmolc/g	5–10 cm	2003–2010	Control	6.19	9.18	−0.64–20.46
Mn2+	µmolc/g	5–10 cm	2003–2010	Limed	0.46	0.83	−0.56–1.18
Mn2+	µmolc/g	5–10 cm	2010–2015	Control	1.15	3.01	−0.52–6.52
Mn2+	µmolc/g	5–10 cm	2010–2015	Limed	0.84	1.81	−0.64–3.98
Mn2+	µmolc/g	10–30 cm	2003–2010	Control	49.57	106.0	−0.15–239.18
Mn2+	µmolc/g	10–30 cm	2003–2010	Limed	0.54	0.31	0.14–0.87
Mn2+	µmolc/g	10–30 cm	2010–2015	Control	−0.29	0.47	−0.6–0.55
Mn2+	µmolc/g	10–30 cm	2010–2015	Limed	−0.05	0.51	−0.51–0.79
Mn2+	µmolc/g	30–60 cm	2003–2010	Control	6.07	8.7	−0.17–21.37
Mn2+	µmolc/g	30–60 cm	2003–2010	Limed	1.79	1.73	0.36–3.92
Mn2+	µmolc/g	30–60 cm	2010–2015	Control	−0.44	0.15	−0.55–−0.22
Mn2+	µmolc/g	30–60 cm	2010–2015	Limed	−0.13	0.46	−0.68–0.42
Na	g/kg	O-layer	2003–2010	Control	0.68	0.56	0.27–1.65
Na	g/kg	O-layer	2003–2010	Limed	0.65	0.54	−0.06–1.33
Na	g/kg	O-layer	2010–2015	Control	−0.16	0.31	−0.55–0.17
Na	g/kg	O-layer	2010–2015	Limed	−0.05	0.68	−0.66–0.78
Na+	µmolc/g	0–5 cm	2003–2010	Control	2.42	1.45	1–4.35
Na+	µmolc/g	0–5 cm	2003–2010	Limed	2.93	4.18	−0.06–10.04
Na+	µmolc/g	0–5 cm	2010–2015	Control	0.52	0.9	−0.08–2.09
Na+	µmolc/g	0–5 cm	2010–2015	Limed	0.86	0.46	0.21–1.21
Na+	µmolc/g	5–10 cm	2003–2010	Control	1.66	0.55	1.1–2.5
Na+	µmolc/g	5–10 cm	2003–2010	Limed	2.58	2.4	0.42–6.53
Na+	µmolc/g	5–10 cm	2010–2015	Control	0.25	0.48	−0.31–0.97
Na+	µmolc/g	5–10 cm	2010–2015	Limed	0.52	0.49	−0.03–1.21
Na+	µmolc/g	10–30 cm	2003–2010	Control	3.39	3.3	−0.05–7.56
Na+	µmolc/g	10–30 cm	2003–2010	Limed	2.71	4.08	0.41–9.95
Na+	µmolc/g	10–30 cm	2010–2015	Control	0.14	0.42	−0.27–0.72
Na+	µmolc/g	10–30 cm	2010–2015	Limed	0.94	1.77	−0.21–4.08
Na+	µmolc/g	30–60 cm	2003–2010	Control	1.29	2.46	−0.38–5.64
Na+	µmolc/g	30–60 cm	2003–2010	Limed	4.27	5.05	0.03–12.48
Na+	µmolc/g	30–60 cm	2010–2015	Control	0.24	0.63	−0.33–1.24
Na+	µmolc/g	30–60 cm	2010–2015	Limed	0.02	0.61	−0.42–1.08
Ntot	g/kg	O-layer	2003–2010	Control	0.07	0.24	−0.16–0.34
Ntot	g/kg	O-layer	2003–2010	Limed	0.18	0.62	−0.33–1.03
Ntot	g/kg	O-layer	2010–2015	Control	−0.12	0.07	−0.23–−0.07
Ntot	g/kg	O-layer	2010–2015	Limed	0.03	0.21	−0.25–0.28
Ntot	g/kg	0–5 cm	2003–2010	Control	0.27	0.44	−0.29–0.89
Ntot	g/kg	0–5 cm	2003–2010	Limed	0.65	0.53	0.11–1.23
Ntot	g/kg	0–5 cm	2010–2015	Control	0.26	0.33	−0.14–0.6
Ntot	g/kg	0–5 cm	2010–2015	Limed	0.16	0.31	−0.1–0.66
Ntot	g/kg	5–10 cm	2003–2010	Control	0.17	0.38	−0.14–0.8
Ntot	g/kg	5–10 cm	2003–2010	Limed	0.17	0.2	−0.05–0.35
Ntot	g/kg	5–10 cm	2010–2015	Control	0.22	0.44	−0.21–0.95
Ntot	g/kg	5–10 cm	2010–2015	Limed	0.24	0.25	−0.03–0.62
Ntot	g/kg	10–30 cm	2003–2010	Control	0.35	0.71	−0.11–1.61
Ntot	g/kg	10–30 cm	2003–2010	Limed	0	0.18	−0.29–0.16
Ntot	g/kg	10–30 cm	2010–2015	Control	−0.01	0.16	−0.12–0.25
Ntot	g/kg	10–30 cm	2010–2015	Limed	0.09	0.22	−0.2–0.39
Ntot	g/kg	30–60 cm	2003–2010	Control	0.76	1.27	−0.06–2.89
Ntot	g/kg	30–60 cm	2003–2010	Limed	−0.01	0.27	−0.39–0.31
Ntot	g/kg	30–60 cm	2010–2015	Control	−0.05	0.12	−0.18–0.13
Ntot	g/kg	30–60 cm	2010–2015	Limed	0.13	0.23	−0.13–0.45
pH-KCl		O-layer	2003–2010	Control	0.03	0.25	−0.31–0.31
pH-KCl		O-layer	2003–2010	Limed	2.46	0.53	1.54–2.85
pH-KCl		O-layer	2010–2015	Control	0.29	0.22	0.08–0.65
pH-KCl		O-layer	2010–2015	Limed	−1.09	0.59	−1.67–−0.11
pH-KCl		0–5 cm	2003–2010	Control	0.08	0.13	−0.15–0.19
pH-KCl		0–5 cm	2003–2010	Limed	1.11	0.73	0.57–2.25
pH-KCl		0–5 cm	2010–2015	Control	−0.01	0.16	−0.18–0.17
pH-KCl		0–5 cm	2010–2015	Limed	−0.1	0.74	−1.06–0.99
pH-KCl		5–10 cm	2003–2010	Control	0.09	0.13	−0.13–0.22
pH-KCl		5–10 cm	2003–2010	Limed	0.28	0.24	−0.06–0.59
pH-KCl		5–10 cm	2010–2015	Control	−0.08	0.16	−0.34–0.06
pH-KCl		5–10 cm	2010–2015	Limed	0.17	0.4	−0.32–0.65
pH-KCl		10–30 cm	2003–2010	Control	0.16	0.13	−0.01–0.29
pH-KCl		10–30 cm	2003–2010	Limed	0.15	0.11	−0.01–0.25
pH-KCl		10–30 cm	2010–2015	Control	−0.04	0.17	−0.23–0.19
pH-KCl		10–30 cm	2010–2015	Limed	−0.07	0.17	−0.34–0.1
pH-KCl		30–60 cm	2003–2010	Control	0.15	0.2	−0.02–0.49
pH-KCl		30–60 cm	2003–2010	Limed	0.07	0.17	−0.22–0.24
pH-KCl		30–60 cm	2010–2015	Control	−0.07	0.2	−0.3–0.14
pH-KCl		30–60 cm	2010–2015	Limed	−0.01	0.09	−0.07–0.15

and

Table A4. G2 study site parameter pH-KCl, Mg, K, Na, Fe, Mn, H, C and N response ratios (RR) to time in 2003–2015.

Parameter	Unit	Depth	Period	Treatment	RR Mean	RR SD	RR Range
C/N		O-layer	2003–2010	Control	−0.13	1.53	−2.04–1.86
C/N		O-layer	2003–2010	Limed	−2.5	3.54	−7.1–2.02
C/N		O-layer	2010–2015	Control	−1.25	1.02	−2.44–0.34
C/N		O-layer	2010–2015	Limed	0.07	1.7	−2.51–2.2
C/N		0–5 cm	2003–2010	Control	0.3	1.63	−1.03–2.98
C/N		0–5 cm	2003–2010	Limed	−0.3	2.24	−2.7–3.38
C/N		0–5 cm	2010–2015	Control	−1.68	3.39	−6.88–2.45
C/N		0–5 cm	2010–2015	Limed	−0.09	1.99	−3.11–2.32
C/N		5–10 cm	2003–2010	Control	−0.08	1.21	−1.05–1.85
C/N		5–10 cm	2003–2010	Limed	−0.63	2.28	−3.67–1.93
C/N		5–10 cm	2010–2015	Control	−1.02	2.92	−5.69–2.3
C/N		5–10 cm	2010–2015	Limed	0.06	1.8	−1.62–2.78
C/N		10–30 cm	2003–2010	Control	−0.89	1.91	−3.28–1.88
C/N		10–30 cm	2003–2010	Limed	−0.1	2.12	−2.98–1.97
C/N		10–30 cm	2010–2015	Control	−0.53	1.85	−3.68–1.13
C/N		10–30 cm	2010–2015	Limed	−0.24	0.54	−0.91–0.48
C/N		30–60 cm	2003–2010	Control	−1.29	2.97	−5.17–1.78
C/N		30–60 cm	2003–2010	Limed	−0.48	1.64	−2.9–0.97
C/N		30–60 cm	2010–2015	Control	0.51	1.55	−1.33–2.17
C/N		30–60 cm	2010–2015	Limed	−0.23	1.12	−2.09–0.82
Ctot	g/kg	O-layer	2003–2010	Control	−0.1	0.11	−0.28–0
Ctot	g/kg	O-layer	2003–2010	Limed	−0.16	0.25	−0.42–0.21
Ctot	g/kg	O-layer	2010–2015	Control	−0.04	0.28	−0.33–0.41
Ctot	g/kg	O-layer	2010–2015	Limed	−0.01	0.2	−0.25–0.29
Ctot	g/kg	0–5 cm	2003–2010	Control	0.11	0.27	−0.19–0.47
Ctot	g/kg	0–5 cm	2003–2010	Limed	−0.34	0.24	−0.71–−0.04
Ctot	g/kg	0–5 cm	2010–2015	Control	0.3	0.66	−0.21–1.42
Ctot	g/kg	0–5 cm	2010–2015	Limed	0.31	0.2	−0.01–0.5
Ctot	g/kg	5–10 cm	2003–2010	Control	0	0.15	−0.18–0.24
Ctot	g/kg	5–10 cm	2003–2010	Limed	−0.04	0.34	−0.41–0.44
Ctot	g/kg	5–10 cm	2010–2015	Control	0.2	0.37	−0.18–0.74
Ctot	g/kg	5–10 cm	2010–2015	Limed	0.08	0.17	−0.08–0.34
Ctot	g/kg	10–30 cm	2003–2010	Control	−0.12	0.27	−0.42–0.19
Ctot	g/kg	10–30 cm	2003–2010	Limed	0.13	0.4	−0.24–0.76
Ctot	g/kg	10–30 cm	2010–2015	Control	0.2	0.24	−0.05–0.6
Ctot	g/kg	10–30 cm	2010–2015	Limed	0	0.25	−0.35–0.26
Ctot	g/kg	30–60 cm	2003–2010	Control	−0.01	0.39	−0.54–0.54
Ctot	g/kg	30–60 cm	2003–2010	Limed	0	0.27	−0.39–0.29
Ctot	g/kg	30–60 cm	2010–2015	Control	0.31	0.49	−0.07–1.16
Ctot	g/kg	30–60 cm	2010–2015	Limed	0.03	0.24	−0.36–0.2
Fe	g/kg	O-layer	2003–2010	Control	0.37	0.25	0.07–0.64
Fe	g/kg	O-layer	2003–2010	Limed	0.73	1.03	−0.59–2.04
Fe	g/kg	O-layer	2010–2015	Control	0.2	0.62	−0.54–1.06
Fe	g/kg	O-layer	2010–2015	Limed	0.17	0.52	−0.32–1
Fe3+	µmolc/g	0–5 cm	2003–2010	Control	0.88	1.49	−0.23–3.49
Fe3+	µmolc/g	0–5 cm	2003–2010	Limed	−0.36	0.33	−0.92–−0.11
Fe3+	µmolc/g	0–5 cm	2010–2015	Control	−0.18	0.56	−0.61–0.78
Fe3+	µmolc/g	0–5 cm	2010–2015	Limed	−0.5	0.3	−0.72–0.01
Fe3+	µmolc/g	5–10 cm	2003–2010	Control	2.22	3.89	−0.64–9.05
Fe3+	µmolc/g	5–10 cm	2003–2010	Limed	1.16	2.59	−0.77–4.9
Fe3+	µmolc/g	5–10 cm	2010–2015	Control	−0.01	0.97	−0.87–1.53
Fe3+	µmolc/g	5–10 cm	2010–2015	Limed	−0.62	0.16	−0.82–−0.45
Fe3+	µmolc/g	10–30 cm	2003–2010	Control	5.43	7.77	−0.38–16.3
Fe3+	µmolc/g	10–30 cm	2003–2010	Limed	5.31	7.67	0.19–18.7
Fe3+	µmolc/g	10–30 cm	2010–2015	Control	−0.38	0.46	−0.8–0.38
Fe3+	µmolc/g	10–30 cm	2010–2015	Limed	−0.67	0.21	−0.86–−0.33
Fe3+	µmolc/g	30–60 cm	2003–2010	Control	8.69	5.22	1.55–15.6
Fe3+	µmolc/g	30–60 cm	2003–2010	Limed	12.46	11.42	3.06–31.27
Fe3+	µmolc/g	30–60 cm	2010–2015	Control	−0.73	0.12	−0.91–−0.61
Fe3+	µmolc/g	30–60 cm	2010–2015	Limed	−0.76	0.13	−0.93–−0.61
H+	µmolc/g	0–5 cm	2003–2010	Control	0.31	0.46	−0.17–1.05
H+	µmolc/g	0–5 cm	2003–2010	Limed	−0.65	0.26	−0.94–−0.36
H+	µmolc/g	0–5 cm	2010–2015	Control	0.24	0.62	−0.34–1.23
H+	µmolc/g	0–5 cm	2010–2015	Limed	0.33	0.95	−0.44–1.62
H+	µmolc/g	5–10 cm	2003–2010	Control	−0.1	0.55	−0.54–0.85
H+	µmolc/g	5–10 cm	2003–2010	Limed	−0.45	0.4	−0.83–0.1
H+	µmolc/g	5–10 cm	2010–2015	Control	0.44	0.72	−0.33–1.54
H+	µmolc/g	5–10 cm	2010–2015	Limed	0.06	0.2	−0.09–0.41
H+	µmolc/g	10–30 cm	2003–2010	Control	−0.51	0.23	−0.72–−0.26
H+	µmolc/g	10–30 cm	2003–2010	Limed	−0.4	0.14	−0.55–−0.19
H+	µmolc/g	10–30 cm	2010–2015	Control	0.48	0.34	−0.06–0.77
H+	µmolc/g	10–30 cm	2010–2015	Limed	0.22	0.43	−0.39–0.71
H+	µmolc/g	30–60 cm	2003–2010	Control	−0.27	0.38	−0.62–0.37
H+	µmolc/g	30–60 cm	2003–2010	Limed	−0.24	0.37	−0.6–0.35
H+	µmolc/g	30–60 cm	2010–2015	Control	−0.01	0.57	−0.87–0.53
H+	µmolc/g	30–60 cm	2010–2015	Limed	0.09	0.6	−0.47–0.96
K	g/kg	O-layer	2003–2010	Control	0.22	0.21	−0.06–0.47
K	g/kg	O-layer	2003–2010	Limed	0.19	0.25	−0.25–0.37
K	g/kg	O-layer	2010–2015	Control	−0.15	0.2	−0.44–0.12
K	g/kg	O-layer	2010–2015	Limed	−0.16	0.19	−0.32–0.16
K+	µmolc/g	0–5 cm	2003–2010	Control	0.48	0.55	−0.41–1.09
K+	µmolc/g	0–5 cm	2003–2010	Limed	0.04	0.21	−0.16–0.37
K+	µmolc/g	0–5 cm	2010–2015	Control	0.33	0.48	−0.18–1.08
K+	µmolc/g	0–5 cm	2010–2015	Limed	0.29	0.63	−0.21–1.28
K+	µmolc/g	5–10 cm	2003–2010	Control	0.15	0.5	−0.32–0.92
K+	µmolc/g	5–10 cm	2003–2010	Limed	0.33	0.21	0.1–0.53
K+	µmolc/g	5–10 cm	2010–2015	Control	0.22	0.27	−0.04–0.67
K+	µmolc/g	5–10 cm	2010–2015	Limed	−0.04	0.28	−0.4–0.24
K+	µmolc/g	10–30 cm	2003–2010	Control	0.27	0.26	−0.01–0.68
K+	µmolc/g	10–30 cm	2003–2010	Limed	0.35	0.31	0.11–0.85
K+	µmolc/g	10–30 cm	2010–2015	Control	0.01	0.09	−0.11–0.13
K+	µmolc/g	10–30 cm	2010–2015	Limed	−0.05	0.13	−0.25–0.06
K+	µmolc/g	30–60 cm	2003–2010	Control	0.18	0.22	−0.11–0.38
K+	µmolc/g	30–60 cm	2003–2010	Limed	0.39	0.44	−0.01–1.11
K+	µmolc/g	30–60 cm	2010–2015	Control	−0.17	0.13	−0.34–−0.01
K+	µmolc/g	30–60 cm	2010–2015	Limed	−0.15	0.18	−0.46–−0.02
Mn	g/kg	O-layer	2003–2010	Control	0.99	1.36	0.06–3.25
Mn	g/kg	O-layer	2003–2010	Limed	2	3.79	−0.2–8.75
Mn	g/kg	O-layer	2010–2015	Control	−0.01	0.33	−0.35–0.38
Mn	g/kg	O-layer	2010–2015	Limed	0.06	0.32	−0.33–0.41
Mn2+	µmolc/g	0–5 cm	2003–2010	Control	2.59	5.64	−0.56–12.62
Mn2+	µmolc/g	0–5 cm	2003–2010	Limed	3.39	7.8	−0.54–17.32
Mn2+	µmolc/g	0–5 cm	2010–2015	Control	0.14	0.78	−0.43–1.49
Mn2+	µmolc/g	0–5 cm	2010–2015	Limed	0.37	0.38	−0.16–0.77
Mn2+	µmolc/g	5–10 cm	2003–2010	Control	2.07	4.77	−0.4–10.59
Mn2+	µmolc/g	5–10 cm	2003–2010	Limed	0.53	0.6	−0.51–0.94
Mn2+	µmolc/g	5–10 cm	2010–2015	Control	−0.35	0.06	−0.43–−0.28
Mn2+	µmolc/g	5–10 cm	2010–2015	Limed	−0.16	0.23	−0.47–0.13
Mn2+	µmolc/g	10–30 cm	2003–2010	Control	0.73	1.7	−0.58–3.67
Mn2+	µmolc/g	10–30 cm	2003–2010	Limed	0.48	0.79	−0.3–1.71
Mn2+	µmolc/g	10–30 cm	2010–2015	Control	−0.28	0.25	−0.47–0.15
Mn2+	µmolc/g	10–30 cm	2010–2015	Limed	−0.23	0.22	−0.5–0.11
Mn2+	µmolc/g	30–60 cm	2003–2010	Control	1.02	1.49	−0.52–3.39
Mn2+	µmolc/g	30–60 cm	2003–2010	Limed	1.97	2.55	−0.3–6.17
Mn2+	µmolc/g	30–60 cm	2010–2015	Control	−0.12	0.49	−0.56–0.72
Mn2+	µmolc/g	30–60 cm	2010–2015	Limed	−0.38	0.18	−0.68–−0.18
Na	g/kg	O-layer	2003–2010	Control	2.71	5.62	−0.44–12.69
Na	g/kg	O-layer	2003–2010	Limed	1.14	0.92	−0.38–2.08
Na	g/kg	O-layer	2010–2015	Control	0.06	0.31	−0.41–0.35
Na	g/kg	O-layer	2010–2015	Limed	−0.18	0.35	−0.59–0.33
Na+	µmolc/g	0–5 cm	2003–2010	Control	3.02	5.85	−0.12–13.45
Na+	µmolc/g	0–5 cm	2003–2010	Limed	1.13	1.27	−0.26–2.94
Na+	µmolc/g	0–5 cm	2010–2015	Control	0.59	0.73	−0.31–1.56
Na+	µmolc/g	0–5 cm	2010–2015	Limed	0.54	0.5	0.02–1.23
Na+	µmolc/g	5–10 cm	2003–2010	Control	2.22	3.63	−0.3–8.51
Na+	µmolc/g	5–10 cm	2003–2010	Limed	1.25	1.62	−0.38–3.54
Na+	µmolc/g	5–10 cm	2010–2015	Control	0.41	0.61	−0.24–1.18
Na+	µmolc/g	5–10 cm	2010–2015	Limed	0.51	0.52	−0.05–1.18
Na+	µmolc/g	10–30 cm	2003–2010	Control	0.34	1.04	−0.44–2.1
Na+	µmolc/g	10–30 cm	2003–2010	Limed	1.13	1.47	0.08–3.24
Na+	µmolc/g	10–30 cm	2010–2015	Control	0.88	1.37	−0.04–3.3
Na+	µmolc/g	10–30 cm	2010–2015	Limed	0.54	0.99	−0.49–2.12
Na+	µmolc/g	30–60 cm	2003–2010	Control	0.15	0.41	−0.32–0.7
Na+	µmolc/g	30–60 cm	2003–2010	Limed	2.11	2.37	−0.38–5.7
Na+	µmolc/g	30–60 cm	2010–2015	Control	0	0.67	−0.55–1.14
Na+	µmolc/g	30–60 cm	2010–2015	Limed	0.21	0.73	−0.48–1.31
Ntot	g/kg	O-layer	2003–2010	Control	−0.09	0.15	−0.33–0.05
Ntot	g/kg	O-layer	2003–2010	Limed	−0.09	0.19	−0.25–0.22
Ntot	g/kg	O-layer	2010–2015	Control	0	0.27	−0.27–0.46
Ntot	g/kg	O-layer	2010–2015	Limed	−0.01	0.14	−0.16–0.18
Ntot	g/kg	0–5 cm	2003–2010	Control	0.08	0.24	−0.16–0.41
Ntot	g/kg	0–5 cm	2003–2010	Limed	−0.32	0.26	−0.69–0.01
Ntot	g/kg	0–5 cm	2010–2015	Control	0.34	0.44	−0.14–1.02
Ntot	g/kg	0–5 cm	2010–2015	Limed	0.32	0.26	0.03–0.69
Ntot	g/kg	5–10 cm	2003–2010	Control	0	0.12	−0.13–0.19
Ntot	g/kg	5–10 cm	2003–2010	Limed	−0.02	0.32	−0.38–0.33
Ntot	g/kg	5–10 cm	2010–2015	Control	0.24	0.28	−0.17–0.5
Ntot	g/kg	5–10 cm	2010–2015	Limed	0.09	0.23	−0.22–0.34
Ntot	g/kg	10–30 cm	2003–2010	Control	−0.07	0.24	−0.31–0.2
Ntot	g/kg	10–30 cm	2003–2010	Limed	0.1	0.33	−0.23–0.64
Ntot	g/kg	10–30 cm	2010–2015	Control	0.23	0.2	−0.02–0.49
Ntot	g/kg	10–30 cm	2010–2015	Limed	0.02	0.26	−0.34–0.32
Ntot	g/kg	30–60 cm	2003–2010	Control	0.1	0.33	−0.18–0.61
Ntot	g/kg	30–60 cm	2003–2010	Limed	0.04	0.15	−0.14–0.19
Ntot	g/kg	30–60 cm	2010–2015	Control	0.14	0.28	−0.11–0.58
Ntot	g/kg	30–60 cm	2010–2015	Limed	−0.01	0.15	−0.24–0.18
pH-KCl		O-layer	2003–2010	Control	0.16	0.2	−0.01–0.5
pH-KCl		O-layer	2003–2010	Limed	1.79	0.76	0.68–2.78
pH-KCl		O-layer	2010–2015	Control	−0.03	0.21	−0.3–0.26
pH-KCl		O-layer	2010–2015	Limed	−0.32	0.78	−1.11–0.84
pH-KCl		0–5 cm	2003–2010	Control	0.11	0.14	−0.06–0.24
pH-KCl		0–5 cm	2003–2010	Limed	0.65	0.36	0.29–1.2
pH-KCl		0–5 cm	2010–2015	Control	−0.04	0.15	−0.22–0.17
pH-KCl		0–5 cm	2010–2015	Limed	0.07	0.23	−0.19–0.27
pH-KCl		5–10 cm	2003–2010	Control	0.15	0.23	−0.13–0.48
pH-KCl		5–10 cm	2003–2010	Limed	0.35	0.29	0.04–0.67
pH-KCl		5–10 cm	2010–2015	Control	−0.08	0.17	−0.27–0.16
pH-KCl		5–10 cm	2010–2015	Limed	0.03	0.04	−0.03–0.07
pH-KCl		10–30 cm	2003–2010	Control	0.18	0.14	−0.02–0.31
pH-KCl		10–30 cm	2003–2010	Limed	0.14	0.07	0.07–0.24
pH-KCl		10–30 cm	2010–2015	Control	−0.07	0.1	−0.17–0.06
pH-KCl		10–30 cm	2010–2015	Limed	0.01	0.06	−0.07–0.08
pH-KCl		30–60 cm	2003–2010	Control	0.04	0.15	−0.1–0.26
pH-KCl		30–60 cm	2003–2010	Limed	0.12	0.14	−0.08–0.27
pH-KCl		30–60 cm	2010–2015	Control	0.07	0.17	−0.08–0.35
pH-KCl		30–60 cm	2010–2015	Limed	0.05	0.09	−0.08–0.16

). The effect of lime treatment was even more pronounced in the O-layer and topsoil 0–5 cm, but overall the limed plots had a significant treatment effect only down to 10 cm topsoil at G1 and just down to 5 cm at G2.

3.2.2. Base Saturation

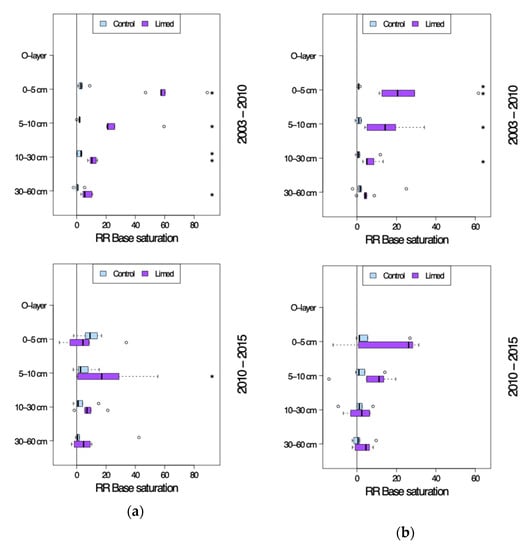

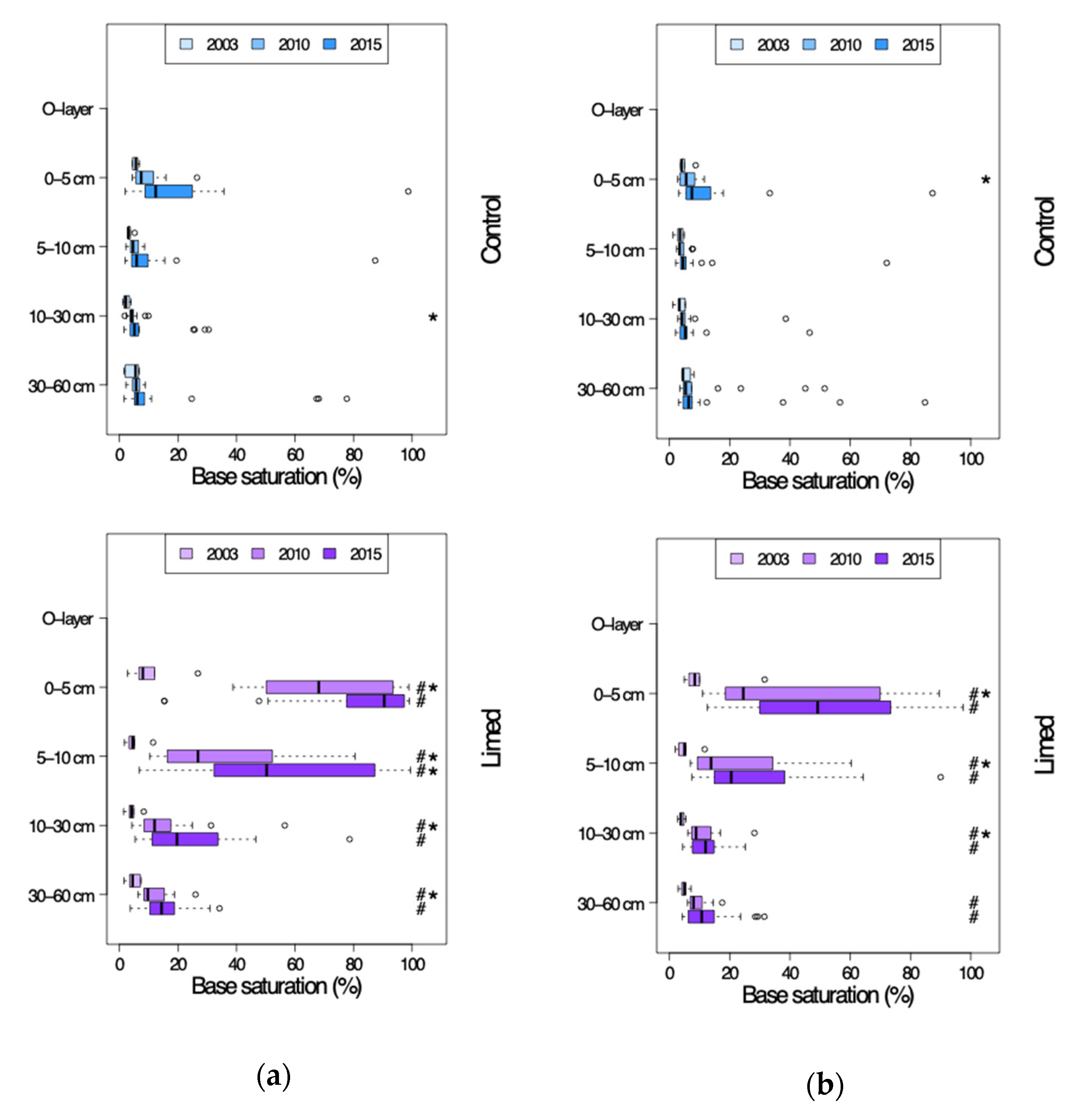

From 2003 on a tendency towards slight natural recovery of base saturation (BS) was seen across all study sites, although significant only in case of G2 site 0–5 cm topsoil (Figure 4 and Figure 5). The average RR_a in the 0–60 cm soil profile was 1–5% in 2003–2010, and 4–9% (G1) and 0.5–7% (G2) in 2010–2015. Except for some of the sites of G1 in 2015, the control plot base saturation remained below 20%, i.e., poor.

The liming effect after 2003 was especially strong at G1 sites with an average 30–60% significant increase in 0–10 cm topsoil BS and 7–11% in 10–60 cm in the first 7 years after second lime application. This liming effect continued—with a 0–10 cm topsoil reduction in RR_a to just 6–20% and 10–60 cm RR_a 4–8%—also until 2015. At G2 sites the lime treatment effect was comparably lower: 15–30% in the 0–10 cm topsoil and 4–7% in 10–60 cm between 2003 and 2010. By 2015 the RR_a had dropped in both the 0–10 cm topsoil to 7–15%, as well as in the deeper soil horizons 10–60 cm to just a 1–3% increase in group average BS. Compared to the control plots both G1 and G2 limed plot BS was significantly higher in the entire mineral soil profile both 7 and 12 years since the second lime application: 75–80% in 0–5 cm, 35–55% in 5–10 cm, 15–25% in 10–30 cm and 12–15% in 30–60 cm mineral soil. G2 limed plot base saturation was generally lower: 45–55% in 0–5 cm, 20–30% in 5–10 cm, 11–12% in 10–30 cm and 9–12% in 30–60 cm mineral soil.

3.2.3. Cation Exchange Capacities

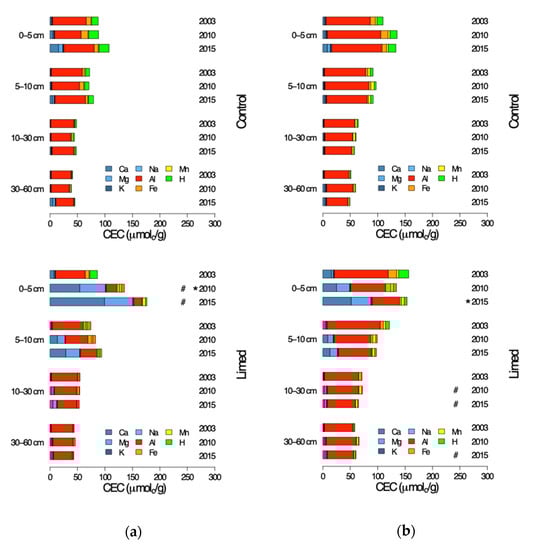

From 2003 the sum of the control plot exchangeable cations (CEC; Figure 6) has remained stable throughout the following sampling periods in the mineral soil profiles at both G1 and G2 study sites, with no significant differences between the sampling years.

At limed plots, the 0–5 cm upper topsoil CEC at G1 sites was significantly higher in 2010 (RR 0.73)—mainly due to greatly increased availability of Ca and Mg base cations, and despite notably decreased Al and Fe-III acid cation concentrations. At G1 5–30 cm this similar but less pronounced increase in base cations appeared to balance out the decrease in acid cations so that the CEC did not change significantly at the limed plots. No significant lime treatment effect on total CEC could be observed in the topsoil G2 sites (although from 2010 to 2015 CEC did increase significantly in 0–5 cm topsoil, RR_r 0.15) where Ca and Mg cation concentrations increased distinctly and the acid cations decreased. Since the base cation increase reached down to 60 cm mineral soil, and acid cation concentration only decreased in the upper 10 cm due to liming, G2 limed plot CEC became significantly greater than control progressively with time.

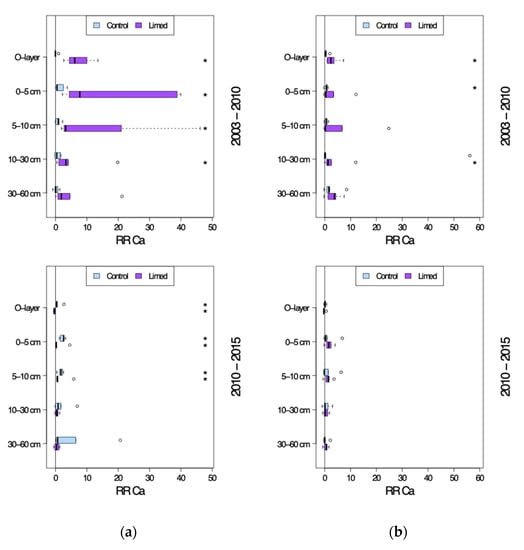

At the control plots there was a tendency for an increase of total Ca in the O-layer and exchangeable Ca²⁺ in the mineral soil (Figure 7), which was significant at G1 sites until 10 cm topsoil between 2010 and 2015 (RR_r 0.8–5.6), and at G2 sites 0–5 cm between 2003 and 2010 (RR_r 0.71).

The effect of lime treatment on forest floor total Ca-concentration is a significant increase in the first seven years after the second lime application (RR_r 3.05–7.33), and a decrease (significant for G1, RR_r −0.34), i.e., the reverse process between 2010 and 2015 across all study sites. Between 2003 and 2010 the mineral soils experienced a significant increase of exchangeable Ca in 0–30 cm, especially strong at G1 sites (RR_r 5.72–18.61). Afterwards Ca concentrations increased significantly only in 0–10 cm at G1 (RR_r 1.06–1.6), and just slightly at G2 sites.

Both organic layer total Mg and mineral soil exchangeable Mg²⁺ (see Appendix B) developed similarly to Ca. The difference was a significant recovery at G2 control plots in the O-layer Mg 2003–2015 (RR_r 0.34 and 0.25) without any significant improvement further down. Additionally, the liming effect significance reached down to 60 cm mineral soil in 2003–2010 at both G1 and G2 study sites.

There was little change in the concentrations of the other base cations K and Na (see Appendix B). What is notable is the significant reduction of exchangeable K in 30–60 cm depth at G2 sites between 2010 and 2015 irrespective of treatment.

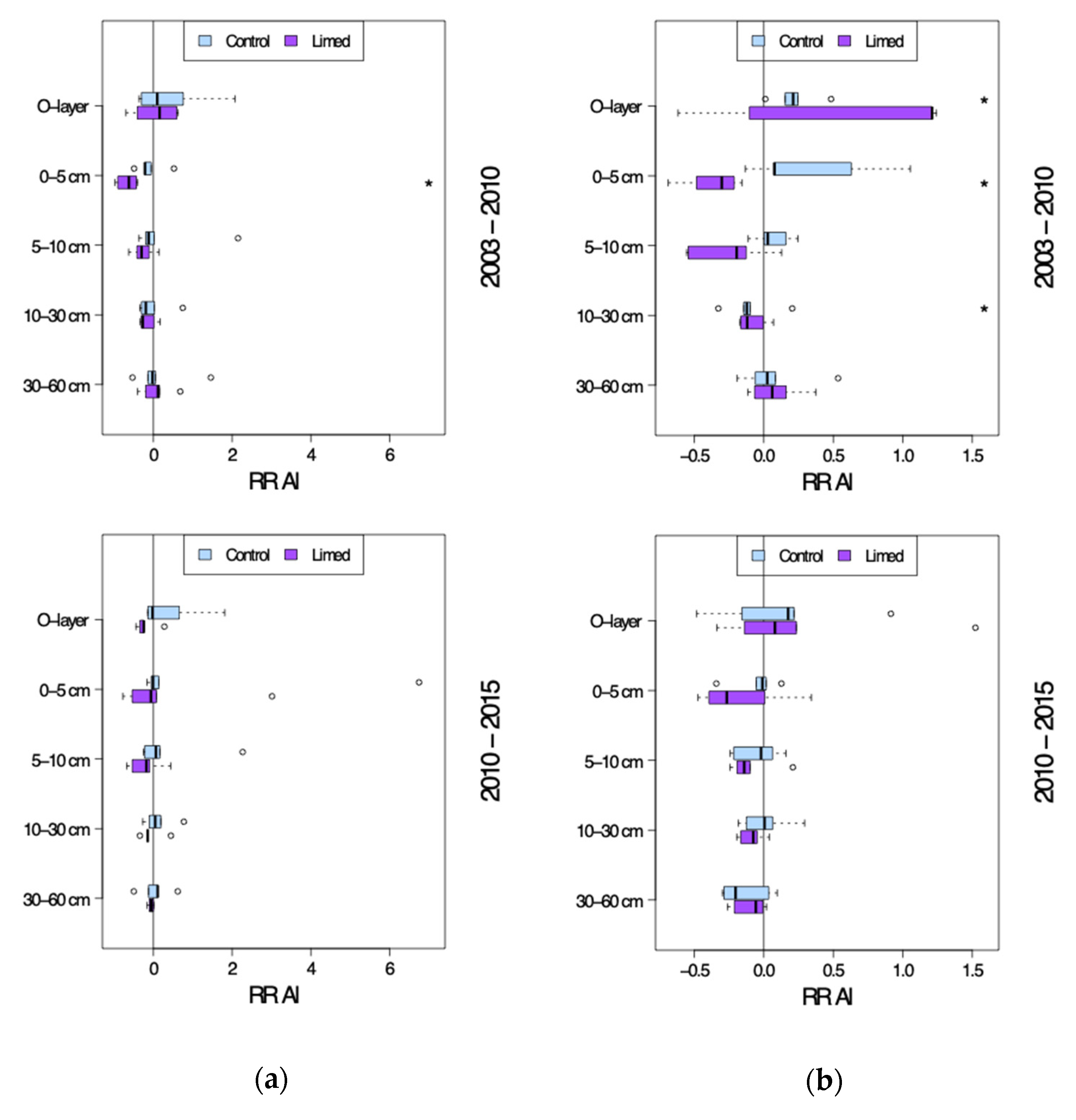

It became obvious that Al was the strongly dominant exchangeable cation and remained so in the control plots throughout the entire sampling period 2003–2015. Forest floor total Al and mineral soil exchangeable Al concentrations (Figure 8) at the control plots showed no significant change over time (G1 RR_r −0.09–1.33 and G2 RR_r −0.13–0.34); only the G2 site O-layer Al was significantly higher in 2010 compared to 2003 (RR_r 0.22) and in 10–30 cm significantly lower (RR_r -0,1).

In response to the second liming treatment in 2003 mineral topsoils’ exchangeable Al followed a trend opposite to that of Ca and Mg, and was distinctly reduced in 0–10 cm at both G1 and G2 sites between 2003 and 2010 at G1 and G2, though significantly only in 0–5 cm topsoil by 2010 (G1 RR_r −0.67 and G2 RR_r −0.37).

Soil Fe concentrations (see Appendix B) were obviously present at all sites especially in the 0–10 cm mineral soils. Significant changes over time in the topsoil occurred at G2 sites only, where total Fe concentrations increased in the control plot O-layer (RR_r 0.37) and exchangeable Fe decreased in the limed plot 0–5 cm (RR_r −0.36) in the period 2003–2010. The subsoil Fe concentrations changed just with low absolute values, which however resulted in significant RR-values, whereby Fe-concentrations increased in 2003–2010 and slightly decreased in 2010–2015—more or less significantly at all study sites.

Across all study sites forest floor total Mn concentrations were significantly higher at limed plots relative to control 7 and 12 years since the last lime application; in addition after liming also the exchangeable Mn in 0–5 cm topsoil was significantly higher at G1 sites (see Appendix B).

Exchangeable protons H (also see Appendix B) were significantly lower at limed plots compared to control in 0–5 cm topsoil in 2010 for both G1 and G2, as well as in 0–10 cm (G1) and 0–5 cm (G2) in 2015.

3.3. O-layer stocks, Carbon and Nitrogen

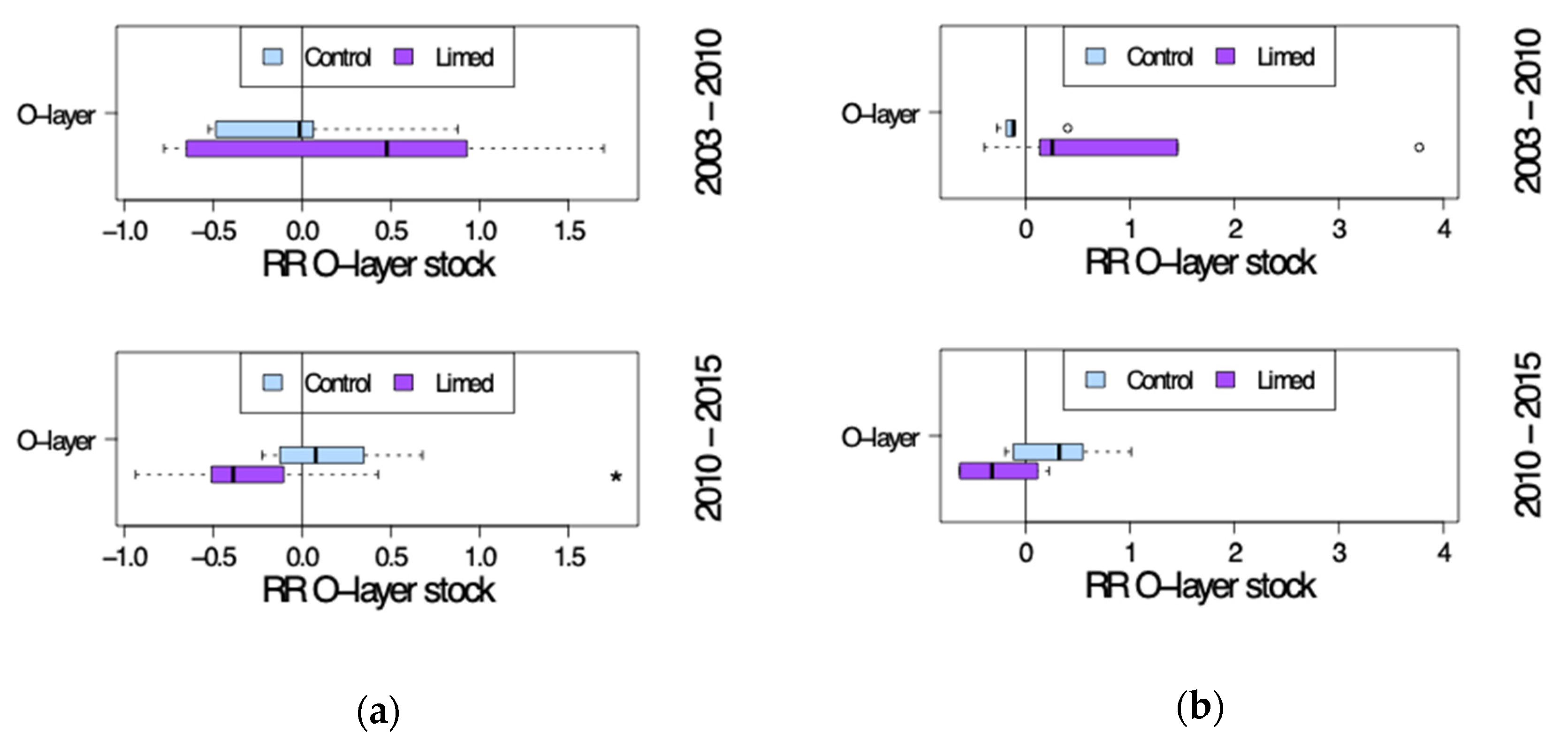

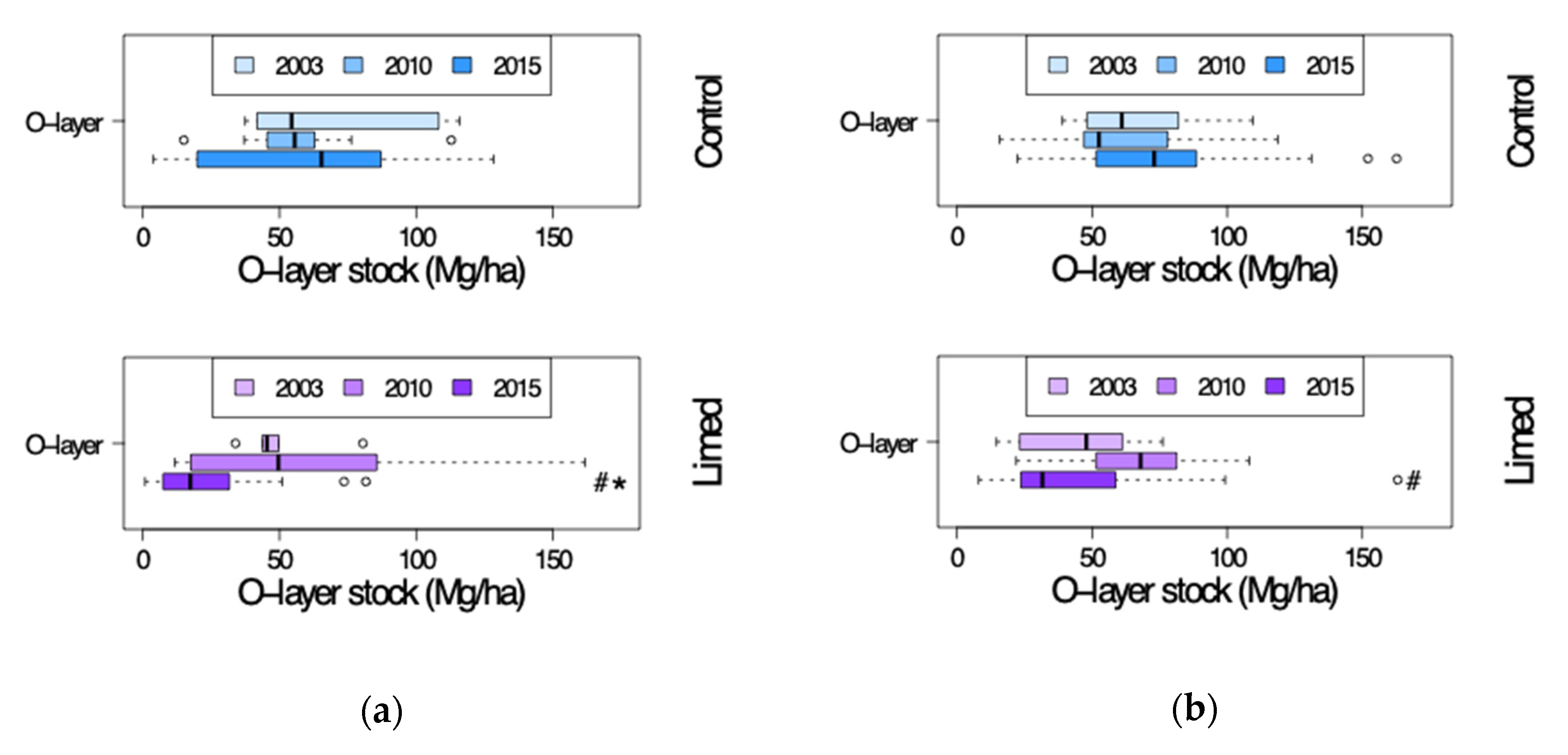

For the evaluation of changes in carbon concentrations, the humus layer stocks have to be considered, too (Figure 9). At both G1 and G2 study sites the O-layer stocks were (not significantly) lower at limed plots relative to control in 2003, and in 2010 they were comparable. In 2015 the limed plot O-layer stocks were significantly lower due to a tendency of increasing O-layer stocks at control plots (G1 RR_r 0.15 n.s. and G2 RR_r 0.32 n.s.) and a decrease at limed plots (G1 RR_r −0.3 significant and G2 RR_r −0.25 n.s.; Figure 10). In the mineral soil we assumed constant fine earth stocks, thus the changes of the concentrations could be compared directly.

The control plots show little significant change in carbon concentrations between 2003 and 2015 (see Appendix B). Only the G1 site O-layer C_tot significantly decreased in 2010–2015 (RR_r −0.12).

Between 2003 and 2010 this C_tot was significantly decreasing, however, and was again comparable to that of the control. At G1 sites C_tot remained comparable between the control and limed, except for the significantly lower O-layer C_tot in 2010. In 0–10 cm topsoil of limed G1 sites C_tot concentrations rose significantly in the period 2003–2010 (RR_r 0.28–0.61).

At the control plots, the total nitrogen in the soil profile of G1 sites (see Appendix B) remained on average unchanged since 2003, with a tendency to increase in the entire measured mineral soil profile. Similarly at G2 sites, except for significantly increased N_tot in 0–5 cm between 2010 and 2015 (RR_r 0.34).

At limed plots the only significant rise in N_tot concentrations occurred in 0–5 cm topsoil. At G1 the RR was 0.65 between 2003 and 2010, leading to significantly higher N_tot between limed and control plots in 2010. G2 site N_tot concentrations significantly dropped (RR_r -0.32), only to once again increase in 2010–2015 (RR_r 0.32; overall similar development to C_tot).

While at G2 sites the C/N ratio remained comparable between the sampling periods 2003–2015 and between both control and limed plots, at G1 sites C/N significantly increased in the limed plot O-layer between 2010 and 2015, so that lime treated site C/N was 27, and control C/N was 24 in 2015. Meanwhile, in 0–5 cm mineral soil limed plot C/N decreased (n.s.) and limed plot C/N of 19 was significantly lower than the control plot C/N of 21.

4. Discussion

After a short discussion on methodological characteristics and boundary conditions of our study, we will discuss the temporal development of soil chemistry at the control plots, which will allow us to evaluate the extent of natural recovery. Afterwards we will assess the effects of lime treatment as the intended counter-measure to soil acidification. We differentiated our study sites by their soil chemical and physical properties to identify those site parameters, which affect both the rate of natural recovery and response to liming.

4.1. Discussion on Methods and Boundary Conditions of the Study

The soil sampling in the campaigns of 2003 and 2010 were focused upon element concentrations being analyzed at disturbed bulk samples, which did not allow for calculation of element stocks. Only in the last campaign 2015 volumetric soil samples were taken allowing for determination of bulk density of fine earth and volumetric content of the coarse soil fraction. However, also the volumetric reference is somehow unsharp because the samples were taken with an auger and artificial compaction of the soil samples cannot be excluded. Due to that uncertainty and above all because of comparability among the results of the sampling campaigns we decided to perform all evaluations on the basis of element concentrations.

The dosage of the lime application between the liming campaigns in 1983/84 and 2003 were different—the latter was with 6 Mg ha⁻¹ roughly double the dosage of the first campaign. Vice versa were the “reaction times” of both liming campaigns. The effect of the first campaign was observed in 2003, 20 years after liming. Between 1983 and 2003 the highest acid load from deposition in Central Europe occurred [30]. Therefore it is probable that a high proportion of the buffer capacity from the first campaign was neutralized by deposition before 2003. Both observation periods 2003–2010 and 2010–2015, with a length of 7 and 5 years, were more or less comparable, but much shorter than 20 years. The fact that this study is based on data from three sampling campaigns provides some insight in the dynamics of both the natural recovery as well as the lime treatment effects, which can be derived predominantly from the RR plots. However, the assessment of the exact temporal dynamics of the liming effects are incriminated with uncertainty and may only been derived as tendencies.

4.2. Natural Recovery of Acidified Soils

A natural recovery of soil pH that we found was overall slight, and comparable in both H₂O and KCl throughout the entire soil profile. Between 2003 and 2015 pH-H₂O rose by 0.6–0.7 pH units in the organic horizon and by 0.2–0.3 pH units in mineral soil. In the O-layer and 0–10 cm topsoil the pH-H₂O remained ≤ 4.2 and pH-KCl ≤ 3.5, i.e., extremely acidic until 2015. The average pH-KCl of 3.0 in the mineral topsoil samples of our study sites in the 1980s [23] (pp. 36–37) thus has seen little improvement over three decades. In the comparison between Germany’s 1st and 2nd National Forest Soil Inventory (NFSI) at acidification-sensitive unlimed sites Meesenburg et al. [12] (p. 100) found pH-H₂O had increased in the O-layer and 0–10 cm mineral soil from 1987–1992 until 2006–2008, although without a significant change in pH-KCl. An effect of increasing pH values in the subsoil, which we found in our study, has not yet been reported (to our knowledge) as a consequence of reduced acid deposition. While at G1 sites—which had overall lower pH-KCl, lower CEC and higher exchangeable Al stocks in the topsoil, as well as predominantly coarser soil-fractions—a distinct recovery was already seen from 2003 until 60 cm in the soil profile, at G2 sites the natural recovery was significant only to the depth of 30 cm mineral soil.

After 2003 only slight changes in the mineral soil base saturation could be observed at the control plots, which for the most part remained at < 20% BS. The comparison between NFSI I and II found prevailing low topsoil base saturation in almost every region in Germany and loss of BS in 5–90 cm soil profiles of unlimed acid-sensitive soils, noting that the base cation uptake as tree nutrients as well as remobilization of S and nitrification processes may have contributed to this trend [12] (p. 102). In our study we found the base cations Ca and Mg tended towards natural recovery, which was however only significant in the O-layer (Mg) or in topsoil (Ca). No improvement was found for K concentrations, which irrespective of treatment even declined in the 30–60 cm subsoil between 2010 and 2015. All-in-all, despite the slight recovery we observed at our study sites, pH values and base saturation are still far from pre-industrial values, which are reported or modeled to have been distinctly higher [9].

Since the control plot pH-H₂O of ≤ 4.2 in the topsoil is still predominantly in the Al and Al-Fe buffer range [12] (p. 95), which Wilpert et al. [23] (pp. 37–38) found already in our 1980s samples, and the base saturation remained low, the lack of reduction in the acid cation Al and Fe concentrations that we found is not surprising. Thus there has been little change in control plot CEC and the exchangeable cation concentrations over time.

While in Wilpert et al. [23] (pp. 31–34) increased O-layer thickness at the control plots from 1985/86 to 1989/90 was reported, from 2003 on neither O-layer stocks or C_tot and N_tot concentrations changed significantly at our control plots, except for a significant decrease in the O-layer C_tot at G1 and a significant increase of 0–5 cm topsoil N_tot at G2 between 2010 and 2015. There was no noticeable change in the C/N ratio.

4.3. Effects of Liming

The depth gradient of liming was obvious, whereby a downward movement of lime treatment effects in the soil profile over time occurred. A simplified interpretation of the RR-values gives the impression that the liming effects are very strong in the first period and hardly significant in the second period and thus have lessened substantially. However, this could also mean that the strong effects of liming in the first observation period are still ongoing, but with no further strong amplification. Dolomite limestone has principally low solubility, which is likely an important factor in our study. The solution rate of limestone is controlled by the factors humidity, CO₂ partial pressure and pH value [31] (pp. 195–197). Humidity and CO₂ partial pressure are on the mid-term constant factors and thus limiting the solution rate constantly. Low pH values on heavily acidified soils accelerate the dissolution rate. As we found distinctly increased pH values as a direct effect of liming, in the reverse one can conclude that this pH increase should decelerate the further dissolution rate. Thus we cannot assume whether the liming effects of the second, high-dosed liming campaign have weakened essentially or dissolution rates are reduced and thus the liming effects have not yet developed fully in the last observation period 2010–2015.

Li et al. [16] identified increased liming rate as the main driver in soil pH improvements, which might explain why the first lime application of 3 t ha⁻¹ in 1980s no longer had a significant effect compared to control plot pH by 2003. Wilpert et al. [23] (pp. 36–38) saw the liming effect on topsoil pH decline already 5–6 years after treatment, with an increase of just 0.2 pH units then compared to 0.9 pH units 1–2 years after. The second lime dose of 6 t ha⁻¹ made a notable difference both 7 and 12 years after application. Similar to the findings of Pabian et al. [32], Court et al. [13] and Meesenburg et al. [12] (p. 100), our study showed that liming greatly accelerated the rise in soil pH-H₂O compared to control plots by 0.6–2.2 units down to 10 cm topsoil and a decreasing (yet still significant) effect with depth in the entire measured soil profile during the first 7 years since 2003 treatment. In the following years—between 2010 and 2015—the limed plot forest floor pH was again decreasing, though the positive difference to control remained significant. Drápelová et al. [10] also found reacidification of limed Ol-horizon 12 years after treatment while the deeper horizons did still show decreased acidity compared to the control.

The effect of liming appears to have reached greater depth—up to 60 cm—in the soil profiles of G1 sites in less time compared to G2 where below 30 cm mineral soil the limed treatment was no longer significantly different from the control in the first 7 years since last lime treatment. In the 7–12 year period the pH change at both G1 and G2 plots was lower and comparable to natural regeneration (although limed plot pH still remained significantly higher than the control). Li et al. [16] saw the maximum effect of lime in the first 3 years after application, although the different environmental and ecological conditions potentially delay or reduce liming effects. Their study found that lower initial soil pH led to stronger liming effects as well as increased variances. Reid and Watmough [17] also showed that initially extremely acidic sites treated with high doses showed the highest increase in pH. In our case, from 2003 on the soil pH-H₂O values were comparable at G1 and G2 sites while pH-KCl was lower at G1, indicating that perhaps the soil texture differences (a higher sand fraction in G1 soil profiles) had impact on the site-specific development in soil pH-KCl.

The temporal change in soil pH-KCl due to lime application was similar in the O-layer and 0–10 cm (G1) and 0–5 cm (G2) topsoil, while further down in the soil profiles no significant liming effect was observed. Huber et al. [33] found similar results. While pH-H₂O is a measure of the effective soil acidity and shows seasonal fluctuations, pH-KCl takes into account also the potential acidity of released exchangeable Al and H in soil and therefore is a long-term measure of soil pH [12] (p. 97). Indeed we found no significant reduction in exchangeable Al or proton concentrations below 10 cm depth at our limed plots, which indicates that the subsoil of limed plots has not yet fully recovered from acidification.

The total Al and Fe concentrations were significantly higher in the O-layer of G1 limed plots in 2003, i.e., 20 years after the 1st lime treatment in the 1980s. We presumed this resulted from bioturbation and subsequent mixing of mineral soil with the organic soil material; notably lower C_tot concentrations in the limed plot O-layer support this assumption. The 2nd lime treatment in 2003 obviously limited—and even reversed—the extent to which Al, Fe and H cations were increasing at our study sites in the upper 0–10 cm soil profile by 2015, compared to the control. A difference that Meesenburg et al. [12] (pp. 99–100) found between NFSI I and II was a reduction in Al and Al-Fe buffer range and an increase in the exchange buffer and even silicate buffer ranges at limed plots in 0–30 cm mineral soil.

The 1st lime application in the 1980s improved topsoil base saturation at our study sites by 17% after 5 years [23] (p. 43). While by 2003 there was no significant difference between the limed and control plot BS any more (except for still significantly higher exchangeable Ca in 0–5 cm topsoil), afterwards the 2nd lime treatment again made a significant impact improving base saturation in the entire 0–60 cm mineral soil profile of all study sites—by 40–70% in the organic layer and by 7–50% in mineral soil. Specifically, the concentrations of base cations Ca and Mg—the main constituents of dolomite lime—rose significantly until 30 cm and 60 cm mineral soil respectively in the first 7 years after last lime treatment. Meanwhile, neither Wilpert et al. [23] (pp. 44–45) nor we observed a distinct liming effect on K concentrations, similar to findings of Huber et al. [33]. Court et al. [13] found a BS of 9% at the control and 41% at the limed plots 16 years after treatment and significantly increased exchangeable Ca, Mg and K in 0–15 cm topsoil. Guckland et al. [34] also found a significantly increased BS in 0–40 cm mineral soil 28 years after lime application, with a mean increase of 11%. Meesenburg et al. [12] (pp. 102, 110) showed an increase in 0–30 cm mineral soil BS between NFSI I and II at limed sites, especially on largely base-depleted plots.

Our study found the limed plot BS response ratio was double in the soil profile of G1 sites compared to G2 sites in 2003–2010 period, despite the Ca concentrations being significantly higher in the 0–5 cm topsoil of G2 limed sites compared to control in 2003 already (after the 1st lime application in 1980s). After 2010, i.e., 7–12 years since 2nd liming in both site groups the RR_a of BS was declining, however. This is in agreement with findings of several studies that liming effects reached their maximum in the first decade after treatment [13,35], and Reid and Watmough [17] who showed that time since treatment has a major influence on BS response to liming. Reid and Watmough [17] noted that also soil type as well as the tree species would have an impact on the intensity and dynamic of liming effects. At our study sites we could not differentiate a stand effect as both groups contain a mixture of stand types with varying dominance of Norway spruce. The effect of soil types could also not be proven as they were from similar classes in our study, however, the texture seems to play a distinct role in differentiating G1 and G2 study site liming effect on BS. This effect was also shown by Li et al. [16] who found 32% higher liming effects in sandy soils than clayey soils. His argument was that fine textured soils show a greater buffering capacity to changes in soil chemical properties than coarse-textured soils.

While at G1 sites limed plot CEC significantly increased compared to the control in the 0–5 cm topsoil, where as discussed the increase in BS as well as the decrease in Al and Fe was of greater magnitude, at G2 sites a significant rise in CEC was found in 10–60 cm subsoil, where especially in 30–60 cm the exchangeable Ca and Mg limed plot RR_r still exceeded natural regeneration RR_r by 2015. Guckland et al. [34] reported similarly increased CEC after liming due to increased exchangeable Ca and Mg replacing exchangeable acidity and/or Al³⁺ in the upper mineral soil, meanwhile without effect on CEC in the 20–40 cm mineral soil. These different reactions on liming at G1 and G2 sites indicate different processes triggered on these site groups by lime application. These processes could be on the one hand replacement of Al³⁺ with Ca²⁺ and Mg²⁺ as the statement of Guckland et al. [34] suggests. This process reduces the activity of Al-ions in the soil solution, which generates protons through hydrolysis [31] (pp. 190–191). On the other hand the high increase of pH-H₂O throughout the soil profile down to 30–60 cm and the partially increased CEC suggest that according to the theory of variable charges of exchanger surfaces in the soil [31] (pp. 170–173), the amount of negative charges und thus CEC increases with increasing pH. The process behind that is an increase in pH-H₂O functional groups of metal hydroxides (OH), of alumo-silicates (SiOH, AlOH) and of carboxyl groups (COOH) that get de-protonized and thus increase the negative charge of the exchanger surfaces as well as CEC. The third process that could explain changes of CEC is a translocation of carbon from the O-layer to the mineral soil. This can generate new organic exchanger surfaces [31] (p. 175). The significant increase of CEC at G1 sites in 0–5 cm was accompanied by a significant and over-proportionally strong increase of pH-H₂O and indeed a significant increase of C_tot. This suggests that in the more sandy soils of G1 sites the increase of organic carbon in combination with increased pH might have created new exchanger places and thus were the dominating process explaining increasing CEC there. The described processes might also have occurred in 5–10 cm, where similar changes were observed, which however were not as strong and overall not significant.

At G2 sites with more loamy texture and higher colloid content and higher CEC at control plots a weak, but significant increase of CEC occurred after liming in mineral soil layers below 10 cm. The only predictor that shows at G2 sites a substantially higher reaction on liming in that depth layers is base saturation. This is due to a higher amount of Al being mobilized from the exchanger surfaces and replaced by Ca and Mg. This depletion of Al is visible in Figure 8 to the depth of 30 cm. At the depth layer 30–60 cm Figure 8 shows no depletion of Al rather than a possible increase indicating partial resorption of Al mobilized in the upper soil layers. It is somehow an unexpected finding that at the more loamy G2 sites the liming effect on CEC reaches deeper than at G1 sites where a higher water permeability could be expected according to the more sandy texture. The explanation might be the higher natural sorption capacity of G2 sites and perhaps preferential flow paths enhancing the “short-cut” like transport of Ca- and Mg-ions to deeper soil layers.

We also found few distinct effects of liming on carbon and nitrogen properties of the studied sites, which allow a further ecological discussion. The limed plot O-layer stocks were comparable to those of the control in the 2003–2010 period. Afterwards in 2010–2015 they were significantly lower—similar to what Wilpert et al. [23] (pp. 31–34) observed 1 and 5 years after the 1980s lime treatment at our study sites. Court et al. [13] also found decreasing O-layer dry weight mid to long term after liming, likely due to enhanced microbial activity and accelerated decomposition rates. Meanwhile C_tot decreased in the O-layer, and increased in the 0–10 cm topsoil of G1 sites in the first 7 years after 2nd lime application. Additionally, N_tot concentrations rose in the 0–5 cm topsoil after liming. Kreutzer (1995) showed changed O-layer morphology with increased mineral content in the O-layer and organic matter transported downward as a result of earthworm activity at limed plots—probably this also occurred at our G1 study sites.

At G2 sites 0–5 cm C_tot and N_tot were significantly higher at limed plots in 2003, potentially a persisting effect of the 1st lime treatment in 1980s, where by the end of the 1980s increased variance of the limed plot C-content in the topsoil was observed [23] (pp. 34–35). After 2003, though, both control and limed treatment C_tot and N_tot concentrations were comparable. Ouimet and Moore [20] also observed no significant change in forest floor C_tot and N_tot concentrations after lime treatment, indicating no obvious change in mineralization rates.

Despite G1 limed plot C/N significantly increasing in the O-layer and significantly decreasing in 0–5 cm mineral topsoil between 2010 and 2015, C/N ratio remained in the range typically under Norway spruce in cambisols, podsols and stagnosols according to Cools et al. [36].

5. Conclusions

Lime treatment has had notable positive effects on our soil’s recovery that are visible in the entire studied soil profile. Thus in soils with proven soil acidification—where it exceeds natural acidification—we recommend liming to be established as a long-term forestry management practice. Site characteristics like soil texture and acidity status have to be taken into account when considering the site-specific outcomes of both natural and aided soil recovery.

In order to evaluate even further the mechanisms of soil development in the process of recovery from acidification over time it would be beneficial to expand the research at our study sites in the future. Further measured ecosystem parameters could be evaluated, e.g., possible changes in soil physics and water budget that impact our soil’s hydrological functions, as well as the biological activity of soil fauna, plant root distributions and nutrients in plant biomass as important indicators of overall recovery and stabilization of biodiversity and ecosystem functionality.
