Equation of State of Strongly Magnetized Matter with Hyperons and Δ-Resonances

Abstract

We construct a new equation of state for the baryonic matter under an intense magnetic field within the framework of covariant density functional theory. The composition of matter includes hyperons as well as $\mathsf{\Delta }$-resonances. The extension of the nucleonic functional to the hypernuclear sector is constrained by the experimental data on $\mathsf{\Lambda }$ and $\mathsf{\Xi }$-hypernuclei. We find that the equation of state stiffens with the inclusion of the magnetic field, which increases the maximum mass of neutron star compared to the non-magnetic case. In addition, the strangeness fraction in the matter is enhanced. Several observables, like the Dirac effective mass, particle abundances, etc. show typical oscillatory behavior as a function of the magnetic field and/or density which is traced back to the occupation pattern of Landau levels.

1. Introduction

Compact stars are the end products of stellar evolution that are produced in supernova explosions. They are among the most fascinating objects in the universe that motivate theoretical studies of exotic states of matter which are difficult or impossible to produce in modern terrestrial laboratories. Among the remarkable features of compact stars are the wide range of densities covered by their interiors (from sub-saturation up to possibly 10 times the nuclear saturation density) and the huge magnetic field range ${10}^9$ to ${10}^{18}$ G. The compact stars are arranged in various classes according to some of their characteristic features. These include millisecond pulsars, neutron stars in X-ray binaries, radio pulsars, anomalous X-ray pulsars, soft gamma repeaters, etc. Among these, the anomalous X-ray pulsars and soft gamma repeaters are believed to be compact stars with the surface magnetic field in the range of ${10}^{14}$–${10}^{15}$ G [1,2] and are commonly referred as magnetars. Furthermore, there has been recently growing evidence that (at least) the repeating fast radio bursts (FRBs) are related to magnetars [3,4,5,6,7]. Since the gravitational equilibrium of compact stars admits stars with magnetic fields in the range $B\le {10}^{18}$–${10}^{19}$ G, large magnetic fields beyond those currently inferred have been studied theoretically. Earlier works [8,9,10,11,12] have studied the effects of the magnetic field on the gross parameters of compact stars, such as the mass, radius, moment of inertia under intense magnetic fields. The induced deformations of the neutron stars (NSs) due to the strong magnetic fields can be important sources of gravitational waves and precession in neutron stars, see Refs. [13,14,15,16]. The structure of magnetized compact stars, in particular, their deformation, in general relativity, has been studied initially in Refs. [14,15,16] assuming various forms of the poloidal and toroidal field configurations. More recent studies [17,18,19] considered also a combination of toroidal and poloidal fields which appear to be more stable than purely poloidal or toroidal configurations. Moreover, a “universal” field profile represented by an 8th-order polynomial as a function of star’s internal radius has been proposed recently to describe the magnetic field profile inside the star [20] based on the solution of Einstein–Maxwell equations in general relativity. While large magnetic fields are required to affect the equation of state (i.e., the dependence of pressure on the energy density, hereafter abbreviated as EoS) and the structure of the star, the role of the magnetic field is still important at lower values. In particular, MeV-scale magnetic field can significantly alter the quasiparticle spectrum of baryons, leading to the suppression of the superfluidity of protons via Landau diamagnetism [21,22] and superfluidity of neutrons via Pauli paramagnetism [23], see for a review [24]. These modifications alter the neutrino emissivity of compact stars with MeV-scale magnetic fields [22] through the modifications of the neutrino production reaction rates. The anisotropy introduced by the magnetic field also affects evolutionary processes in compact stars such as their magneto-thermal evolution [25] and rotational dynamics [26,27].

Recent observations of compact stars in a wide range of electromagnetic spectra and in gravitational waves motivate detailed microscopic studies of the interior matter, in particular, its EoS and composition. A fundamental observational property of compact stars is the maximum mass, which is still a matter of debate. The mass of PSR 1913+16 (the Hulse–Taylor pulsar) $1.4398$ M${}_{\odot }$ is one of the precisely determined pulsar masses [28]. The largest masses were measured for millisecond pulsars in binaries with white dwarfs, namely J1614−2230 ($1.97\pm 0.04$ M${}_{\odot }$) [29], PSR J0348+0432 ($2.01\pm 0.04$ M${}_{\odot }$) [30] and MSP J0740+6620 (${2.14}_{-0.18}^{+0.20}$ M${}_{\odot }$ with 95% credibility) [31]. The last measurement, which is based on Shapiro delay, is so far the largest measured maximum mass with relatively small error bars and, thus, sets a reliable lower bound on the maximum mass of a compact object. Another recent observation of gravitational waves by the LIGO-Virgo Collaboration (the “GW190814”event) from a binary system of a black hole and light compact object companion sets the mass of the latter at ${2.59}_{-0.09}^{+0.08}$ M${}_{\odot }$ [32], but the origin of this object (i.e., a light black hole or a heavy neutron star) is not settled. In addition, high precision mass and radius measurements for the pulsar PSR J0030+0451 are offered by the Neutron star Interior Composition ExploreR (NICER) space mission with mass–radius values ${1.44}_{-0.14}^{+0.15}$ M${}_{\odot }$, ${13.02}_{-1.06}^{+1.24}$ km [33] and ${1.34}_{-0.16}^{+0.15}$ M${}_{\odot }$, ${12.71}_{-1.19}^{+1.14}$ km [34].

The composition of matter at about several times the nuclear saturation density is not known. One possibility is that matter is nucleonic (with a small admixture of leptons to guarantee the charge neutrality) up to the center of a star. However, in massive compact stars, the densities can reach values exceeding the saturation density by an order of magnitude. Therefore, the appearance of new degrees of freedom is a possibility. One option is the nucleation of hyperons, which softens the EoS and results (for some models) in a maximum mass of a compact star below the value observational minimum $2M_{\odot }$. There are several modern covariant density functional (CDF)-based models which avoid this problem and provide sufficient repulsion to produce stars with large enough masses $M>2M_{\odot }$. A particular class of these models, which we will use in this work, is based on density functionals with density-dependent (DD) couplings [35,36,37,38,39]. The interactions in these models are mediated via the exchange of $\sigma$, $\omega$, $\rho$-mesons, and in the hypernuclear sector also via two additional (hidden strangeness) ${\sigma }^{*}$ and $\varphi$-mesons.

An interesting possibility is an appearance of $\mathsf{\Delta }$-resonances in compact stars, which has regained attention in recent years [40,41,42], after they have been neglected for a long time due to presumed high onset density of the order of 10 times the nuclear saturation density [43]. The strong interactions, in this case, are mediated by the exchange of $\sigma$, $\omega$ and $\rho$-mesons only. The inclusion of $\mathsf{\Delta }$-resonances in the EoS shifts the onset of hyperons to higher densities. Consequently, the high-density part of the EoS is stiffer and the maximum mass is higher when $\mathsf{\Delta }$-resonances are included. They also significantly reduce the radius of the star [44,45,46] due to the softening of the EoS at intermediate densities.

In this work, we consider $\mathsf{\Delta }$-resonance admixed hypernuclear matter in strong magnetic fields within the DDME2 parameterization, which has been used already for the same problem in the case of zero magnetic fields in Refs. [44,45,46,47].

The paper is organized as follows. In Section 2, we briefly discuss the CDF formalism in the presence of strong magnetic fields. Our results are shown in Section 3 and our conclusions are collected in Section 4.

2. Formalism

2.1. Model

In this work, we consider matter composed of the full baryon octet, the quartet of $\mathsf{\Delta }$-resonances and leptons—electrons and muons ($e^{-},{\mu }^{-}$). The strong interaction between (non-strange) baryons is mediated by the $\sigma ,\omega$ and $\rho$-mesons. In addition, the hidden-strangeness mesons ${\sigma }^{*}$ (scalar) and $\varphi$ (vector) mediate the hyperon–hyperon interactions. The total Lagrangian density of the fermionic component of matter in presence of a magnetic field is given by,

$$\mathcal{L}={\mathcal{L}}_m+{\mathcal{L}}_f,$$

(1)

where, ${\mathcal{L}}_m$ and ${\mathcal{L}}_f$ are the matter and the gauge field contributions, respectively.

We take the matter part of the Lagrangian density as [42,48],

$$\begin{array}{cc}\hfill {\mathcal{L}}_m=& \sum _b{\overline{\psi }}_b(i{\gamma }_{\mu }{D}^{\mu }-m_b+g_{\sigma b}\sigma +g_{{\sigma }^{*}b}{\sigma }^{*}-g_{\omega b}{\gamma }_{\mu }{\omega }^{\mu }-g_{\varphi b}{\gamma }_{\mu }{\varphi }^{\mu }-g_{\rho b}{\gamma }_{\mu }{\mathit{\tau }}_b·{\mathit{\rho }}^{\mu }){\psi }_b\hfill \\ \hfill & +\sum _d{\overline{\psi }}_{d\nu }(i{\gamma }_{\mu }{D}^{\mu }-m_d+g_{\sigma d}\sigma -g_{\omega d}{\gamma }_{\mu }{\omega }^{\mu }-g_{\rho d}{\gamma }_{\mu }{\mathit{\tau }}_{\mathsf{\Delta }}·{\mathit{\rho }}^{\mu }){\psi }_d^{\nu }\hfill \\ \hfill & +\frac{1}{2}({\partial }_{\mu }\sigma {\partial }^{\mu }\sigma -m_{\sigma }^2{\sigma }^2)+\frac{1}{2}({\partial }_{\mu }{\sigma }^{*}{\partial }^{\mu }{\sigma }^{*}-m_{{\sigma }^{*}}^2{\sigma }^{*2})-\frac{1}{4}{\omega }_{\mu \nu }{\omega }^{\mu \nu }+\frac{1}{2}{m}_{\omega }^2{\omega }_{\mu }{\omega }^{\mu }\hfill \\ \hfill & -\frac{1}{4}{\varphi }_{\mu \nu }{\varphi }^{\mu \nu }+\frac{1}{2}{m}_{\varphi }^2{\varphi }_{\mu }{\varphi }^{\mu }-\frac{1}{4}{\mathit{\rho }}_{\mu \nu }·{\mathit{\rho }}^{\mu \nu }+\frac{1}{2}{m}_{\rho }^2{\mathit{\rho }}_{\mu }·{\mathit{\rho }}^{\mu }\hfill \\ \hfill & +\sum _l{\overline{\psi }}_l(i{\gamma }_{\mu }{D}^{\mu }-m_l){\psi }_l\hfill \end{array}$$

(2)

where $D^{\mu }={\partial }^{\mu }+ieQ{A}^{\mu }$ is the covariant derivative, $A^{\mu }$ is the electromagnetic vector potential, $eQ$ is the charge of the particle (e being unit ‘+’ charge), the b-summation in the first line is over the nucleons and hyperons (spin-1/2), d-summation in the second line is over the $\mathsf{\Delta }$-resonances (spin-3/2) and the l summation in the last line is over leptons. The fields ${\psi }_b$, ${\psi }_l$ and ${\psi }_d^{\nu }$ correspond to the Dirac baryons, leptons and the Rarita–Schwinger fields for $\mathsf{\Delta }$-resonances. Their masses are, respectively, $m_b$, $m_l$ and $m_d$. The third and fourth lines in Equation (2) contain the contributions from scalar meson fields $\sigma$ and ${\sigma }^{*}$ with masses $m_{\sigma }$ and $m_{{\sigma }^{*}}$, isoscalar-vector meson fields ${\omega }_{\mu }$ and ${\varphi }_{\mu }$ with masses $m_{\omega }$ and $m_{\varphi }$ and, finally, the isovector-vector meson field ${\mathit{\rho }}_{\mu }$ with mass $m_{\rho }$. The coupling between the mesons and baryons is described by the density-dependent couplings $g_{ib}$ and $g_{id}$, whereby ${\mathit{\tau }}_i$ stands for the iso-spin operator. Finally, the purely “gauge” mesonic contributions in Equation (2) contain the tensors

$$\begin{array}{cc}\hfill {\omega }_{\mu \nu }& ={\partial }_{\mu }{\omega }_{\nu }-{\partial }_{\mu }{\omega }_{\nu },\hfill \\ \hfill {\varphi }_{\mu \nu }& ={\partial }_{\nu }{\varphi }_{\mu }-{\partial }_{\mu }{\varphi }_{\nu },\hfill \\ \hfill {\mathit{\rho }}_{\mu \nu }& ={\partial }_{\nu }{\mathit{\rho }}_{\mu }-{\partial }_{\mu }{\mathit{\rho }}_{\nu }.\hfill \end{array}$$

(3)

The electro-magnetic field Lagrangian density in Equation (1) has the standard form

$${\mathcal{L}}_f=-\frac{1}{16\pi }{F}_{\mu \nu }{F}^{\mu \nu }$$

(4)

with $F^{\mu \nu }$ being the electro-magnetic field tensor. Below, we adopt the reference frame in which the four-vector potential has the form $A^{\mu }\equiv (0,-yB,0,0)$, where B is the magnitude of the magnetic field.

In the mean-field approximation, assuming that the system is infinite, the meson fields acquire the ground-state expectation values,

$$\begin{array}{c}\hfill \sigma =\sum _b\frac{1}{m_{\sigma }^2}{g}_{\sigma b}{n}_b^s+\sum _d\frac{1}{m_{\sigma }^2}{g}_{\sigma d}{n}_d^s,{\sigma }^{*}=\sum _b\frac{1}{m_{{\sigma }^{*}}^2}{g}_{{\sigma }^{*}b}{n}_b^s\left(\mathrm{isoscalar-scalar}\right),\end{array}$$

(5)

$$\begin{array}{c}\hfill {\omega }_0=\sum _b\frac{1}{m_{\omega }^2}{g}_{\omega b}{n}_b+\sum _d\frac{1}{m_{\omega }^2}{g}_{\omega d}{n}_d,{\varphi }_0=\sum _b\frac{1}{m_{\varphi }^2}{g}_{\varphi b}{n}_b\left(\mathrm{isoscalar-vector}\right),\end{array}$$

(6)

$$\begin{array}{c}\hfill {\rho }_{03}=\sum _b\frac{1}{m_{\rho }^2}{g}_{\rho b}{\mathit{\tau }}_{b3}{n}_b+\sum _d\frac{1}{m_{\rho }^2}{g}_{\rho d}{\mathit{\tau }}_{d3}{n}_d\left(\mathrm{isovector-vector}\right),\end{array}$$

(7)

where the scalar and baryon (vector) number densities are defined for the baryon octet as $n_b^s=\langle {\overline{\psi }}_b{\psi }_b\rangle$ and $n_b=\langle {\overline{\psi }}_b{\gamma }^0{\psi }_b\rangle$, respectively. For the $\mathsf{\Delta }$-resonances, these are defined as $n_d^s=\langle {\overline{\psi }}_{d\nu }{\psi }_d^{\nu }\rangle$ and $n_d=\langle {\overline{\psi }}_{d\nu }{\gamma }^0{\psi }_d^{\nu }\rangle$, respectively. The effective (Dirac) baryon masses in the same approximation are given by,

$$m_b^{*}=m_b-g_{\sigma b}\sigma -g_{{\sigma }^{*}b}{\sigma }^{*},m_d^{*}=m_d-g_{\sigma d}\sigma$$

(8)

The scalar density, baryon number density and the kinetic energy density of the uncharged baryon (denoted by index u) at zero temperature are given by,

$$\begin{array}{ccc}\hfill n_u^s& =& \frac{2J_u+1}{2{\pi }^2}{m}_u^{*}\left[p_{F_u}{E}_{F_u}-m_u^{{*}^2}ln\left(\frac{p_{F_u}+E_{F_u}}{m_u^{*}}\right)\right],\hfill \end{array}$$

(9)

$$\begin{array}{ccc}\hfill n_u& =& (2J_u+1)\frac{p_{F_u}^3}{6{\pi }^2},\hfill \end{array}$$

(10)

$$\begin{array}{ccc}\hfill {\epsilon }_u& =& \frac{2J_u+1}{2{\pi }^2}\left[p_{F_u}{E}_{F_u}^3-\frac{m_u^{{*}^2}}{8}\left(p_{F_u}{E}_{F_u}+m_u^{{*}^2}ln\left(\frac{p_{F_u}+E_{F_u}}{m_u^{*}}\right)\right)\right],\hfill \end{array}$$

(11)

respectively, where, $J_u$, $p_{F_u}$, $m_u^{*}$, $E_{F_u}$ are the spin, Fermi momentum, effective mass and Fermi energy of the uth-uncharged baryon.

The same quantities for a charged baryon (denoted by index c) are given by the following expressions:

• Spin-1/2 case:

  $$\begin{array}{ccc}\hfill n_c^s& =& \frac{e\left|Q\right|B}{2{\pi }^2}{m}_c^{*}\sum _{\nu =0}^{{\nu }_{max}}(2-{\delta }_{\nu ,0})ln\left(\frac{p_{F_c}+E_{F_c}}{\sqrt{m_c^{{*}^2}+2\nu e\left|Q\right|B}}\right),\hfill \end{array}$$

  (12)

  $$\begin{array}{ccc}\hfill n_c& =& \frac{e\left|Q\right|B}{2{\pi }^2}\sum _{\nu =0}^{{\nu }_{max}}(2-{\delta }_{\nu ,0})p_{F_c},\hfill \end{array}$$

  (13)

  $$\begin{array}{ccc}\hfill {\epsilon }_c& =& \frac{e\left|Q\right|B}{2{\pi }^2}\sum _{\nu =0}^{{\nu }_{max}}(2-{\delta }_{\nu ,0})\left[p_{F_c}{E}_{F_c}+\left(m_c^{{*}^2}+2\nu e\left|Q\right|B\right)ln\left(\frac{p_{F_c}+E_{F_c}}{\sqrt{m_c^{{*}^2}+2\nu e\left|Q\right|B}}\right)\right],\hfill \end{array}$$

  (14)
• Spin-3/2 case:

  $$\begin{array}{ccc}\hfill n_c^s& =& \frac{e\left|Q\right|B}{2{\pi }^2}{m}_c^{*}\sum _{\nu =0}^{{\nu }_{max}}(4-{\delta }_{\nu ,1}-2{\delta }_{\nu ,0})ln\left(\frac{p_{F_c}+E_{F_c}}{\sqrt{m_c^{{*}^2}+2\nu e\left|Q\right|B}}\right),\hfill \end{array}$$

  (15)

  $$\begin{array}{ccc}\hfill n_c& =& \frac{e\left|Q\right|B}{2{\pi }^2}\sum _{\nu =0}^{{\nu }_{max}}(4-{\delta }_{\nu ,1}-2{\delta }_{\nu ,0})p_{F_c},\hfill \end{array}$$

  (16)

  $$\begin{array}{ccc}\hfill {\epsilon }_c& =& \frac{e\left|Q\right|B}{2{\pi }^2}\sum _{\nu =0}^{{\nu }_{max}}(4-{\delta }_{\nu ,1}-2{\delta }_{\nu ,0})\left[p_{F_c}{E}_{F_c}+\left(m_c^{{*}^2}+2\nu e\left|Q\right|B\right)ln\left(\frac{p_{F_c}+E_{F_c}}{\sqrt{m_c^{{*}^2}+2\nu e\left|Q\right|B}}\right)\right],\hfill \end{array}$$

  (17)

where, $p_{F_c}$, $m_c^{*}$, $E_{F_c}$ are the Fermi momentum of the ${\nu }^{\mathrm{th}}$-Landau level, effective mass and Fermi energy of the $c^{\mathrm{th}}$-charged baryon. The Landau levels for spin-$1/2$, $3/2$ baryons are denoted by $\nu$, the maximum value of which is defined by,

$$\begin{array}{c}\hfill {\nu }_{max}=\mathrm{Int}\left(\frac{p_{F_c}}{2e\left|Q\right|B}\right).\end{array}$$

(18)

In the case of spin-$1/2$ particles, the lowest Landau level has degeneracy equal unity and all other levels have degeneracy equal 2 [49]. In the case of spin-$3/2$ particles, the degeneracy of the lowest (first) level is 2, for the second level it is 3 and is 4 in the remaining Landau levels [50].

For the case of leptons ($l\equiv e^{-},{\mu }^{-}$), the number density and contribution to the kinetic energy density is given by,

$$n_l=\frac{e\left|Q\right|B}{2{\pi }^2}\sum _{\nu =0}^{{\nu }_{max}}(2-{\delta }_{\nu ,0})p_{F_l},$$

(19)

$$\begin{array}{cc}\hfill {\epsilon }_l=& \frac{e\left|Q\right|B}{2{\pi }^2}\sum _{\nu =0}^{{\nu }_{max}}(2-{\delta }_{\nu ,0})\left[p_{F_l}{E}_{F_l}+\left(m_l^2+2\nu e\left|Q\right|B\right)ln\left(\frac{p_{F_l}+E_{F_l}}{\sqrt{m_l^2+2\nu e\left|Q\right|B}}\right)\right],\hfill \end{array}$$

(20)

where, $p_{F_l}$, $m_l$, $E_{F_l}$ are the Fermi momentum of the ${\nu }^{\mathrm{th}}$-Landau level, bare mass and Fermi energy of the lepton, respectively.

In Equations (9)–(17), the Fermi momenta $p_{F_u}$ and $p_{F_c}$ are defined as,

$$\begin{array}{c}\hfill p_{F_u}=\sqrt{E_F^2-m^{{*}^2}},p_{F_c}=\sqrt{E_F^2-(m^{{*}^2}+2\nu e\left|Q\right|B)},\end{array}$$

(21)

with $E_F$ being the Fermi energy of the respective particle. The total energy density of the matter is thus given by,

$$\begin{array}{c}\hfill {\epsilon }_m=\sum _b{\epsilon }_b+\sum _d{\epsilon }_d+\frac{1}{2}{m}_{\sigma }^2{\sigma }^2+\frac{1}{2}{m}_{{\sigma }^{*}}^2{\sigma }^{*2}+\frac{1}{2}{m}_{\omega }^2{\omega }_0^2+\frac{1}{2}{m}_{\varphi }^2{\varphi }_0^2+\frac{1}{2}{m}_{\rho }^2{\rho }_{03}^2+\sum _l{\epsilon }_l\end{array}$$

(22)

where the sum over $b,d$ includes the baryon octet and the $\mathsf{\Delta }$-quartet, and the l-summation is over the leptons. The matter pressure can be evaluated from the thermodynamic (Gibbs–Duhem) relation as,

$$p_m=\sum _b{\mu }_b{n}_b+\sum _d{\mu }_d{n}_d+\sum _l{\mu }_l{n}_l-{\epsilon }_m,$$

(23)

where ${\mu }_{b\left(d\right)}=\partial {\epsilon }_m/\partial n_{b\left(d\right)}$ is the chemical potential of the $b\mathrm{th}$-spin-1/2 ($d\mathrm{th}$-spin-3/2) baryon which can be defined as,

$$\begin{array}{cc}\hfill & {\mu }_b=\sqrt{p_{F_b}^2+m_b^{*2}}+g_{\omega b}{\omega }_0+g_{\varphi b}{\varphi }_0+g_{\rho b}{\mathit{\tau }}_{b3}{\rho }_{03}+{\mathsf{\Sigma }}^r,\hfill \\ \hfill & {\mu }_d=\sqrt{p_{F_d}^2+m_d^{*2}}+g_{\omega d}{\omega }_0+g_{\rho d}{\mathit{\tau }}_{d3}{\rho }_{03}+{\mathsf{\Sigma }}^r\hfill \end{array}$$

(24)

In order to maintain thermodynamic consistency a self-energy re-arrangement term, ${\mathsf{\Sigma }}^r$ is introduced

$$\begin{array}{cc}\hfill {\mathsf{\Sigma }}^r& =\sum _b\left[\frac{\partial g_{\omega b}}{\partial n}{\omega }_0{n}_b-\frac{\partial g_{\sigma b}}{\partial n}\sigma n_b^s+\frac{\partial g_{\rho b}}{\partial n}{\rho }_{03}{\mathit{\tau }}_{b3}{n}_b-\frac{\partial g_{{\sigma }^{*}b}}{\partial n}{\sigma }^{*}{n}_b^s+\frac{\partial g_{\varphi b}}{\partial n}{\varphi }_0{n}_b\right]\hfill \\ \hfill & +\sum _d\left[\frac{\partial g_{\omega d}}{\partial n}{\omega }_0{n}_d-\frac{\partial g_{\sigma d}}{\partial n}\sigma n_d^s+\frac{\partial g_{\rho d}}{\partial n}{\rho }_{03}{\mathit{\tau }}_{d3}{n}_d\right]\hfill \end{array}$$

(25)

where $n={\sum }_b{n}_b+{\sum }_d{n}_d$ is the total baryon (or vector) number density. This re-arrangement term contributes explicitly only to the matter pressure. Equations (22) and (23) provide the EoS (the relation between the pressure and energy density) of the system under consideration in a parametric form.

2.2. Meson–Baryon Coupling Parameters

In this work, we adopt the DD-ME2 parameterization proposed in Ref. [51] for nucleonic matter. The density-dependent meson–nucleon coupling constants are given by,

$$g_{iN}\left(n\right)=g_{iN}\left(n_0\right)f_i\left(x\right)\mathrm{for}i=\sigma ,\omega ,$$

(26)

where $x=n/n_0$, $n_0$ is the saturation density, N stands for a nucleon and

$$f_i\left(x\right)=a_i\frac{1+b_i{(x+d_i)}^2}{1+c_i{(x+d_i)}^2}.$$

(27)

For the $\rho$-meson, the density-dependent coupling constant is given by

$$g_{\rho N}\left(n\right)=g_{\rho N}\left(n_0\right)e^{-a_{\rho }(x-1)}.$$

(28)

The details of the procedure for fixing the values of coefficients in Equations (27) and (28) can be found in Ref. [51].

Table 1. The coupling constants for the DD-ME2 parameterization [51], at nuclear saturation density $n_0=0.152$ fm${}^{-3}$. For this model, the nuclear parameters are: the compression modulus $K_0=250.89$ MeV, the binding energy per nucleon $E/A=-16.14$ MeV, the symmetry energy $a_{sym}=32.3$ MeV, the effective nucleon Dirac mass $m_N^{*}/m_N=0.572$ with $m_N=938.9$ MeV.

Meson (i)	${\mathit{m}}_{\mathit{i}}$ (MeV)	${\mathit{g}}_{\mathit{iN}}\left({\mathit{n}}_0\right)$	${\mathit{a}}_{\mathit{i}}$	${\mathit{b}}_{\mathit{i}}$	${\mathit{c}}_{\mathit{i}}$	${\mathit{d}}_{\mathit{i}}$
$\sigma$	550.1238	10.5396	1.3881	1.0943	1.7057	0.4421
$\omega$	783	13.0189	1.3892	0.9240	1.4620	0.4775
$\rho$	763	7.3672	0.5647

provides the parameter values employed in this work. Note that nucleons do not couple with the ${\sigma }^{*}$ and $\varphi$-mesons, i.e., $g_{{\sigma }^{*}N}=g_{\varphi N}=0$.

For the hyperonic sector, the density-dependent vector coupling constants are determined from SU(6) symmetry [52]

$$\begin{array}{cc}\hfill \frac{1}{2}{g}_{\omega \mathsf{\Lambda }}& =\frac{1}{2}{g}_{\omega \mathsf{\Sigma }}=g_{\omega \mathsf{\Xi }}=\frac{1}{3}{g}_{\omega N},\hfill \\ \hfill 2g_{\varphi \mathsf{\Lambda }}& =2g_{\varphi \mathsf{\Sigma }}=g_{\varphi \mathsf{\Xi }}=-\frac{2\sqrt{2}}{3}{g}_{\omega N},\hfill \\ \hfill \frac{1}{2}{g}_{\rho \mathsf{\Sigma }}& =g_{\rho \mathsf{\Xi }}=g_{\rho N},g_{\rho \mathsf{\Lambda }}=0.\hfill \end{array}$$

(29)

For the evaluation of hyperon–$\sigma$-meson coupling constants, we consider the optical potentials of the $\mathsf{\Lambda },\mathsf{\Sigma }$ and $\mathsf{\Xi }$ hyperons in nuclear matter to be, $U_{\mathsf{\Lambda }}^{\left(N\right)}\left(n_0\right)=-30$ MeV, $U_{\mathsf{\Sigma }}^{\left(N\right)}\left(n_0\right)=+30$ MeV and $U_{\mathsf{\Xi }}^{\left(N\right)}\left(n_0\right)=-14$ MeV. Due to the repulsive nature of the $\mathsf{\Sigma }$-potential in nuclear matter, $\mathsf{\Sigma }$-hyperons do not matter for the densities considered in this work. The ${\sigma }^{*}$–$\mathsf{\Lambda }$ coupling constant is evaluated by fitting it to a potential depth $U_{\mathsf{\Lambda }}^{\left(\mathsf{\Lambda }\right)}(n_0/5)=-0.67$ MeV and further constraining the ${\sigma }^{*}$–$\mathsf{\Xi }$ and ${\sigma }^{*}$–$\mathsf{\Sigma }$ couplings via the relation [53]

$$\frac{g_{{\sigma }^{*}Y}}{g_{\varphi Y}}=\frac{g_{{\sigma }^{*}\mathsf{\Lambda }}}{g_{\varphi \mathsf{\Lambda }}},Y\in \{\mathsf{\Xi },\mathsf{\Sigma }\}.$$

(30)

Table 2. Scalar meson–hyperon coupling constants.

	$\mathbf{\Lambda }$	$\mathbf{\Xi }$	$\mathbf{\Sigma }$
$g_{\sigma Y}/g_{\sigma N}$	0.6105	0.3024	0.4426
$g_{{\sigma }^{*}Y}/g_{\sigma N}$	0.4777	0.9554	0.4777

provides the numerical values for the density-dependent scalar couplings. The coupling constants for the $\mathsf{\Delta }$-resonances are taken as [47]

$$g_{\omega d}=1.1g_{\omega N},g_{\rho d}=g_{\rho N}.$$

(31)

The density-dependent $g_{\sigma d}$ scalar coupling is determined by fixing the $\mathsf{\Delta }$-potential to the value $V_{\mathsf{\Delta }}=\frac{4}{3}{V}_N$, where $V_N$ is the isoscalar nucleon potential. This implies that $g_{\sigma d}/g_{\sigma N}=1.16$. Note that $\mathsf{\Delta }$-resonances do not couple to ${\sigma }^{*}$ and $\varphi$-mesons, i.e., $g_{{\sigma }^{*}d}=g_{\varphi d}=0$.

2.3. Magnetic Field Profiles

To model the magnetic field profile in the neutron star interior, we adopted two types of profiles which give the dependence of the field on the position inside the star.

The exponential profile is given by [9]

$$B\left(\frac{n_b}{n_0}\right)=B_s+B_c\left\{1-exp\left[-\beta {\left(\frac{n_b}{n_0}\right)}^{\gamma }\right]\right\},$$

(32)

where $B_s$ and $B_c$ denote the magnetic fields at surface and at center of the star, respectively. The free parameters $\beta$ and $\gamma$ are commonly adjusted such as to have a fixed surface magnetic field of ${10}^{15}$ G for any given value of the field in the center, which is typically larger than the surface field.

The universal profile is given as [20]

$$B\left(x\right)=B_c\left(1-1.6x^2-x^4+4.2x^6-2.4x^8\right),$$

(33)

where $x=r/r_{\mathrm{mean}}$, r is the internal radius joining the center to the point of observation, $r_{\mathrm{mean}}$ is the mean radius of the star and $B_c$ is the value of the field at the center of the star.

3. Results

We turn now to the numerical results of our study and consider the effect of strong magnetic field on high-density stellar matter with three types of composition:

(1)

Nucleons (N),

(2)

nucleons and hyperons (NY),

(3)

nucleons, hyperons and $\mathsf{\Delta }$-resonances (NY$\mathsf{\Delta }$).

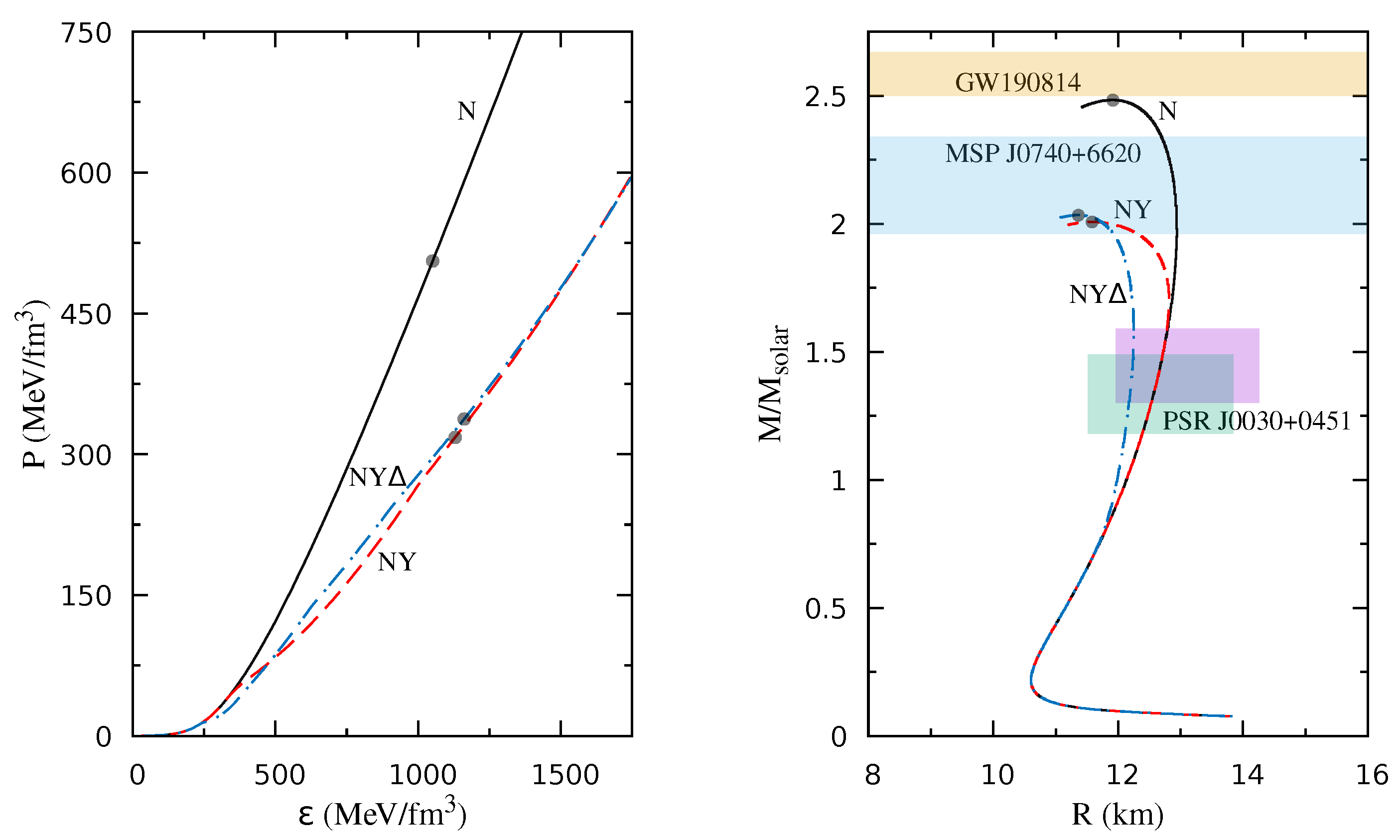

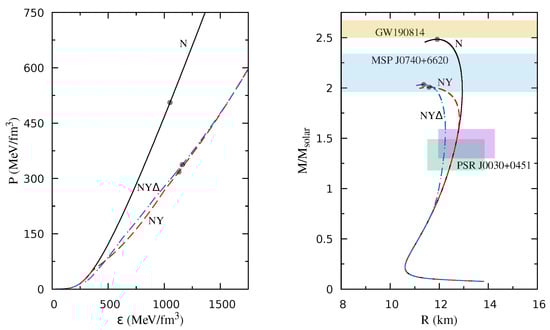

Figure 1 shows the EoS and mass–radius (hereafter M–R) relations for these three compositions of matter in the case $B=0$ along with some astrophysical constraints on the masses and radii of compact stars.

Table 3. Parameter values of the maximum-mass stars for non-magnetic stellar sequences derived for three different compositions. Here, $M_{max}$, R, ${\epsilon }_c$ denote the maximum mass (in solar units), corresponding radius (in km) and central energy density (in MeV/fm${}^3$), respectively.

Composition	${\mathit{M}}_{\mathit{max}}$ (${\mathit{M}}_{\odot }$)	R (km)	${\mathit{\epsilon }}_{\mathit{c}}$ (MeV/fm${}^3$)
N	2.483	11.941	1035.558
NY	2.008	11.606	1119.700
NY$\mathsf{\Delta }$	2.034	11.365	1161.771

lists some parameters of the stars with maximum masses along the stellar sequences for the three compositions listed above.

Let us now turn to stellar configurations with magnetic field. In order to show the effect of the field in the case of the universal profile, we need a relation between the internal radius and the density, i.e., the function $r\left(n\right)$. This requires us to specify a stellar model. We, therefore, chose three stars from the stable region of M–R curve with parameters shown in

Table 4. The values of the energy–density, pressure and number density at the center of non-magnetized stellar models which were used to obtain the universal relation (33) as a function of density (instead of the internal radius). We also list the mass and the radius for each model.

Composition	M (${\mathit{M}}_{\odot }$)	R (km)	${\mathit{\epsilon }}_{\mathit{c}}$ (MeV/fm${}^3$)	${\mathit{p}}_{\mathit{c}}$ (MeV/fm${}^3$)	${\mathit{n}}_{\mathit{c}}$ (fm${}^{-3}$)
N	2.482	12.002	1000	467.44	0.788
NY	2.000	11.801	1000	266.94	0.846
NY$\mathsf{\Delta }$	2.034	11.376	1150	333.38	0.944

. After fixing the value of the central field $B_c=2.9\times {10}^{18}$ G, we are then able to use Equation (33). We note that the predicted surface magnetic field values are $B_s\approx 5.6\times {10}^{17}$ G.

In the case of exponential profile (32), the surface field is fixed at $B_s={10}^{15}$ G and we adopt the parameter values $\beta =0.01$ and $\gamma =3.95,3.15$ and $3.2$ for N, NY and NY$\mathsf{\Delta }$ matter, respectively. The resulting magnetic field profiles guarantee that the matter remains stable under the influence of strong B-field.

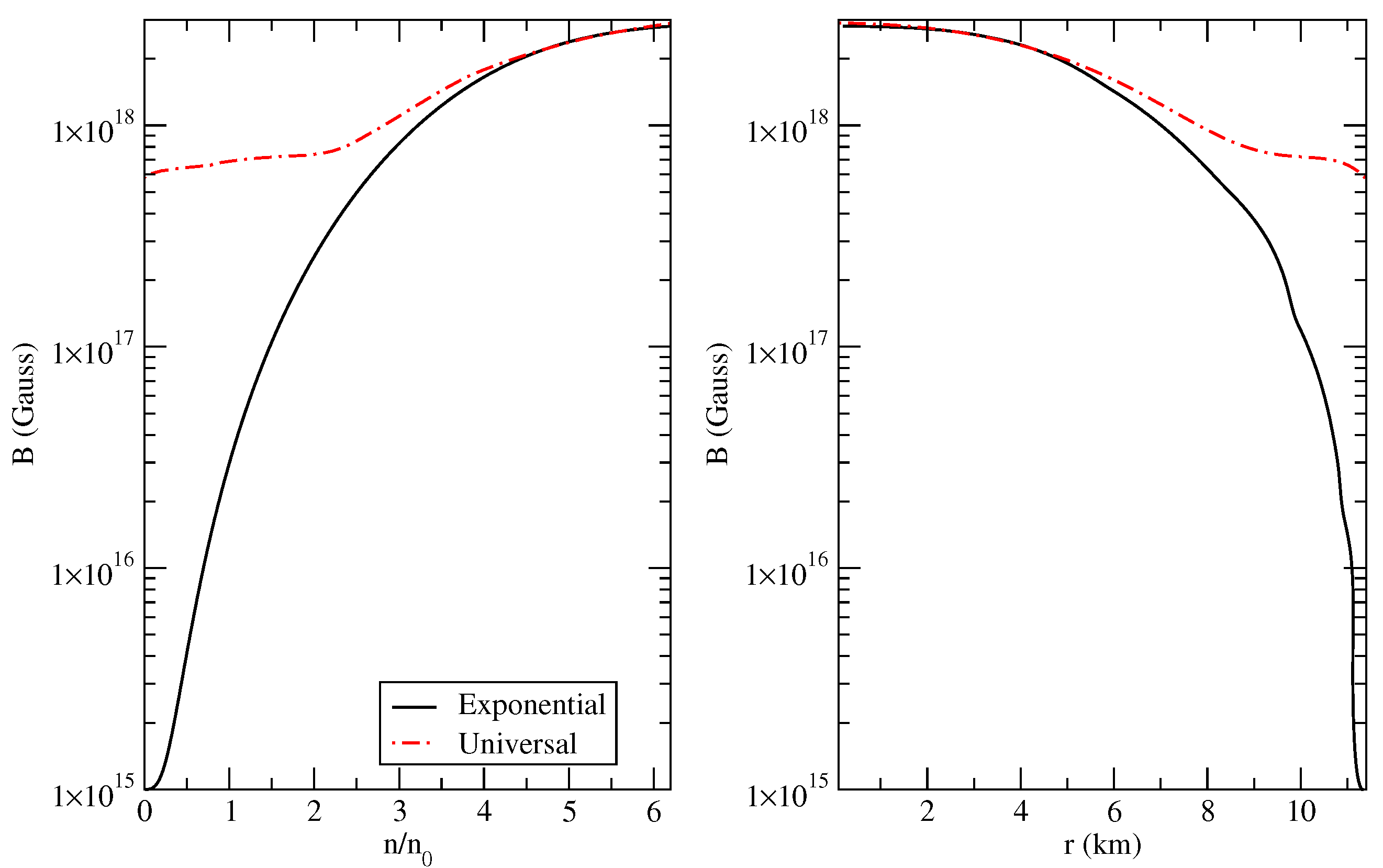

Figure 2 shows the variationof the magnetic field in the interior of the star as a function of internal radius and density in the cases of exponential and universal relations.

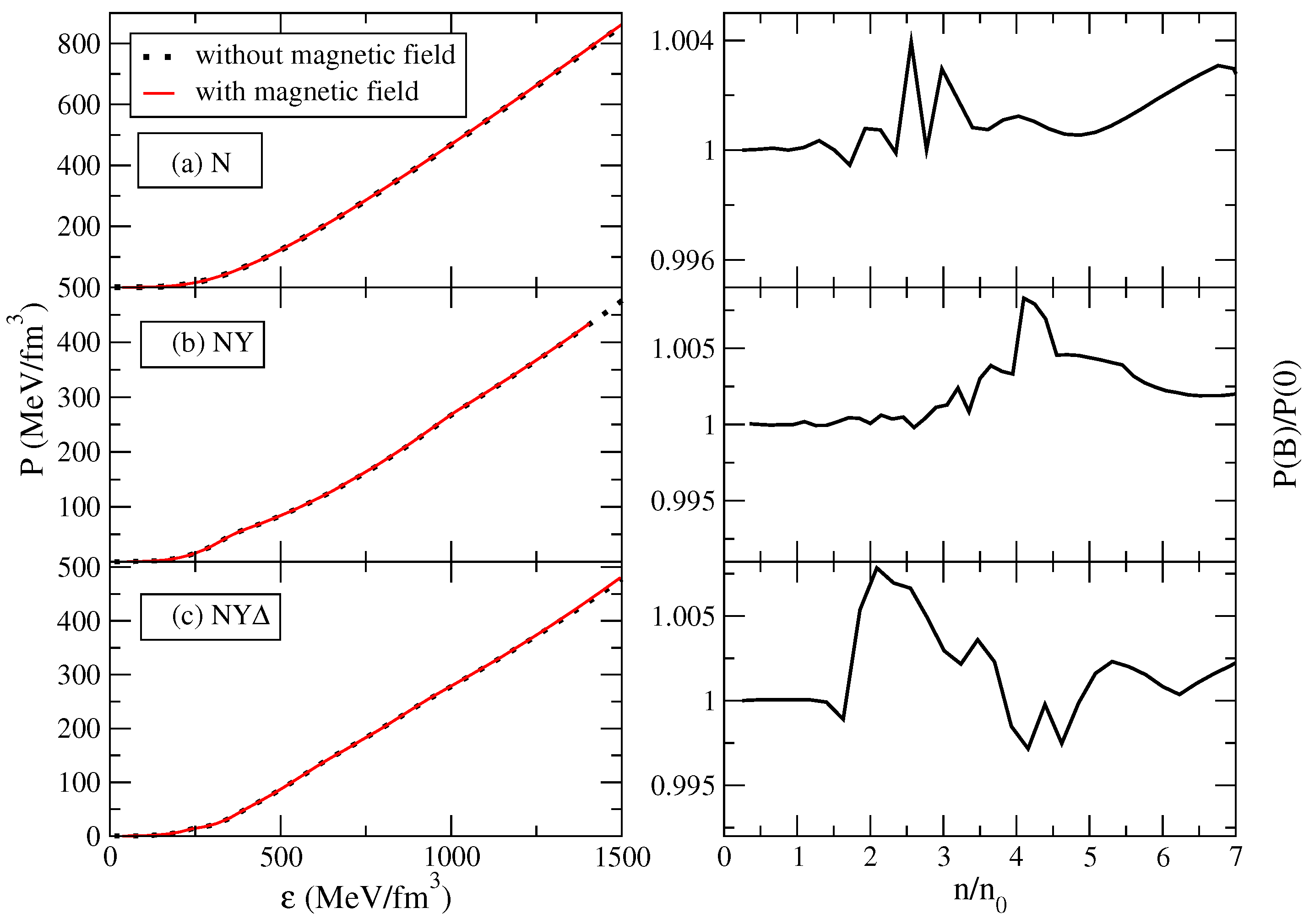

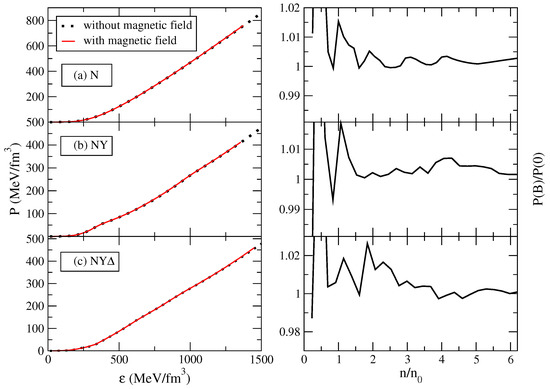

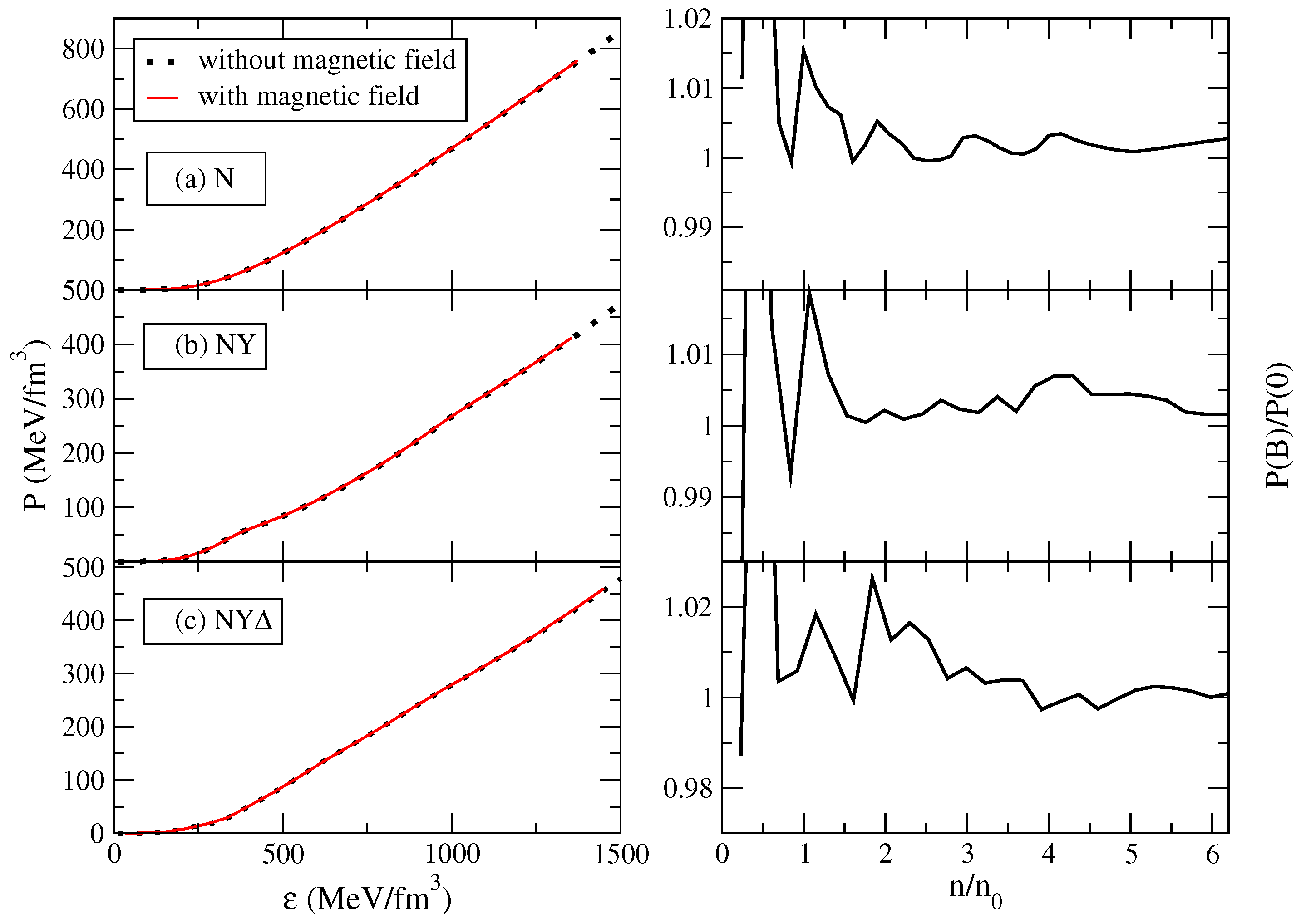

Figure 3 and Figure 4 show the EoS in the presence of magnetic field for various compositions. In all the cases studied, it is seen that the EoSs follow the same trends with and without magnetic field. For the assumed values of the field, the changes in the EoS are marginal if viewed on the $P\left(\epsilon \right)$ plots shown on the left panels of Figure 3 and Figure 4.

The right panels of the same figures show the ratio of the pressure in presence of magnetic field to the pressure in the absence of the field. The oscillations in the pressure are associated with the occupation of the Landau levels in the strong field. It is seen that these oscillations are stronger at the surface of the star for the universal profile, because the field does not decay in this case as quickly as for the exponential profile. In the high density regime, the oscillations are comparable for both the profiles. This behavior is a consequence of the fact that close to the centre of the star, both profiles have similar values of the magnetic field (see Figure 2).

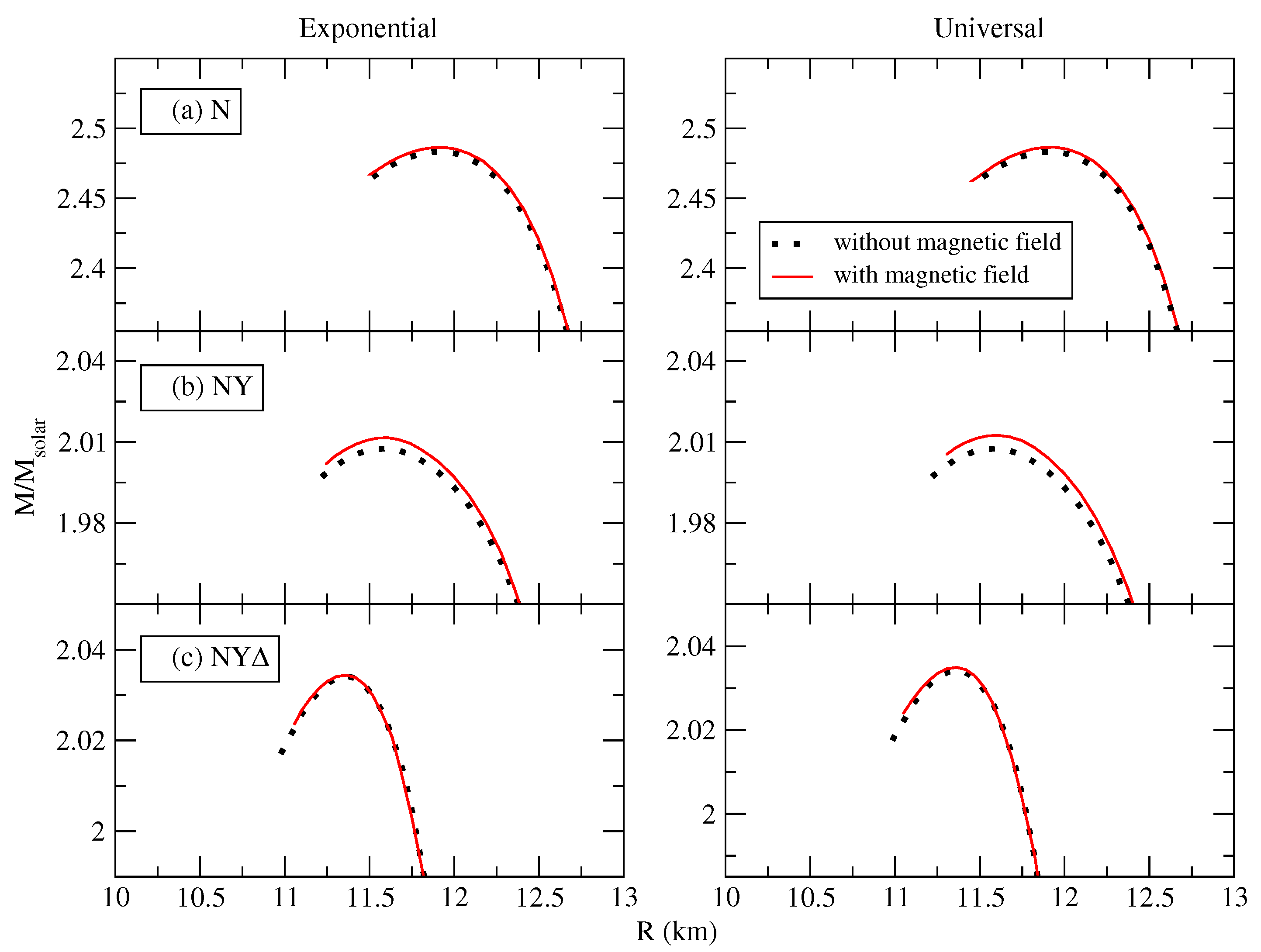

As a result of the additional pressure due to the magnetic field, the EoS is stiffened and, consequently, the maximum masses of magnetized compact stars are higher compared to their non-magnetized counterparts. This can be seen from Figure 5, where the corresponding M–R relations are displayed. More quantitatively, we find that for the N-composition the increase in maximum mass due to the effect of the magnetic field is about $0.13\%$, in the case of NY-composition $0.20\%$ for the exponential profile and $0.244\%$ for the universal profile and, finally, for the NY$\mathsf{\Delta }$-composition, about $0.01\%$ for the exponential profile and $0.034\%$ for the universal profile. We note that in the case of NY-composition the EoS is softer at high densities, than in the case of NY$\mathsf{\Delta }$-composition. Therefore, the effect of the magnetic field is more sizable in the case of the softer EoS, i.e., for the NY-composition. Thus, we conclude that the changes in the maximum mass are more pronounced in the case of NY-composition and are less significant for the NY$\mathsf{\Delta }$-composition.

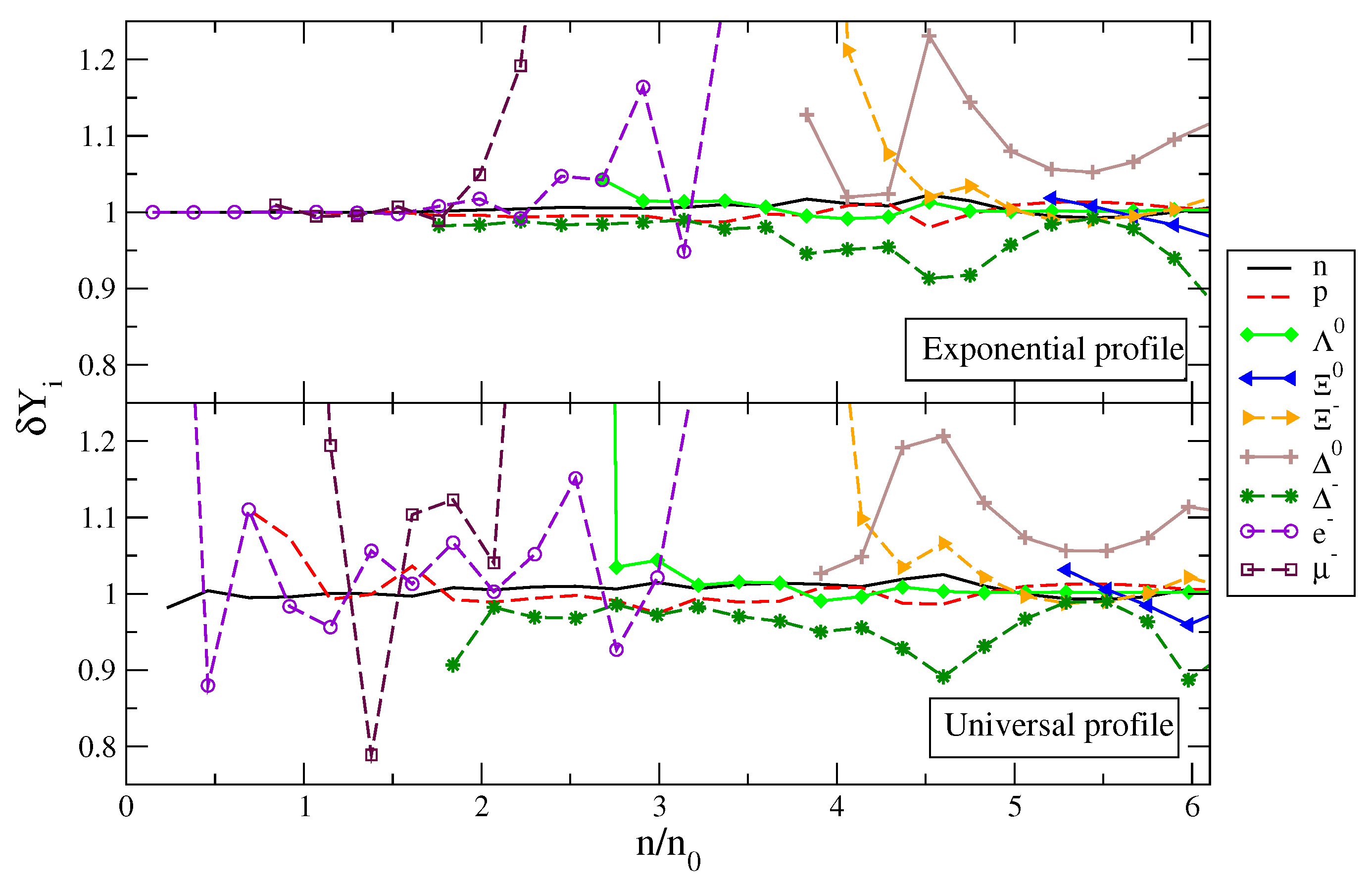

Figure 6 shows the ratio of fractions of different species $\delta Y_i=n_i\left(B\right)/n_i\left(0\right)$ as a function of normalized baryon number density. The oscillating nature of the fractions arises due to successive occupation of Landau levels for the charged species. The effect of the field is not substantial in the low-density regime for exponential field profile as the field strength in this case is small near the surface. In the case of the universal profile, the low-density regime shows strong fluctuations because the decay of the magnetic field with density is small and the surface magnetic field is of the order few times of ${10}^{17}$ G (see Figure 2). It is interesting to note that for most of the particles $\delta Y_i>1$, but in the case of ${\mathsf{\Delta }}^{-}$, the opposite is the case. This is a consequence of the charge neutrality. Due to the Landau quantization the fraction of electrons increases compared to non-magnetic case which causes the ${\mathsf{\Delta }}^{-}$ fraction to decrease. The pattern in Figure 6 results from the complicated interplay between the Landau quantization for charge particles entering into the two key conditions imposed—the charge neutrality and baryon number conservation, which are used in the construction of the EoS. Note also that ${\mathsf{\Delta }}^{+}$ and ${\mathsf{\Delta }}^{++}$ resonances do not appear until baryon density of $n\ge 6.1n_0$ for our particular choice of $\mathsf{\Delta }$-potential.

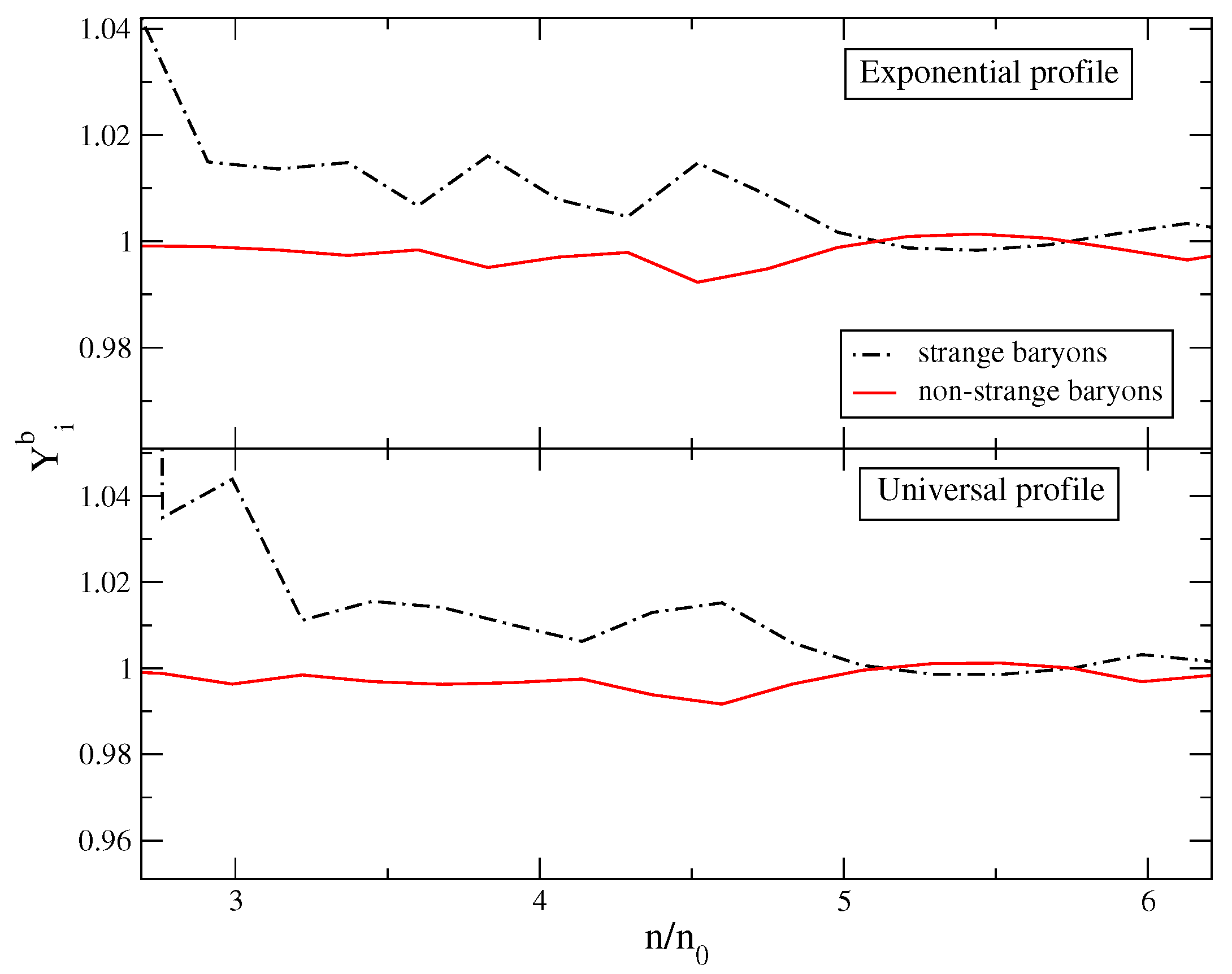

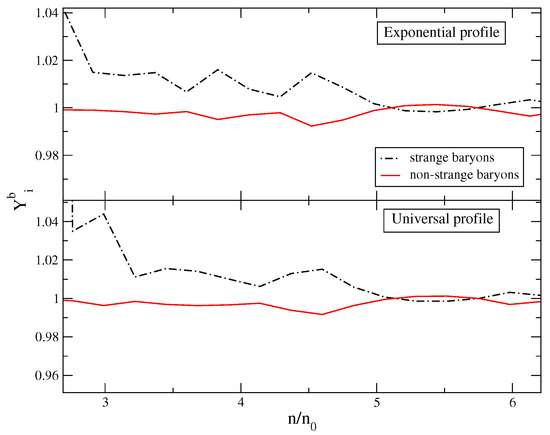

In Figure 7 we show the quantity $Y_i^b$, which is defined as the ratio of the partial fractions of strange or non-strange baryons in presence of a magnetic field to that without a magnetic field. The fraction of strange baryons is affected significantly (∼4%) by the magnetic field, whereas the fraction of the non-strange baryons is affected much less. We see that in the presence of magnetic field strange baryons appear earlier than in the non-magnetic case. This is, again, a consequence of complex interplay between the imposed charge neutrality condition and modifications of the phase-space occulation due to the Landau quantization.

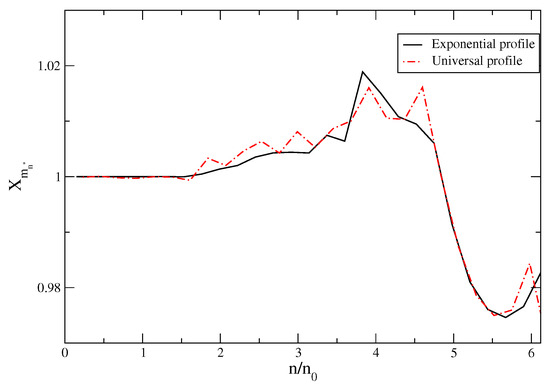

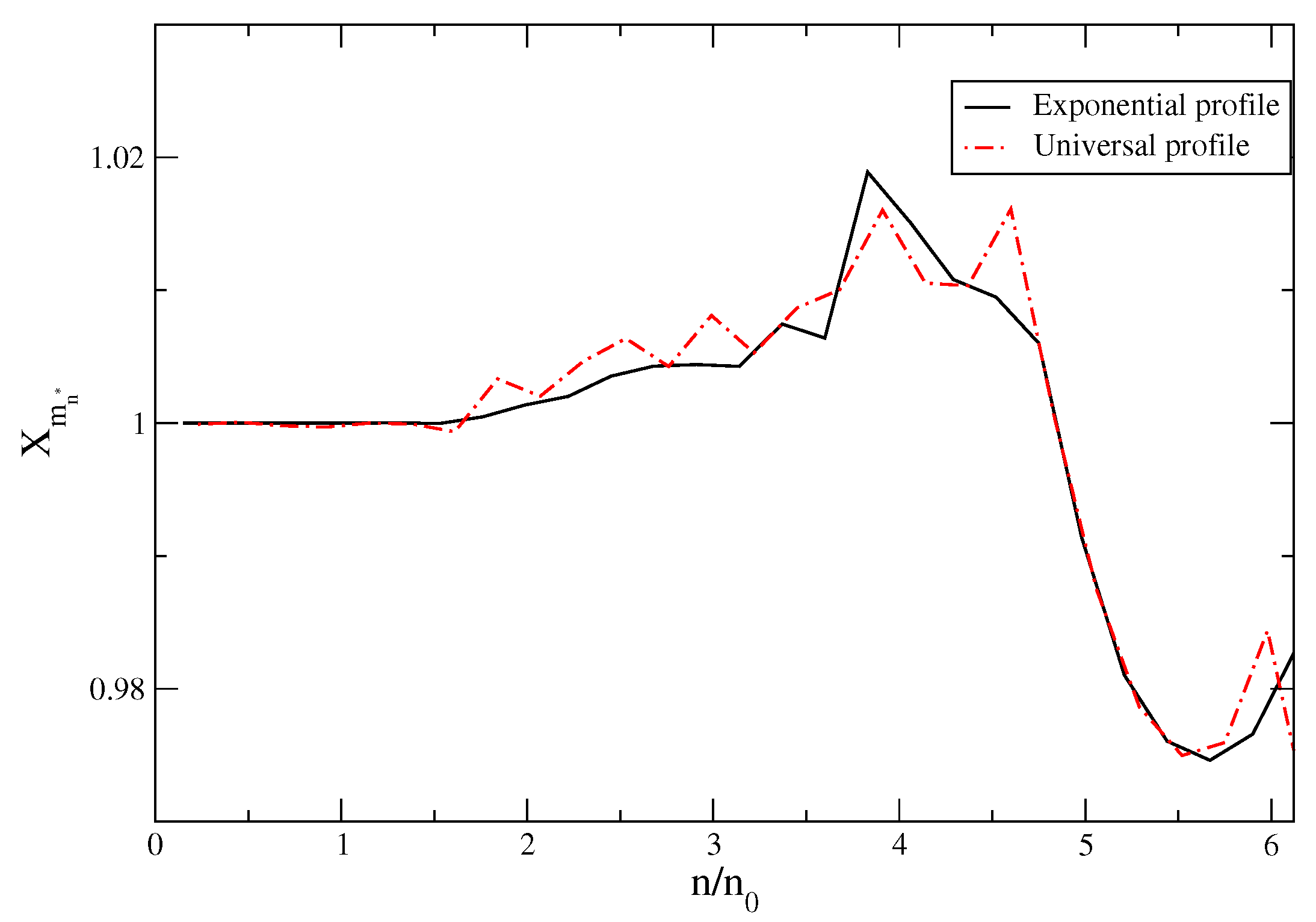

Finally, to quantify the variations of the effective mass of a baryon in the presence of magnetic field, we show in Figure 8 the ratio of effective nucleon Dirac mass ($m_N^{*}$) in the magnetic field to its value in the absence of the field $X_{m_n^{*}}=m_N^{*}\left(B\right)/m_N^{*}\left(0\right)$. It is seen that, for the exponential profile case, $m_N^{*}$ remains unchanged until the appearance of ${\mathsf{\Delta }}^{-}$ around $1.3$ times nuclear saturation density. A similar trend is observed for the universal profile case, but the amplitudes of the oscillations are larger. This is (again) due to the fact that the magnetic field value at the surface of the star is larger for this profile. With the onset of ${\mathsf{\Xi }}^{-}$, we observe a reduction in $X_{m_n^{*}}$ by about $4\%$ in the density range ∼4–5 times saturation density for both the profiles.

4. Conclusions and Outlook

Recent years have seen substantial progress in describing compact stars with heavy baryons (hyperons as well as $\mathsf{\Delta }$-resonances) in a manner consistent with all the currently available astrophysical as well as laboratory data. Motivated by this, we have extended, for the first time, one of the standard approaches which is based on CDF theory with density-dependent couplings to the case of strongly magnetized matter. In doing so, we have taken into account fully the Landau quantization of orbits of charged particles in strong fields. We confirm previous findings that magnetic fields make EoS stiffer and lead to higher maximum masses of compact stars. To quantify these effects we employed two parameterizations of the magnetic field profiles, namely the exponential [8] and the universal [20] profiles for a fixed value of the central magnetic field $B_c=2.9\times {10}^{18}$ G. The universal profile implies a relatively high surface magnetic field of ∼5.6 × ${10}^{17}$ G and flat magnetic field profile. The exponential profile, by construction, is adjusted to produce a surface magnetic field value ${10}^{15}$ G. In this case, the profile is steep with the magnetic field changing by orders of magnitude. Having the profiles at hand, we have explored the changes in the composition of matter and the effective mass of the nucleon. We find typical for magnetized system oscillations in these quantities which are similar to the de Haas-van Alphen oscillations of observables (e.g., the magnetic susceptibility of electronic systems) in magnetic fields. The oscillations have their origin in the occupation of the Landau levels by particles. As a result that the charged and neutral baryons are coupled by the baryon number and charge conservation, the oscillations are coupled as well and affect the fractions of neutral particles (neutrons, $\mathsf{\Lambda }$s and ${\mathsf{\Delta }}^0$s). The oscillations of the particle fractions are substantially different for the two profiles studied if they are compared for the same value of the central magnetic field. In the case of the universal profile, these oscillations extend up to the low-density regime because the field does not change substantially. In the exponential profile case, the low-density regime has low magnetic fields, therefore the amplitudes of oscillations are low. Comparing the oscillations in the strange and non-strange sectors we observe that the hyperon fractions are more affected by the magnetic fields that the non-strange baryon fractions within the density range considered. Furthermore, the Dirac nucleon effective masses exhibit similar oscillations, which implies that a range of quantities (specific heat, baryon mean-free-path, thermal conductivity, etc.) may show oscillations as well.

Our extension of the CDF-based EoS to the non-zero magnetic field can be used to study a range of phenomena in and with magnetized compact stars in a framework that guarantees the consistency of underlying compact objects with the currently available astrophysical and experimental data.
