Short-Term Oxidation of HfB₂-SiC Based UHTC in Supersonic Flow of Carbon Dioxide Plasma

Abstract

The short-term (5 min) exposure to the supersonic flow of carbon dioxide plasma on ultrahigh-temperature ceramics of HfB₂-30vol.%SiC composition has been studied. It was shown that, when established on the surface at a temperature of 1615–1655 °C, the beginning of the formation of an oxidized layer takes place. Raman spectroscopy and scanning electron microscopy studies showed that the formation of a porous SiC-depleted region is not possible under the HfO₂-SiO₂ surface oxide layer. Numerical modeling based on the Navier–Stokes equations and experimental probe measurements of the test conditions were performed. The desirability of continuing systematic studies on the behavior of ultrahigh-temperature ZrB₂/HfB₂-SiC ceramics, including those doped with various components under the influence of high-enthalpy gas flows, was noted.

1. Introduction

Entry probes for future planetary missions are expected to be subjected to severe thermal loads [1,2,3]. This will require their TPS materials to have extremely high melting points and oxidation resistance. Ultrahigh-temperature ceramic materials (UHTC) based on zirconium and hafnium diborides doped with silicon carbide have attracted great interest for advanced aerospace applications [4,5,6,7,8,9,10,11]. The high refractoriness of the components, phase stability in a wide temperature range, good mechanical properties, and good oxidation resistance allow their operation even in oxygen-containing gas atmospheres at temperatures ranging from ∼2000–2500 °C [12,13,14,15,16,17]. High thermal conductivity and high emissivity make UHTC a good material candidate for sharp leading edges with passive radiative cooling [18,19]. The study of UHTC exposed to high speed air flow confirms the high oxidation resistance of ZrB₂/HfB₂-SiC ceramics at elevated temperatures. This leads to the idea of using them in other gas environments, including the atmospheres of Mars, Venus, and Titan. However, there is a very small number of publications describing the behavior of such materials in non-air gas flows [20,21,22,23,24,25], mainly focusing on nitrogen atmospheres. Studies of UHTC’s behavior in high-enthalpy carbon dioxide jets may be of interest for modeling the effects of Venus’s atmosphere, which presents more demanding entry conditions than on Earth [26,27,28]. Previously, our team studied the behavior of HfB₂-SiC material doped with 1 vol.% graphene under the influence of a supersonic CO₂ plasma jet, including additional laser heating [29]. It was found that in this case a traditional multilayer oxidized near-surface region was formed: the upper oxide layer HfO₂-SiO₂, and below the porous SiC-depleted layer, passing into the unoxidized volume of the ceramics.

The aim of this work was to reveal the oxidation features and behavior of undoped HfB₂-30vol.%SiC material under relatively short-term exposure (5 min) to a supersonic flow of dissociated CO₂.

2. Materials and Methods

2.1. Ceramic Sample Preparation

The HfB₂-30vol.%SiC ceramic material was prepared using the reaction hot pressing method described in [30,31,32], as the use of the reaction sintering technique allows for a slightly lower consolidation temperature [22,33,34,35,36]. Briefly, the synthesis of the initial HfB₂-SiO₂-C powder was carried out using sol-gel technology and its further hot pressing was performed using a hot press model HP20-3560-20 (Thermal Technology Inc., Minden, NV, USA) at a temperature of 1800 °C (heating rate 10°/min) and a uniaxial pressure of 30 MPa in an argon atmosphere; the dwell time was 15 min. The resulting cylindrical sample had a diameter of 15.1 mm, a thickness of 3.1 mm, and a density of 96.8 ±. In total, 0.7% was used to study its behavior in a supersonic flow of pure dissociated CO₂.

2.2. Test Facility

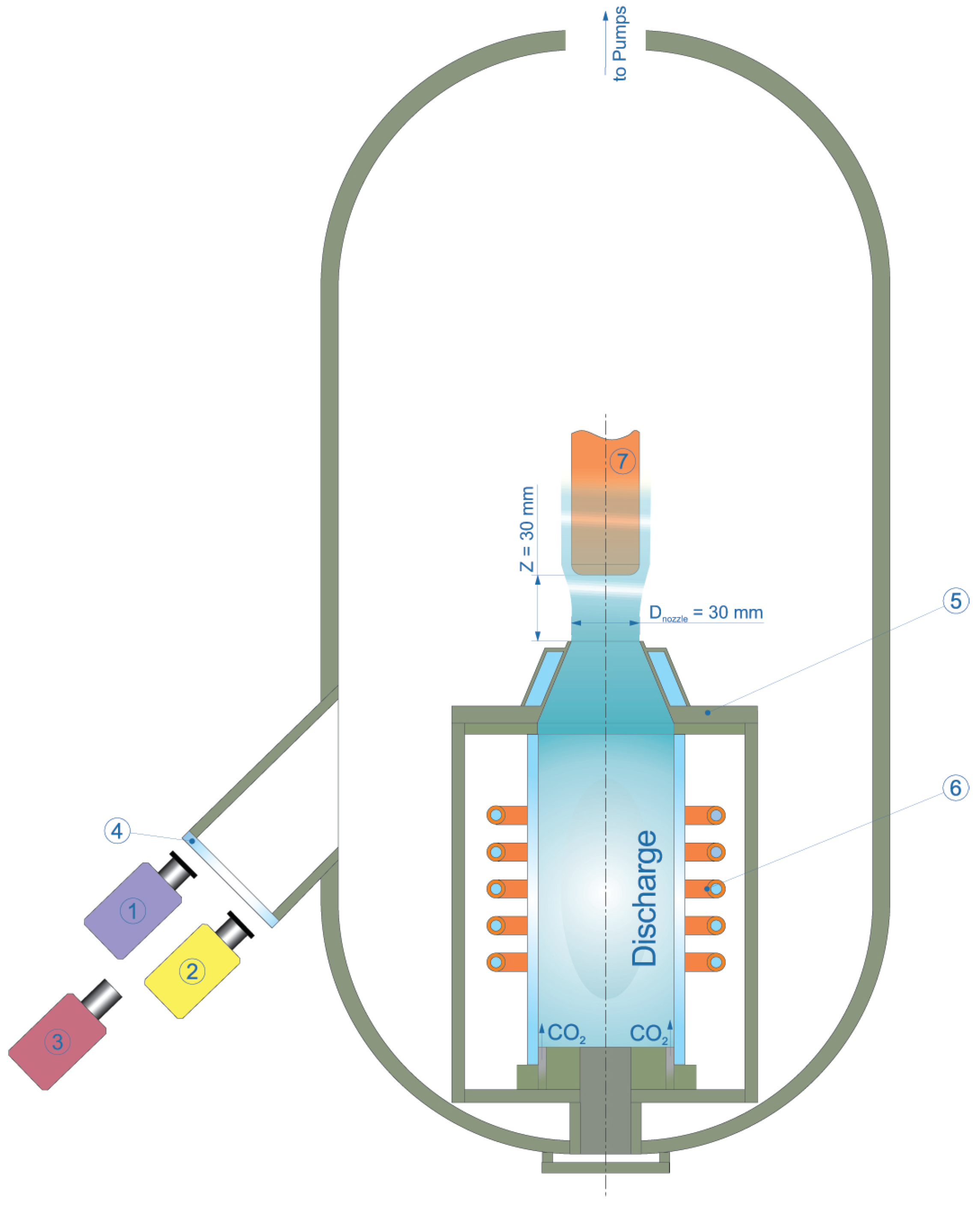

The oxidation resistance and heat transfer of the sample were studied in a high-enthalpy supersonic carbon dioxide jet at the VGU-4 ICP facility [37] using a 30 mm diameter sonic nozzle. A sketch of the test configuration is shown in Figure 1. General parameters of the VGU-4 ICP facility are given in

Table 1. General parameters of the VGU-4 ICP facility.

Parameter	Value
Maximum generator anode power supply, kW	72
Frequency, MHz	1.76
Discharge channel diameter, mm	80
Stagnation pressure, Pa	$6\times {10}^2\dots 1\times {10}^5$
Gas mass flow rate, g/s	$2\dots 6$
Possible working gases	Air, N2, CO2, Ar and their mixtures

. The average temperature of the heated sample surface was measured with a Mikron M700S spectral-ratio pyrometer (Mikron Infrared Inc., Oakland, CA, USA) and an AST Swift 350 PL brightness pyrometer (Accurate Sensors Technologies Ltd., Udaipur, India). The diameter of the sighting area was ∼5 mm in the central part of the sample. The temperature distribution on the sample surface was studied using a Tandem VS-415U thermal imager (OOO “PK ELGORA”, Korolev, Moscow region, Russia). The readings of the Tandem VS-415U thermal imager and AST Swift 350 PL brightness pyrometer were adjusted to account for the expected spectral emissivity ${\epsilon }_{\lambda }$ of the surface (0.6 for both spectral ranges) and the transmittance of the KCl view port (0.93). During the analysis of the thermal imager data the surface temperatures were corrected to the real ${\epsilon }_{\lambda }$ values obtained from comparison with spectral-ratio pyrometer measurements. The Mikron M770S spectral-ratio pyrometer does not require an emissivity setting (assuming that the spectral emissivity of the surface does not change at the two close operating wavelengths near 1 µm [38]). The details of the pyrometry system are summarized in

Table 2. VGU-4 ICP facility pyrometry system.

Device	Type	Temperature Range	Spectral Range	Accuracy
Tandem VS-415U	Brightness thermal imager	1000 °C…2300 °C	0.8 to 1.0 * µm	±20 °C
AST Swift 350 PL	Brightness pyrometer	350 °C…3500 °C	2.0 to 2.6 µm	±0.5% of the measured value + 1 °C
Mikron M770S	Spectral-ratio pyrometer	1000 °C…3000 °C	2 bands ∼1 µm	±15 °C

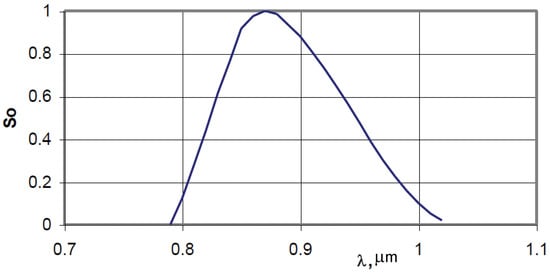

* See Figure 2.

and Figure 2. The CO₂ flow rate was controlled by a Bronkhorst MV-306 flowmeter (Bronkhorst High-Tech BV, Ruurlo, The Netherlands). The pressure in the test chamber was monitored by a pressure transducer Elemer AIR-20/M2-DA (NPP “Elemer”, Moscow, Russia). The geometry of the holder in which the sample was fixed is described in detail in [29,39]. The sample was installed on the friction in the socket of the water-cooled calorimeter; the gap was filled with a flexible thermal insulation based on SiC and carbon fibre in order to minimize heat loss into the water-cooled holder. The cold wall (CW) heat flux in the supersonic CO₂ plasma jet was measured with a copper water-cooled calorimetric probe [40]. The steady-state calorimetric probe was installed in a water-cooled cylindrical holder measuring 30 mm in diameter with a flat front surface. The heat-absorbing surface of the probe was 13.8 mm in diameter. The mass flow rate of the cooling water was measured with a Bronkhorst ES-FLOW ultrasonic liquid flow meter (Bronkhorst High-Tech BV, Ruurlo, The Netherlands). The temperature increase of the water was measured with a chromel–alumel differential thermocouple. Heat flux measurements are estimated to have an uncertainty of 5–10% [40,41].

2.3. Numerical Simulation

Numerical simulation of the carbon dioxide plasma flow in the facility’s cylindrical discharge channel and in the underexpanded jet emanating from the conical sonic nozzle was performed using the software package for numerical integration of the Navier–Stokes equations [42]. The details of the calculation method are described in [43]. The mixture of CO₂ was considered as an ideal mixture of perfect gases, in which chemical reactions and ionization reactions can proceed. Thermodynamic and thermochemical data for the gas components are taken from [44]. The constants of chemical reactions proceeding in the high-temperature CO₂ mixture are taken from [45,46,47,48].

2.4. Material Investigation

X-ray patterns of the obtained HfB₂-30vol.%SiC ceramic material before and after exposure to supersonic carbon dioxide flow were recorded on a Bruker D8 Advance X-ray diffractometer (CuK$\alpha$ radiation, and 0.02° resolution with signal accumulation in the point for 0.3 s, Bruker, Billerica, MA, USA). X-ray phase analysis was carried out using MATCH!—Phase Identification from Powder Diffraction, Version 3.8.0.137 (Crystal Impact, Bonn, Germany), Crystallography Open Database (COD). Crystalline lattice parameters and average crystallite size were calculated using full-field analysis in the TOPAS software (Version 4.2). Raman spectra were recorded on a Confotec NR500 Raman spectrometer (100 × 0.95 objective, 532 nm laser; grating 600; SOL Instruments, Augsburg, Germany). The power on the sample was 20 mW. The signal accumulation time was 60 s. The surface and chipping of ultrahigh-temperature HfB₂-SiC ceramic samples after exposure to a supersonic CO₂ plasma was investigated by scanning electron microscopy (SEM) on a three-beam NVision 40 (Carl Zeiss, Oberkochen, Germany) work station with accelerating voltages of 1 and 20 kV using secondary electron (SE2) and energy-selective backscattering (ESB), respectively. The elemental composition of the regions was determined using an Oxford Instruments energy-dispersive analysis device (EDX, Oxford, UK; accelerating voltage, 20 kV).

3. Test Conditions

The test was performed in supersonic high-enthalpy carbon dioxide jet flowing from a water-cooled conical nozzle with an outlet diameter of $D_{nozzle}=30$ mm at a pressure in the test chamber $p_{ch}=870$ Pa, HF-generator anode power $N_{ap}=45$ kW, and gas mass flow rate $G=2.4$ g/s. The distance from the nozzle outlet to the ceramic sample was 30 mm.

The cold wall heat flux value measured under the same test conditions at the same distance from the nozzle outlet was $q_{cw}=249$ W/cm².

The main flow parameters and gas composition at the nozzle outlet obtained by numerical simulation for the test conditions are shown in

Table 3. Main flow parameters at the the nozzle outlet of the VGU-4 ICP facility calculated for test conditions.

Parameter	Value
Total pressure, Pa	5874
Velocity, m/s	1193
Temperature, K	5449
Total enthalpy, MJ/kg	14.63

and

Table 4. Mass concentrations of gas mixture components at the nozzle outlet of the VGU-4 ICP facility calculated for test conditions.

O	C	O2	CO	CO2
0.432003	$0.37243\times {10}^{-1}$	$0.40946\times {10}^{-4}$	0.53010	$0.31551\times {10}^{-4}$
O+	C+	CO+	O2+	C2
$0.34396\times {10}^{-5}$	$0.55620\times {10}^{-3}$	$0.17748\times {10}^{-4}$	$0.81143\times {10}^{-7}$	$0.10892\times {10}^{-5}$

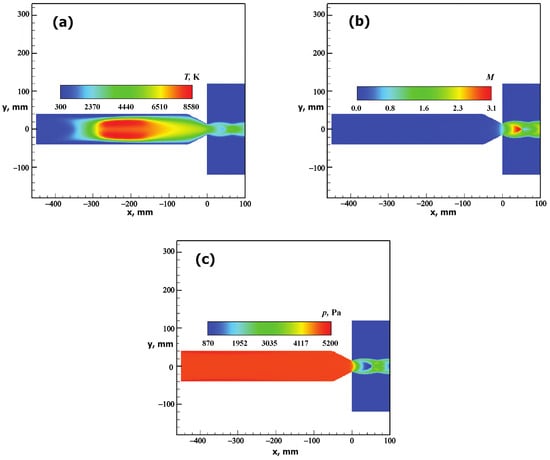

, respectively. These values were calculated at the nozzle symmetry axis. The distribution of flow parameters is shown in Figure 3.

The HfB₂-30vol.%SiC ceramic sample was immersed in the high-enthalpy jet when stable test conditions were achieved. Under these conditions, the sample was held until the end of the experiment; the total exposure time was 5 min (300 s).

4. Results and Discussion

4.1. Heat Transfer and Behavior of HfB₂-SiC Material under Exposure to Supersonic Flow of Dissociated CO₂

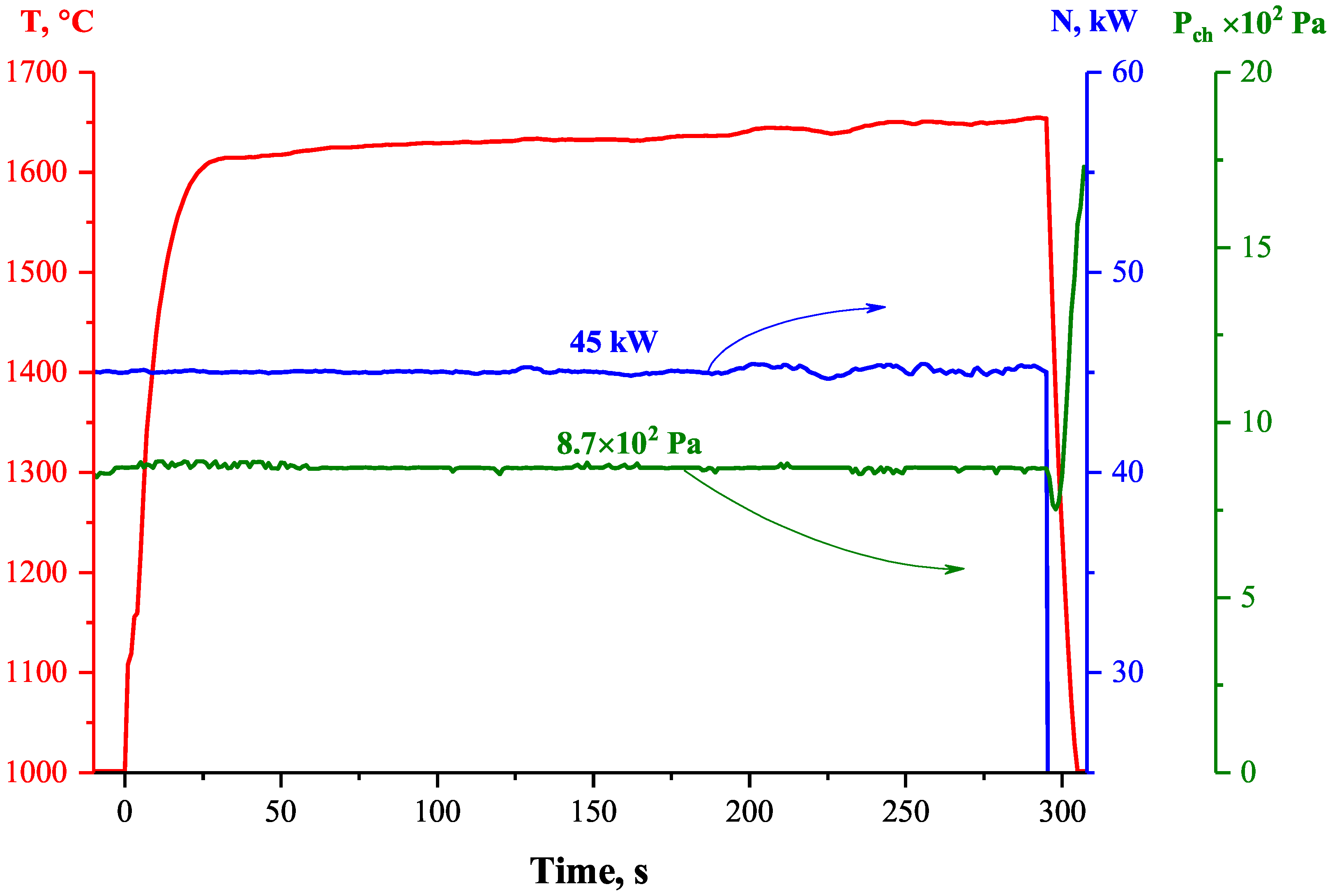

After the HfB₂-30vol.%SiC ceramic sample, fixed in a water-cooled holder, was immersed in a supersonic flow of dissociated CO₂, the average surface temperature measured by a spectral ratio pyrometer reached 1615 °C in 30 s (Figure 4). It then increased systematically until the end of the test with a surface heating rate of 8.4 °/min. The surface temperature at the end of the exposure (at the 300th second) was 1657 °C.

Thermal imager and brightness pyrometer temperature readings were originally collected for the preset surface spectral emissivity ${\epsilon }_{\lambda }=0.6$ in the corresponding spectral ranges (${\lambda }_1$ and ${\lambda }_2$, respectively), which are different for these instruments (see Table 2). The average spectral emissivities in the spectral ranges from 0.8 to 1.0 µm (${\lambda }_1$) and from 2.0 to 2.6 µm (${\lambda }_2$) were evaluated by comparison with the spectral-ratio pyrometer readings as a reference (Figure 5). The idea and details of such in situ emissivity measurements are described in [23,49,50,51]. Spectral emissivities for both spectral ranges decrease during exposure from a value of 0.64–0.67 to 0.41 due to surface oxidation.

The heat flux to the HfB₂-30% SiC sample surface in the steady-state regime can be estimated from the heat balance equation:

$$\begin{array}{c}\hfill q_w=q_{cond}+{\epsilon }_t·\sigma ·T^4.\end{array}$$

(1)

In this equation, $q_w$ is the unknown heat flux, $q_{cond}$ is the energy loss by heat conduction into the interior (which is measured by a calorimeter installed in the water-cooled sample holder), ${\epsilon }_t$ is the total emissivity of the surface, $\sigma$ is the Stefan–Boltzmann constant, and T is the surface temperature according to the data of the spectral-ratio pyrometer (in K).

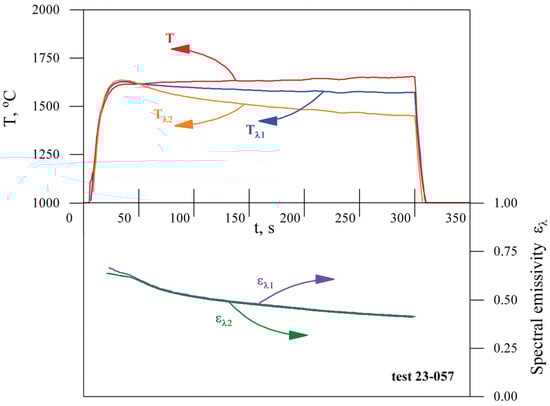

As can be seen in Figure 5, the spectral emissivities for the two independent spectral ranges (${\lambda }_1$ and ${\lambda }_2$) are almost equal after the 30th second of the experiment (in the quasi-steady-state regime when the surface temperature changed slowly). This allows us to make the assumption that the sample surface is close to gray body (${\epsilon }_t={\epsilon }_{\lambda }$), at least in the near-IR range. According to Wien’s law, the maximum radiation intensity for a surface temperature of ∼1900 K corresponds to a wavelength of about 1.5 µm. In this case, we can use the obtained spectral emissivity values instead of the total emissivity in Equation (1) and estimate the average heat flux (from the 30th to the 300th second of the experiment) for the steady state regime as $q_w=112$ W/cm². This value is lower than the cold wall heat flux $q_{cw}=249$ W/cm² measured under the same test conditions. Some errors in the method may be due to the difference between the real surface of the HfB₂-30% SiC ceramic material and the gray body model. As shown in [52], the emissivity of HfB₂-based ceramics can actually depend on the wavelength range. But even for a black body (${\epsilon }_t=1$), the heat flux calculated from Equation (1) does not exceed 160 W/cm². The difference in heat flux to the surface of the ceramic sample and the cold copper surface under the same test conditions is mainly due to the lower catalytic properties of the oxidized HfB₂-30% SiC material with respect to heterogeneous recombination of atomic oxygen and partly due to the temperature factor. This effect must be taken into account when analyzing the results of material testing and designing thermal protection systems for descent vehicles.

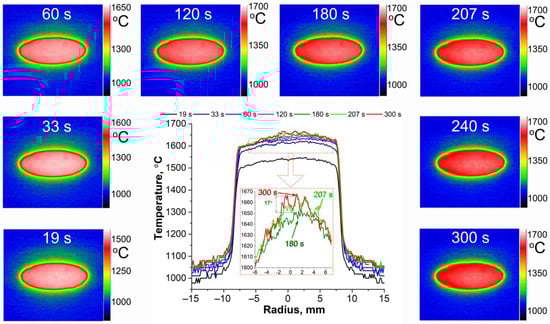

Analysis of the thermal imager data showed (Figure 6) that the temperature distribution over the surface was as uniform as possible from the first seconds of exposure due to the good thermal conductivity. During the first three minutes, the temperature difference over the entire surface did not exceed 50 °C (due to the lower temperature at the edges of the sample) and locally, at a radius of 1–2 mm, ≤5–8 °C. Approximately after the middle of the fourth minute the general temperature difference increased to ∼65–70 °C, and locally in the central region of the sample there appeared irregularities, ∼15–20 °C, which may be related to the change in microstructure of the oxidized surface of the sample. This temperature distribution was maintained until the end of the experiment.

4.2. Investigation of HfB₂-SiC Material after Exposure to Supersonic Flow of Dissociated CO₂

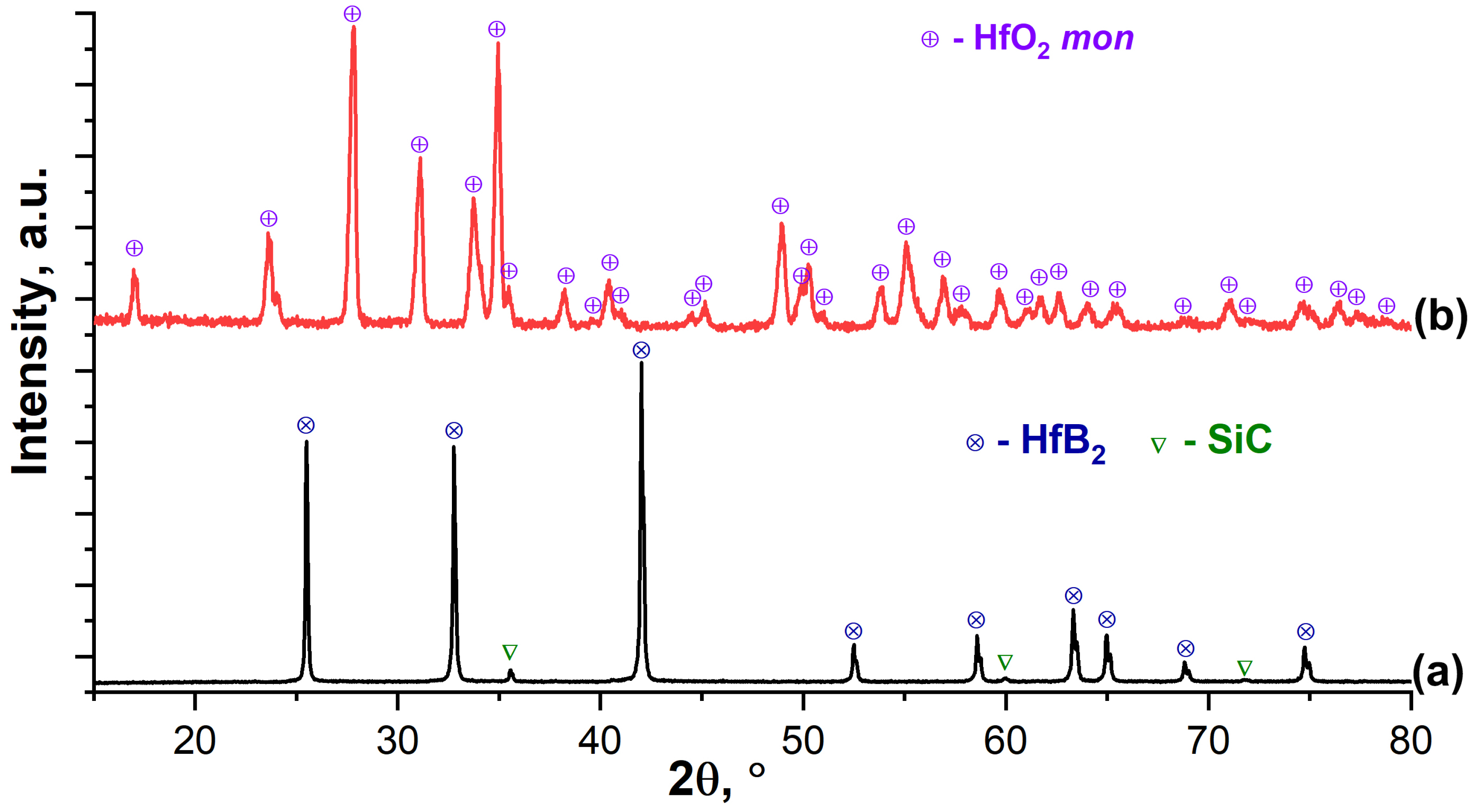

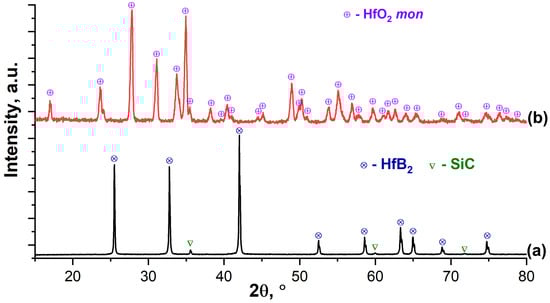

The X-ray phase analysis of the oxidized surface (Figure 7) showed that, despite the relatively short exposure time of the CO₂ plasma (5 min), even low intensity reflections of the initial phases of HfB₂ [53] and SiC [54] occurred. All observed reflections correspond to the crystal lattice of monoclinic hafnium oxide [55]. Calculations using the Rietveld method showed that in this case HfO₂ is characterized by a certain distortion of the structure, which is expressed by compression along the a and c axes (a = 5.125, b = 5.189, c = 5.302 Å, $\beta =\mathrm{}{99.212}^{\circ }$ compared to the literature a = 5.150, b = 5.185, c = 5.342 Å, $\beta ={98.948}^{\circ }$ [55]). The artificial addition of the HfSiO₄ phase (the content of which, according to the calculations, cannot exceed 12%) does not lead to a change in the calculated parameters towards the reference value.

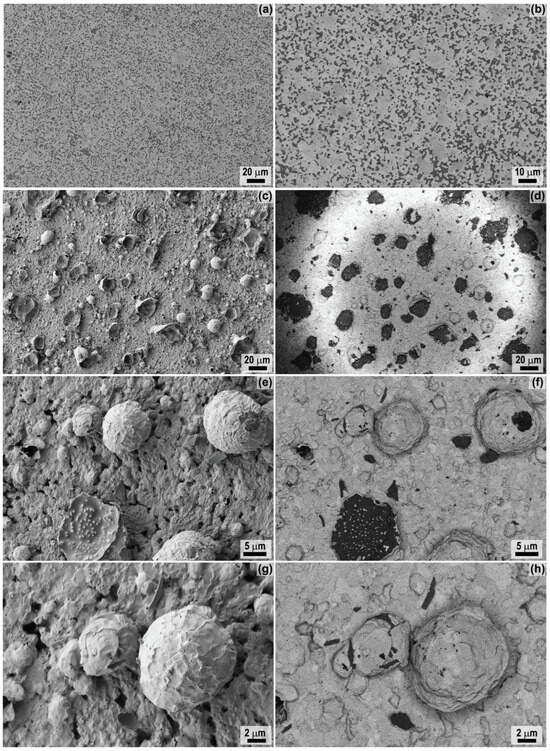

The SEM study of the microstructure of the surface formed as a result of the oxidation of the starting ceramic material HfB₂-30vol.%SiC by a high-speed flow of dissociated CO₂ showed (Figure 8) that it has a rather high roughness, not only due to the oxidation of HfB₂, but also to the formation of strongly protruding bubbles with a diameter of mainly ∼7–20 µm. The latter are probably formed during the removal of the gaseous oxidation product (CO) and during the rapid evaporation of borosilicate glass components at elevated temperatures. Their formation on the surface can be related to the brighter areas observed in the middle of the fourth minute of exposure in the thermal images. These bubbles appear to be brittle and easily destroyed (Figure 8a–d), with a wall thickness of ∼100–350 nm. The study in the average atomic number contrast mode (ESD detector, Figure 8b,d), allowed us to determine that the outer surface is mainly HfO₂ and the inner surface (as can be seen in Figure 8b,d by the bases and wall fragments of the destroyed bubbles) is lined with silicate melt. The latter is a mobile phase at the experimental temperature ∼1620–1655 °C, HfO₂ particles are dispersed in it, and due to the melt it is possible to move them from the near surface regions and along the surface. Interestingly, X2c,d micrographs at the base of the collapsed bubble show inclusions of oriented, vertically elongated HfO₂ particles (diameter ∼150–550 nm) in the silicate melt matrix, illustrating the “solid pillars, liquid roof” model once proposed by Li et al. [56] in a situation after the “liquid roof” evaporation had started from the surface [57,58,59]. Elemental analysis using EDX confirmed that on the oxidized ceramic surface between the bubbles, only HfO₂ was localized (silicon was not found, probably because its content is below the detection limit of the method), hafnium dioxide predominated on the bubble surface (the n(Hf):n(Si) ratio is 9:1), and when the surface area of 440 × 585 µm was scanned, the n(Hf):n(Si) ratio decreased to 4:1 due to the destruction of the bubbles and the exposure of their internal composition. Analysis of the microstructure of the bubbles preserved on the oxidized surface of the ceramic material has shown (Figure 8e,f) that there are 40–80 nm pores between the flat aggregates of the HfO₂ particles, probably bound from the inside by silicate melt. In general, the microstructure of the oxidized surface is close to that previously observed in our studies of the interaction of HfB₂-SiC-based materials with supersonic flows of dissociated CO₂ [29] and air [31,32,60,61]. However, in the present experiment, a greater number of preserved bubbles and their remnants are present on the surface where silicate glass is preserved, whereas in previous work, due to higher thermal stress and longer exposure times, only craters were recorded at their rupture sites.

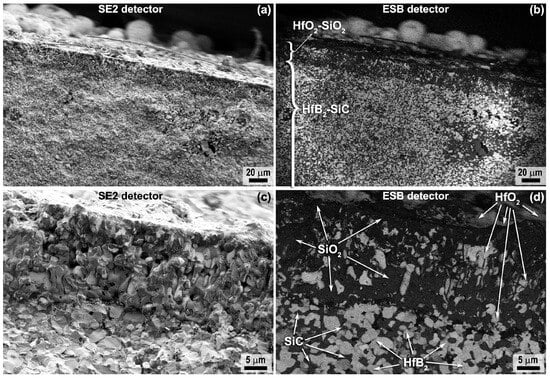

Analysis of the microstructure of the HfB₂-30vol%SiC ceramic chip after thermochemical treatment (Figure 9) showed that a rather thin oxidized region of 22 ± 4 µm thickness was formed close to the surface. At the same time, a thin HfO₂ film less than 300–500 nm thick is present on the surface itself, under which a layer of HfO₂ particles distributed in the silicate glass is observed. However, the porous layer depleted of SiC commonly observed below, which would be formed as a result of the oxidation of SiC by an active mechanism under a layer of silicate melt under conditions of reduced O₂ concentration [56], was not found in this case. This is also confirmed by the mapping of the distribution of the elements Si, O, and C (the latter is given tentatively due to the low accuracy of its determination by the EDX method) in Figure 10: the superimposition of the microphotography with increased acceleration voltage (20 kV) to increase the contrast and the corresponding distributions of silicon and oxygen show that the upper oxidized layer passes directly into the initial material with normal silicon content.

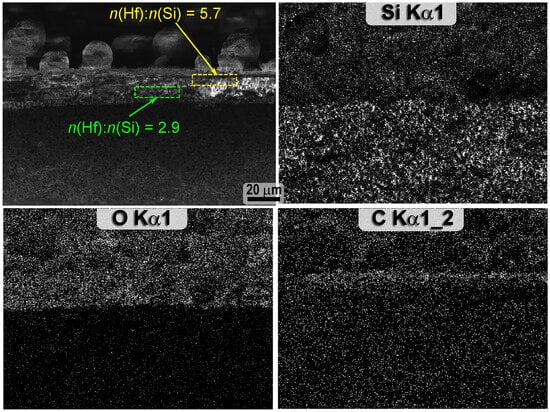

Local EDX analysis in the upper third of the HfO₂-SiO₂ layer thickness showed that hafnium oxide clearly predominates closer to the surface (the ratio of n(Hf):n(Si) is ∼6), while closer to the end of the oxide layer the silicon content increases (n(Hf):n(Si) is ∼3). At the same time, directly below the HfO₂-SiO₂ layer, according to the EDX data, the n(Hf):n(Si) ratio is practically no different from that given and experimentally determined for the bulk part of the HfB₂-30vol.%SiC sample. Only a slight increase in defect/porosity can be observed at the interface between the unoxidized material and the HfO₂-SiO₂ layer (Figure 9c,d) with a thickness of less than 1 µm. This structure of the oxidized region is probably due to the fact that the exposure to a high-enthalpy CO₂ flow was stopped at the initial stage of oxidation of the HfB₂-30vol.%SiC ceramics, since for a similar material composition in a previous experiment, characterized by a higher heat flux and exposure duration, the formation of a conventional multilayer structure was observed [29], including a depleted SiC layer.

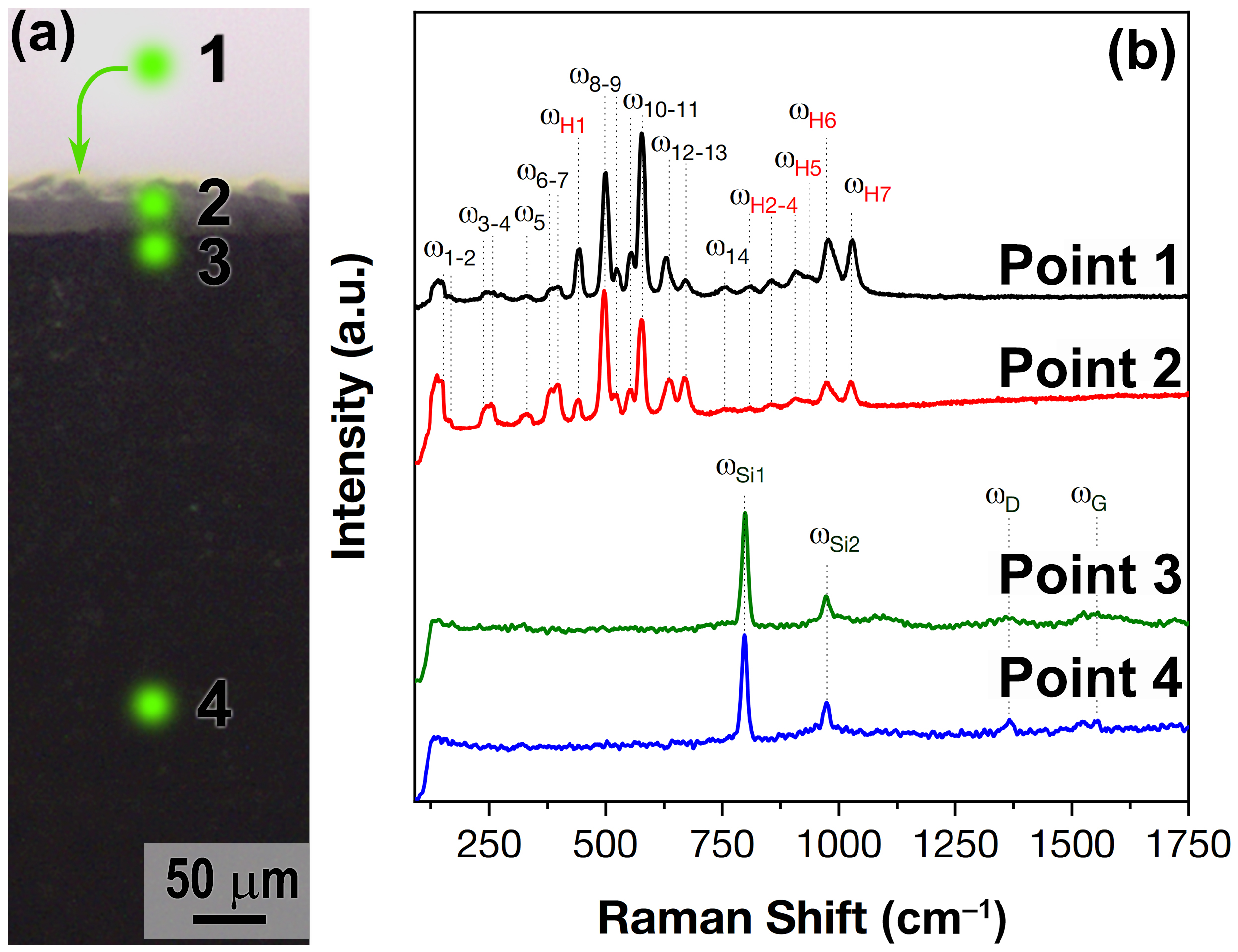

To confirm this, Raman spectra were recorded from some surface and cracked areas of the HfB₂-30vol.%SiC ceramic sample after exposure to the supersonic flow of dissociated CO₂ (Figure 11): point 1 corresponds to the surface in the central region of the sample and points 2–4 correspond to different cracked areas. As can be seen, the Raman spectra at points 1 and 2 (the oxidized surface and the one closest to the surface crack of the sample in the region of the HfO₂-SiO₂ layer, respectively) have the same set of bands. A detailed analysis of these spectra reveals 14 characteristic bands (${\omega }_1$–${\omega }_{14}$ at 150, 165, 241, 257, 332, 381, 398, 499, 525, 554, 578, 631, 671 and 756 cm⁻¹) of different intensities belonging to the Ag and Bg modes of the monoclinic phase of HfO₂, in good agreement with the literature data [62,63,64,65]. In addition to the monoclinic HfO₂ phase, seven characteristic Raman modes of the ${\omega }_{H1}$–${\omega }_{H7}$ phase of hafnone (HfSiO₄) are detected at these sites at 442, 808, 854, 907, 937, 976 and 1028 cm⁻¹, which are also in good agreement with the available literature data [66,67,68,69].

For points 3 and 4 (Figure 11b), located just below the oxide layer and in the apparently unoxidized volume of the HfB₂-30vol.%SiC ceramics, the Raman spectra are almost identical: only two intense modes ${\omega }_{Si1}$ and ${\omega }_{Si2}$ at 798 and 973 cm⁻¹, belonging to silicon carbide (most likely polytype 3C) [70,71], as well as two very weak and faint modes ${\omega }_D$ and ${\omega }_G$ at 1380 and 1635 cm⁻¹, which are characteristic bands of different forms of carbon, probably residual carbon after in situ SiC production during the manufacture of HfB₂-30vol.%SiC ceramics.

Thus, the set of methods confirms the fact that as a result of the short-term (5 min) thermochemical influence of the supersonic flow of dissociated CO₂ at the selected parameters of the experiment, it is possible to observe the initial stage of oxidation of the HfB₂-30vol.%SiC high-temperature ceramic, at which the formation of the depleted SiC layer has not yet occurred. This may be due to the fact that the HfO₂-SiO₂ surface layer formed during oxidation of the HfB₂-SiC composite was not yet sufficiently tight at the time the experiment was completed to create the low oxygen content required for active oxidation of SiC [57,72]. For example, there may have been pores in this layer that promote oxygen diffusion into the material volume, or there may have been HfO₂ particles that act as a bridge for oxygen due to their ionic conductivity, or the thickness of the SiO₂ melt layer of the order of 20–25 µm, are insufficient to form an oxygen content gradient. The present study of the peculiarities of the oxidation process of ultrahigh-temperature ceramics under the influence of a high-velocity flow of dissociated CO₂ is one of the first steps indicating the important need to continue systematic studies of the degradation process of such materials in gaseous media that differ significantly in composition from the Earth’s atmosphere.

5. Conclusions

Our team continues to study the heat transfer and behavior of UHTC materials when exposed to high enthalpy molecular gas plasma flows.

It is experimentally shown that as a result of relatively short-term exposure (within 5 min) on ultrahigh-temperature ceramics of composition HfB₂-30vol.%SiC of supersonic flow of dissociated CO₂ on the surface a temperature between 1615–1655 °C is established and there is a tendency towards insignificant growth at the rate of 8°/min. Under the experimental conditions chosen, it is likely that the oxide layer began to form on the surface of the material, since the analytical methods used (SEM with different detectors and accelerating voltages, optical microscopy and Raman spectroscopy) did not allow us to detect the formation of a porous SiC-depleted region under the HfO₂-SiO₂ surface oxide layer. With some degree of doubt, we can note the existence of a very thin region (less than 1 µm thick, according to SEM data) of increased porosity/defectivity just below the localization of the layer of hafnium oxide particles distributed in the silicate glass, which may be caused not only by the onset of active oxidation of SiC with the formation of SiO/CO, but also by the detachment of HfO₂-SiO₂ from non-oxidized HfB₂-SiC due to the differences in thermal expansion coefficients revealed by the abrupt cooling of the sample.

Ceramic sample surface spectral emissivities obtained during the experiment for two independent spectral ranges were almost equal. This result allowed us to use the gray body model assumption for radiative heat transfer analysis. However, additional emissivity studies in specialized facilities are still appropriate and important. The estimated heat flux to the surface of the heated UHTC sample was lower than that measured by the cold copper probe. This fact confirms that catalytic properties of the surface and wall temperature should be taken into account when modeling heat transfer. Numerical flow simulations allow detailed analysis of test conditions.

In general, it is necessary to note the usefulness of a systematic study of the peculiarities of the behavior of ultrahigh-temperature ZrB₂/HfB₂-SiC ceramics, including those doped with various components, under the influence of high-speed gas flows containing CO₂. Our future plans also include studies of UHTC materials in a mixture of methane and nitrogen, in pure nitrogen, in a mixture of nitrogen and carbon dioxide, and under additional radiative heating.

This has potential application for material selection in the development of advanced space exploration vehicles.
