# Spatial Distribution Analyses of Axially Long Plasmas under a Multi-Cusp Magnetic Field Using a Kinetic Particle Simulation Code KEIO-MARC

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

_{res}, and the number of permanent magnets installed at different locations surrounding the device, N

_{mag}, as design parameters. The results show that both B

_{res}and N

_{mag}improved the uniformity of the electron density distribution in the axial direction. The maximum axial electron density decreased with increasing N

_{mag}and increased with increasing B

_{res}. These trends can be explained by considering the nature of the multi-cusp field, where particles are mainly confined to the field-free region (FFR) near the center of the plasma column, and the loss of particles due to radial particle transport. The use of multiple filaments at intervals shorter than the plasma decay length dramatically improved axial uniformity. To further improve axial uniformity, the filament length and FFR must be properly set so that electrons are emitted inside the FFR.

## 1. Introduction

_{t}σL, where n

_{t}, σ, and L denote the density of the target plasma particles, the reaction cross-section, and plasma length, respectively. Consequently, an extended plasma length in the axial direction becomes essential to facilitate the precise observation of beam attenuation caused by collisions between the plasma and the beam. Given that the number of plasma–beam collisions per unit volume and unit time is expressed as n

_{t}n

_{b}<σv>, using the beam density n

_{b}and the beam velocity v, the importance of the spatial distribution of the target plasma density must also be noted. Specifically, high-density target plasma with a uniform density distribution enables the clear observation of the impact of the injected beam on the target plasma. To control the spatial distribution of plasma density, it is critical to understand the mechanism of particle loss. Under conditions of relatively high electron temperatures and negligible volume recombination, the axial distribution of electron density is significantly dependent on radial losses. In systems with axial magnetic fields, collisions during Larmor motion produce radial losses. Conversely, the axial field strength within the multi-cusp magnetic field is practically zero, which differs in the radial loss mechanism from plasma experiments characterized by an axial magnetic field [19,20]. Particularly noteworthy is the mechanism that determines the spatial distribution of the plasma within a multi-cusp magnetic field in an axially long plasma source, which has not yet been understood. Therefore, the purpose of this paper is to analyze the spatial distribution of axially extended plasma in a multi-cusp magnetic field via numerical simulation and to suggest a methodology necessary for achieving a uniform plasma distribution.

## 2. Simulation Model

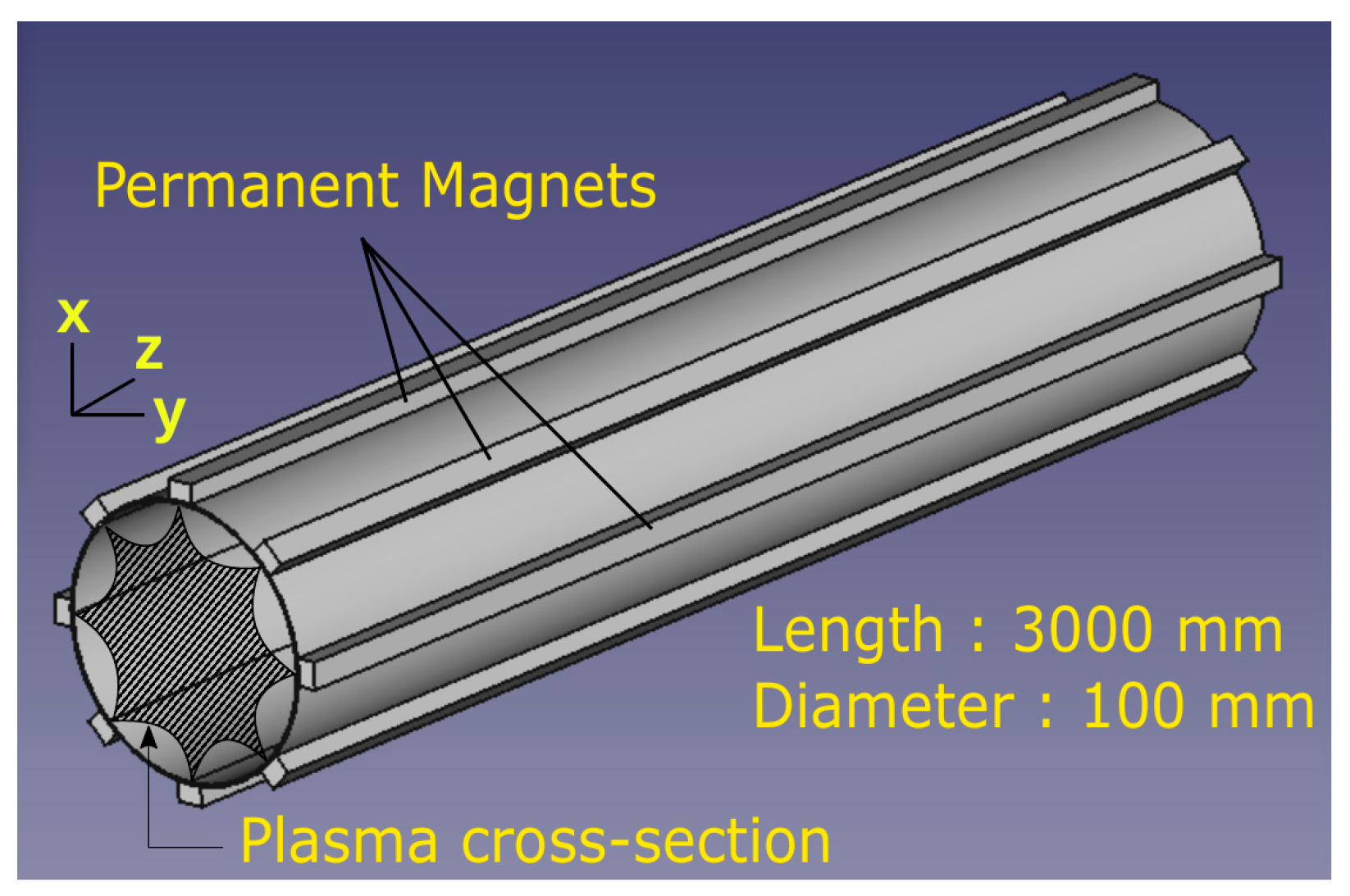

#### 2.1. Plasma Source

#### 2.2. Calculation of Multi-Cusp Magnetic Field

_{res}, ${\mu}_{0}$, and $\widehat{\mathit{r}}$ denote the residual magnetic flux density, vacuum permeability, and unit position vector originating from the area element of the magnet surface, respectively. The dimensions of the magnet, as well as the separation between the poles, were set to 10 mm and 20 mm, respectively. The magnet surface was divided into a 0.5 mm × 0.5 mm grid, thus rendering $dS$ equal to 2.5 × 10

^{−7}m

^{2}. In practice, a supporting plate would be interposed between the magnets and the plasma. In this study, the thickness of this support plate was set to 1 mm. Consequently, the magnets were positioned at a distance of 1 mm away from the wall. Note that Equation (1) implies a divergence of the magnetic field strength close to the surface of the magnet, which can be avoided by placing the magnet slightly outside of the wall. The number of permanent magnets installed around the device, N

_{mag}, is also an important parameter that determines the characteristics of a multi-cusp magnetic field. N

_{mag}must be an even number for the line–cusp configuration. Calculations were performed for all the magnets of the device. Furthermore, since both B

_{res}and N

_{mag}affect the spatial distribution of the plasma, B

_{res}and N

_{mag}were given separately as independent parameters in the calculations.

#### 2.3. Calculation of Electron Energy Distribution Function

^{−}production rate in a negative ion source called an SHI H

^{−}ion source [27,28] and improve the performance of a JT-60SA negative ion source [29] and for comparison with the results of spectroscopic measurements taken from a QST (National Institute of Quantum and Radiological Science and Technology, Naka, Japan ) 10-ampere ion source [30].

_{2}, H⁺, H

_{2}⁺, and H

_{3}⁺) was determined prior to the calculations. Although the KEIO-MARC code possesses the ability to accommodate over 500 elastic/inelastic and Coulomb collisions in the context of hydrogen plasmas, this study simplifies the corresponding analysis by considering only 38 reactions involving the five aforementioned particles. The fundamental equation governing KEIO-MARC is expressed as follows [22]:

_{e}~6 eV, n

_{e}~10

^{15}m

^{−3}) is less than 1 mm, which is much shorter than the system length. Under the assumption of quasi-neutrality, except at the plasma source surface and filament, the electric field $E$ is exclusively considered within the boundary regions corresponding to the wall and filament. Sheath boundary conditions are applied to both ends and the sidewall, featuring a potential (${\varphi}_{sh}$) described by

_{B}, T

_{e}and m

_{i}represent the Boltzmann constant, electron temperature, and ion mass, respectively. At both ends and at the sidewall, electrons characterized by energies lower than ${e\varphi}_{sh}$ are reflected by the sheath, while those with energies higher than ${e\varphi}_{sh}$ are lost. The update time intervals for the electron orbit calculations, Coulomb collisions, and elastic/inelastic collisions were set to 10

^{−11}, 10

^{−9}, and 10

^{−8}s, respectively.

^{−20}m

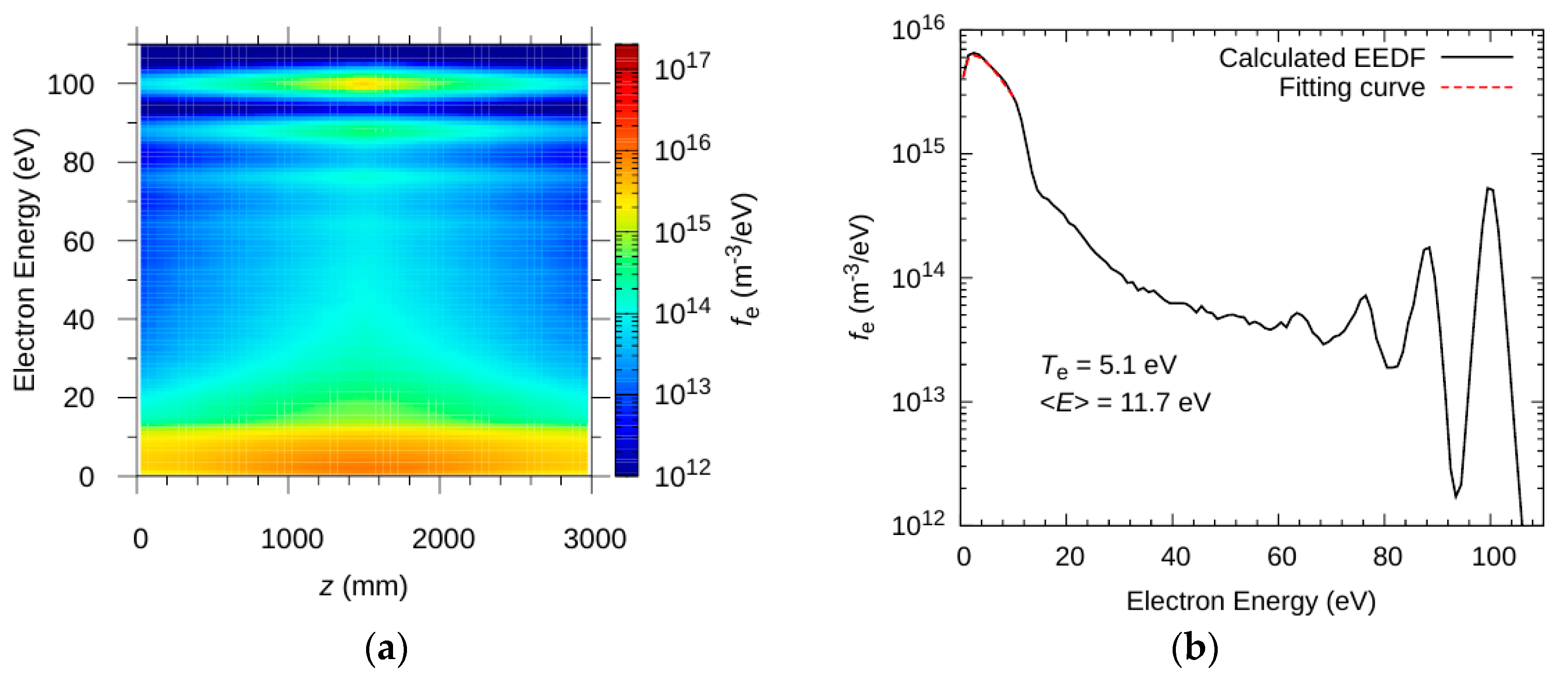

^{2}[31]. The higher the hydrogen molecular pressure, the greater the decrease in the electron density in the axial direction. Subsequently, electron energy is lost mainly through collisions. In this study, the hydrogen molecular pressure was set to 0.2 Pa. Under a hydrogen molecular pressure of 0.2 Pa and a temperature of 500 K, the electron mean free path λ was estimated to be 1.36 m. Since λ is shorter than the system length of 3 m, the decay in electron density in the axial direction is significant. The temperatures and densities of the background particles are comprehensively documented in Table 1.

_{e}, and the averaged energy, ⟨E⟩, are calculated as follows:

_{max}is the calculated maximum energy (150 eV in this paper) and ⟨E⟩ is evaluated as the averaged energy of hot electrons emitted from the filament and the bulk plasma. The electron temperature T

_{e}was calculated from the gradient of the Electron Energy Probability Function (EEPF) defined by ${f}_{e}\left(E\right)/\surd E$ in the low-temperature region (<10 eV). The typical results calculated using KEIO-MARC for the axial distribution of the EEDF and the EEDF at z = 1000 mm are shown in Figure 2a and Figure 2b, respectively.

_{e}was calculated from the gradient of the EEDF.

## 3. Simulation Results

_{res}and N

_{mag}are set to 0.75 T and 8, respectively.

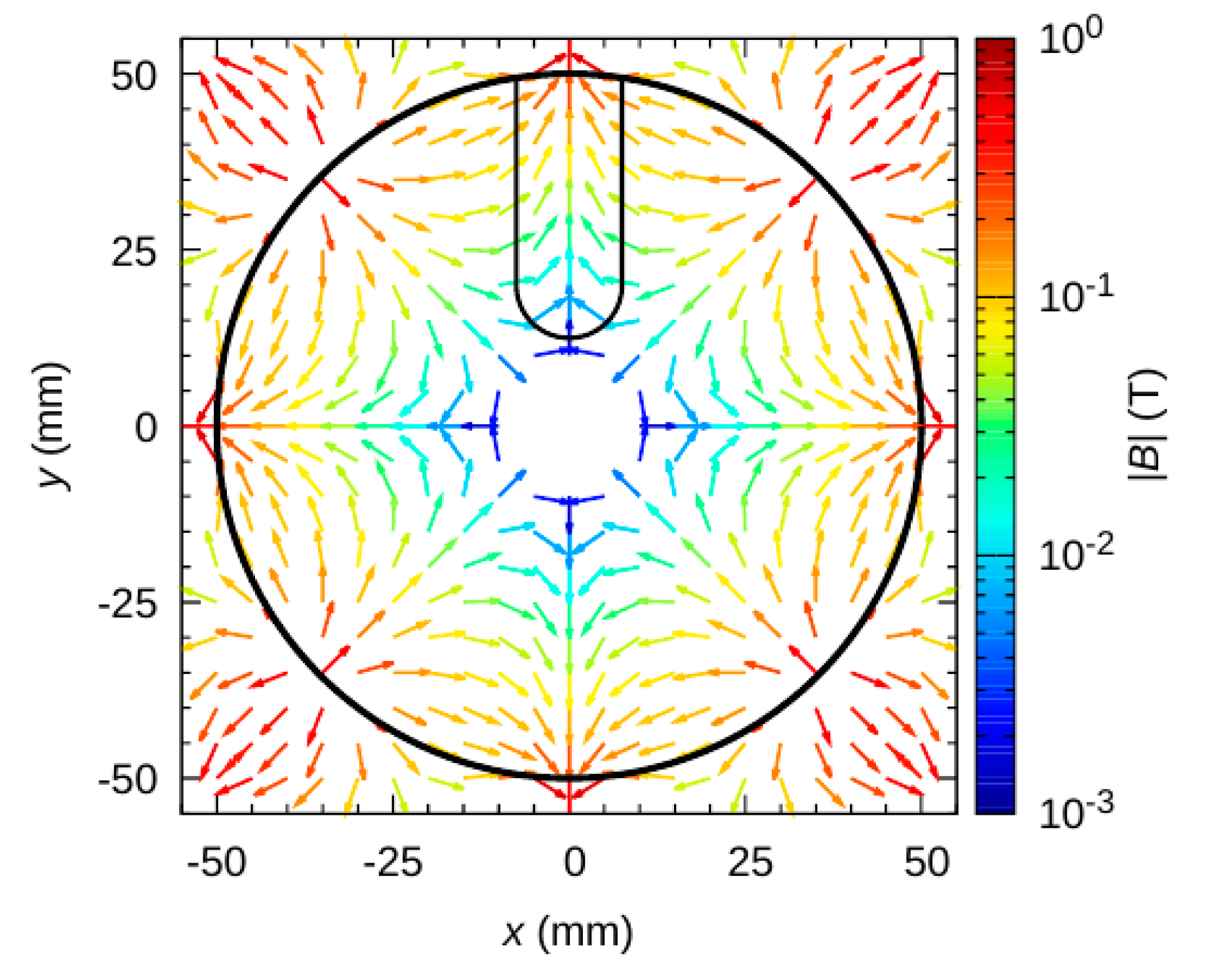

_{z}is almost zero except near the edge of the plasma source. A region with a weak magnetic field is distributed around the center; it is called the field-free region (FFR). The FFR is one of the significant parameters that characterizes a multi-cusp magnetic field because the plasma is mainly distributed inside of it. In this study, the FFR was defined as the diameter of the circular cross section where the magnetic field strength is less than 5 mT in the line–cusp magnetic configuration. The typical electron density distribution of the cross section is shown in Figure 4.

#### 3.1. Effect of the Radial Magnetic Flux Density B_{res} on Plasma Axial Distribution

_{res}is effective in improving plasma confinement. Analyses were performed in which the value of B

_{res}was varied from 0.25 T to 1 T. In this section, N

_{mag}and the position of the filament ${z}_{fil}$ were fixed at 10 and 1500 mm, respectively. The distributions of n

_{e}, T

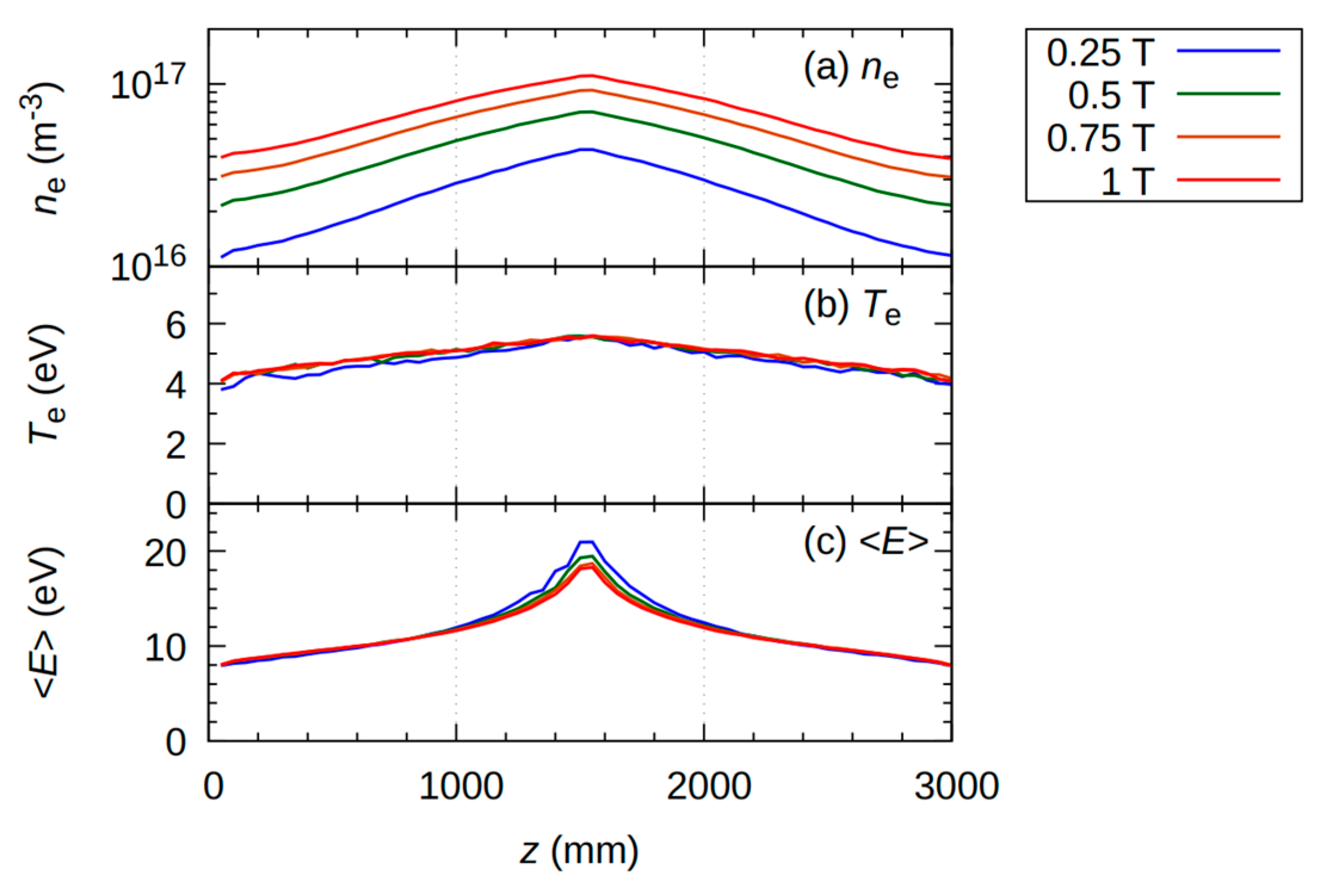

_{e}, and ⟨E⟩ on the centerline (x = y = 0 mm) in the axial direction are shown in Figure 5.

_{res}increased. On the other hand, electron temperature was independent of B

_{res}, with a maximum value of approximately 5.5 eV at the filament position, and decreased by approximately 1 eV at both ends of the plasma source. The average electron energy ⟨E⟩ tends to be similar to T

_{e}, with a weak dependence on B

_{res}. The electron density distribution is considered to depend on the FFR and losses at the boundary wall. Note that the electron losses due to volume recombination can be neglected in the calculations being discussed. The size of the FFR depends on B

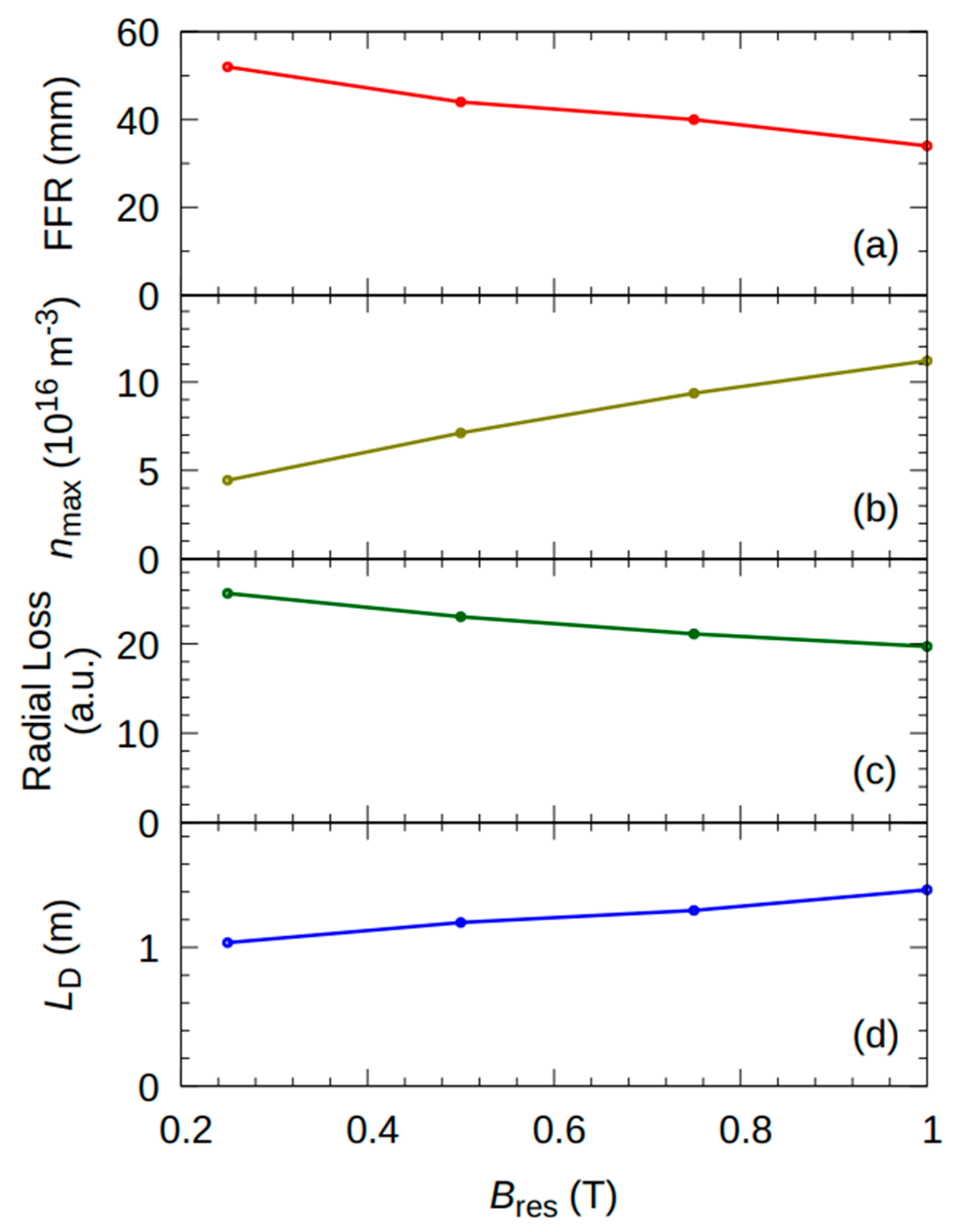

_{res}, as shown in Figure 6a.

_{max}) is summarized in Figure 6b. The radial losses plotted in Figure 6c were calculated based on the total number of electrons that reached the sidewall of the plasma source. The uniformity of electron density was of interest in this study. The distribution of n

_{e}appears to be linear on the logarithmic axis. Therefore, the distribution of n

_{e}was assumed to decrease exponentially when moving away from the filament. To quantitatively evaluate the plasma decay length (L

_{D}), the axial distribution of n

_{e}was fitted with an exponential function, as follows:

_{res}. This is considered to narrow the region over which the plasma is distributed and increase n

_{max}. In addition, the radial electron losses were reduced. This effect also contributes to an increase in n

_{e}, resulting in improved L

_{D}. Therefore, an increase in B

_{res}is important for obtaining uniform electron density in the axial direction. However, the effect of B

_{res}on preventing the axial decay of ⟨E⟩ is negligible, and other approaches are required.

#### 3.2. Effect of the Number of Magnets N_{mag} on Plasma Axial Distribution

_{mag}on the plasma axial distribution. An analysis was performed using a N

_{mag}of 6–12 and a B

_{res}of 0.75 T. The axial distributions of n

_{e}, T

_{e}, and ⟨E⟩ as functions of N

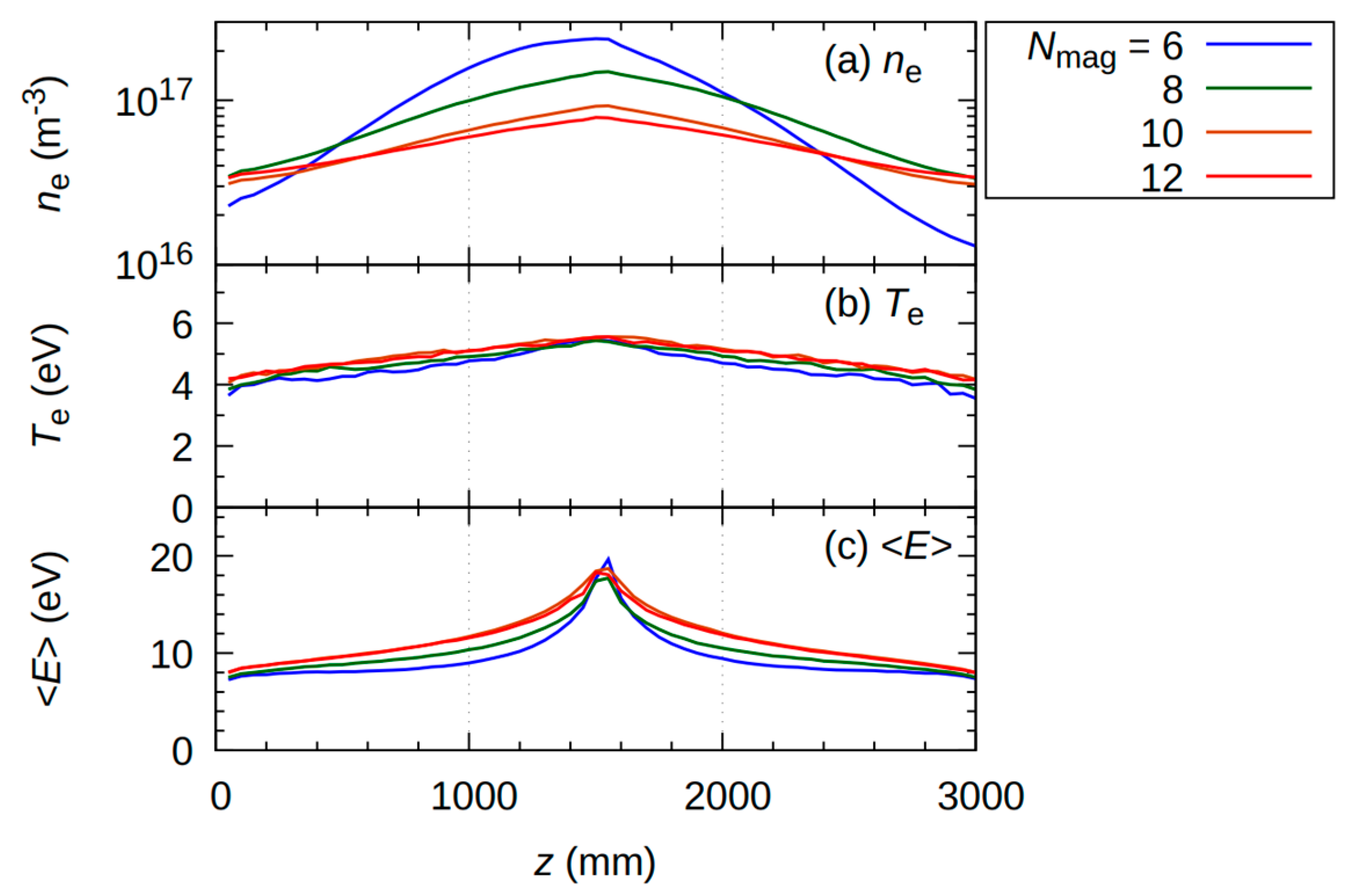

_{mag}are shown in Figure 7.

_{e}decreased when moving away from the filament, as shown in Figure 5. The maximum value of n

_{e}decreased with increasing N

_{mag}. The electron temperature T

_{e}followed the same tendency as that shown in Figure 5. On the other hand, the ⟨E⟩ distributions have roughly the same peak value near the filament, but the axial decay is mitigated by the increasing N

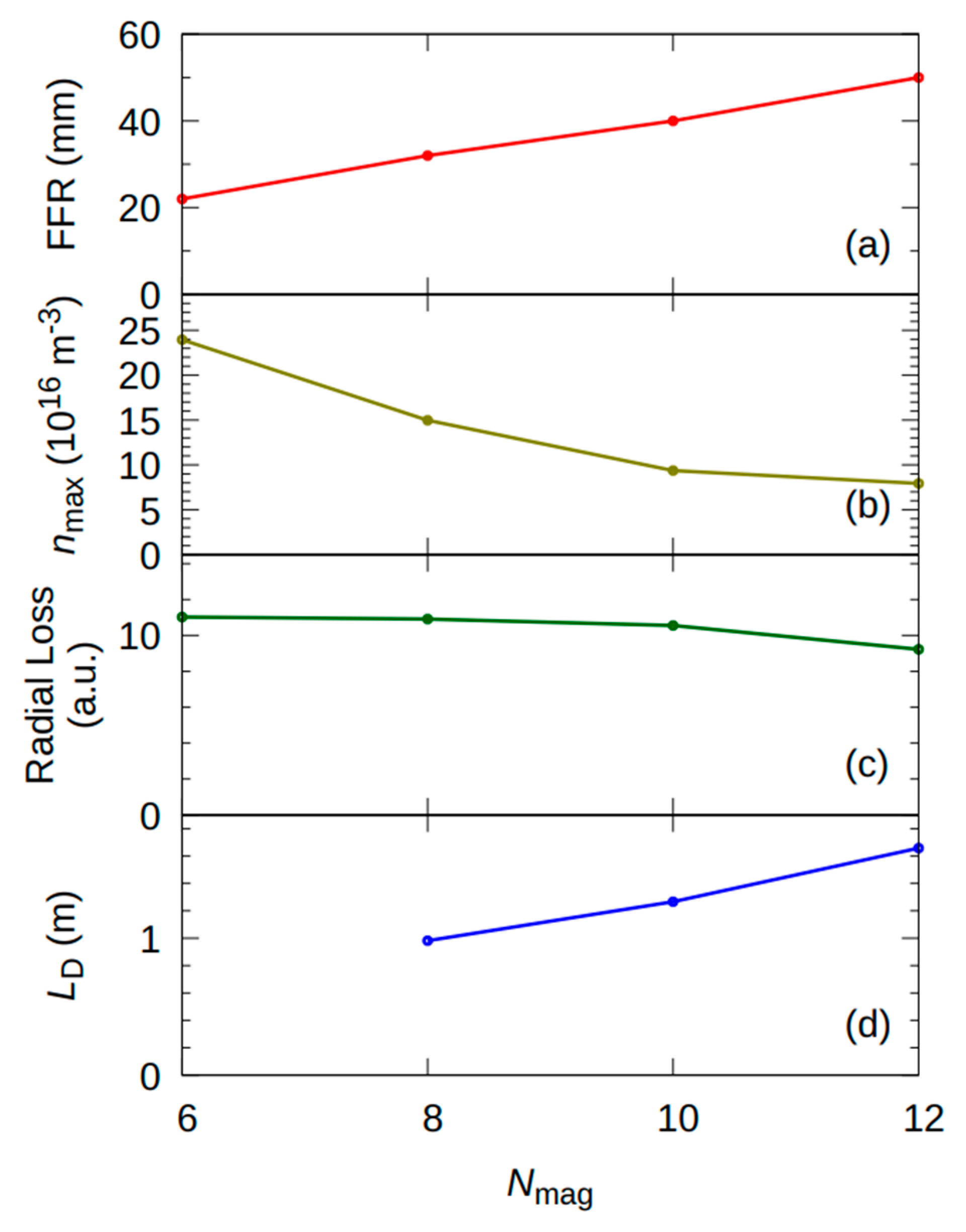

_{mag}. Similar to Figure 5, this tendency can also be interpreted using the FFR and radial transport losses. Figure 8 shows the dependence of the (a) FFR, (b) n

_{max}, (c) radial electron losses, and (d) L

_{D}on N

_{mag}. Here, the distributions of n

_{e}were again assumed to decrease exponentially when moving away from the filament, except in the case of N

_{mag}= 6.

_{mag}weakened the radial component of the multi-cusp magnetic field and expanded the FFR. This also expanded the area over which the plasma was distributed, resulting in a decrease in n

_{max}. In addition, as the size of the FFR increased, the radial gradient of the multi-cusp magnetic field increased, and thus the lifetime of the electrons extended, resulting in the mitigation of the decay of ⟨E⟩. The radial electron losses decreased slightly with increasing N

_{mag}. An increase in N

_{mag}decreased the distance between adjacent magnets and increased the maximum magnetic field strength near the chamber wall [5]. The slight decrease in radial loss was due to this effect. The L

_{D}increased with increasing N

_{mag}. Although it is difficult to reduce electron losses significantly by increasing N

_{mag}, this action extends the electron lifetime and improves axial uniformity. Therefore, N

_{mag}is another important factor for obtaining axially uniform plasma.

_{mag}= 6 in Figure 7, an asymmetric electron density distribution was obtained at around z

_{fil}(=1500 mm). In this case, the size of the FFR was approximately 20 mm, and the outer half of the filament was located outside the FFR, which has a strong radial magnetic field. Thus, some of the emitted electrons were immediately trapped in the multi-cusp magnetic field. This generated a magnetic field gradient (grad-B) drift, and electrons were transported in one direction. Figure 9a,b show the electron density distributions on the YZ cross section for N

_{mag}= 6 and 12, respectively.

_{mag}= 6, the electrons emitted from the filament were transported in one direction toward z = 3000 mm. At the location of the filament, the magnetic field and magnetic field gradient vectors were in the negative direction along the X-axis and along the Y-axis, respectively. Then, electrons were transported along the Z-axis via grad-B drift. Consequently, the electron density distribution was asymmetrical in the axial direction. This is a serious impediment to axially uniform plasma generation. In contrast, the FFR increased from 20 to 55 mm as N

_{mag}increased from 6 to 12. Thus, electrons were emitted inside the FFR, and the asymmetry was mitigated. Therefore, in axially long plasmas, it is necessary to place the filaments deeper or to adjust the FFR by B

_{res}and N

_{mag}to emit electrons inside the FFR.

#### 3.3. Effect of Increasing the Number of Filaments on the Axial Plasma Distribution

_{fil}). In the previous subsections, only one filament was inserted at z = 1500 mm. However, it is difficult to generate a uniform plasma with a single filament in a 3 m plasma source. Therefore, multiple filaments were used. The axial distribution of the plasma was analyzed by placing up to six filaments at equal intervals. The axial distributions of n

_{e}, T

_{e}, and ⟨E⟩ as functions of N

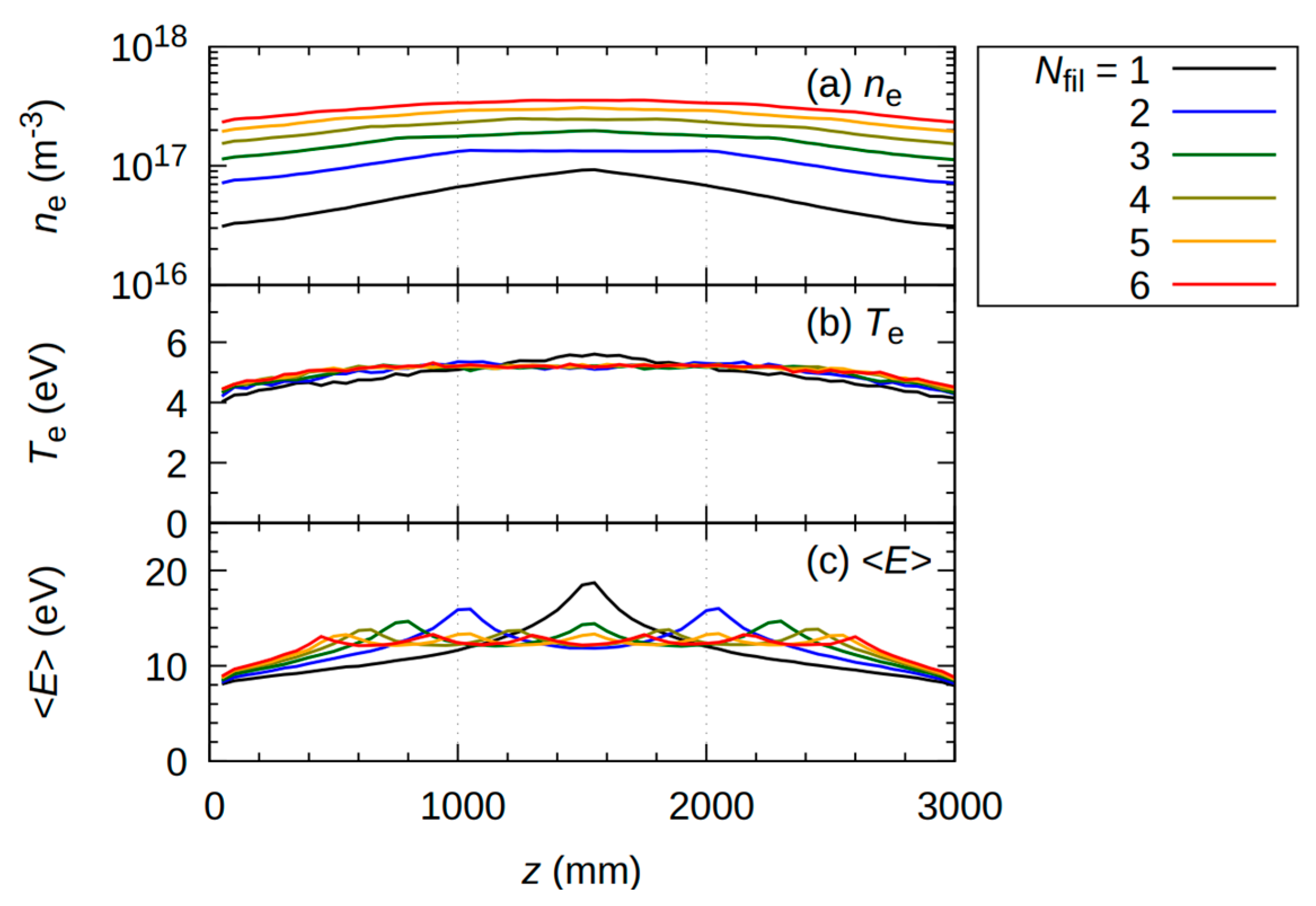

_{fil}are shown in Figure 10.

_{fil}from 1 to 2, 3, 4, 5, and 6 (the corresponding filament intervals were 100, 75, 60, 50, and 43 cm), respectively. Furthermore, the axial non-uniformity was improved for ⟨E⟩ distribution. The decay length L

_{D}, defined in Equation (6), is the distance over which n

_{max}decreases by a factor of 1/e $\approx $ 37%. Indeed, by placing the filaments at intervals approximately equal to L

_{D}(=98 cm in this case), the uniformity of the electron density distribution was only within 37%. By placing filaments at appropriate intervals, the hot primary electrons that ionize the neutral particles are freely distributed throughout the plasma source, resulting in uniform plasma. If an even more stringent requirement is imposed on the uniformity of the axial electron density distribution, the filaments should be placed at intervals even shorter than those of the L

_{D}.

## 4. Conclusions

_{res}and N

_{mag}as design parameters. The results showed that both B

_{res}and N

_{mag}improve the uniformity of the electron density distribution in the axial direction. B

_{res}was important for reducing radial electron losses. As a result, n

_{e}increased at each axial point, and non-uniformity was mitigated. N

_{mag}also plays a key role in mitigating the axial non-uniformities of n

_{e}and ⟨E⟩ distributions. However, increasing N

_{mag}caused the plasma to be distributed over a wider area, and the maximum value of n

_{max}decreased. Both B

_{res}and N

_{mag}increase the decay length and mitigate axial non-uniformity, but with a tradeoff consisting of higher electron density.

_{res}and N

_{mag}, or the filament should be inserted deeper. Furthermore, the decay length L

_{D}was also shown to be an important parameter in the generation of a long and uniform plasma in the axial direction. In order to achieve a uniform axial distribution of n

_{e}, T

_{e}, and ⟨E⟩, the filaments needed to be placed at intervals shorter than L

_{D}. For a hydrogen molecular pressure of 0.2 Pa, L

_{D}was shorter than the mean free path of the electrons. L

_{D}depends not only on the molecular hydrogen pressure but also on the multi-cusp field conditions, B

_{res}, and N
