Plane Parallel Barrier Discharges for Carbon Dioxide Splitting: Influence of Discharge Arrangement on Carbon Monoxide Formation

Abstract

A planar volume dielectric barrier discharge (DBD) in pure carbon dioxide (CO₂) for the formation of carbon monoxide (CO) is examined by combined electrical and CO density measurements. The influence of the type of electrode, the barrier material, the barrier thickness, and the discharge gap on the plasma power and the CO formation is analyzed systematically. The electrical characterization by means of charge-voltage plots is based on the simplest equivalent circuit model of DBDs, extended by the so-called partial surface discharge effect and the presence of parallel parasitic capacitances. The stackable discharge arrangement in this study enables one to elucidate the influence of parasitic capacitances, which can be overlooked in the application of such plasma sources. The determination of the discharge voltage from charge-voltage plots and the validity of the so-called Manley power equation are revised by taking into account non-uniform coverage as well as parasitic capacitances. The energy yield ($EY$) of CO is analyzed and compared with the literature. No correlations of $EY$ with the mean reduced electric field strength or the geometric parameters of the DBD arrangement are observed.

1. Introduction

Dielectric barrier discharges (DBDs) are well-established as self-sustaining, non-thermal atmospheric pressure plasma sources in industry, e.g., for ozone generation and surface activation, in light sources, and air cleaning devices, as well as for the pumping of gas lasers [1,2]. More recently, DBDs have found application in life-science and have also been used for film deposition [3,4]. Other active fields of research are aerodynamic flow control and analytic detection devices [5,6]. A major field of research is currently the conversion of carbon dioxide (CO₂) as a greenhouse gas, which is to be seen in connection with the storage of intermittent renewable energy as a so-called power-to-X (PtX) approach. The first attempts to use DBDs as plasma reactors for the conversion of CO₂ date back to the 1990’s [7,8,9,10]; since about 2010, there has been renewed interest due to the energy transition, i.e., the demand of PtX technologies for the generation of fuels or chemicals [11,12]. For example, methanol or carbon monoxide (CO) is of interest as a readily storable synthetic fuel, platform chemical, or chemical feedstock for hydrocarbon and fuel synthesis, respectively.

DBDs were studied for CO₂ splitting, hydrogenation, and the dry reforming of methane and methanization. Many studies include catalysts (i.e., the investigation of packed-bed DBDs) to exploit plasma-catalyst interaction for increasing the energy efficiency and/or selectivity. The latter two are insufficient in DBDs to enable industrial application. Microwave-generated plasmas (at sub-atmospheric pressure), gliding arcs, and radio-frequency-generated plasmas display much better energy efficiency and higher conversion degrees in CO₂ splitting than DBDs. The advantage of DBDs is its simple and robust design. Additionally, DBDs do not require special high-voltage supplies and are not prone to significant EMC problems. Therefore, they could be attractive for decentralized power-to-X approaches. Furthermore, the DBD design allows for direct interaction with a catalyst to explore and exploit synergies [11].

CO₂ splitting efficacy in DBDs was found to be determined by the electrode design and geometry, as well as by the operation parameters. Most studies were performed in coaxial DBD reactors with and without a packed bed. Paulussen et al. [13] identified the gas-flow rate as the most important parameter to optimize the CO₂ conversion in an empty coaxial DBD reactor. A maximum conversion of 30% was reported. Aerts et al. presented systematic experimental studies and simulations, showing that the material of the dielectric barrier had no influence on conversion and energy efficiency (EE), while smaller discharge gaps led to an increase in conversion [14,15]. Mei et al. reported similar dependence on the discharge gap and a decrease in conversion and EE for thicker dielectric barriers [16]. The latter proposed a response surface methodology to investigate the effects of the process parameters (discharge power, gas-flow rate, and active discharge zone length) and their interactions on the reaction performance [17]. The discharge power was identified as the most important factor affecting the conversion, while EE was mostly determined by the gas-flow rate. The discharge zone length had a significant effect on EE, depending on discharge power or gas-flow rate. A similar result was reported by Niu et al. with a multi-electrode cylindrical DBD reactor [18]. Ozkan et al. reported that the barrier material as well as the high-voltage frequency have an influence on the conversion and on EE [19] (contrary to [14,20]) and that thicker barriers increase conversion and EE (contrary to [16]). Belov et al. pointed on the effect of asymmetry in such reactors [21]. When both cylindrical electrodes were covered by dielectric, a lower conversion was achieved than in the case of the asymmetric design with only one electrode covered by dielectric. The authors related these findings to the different operating regimes and current waveforms for the reactors and reported on the deposition of carbon-containing layers on the barriers [21,22], which affected the current waveforms and, thus, the chemical performance. Uytdenhouwen et al. also showed the increase in conversion and the decrease in EE with the discharge gap [23] and studied the existence of so-called partial chemical equilibria [24]. The position of these equilibria depended on reactor parameters and operating conditions (i.e., power, pressure, and gap). Adding a packed-bed in the discharge space usually increased the reactor performance. Most of the authors discuss the importance of the reduced electric field strength $E/N$ in the discharge gap on the chemistry.

Coaxial or cylindrical DBDs allow for a compact design without dead volumes or the slip of the reaction gas, as well as the easy inclusion of packed-beds with catalytic properties. A disadvantage is that an outer dielectric tube serves not only as the barrier of the DBD but also as the reactor housing. To ensure a mechanically robust construction, this dielectric tube therefore often has a wall thickness of more than 1 mm. However, a thinner dielectric barrier would cause a larger number of charges to be transferred to the discharge gap at the same high-voltage amplitude, thus generating more power.

Plane parallel DBDs can also be easily constructed from plate electrodes and dielectrics. Upscaling is relatively simple due to the stacking of plate electrodes and dielectrics [25,26]. Such constructions allow for more flexible choice of discharge gap and barrier thickness. For these reasons, similar DBDs are already successfully used for air-cleaning applications (e.g., deodorization) in industry [27,28]. A symmetric plane parallel volume DBD for CO₂ splitting was studied by Brehmer et al. [29] and simulated by Ponduri et al. [30]. In [29], the specific input energy ($SIE$), i.e., the discharge power divided by the gas flow, was identified as a universal scaling parameter, contrary to the results in coaxial reactors, e.g., [14,24]. The latter works pointed toward a more distinct effect of the gas residence time in the reactor, in particular for $SIE$ higher than 100 kJ/L_n. Brehmer et al. showed no effect on CO yield and EE by the variation of the discharge gap, pressure, thickness, and material of the barrier or by the frequency and duty cycle of the applied high voltage. The effect of the gap voltage and thus $E/N$ was also negligible in this study. The time and space (1D)-dependent model in [30] confirmed these experimental results, in particular, the linear dependence of the CO₂ conversion frequency on the power per CO₂ molecule. More recently, Uytdenhouwen et al. presented planar asymmetric DBD reactors with modifiable gas in and outlet designs for the dry reforming of methane [31]. The shape and size of the reaction zone and the direction of the gas flow also influenced the plasma chemistry in experiments in pure CO₂. The power delivery to the reactor also largely affected the plasma chemical performance and product composition.

The mentioned non-comparability with empty coaxial DBDs and the scaling capabilities of planar DBDs motivated our work. The purpose of this paper is to present a comprehensive electrical characterization and its correlation with the plasma chemistry in a well up-scalable DBD configuration. We will show how parasitic capacitances and non-uniform plasma formation in reactors can complicate interpretation and lead to errorneous conclusions. Current research often overlooks these aspects or lacks the right approach to the problem. For this purpose, we apply the approach of the simplest equivalent circuit [32,33] and discuss the influence of geometric reactor properties such as the discharge gap, the type of electrodes, or the barrier material and thickness. We will introduce the correct determination of the so-called discharge voltage as an important mean parameter from charge-voltage (Q-V) plots under such circumstances. We will discuss the validity of the so-called Manley power equation [34] and how the discharge power is determined by the geometric reactor properties. Finally, the electrical analysis will be correlated with the splitting of CO₂ to CO in a CO₂ plasma. A comparison with results form literature will be made and the role of the different process and geometric parameters in DBDs will be discussed.

2. Experimental Set-Up and Procedures

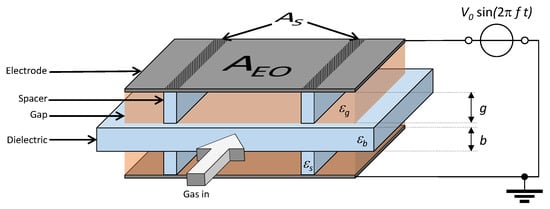

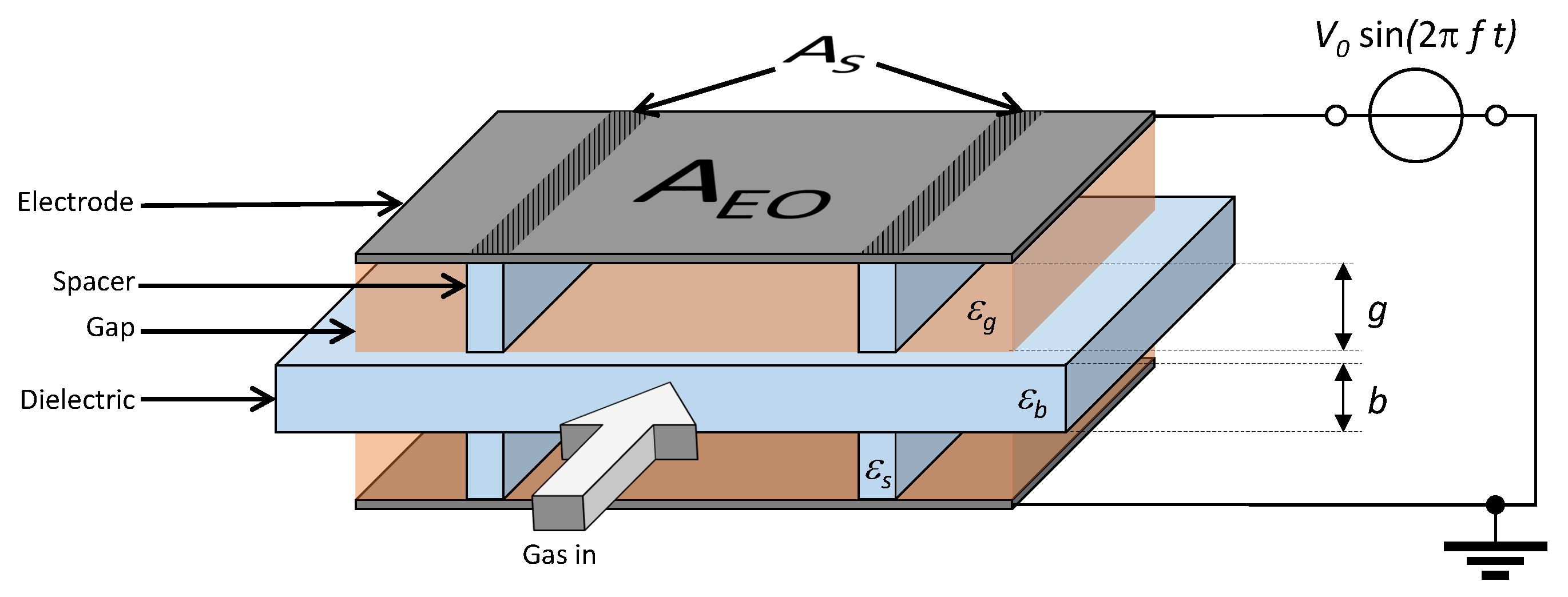

The DBD configuration used in this study is a volume DBD in plane parallel arrangement as given in Figure 1. It consists of two metal electrodes (EO, area $A_{EO}$) with an insulating plate (with relative permittivity ${\epsilon }_b$) in between [25]. The discharge gap g at both sides of the “floating” insulating plate is adjusted by n = 2 or 3 spacers on each side made of dielectric (with relative permittivity ${\epsilon }_s$ and area $A_s$). We vary the type of the metal electrode (grid or plate), the insulating plate and spacers material (ceramic or mica), and its thicknesses b and g.

Table 1. Parameters of DBD arrangement and operation.

Part	Material/Type	Parameters	Dimensions
Electrode	Stainless steel plate (Pla)	-	$A_{Pla}$ = 14 cm × 9 cm
(EO)	Stainless steel grid (Gri)	wire: 0.5 mm; mesh: 0.8 mm	$A_{Gri}$ = 14 cm × 9 cm × 0.75
Dielectric	Mica (Phlogopite)	${\epsilon }_b$ = 3.5	b = 0.6, 1.0 mm
Plate (DE)	Ceramic (Al2O3; 96%)	${\epsilon }_b$ = 9	b = 1.0 mm
Spacer	Mica (Phlogopite)	${\epsilon }_s$ = 3.5	$A_s$ = n × 14 cm × 0.3 cm
(number n)			g = 0.6, 1.0, 1.5 mm
	Ceramic (Al2O3; 96%)	${\epsilon }_s$ = 9	$A_s$ = n × 14 cm × 0.3 cm
			g = 1.0 mm
Gases (Purity)	CO2 (N4.5)	${\epsilon }_g$ = 1.0009	$\Phi$ = 60 Ln/h
	synth. Air (N5.0)	${\epsilon }_g$ = 1.0006	$\Phi$ = 60 Ln/h
Voltage	sinusoidal	$V_0$ = 13–22 kV${}_{pp}$
	$V\left(t\right)=V_0$sin($2\pi ft$)	f = 400 Hz

summarizes all of the materials, dimensions, and material properties tha are relevant or varied. Such DBD arrangements can be easily upscaled to larger gas flows, namely, by stacking several electrodes and insulating plates and, thus, discharge gaps on each other [25,26,35]. However, for our study we use the most basic arrangement consisting of only two electrodes and one dielectric plate and, thus, 2 discharge gaps, similar to those in [35,36].

The electrode arrangement is mounted in a housing made of Teflon with a cover plate made of Polycarbonate to enable visible inspection. The housing contains one centered gas in- and outlet with a diameter of 4 mm. Pure carbon dioxide with a total flow rate of 1 slm (or 1 L_n/min) is applied by a mass flow controller (EL-FLOW SELECT, Bronkhorst). For comparison, the discharge is also operated in synthetic air.

The discharge is operated with sinusoidal high voltage. The power source consists of a wave function generator (Chroma, Model 61603) and a high voltage custom-built transformer (Bremer Transformatoren GmbH). It provides a high-voltage sinusoidal waveform with a frequency f of up to 1 kHz. The high voltage and the ground connection of the electrodes are realized by a metallic screw drawn through the Teflon chamber, i.e., there is no additional high-voltage throughput. The high voltage is measured using a 1000:1 high-voltage probe (Tektronix P6015A). A polypropylene film capacitor (WIMA FKP1; 220 nF) is utilized to measure the charge transferred in the DBD. The exact values of this measurement capacitance as well as of the DBD arrangements are determined with a LCR-meter (GW Instek, Model LCR- 817). The voltage drop across the capacitor is measured via a voltage probe (Rigol, RP 2200). Both signals $V\left(t\right)$ and $Q\left(t\right)$ are recorded with an oscilloscope (Rohde & Schwarz, HMO3004 with 4 GSa/s and 500 MHz bandwidth). In general, averaged charge and voltage slopes over 32 voltage periods are recorded. The high-voltage amplitude $V_0$ and the frequency f are changed to vary the plasma power P.

To study the plasma-chemical performance, the gas at the outlet was analyzed with a Micro Gas Chromatograph (MicroGC) (3000 MicroGC, Inficon). The MicroGC has 3 modules: one with a Molsieve column for the detection of permanent gases, one with a PlotQ column for the detection of CO₂ and hydrocarbons from C1 to C3, and one with an OV-1 column for the detection of hydrocarbons from C3 to C6 and aromatics. Each module is equipped with a thermoconductivity detector and uses helium as the carrier and reference gas to enhance the sensitivity of the detectors. Prior to all experiments, the MicroGC was calibrated using standard gas cylinders (Alphagaz 1, AirLiquide).

In this contribution, the carbon monoxide formation is evaluated by means of two parameters, the specific input energy ($SIE$) and the energy yield ($EY$) of CO formation. These quantities are determined as follows.

$$SIE=\frac{P}{\Phi }$$

(1)

$$EY=\frac{\left[CO\right]}{SIE}\frac{M_{CO}}{V_m}\times \frac{1}{(1-0.5[CO\left]\right)}$$

(2)

$\Phi$ is the gas flow, given in standard liters (L_n, i.e., at 273.15 K and 1013.25 mbar) per time unit; $\left[CO\right]$ is the carbon monoxide molar fraction; $M_{CO}$ is the molar mass of CO; and $V_m$ is the molar volume. In most studies on CO₂ splitting, the energy efficiency (EE), which relates the amount of converted CO₂ with the reaction enthalpy and the dissipated energy, is discussed. However, the use the $EY$ in [g/kWh] is favorable since it gives the amount of the ”target” molecule CO per energy coupled into the plasma. The second term in Equation (2) takes into account the increase in the molecular amounts due to the gross reaction CO₂ → CO + $1/2$ O₂.

EE and $EY$ can be converted into one another but only if no other carbon-containing reaction products including surface depositing species than CO are present. This is not general as some authors report about carbon deposition in the reactors or unbalanced carbon in the analyzed gas, e.g., [21]. The reciprocal of $EY$ can be used to calculate the energy cost ($EC$) as the amount of energy per mol CO ($EC=1/EY\times M_{CO}$).

3. Electrical Characterization

3.1. Q-V Plots and Equivalent Circuit

The analysis of the electrical parameters by means of Q-V plots, in particular the determination of the plasma power P, is a well-established approach for DBDs [34,37]. The interpretation of Q-V plots is based on an electrical theory that was developed for large-scale sinusoidal-driven industrial ozonizers [34] but is also applicable to DBDs in other gases and with smaller dimensions. Since it is not considering the processes at the insulator surfaces or the non-uniform breakdown, it has some limitation for miniature laboratory DBDs, which were overcome with the equivalent circuit approach [38]. The interpretation is macroscopic and one has to be careful with conclusions about the parameters within the microdischarges forming the filamentary plasma.

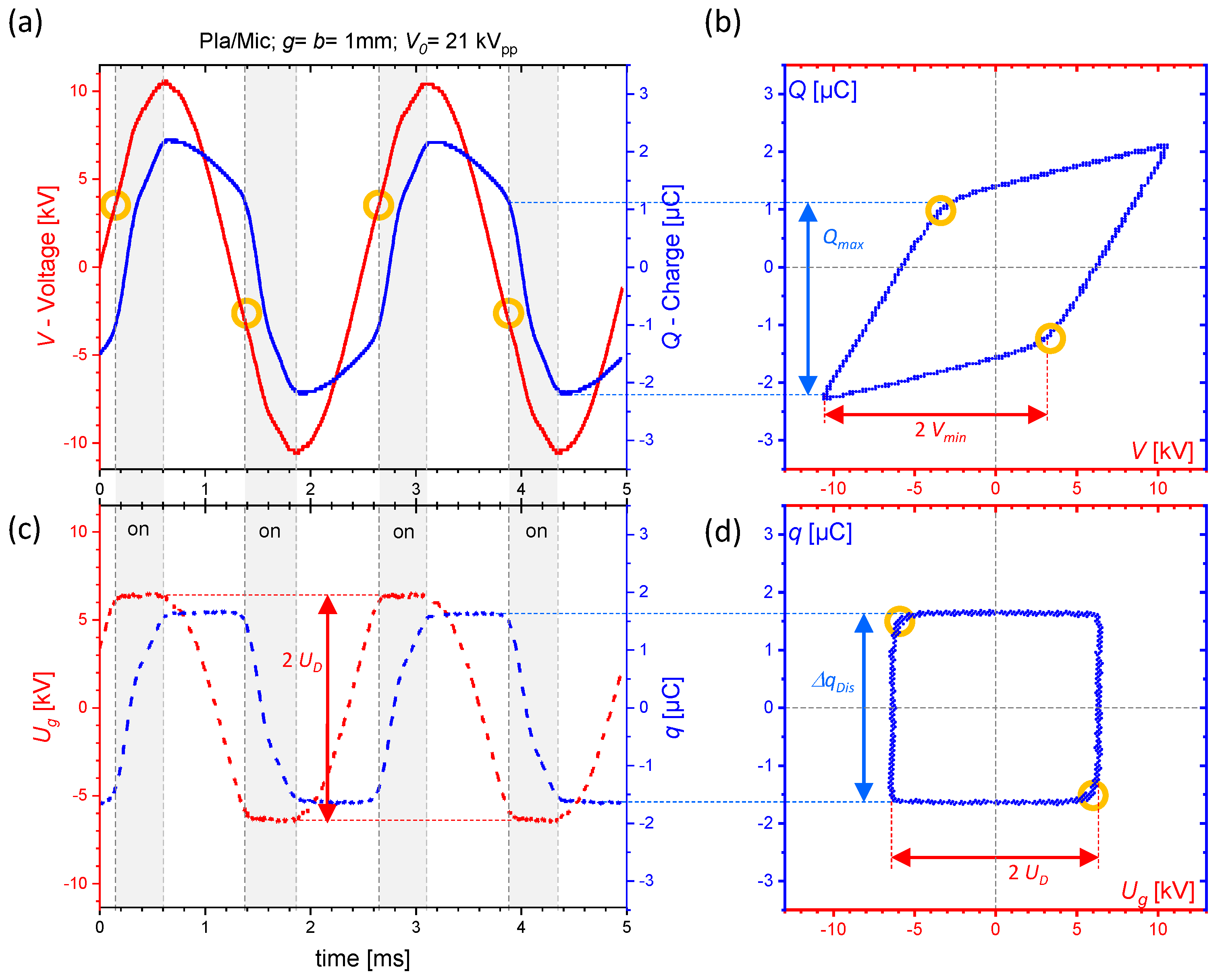

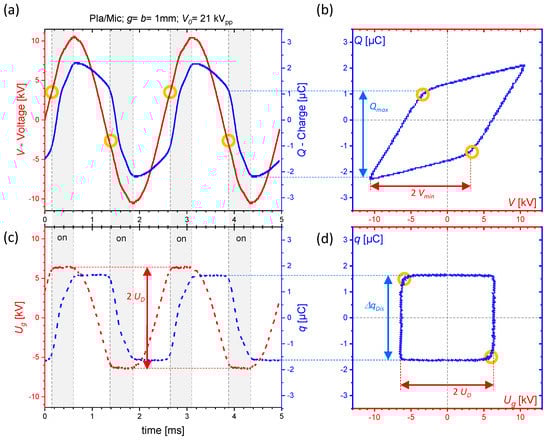

A typical Q-V plot measured at our DBD is shown in Figure 2b. The voltage $V\left(t\right)$ and charge $Q\left(t\right)$ are measured over two full voltage periods, averaged over 32 samples in this example (see Figure 2a). Without plasma, the signals $V\left(t\right)$ and $Q\left(t\right)$ are in phase, thus, the Q-V plot is measured as a line with a slope that represents the total capacitance of the discharge device. At a certain threshold of $V_0$, the discharge ignites and a parallelogram-like Q-V plot is obtained. Its lower slope is the same as for the line in the non-ignited case, while the higher slope basically represents the barrier capacitance of the system. The time resolved signals in Figure 2a show that the discharge ignites when a certain value of $V\left(t\right)$ is reached within the half-period T/2 (see the orange circles). The discharge activity stops when the peak of the applied voltage $V_0$ is reached. This also manifests in the reversal points of the Q-V plot. In this active phase, the charge transfer into the plasma is measured with the value $Q_{max}$.

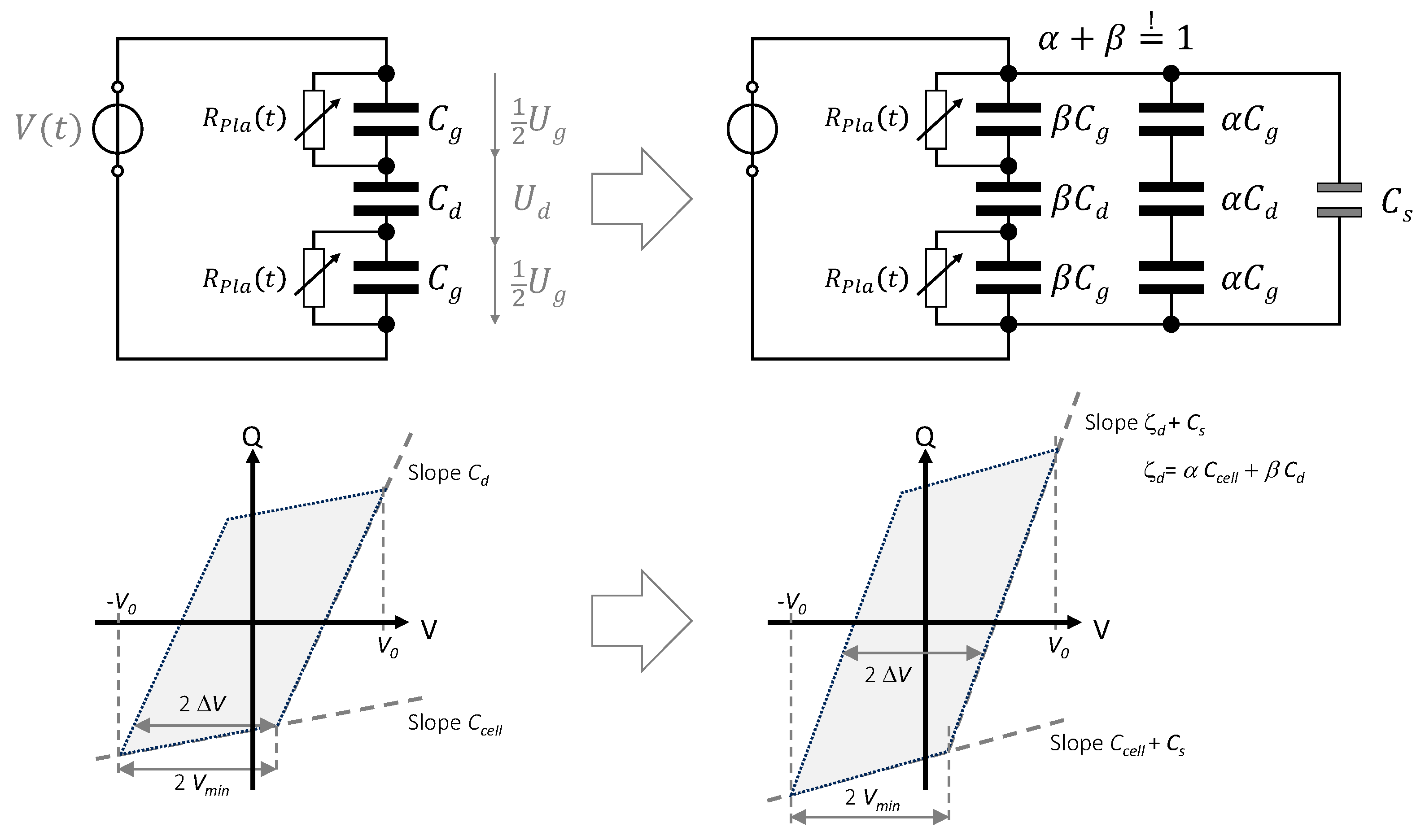

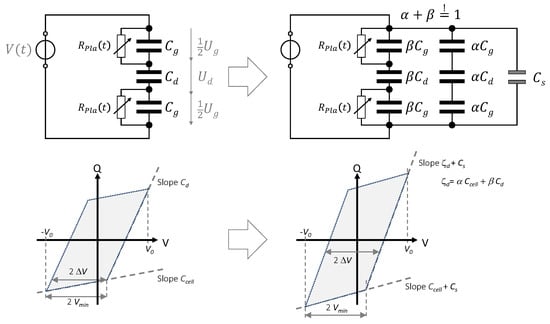

The simplest lumped-element equivalent electric circuit of our DBD is shown in Figure 3, left. It is based on the circuit discussed in [33] but contains two discharge gaps. In the non-ignited case, the equivalent circuit is purely capacitive and consists of three capacitances: one resembles the barrier ($C_d$) and two represent the gas gaps ($C_g$). The linearly arranged capacitances form the discharge cell capacitance $C_{cell}$. These capacitances are calculated as follows.

$$C_d={\epsilon }_0{\epsilon }_b\frac{(A_{EO}-A_s)}{b}$$

(3)

$$C_g={\epsilon }_0{\epsilon }_g\frac{(A_{EO}-A_s)}{g}$$

(4)

$$C_{cell}=\frac{C_g{C}_d}{C_g+2C_d}$$

(5)

The area $A_{EO}$ is either $A_{Pla}$ or $A_{Gri}$ and, indeed, the area of the spacers $A_s$ must be excluded from the calculation of $C_d$ (3) and $C_g$ (4). The sum of the voltages across the gas gaps $U_g$ and the barrier $U_d$ equals to the applied voltage V. The voltage drops 1/2 $U_g$ are too low to cause an ignition as long as $V_0<V_{min}$. The threshold $V_{min}$ is determined by g, the pressure, and the gas composition but also depends on the properties of the dielectric barrier (b, ${\epsilon }_b$). For $V_0>V_{min}$, the gap capacitances are by-passed by time-dependent resistors $R_{Pla}\left(t\right)$ representing the discharge; the Q-V plot appears as a parallelogram as shown in Figure 2b and sketched below the equivalent circuit in Figure 3 (left). Its area is a measure of the supplied energy per period W, and its multiplication with the operation frequency f gives the power P. $V_{min}$ can be measured directly from the Q-V plot as the distance between the apex and the ignition point of the parallelogram (orange circles), while its slopes are $C_{cell}$ (plasma-off phases) and $C_d$ (plasma-on phases), respectively. The voltage over the gas gaps $U_g$ at the inset of the plasma, the so-called discharge voltage $U_D$, can be calculated from the value $V_{min}$ or directly measured from the Q-V plot as the voltage difference $U_D$ = $\Delta V$ in case of this simplified equivalent circuit.

It was pointed out by Peeters et al. [32] that the interpretation of Q-V plots in case of non-uniform ignition deserves special attention. In a real DBD reactor with $V_0\gg V_{min}$, there will be numerous microdischarges that cover the entire electrode area cross section. However, electrode edge effects and non-perfectly aligned discharge gaps with $\Delta g$ will affect the behavior, in particular at low over-voltage [33,36,39]. This effect is called partial surface discharging and considered in the equivalent circuit in Figure 3 (right) by assuming a non-discharging areal fraction $\alpha$ and a discharging areal fraction $\beta$ (with $\alpha +\beta \stackrel{!}{=}$ 1). Only the discharging fraction implements the resistors $R_{Pla}\left(t\right)$. Consequently, the effective (or apparent) dielectric capacitance depends on $V_0$ and is smaller than $C_d$; ${\zeta }_d\left(V_0\right)\le C_d$. The effect of partial surface discharging is analogous to the implementation of a parallel parasitic capacitance in the circuit. In our DBD configuration, the spacers setting the gas gap introduce an additional parallel parasitic capacitance $C_s$, which is independent on $V_0$ and permanent. It is calculated as follows:

$$C_s={\epsilon }_0\frac{{\epsilon }_b{\epsilon }_s}{b{\epsilon }_s+2g{\epsilon }_b}{A}_s$$

(6)

It must be mentioned, that such parallel capacitance is basically unavoidable in DBD set-ups as it is also caused by high-voltage throughputs, connections, and (shielded) cables in the entire circuit [40]. Furthermore, the addition of dielectric or ferroelectric packed beds in the discharge volume introduces such additional capacitances [17,23,24,41]. The equivalent circuit of surface and coplanar DBDs also contain a parallel capacitance [42,43]. The effect of parasitic (or stray) capacitances was already discussed by Falkenstein and Cogan in [44].

Applying Kirchhoff’s laws to this equivalent circuit, leads to the following expressions for the gap voltage $U_g\left(t\right)$ and the transferred charge $q\left(t\right)$.

$$U_g\left(t\right)=\left[1+\frac{\alpha C_{cell}+C_s}{\beta C_d}\right]V\left(t\right)-\frac{1}{\beta C_d}Q\left(t\right)$$

(7)

$$q\left(t\right)=\left(\frac{C_d}{C_d-C_{cell}}\right)\left[Q\left(t\right)-(C_{cell}+C_s)V\left(t\right)\right]$$

(8)

The Figure 2c shows $U_g\left(t\right)$ and $q\left(t\right)$ calculated by Equations (7) and (8) from the measured electrical signals for one configuration. The net charge across the gap during discharging $q\left(t\right)$ and the plasma current were found to be independent from $\alpha$ or $\beta$ [32], but $C_s$ has to be considered. It is also included in both slopes of the Q-V parallelogram, as shown in Figure 3, right bottom. The gap voltage $U_g\left(t\right)$ is affected by both the discharge fraction and the parasitic capacitance [44]. In this macroscopic, averaged approach, the gap voltage remains constant during the plasma-on phases (at the value $U_D$), while the transferred charge is nearly constant in the plasma-off phases when there is no discharge activity. In the discharge, the amount $\Delta q_{dis}$ is transferred into the plasma. Consequently, the q-$U_g$ plot in Figure 2d is quadratic and its area equals to $W\approx \Delta q_{dis}\times 2U_D$. Not including $C_s$ and the partial surface discharging would result in incorrect values of $U_D$ and $\Delta q_{dis}$ [32,44]. $U_D$ is determined as follows:

$$U_D=V_{min}\left[1-\frac{C_{cell}}{C_d}\right]=\Delta V\left[1+\frac{\alpha C_{cell}+C_s}{\beta C_d}\right].$$

(9)

The recent application of a similar equivalent circuit for a coplanar DBD came to the same relation [42]. The determination of $U_D$ from $V_{min}$ is still as described in the literature, e.g., [37] (due to the parallel arrangement of the capacitances), but the parasitic capacitance should be considered for the determination of $C_{cell}$ and $C_d$ from the slopes in the Q-V plot. Even more important is that $U_D$ cannot be equated with $\Delta V$. The Equation (9) changes to the expression given in [32] for $C_s$ = 0. For full discharging ($\alpha$ = 0) only the quotient $C_s/C_d$ remains in the last bracket. Only for full discharging and $C_s$ = 0 $U_D$ equals $\Delta V$ as in the classical theory of Manley. This is in agreement with the equation given in [44]. For $C_s\ll C_d$, the parasitic capacitance will have no significant influence. However, this should be checked in advance of the determination of $U_D$ and before drawing further conclusions from the electrical measurements. The amount of transferred charge per T/2 is determined as follows, and inserting the Equations (9) and (10) in the relation $W\approx \Delta q_{dis}\times 2U_D$ results in expression (11).

$$\Delta q_{dis}=Q_{max}\left[\frac{\beta C_d}{\alpha C_{cell}+\beta C_d+C_s}\right].$$

(10)

$$W\approx 2U_D\Delta q_{dis}=2\Delta V{Q}_{max}.$$

(11)

Neglecting parallel capacitances and partial surface discharging would lead to an underestimation of $U_D$ and an overestimation of $\Delta q_{dis}$. Nevertheless, the determination of the power from the as-measured values $\Delta V$ and $Q_{max}$ would result in the same value than from the apparent discharge parameters $U_D$ and $\Delta q_{dis}$. The uncertainty of both calculation path is in the determination of $Q_{max}$ or $U_D$. If the discharge inception is not uniform, the corners of the Q-V plots (orange circles) are not pointed and W is underestimated. This is even more pronounced in surface, coplanar, and packed bed DBDs where the plasma expands over the dielectric [38,43,45]. The most precise determination is by the mathematical integration of the Q-V plot which is also used in our analysis. The results are presented in the following sub-section.

3.2. Capacitances and Discharge Power

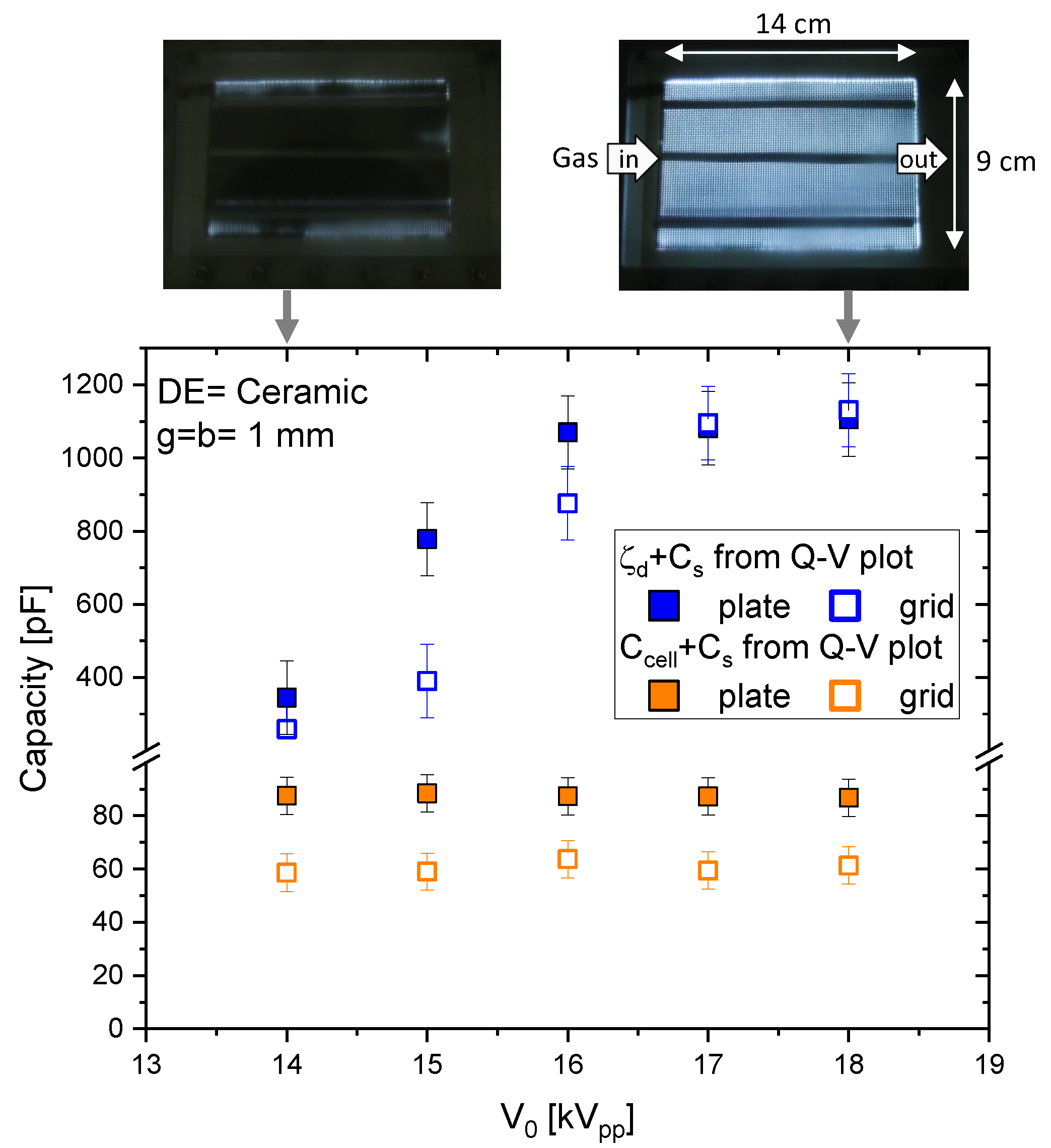

Figure 4 presents the slopes of the Q-V plots measured at different applied voltage amplitudes $V_0$ for the DBD reactor with g = b = 1 mm and ceramic dielectric plate. The results obtained with grid as well as plate electrodes are shown. The lower slope (representing $C_{cell}+C_s$, orange symbols) is lower in case of the grid electrode but always constant with $V_0$. The difference can be explained by a smaller effective electrode area $A_{EO}$ in the case of the grid with $A_{Gri}\approx 0.75A_{Pla}$. The larger slope (representing ${\zeta }_d+C_s$) increases with $V_0$ and then saturates, as in [32,36,39]. This effect is attributed to the partial surface discharging. Increasing $V_0$ leads to a larger areal fraction of the plasma and for $V_0\ge$ 17 kV${}_{pp}$$\beta$ equals 1. This is also seen in the top view photos (configuration Gri/Cer) on top of the diagram. It is interesting to note that the saturated values for grid and plate electrode are equal; only the increasing sections of the slopes are different. The same qualitative behavior is measured for mica as the dielectric, where the saturation is obtained at $V_0\ge$ 19 kV${}_{pp}$. Similar slopes and saturation values are obtained when air is used instead of pure CO₂.

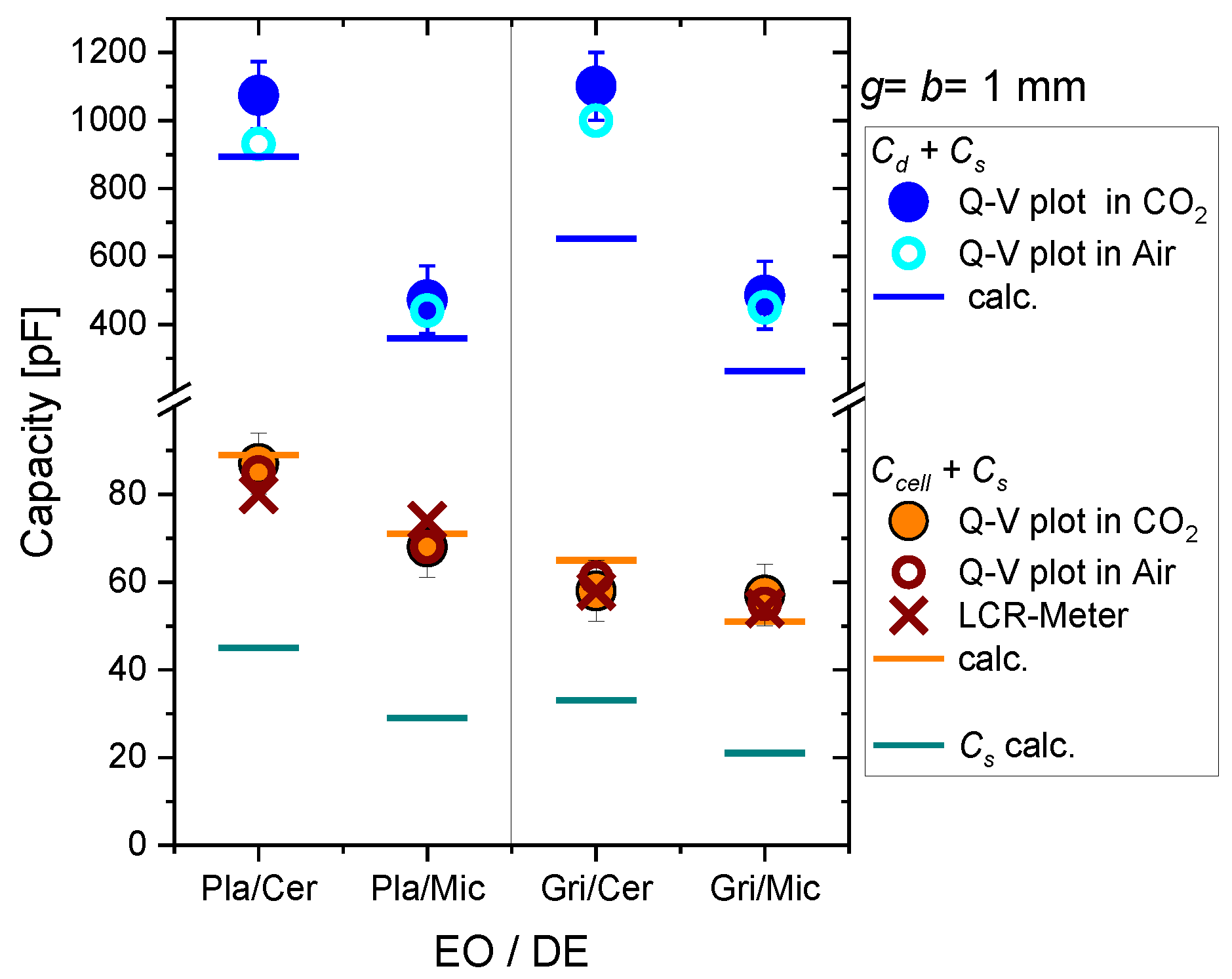

In Figure 5, we summarize the values measured for the four different configurations (EO/DE) with g = b = 1 mm. The bars show the calculated values for $(C_{cell}+C_s)$, $(C_d+C_s)$, and $C_s$ (n = 3 spacers made of ceramics in these experiments). The circle data points are the slopes of the Q-V plots measured in air and CO₂. The cross is the capacitance of the electrode arrangement measured with the LCR-meter. There is a fair agreement between the values for $(C_{cell}+C_s)$ measured in air, CO₂, and without plasma operation (LCR) with the calculated values. The relative permittivity of the different gases is nearly the same and should result in the same total capacitance as measured. The lower dielectric capacitance for mica is due to the lower value of ${\epsilon }_b$, and the lower value for grid electrodes is due to the smaller effective electrode area (see Equations (3)–(6)). The blue data points are the saturation values for the larger Q-V slopes, which are attributed to ($C_d+C_s$). These values are significantly larger than the calculated values; there is no difference between plate and grid electrodes. This effect is caused by edge effects at the electrodes and the grid wires. The photos in Figure 4 also show that the visible plasma expands over the electrode boundaries. Thus, the total dielectric capacitance is determined by the area of the plasma covering the dielectric and not by the physical size of the electrodes alone.

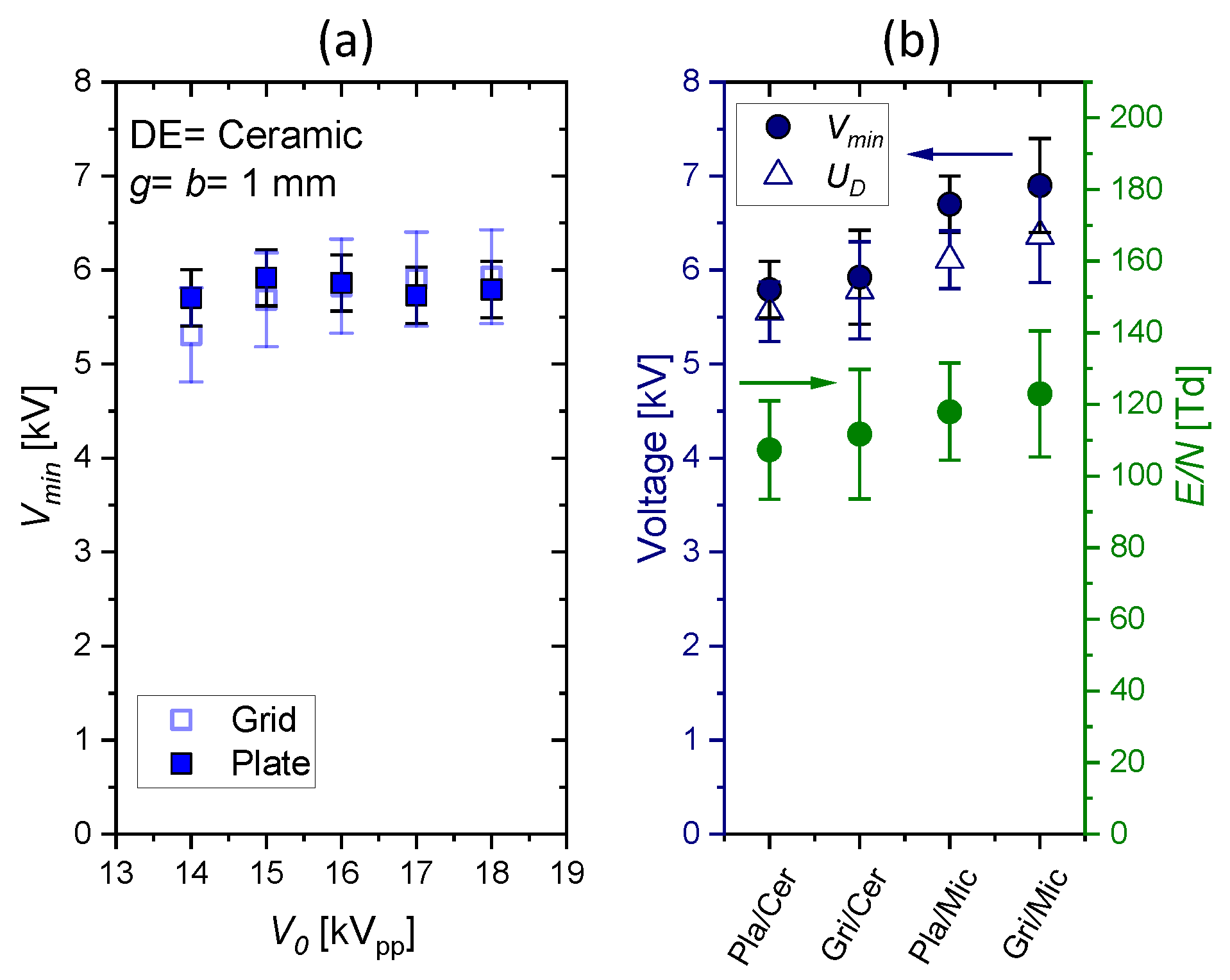

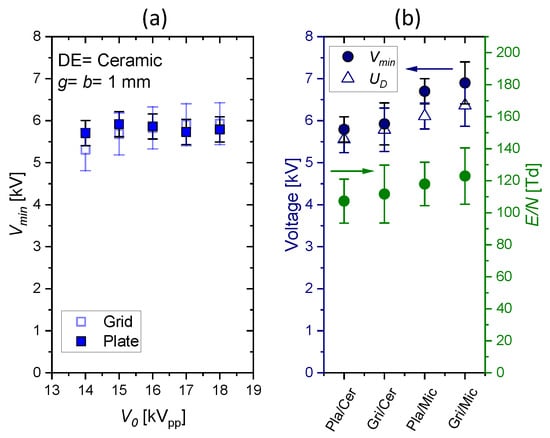

The minimum sustaining voltage $V_{min}$ as a function of $V_0$ measured in pure CO₂ for ceramic dielectrics and g = b = 1 mm is presented in Figure 6, left. The values for $V_{min}$ are comparable at about 5.9 kV with a slightly higher uncertainty for the grid electrode because it is less rigid and plane as the plate electrode. The right diagram in Figure 6 presents the data for all four configurations. In the case of mica, a higher minimum sustaining voltage is obtained than for ceramic. This is partly explained by the larger voltage drop over the dielectric barrier $U_d$ ($\sim 1/C_d\sim b/{\epsilon }_b$). The discharge voltage $U_D$ determined by Equation (9) is set by pressure, gas composition, and g but should be independent from barrier. Thus, the same value of $U_D$ is expected for both dielectrics. However, it is about 5.7 kV for ceramic and 6.3 kV for mica. Whether this difference of about 10% is related to the properties of the dielectric (e.g., mobility and release of deposited surface charges) or is within the uncertainties of the experiment must be elaborated in future studies. From $U_D$, we calculate a mean reduced electric field strength $E/N$ according to

$$E/N=\frac{U_D}{2g·N},$$

(12)

where N is the particle number density at our lab conditions (1020 hPa; 298 K). The values are about 110 Td for ceramic and 120 Td for mica. The error bars result from the uncertainties of pressure, temperature, and gap distance. Air has a similar discharge voltage at g = 1 mm (5.8 kV for ceramics; 6.3 kV for mica with $E/N$ = 113 Td and 121 Td, respectively).

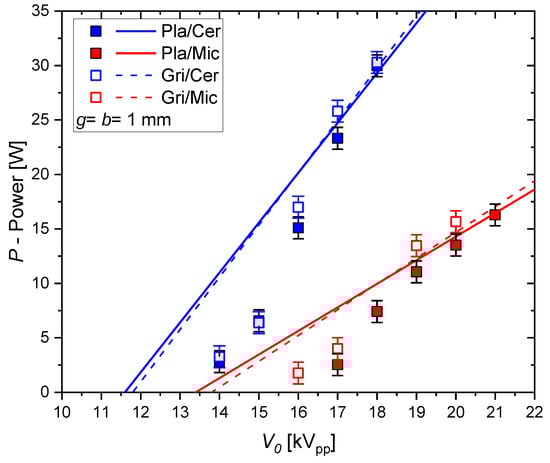

The discharge power P is obtained from the area of the Q-V plot. The results for pure CO₂ at different voltage amplitudes are presented in Figure 7. In the most basic equivalent circuit theory of the DBD, the power depends on $V_0$ linearly (the so-called Manley power formula). The derivation of the power equation for the extended equivalent circuit results in the following equation:

$$P=4f\beta (C_d-C_{cell})V_{min}(V_0-V_{min})$$

(13)

The power is not affected by the parasitic parallel capacitance, but the partial surface fraction factor $\beta$ must be considered. The lines in Figure 7 are calculated with the classical Manley power formula (i.e., with $\beta$ = 1 in (13)) and with the capacitances determined from the Q-V plot. Only for the higher values of $V_0$ when full discharge coverage ($\beta$ = 1) is achieved is a good agreement between calculated and measured values observed. For lower voltage amplitudes, the classical Manley equation overestimates the power. Taking the calculated values of $C_d$ instead of the measured values would underestimate the power in general as it is not taking into account the edge effects.

A significantly higher discharge power for the same applied voltage amplitude is obtained for the DBD with the ceramic dielectric. The lower voltage drop over the ceramic $U_d$ results in a lower minimum operation voltage. The lower $V_{min}$ and the higher $C_d$ results in a higher slope of $P\left(V_0\right)$. The type of electrode has no significant influence because of the similar dielectric capacitances due to the discharge expansion on the dielectric surface.

It should be noted that the coefficient $\beta$ is a function of the amplitude ($\beta$ = f($V_0$)) and that the revised Manley power formula (13) assumes a constant value of $V_{min}$, which is confirmed by experimental data for our discharge configuration. In other DBD geometries, in particular surface DBDs or non-parallel volume DBDs, $V_{min}$ = f($V_0$), which complicates the interpretation [43,45].

3.3. Variation of DBD Geometry

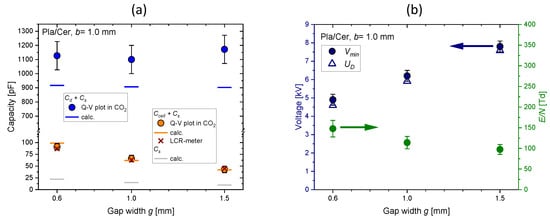

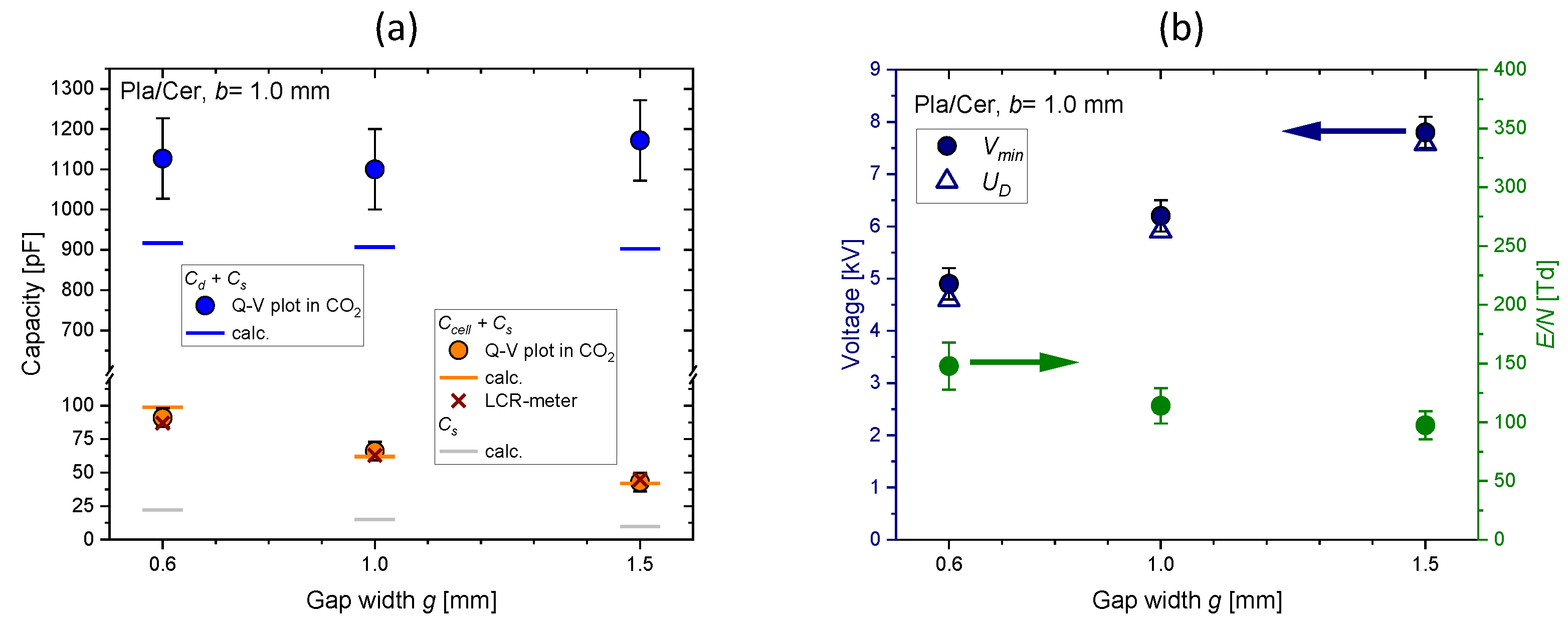

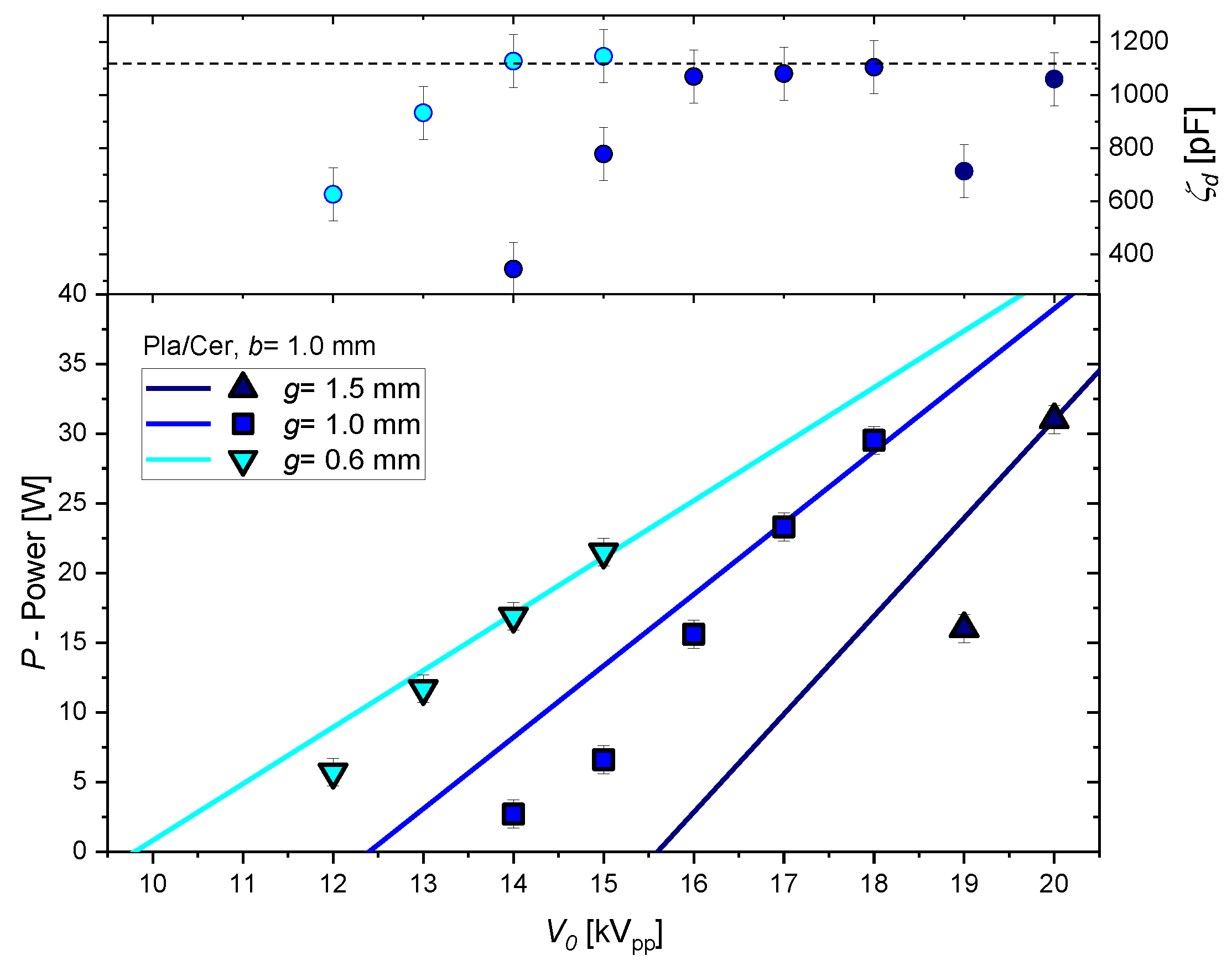

In this section, we discuss the effect of changes of the geometric parameters g and b. The increase in the discharge gap results in a smaller total and parasitic capacitance, as shown in Figure 8a. The minimum sustaining voltage and the discharge voltage scale nearly linearly with g (see Figure 8b). This is in agreement with the Paschen law for air and (pressure × distance) ≥ 2 bar × mm. The mean reduced electric field strength at discharge inception $E/N$ decreases significantly from about 150 Td to 100 Td. An increase in $U_D$ with g was also obtained in [14]. The discharge power scales linearly with the voltage amplitude only for the condition ${\zeta }_d=C_d$ as shown in Figure 9. The smallest gap width enables the highest $E/N$ and the maximum power at the same voltage amplitude. A uniformly covering plasma is already obtained at 13 kV${}_{pp}$. The maximum power can be achieved for the highest $V_0$ and the lowest g.

The increase in b results in a significant decrease in the dielectric capacitance (from about 890 pF at 0.6 mm to 460 pF at 1.0 mm) (data not shown). The minimum sustaining voltage $V_{min}$ also increases with b slightly (from 6.0 to 6.8 kV), which is explainable by a higher ratio $C_d/(C_d-C_{cell})$. Surprisingly, the values of $U_D$ and $E/N$ also increase (from about 109 to 115 Td), although gas, pressure, and gap width are not varied. This observation must be studied in future research.

Most of the trends can be explained by the extended equivalent circuit and the dependency of the elemental capacitances on the parameters of the DBD arrangement. The parasitic capacitances and the partial surface discharging effect have no influence on the power determined via the Q-V plot area or the product $Q_{max}\times \Delta V$. However, $Q_{max}$ and $\Delta V$ are not identical with the discharge voltage $U_D$ and the transfered charge per cycle $2q_0$. This must be taken into account for the determination of the mean reduced electric field strength or the total number of transferred charges.

The maximum P at a given $V_0$ can be obtained with a high ${\epsilon }_b$ and a low thickness b of the barrier. The gap distance g determines the discharge voltage and thus $V_{min}$, which is also affected by $C_d$ and $C_{cell}$ = f(g). The increase in the discharge voltage $U_D$ with g is consistent with the Paschen law in the parameter range of pressure and distance being investigated here. A high ratio $C_d/C_{cell}$ decreases the voltage drop over the dielectric barrier and allows higher power at lower applied voltage amplitudes. This is well reflected in the revised Manley power equation, which shows a linear dependency on the partial surface discharging parameter $\beta$. The type of electrode has no influence on $C_d$, but in the case of the grid electrode, $C_{cell}$ and $C_s$ become smaller. However, the effect on the power dissipation is not large.

For the following discussion of the carbon monoxide formation, we can rely on the measured power values for different applied voltage amplitudes. We will take into account that the DBD reactors for different parameters can operate at a different mean reduced electric field strength in a range from 100 Td to 150 Td.

4. Carbon Monoxide Formation

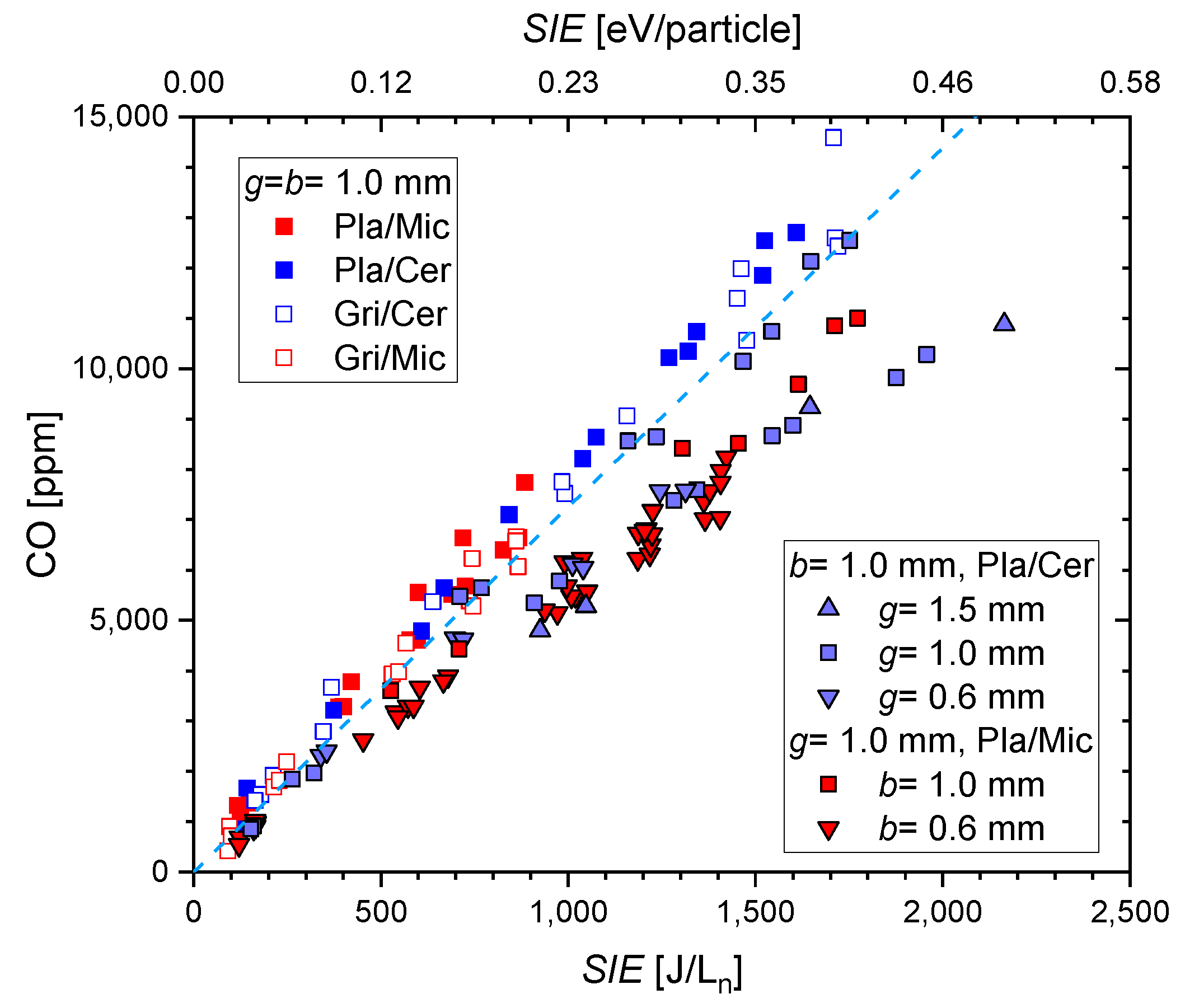

Figure 10 presents the measured CO fraction as a function of the $SIE$. The different configurations are identified by the symbols. A linear increase in the CO fraction with $SIE$ is obtained. For the conditions being considered, $SIE$ can be confirmed as a sole scaling parameter, as obtained by Brehmer et al. [29]. Higher CO fraction is obtained with ceramic as the dielectric because of its higher discharge power; thus, $SIE$ is coupled into the plasma. There is no effect on the type of discharge electrode and the dielectric material on the efficiency of CO formation. It is also independent of whether the electrode surface is fully or partially covered by the plasma. The series of experiments with variation of b and g (symbols with black border) shows slightly lower concentrations in general, which is still within the uncertainty of the experiments. A significant influence of the gap or the barrier thickness cannot be detected, although the gas residence time also changes with g. The dashed light blue line corresponds to an energy yield of 30 g/kWh, and all $EY$ values are presented in Figure 11.

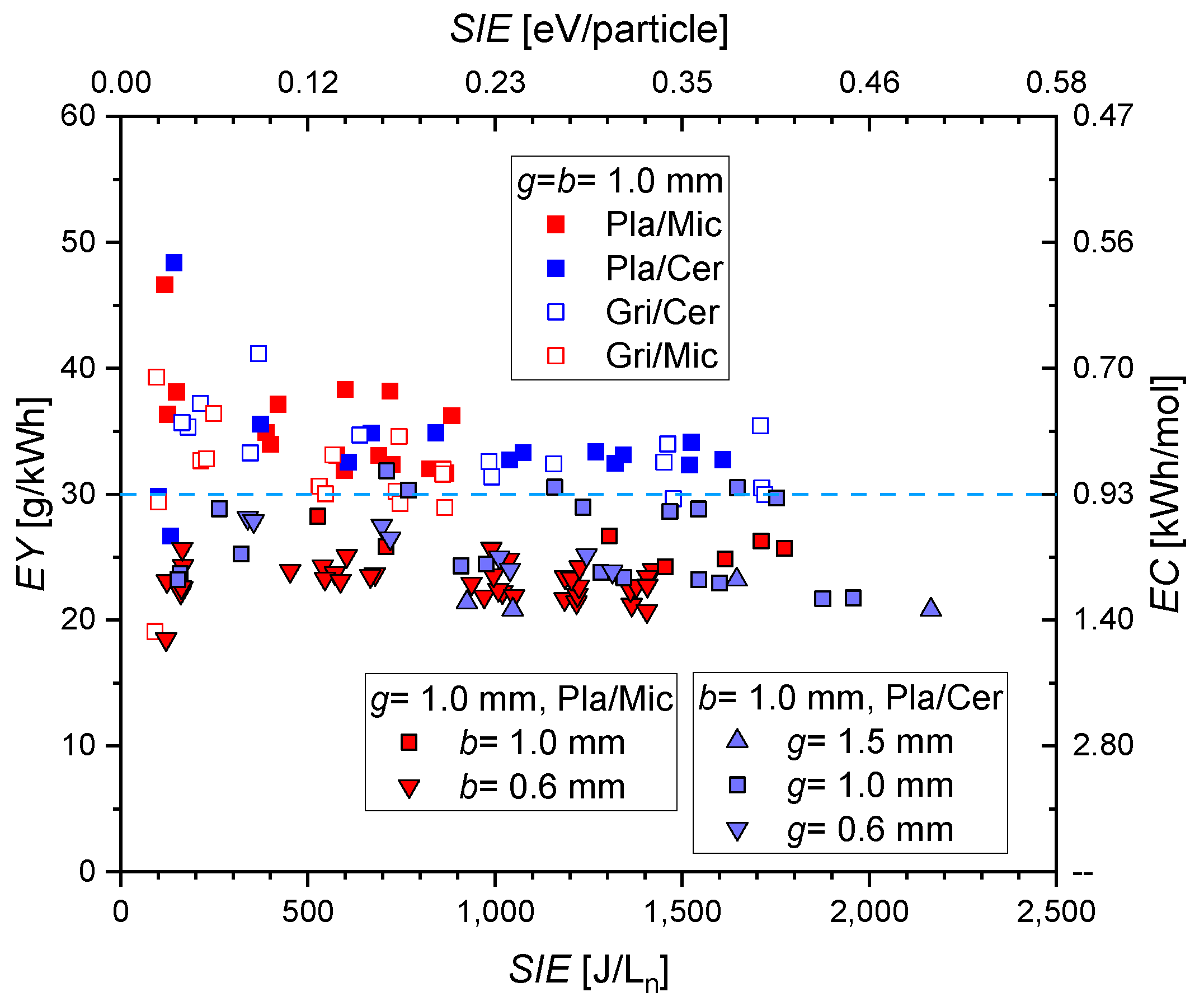

Besides CO and O₂, ozone (O₃) is measured as a by-product. The $EY$ calculated by Equation (2) does not take this into account, but the effect of O₃ formation is negligible since its concentrations are a few hundred ppm only. The values of $EY$ are in a range of about 20 to 50 g/kWh, but most of the values concentrate around (30 ± 8) g/kWh or at about 0.9 kWh/mol (see the dashed light blue line, this value corresponds to an EE of about 9%). Some larger $EY$ (and lower $EC$) are obtained at lower $SIE$, but this seems to be caused by a higher uncertainty of measured CO fractions at lower discharge powers.

It is expected that the charge per microdischarge will change according to $q_{MD}/g\propto {\epsilon }_b/b$ [46,47]. The lower b = 0.6 mm leads to a higher $q_{MD}$ (factor 1.7) and a lower number of microdischarges per period for the same power. A slightly lower $EY$ is obtained for this situation. The highest discharge gap of 1.5 mm also results in the lowest $EY$. However, the change of $q_{MD}$ with ${\epsilon }_b$ does not show such a correlation, and the lowest discharge gap also does not result in the highest $EY$ as expected. Therefore, a clear impact of electrode geometry on the efficiency of CO formation cannot be concluded from our data. The independence of the CO formation efficiency on the reactor parameters and the linear dependence of the CO fraction on the $SIE$ was also predicted by the numerical simulations in [30]. In conclusion, the geometric parameters of the planar DBD allow for the control of the plasma effectiveness but not of the efficacy.

In case of DBDs in pure CO₂, the dominant dissociation process is direct electronic dissociation. Electron impact ionization followed by dissociative electron-ion recombination and dissociative electron attachment also contribute but to a lower extent [14,15]. The released oxygen atoms form molecular oxygen or ozone, or undergo back reaction with CO to CO₂.

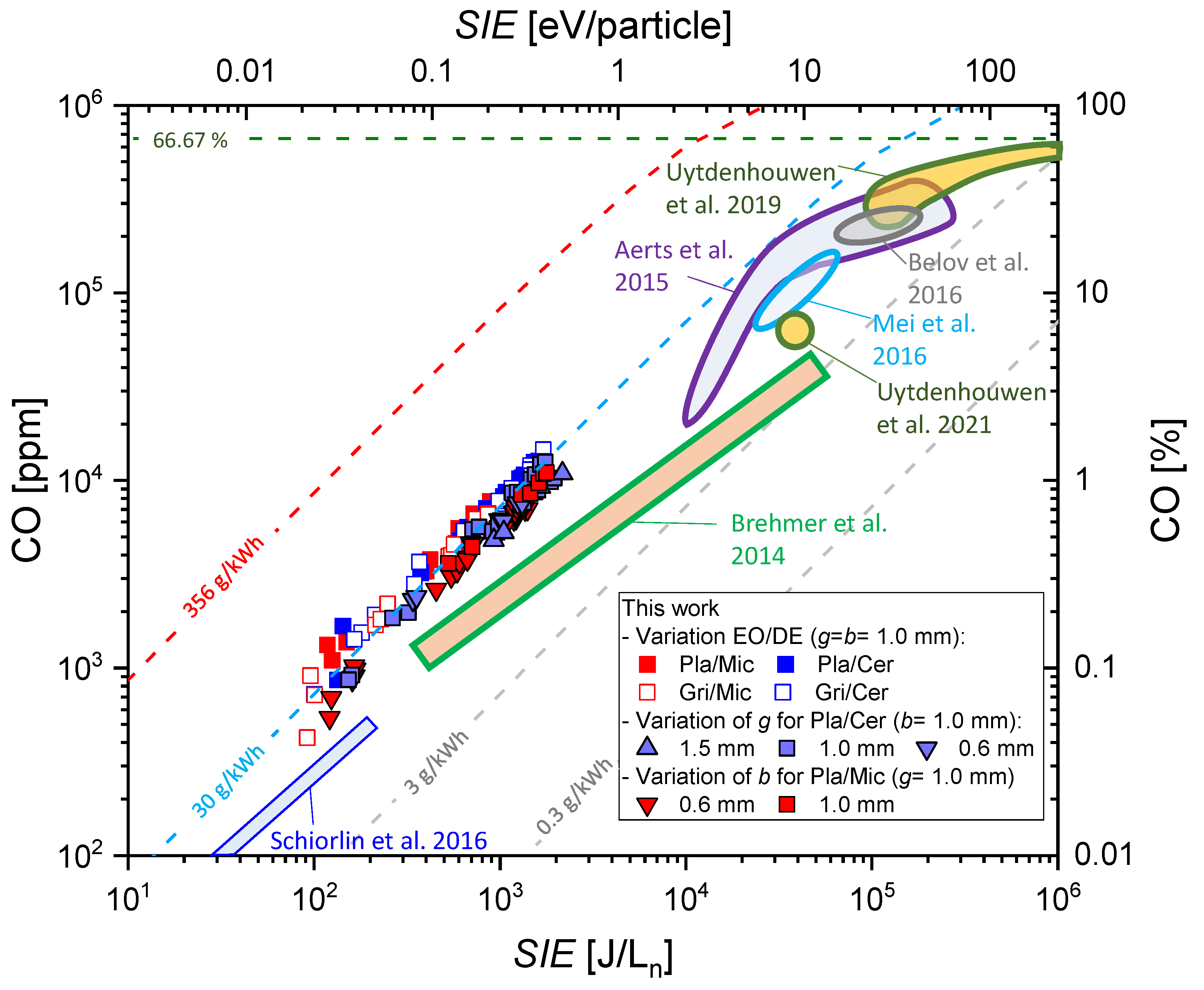

Since electrons are mainly responsible for dissociation, linear behavior between plasma energy and CO concentration can be expected. In Figure 12, we compare our results with the literature. We incorporate only data obtained in pure CO₂ at atmospheric pressure in empty volume (coaxial or parallel) DBDs (no packed bed reactors), except the data of Schiorlin et al., which were obtained in a coplanar DBD [48]. Most authors discuss the CO₂ conversion and not the CO formation, which is not essentially the same. In particular, carbon layers can be formed, which results in lower CO concentrations than predicted by the CO₂ conversion. Brehmer et al. presented CO concentrations measured by quantum cascade laser absorption spectroscopy and FTIR. The other selected contributions reported on their selectivity or gave a carbon balance of their processes, which allows one to determine the CO concentration. All of the literature results (i.e., their proximate ranges) are visualized by the colored areas in the diagram. A double logarithmic scaling is chosen to enable the presentation for a wide range of concentrations (4 orders of magnitude) and $SIE$ (5 orders of magnitude). The dashed lines are for constant $EY$ with the values given. The theoretical maximum of $EY$ is marked by the red shaded line, while the stoichiometric limit of the gross reaction (CO₂ → CO + $1/2$ O₂) at 66.67% is marked by the green dashed line.

All of the results obtained with higher $SIE$ are for coaxial DBDs, except Uytdenhouwen et al. 2021, which was an asymmetric planar DBD with one discharge gap [31]. The experiments were operated in the power range P = 1 … 150 W but at different gas flows and lengths and volumes of the active plasma zone and thus different residence times of the gas in the plasma. The residence times span a range from 20 ms to 48 s (1 s in our reactor). The volumes of the active plasma zones are between 1 and 22.5 mL.

For $SIE$ lower than 10 eV/particle, this parameter is a universal scaling parameter; there is clear linear behavior with the CO concentration. For all of the data, the $EY$ is in a “corridor” between 3 and 30 g/kWh, but it is not a sole scaling parameter. In the case of Brehmer et al. [29], the efficiency decreases with the $SIE$, while it is almost constant at about 30 g/kWh in our reactor. The data from Schiorlin et al. [48] have been obtained for smaller $SIE$ and give a smaller (although nearly constant) $EY$. In this coplanar DBD reactor, the discharge was only generated at the electrode surface (the discharge expands into the gas volume a few 100 μm [49] and the majority of the flowing gas was not in direct contact with it). Furthermore, the residence times were below 1 s. Brehmer et al. measured the gas temperature in the reactor by Raman scattering and obtained about 450 K [50]. Its value was found to be determined by the wall temperature and the power per electrode area (power surface density, $PSD$ = $P/A_{EO}$). These authors discussed the role of temperature on the chemistry and proposed a more prominent role of wall recombination (CO + O + Wall → CO₂ + Wall) with higher $SIE$ and temperatures. Our electrode area is about 20 times higher, and the $PSD$ is about one order of magnitude lower than in [29]. The $SIE$ is also lower. However, we did not measure the gas temperature and cannot conclude whether less heating is responsible for the higher $EY$. Further studies including simulation and similarity studies are needed and remain for future work.

With higher $SIE$ the slope of CO formation and thus, the $EY$ decrease. Due to the much lower $SIE$ in our experiments, we cannot obtain such saturation and reach a quasi-equilibrium as described in [14,24]. Studying whether the chemical performance is determined by the residence time in our reactor requires experiments at lower gas flow (and thus higher $SIE$). This remains for future work. Furthermore, a higher CO formation is connected with more oxygen formation, which enhances the back reaction (CO + $1/2$ O₂ → CO₂). An increase in gas temperature should be considered too. Paulussen et al. [13] showed a slight increase in CO₂ conversion and CO yield by the gas temperature (up to 470 K preheated gas flow). Mei et al. measured an increase in 100 K at 28 kJ/L_n to about 430 K with a fibre optic probe [17], while Belov et al. suggested an increase up to 600 K [21]. Although these temperatures are too low for thermal dissociation, they can significantly affect the chemical kinetics and wall processes in a non-thermal plasma.

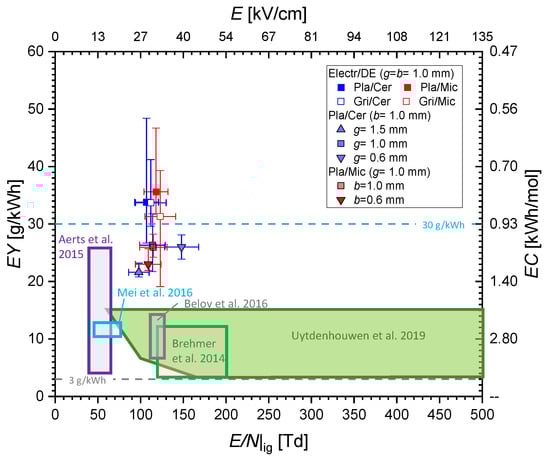

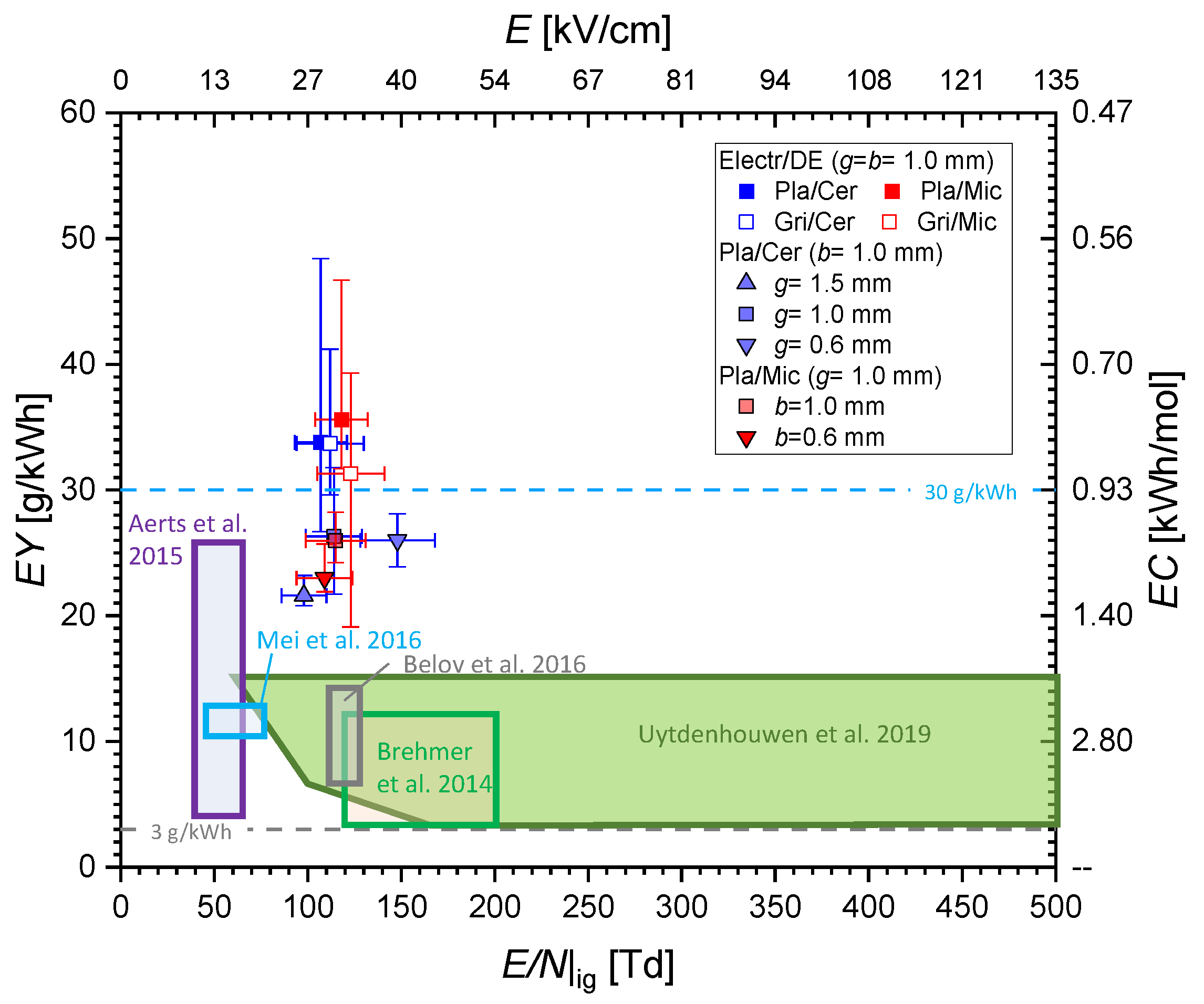

Finally, we compare the $EY$ related to the mean reduced electric field strength $E/N$ in Figure 13. The data points are the average of the individual measured values, while the bars show the minimum and maximum values being obtained for this particular configuration. The large range of $EY$ was already discussed above. However, the data points concentrate in a range of 20 … 30 g/kWh (or 0.93 kWh/mol), while a clear dependency of the $EY$ on $E/N$ cannot be concluded. The $EY$ for the highest $E/N$ (148 Td) appears even lower than for the configurations with g = b = 1 mm (107 … 123 Td), but that might be in the uncertainties of the gas analysis.

A clear dependence of the $EY$ from the mean $E/N$ is neither obtained in our results nor reported in the literature. For $E/N$ lower than 30 Td, a more prominent role of vibrational excitation can be assumed [11], but these $E/N$ values are not covered by DBDs in pure CO₂. The results in Figure 13 question the significance of the mean $E/N$ for the CO₂ splitting in DBDs. The constant discharge voltage during the active discharge phases is only the macroscopic picture since the plasma is filamentary, i.e., consists of multiple individual microdischarges. The microdischarge development in pure CO₂ is characterized by positive streamer development [51] with local values of $E/N$ exceeding the ignition electric field strength significantly [52,53].

5. Summary and Outlook

We introduced a stackable, and thus easily up-scalable, volume DBD reactor for the conversion of CO₂ and presented its electrical properties as well as the CO formation under variation of the geometric parameters.

The systematic investigation of the electrical parameters under variation of the voltage amplitude gave (i) information about electrode coverage by the discharge and (ii) enabled one to determine the exact values of the capacitances and discharge powers. The role of the different geometric parameters on the discharge power was studied systematically. We universalized the equivalent circuit for the situation of partial surface discharging with additional dielectric material in the discharge gap, which was described by a parallel capacitance. Neglecting these issues can affect the proper determination of the gap or discharge voltage and the transferred charge. The Manley equation for the calculation of the discharge power was generalized for partial surface discharging but was found to be independent from additional parallel capacitances. This was confirmed by experimental data, which also showed that a higher dielectric permittivity and a thinner dielectric enabled a lower threshold voltage and a higher discharge power for the same voltage amplitude. The form of the electrode (grid or plate) showed no distinct effect on the power dissipation. The discharge voltage increased linearly with the discharge gap, while the mean reduced electric field strength decreased. Surprisingly, the barrier material and thickness had an effect on the discharge voltage and thus on the mean electric field strength in the gap at the microdischarge ignition.

The geometric parameters of the DBD configuration influenced the effectiveness of carbon dioxide splitting but not the efficacy. The energy yield of CO formation was not changed by the reactor construction. The distinct dependence of the energy yield of CO formation on the mean reduced electric field strength could not be concluded from the measurements. The specific input energy was identified as a sole scaling parameter in the range being studied (100 to 2000 J/L_n), which is in agreement with the literature. The comparison with the literature suggests an effect of the residence time of the gas in the active discharge zone, which must be studied further.

Future studies will use a higher number of electrodes and dielectric plates as well as different electrode sizes to explore the role of the residence time and the power surface density and to apply approaches of plasma chemical similarity similar as in [24,29,31]. Furthermore, the flow dynamics must be considered, and the studies will be extended to higher $SIE$. The reactor presented here had one gas inlet, and one outlet hole of about 4 mm and the gas flow distribution was not optimized. The discussion will be extended to the role of packing materials on the discharge operation and gas residence, and, finally, the addition of catalytic materials will also be taken into account. In particular, the addition of ceria as a material with oxygen vacancies is planned [41]. Ceria can be coated on the dielectric plates, or packed bed particles with ceria on its surface can be placed in the discharge gap.
