Low-Temperature Magnesium Calcium Phosphate Ceramics with Adjustable Resorption Rate

Abstract

Low-temperature ceramics based on magnesium calcium phosphate cement are a promising resorbable material for bone tissue restoration with the possibility of functionalization. The replacement of the magnesium Mg²⁺ ion with a calcium Ca²⁺ ion at the stage of preparation of the precursor leads to the production of multiphase ceramics containing phases of brushite, monetite, and newberyite, with different dissolution rates. Multiphase ceramics leads to volumetric resorption with preservation of their geometric shape, which was confirmed by the results of an evaluation of the output of magnesium Mg²⁺ and calcium Ca²⁺ ions into the contact solution of the ceramics and the X-ray density of ceramic samples during subcutaneous implantation. The combined introduction of sodium pyrophosphate decahydrate and citric acid monohydrate as setting inhibitors neutralizes their insignificant negative effect on the physico-chemical properties of ceramics (strength, pH, porosity), determining the optimal composition. In vivo experiments with setting inhibitors in the composition of ceramics showed a different biological response, affecting the rate of resorption on par with magnesium ions. Preliminary data on biocompatibility and solubility determined magnesium-calcium phosphate ceramics containing additives that regulate setting to be a potential material for bone tissue restoration and a vector for further research, including in orthotopic implantation models.

1. Introduction

Calcium phosphates are biocompatible, bioactive, and effective for bone tissue regeneration [1,2]. Low-temperature ceramics based on calcium phosphate cements were formed according to cement technology by the interaction of the initial components in an aqueous medium due to setting and hardening. The high specific surface area and increased resorption rate compared to matrices obtained by high-temperature treatment make low-temperature ceramics a promising material for bone tissue restoration [3,4,5,6].

Brushite cement is one of the main types of biocements for the production of low-temperature ceramics. Dicalcium phosphate dihydrate CaHPO₄·2H₂O (brushite) is usually obtained by the interaction of tricalcium phosphate (TCP) and monocalcium phosphate monohydrate (MCPM) with the formation of a metastable phase under physiological conditions [7,8,9]. Due to its metastability, brushite-based ceramics have a high resorption rate and high potential as drug delivery systems (vancomycin, doxycycline, chlorhexidine, trolox), protein growth factors [10,11,12], and as a material for bone replacement [10,13].

It is known that the presence of the bioactive Mg²⁺ ion in the structure of calcium phosphates plays an essential role in the biological process and stimulates bone formation [14,15,16,17]. Magnesium is an obligate cofactor of alkaline phosphatase and many enzymatic reactions, which participates in the synthesis of bone collagen in cell proliferation and differentiation, cell–matrix interaction, and the normal functioning of organs [18,19,20,21].

One of the important features of the presence of the magnesium ion Mg²⁺ in the composition of brushite when replacing the calcium ion Ca²⁺ is the stabilization of the phase composition [20,21,22,23,24]. Magnesium ions inhibit the formation of less soluble calcium phosphates (hydroxyapatite, tricalcium phosphate, octacalcium phosphate) in vivo in brushite materials [24,25,26,27,28,29,30], since magnesium acts as a strong inhibitor of crystal growth in less soluble calcium phosphates. In this regard, magnesium calcium phosphate ceramics do not recrystallize over time, unlike brushite, during a long-term in vivo experiment. The high rate of resorption is maintained [21,31].

The formation of an additional phase of dimagnesium phosphate MgHPO₄·3H₂O trihydrate (newberyite) in addition to the main phase of brushite CaHPO₄·2H₂O can increase the rate of resorption. When high concentrations of Mg²⁺ ions were introduced into the composition of brushite cement, newberyite was formed. Its solubility is at 25 °C-log(Ksp) is 5.51–5.82, whereas the solubility of brushite-log(Ksp) = 6.59 [7,16,17,23,32,33].

Volumetric resorption of newberyite and superficial resorption of brushite were observed by Klammert et al. using a model of subcutaneous implantation in rats [17].

We assumed that the advantage of a two-phase product of a controlled composition may be a different rate of volumetric dissolution of the phases with the preservation of the geometric shape of the matrix, followed by its germination by newly formed bone tissue and gradual complete resorption of the matrix.

Brushite cement has a very short setting time, as is known. Despite the fact that rheological properties are not crucial for the production of ceramic matrices using cement technology, the setting time should be sufficient to form scaffolds of the required geometry. Additives of substances containing P₂O₇⁴⁻ pyrophosphate- and C₆H₅O₇³⁻ citrate-ions are the most common and effective regulators of the setting of brushite cements [34,35,36,37]. After adsorption, these ions form poorly soluble compounds on the particles of the initial components and reduce the electrostatic attraction. The reaction is slowed down. It is also known that when calcium ions are replaced with magnesium in TCP-based brushite cements, the setting time increases, and the mechanical properties of calcium phosphates improve [33].

However, none of the abovementioned reports have focused on the study of the effect of Mg substitutions in TCP, leading to the production of ceramics based on brushite-newberyite cement containing set-retarding additives, on the properties of ceramics, including solubility and biocompatibility.

Therefore, the main purpose of this study was to investigate the effect of Mg substitutions in TCP in the production of magnesium calcium phosphate ceramics based on brushite-newberyite cement containing set-retarding additives.

2. Materials and Methods

Mg_xCa_(3−x)(PO₄)₂ was obtained during solid-phase synthesis of a homogeneous mixture of the precursors CaHPO₄, CaCO₃, Mg₂P₂O₇, and Mg(OH)₂ in accordance with

Table 1. Precursor ratios for Mg_xCa_(3−x)(PO₄)₂ production.

COCTaB	Amount of Precursor, mol
	CaHPO4	CaCO3	Mg2P2O7	Mg(OH)2
Mg0	2	1	0	0
Mg0.75	3	1.5	0.5	0.5
Mg1.5	1	0.5	0.5	0.5
Mg2.25	1	0.5	1.5	1.5

at a temperature of 1100 °C for 6.5 h. The sintered material was crushed in a planetary ball mill for 20 min in an acetone medium with zirconium oxide balls with a diameter of 10 mm at a ratio of powder weight/ball weight = 1/3. The powder was dried at a temperature of 50 °C.

Magnesium-calcium phosphate ceramics were obtained during acid–base interaction by mixing synthesized Mg_xCa_(3−x)(PO₄)₂ (x = 0–2.25—compositions Mg0, Mg0.75, Mg1.5, Mg2.25) and monocalcium phosphate monohydrate Ca(H₂PO₄)₂·H₂O with liquid content in a ratio of 55/45. The mixing liquid was distilled water or a solution of sodium pyrophosphate hexadydrate (SPP) salt or a solution of citric acid monohydrate (CA). The liquid/powder ratio was (L/P) 0.6 or 0.7.

The mechanical compressive strength of the matrices was determined on samples using cylinders with a diameter of 10 mm and a height of 10 mm by means of the universal testing machine LFV 10–50 T (Walter + Bai AG, Switzerland) at a loading speed of 8 mm/min on the 1st day after molding. Samples were stored in a 100% humidity box at 37 °C and dried. The results of the compressive strength test were expressed as the mean ± standard error of the mean of fivefold determinations.

The setting time of the cement pastes was determined using a small Vicat needle technique. Half a minute after placing the pastes into a metallic ring with a height of 9 mm, the indenter (136 gain mass, 1 mm diameter of the needle) was lowered vertically onto the surface of the cement. The indentation was repeated at intervals of 5 s. The time at needle penetrations of 1 mm was taken as the initial setting time. The time at needle penetrations of 9 mm was taken as the finishing time. The results of the determination of the setting time are the average value of the threefold definitions.

The pH of the medium in contact with the materials was determined using the laboratory pH meter Seven Compact S210 (Mettler-Toledo GmbH, Greifensee, Switzerland). The ratio of the weight of the sample granules with a diameter of 4 mm and a height of 2 mm to the mass of distilled water was 1:10. The pH of the contact medium was measured after 10 min while keeping samples in distilled water. The results of the pH determination were recorded as the mean value ± standard error of the mean value of the fivefold definitions.

The granulometric composition was studied using the particle size and shape analyzer CAMSIZER^® X2 (MICROTRAC RETSCH GmbH, Haan, Germany). The results of the determination of the particle size and surface area were expressed as the average value ± standard error of the average value of threefold definitions.

The porosity was determined on samples using cylinders with a diameter of 10 mm and a height of 10 mm by hydrostatic weighing in an inert liquid (kerosene) on the 1st day after molding. Samples were stored in a 100% humidity box at 37 °C and dried. The results of the porosity determination were expressed as the average value ± standard error of the average value of the fivefold definitions.

X-ray powder diffraction (XRD) analysis used an ARL Equinox 1000 X-ray diffractometer (Thermo Fisher Scientific INEL SAS, Saint-Herblain, France). The survey was carried out in the reflection mode using CuKa radiation (angle interval 2Θ: from 5° to 45° or 68°, step 2Θ 0.03°). In the qualitative analysis of the resultant X-ray diffraction patterns, we used WinXPOW software and the ICDD PDF-2 database.

In the quantitative analysis, we used the reference intensity ratio method (with the I/Ic intensity ratio of the strongest lines of the substance and corundum (α-Al₂O₃) in a mixture containing 50 wt. % of both components). (Chung method) [38]. The weight fraction was calculated using the relation

$${\omega }_A=\frac{I_{iA}/(I/I_c(A))\cdot I_{iA}^{rel}}{{\displaystyle \sum I_{iK}/(I/I_c(K))\cdot I_{iK}^{rel}}}$$

where I_iA is the measured intensity of the ith reflection from phase A; I^rel_iA is the relative intensity of this reflection in the database; I/I_c(A) is the corundum number for the phase A being determined; and I_iK, I^rel_iK, and I/I_c(K) are the corresponding quantities for all components of the mixture (including A). The calculation was carried out on characteristic lines, on which the lines of other phases were not superimposed. XRD measurements for all the investigated compositions were repeated two or three times in two or three independent samples. The results of the XRD determination were expressed as the average value ± standard error of the average value of the threefold definitions in in vitro experiments and of the twofold definitions in in vivo experiments.

The microstructure was studied using a scanning electron microscope Phenom XL G2 (Thermo Fisher Scientific, Breda, Netherlands). The accelerating voltage was 15 kV. Silver was sprayed with the magnetron sprayer Cressington 108auto (Cressington Scientific Instruments Ltd., Watford, UK).

Elemental analysis was carried out by means of a special detector (energy dispersion spectrometer); data analysis was carried out in the INCA—Point & ID program. The results of EDS determination were expressed as the value of the onefold definition.

The solubility of ceramics samples with a diameter of 4 mm and a height of 2 mm was evaluated by measuring the concentration of calcium and magnesium ions in saline solution. The ratio of granules to liquid was 1/10 mL. Samples were kept in a shaker incubator IKA KS 3000 (IKA^®-Werke GmbH & Co. KG, Staufen, Germany) at 37 °C for 5 days. When choosing an aliquot, it was replaced with a fresh solution. The concentration of calcium and magnesium ions in the solution was determined on a PE540054005400 HA spectrophotometer (Ekros-Analytics LLC, Saint Petersburg, Russia) at a wavelength of 570 nm and 540 nm, respectively, during the formation of colored complexes of calcium ions with o-cresolphthalein complexone and of magnesium ions with xylidine blue. The results of the determination of the concentrations of calcium and magnesium in the solution were expressed as the average value ± standard error of the average value of threefold definitions.

Statistical analysis. The data were recorded as average ± standard error and analyzed using the Origin Pro 2021 software. One-way ANOVA tests (p < 0.05) were used to determine the significance of the differences between the groups. Significant differences (p < 0.05) between different materials at one time point are labeled with *.

A cell viability test was carried out on samples of magnesium calcium phosphate matrixes with a diameter of 4 mm and a height of 2 mm. Mesenchymal stromal cells of human bone marrow were used. The cells were cultured in alfa MEM (Sigma-Aldrich, St. Louis, MO, USA) with the addition of 10% embryonic calf serum (Gibco, Carlsbad, CA, USA) and 40 mcg/mL gentamicin sulfate (Sigma-Aldrich, USA), at 37 °C, under conditions of 5% CO₂ content in the air. Cultured cells of 1–4 passages were used in the experiments. Subcultivation of the cells was carried out in alfa MEM medium with 10% embryonic calf serum and 40 mcg/mL of gentamicin sulfate, at 37 °C, under conditions of 5% CO₂ content in the air. The number of living and dead cells was determined by staining cells with fluorescent dyes calcein AM (Sigma-Aldrich, St. Louis, MO, USA) and propidium iodide (Sigma-Aldrich, St. Louis, MO, USA). The cells were detached from the surface of the samples using an Accutase cocktail. Cells were stained in L-15 medium with 1% embryonic calf serum containing 1 mcg/mL of calcein AM and 2 mcg/mL of propidium iodide for 25 min at 37 °C. The analysis of living and dead cells was carried out using an Accuri C6 flow cytometer (BD Bioscience, San Jose, CA, USA). The results of the experiments were presented as an average ± standard error.

The study of the biological response of magnesium calcium phosphate matrixes was carried out with a Wistar rat model (a subcutaneous implantation into the hypodermis of male rats with a mass of ≈250–300 g). The total number of animals was 15. The animals were divided into three groups of 5. The animals in the first group were implanted with ceramic samples N0, N20, N40, and N60 containing PPS. Animals of the second group were implanted with ceramic samples N0, N20, N40, and N60 containing CA. Animals of the third group were implanted with ceramic samples N0, N20, N40, and N60 containing CA_PPS. The surgical inventions were fulfilled under intramuscular anesthesia with Zoletil (7 mg/kg) and Xylazine (13 mg/kg). The procedure was performed under aseptic conditions. Before the treatment, the surgical field was shaved and sanitized with an antiseptic. The animal was placed on its stomach. An incision was made along the spine. In the hypodermis, 4 caverns were formed by pushing the tissues apart. The samples were implanted in these caverns. The implantation period was 11 weeks. Allen surgical procedures and conditions of keeping animals complied with the ethical rules for experiments with animals, including the European Directive FELASA-2010. Tomographic examination was performed in vivo after surgery and then weekly after implantation.

For morphological study, samples of connective tissue capsules were fixed in neutral buffered formalin (10%), dehydrated, and paraffin embedded. Sections (with a thickness of 4 μm) were prepared and stained with hematoxylin-eosin. They were studied with a Leica DM 4000 B LED (Leica Microsystems Wetzlar GmbH, Wetzlar, Germany) microscope with a Leica DFC 7000 T camera under standard light and phase-contrast visualization modes. A maturity of scar tissues around the samples was evaluated with its thickness and a relative area of blood vessels. The high maturity corresponds to a minimal inflammation in the low-thickness tissues with a small amount of the vessels. In the ImageJ program, the thickness of the capsules (at 50× magnification) and the relative area of the vessels (at 200× magnification) were measured from microphotographs of histological sections. Statistical analysis of the results was performed using an unpaired Student’s t-test and one-way ANOVA test followed by Tukey’s comparison test. The results were considered reliable at p ≤ 0.05. The procedure was carried out with GraphPad Prism 7.00. The results were presented in terms of the mean ± standard error.

Micro-CT of the samples was performed on an X-ray microtomograph Bruker SkyScan 1178 (BRUKER BELGIUM, Kontich, Belgium) at a voltage of 65 Kv and a current of 615 Ma, with an Al 0.5 mm filter. The spatial resolution was 84 microns/pixel. The reconstruction of the slices was carried out with NRecon v.1.6.10.4 software, and densitometric measurements were made in the CTAn v.1.20.3.0 program. The data were recorded as the average ± standard error and analyzed using Origin Pro 2021 software. One-way ANOVA tests (p < 0.05) were used to determine the significance of the differences between the groups. Significant differences (p < 0.05) between different materials at one time point were labeled with *, and significant differences at a specific time point between different groups were labeled with #, @, and &.

3. Results

3.1. Synthesis of Mg_xCa_(3−x)(PO₄)₂ Powders for the Production of Ceramics N0, N20, N40, N60

The amount of magnesium (x) in the composition of Mg_xCa_(3−x)(PO₄)₂ was chosen so that in ceramics, the ratio of phases MgHPO₄·3H₂O (newberyite) and CaHPO₄·2H₂O (brushite) was 0/100 (composition N0), 20/80 (composition N20), 40/60 (composition N40), and 60/40 (composition N60) with a ratio of the initial cement components of 55/45. The calculated amount of magnesium in Mg_xCa_(3−x)(PO₄)₂ was Mg0 (for N0), Mg0.75 (for N20), Mg1.5 (for N40), and Mg2.25 (for N60).

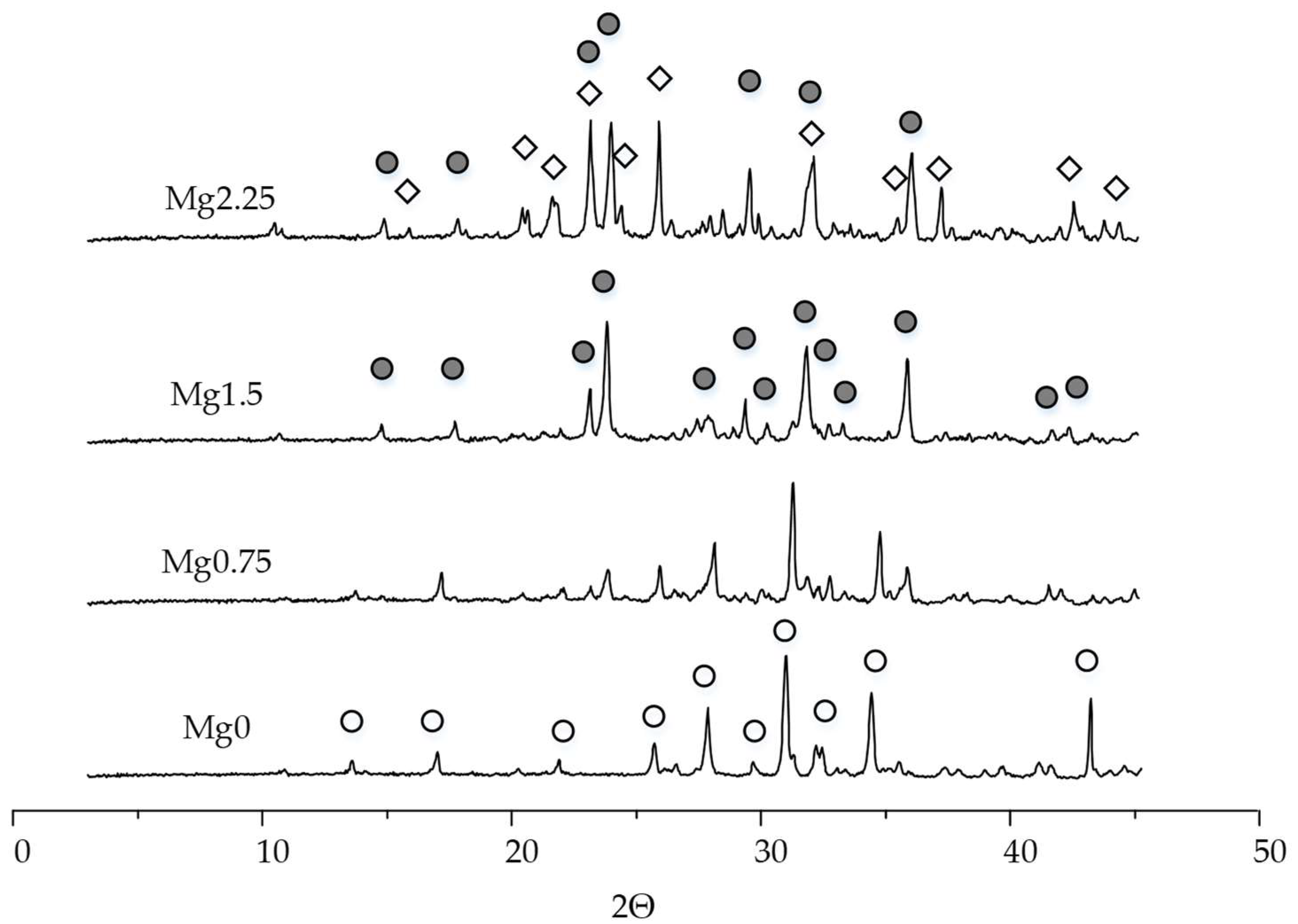

The products of solid-phase synthesis are magnesium-calcium phosphates of variable composition with the general formula Mg_xCa_(3−x)(PO₄)₂ c ×0 (Mg0), ×0.75 (Mg0.75), ×1.5 (Mg1.5), ×2.25 (Mg2.25). Figure 1 shows diffractograms of magnesium calcium phosphate powders. The Mg_xCa_(3−x)(PO₄)₂ Mg1.5 diffractogram corresponds to magnesium calcium phosphate Mg₃Ca₃(PO₄)₄ (73-1182 PDF-2). The Mg0.75 diffractogram contains peaks characteristic of tricalcium phosphate Ca₃(PO₄)₂ (70-2064 PDF-2) and peaks characteristic of Mg₃Ca₃(PO₄)₄. Along with the peaks of Mg₃Ca₃(PO₄)₄, the diffraction pattern Mg_xCa_(3−x)(PO₄)₂ Mg2.25 contains peaks characteristic of trimagnesium phosphate Mg₃(PO₄)₂ (75-1491 PDF-2).

The parameters of the granulometric composition are presented in

Table 2. Surface area and average particle size of Mg_xCa_3−x(PO₄)₂ powders for Mg0, Mg0.75, Mg1.5, and Mg2.25.

Parameter	Mg0	Mg0.75	Mg1.5	Mg2.25
Surface area, m2/g	3.4399 ± 0.0741	3.2795 ± 0.1916	3.4947 ± 0.1083	3.6986 ± 0.1854
Average particle size, µm	6.69 ± 0.23	6.80 ± 0.20	6.57 ± 0.21	6.20 ± 0.20

. Comparison is not statistically significant at p > 0.05, and the average particle size of the obtained powders was 6.2–6.8 microns.

The particles of all compositions had an irregular shape. The particle size did not differ for all compositions (Figure 2). The results of energy dispersion analysis confirm the variable composition of the solid-phase synthesis product (

Table 3. EDS results for the selected area of Figure 2.

Atomic Concentrations, %	Elemental Symbol
	O	Mg	P	Ca
Mg0	71.1	0	11.9	17.7
Mg0.75	70.4	4.4	12.0	13.4
Mg1.5	69.5	9.1	12.2	9.0
Mg2.25	69.5	13.5	12.8	5.2

). Mg/Ca ratios determined by EDS resulted in Mg0.75, Mg1.5, and Mg2.25 composition of 0.74/2.26, 1.51/1.49, and 2.17/0.83, respectively. This is slightly different from the target values.

3.2. Cements and Ceramics Characterizations

3.2.1. Setting Times of Cements

The ratio of liquid to powder of 0.6 mL/g was used to obtain cement dough. In order to obtain low-temperature ceramics in the form of blocks or granules, it is necessary to prevent the cement from setting within 3 min.

The initial setting time of additive-free compositions was less than 30 s. Sodium pyrophosphate hexahydrate Na₄P₂O₇·10H₂O (SPP) and citric acid monohydrate C₆H₈O₇·H₂O (CA) were used as retarding additives for the hydration process. The additives were introduced separately and together in the form of solutions with different concentrations. The results of determining the initial and finish setting are presented in

Table 4. Setting time of cements based on Mg_xCa_3−x(PO₄)₂ powders for obtaining ceramics compositions N0, N20, N40, and N60.

Composition →	N0		N20		N40		N60
Additives ↓ Setting Time →	Initial	Final	Initial	Final	Initial	Final	Initial	Final
0.3 M CA	5:30	3:40 *					11:00	6:10
0.295 M CA			5:30	3:35
0.289 M CA					8:00	3:40
0.284 M CA							8:30	3:50
0.066 M SPP	4:40	3:40	23:59	8:00
0.055 M SPP			4:50	3:35
0.043 M SPP					4:45	3:30
0.033 M SPP	2:30	2:00	3:30	2:20	4:30	2:30	5:00	3:45
0.031 M SPP							4:45	3:05
0.1 M CA + 0.033 M SPP	3:30	3:05	6:30	3:10	19:30	12:00
0.05 M CA + 0.033 M SPP					5:45	3:10
0.05 M CA + 0.015 M SPP					2:45	2:00	5:10	3:00

* the optimal setting time for each composition is highlighted in color.

. Acceptable setting times for each cement composition (N0, N20, N40, N60) and the type of additive are highlighted in color.

With an increase in the number of magnesium ions in Mg_xCa_3−x(PO₄)₂, the setting time increases. To obtain an initial setting no earlier than 3 min, a lower concentration of retarding additives is required. The required concentration of SPP is directly proportional to the amount of CaHPO₄·2H₂O in the final composition. In the process of slowing down the reaction, the mechanism of formation of poorly soluble calcium pyrophosphates on the surface of the initial components is probably less important than the mechanism of binding of P₂O₇⁴⁻ ions to the nuclei of reaction products, embedding these ions into the crystal lattice, which stops growth and aggregation.

3.2.2. Phase Compositions and Microstructures of Ceramics

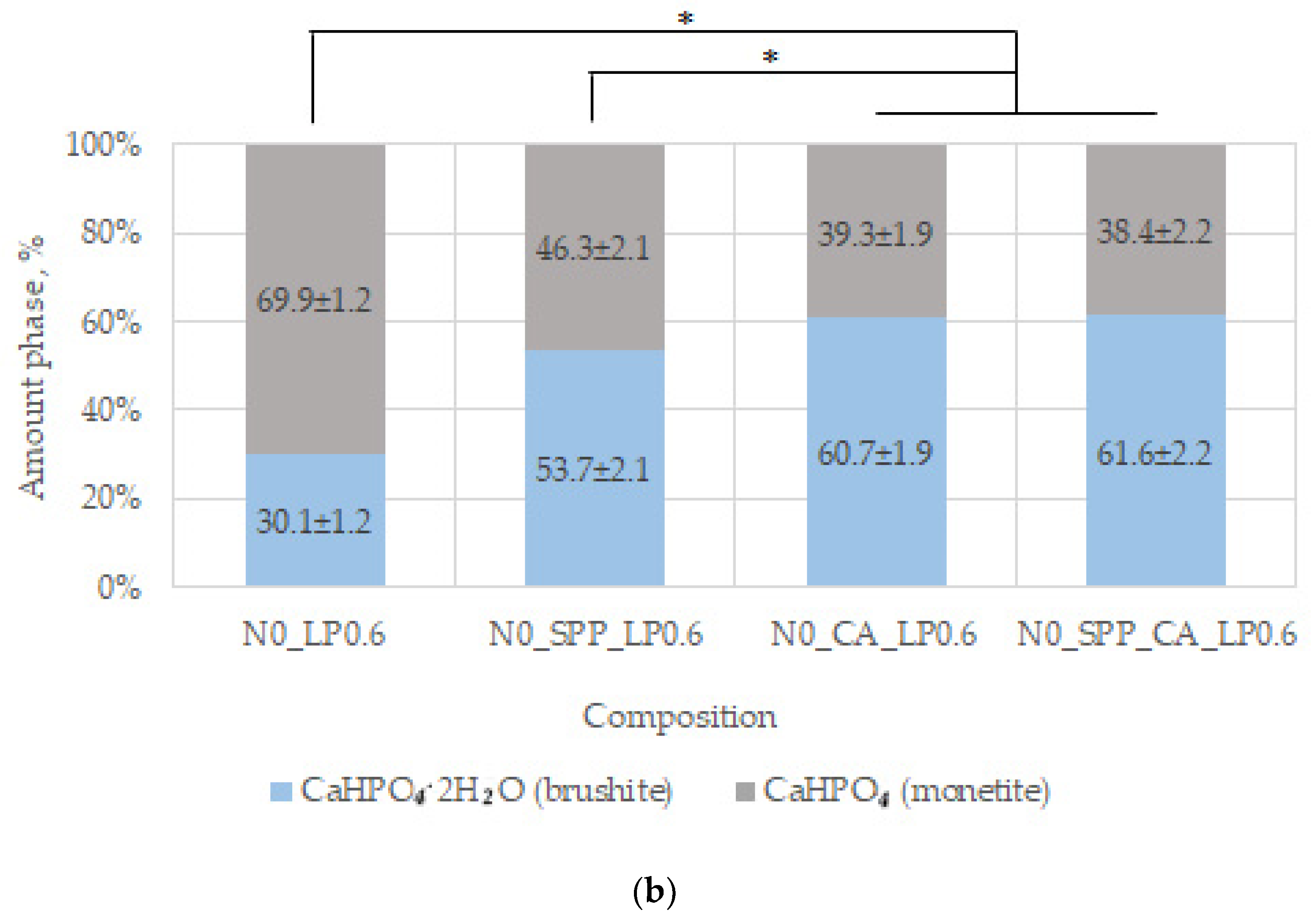

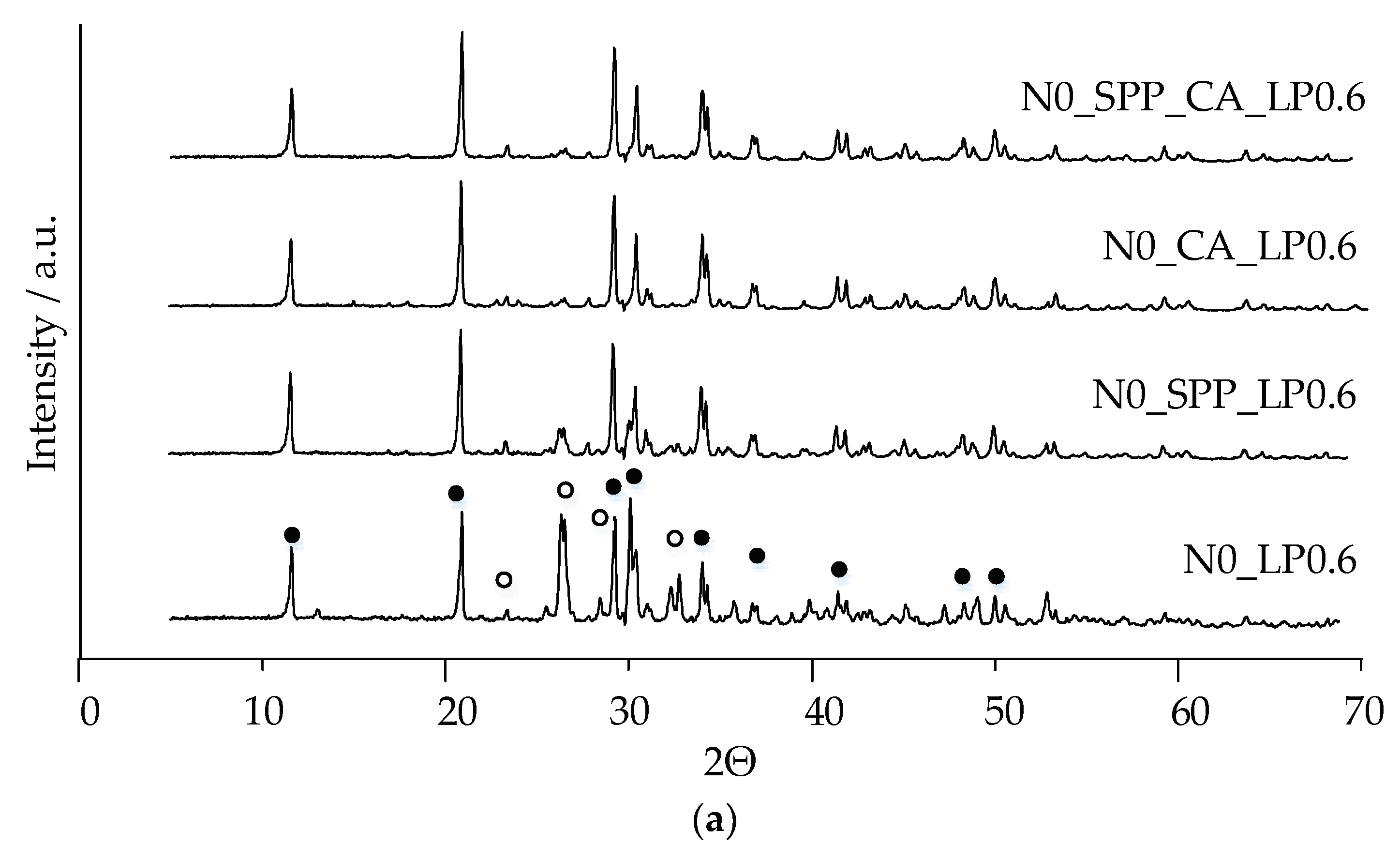

X-ray phase analysis of ceramics based on Ca₃(PO₄)₂ powder, performed after 7 days of hardening of the samples in wet conditions, showed the presence of CaHPO₄∙2H₂O brushite (72-713 PDF-2) and dihydrophosphate CaHPO₄ monetite (70-359 PDF-2) as the main phases (Figure 3), with a significant advantage with monetite. This is due to the high reactivity of Mg_xCa_3−x(PO₄)₂, high heat generation, and small particle size, which increases water requirements.

The possibility of separate and joint use of the additive inhibitors SPP and CA on the properties of ceramics in experiments in vitro and in vivo with the example of ceramics N0 were investigated in this work. The study of the effect of the concentration of magnesium ions in magnesium-calcium phosphate ceramics was carried out for compositions N0, N20, N40, and N60 at optimal concentrations of a mixture of additives for each composition in accordance with Table 4.

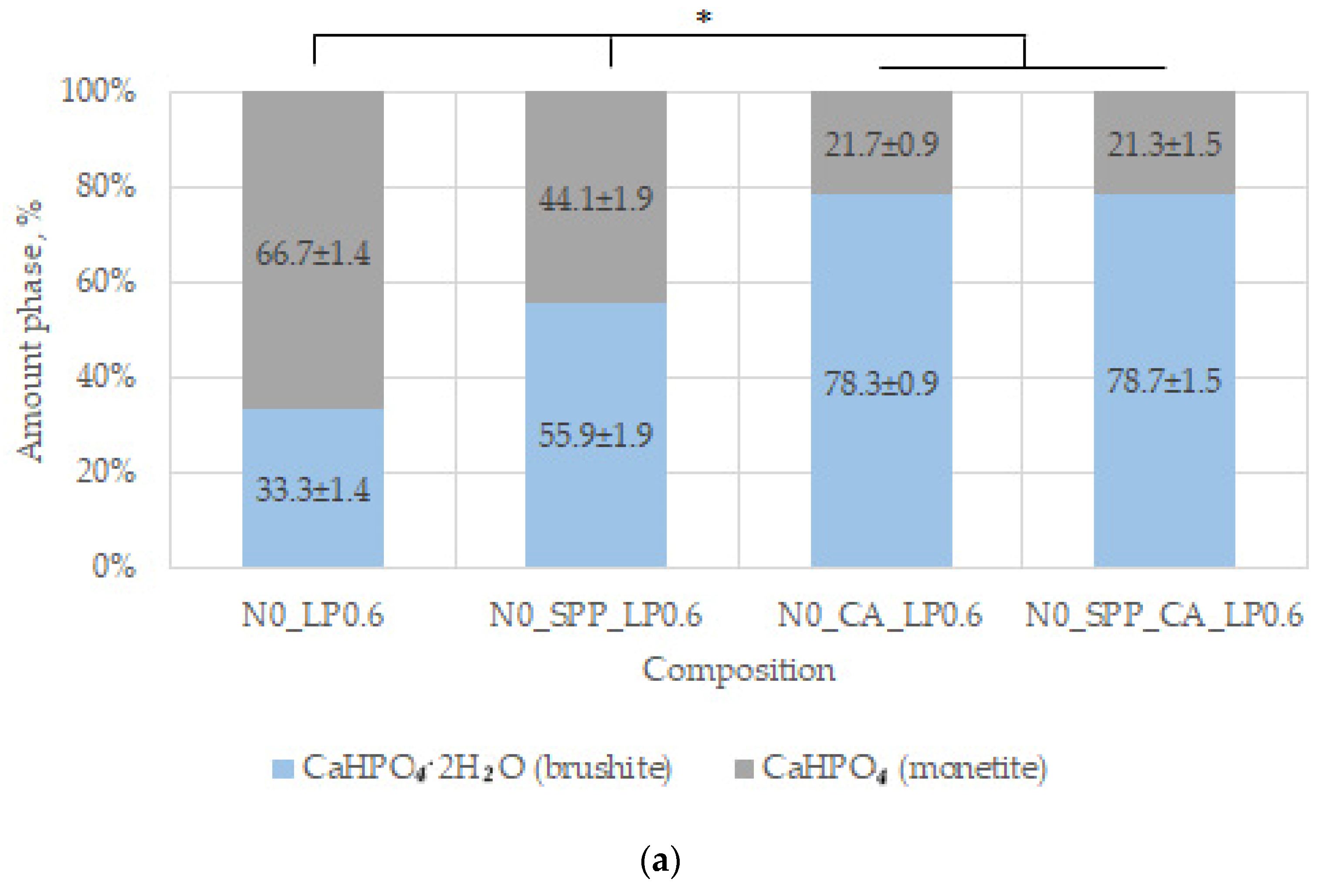

The introduction of retarding additives significantly affects the composition, increasing the amount of brushite in the composition of ceramics. In compositions with 0.3 M CA and 0.1 M CA + 0.033 M SPP, the amount of the CaHPO₄·2H₂O phase is higher than when using 0.066 M SPP solution. A combination of retarding additives and an increase in the L/P ratio to 0.7 is necessary to obtain a single-phase brushite product.

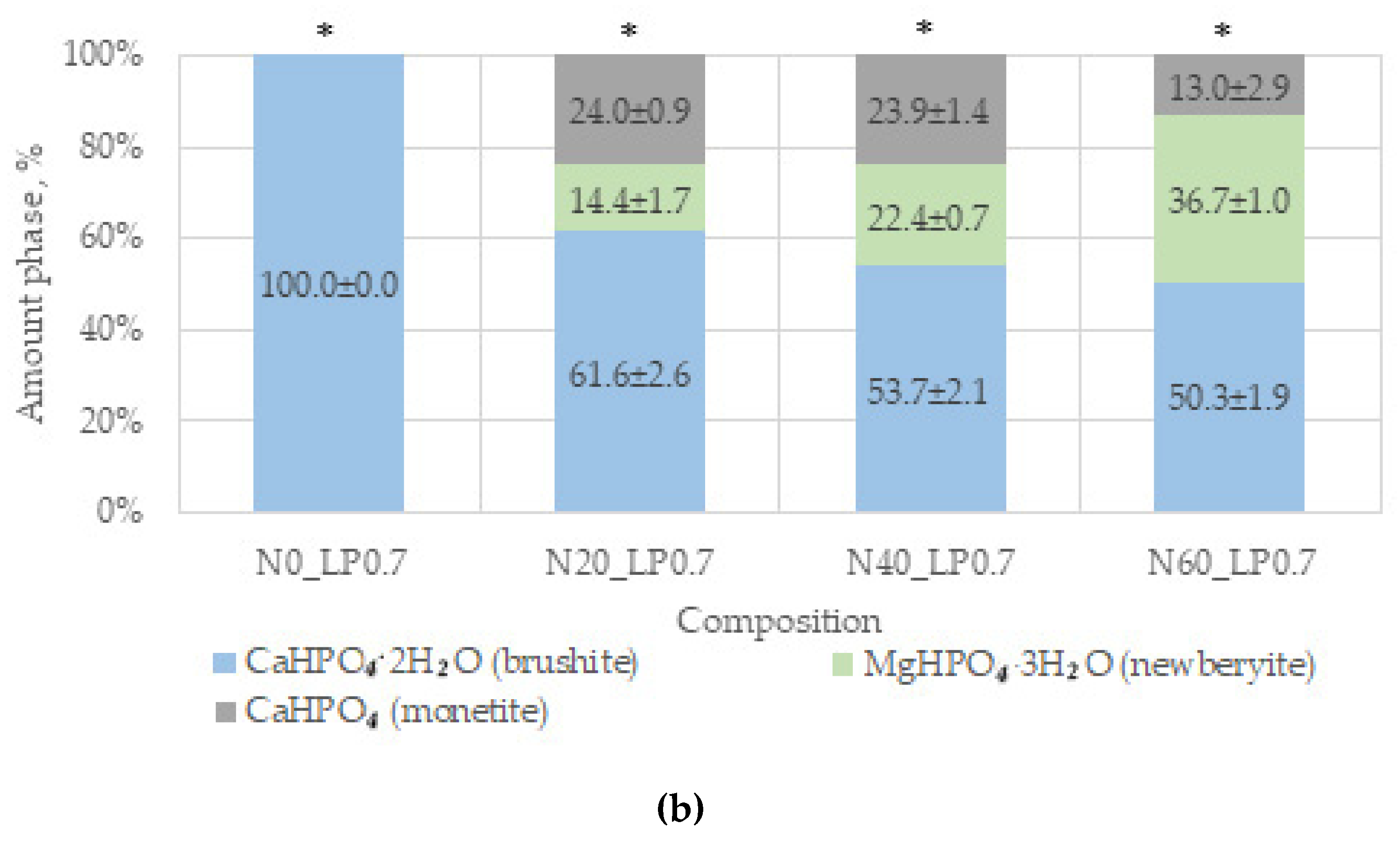

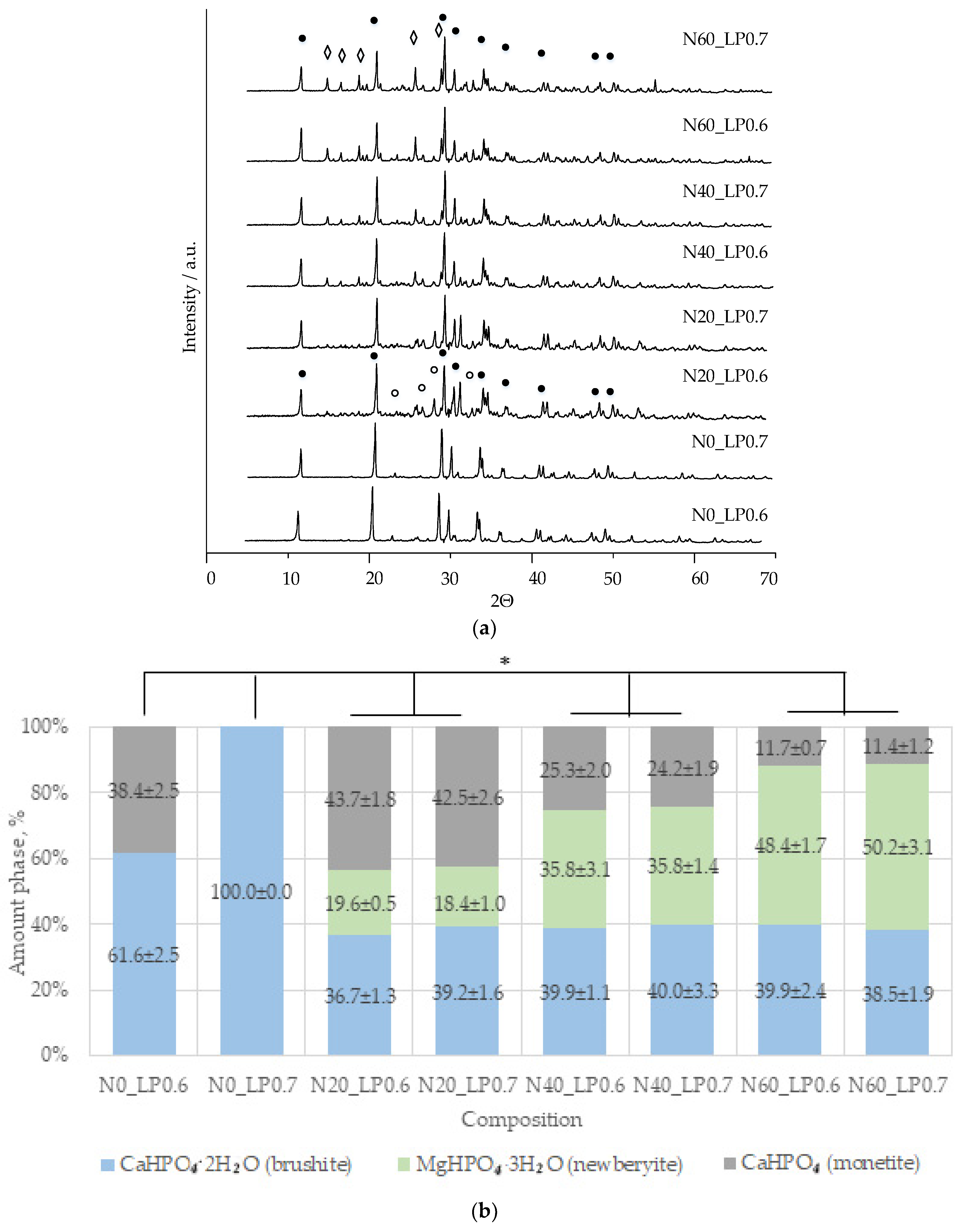

When using Mg_xCa_3−x(PO₄)₂ at Mg0.75, Mg1.5, and Mg2.25, newberyite MgHPO₄·3H₂O (72-23 PDF-2) is present in the composition of ceramics N20, N40, and N60 in addition to the phases CaHPO₄∙2H₂O and CaHPO₄ (Figure 4). An increase in the L/P ratio from 0.6 to 0.7 slightly reduces the amount of monetite and does not allow it to be completely excluded. The amount of newberyite, according to the calculation of corundum numbers, has slightly lower values than predicted. The difference increases from N20 to N60.

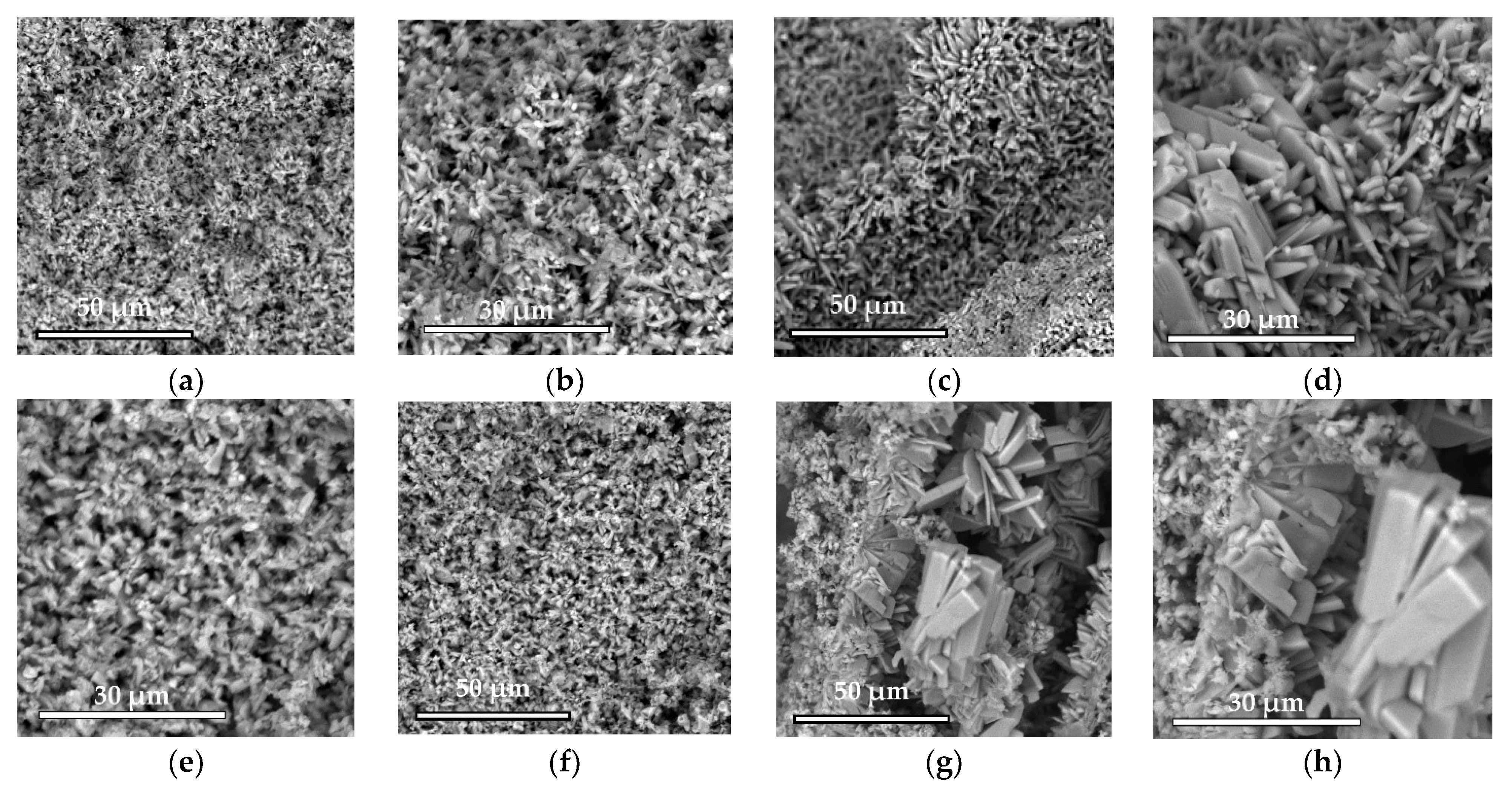

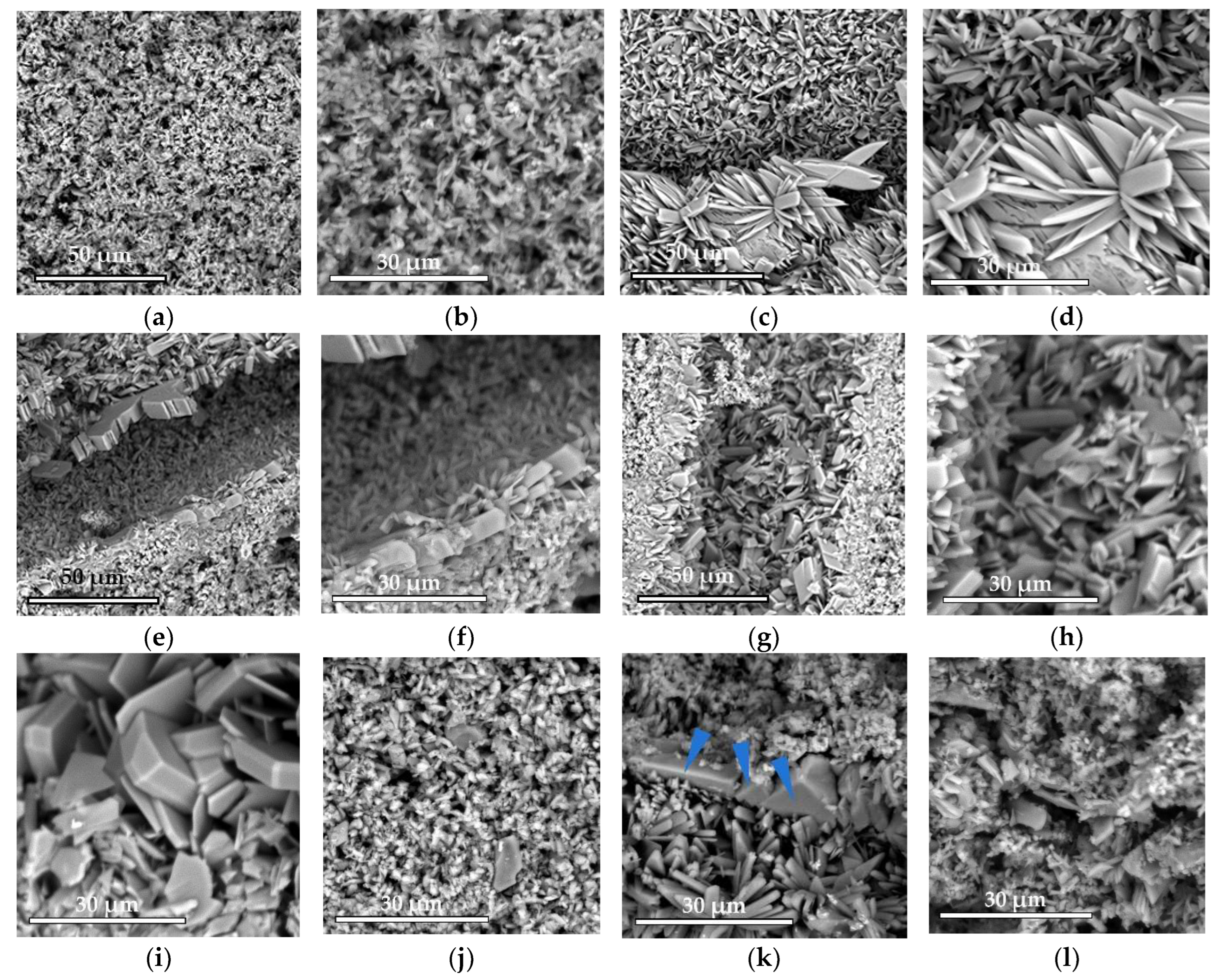

The microstructure of ceramics is mainly represented by sharp-angled lamellar and prismatic (in the form of parallelepipeds) crystals of brushite and monetite with a length of mainly less than 10 microns (Figure 5). Crystals of up to 20–30 microns in length are observed at the boundary of the pore space, where there are no obstacles to growth. Retarder additives reduce the size of crystals located at the boundaries of pores. When magnesium is introduced into ceramics, prismatic crystals are observed (shown by arrows), similar to newberyite crystals, according to the literature data [32,39,40].

3.2.3. Properties of Ceramics

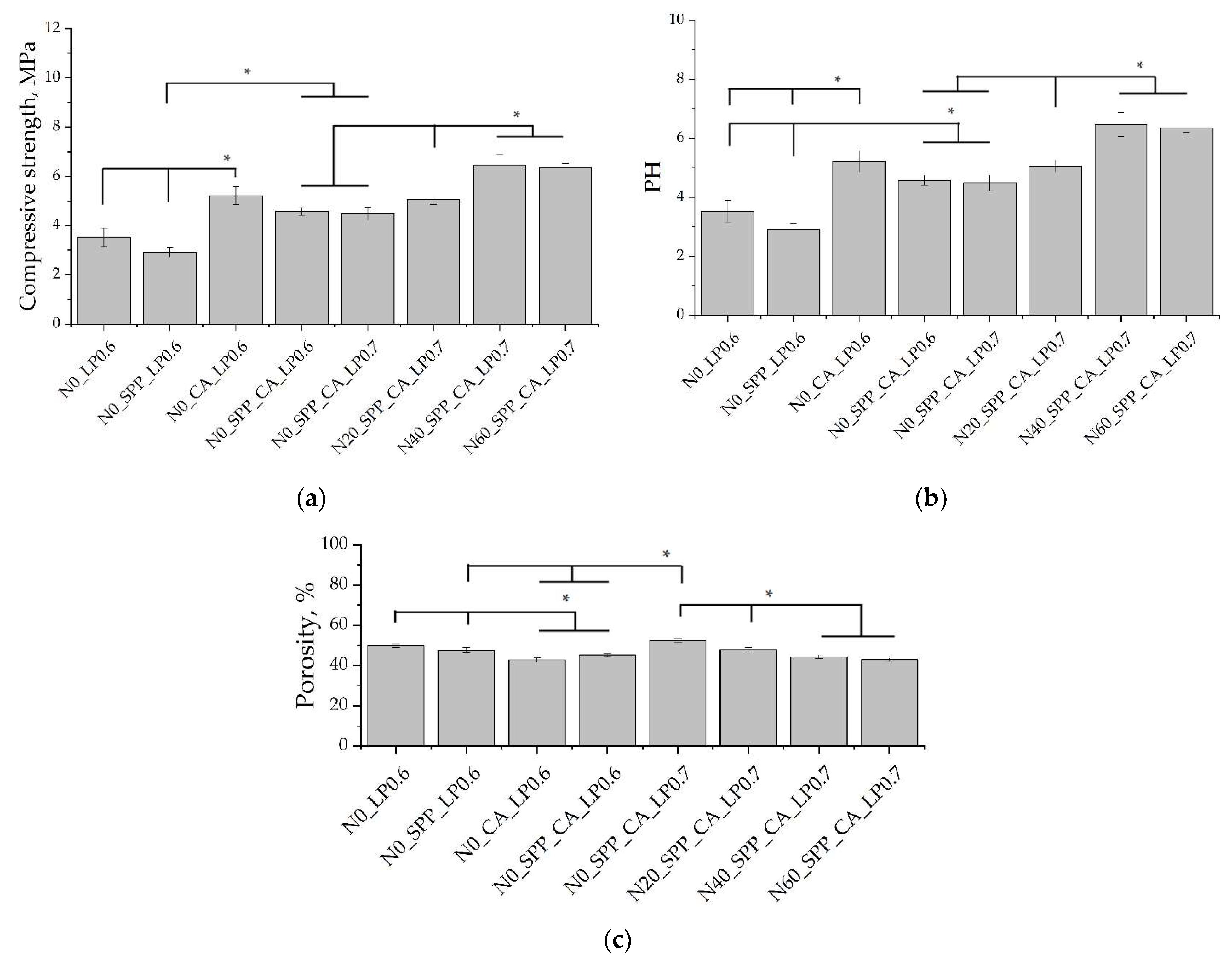

Setting-inhibitor additives slightly reduce the porosity of the ceramics, which we associate with a slight compaction of the structure due to an increase in the setting time and an increase in contacts due to the formation of plate crystals of smaller size. With the introduction of CA, porosity decreases more than with the introduction of a mixture of SPP and CA additives.

The porosity of ceramics decreases with an increase in the amount of magnesium in Mg_xCa_3−x(PO₄)₂ and, accordingly, newberyite in the final composition of magnesium calcium phosphate ceramics (Figure 6). As expected, porosity increases with an increase from L/P 0.6 to L/P 0.7, which is associated with a decrease in the strength of the coagulation structure and a decrease in cohesion. Porosity values in the range from N0 to N60 do not differ by more than 6.3% at L/P 0.6 and 9.1% at L/P 0.7. The pore size, according to SEM data, is up to 10 µm.

With the introduction of SPP, the mechanical strength of ceramics decreases and increases with the introduction of CA (Figure 6). An increase in the hardening time leads to a longer formation of the microstructure, increasing its density and the number of contacts. The increase in the strength of the ceramics directly depends on the amount of magnesium in the composition of the initial Mg_xCa_3−x(PO₄)₂. This is due to a decrease in porosity and an increase in the density of the structure. A slight decrease in the strength of N60_SP_CA_LP 0.7 compared to N40_SP_CA_LP 0.7 is within the margin of error and is not significant.

SPP slightly increases the pH (Figure 6). This is probably due to a slight decrease in the solubility of brushite due to the pyrophosphate shell in the initial periods of interaction with the contact medium. The introduction of CA negatively affects the pH values. This is expected due to its own low pH values and the likely formation of soluble calcium citrates in the ceramic structure. An increase in pH values is observed in the range N0-N20-N40-N60. The combined administration of CA and SPP reduces the negative effect of the CA additive on the pH of ceramics.

Porosity values in the range from N0 to N60 do not differ by more than 6.3% at L/P 0.6 and 9.1% at L/P 0.7. The pore size, according to SEM data, is up to 10 µm.

3.2.4. Solubility and Phase Compositions, Microstructures of Ceramics after Incubation in Saline Solution

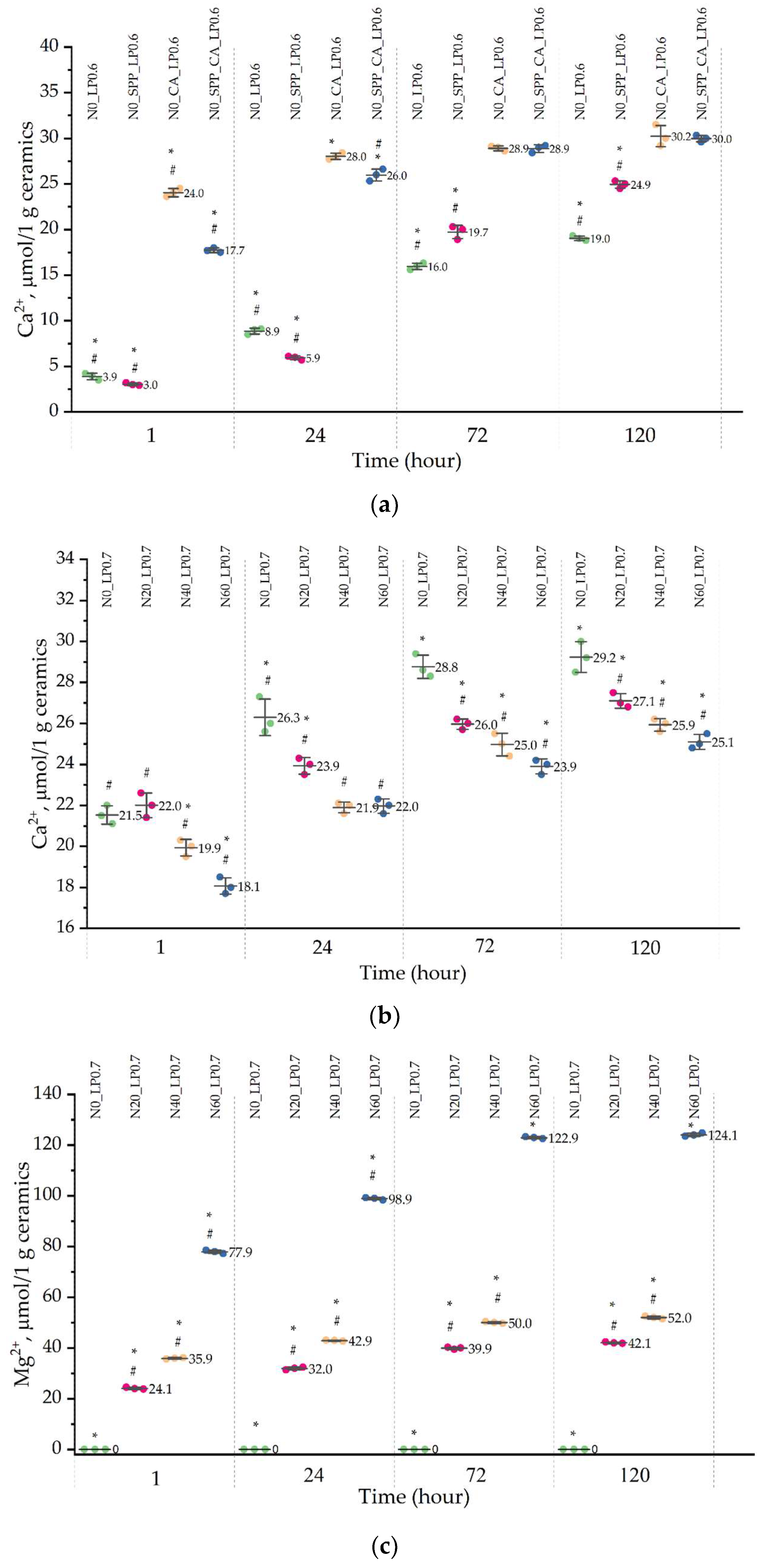

The solubility of ceramics was estimated by the yield of Ca²⁺ and Mg²⁺ ions at a temperature of 37 °C and a rotation speed of 120 rpm in a contact saline solution. The concentration of calcium and magnesium ions in the saline solution after holding ceramics in it is shown in Figure 7.

Set-retarding additives have different effects on the solubility of ceramics and, accordingly, on the yield of calcium ions (Figure 6a). Twenty-four µmol Ca²⁺ was detected after an hour in the contact medium N0_CA_LP0.6, whereas in the contact medium of the composition N0_SPP_LP0.6, such values were reached only after 120 h. An hour after the immersion of N0_SPP_LP0.6 in saline, the concentration of Ca²⁺ was lower than that in the composition N0_LP0.6. The concentration of Ca²⁺ ions in N0_SP_LP0.6 increased significantly after 24 h and exceeded the concentration of Ca²⁺ in N0_LP0.6. Concentrations of Ca²⁺ ions when the two retardant additives SPP and CA (N0_SPP_CA_LP0.6) were introduced simultaneously had an intermediate position: by 1 h, the concentration of Ca²⁺ was 16 µmol, which was 2.5 times higher than that of the composition N0_SPP_LP0.6 and 1.5 times lower than N0_CA_LP0.6. The concentration increased rapidly, reaching the same values as the concentration of Ca²⁺ ions in the composition N0_SP_CA_LP0.6 by 72 h.

In the series N0-N20-N40-N60, the concentration of Ca²⁺ ions decreased slightly for all periods of immersion of the ceramics in saline, and the concentration of Mg²⁺ increased. The concentration of Mg²⁺ in the contact solution of the composition N60_LP0.7 significantly exceeded the concentration of Mg²⁺ in the contact solutions of the compositions N20_LP0.7 and N40_LP0.7 at all incubation periods. The Mg/Ca ratio in saline solution exceeded the values calculated from the reaction, which indicates a faster dissolution of the magnesium-containing phase of newberyite and possibly other calcium magnesium phosphates, compared with calcium phosphate phases. The Mg/Ca ratio increased over time for all formulations and varied from 0.92 to 1.56 for N20_LP0.7, from 1.80 to 2.00 for N40_LP0.7, and from 4.33 to 5.13 for N60_LP0.7, and the Mg/Ca ratio for the reaction was 0.23, 0.62, and 1.36, respectively.

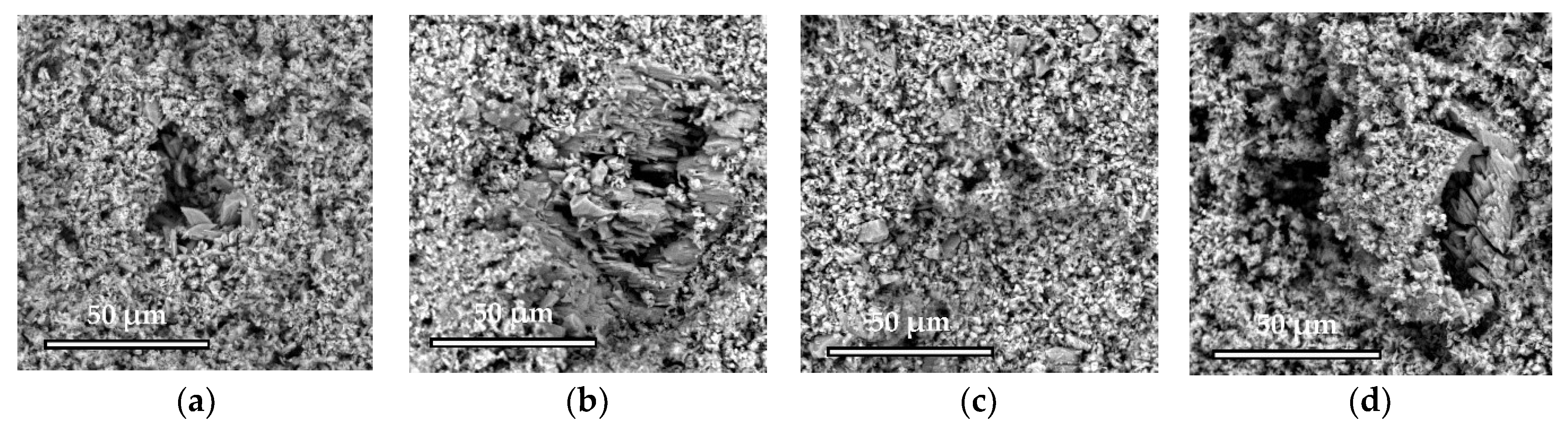

The microstructure of ceramics without magnesium ions almost did not change during incubation in the saline solution (Figure 8). Clusters of small crystals on the surface of large crystals of brushite and monetite formed when the solution was supersaturated inside the pores during incubation. With the introduction of the CA additive, a large number of small crystals were observed. In the compositions of N40_LP0.7 and N60_LP0.7, significant defects in prismatic crystals of newberyite (shown by arrows) are visible. This is consistent with the solubility data. Deep holes formed in newberyite crystals from the side of the smaller face, and prismatic crystals of brushite and monetite appeared in the form of parallelepiped cracks (Figure 8k,l).

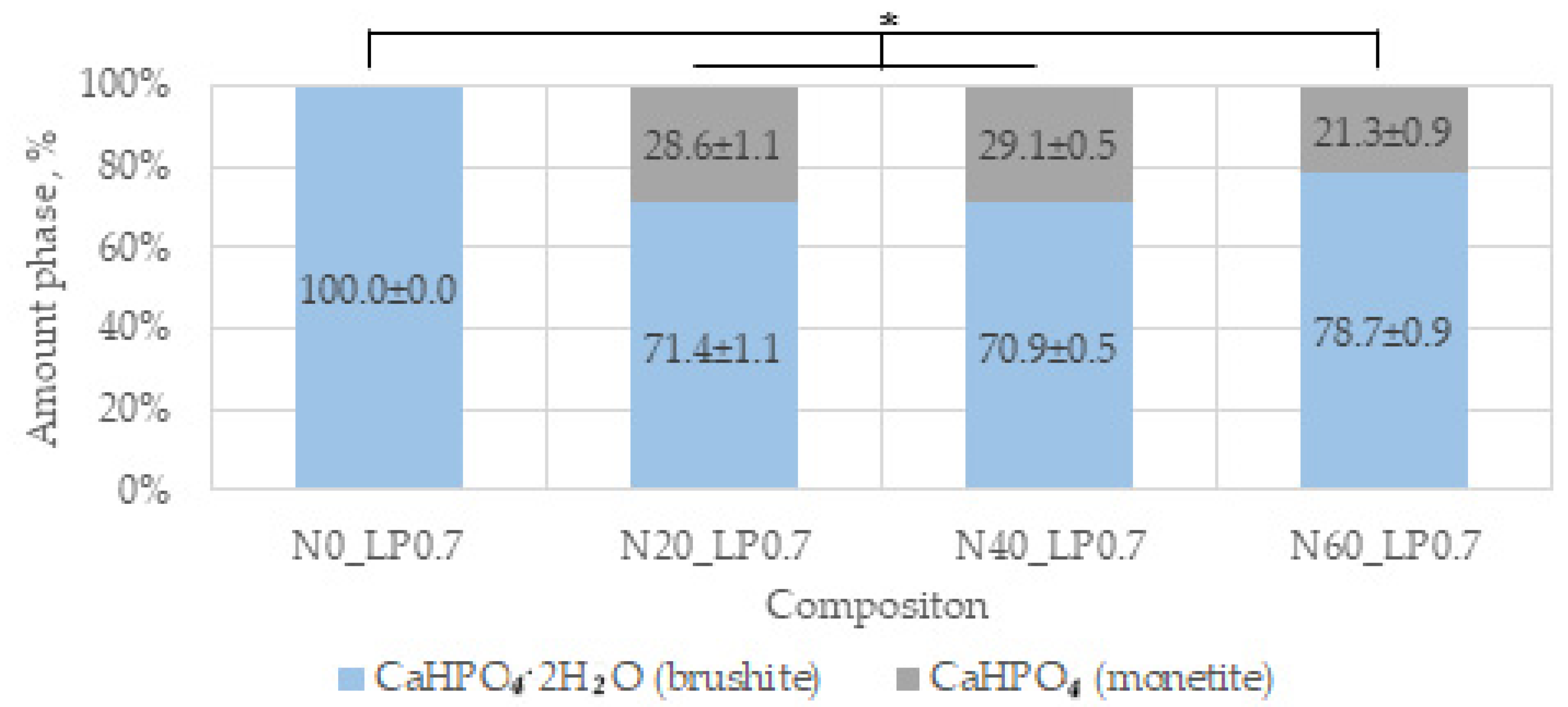

A quantitative analysis of the phase composition of incubated ceramics is shown in Figure 9. The ratio of the phases of monetite and brushite after the incubation of ceramics in saline solution did not change for the composition N0_LP0.6. The amount of brushite increased slightly in incubated formulations with the introduction of SP, and it increased by about 17% with the introduction of CA or SPP_CA together.

It can be assumed that recrystallization occurred when the ceramics were immersed in saline, since the solubility of magnetite is less than brushite. During incubation for 7 days, the amount of the newberyite phase in the ceramics decreased, and the difference in the amount of phase in the N20-N40-N60 series increased. This fact once again confirms the unequal dissolution of phases in an aqueous medium.

3.2.5. Cell Viability Test

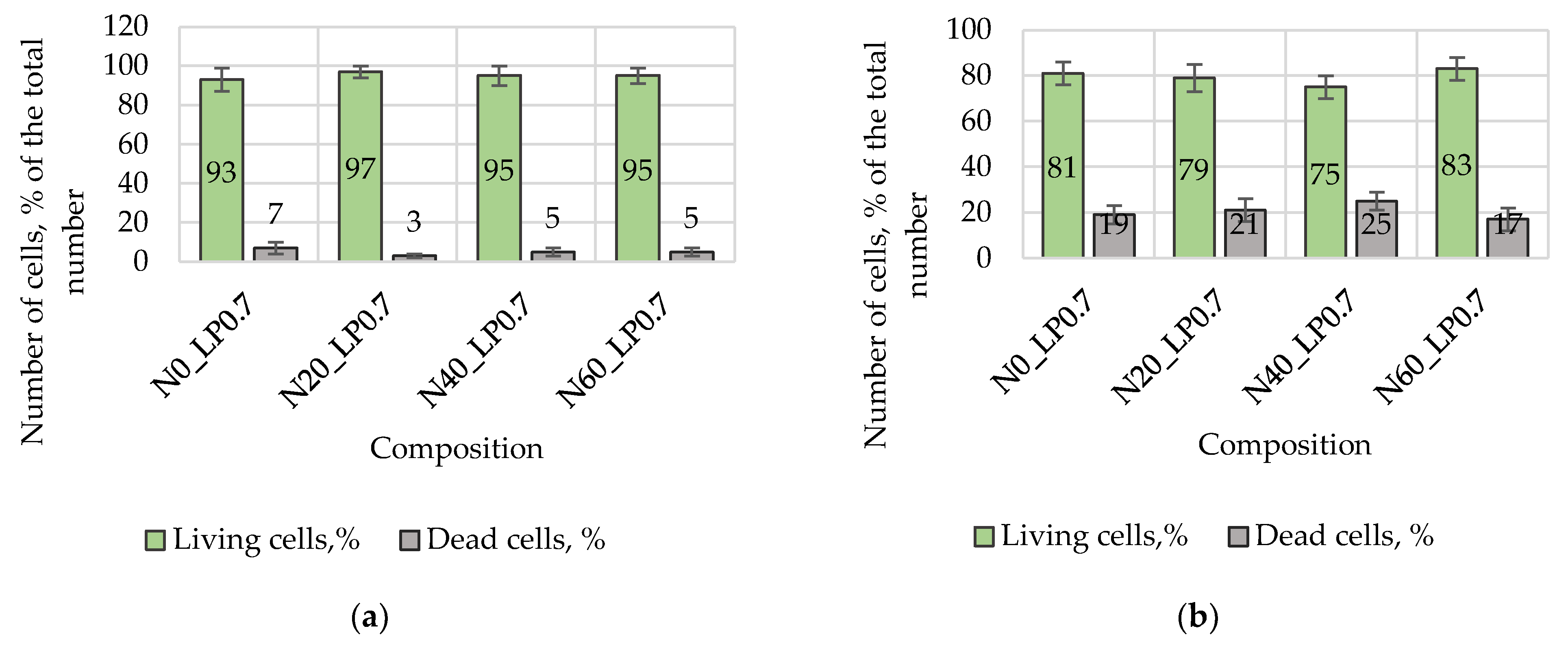

Figure 10 shows the results of a cell viability test in direct contact.

All samples of magnesium calcium phosphate materials had no cytotoxicity after 24 h of cultivating human bone marrow mesenchymal stromal cells on them. After 96 h of cultivation, all materials had no pronounced cytotoxic effect. The maximum number of dead cells when cultured with the study samples did not exceed 25 ± 4% of the total number of cells.

3.3. In Vivo Experiments

The biocompatibility and resorption rate of the magnesium calcium phosphate ceramics N0, N20, N40, N60 were studied in in vivo experiments on Wistar rats in a subcutaneous implantation model. In order to study the effect of setting inhibitor additives on the rate of resorption, the test animals were divided into three groups, differing in the additive that was introduced into all cement compositions: (1) SPP, (2) CA, or (3) SPP_CA.

3.3.1. X-ray Density of Ceramics

To determine the rate of resorption of materials, the values of X-ray density on the Hounsfield scale (HU) were used.

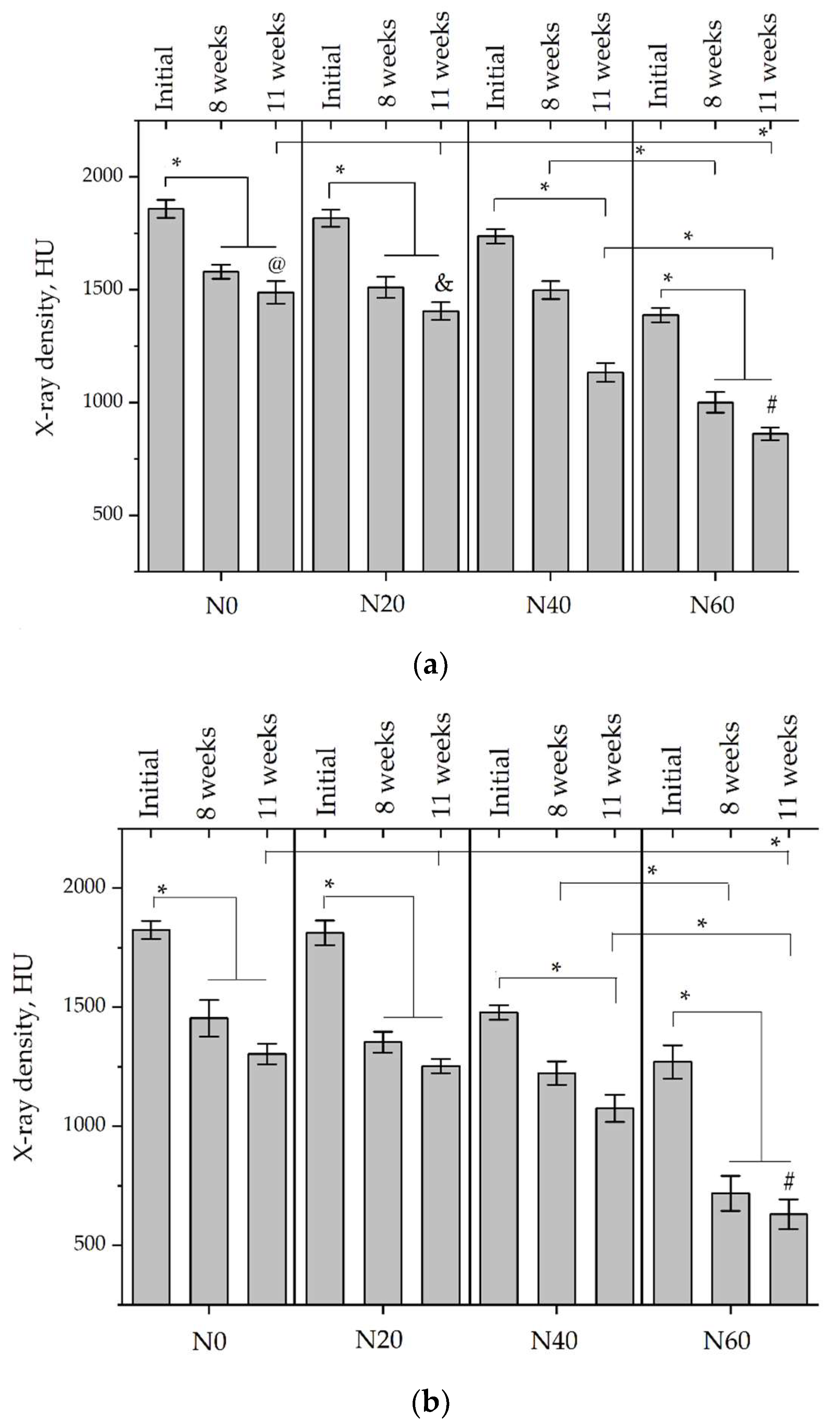

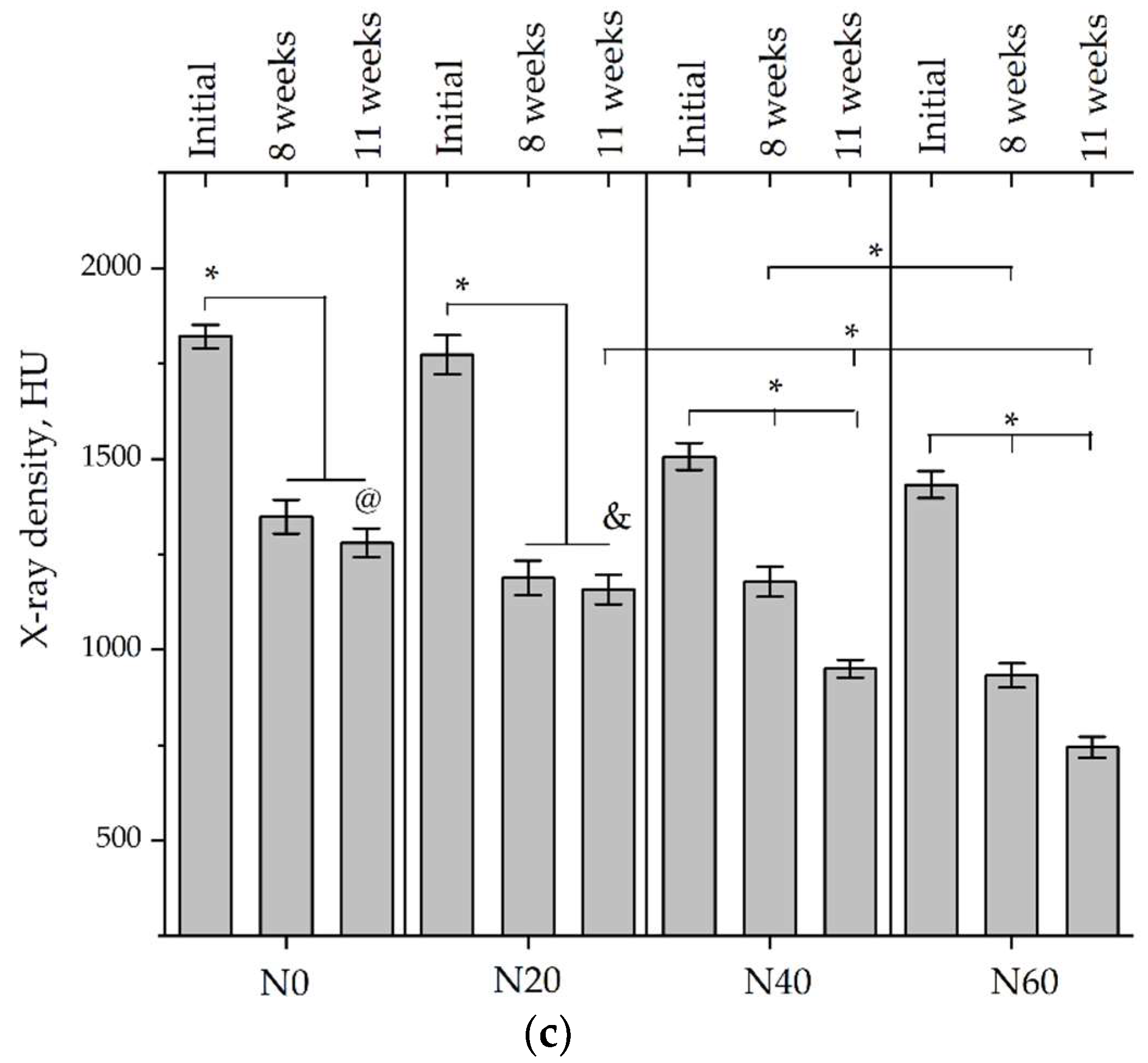

The results of the study are presented in

Table 5. Examples of X-ray micrographs for ceramics with SPP and X-ray density (HU) of the implants immediately after implantation (initial), after 8 weeks, and after 11 weeks in situ.

	N0_SPP_LP0.7	N20_SPP_LP0.7	N40_SPP_LP0.7	N60_SPP_LP0.7
Initial
8 weeks
11 weeks

,

Table 6. Examples of X-ray micrographs for ceramics with CA and X-ray density (HU) of the implants immediately after implantation (initial), after 8 weeks, and after 11 weeks in situ.

	N0_CA_LP0.7	N20_CA_LP0.7	N40_CA_LP0.7	N60_CA_LP0.7
Initial
8 weeks
11 weeks

and

Table 7. Examples of X-ray micrographs for ceramics with SPP_CA and X-ray density (HU) of the implants immediately after implantation (initial), after 8 weeks, and after 11 weeks in situ.

	N0_SPP_CA_LP0.7	N20_SPP_CA_LP0.7	N40_SPP_CA_LP0.7	N60_SPP_CA_LP0.7
Initial
8 weeks
11 weeks

and Figure 11.

The initial radiological density decreased in the range of N0-N20-N40-N60, which indicates a lower radiological density of newberyite compared to calcium phosphates. A decrease in the X-ray density from time to time is a characteristic of all samples of magnesium calcium phosphate materials. An increase in the amount of magnesium in the composition of ceramics led to a greater decrease in X-ray density: 20–30% for N0, 23–35% for N20, 27–37% for N40, and 38–51% for N60. The highest percentage of resorption was generally characteristic of compositions with CA as the setting inhibitor and the lowest for compositions with SPP. At weeks 8 and 11, there was some compaction inside the samples N60_CA_LP0.7 and N60_SPP_CA_LP0.7, respectively.

3.3.2. Phase Compositions and Microstructures of Ceramics after Implantation

Most of the X-ray density was lost during the resorption of the newberyite phase from the ceramic’s composition, the absence of which at week 11 was confirmed by X-ray phase analysis data (Figure 12).

The microstructure of ceramics after implantation was looser, represented by small crystals (Figure 13). There were no large crystals present in the structure of ceramics before implantation. It is rare to find crystals of brushite with a size of 10–15 microns, which in most cases are defective. A single cluster of crystals similar to newberyite crystals, almost completely dissolved, was found in a sample of the composition N60_SP_CA_LP0.7.

3.3.3. Morphological Study of Connective Tissue Capsules

Photographs of sections of the samples under study under various microscopy modes are shown in

Table 8. Section photos for the studied samples at different microscopy modes.

		N0_LP0.7	N20_LP0.7	N40_LP0.7	N60_LP0.7
SPP	SLM
	PCM
CA	SLM
	PCM
CA_SPP	SLM
	PCM

SLM—standard light microscopy. PCM—phase-contrast microscopy. Hematoxylin-eosin, magnification 400×.

.

Table 9. The average thickness of fibrous capsules (µm) and the relative area of vessels per 100 thousand µm² of capsule area. *—significant differences.

Composition	N0_LP0.7			N20_LP0.7			N40_LP0.7			N60_LP0.7
	SPP	CA	SPP_CA	SPP	CA	SPP_CA	SPP	CA	SPP_CA	SPP	CA	SPP_CA
Capsule thickness, µm	602.6 ± 88.2	108.0 * ± 6.9	123 ± 15.9	299.9 ± 15.1	104.4 * ± 7.1	116.7 ± 8.4	531.1 ± 35.1	90.3 * ± 3.6	104.7 ± 5.9	213.9 ± 30.7	66.5 * ± 4.4	78.6 ± 2.9
p-level	<0.0001			<0.0001			<0.0001			0.0002
Vessel area, µm2/100,000 µm2	857.4 ± 303.5	4547.0 * ± 529.7	3973.2 ± 418.6	4130.0 ± 646.1	3525 ±309.2	3821 ±291.1	4394.0 ± 304.6	2825.0 * ± 445.9	3282.1 ± 234.8	5720.0 ± 1959	3259.0 ± 1345	2978.5 ± 245.3
p-level	0.004			0.408			0.008			0.306

shows the distribution of the relative area of vessels (per 100 thousand µm² of capsule area) for samples of magnesium calcium phosphate ceramics containing SPP, CA, and SPP_CA.

Sufficiently thick mature fibrous capsules with an increased content of vessels and pronounced inflammatory infiltration with a predominance of lymphocytes and neutrophils were mainly formed during implantation of samples of magnesium calcium phosphate ceramics of different compositions containing SPP. At the same time, the implant resorption was marginal with the penetration of single macrophages deep into the implant.

Only marginal resorption without penetration of macrophages deep into the implant was observed in the ceramic samples N0_CA and N0_SPP_CA. The introduction of single macrophages into the implant for composition N20, with a gradual increase for samples N40 and N60, was observed when newberyite appeared in the composition of the ceramics. Thinner capsules with less pronounced vascularization and inflammatory infiltration were formed during implantation of the magnesium calcium phosphate ceramic samples of different compositions with CA and SPP_CA. Compounds N40 and N60 actively germinated with fibroblasts.

The minimum relative area of vessels and capsule thickness is a characteristic of samples with CA, which confirms their biocompatibility. Biocompatibility increases in the range N0-N20-N40-N60 with all variants of setting inhibitors. Ceramics of the compositions N40_CA, N60_CA, N40_SPP_CA, and N60_SPP_CA have higher biocompatibility and resorption. The most mature thin fibrous capsule with moderate vascular content and weak inflammatory infiltration was observed. At the same time, intensive resorption of the implant by macrophages, giant multinucleated cells, and germination of ceramics by fibroblasts were observed.

4. Discussion

Magnesium was introduced into the initial component of TCP brushite cement until Mg_xCa_(3−x)(PO₄)₂ was obtained at x = 0, 0.75, 1.5, 2.25 in order to obtain uniformly magnesium-doped brushite and newberyite.

The diffraction peaks of the Mg0.75 composition shift towards larger values of the angle 2Θ compared to Mg0, and new peaks of low intensity appear, related to Mg₃Ca₃(PO₄)₄.

Saleh et al. did not find phases other than β-TCP in the composition of Ca_(8.88−x)Mg_x(PO₄)₆ when x was less than 1 [33]. However, the incorporation of Mg²⁺ into the β-TCP lattice led to a shift in the diffraction peaks d = 2.61, 2.88, 3.21 Å to higher values of 2Θ [41], as well as a decrease in the intensity of X-ray peaks, which was attributed to the substitution of Ca²⁺ ions of larger size (1.00 Å) for Mg²⁺ ions of smaller size (0.72 Å) [42].

According to the literature data, the maximum amount of magnesium capable of replacing calcium in the positions of Ca(4) and Ca(5) in the TCP structure is 14–15 mol.% [42,43]. Exceeding 15.00 mol.% Mg²⁺ leads to the formation of a magnesium-rich phase, such as stanfieldite [42].

In our case, the concentration of doped magnesium was higher than 25 mol.% (Mg0.75). In this regard, magnesium ions were embedded in the TCP structure, and an additional phase of magnesium calcium phosphate Mg₃Ca₃(PO₄)₄ was formed, which became the only phase when the magnesium increased to 1.5. A further increase in magnesium leads to the formation of Mg₃(PO₄)₂ trimagnesium phosphate.

Low-temperature magnesium calcium phosphate ceramics were obtained by cement technology through the acid–base interaction of Mg_xCa_(3−x)(PO₄)₂ and monocalcium phosphate monohydrate Ca(H₂PO₄)₂·H₂O (MCPM).

The main phases of the magnesium-free ceramics are brushite CaHPO₄·2H₂O and monetite CaHPO⁴, in accordance with the equations:

β-Ca₃(PO₄)₂ + Ca(H₂PO₄)₂·H₂O + 7H₂O → 4CaHPO₄·2H₂O,
β-Ca₃(PO₄)₂ + Ca(H₂PO₄)₂·H₂O → 4CaHPO₄ + H₂O.

Brushite is more soluble (−log(Ksp) = 6.59) than monetite (−log(Ksp) = 6.90), and it formed faster as a result of the reaction [44]. In our work, additive-free ceramics contain about 30% brushite, which we attribute to a lack of cement-mixing fluid due to the small particle size of the initial component, which increases the water requirement.

With the introduction of set-retarding additives and increasing the water/solid ratio, the amount of the brushite phase increases.

Monetite, on the one hand, is an undesirable phase of ceramics due to a decrease in strength in its presence and a lower dissolution rate [45]. On the other hand, when aging in an aqueous medium or subcutaneously, monetite, unlike brushite, does not transform into other poorly soluble phases [27,46], and therefore, it was characterized by a higher rate of resorption [31,44].

A slight difference in the amount of newberyite formed in the compositions of N20, N40, and N60 from the target values was associated, in our opinion, with the expenditure of magnesium on the doping of the brushite phase.

An increase in setting time and compressive strength was observed by Saleh et al. with an increase in the magnesium content in brushite cement. The initial setting time increased to 33 min with a magnesium content of up to 10% in the composition of TCP [33]. In our work, the beginning of setting of the additive-free cement was less than 30 s for all Mg-substituted compounds. However, we found that the number of setting inhibitors was required less with an increase in the amount of magnesium in the cement composition. This may be due to the faster formation of poorly soluble Mg₂P₂O₇ on the surface of the new phases. An increase in the amount of magnesium in the composition of ceramics leads to a slight increase in strength and a decrease in porosity. This is consistent with the results of Alkhraisat et al., and it is connected with the formation of newberyite in the composition of ceramics, which compacts the matrix [23].

In general, SPP has a negative effect on mechanical strength, although porosity was slightly reduced. SPP probably leads to the formation of calcium and magnesium pyrophosphates on the surface of the particles, partially preventing the formation of contacts of the mineral component of the consolidated matrix, which leads to a decrease in mechanical strength. CA seals the ceramic structure, reduces porosity, and significantly reduces pH. The combined use of additives reduces the negative effect when used separately and is preferable.

An increase in the liquid/solid ratio leads to an increase in porosity to values without additional ceramics. The phase composition of ceramics containing newberyite was not affected by an increase in L/P.

Set-retarding additives and magnesium doping have an effect on the solubility of ceramics. The amount of calcium ions in the contact medium was less than the amount of magnesium ions and almost did not differ for all compositions. CA increases the solubility of ceramics by six times in the initial period and by one and a half times by 5 days. Perhaps this is due to the formation of calcium citrate and a decrease in the size of ceramic particles. SPP reduces the level of calcium released into the solution in the first 24 h, after which the amount of calcium ions increases and reaches values greater than those for non-additive ceramics.

The release of Mg²⁺ ions from ceramic samples N20, N40, and N60 for 5 days increased with an increase in the amount of magnesium in the precursor due to a lower degree of crystallinity of alloyed ceramic samples and the content of newberite, which has a greater chemical solubility (−log(Ksp) = 5.51–5.82) than brushite and monetite. After 7 days, the amount of newberite in the ceramic composition decreased significantly. The higher dissolution rate of magnesium-substituted brushite is consistent with the data of Alkhraisat et al. They observed an excess of Mg²⁺ magnesium ions in SBF solution over Ca²⁺ calcium ions and an increase in solubility in general with an increase in the magnesium content in the cement composition [23]. A more intense dissolution of newberyite compared to brushite was observed by Klammert et al. during subcutaneous implantation in rats in in vivo experiments [17].

In our study, a model of subcutaneous implantation in rats was also chosen. Since the implants were surrounded only by soft tissues, it was easy to carry out X-ray monitoring of the solubility of the implant without harming animals in long-term experiments. Changes in the phase composition can be investigated due to the absence of ingrown (and mineral-containing) hard tissues [17].

According to micro-CT, the surface resorption of ceramic granules was very insignificant, whereas dissolution was observed throughout the entire volume of ceramics, as can be judged by the X-ray density data. In our studies, the X-ray density of ceramics by the 8th and 11th days of implantation was less than the initial density. The mechanism of reducing the X-ray density of ceramics based on brushite and newberyite is associated with more intensive dissolution of the newberyite phase (Mg²⁺ and HPO₄²⁻) and less intensive dissolution of the brushite/monetite phase (Ca²⁺ and HPO₄²⁻) throughout the volume and leaching from the implant.

At week 8 and 11, there is some compaction inside the samples N60_CA and N60_SPP_CA. The formation of radiologically denser regions is probably associated with the re-deposition of brushite during ionic supersaturation into less soluble phases of calcium phosphate [17]. However, no such compounds were found on radiographs. X-ray phase analysis of ceramic samples showed strong differences in the phase composition before and after implantation of ceramic granules. The absence of the newberyite phase in all modifications of ceramics confirms its higher dissolution rate.

Recrystallization in the center of the sample is most likely due to the highest saturation with Ca²⁺ and HPO₄²⁻ ions due to the smallest boundary with the environment [47]. Bonner et al. observed the formation of apatite at 6–8 weeks. The absence of magnesium in the composition of ceramics can contribute to recrystallization. It should be noted that the X-ray density of samples N60_CA and N60_SPP_CA was lower than N60_SPP. Ceramics containing SPP did not show areas with a higher X-ray density in the center of the ceramics. SPP forms magnesium and calcium pyrophosphate, which are less soluble than brushite, monetite, and newberyite [47]. The literature data on the prevention of brushite recrystallization with the introduction of pyrophosphate are in contradiction to each other [48,49].

In addition to passive resorption due to chemical dissolution, active (cell-mediated) resorption due to the presence of macrophages was also observed in in vivo experiments [45,50,51]. Further, the presence of macrophages indirectly confirms the absence of brushite recrystallization, in which active resorption occurs exclusively by osteoclasts [31].

Animal studies using a subcutaneous implantation model have confirmed the assumption of volumetric dissolution of magnesium calcium phosphate ceramics and their biocompatibility. The rate of dissolution directly depends on the amount of magnesium in the composition and on the setting-inhibitor additive used. It was found that SPP reduces the rate of dissolution and biocompatibility, but not critically. The joint use of SPP and CA is optimal in terms of the physical and chemical properties of ceramics and biocompatibility. Optimal concentrations of SSP and CA additives when used together for compositions with different Mg²⁺ magnesium ion content in ceramics were found in our work. The resorption rate of ceramics based on brushite-newberyite cement can be controlled by the amount of Mg²⁺ ions. The main advantage of the resulting multiphase ceramics is volumetric resorption due to the different dissolution rates of the phases and the possibility of germination of the surrounding tissue into the internal space formed by dissolution. This was confirmed by the germination of fibroblasts during subcutaneous implantation.

An in vivo study of subcutaneous implantation confirms the biocompatibility and different rates of resorption of magnesium-calcium phosphate ceramics containing various setting inhibitors and determines the vector of further studies of magnesium-calcium phosphate ceramics, including in orthotopic implantation models.

5. Conclusions

An increase in the amount of the magnesium ion Mg²⁺ in the composition of TCP leads to a slight increase in the strength and a decrease in the porosity of ceramics based on brushite-newberyite cement, as well as a significant increase in volume solubility due to the primary dissolution of the newberyite phase. SPP negatively affects the solubility, mechanical strength, and biocompatibility of ceramics. CA seals the ceramic structure, reduces porosity, increases strength, and significantly reduces pH. The combined use of additives is preferable for achieving optimal properties of ceramics.

We have demonstrated the possibility of regulating the rate of volumetric resorption of low-temperature ceramics based on brushite-newberyite cement containing setting inhibitors by changing the amount of magnesium in the initial TCP.
