Sol–Gel Approach for Design of Pt/Al2O3-TiO2 System—Synthesis and Catalytic Tests
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation
2.3. Characterization
2.3.1. Thermal Analysis
2.3.2. Porous Structure
2.3.3. X-ray Powder Diffraction Analysis
2.3.4. Temperature-Programmed Reduction with Hydrogen—TPR-H2
2.3.5. Determination of Metal Dispersion by Hydrogen Chemisorption
2.3.6. FTIR Measurements
2.3.7. Catalytic Tests

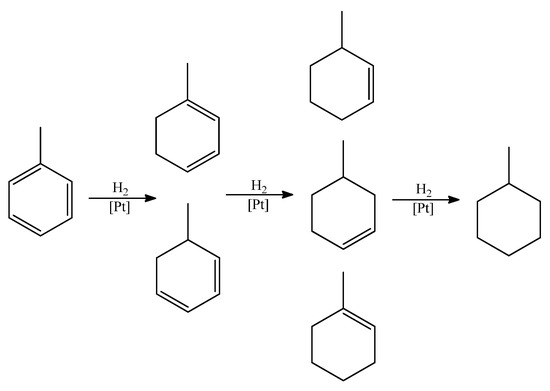

Hydrogenation of Toluene
Hydrogenation of o-Chloronitrobenzene
3. Results

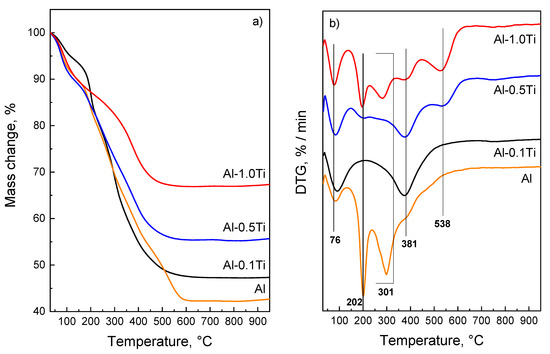

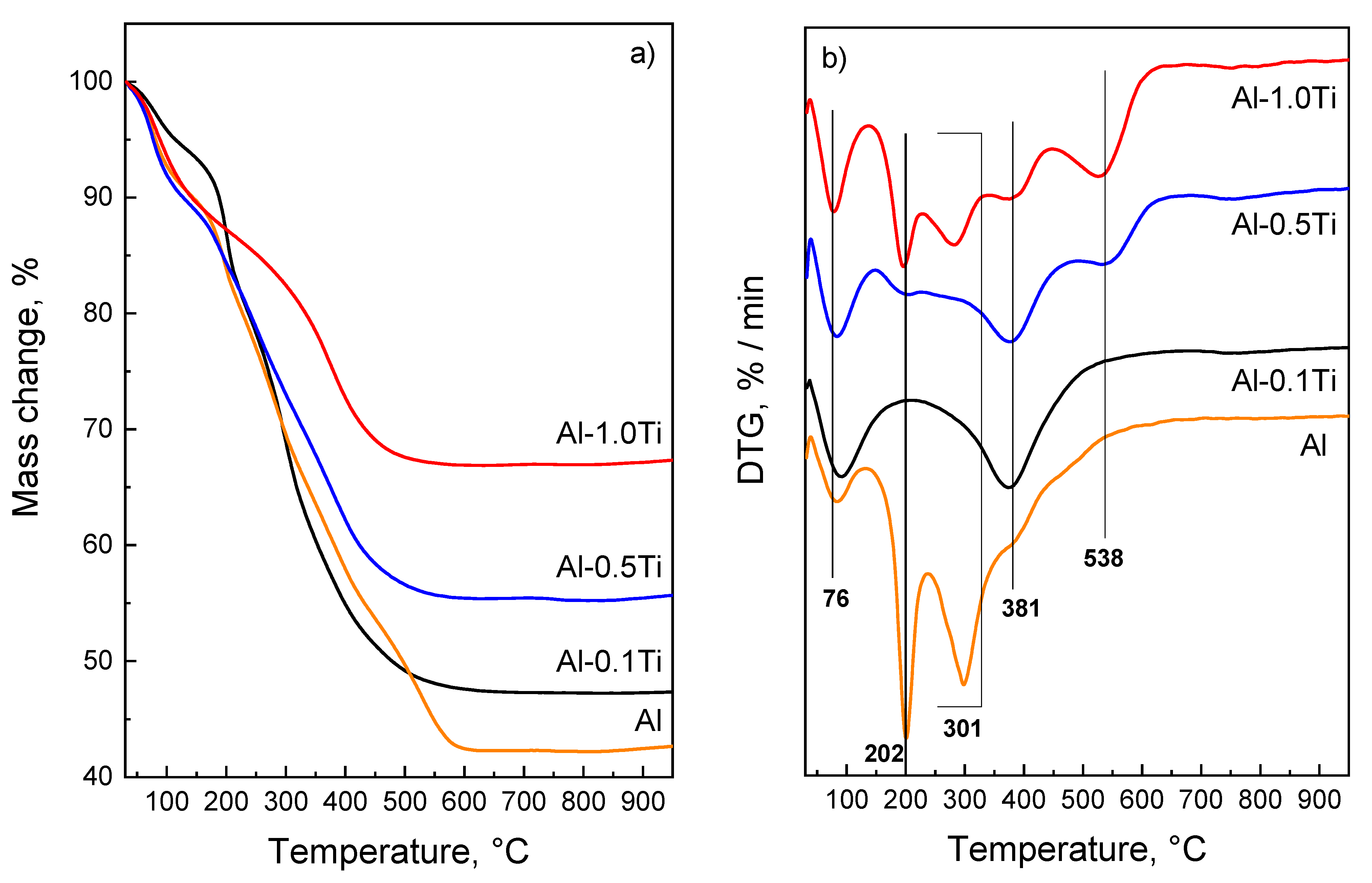

3.1. TG and DTG Measurements

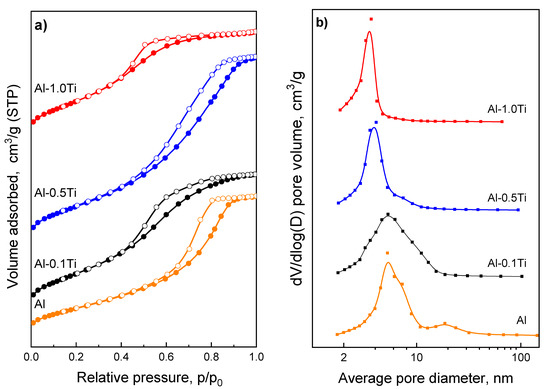

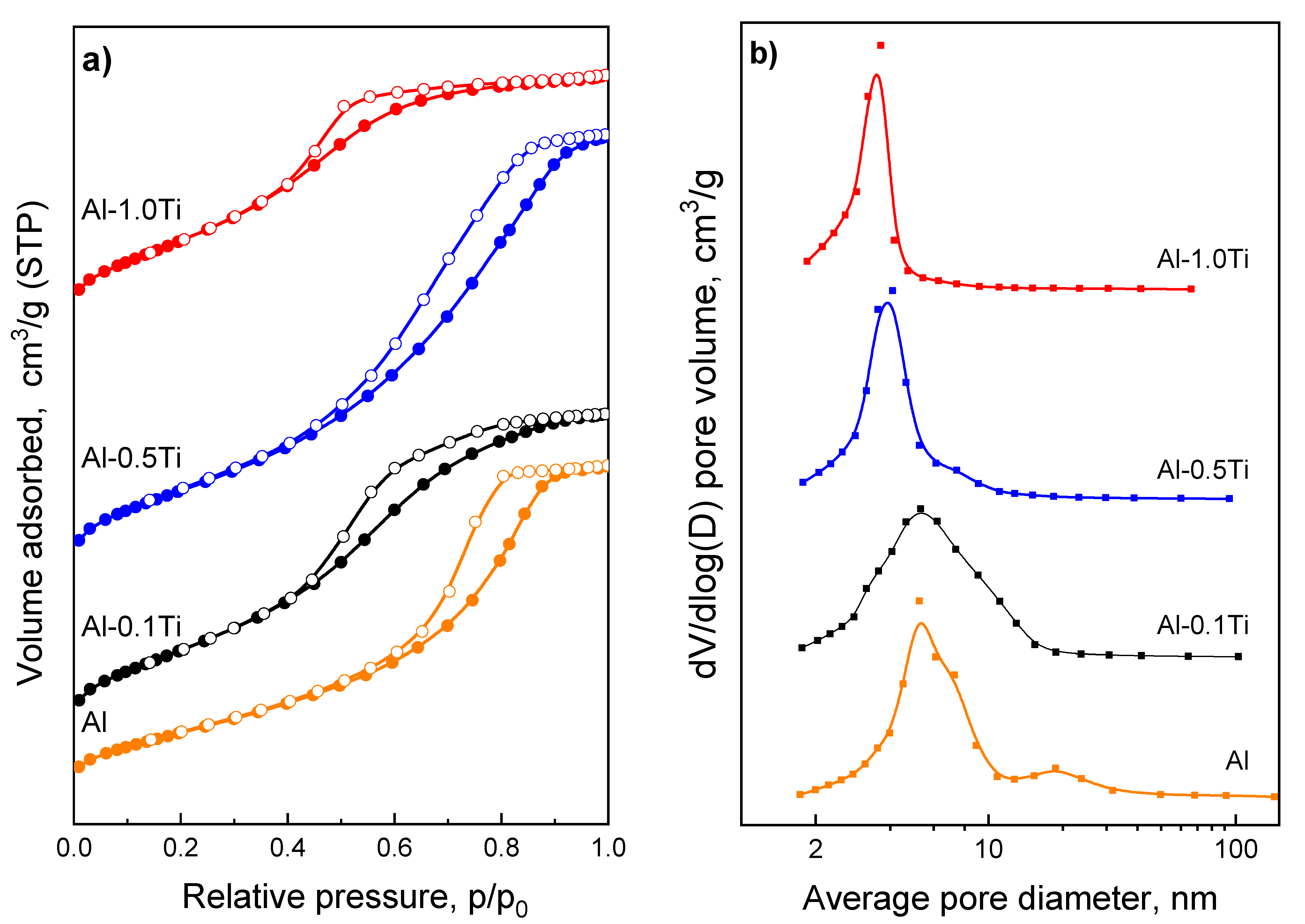

3.2. Surface Area and Porosity of the Supports and Catalysts

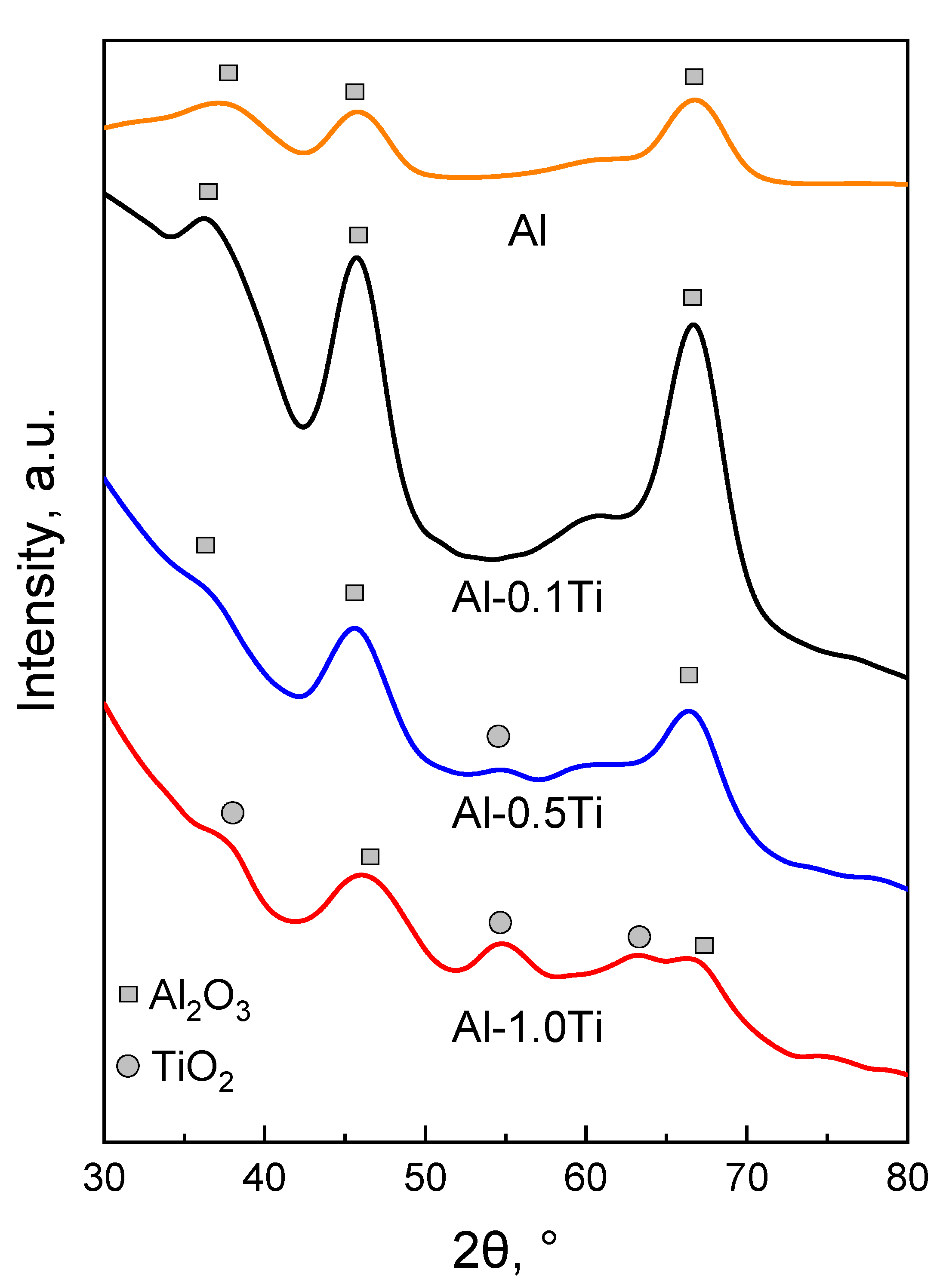

3.3. X-ray Powder Diffraction Analysis

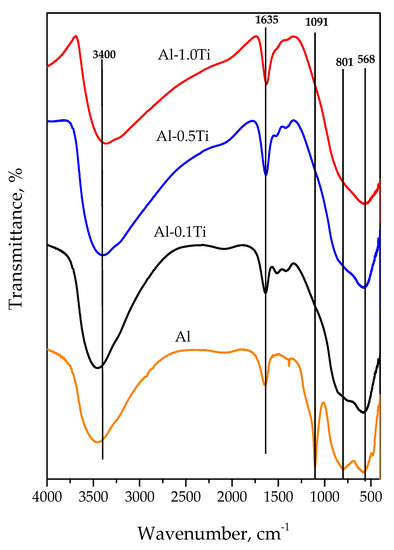

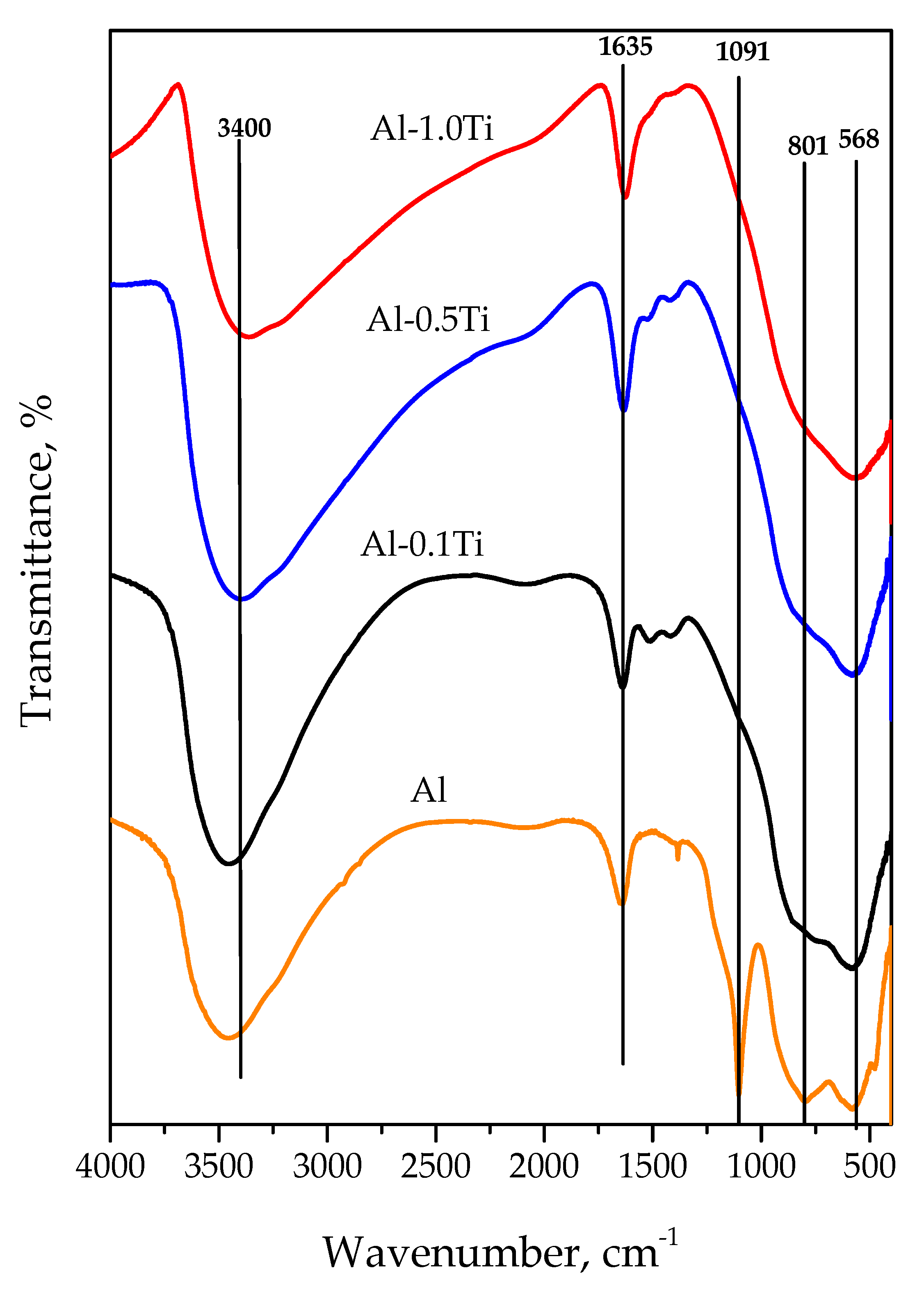

3.4. FTIR Spectra of the Al-Ti Binary Oxide Systems

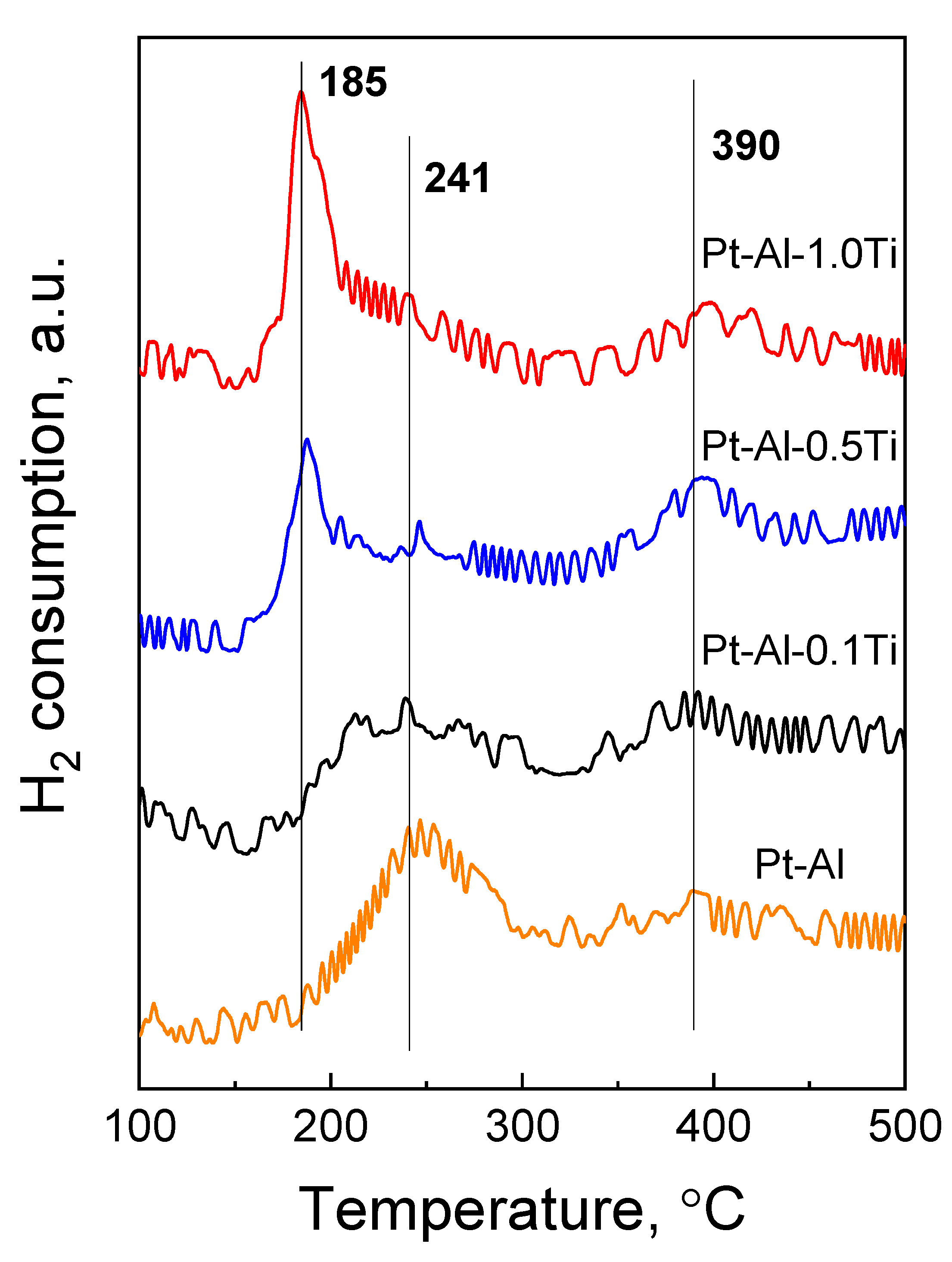

3.5. Temperature-Programmed Reduction with Hydrogen—TPR-H2
3.6. Determination of Metal Dispersion by Hydrogen Chemisorption

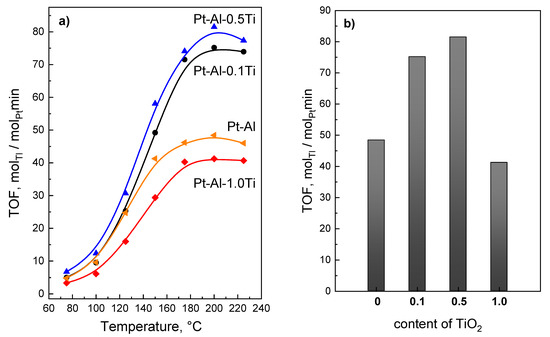

3.7. Catalytic Activity
4. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Przekop, R.; Marciniak, P.; Sztorch, B.; Czapik, A.; Stodolny, M.; Martyla, A. One-pot synthesis method of SiO2-La2O2CO3 and SiO2-La2O3 systems using metallic lanthanum as a precursor. J. Non-Cryst. Solids. 2019, 520, 119444. [Google Scholar] [CrossRef]
- Przekop, R.E.; Marciniak, P.; Sztorch, B.; Czapik, A.; Stodolny, M.; Martyła, A. New method for the synthesis of Al2O3–CaO and Al2O3–CaO–CaCO3 systems from a metallic precursor by the sol–gel route. J. Aust. Ceram. Soc. 2018, 54, 679–690. [Google Scholar] [CrossRef] [Green Version]
- El-Shobaky, H.G. Surface and catalytic properties of Co, Ni and Cu binary oxide systems. Appl. Catal. A Gen. 2004, 278, 1–9. [Google Scholar] [CrossRef]
- Hoost, T.E.; Otto, K. Temperature-programmed study of the oxidation of palladium/alumina catalysts and their lanthanum modification. Appl. Catal. 1992, 92, 39–58. [Google Scholar] [CrossRef]
- Srinivas, S.T.; Sai Prasad, P.S.; Kanta Rao, P. Effect of support modification on the chlorobenzene hydrodechlorination activity on Pt/Al2O3 catalysts. Catal. Lett. 1997, 50, 77–82. [Google Scholar] [CrossRef]
- Bjelić, A.; Grilc, M.; Huš, M.; Likozar, B. Hydrogenation and hydrodeoxygenation of aromatic lignin monomers over Cu/C, Ni/C, Pd/C, Pt/C, Rh/C and Ru/C catalysts: Mechanisms, reaction microkinetic modelling and quantitative structure–activity relationships. Chem. Eng. J. 2018, 359, 305–320. [Google Scholar] [CrossRef]
- Shawn, D.; Vannice, L.M.A. Hydrogenation of aromatic hydrocarbons over supported Pt catalysts, II. Toluene hydrogenation. J. Catal. 1993, 143, 554–562. [Google Scholar]
- Bjelić, A.; Likozar, B.; Grilc, M. Scaling of Lignin Monomer Hydrogenation, Hydrodeoxygenation and Hydrocracking Reaction Micro-kinetics over Solid Metal/Acid Catalysts to Aromatic Oligomers. Chem. Eng. J. 2020, 399, 125712. [Google Scholar] [CrossRef]
- Bjelić, A.; Grilc, M.; Likozar, B. Bifunctional metallic-acidic mechanisms of hydrodeoxygenation of eugenol as lignin model compound over supported Cu, Ni, Pd, Pt, Rh and Ru catalyst materials. Chem. Eng. J. 2020, 394, 124914. [Google Scholar] [CrossRef]
- Rylander, P. Catalytic Hydrogenation over Platinum Metals; Elsevier: Amsterdam, The Netherlands, 2012. [Google Scholar]
- Sauvage, J.F.; Baker, R.H.; Hussey, A.S. The Hydrogenation of Cyclohexenes over Platinum Oxide. J. Am. Chem. Soc. 1960, 82, 6090–6095. [Google Scholar] [CrossRef]
- Nishimura, S. Hydrogenation and Hydrogenolysis. IV. Catalytic Reductions of Cinnamyl. Bull. Chem. Soc. Jpn. 1960, 33, 1356–1359. [Google Scholar] [CrossRef]
- Nishimura, S.; Onoda, T.; Nakamura, A. Hydrogenation and Hydrogenolysis. IV 1. Catalytic Reductions of Cinnamyl Alcohols and 3-Phenylpropargyl Alcohol. Chem. Soc. Jpn. 1960, 33, 566. [Google Scholar] [CrossRef] [Green Version]
- Huber, G.W.; Shabaker, J.W.; Evans, S.T.; Dumesic, J.A. Aqueous-phase reforming of ethylene glycol over supported Pt and Pd bimetallic catalysts. Appl. Catal. B Environ. 2006, 62, 226–235. [Google Scholar] [CrossRef]
- Bianchi, C.L.; Canton, P.; Dimitratos, N.; Porta, F.; Prati, L. Selective Oxidation of glycerol with oxygen using mono and bimetallic catalysts based on Au, Pd and Pt metals. Catal. Today 2005, 102–103, 203–212. [Google Scholar] [CrossRef]
- Rylander, P.N. Catalytic hydrogenation over Platinum metals. Stud. Surf. Sci. Catal. 1995, 95, 477–539. [Google Scholar]
- Kazantsev, R.V.; Gaidai, N.A.; Nekrasov, N.V.; Tenchev, K.; Petrov, L.; Lapidus, A.L. Kinetics of Benzene and Toluene Hydrogenation on a Pt/TiO2 Catalyst. Kinet. Catal. 2003, 44, 529–535. [Google Scholar] [CrossRef]
- Ahmed, M.A.; Abdel-Messih, M.F. Structural and nano-composite features of TiO2–Al2O3 powders prepared by sol–gel method. J. Alloys Compd. 2011, 509, 2154–2159. [Google Scholar] [CrossRef]
- Chen, Y.W.; Lee, D.S. Liquid Phase Hydrogenation of p-Chloronitrobenzene on Au-Pd/TiO2 Catalysts: Effects of Reduction Methods. Mod. Res. Catal. 2013, 2, 25–34. [Google Scholar] [CrossRef] [Green Version]
- Przekop, R.E.; Marciniak, P.; Sztorch, B.; Czapik, A.; Stodolny, M.; Martyła, A. One-pot synthesis of Al2O3-La2O2CO3 systems obtained from the metallic precursor by the sol-gel method. J. Non-Cryst. Solids 2018, 520, 105–112. [Google Scholar] [CrossRef]
- Bergeret, G.; Gallezot, P. Handbook of Heterogeneous Catalysis; Ertl, G., Knözinger, H., Weitkamp, J., Eds.; Wiley Weinheim: Weinheim, Germany, 1997. [Google Scholar]
- Zieliński, M.; Pietrowski, M.; Wojciechowska, M. New Promising Iridium Catalyst for Toluene Hydrogenation. ChemCatChem 2011, 3, 1653–1658. [Google Scholar] [CrossRef]
- Sato, T.; Ikoma, S.; Ozawa, F. Thermal decomposition of basic aluminum salts—Formate and acetate. Thermochim. Acta 1984, 75, 129–137. [Google Scholar] [CrossRef]
- Hamad, H.A.; Abd El-latif, M.M.; Kashyout, A.B.; Sadik, W.A.; Feteha, M.Y. Influence of Calcination Temperature on the Physical Properties. Russ. J. Phys. Chem. 2015, 89, 1896–1906. [Google Scholar] [CrossRef]
- Chauruka, S.R.; Hassanpour, A.; Brydson, R.; Roberts, K.J.; Ghadiri, M.H.S. Effect of mill type on the size reduction and phase transformation of gamma alumina. Chem. Eng. Sci. 2015, 134, 774–783. [Google Scholar] [CrossRef] [Green Version]
- Peng, W.W.; Roy, P.; Favaro, L.; Amzallag, E.; Brubach, J.B.; Congeduti, A.; Guidi-Cestelli, M.A.; Huntz, A.M.; Barros, J.; Tétot, R. Experimental and ab initio study of vibrational modes of stressed Al2O3 films formed by oxidation of Al alloys under different atmospheres. Acta Mater. 2011, 59, 2723–2730. [Google Scholar] [CrossRef]
- Shen, L.; Hu, C.; Sakka, Y.; Huang, Q. Study of phase transformation behaviour of Al2O3 through precipitation method. J. Phys. D Appl. Phys. 2012, 45, 21. [Google Scholar] [CrossRef]
- Shek, C.H.; Lai, J.K.L.; Gu, T.S.; Lin, G.M. Transformation evolution and infrared absorption spectra of amorphous and crystalline nano-Al2O3 powders. Nanostruct. Mater. 1997, 8, 605–610. [Google Scholar] [CrossRef]
- Adamczyk, A.; Długoń, E. The FTIR studies of gels and thin films of Al2O3–TiO2 and Al2O3–TiO2–SiO2 systems. Spectrochim. Acta A 2009, 89, 11–17. [Google Scholar] [CrossRef]
- Mazzieri, V.A.; Grau, J.M.; Yori, J.C.; Vera, C.R.; Pieck, C.L. Influence of additives on the Pt metal activity of naphtha reforming catalysts. Appl. Catal. A Gen. 2009, 354, 161–168. [Google Scholar] [CrossRef]
- Contreras-Andrade, I.; Vázquez-Zavala, A.; Viveros, T. Influence of the Synthesis Method on the Catalytic Behavior of Pt and PtSn/Al2O3 Reforming Catalyst. Energy Fuels 2009, 23, 3835–3841. [Google Scholar] [CrossRef]
- Bratan, V.; Munteanu, C.; Hornoiu, C.; Vasile, A.; Papa, F.; State, R.; Preda, S.; Culita, D.; Ionescu, N.I. CO oxidation over Pd supported catalysts –In situ study of the electric and catalytic properties. Appl. Catal. B Environ. 2017, 207, 166–173. [Google Scholar] [CrossRef]
- Peyrovi, M.H.; Toosi, M.R. Study of benzene hydrogenation catalyzed by nickel supported on alumina in a fixed bed reactor. React. Kinet. Catal. Lett. 2008, 94, 115–119. [Google Scholar] [CrossRef]
- Lin, S.D.; Vannice, M.A. Hydrogenation of Aromatic Hydrocarbons over Supported Pt Catalysts. III. Hydrogenation of Aromatic Hydrocarbons over Supported Pt Catalysts. III. Reaction Models for Metal Surfaces and Acidic Sites on Oxide Supports. J. Catal. 1993, 143, 563–572. [Google Scholar] [CrossRef]
- Pietrowski, M.; Zieliński, M.; Wojciechowska, M. Selective Reduction of Chloronitrobenzene to Chloroaniline on Ru/MgF2 Catalysts. Catal. Lett. 2009, 128, 31–35. [Google Scholar] [CrossRef]
- Zieliński, M.; Pietrowski, M.; Kiderys, A.; Kot, M.; Alwin, E. A comparative study of the performance of Pt/MgF2, Ir/MgF2 and Ru/MgF2 catalysts in hydrogenation reactions. J. Fluorine Chem. 2007, 195, 18–25. [Google Scholar] [CrossRef]
- Pietrowski, M. Recent Developments in Heterogeneous Selective Hydrogenation of Halogenated Nitroaromatic Compounds to Halogenated Anilines (A Review). Curr. Org. Chem. 2012, 9, 470–487. [Google Scholar]
Sample Name | Al | Al-0.1Ti | Al-0.5Ti | Al-1.0Ti |
---|---|---|---|---|
Relative molar amount of Al | 1 | 1 | 1 | 1 |
Relative molar amount of Ti | 0 | 0.1 | 0.5 | 1 |
Mass of added Ti(O-t-Bu)4 [g] | 0 | 2.66 | 13.32 | 26.64 |
Sample Name | Al:Ti Molar Ratio | BET Surface Area [m2/g] | Pore Volume [cm3/g] | Average Pore Diameter [nm] | |||
---|---|---|---|---|---|---|---|
Support | Catalyst | Support | Catalyst | Support | Catalyst | ||
Al2O3 | - | 301.1 | 233.7 | 0.61 | 0.39 | 5.9 | 4.7 |
Al2O3-TiO2 | 1:0.1 | 373.0 | 301.9 | 0.65 | 0.62 | 5.2 | 6.4 |
1:0.5 | 377.2 | 310.2 | 0.50 | 0.44 | 3.8 | 4.3 | |
1:1.0 | 376.0 | 283.4 | 0.40 | 0.33 | 3.2 | 3.7 |
Sample Name | Volume of Adsorbed Hydrogen [cm3/g] | Pt Dispersion [%] | Average Size of Pt Particles [nm] | ||
---|---|---|---|---|---|
Ht | Hirr | Hr | Dirr | ||
Pt-Al | 0.81 | 0.30 | 0.51 | 51.6 | 1.8 |
Pt-Al-0.1Ti | 0.54 | 0.17 | 0.37 | 29.9 | 3.2 |
Pt-Al-0.5Ti | 0.50 | 0.14 | 0.36 | 23.7 | 3.9 |
Pt-Al-1.0Ti | 0.29 | 0.13 | 0.16 | 22.6 | 4.2 |
Sample Name | Conversion [%] | Selectivity [%] | An [%] | Nb [%] | o-CAN [%] | o-CNB [%] |
---|---|---|---|---|---|---|
Pt/Al | 58.0 | 72.9 | 2.8 | 13.0 | 42.2 | 42.0 |
Pt/Al-0.1Ti | 88.2 | 74.5 | 4.06 | 18.42 | 65.75 | 11.78 |
Pt/Al-0.5Ti | 79.0 | 68.5 | 2.7 | 22.2 | 54.1 | 21.0 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Dobrosielska, M.; Zieliński, M.; Frydrych, M.; Pietrowski, M.; Marciniak, P.; Martyła, A.; Sztorch, B.; Przekop, R.E. Sol–Gel Approach for Design of Pt/Al2O3-TiO2 System—Synthesis and Catalytic Tests. Ceramics 2021, 4, 667-680. https://doi.org/10.3390/ceramics4040047
Dobrosielska M, Zieliński M, Frydrych M, Pietrowski M, Marciniak P, Martyła A, Sztorch B, Przekop RE. Sol–Gel Approach for Design of Pt/Al2O3-TiO2 System—Synthesis and Catalytic Tests. Ceramics. 2021; 4(4):667-680. https://doi.org/10.3390/ceramics4040047
Chicago/Turabian StyleDobrosielska, Marta, Michał Zieliński, Miłosz Frydrych, Mariusz Pietrowski, Piotr Marciniak, Agnieszka Martyła, Bogna Sztorch, and Robert E. Przekop. 2021. "Sol–Gel Approach for Design of Pt/Al2O3-TiO2 System—Synthesis and Catalytic Tests" Ceramics 4, no. 4: 667-680. https://doi.org/10.3390/ceramics4040047
