Open AccessArticle

Ammonium Hydroxide Mediated Hydrothermal Crystallization of Hydroxyapatite Coatings on Titanium Substrate

Institute of Physics, Cracow University of Technology, Podchorążych 1, 30-084 Kraków, Poland
The Institute of Nuclear Physics Polish Academy of Sciences, Radzikowskiego 152, 31-342 Krakow, Poland
The Institute of Metallurgy and Materials Science Polish Academy of Sciences, Reymonta 25, 30-059 Krakow, Poland
Author to whom correspondence should be addressed.
Ceramics 2019, 2(1), 180-189;
Received: 1 February 2019 / Revised: 8 March 2019 / Accepted: 15 March 2019 / Published: 19 March 2019
(This article belongs to the Special Issue Ceramics for Biomedical Applications)

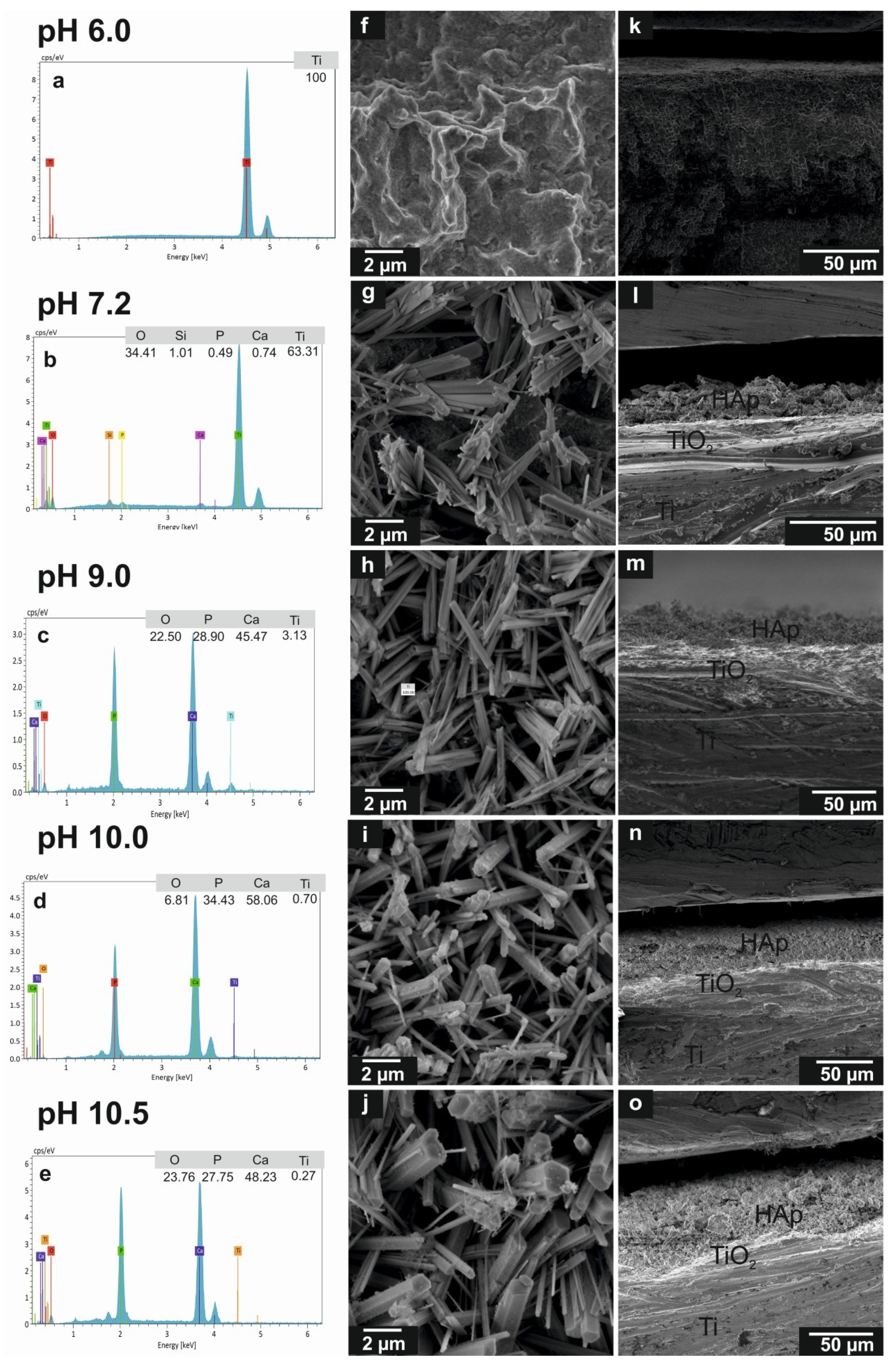

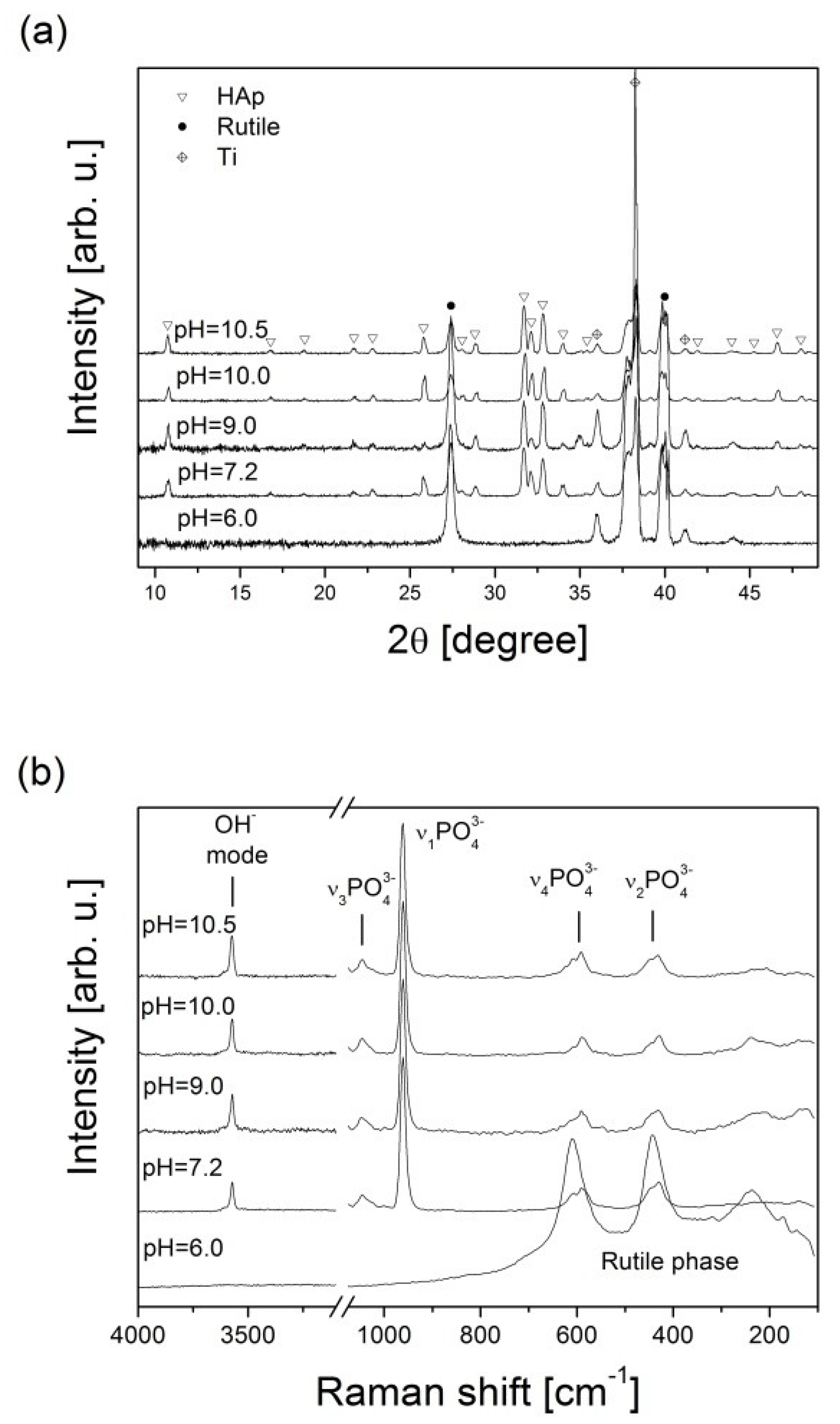

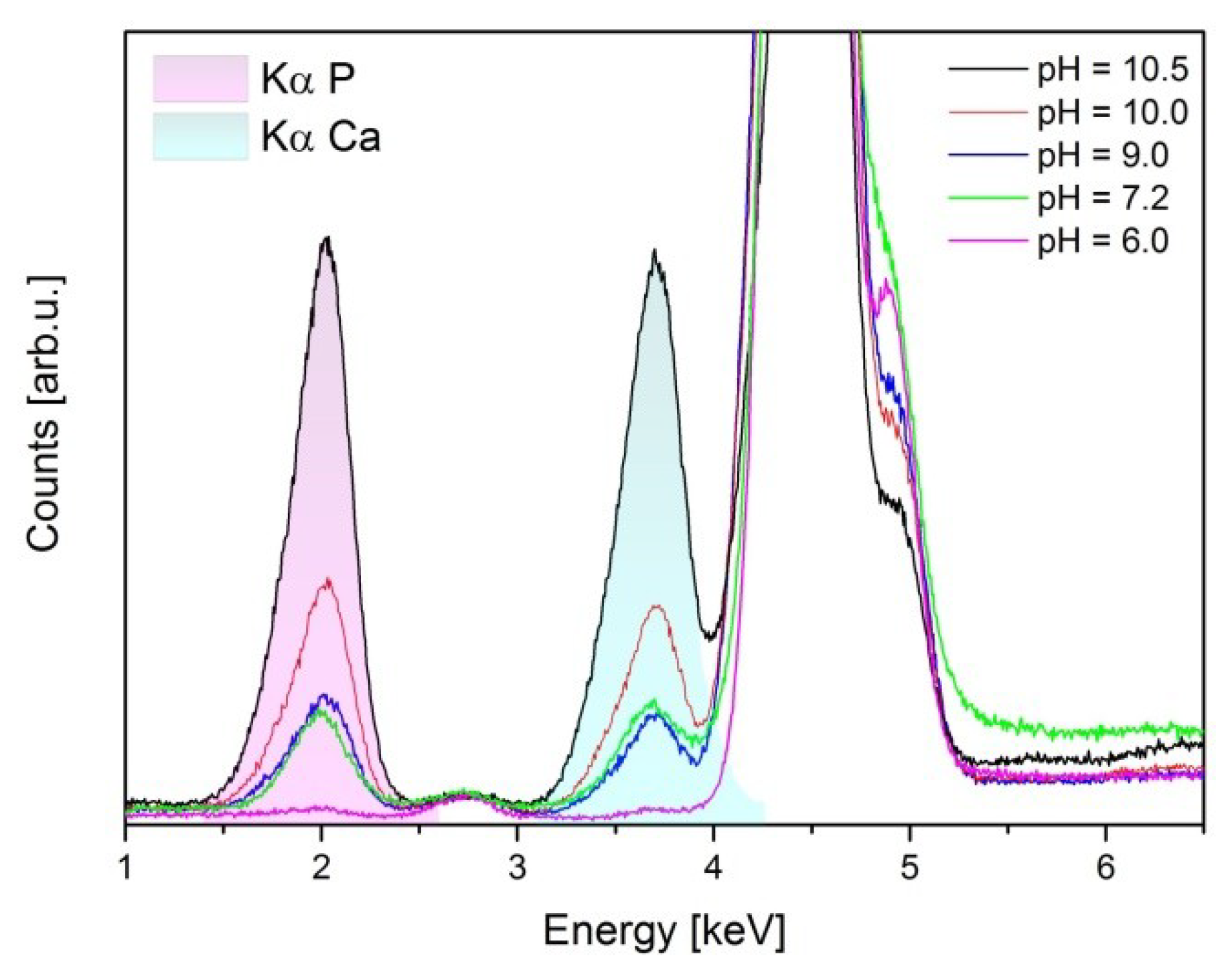

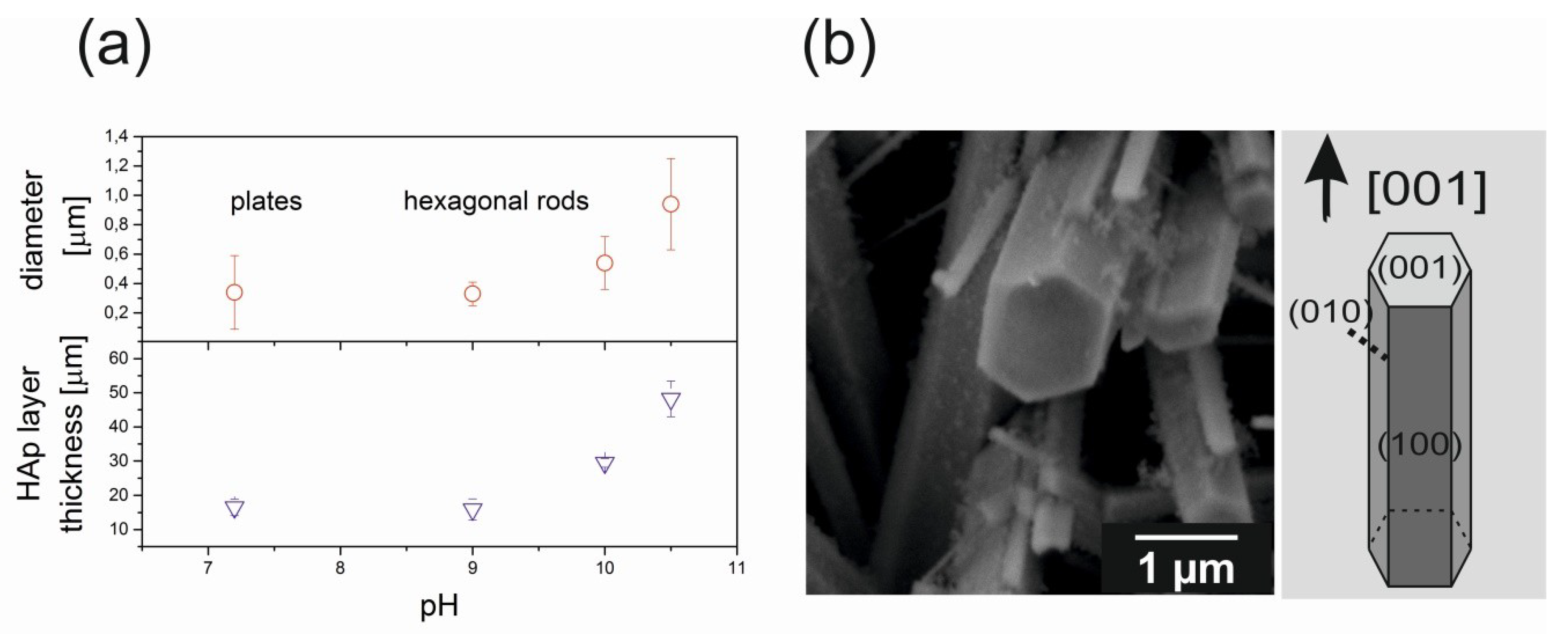

Controlled growth of hydroxyapatite (HAp) coatings on titanium substrate plays an important role in the fabrication of the composites for bone tissue engineering. We describe the synthesis of the crystalline hydroxyapatite coatings on the Ti/TiO2 substrate through a hydrothermal method by using ethylenediamine tetraacetic acid disodium salt (Na2EDTA) and varying concentrations of ammonium hydroxide (NH4OH) in calcium-phosphate precursor solution. Na2EDTA serves as a chelating agent, while NH4OH is used as an alkaline source and crystal growth modifier. We characterized the HAp coatings using x-ray diffraction, scanning electron microscopy, and Raman spectroscopy. We also performed the elemental chemical analysis by means of a particle induced x–ray emission method. Our results show that there is a pH limit for which the hydrothermal deposition of HAp on titanium occurs. Moreover, we observed that NH4OH had a measurable influence on the coating thickness as well as on the size and shape of the HAp crystals. We found that with the increase of NH4OH concentration, the thickness of the Hap layer increases and its morphology changes from irregular flakes to well-defined hexagonal rods. View Full-Text
Keywords: hydroxyapatite coatings; hydrothermal synthesis; ammonium hydroxide hydroxyapatite coatings; hydrothermal synthesis; ammonium hydroxide
Show Figures

Graphical abstract

MDPI and ACS Style

Suchanek, K.; Perzanowski, M.; Lekki, J.; Strąg, M.; Marszałek, M. Ammonium Hydroxide Mediated Hydrothermal Crystallization of Hydroxyapatite Coatings on Titanium Substrate. Ceramics 2019, 2, 180-189.
