Fabrication of Mesoporous NaZrP Cation-Exchanger for U(VI) Ions Separation from Uranyl Leach Liquors

Abstract

As the demand for uranium production-based energy worldwide has been increasing in the last decades to maintain nuclear growth for electricity production, there are great efforts towards developing an easy and inexpensive method for uranium extraction and separation from its ores. For this purpose, mesoporous inorganic cation exchangers provide an efficient separation technology that can help streamline production and lower overall cost. This study describes the development of nano-structured mesoporous sodium zirconium phosphate (NaZrP-CEX) for separation and extraction of uranyl ions from real samples. The fabricated NaZrP-CEX was well characterized by various techniques such as X-ray diffraction (XRD), Fourier Transform Infrared (FTIR), Scanning Electron Microscope (SEM), N₂ adsorption/desorption, Dynamic light scattering (DLS) and zeta potential). The kinetics/thermodynamic behaviors of uranyl ion adsorption into NaZrP-CEX from an aqueous solution were minutely studied. The kinetic studies showed that the pseudo-second order model gave a better description for the uptake process. The negative value of ΔG indicate high feasibility and spontaneity of adsorption. Finally, mesoporous NaZrP-CEX can be regenerated using both of HNO₃ (0.05 M) or HCl (1 M) up to seven cycles of operation.

1. Introduction

Extraction of uranium has been quite important in the recent years for production of electricity, as well as producing industrial and medical isotopes [1]. As is well known, uranium is one of the naturally occurring actinides with an average concentration of 2.8 ppm in the Earth’s crust and found in as tetravalent and hexavalent ions [2,3]. Huge quantities of uranium exist in seawaters (3 µg/L) [4,5,6]. A few of it is obtained as by-product from other industries, such as the gold and phosphate production [7,8,9,10]. The necessity to produce large quantities of uranium from real mines has resulted in the headway of the extraction techniques [7,8,9,10,11]. The various techniques used for extraction and separation of uranium include precipitation, solvent extraction and adsorption attracted much attention in the last decades [7,8,9,10,11,12,13,14]. Therefore, adsorption was found to be a potential method for removal and extraction of metal ion from effluents because of its low operational and maintenance costs [15,16,17].

In the recent years, well-defined porous materials have been of great interest in various applications (e.g., adsorption, catalysis and sensors) due to their excellent structural properties, ease of fabrication, and low-cost approach [18,19]. The porosity in these types of materials are enhancing the surface area and simplifying its way to interact with surroundings [18,19]. Particularly, the use of inorganic mesoporous adsorbents is a promising way to formularize simple and cost-effective protocols with high sensitivity and selective uptake of target species [20,21,22,23,24,25]. Compared with the organic exchangers, the inorganic exchangers have advantages of high thermal stability and durability for many reuse cycles. From the extraction industry point of view, the utilized inorganic exchanger should have innumerable features, unique atomic arrangements in the walls with thermally and hydrothermally stable, nanoscale particle size, high surface area and pore volume, and well-defined active sites.

Among the various inorganic meso-sorbents, zirconium phosphate (ZrP) and sodium zirconium phosphate (NaZrP) attracted much attention as an efficient ion-exchanger for sequestering radioactive materials depending on pH values [26,27,28,29,30,31,32]. In particular, mesoporous NaZrP represent a class of material having ability for recovery of uranyl ions from its real aqueous samples at specific pH value for their high adsorption activity, durability in both acidic and basic media, as well as their non-flexible and intensive adsorption design strategies [30,31,32]. According to the best of our information’s, the utilization of mesoporous NaZrP for recovery of uranium from mining samples is rare in the literature.

Toward this goal, we report herein the fabrication and characterization of mesoporous NaZrP from Egyptian Rosetta zircon mineral, keeping in mind that: (i) the phosphate group in zirconium phosphate mesostructured is considered as a promising unit for a high-sensitivity cation exchanger for uranyl ions, (ii) the adsorption mechanism of uranyl ions on NaZrP pore surfaces, based on active sites containing hydrogen and sodium ions can be replaced by uranyl ions [29], (iii) the surface area morphology and pore cavities are the key factors to controlling the diffusion and adsorption of large quantities of uranyl ions onto exterior and interior surface of the mesopores. The batch adsorption experiments were carried out with variation in initial pHs concentration of uranyl ions, contact time and temperature. In addition, we determined both the kinetic and thermodynamic characteristics of uranyl ion adsorption onto mesoporous NaZrP-CEX that can be helpful to exploit the future commercial viability of the fabricated material from the real ores. The regeneration of loaded NaZrP-CEX with uranyl ions was also evaluated to signify a multi-use application.

2. Materials and Methods

2.1. Chemicals

Zirconium oxychloride (ZrOCl₂·8H₂O) was obtained from the Egyptian Rosetta zircon mineral (ZrSiO₄, purity 97%) via alkali fusion with sodium hydroxide (purity 95.9%) followed with treatment with hydrochloric acid (HCl). All other materials were of analytical grade and used without further purification. Ammonium dihydrogen phosphate (Na₂HPO₄), phosphoric acid (H₃PO₄), hydrofluoric acid (HF), hydrochloric acid, sodium lauryl sulfate (SLS), ethanol and urea were ADWIC products, Egypt. The pH values of the solutions were adjusted by using 0.01 mol L⁻¹ nitric acid or 0.01 mol L⁻¹ sodium hydroxide solutions.

2.2. Fabrication of Commercial Mesoporous NaZrP-CEX

The fabrication of commercial mesoporous sodium zirconium phosphate ion-exchanger from zircon was carried out in three main steps, as follows: (i) a sample of 1 g of Rosetta zircon concentrate was mixed with 1.25 g of sodium hydroxide and charged to a 316-L stainless steel high pressure crucible (height = 5 cm, diameter = 1.5 cm). The crucible was then fed to the electric furnace where the fusion reaction took place [33]. The reaction temperature was adjusted at 500 °C and continued for 1h. The fusion product was washed and stirred for 2 h to dissolve the water soluble sodium silicate formed (Na₂SiO₃). The mixture was filtrated out, and the residue (Na₂ZrO₃) washed several times with DIW and dried at 70 °C. (ii) Then, 1 g of the dried sodium zirconate was leached with HCl (12 M) to produce zirconium oxychloride (ZrOCl₂·8H₂O), which turned into the crystalline form by cooling the solution. The formed crystals were separated from the mother liquor by decantation followed by filtration and finally drying in air to obtain white powder crystals of ZrOCl₂·8H₂O. (iii) The mesoporous NaZrP was prepared by a hydrothermal reaction, as following; 1 g of ZrOCl₂·8H₂O prepared in step (ii) was mixed with 0.5 mL of H₃PO₄ (85 wt% solution) and 0.2 mL HF then 15 mL DIW was added. To this solution, add 0.75 g Na₂HPO₄ and 0.55 g SLS, and finally add 0.4 g urea with continuous stirring for 30 min. The resulting gelatinous mixture was transferred into a 25 mL capacity Teflon-lined stainless steel autoclave. The autoclave was sealed and heated at 175 °C for 5 h. The molar ratio of the ZrOCl₂·8H₂O:H₃PO₄:NaH₂PO₄·7H₂O:HF: SLS: urea was 1:0.2:0.45:0.3. The precipitate was collected by filtration and washed several times with DIW and ethanol to remove the remaining agents. Finally, the as made NaZrP was dried at 60 °C for 3 h in the vacuum oven and carefully calcined in air by heating rate 2 °C/min from room temperature up to 350 °C for 30 min then increasing the temperature to 600 °C for 5 h to obtain mesoporous zirconium phosphate ion-exchanger (NaZrP-CEX).

2.3. Materials Characterization

Fourier Transform Infrared (FTIR) spectra were performed in KBr discs using Nexeus–Nicolite model 640-MSA. FTIR, Thermo Electronics Co. (USA). X-ray diffraction (XRD) analyses were carried out with a Philips X-ray generator model PW 3710 = 31. The particle size distribution of the fabricated ZrP-CEX were evaluated through dynamic light scattering (DLS). The zeta potential was measured using a Nano Series Zeta Sizer, Malvern; Worcestershire, UK. The uranium ion concentration was determined using 720-ICP-OES (Agilent Technologies) Inductively Coupled Plasma-Optical Emission Spectrometer (ICP-OES). The textural properties of the mesoporous NaZrP-CEX including the specific surface area, pore volume and the pore structure were determined by N₂ adsorption technique using a BELSORP MIN-II analyzer (JP. BEL Co. Ltd.) at 77 K. Transmission electron microscopy (TEM), and energy dispersive X-ray spectroscopy for elemental mapping (STEM-EDS) were performed using a JEOL JEM model 2100F microscope.

2.4. Batch Studies for Uranyl Ions Adsorption Assays

In a typical metal ion adsorption experiments, the estimation of the appropriate pH value for the adsorption of uranyl ions on the fabricated NaZrP-CEX ion-exchanger was carried out as follows: a 20 mg of mesoporous NaZrP-CEX were immersed in 20 mL solution containing 100 mg/L uranyl ion concentrations adjusted at varied pH values ranged from 1–7 and were shacked using an orbital shaker in a temperature-controlled water bath at 25 °C for 3 h at a constant agitation speed of 300 rpm. After equilibration, the mixture was filtered and the filtrate containing uranyl ions was analyzed for adsorption assessment. After estimation of the appropriate pH value for the adsorption process, other experiments, like effect of contact time, uranyl ions concentration, solution temperatures, NaZrP-CEX dosage were conducted according to the estimated pH value. The effect of contact time was carried out by immersing 20 mg of NaZrP-CEX in 20 mL solution of 100 mg/L uranyl ions and the pH was adjusted up to 4.5 at 25 °C with time-variation from 1–240 min. In adsorption isotherm studies, NaZrP-CEX (20 mg) was also immersed in a mixture of specific ion concentrations and adjusted to specific pH values (4.5) in 20 mL solution volume while stirring for 2 h at 25, 35 and 45 °C. Generally, the adsorption capacity (mg/L) and the sorption efficiency (%) of NaZrP-CEX loaded with uranyl ions were estimated according to Equations (1) and (2) [22,23]:

$${\mathrm{q}}_{\mathrm{e}}=\raisebox{1ex}{$\left({\mathrm{C}}_{\mathrm{i}}-{\mathrm{C}}_{\mathrm{e}}\right)\mathrm{V}$}\!\left/ \!\raisebox{-1ex}{$\mathrm{m}$}\right.$$

(1)

$$\mathrm{R}\%=\raisebox{1ex}{$\left({\mathrm{C}}_{\mathrm{i}}-{\mathrm{C}}_{\mathrm{e}}\right)100$}\!\left/ \!\raisebox{-1ex}{${\mathrm{C}}_{\mathrm{i}}$}\right.$$

(2)

where q_e is the uranyl ions uptake (mg g⁻¹), V is the solution volume (L), m is the mass of the NaZrP-CEX (g), and C_i and C_e are the initial and equilibrium concentrations of the uranyl ion (mg L⁻¹), respectively. The effect of co-existing cations on uranyl ion sorption onto the adsorbent was evaluated. The initial concentration of uranyl was 1 mg L⁻¹, while the competing ions were 5 mg L⁻¹. After dissolving competing ions in the solutions with uranyl ions, sorption experiments were performed in the same manner according to the sorption experiment.

3. Results and Discussion

3.1. Fabrication and Characterization of NaZrP-CEX

For fabrication, zirconium oxychloride was firstly obtained from Egyptian zircon as the precursor material for synthesis of sodium zirconium phosphate via a simple hydrothermal synthesis. The substitution reaction between ZrOCl₂·8H₂O and a mixture of H₃PO₄/NaH₂PO₄ assisted with SLS heated up to 175 °C for 5 h. After calcination up to 550 °C, the fabricated material appears to be a mesoporous crystalline sodium zirconium phosphate (NaZrP). The XRD patterns of sodium zirconium phosphates (NaZrP) are shown in Figure 1a. It can be seen that NaZrP shows several prominent reflections at about 2θ values of 20.77°, 29.34°, 30.4°, 34. 93°, 42.3°, 47°, 54°, 73.67°, 95.5° and 97.52°. These values are well consistent with the earlier determined patterns of sodium zirconium phosphate NaZr₂(PO₄)₂ with hexagonal crystal system [30,31]. This finding match with JCPDS powder diffraction data file no. 33-1312. The diffractogram shows the emergence of NaZr₂(PO₄)₃ (major phase) and ZrSiO₄, (minor phase). It should be noted that there are no strong reflexes corresponding to unreacted precursors. It is confirmed that NaZr₂(PO₄)₃ is favorably obtained after releasing of all organic matter from as-synthesized SLS/NaZrP at temperatures up to 550 °C.

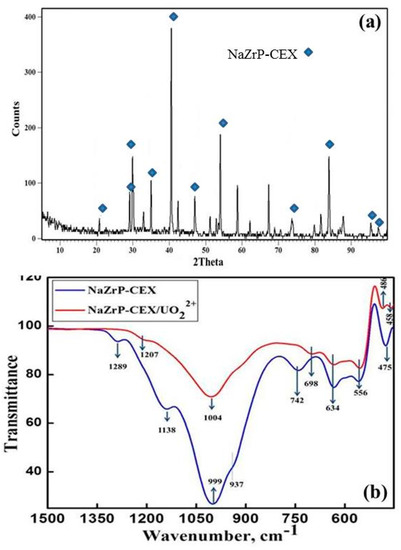

The typical IR spectra of the synthesized NaZrP-CEX and NaZrP-CEX/UO₂⁺² are depicted in Figure 1b. The IR spectrum of NaZrP-CEX exhibited the sharp band at 999 cm⁻¹ that was assigned to P-O stretching vibrations of PO₄³⁻ groups. The recorded bands at 556 and 634 cm⁻¹ could be attributed to PO₄ tetrahedron [27,32]. This stretching can be influenced by the presence of alkali ions like Na presence in ZrP-CEX framework [32]. The success of uranium loading on NaZrP-CEX was clearly detected by recording the shift and decrease in the intensity of (PO₃)²⁻ band at 1004 cm⁻¹ as the concentrations of uranium increases in NaZrP-CEX/UO₂⁺² [27]. Furthermore, the recorded band at 458 cm⁻¹ can be assigned to the stretching of U(VI)–O. The bands at 937 and 742 cm⁻¹ may be associated with asymmetric and symmetric stretching of the P–O–P bonds [22]. FT-IR spectrum of NaZrP-CEX/UO₂⁺² shows that both the intensity and the position of absorption band at 1004 cm⁻¹ have been changed due to uranyl ions adsorptions. In addition, the band at 475 cm⁻¹ was also subsiding after uranyl ions adsorption indicating the involvement of Na_-PO₄^- groups in the adsorption mechanism of uranium ions. In the difference FTIR spectrum of the NAZP-CEX, one can see the distinctive band at 1289 cm⁻¹ that is disappeared after adsorption of uranium [32].

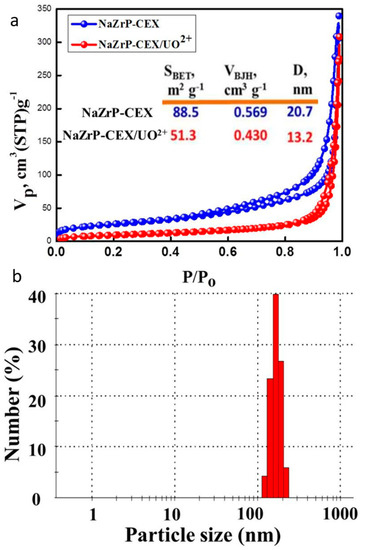

The surface properties of sodium zirconium phosphate are presented in Figure 2a. The BET surface area of the NaZrP-CEX was found to be 88.5 m²/g and has been decreased to 51.3 m²/g after uranium adsorption due to pore blocking with uranyl ions. As seen from Figure 2a, the nitrogen adsorption/desorption isotherm of the free NaZrP-CEX and NaZrP-CEX loaded uranyl ions exhibited a typical “type IV” isotherm shape with a H3 hysteresis loop indicated that the sample was a typical of high quality mesoporous materials and the hysteresis loops shift to higher relative pressure (P/P₀ ˃ 0.4), implying indicative of a larger pore size. Furthermore, the surface area (88.5 m²/g), pore volume (0.569 cm³/g) and large pore size (20.75 nm) of this material are great advantages in the fabrication of sodium zirconium phosphate as mesoporous sorbent that intake ultra-trace amounts of uranyl ions. A comparative study in terms of texture properties has been carried out with other reported NaZrP materials synthesized by different methods, and the results are summarized in

Table 1. Comparison of the surface area the fabricated adsorbent mesoporous zirconium phosphate ion-exchanger (NaZrP-CEX) with the previously reported NaZrP materials.

Method of Preparation	Application	Surface Area	Ref.
Sol-Gel	Antibacterial activity	5.10	[34]
Co-precipitation	Sorbent dialysis	1.9	[35]
Sol-gel	Antibacterial activity	5.24	[36]
Sol–gel	Catalytic activity	26.8	[37]
Sol–gel	Catalytic activity	63	[38]
Evaporative decomposition of solutions	–	29.2	[39]
Hydrothermal	Uranium adsorption	88.5	Our Work

.

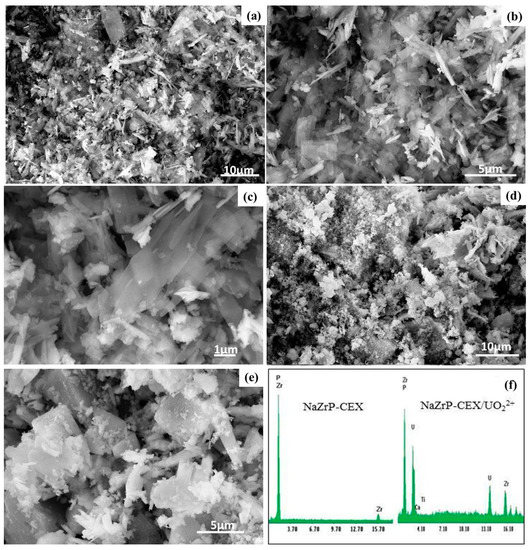

The morphology of NaZrP-CEX was elucidated using the scanning electron microscope (SEM). Figure 3a,b shows pronounced sheets of NaZP-CEX particles with average sizes ranging from 140–190 nm that is well consistent with the particle size distribution shown in Figure 2b. Moreover, the observed particles on NaZrP-CEX sheets (Figure 3c) show that the UO₂²⁺ ions were homogeneously adsorbed with extensive three-dimensional aggregation. EDX of NaZrP indicated the presence of EDX of NaZrP-CEX referred to the presence of O (43.5%), P (25.7%) and Na (16.5 %) in the NaZrP-CEX composition domains of the sodium zirconium phosphate meso-structure (Figure 3d).

3.2. Batch Adsorption Studies of Uranyl Ions on ZrP-CEX

3.2.1. Effect of pH

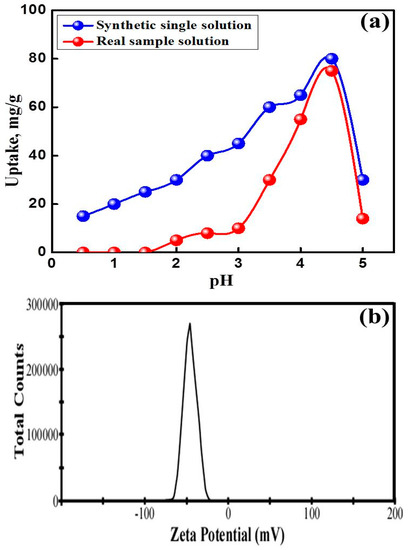

The pH is one of the main factors which play an important role in controlling the adsorption process of the UO₂²⁺ ions through affecting both the electrical charge of NaZrP-CEX and the uranium speciation in the solutions. Figure 4a shows the effect of pH, in the range of 1.0–5.0, with a fixed weight of the NaZrP-CEX (20 mg) and 20 mL solution volume of 100 mg L⁻¹ UO₂²⁺ ions at 25 °C for 3 h contact time. The adsorption of UO₂²⁺ ions depends on the uranium speciation/surface charge in solution at specific pH values. Uranium can be hydrolyzed into different mono-nuclear and poly-nuclear hydrolyzed species in the form of [(UO₂)_m(OH)_n]^(2m-n)+ [3]. As pH < 4.0, UO₂²⁺ ions in aqueous solution exist predominantly as monomeric species. The observed lower uptake values for uranyl ions at lower pHs is due to the formation of hydronium ions closely associated with NaZr-CEX and the overall surface charge on the NaZrP-CEX becomes positive. Hence, it hinders the access of the metal ions into the pores of NaZrP-CEX surface. With pH 5 or higher, the hydrolysis of U(VI) ions will occur, hydrolyzed forms of uranyl ions such as UO₂(OH)⁺, (UO₂)₂(OH)₂²⁺ and (UO₂)₃(OH)₅⁺ are dominant [3,13]. Therefore, the observed decrease in the uptake of UO₂²⁺ at pH ≥ 6 can be explained on the basis of the formation of those hydrolyzed species with lower adsorption affinities onto NaZrP-CEX ion-exchanger. The NaZrP-CEX cation-exchanger achieved their maximum amount adsorbed at pH 4.5. It should be noted that the experiments were not conducted beyond pH 6 to avoid precipitation of U(VI) ions, in which the hydrolysis is more intense and anionic species such as (UO₂)₃(OH)₇⁻, UO₂(OH)₃⁻ or the precipitation of UO₂(OH)₂ are formed because of the excess of OH^- in the solution. Additionally, the surface charge of NaZrP-CEX ion-exchanger became negative under alkaline conditions. The higher adsorption capacity for UO₂²⁺ is attributed to the surface negative charge of NaZrP-CEX over the whole pH range. As shown in Figure 4b, the negative value of zeta potential indicates that a large amount of negative charge covers the surface of the NaZrP-CEX, favoring the adsorption of UO₂²⁺. Further, the maximum adsorption capacity of UO₂²⁺ was found at pH 4.5. Therefore, the adsorption of uranyl ions on sodium zirconium phosphate (NaZrP) should be on the basis of a simple ion-exchange mechanism and the mesostructured features, actively inner/outer surface pore and framework of NaZrP. Once, the mesoporous NaZrP contact with the uranyl ions in solution, the hydrogen/sodium ions (active sites) replaced by U ions based on pH values (nZrP-ONa + UO²⁺ → (ZrP-O)_n-UO⁺² + nNa⁺) [40].

3.2.2. Effect of the Adsorbent Dose

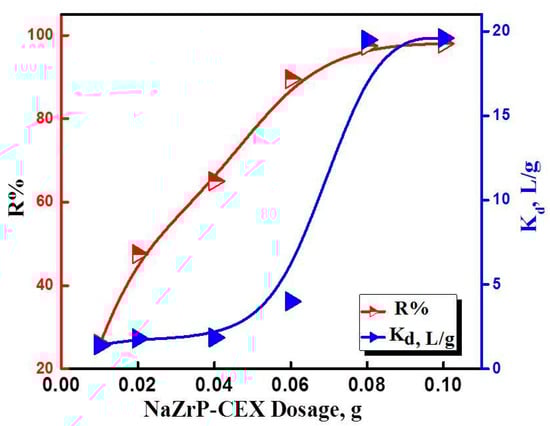

The effect of NaZrP-CEX cation-exchanger dose on the adsorption of uranyl ions was studied at an ambient temperature of 25 °C with contact time of 3 h. As shown in Figure 5, it was observed that the recovery percentage of uranyl increases with increasing the ZrP-CEX dose. Mesoporous ZrP-CEX could remove nearly 97.5% of uranyl with a dose of 4.0 g L⁻¹, which could be attributed to the availability of surface area and hence adsorption sites. The adsorbent dose significantly influenced the removal efficiency (%) of uranyl ion from aqueous solution at pH = 4.5. The amount removed from solution was greatly increase from 26.0% (by 10 mg) to 97.5% (by 80 mg) of NaZrP-CEX cation-exchanger. However, the adsorption efficiency varied slightly at NaZrP-CEX dose greater than 80 mg giving value of 98% by 100 mg of NaZrP-CEX cation-exchanger. At low NaZrP-CEX cation-exchanger dose, all types of sites are entirely exposed and the adsorption on the surface is saturated faster, giving a greater q_e value at equilibrium. Moreover, the binding ability of NaZrP-CEX towards uranyl ions can be explained by means of the adsorption distribution coefficient (K_d, L/g) calculated as (K_d = C_s/C_L) [41]. The term C_s is the UO₂²⁺ ions concentration adsorbed on the mesoporous NaZrP-CEX particles (mg/g) and C_L is the concentration of UO₂²⁺ ions in aqueous solution (mg/L). Figure 5 shows that the K_d increases with increasing the adsorbent dose, which indicates heterogeneity of the adsorbent surface. In the case of a homogeneous surface, the K_d values are kept the same with increasing the adsorbent concentrations at the optimal pH value.

3.2.3. Effect of Contact Time

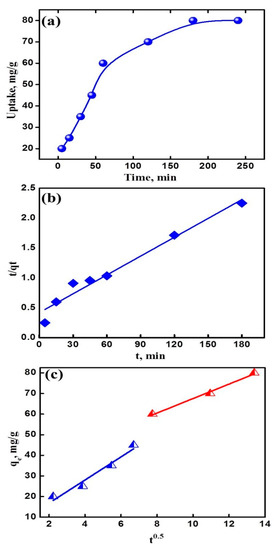

The variation of contact time is one of the most important parameter in determining the adsorption potential of an adsorbent. Adsorption of uranyl ions on NaZrP-CEX was studied within a time period of 1–200 min at 25 °C and pH 4.5. Within 30 min, the uptake of uranyl ions represents 43.75% from the uptake capacity at the plateau and the equilibrium was attained within 180 min from a synthetic water sample containing 100 mg L⁻¹ of uranyl ions. In an attempt to describe the adsorption kinetics, the adsorption/time data of Figure 6a was fitted with pseudo-second-order model. In this model, all the steps of adsorption including external diffusion, internal diffusion, and adsorption are lumped together in Equation (3) [42]:

$$\raisebox{1ex}{$t$}\!\left/ \!\raisebox{-1ex}{$q_t$}\right.=\raisebox{1ex}{$t$}\!\left/ \!\raisebox{-1ex}{$q_e$}\right.+\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$k_2{q}_e^2$}\right.$$

(3)

where k₂ is the overall pseudo-second-order rate constant (g/mg min). Plotting of t/q_t versus t shown in Figure 6b gave a straight line with a slope and an intercept from which the q_e and k₂ were calculated. Obviously, a satisfactory agreement was obtained between calculated and experimental values of q_e. This implies that the adsorption process proceeds conveniently according to pseudo-second-order kinetics and depends on the concentration of both the surface active sites and uranyl ions. In order to show the effect of intraparticle diffusion on the rate of the adsorption, the adsorption/time data were treated according to intraparticle diffusion Equation (4) [13]:

q_t = x + k_i t ^0.5

(4)

where K_i (mmol g⁻¹ min^−0.5) is the intraparticle diffusion rate constant, and x is the intercept which is proportional to the boundary layer thickness. As seen from Figure 6c, the plots are characterized by two main stages, where one of them passes through the origin and the other does not pass. This indicates that the rate of adsorption is affected by both intraparticle diffusion and boundary layer.

3.2.4. Effect of Initial Concentration of Uranyl Ions

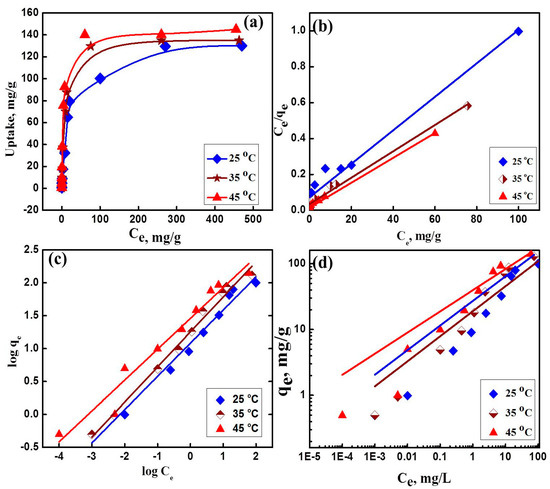

The effect of initial concentrations of uranyl ions uptake was investigated by varying the initial concentrations UO₂²⁺ at optimum pH value 4.5 for 3 h showing maximum uptake capacity of 129.6, 135 and 140.2 mg/g at 25, 35, and 45 °C, respectively (Figure 7a). In order to understand the adsorption capacity of the fabricated NaZrP-CEX, the adsorption capacity was evaluated according to different isotherms models like Langmuir and Freundlich models. The Langmuir isotherm assumes that adsorption occurs by homogeneous adsorption sites on the sorbent and the intermolecular forces decrease rapidly with increasing the distance from the adsorption surface. Langmuir model plotted in (Figure 7a) can be expressed in Equation (5) [43]:

$$\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{e}}}=\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{Q}}_{\max }}+\frac{1}{{\mathrm{K}}_{\mathrm{L}}{\mathrm{q}}_{\max }},$$

(5)

where C_e is the equilibrium concentration of uranyl ions in solutions (mg/L), q_e is the amount adsorbed on NaZrP-CEX at C_e (mg/g), Q_max is the maximum adsorption capacity (mg/g), and K_L is the binding constant of Langmuir which is related to the energy of adsorption (L/mg). The earliest known relationship describing the non-ideal and reversible adsorption is the Freundlich isotherm model, which can be applied to multilayer adsorption, on the basis of an assumption concerning the energetic surface heterogeneity. The Freundlich isotherm model plotted in (Figure 7c,d) is described by the nonlinear and linear equations and can be expressed in Equations (6) and (7) [44]:

$${\mathrm{q}}_{\mathrm{e}}={\mathrm{k}}_{\mathrm{F}}{\mathrm{c}}_{\mathrm{e}}^{1/\mathrm{n}}$$

(6)

$${\log \mathrm{q}}_{\mathrm{e}}={\log \mathrm{k}}_{\mathrm{F}}+\frac{1}{\mathrm{n}}\log \mathrm{Ce},$$

(7)

where K_F and n are the Freundlich constants related to the adsorption capacity and intensity, respectively. The values of K_L, Q_max, K_F, and n were obtained. The maximum Langmuir adsorption capacities (Q_max) obtained were in good agreement with the experimental ones, and the values of R², which is a measure of the goodness of fit, confirm the better representation of the experimental data by Langmuir model than Freundlich model. However, the Freundlich isotherm parameters obtained from the linear approach gave higher R² values compared to the non-linear least-square approach. Moreover, when these models are compared, Freundlich isotherm models have a higher correlation of determination than Langmuir model as shown in Figure 7. This indicates the homogeneity of active sites on ZrP-CEX surface. Calculations were carried out to determine the predicted amount of uranium as a function of the weight of NaZrP-CEX meso-sorbent for the actual UO₂²⁺ ions concentrations present in solution. This indicates that the required NaZrP-CEX meso-sorbent weight for any range of concentrations could be theoretically pre-estimated prior to the actual adsorption process. The weight of NaZrP-CEX required to intake UO₂²⁺ ions in a concentration ranged from 1 to 100 mg/L in one litter of the containing UO₂²⁺ solution was calculated to be 0.825 g/L. The NaZrP-CEX exhibited substantial adsorption efficiency, which is comparable with that of previously prepared in organic adsorbents, such as oxides and phosphates compounds (

Table 2. Comparison of the adsorption capacities of U(VI) ions onto various inorganic absorbents.

Adsorbent	Uptake, mg/g	Ref.
Zinc MOF carboxylate	114.70	[45]
MIL-68/GO	375.00	[46]
K+-Activated Robust Zeolitic Sulfide	147.60	[47]
Amino-functionalized palygorskite	90.20	[48]
Titanate nanotubes	333.00	[49]
Mg-Co layered-double-hydroxide	915.61	[50]
rGO/LDH	277.80	[51]
Hematite	3.36	[52]
Zr-Sb oxide/PAN	60.66	[53]
Manganese oxide coated zeolite	15.10	[54]
HAp	59.30	[13]
NaZrP-CEX	129.60	[This work]

) [45,46,47,48,49,50,51,52,53,54].

3.3. Thermodynamics Studies of Uranyl Ions Adsorption on NaZrP-CEX

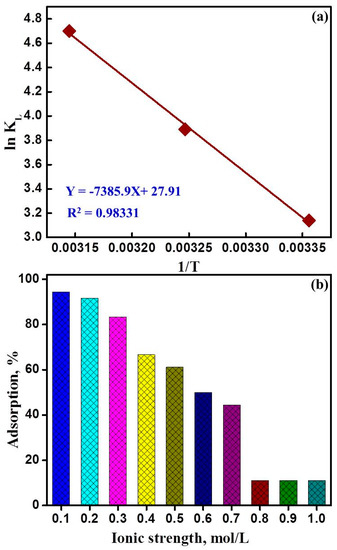

Evaluation of the thermodynamic parameters is of considerable value in optimizing the process application, to show the feasibility of the adsorption of uranyl ions on NaZrP-CEX process. The thermodynamic parameters for the adsorption of UO₂²⁺ ions onto NaZrP-CEX mesoporous adsorbent were calculated by substituting K_L (obtained from equation 4 at different temperatures) into the Van’t Hoff equation (Figure 8a) [55].

$$\ln {\mathrm{K}}_{\mathrm{L}}=\frac{-\mathsf{\Delta }{\mathrm{H}}^{°}}{\mathrm{RT}}+\frac{\mathsf{\Delta }{\mathrm{S}}^{°}}{\mathrm{R}}$$

(8)

The positive value of ΔH° (61.4 kJ/mol) indicates the endothermic nature of a chemical adsorption of UO₂²⁺ onto the fabricated NaZrP-CEX meso-sorbent. The positive ΔS° value suggests the increase in the uranyl ions entropic concentration and randomness at the solid–liquid interface during adsorption. The Gibbs free energy of adsorption (ΔG°) was calculated using the Gibbs free energy (Equation (9)):

$$\mathsf{\Delta }{\mathrm{G}}^{°}=\mathsf{\Delta }{\mathrm{H}}^{°}-\mathrm{T}\mathsf{\Delta }{\mathrm{S}}^{°}$$

(9)

The negative Δ${\mathrm{G}}^{°}$ values confirm the spontaneous nature and feasibility of the adsorption process. The Δ${\mathrm{G}}^{°}$ values increase with increasing the temperatures from 25 to 45 °C indicating the chemical adsorption nature of the adsorption. The values of ΔG for the adsorption of UO₂²⁺ ions on the fabricated mesoporous sorbent were listed in

Table 3. Freundlich, Langmuir parameters for the adsorption of the uranyl ions into the fabricated NaZrP-CEX ion-exchanger at different temperatures.

T, k	qe. mg/g	Non-Linear Freundlich Parameters			Linear Freundlich Parameters			Langmuir Parameters			Thermodynamic Parameters
		KF	n	R2	KF	n	R2	Qmax	KL	R2	ΔH°	ΔS°	ΔG°
298	129.6	39.6	3.10	0.946	12.0	1.98	0.979	107.5	0.18	0.968	61.4	0.23	−7.7
308	135.2	18.9	2.63	0.907	17.8	1.87	0.988	136.9	0.21	0.982			−10.1
318	140.3	27.2	2.67	0.955	28.8	2.13	0.954	144.9	0.46	0.991			−12.4

. The values of ΔG^° at different temperatures indicate that the adsorption of UO₂²⁺ ions onto mesoporous NaZrP-CEX is a spontaneous process and become more favorable at higher temperatures. Moreover, the data show that |ΔH°| < |−TΔS°|, implying that the adsorption reaction is dominated by entropic rather than enthalpic changes.

3.4. NaZrP-CEX Regeneration

For economical extraction of metal ions, the utilized materials should exhibit high reproducibility, high performance, recyclability, and durability. The effective elution of the mesoporous-NaZrP-CEX cation exchanger was found feasible using HNO₃ (0.05 M) or HCl (1M). The mesoporous-NaZrP-CEX was maintained up to the seven cycles of regeneration and reuse, after which a subtle decrease in efficiency was observed as illustrated in Figure 8b. This small change in the NaZrP-CEX efficiency most likely arises from the treatment with the stripping agents during the recycling processes. The sensitivity, specificity, and reusability of the mesoporous-NaZrP-CEX cation exchanger, together with its ease of use, give it potential not only in uranium remediation but also in the extraction of uranium from its natural ores.

3.5. Applicability Evaluation

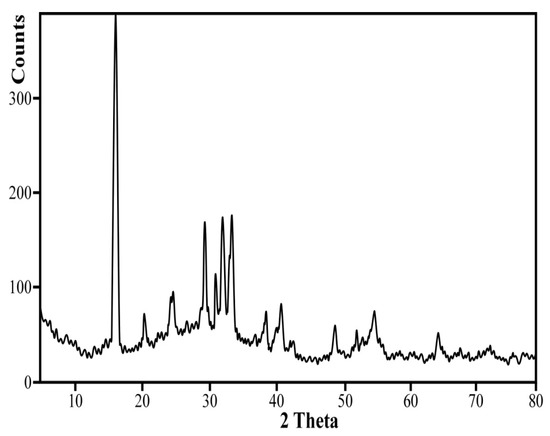

The sample under study was selected from the middle member of the uraniferous Um-Bogma formation and composed of ferruginous mudstone (i.e., Gebel Um-Hamd is located in Southwestern of Sinai, south Wadi El Sahu, Egypt [56]. It extends along E-W trend and has an altitude of about 850 m). XRD data (Figure 9) of the bulk sample revealed that it consist of clay minerals, quartz, hematite and carnotite (KUO₂VO₄) was recorded as the main radioactive mineral. In addition to carnotite, it contains traces of zircon, monazite, fergusonite, xenotime and columbite. This ore contains 951 mgL⁻¹ U, 559 mgL⁻¹ Cu, 1398 mgL⁻¹ Zn, and contain 13.31% Fe₂O₃ (T) and 0.04% MnO. The hydrometallurgical process here is based on one leaching step, in HNO₃ followed by adsorption process, to mainly extract uranium ions. A 100 g of ore under study was grinded then treated with 30 g/L nitric acid 1:3 S/L ratio for 3 h followed with filtration for removal of undissolved materials. The residue was washed with 5 g/L nitric acid 1:2 S/L ratio and the obtained liquor was 300 mL (pH 0.6) contained 235 mgL⁻¹ U, 15.2 mgL⁻¹ Cu, 43.6 mgL⁻¹ Zn, 52.8 mgL⁻¹ Fe and 18 mgL⁻¹ Mn. After adjusting the pH at 4.1 to remove iron ions, the total concentrations of metal ions is decreased to be 180 mgL⁻¹ U, 13.6 mgL⁻¹ Cu, 16 mgL⁻¹ Zn, 0.3 mgL⁻¹ Fe and 17.6 mgL⁻¹ Mn.

The second stage is the extraction of uranium ions from the pregnant leach solution containing U, Fe, Cu, and Al, and Fe. A series of batch experiments were performed to define and evaluate the specific extraction of uranyl ions from a diluted real sample (300 ppm U(VI)) after adjusting the pH at 6. The uranyl ions extraction assays were performed under optimal conditions (i.e., pH 4.5, 100 mg of NaZrP-CEX, 50 mL volume, 3 h of stirring at 400 rpm, temperature of 25 °C. After removal, the filtrate was analyzed using ICP. The uptake percentage of uranyl ions using the NaZrP-CEX was obtained up to 90% in the presence of high concentrations of competing ions at different pHs (Figure 4a). Furthermore, the extraction experiment using a stripping agent was conducted through a liquid-exchange process to release the uranyl ions and obtain U(VI) metal ion-free sorbent surfaces. The ICP analysis of the collected uranyl ions solution also indicates that approximately 98% of U(VI) metal ions were released using HCl (0.1 M) or HNO₃ (0.05 M). This result indicates that NaZrP-CEX is highly selective to uranium ions even in the presence of high concentrations of competing ions. The NaZrP-CEX achieves high-performance collection, recovery, and extraction of uranyl ions. Therefore, it is highly applicable in the mining processing, which is primary a source of economic metal ions.

4. Conclusions

In this study, we described the design and engineering of self-functionalized mesoporous NaZrP-CEX nanoparticles based on the tailored channel arrays of warm-like meso-pores of zirconium phosphate. The fabricated meso-sorbent exhibited large surface area and large pore sizes for easy trapping uranyl ions from aqueous solutions. The solution pH exhibited an important functionality of uranyl ions adsorption on self-functionalized NaZrP-CEX with an optimum pH at 4.5. The adsorption isotherm was well fitted by Langmiur and Freundlich isotherm models and the calculated maximum adsorption capacity was 129.6 mg g⁻¹ at 25 °C. Moreover, the capture-and-release process of the NaZrP-CEX for uranyl ions has an efficiency of up to 92.3% in real samples. These data indicate that this ion-capture model allows the development of a simple and effective technique for effective extraction of uranium from its leach liquor.
