Adsorption and Decomposition of Peroxides on the Surfaces of Dispersed Oxides Fe₂O₃, Cr₂O₃ and V₂O₅

Abstract

The adsorption of peroxides on dispersed oxides Fe₂O₃, Cr₂O₃ and V₂O₅ was studied. It is shown that the adsorption of peroxides is described by the Langmuir equation. The adsorption of benzoyl peroxide grows within Fe₂O₃ < Cr₂O₃ < V₂O₅. Adsorption-desorption equilibrium constants (K) for Cr₂O₃ and V₂O₅ are the same, but for Fe₂O₃ this value is 6 times higher. The decomposition of peroxides is observed in the solution and on the surface of adsorbents. The effective activation energy (E) of the thermal decomposition of peroxides in the studied systems is in the range of 80–140 kJ/mol. The activation energy of degradation of peroxides on the surface (E_s) of the dispersed oxides studied is lower. The degradation reaction of peroxides on the surface of Fe₂O₃ and V₂O₅ has an oxidation-reducing nature, during which free radicals are produced. On the surface of Cr₂O₃, there is a heterolytic decay of peroxides. The parameters of the reaction of peroxides decomposition are found. The decomposition of peroxides in the presence of Fe₂O₃, Cr₂O₃ and V₂O₅ in styrene is accompanied by the formation of polystyrene both in the solution and on the surface of the adsorbent.

1. Introduction

Hybrid organic-mineral composites are produced with the incorporation of inorganic fillers in the structure of polymer [1,2,3,4,5,6]. Polymer-mineral composites have unique properties, therefore, the study of their synthesis and physicochemical properties is urgently required. The polymer matrix incorporated with inorganic particles forms the micro/nanocomposites that can be used in different fields of industry [2]. These composites may be used as optical materials for modern optics and optoelectronic devices [3]. Conjugated polymers with different inorganic nanoparticles can form the hybrid structure with electrical conductivity and catalytic functions [4]. The composite of polymers with dispersive metal oxides takes a special place among industrial polymer-mineral composites [5]. The filler in a polymeric composite performs a function of the pigment or stabilizer. The effective method to produce polymer composites with inorganic metal oxide dispersion is “in situ” polymerization. With this method the formation of polymer matrix is realized during monomer polymerization in the presence of dispersive mineral filler [1,6]. The highly developed surface of the mineral filler affects the parameters of the polymerization process due to the adsorption of the monomer and the peroxide radical initiator [4]. This surface can change the molecular masses and the molecular weight distribution of the polymer formed under these conditions. Mineral filler affects the rate of thermal decomposition of peroxide compounds used to initiate polymerization.

Understanding the nature of the interfacial region between an organic peroxide initiator and an inorganic filler component is essential for determining how this region affects the mechanism of polymerization and overall bulk properties of the organic/inorganic hybrid composite material. In this work, polystyrene was used as the model polymer matrix coupled with metal-oxide fillers such as transitional metal oxides Fe₂O₃; Cr₂O₃ and V₂O₅ widely used as mineral pigments and catalysts [6].

The aim of our work was to study the adsorption of peroxide initiators on the surface of dispersed oxides, thermolysis and polymerization in such systems.

2. Materials and Methods

The investigation of adsorption and thermal decomposition of peroxides was carried out in a styrene solution with an ampoule technique [7]. The styrene was purified and fractionated in the argon atmosphere. The adsorbent was placed in the ampoule and the styrene solution and a certain amount of peroxide was added. The ampoules were rotated during the experiment. The rotor placed in the water thermostat continuously stirred the mixture reaction. The temperature was kept constant within ±0.05 K. At certain intervals, the ampoules were removed from the thermostat, cooled quickly and then the content of the undecomposed peroxide was analyzed with the iodometric method [8].

The adsorption experiments were carried out at the temperature of 303 K. No decomposition of the peroxides in styrene solutions or on the surface of the examined fillers was observed in the temperature range of 303–313 K. The thermal decomposition of peroxides was carried out in the temperature range of 338–363 K.

The disperse oxides Fe₂O₃; Cr₂O₃ and V₂O₅ (Sigma-Aldrich is now MERCK) were heated at 700 K in vacuum for 6 h to remove the absorbed moisture. The surface areas of investigated adsorbents Fe₂O₃, Cr₂O₃ and V₂O₅ were 75.0, 80.0 and 65.0 m²/g, respectively. The specific surface arrears of Fe₂O₃, Cr₂O₃ and V₂O₅ were determined using low-temperature adsorption of nitrogen (BET).

The purified benzoyl peroxide (BP) was used in the most experiments [8]. The oligomeric peroxide of sebacic acid (ОPSA) and didecanoyl diperoxyadipinat (DP) were used in some experiments [9].

3. Results and Discussion

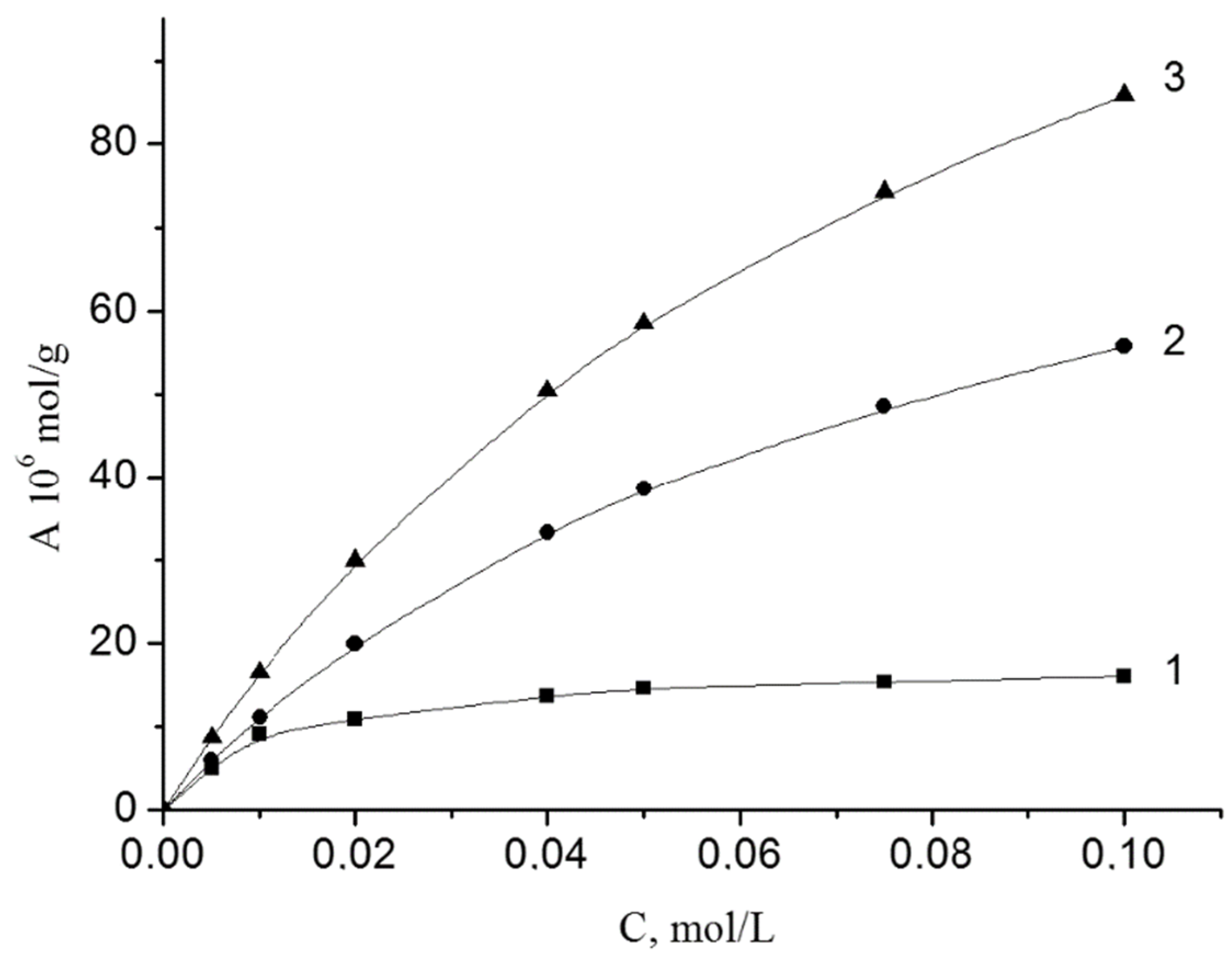

The adsorption of peroxides is well described by the Langmuir equation. The isotherms of the adsorption of BP on the investigated disperse minerals are shown in Figure 1. These dependences are linear in coordinates 1/A from 1/C, which allowed us to determine the maximum adsorption (A_∞) and the adsorption-desorption equilibrium constant (K).

The adsorption-desorption equilibrium was established in 10–15 min. The parameters of the adsorption process are show in

Table 1. Physicochemical parameters of BP adsorption on surfaces of Fe₂O₃, Cr₂O₃ and V₂O₅ from styrene at 303 К.

Adsorbent	A∞·106, mol/g	S, Å2	К, m3/kmol	−∆G, kJ/mol	Qi, J/g	Qs, J/g	Qa, J/g	qa, kJ/mol
Fe2O3	1.81	91	75.63	10.7	2.87	2.69	0.18	10
Cr2O3	10.1	16	12.32	6.2	7.82	5.96	1.86	18
V2O5	16.2	10	11.31	6.0	11.07	7.59	3.49	22

.

The adsorption of BP grows within Fe₂O₃ < Cr₂O₃ < V₂O₅. Adsorption-desorption equilibrium constants (K) for Cr₂O₃ and V₂O₅ are the same. For Fe₂O₃ this value is 6 times higher. In the adsorption layer, the BP molecule areas (S) are 16, 10 and 91 Ų. The values of ΔG were calculated based on the numerical values of K. The values of ΔG are similar (−6.2 and −6.0 kJ/mol) for Cr₂O₃ and V₂O₅). For Fe₂O₃ the value of ΔG has a much greater numerical value (−10.7 kJ/mol).

The heat of adsorption (Q_a) is an important parameter of the adsorption process. The numerical values of Q_a are shown in Table 1. To determine the numerical values of the adsorption heat, it is necessary to determine the heat of wetting (Q_s). The heat of adsorption can be calculated from the difference between the wetting heat and the integral heat (Q_i) since physical adsorption and chemisorptions are thermodynamically practically inseparable. In most cases they are characterized by the different order of the magnitude value of the differential molar adsorption heat q_a. To determine the nature of adsorption, the value q_a was calculated (Equation (1)):

q_a = Q_a/A_∞

(1)

The calculated values of q_a for these systems are 10–22 kJ/mol according to the physical adsorption (Table 1).

The thermal decomposition of the peroxides is well described by the kinetic equation of the first-order. In all cases, the reaction rate of the thermal decomposition of peroxide grows with the addition of dispersed oxides. Thermolysis of peroxides in a heterogeneous system happens under two thermodynamically distinct conditions—in the volume of the solvent and on the interface between the phases. The structure of the peroxide and the surface of the disperse oxide affects the rate of the destruction.

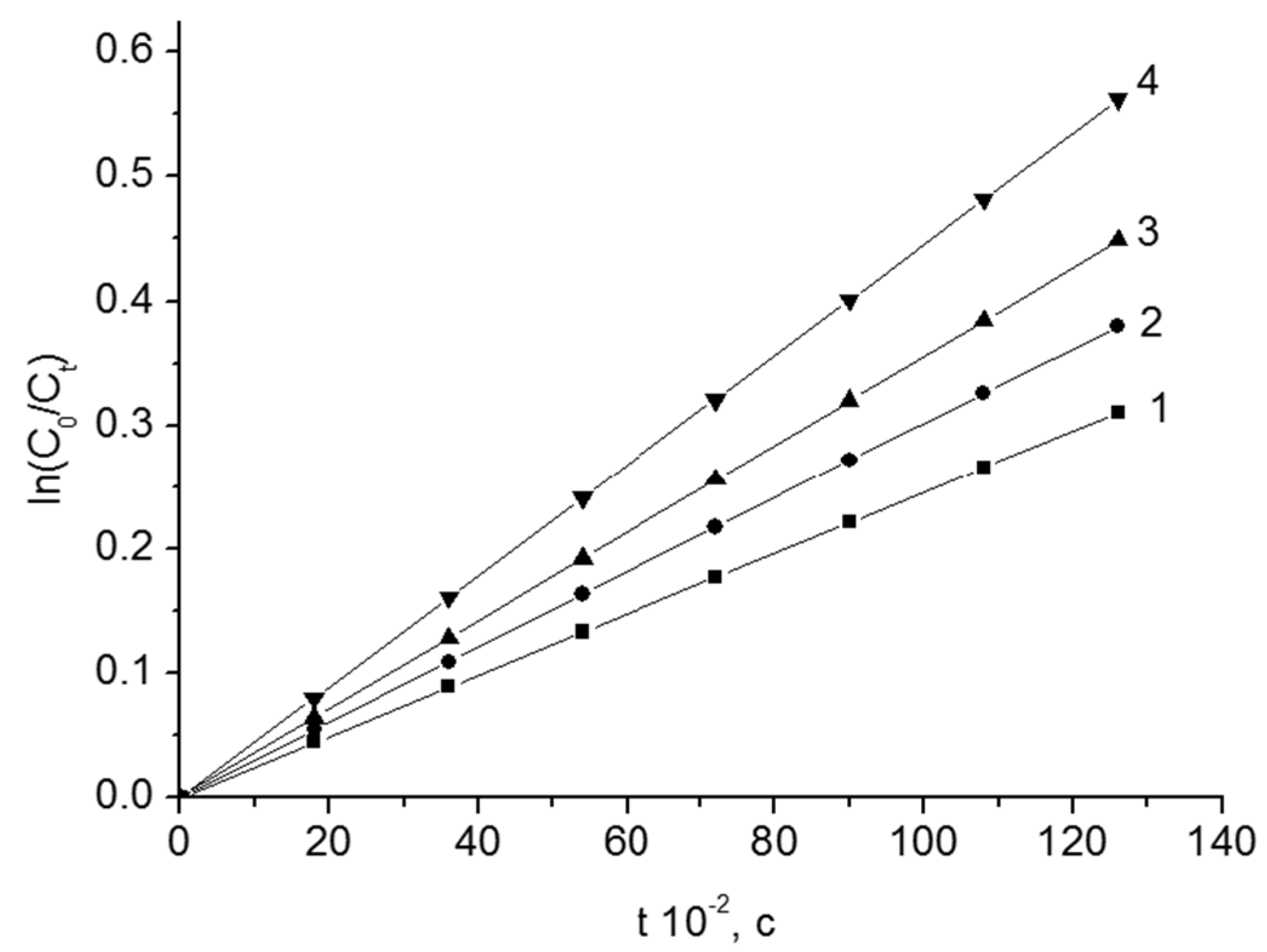

The kinetic curves of the thermal decomposition of BP from content of Fe₂O₃ are given in Figure 2.

The process of thermal decomposition is described by the equation of the first-order reaction rate. According to the slopes of the dependencies (Figure 2), the observed rate constants (k) of the thermal decomposition of peroxides were found. The total rate constant of the reaction of thermolysis grows with the increase of the content of disperse oxide in the system. The constants of the rate of thermal decomposition of BP and other peroxide compounds in the presence of Fe₂O₃, Cr₂O₃ and V₂O₅ are shown in

Table 2. The kinetic and activation parameters of the reaction of thermal decomposition of BP and ОPSA in the presence of chromium oxide.

Cr2O3 Content, wt.%	k·105, s−1; Δk = ±0.03 k						E, kJ/mol
	338 K	343 K	348 K	353 K	358 K	363 K
BP (0.03 mol/L)
0	-	1.35	2.46	5.41	-	18.6	137
1.0	0.77	1.55	3.05	5.83	10.7	20.0	132
2.0	0.84	1.71	3.33	6.11	12.4	-	134
3.0	0.95	2.04	3.81	6.73	13.9	-	132
ОPSA (0.03 mol/L)
0	3.46	6.47	11.5	21.7	38.5	-	119
2.0	3.77	6.84	11.8	22.3	38.6	-	117

,

Table 3. The kinetic and activation parameters of thermal decomposition of peroxides in styrene in the presence of Fe₂O₃. The concentration of peroxide groups—0.03 mol/L.

Peroxide	Fe2O3 Content, wt.%	k·105, s−1; Δk = ±0.03 k					Е *, kJ/mol
		338 К	343 К	348 К	353 К	358 К
BP	0	-	1.35	2.46	5.41	-	137
BP	4.0	0.95	1.80	3.02	5.90	9.35	116
BP	9.2	1.40	2.31	3.56	6.52	9.42	98
BP	15.3	2.00	3.10	4.46	7.23	10.6	84
DP	0	1.20	2.28	5.25	10.5	18.2	140
DP	4.0	1.51	2.70	5.62	10.8	18.5	129
DP	8.0	1.85	3.10	6.04	10.8	18.8	118
ОPSA	0	3.46	6.47	11.5	21.7	38.5	119
ОPSA	4.0	3.72	6.98	11.8	22.0	39.5	116
ОPSA	8.0	3.91	7.23	11.9	22.4	40.0	114

* The error in the determination of E_a did not exceed ±3.0 kJ/mol.

and

Table 4. The rate constants of thermolysis of BP in styrene in the presence of V₂O₅. Concentration of peroxide groups—0.03 mol/L.

V2O5 Content, wt.%	k·105, s−1; Δk = ±0.03 k					Е, kJ/mol
	328 К	333 К	338 К	343 К	348 К
3.0	0.96	1.55	2.37	3.40	5.38	80
6.0	-	2.86	4.11	5.46	8.07	70
10.2	3.2	3.20	6.18	8.29	12.2	60

. The effective energies of activation of the thermal decomposition process (E) were calculated with the temperature dependences of k. The decomposition of peroxide compounds occurs in the solution and on the surface of the disperse oxides. Proceeding from this, an expression for the specific rate of the process is as follows:

k_p = k + k_sS_aC^ρ−1,

(2)

where S_a is the area of surface of the dispersed phase in 1 liter of mixture, C—is the initial concentration of peroxide in the system, ρ is the kinetic order of the reaction of the heterogeneous catalytic decomposition, k_s is the rate constant of the decomposition of peroxide on the surface of the adsorbent.

The Equation (2) becomes an Equation (3). This determines the parameters of the heterogeneous-catalytic decomposition:

ln(k_p − k)/S_a = lnk_s + (ρ − 1)lnC

(3)

The specific rates of decomposition of peroxides showed that with the increasing of peroxide concentration the numerical values of k_p decrease. The increase in the concentration of peroxide leads to the decrease in the numerical values of k_p. The dependencies are linear in coordinates of ln(k_p − k)/S_a from f(lnC), which allowed us to determine the parameters of the heterogeneous catalytic process. Defined parameters are given in

Table 5. The kinetic and activation parameters of the heterogeneous-catalytic decomposition of peroxides on oxides surface.

Oxides	Т, К	g *, wt.%	−ρ	** ks 108	*** Еs, kJ/mol
BP
Fe2O3	343	4.0	0.25	1.22	-
		9.2	0.28	1.16	-
Fe2O3	348	4.0	0.27	1.51	45
		9.2	0.29	1.37	46
Fe2O3	353	4.0	0.22	1.93	-
		9.2	0.23	1.88	-
Cr2O3	348	2.0	0.13	6.1	81
Cr2O3	353	2.0	0.23	9.10	-
V2O5	343	3.0	0.20	10.9	24
V2O5		10.2	0.22	10.3	-
V2O5	348	3.0	0.27	12.3	-
DP
Fe2O3	348	4.0	−0.18	3.23	-
		8.0	−0.18	3.21	-
OPSA
Fe2O3	348	4.0	0.49	0.47	-
Cr2O3	348	2.0	0.28	1.55	-

* g—content of dispersed oxide wt.%; ** the dimension of the constant k_s (L/m² s)*(l/mol)^ρ−1; *** the error of the determination of E_s ± 4.0 kJ/mol.

.

The energy of activation of the heterogeneous-catalytic (E_s) decomposition of the peroxides was calculated based on the results obtained at different temperatures. The numerical values of activation energy of surface decomposition peroxides E_s are much lower than summary energy E determined in homogeneous systems [9]. This points out the oxidation-reducing nature of the decomposition process on the surface of the disperse oxides. The mechanism of heterogeneous-catalytic decomposition depends on the nature of the disperse oxide. The filler increases the polymerization rate of styrene in the presence of Fe₂O₃ [10], but Cr₂O₃ slightly inhibits the formation of polymer [11]. The adsorption of peroxide initiators and their decay on the surface of Cr₂O₃ proceeds along the mechanism of a similar decomposition on the surface of the aerosil [7]. Polymerization of styrene in the presence of Cr₂O₃ takes place only in solution. Due to the adsorption of peroxide compounds on the surface of Cr₂O₃, the initiator concentration in the solution decreases, therefore, the rate of styrene polymerization is slowed down.

The free radicals are formed on the surface of Fe₂O₃ and V₂O₅. They can initiate the polymerization reaction. During the study of the thermal decomposition of peroxides in styrene in the presence of V₂O₅, a change in the color of the adsorbent is observed, indicating the oxidation-reducing nature of the initiator’s decomposition on the surface. The reaction of the decomposition of peroxides on the surface of Cr₂O₃ does not lead to the formation of free radicals.

4. Conclusions

Thus, the adsorption of some organic peroxides on the surface of dispersed Fe₂O₃, Cr₂O₃ and V₂O₅ was studied. It is shown that the adsorption of peroxides is described by the Langmuir equation. The calculated values of the differential molar adsorption heat q_a for these systems are 10–22 kJ/mol according to the physical adsorption. The surfaces of the studied disperse inorganic oxides affect the process of thermal decomposition of diacylic peroxides. The thermal decomposition of the peroxides is well described by the kinetic equation of the first-order. In all cases, the reaction rate of the thermal decomposition of peroxide grows with the addition of dispersed oxides. The numerical values of activation energy of surface decomposition peroxides E_s are much lower than summary energy of decomposition E determined in homogeneous systems. This points out the oxidation-reducing nature of the decomposition process on the surface of the disperse oxides.

Depending on the nature of the surface of the oxide, the peroxide decomposes homolytically—with the formation of free radicals, or heterolytically—by inhibiting the polymerization of styrene on the surface. In all cases, during the thermal decomposition of peroxides, polymer-mineral composites are formed.
