Simple Approach to the Fabrication of Lanthanum Orthoniobates and Nanocomposites with Ni, Cu, and Co Metal Nanoparticles Using Supercritical Isopropanol

by
Dinara Altynbekova
1,
Yuliya Bespalko
2,*,
Konstantin Valeev
2,
Nikita Eremeev
2,
Ekaterina Sadovskaya
2,
Tamara Krieger
2,
Artem Ulihin
3,
Arina Uhina
3,
Bakytgul Massalimova
1,
Mikhail Simonov
2 and
Vladislav Sadykov
2
1
Chemistry and Chemical Technology Department, Taraz Regional University Named after M. Kh. Dulaty, Suleimanova 6, 080000 Taraz, Kazakhstan
2
Heterogeneous Catalysis Department, Federal Research Center Boreskov Institute of Catalysis SB RAS, Akad. Laverntieva Ave. 5, 630090 Novosibirsk, Russia
3
Laboratory of Solid State Ionic, Institute of Solid State Chemistry and Mechanochemistry SB RAS, Kutateladze Str. 18, 630128 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
J. Compos. Sci. 2022, 6(9), 243; https://doi.org/10.3390/jcs6090243
Submission received: 31 July 2022 / Revised: 16 August 2022 / Accepted: 18 August 2022 / Published: 23 August 2022
(This article belongs to the Special Issue Metal Composites)
Browse Figures
Review Reports Versions Notes

Abstract

:
Orthoniobates of rare-earth elements are a promising group of materials attractive for the design of nanocomposite hydrogen separation membranes owing to a perspective type of proton conductivity, good mechanical properties, and high stability in H2O- and CO2-containing atmospheres. In general, the promising method involves the synthesis of nanocomposites with transition metals (Cu, Ni, and Cu-Ni alloys) and their oxides with high electronic conductivity. For the first time, lanthanum orthoniobates and nanocomposites with NiCu and NiCo nanoparticles were synthesized using alcohol solutions of salts of the corresponding metals by the solvothermal method in a flow reactor in a supercritical isopropanol medium. This method made it possible to obtain single-phase La0.99Ca0.01NbO4–δ oxide. The introduction of doping titanium cations did not allow obtaining a single-phase La0.99Ca0.01Nb0.98Ti0.02O4–δ sample, as impurities in lanthanum methaniobate and La2Ti2O7 were found. Calcined powders and gastight pellets of orthoniobates and nanocomposites were characterized by X-ray diffraction analysis as well as scanning and transmission electron microscopy. Transport characteristics were investigated by the Van der Pauw technique, varying measurement temperatures in a wet H2 atmosphere. The oxygen mobility was estimated by the oxygen isotope heteroexchange with C18O2.

1. Introduction

The finding and development of suitable materials for the creation of energy conversion and storage devices based on inorganic ceramic elements continue to this day. An active search for materials considered promising ionic conductors thanks to high values of proton and oxygen conductivity, density, and thermochemical stability is underway [1,2,3]. These include orthoniobates of rare-earth elements, which are characterized as perspective materials for use as components of fuel cells and other electrochemical devices such as membranes for oxygen and hydrogen separation, ceramic membrane reactors, and electrolyzers [4,5,6,7,8,9].
Lanthanum orthoniobates have been considered as promising proton-conducting solid electrolytes over the past decade. These materials have good chemical stability in atmospheres containing CO2 and H2O, unlike barium cerates and zirconates [10]. However, despite the high stability, these compounds have a rather low conductivity compared with the materials mentioned above [11].
The value of proton conductivity depends on the defect structure of the oxide, as the presence of oxygen vacancies is the main factor responsible for the appearance of proton defects. Thus, the introduction of additional cations into the perovskite structure with a natural deficiency of the oxygen sublattice leads to a further increase in structural disorder and, as a result, to an increase in proton conductivity. Many efforts have been made to improve the conductivity by single- or multi-element doping. A further increase in the mobility of protons in materials based on LaNbO4 was achieved by doping its A-sublattice with cations of a lower valence and a larger ionic radius, such as Sr, Ce, Yb, Pr, Mg, Cu, and Ca [12,13,14,15,16,17,18,19,20], as well as doping its B-sublattice with cations having a high valence with a small ionic radius, such as W, Al, Zr, Ti, Co, Mo, and Ta [21,22,23,24,25,26,27,28]. Despite the acceptor nature of Ti-doping, there is an indication of n-type conductivity at 1000 °C for the Ti-doped sample. One may thus suggest that the multivalent nature of Ti slightly reduces the effective band gap and, consequently, increases the concentration of electrons. This behaviour is in agreement with the interpretation of the dependence of the bulk conductivity as a function of pH2O at 1200 °C [28].
To create highly efficient proton-conducting membranes, materials of the functional layer should be used with a set of characteristics, such as stability in various media (CO2, H2O), high mechanical strength, and high conductivity. It is not always possible for individual components to meet these requirements, so approaches such as the use of composites will help to solve this problem. In particular, lanthanum orthoniobates with high stability in a humid and carbon-dioxide-containing atmosphere, good mechanical properties, compatibility with transition metals (Cu, Ni, and Cu–Ni alloys) and their oxides, and sufficiently high ionic conductivity make these compounds attractive for the development of nanocomposite materials for hydrogen separation membranes [4,29,30]. The introduction of another component such as a metal into the composite provides mechanical strength high electronic conductivity, which is crucial to avoid hydrogen permeation limiting by coupled electron–proton transport across the membrane.
There are various methods for the synthesis of proton-conducting lanthanum orthoniobate, such as the most commonly used solid-phase method [16,19,23,24,27,28,29,30], the method of mechanical activation [13,31], the molten salt method [32], the sol–gel method [33], and spray pyrolysis from aqueous precursors [14,34]. Most of the methods listed above are multi-stage, require a long processing time, and entail significant energy consumption.
A relatively recently proposed method for the synthesis of nanomaterials in supercritical fluids, thanks to their unique properties (low viscosity, lack of surface tension, high supersaturation of the solution, and so on), provides a high-performance synthesis of materials with the required properties. Moreover, because of the high rate of particle formation in supercritical fluids, this method allows synthesis in a continuous stream. Here, the synthesis process can be modified by changing the operating parameters, so elucidation of how each parameter affects the process allows to control the structure, particles’ size, and morphology of materials [35]. Alkali niobates nanoparticles were continuously synthesized in a supercritical water flow system [36]. Single-phase NaNbO3 was obtained under supercritical conditions over a wide range of parameters (T > 400 °C, 25 < p < 30 MPa). Besides, metal nanopowders and nanocomposites were synthesized in supercritical fluids [37].
In the work of [38], a possibility to carry out reduction reactions of metal oxides and salts in supercritical isopropanol media was shown. A number of oxides (CuO, CdO, HgO, CoxOy, Bi2O3, and so on) can be used for the synthesis of functional materials based on metal particles fixed on various supports. Nanoparticles of Ni, Cu, and Ag metals were synthesized continuously in supercritical methanol with the formation of very small particles, and this method provided an alternative pre-annealing treatment that improves the sinterability of materials and decreases the temperature of sintering [39]. In previous studies [40], we obtained metals and alloys based on nickel, copper, cobalt, and silver. The results of our research showed that using supercritical alcohols allows for obtaining metals and alloys in one stage. The powders after calcination are spherical nanoparticles with an average size of 25–45 nm.
In this study, we report that NiCu and NiCo nanoparticles and orthoniobates powders can be synthesized using supercritical alcohol fluid technology. Moreover, for the first time, new types of nanocomposites containing metal (M = Ni, Co, Cu) nanoparticles and niobates were prepared. The properties (size, phase composition, and morphology) of the synthesized materials were characterized by scanning electron microscopy (SEM), transmission electron microscopy (HRTEM), and X-ray diffraction analysis. Transport properties (conductivity and oxygen mobility) of obtained materials were investigated. While single-phase rare-earth niobates have already been studied well, based on them, nanocomposite materials with mixed conductivity of both theoretical and practical interest were prepared and characterized for the first time.

2. Materials and Methods

Samples of oxides and nanocomposites were synthesized by solvothermal synthesis using supercritical alcohols in a flow-through reactor. The experimental custom-built setup for the preparation of materials is described elsewhere [41].
Materials were synthesized using alcohol solutions of salts of corresponding metals La (NO3)3·6H2O (99.99% Vecton, Saint-Petersburg, Russia), Ca(NO3)2 (99.5% Reakhim, Moscow, Russia) NbCl5 (99.99% Acros Organics, Geel, Belgium), Co(NO3)2·6H2O (99.90% Reakhim, Moscow, Russia), Ni(NO3)2·nH2O (Reakhim, Moscow, Russia), Cu (NO3)2·6H2O (99.5% Vecton, Saint-Petersburg, Russia), and C16H36O4Ti (99.99% Alfa Aesar, Karlsruhe, Germany). Precursor solutions were prepared by dissolving salts in isopropanol (99.99% Reakhim, Moscow, Russia) with the addition of an equimolar amount of acetylacetone (99.99% Reakhim, Moscow, Russia) as a complexing agent. Ni/Co and Ni/Cu molar ratios were equal to 1. A mixture of metal solutions was fed into a U-shaped reactor (l = 75 cm, inner diameter = 4 mm) at a rate of 5 mL/min. At the same time, isopropyl alcohol preheated to a temperature of 150 °C was fed into the reactor at a rate of 9 mL/min at 400 °C and a pressure of 120 atm. The synthesis products were separated from the mother liquor by decantation. The precipitates were dried and calcined under air for 4 h (NiCu and NiCo at 500 °C and orthoniobates at 1100 °C).
For «one-pot» synthesis of nanocomposites La0.99Ca0.01NbO4/NiCuOx and La0.99Ca0.01NbO4/NiCoOx (65:35 wt.%) in supercritical conditions, the required quantities of corresponding salts were blended in isopropanol with the addition of acetylacetonate as a complexing agent. The mixed solution was fed into a reactor and SCS was performed under the same conditions as for niobates. All precursors were dried at 80 °C for 12 h and calcined under air at 1100 °C for 6 h.
All powders of nanocomposites were pressed into pellets of 10–12 mm in diameter and sintered by the hot-pressing technique under 50 MPa at 1100 °C for 15 min in Ar. The pellets of orthoniobates powders were sintered at 1100 °C for 4 h in air.
The codes and compositions of samples of Ni-Co, Ni-Cu, and orthoniobates, as well as nanocomposites based on them, are presented in Table 1.
All calcined powders and gas-tight pellets of orthoniobates and nanocomposites were characterized by X-ray diffraction, transmission electron microscopy (TEM), scanning electron microscopy (SEM), specific surface area, conductivity, and oxygen mobility measurements. Diffraction patterns were obtained using a Bruker diffractometer Advance D8 with CuKα radiation. Scanning was carried out in the range of angles of 15–90 (2Θ) with a scanning step of 0.05 (2Θ). The identification of the obtained phases and quantitative calculations were obtained using the ICDD X-ray data file.
Measurements of the textural characteristics of materials were carried out by physical adsorption of N2 using an ASAP-2400 (Micromeritics Instrument. Corp., Norcross, GA, USA). The specific surface area (SSA) was calculated using obtained adsorption isotherms.
La0.99Ca0.01Nb0.98Ti0.02O4–δ sample was examined using an FIB-SEM microscope (Tescan Solaris, Brno-Kohoutovice, Czech Republic) equipped with secondary and reflected electron detectors. Samples in the form of pellets were attached to a standard holder followed by spraying a thin carbon layer to ensure the conductivity of the near-surface layer. The other samples were investigated using high-angle ring scanning electron microscopy in a dark field (HAADF-STEM). High-resolution transmission electron microscopy (HRTEM) data were obtained using a JEM-2200FS transmission electron microscope (JEOL Ltd., Tokyo, Japan, accelerating voltage 200 kV, grating resolution of 1A) equipped with a Cs corrector and an EDX spectrometer (JEOL Ltd., Tokyo, Japan). The minimum spot diameter for step-by-step line analysis or mapping of elementary EDX analysis was ~1 nm, with a step of about 1.5 nm. Fourier–Raman spectra (3600–100 cm−1, 300 scans, resolution 4 cm−1, geometry 180°) were recorded using a Bruker RFS 100/S spectrometer.
Electrical conductivity was studied by impedance spectroscopy in two electrode cells placed in a humid hydrogen atmosphere using a precision LCR HP-4284AP meter in the AC frequency range of 20 Hz−1 MHz. Bulk conductivity values were determined from analysis of the Z “–Z” plots. The proton conductivity of composites containing metal alloys was determined on compact samples by the four-probe van der Pauw method in the galvanostatic mode with four ion-selective probes made of proton-conducting La0.99Ca0.01NbO4 ceramics, similar to the ion probe technique described elsewhere [42]. Ion-selective electrodes allow the determination of proton conductivity, as they completely block the electron current, while being reversible electrodes for protons.
The theoretical density and porosity of the pelletized composites were investigated by Archimedes’ method.
The oxygen mobility and surface reactivity of the milled samples were studied using temperature-programmed isotope exchange of oxygen (TPIE) with C18O2 in the flow reactor. Samples were loaded into the quartz tube with an inner diameter of 3 mm. Pretreatment was carried out in He + 1% O2 feed with a flow rate of 25 mL/min at 700 °C for 0.5 h. TPIE experiments were carried out in He + 1% C18O2 gas mixture with a flow rate of 25 mL/min while heating from 50 °C to 700–800 °C with a ramp of 5 °C/min. The outlet gas mixture was analyzed by an UGA 200 mass spectrometer (Stanford Research Systems, Stanford Research Systems Inc., Sunnyvale, CA, USA). The temperature dependencies of 18O atoms (α) and C16O18O molecules (f16–18) mole fractions were analyzed to calculate the oxygen tracer diffusion coefficient (D*) and its effective activation energy (Ea,D) values using a mathematical model [43].

3. Results and Discussion

3.1. Structural Characteristics

3.1.1. Niobates

According to the diffraction patterns in Figure 1, both lanthanum orthoniobates after supercritical synthesis are X-ray amorphous materials. The formation of the orthoniobate phase only began after calcination at 700 °C. Figure 1a demonstrates XRD patterns of the La0.99Ca0.01NbO4 (LCNb) sample, and only reflections of the fergusonite phase with monoclinic structure (PDF [01-083-1911]) are observed for samples calcined at 1100 °C.
In contrast, the powder of La0.99Ca0.01Nb0.98Ti0.02O4–δ (LCNbTi) calcined at 1100 °C is a mixture of three phases—monoclinic LaNbO4–δ (PDF [01-083-1911]) and low quantities of monoclinic La2Ti2O7 (PDF [00-028-0517] and orthorhombic La0.33NbO3 (PDF [00-026-0822]) phases (Figure 2b). The impurity La0.33NbO3 is a mixed electronic and ionic (oxygen-ion and proton) conductor depending on temperature and conditions [44]. The presence of this impurity can also lead to an increase in the proton conductivity.
Figure 2 shows the SEM images of LCNb and LCNbTi powders sintered at 1100 °C for 4 h. The La0.99Ca0.01NbO4 sample is quite dense and pore-free, with similar grain sizes in the range of 2–6 µm (Figure 2a). Titanium-doped lanthanum orthoniobate is still very porous after 4 h of sintering, with a grain size distribution varying from 1 to 4 μm (Figure 2b).

3.1.2. NiCu and NiCo

According to the XRD data, weakly crystallized phases of solid solutions of nickel, copper, and cobalt oxides are present immediately after drying the obtained suspension. During synthesis in supercritical medium, nickel–copper alloys were obtained, and the metal cations were reduced in the reactor as a result of the interaction with supercritical isopropanol. Based on XRD data (Figure 3a) after treatment at 500 °C in the air, the NiCo sample is a mixture of nickel and cobalt oxide. The unit cell parameter of Co3O4 is 8.101 Å and that of NiO is 4.174 Å. The average crystallite size is 22.5 and 16.0 nm, respectively. As follows from the XRD patterns for the reduced NiCo sample (Figure 2a), the lattice constant is 3.534 Å. For metallic cobalt and nickel, the cell parameter is 3.544 Å (PDF [89-4307]) and 3.524 Å (PDF [65-2865]), respectively. Based on this, according to Vegard’s rule, the unit cell parameter corresponds to an Ni/Co ratio of ~50/50.
The NiCu powdered sample calcined at 500 °C is a mixture of Ni0.19Cu0.81 alloy, nickel, NiO, and Cu2O phases (Figure 3b). For metallic Cu, the lattice parameter is 3.625 Å (PDF [70-3038]) and that of Ni is 3.524 Å (PDF [65-2865]). After reduction of this sample, the lattice parameter of the metal phase was changed to 3.563 Å, which corresponded to Ni/Cu alloy with a composition ~60/40.
The TEM data of NiCo and NiCu samples show almost spherical metal nanoparticles with an average size of 10–45 nm (Figure 4).

3.1.3. Nanocomposites

Modification in the phase composition of nanocomposites with the increase in calcination temperature is shown in Figure 5. During the synthesis of nanocomposites, there was no reduction in nickel, copper, or cobalt to the metallic state. For materials after calcination at 500 °C under air, the phases of nickel and cobalt oxides were formed, while the phase of lanthanum orthoniobate had not yet crystallized. For NiCo–LCNb nanocomposite sintered at 700 °C, the main phase is monoclinic La0.99Ca0.01NbO4, with NiO and Co3O4 phases being observed as well. With a further increase in calcination temperature under air up to 1100 °C, a phase of mixed nickel–cobalt oxide was formed.
The nanocomposite NiCu–LCNb (700 °C) consists of monoclinic and tetragonal phases of the composition La0.99Ca0.01NbO4, nickel oxide NiO, and a solid solution of nickel–copper oxide Ni0.8Cu0.2Ox (Figure 5b). Reflections corresponding to a separate copper phase or its oxides were not observed; hence, copper compounds are apparently in X-ray amorphous states. There were no new phases indicating products of chemical interaction between components of nanocomposites.
According to scanning transmission electron microscopy (HAADF-STEM), both samples showed a rather uniform spatial cation distribution (Figure 6 and Figure 7). In the NiCu–LCNb sample, the distribution of lanthanum, niobium, and copper is uniform, but relatively large nickel particles are observed. The ratio of nickel to copper depends on the survey area, thus, unlike copper, nickel is unevenly distributed, which agrees with the assumption that copper is predominantly in fine form or distributed in the volume of lanthanum-calcium niobate. As for the NiCo–LCNb sample, the distribution of all elements is more uniform (Figure 7).

3.2. Reducibility in Hydrogen

Temperature-programmed reduction (TPR) was performed for lanthanum orthoniobate and for nanocomposites sintered at different temperatures (Figure 8). La orthoniobate is almost not reducible by hydrogen in the analyzed temperature range. The lower temperature TPR peaks at 214–240 °C and 400–436 °C correspond to the reduction of NiO to Ni, CuO to Cu, Co3O4 to CoO, and CoO to Co [45]. As shown in our previous work [46], the recovery of a nickel–copper alloy in its pure form takes place at 201 °C, and in composites containing NiCu and tungstates, the peak shifted towards higher temperatures of 254–312 °C. This was explained by the partial decoration of NiCuO particles in nanocomposites with tungstates oxide fragments, which reduces their reactivity. A similar situation is observed in the case of NiCu–LCNb and NiCo–LCNb nanocomposites.
For both composites calcined at 1100 °C, reduction peaks are shifted to higher temperatures as compared with samples after calcination at 700 °C, while the amounts of removed oxygen decreases. Figure 9 shows the diffraction patterns of composites where, in addition to the main phase of lanthanum orthoniobate, phases of NiCo and NiCu alloys are obtained. Hydrogen consumption during NiCo–LCNb composite reduction is larger than that for NiCu–LCNb, as displayed in Table 2.

3.3. Conductivity

The electric conductivity of composites was studied for their pellets calcined at 1100 °C. According to XRD data (Figure 9), after reduction in H2, the monoclinic phase of lanthanum orthoniobate was present in both nanocomposites. Ni and Ni–Co oxides partially disappeared with formation of Ni–Co alloy. The NiCu alloy phase was detected in the XRD patterns of the NiCu–LCNb composite. Figure 10 shows SEM micrographs of composites after calcination at 1100 °C. This method of nanocomposites’ preparation provides a high density of nanocomposite ceramics (Table 1).
Temperature dependences of the conductivity of nanocomposites are presented in Figure 11. To prevent oxidation of metals, the measurements were carried out in an atmosphere of moist hydrogen. Their total electrical conductivity is high, up to 10−3 S/cm. Lanthanum orthoniobate doped with Ca exhibits the highest proton conductivity of the orthoniobates, up to ~1 × 10−4 S/cm in wet reducing conditions at 700 °C [15,23,44]. Figure 11a shows that nanocomposite materials have high electronic and ionic conductivity. Figure 11b shows the experimental temperature dependences of proton conductivity of NiCu–LCNb and NiCo–LCNb obtained using a four-electrode cell with ion probe electrodes. The NiCo–LCNb nanocomposite shows high values of both electronic and proton conductivity.

3.4. Oxygen Mobility

Figure 12 demonstrates the TPIE curves of NiCu–LCNb and NiCo–LCNb composites. For comparison reasons, the TPIE curve for the LCNb sample obtained in the previous work [4] is added as well. The diffusion rate for composites catastrophically declines compared with that of LCNb. One can suppose that such a drastic decrease in oxygen mobility is associated with a negative effect of nickel–copper/cobalt oxides having very low oxide ionic conductivity [4,43,47]. It is likely that such an effect includes partial blocking of oxide-ionic conductive LCNb particles by relatively large nickel–copper/cobalt oxide particles. Reduction of these particles can partially unlock the LCNb phase, as the metallic particles are small (Section 3.1).
However, reduction of the samples by hydrogen (in He + H2 flow at 600 °C for 1 h) followed by soft reoxidation (in He + CO2 flow at 800 °C for 1 h) did not demonstrate a significant increase in oxygen diffusivity (Figure 12, curves 1′-4′). The effective activation energy (Ea,D) value was 260 kJ/mol (Table 3, Figure 13). The oxygen tracer diffusion coefficient (D*) values were close for all samples (~10−20 cm2/s at 700 K), with visible differences in the isotope substitution rate being generally related to the difference in the SSA, and hence in the diffusion path.

4. Conclusions

In the present work, proton solid electrolytes La0.99Ca0.01NbO4 and La0.99Ca0.01Nb0.98Ti0.02O4–δ, metal alloys NiCo and NiCu, and metal–ceramic nanocomposites La0.99Ca0.01NbO4/NiCuOx and La0.99Ca0.01NbO4/NiCoOx were prepared using supercritical media, and their structural and transport properties were characterized. For the first time, an approach of one-pot synthesis of nanocomposites was developed using continuous solvothermal flow synthesis in supercritical isopropanol. This route is a promising technique for the synthesis of single-phase initial electrolytes, alloys, and nanocomposites. High-density ceramics by sintering of powders at 1100 °C using the hot pressure technique were developed. Composites based on La orthoniobates with a high conductivity are promising materials for hydrogen separation membranes.

Author Contributions

Conceptualization, Y.B. and V.S.; investigation, K.V., A.U. (Artem Ulihin), A.U. (Arina Uhina), N.E., E.S. and T.K.; writing—original draft preparation, D.A. and Y.B.; writing—review and editing, Y.B. and V.S.; supervision, V.S. and B.M.; project administration, M.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Ministry of Science and Higher Education of the Russian Federation within the governmental order for Boreskov Institute of Catalysis (project AAAA-A21-121011390054-1).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Not applicable.

Acknowledgments

The research was performed using equipment of Shared Knowledge Center “National Center of Catalyst Research” (Boreskov Institute of Catalysis SB RAS), Novosibirsk, Russia as well as Taraz Regional University named after M. Kh. Dulaty, Taraz, Kazakhstan.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kim, J.; Sengodan, S.; Kim, S.; Kwon, O.; Bu, Y.; Kim, G. Proton conducting oxides: A review of materials and applications for renewable energy conversion and storage. Renew. Sustain. Energy Rev. 2019, 109, 606–618. [Google Scholar] [CrossRef]
  2. Lei, L.; Zhang, J.; Yuan, Z.; Liu, J.; Ni, M.; Chen, F. Progress Report on Proton Conducting Solid Oxide Electrolysis Cells. Adv. Funct. Mater. 2019, 29, 1903805. [Google Scholar] [CrossRef]
  3. Haider, R.; Wen, Y.; Ma, Z.-F.; Wilkinson, D.P.; Zhang, L.; Yuan, X.; Song, S.; Zhang, J. High temperature proton exchange membrane fuel cells: Progress in advanced materials and key technologies. Chem. Soc. Rev. 2020, 50, 1138–1187. [Google Scholar] [CrossRef] [PubMed]
  4. Sadykov, V.A.; Bespalko, Y.N.; Krasnov, A.V.; Skriabin, P.I.; Lukashevich, A.I.; Fedorova, Y.E.; Sadovskaya, E.M.; Eremeev, N.F.; Krieger, T.A.; Ishchenko, A.V.; et al. Novel proton-conducting nanocomposites for hydrogen separation membranes. Solid State Ion. 2018, 322, 69–78. [Google Scholar] [CrossRef]
  5. Solís, C.; Serra, J.M. Adjusting the conduction properties of La0.995Ca 0.005NbO4-δ by doping for proton conducting fuel cells electrode operation. Solid State Ion. 2011, 190, 38–45. [Google Scholar] [CrossRef]
  6. Nico, C.; Monteiro, T.; Graça, M.P.F. Niobium oxides and niobates physical properties: Review and prospects. Prog. Mater. Sci. 2016, 80, 1–37. [Google Scholar] [CrossRef]
  7. Harris, C.M.; Skinner, S.J. Redox behaviour and solid solubility of cerium ortho-niobates. J. Solid State Chem. 2019, 271, 135–143. [Google Scholar] [CrossRef]
  8. Magrasó, A.; Haugsrud, R.; Norby, T. Preparation and characterization of Ni-LaNbO4 cermet anode supports for proton-conducting fuel cell applications. J. Am. Ceram. Soc. 2010, 93, 2650–2655. [Google Scholar] [CrossRef]
  9. Chiara, A.; Canu, G.; Longo, A.; Pipitone, C.; Martorana, A.; Giannici, F. Solid-state compatibility of Ca:LaNbO4 with perovskite cathodes: Evidences from X-ray microspectroscopy. Electrochim. Acta 2022, 401, 139495. [Google Scholar] [CrossRef]
  10. Medvedev, D.A.; Lyagaeva, J.G.; Gorbova, E.V.; Demin, A.K.; Tsiakaras, P. Advanced materials for SOFC application: Strategies for the development of highly conductive and stable solid oxide proton electrolytes. Prog. Mater. Sci. 2016, 75, 38–79. [Google Scholar] [CrossRef]
  11. Norby, T.; Haugsrud, R. Dense Ceramic Membranes for Hydrogen Separation; Wiley-VCH Verlag GmbH & Co. KGaA: Weinheim, Germany, 2006; ISBN 3527313427. [Google Scholar]
  12. Mokkelbost, T.; Lein, H.L.; Vullum, P.E.; Holmestad, R.; Grande, T.; Einarsrud, M.A. Thermal and mechanical properties of LaNbO4-based ceramics. Ceram. Int. 2009, 35, 2877–2883. [Google Scholar] [CrossRef]
  13. Cao, Y.; Duan, N.; Yan, D.; Chi, B.; Pu, J.; Jian, L. Enhanced electrical conductivity of LaNbO4 by A-site substitution. Int. J. Hydrog. Energy 2016, 41, 20633–20639. [Google Scholar] [CrossRef]
  14. Syvertsen, G.E.; Magrasó, A.; Haugsrud, R.; Einarsrud, M.A.; Grande, T. The effect of cation non-stoichiometry in LaNbO4 materials. Int. J. Hydrog. Energy 2012, 37, 8017–8026. [Google Scholar] [CrossRef]
  15. Ivanova, M.; Ricote, S.; Meulenberg, W.A.; Haugsrud, R.; Ziegner, M. Effects of A- and B-site (co-)acceptor doping on the structure and proton conductivity of LaNbO4. Solid State Ion. 2012, 213, 45–52. [Google Scholar] [CrossRef]
  16. Dzierzgowski, K.; Wachowski, S.; Gojtowska, W.; Lewandowska, I.; Jasiński, P.; Gazda, M.; Mielewczyk-Gryń, A. Praseodymium substituted lanthanum orthoniobate: Electrical and structural properties. Ceram. Int. 2018, 44, 8210–8215. [Google Scholar] [CrossRef]
  17. Fjeld, H.; Kepaptsoglou, D.M.; Haugsrud, R.; Norby, T. Charge carriers in grain boundaries of 0.5% Sr-doped LaNbO4. Solid State Ion. 2010, 181, 104–109. [Google Scholar] [CrossRef]
  18. Cao, Y.; Chi, B.; Pu, J.; Jian, L. Effect of Ce and Yb co-doping on conductivity of LaNbO4. J. Eur. Ceram. Soc. 2014, 34, 1981–1988. [Google Scholar] [CrossRef]
  19. Hakimova, L.; Kasyanova, A.; Farlenkov, A.; Lyagaeva, J.; Medvedev, D.; Demin, A.; Tsiakaras, P. Effect of isovalent substitution of La3+ in Ca-doped LaNbO4 on the thermal and electrical properties. Ceram. Int. 2019, 45, 209–215. [Google Scholar] [CrossRef]
  20. Dzierzgowski, K.; Wachowski, S.; Łapiński, M.; Mielewczyk-Gryń, A.; Gazda, M. Praseodymium Orthoniobate and Praseodymium Substituted Lanthanum Orthoniobate: Electrical and Structural Properties. Materials 2022, 15, 2267. [Google Scholar] [CrossRef]
  21. Canu, G.; Giannici, F.; Chiara, A.; Confalonieri, G.; Longo, A.; Teresa, M.; Dapiaggi, M.; Buscaglia, V.; Martorana, A. combined synchrotron techniques: Structure, W oxidation state and interdiffusion. J. Alloys Compd. 2021, 857, 157532. [Google Scholar] [CrossRef]
  22. Li, M.; Wu, R.; Zhu, L.; Cheng, J.; Hong, T.; Xu, C. Enhanced sinterability and conductivity of cobalt doped lanthanum niobate as electrolyte for proton-conducting solid oxide fuel cell. Ceram. Int. 2019, 45, 573–578. [Google Scholar] [CrossRef]
  23. Brandão, A.D.; Gracio, J.; Mather, G.C.; Kharton, V.V.; Fagg, D.P. B-site substitutions in LaNb1-xMxO4-δ materials in the search for potential proton conductors (M=Ga, Ge, Si, B, Ti, Zr, P, Al). J. Solid State Chem. 2011, 184, 863–870. [Google Scholar] [CrossRef]
  24. Cao, Y.; Duan, N.; Wang, X.; Chi, B.; Pu, J.; Jian, L. Enhanced electrical conductivity of Mo-doped LaNbO4. J. Eur. Ceram. Soc. 2015, 35, 1979–1983. [Google Scholar] [CrossRef]
  25. Sayers, R.; Kilner, J.A.; Skinner, S.J. Investigation of Ruddlesden-Popper Based Materials for Cathode Applications in Intermediate Temperature Sofcs; Imperial College London: London, UK, 2008; Volume 135, p. 2725. [Google Scholar]
  26. Li, C.; Bayliss, R.D.; Skinner, S.J. Crystal structure and potential interstitial oxide ion conductivity of LnNbO4 and LnNb0.92W0.08O4.04 (Ln = La, Pr, Nd). Solid State Ion. 2014, 262, 530–535. [Google Scholar] [CrossRef]
  27. Bi, Z.; Bridges, C.A.; Kim, J.H.; Huq, A.; Paranthaman, M.P. Phase stability and electrical conductivity of Ca-doped LaNb1-xTaxO4-δ high temperature proton conductors. J. Power Sources 2011, 196, 7395–7403. [Google Scholar] [CrossRef]
  28. Huse, M.; Norby, T.; Haugsrud, R. Effects of A and B site acceptor doping on hydration and proton mobility of LaNbO4. Int. J. Hydrog. Energy 2012, 37, 8004–8016. [Google Scholar] [CrossRef]
  29. Magrasó, A.; Fontaine, M.L. Investigation of compatible anode systems for LaNbO4-based electrolyte in novel proton conducting solid oxide fuel cells. J. Power Sources 2011, 196, 10183–10190. [Google Scholar] [CrossRef]
  30. Lee, H.W.; Park, J.H.; Nahm, S.; Kim, D.W.; Park, J.G. Low-temperature sintering of temperature-stable LaNbO4 microwave dielectric ceramics. Mater. Res. Bull. 2010, 45, 21–24. [Google Scholar] [CrossRef]
  31. Maschio, S.; Bachiorrini, A.; Di Monte, R.; Montanaro, L. Preparation and characterization of LaNbO4 from amorphous precursors. J. Mater. Sci. 1995, 30, 5433–5437. [Google Scholar] [CrossRef]
  32. Mielewczyk-Gryn, A.; Wachowski, S.; Zagórski, K.; Jasiński, P.; Gazda, M. Characterization of magnesium doped lanthanum orthoniobate synthesized by molten salt route. Ceram. Int. 2015, 41, 7847–7852. [Google Scholar] [CrossRef]
  33. Bruncková, H.; Medvecký, L.; Hvizdoš, P.; Ďurišin, J.; Girman, V. Structural and mechanical properties of sol–gel prepared pyrochlore lanthanum niobates. J. Mater. Sci. 2015, 50, 7197–7207. [Google Scholar] [CrossRef]
  34. Mokkelbost, T.; Kaus, I.; Haugsrud, R.; Norby, T.; Grande, T.; Einarsrud, M.A. High-temperature proton-conducting lanthanum ortho-niobate-based materials. Part II: Sintering properties and solubility of alkaline earth oxides. J. Am. Ceram. Soc. 2008, 91, 879–886. [Google Scholar] [CrossRef]
  35. Aymonier, C.; Loppinet-Serani, A.; Reverón, H.; Garrabos, Y.; Cansell, F. Review of supercritical fluids in inorganic materials science. J. Supercrit. Fluids 2006, 38, 242–251. [Google Scholar] [CrossRef]
  36. Toyama, S.; Hayashi, H.; Takesue, M.; Watanabe, M.; Smith, R.L. Synthesis of alkali niobate K1-xNaxNbO3 nanoparticles using a supercritical water flow system. J. Supercrit. Fluids 2016, 107, 1–8. [Google Scholar] [CrossRef]
  37. Reverchon, E.; Adami, R. Nanomaterials and supercritical fluids. J. Supercrit. Fluids 2006, 37, 1–22. [Google Scholar] [CrossRef]
  38. Ivicheva, S.N.; Kargin, Y.F.; Gorelik, V.S. Opal-matrix nanocomposites containing metallic nanoparticles. Inorg. Mater. 2015, 51, 840–847. [Google Scholar] [CrossRef]
  39. Choi, H.; Veriansyah, B.; Kim, J.; Kim, J.D.; Kang, J.W. Continuous synthesis of metal nanoparticles in supercritical methanol. J. Supercrit. Fluids 2010, 52, 285–291. [Google Scholar] [CrossRef]
  40. Altynbekova, D.; Massalimova, B.; Bespalko, Y.; Valeev, K.; Sadykov, V. Synthesis of Metal Nanoparticles and Their Alloys Using Supercritical Fluids; Her. Kazakh-British Technical University: Almaty, Kazakhstan, 2020; p. 17. [Google Scholar]
  41. Bespalko, Y.; Smal, E.; Simonov, M.; Valeev, K.; Fedorova, V. Novel Ni/Ce(Ti) ZrO2 catalysts for methane dry reforming prepared in supercritical alcohol media. Energies 2020, 13, 3365. [Google Scholar] [CrossRef]
  42. Uvarov, N.F.; Ulihin, A.S.; Bespalko, Y.N.; Eremeev, N.F.; Krasnov, A.V.; Skriabin, P.I.; Sadykov, V.A. Study of proton conductivity of composite metal-ceramic materials based on neodimium tugstates using a four-electrode technique with ionic probes. Int. J. Hydrog. Energy 2018, 43, 19521–19527. [Google Scholar] [CrossRef]
  43. Sadykov, V.A.; Sadovskaya, E.M.; Eremeev, N.F.; Skriabin, P.I.; Krasnov, A.V.; Bespalko, Y.N.; Pavlova, S.N.; Fedorova, Y.E.; Pikalova, E.Y.; Shlyakhtina, A.V. Oxygen Mobility in the Materials for Solid Oxide Fuel Cells and Catalytic Membranes (Review). Russ. J. Electrochem. 2019, 55, 701–718. [Google Scholar] [CrossRef]
  44. Xing, W.; Syvertsen, G.E.; Grande, T.; Li, Z.; Haugsrud, R. Hydrogen permeation, transport properties and microstructure of Ca-doped LaNbO4 and LaNb3O9 composites. J. Membr. Sci. 2012, 415, 878–885. [Google Scholar] [CrossRef]
  45. Luisetto, I.; Tuti, S.; Di Bartolomeo, E. Co and Ni supported on CeO2 as selective bimetallic catalyst for dry reforming of methane. Int. J. Hydrog. Energy 2012, 37, 15992–15999. [Google Scholar] [CrossRef]
  46. Bespalko, Y.; Sadykov, V.; Eremeev, N.; Skryabin, P.; Krieger, T.; Sadovskaya, E.; Bobrova, L.; Uvarov, N.; Lukashevich, A.; Krasnov, A.; et al. Synthesis of tungstates/Ni0.5Cu0.5O nanocomposite materials for hydrogen separation cermet membranes. Compos. Struct. 2018, 202, 1263–1274. [Google Scholar] [CrossRef]
  47. Haugsrud, R.; Norby, T. High-temperature proton conductivity in acceptor-doped LaNbO4. Solid State Ion. 2006, 177, 1129–1135. [Google Scholar] [CrossRef]
Jcs 06 00243 g001 550

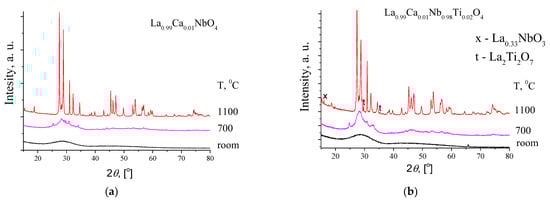

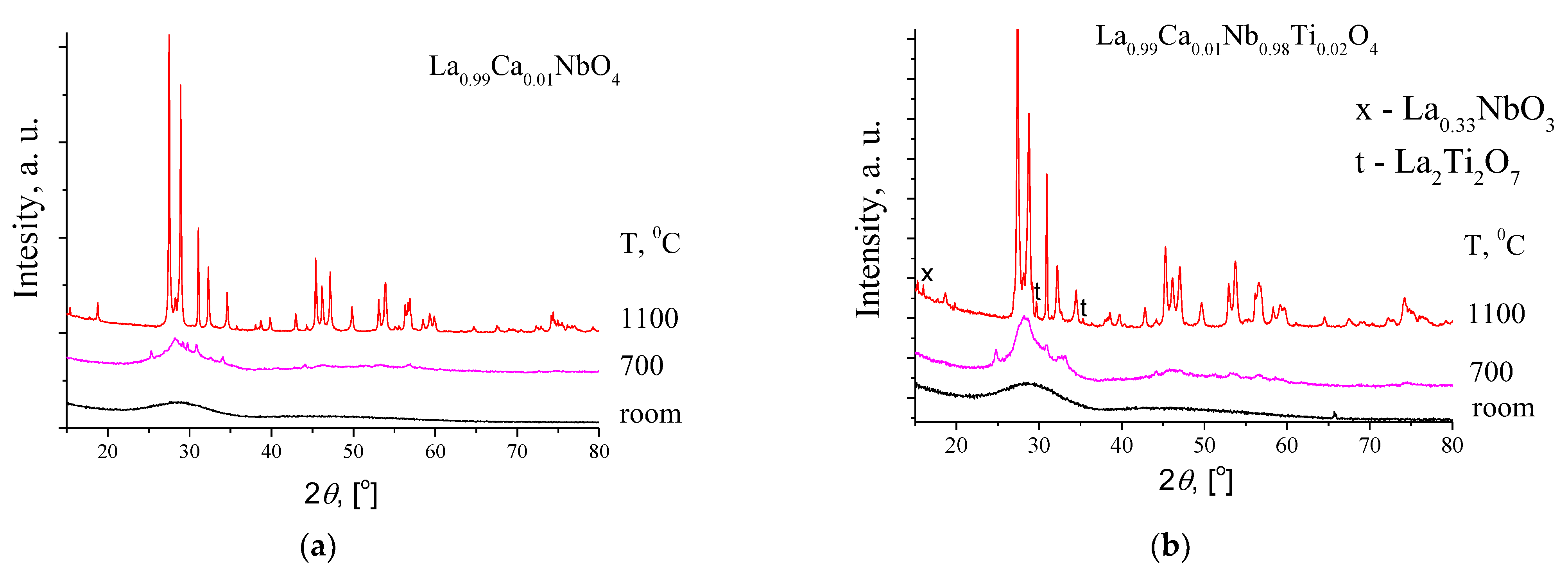

Figure 1. XRD patterns of (a) LCNb and (b) LCNbTi sintered at different temperatures.
Figure 1. XRD patterns of (a) LCNb and (b) LCNbTi sintered at different temperatures.
Jcs 06 00243 g001
Jcs 06 00243 g002 550

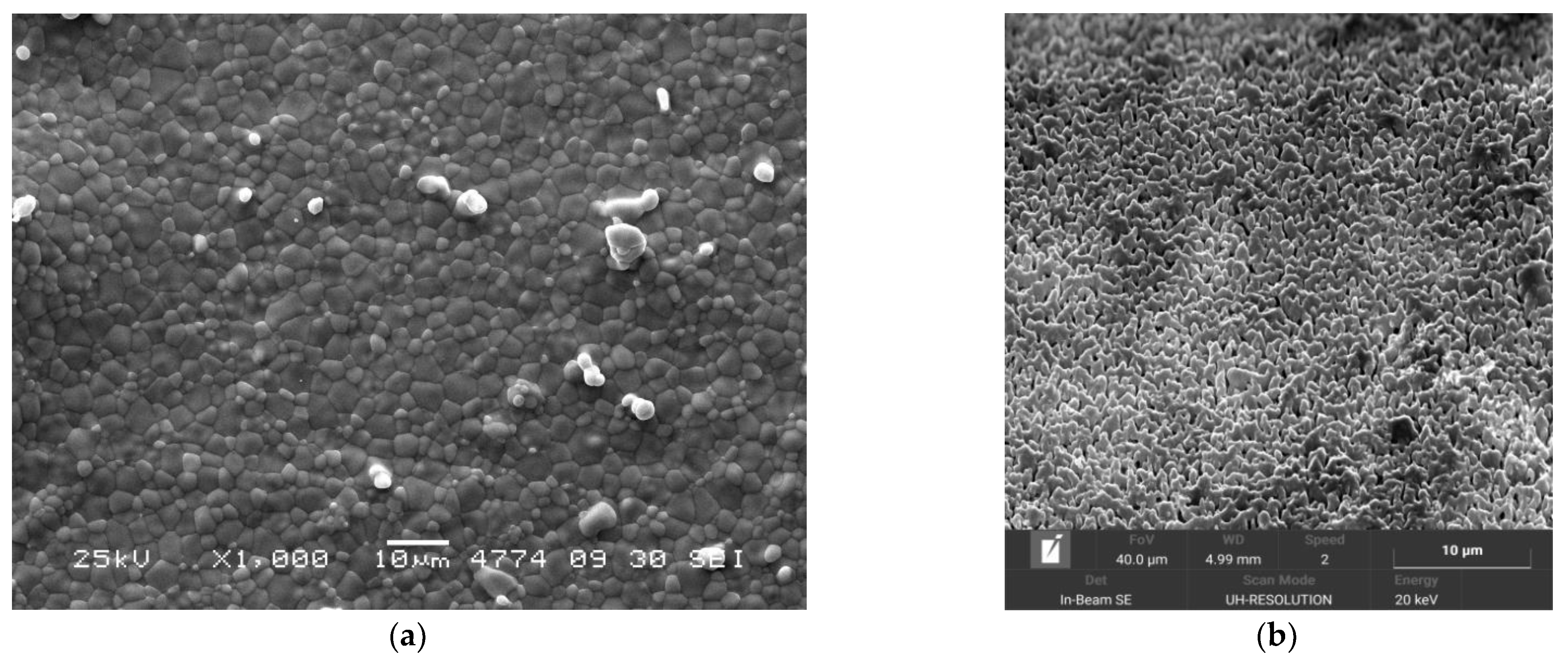

Figure 2. SEM images of (a) LCNb and (b) LCNbTi after calcination at 1100 °C.
Figure 2. SEM images of (a) LCNb and (b) LCNbTi after calcination at 1100 °C.
Jcs 06 00243 g002
Jcs 06 00243 g003 550

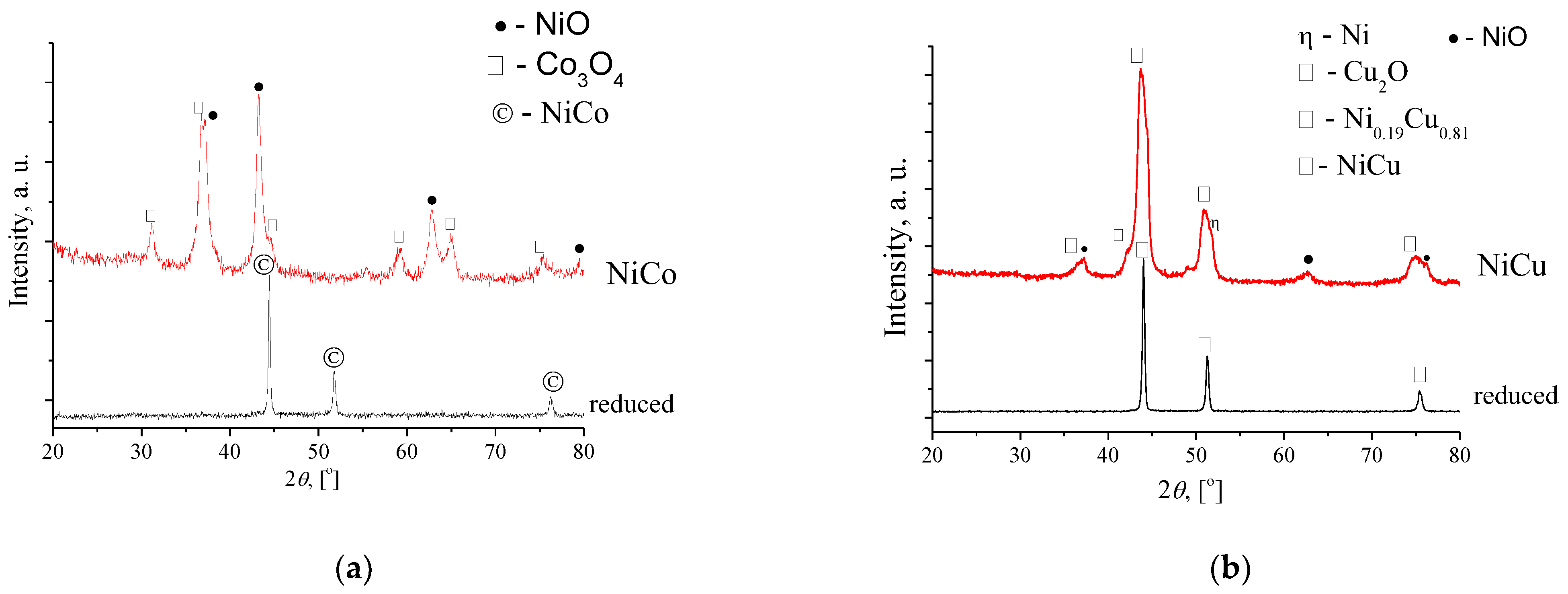

Figure 3. XRD patterns of the (a) NiCo and (b) NiCu powdered samples calcined at 500 °C in air (curves NiCu and NiCo) and after treatment at 600 °C in hydrogen (reduced).
Figure 3. XRD patterns of the (a) NiCo and (b) NiCu powdered samples calcined at 500 °C in air (curves NiCu and NiCo) and after treatment at 600 °C in hydrogen (reduced).
Jcs 06 00243 g003
Jcs 06 00243 g004 550

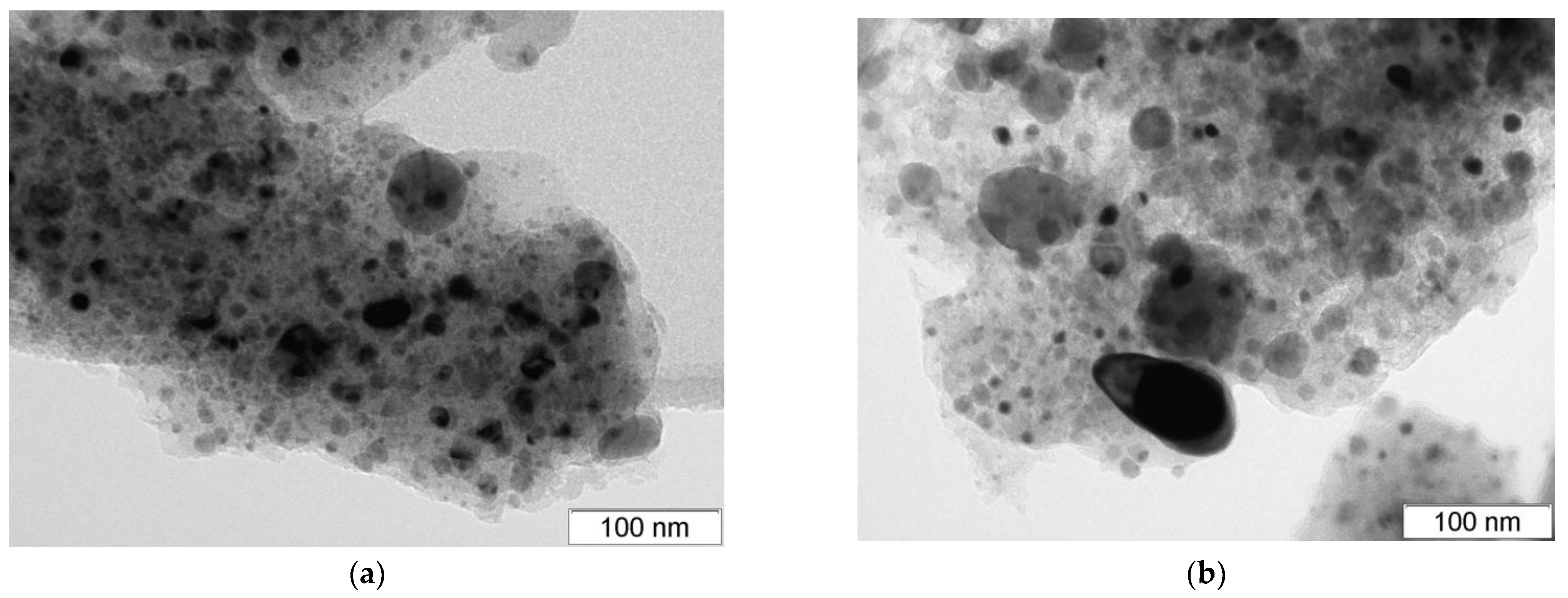

Figure 4. TEM images of (a) NiCo and (b) NiCu after calcination at 500 °C.
Figure 4. TEM images of (a) NiCo and (b) NiCu after calcination at 500 °C.
Jcs 06 00243 g004
Jcs 06 00243 g005 550

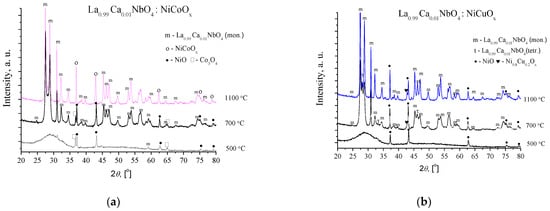

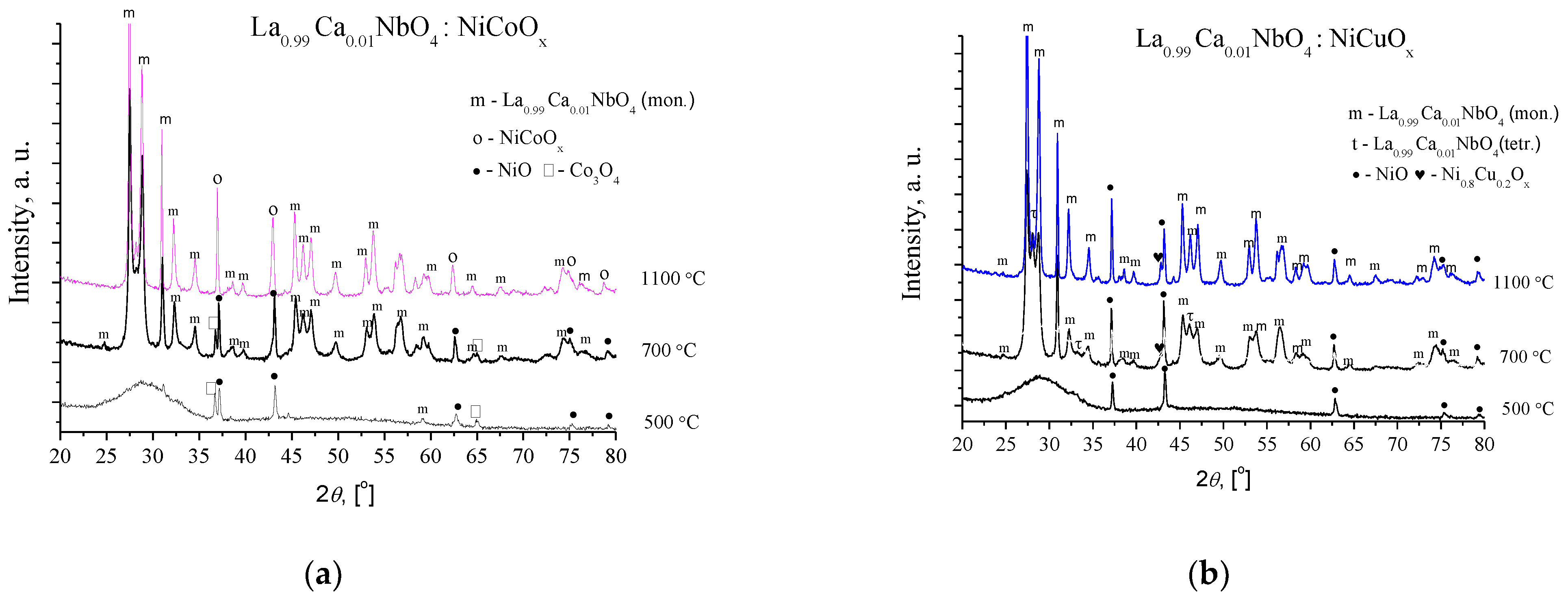

Figure 5. XRD patterns of the composites NiCo–LCNb (a) and NiCu–LCNb (b) sintered at 500–1100 °C.
Figure 5. XRD patterns of the composites NiCo–LCNb (a) and NiCu–LCNb (b) sintered at 500–1100 °C.
Jcs 06 00243 g005
Jcs 06 00243 g006 550

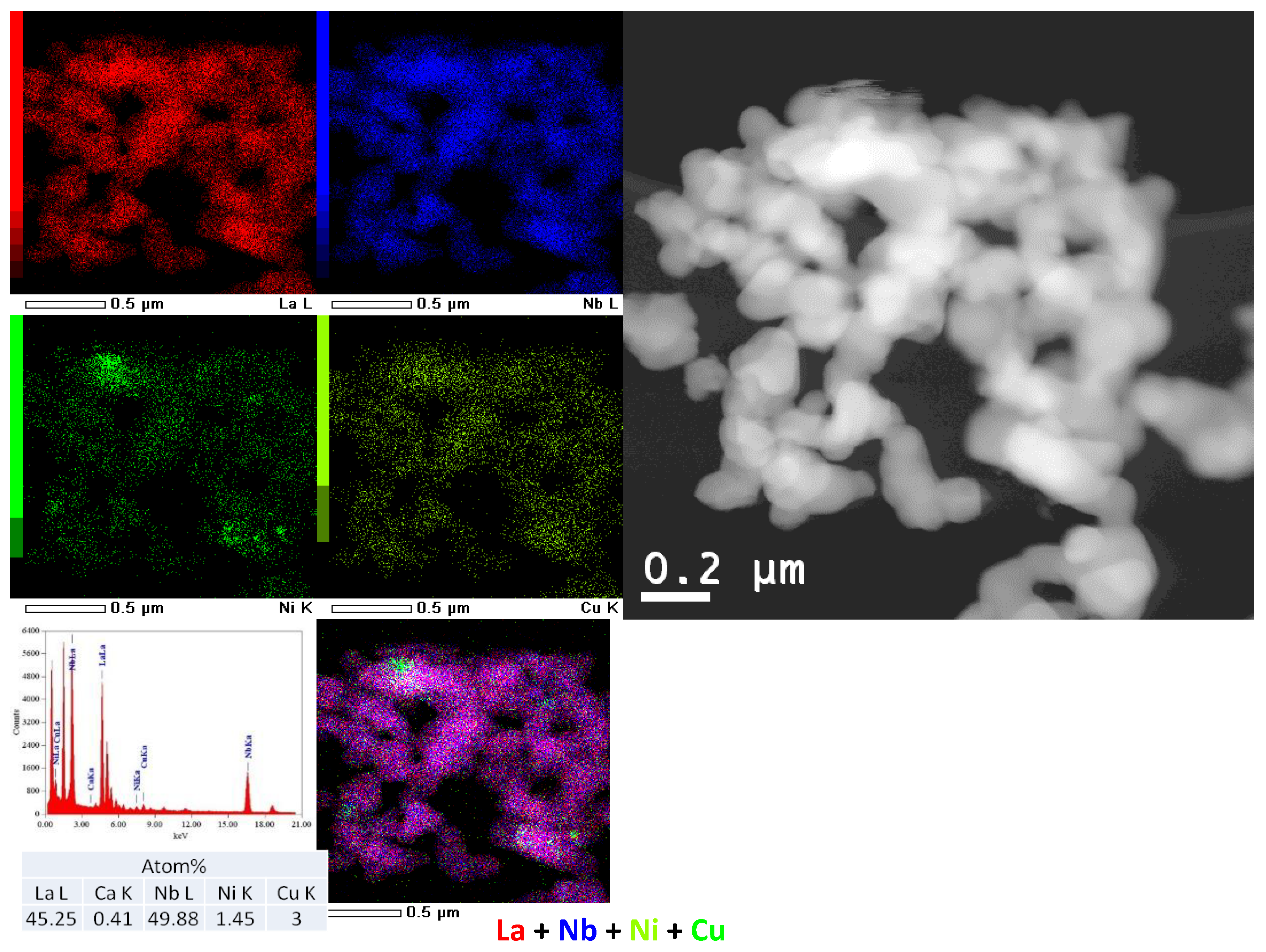

Figure 6. HAADF-STEM image with EDX analysis of La0.99Ca0.01NbO4/NiCuOx.
Figure 6. HAADF-STEM image with EDX analysis of La0.99Ca0.01NbO4/NiCuOx.
Jcs 06 00243 g006
Jcs 06 00243 g007 550

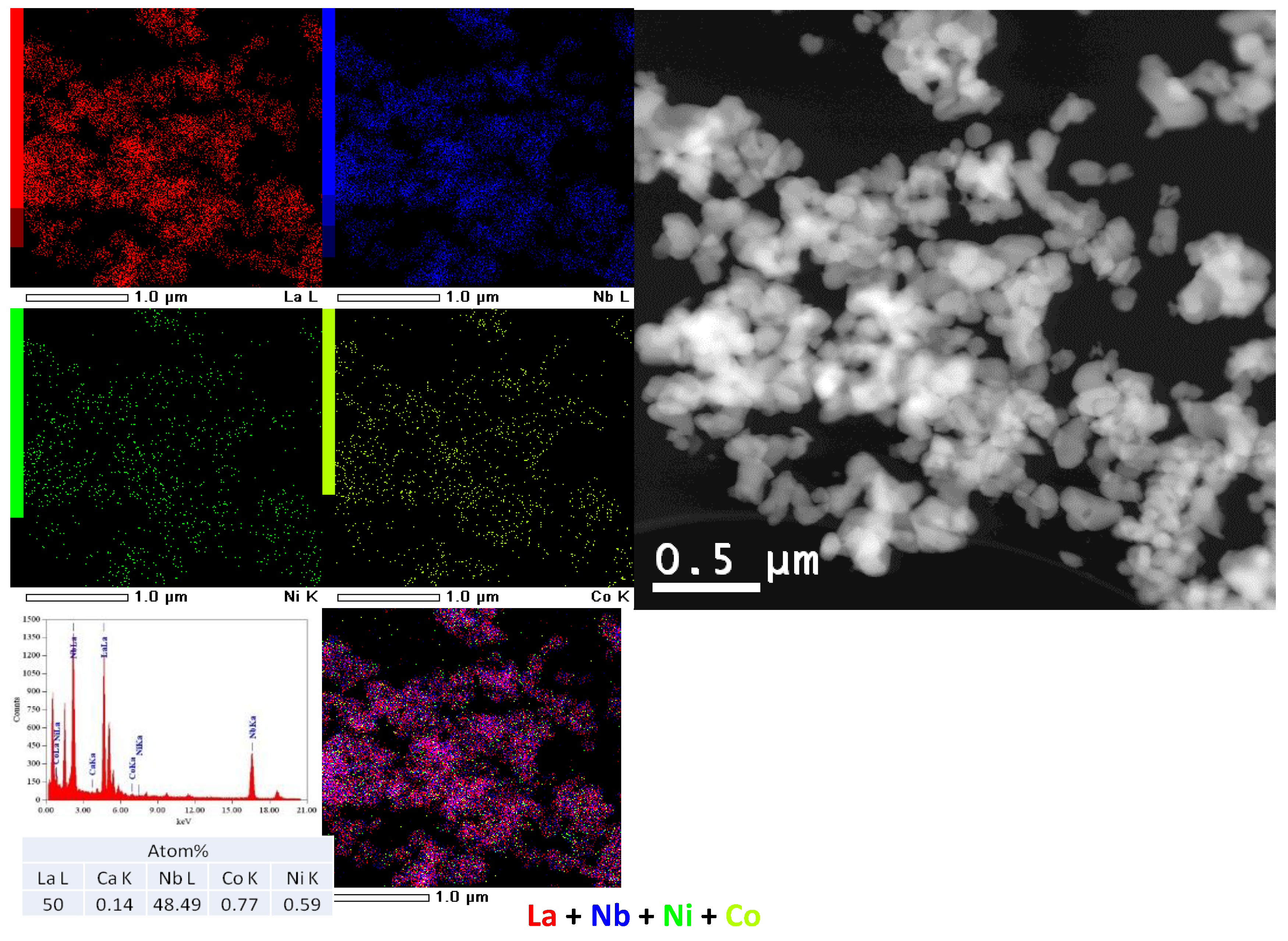

Figure 7. HAADF-STEM image with EDX analysis of La0.99Ca0.01NbO4/NiCoOx.
Figure 7. HAADF-STEM image with EDX analysis of La0.99Ca0.01NbO4/NiCoOx.
Jcs 06 00243 g007
Jcs 06 00243 g008 550

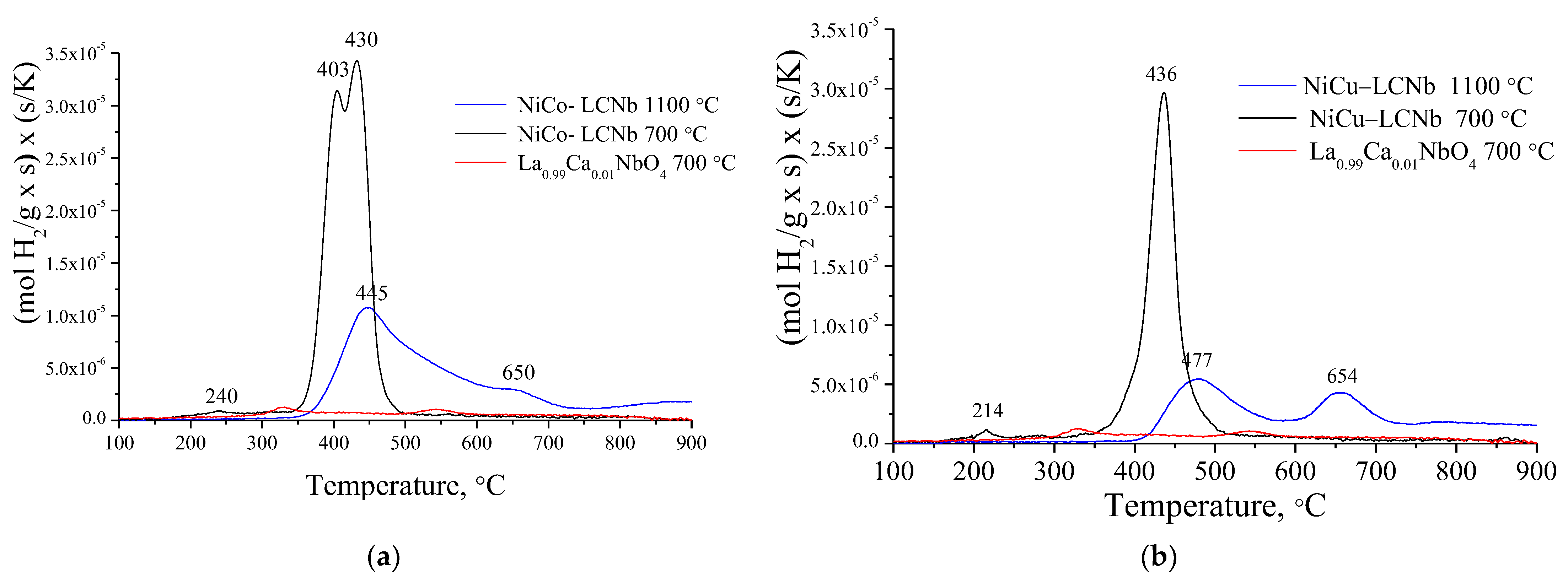

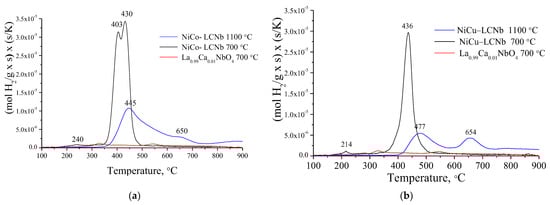

Figure 8. TPR-H2 spectra of lanthanum orthoniobate LCNb and composites: (a) NiCo–LCNb and (b) NiCu–LCNb composites as powders sintered at 700 and 1100 °C.
Figure 8. TPR-H2 spectra of lanthanum orthoniobate LCNb and composites: (a) NiCo–LCNb and (b) NiCu–LCNb composites as powders sintered at 700 and 1100 °C.
Jcs 06 00243 g008
Jcs 06 00243 g009 550

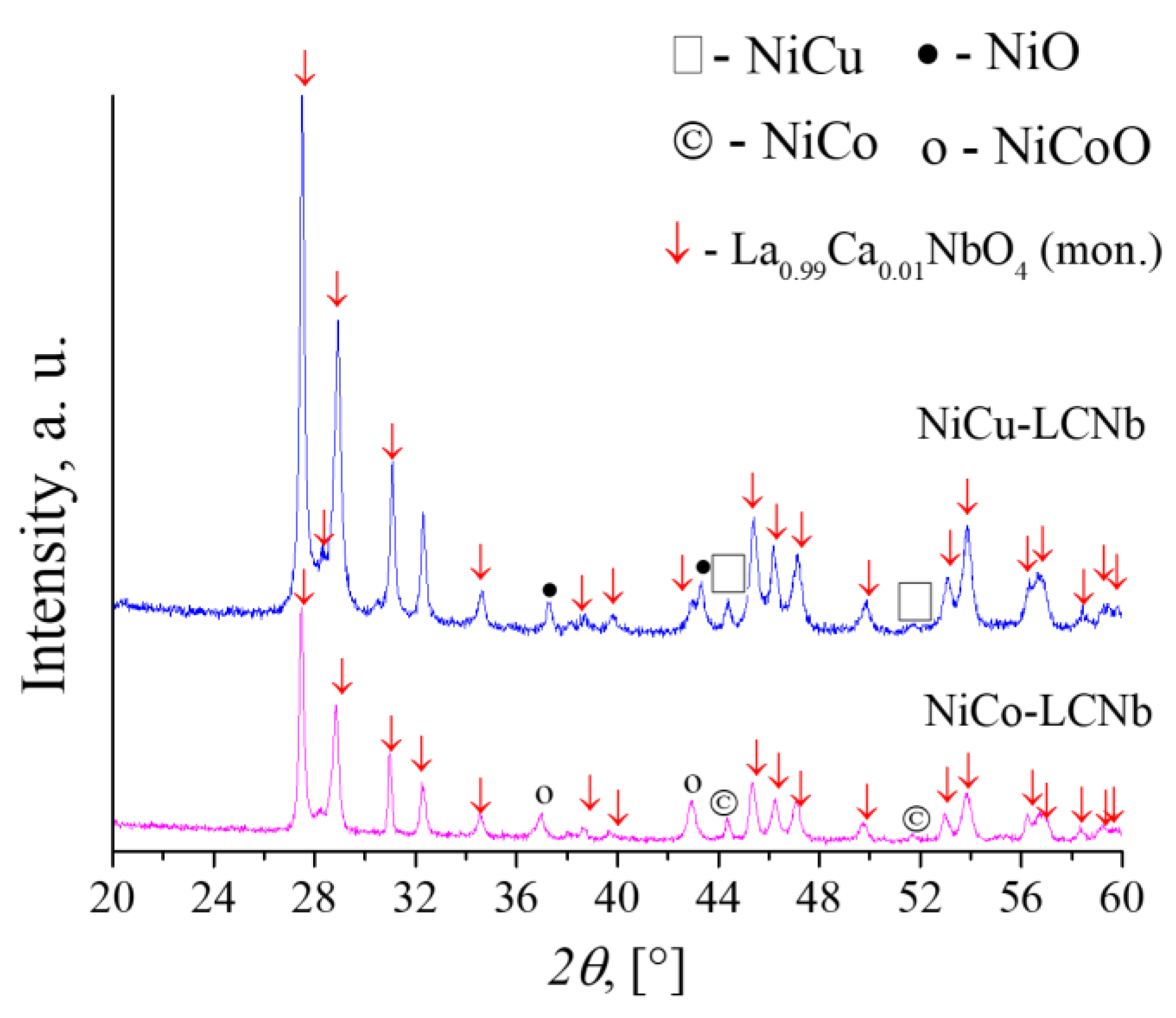

Figure 9. XRD patterns of the composites after reducing treatment at 600 °C for 2 h in H2/Ar.
Figure 9. XRD patterns of the composites after reducing treatment at 600 °C for 2 h in H2/Ar.
Jcs 06 00243 g009
Jcs 06 00243 g010 550

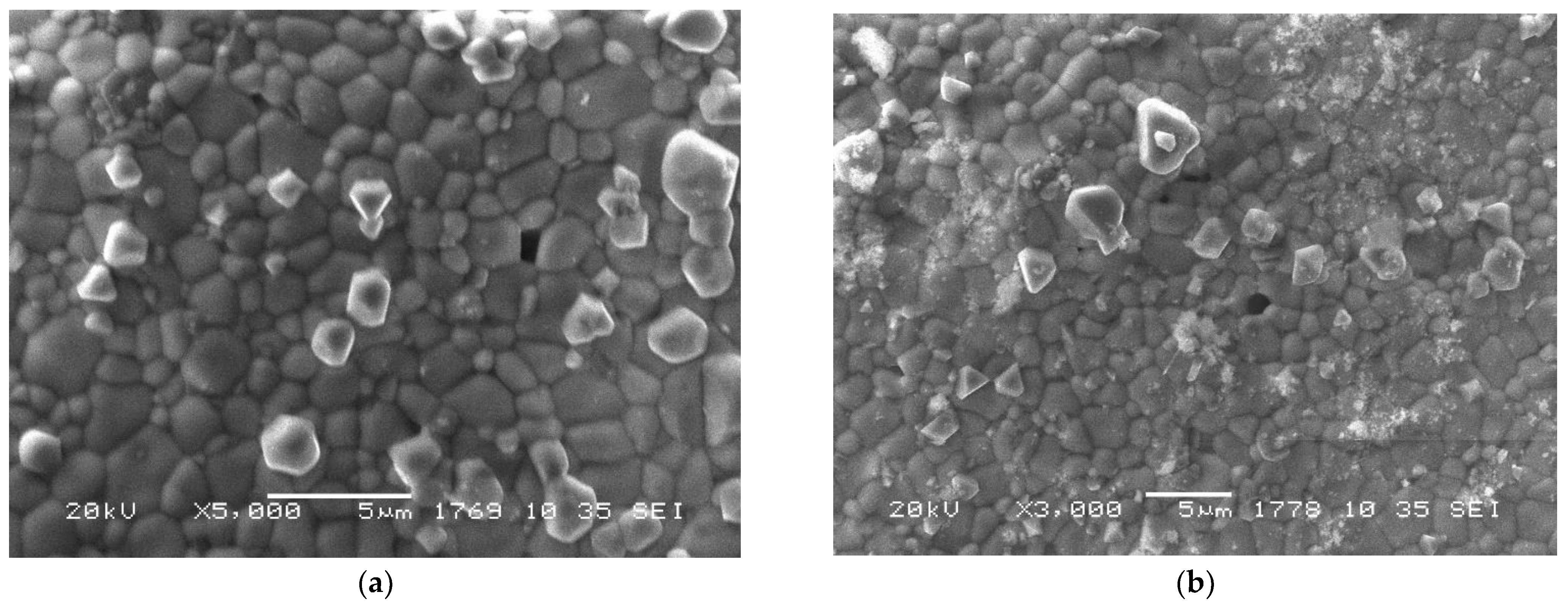

Figure 10. SEM images of the composites (a) NiCu–LCNb and (b) NiCo–LCNb after calcination at 1100 °C.
Figure 10. SEM images of the composites (a) NiCu–LCNb and (b) NiCo–LCNb after calcination at 1100 °C.
Jcs 06 00243 g010
Jcs 06 00243 g011 550

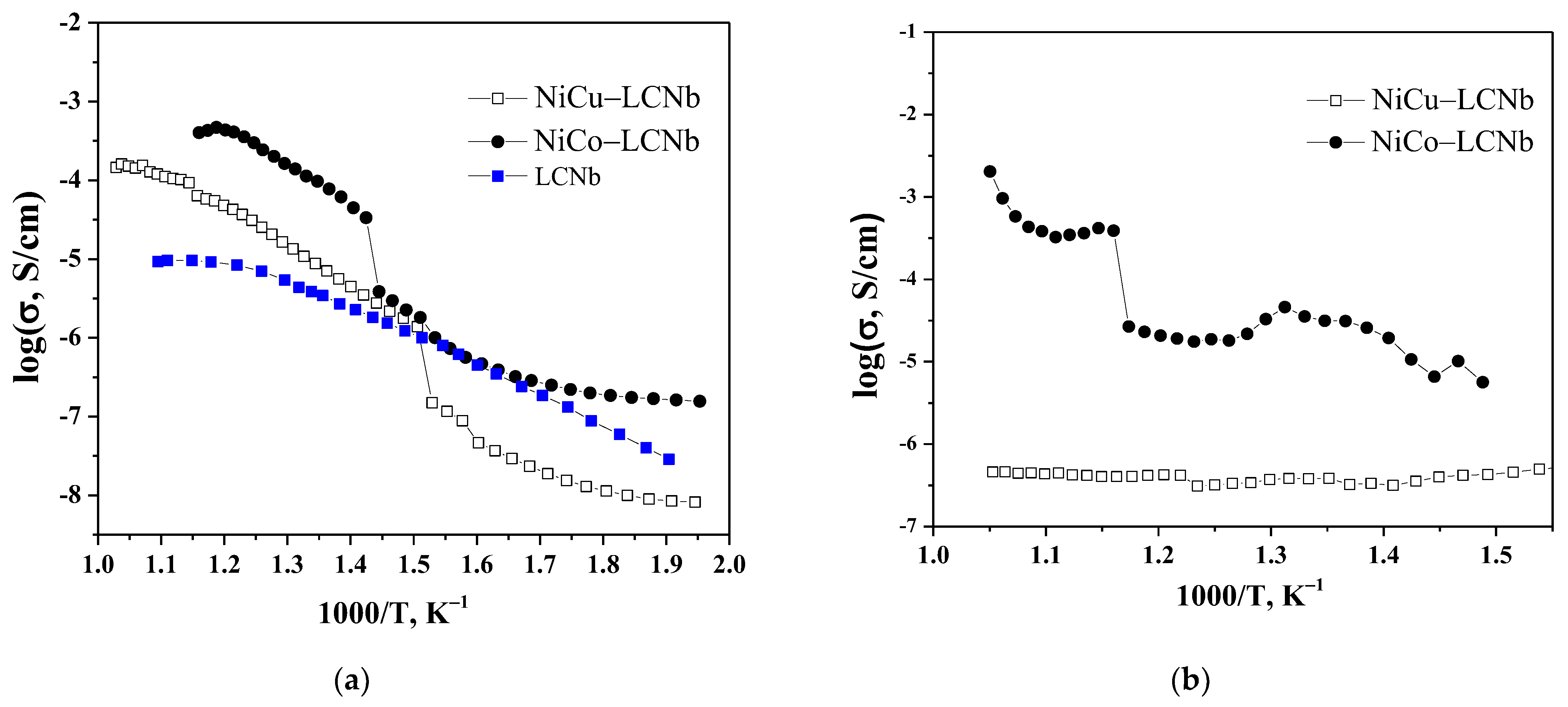

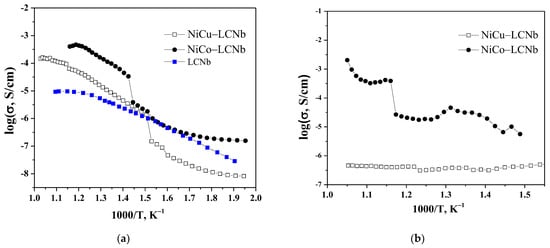

Figure 11. Total electric conductivity (a) and proton conductivity (b) of pelletized nanocomposites in wet He + 10% H2 gas mixture.
Figure 11. Total electric conductivity (a) and proton conductivity (b) of pelletized nanocomposites in wet He + 10% H2 gas mixture.
Jcs 06 00243 g011
Jcs 06 00243 g012 550

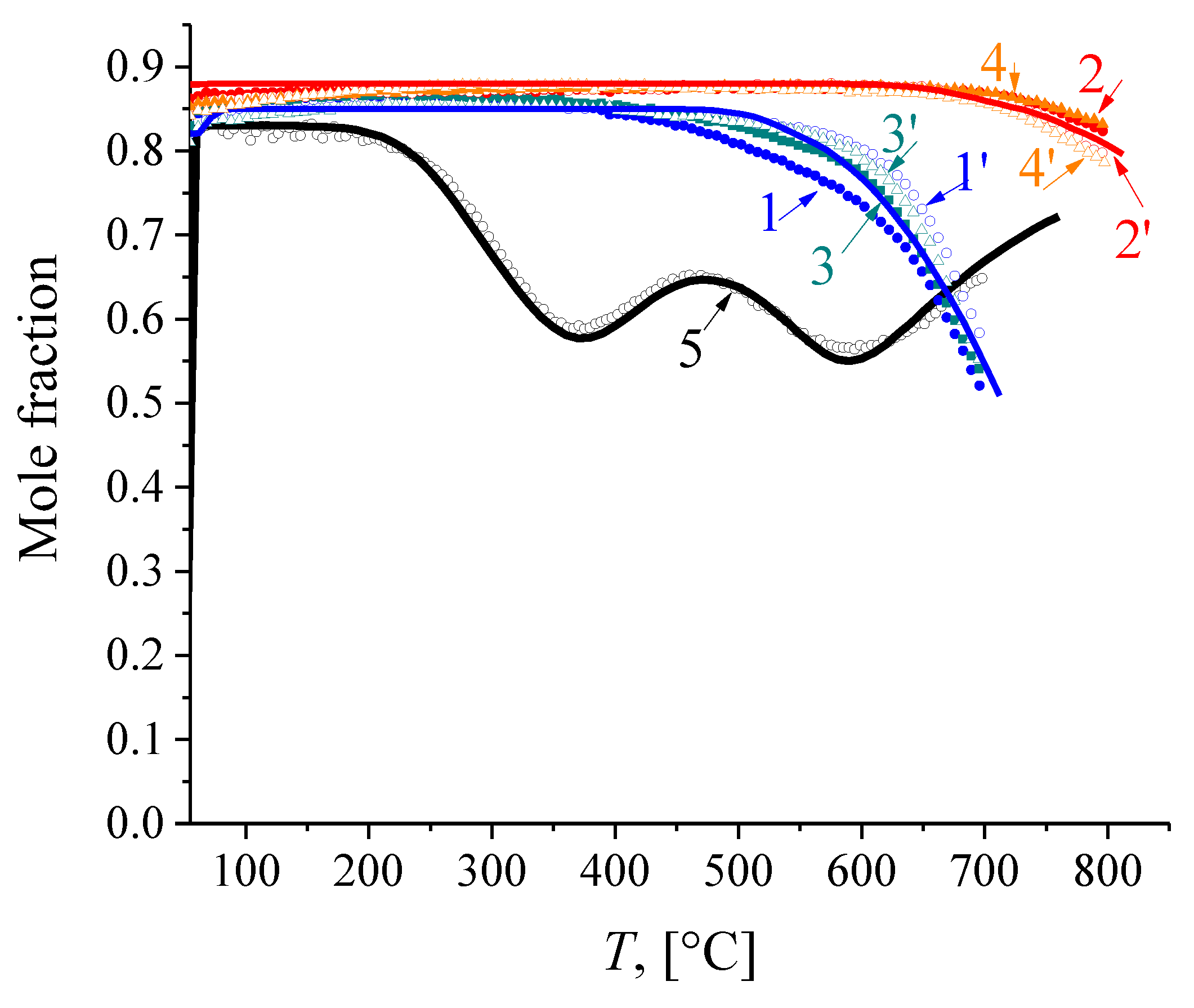

Figure 12. Temperature-programmed isotope of oxygen with C18O2 in an open reactor for samples: 1,1′—NiCu–LCNb sintered at 700 °C, 2,2′—NiCu–LCNb sintered at 1100 °C, 3,3′—NiCo–LCNb sintered at 700 °C, 4,4′—NiCo–LCNb sintered at 1100 °C, and 5—LCNb [4]; 1–4 —initial samples, 1′-4′—samples after reduction and reoxidation. Points—experiment, lines—modelling.
Figure 12. Temperature-programmed isotope of oxygen with C18O2 in an open reactor for samples: 1,1′—NiCu–LCNb sintered at 700 °C, 2,2′—NiCu–LCNb sintered at 1100 °C, 3,3′—NiCo–LCNb sintered at 700 °C, 4,4′—NiCo–LCNb sintered at 1100 °C, and 5—LCNb [4]; 1–4 —initial samples, 1′-4′—samples after reduction and reoxidation. Points—experiment, lines—modelling.
Jcs 06 00243 g012
Jcs 06 00243 g013 550

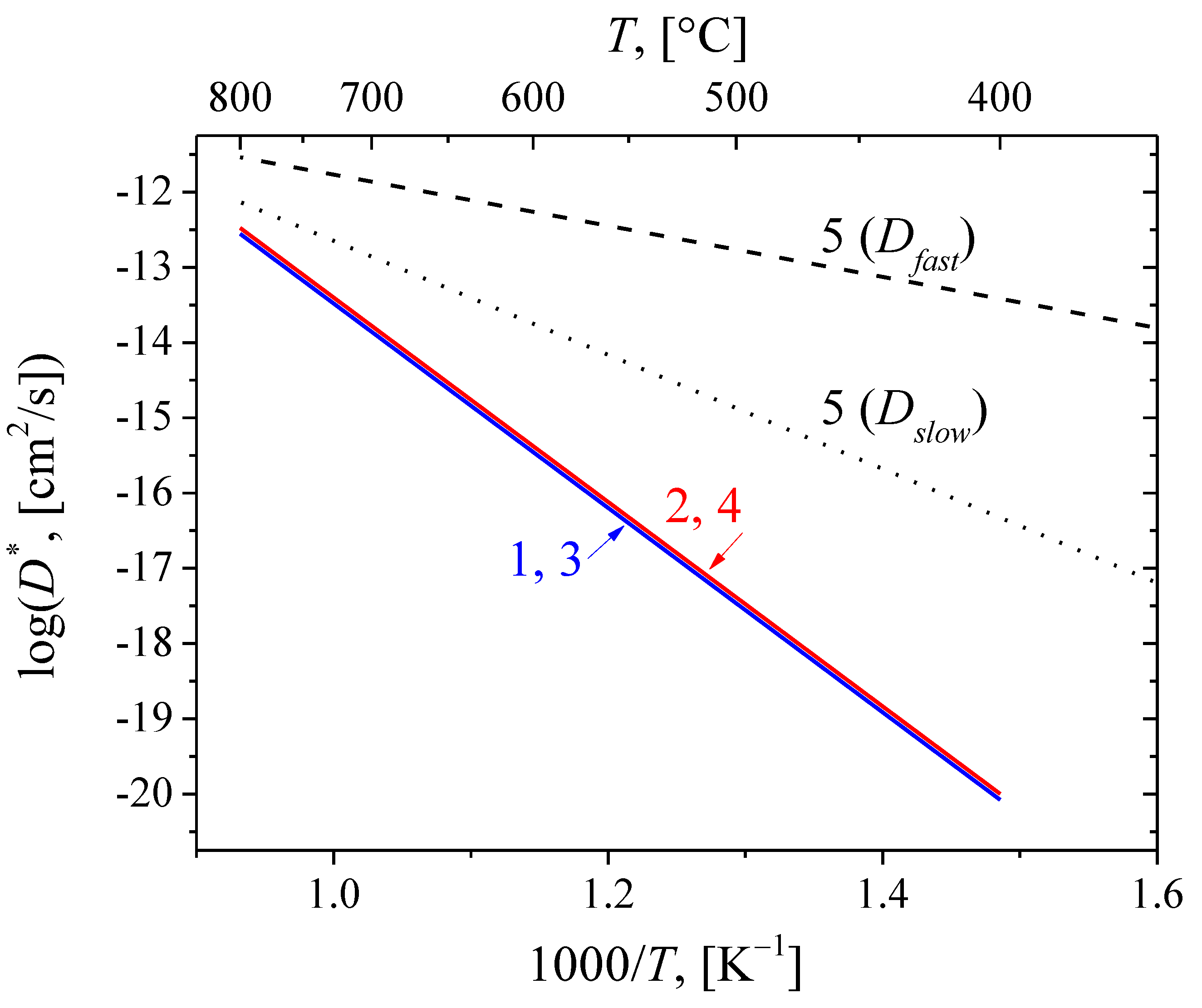

Figure 13. Arrhenius plots of tracer diffusion coefficient for NiCu–LCNb (1, 2) and NiCo–LCNb (3, 4) samples sintered at 700 °C (1,3) and 1100 °C (2,4) compared with LCNb sample (5) [4], according to TPIE with C18O2 data modelling.
Figure 13. Arrhenius plots of tracer diffusion coefficient for NiCu–LCNb (1, 2) and NiCo–LCNb (3, 4) samples sintered at 700 °C (1,3) and 1100 °C (2,4) compared with LCNb sample (5) [4], according to TPIE with C18O2 data modelling.
Jcs 06 00243 g013
Table
Table 1. Properties of materials.
Table 1. Properties of materials.
№CodeCompositionRelative
Density, %		SSA, m2/g
700 °C1100 °C
1LCNbLa0.99Ca0.01NbO477131.5
2LCNbTiLa0.99Ca0.01Nb0.98Ti0.02O4–δ7414.65.9
3NiCuNi0.5Cu0.5Ox-8 *-
4NiCoNi0.5Co0.5Ox-10 *-
5NiCu–LCNbLa0.99Ca0.01NbO4/NiCuOx824.50.3
6NiCo–LCNbLa0.99Ca0.01NbO4/NiCoOx855.30.1
* Experiments were carried out for samples calcined at 500 °C.
Table
Table 2. Characteristics of H2-TPR spectra.
Table 2. Characteristics of H2-TPR spectra.
№SampleTcalcination, °CThe Maxima of Peaks, °C H2 Consumption,
mol H2 g−1 × 10−3
T1T2
1LCNb7003255440.4
2NiCu–LCNb700436-1.8
11004776541.3
3NiCo–LCNb7004034302.8
1100445-2.1
Table
Table 3. The oxygen tracer diffusion coefficient values at 700 K and its effective activation energy for NiCu–LCNb and NiCo–LCNb samples according to TPIE with C18O2 data modelling.
Table 3. The oxygen tracer diffusion coefficient values at 700 K and its effective activation energy for NiCu–LCNb and NiCo–LCNb samples according to TPIE with C18O2 data modelling.
SampleTcalcination, °CD* |700 K, [cm2/s]Ea,D, [kJ/mol]
NiCu–LCNb7005(±3)∙10–20
11006(±4)∙10–20
NiCo–LCNb7005(±3)∙10–20260
11006(±4)∙10–20
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Altynbekova, D.; Bespalko, Y.; Valeev, K.; Eremeev, N.; Sadovskaya, E.; Krieger, T.; Ulihin, A.; Uhina, A.; Massalimova, B.; Simonov, M.; et al. Simple Approach to the Fabrication of Lanthanum Orthoniobates and Nanocomposites with Ni, Cu, and Co Metal Nanoparticles Using Supercritical Isopropanol. J. Compos. Sci. 2022, 6, 243. https://doi.org/10.3390/jcs6090243

AMA Style

Altynbekova D, Bespalko Y, Valeev K, Eremeev N, Sadovskaya E, Krieger T, Ulihin A, Uhina A, Massalimova B, Simonov M, et al. Simple Approach to the Fabrication of Lanthanum Orthoniobates and Nanocomposites with Ni, Cu, and Co Metal Nanoparticles Using Supercritical Isopropanol. Journal of Composites Science. 2022; 6(9):243. https://doi.org/10.3390/jcs6090243

Chicago/Turabian Style

Altynbekova, Dinara, Yuliya Bespalko, Konstantin Valeev, Nikita Eremeev, Ekaterina Sadovskaya, Tamara Krieger, Artem Ulihin, Arina Uhina, Bakytgul Massalimova, Mikhail Simonov, and et al. 2022. "Simple Approach to the Fabrication of Lanthanum Orthoniobates and Nanocomposites with Ni, Cu, and Co Metal Nanoparticles Using Supercritical Isopropanol" Journal of Composites Science 6, no. 9: 243. https://doi.org/10.3390/jcs6090243

Article Metrics

Back to TopTop
