Simulation of Marine Bio-Composite Using Empirical Data Combined with Finite Element Technique
1
Centre for Sustainable Materials Research and Technology (SMART), School of Materials Science and Engineering, University of New South Wales, Sydney, New South Wales 2052, Australia
2
Department of Civil Engineering, Indian Institute of Technology, Bombay 400076, India
3
School of Mechanical and Manufacturing Engineering, University of New South Wales, Sydney, New South Wales 2052, Australia
*
Author to whom correspondence should be addressed.
Received: 18 July 2018 / Accepted: 2 August 2018 / Published: 6 August 2018

Abstract

:
After development of world-first marine bio-composite from 100% waste materials, the necessity of obtaining a simulation tool to predict the performance of this novel material under different conditions has arisen. This study examines the combination of empirical optimization and finite element simulation method as an economic and time-effective tool to predict the mechanical performance of novel complex bio-composite mixtures at the design phase. Bio-composite panels were manufactured introducing marine bio-fillers as secondary reinforcements in a wood–polypropylene particulate blend, from 100% waste resources. The particulate panels were subject to tensile test for mechanical characterization. Based on these results, some of the necessary parameters for finite element simulation has defined empirically and a finite element model was developed utilizing ANSYS software, performing a simulation series. Post-processing of the simulation results was carried out to predict the deformation behavior of the material during the three-point bending test. To validate this technique of material definition, the simulated static bending test results were verified with factual physical tests, and both techniques were well in accordance with each other. This simulation method demonstrated reliable feedback on the behavior of materials for the development of innovative complex materials. Therefore, the time invested, materials used and experimental procedures can be significantly reduced, having significant economic benefits for research and industrial projects.
Keywords:
wood–plastic bio-composite; performance simulation; finite element; mechanical properties

1. Introduction

Wood–Plastic Composites (WPCs) were firstly introduced to the market in early 1990s as a decking material. Competitive advantages, such as low maintenance and environmentally friendly properties, in comparison to traditional wood-based products, have increased the demand for these materials in the past decade. According to a recent market research, the WPCs industry was valued at USD 4.06 Billion in 2015, the largest application of which was found in the Building and Construction Industry, with decking continuing as the most widely used application, accounting for about 80% of the total demand [1]. Inspired by contemporary research in the composites fields, as well as the environmental concerns, it is most likely the demand for these composites will continue to rise in the future. This has been indicated in the Global Wood–Plastic Composites Market research, which predicts WPCs to achieve a value of USD 5.39 Billion by the year 2019 [2].
The three main constituents of WPC are wood flour as filler, plastic granules as binders, and coupling agents to increase the physical bonding between the compounds. These components are blended together in known ratios as per the application requirements. Furthermore, the use of waste wood and waste plastics in the manufacturing of these WPCs produces the new material in a more sustainable and economic way. In this regard, according to United State Environmental Protection Agency (USEPA), both wood and plastic waste in combination make up to 19% of the total municipal waste generated in the USA per annum [3]. These wastes are commonly disposed-off in landfills, which significantly deteriorates the urban areas, as well as the environment. The recovery of these wastes would not only decrease the pressure on landfill sites, but also make WPCs more economically viable.
In this context, a recent research study done by Echeverria et al. presented a technique to manufacture WPC with 100% recycled materials [4]. In addition to recycled wood and recycled plastic, local marine bio-fillers—such as seaweed and seashell—were also incorporated to the blend, to enhance the overall material properties. Adding novel fillers can improve the properties of WPCs significantly. Bari used nano clay particles to enhance the biological resistance of WPC [5] while Guo used Printed Circuit Boards (PCB) [6] and Cholake et al. used vinyl banners [7]. These research methods not only advance the material qualities by using novel fillers but also enable cascading use of resources, by further recycling of the composite material at end-of-life. Additionally, there is a great deal of research in high temperature transformation of these waste for example Mayyas et.al. [8] producing nano-ceramics and graphitic carbon through thermal degradation from mixed waste.
However, before a new material can satisfy the requirements for different industrial applications, the prototype requires extensive trials to ensure appropriate performance throughout its life span. This process at the design phase may become time consuming and expensive, due to the need to manufacture numerous samples and to examine their material properties—different volume fractions or other features—in each test. Moreover, when a defect is diagnosed after the design process is completed; then its correction becomes very challenging. Therefore, a model that can approximate the behavior of a new material and its permutations by means of a simulation, instead of performing a series of material tests for each prototype, will facilitate rapid corrections of the digital model, and permit an evaluation of the results and their trends. For newly emerging materials like marine bio-composite from 100% waste materials it is not possible to use existing simulation models as it consists of new materials and new properties.
Therefore, the aim of this study is to introduce and explore this concept of simulation of a material to assist its design phase. It was found in the market that several simulation software based on Finite Element Method (FEM) are available for this purpose, which can be used to simulate the mechanical behavior of standard composite materials. Moreover, using the simulation modelling for predicting the mechanical properties of the material during the design process is an effective tool for optimizing the necessary parameters. This optimization is an essential step of development phase for introducing a new and high-performance material. However, existing simulation packages are mostly optimized to simulate traditional wood–plastic composite [9]. When new fillers and manufacturing steps are introduced into the wood–plastic composite the equations and parameters need to be driven empirically and combined with existing simulation solutions to fit the purpose.
To advance in this matter, different simulation parameters have been driven empirically using experimental data and combined with finite element-based model in ANSYS 17.2. ANSYS workbench has been previously used to simulate the composite sandwich panels [10]. Similarly, this method has been successfully used in the field of layer-based composites or laminates [11] and also in the case of woven composites [12]. Dickson et al. [13] have reported producing composite filament from waste which can be used in 3D printing application, and Caminero et al. [14] have reported producing these fibers and simulation of the process.
WPCs have a huge prospect in the future, mostly if there is a potential for high levels of customization to different client requirements [15]. With the incorporation of greater amounts of waste resources into WPCs manufacturing in addition to material optimization through simulation, the end product can be achieved in a cost-effective systematic way. This is an objective that can be easily achieved with the assistance of simulation software. The simulation would provide the necessary confidence to the building industry to advance towards the development of new research and fields of applications.
The aim of the current study is to use empirical data to optimize a simulation process for recently developed wood–plastic marine bio-composite and validate this simulation with experimental data.

2. Material and Method

2.1. Experimental Procedure

The wood–plastic marine bio-composite panel used for defining the boundary condition in the simulation as well as validating simulation results were manufactured using a mixed sample of wood from furnace manufacturing sawdust residue and polypropylene (PP) which was procured from the used PP food containers. The fillers used to enhance the properties were sea shell and seaweed which were collected from the nearby fish market. The wood was sieved through a 425 μm sieve and kept in an oven for drying at 103 °C for 24 h. PP was milled and then sieved using a 500 μm sieve. Seaweed and seashell were dried in the oven at 103 °C for 24 h to reduce the moisture content below 6%. Both seaweed and seashell were ground into fine powder separately using a ring mill. Then the mixture was prepared using wood, PP, seashell and seaweed in the weight ratio of 40:40:10:10 respectively [4], as this has been identified as the optimum mixture by a recent study. The total weight was taken as 150 g to get a particulate sheet panel of 190 mm dimension and a nominal thickness of 5 mm. The sample was then mixed homogeneously and pressed in a hot press under a pressure of 200 bars with the temperature being kept to 190 °C. Panel was slow cooled at room temperature, before de-molding.

2.2. Tensile Test

The specimens for performing tension test were cut out from a flat panel using a Trotec Speedy Laser Cutter (Trotec, Adelaide, Australia). The average thickness of the specimen was close to 5 mm and other dimensions were kept the same as described for type IV in ASTM D 638 [16]. Dog-bone samples were cut at least 0.5 mm offset and surfaces were polished using a sand paper to reduce the effect of burnt surfaces.
The tension tests were then performed using an INSTRON 5565 electromechanical testing machine (Instron, Melbourne, Australia). The rate of loading for the test was defined as 2 mm/min. In order to get the correct directional nature of the material, another test was performed using dog-bone shaped samples. Figure 1 shows the panel that was cut in three different directions, i.e., at 0°, 45° and 90° using the laser cutter. These samples were then put under tension test in the same manner as mentioned above.

2.3. Three-Point Flexure Test

The specimens for bending tests were cut out from a flat panel using a Hare and Forbes Horizontal Band Saw (HafCo, Sydney, Australia). ASTM D1037 was followed to perform the three-point flexure test on these specimens [17]. The average thickness of all the samples was 5 mm and the width was 51 mm, while the average span between the supports was taken as 24 times the nominal thickness of the sample as described in the standard, in this case 120 mm. The tests were performed using the same INSTRON 5565 electromechanical testing machine (Instron, Melbourne, Australia).

2.4. Microstructure Analysis

In order to confirm the isotropic characteristics, two different samples which were tested for tensile properties and presented different failure pattern were analyzed under a Hitachi S3400 Scanning Electron Microscope (SEM, Hitachi High Technologies America Inc., Schaumburg, IL, USA). The analyzed samples were gold coated after desiccating them for 24 h. The samples were mounted vertically on a 26 mm studs and the voltage was kept to 20 KV while maintaining the working distance of 15 mm.

2.5. Simulation Procedure

The simulation models were defined geometrically using ANSYS to imitate the results of the mechanical testing of the specimens. Relevant ASTM standards i.e. ASTM D638 and ASTM D1027 were followed while designing the models for tension and flexure test respectively to preserve the authenticity of the result.
However, before running the simulations one needs to define the material properties efficiently in ANSYS to get the correct results. Since the main focus here is to use waste materials, it is most likely that the material’s source and its composition are varying. Moreover, wood is an anisotropic material, therefore one can expect the composite to behave as an anisotropic material, but the experimental results for gauging the directional nature of the material concluded that the behavior of the material is predominantly isotropic. Since the directions of wood fibers are not manually controlled and the mixture is kept homogeneous while pressing, it is acceptable to assume the isotropic behavior of the composite, which was confirmed with tensile test in a different direction.
Assuming the material to be isotropic, we need its elastic coefficients and Poisson’s ratio to define it in ANSYS. Results of tension test were used to define the elastic coefficient (E), yield strength and the multilinear isotropic plastic characteristics of the material.
The engineering stress and strain values obtained in the experiment were first converted into true stress and true strain values according to Equations (1) and (2) respectively. While the plastic strain values were calculated using Equation (3):
σ true = σ engineering × ( 1 + ϵ engineering )
ϵ true = ln ( 1 + ϵ engineering )
ϵ plastic = ϵ true σ true E
where σ represents stress, ϵ is the strain and E is the Young’s modulus of the material. The average value of Young’s modulus was calculated using the stress and strain values in initial range where stress is directly proportional to strain, i.e., Hooke’s law.
The calculated value of true stress and plastic strain was used to define the material properties such as multilinear isotropic hardening in the simulation software. The deformation rate followed in the simulation was kept the same as the one that had been used in the experiment. Mesh relevance and element size were adjusted accordingly to achieve the most accurate results. Since all the constraints and boundary conditions were the same, the simulation results were in accordance with the experimental results, and hence we could conclude that the new material definition that we described earlier is authentic.
The geometric model used for simulating the tension test is shown in Figure 2. To perform the simulation, one end of the specimen was provided with a fixed support whereas the other end was provided with a displacement in the axial direction.
After performing the simulation of tension test successfully and defining material properties in the software, a static three-point flexure test was performed to validate the technique. The geometric model used for the flexure test is shown in Figure 3. The two lower supports were declared as fixed and a constant displacement, calculated using the standard, was given to the crosshead at the middle to produce bending effects in the specimen. This defines the problem simply to be a supported beam with a point load at the center.
Transient structural plugin was used in ANSYS to perform these simulations for both tension and flexure test and get the results at regular time interval. Transient Structural Analysis is a powerful plugin provided in ANSYS to simulate the dynamic feedback of a structure under the action of time dependent load. The deformation and load values for the test were cross checked with the experimental results. The time interval given for the tension and flexure test was 1 s and 10 s respectively.

3. Results and Discussion

3.1. Tensile Test

Although the maximum loads taken by the three specimens were slightly different, the behavior of stress vs strain curves were similar to each other, thus supporting our claim of the isotropic nature of the material.
Figure 4 shows the tensile tested samples at 0°, 45° and 90° showing failure in the narrow regions (i.e., gauge length) of the samples. Failure in the gauge length of the samples proves the authenticity of the uniformity of the samples. Corresponding tensile stress-strain curves are shown in Figure 5. Although the maximum loads taken by three specimens were slightly different, the behavior of stress vs strain curves was very similar to each other, showing the isotropic nature of the material. Table 1 summarizes these data and indicates that the coefficient of variation in maximum stress of the specimens was 0.077, whereas that for elastic modulus was 0.128.
Scanning Electron Microscope (SEM) images shown in Figure 6 prove that fiber particles were randomly oriented and there was no significant alignment in a particular direction. This supports the claim of isotropic behavior of the specimen.

3.2. Simulation

The stress distribution in the sample during tensile loading as predicted by ANSYS simulation is shown in Figure 7. Comparing Figure 4 and Figure 7 shows that the failure that occurred in tensile testing was in accordance with the stress distribution profile obtained from ANSYS simulation, and samples failed in the highest stress region. Next, the simulation results were verified with the experimental results. The load vs deformation graphs obtained from experimental data and simulation results are shown Figure 8. Similarly, Figure 9 shows the comparison of true stress vs true strain graphs obtained from experimental data and ANSYS simulation results were overlapping for both experimental and simulation results. Both Figure 8 and Figure 9 show good agreement of experimental data with simulation results. These results validate the simulation technique and help in defining the material.

3.3. Three-Point Flexure Test

The distribution of flexural stresses in the specimen as predicted by ANSYS is shown in Figure 10, and the comparison of results of the material in flexural loading obtained from the simulation with the real experimental results is shown in Figure 11. The flexural stress versus flexural strain plot overlap each other, and hence show similar behavior to the material in the simulation.
Predictions of flexural properties have a lot of advantages as flexural properties are very important for a composite to be eligible for application in buildings. Predicting the mechanical properties along with its deformation behavior and establishing the structure–property correlation results in improving the mechanical properties of the material and further design implementations. A similar study regarding the same was performed by Lui et al. [18] for improving the properties of sandwich panels.
Apart from the three-point flexure test that has been demonstrated here, the simulation can be used for performing certain other mechanical tests like compression parallel to surface, internal bonding strength of composites, or even flexure tests with different orientation of the panel can also be simulated. These simulations would use the same material properties as defined previously using the tension test results. Some basic plugins provided by ANSYS like Static Structural, Transient Structural and Explicit Dynamics are efficient enough to perform the above mentioned simulations giving the same results as in the real physical tests.
The proximity of the simulation results to the actual results provides evidence that this technique is efficient in predicting material characteristics and its behavior. One more advantage of using the simulations rather than experiments is that we can get a lot of other relevant properties like stress or strain at different points on the composite, or stress and strains in different directions which are not usually calculated in experiments.
Until now the WPC are mostly used for non-structural applications in building industry but improving the material properties using simulations may result in the application of these composites as a structural member as well, which would decrease the use of timber in buildings. The development of WPC—which has high resistance against UV radiation—means that it can very likely be used as a sheathing material instead of oriented strand board (OSB) for preparing sandwich wall panels. The growing demand for green building and the need to follow all the strict environmental standards also requires innovation in building materials.

4. Conclusions

Modern day research requires us to produce highly optimized and application-oriented material without investing a lot of time and money. In this study, a simulation technique for simulating the behavior of newly developed wood–plastic marine bio-composite has been developed using empirical data. The simulation method has been validated with experimental data and it shows good agreement. Following the presented technique not only saves time and money, but also allows the researchers to examine multiple permutations to achieve optimum mechanical behavior for different applications. As the simulation allows the researcher to have a practical feedback at every stage of the designing process, the researcher is well aware of the behavior of the material and the end product will always be very close to the desired outcome. This technique would be very useful in incorporating new material in a composite or using different recycled ingredients. It can also be used in developing new applications for WPC in buildings other than decking and redefining manufacturing techniques of these composites.

Author Contributions

Conceptualization—F.P.; Data curation—H.R.; Formal analysis—S.C. and C.E. Funding acquisition—C.E.; Software—A.B.; Supervision—F.P. and V.S.; Validation—F.P.; Writing original draft—H.R.; Writing review and editing—F.P., S.C., C.E., A.B. and V.S.

Funding

This research was funded by Australian Research Council's Industrial Transformation Research Hub; funding scheme (project IH130200025).

Acknowledgments

The authors gratefully acknowledge the technical support provided by the Mark Wainwright Analytical Centre (MWAC) in the UNSW Australia and Bill Joe, Research Support Engineer, University of New South Wales, for his intellectual support in mechanical testing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wood Plastic Composite (WPC) Market Size, Share Report, 2024, Gd. View Res. 2016. Available online: http://www.grandviewresearch.com/industry-analysis/wood-plastic-composites-market (accessed on 4 August 2017).
  2. Global Wood-Plastic Composites Market to Reach US$5.39 bn by 2019, Driven by Demand from Construction and Building Industry, Transpar. Mark. Res. 2016. Available online: http://www.transparencymarketresearch.com/pressrelease/global-wood-plastic-composites-market.htm (accessed on 4 August 2017).
  3. U.S. Environmental Protection Agency, Office of Solid Waste and Emergency Response (5305W): Municipal Solid Waste in the United States: 2001 Facts and Figures. Available online: https://archive.epa.gov/epawaste/nonhaz/municipal/web/pdf/msw2001.pdf (accessed on 6 August 2017).
  4. Echeverria, C.; Pahlevani, F.; Gaikwad, V.; Sahajwalla, V. The effect of microstructure, filler load and surface adhesion of marine bio-fillers, in the performance of hybrid wood-polypropylene particulate bio-composite. J. Clean. Prod. 2017, 154, 284–294. [Google Scholar] [CrossRef]
  5. Bari, E.; Taghiyari, H.R.; Schmidt, O.; Ghorbani, A.; Aghababaei, H. Effects of nano-clay on biological resistance of wood-plastic composite against five wood-deteriorating fungi. Maderas. Cienc. Y Tecnol. 2015, 17, 205–212. [Google Scholar] [CrossRef]
  6. Guo, J.; Tang, Y.; Xu, Z. Wood plastic composite produced by nonmetals from pulverized waste printed circuit boards. Environ. Sci. Technol. 2009, 44, 463–468. [Google Scholar] [CrossRef] [PubMed]
  7. Cholake, S.T.; Pahlevani, F.; Gaikwad, V.; Millicer, H.; Sahajwalla, V. Cost-effective and sustainable aproach to transform end-of-life vinyl banner to value added product. Resour. Conserv. Recycl. 2018, 136, 9–21. [Google Scholar] [CrossRef]
  8. Mayyas, M.; Mayyas, M.; Pahlevani, F.; Liu, Z.; Rajarao, R.; Sahajwalla, V. From automotoive shredder residue to nano-ceramics and graphitic carbob—Thermal degradation kinetics. J. Anal. Appl. Pyrolysis 2016, 120, 60–74. [Google Scholar] [CrossRef]
  9. Gupta, R.; Noraziah, A.; Gupta, A.; Abda, A.N. Overview of simulation in wood plastic composites manufacturing. Indian J. Sci. Technol. 2017, 10, 7. [Google Scholar] [CrossRef]
  10. Borsellino, C.; Calabrese, L.; Valenza, A. Experimental and numerical evaluation of sandwich composite structures. Composit. Sci. Technol. 2004, 64, 1709–1715. [Google Scholar] [CrossRef]
  11. Klintworth, J. Evolving Composites Modeling and Simulation Requirements and Solutions. Available online: https://web.mscsoftware.com/events/aero2002/partner/pdf/p13801.pdf (accessed on 1 August 2018).
  12. Riva, E.; Nicoletto, G. Modeling and prediction of the mechanical properties of woven laminates by the finite element method. WIT Ttans. State-Art Sci. Eng. 2005, 21, 105–125. [Google Scholar]
  13. Dickson, A.N.; Barry, J.N.; McDonnell, K.A.; Dowling, D.P. Fabrication of continuous carbon, glass and kevlar fibre reinforced polymer composites using additive manufacturing. Addit. Manuf. 2017, 16, 146–152. [Google Scholar] [CrossRef]
  14. Caminero, M.A.; Chacón, J.M.; Garcia-Moreno, I.; Rodriguez, G.P. Impact damage resistance of 3D printed continuous fibre reinforced thermoplastic composites using fused deposition modelling. Composit. Part B Eng. 2018, 148, 93–103. [Google Scholar] [CrossRef]
  15. Friedrich, D.; Luible, A. Supporting the development process for building products by the use of research portfolio analysis: A case study for wood plastics composite materials. Case Stud. Constr. Mater. 2016, 4, 49–54. [Google Scholar] [CrossRef][Green Version]
  16. ASTM D638. Standard Test Method for Tensile Properties of Plastics. Available online: http://classes.engr.oregonstate.edu/mime/winter2012/me453-001/Lab1%20-%20Shear%20Strain%20on%20Polymer%20Beam/ASTM%20D638-02a.pdf (accessed on 2 August 2018).
  17. ASTM D1037. Standard Test Methods for Evaluating Properties of Wood-Base Fiber and Particle. Available online: http://www.smartjd.org/pdf/187/11183596.pdf (accessed on 2 August 2018).
  18. Lui, J.; Patel, J. Improving Product Design by Predicting Flexural Strength of a Honeycomb Core Sandwich Panel Composite Using Ply Tensile Strength. Available online: http://digitalcommons.calpoly.edu/matesp/124/ (accessed on 2 August 2018).
Figure 1. Image showing the cut out of the samples in three different directions.
Figure 1. Image showing the cut out of the samples in three different directions.
Jcs 02 00048 g001
Figure 2. Isometric view of model showing constraints used for tension test simulation.
Figure 2. Isometric view of model showing constraints used for tension test simulation.
Jcs 02 00048 g002
Figure 3. Isometric view of model with constraints used for the three-point flexure test simulation.
Figure 3. Isometric view of model with constraints used for the three-point flexure test simulation.
Jcs 02 00048 g003

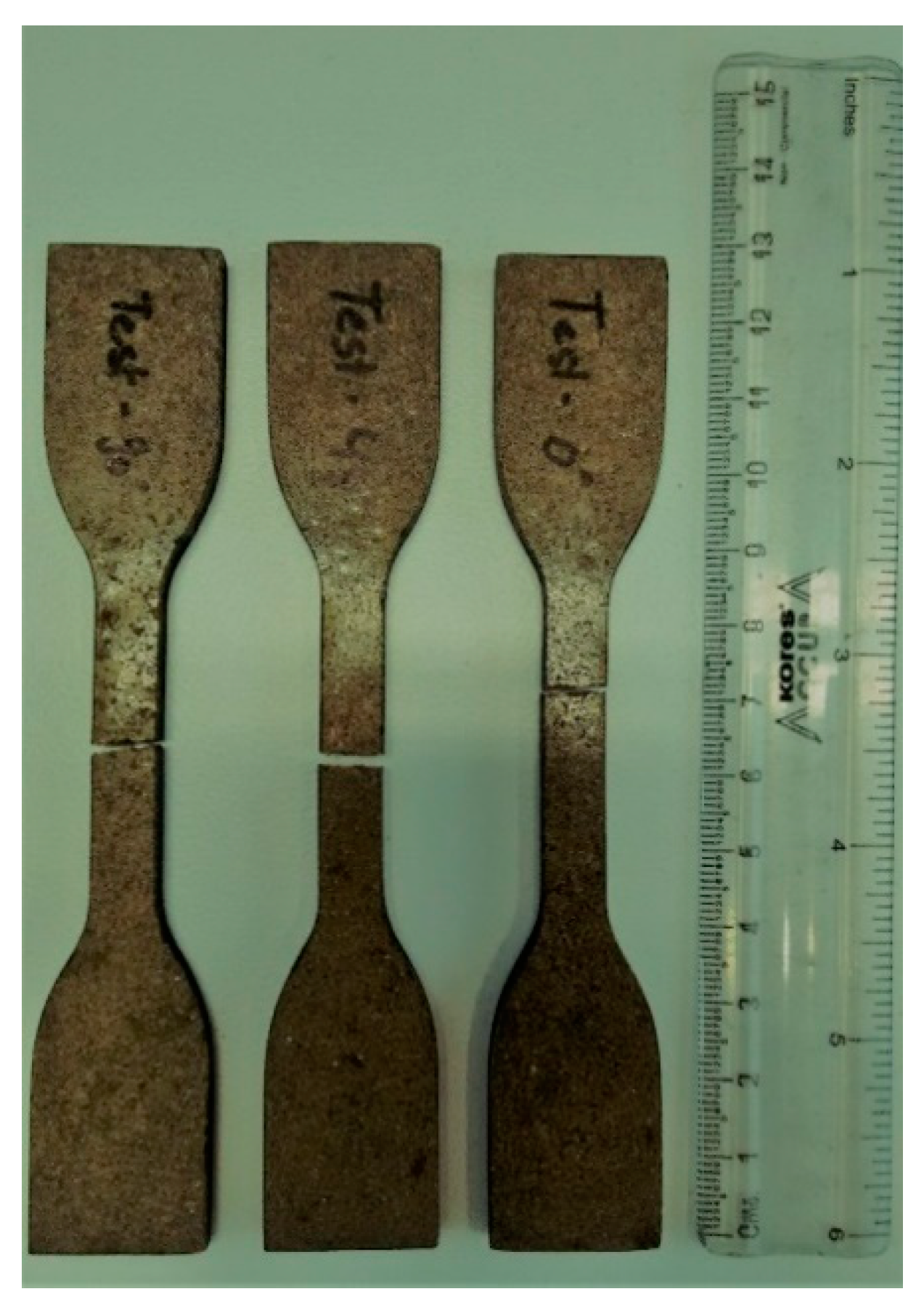

Figure 4. Tensile tested samples cut from WPC panel in 0°, 45° and 90°.
Figure 4. Tensile tested samples cut from WPC panel in 0°, 45° and 90°.
Jcs 02 00048 g004

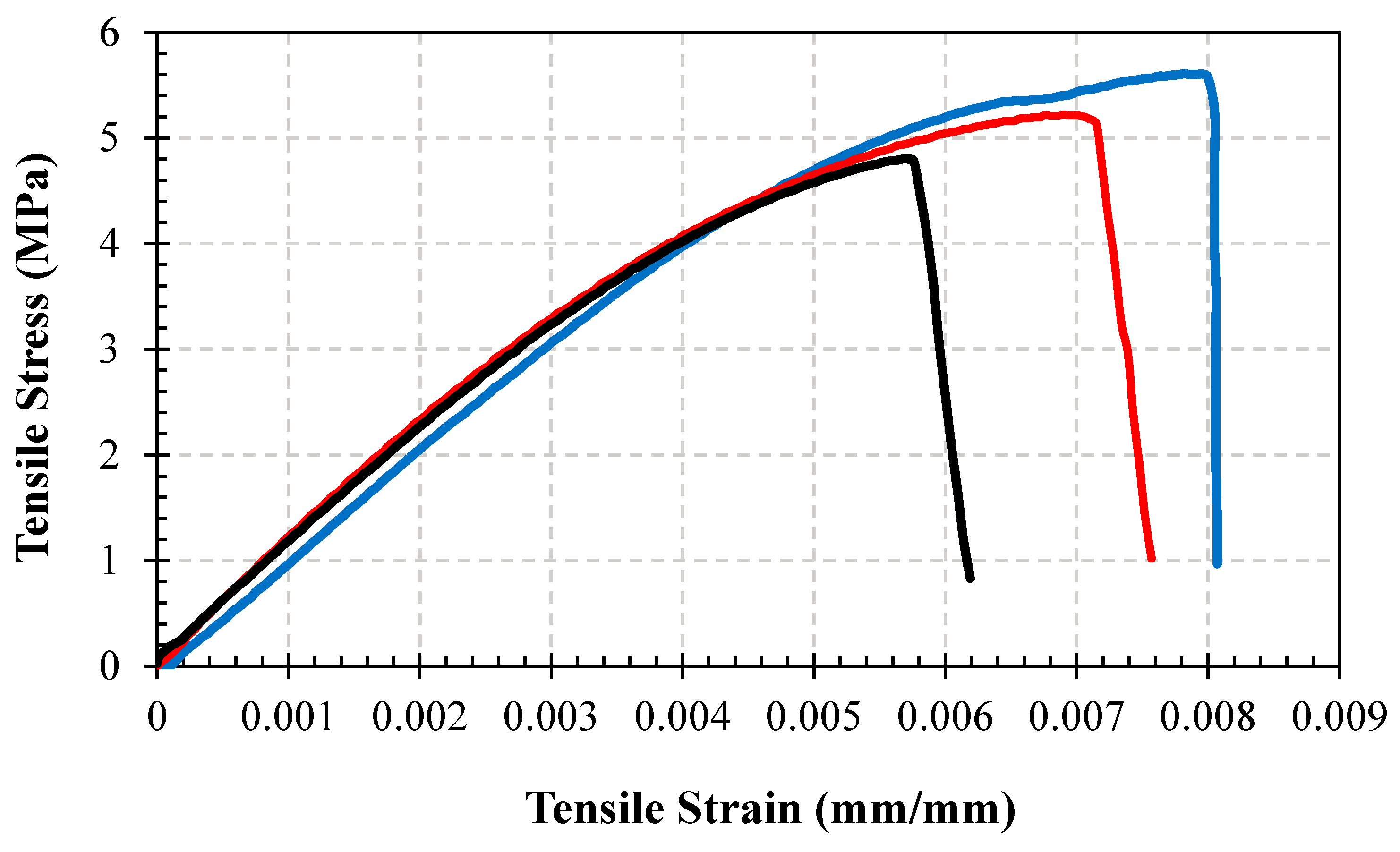

Figure 5. Plot of Stress vs Strain for three specimens, black for 0°, red for 45° and blue for 90° cutting samples.
Figure 5. Plot of Stress vs Strain for three specimens, black for 0°, red for 45° and blue for 90° cutting samples.
Jcs 02 00048 g005
Figure 6. SEM Images of the sample having vertical failure showing random distribution of fibers in all the direction.
Figure 6. SEM Images of the sample having vertical failure showing random distribution of fibers in all the direction.
Jcs 02 00048 g006

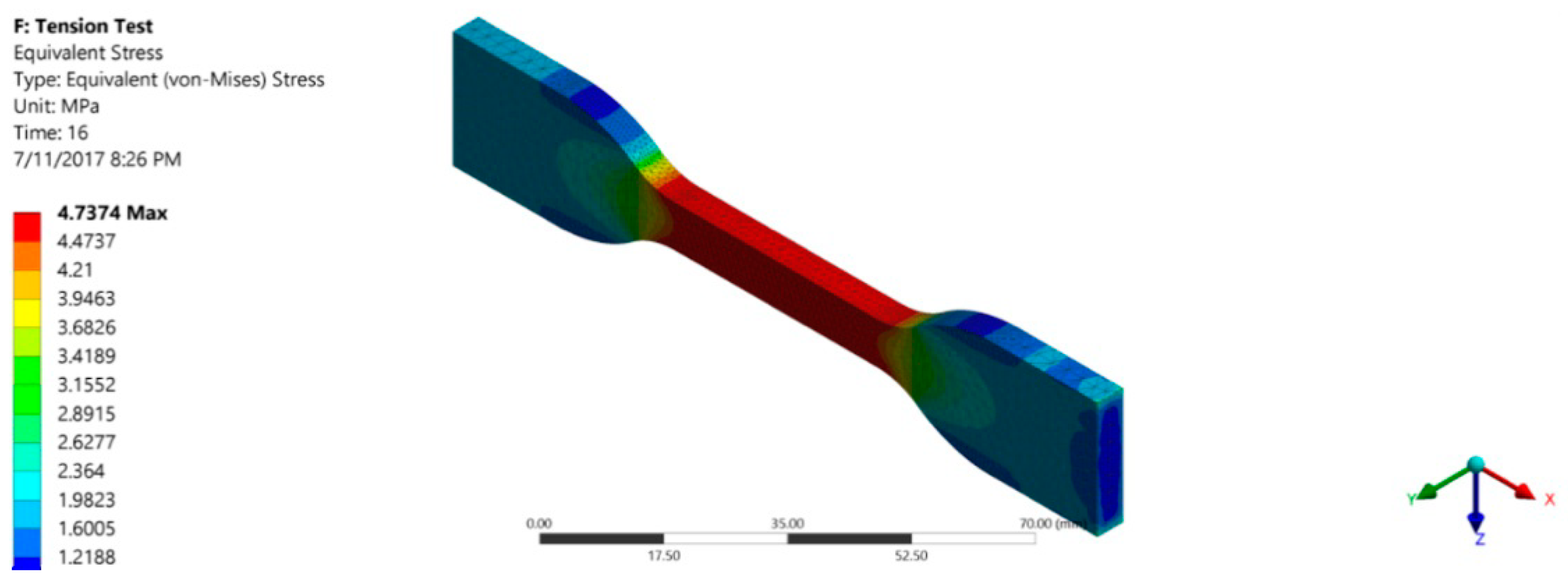

Figure 7. Isometric view of sample in simulation showing tensile stress in tension test.
Figure 7. Isometric view of sample in simulation showing tensile stress in tension test.
Jcs 02 00048 g007

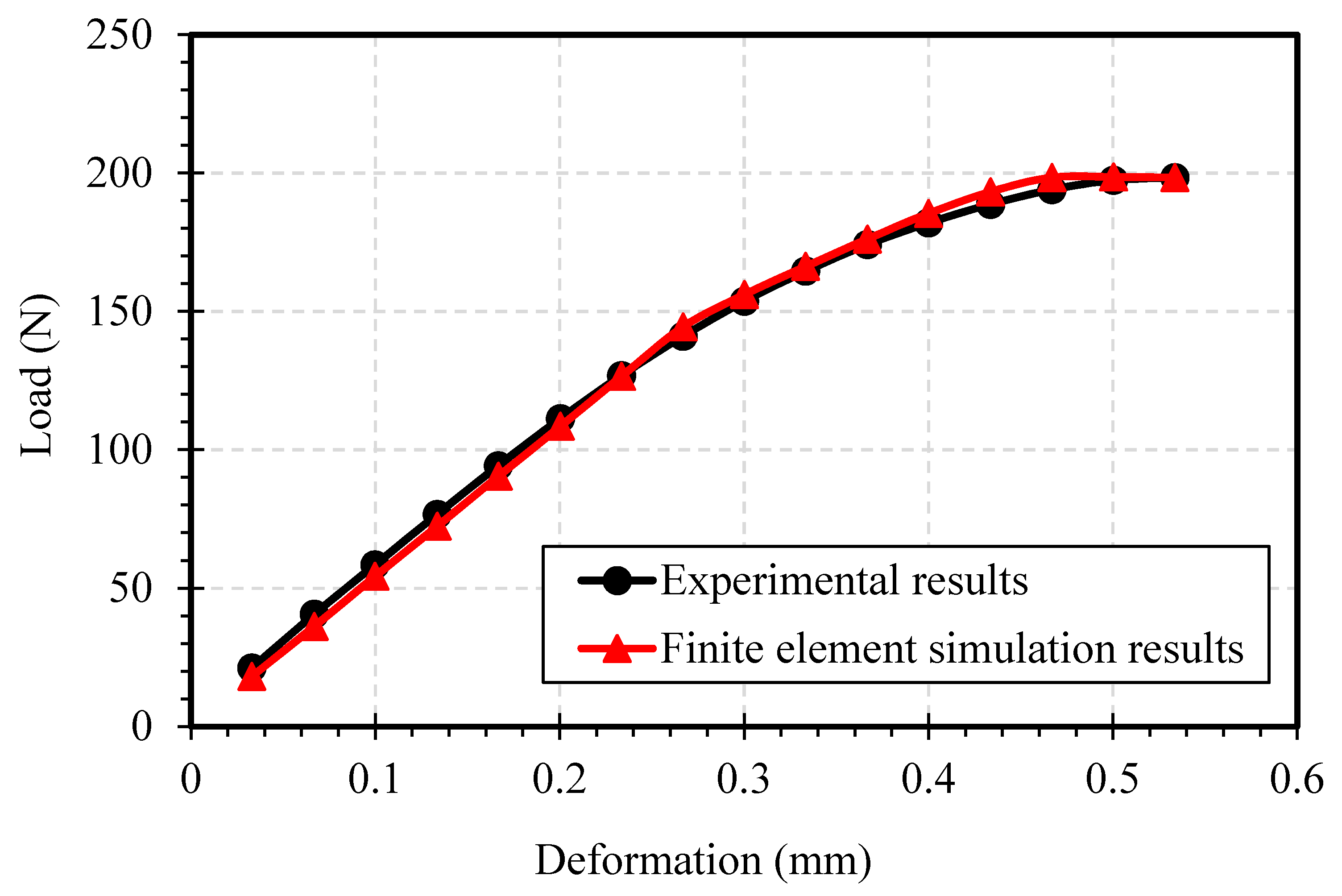

Figure 8. Plot of load vs deformation of tension test for experimental and finite element simulation.
Figure 8. Plot of load vs deformation of tension test for experimental and finite element simulation.
Jcs 02 00048 g008

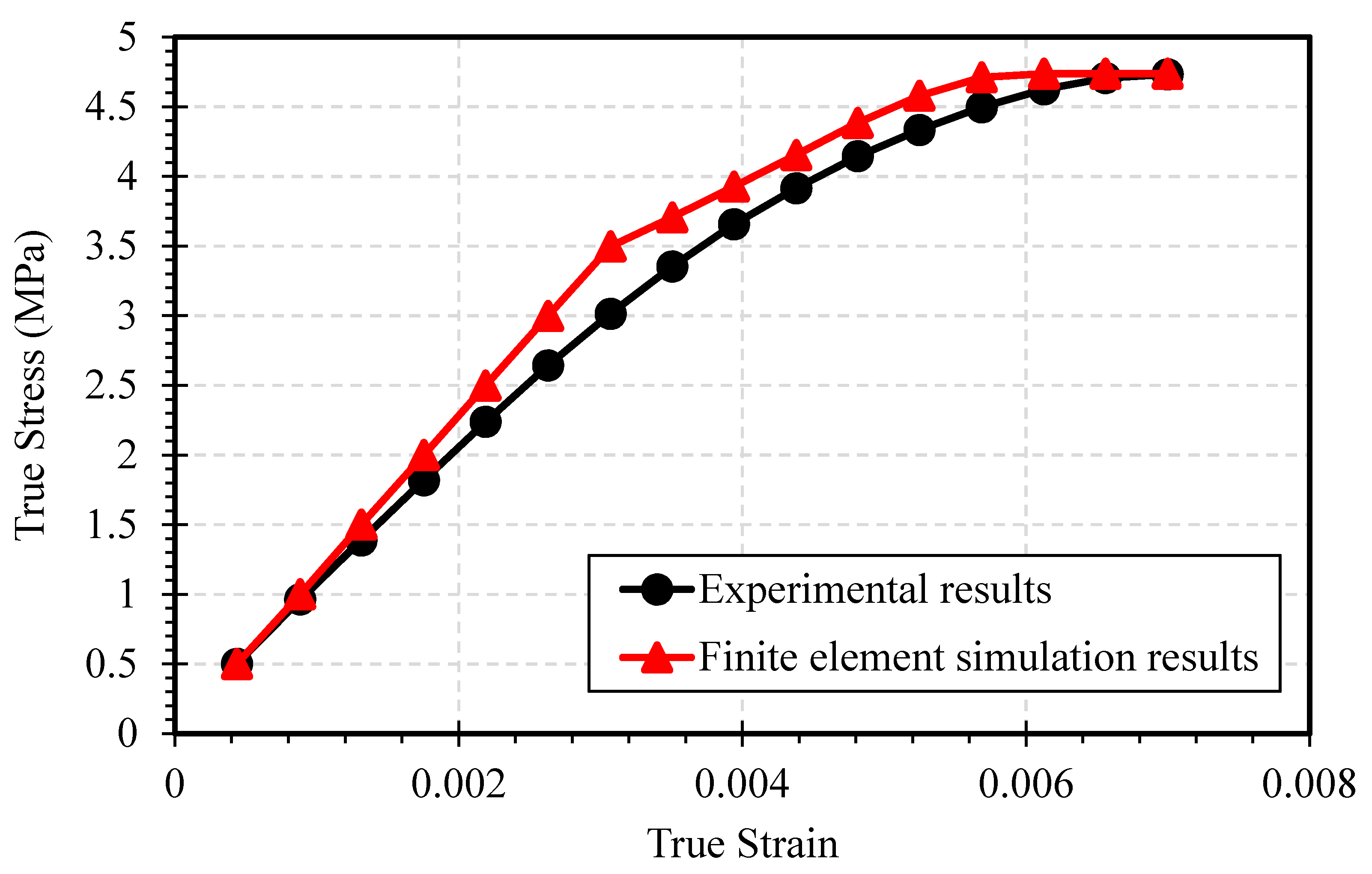

Figure 9. Plot of True Stress vs True Strain for experimental and finite element simulation of tension test.
Figure 9. Plot of True Stress vs True Strain for experimental and finite element simulation of tension test.
Jcs 02 00048 g009

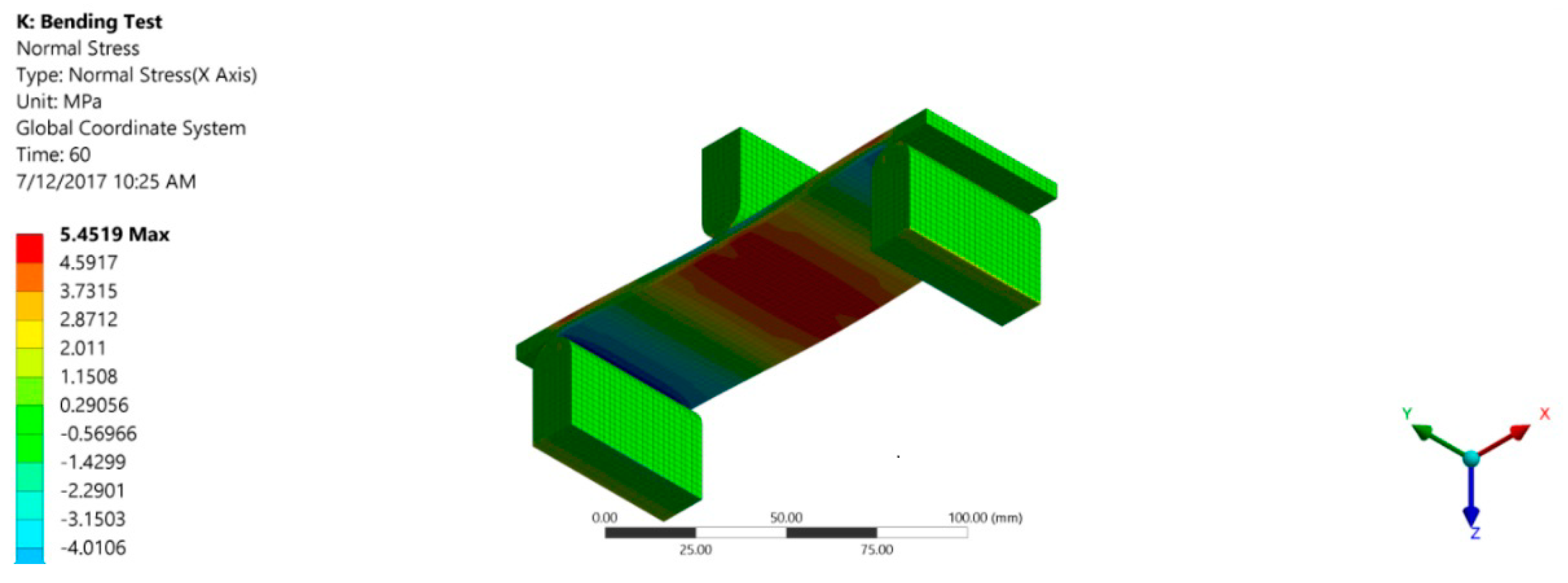

Figure 10. Image of simulation showing normal (flexural) stresses of sample in static bending test.
Figure 10. Image of simulation showing normal (flexural) stresses of sample in static bending test.
Jcs 02 00048 g010

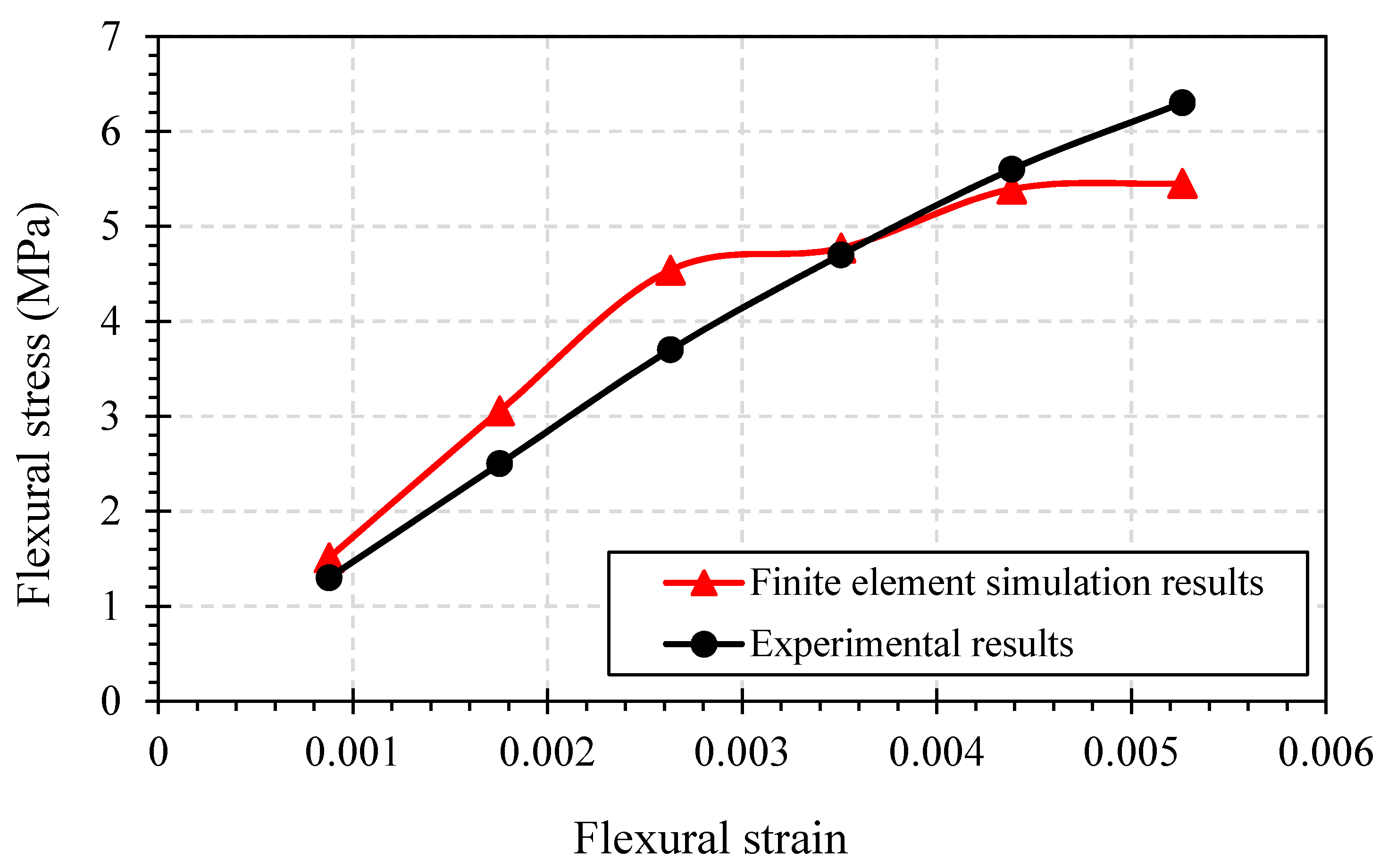

Figure 11. Plot of flexural stress vs flexural strain for experimental and finite element simulation results.
Figure 11. Plot of flexural stress vs flexural strain for experimental and finite element simulation results.
Jcs 02 00048 g011
Table 1. Summary of tensile test results for samples at three different angles.
Table 1. Summary of tensile test results for samples at three different angles.
Specimen LabelMaximum Stress (MPa)Elastic Modulus (MPa)Maximum Strain
90°5.611052.610.00807
45°5.221359.070.00730
4.801186.860.00576
Coefficient of Variation0.07770.1280.1944
