Sustainable Synthesis of Diamond-like Carbon and Giant Carbon Allotropes from Hyperbaric Methanol–Water Mixtures Through the Critical Point

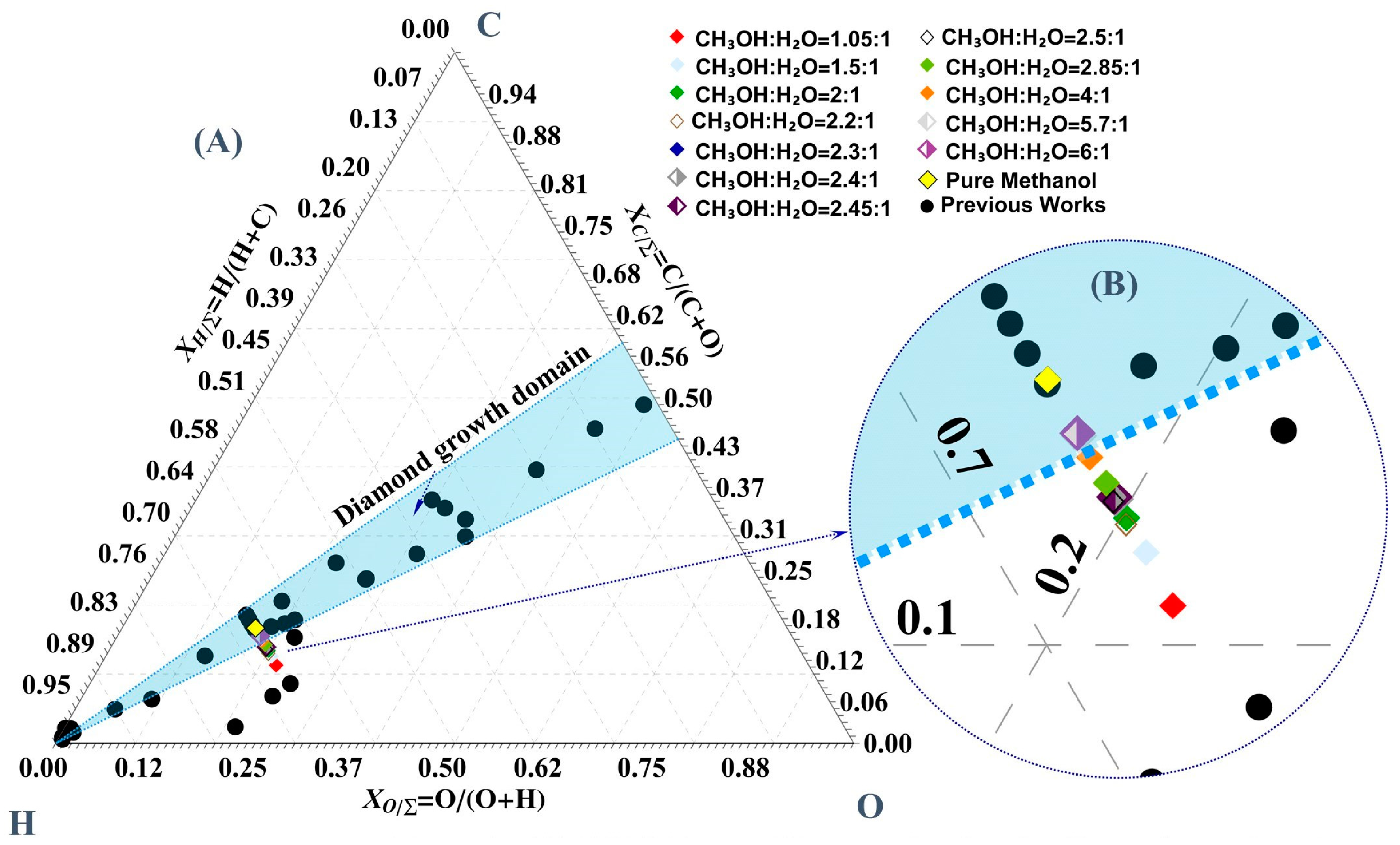

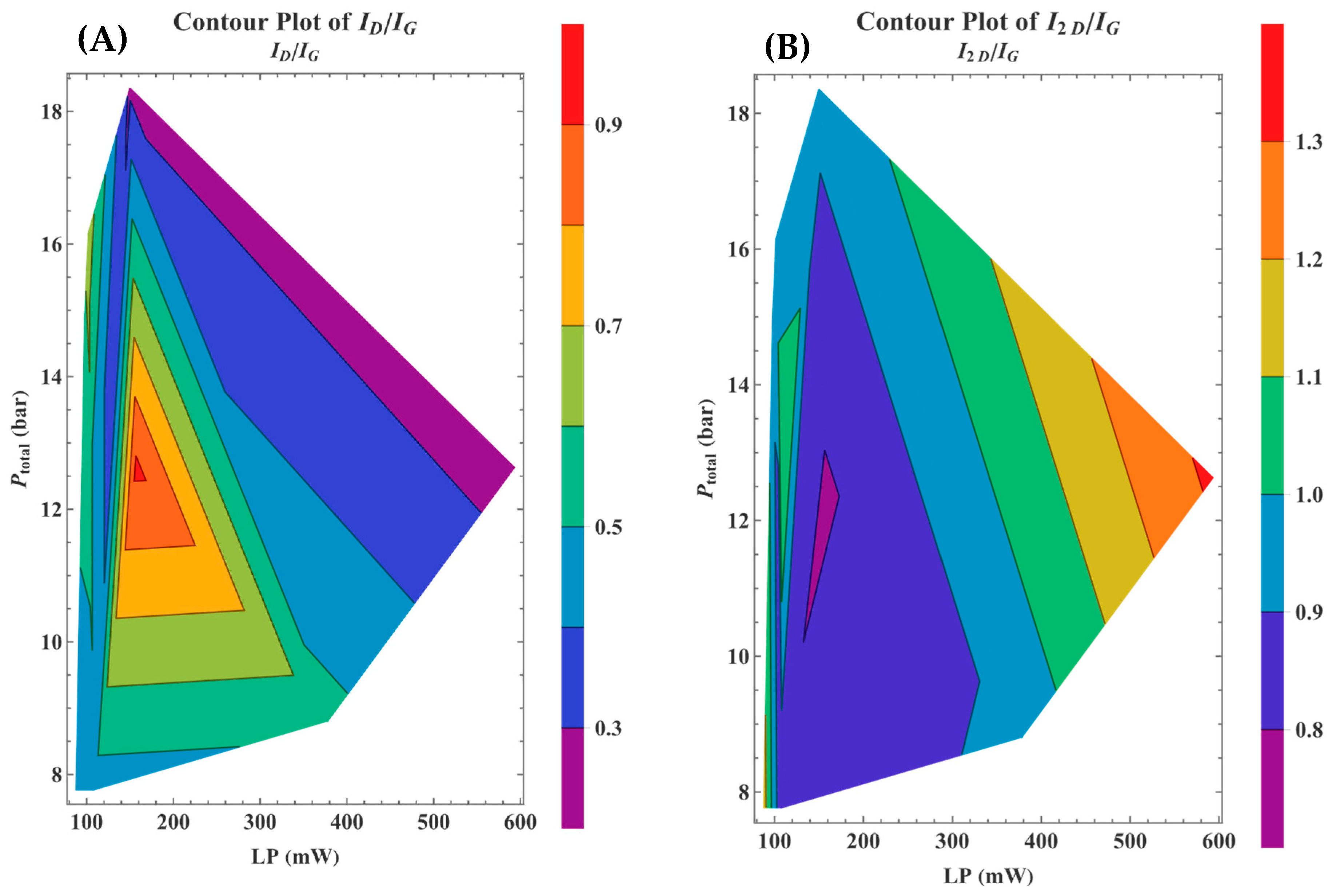

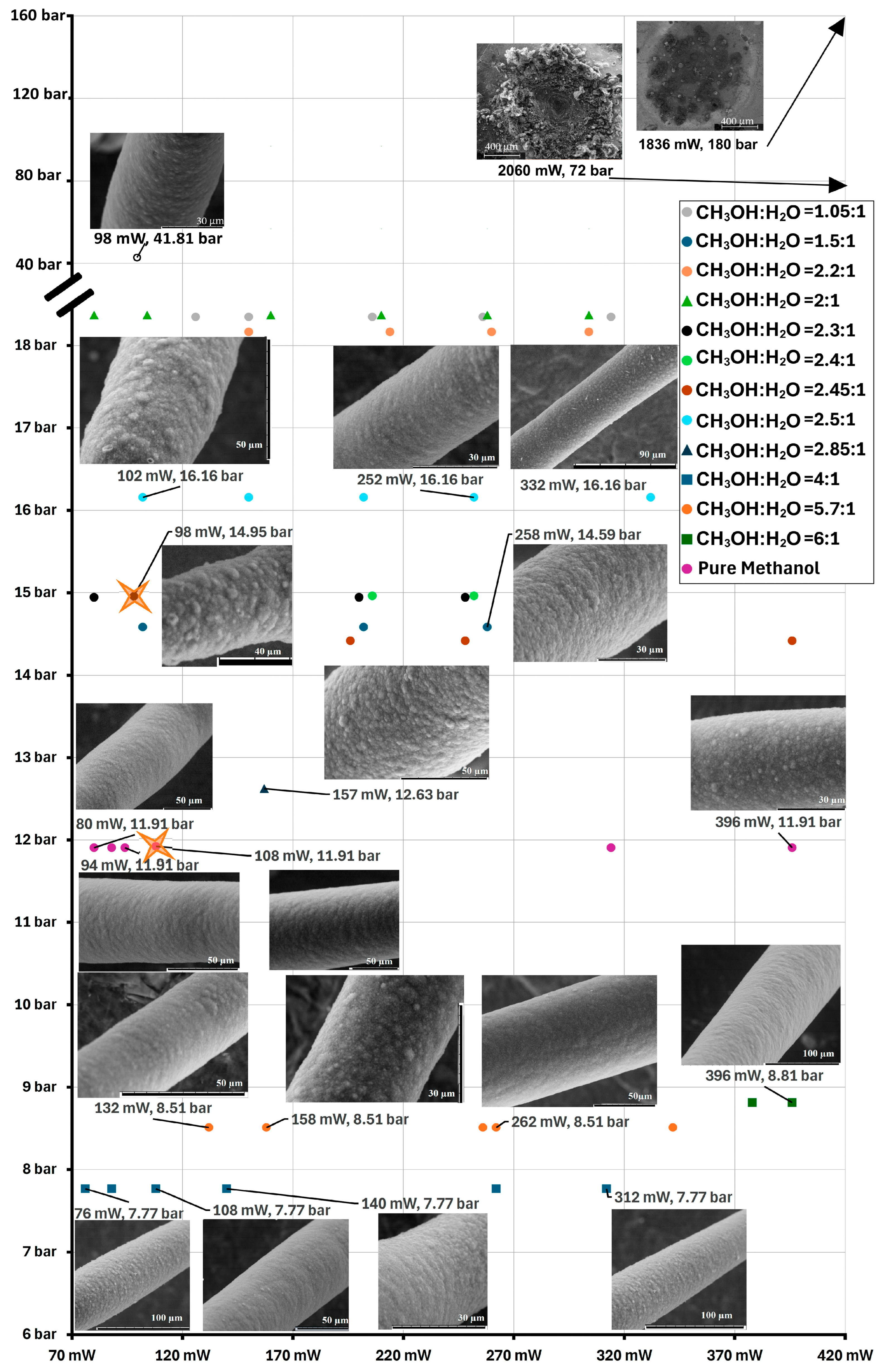

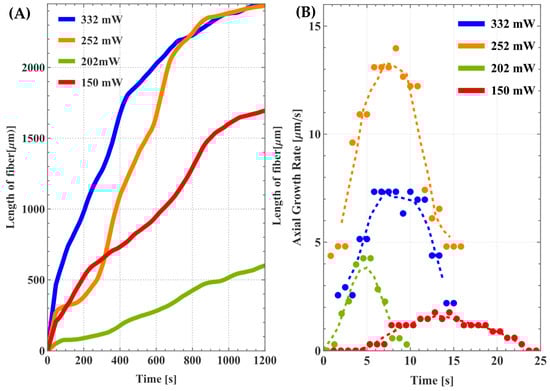

Freeform carbon fibres were 3D-printed from CH₃OH:H₂O mixtures using hyperbaric-pressure laser chemical vapour deposition (HP-LCVD). The experiment overlapped a region of known diamond growth, with the objective of depositing diamond-like carbon without the use of plasmas or hot filaments. A high-pressure regime was investigated for the first time through the precursor’s critical point. Seventy-two C-fibres were grown from 13 different CH₃OH:H₂O mixtures at total pressures between 7.8 and 180 bar. Maximum steady-state axial growth rates of 14 µm/s were observed. Growth near the critical point was suppressed, ostensibly due to thermal diffusion and selective etching. In addition to nanostructured graphite, various carbon allotropes were synthesised at/within the outer surface of the fibres, including diamond-like carbon, graphite polyhedral crystal, and tubular graphite cones. Several allotropes were oversized compared to structures previously reported. Raman spectral pressure–temperature (P-T) maps and a pictorial P-T phase diagram were compiled over a broad range of process conditions. Trends in the Raman I_D/I_G and I_2D/I_G intensity ratios were observed and regions of optimal growth for specific allotropes were identified. It is intended that this work provide a basis for others in optimising the growth of specific carbon allotropes from methanol using HP-LCVD and similar CVD processes.
