Latest Developments and Insights of Orthopedic Implants in Biomaterials Using Additive Manufacturing Technologies

Abstract

The additive manufacturing (AM) process is used for joining materials to make objects from 3D model data, usually layer upon layer, contrary to subtractive manufacturing methods. This technology plays a significant role in fabricating orthopedic implants, especially parts of hip implants (HI), such as femoral head, stem, neck, polyethylene linear, acetabular shell, and so on, using biomaterials. These biodegradable resources are those that can be utilized as tissue substitutes since they are accepted by live tissues. Here, the study is to examine the most preferable AM process and biomaterial used for making HI, including its manufacturing methods, compositions, types, advantages, and defects and cross-examining the limitations to bring some new technology in the future. Then we elaborate on the outlook of the most preferable material, followed by evaluating its biocompatibility, detailed application, and structural defects occurring while using it as an HI. Subsequently, the physical characteristics and design constraints are also reviewed in the paper. We assess the current stage of the topology optimization technique (TO) with respect to the characteristics of newly designed implants. The review concludes with future perspectives and directions for research.

1. Introduction

In ancient times, when the joints of the bones were damaged, it was very difficult to replace them. Either treatment had to be performed till the end of life, or any supporting belt was put on. The problem is encountered when some of the elements between the bones are damaged or broken. The invention of biomaterials has created major changes in the medical field [1,2,3,4]. Biocompatible materials are generally used to replace or support damaged biological tissues [5,6,7]. These biomaterials are used to produce bone fragments and broken parts [8,9,10,11,12,13,14]. They can be applied to hard tissues in orthopedics or orthodontics or to support soft tissues, such as blood vessel or artificial valves in the heart [15].

Nowadays, AM plays an important role in the medical field [16,17,18,19,20,21,22,23,24], especially in the production of some internal organs using artificial tissues that are accepted by the natural living tissues of human beings. AM consists of design modeling and production. The 3D model for the production can be designed by the CAD software or a model obtained through CT scan or MRI. We know our body will reject all the unnecessary substance. Therefore, materials that are not harmful and acceptable by living organisms are used. Biomaterials can enhance the quality and longevity of human life [25,26,27,28,29]. The science and technology associated with the field of biomaterial has now led to a multi-million-dollar business. Biomaterials are used in different parts of the human body as replacement implants in shoulders, hips, knees, and elbows [30,31,32,33,34]. However, the number of replacements are high in the cases of the spinal area, hip, and knee [25].

Approximately 230 million major surgical procedures are performed on a daily basis. Most of these procedures involve repair, reconstruction, or replacement of one or more damaged bones or joints and also tissues and organs. The combination of the medical field and AM has emerged as an alternative technique to manufacture substitute joints and their components to restore, improve, and maintain the function of joints. In orthopedic implants, several biomaterials are used for the construction of joints and components [35,36,37]. Biocompatible metals and alloys, such as Co-Cr alloys, stainless steel, Ti, and its alloys, are the main materials used as implants [38]. Biodegradable Mg-based alloys are also used for making metal implants [39].

Several review papers related to biomaterials have been published in recent years, such as references [38,40,41,42,43,44], in which most of them have concentrated on AM techniques used for the fabrication of different biomaterials [38,42,44]. Some of them have studied their thermal effects and corrosion rate [40,43], and a few studies have been carried out on surface modification for bioimplants [41]. Furthermore, some other articles have presented a discussion of specific objectives; for example, Attar et al. [45] used metals that are accepted by living tissues. They reported that metals such as surgical-grade stainless steel (316L), Co-Cr alloys, and pure commercial Ti or Ti alloys do not affect negatively the human body and will have good mechanical properties, high strength-to-weight ratio, and excellent corrosion resistance. Mostly these metals are used for joint replacements, dental roots, and orthopedic fixations, for stents and orthopedic implants. Prakasam M et al. and Minagar S et al. [46,47] studied the main advantage of metal implants. It was revealed that they have brilliant mechanical properties, which make them the most commonly used implant materials in bone surgical repair. Meanwhile, the main disadvantage of metals in their use as biomaterials is their lack of tissue adherence and excess deterioration [48,49,50,51,52]. This will result in either a second surgery to remove the implant or keeping the implant in the body with the risk of toxicity due to accumulation of metal ions due to rusting.

Other than metals, ceramic materials are biocompatible and have very high resistance to corrosion and compression with low electrical and thermal conductivities [53,54,55]. Habibovic P et al. [56] reported that ceramic biomaterials are mostly suited for medical implants; they have very low toxicity and help to achieve higher efficiency in forming new bone tissues. They reported that ceramics can replicate human tissues or can be absorbed back into the body to encourage the restoration of healthy tissues. They are composed of bioactive glass, glass ceramics, calcium silicates, hydroxyapatite, alumina, zirconia radiation glasses, and resorbable calcium phosphates.

Bose S et al. [57] mentioned that the most common material used in the 3D printing industry are polymers because of their diversity. They revealed that polymers are widely used more than ceramics and metallic biomaterials. The ease of manufacturing to produce various shapes, ease of secondary processing stages, reasonable cost, and availability with desired physical and mechanical properties are the major advantages of polymers when compared with metallic and ceramic biomaterials [58,59,60,61,62,63]. Devi P et al. [64] highlighted the main reasons behind the wide usage of polymers. They are biocompatibility, biodegradability, sterilizability, adequate mechanical and physical properties, and excellent manufacturability because of their low melting points. Karageorgiou et al. [65] revealed that many natural polymers benefit from being biocompatible and biodegradable. They stated that polymers can modify their chemical structure due to their flexibility. Jones L et al. [66] found that a variety of polymers have been used in medical care, including preventive medicine, clinical inspections, and surgical treatment. They mentioned that the commonly used polymer in orthopedic surgery is polymethyl methacrylate.

Despite many existing review papers, to the best of the authors’ knowledge, there is no study that has reviewed the best material specifically for making implants, its manufacturing process, benefits, defects, and comparison with other biomaterials.

Therefore, it is important to have in-depth knowledge of this subject, and hence, the aim of this review paper is to provide comprehensive information and details of the materials and processes. It is important for review articles such as this one to bring out the intricacies of processes and critical analysis of the materials to better utilize them. This will prove to be of great use to understand suitable biomaterials for orthopedic implants, as well as in-service performance issues, after implanting them into the body. The present article aims to provide an overview of the significant contributions of AM in the biomedical industry. This paper gives the state of the art on current research studies conducted in all biomaterials used for making orthopedic implants using AM. The paper begins with a brief introduction of biomaterials and their types, and then introduces their manufacturing processes. It further discusses the AM process application in orthopedics and its benefits. The main text of this article provides a meticulous review on major areas of orthopedic biomaterial research using the best material. The last section of the paper draws conclusions and trends of the reviewed bodies of research.

2. Biomaterials for Biological Tissue Replacements

Different biomaterials are integrated with tissue replacements. This area summarizes commonly used materials for making biological implants. The most commonly used material will be projected after the following subsections.

2.1. Metals

Metals are the main materials that are used in the replacements of bones or used as a support for broken bones [67,68,69,70,71,72,73,74,75]. Metals that are accepted by living tissues are only used in this case. Using these metals does not affect negatively the human body and will result in good mechanical properties, high strength-to-weight ratio, and remarkable resistance to corrosion [76]. These required metal parts are manufactured by traditional processing technologies, including casting, machining, and powder metallurgy—all of these processes need more time and energy and have a high metal consumption rate [45]. However, AM techniques are replacing these conventional methods nowadays [77]. Mostly the metals are used for biomedical replacement surgeries [78]. Among these metals, Ti alloy is considered to be the best material for orthopedic implants [79]. In the case of fracture fixations, the fixation devices used to immobilize the bone are wires, screws, plates, and intramedullary nails. The primary benefit of metal implants is their superior mechanical qualities, which make them the most popular implant type for bone surgical repair [46,47]. The main disadvantage of metals in being used as a biomaterial is their lack of tissue adherence and low rate of disintegration [48,49,50,51,52]. This will result either in a second surgery to remove the implant or keeping the implant in the body with the risk of toxicity due to the accumulation of metal ions due to corrosion.

2.2. Ceramics

Generally, ceramic materials are biocompatible and have very high resistance to corrosion and compression with low electrical and thermal conductivities [53,54,55]. Ceramic biomaterials are mostly suited for medical implants; they have very low toxicity, and they help in the higher efficiency of forming new born tissues [56]. These have the ability to perform like human tissues or to absorb into the body and promote the regeneration of natural tissues. They include radiotherapy glasses, bioactive glass, hydroxyapatite, glass ceramic calcium silicates, alumina and zirconia, and resorbable calcium phosphates [80]. Mostly ceramics are used for dental implants and some orthopedic implants. The ceramics used in bone replacement and healing are categorized into three types based on the body’s reaction. The first is the bioinert ceramic, which is almost inert in the body and forms a thin nonadherent fibrous layer at the connection. The bioactive ceramic falls under the second type and can firmly attach to bones. Finally, the third type is the bioresorbable ceramic, which progressively deteriorates over time, eventually being replaced by natural bone [56]. The use of ceramics in medical applications is limited due to their poor tensile strength [81].

2.3. Polymers

Polymers are the most common material in the 3D printing industry because of their diversity [57]. Polymeric biomaterials are considered to be one of the best materials for medical end use. Polymers are widely used more than ceramic biomaterials [82]. The required mechanical and physical properties, the simplicity of secondary processing stages, the cost, and the ease of manufacturing to manufacture diverse shapes are the major advantages of polymers when compared with metallic and ceramic biomaterials [58,59,60,61,62,63]. The main reasons behind the wide usage of polymers are biocompatibility, biodegradability, sterilizability, adequate mechanical and physical properties, and low melting point, which make them easy to fabricate [64]. Many natural polymers have the advantage of biodegradability and biocompatibility [65] Polymers can modify their chemical structure due to their flexibility. Biodegradable and biocompatible polymers are generally called biopolymers [83,84,85]. In medical care, a variety of polymers have been used, including preventive medicine, clinical inspections, and surgical treatment [64]. A commonly used polymer in orthopedic surgery is polymethyl methacrylate [66]. Even though polymers have lot of positives, the use of polymers is confined due to its low load handling capacity and low tissue affinity [86].

According to the aforementioned forms of publications, all three types of materials can be employed based on the implant type, location inside the body, size, design, and mechanical demands that they must withstand. The most widely accepted and used biomaterials are metallic since early days. Studies are underway to make ceramics and polymeric materials common substitutes for metals. Hence, this review focuses on metallic biomaterials used for making implants. The next part of the review discusses the AM methods involved in the manufacturing of metallic biomaterials.

3. AM Techniques for Metallic Biomaterials

AM is simply defined as the addition of material in a layer-by-layer fashion. This technology uses data from a computer-aided design (CAD) software or from any 3D object scanners to direct a hardware to deposit the material, layer upon layer, in precise geometric shapes. Currently, there are many types of AM technologies for making metallic biomaterials. The relevant studies classified according to the AM processes used in the manufacturing of biomaterials are as follows:

3.1. Direct Energy Deposition Technique (DED)

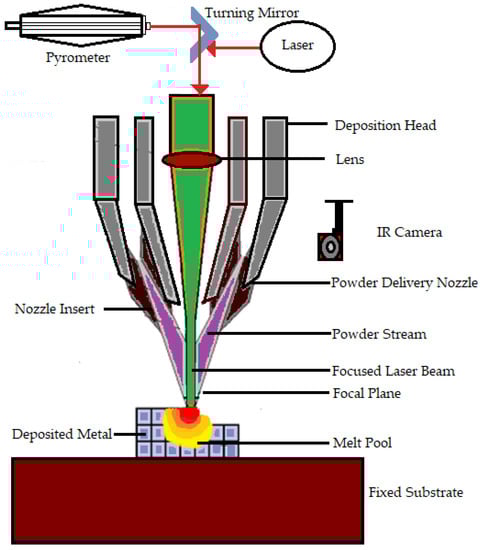

Bose S et al. [57] explain DED as a process in which a direct source of energy is used to simultaneously deposit, melt, and solidify the material that is fed as either a powder or as a filament. Electron beam or lasers are mainly used as the direct energy source. Yousuf S et al. [87] say that the continuous feeding of starting material is needed in the form of powder or filament for the process. Then the feeding material becomes melted by the energy source and becomes deposited in a layerwise pattern. The heat conduction in direct energy deposit processes is more effective because the heat, material, and shield gas are transferred directly from the nozzle to the build area. The laser direct deposition technique is the most popular one that falls under this category [88]. DED features a nozzle that moves around multiple axes. Davoodi E et al. mention that the DED process can be used for fabricating a wide range of metallic biomaterials. Moreover, this technique has proven its capability of manufacturing porous biomedical implants [89]. Furthermore, multimaterial structures produced by DED have benefits and can be constructed using existing technology and process management [90]. DED is faster and less expensive as compared with powder bed fusion when creating midsize metal parts [91]. Even though DED is a method having various advantages, it has certain disadvantages, such as support structures being necessary for overhangs, limitations in producing complex shapes, and lower accuracy than powder bed fusion AM processes [92]. The working of DED is shown in Figure 1.

3.2. Material Extrusion (ME)

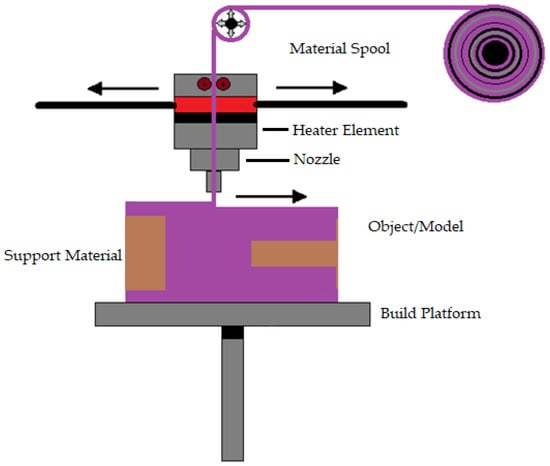

Susmita Bose et al. [93] define material extrusion as an AM technique that builds three-dimensional models using a continuous filament made of thermoplastic or composite material. The process has a large number of variables that influence the quality of the final model, but when these variables are tightly controlled, they have great potential and viability. Fuse deposition modeling is a common material extrusion process [94]. Ortega Z et al. [95] mention that the material is selectively distributed through a nozzle or orifice using a sliced CAD part model. The filament material is fed to a nozzle using a driving gear in the polymer material extrusion AM. Then, to build the complex 3D structure, the filament is deposited onto the build platform layer by layer. The nozzle temperature must be high to melt the filament material (e.g., 200–230 °C for ABS and 180–200 °C for PLA polymers). To prevent component warping and delamination, heat lamps are utilized to control the temperature in the area surrounding the build platform. This technique is comparatively less expensive and easier to run and has more biomedical applications, including biological cells, ceramics, and polymers [96]. Adding more parts to a single build did not reduce the processing time per part [93]. Most material extrusion systems use a spool of plastic filament as the feedstock. Even though material extrusion is a successful method for manufacturing metallic biomaterials Cheuh Y et al. [97] found that material extrusion produces metal components with a lower density than laser powder bed fusion. Figure 2 shows the representation of material extrusion process.

3.3. Powder Bed Fusion (PBF)

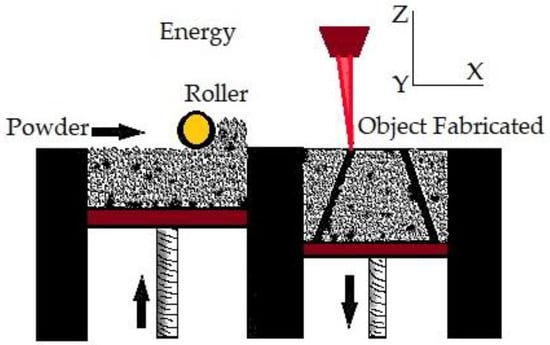

In PBF, very fine powders are used as thin layers and are evenly and densely stacked on a platform. The particles in each layer are fused using a laser beam or a binder [98]. PBF approaches allow for excellent dimensional precision at large relative densities [99] often with high repeatability and surface roughness [100]. Additionally, the process has high porosity when the powder is forced with a binder [101]. PBF uses thermal energy to fuse certain areas on the powder bed. PBF is one of the first generation of commercialized AM processes [102]. The printing processes of PBF and binder jetting are similar. N Derimow et al. [103] say that an oxidation-free environment is needed for PBF to prevent oxidation of the feedstock powder. A hopper or a reservoir below the side of the bed provides fresh material supply. PBF’s advantages include the fact that it has less material wastage and less cost, improves production development times, enables rapid prototyping and low-volume production, is capable of building functionally graded parts, performs efficient recycling of unmelted powder, and provides elimination of the need for machining fixtures [57]. In addition, even though the high powder density across the build geometry can act as a self-support [87], the PBF approach frequently requires structural support to combat shape distortions of the manufactured sample. In the case of titanium, PBF can create materials with high strength, high detail, and load bearing [104]. On the other hand, using tiny, spherical metallic powders enables high packing densities, enhances component consolidation, and reduces flaws [105]. Behzad Fotovvat et al. [106] focuses on the PBF–AM technique of direct metal laser sintering for Ti-6Al-4V ELI material’s dimensional precision. The impact of size, geometry, and position on the build platform was studied using a variety of geometric pieces with different thicknesses and sizes. They came to the conclusion that accuracy is not affected by where the components are placed on the build platform and that this method typically produces high-resolution results. They concluded that inaccuracy is not a function of the location of the parts on the build platform, and such process usually shows results with high resolution. Meanwhile, from the findings of Samira et al. [107] when compared with laser metal deposition, laser PBF provides the best level of accuracy for dimensions, perpendicularity, and position tolerance. The PBF process is shown in Figure 3.

3.4. Vat Polymerization (VP)

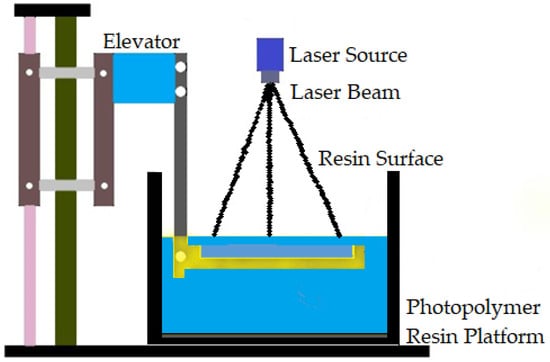

The first commercially available AM technology is vat polymerization. It produces parts through selectively curing liquid photoreactive polymers [108]. Vat polymerization is also known as stereolithography (SLA). This process has high accuracy in building parts, superior part quality, and quick construction pace [57]. This technology is known for its smooth surface finish and highly detailed parts, average build speed, and a wide range of materials [38]. The SLA process is based on layer-by-layer photosensitive resin polymerization using UV light [109]. Increasing the number of parts reduces the time per part in vat polymerization. Support structures are essential in the case of vat polymerization [93]. Biomaterials in large sizes can be manufactured by vat polymerization using different materials, such as metal, ceramics, and polymers. Figure 4 shows the vat polymerization technique.

Several studies have been carried out to examine the precision and resolution of the model created using various AM processes. A detailed solidification model was developed by C Zhou et al. [110], and it was used to estimate the curing dynamics of the resin used in 3D printing. To guarantee the accuracy of the micro part, the suggested model-based strategy optimizes the photos while taking the light distribution from all closely neighboring pixels into account. When a complex 3D object is printed using SLA, the results demonstrate how dramatically overcured areas are improved by employing optimal grayscale pictures. Actual printing results from the experimental setup confirm the improvements in the accuracy and precision of the printing method. The authors came to the conclusion that the precision and resolution of manufactured components can be considerably impacted by the mask pictures utilized in the construction process. The effectiveness of the suggested strategy to increase the XY resolution of the mask projection over a sizable region in the SLA process has been demonstrated by experimental findings. P Shah et al. [111] found that SLA is the most precise of all methods, with a variety of changing tolerances in areas such bossed cube parallelism and perpendicularity.

3.5. Binder Jetting (BJ)

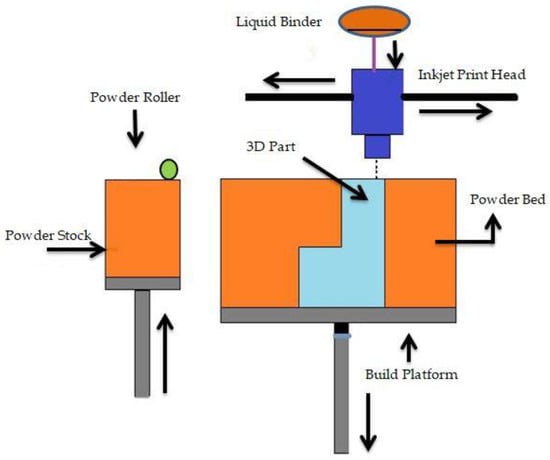

Binder jetting (BJ) is a powder-based AM process that employs a liquid binder, instead of an electron beam or laser source, for locally binding the powders and creating the intricate ceramic, polymeric, and metallic structures [112]. Shick T M et al. [113] mentioned that to form a designed structure layer by layer in the BJ technique, the liquid binding agent is spread to a selected area on the power bed based on the part geometry. The binder acts as an adhesive to bond the powder layers. In a normal BJ system, there are three axes, namely x, y, and z. The x and y axes are responsible for the horizontal position, and the z axis refers to the depth for x and y [57]. For a successful build, the binder jetting needs an understanding of many process variables. BJ is able to be conducted on dry powders as well as on wet powders. Fine powder BJ can give good surface finishing and low surface roughness [114]. There are two types of binders: organic and inorganic. Binder jetting is capable of printing a variety of materials, including metals, sands, and ceramics [115]. A schematic representation of binder jetting is shown in Figure 5.

3.6. Material Jetting (MJ)

Material jetting is one of the fastest and more accurate 3D printing technologies. It uses liquid photopolymer droplets to build parts. MJ creates objects in a similar method to a 2D inkjet printer [24]. MJ builds layer upon a layer until the part is finished. This process is also quite similar to SLA since it uses a UV light source to cure the resin [16]. MJ is the only AM technology that can combine different print materials within the same 3D-printed model in the same print job. The key feature of MJ is that objects appear perfectly realistic. Even compared with other 3D printing methods that use photopolymers, MJ hands down as print heads is capable of forming objects more accurately [116]. The photopolymer liquid allows the 3D printer to form smoother parts, which appear shinier when support material is not used. This process can be used for full color printing [117]. Objects created through this process are rigid, flexible, opaque, and translucent. MJ is also used in medical hospitals and universities to 3D-print full-color anatomical models that look like real body parts. This makes it possible for surgeons to plan and be ready for an operation more quickly than they could with a 2D picture [93,96]. F Klocke et al. [118] found that although the accuracy of the laser-assisted MJ method is equivalent to that of the EBM process, future accuracy increases at high building rates due to enhanced process parameters and automated tool path generation are still very likely.

3.7. Sheet Lamination (SL)

SL processes include ultrasonic AM and laminated object manufacturing [119]. The ultrasonic AM process uses sheets or ribbons of metal, which are bound together using ultrasonic welding [120]. The process does require additional CNC machining and removal of inbound metal, often during the process. Laminated object manufacturing uses a similar layer-by-layer approach but uses paper as material and adhesive instead of welding [93]. Laminated objects are often used for aesthetic and visual models and are not suitable for structural use [121]. UAM uses metals and includes aluminums, copper, stainless steel, and titanium [122]. The process has low temperature and allows for internal geometries to be created. The process can bond different materials and requires relatively little energy, as the metal is not melted [123]. M Salmi et al. [119] mention that sheet lamination is only used for medical models or phantoms. They also state that sheet lamination devices are rare, and the vendors have receivership status. Different types of AM technologies and their medical applications are listed in

Table 1. AM technologies and their medical applications.

SI No.	AM Techniques	Medical Application	References
1.	Electron beam melting (EBM)	Fabrication of implant	[124,125,126]
2.	Direct metal laser sintering (DMLS)	Manufacturing of prostheses or implants	[127,128,129]
3.	Selective laser sintering (SLS)	Customized implants for training, human anatomy	[88,130,131]
4.	Stereolithography (SLA)	Prosthetics, anatomical model	[132,133]
5.	Multijet printing	Orthopedics, dental	[134,135]
6.	Color jet printing (CJP)	Implants of heart	[136,137]
7.	Inkjet 3D printing	Surgical planning, medical Education	[137,138]

.

D. Singh et al. [139] highlight that variable temperature and build speed during the build process can affect the precision of the products and are factors in the manufacturing accuracy of different AM methods. Additionally, they discuss potential solutions that could reduce the amount of warpage that the component experiences as a result of the length of time.

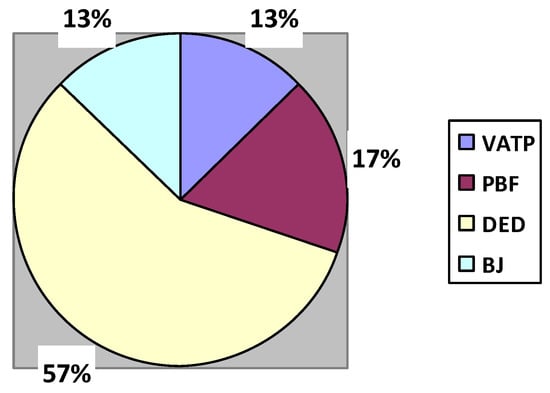

From the above literature upon the authors’ perspective, DED is the most efficiently used AM technique for making implants. Among them, the electron beam DED technique is most accepted. Based on the findings of M Salmi et al. [119], DED is suitable for metals. Hence, DED can be effectively used for fabricating metallic bioimplants. The percentage contribution of AM methods for making implants on behalf of the above references is shown in Figure 6.

4. Types of Metal Implants

Titanium and its alloys, cobalt-based alloys, stainless steels, tantalum and its alloys, niobium and zirconium alloys, and magnesium alloys are the main materials used as implants in orthopedics [140,141,142,143,144,145]. Among all these metal alloys, titanium alloy is the most used metal alloy for orthopedics and other implants [142,146]. The unique characteristics of titanium alloy make it different from other materials. Different types of metal alloys are discussed in the following subsections.

4.1. Stainless Steel (SS)

Most of the internal fixation devices are manufactured using SS because of its ease of availability, low price, excellent fabrication property, biocompatibility, and good strength. SS is an alloy mainly made from iron; molybdenum, chromium, and nickel are the main alloying elements. To increase the life expectancy of the implant and to act as a protective coating, SS is coated with transition metal nitrides, such as TiN, VN, and TiAIN [79]. Austenitic stainless steels are the most widely used materials for orthopedic applications [147]. Large amounts of type 316L stainless steel are used for implant devices because they are less expensive than Co-Cr alloys, titanium, and its alloys by a factor of one-tenth to one-fifth times. Type 316L stainless steels (16–18% Cr, 12–15% Ni, 2–3% Mo) are austenitic stainless steels [148]. However, type 316L stainless steel orthopedic implants corrode in the body environment and release iron, chromium, and nickel ions [149]. SS can be used as fixed implants, such as those for artificial joints to aid in bone repair after undergoing some physical and chemical treatment. However, when we consider corrosion resistance in the human body, titanium alloys and cobalt chromium alloys are much better than SS [150]. Irene Buj et al. [151] stated that SS alloys are prone to deformation and cannot be hardened. Mantripragada V P et al. [79] and Sing S L et al. [152] mention that SS releases chromium and nickel to the body as a result of ageing.

4.2. Cobalt-Based Alloys

Cobalt-based alloys are mainly used as hip and knee implants [153]. In knee and hip replacements, cobalt-based alloys are widely used in ball-and-socket joints where motion occurs [154]. They have high wear resistance and great mechanical properties under static loadings [155]. ASTM F75 is a widely used cobalt-based alloy. Almanza et al. [156] found that the comparison of corrosion results for EBM-fabricated Ti-6Al-4V alloy and ASTM F75 Co-based alloy was similar. This material is also used as implant in dental parts, pacemaker lead casing, tibial trays, acetabular cups, and cardiovascular stents [79,157]. Bartolo P et al. [158] mention that wear and corrosion of cobalt-based alloys can lead to the release of metal ions into the body, and limitations on the complexity of components are their main defects.

4.3. Titanium and Its Alloys

Titanium alloys are one of the most important nonferrous materials that are used as orthopedic implants [151]. This is because of their high strength, rigidity, and fracture toughness. The oxide layer formed when Ti is implanted allows the titanium implant to integrate with the living bone tissues [157]. These alloys are commonly utilized in making surface components that do not bear weight, such as femoral necks and stems [159]. Titanium alloys typically contain traces of aluminum, molybdenum, vanadium, niobium, tantalum, zirconium, manganese, iron, chromium, cobalt, nickel, and copper [160]. The commonly used Ti-based alloys for making implants are Ti-6Al-7Nb, Ti-6Al-4V, Ti-13Cu-4.5Ni, Ti-25Pd-5Cr, Ti-20Cr-0.2Si, and so on [161]. They are one of the few materials that do not contain calcium phosphate and have been shown to calcify when exposed to simulate body fluids and, therefore, are expected to calcify in vivo also [79]. Titanium implants having calcium phosphate coatings on their surface show good fixation to the bone [162]. Xiaoliang Cheng et al. found that the formation of calcium phosphate deposit on the Ti surface decreased the corrosion rate [163]. Additionally Ti reduces failure due to infection, because of the increased antimicrobial property [164]. Lutjering G et al. [165] and McGilvray K C et al. [166] listed the defects of Ti, such as poor tribological properties, challenging process, unstable creep, and wear debris causing biological reactions. Meanwhile, Liu S et al. [167] and Hao Y L et al. [168] mention the disadvantages of Ti alloys, such as low stress shielding, high price, and poor tribological properties. However, the low elastic modulus of Ti alloys is well appreciable as it reduces the stress shielding effect [169]. Ti alloys are damage tolerant because of their mechanical and physical properties [146]. Taniguchi et al. [170] found the bone ingrowth of various pore sizes of Ti implants using SLM. Their intention was to find the best implant having the property of osseointegration, and they succeeded in their work. Later, Fousova M et al. [171] stated that SLM technology can achieve a mimicking of almost 60% porosity of the human bone.

4.4. Tantalum and Its Alloys

Tantalum is a transition metal. It remains relatively inert in vivo [172]. Tantalum-based implants have shown an exceptional biocompatibility and safety record in orthopedics [173]. Tantalum can also be alloyed with other elements, such as niobium- and nickel-based superalloys, to increase its temperature resistance and strength. Adding niobium to tantalum reduces weight and saves cost while maintaining good corrosion resistance [174]. Tantalum needs a bonelike apatite layer on the surface first in order to bond with bones [175]. It has the capacity to integrate with tissue, enabling the development of bone tissue; it has good biomechanical properties and excellent chemical stability [79]. It is currently seen to be an essential part of many of the best systems for enhancing the mechanical strength of the bone–implant interface and joint performance [176]. Alvarez K et al. [177] and Sporer S et al. [172] tell that the cost of Ta and its alloys is really high. Additionally, they mention that Ta has a high melting point, and this creates challenges while manufacturing implants.

4.5. Niobium and Zirconium Alloy

Niobium (Nb) and zirconium (Zr) alloys are new to this biomedical application field. Nb and Zr, which are recently introduced, have shown the ability to resist corrosion and exhibit crack propagation and fatigue strength in simulated body fluids [178]. When compared with TiN coating, it supports high adhesion [79]. Due to a large volume of the omega phase, the Zr-9Nb alloy was found to be brittle [178]. Zr has low magnetic susceptibility and low cytotoxicity [179].

4.6. Mg Alloys

Magnesium alloys have been using as biomaterial for many years [180]. The mechanical characteristics of magnesium are comparable to those of the bones [181]. Since magnesium is the fourth most abundant element in the human body, the degraded product of magnesium alloy can be stored in either fracture callus or new bone or can be eliminated into the blood to be excreted by urine without causing hypermagnesium [79]. Even though magnesium has its own advantages, its disadvantages highlighted by Elkaiam L et al. [182] Prasadh S et al. [183] withdraw researchers from trust Mg as a successful implant material. They point out defects, such as inadequate corrosion resistance, low elastic modulus, higher cost, moderate strength, and flammable character.

4.7. Other Metals and Their Alloys

Metals such as iron, zinc, and copper are also used in a few biomedical applications [184,185]. Their alloys are also available. However, due to several reasons, they are not used in a larger amount. For instance, iron cannot be hardened [112], zinc has low toughness and is brittle [186], and copper is expensive and difficult to print [187]. Even though aluminum oxidizes only until a passivated layer and has high oxidation rate [188], it has an impact on the acceleration and stimulation of Alzheimer’s disease [189]. Similar to these metals, gold and its alloys, which have high cost [190], and nickel and its alloys, having average biocompatibility [191], are also very less preferred for making implants. M Niinomi et al. [192] and Q Chen et al. [104] say that several studies have concluded that Ba, Fe, and Cr are toxic elements, while Ti and its alloys and stainless steel and so on are nontoxic and resistant metallic biomaterials. The combination of nickel–titanium shape-memory alloys called nitinol is highly biocompatible, which makes them materials used as orthopedic implants [193,194,195]. The shape-memory property of nitinol means that it has the potential to be used for applying mechanical stimuli for improved bone regeneration, or it can be used to provide a better fit into bone defects. However, a major concern with nitinol is the toxicity of nickel and potential carcinogenicity [177]. Moreover, it has lower strength especially after smaller expansions [196]. Furthermore, nitinol may form defective surface layers and lattices during fabrication [197].

Table 2. Properties of biomaterials used for making orthopedic implants.

Implant Material	Elastic Modulus (GPa)	Yield Strength (MPa)	Ultimate Strength (MPa)	Density (g cm−3)	Corrosive Resistance	Biocompatibility	References
Porous tantalum	2.5–3.9	35–51	50–110	-	Highly corrosive resistance	Excellent	[173]
Unalloyed tantalum	186	138–345	207–517	-	Highly corrosive resistance	Good	[198]
Cobalt–chrome (Co-Cr-Mo) alloys	220–230	275–1585	600–1785	8.9	Highly corrosive resistant even in Cl− environments	Excellent	[199]
Titanium and titanium alloy (Ti-6Al-4V)	110–119	850–900	960–970	4.5	Stable oxide layer (Titania–TiO2) on the titanium surface (2 nm thick)	Excellent	[200]
Stainless steel	200	215 MPa	505 MPa	7.6	Highly corrosive resistance due to high Cr content	Excellent	[199]

shows the properties of biomaterials used for making orthopedic implants.

From the authors’ perspective, the most promising and widely used materials for medical implants are Ti and its alloys. The section below expands the role of Ti alloys in the field of medical implants and their expansions.

5. Outlook of Titanium and Its Alloys

In this section, studies dealing with various outlooks of Ti and its alloys are reviewed based on the following classification scheme:

From the authors’ perspective, reviewing the literature related to the biomaterials shows that most studies discuss Ti and its alloys in making medical implants, such as in [201,202]. While few studies discuss structural defects in AM implants, such as in [203,204], and for design methodologies for implant AM, there are very few researchers studying the topology optimization of implants [205,206]. However, there are relevant studies available related to the involvement of AM for making implants using Ti and alloys [207,208].

Objectives Functions:

The following objective functions are reported in the current relevant literature:

Objective 1: AM application in orthopedics;

Objective 2: Titanium alloy in medical implants;

Objective 3: Biocompatibility of titanium and its alloys;

Objective 4: Use of titanium and its alloy as lower-limb prostheses;

Objective 5: Structural defects in AM implants;

Objective 6: Topology optimization of implants.

Using this classification scheme,

Table 3. List of the studies related to Ti and its alloys in making orthopedic implants.

Journal	AM Process							Objectives
	PBF	ME	VP	MJ	BJ	SL	DED	1	2	3	4	5	6
[209]	×		×	×		×	×	√
[210]									√	√	√
[211]	×	×		×	×		×	√	√
[212]		×	×				×	√					√
[213]									√	√	√	√
[214]							×		√	√	√
[215]								√
[216]	×	×	×	×	×	×	×	√
[77]	×						×	√		√	√
[217]									√	√	√
[218]							×		√	√
[219]	×			×		×	×						√
[220]												√
[221]	×						×				√
[222]	×		×	×		×	×	√
[223]									√		√	√
[224]		×		×	×		×	√			√
[225]						×		√
[226]							×	√	√	√	√
[227]									√	√	√
[228]			×				×					√
[229]											√
[230]	×			×			×	√					√
[231]		×					×	√			√
[232]							×	√				√
[233]													√
[234]								√	√		√
[235]												√
[201]	×			×			×			√
[236]			×		×		×		√	√
[237]													√
[238]												√
[239]										√
[240]							×	√				√
[241]		×	×			×	×					√
[242]	×						×						√
[243]									√	√		√
[244]											√	√
[245]													√
[246]										√		√
[247]							×		√	√	√

chronologically lists studies related to Ti and its alloys in making orthopedic implants. Relevant studies classified according to the AM processes used in the manufacturing of biomaterials are also listed in Table 3.

5.1. AM Application in Orthopedics

Upon the authors’ view, there is a high demand of orthopedic implants in the current world. Normal wear and accidents and aging force patients to use orthopedic implants [209,248]. Javaid et al. [77] say that AM is used in orthopedics for various uses, such as replication of the bone that aids in many bone therapies. In orthopedics, the patient-specific analysis is essential to have accurate medical imaging data of the individual patient. M Javaid et al. [77] mention that the first role of the 3D-printed model is to closely mirror the instances seen in the clinic and provide the surgeon with a thorough review. The basic application of such model is for testing the surgical procedures in advance for the surgeon, which provides to the surgeon a feeling of the mechanical response of a real bone. The application of AM in orthopedic surgery is very useful when compared with the traditional surgical techniques [247,249]. Better surgical management and accurate diagnosis are provided by this. It provides reproducible, reliable, and credible models that improve patient outcomes and reduce operating time. AM develops personalized prostheses and implants, which is more valuable in the field of orthopedics [250]. K Wong et al. [251] reveal that with a real 3D-printed physical model, the surgeon and the patient can now understand easily the medical conditions, which helps the surgeon obtain a tactile and visual expertise of the disease and anatomy unique to the patient. The application of AM in orthopedics is helpful for giving training to medical students and even for the doctor for a better understanding of the numerous types of fractures [77]. After the evolution of metal AM technologies, the orthopedic field is one of the biomedical fields that have received the most attention [234,252]. With the AM technology, the bone 3D images can be reconstructed, and by the layer-by-layer technique, a bone prototype can be obtained. Therefore, this plays an important role in medical and orthopedic surgery. Elahinia et al. [253] reveal that this technology has the ability to minimize the weight of the implant by changing the properties of the raw material; thus the patient feels comfortable. AM produces more precise implants, which will reduce the risk of the operation [254]. Patient-specific instruments can be made by this technology. The orthopedic surgeon can readily achieve a high-quality product that meets the necessary standards [230,255]. The benefits of metal AM for orthopedic implants include quick prototyping on the same platform as the production, aid in the rapid progression of novel designs and features [256], advanced mechanical properties [14], support for a customized health care [119], and economical feasibility as the specific implant of the patient can be manufactured in one build [77,257]. A case study was conducted by Anatoliy Popovich et al. [207] using selective laser melting (SLM) for making a custom-made hip implant. They used Ti-6Al-4V for the experiment. The authors reported that the SLM created a textured surface, which potentially improved osseointegration by areas with high specific surface. They also mention that SLM materials showed higher tensile strength but lower elongation to break as compared with the properties of Ti-6Al-4V obtained using EBM. This might due to the higher cooling rates during SLM, and this results in the formation of finer microstructures. Based on the findings of M. Vignesh et al. [258], the bioimplant manufacturing sector is categorized into four: laser or electron beam melting, paste extrusion technology, friction stir process, and photopolymerization. The authors believe that in less than 20 years, a fully functioning heart printed through AM will be available in the market. Moreover, they are expecting the possibilities of collecting stem cells from an infant’s teeth and using them for his entire life for organ and tissue replacements through AM.

The benefits and descriptions of AM technologies in orthopedics are shown in

Table 4. Benefits and descriptions of AM in orthopedics.

SI No.	Benefits	Descriptions	References
1	Cost effect	AM is capable of low-volume production, which will create complex and customized products with lower cost No expensive tooling is needed Cost-effective tools are available for orthopedics, which fulfills the customized requirement of the surgeon Consumer friendly cost for 3D printers	[77]
2	Specialized equipment for patients	By the bony anatomy of the 3D surface model, patient-specific instruments are made	[255]
3	Metal implant of different shapes and sizes	Metal implants can also be made from direct metal laser printing for orthopedics (DMLS) DMLS can print micro and macro structural implants	[77]
4	3D print model	Helps in studying the deformity and planning the surgery Helps the implant placement to be more precise	[259]

. Following this, the next session goes into the selection of Ti and its alloys in making medical implants.

5.2. Titanium Alloy in Medical Implants

It is evident that a lot of studies take place on the development of Ti and its alloys in biomedical applications. The most widely used Ti in medical field is pure Ti and alloy Ti-6AI-4V [243,260]. Ti alloys are widely used in medical implants because of their excellent biocompatibility and outstanding mechanical characteristics [179,236]. They are typically employed in implants that swap out hard tissue [227,261]. According to Yuan Bin et al. [262], NiTi alloys can change their shape after implantation. The beta-type Ti alloy used for biomedical application consists of nontoxic and affordable common metals, such as Mn, Fe, Si, and Sn, which have high strength, are highly corrosion resistant, and have low Young’s modulus [180]. Due to the high oxygen solubility of Ti, the surface of the Ti components can be hardened easily through inward diffusion of oxygen by heating in air. This will also result in the formation of a TiO2 surface passivation layer and increase the biocompatibility and make the Ti implants more corrosion resistive [210,263]. Titanium alloys are safe for both humans and animals. The first-generation Ti alloys have shown allergies. Therefore, the second-generation beta Ti alloys are far better than the first generation [264]. These alloys are much harder [104]. The chemical composition, surface roughness, internal pore size, and porosity of titanium and its alloys have a direct impact on osteoblast migration, proliferation, adhesion, and differentiation [265].

H Matsuno et al. [266] say that Ti alloys have substantially higher stiffness values than the cortical bone. Among all the metallic biomaterials, Ti is the only metal that can form a bond with bones [213,264]. Due to its advantageous characteristics of high strength, stiffness, fracture toughness, and dependable mechanical performance as replacements for hard tissues, it continues to be one of the most crucial components utilized in orthopedic implant devices. It is stable and insoluble in vivo [226,267]. D. Mccutchen et al. [268] conducted a study of the wear properties and friction of alpha titanium and showed poor wear characteristics for unalloyed titanium and common Ti alloys. From the view of Z Liu et al. [269], Ti alloys are still under development. Meanwhile, porous Ti alloys are used widely as orthopedic implants because of their property of good biological fixation with bone tissue ingrowth into the porous network [211,270]. They allow close apposition of the bone under proper conditions, as bioinert material. This procedure is called osseointegration. Titanium grade 2 is mainly used in orthopedics and prosthesis implants [271,272].

Niinomi et al. [273] mentioned that β-type Ti alloys have low stiffness, great cold workability, and high strength. As a result, low-rigidity β-type titanium alloys have a high scope of research and development. For the purpose of justifying the benefit of reduced stiffness for bone remodeling and repair, Hatori T et al. carried out some experiments on rabbits to evaluate the bone tissue reaction to new β-type titanium alloys. Utilizing rabbits, an experimental tibia fracture was generated by oscillating a saw at a point slightly below the tibial tuberosity. An intramedullary rod made of low-rigidity Ti-29Nb-13Ta-4.6Zr, Ti–6Al–4V ELI, or SUS 316L SS was inserted into the intramedullary canal to fix the fracture. Bone remodeling, atrophy, and healing were observed every 2 weeks by X-ray image transmission up to 24 weeks. The results are shown in Figure 7 [274,275].

In Ti-29Nb-13Ta-4.6Zr, it was found that the fracture callus pattern was extremely smooth with bone remodeling. A similar behavior was seen in Ti-6Al-4V ELI and SUS 316L after 8 weeks. In Ti–29Nb–13Ta–4.6Zr, the amount of callus fracture was relatively small and decreased steadily after 6 weeks, and then no signs of fracture were found after 10 weeks after fixation. No difference could be detected after 10 weeks, up to 18 weeks. However, a little atrophic shift in the posterior tibial bone was noticed after 20 weeks. The callus development and bone remodeling in Ti-6Al-4V ELI were slower than in Ti-29Nb-13Ta-4.6Zr, but they were virtually identical to those in Ti-29Nb-13Ta-4.6Zr. A little atrophic shift was reportedly seen at 18 weeks. A large amount of the fracture callus was observed in SUS 316L stainless steel and remained until the end of the current cycle. At 10 weeks, bone atrophy appeared to occur in the posterior proximal tibial bone, which became evident every 2 weeks. At 24 weeks, the posterior tibial bone started to become quite thin. Therefore, it was observed that the load transfer issue of the existing metal implants with high stiffness may be improved by the low-rigidity Ti alloy and Ti-29Nb-13Ta-4.6Zr. This proves the mechanical biocompatibility of low-rigidity Ti alloys for biomedical applications.

5.3. Biocompatibility of Titanium and Its alloy

The mechanical biocompatibility of Ti metal implants should be enhanced for long-term usage [237,243,276]. Studies and developments are taking place in order to increase the biocompatibility of Ti alloys. For achieving excellent blood compatibility, V. Manivasagam et al. [277] mentioned that biopolymer surface improvisations are to be carried out on Ti alloys. They also revealed that this surface modification is performed via chemical bonding, and if this surface modification is conducted successfully, then a high-endurance extended life scaffold for artificial organs may be created through incorporation with tissue engineering.

Niinomi et al. [273,278] say that in order to perform this surface modification, phosphate-calcium-type ceramics, such as HAP phosphate calcium, are mainly coated on the surface of titanium to get the formation of HAP, which increases the biocompatibility of titanium. The biocompatibility of the implanted surface depends highly on the initial immobilization and possible structural changes of mediating proteins at the implant surface [239,279]. The surface modification process not only helps in increasing the biocompatibility, but also helps in shortening the healing time after implantation and also helps in the improved bone bonding of the implant. Sobieszczyk et al. [280], based on their findings, have proven that oxygen and helium implantation can improve the biocompatibility of titanium and its alloys. Kulkarni et al. [281] state that the surface modification process for titanium can be performed by various methods, such as chemical, physical, and mechanical methods. Mohammed et al. [282] list some surface modification processes used to increase the biocompatibility and other features of Ti, such as chemical vapor deposition, laser cladding, thermal oxidation and thermal spraying, plasma spray, ion implantation, micro-arc oxidation, sand blasting, and electrochemical treatment. From the observations, it was found that the biocompatibility of Ti and its alloys is appreciable. Hence, the use of Ti and its alloys can be promoted in making lower-limb prostheses.

5.4. Use of Titanium and Its Alloy as Lower-Limb Prostheses

The majority of limb salvage surgeries can be completed with the use of modular prostheses; however, customized prostheses are still required [231]. Cronskar et al. [283] made Ti-6Al-4V hip stems using EBM. The authors found that the fatigue limit is reduced as compared with the conventional machining process. M. Galati et al. [284] created a full factorial design of an experiment model and made a deep investigation of surface roughness to obtain analytical predictive models. The proposed models are useful for predicting the surface roughness of Ti-6Al-4V components manufactured using the EBM method. They concluded that the final surface texture is greatly influenced by the surface design, which also has a substantial impact on heat transport. Lebea et al. [285] performed an experimental investigation into the effect of surface roughness and the mechanical properties of 3D-printed Ti alloy after heat treatment. They compared the performance of implants manufactured by EBM and direct metal laser sintering methods. It was observed that higher surface roughness results in lower mechanical properties, ultimately leading to decreased implant life and poor performance. Riwa et al. [269] reviewed the mechanical properties and characterization of laser-based powder bed–fused Ti lattice structures. They used bending, compression, and tensile tests for obtaining the results. The authors observed that the lattice structures have low weight, good mechanical properties, and energy absorption capabilities that make them suitable in the fields of biomedicine. Murr et al. [286] and Liu et al. [287] used EBM porous structures for knee replacements and found Ti alloy as a suitable material for the purpose. Ruppert et al. [288] compared femoral heads made using EBM and SLM and found that coarse EBM implants have higher removal torque as compared with fine implants made using SLM. Moreover, a study conducted by Goswami et al. [289] found that a femoral stem made of Ti alloys with elliptical and circular cross sections had reduced stresses over materials, such as Cr-Co-Mo and stainless steel 316L. The next section gives a brief idea about the structural defects in AM implants.

5.5. Structural Defects in AM Implants

There are certain critical regions in HIs that tend to become cracked and fail in the future. Identification of these regions and redesigning them is a challenge for many researchers. According to C Gao et al. [250], even though normal prostheses have had significant success in orthopedics, several issues still need to be resolved, such as implant osseointegration issues and the inability to completely repair bone defects. They may cause implant failure and even implant revision [290]. The implants can be customized to overcome bone defect according to the 3D data. This can be treated by a CAD software for the model and TO [291]. Tanisha Pereira et al. [292] concluded that AM-made implants have less structural defects as compared with other traditional methods. Among the researcher groups, Babic et al. [293] investigated by applying linear elastic finite element analysis the maximum tensile and compressive stresses in HI. The CAD model was prepared by 3D scanning, and loads were taken as per ISO 7206-4 standards for investigation. They found that the lateral side of HI has maximum tensile stresses, while compressive stress is maximum on the anterior medial side in which the fatigue cracks are being developed. A study carried out by Sedmak et al. [294] analyzed the number of cycles a Ti-6Al-4V HI endures after a crack first appears by performing normal walking. Loading conditions of 2.040 and 3.845 KN were taken as the values for slow and normal walking to analyze the finite element analysis of the prosthesis. The results showed that after 80,022,270 cycles, an initial crack growth of 0.5 mm was created, leading to a fracture point growth of 18.5 mm. Pimenta et al. [295] investigated the failure of total hip replacement in a 62-year-old patient with the help of finite element, mechanical, and microstructural analysis. The pits present in the implant surface were the reason for the fatigue that initiated the fracture of HI. Nadia Koura et al. [202] talk about the CT scanning method that gives pertinent information about faults with AM acetabular hip prostheses such as fractures and porosity in the main part of the body and about powder trapped inside the porous structure. They mention that these defects can be identified during the preparation of image processing. The method described in their paper concentrates on the porous structure of AM acetabular hip prosthesis with image processing. They presented the frequency of occurrences of each pore and strut size in histograms, and it seems that the results are appreciable. AM Vilardell et al. [296] found small pores up to 0.5 mm and total porosity up to 1%, which makes no difference in the strength of AM implants. The authors came to the conclusion that failure mechanisms are mostly controlled by the microstructure and that the component shape and surface roughness are more significant factors. Small porosity can occasionally be present without harming the strength or ductility under static loading circumstances. The strength and ductility decrease with increasing porosity, and failures are more likely to start at the biggest pores [297]. In most studies, it was visible that porosity has a greater impact on ductility than strength. Based on the findings of A Du Plessis et al. [298], X-ray tomography makes it simple to determine the types and sizes of pores, and only the largest pores are really important. To overcome the structural defects, it is a better option to make a defect-free CAD model before the AM process. The next session deals with the TO technique, which helps in making error-free models of HI for the AM process.

5.6. Topology Optimization (TO) of Implants

TO is used for the shape optimization of mechanical structures [299]. This optimization method is suitable for the design stage of a new part since it can investigate novel ideas and solutions in regions where researchers meet difficulties [300]. It takes a 3D design space to reduce the material within it to achieve the most efficient design [237]. N. Gardan et al. [212] say that for the most part, with TOs, it is the case that we want to maximize stiffness while reducing the model’s volume. By reducing the strain energy in the model, the stiffness is increased. It is also feasible to focus optimization on different goals, such as certain eigenfrequencies or local displacements. Naichao Wu et al. [233] define TO as a technique that can provide more efficient material distribution according to the objective function under the special load and boundary conditions. They mention that many researchers have paid close attention to TO for the optimal design of orthopedic implants. Moreover, development of AM helps to make the complex structure of the TO design easily. In their study, M. Belwanshi et al. [301] say that finite element analysis enables the design and optimization of the HI model to improve its strength by optimizing stress and strain distribution. They found that the TO technique was taken by some authors for achieving results, as shown in Figure 8.

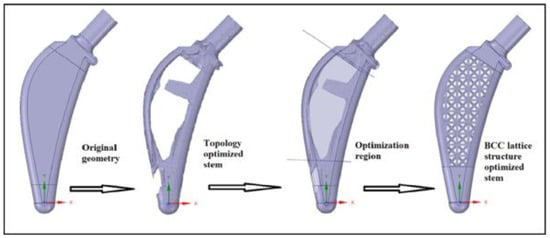

It was observed that many researchers followed TO, such as Milovanovic et al. [302]. They investigated five Ti-6Al-4V HIs having various neck diameters for reducing the stresses that result in crack formation and then by failure of implants by reducing the neck thickness. The results showed that a neck having 9 mm thickness has reduced stress as compared with other samples. From the study, it can be easily mentioned that the reverse engineering process helps in the design and optimization of implants having better mechanical properties. Meanwhile, N Kladovasilakis et al. [245] conducted the TO of HI; then they modelled bioinspired lattice structures. The name of the lattice structures is as follows: Voronoi, Gyroid, and Schwarz diamond. Finite element analysis was carried out for finding the mechanical strength. The experiment shows that the Schwarz diamond lattice was the best suitable lattice having the least amount of stress. In a study conducted by Nathanael Tan et al. [303], the focus of their paper was to develop a multiple-load-case TO approach for a hip implant design, rather than to produce a specific “best” design. Two proof-of-concept designs were created using a TO method that was devised and applied to the construction of the femoral hip stem. These designs are drastically different from one another, yet they both reduce stiffness in comparison with a conventional solid implant. It was observed that more load transfer in femur with reduced risk of strain shielding can be made available by designing HIs with the TO technique.

6. Discussion

Reviewing publications related to AM and HIs shows that the majority of the studies investigated the possibility of using Ti and its alloys for making ideal hip prosthesis. A superior biocompatibility and osseointegration property make the material more attractive. However, the life and mechanical properties of HIs need further improvisation by reducing the wear. Here, the critical regions that initiate crack propagation and fatigue failure can be redesigned and optimized for improved efficiency. The most relevant findings of this study is TO, which can be used to design implants with increased compliance for reduced stress. The fixation devices that help to reduce implant failure can also be studied as part of future investigations.

Other research groups have found that:

• The most recent manufacturing process is electron beam melting [304,305,306,307,308]. It is a useful method to directly manufacture customized orthopedic implants of Ti. It can improve the effectiveness of limb salvage surgery for sarcomas in usual sites [309].
• The mainly used AM technology in the manufacture of metal implants is DED [119] and PBF [310]. However, laser PBF, which is also called SLM, is widely used for making Ti and other metal alloys for implants, because this process provides an advantage of manufacturing complex structures with a customized design [311].
• AM is recently used for a number of biomedical applications, such as printing of biodegradable tissue and planning of surgical operations, but most importantly, it is used more in the development of orthopedic implants [312].
• Most of the studies say that titanium possesses greater mechanical properties and stiffness compared with natural bone, which may result in the failure of an implant [313]. Hence, alloying is necessarily important. Even though titanium is more expensive than other metals and it has poor wear resistance, it is mainly used as a metal implant because it adapts well to the human body when it is implanted [314].
• Some surface modifications are needed for Ti and its alloys in order to achieve better bonding with the human body. Surface chemistry, surface potential, surface roughness, surface conductivity, and surface energy are the needed modifications. These modifications cause protein adhesion and biofilm formation on the implants, which will lead to the change in biocompatibility and then lead to the ultimate success of the implant [315,316].

7. Conclusions

Reviews on state-of-art studies on the AM-associated design and fabrication of HIs lead to the following conclusions.

• According to the general agreement on the results, AM is a successful method used in orthopedics mainly for the replication of bones. AM improves patient outcome and creates reproducible models with reduced operating time. Even though ME, PBF, VP, BJ, MJ, and SL each have their own advantages, from the authors’ perspective, DED is the most efficiently used AM technique for making metallic implants. DED has the ability to control the grain structure, so the process is highly recommended for the repair of high-quality functional parts. The laser and electron beam can be controlled very precisely. The DED process also allows for the creation of components with composition gradients or hybrid structures using multiple materials with differing compositions.
• Ti and its alloys are suitable for making HIs using the AM process. Their biocompatibility and biological inertness are appreciable. However, notch sensitivity and poor wear resistance, when compared with other metals, make Ti and its alloys remain hurdles in a successful implant osseointegration.
• According to the major observations of the researchers, the reverse engineering process helps in the design and optimization of implants with better mechanical properties.
• This review reveals that increasing the porosity inside the HI results in the reduction of strength and ductility, and therefore, failures are likely to initiate at the largest pores. Such defects can be overcome by using an optimization method, such as TO, for the design of HIs.

From the analysis, it can be concluded that Ti-based HI made using AM holds a brilliant promise in the field of bone replacements, in particular, regarding process efficiency and product quality. Therefore, an extensive study is required to understand the ability to produce lightweight HIs with design improvements and will be performed in future research.
