A Review on the Processing of Aero-Turbine Blade Using 3D Print Techniques

Department of Metallurgical and Materials Engineering, National Institute of Technology, Rourkela 769008, India
School of Mechanical Engineering, Kalinga Institute of Industrial Technology, Bhubaneswar 751024, India
Department of Mechanical and Manufacturing Engineering, Manipal Institute of Technology-Manipal, Manipal Academy of Higher Education, Manipal 576104, India
Authors to whom correspondence should be addressed.
J. Manuf. Mater. Process. 2022, 6(1), 16;
Received: 20 December 2021 / Revised: 13 January 2022 / Accepted: 17 January 2022 / Published: 21 January 2022
(This article belongs to the Special Issue Advances in Material Forming)


Additive manufacturing (AM) has proven to be the preferred process over traditional processes in a wide range of industries. This review article focused on the progressive development of aero-turbine blades from conventional manufacturing processes to the additive manufacturing process. AM is known as a 3D printing process involving rapid prototyping and a layer-by-layer construction process that can develop a turbine blade with a wide variety of options to modify the turbine blade design and reduce the cost and weight compared to the conventional production mode. This article describes various AM techniques suitable for manufacturing high-temperature turbine blades such as selective laser melting, selective laser sintering, electron beam melting, laser engineering net shaping, and electron beam free form fabrication. The associated parameters of AM such as particle size and shape, powder bed density, residual stresses, porosity, and roughness are discussed here.

1. Introduction

A turbine blade is a discrete component of a gas or steam turbine engine. A series of aerofoil shaped blades are inserted in a slot of a disc that is mounted on a rotating shaft. The aerofoil shaped blades are designed to provide sufficient space between the adjacent blades so result in steady acceleration of the flow of fluid. These blades extract heat from the high temperature and high-pressure fluid flowing in between the blades. The turbine engines operate at very high temperatures of about 850–1700 °C [1], which are above the melting point of many materials. On the other hand, the housing of the turbine is subjected to a huge amount of vibrations, centrifugal forces, stresses, oxidation, and corrosion at high temperature. Such prevailing extreme conditions inside the turbine engine during operation are important parameters for the selection of materials. Hence, gas turbine blades are manufactured using exotic and expensive materials such as precipitation hardened Ni-based super alloys that can best fit for high-temperature applications. These super alloys develop strength at high temperatures due to the precipitation of hard phases. Considering all metallurgical factors, researchers and manufacturers are looking for efficient and profitable turbine manufacturing. Hence in the case of gas turbine engines, the design and manufacture turbine blades is a crucial activity. In conventional manufacturing techniques, the buy-to-fly ratio is about 20:1 [2]. For example, if one ton (1000 kg) of material is used in production, only 50 kg ends up in the final part. As the quality control around the turbine blades is very stringent, the remaining materials require reprocessing and recycling. The production of these blades is also a complex process and is traditionally performed with two main manufacturing techniques: precision investment casting and precision machining. The investment casting (IC) technique begins with pattern making, followed by shell making, dewaxing and pouring, knockout, heat treatment, and the finished preformed part. The required patterns are made from wax. The shell making involves applying and drying several layers of material followed by dewaxing and shell burning. Hence, currently, the IC process is a slow process that consumes around 70 h, depending on the size, quality, quantity, and material of the component. Meanwhile, the precision machining manufacturing technique achieves the final geometry by machining operations to fit the shape. Final parts require chemical cleaning to detect abnormalities and defects in fabricated parts. Currently, IC can fabricate parts with superior surface finish, dimensional accuracy, and shape complexity. In addition, the aerofoil shape production requires multiple machining and precise machining, which adds to the production costs. The shape of these blades is crucial to the engine’s performance, making the control on design a critical step in the entire process. As the demand for energy increases, the high-performance turbine blades consists of complex, high-tech designs that should be robust and powerful; resistant and reliable even at temperatures beyond the melting point. Thus there is a need for newer production techniques to make efficient turbine blades. In this regard, several manufacturers have explored additive manufacturing as an alternate choice to conventional techniques to tackle these issues and produce better-performing and more sustainable turbine blades.
Additive manufacturing (AM) is a technology of transforming a 3D CAD model to a physical one directly by successive addition of the required material in a layer-by-layer manner. Initially, the technology was aimed at making prototypes of the design as quick as possible and was known as rapid prototyping (RP). Eventually, the scope of RP extended to tooling as well as the manufacturing of parts and products. Today, AM has become an integral part and an important contributor to Industrial Revolution 4.0. The fabrication of functional prototype can sometimes take up to several months as engineers have to design and produce tooling such as molds. This can be reduced by considering AM, where the processing time can be reduced to more than 50%. The best example would be the development of turbine blades at Siemens in 2017 [3]. By incorporating 3D printing to develop and test functional prototypes of gas turbine blades, the development and validation time for the component was significantly reduced from two years to just two months. The other key benefits of AM that make it a choice of manufacturing in the case of critical applications are the design freedom of AM, reduced wastage of material compared to subtractive manufacturing, and significant weight reduction in the parts by the application of principles of ‘Design For Additive Manufacturing’ (DFAM). Such contributions are essential for aerospace applications. Through the application of DFAM principles, part consolidation can be achieved. Such parts are made in solitary constructions by the consolidation of structural and functional parts. Incorporating parts in this way reduces the number of hurdles in assembling these complicated designs. Some of the literature [4] has shown this result in a report in which 855 single parts were combined into 12 parts. As a result, it significantly reduced the weight by 45 kg, a 20% improvement in fuel consumption, resulting in a 10% increase in power output, greatly simplifying engine maintenance. The reduction in material waste was ensured by the application of DFAM and this exact material waste reduction promoted the decrease in cost production [5]. As a consequence, there has been a shift toward additive manufacturing for the production of complex engine parts and components including turbine blades. The overall ease in assembly simplifies the maintenance of these engines, leading to benefits associated with the higher availability of spare parts. AM allows for the design of different types of inbuilt cooling ducts or parts inside the turbine blade. Figure 1 shows various types of AM processed turbine blades as the design approach is incompatible with many conventional manufacturing techniques due to the constraints for producing the optimized design.
The main purpose of this review is to provide information on the various additive manufacturing processes that can enable the manufacture of turbine blades. The effect of operating parameters of various AM processes on the properties of the turbine blade has been discussed.

2. Current Scenario of Turbine Blade

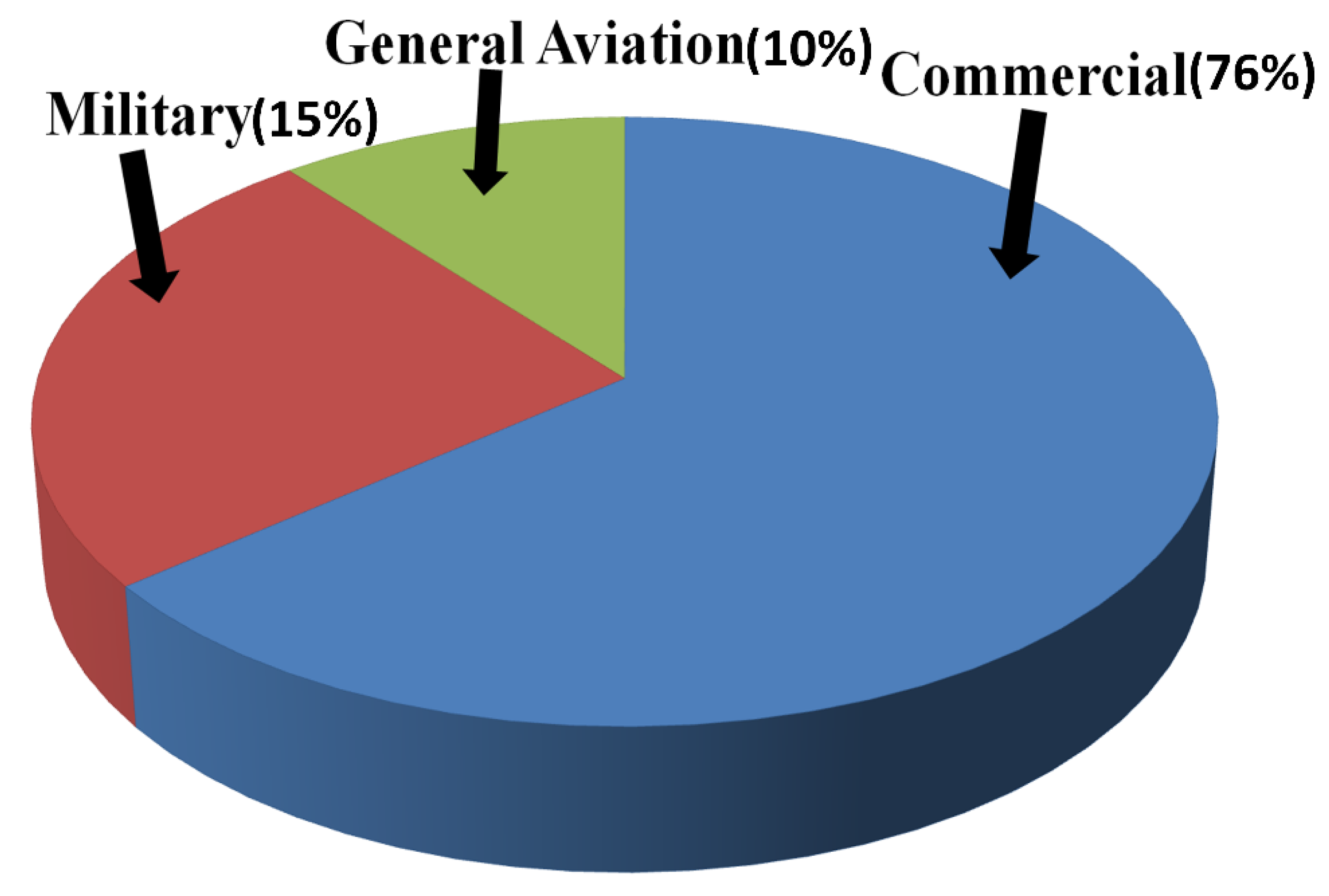

The turbine blade market, being dominated by the aerospace sectors, is expected to grow at a decent pace over the next few years. The AM field is estimated to grow from $16 billion to $40.83 billion by 2024 [8] and in a decade, it is expected to reach $80 billion [9], with the aerospace industry contributing significantly to this growth. Aerospace industries are adopting AM technology for prototyping, testing, and also end-use parts. The aerospace industry accounts for over 12.3% of world AM production. The thirst for high strength-to-weight ratio materials and durable materials never ends for aerospace industries. 3D printing is enhancing prototyping, production as well as the maintenance of turbine blades. Currently, the materials used to manufacture turbine blades are high melting temperature alloys, which are difficult to cast and machine. Therefore, the ability to process higher temperature alloys such as Ni-based, Co-based alloys, and intermetallic materials with flexibility is a desirable characteristic of AM. The ability to produce complex components with these materials can incorporate complex designs. Furthermore, the current construction time of monocrystalline structures can vary from 60 to 90 weeks [10]. Therefore, the reduction in production time can decrease the cost of production and increase productivity.
Engine blades are classified into three types: compressor blades, turbine blades, and fan blades used for commercial, military, and general aviation applications [11,12]. The growing demand for new generations of aircraft requires an increase in blade production as the aging fleets are being replaced every day. Demand is increasing as passenger air traffic around the world forces airlines to evolve to maintain profitability. According to Boeing, more than 17,000 aircraft are expected to be delivered over the next two years. Additionally, increased military funding is helping military aircraft developments around the world gain a head start. The Boeing 777X and Comac C919 are powered by General Electric’s GE9X. The developed engine has 3D printed low-pressure (LPT) turbine blades. Leading companies in the aircraft blade market are General Electrical Company, MTU Aero Engines AG, Collins Aerospace, and Safran SA. The advancement of lightweight blades and fan structures supports the growing market. The general geography centered on the AM blade includes North America, Europe, Asia-Pacific, Latin America, the Middle East, and Africa [13]. Figure 2 shows the percentage of global demand for aeronautical turbine blades in the commercial, military, and general aviation sectors.

3. Design Development of Turbine Blade from Traditional to 3D Print Mode

Turbine blade design plays a vital role in achieving maximum efficiency of the gas turbine. Several factors affect the performance of the turbine. Since the operating temperatures are very high in the gas turbine engine, material selection is a crucial step. The metallurgical factors such as composition, structure, and property of the materials for turbine blades fall into one group. In the other group is the structure of the blade that can facilitate efficient cooling of turbine blades. The Conway engine marks the first application of the blade cooling concept that allowed designers to remove the parameter of the metal melting point as a constraint factor. As a result, the blades were able to operate at a higher turbine entry temperature (TET), thereby improving the thrust and efficiency of the gas turbine. The summary of the significant amount of literature on the evolution of turbine blade design that is focused on improving the performance of the turbine blade is presented in Table 1. The earlier generation turbine blades were operated at temperatures of 820 °C. Later, with the advent of technology and materials, newer blades could operate at 1370 °C. In the modern era, with the implementation of advanced materials, design, and processing, current turbine blades such Snecma M88, a military aircraft, operate at 1590 °C [15]. Gas turbine blades operate in complex high pressure and temperature environments resulting in high rotational speeds. Resonating vibrations and high stresses are generated due to the high centrifugal forces of fluid. The extreme design conditions imply the high risk of failure of the blades [16]. The environment increases the susceptibility of creep failure, corrosion, and fatigue due to the presence of turbine vibrations in the engine. The architecture of the material helps to improve engine performance. Complex cooling systems (CS) can help improve blade heat management and improve engine TET. Furthermore, the production of these complex cooling systems is a major challenge using the conventional processing techniques [17].
During the 1940s, the development in the field of super-alloys and the invention of new processing methods such as vacuum induction melting contributed significantly in enhancing thermal load capacity of turbine blades. Later, during the 1950s, methods such as hot isostatic pressing were popular methods of processing turbine blades. As a result, one could see the improvement in the microstructure and performance of super-alloys. Today, high-efficiency modern engines generally use Ni-based super-alloys that contain chromium, cobalt, and rhenium. In addition, the ability to produce directionally solidified (DS) and single crystal (SC) is a breakthrough in this field. Such processes and the resultant microstructures greatly improved the fatigue and creep resistance while eliminating grain boundaries by aligning them in one direction, hence resulting in a single crystalline structure. Single crystal research began with Pratt and Whitney. The hard work of about ten years of development was implemented in J58 engines. These J58 engines of the legendary SR-71 “Blackbird” were among the first implementations of DS technology [18]. Following the discoveries of DS and SC, thermal barrier coating (TBC) technology was another milestone in the development of turbine blades. The TBC shielded the substrate material from corrosion and oxidation, which are crucial factors at higher temperatures. In 1970, these initially experimented TBC were used in engines as aluminide coatings. In the 1980s, ceramic coatings with improved properties were implemented. The temperature capability of the turbine was improved by 90 °C during the application of coatings and in some cases, the life of the blade improved two-fold [19]. When the pressure ratio was constant in the engine, the efficiency of the engine increased. However, damage to the blades at higher operating temperatures by centrifugal forces weakened the blade, alerting to the need for the cooling of the turbine blade during operation. With the thermal barrier liner in place, passing air or liquids through the blade cavity is a good technique for cooling the blade. The higher specific heat of liquids makes them an attractive candidate for cooling application, but there is a risk of problems such as leaks, corrosion, and choking, which are the limitations of the approach. Conversely, air cooling allows for airflow to and from the chambers easily without the risk of choking. This technique allows the blade surface temperature to decrease by 200–300 °C with the help of about 1–3% of the air passing through the engine. Various techniques such as convection, film, transpiration cooling, cooling effusion, and pin fin cooling are additional methods of blade cooling. Since the different techniques have numerous advantages and disadvantages, the techniques use compressed air to cool the blades. The various cooling processes in turbine blade design can be found in Table 1 and the basic cooling designs are discussed below.
  • Internal cooling design: The convection cooling design uses cooling air that passes through the internal ducts of the blade, as shown in Figure 3a. Heat is extracted from the turbine blades via the convection process and the air moving through the blade also helps to decrease the blade temperature. To make this technique work effectively, the parts should contain large surface areas. The path of the air moving through the blade tends to be coiled spirally and complete with small fins. The shape of the passages inside the blade can be elliptical. Air travels from the hub through the tip of the blades to cool the blade design. However, the hot air outside the blade is relatively hot as it flows through the cooling channels and merges with the primary flow at the blade tip. Different convection cooling methods are available such as impinging design, which hits the inner surface with high-speed cooling air jets. Continuous air circulation improves the heat transfer rate compared to convection heating. The first set of blades in the turbine section experiences the highest load on the turbine. Therefore, the maximum temperature is observed at the leading edge of the blade and hence experience the thermal load. The central chords of the blades also use the technique of impact cooling (Figure 3b). The blades are hollow with internal cores and channels. The cooling air enters the leading edge and cools the fins that pass through the trailing edge [20].
  • External cooling: In addition to the cooling with techniques such as convection and impact, external cooling, also referred to as film cooling, is adapted. Air circulates through the small holes in the blade to decrease the temperature of the blade. The cooling air forms a thin layer on the outer surfaces of the blade. The heat energy transferred to the blade can exceed the melting point of the blade material of the blade whereas the heat extraction process improves the material ability and enhances the TET of the blade. Figure 4a shows the design of the film cooling turbine blade. The cooling efficiency is considered as the ability of the cooling system to extract heat from the blade surface. This efficiency depends on various parameters such as the flow of the coolant through the structure and the injection, velocity, momentum ratios, and density of the coolant. The injection geometry parameters have holes and slot geometry with injection angles. In the 1970s, the United States Air Force program funded several projects to develop the turbine blade for the military aircraft engine, which included both convection cooling and film cooling, which has become common for modern turbine blades [22]. Isentropic efficiency, air compression, and cooling systems increase the complexity of engine cooling. All of these factors contribute to the increase in overall engine performance as the TET continues to increase. Recently, researchers have recommended the application of a plasma actuator to cool the film [23]. In the design of effusion cooling, the surface of the blade is fabricated with materials consisting of porous structures that improve the surface temperature. The cooling air flows through the porous holes in the structure to generate a boundary layer on the blade surface. As the coolant circulates over the surface of the entire blade, uniform cooling is achieved. Figure 4b shows the design of the cooling of the blades by effusion. In the finned cooling design, the film-cooled trailing edge improves heat extraction of the entire blade. The design consists of pinholes and substructures to improve the cooling rate. Heat transfer occurs through the array of pin holes as well as the side walls. As the coolant flows through the fins at high speed, the separation of flows due to the fins produces wakes. Heat transfer depends on the type of fin pin used and the spacing between the fins. Transpiration cooling also generates a thin film of cooling air on the blade, which makes it similar to film cooling, but differs in that the air is ‘leaked’ using a porous shell rather than being injected through the holes. At higher temperatures, these cooling methods become effective because they form an even blanket of cool air on the blade. Transpiration-cooled blades are generally made with pores and strong structures. Therefore, the air must circulate through the various internal channels present in the structure before passing through the porous shells and finally cooling the turbine blade. The cooling of the film, the amount of air pushed through the blades, and the efficiency of the engine are related in such a way that the optimization is necessary to maximize the performance of the engine [20].
The arrangement of the ducts is an important parameter observed within the turbine blade. The blades in the Rolls-Royce Trent 500 turbojet engine, which have found their main application in the Airbus A340-500/600 commercial aircraft, feature a serpentine multi-pass design, as shown in Figure 5. Such revolutionary shift from single-pass convection cooling technology during the 1960s broke the barrier of consideration of the melting point of metal as a limiting parameter in the design of TET [68]. This serpentine cooling feature was further developed in subsequent Trent engines. Airfoil cooling of these blades is provided by the multi-pass serpentine design and film cooling. As the TET of these engines exceeds 1500 °C, parallel cooling passages are present to cool the blade shroud. Additionally, the presence of complex 3D shaped film holes present on the leading and trailing edges increases cooling. The thermal capacity of the blades greatly improves when the materials are cast into a single crystal and coated with thermal barrier coatings (TBC) [10]. The unique design features observed in the turbine blade design were temperature margins, coolant supply, and blade tip design. First, the temperature margin characteristic refers to the relative reduction in the coolant inlet temperature when the pre-turbulence nozzles orient the direction of the cooling air in the rotational path of the blade. This causes air to expand in the channels as it absorbs heat to decrease the temperature in the blade before exiting the cooling passage with high velocity. Second, some prefer coolant while Rolls-Royce prefers to use the air present on the high pressure (HP) and low pressure (LP) side to cool the blade. The leading edge, which supports most of the load during service, is cooled using HP air that circulates in the main cooling circuit by providing film cooling. The LP air is responsible for cooling the leading edge with convection cooling. With one major drawback of the thermal stresses produced by the temperature difference of the HP and LP gases, engineers must optimize the trade-off between performance and drawbacks. Finally, the blade tip design is also an important criterion, as turbine performance weakens with over tip leakage (OTL) and leak vortex. These leaks occur due to the gap between the tip of the rotating blade and the turbine housing and the pressure difference on both sides of the blade caused by the gap. Rolls-Royce has also patented a tip sealing method for unshielded turbine blades, which is often used in military engines to minimize tip leakage. It features a gutter on the tip of the blade that during operation will trap the leak flow in the gutter. As a result, a vortex is created that guides the airflow through the gutter to the trailing edge toward an exhaust. This allows for leakage from the tip and avoids the leakage flow in the mainstream [69].
Gradually, thermo-mechanical simulations of generalized honeycomb materials were used to derive the design that was applied to local properties to reduce the development of stress during operation [71]. Consequently, a significant lowering of maximum temperature and stress during the operation was reported. Furthermore, uniform stress and temperature profile were observed due to the replacement of hollow air channels with porous structures that also help to support the structural load, better heat conduction throughout the blade, and greater surface area for the transfer of heat. In addition, design optimization to reduce the weight of any component can improve operational efficiency. However, the architectural materials of turbine blades currently face three limitations. First, the study reports that homogenized stress within the honeycomb and locally present stress concentrations are neglected. It was also observed that some significant stress states were present. Second, the smooth transition from one domain to another is not taken into account. Finally, the simulations take into consideration only the static loads and their responses [72]. The findings in the study generate interest and encourage further design studies. It fits perfectly into the area where the most actively sought rails to improve turbine engine efficiency. For military aero engines, a unique tip sealing configuration is patented by Rolls-Royce for turbine blades, differs from the orthodox flat tip or the creaking tip, and is applied to the EJ200 HPT blade design as the technique reduces air leaks from the tips. As described in the patent, a gutter is present in the tip of the blade that is wider than the blade in comparison to the trailing edge of the blade, and a section of the gutter diverts the air toward the lateral pressure. In the application, the gutter traps the escaping gas. This creates a vortex and allows air to pass through the gutter channel and exit through the trailing edge [73]. There is a need for an optimized blade design to increase the efficiency of cooling and loading during the service of the turbine blade. In this regard, a different approach from the conventional techniques is essential. Various manufactures have explored AM and have observed good results. With the increasing flexibility of parts produced by AM, the manufacturer has focused on producing light and creative parts. This approach aims to generate parts with the same performance as conventionally manufactured materials by reducing the weight and material waste without compromising the structural integrity of the material. One way to achieve this is to optimize the surface topology. In the case of turbine blades in gas turbine engines, the possibility of changing the shape is low. Therefore, the cavity in the blades is optimized in several strategies to improve the efficiency of the cooling and loading methods in the leading edge. In internal lattice models, the upper shape of the airfoil remains the same as the component becomes lighter than in the conventional design. Using simulation packages, lattice structures are simulated for different parameters to find the optimized output based on the applied loads in service in a static simulation. Porous materials are designed rather than porous structures. Metallic lattice is a popular porous structure. Therefore, when dealing with porous materials, it is essential to predict the shape, size, position, and orientation of the elements present in the cells. The beam-based lattice structure is a popular option in cellular structures. However, generative designs are alternative ways of researching porous structures inspired by nature. An invention by Hinckley and co-workers, attributed to Raytheon Tech corp., presents a turbine blade design in which the blade cavity is occupied by a lattice network [74]. The cavity is defined as the hollow region occupied between two edges and two side walls. The cavity is filled with a lattice network that connects the two side walls. The airfoil includes a cavity, a lattice network, and a damping element that floats along with the lattice network. These observations conclude that the lattice structure of the turbine blades exhibits the ability to improve the life of the turbine blades through efficient cooling of the blades. Various patents for the additive manufactured blade design that have been implemented in the aviation industry are given in Table 2.

4. AM Techniques for the Fabrication of Turbine Blades

A turbine blade requires printing of high-temperature materials that are super-alloy constituents. Various AM techniques that are implemented to build the turbine blade are discussed below.

4.1. Selective Laser Sintering (SLS) as an Initial Powder Bed Fusion Process

During the 1980s, with the support of DARPA, Dr Deckard and Dr Beaman of the University of Texas at Austin developed and patented the additive manufacturing technique of selective laser sintering (SLS). As the SLS patent expired in 2014, the technology has been open to research. Sintering in SLS fabricates the 3D structure from the fused state layer with micro-sintering. Necking is a phenomenon observed during sintering that occurs due to the reduction in viscosity. The surface coating that acts as a binder is melted with the help of a laser. Here, the materials attempt to reach the minimum free energy state, which results in a diffusion that takes into account the movement of molecules between particles, becoming a major driving force in this process. SLS uses a laser (for example, a carbon dioxide laser) to join small particles of various material powders into one piece with a designed three-dimensional shape. However, the SLS process uses lower laser power, typically used for polymers and nylons in recent days. An advanced version of this process with high laser powers is used in the case of metals, which is discussed in the next section.

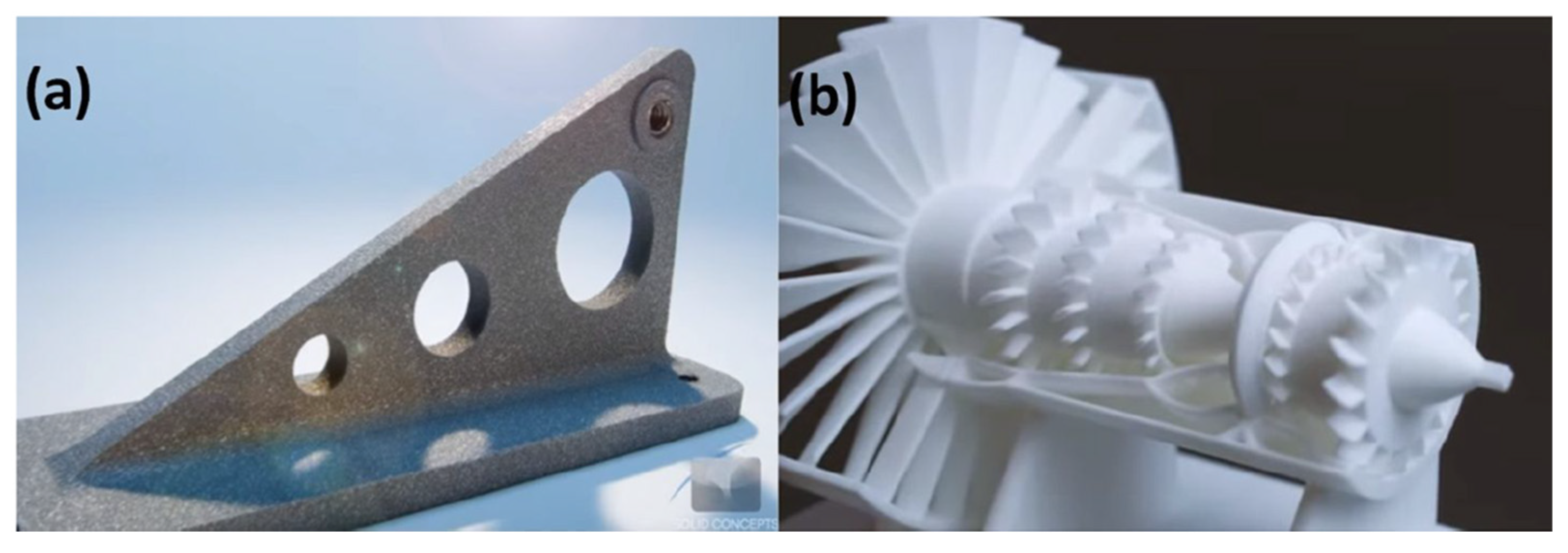

The laser selectively sinters the powder material while scanning the cross-sections onto the powder spread by the CAD file. Since the density of the final part is subject to process parameters such as the maximum laser power, instead of the laser duration, pulsed lasers are typically used in the SLS process. A Gaussian distribution is observed in the size distribution of the powder particles, although the process can be adapted to suit the thicknesses of the layers in the process. Figure 6 shows the SLS manufactured fixture and an unassembled single turbine engine. However, these parts have porous surfaces; these can be treated using various post-processing techniques such as metallization, oven enameling, vibrating grinding, tank coloring, gluing, powdering, coating, and flocking [82].

4.2. Selective Laser Melting (SLM)/Direct Metal Laser Sintering (DMLS) as Currently Used for Metals

Selective laser melting (SLM) is a powder bed process that uses a high-intensity laser to melt the powder in a layer. The structure is generated from a CAD file that is sliced into thin cross-sections or layers. These data are converted to an STL file readable by the printing machine that supports any complex design. The build process begins with a thin layer of metal powder spread on the substrate plate in a build chamber. The high-energy laser scans the cross-section to fuse the powder into the regions described in the STL file. When the scanning is complete, the build platform lowers and another layer of powder is spread over the substrate and the process is repeated until all the layers are scanned and built one on another to create the 3D physical model. During the process, high temperature is required for melting, the production chambers maintain an inert or vacuum atmosphere to control the oxygen content to avoid oxidation and other problems affecting the properties of the produced turbine blade. Laser power, hatch distance, layer thickness, scan strategy, and scan speed are the parameters primarily used to optimize the process. When heating and fusing occur, the heating capacity depends on the mass and materials. When the energy is insufficient due to the mixing of low laser power, large layer thickness, and high scanning speed, it generates a balling phenomenon due to insufficient surface wetting. This deteriorates the quality of the product. Additionally, increasing the hatching distances results in regular porosity because the powder does not fuse well together. To achieve complete densification of the part, optimized minimum energy is required. A certain degree of overlap also ensures sufficient densification. SLM operating parameters are modified to improve surface quality. Figure 7 shows the steps involved in the SLM process to build the products. The final parts require post-processing techniques such as sand blasting, machining, and electro-machining. The tensile properties of SLM parts can be superior compared to traditionally manufactured parts. Compared to casting, SLM reduces building time, which is of high value in aero-structures [83]. Not only printing the products, SLM also offers the ability to assist in the repair and maintenance of the worn and burn-out parts faster and easier than the traditional repair methods. An example of this is the repair of the worn-out burner tip exposed to hot gas in the combustion chamber developed by Siemens in 2013. Siemens has developed a customized SLM machine that can repair the parts quickly and also economically. Such a method of SLM-based repair leads to a much smaller area of the burner tip being removed and replaced. As a result, the repair time is reduced to 90% of the usual time.

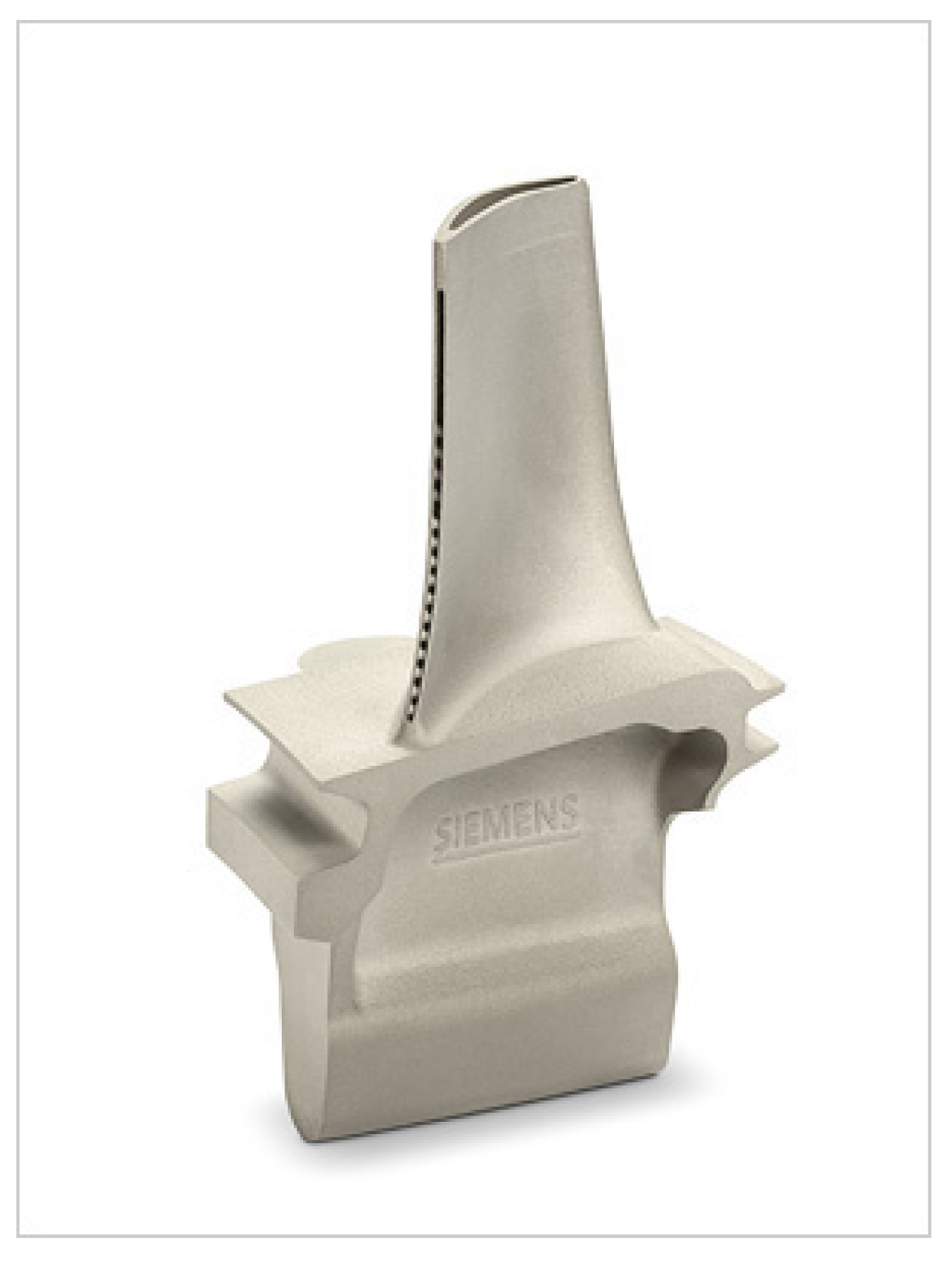

Recently, Siemens designed newer turbine blades to be manufactured using DMLS technology [3,84]. In collaboration with Material Solutions, the turbine blades were successfully 3D printed on an Eosint DMLS machine using a nickel super-alloy powder. The 3D printed blades were tested on a 13-megawatt SGT-400-type industrial gas turbine under full-load conditions. The blades were found to withstand extreme pressures and temperatures of about 1250 °C at 13,000 rpm. With the adoption of AM, the design and development of the blade went from component design to testing in just 18 months, which otherwise would have consumed six months. These blades had improved internal cooling geometry, which was possible because of the design flexibility of AM. The 3D printed turbine blade made up of a Ni-based super alloy developed by Siemens is shown in Figure 8.

4.3. Electron Beam Melting

Electron beam melting (EBM) is an additive manufacturing process that uses an electron beam to melt and fuse the metal powders spread on the platform in a controlled atmosphere. The energy density in the electron beams is controlled by electromagnetic coils to increase the melting capacity, thus leading to an increase in productivity compared to SLM machines. Absorption of the electron into the material generates a negative charge, which can generate a repulsive force around the powder particles that can throw the finer particles from the powder bed, creating a powder cloud. In addition, the increased negative charge can also reflect the incoming electrons, creating more beams for diffusion. Consequently, the powder bed must be conductive to be processed with this method. Adjacent scanning strategies must also reduce the formation of these negatively charged particles in a particular location. As a result, the size of the melt pool increases, which decreases the resolution of the parts produced. In the aerospace industries, EBM is used to produce the quasi-shaped component and electric discharge machining (EDM) is applied to obtain the final shape [86]. EBM is associated with a greater thickness for each layer of powder; while increasing production rate creates an inferior surface finish, the powder remains in the 45 µm to 150 µm ranges. However, using smaller particles can produce a higher surface finish while productivity suffers. Therefore, the EBM process results in lower resolution and higher surface roughness than SLM. The remaining loose powder can be recycled in EBM, which contributes to effective use of the material. One of the advantages of EBM over SLM is that EBM parts are always produced in a vacuum chamber, resulting in less absorption of impurities throughout the entire process. Fewer impurity uptake facilitates the production of highly reactive materials. Residual thermal stresses are a major concern due to the increase in the cooling rate and the temperature gradient. This involves heating the powder bed to reduce the temperature gradient. In the case of EBM, minimal residual stress is observed compared to the SLM manufactured parts. However, preheating the powder bed can increase powder size by sintering. In this case, the size of the powder is reduced by prior grinding, which is a part of EBM processing, to maintain the optimum particle size [87]. Figure 9 shows a turbine blade fabricated using the EBM technique.

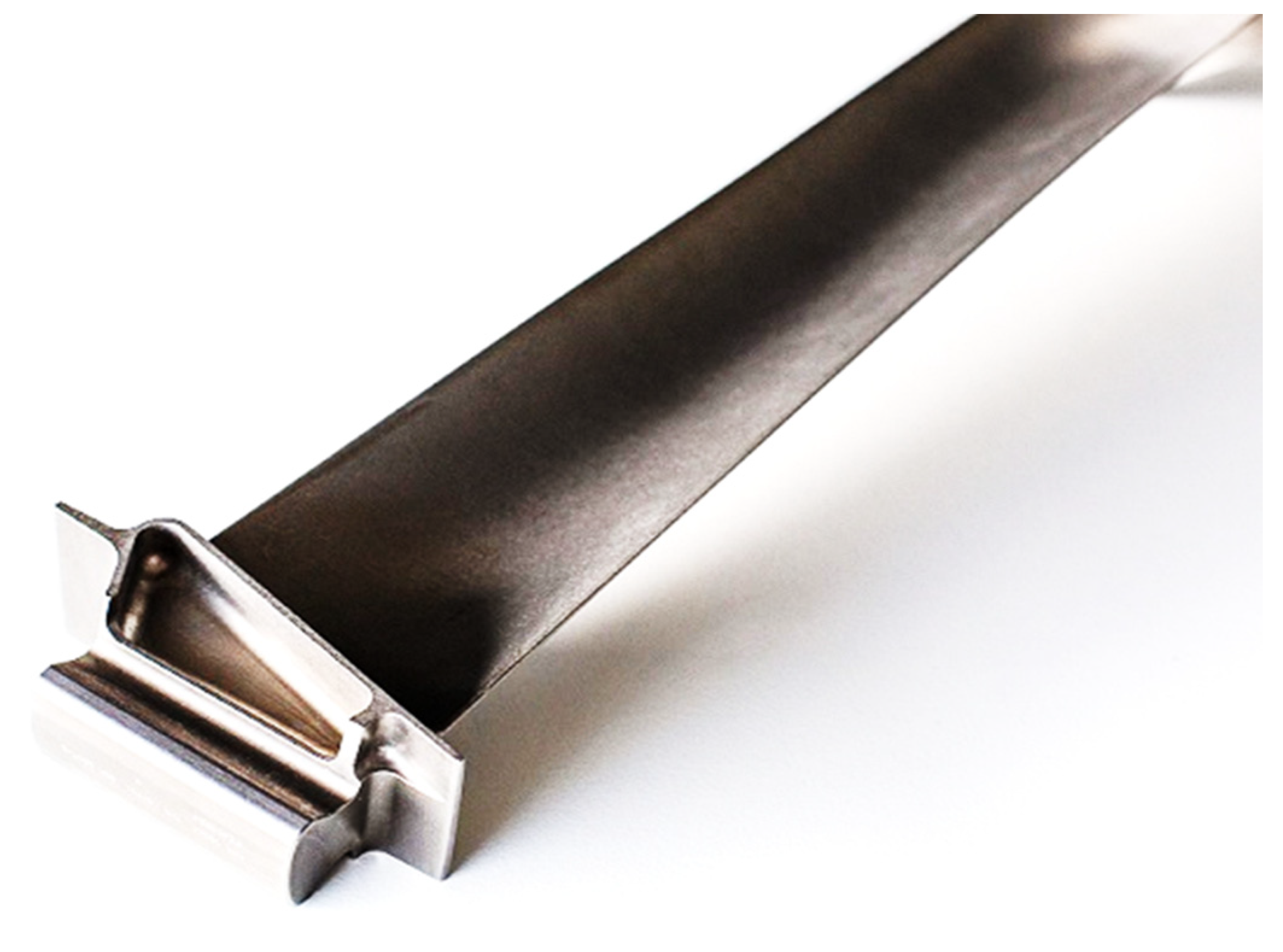

Recently, Avio Aero, a General Electric (GE) Aviation company, has installed 35 ARCAM EBM machines in the USA and Europe, which will be primarily focused on printing TiAl turbine blades on the LPT of the latest massive GE9X engine [9]. The GE9X engine was developed for Boeing’s 777X Jet engine, the world’s largest jet engine. These Arcam EBM machines use a powerful 3-kilowatt electron beam to melt the final grains of TiAl powders to build 40 cm long blades. The TiAl is a high melting point alloy and is also a strong material. GE has observed that the additively manufactured TiAl blades weighed 50% less compared to the traditional Ni-based alloy blades. Such weight reductions are expected to reduce the fuel consumption by 10% as well as the emissions compared to its GE90 engine. Such contributions are significant achievements in the aerospace industry. At their facility, GE can print six TiAl blades per batch using Arcam EBM machines. The additively manufactured TiAl blades spin at 2500 rpm inside the engine and withstand searing heat with a huge amount of force. The 3D printed GE that made TiAl LPT blades is shown in Figure 10.

4.4. Binder Jetting Process

The binder jetting process is another family of additive manufacturing processes in which the selected binder is deposited onto the powder bed selectively. The binder creates bonds between the particles to form a solid part in a layer. Using this process, granules of metals, sand, and ceramics are processed to form solid parts [90,91,92]. Since the raw materials are not processed directly to form the solid product, but rather the binder only binds the powder particles, leading to low sinterability of the particles. Hence, the density of the products is not up to the mark, especially in the case of ceramic powder based products, and thus the properties of the products are not adequate. Several attempts have been made to improve the density of the product, which depends on the powder particle size that relates to the flowability, choice of binder, building parameters, equipment specifications and parameters, and design of the product to be built, etc. [93]. Recently, Air Force Research Laboratory (AFRL) in the USA has collaborated with Exone, a binder jetting 3D printer manufacturer. The contract was given to qualify AF-9628, a high-strength steel produced by the U.S. Air Force, for binder jetting. Although AF-9628 parts were produced by other additive manufacturing techniques such as PBF, the binder jet process was found to print the parts more economically. Interestingly, these binder jet printed parts were 20% stronger than those processed by other AM techniques [94].

4.5. Laser Cladding

The principle of laser cladding is to use a metal filler in a very thin layer to fuse different layers and ensure a metallurgical bond between the different substrate surfaces. The laser beam can distribute a precise and localized heat input to the fillers. In industrial applications, laser cladding is used for rapid manufacturing, part repair, surface coating, and the development of innovative alloys. In particular, laser cladding is a flexible process that can fabricate functionally graded materials and heterogeneous components due to its ability to mix more than one type of powder by controlling the feed rate of each process. In addition, the technology enables the design at a microstructural level by varying the gradient of the material with localized fusion and the strong mixing motion present in the melt pool. Thus, the materials can be structured for flexible functional performance in their respective applications. The complex thermal history associated with the rapid heating and cooling rates of the technique allows for prolonged solid solubility in metastable phases or the production of non-equilibrium phases. CLAD requires accuracy as the part is produced by finer deposits, an optimized setting, and exact geometric control over the features of the deposits. The CLAD nozzle ensures that the input of metal powder melts them to generate the maximum yield of multidirectional deposits while ensuring optimal gas coverage [95]. Figure 11 shows the morphology of the laser coating of Stellite Grade 6 on carbon steel [96].

4.6. Laser Engineering Net Shape

Laser powder forming, also known as proprietary (Laser Engineering Net Shaping, LENS), is a sub-category of direct energy deposition (DED) process, focused on manufacturing metal components directly from the CAD file using a metal powder injector directed to the molten pool. The molten pool is made using the laser heat source. The process can produce structures with near-net-shape parts with complex geometries where, conventionally, it is difficult to manufacture parts with exact specifications. The greatest advantage of LENS over SLS, SLM, and EBM is the size of the product that can be printed. The build volume in LENS can go up to several feet, while it is a maximum of 40 cm in the latter cases. A laser melts the injected metal powder at the focal point of its heating source with a deposition head. The laser beam usually travels through the center of the head. The laser is further focused using lenses [98]. The X–Y table moves with patterns defined to produce the different layers of the part. A new layer of powder is sprinkled on the last layer and the platform is lowered. Gravity or pressurized carrier gas are suitable means for dispensing and distributing metal powders around the circumference. Layer-to-layer adhesion improves from a higher wetting surface. Shielding gases protect the weld pool from oxidation and other atmospheric impurities during production. Selective laser sintering is similar to LENS in many ways and contrasts metallic powder as a powder applied directly to the deposition location at that moment. A wide range of alloys including titanium, stainless steel, aluminum, and other special materials can be made from composite materials and functionally graded materials [99]. In addition, Optomec’s laser cladding technology and LENS metal AM systems that are based on a directed energy deposition (DED) process are also used in turbine blade applications to repair turbine blade tips. Figure 12 shows the repair of a turbine blade using an Optomec made AM machine system [100].

4.7. Electron Beam Free-Form Fabrication

Electron beam free-form fabrication (EBF3) is another process of the DED family, a method that fabricates parts, which are close to near-net-shape (Figure 13). This saves raw materials, which offers a great advantage over traditional practices. On a metal substrate, a focused electron beam creates a molten pool in a vacuum environment that helps to generate a cross-section. The practice of electron beam welding for additive manufacturing was first founded by Vivek Davé in 1995 in his doctoral thesis at MIT. However, EBF3 was a name given by the NASA team that developed the process. Karen Taminger, materials research engineer for NASA’s LaRC, was primarily responsible for developing the use of electron beams in additive manufacturing to further improve the manufacturing process. Therefore, EBF3 is a NASA patented additive manufacturing technique used to fabricate near-net-shape parts with less material and workmanship. EBF3 is a method that can build metal parts in zero gravity environments. This additive process uses a solid feed stock that is melted using an electron beam to produce metal structures [102]. The advantages and capability of the process make it interesting to fabricate parts in space. Currently, the titanium spars for the vertical tails of the F-35 Joint Strike Fighter are manufactured using this manufacturing technique. Reduced titanium waste and shorter processing times have led to an increase in production rate and resource savings for the company, Lockheed Martin, and Ferra Engineering, based in Brisbane, Australia, intend to open the first factory in the world for the production of the F-35 components. EBF3’s ability to control the performance of its aircraft components by controlling material properties has drawn a lot of attention to this process. The EBF3 method is scalable for various applications as it can accommodate sizes ranging from inches to a few feet depending on the size of the chamber [103].

4.8. Aerosol Jet Process

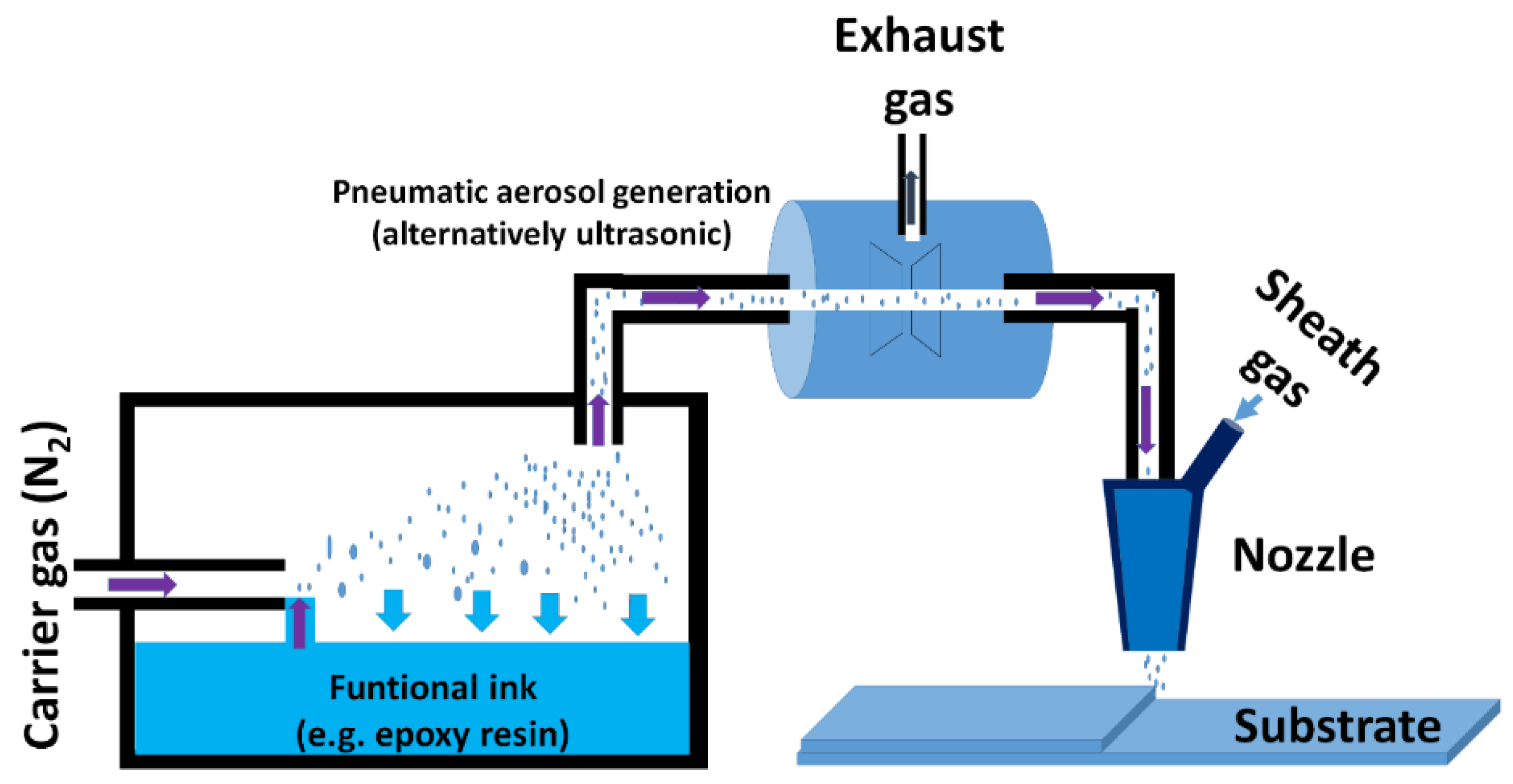

The aerosol jet process is a patented technique of electronic and metal 3D printer manufacturer, Optomec, which is based in New Mexico. It is a trademark of Optomec, which is a company that has been developing AM solutions since 1997. The company offers an exciting area of 3D printing that includes the printing of sensors. Such sensors that are part of advanced control and monitoring systems can be printed on the turbine blades. This increases the efficiency of monitoring the turbine blades during operation. Figure 14 shows the 3D printed turbine blade that is integrated with creep sensors to monitor the structural health of turbine blades [105]. Such advanced design features can be brought into reality only by additive manufacturing.
Optomec Company offers an exciting area of 3D printing that includes the printing of sensors. Such sensors that are part of advanced control and monitoring systems can be printed on the turbine blades. This increases the efficiency of monitoring the turbine blades during operation. Figure 15 shows the 3D printed turbine blade that is integrated with creep sensors for monitoring the structural health of turbine blades [105]. Such advanced design features can be brought into reality only by additive manufacturing.

5. Processing Parameters

On the basis of various working principles, several parameters affect the processing of turbine blades. The effect of all those parameters is observed in the build quality of the turbine blade. Optimized process parameters of each process plays a great role to print a good quality blade. Hence, a better understanding of the influencing parameters for a chosen technique is highly essential. In general, with such a high melting point, super alloys can be processed using several AM techniques, as discussed in the previous section. In particular, we discuss different influencing parameters in the SLM process for the turbine blade fabrication in comparison to all other AM techniques.

5.1. Particle Size and Shape of Powder That to Be Printed

Turbine blades operate in extreme conditions and hence the blades are made up of exotic super alloys that can withstand extreme conditions. In these kinds of processes, the starting material is generally in the form of powder. Hence, an understanding of the powder particle size and distribution is essential. During processing, the powder of different particles’ shapes and sizes are blended to achieve the packing density of the powder bed, avoiding the separation or segregation of particles in the bed. The powder bed fusion processes are carried out by spreading a layer of powder and then scanning the layer using a laser heat source to create a solid layer [107]. Therefore, the characteristics of the powder bed play an essential role in influencing the final properties of the final part produced. A layer of powder spread on the building platform corresponds to the thickness of the layer of the part that is sliced in the 3D model. This in turn affects the porosity and density of each layer. Particle shape as well as the distribution of the particle size and shape affect the layer thickness. Depending on the method used to produce the powder for the process, the powder can be varied from spherical to extremely irregular. In general, the powder is processed by gas atomization techniques to obtain fine granules of super alloys such as NiTi, TiAl, etc., and the particles are usually spherical. Particle size varies with the type of processing technique chosen that corresponds to the thickness of the layer. The powder must consist of spherical particles of the same size or with a narrow particle size distribution. The density of the powder in the layer influences the heat transfer characteristics of the bed along with the material flow due to heating [108]. In addition, the strong dependency of the particle packing in the bed is associated with the thermal characteristics during the manufacturing process [109]. Inter-particle pores are found by spreading the spherical powder in the layer. The fractional solid volume of each particle X i considered in the bed of PBF can be measured as its solid volume divided by the total solid volume of all particles, as shown in Equation (1).
X i = S i i 1 n S i
where S i is the solid volume of spherical particles. Gas porosity and other defects can be reduced by improving the particle packing and heat transfer characteristics of the powder bed to maintain uniform heat distribution. On the other hand, the packing of non-spherical particles will prevent the part from maximizing its dense configuration. Both ellipsoid and spheroid shapes exhibit packing behavior typically attributed to non-spherical particles. The consistency in the particle shape can result in blades of maximum density. Any deviation from the ideal shape can lead to the formation of disordered packing with a structure similar to a random spherical packing, and thus the density decreases. Similarly, as the height/width ratio of the powder bed increases, the density decreases. The transition from spheroidal to non-spheroidal shape can be made by adopting prior particle reduction processes such as cutting, elongating, or deformation processes. It is often found in experiments that lower densities are the result of the packing of smaller particles [110]. Additionally, after the threshold limit of the particle size, the effect of gravity is no longer the dominating factor, and inter-particle forces such as van der Waals forces and electrostatic forces become increasingly relevant. At approximately 100 µm in particle diameter, the ratio of inter-particle force to particle weight is greater than unity. This results in the creation of agglomerates due to the influence of a strong cohesive force. On a macroscopic level, particles behave individually. The morphology of the particles significantly influences the bulk packing as well as the flow characteristics of a particle. Consequently, highly spherical particles are generally more favorable in the AM process. There is also an increase in the flowability of the powder, which has a narrower particle size distribution and contributes to better strength and hardness of the blades. Investigations into the application of various particle size distribution have shown that the distribution also significantly influences the quality of the printed part and control over the particle size distribution tends to control the surface roughness of the final product [111].

5.2. Powder Bed Density

It is quite evident from the previous section that the particle size distribution significantly affects the final powder bed density and hence the mechanical properties of the blade. A large variation in the density of the powder can lead to the production of rough and porous blades with poor mechanical properties. In addition, the calculation and determination of density such as the tapped density and the apparent density cannot be an accurate reflection of the actual density of the formed powder layer or bed. Therefore, the density of the powder bed is an essential parameter to be understood and studied to estimate and control the shrinkage in the final part PBF structure [112]. Furthermore, the density of the powder bed is associated with the green density. Particularly during densification, less shrinkage can be ensured in powder beds with higher green density. One of the main obstacles in the process is to adjust the porosity of the powder bed so that the final part is made up of a uniform and maximum density. In this case, the density of the powder bed affects the heat transfer rate from the laser, making the thermal conductivity and absorption of the source power that are important considerations for improving and maximizing the density of the produced part. Many standards assess the packing of the powder bed, which depends on the density or manufacturing technique used [113]. The random packing density increases exponentially as the particle shape deviates from the perfect sphere as per Equation (2). The cumulative weight fraction ( W ) can be calculated as,
W   = A × D q
where D is the particle diameter and A and q are empirical constants. The best results of the bulk density were obtained for values of q between 0.5 and 0.67. Additionally, through the application of powders with a larger particle size distribution, a similar effect on bulk density was observed. In this case, a higher density was observed because the smaller particles occupy the void space of the structure [114]. True density is characterized as an inherent property of a material and the apparent density that accounts for the voids. The determination of the tapped density and apparent density does not essentially reflect the density of the powder layer or the powder bed. Apparent density reflects the condition of loosely packed powder and is determined using ASTM B212. The various terms used for powder density are powder bed density, bulk density, or packing density [115]. Bulk density is mainly influenced by the distribution of the shapes and sizes of the particles. Bulk density is critical in determining certain material specifications and obtaining guarantees on the structure of the powder bed and the flowability of the powder. It is necessary to characterize the final product and also to measure the volume of intricate and complex finished products [116]. Devices by Micromeritics Instrument Corp. such as the AccuPycTM II 1340 gas displacement pycnometry system [117], GeoPyc Envelope, and Density Analyzer [118] can be used to determine important parameters essential to standardize AM process parameters. It also acts as a possible indicator for evaluating the properties of the final product. Integrating the true density from an AccuPyc measurement means porosity can be established quickly and easily. Both of these tools use non-destructive testing methods and can be used to determine the final porosity of products [119]. However, many factors cause the variation in AM product density results even when external factors are ruled out as constants during the process. The factors with the greatest effect are the laser/beam power parameters, the processing environment (i.e., humidity, presence of inert gas), or the properties of the metal powder (particle size, particle shape, distribution, or flowability) [120]. The best morphology can be observed in powders made with the gas atomization technique. A moderately lower packing density tends to improve the convection of fluids aspirated with the aid of gravity. The downward flow of fluids tends to increase the hydrodynamic instabilities of the melt, which leads to the generation of defects such as “balling” defects. Balling occurs due to the breaking and discontinuations in the molten pool produced during the SLM, increasing the probability of mechanical defects and surface defects. As the average packing density increases from 38% to 45%, the discontinuous weld pool is eliminated to create a smoother surface [121].

5.3. Residual Stresses

Due to the laser heat source, a local thermal gradient is introduced with a local phase or volume change during processing of the blades. Consequently, residual stress is a major problem in many AM techniques. Residual stresses are self-calibrated and persist even after their manufacture. Residual stresses also exist without thermal gradient and additional external forces. Generally, stresses develop from misfits in different regions and the different phases within the blade. Understanding residual stress is critical because it leads to several undesirable consequences on material properties such as poor fatigue resistance and critical failure during operation [122]. Residual stress can be estimated using methods such as the hole drilling method, the deflection method, the X-ray diffraction method, the contour method, and the neutron diffraction. Several computer simulations have been established that use the finite element method (FEM) to understand residual stress development related process parameters in AM, the melt pool, and resulting gradient on a microscopic scale. On a macroscopic scale, studies have been performed to estimate deformation and macro-stress in the parts produced [123]. In many cases, the numerical simulations assist in understanding the residual stresses distribution while accounting for laser parameters and scanning strategies. The history of the transient temperature present during the solidification is crucial to estimate the final residual stress in the built part and the distribution of thermal stresses. These stresses can cause part failure by distortions, delamination, or cracking [124]. Energy dispersive diffraction can be used to investigate the structure and residual stress gradients near the surface region. In diffraction, the relationship between a lattice spacing dhkl and the corresponding diffraction line Ehkl is easily derived from Bragg’s equation. Furthermore, depending on the absorption of the material as well as the scattering angle, the residual stresses are estimated using Equation (3) [125,126].
d hkl ( Å ) = 6.199 sin θ ( 1 E hkl ( keV ) )
In the case of additive manufactured Ni-based super-alloys, it is difficult to lower the residual stresses. Generally, these residual stresses are eliminated and managed with the help of heat treatment. It is important to reduce the thermal stresses induced in the 3D-printed metal parts. There is scope for improvement in platforms that use physics-inspired scanning strategies that aim to reduce thermal stress by adjusting temperature gradients in complex 3D parts. Simultaneously, hot powder bed systems used in electron beam-based platforms should be extended to laser systems to relieve residual in situ stresses, for example, selective electron beam melting systems [127]. Heating the end-use part to a temperature above 570 °C would eliminate any residual stress and even residual compressive stress, which would improve the fatigue performance of the turbine blade. Thermal gradients present near the substrate leads to inhomogeneous microstructures [128]. Regulating the scanning strategy can also be an effective tool to reduce residual stress. Concept Laser has developed a creative Laser CUSING® approach in which the scanning strategy is selectively adjusted using an algorithm to minimize the expected residual stresses. In addition, applying a compressive mechanical load with laser shock peening (LSP) or rolling on the surface of the fabricated part to cancel or decrease the amount of residual tensile stress is another approach to in situ control of residual stresses in AMed metal. Some of the literature [129] discovered the ability of LSP to regulate residual stresses in SLM and found that residual surface tensile stress could easily be transformed into beneficial residual compressive stress with a depth greater than 1 mm when the overlap ratio of the laser point is greater than the conventional one being processed. Constraints for in situ monitoring of the residual stress by employing LSP could be that LSP facilities are harder to integrate with existing industrial SLM machines, and LSP might prolong the printing time by a large extent.

5.4. Porosity

In general, porosity is a measure for estimating the level of hardness achieved in an additive manufactured metal sample. Porosity is a defect that appears as a pore or void, or in the absence of solid material in the turbine blades processed by AM. However, in some metal additive manufacturing techniques, a section of metal powder is melted with the help of a laser at the point where the powder bed melts and adheres to the previously melted layer. Sometimes complete fusion does not occur and results in the production of cavities in the blade, the final product, which is referred to as porosity [130]. Beyond a critical size (100 µm), porosity varies inversely with particle size. Therefore, to decrease the porosity, the laser power is regulated by considering the material’s reflectivity and absorptivity. One of the laser process parameters (i.e., the laser scanning speed) can be used to adjust the type of pores generated during manufacturing and influence the energy density transferred to the powder bed during processing. Generally, the porosity (P) can be estimated from the measurement of density (ρ) using Equation (4) [131]:
P   = ( 1 ρ measured ρ theoritical ) × 100
where ρmeasured is the measured density of the part and ρtheoretical is the theoretical density of the fully dense material.

5.5. Roughness

The quality of the blade surface produced is of great concern for the aviation industry. This is due to the staircase effect observed on the blade surface, which is a consequence of the layer-by-layer nature of the manufacturing techniques. The representation of the staircase effect is shown in Figure 16. This phenomenon is concerning because it affects the dimensional accuracy and the surface roughness of the blade [132]. Surface roughness is a property that takes into account the presence of variation on the surface of an artifact. Not only does roughness play a role in the aesthetic part (e.g., shiny or matte), but it can also affect wear resistance, fatigue resistance, mating, sealing, rolling and fluid dynamics, and can act as crack initiation. Thus, there is a significant need for post-processing routes. Ultimately, this condition has a major influence on the overall production time and value of production [133]. Equation (5) represents the arithmetic average of absolute values ( S a ) that is used to estimate the roughness of SLM parts [134].
S a = 1 A A Z ( x , y ) dxdy
where A is the number of points and Z(x,y) defines the height of each point on the surface. Figure 16 shows the mean R a for the structures that were printed using different AM techniques.

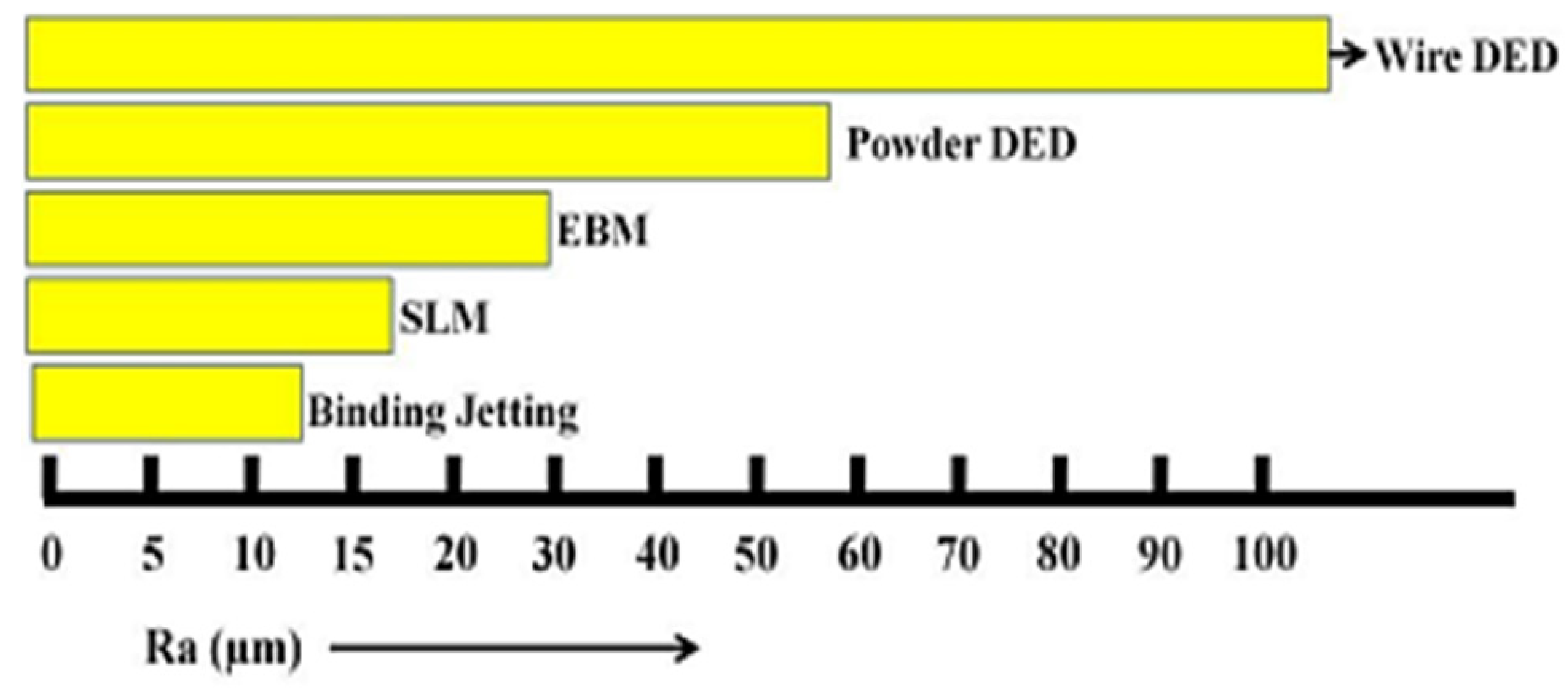

In metal 3D printing, three main sources of surface roughness are listed [135,136]: first, lower process resolution and layering effects can cause the presence of surface artifacts; second, the presence of granular texture in the micro-surfaces from melting and adhesion in powder raw materials; and third, the presence of surface marks due to poor processing or removal of the support structures. Therefore, the following five categories of parameters are essential to determine the surface roughness after fabricating a 3D part, which are discussed below.
Core process resolution and precision: Resolution and accuracy are key parameters for 3D printing of the turbine blade and also to determine surface roughness. This is because 3D printing creates parts layer-by-layer and the resolution can be classified according to the axis. In the XY axes, the resolution depends on the processes that take place specifically in production [137]. For example, in PBF techniques, the diameter of the laser or electron beam is a measure of the resolution of the process while in binder jetting, the resolution of the jetting process is achieved in dots per inch (DPI). In the case of the DED technique, the width of the spheres deposited is the measure of the resolution. In the Z direction, the resolution for most processes is associated with the layer thickness or the slice thickness. The XY and Z resolutions of typical 3D printing processes are given in Table 3 [138]. When designing the component, viz., turbine blade, using AM, it is better for the designer to have an understanding of the part orientation and the build direction, so that they can decide the optimal number of features that will be subjected to high forces oriented in the X–Y plane.
Material feedstock-type, size, and quality: Parameters such as the morphology of the powder particles (size and shape) and the quality of the powder present in the raw material influence the surface roughness. In PBF and binder jetting processes, the physical properties of the powder grains such as the size and shape that are attached to the exterior side of the finished part have an impact on the roughness. Generally, raw powder materials can differ in shapes from spherical shapes with sizes as low as 5 μm, and unevenly shaped up to 120 μm particles. Here, the quality of the powder is a crucial parameter in processing as low-level powder can lead to undesirable mechanisms such as clumping, which prevents the powder from properly flowing and distributing, resulting in increased surface roughness [140].
Print orientation: The surface quality of blade fabricated using AM process is directly related to print orientation. The print orientation of the blade’s surface plays a crucial role [141]. The total printing height of the product is determined by the print orientation. As the height increases, the number of layers to be printed increases, which in turn increases the total vertical surfaces to be printed. Thus the staircase effect by every layer along the Z direction increases eventually, resulting in the poor surface finish of the blade.
Support structure: The use of support material is essential in most AM technologies. Supports are provided for the overhanging features of the part. Supports also assist in anchoring certain features to the build plate. Support material also takes part in heat transfer. The amount of support structures depends on the part orientation. Support material greatly affects surface quality and post-processing cost. These support structures are not part of the actual product and hence they are removed during post-processing. The physical removal of these support structures may lead to residual features left on the part, which also contributes to the surface roughness [142].
Other key processing parameters: The various processing parameters that can alter the surface roughness of the parts include power input, print speed, build geometry, and cooling rates. To obtain the highest surface quality, these parameters must be optimized as per the specific AM process [143].
Therefore, due to the nature of fabrication, post-processing is essential to adjust the surface roughness. Additionally, the fabrication of near-net-shape products generally creates parts that are very close to the final part and need secondary materials to remove and bring the sample down to its final specifications and smoothness [144]. The chart shown in Figure 17 is a comparison of the surface roughness produced by various additive manufacturing processes. Therefore, post-processing techniques are involved with specific techniques in the workflow of metal AM. The techniques for post-processing that are most widely accepted are CNC milling and turning, grinding, and polishing [145]. The standard fabricated part has a surface roughness of approximately ~3 μm. With an additional finish, the machining further reduced the surface roughness to ~1 μm [146].
A convenient technique such as abrasive fluid machining is used for parts where machining cannot be performed using CNC such as the internal surfaces of compliant cooling channels. In addition, there are convenient automated methods such as tumbling, shot blasting, and centrifugation, which are often used on external surfaces. Conversely, the methods do not significantly improve surface roughness and further damage critical features and parts such as corners and edges [147]. The trigonometric formula proposed for the calculation of surface roughness with square angles and acute triangular angles are presented in Equations (6) and (7), respectively [148]:
R a = t 4 cos ( θ )
R a = A n L n = t ( tan φ sin θ + cos θ ) 4 + K
where R a is the surface roughness; t is the layer thickness; φ is the angle counterclockwise from the vertical line; and θ is the surface angle or built orientation. For complex parts with high specifications with regard to surface roughness, the time consumed in post-processing could exceed the actual printing. The cost of production and time increases as more materials need to be machined from the printed parts. In AM, it is crucial to achieve a near-net-shape as any additional material will only contribute to making the final part more expensive due to high-cost material and energy waste [149,150].

6. Defect Formation, Cracking Mechanisms, and Strength

Currently, porosity, cracks, and multiple morphologies observed in the AM processed parts are the most common defects. The presence of certain types of defects depends on the AM technique used, the processing parameters involved in that technique, and the composition and morphology of raw material. Pore formation during the processing of turbine blade materials such as Ni-based super-alloys is largely induced due to processing and there is no significant difference in these observations, even with variable alloy compositions [151]. The consolidation threshold does not appear to depend on super-alloys because they show the evolution due to the incomplete consolidation of Ni-based super-alloys. While a consolidation threshold is also observed for Hastelloy-X material processed by direct laser deposition. Balling is another source for defect formation and it occurs due to discontinuous laser tracks and melt pools [152]. Presently, there are four cracking mechanisms observed in Ni-based super-alloys processed by AM techniques. These mechanisms include post-weld heat treatment cracking, cracking during solidification, liquation cracking, and ductility-dip cracking. Due to the rapid cooling during solidification, some liquid melt gets trapped between dendrites that have already solidified. Such zones will be present as weak zones at the end of solidification. Under the application of stress, the weak regions tend to rupture and tear, creating solidification cracks with jagged features. Solidification cracking also occurs though the application of higher energy densities during the fabrication process [153]. Interestingly, few studies have reported the contradictory result of a reduction in solidification cracking with the increase in energy density. Moreover, the size of the component also affects the onset of solidification cracking. With the increase in the size of the component, the thermal gradient increases result in solidification cracks. For example, the influence of Zr segregation on solidification cracking in IN738LC [154]. The study reported that the Zr films that are trapped between the dendritic arms close to the grain boundaries lead to the embrittlement of the grain-boundary region, resulting in cracks.
The fine grain structure resulting from AM techniques leads to an increase in the strength of the fabricated products. The refinement contributes toward improving the yield and ultimate tensile strength. The static strength of the materials varies depending on the obtained microstructure. The resultant microstructure depends on the combination of processing parameters and post-process heat treatment applied during fabrication [155]. The requirement of the heat treatment depends on the purpose of the part fabricated. As in the case of precipitation-hardened materials, the AM-produced products are soft in the absence of precipitations. The precipitates are not formed due to the rapid solidification and rather a fast cooling. Therefore, heat treatment could help the material reach maximum strength in the peak-aged condition. With the presence of adequate heat treatments, a transformation in the microstructure of Ti-based turbine blade could lead to enhanced ductility. Along with other physical properties, the fatigue strength of the metallic product also depends on the microstructure, surface roughness, and presence of defects [156]. However, it was observed that mechanical surface treatments improve fatigue behavior. The mode of failure may be attributed to the presence of porosity. A ductile fracture will be observed when the porosity is low (0.1%), while a brittle fracture can be observed in the case of high porosity (2.4%) [157,158]. Besides, oxygen is one of a major factor influencing the strength and ductility of the AM processed product [159]. Treating porosities by densifying the material results in superior fatigue properties. The fatigue strength obtained in AM fabricated material is comparable to cast and wrought materials [160,161].

7. Microstructural Anisotropy

The Ni-based super-alloy parts processed by AM show substantial segregation in the inter-dendrites or unwanted phases (e.g., Laves phase) developed by solidification. Consequently, it raises the requirement of post-processing treatment, intending to remedy defects produced by AM processes [16]. The processing of materials through AM often results in a microstructure with a columnar grain structure, and this reaches up to several layers that are re-melted during processing. During printing, the layer of material is often heated and cooled multiple times, resulting in microstructural inhomogeneity on a micrometer scale, generally known as “fish-scale” morphology (Figure 18a), the segregation into inhomogeneous grain structures. Anisotropy in grain structure is not necessarily the problem as these anisotropies are employed to tailor mechanical properties for specific applications. The metastable nature of rapid solidification is a challenge for the additive manufacturing process. The rapid solidification leads to the epitaxial growth of the microstructure (Figure 18b), which is generally observed in the PBF and DED processes, whereas in the case of the SLS process, nearly equiaxial grain regions are observed replacing the columnar grains, as shown in Figure 18c, which is because of the scanning strategy employed in SLS. With the chessboard scanning strategy, the laser moves randomly between square islands to distribute the heat, evenly resulting in equiaxial grain growth [116]. Recently, studies have revealed the ability of AM to control grain-size and crystal orientation by controlling its process parameters [162]. Most of the microstructural changes on the printed surface have not been revealed. Hence, both microstructural and texture need to be investigated.
By manipulating the cooling profile, columnar grain growth can be avoided in the case of the direct laser deposition technique. Microstructural engineering and texture require further research from the AM community.

8. Summary and Future Perspective

Achieving changes in processing, design, weight, shape, strength, and performance of the blade leads to a significant contribution to the overall performance of jet engines and hence to the aviation industry. In this regard, the manuscript has explicated the insights into the additive manufacturing (AM) of turbine blades. Gradual development of turbine blades was elaborated here to understand the traditional turbine blade design along with advanced designs such as AM. The applicable AM techniques such as SLM, SLS, EBM, aerosol jet, binder jet, LENS, EBF3, and laser cladding for the processing of gas turbine blades have been discussed in detail. On the other hand, the change in the internal cooling systems of the turbine blade influenced by the application of DFAM techniques has also been represented here to understand the complexity and how the AM process simplifies the complexity. The design flexibility of AM further reduces the cost and weight of the components as well as the development of the most complex internal geometry of turbine blades. Advanced monitoring techniques employed on the turbine blades by integrating sensors on the blade surfaces using AM techniques have also been elucidated. The current state-of-the-art of the implementation of AM for turbine blade fabrication by the leading companies in the aviation industries is elaborated here. The use of AM techniques provides opportunities to incorporate complex and flexible designs with a reduction in production steps. The effect of various operating parameters on the turbine blade has been described. Along with the techniques for the fabrication of turbine blades, the manuscript also presents a few other techniques of AM that are used for the repair of turbine blades. Although advancements in the processing of turbine blades using AM have been made, however, there is huge scope for improvement in terms of design, newer materials, processing method, newer controlling and monitoring of process parameters, mechanical properties, and the overall quality of the turbine blade. This opens the way for more research and development necessary to annihilate several in situ defects in products processed by AM.

Author Contributions

Conceptualization, A.B. (Ajit Behera); methodology, A.B. (Ajit Behera); formal analysis; A.B. (Asit Behera), H.M.V.; investigation, B.S.; P.M.; resources, A.B. (Ayush Sinha); A.B. (Asit Behera); data curation, A.B. (Asit Behera); S.K.S.; writing—original draft preparation, A.S. writing—review and editing, A.B. (Ajit Behera); H.M.V.; visualization, A.B. (Ajit Behera); supervision, A.B. (Ajit Behera). All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.
