Key Features of Solid Lipid Nanoparticles Prepared with Nanoclay and Spring Water Ingredients with Demonstrated Wound Healing Activity: A Pilot Study ^†

Abstract

Solid Lipid Nanoparticles (SLN) emerged in the late 20th century as versatile nanoparticle drug delivery systems. Since then, SLNs have demonstrated to be very useful for the encapsulation of a great number of actives. In particular, the role of SLN in wound healing is pretty recent, since the major part of scientific literature on this field is concentrated during 2019 and 2020. In this pilot study, we propose the formulation of a semisolid system formed by SLN embedded in an inorganic hydrogel with demonstrated wound healing activity. The hot emulsification method was used to prepare the SLN. Subsequently, the SLN were embedded in a wound healing hydrogel composed of a clay mineral (PS9) and a natural spring water (ALI). Granulometry, pH, rheology, and Transmission Electron Microscopy (TEM) microscopy were used to characterize the formulations. Results showed that the use of natural spring water does not affect the SLN’s particle size, unlike PS9, which increased them. TEM microphotographs revealed that this increase in particle size was due to SLN coalescence in the presence of PS9. The pH of all samples was stable for 3 months. Rheology was significantly influenced by the aqueous medium; better results were obtained with ALI. In conclusion, despite the necessity of some improvements, the proposed SLN formulation would be very versatile for wound healing due to the possibility of load different actives inside the SLN together with the wound healing activity of the PS9/ALI hydrogel.

1. Introduction

Solid Lipid Nanoparticles (SLN) emerged in the late 20th century as versatile nanoparticle drug delivery systems. They consist of a room-temperature-solid lipid droplets surrounded by a surfactant and dispersed in water. The particularity of SLNs in respect to other lipidic systems is the fact that the lipid molecules are solid at room temperature.

Since their origin, SLNs have demonstrated to be useful for the encapsulation of a great number of actives [1,2,3,4,5]. In particular, the role of SLN in wound healing is pretty recent, since the major part of scientific literature on this field is concentrated during 2019 and 2020, as reflected by the results obtained in the main databases (keywords “solid lipid nanoparticle” and “wound healing”; Boolean operator “and”; databases: Web of Sciences, Science Direct and Pubmed). In these recent papers, daptomycin, curcumin, cefadroxil, melatonin, chamomile oil, propolis, calendula officinalis extract, and silver sulfadiazine are some of the proposed active ingredients exerting wound healing activity [6,7,8,9,10,11,12,13]. As it can be seen, the major part of the proposed actives have a natural origin, demonstrating the current popularity of natural actives in dermatology. Moreover, the very same SLNs could exert positive skin effects, since the lipid can form a coherent film over the skin after their application, thus restoring the damaged protective lipid film of the skin [1,14].

The use of inorganic ingredients on wound healing has been addressed in a deeper way [15], although it continues to grow nowadays. Wound healing properties of fibrous clay minerals/spring water hydrogels have been recently reported [16,17], together with the safety of the ingredients in terms of hazardous elements release [18]. In these studies, the importance of the formulative studies has been highlighted, since neither the spring waters nor the clay minerals by themselves were able to improve in vitro wound closure as much as the resultant hydrogels did.

All that being said, the present pilot study explores the main characteristics of a hybrid semisolid system formed by SLN embedded in an inorganic hydrogel made of spring water and a fibrous clay mineral with wound healing activity [16]. The ultimate aim is to develop a semisolid formulation able to improve wound healing both by enhancing fibroblast mobility and proliferation together with an additional wound healing activity which would be provided by the actives loaded into the SLN. Due to the elemental richness of the spring water and the clay mineral, the stability and main properties of the SLN system should be addressed, thus studying the possible interactions between the ingredients and their effects. To do so, rheology, pH, particle size, and Transmission Electron Microscopy (TEM) of the prepared formulations were analyzed and compared.

2. Experiments

2.1. Materials

Crodamol^TM CP or cetyl palmitate (> 98% of purity; 480.85 g/mol; P_f = 55–56 °C) was kindly gifted by CRODA International Plc. Kolliphor^® was purchased from Sigma-Aldrich and natural spring water (ALI) was obtained from Alicún de las Torres thermal station, located in Granada, Spain. Elemental composition of ALI has been deeply addressed by García-Villén et al. [18,19] and Prado-Pérez et al. [20], among others. Briefly, ALI water is especially rich in calcium, magnesium, and sulphur and possesses a pH of 7.9 and a conductivity of 2251.5 μS/cm. The clay mineral (PS9) is a fibrous clay called sepiolite, which has also been fully characterized in previous studies [19]. PS9 was kindly gifted by TOLSA GROUP (Madrid, Spain) and contains 92% w/w of sepiolite and around an 8% w/w of muscovite.

2.2. Methods

2.2.1. Formulation Procedure

SLN were obtained by means of the hot ultrasonication method. Aqueous and oleous phases were measured and warmed up (approximately 60 °C) separately. The aqueous phase was formed by 10% w/w of Kolliphor^® and 80% w/w of milliQ^® or ALI water. The oleous phase was formed by 10% w/w of cetyl palmitate, which passed from solid to liquid during the warming up (until 60 °C). At this point, the A/O emulsion was obtained by the addition of the aqueous phase to cetyl palmitate under high speed agitation provided by an Ultra-Turrax^® apparatus (15000 rpm, 3 min). Subsequently, ultrasonication was performed for 15 min working under a constant 20% duty cycle. Next, the emulsion was rapidly cooled in an ice bath to induce the crystallization of cetyl palmitate goticles, thus forming SLN. This procedure gave rise to two types of formulations, depending on the type of water used for the aqeous phase: SLN@milliQ and SLN@ALI. Two additional formulations were obtained after the addition of 5% w/w of PS9. The clay mineral was incorporated into the aforementioned formulations right after the obtention and cooling of the SLN system. Homogeneization was obtained by Ultra-Turrax^® (13,000 rpm, 5 min), thus giving rise to either SLN@ALI@PS9 and SLN@milliQ@PS9 formulations.

2.2.2. Characterization of the Prepared Formulations

Formulations were assessed and compared by means of rheology, pH measurements, particle size analysis, and Transmission Electron Microscopy (TEM). All the characterizations were performed at predefined time intervals from the preparation of the formulations: 1 week (1 w), 15 days (15 d), and 2 months (2 m), except for TEM, which was done once (15 d).

Rheology studies were performed by means of a Thermo Scientific HAAKE apparatus (RotoVisco 1) equipped with a serrated plate/plate sensor system (Ø 20 mm PPS20S). Flow curves of all the formulations were obtained from 70 s⁻¹ to 800 s⁻¹ at a constant temperature of 25 °C (± 0.5 °C) provided by a LT ecocool^TM 100 temperature controller (Cleaver Scientific Ltd., Rugby, UK).

Since the formulations are intended to be applied to wounded skin, the pH was measured and monitored in order to detect possible chemical instability. Crison pH25+ device equipped with a semisolid electrode (5053T) was used to measure pH.

Particle size of all the formulations was analyzed by a Marvern Mastersizer 2000 LF granulometer (Malvern Instruments^TM). Formulations were dispersed in purified water until optimal laser obscuration degree was obtained (fixed at 10–20%, indicated at real-time by the Mastersizer 2000 software). Each experiment was performed in triplicate and the SPAN factor calculated (Equation (1)).

$$\mathrm{SPAN}=\frac{{\mathrm{d}}_{90}-{\mathrm{d}}_{10}}{{\mathrm{d}}_{50}}$$

(1)

Prior to the TEM analysis, formulations were diluted in ultrapurified water (milliQ^® grade) as required (1:50 or 1:100) and placed over formward/SiO coated copper grids (200 mesh). Uranyl acetate (1%, pH 7) was dropped onto the grid for sample negative staining, and the excess was removed after 1 min. Subsequently, samples were left to dry at room temperature. TEM microphotographs were obtained in a Carl Zeiss SMT microscope (LIBRA 120 PLUS), equipped with a lanthanum hexaboride filament.

3. Results and Discussion

3.1. Rheology Studies

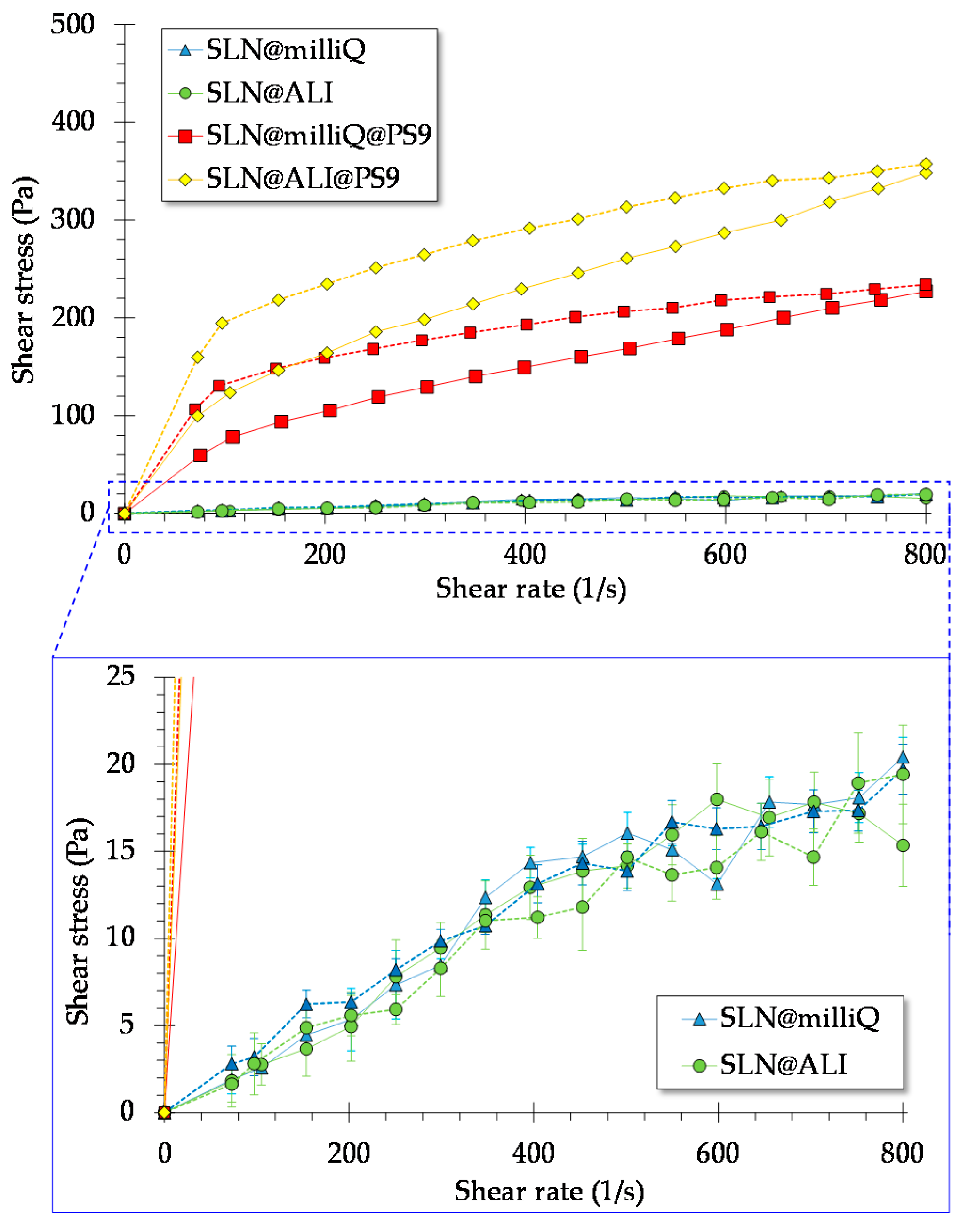

Flow curves obtained during the rheology study are shown in Figure 1. The presence of PS9 produced significant differences. SLN@ALI and SLN@milliQ showed a Newtonian-like profile, though with high fluctuations, whereas SLN@ALI@PS9 and SLN@milliQ@PS9 displayed a non-Newtonian pseudoplastic behavior. For the latter, the flow curves profiles were in agreement with those previously reported for PS9 hydrogels (without SLN) [19]. The influence of SLN can be observed due to the rheopeptic profile of SLN@milliQ@PS9 and SLN@ALI@PS9 with respect to PS9/ALI hydrogels [19], that reported to be thixotropic. Likewise, the type of water in SLN@ALI@PS9 and SLN@milliQ@PS9 influenced the final viscosity of the system, ALI water increasing this value with respect to the milliQ^® system. No remarkable differences were detected in the studied time lapse (data not shown).

3.2. pH

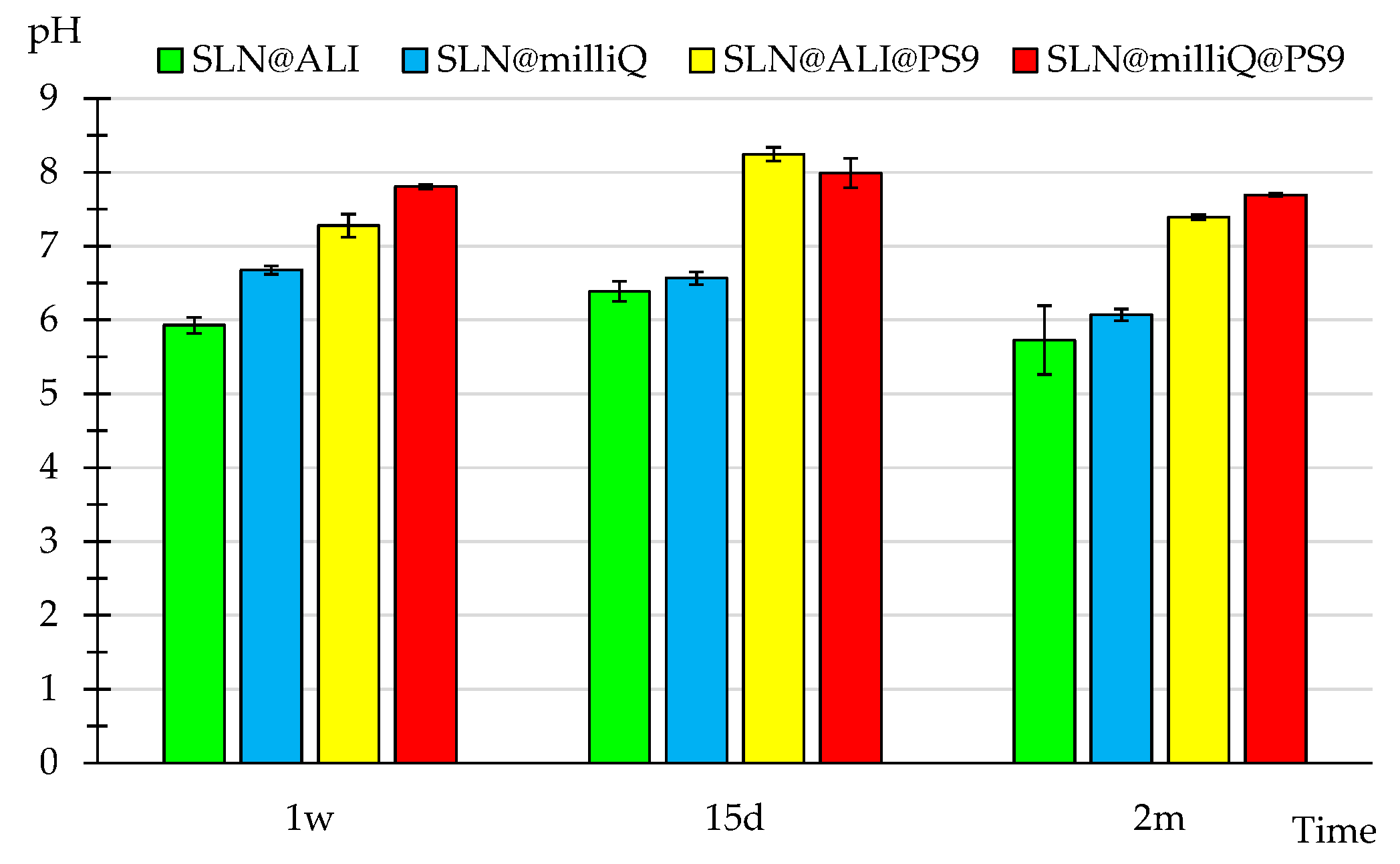

SLN@milliQ and SLN@ALI showed a lower pH (around 6) with respect to SLN@milliQ@PS9 and SLN@ALI@PS9, which possessed a pH between 7 and 8 (Figure 2). The presence of PS9 increased the pH value towards the its natural value due to the intrinsic buffer activity of phyllosilicates.

3.3. Particle Size

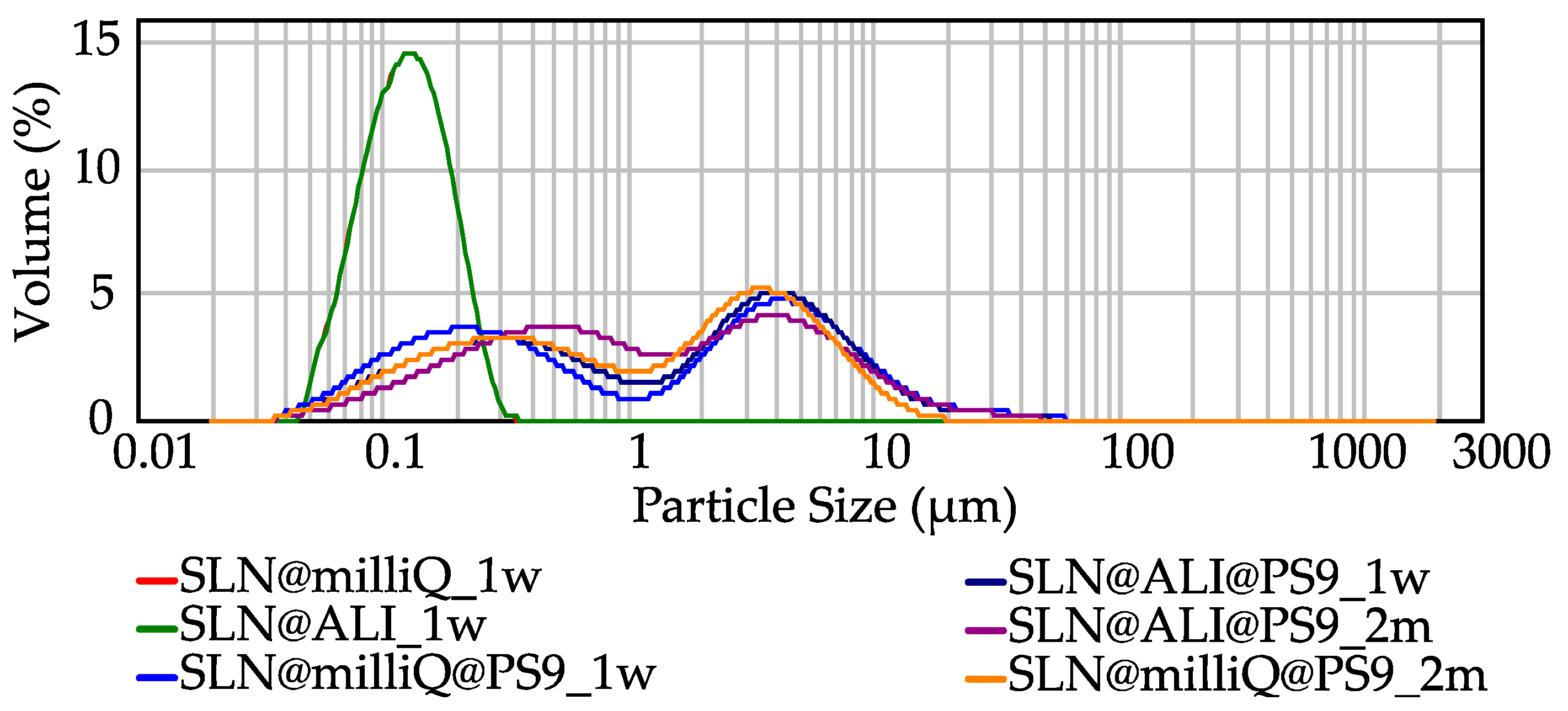

Particle size results are shown in Figure 3. SLN@milliQ and SLN@ALI had a particle size between 0.3 and 0.04 μm, the main mode being 0.15 μm. These particle sizes maintained stable form for 2 months (data not shown). Moreover, the type of water did not influence the resultant particle size of the SLNs (SLN@milliQ_1w and SLN@ALI_1w, overlapped curves, Figure 3), thus demonstrating that ALI water is completely valid for the formulation of SLNs.

On the other hand, the presence of PS9 clearly influenced the final SLN particle sizes, as it can be seen in the figure and corroborated by the SPAN factor (

Table 1. Statistical particle size analysis.

Sample	d10 (μm)	d50 (μm)	d90 (μm)	SPAN Factor
SLN@milliQ_1w	0.073	0.124	0.202	1.041
SLN@ALI_1w	0.074	0.124	0.203	1.042
SLN@milliQ@PS9_1w	0.116	1.595	8.277	5.116
SLN@ALI@PS9_1w	0.141	1.776	7.747	4.283
SLN@ALI@PS9_2m	0.180	1.235	7.650	6.046
SLN@milliQ@PS9_2m	0.142	1.435	6.143	4.181

). Two modes appeared in SLN@ALI@PS9 and SLN@milliQ@PS9 (either 1 w and 2 m). The biggest mode could be adscribed to the presence of PS9 particles, as reported in previous studies [16], while the smaller one would be adscribed to the SLN. We hypothesize that the size changes of SLN caused by PS9 could be due to the adsorption of the tensioactive to the clay mineral surface. Further studies should be performed in order to confirm this hypothesis.

3.4. TEM

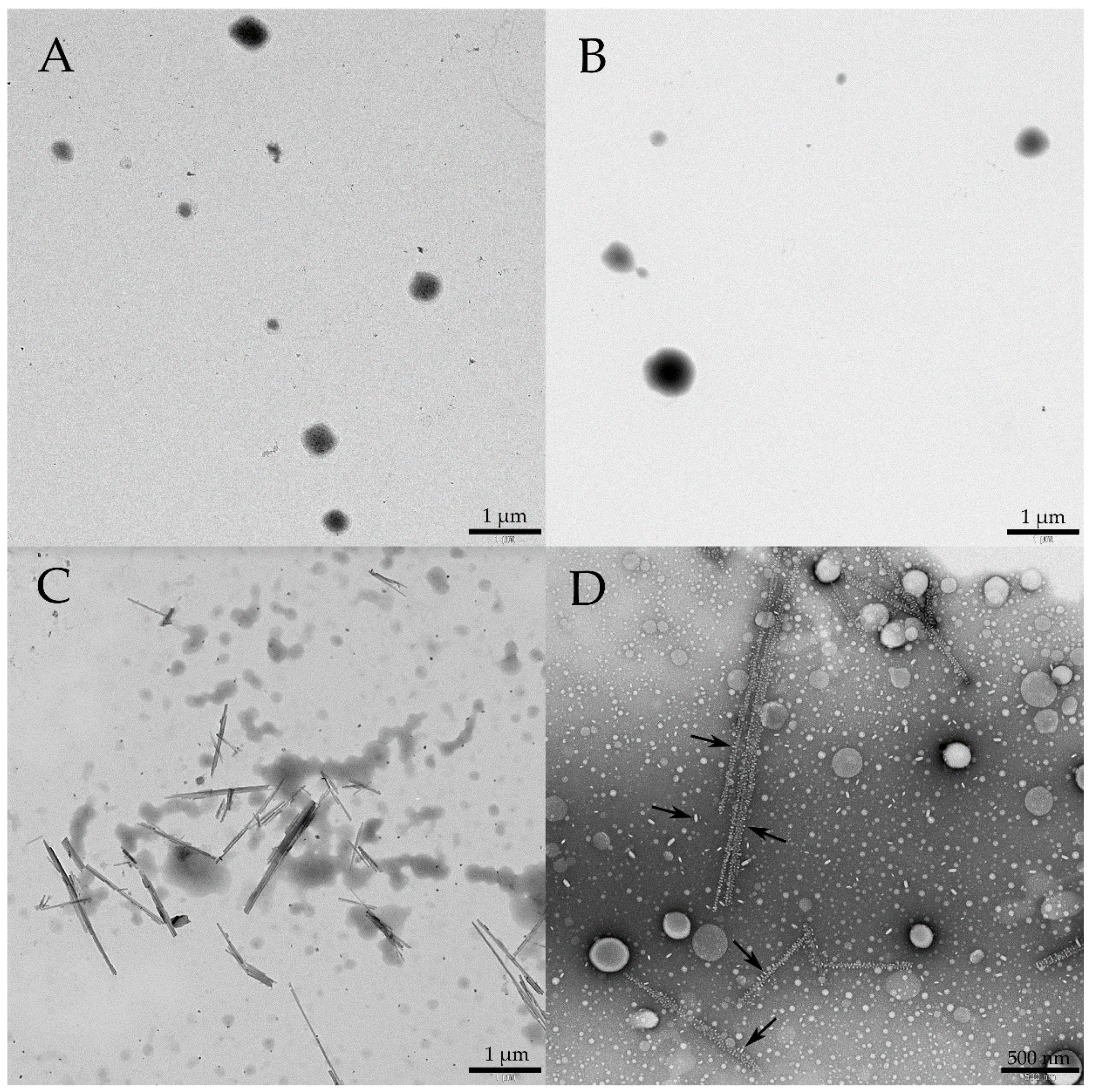

Microphotographs of the samples are summarized in Figure 4. As expected, Figure 4A,B corresponds to SLN@ALI and SLN@milliQ, respectively. Consequently, no clay particles fibers were found and the dimensions of the SLN are in agreement with the particle sizes reported. Coalescence of SLN nanoparticles is visible in both SLN@ALI@PS9 (Figure 4C) and SLN@milliQ@PS9 (Figure 4D), thus explaining the increase in particle size results. One of the main features of clay minerals is their high surface area. We hypothesize that the presence of the clay particles could alter the dimensions of the SLN due to adsorption of the surfactant molecules by the clay fibers. In fact, a concentrated zone was found in sample SLN@milliQ@PS9 (Figure 4D). In this area, sepiolite fibers area are surrounded by tiny particles of around 30 nm (see arrows in Figure 4D). In view of the sizes and the aspect of these “particles,” they can be identified as micelles formed by the concentration of surfactant molecules over the sepiolite particles. This result is in agreement with the hypothesis explaining the coalescence of the SLNs.

5. Conclusions
