PLS Structure-Insecticidal Activity Relationships of Nitromethylene, Pyrrole- and Dihydropyrrole-Fused Neonicotinoids ^†

Abstract

A single Neonicotinoids are considered to be one of the important classes of insecticides used at the present time. In this study the partial least squares (PLS) approach is applied to a series of nitromethylene, pyrrole- and dihydropyrrole-fused neonicotinoids to model their insecticidal activity (pLC50 values) against the cowpea aphids. The structures were modeled using the MMFF94s force field. A robust PLS model (3PCs, R²X(Cum) = 0.963, R²Y(cum) = 0.870 and Q²(Cum) = 0.796) with predictive power (CCC_ext = 0.873, ${\mathrm{r}}_{\mathrm{m}}^2$ = 0.680, ${\mathrm{Q}}_{\mathrm{F}1}^2$ = 0.805, ${\mathrm{Q}}_{\mathrm{F}2}^2$ = 0.802, ${\mathrm{Q}}_{\mathrm{F}3}^2$ = 0.704) is obtained. New insecticides active against the cowpea aphids can be predicted.

1. Introduction

Neuroactive insecticides are the principal means of protecting crops, people, livestock, and pets from pest insect attack and disease transmission [1]. Most insecticides are nerve poisons and have been introduced since 1940, followed later by several classes of compounds, including neonicotinoids in the 1990s [2,3]. Neurotoxicants are the major synthetic insecticides for several reasons [4]. They act rapidly to stop crop damage and disease transmission. There are many sensitive sites at which even a small disruption may ultimately prove to be lethal. A lipoidal sheath protects the insect nerve from ionized toxicants but not from lipophilic insecticides. Poor detoxification mechanisms in nerves provide prolonged toxicant effects.

Fundamental differences between the nicotinic acetylcholine receptor (nAChR) of insects on the one hand and mammals on the other confer remarkable selectivity to the neonicotinoids [5]. There is considerable inhibitor specificity between the acethylcolinesterase nerve target (AChE) of insects and mammals contributing to selective toxicity [4]. Photostabilized compounds selective for insects relative to mammals, commercialized as imidacloprid and six analogs designated neonicotinoids are highly insecticidal but the photolabile nithiazine with a nitromethylene moiety and no cationic substituent act as an nAChR agonist [1]. The guanidine or amidine unit is coplanar and electronically conjugated with the nitro or cyano substituent, which facilitates partial negative charge flow toward the tip. They act as agonists at multiple nAChR subtypes, with differential selectivity between insects and mammals conferred by only minor structural changes. Imidacloprid is not protonated, but its electronegative nitroimine extreme end may bind to a lysine or arginine residue in a subsite of the insect nicotinic acetylcholine receptor [4]. Nicotine in contrast is protonated at physiological pH and undergoes cation-π interaction with the choline subsite of AChE for insect, at a nicotinic acetylcholine receptor subsite in mammals. Reactivation rates for inhibiting AChE may also vary for insects and mammals. Mammals have a second related enzyme, butyrylcholinesterase, abundant in blood plasma, which reacts with organosphophate and methylcarbamate toxicants and provides a protection not available to insects.

The coplanar segment between guanidine or amidine and pharmacophore in the neonicotinoids can create an electronic conjugation to facilitate the partial negative charge flow toward the tip atom and increase the binding affinity to the insect target [6].

Neuroactive compounds have been the dominant insecticides for 50 years, and this is not expected to change in the foreseeable future [2]. The early neuroactive insecticides were effective, inexpensive, and often persistent, ideal properties for the selection of resistant strains. Resistance can be conferred by minimal (or even a single) amino acid substitution at the target site. Resistance problems with this first generation of neuroactive insecticides prompted the search for new neurotoxicants acting at different sites to circumvent cross resistance. This was outstandingly successful in case of chloronicotinyl compounds or synthetic nicotinoids with outstanding systemic properties that are exemplified by imidacloprid acting at the nAChR nicotinic acetylcholine receptor. These nicotinoids act at the same site in insects as nicotine but with much higher effectiveness and safety. No target site–associated cross-resistance problems exist, and accordingly the synthetic nicotinoids are outstanding replacements for the insecticidal organophosphorus compounds and methylcarbamate insecticide systemics in many uses for sucking insect pests of crops.

One of the main success factors for neonicotinoids is their plant systemicity [5]. Applied into the soil or to the seed, the products are taken up via the roots, are distributed in the plant and give consistent and long-lasting control of sucking insects. Following foliar application, neonicotinoids penetrate into the leaf lamina and control pests on the lower side of the leaf owing to their good translaminar activity. Furthermore, they are distributed acropetally (xylem movement) and can protect new growing shoots.

The development of neonicotinoids is provoked by the rapid resistance growing [7] and serious bee toxicity [8,9,10]. Thus, there is an urgent need for the development of novel, effective, neonicotinoid replacements.

The target of the neonicotinoid insecticides is the nervous system of nAChR, as demonstrated by the quantitative relation between the neuroblocking activity and the insecticidal activity against American cockroaches [11]. In this study 23 variants of the key pharmacophore were built with the central ring conjugated to NCN, CHNO₂, or NNO₂ moieties, and demonstrated that the neuroblocking potency is proportional to the Mulliken charge on the nitro oxygen atom or cyano nitrogen atom.

A previous MLR analysis [12] of a series of 24 nitromethylene, pyrrole- and dihydropyrrole-fused neonicotinoids [13,14] (

Table 1. The neonicotinoid structures, the experimental (pLC_50exp) and predicted (pLC_{50 pred}) insecticidal activity values obtained using the PLS model.

No	Structure	pLC50exp	pLC50pred	No	Structure	pLC50exp	pLC50pred
1		5.21	5.08	13		3.97	3.94
2		5.70	5.34	14		3.79	3.93
3 *		5.80	5.42	15		4.25	4.40
4		5.71	5.35	16		4.07	3.86
5		5.11	5.33	17*		3.91	4.02
6		3.85	3.90	18		3.98	4.05
7		4.55	4.83	19		4.41	4.51
8 *		4.52	4.85	20 *		3.82	4.10
9		4.41	4.77	21		3.86	4.07
10		4.35	3.99	22		4.04	4.12
11		3.96	4.00	23 *		3.58	4.09
12 *		4.16	3.98	24		3.72	3.46
25		4.46	4.47

* Test compounds included in the PLS model.

) emphasized the importance of Galvez topological charge index (JGI2, which means the topological charge index of order 2) and two GETAWAY descriptors. The partial least squares approach was applied to the same series of neonicotinoids to find out the neonicotinoid structural features that influence the insecticidal activity [15]. Higher topological, edge adjacency indices, and 3D-MoRSE descriptor values were found to be favorable for the insecticidal potency.

This paper presents a quantitative structure-activity relationship (QSAR) study of a series of nitromethylene, pyrrole- and dihydropyrrole-fused neonicotinoids, active against the cowpea aphids, using the partial least squares (PLS) method. Structural insecticide parameters calculated for the minimum energy conformers are related to the insecticidal activity, expressed as pLC₅₀ values. Based on the resulted PLS model new insecticide structures active against the cowpea aphids can be predicted.

2. Methods

2.1. Definition of Target Property and Molecular Parameters

A dataset of 25 nitromethylene, pyrrole- and dihydropyrrole-fused neonicotinoids (Table 1) having the insecticidal activity (LC₅₀, in mmol/L) against cowpea aphids (Aphis craccivora) [14,16] was analyzed. pLC₅₀ values were used as dependant variable.

The neonicotinoid structures were pre-optimized using the MMFF94 molecular mechanics force field included in the Omega (Omega v.2.5.1.4, OpenEye Scientific Software, Santa Fe, NM, USA. http://www.eyesopen.com) software [17,18]. For conformer generation, the maximum number of conformers per compound set of 400 and an RMSD value of 0.5 Å were employed during the conformer ensemble generation.

The conformers of minimum energy were then used to calculate the structural parameters, using the DRAGON (Dragon Professional 5.5, 2007, Talete S.R.L., Milano, Italy) and InstanJChem (Instant JChem (2012) version 5.10.0, http://www.chemaxon.com) software.

2.2. Partial Least Squares (PLS) Method

The Partial Least Squares (PLS) approach [19] was employed to relate the pLC₅₀ values with the calculated structural descriptors, using the SIMCA (SIMCA P+12 12.0.0.0 2008, Umetrics, Malmö, Sweeden, www.umetrics.com) program. The PLS approach leads to stable, correct and highly predictive models even for correlated descriptors. The quality of the PLS model was verified using the squared correlation regression coefficient R²(CUM), and the squared cross-validated correlation coefficient, Q²(CUM). The Variables Importance in the Projection (VIP) values and the sign of the variables’ coefficients were used to explain the activity mechanism. The leave-7-out crossvalidation procedure was employed to select the most significant principal components and to check the internal model validation.

The Y-randomization test was employed to test the model robustness and overfitting. In this procedure the dependent variable is randomly shuffled using the same descriptor matrix. The obtained PLS models (after 999 randomizations) must have the minimal r² and q² values [20].

2.3. Model Validation

The dataset was divided randomly into training and test (24% of the total number of compounds) sets. Following compounds: 3, 11, 13, 14, 17 and 23 were included in the test set (Table 1).

Several criteria were used for testing the predictive model power: ${\mathrm{Q}}_{\mathrm{F}1}^2$ [21], ${\mathrm{Q}}_{\mathrm{F}2}^2$ [22], ${\mathrm{Q}}_{\mathrm{F}3}^2$ [23], the concordance correlation coefficient (CCC) [24] (having the thresholds values higher than 0.85, [25]) and the predictive parameter ${\mathrm{r}}_{\mathrm{m}}^2$ (with a lowest threshold value of 0.5) [26].

The model overfit was checked using the Y-randomization test [27] and by comparing the root-mean-square errors (RMSE) and the mean absolute error (MAE) of the training and validation sets [28].

3. Results and Discussion

The X matrix of neonicotinoid descriptors was analyzed using the PCA approach. A model with 5 significant components (N = 25 and X = 1426) was obtained; the first three components explain 75.7% of the information content.

The PLS model developed for the entire set of compounds gave the following statistical results: R²_X(CUM) = 0.872, R²_Y(CUM) = 0.990 and Q²(CUM) = 0.731, obtained for seven principal components demonstrated the model overfit (${\mathrm{R}}_{\mathrm{X}(\mathrm{C}\mathrm{U}\mathrm{M})}^2$ and ${\mathrm{R}}_{\mathrm{Y}(\mathrm{C}\mathrm{U}\mathrm{M})}^2$ are the cumulative sum of squares of all the X and Y values). Therefore the noise variables (e.g., coefficient values insignificantly different from 0) were excluded from this model.

A robust model with three significant principal components, which explains 96.3% of the information content of the descriptor matrix (for 10 structural descriptors), with R²_Y(CUM) = 0.87 and Q²(CUM) = 0.796 was obtained. The descriptor coefficients and the VIP values included in the final PLS model are presented in

Table 2. The PLS coefficients in descending order of the VIP values *.

No	Variable ID *	CoefCS [3]	VIP [3]
1	B03[O-O]	0.157	1.065
2	B05[O-O]	0.157	1.065
3	C-012	0.157	1.065
4	F03[O-O]	0.157	1.065
5	F05[O-O]	0.157	1.065
6	Mor15m	0.256	1.038
7	Xindex	0.193	0.914
8	B09[C-O]	0.367	0.902
9	Vindex	0.187	0.902
10	X1A	0.218	0.886

* B03[O-O]—presence/absence of O-O at topological distance 3 (2D binary fingerprints); B05[O-O]—presence/absence of O-O at topological distance 5 (2D binary fingerprints); C-012—presence of the CR2 × 2 fragment (R: any group linked through carbon; X: halogen, atom-centred fragments); F03[O-O]—frequency of O-O at topological distance 3 (2D frequency fingerprints); F05[O-O]—frequency of O-O at topological distance 5 (2D frequency fingerprints); Mor15m—3D-MoRSE—signal 15/weighted by atomic masses (3D-MoRSE descriptors); Xindex—Balaban X index (information indices); B09[C-O]—presence/absence of O-O at topological distance 9 (2D binary fingerprints); Vindex—Balaban V index (information indices); X1A—average connectivity index chi-1 (connectivity indices).

.

The PLS model was validated by the following internal validation parameters: CCC_tr = 0.930, CCC_CV = 0.892, RMSE_tr = 0.216, RMSE_CV = 0.269, MAE_tr = 0.180, MAE_CV = 0.221, (tr is the notation for training and CV for crossvalidation). A stable PLS model was obtained.

Highest contribution to the model is given by the 2D binary and frequency fingerprints descriptors.

The prediction model power was checked using external validation parameters, calculated for the test set: CCC_ext = 0.873, RMSE_ext = 0.327, MAE_ext = 0.299, ${\mathrm{r}}_{\mathrm{m}}^2$ = 0.680, ${\mathrm{Q}}_{\mathrm{F}1}^2$ = 0.805, ${\mathrm{Q}}_{\mathrm{F}2}^2$ = 0.802, ${\mathrm{Q}}_{\mathrm{F}3}^2$ = 0.704. They indicate the PLS model as having a good predictive power.

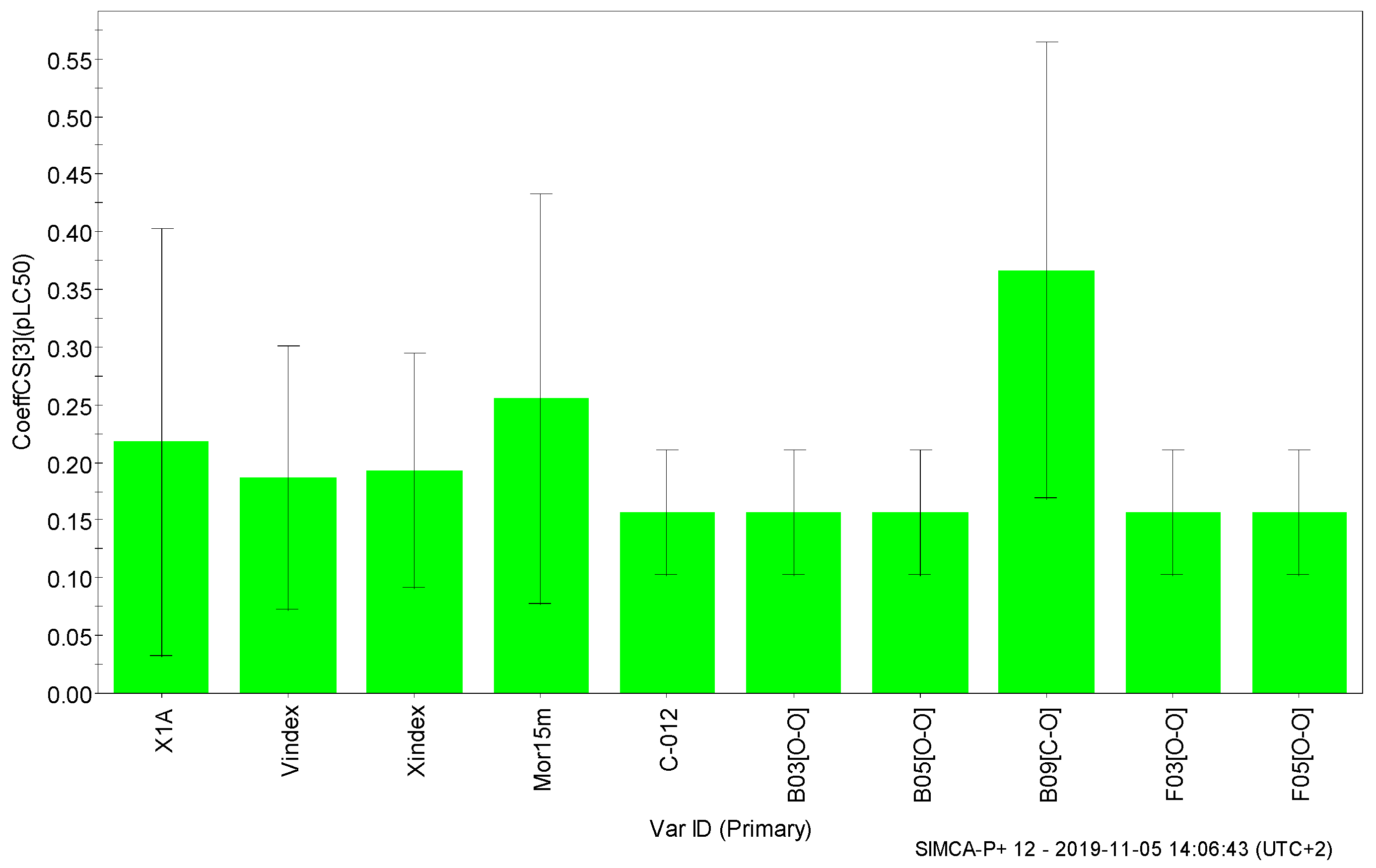

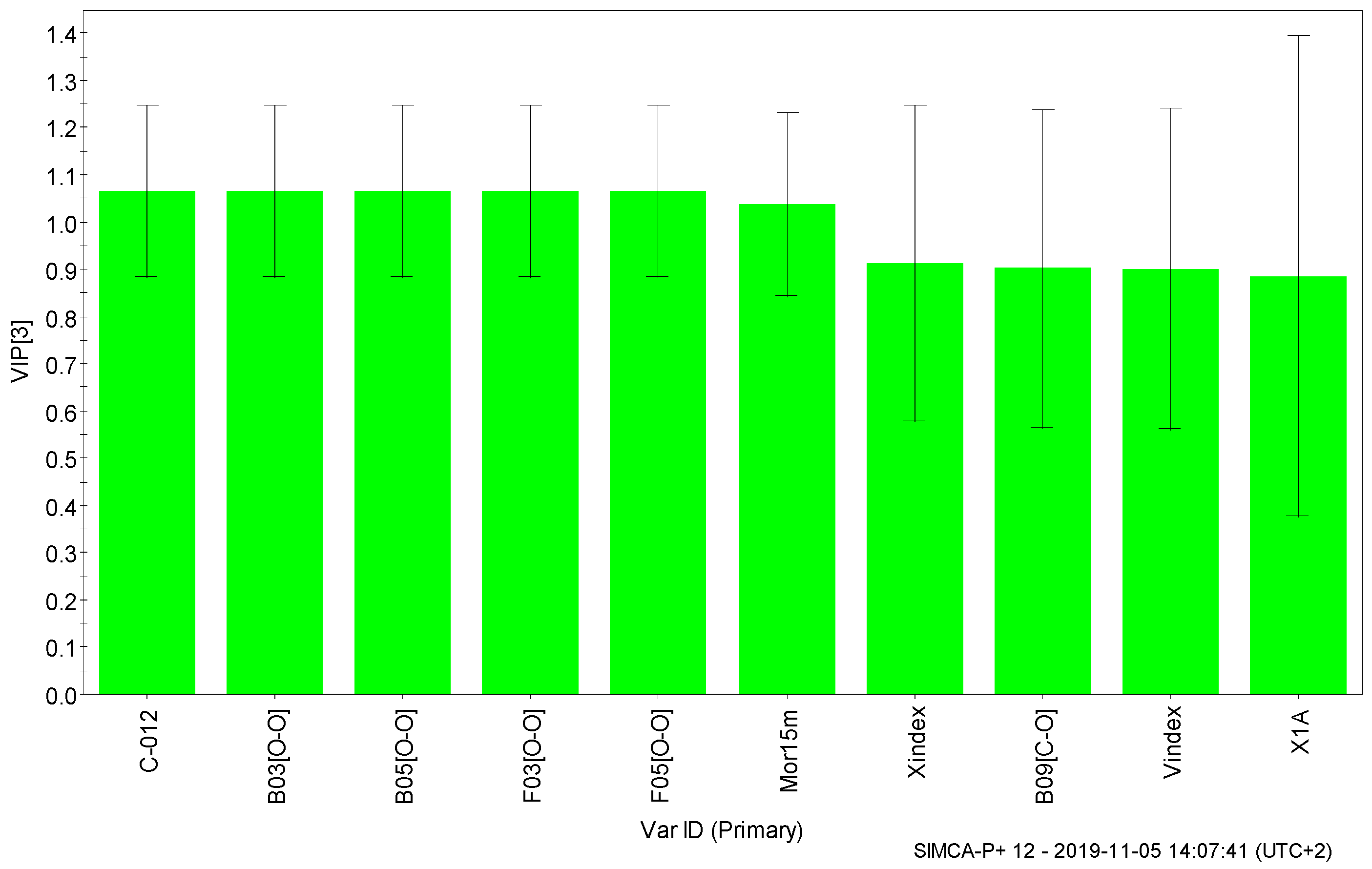

The coefficient and VIP plots are presented in Figure 1 and Figure 2, respectively.

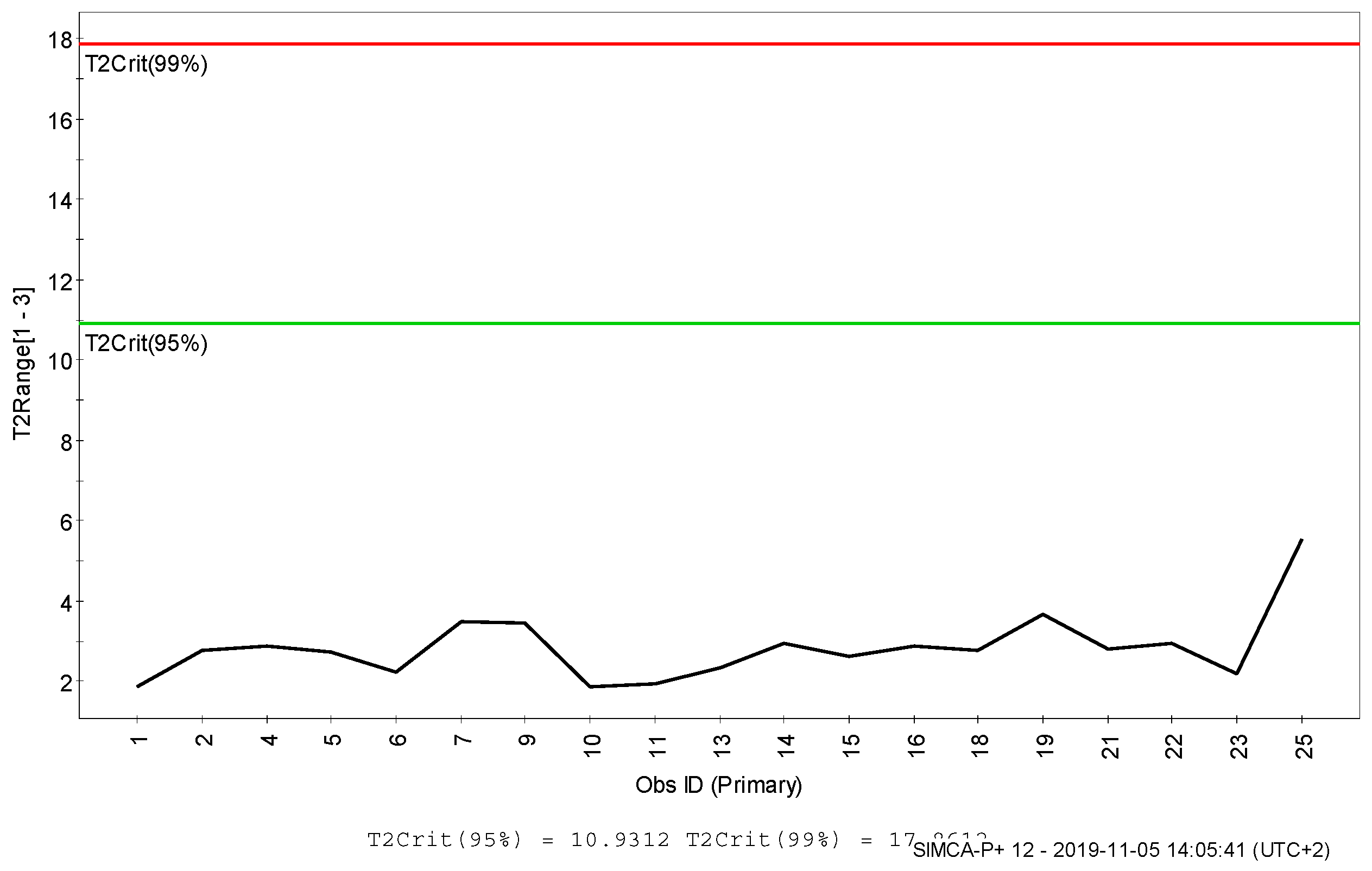

The Hotteling’s T² range plot (Figure 3) confirms the absence of leverage compounds and outliers.

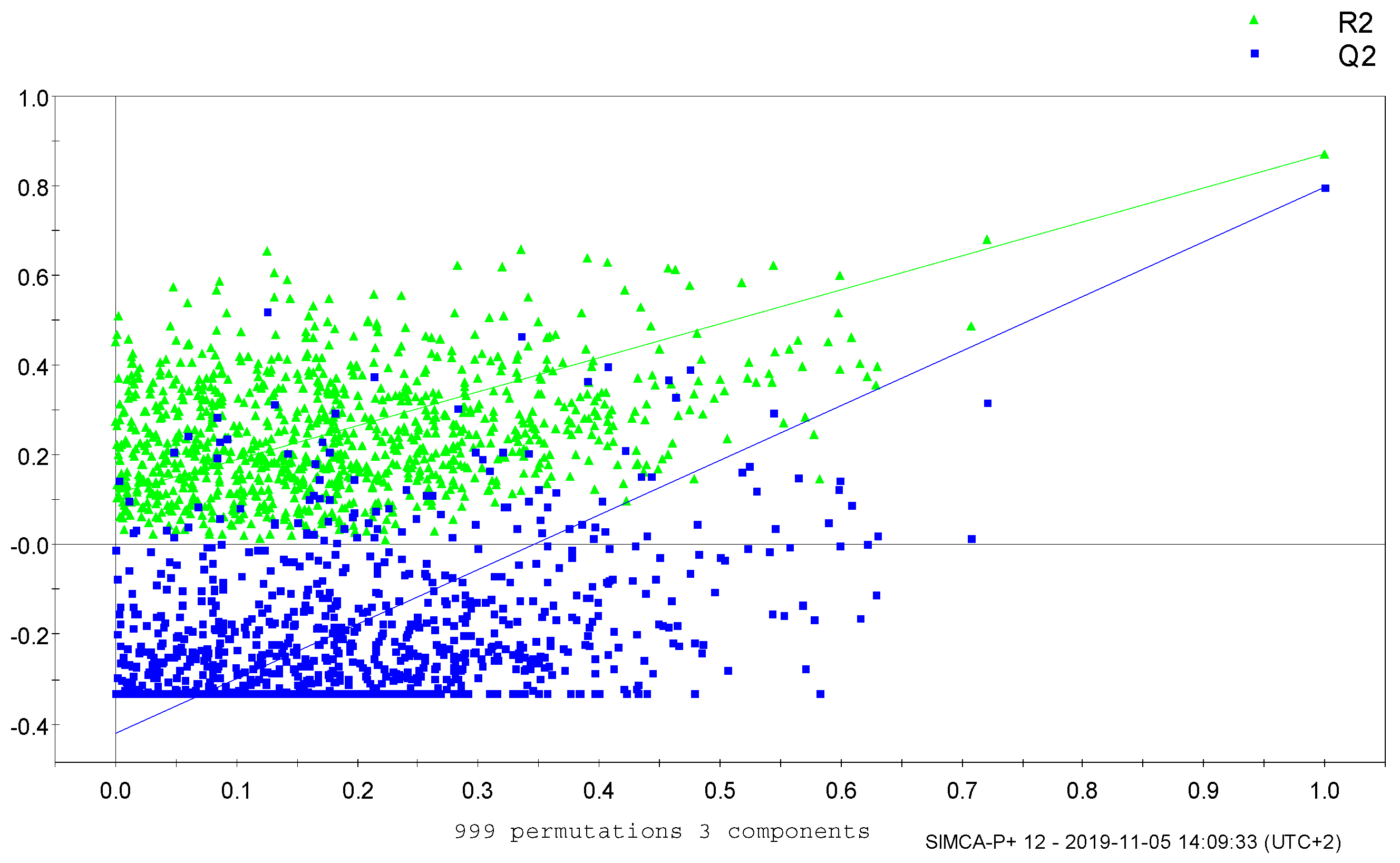

In the y-scrambling test performed for the PLS model, a significant low scrambled r² (${\mathrm{r}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$) and cross-validated q² (${\mathrm{q}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$) values were obtained for 999 trials. Figure 4 shows that in case of all the randomized models, the values of ${\mathrm{r}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$ and ${\mathrm{q}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$ for the PLS model were <0.5 (${\mathrm{r}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$/${\mathrm{q}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$of 0.113/−0.428). The low calculated ${\mathrm{r}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$ and ${\mathrm{q}}_{\mathrm{s}\mathrm{c}\mathrm{r}}^2$values indicate no chance correlation for the PLS chosen model.

New neonicotinoid structures with insecticidal activity against the cowpea aphids can be designed based on the final PLS model.

4. Conclusions

The partial least squares (PLS) approach was used to study the insecticide activity against the cowpea aphids (Aphis craccivora) of a series of nitromethylene, pyrrole- and dihydropyrrole-fused neonicotinoids. The structures were pre-optimized using the MMFF94 molecular mechanics force field. Structural descriptors were derived from the minimum energy conformers and were related to the pLC₅₀ values. 2D binary and frequency fingerprints descriptors had highest contribution to the PLS model. The resulted PLS model, having good statistical results and predictive power can be used for the design of new insecticides active against the cowpea aphids.
