Development of Strain Localization in a Beta-Titanium Alloy Gum Metal Analyzed by Infrared Camera and Digital Image Correlation for Various Strain Rates ^†

Abstract

Effects of thermomechanical couplings were studied in a new beta Ti alloy by IR and DIC techniques. The obtained stress-strain curves confirmed low Young’s modulus and high strength of the alloy. The determined values of yield strength increases and values of elongation till rupture decreases with increasing strain rate. It was found, by using fast and sensitive infrared camera, that the large limit of the Gum Metal reversible nonlinear deformation originates from mechanisms of dissipative nature, probably exothermic stress-induced transition of α” nanodomains.

1. Introduction

Gum Metal subjected to tension at various strain rates was investigated applying infrared camera (IR) and digital image correlation (DIC). The MTS 858 Testing Machine and two cameras working in visible range (0.3–1 μm—Manta G-125B) and IR range (3–5 μm—ThermaCam Phoenix, Allied Vision, sourced from Unit 1, Opus Avenue, Nether Poppleton York, YO26 6BL, United Kingdom) were used. Specimens with dimensions of 100 × 8 × 0.5 mm with gauge part 7 × 4 mm were studied. The length of virtual extensometer for DIC analysis was equal to 7 mm.

2. Results and Discussion

Increase in the specimen temperature after it drops due to thermoelastic effect, started from point A (Figure 1b) revealed dissipative character of the process. This takes place in the range of reversible deformation [1,2] and is caused by a stress-induced phase transformation of martensite-like orthorhombic α″ nanodomains [3,4]. From the points B and C the slope of ΔT vs. ε dependence increases significantly.

2.1. Gum Metal Mechanical and Thermal Distributions Analyzed by DIC and IR Techniques

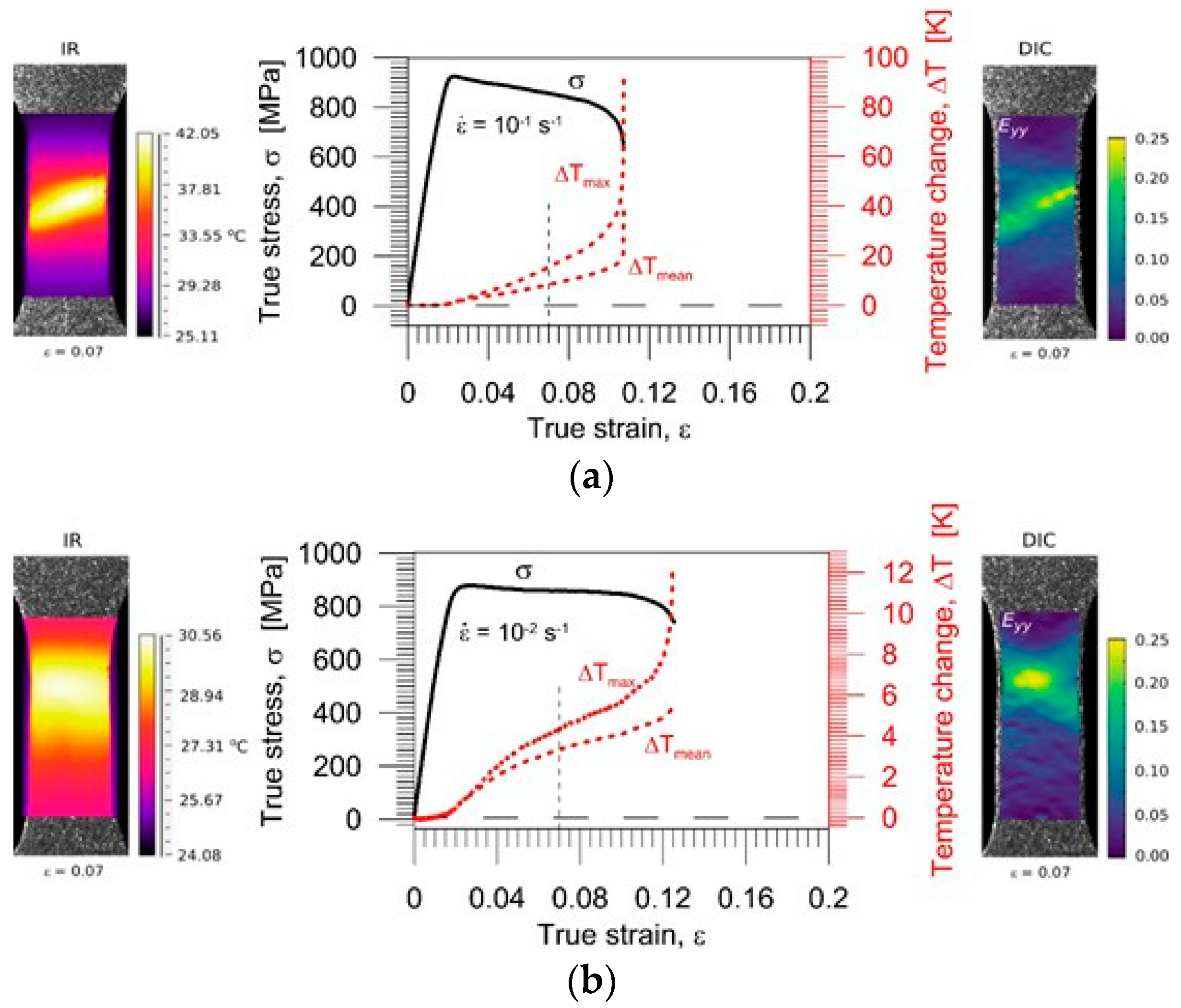

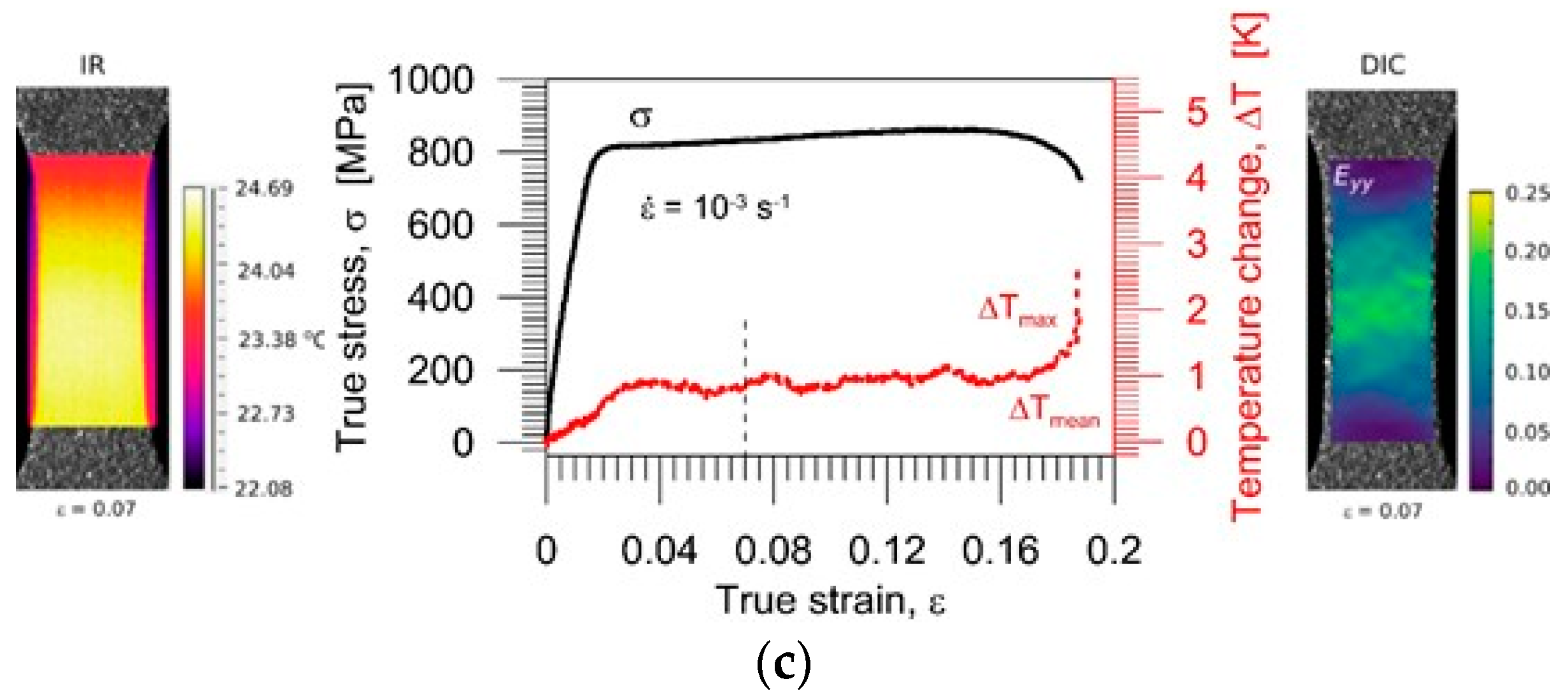

Stress vs. strain curves derived by DIC for the Gum Metal tension at strain rates: 10⁻¹ s⁻¹, 10⁻² s⁻¹ and 10⁻³ s⁻¹ till rupture, completed by the related temperature changes are presented in Figure 2a–c, respectively. The temperature distributions (left) and corresponding distributions of the ε_yy strain component (right) for the mean strain ε = 0.07 (vertical dashed line in diagrams) are shown.

The evolutions of two kinds of the temperature changes taken from the gauge part of the specimen are analyzed, i.e.,: the mean ΔT_mean, and the maximal ΔT_max temperature. In the initial strain range the ΔT_max and ΔT_mean curves are overlapping; at the higher strains a gradually increasing discrepancy is observed. The point of discrepancy (marked by a star in the diagrams) is an indicator of the onset of plastic strain localization. At the strain rate 10⁻³ s⁻¹, far from adiabatic conditions, no discrepancy is seen between the temperatures, yet the non-uniform strain distribution obtained by DIC demonstrates some strain localization at this strain rate.

2.2. Nucleation and Development of Strain Localization in Gum Metal during Tension Analyzed by DIC

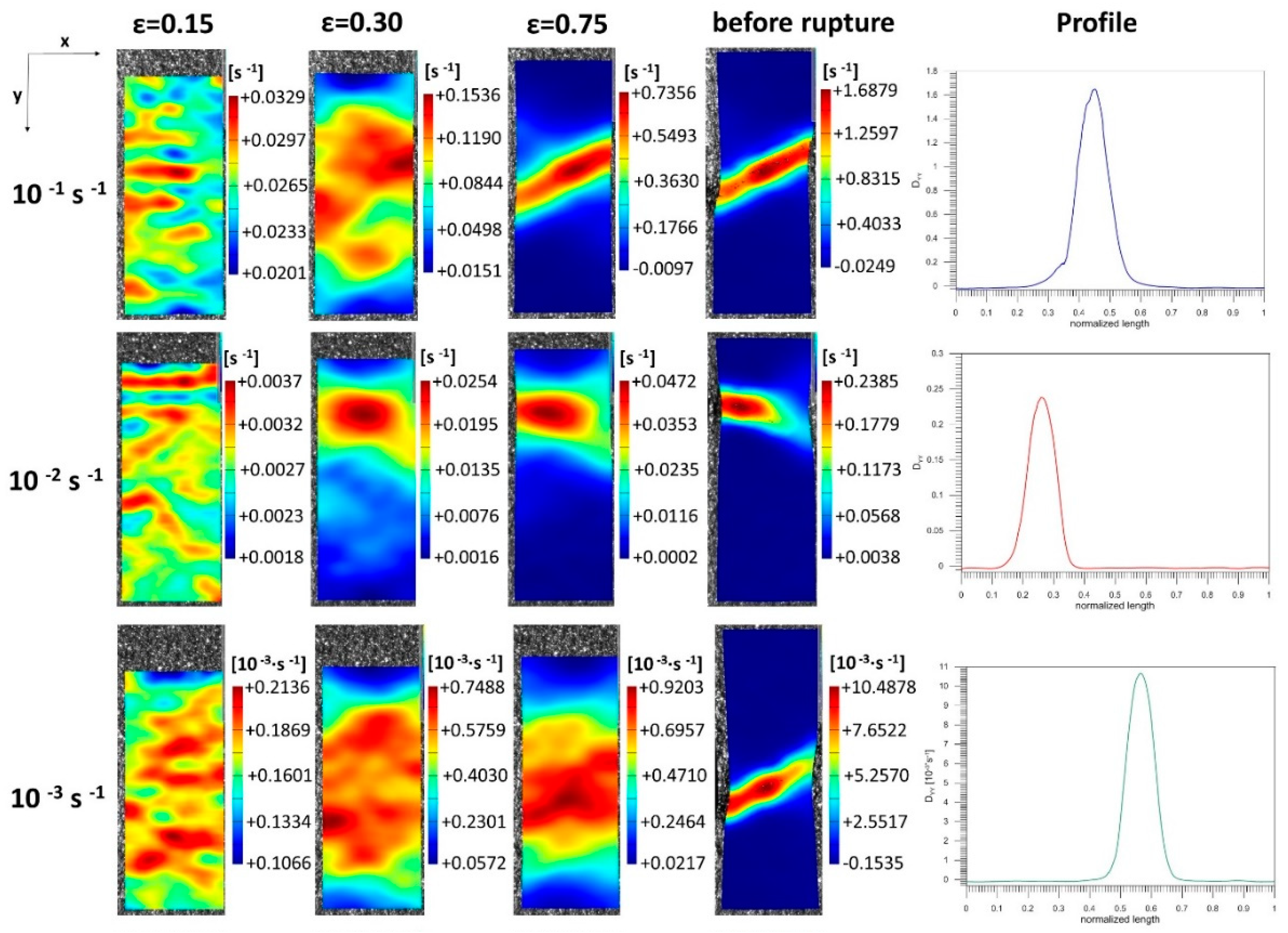

Results of digital image correlation in the Gum Metal subjected to tension at three various strain rates until rupture were analyzed. In Figure 3 the distributions of rate of deformation tensor D_yy component (y—is the loading direction) obtained on the basis of the DIC data, are presented. Furthermore, profiles passing through a point with maximal value of the strain and parralel to the loading direction are shown on the right. Within the plastic deformation range, the strain distributions obtained by DIC technique demonstrate that at the higher strain rates strain localization starts nucleating just after the Yield limit, leading to the specimen necking and rupture at larger strains. Macroscopically, it is exhibited as softening of the stress-strain curve in contrast to the strain hardening observed at lower strain rates [5].

As shown in Figure 3, at strain 0.75 the rate of deformation tensor D_yy component was localized for higher strain rates 10⁻¹ s⁻¹ and 10⁻² s⁻¹ in contrast to lower strain rate 10⁻³ s⁻¹. At larger strains, before the rupture, the rate of deformation tensor D_yy components were localized for all strain rates applied. Furthermore, the deformation rate profiles obtained before the specimens rupture show that maximal values of D_yy are two orders higher in comparison to average strain rate applied during tension.

Rupture of Gum Metal specimens at high strain rates was accompanied with significant local temperature rise (Figure 2). The temperature distributions of the Gum Metal specimen at selected stages of the loading process were discussed in [3,4].

3. Conclusions

Using fast and sensitive infrared camera it was found that the large limit of reversible nonlinear deformation, reported for the innovative beta-titanium alloy named Gum Metal, originates from mechanisms of dissipative nature, probably exothermic stress-induced transition of α” nanodomains. The point of the discrepancy, obtained between the maximal ΔT_max and mean ΔT_mean temperature vs. strain curves, indicates on the onset of the Gum Metal plastic strain localization.

During plastic deformation, both strain and temperature distributions demonstrate that at higher strain rates strain localization starts nucleating just after the Gum Metal Yield limit.

Rate of deformation tensor D_yy component values grow fast in the initial stage of deformation at low displacements for three strain rates applied. The maximal values of D_yy are two orders higher in comparison to average strain rate applied during the Gum Metal tensile loading.
