Squared PMUT with Enhanced Pressure Sensitivities ^†

Abstract

This study presents a squared AlN piezoelectric micromachined ultrasonic transducer (PMUT). Using this PMUT greater level of output pressure and higher reception sensitivity has been achieved, compared with the state-of-the-art. Another outstanding characteristic for this PMUT is that it can be monolithically integrated on CMOS substrate, being remarkably advantageous in relation to the bonding method implemented until now.

1. Introduction

PMUTs are widely used in smart sensing applications as fingerprint recognition. This new technology has important advantages over conventional ultrasonic transducers such as low cost, small size, low power consumption, and compatibility with integrated circuit manufacturing methods [1]. One of the most important Figures of Merit to characterize and evaluate its behavior as an actuator and sensor is the sensitivity, being the main parameter that will focus our attention. For this reason, it is necessary to look for the best structures, materials and electrode configuration in order to increase sensitivity.

2. Materials and Methods

PMUT Device

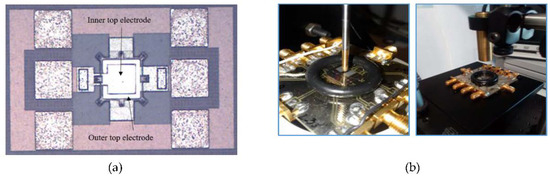

In this paper, we have used a squared AlN PMUT with an 80 μm side (Figure 1a). The piezoelectric layer has a 1.3 μm thickness with 0.35 μm top and 0.40 μm bottom Al electrodes and a 1.5 μm Si3N4 passive layer. It was fabricated using the MEMS-on-CMOS process from Silterra already used for SAW devices [2].

Squared PMUTs have a better performance than circular PMUT [3], the main reason is because the fill factor is considerably higher and for this the output pressure is also bigger.

Our proposal use two top electrodes for differential transduction and a common bottom electrode. This configuration has the property that it can improve considerably the sensitivity and coupling efficiency [4]. To achieve this is necessary that the relation between inner electrode and cavity radius will be √2/2 and the gap among inner and outer electrode must be minimized, in our case we have used 1.5 μm.

3. Results

3.1. Simulation and Electrical Measurements

Comsol Multiphysics was used to simulate this PMUT in H2O and FC-70. Figure 2a shows the membrane deflection in these media using 1V in differential excitation. The resonance frequency obtained in H2O was 3.7 MHz and 2.8 MHz in FC-70.

In addition, the PMUT was electrically characterized in air by a probe table using a network analyzer. A 5.9 MHz resonance frequency for the first flexural mode as drum resonator with a quality factor of Q = 153 and a piezoelectrical coupling coefficient kt2 = 1.6% is obtained, Figure 2b.

3.2. Acoustic Characterization of the PMUT as Actuator and Sensor

In order to characterize the output acoustic pressure of the PMUT as an actuator, a commercial hydrophone (HNC-1500) from ONDA has been used in H2O and FC-70 (c = 1468 m/s; ρ= 1000 kg/m³ and c = 700 m/s; ρρ = 1940 kg/m³ respectively) (see Figure 1b). The characterization of the PMUT as sensor has been made with a commercial transducer from OPTEL, which has been previously calibrated (see Figure 1b).

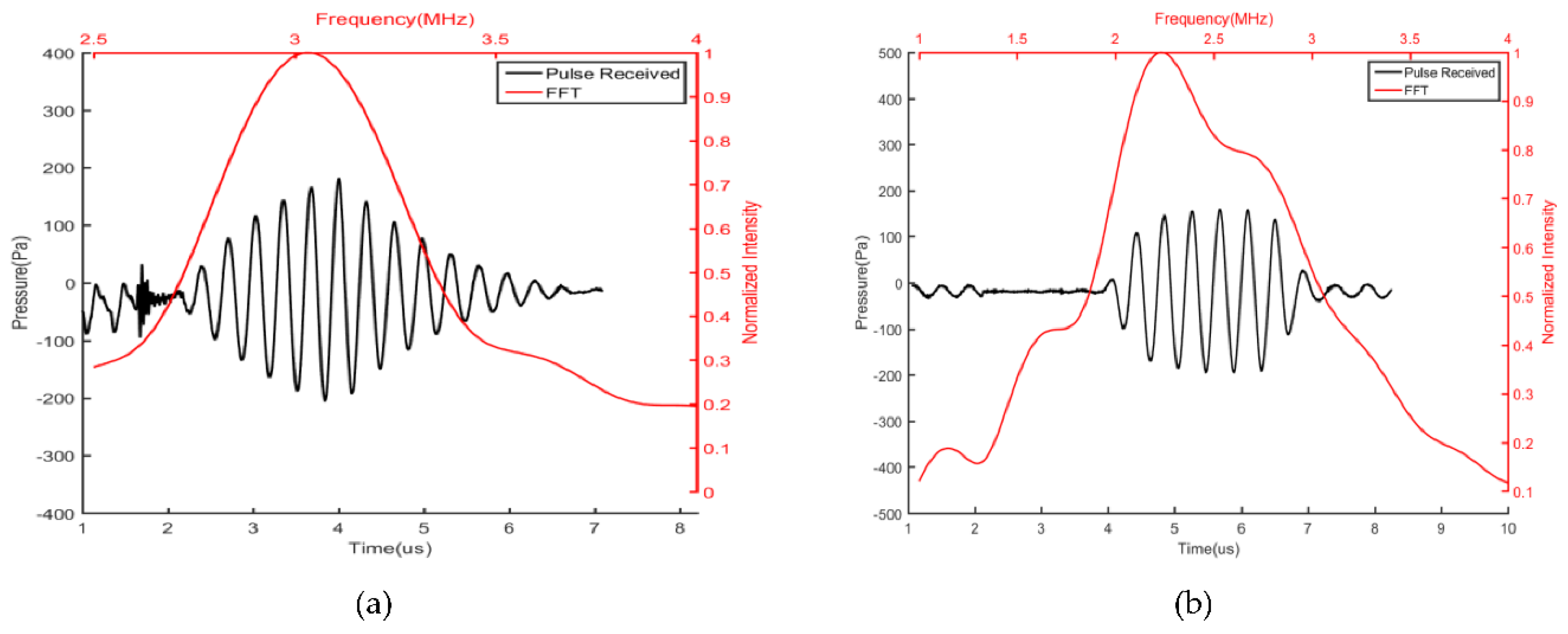

Figure 3 shows the response in the media when the electrodes were excited differentially with a 6 cycles, 20 Vpp input signal at a distance of 3.8 mm between the PMUT and hydrophone in water (Figure 3a), and 3 mm in FC-70 (Figure 3b). The maximum peak-to-peak pressure obtained is 388 Pa in H2O and 360 Pa in FC-70. Computing the FFT from the ring down time response of the PMUT, the resonance frequencies are 3.1 MHz (in H2O) and 2.4 MHz (in FC-70), close to the simulated ones. The quality factor in H2O and FC-70 was computed obtaining 7.1 and 2.7 respectively.

For comparison with other PMUTs, the surface pressure defined as P₀ = z/R₀·p(z) (being R₀, the Rayleigh distance), has been calculated in both media (R₀ = 10.6 μm in H2O and R0 = 17.2 μm in FC-70). In H2O the pressure at 3.8 mm was 388 Pa, obtaining a surface pressure of 138 kPa and consequently a transmitting sensitivity (ST) of 6.9 kPa/V. In FC-70, at 3 mm, the measured pressure was 360 Pa, the surface pressure was 63.5 kPa and the corresponding transmitting sensitivity, 3.2 kPa/V. From the simulated dynamic displacement (d) (Figure 2), the surface pressure of the PMUT (ST_EOC = P_o (1 V) = 2πρfdc, and considering a 1/3 factor for not being and ideal piston) in both media was computed, given STEOC = 8.86 kPa/V in water, and 3.98 kPa/V in FC-70, obtaining a good correlation between COMSOL simulations and experimental results.

Table 1. Comparison Performance of the PMUT in FC-70 as actuator.

	Freq (MHz)	ST (kPa/V)	Comments
This work	2.4	3.2	Squared PMUT (80 μm side, 1.3 μm AlN)
[5]	2.5	1.1	Circular PMUT (80 μm diameter, 1.3 μm AlN)
[6]	14	1.38	Extrapolated value for a single 1 μm AlN PMUT (array of 110 × 56)

contains the results as actuator in FC-70, compared with other devices using AlN as piezoelectric material. The results show that this squared PMUT has bigger transmission sensitivities than the reported ones.

The sensitivity as sensor (SR) was computed using the measured signal acquired directly from the PMUT (sensor) by the oscilloscope. Due to the small capacitance of our single PMUTs (~150 fF), the parasitic capacitances due to all the electrical set-up (pads, cables and oscilloscope) have been considered to compute the PMUT intrinsic sensitivity, or SREOC (End Open Circuit sensitivity).

$$\mathrm{SR}=\frac{{\mathrm{C}}_{\mathrm{PMUT}}}{{\mathrm{C}}_{\mathrm{PMUT}}+{\mathrm{C}}_{\mathrm{Cable}}+{\mathrm{C}}_{\mathrm{O}\mathrm{s}\mathrm{c}}+{\mathrm{C}}_{\mathrm{Set}-\mathrm{up}}}\ast {\mathrm{SR}}_{\mathrm{EOC}},$$

(1)

where SR is the receiving sensitivity, CPMUT is PMUT capacitance and the values associated to the inner and outer electrode are 196 fF and 146 fF approximately, CCable is cable capacitance (96 pF/m), COSC is the oscilloscope capacitance (8 pF) and CSet-up (9 pF) accounts for all the parasitic capacitances associated with bondings, pads, connectors, etc.

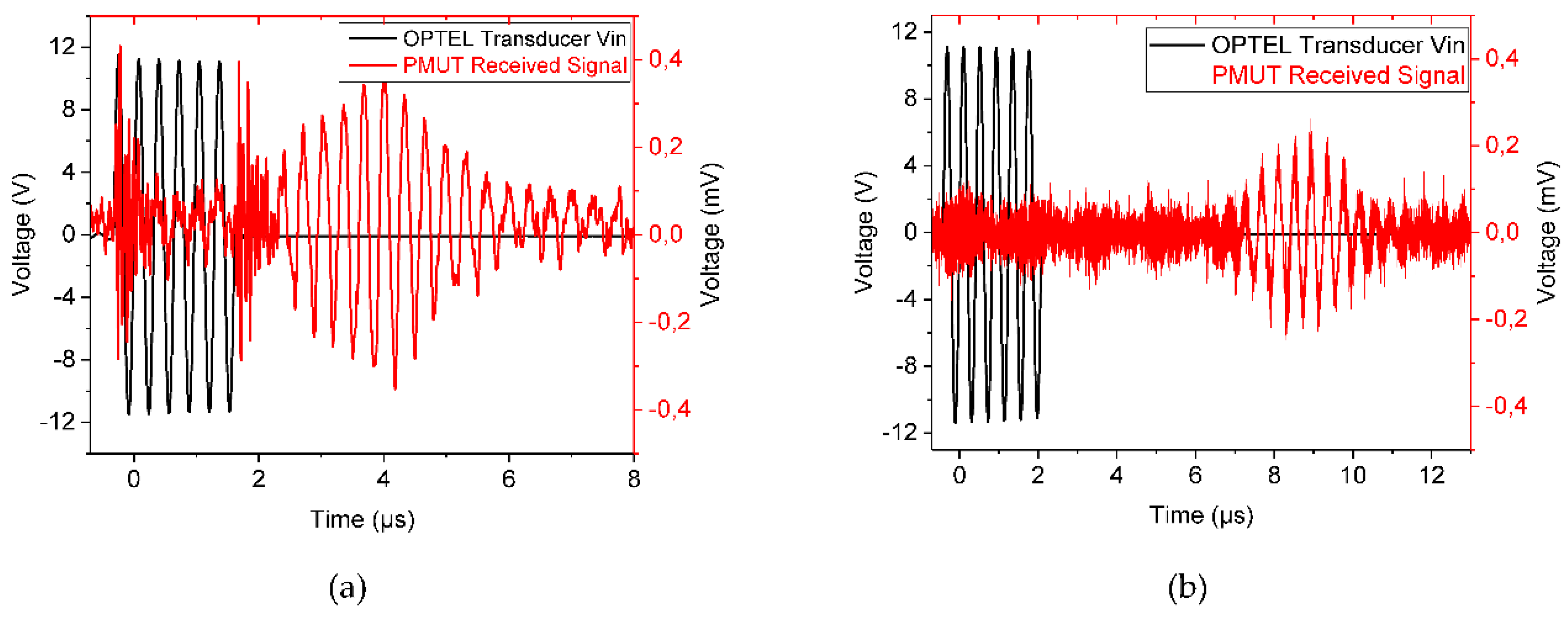

To characterize the PMUT as acoustic sensor, the commercial transducer (@ OPTEL) was excited with 20 Vpp at 3.1 MHz in H2O and at 2.4 MHz in FC-70. Figure 4 shows the received signal at an axial distance from the PMUT of 4.17 mm in H2O and 5.30 mm in FC-70. The voltage signal from the PMUT is around 800 μV in H2O, while it is around 500 μV in FC-70 (Figure 4). Note that these signals correspond to the differentiation of the inner and outer signals acquired. Knowing the pressure already calibrated from the OPTEL at the same distance, frequency and media, the computed SR is 45.6 mV/MPa and 36.4 mV/MPa in H2O and FC-70 respectively. Considering all the capacitances and applying Equation (1) to correct both inner and outer signals, the final SREOC in H2O and FC-70 would be in the range of 30 V/MPa, which is under our knowledge higher than other reported PMUTs in an array configuration [3,7]. We expect an improved measurement performance, decreasing the influence of the parasitic capacitances through the monolithical integration with the CMOS circuitry, and provide further evidences on this very high sensitivity single PMUT as sensor.
