Mechanical Impedance Analysis of a Novel MEMS Photon Force Sensor †

Karolina Orłowska
Wojciech Majstrzyk
Andrzej Sierakowski
Tomasz Piasecki
1 and
Teodor Gotszalk
Faculty of Microsystem Electronics and Photonics, Wroclaw University of Technology, 50-372 Wrocław, Poland
Division of Silicon Microsystem and Nanostructure Technology, Institute of Electron Technology (ITE), 02-668 Warsaw, Poland
Author to whom correspondence should be addressed.
Presented at the Eurosensors 2018 Conference, Graz, Austria, 9–12 September 2018.
Proceedings 2018, 2(13), 921;
Published: 29 November 2018
(This article belongs to the Proceedings of EUROSENSORS 2018)


In this work we present how to describe mechanical impedance of a photon force (PF) MEMS sensor dedicated to structures’ optomechanical studies. An actuating force (photon force) is caused by the reflection and absorption of the electromagnetic radiation beam due to the radiation pressure effect. Specially designed very soft (low k-constant, ca 10–150 mN/m) cantilevers are presented. The structures integrate a Lorentz loop, which enables electromagnetic actuation. The construction with two mirrors is proposed so that parasitic thermal actuation can be neglected. The MEMS displacement is measured with the use of a laser vibrometer. The mechanical impedance model is presented using which the stiffness is calculated. As validation measurements: thermal noise and known mass adding methods are used.

1. Introduction

Microelectromechanical systems (MEMS) consist of integrated movable microstructures with electronics parts and their dimensions are as follows: cross-section in the order of single microns (1 µm) and lengths in the order of 10–100 µm. Analytical determination of MEMS mechanical parameters is often difficult, as the geometry and material composition of the today’s structures is complex. Nevertheless, since they are commonly used as mechanical to electronic signal transducers (i.e., in much more complex devices and systems), their calibration is necessary.
There are many methods of the cantilevers’ spring constant determination like Cleveland [1], Sader [2,3], Hutter and Bechhoffer [4], Butt and Jashke [5] or Holbery and Eden [6]. However, none of them is versatile for every type of beam’s structure. For the MEMS cantilevers of complex shape, it is impossible to use any theoretical method and the investigations of very soft cantilevers (k < 150 mN/m) are even more challenging, as they exhibit low quality factor Q and the boundary conditions at the beam supporting point are becoming more important.
Here we present the structures designed by our group and fabricated by the ITE in Warsaw (K. Orłowska, W. Majstrzyk, P. Kunicki, A. Sierakowski, B. Pruchnik, D. Tomaszewski, P. Prokaryn, P. Grabiec, T. Gotszalk, New design of the cantilevers for radiation pressure investigations, Microelectronic Engineering, under revision) They are made using silicon on insulator (SOI) technology. The material is highly doped (to be conductive, Boron Doped Silicon, BDS technique), so that the cantilever is stressed due to the crystal structure’s modification. Since the force sensitivity depends on the cantilever’s stiffness k and the quality factor Q it is necessary to describe precisely their values before the structure’s application—here photon force reference actuation (Figure 1a).
As a method if investigations we present the mechanical impedance investigation method [7] for MEMS structures in ambient conditions analysis. The cantilever’s array is used to increase the reliability of conducted research (Figure 1b).

2. Materials and Methods

To fully understand what and how the manufacturing steps affect the beams’ behavior one must unravel what influences the Q value. MetMolMEMS cantilever’s quality factor is equal only to about 30. If the cantilever is modeled as a simple harmonic oscillator (SHO), it can be assumed that the beam is a weightless elastic spring with the stiffness k, at the end of which there is a suspended mass m (here the effective mass of the cantilever), immersed in the viscous medium that causes the viscous dumping b. Then, the explanation is given in the damped harmonic oscillator Equation (1).
SHO equation resulting from Newton’s second low is given as follows:
Proceedings 02 00921 i001
and dividing by m:
Proceedings 02 00921 i002
Then, giving the equation dependent on 𝜔0 and while Proceedings 02 00921 i003, (𝜔0 is undamped angular frequency of the oscillator):
Proceedings 02 00921 i004
So, the quality factor can be given by:
Proceedings 02 00921 i005
To sum up, getting to know what is the reason why Q-factor is so small, one must determine the k, m and b separately. Mechanical impedance is then the best parameter that can help to resolve these values.
When the structure is excited by the force F(t) Equation (3) can be rewritten as:
Proceedings 02 00921 i006
Mechanical impedance in this case is interpreted as the ratio between the excitation force F(t) and the velocity of the structure movement Proceedings 02 00921 i007. The parameters describing structure properties are in this case the mass of the structure m, its stiffness k and the viscosity damping b.
Besides the standard damped harmonic oscillator, known mass added method [8] for k-constant calculations was used with the basic equation:
Proceedings 02 00921 i008
where, f0, fm are the resonance frequencies of the unloaded and loaded cantilever respectively and where the effective mass of the structure can be calculated as follows:
Proceedings 02 00921 i009
msph is known added mass value. Then viscous damping one can get from (4).
In the thermomechanical noise method first stiffness k is measured, then effective mass from (6) and viscous damping coefficient from (4) as above.

3. Results

Since the PF-MEMS cantilever are photon force driven structures, optical power from SLED can be used to actuate them (Figure 1a). Every RP-cantilever is a U-shaped conductive structure and has two suspended mirrors: one for the actuation and one for the detection (Figure 1b). Both are covered with a thin gold film to ensure the beam reflectivity. Actuating mirror is also suspended on the cantilevers’ legs for intentional thermal isolation from the rest of the structure (rounded-shaped in Figure 1b) to separate the mechanical (photon force) and thermal contribution to the movement. Due to the complex shape of investigated structures, no geometrical method can be used to estimate their parameters. So that two others: thermomechanical noise and known added methods were proposed.
To make the PF-MEMS cantilevers initial characterization thermomechanical noise method was used. All measured parameters: fres, k and Q are presented in Table 1.
For the mechanical impedance parameters measurement known mass adding method was used [8]. While putting the SiO2 microsphere covered with 50 nm gold layer (known mass-object, msph = 8 ng) onto the very end of the structure, the frequency shift was measured (where f0 = 5785, f1 = 5468 Hz). So that taking into account Q value the k, m and b parameters can be calculated. The results are presented in Table 2.


The fabrication of the used structures was done within the NCN OPUS 9 Grant—“Metrology of molecular interactions using electromagnetically actuated MEMS force sensors-MetMolMEMS” (Grant No. 2015/17/B/ST7/03876). Methodology and metrology were financed by NCN Preludium Grant—“Mechanical impedance measurements of MEMS structures with the use of the photon force reference, PF-MEMS” (Grant No. 2017/25/N/ST7/02780).

Conflicts of Interest

The authors declare no conflict of interest


  1. Cleveland, J.P.; Manne, S.; Bocek, D.; Hansma, P.K. A nondestructive method for determining the spring constant of cantilevers for scanning force microscopy. Rev. Sci. Instrum. 1993, 64, 403–405; [Google Scholar] [CrossRef]
  2. Sader, J.E.; Larson, I.; Mulvaney, P.; White, L.R. Method for the calibration of atomic force microscope cantilevers. Rev. Sci. Instrum. 1995, 66, 3789–3798. [Google Scholar] [CrossRef]
  3. Sader, J.E.; Chon, J.W.M.; Mulvaney, P. Calibration of rectangular atomic force microscope cantilevers. Rev. Sci. Instrum. 1999, 70, 3967–3969. [Google Scholar] [CrossRef]
  4. Hutter, J.L.; Bechhoefer, J. Calibration of atomic-force microscope tips. Rev. Sci. Instrum. 1993, 64, 1868–1873; [Google Scholar] [CrossRef]
  5. Butt, H.-J.; Jaschke, M. Calculation of thermal noise in atomic force microscopy. Nanotechnology 1995, 1–7. [Google Scholar] [CrossRef]
  6. Holbery, J.D.; Eden, V.L.; Sarikaya, M.; Fisher, R.M. Experimental determination of scanning probe microscope cantilever spring constants utilizing a nanoindentation apparatus. Rev. Sci. Instrum. 2000, 71, 3769–3776. [Google Scholar] [CrossRef]
  7. Wilkinson, P.R.; Shaw, G.A.; Pratt, J.R. Determination of a cantilever’s mechanical impedance using photon momentum. Appl. Phys. Lett. 2013, 102, 2013–2016. [Google Scholar] [CrossRef]
  8. Jóźwiak, G.; Kopiec, D.; Zawierucha, P.; Gotszalk, T.; Janus, P.; Grabiec, P.; Rangelow, I.W. The spring constant calibration of the piezoresistive cantilever based biosensor. Sens. Actuators B Chem. 2012, 170, 201–206. [Google Scholar] [CrossRef]

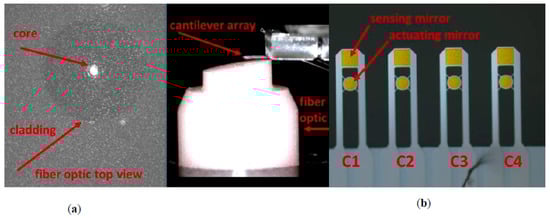

Figure 1. PF cantilever under the measurement process. (b) an PF cantilever array. Each cantilever is equipped with an actuating mirror (suspended) and sensing mirror at the very end.
Figure 1. PF cantilever under the measurement process. (b) an PF cantilever array. Each cantilever is equipped with an actuating mirror (suspended) and sensing mirror at the very end.
Proceedings 02 00921 g001
Table 1. PF cantilever array parameters. These parameters were measured from vibrations caused by the intrinsic thermal noise.
Table 1. PF cantilever array parameters. These parameters were measured from vibrations caused by the intrinsic thermal noise.
Representative CantileverSpring Constant
k [N/m]
Quality Factor
Resonant Frequency
fres [kHz]
Table 2. PF cantilever mechanical impedance parameters.
Table 2. PF cantilever mechanical impedance parameters.
MethodSpring Constant
k [N/m]
Effective Mass
m [ng]
Viscous Damping
b [µg/s]
known added mass s0.0886776.63
thermal noise0.0715461.47
