Gas Sensing Properties of Carbon Nanotubes Decorated with Iridium Oxide Nanoparticles ^†

Abstract

The properties of Iridium oxide (IrO₂) decorated Multi-Wall Carbon Nanotubes (IrO₂-MWCNTs) are studied for detecting nitrogen dioxide and ammonia vapors. IrO₂ nanoparticles were synthetized using a hydrolysis and acid condensation growth mechanism, and subsequently employed for decorating the sidewalls of carbon nanotubes. Decorated MWCNTs films were deposited onto SiO₂/Si substrates for achieving chemoresistive gas sensors. NO₂ and NH₃ gases were detected under different experimental conditions. Higher and more stable responses towards NH₃ and NO₂ were observed for iridium-oxide nanoparticle decorated MWCNT material, compared to bare MWCNT material. Raman Spectroscopy was employed to study the nanomaterials and the optimal operating temperatures were determined.

1. Introduction

Carbon nanotubes have been widely used in gas sensing applications due to their suitable electronic, physical and chemical properties, such as high surface area to volume ratio, nanometer-sized and high carrier mobility. However, some sensing properties (e.g., sensitivity, selectivity and reproducibility) can be enhanced by the functionalization of their external sidewalls. Different options are well-known, such as grafting functional groups onto the carbon nanotubes surface or decorating them with metal or metal oxide nanoparticles. Here we explore the improvements obtained by loading MWCNTS with IrO₂ nanoparticles. While the use of IrO₂ has been reported for electrochemical sensing and catalyst for water splitting [1], little information is available on its use for chemoresistive gas sensing.

2. Materials and Methods

2.1. Material Synthesis

Iridium oxide (IrO₂) nanoparticles were synthetized using the method proposed by Zhao [2], in which we prepare a solution of iridium oxide nanoparticles via two-step process (Figure 1). The first step consists in the hydrolysis of K₂IrCl₆, breaking the Ir-Cl bonds and creating the complex [Ir(OH)₆]⁻² at pH 13 using NaOH. Moving from yellow (K₂IrCl₆) to light blue ([Ir(OH)₆]⁻²) dissolution. The second step is the acid condensation process, in which we use HNO₃ 3M to decrease the pH to 1 under vigorous stirring. In this step we achieve the protonation and condensation of ([Ir(OH)₆]⁻²) to form IrO₂ nanoparticles, changing from light blue to deep blue color. An important consideration is that the dissolution should be stored at 2 °C in order to avoid the formation of precipitates.

2.2. Material Characterization

Raman spectroscopy was employed to evaluate the carbon nanotubes crystallinity. The spectra show the well-known bands at 1350 cm⁻¹ (D), 1580 cm⁻¹ (G), 2680 cm⁻¹ (2D) and 2950 cm⁻¹ (2iTO). Comparing the intensity ratio D/G bands, we can conclude that our MWCNTs present a low level of crystallinity. However, the presence of these defects play an essential role in the anchoring process of IrO₂ nanoparticles.

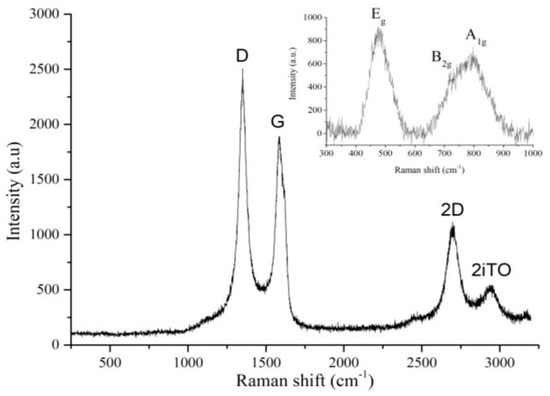

In addition, Raman measurements revealed the MWCNTs decoration with IrO₂ (Figure 2), and the IrO₂ active modes (Eg, B_2g and A_1g) previously reported in other works [3].

2.3. Sensor Design

Decorated MWCNTs were deposited through airbrush technique on oxidized piece of silicon wafer. Then, a platinum screen-printed alumina heater was connected in the backside of silicon wafer and was bonded to a printed circuit board (PCB). Finally, two wire contacts were made on the surface employing a silver paste (Ag component metallization, Heraeus). The sensor design was adapted to be placed in a Teflon test chamber which is connected to a gas mixture system.

2.4. Gas Sensing Methodology

The concentrations analyzed for both, nitrogen dioxide and ammonia gases, were done at three different operating temperatures. The total flow was adjusted to 100 mL/min using calibrated gas cylinders and mass-flow controllers. The sensors were stabilized with synthetic dry air (Air Premier Purity: 99.995%) during 1 h between the target gas concentration exposures (30 min), and successive dilutions were done to apply the desired concentrations.

3. Results

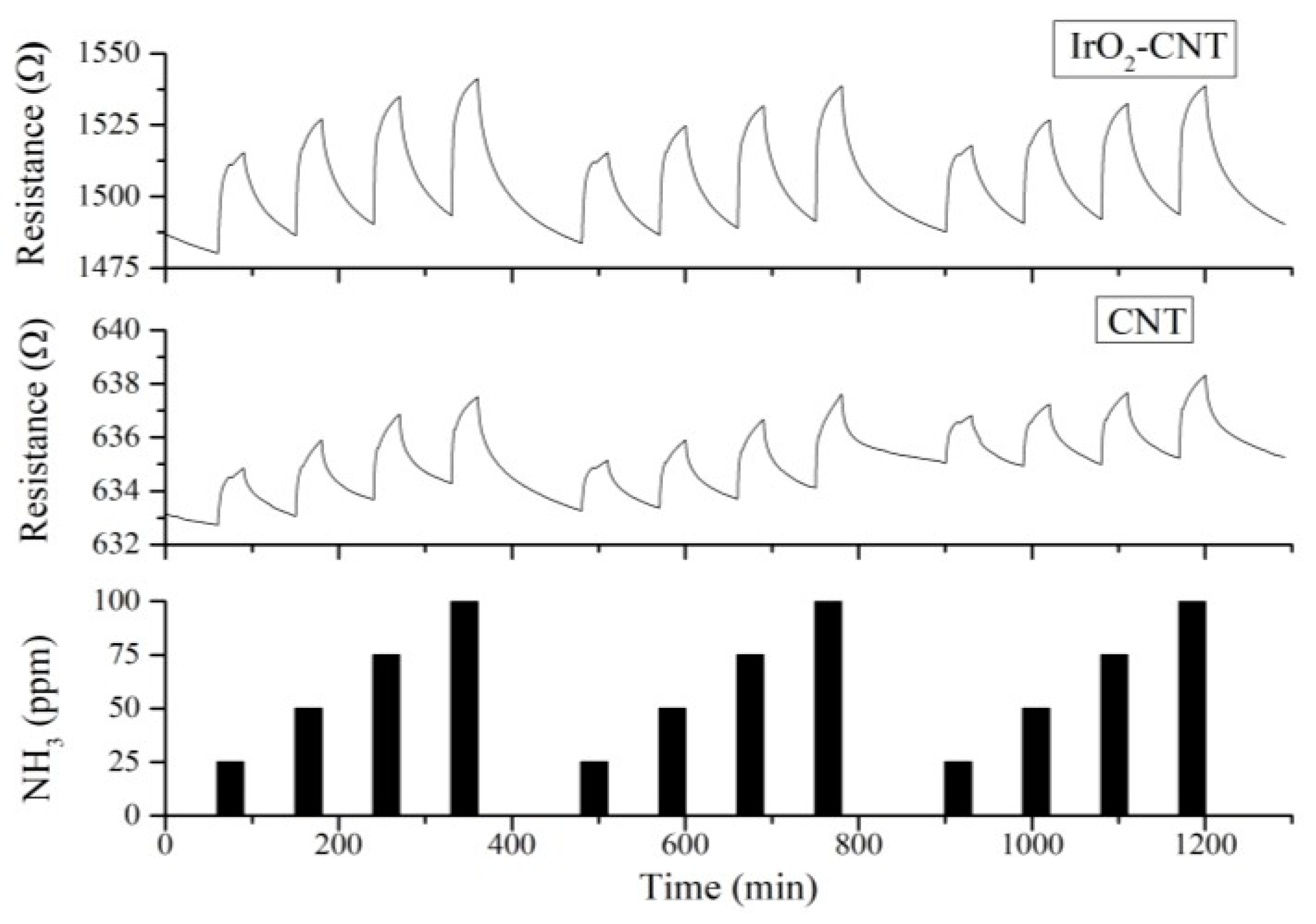

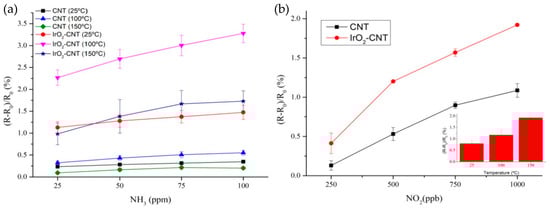

NH₃ and NO₂ gas sensing measurements were performed at ppm and ppb levels, respectively, showing a suitable, improved sensitivity, stability and reproducibility of the response (see Figure 3) for iridium oxide doped MWCNTs. In case of NH₃ detection, a significant increase in response (6-fold) for doped MWCNTs was observed. Moreover, a higher response, better reproducibility and higher stability of IrO₂-MWCNT can be observed. In addition, different temperatures were tested, and while IrO₂-MWCNTs presented higher response than bare MWCNTs for all the temperatures studied, the best operating temperature was found to be 100 °C. (Figure 4a)

Moreover, it can be observed that a better responsiveness towards ppb levels or NO₂ (2-fold increase) was obtained for IrO₂-MWCNTs. The optimal NO₂ detection temperature was 150 °C (see Figure 4b) and the inset indicates that the highest response was observed at this temperature. Some aromatic volatile organic compounds (VOCs), such as benzene and toluene were measured at low concentrations and different operating temperatures. However, no response was obtained during the exposure to these target gases.

In addition, the humidity effect on gas sensing was studied, showing an important increasing in the response (4-fold) for bare carbon nanotubes, probably because of transfer electron from water molecules depletes the concentration of holes [4]. However, the sensitivity of decorated MWCNTs remains similar with and without the presence of ambient moisture. 50% of relative humidity was tested on sensors operated at room temperature and 100 °C for detecting NH₃, and the response of iridium oxide decorated carbon nanotubes shows that this nanomaterial show responses that are quite independent of humidity conditions

4. Conclusions

In this work, we develop a p-type sensor based on decorated MWCNTs with IrO₂ nanoparticles on their sidewalls. This semiconductor nanomaterial shows an enhanced sensitivity to toxic gases such as nitrogen dioxide and ammonia. In addition, in contrast to bare nanotubes, IrO₂-MWCNTs show a gas sensing mechanism rather independent of the relative humidity level. Besides, decorated carbon nanotubes present some selectivity against aromatic VOCs.
