Equivalent Circuit-Based Open-Circuit Sensitivity Modelling of a Capacitive-Type MEMS Acoustic Sensor on Wafer Level ^†

Abstract

Equivalent circuit-based analytical open-circuit sensitivity modelling of a capacitive-type MEMS acoustic sensor for Internet of things (IoT) application is presented. It can not only evaluate simply the characteristic of the sensitivity on wafer level, but also improve the accuracy of the sensitivity due to including the fringing field between the diaphragm and each etching hole in the back-plate. The effective capacitor model is obtained by applying the approximately linearized electric-field method (ALEM), resulting in the equivalent circuit-based dynamic model. From the sensor with a 325 µm-radius diaphragm, the effective radius and the effective residual stress of the diaphragm were extracted to be 299 µm and +23.0 MPa, respectively. With the pull-in voltage of. 12.0 V and the pad capacitance of 0.23 pF; the open-circuit sensitivity was modelled to 11.3 mV/Pa at 1 kHz in the bias of 10 V.

1. Introduction

For Internet of Things (IoT) application, Capacitive-type MEMS acoustic sensors have been investigated and developed in the field of various communication systems due to their matured competitiveness as the demand for integrated multifunction modules as well as their good frequency response [1,2,3,4,5,6]. Conventional MEMS acoustic sensors are usually packaged with read-out integrated circuits (ROICs) and subsequently, their sensitivities are generally evaluated on the basis of empirical data owing to the feature of a complicated capacitive-type transducer. However, despite the exact accuracy of the empirical data, their modelling or measurements are limited to some extent due to the intricate lumped parameters or the total package process. For this reason, on wafer level, equivalent circuit-based analytical open-circuit sensitivity modelling for capacitive-type MEMS acoustic sensor may be a promising characterization method for simple but proper investigation of a capacitive-type acoustic sensor itself.

In this paper, we report a simple equivalent circuit-based model of open-circuit sensitivity based on a couple of empirical data to accurately evaluate the open-circuit sensitivity of the acoustic sensor in a dynamic state on wafer level where lumped parameters of an equivalent circuit can be modelled using both the ALEM capacitor model [5] and the static characteristic of the pull in voltage. Thus, the equivalent circuit model conveniently offers open-circuit sensitivity for a capacitive-type acoustic sensor, resulting in the dynamic characterization on wafer level.

2. Equivalent Circuit-Based Model

For evaluating dynamic response for a capacitive-type acoustic sensor, each lumped parameter of the equivalent circuit-based model is initially determined with few empirical data, where the model is largely composed of three parts: the capacitor model based on ALEM [5], the static open-circuit sensitivity model, and the dynamic open-circuit sensitivity model. Figure 1 shows schematic diagrams for the explanation of a unit cell of a capacitive-type sensor. In the process of the modelling, the sensor is split into each unit cell which can be divided into an inner part and an outer part. The width (D_a) and the length (D_b) of the outer part were 13 µm, respectively. Figure 2 describes the explanation of the ALEM-based capacitor model based on the vector notation. Through the ALEM capacitor model, a capacitor of an acoustic sensor with venting holes in the back plate can be separated into two capacitor: an intrinsic capacitor and a parasitic capacitor. From the sensor with a 325 µm-radius diaphragm, the effective radius and the effective residual stress of the diaphragm were extracted to be 299 µm and +23.0 MPa, respectively.

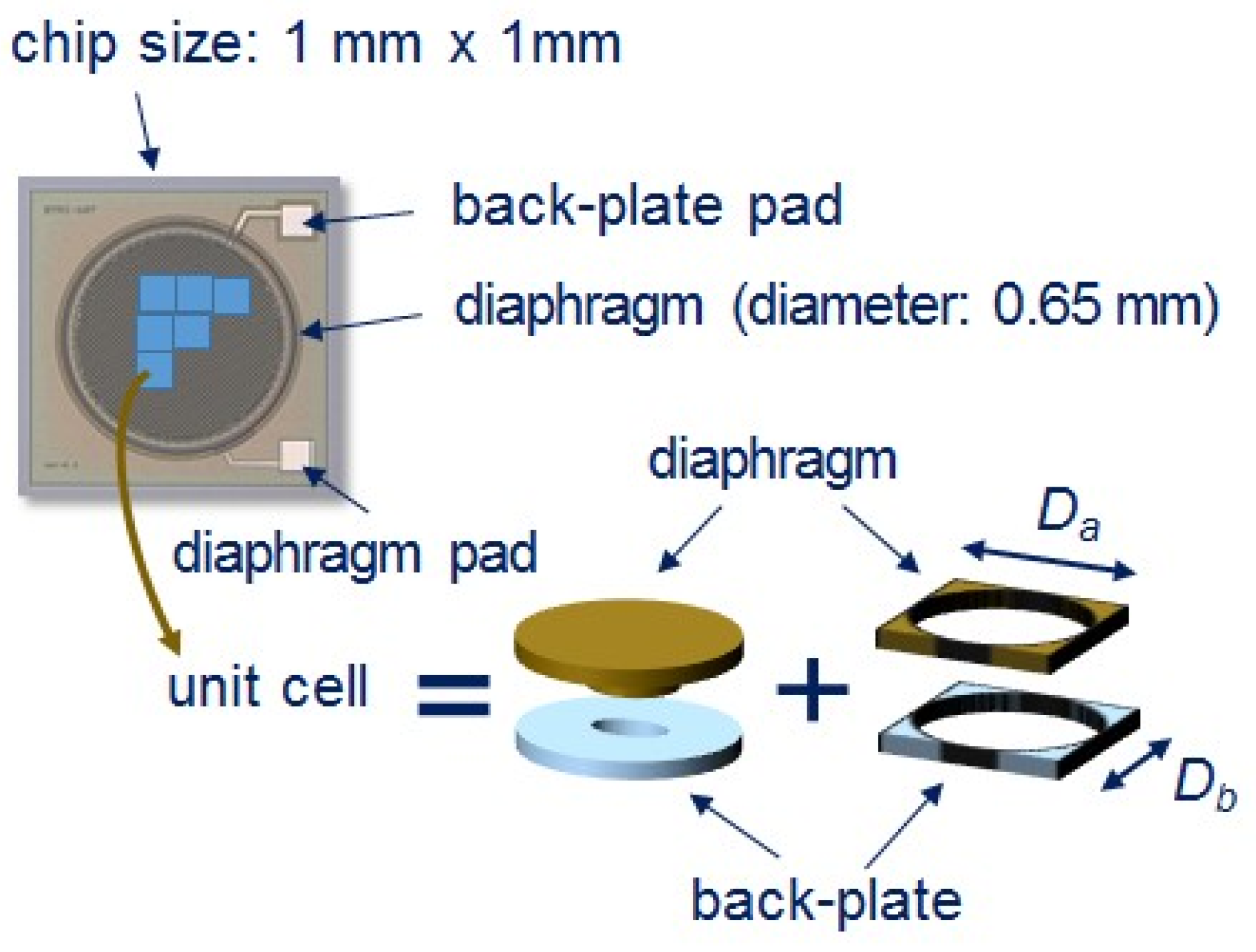

Figure 1. Schematic diagrams of a capacitive-type MEMS acoustic sensor for the explanation of a unit cell model which can be divided into an inner part and an outer part.

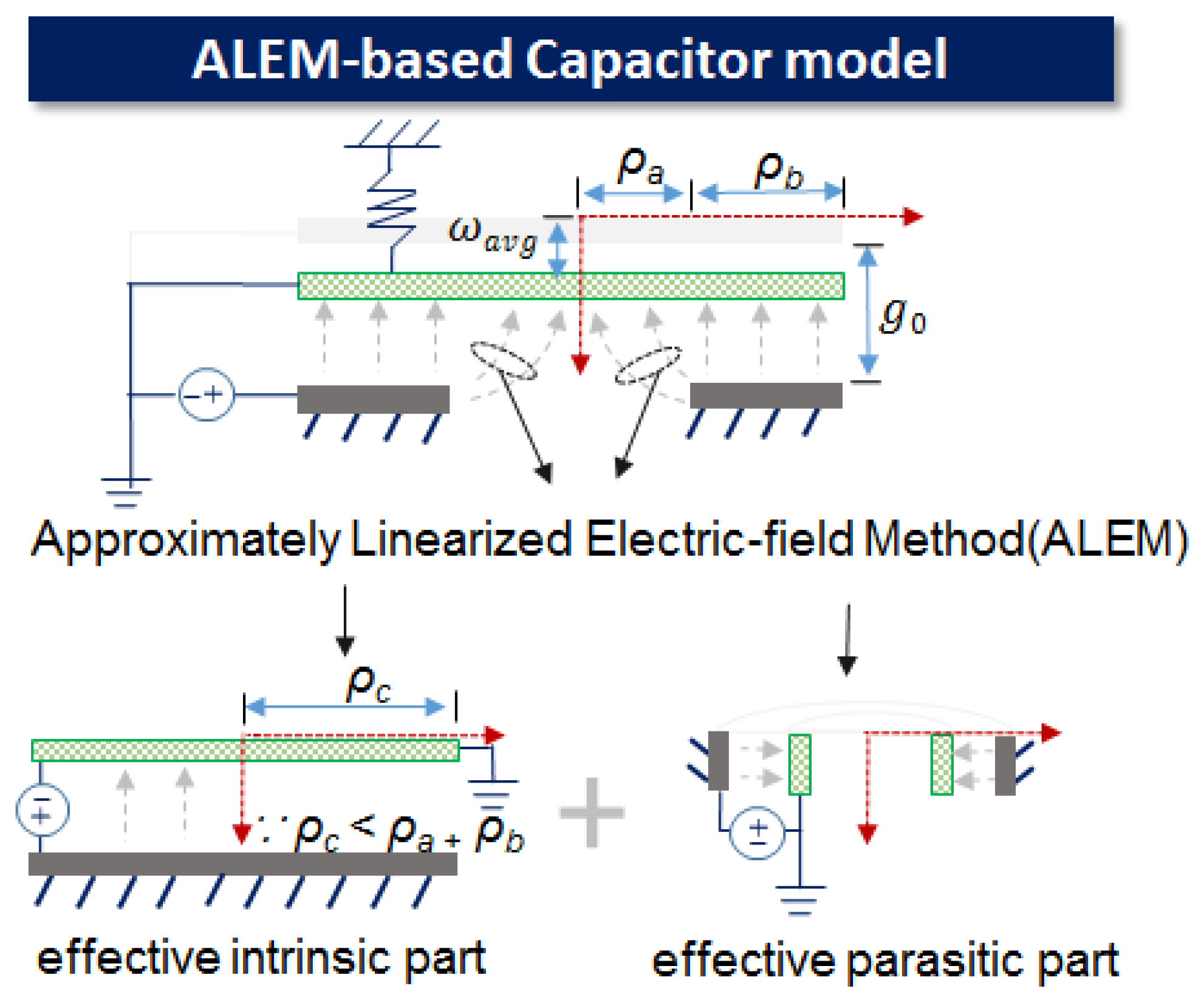

Figure 2. Schematic diagrams for the explanation of the ALEM-based capacitor model based on the vector notation.

3. Results and Discussion

As shown in Figure 3, measured impedance data were de-embedded to both the intrinsic and parasitic terms on the basis of the equivalent circuits for the acoustic sensor. Also, Figure 4 presents a structure-based analogous model for open-circuit sensitivity which is an equivalent circuit describing the interaction between the parameters in the three-signal domain [3,5,6]. Open-circuit sensitivity (S_o) is defined to the ratio of the electrical output voltage (v_out) to the input sound pressure as [5]

$$S_o\left(\omega \right)=\frac{v_{out}\left(\omega \right)}{P\left(\omega \right)}=\frac{A_{tran}}{A_{tran}{}^{2}X\left(\omega \right)+Y\left(\omega \right)}·\frac{\Gamma }{j\omega \left(C_{int}+C_{par}\right)}$$

(1)

where X(ω) and Y(ω) are expressed by

$$X\left(\omega \right)=j\omega M_r+R_r\left(\omega \right)+R_h+R_g+\frac{1}{j\omega C_{bc}}$$

(2)

$$Y\left(\omega \right)=j\omega M_d+\frac{1}{j\omega C_d}+\frac{{\Gamma }^2}{j\omega \left(C_{int}+C_{par}\right)}$$

(3)

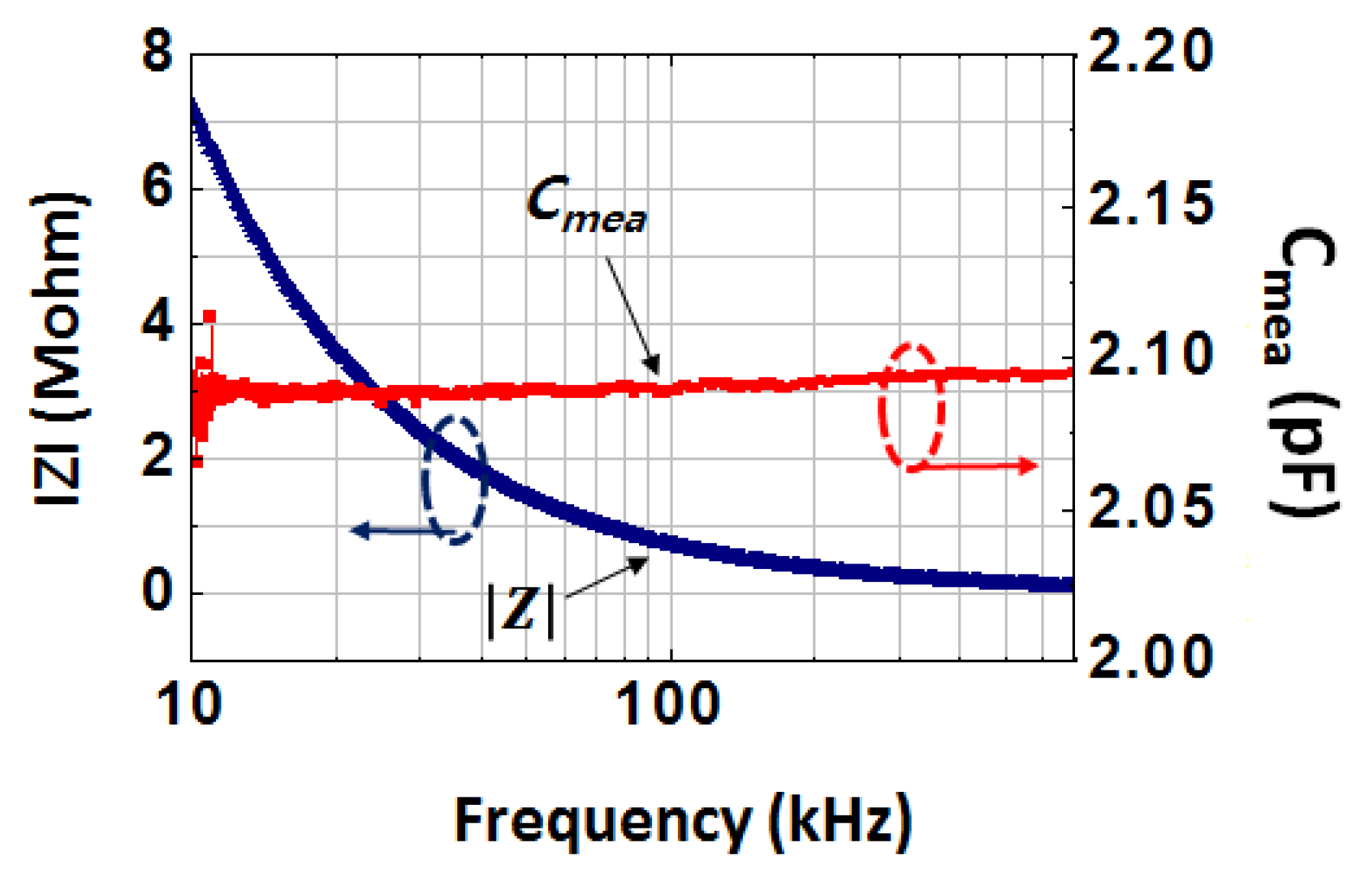

Figure 3. Measured capacitance and impedance data for the sensor used for extracting both the intrinsic and parasitic terms in the lumped equivalent circuit.

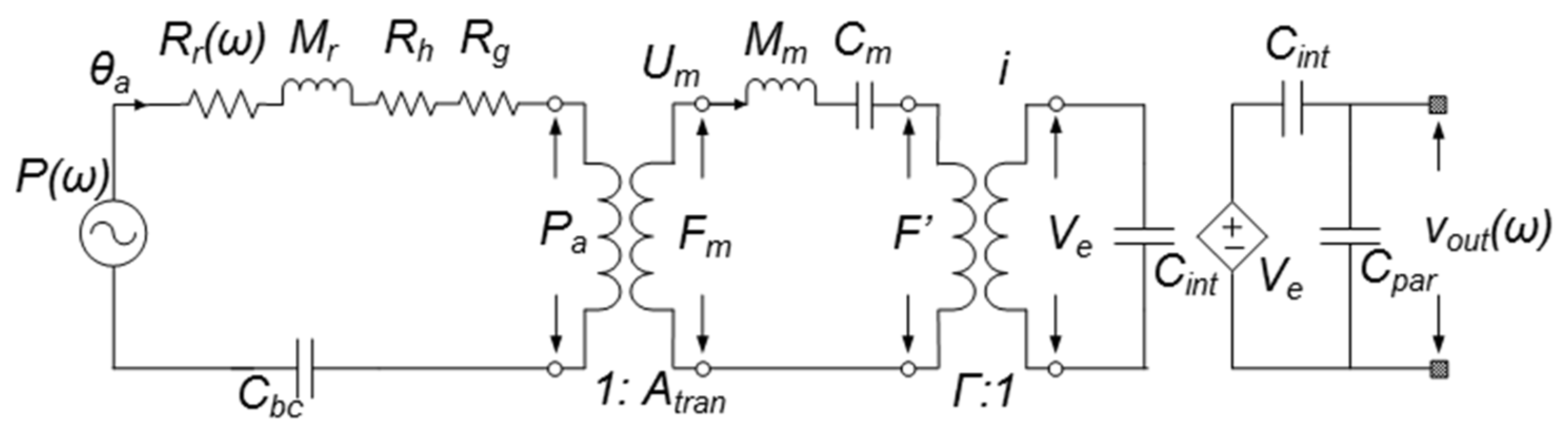

Figure 4. An equivalent circuit describing interaction between lumped parameters in the three-signal domain for a structure-based analogous model of open-circuit sensitivity.

Figure 5 shows modelled S_o as a function of frequency and the resonance frequency (f_r) at the given bias condition (air gap = 1.1 µm) for the capacitive-type MEMS acoustic sensor. With the pull-in voltage of 12.0 V and the pad capacitance of 0.23 pF, the equivalent circuit–based open-circuit sensitivity in a dynamic response can be easily extracted, leading to −38.9 dBV/Pa at 1 kHz in the bias of 10 V. Moreover, the resonance frequency (f_r) was modelled to 74.2 kHz.

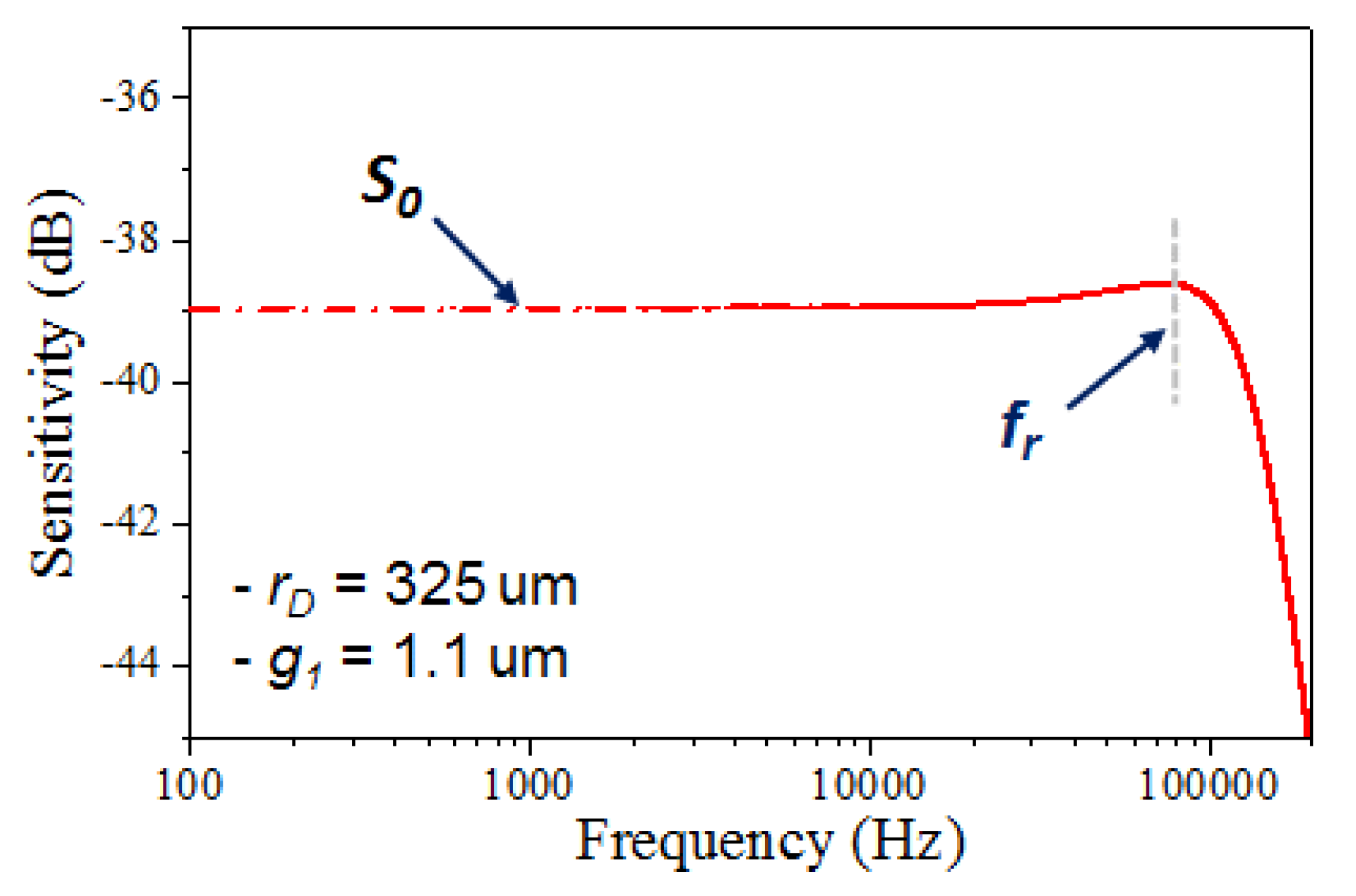

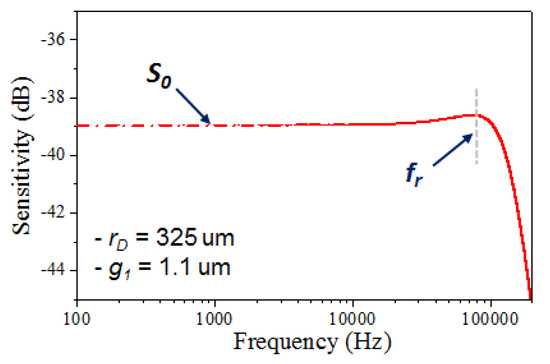

Figure 5. Modelled open-circuit sensitivity (S_o) as a function of frequency and the resonance frequency (f_r) at the given bias condition for the capacitive-type MEMS acoustic sensor.

4. Conclusions

An empirical-based dynamic model of open-circuit sensitivity for a capacitive-type MEMS acoustic sensor was proposed. With the capacitance model based on ALEM, the dynamic response of open-circuit sensitivity was characterized with the structure-based equivalent circuit as well as the analytic pull-in model. This lumped parameter-based model makes it possible to accurately evaluate the effective intrinsic capacitance, enabling its application for the frequency response of open-circuit sensitivity.
