Selective Detection of NO2 with Specific Filters for O3 Trapping †

Aix Marseille Univ, Université de Toulon, CNRS, IM2NP, 13397 Marseille, France
NIMBE, CEA, CNRS, Université Paris-Saclay, CEA-Saclay, 91191 Gif sur Yvette Cedex, France
Author to whom correspondence should be addressed.
Presented at the Eurosensors 2017 Conference, Paris, France, 3–6 September 2017.
Proceedings 2017, 1(4), 405;
Published: 28 August 2017
(This article belongs to the Proceedings of Proceedings of Eurosensors 2017, Paris, France, 3–6 September 2017)


The present study evaluates the ozone (O3) and nitrogen dioxide (NO2) removal performance of specific filters based on nanoporous materials. These materials, produced via the sol-gel process with functionalized silicon alkoxides as precursors, are tailored for O3 trapping. The gas removal effectiveness of the filters was assessed through measurements of O3 concentrations in the air upstream and downstream of the filters. Depending on the filter nature, O3 can be totally trapped while NO2 can pass over a specific concentration range.

1. Introduction

The Tropospheric or ground level ozone (O3) is an air pollutant produced by photochemical reactions and chemical reactions between oxides of nitrogen (NOx) and volatile organic compounds (VOC). High outdoor O3 concentrations have been linked to asthma exacerbation, respiratory symptoms, heart attacks and premature death. In addition to the direct health risks, O3 can also chemically react with various indoor pollutants [1,2] to produce more toxic volatile compounds. Since O3 is the main interfering pollutant for NO2 monitoring in the context of air quality control, various filters (nanocarbon, indigo thin film or MnO2) were proposed and were found to efficiently trap O3 without trapping NO2 [3,4]. However, due to their structure, these filters were found to be too short-lived. Thus, our approach consists in the implementation of a relevant chemical filter highly impervious to O3 and weakly reactive with NO2 placed upstream a MOX gas sensors.
Various filters have been investigated based on several functionalized nanoporous materials doped with indigo carmine for the selective trapping of O3. The filtering efficiency towards the target gases have been experimentally quantified for the different gas concentrations.
The work presented in this paper is divided into two parts; firstly, we describe the strategy of producing various filters with functionalized nanoporous matrices via the sol-gel process. Then, the synthetized filters will be tested in order to quantify their ability of O3 trapping under various conditions. The second part is dedicated to the selection of filters to be used for NO2 detection in O3 environment. Various tests have been performed to check the total O3 trapping by the filters with sensor and NO2 detection with WO3 based gas sensor using various O3 up-stream filters.

2. Experimental

2.1. Syntheses of Doped Nanoporous Matrices and Characterization

Nanoporous monoliths of hybrid organic-inorganic polymers doped with indigo carmine were prepared via the Sol-Gel method using as reactants one or two silicon precursors. A one-pot synthesis procedure is applied for all syntheses. The chosen silicon precursors are tetramethoxy silane (TMOS), phenyl-triethoxysilane (PhTEOS) and chloropropyl-trimethoxysilane (ClTMOS). TMOS or a mixture of TMOS with either PhTEOS or ClTMOS are added to the solvent, MeOH, in a beaker and the mixture is vigorously stirred while adding an aqueous solution of indigo carmine. The concentration of indigo carmine in the aqueous solution, 70 g·L−1, corresponds to its solubility in water. The sol was poured into specific molds where gelation occurs. The gels were dried in a desiccator under a N2 stream at room temperature. After the shrinkage process, transparent and dark blue monoliths were obtained. The proportion of the reactants is given in Table 1 along with the drying time.
The concentration of indigo carmine in the final matrices varies from 0.280 to 0.324 mol·cm−3, depending on the formulation. The porosity parameters, specific adsorption surface area and pore volume were determined via collecting adsorption isotherms of N2 at liquid nitrogen temperature with a porosity analyzer, Autosorb-1 from Quantachrome Instruments. F1 displays the highest specific adsorption surface area due to the presence of 34% of micropores (diameter < 20 Å) while F2 displays only mesopores (500 > diameter > 20 Å). The materials listed in Table 1 are ground, sieved and transferred into syringes of 3 mm of diameter. Each filter is filled with 1.79 g of the material to be tested.

2.2. Experimental Set-Up for the Detection of O3 and NO2

The sensor used in this study consists of a new microhotplate platform and a sensitive layer. The microhotplate architecture was initially developed by IM2NP laboratory [5]. A thin dielectric membrane of 450 µm × 430 µm supports a set of three sensors and two heaters. A platinum heaters was designed to ensure the optimum response of the sensitive layer (Figure 1). In addition, two pairs of Pt electrodes were deposited on the same mask level and used to recover the signal on the sensitive layer. The metal-oxide is a polycrystalline WO3 sensitive layer (50 nm thick) produced by reactive R.F (13.56 MHz) magnetron sputtering and can detect both O3 and NO2. The gas sensing response is obtained by measuring the microsensor resistance with a Keithley 2450 source meter. The sensor is placed in a close thermo-regulated test chamber. The sensor sensitivity to NO2 and O3 is studied under several pollutant concentrations, from 200 ppb to 1000 ppb for NO2 and from 36 ppb to 210 ppb for O3. The experimental setup allows the tests of sensors under dry air and various calibrated gas mixtures, without or with the up-stream filter. For each pollutant concentration, the sensor was exposed to the gas mixture with constant flow rate of 500 sccm.
The trapping efficiency, τ, corresponds to the amount of gas removed and is expressed in % (Equation (1)). τ is measured for each filter as a function of the exposure parameters.
τ = [ g a s ] u p [ g a s ] d o w n [ g a s ] u p   100 %

3. Results and Discussion

In order to evaluate the efficiency of O3 and NO2 trapping, different measurements were carried out for each filter filled with 1.79 g of filtering material and placed up-stream of the WO3-based sensor. F1 and F2 filters were found to remove completely O3 but not NO2 as shown in Table 2. In contrast, F3 and F4 which display no porosity only partially remove O3 and NO2.
The efficiency of the filters in removing O3 is further tested with reduced amounts of filtering material (0.2 g). As shown in Figure 2a, F1 and F2 can still completely eliminate O3 molecules while only a part of the initial concentration is removed with F3 and F4. For these latter, it can also be noted that the O3 removal is increased with increasing O3 concentration. In other terms, this means that the O3 amount passing through the filter decreases as the up-stream concentration O3 increases.
On the other hand, and unlike the O3 case, all the filters remove partially NO2 as illustrated in Figure 2b and the NO2 removal appears to be dependent on the up-stream NO2 concentration.
These preliminary results clearly indicate that F1 and F2 can efficiently trap O3 and could be used to measure NO2 in gas mixtures containing both pollutants. Further experiments will be needed to find out the range of NO2 concentration over which F1 and F2 could be used up-stream of the sensor for the measurements of NO2 in air.
This work will also be enriched with future experiments combining humidity, gas mixture and filter. These ongoing experiments will allow to define the best conditions of use of filters coupled to the microsensors.


This research is supported by bpi-France in the framework of the SMARTY Project (SMart AiR qualiTY). The authors gratefully acknowledge A. Combes and T. Fiorido, from the IM2NP, for their technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Weschler, C.J. Ozone’s impact on public health: Contributions from indoor exposures to ozone and products of ozone-initiated chemistry. Environ. Health Perspect. 2006, 114, 1489–1496. [Google Scholar] [CrossRef] [PubMed]
  2. Apte, M.G.; Buchanan, I.S.; Mendell, M.J. Outdoor ozone and building-related symptoms in the base study. Indoor Air 2008, 18, 156–170. [Google Scholar] [CrossRef] [PubMed]
  3. Brunet, J.; Dubois, M.; Pauly, A.; Spinelle, L.; Ndiaye, A.; Guérin, K.; Varenne, C.; Lauron, B. An innovative gas sensor system designed from a sensitive organic semiconductor downstream a nanocarbonaceous chemical filter for the selective detection of NO2 in an environmental context. Part I: Development of a nanocarbon filter for the removal of ozone. Sens. Actuator B Chem. 2012, 173, 659–667. [Google Scholar]
  4. Viricelle, J.-P.; Pauly, A.; Mazet, L.; Brunet, J.; Bouvet, M.; Varenne, C.; Pijolat, C. Selectivity improvement of semi-conducting gas sensors by selective filter for atmospheric pollutants detection. Mater. Sci. Eng. C Elsevier 2006, 26, 186–195. [Google Scholar] [CrossRef]
  5. Aguir, K.; Bendahan, M.; Laithier, V. Heated Sensitive Layer Gas Sensor. U.S. Patent 20160238548 A1, 18 August 2016. [Google Scholar]

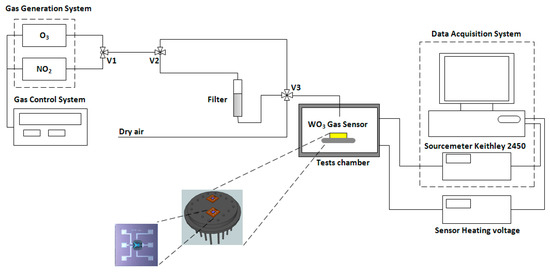

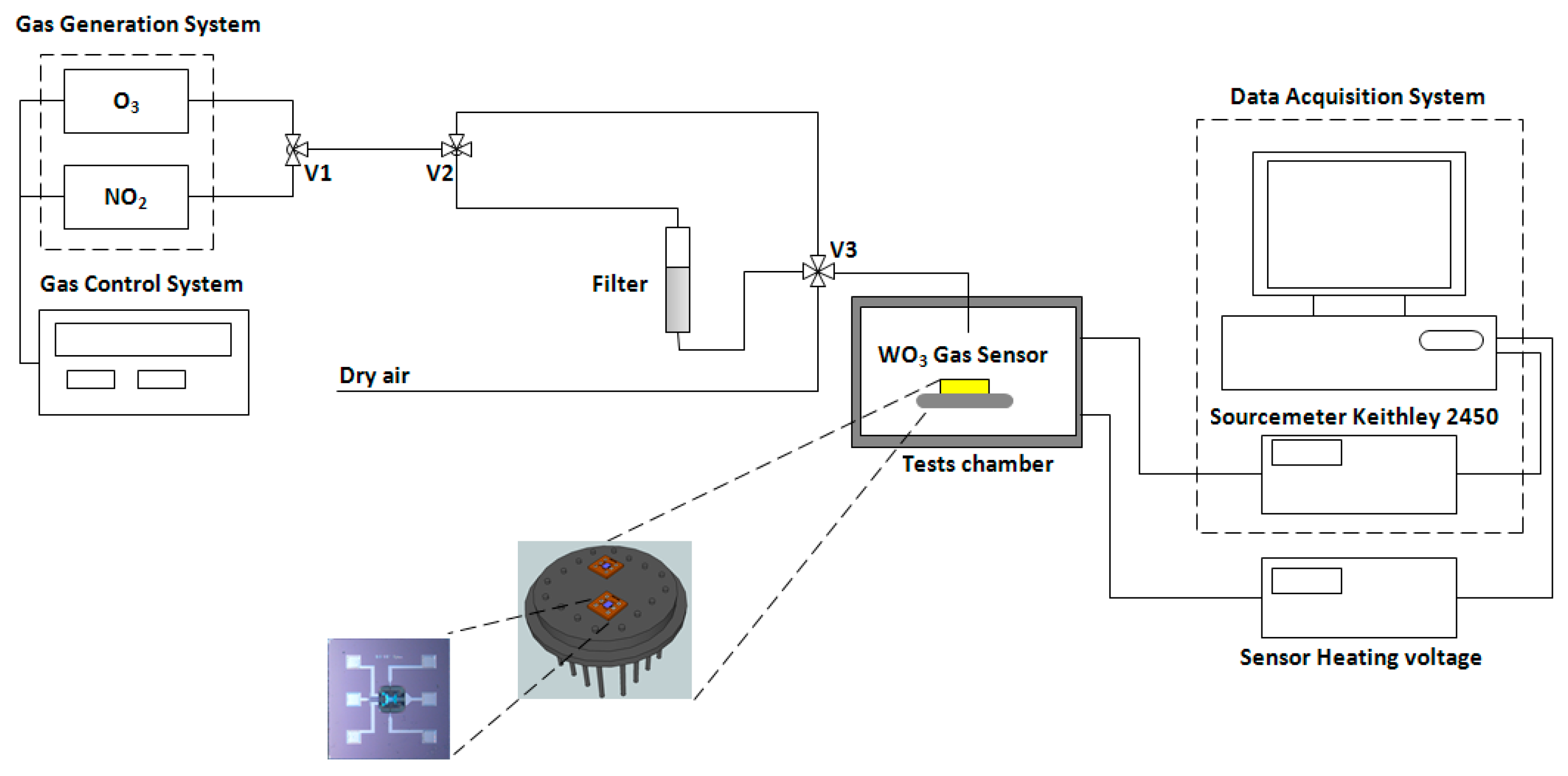

Figure 1. Experimental setup for gas sensors and filters tests.
Figure 1. Experimental setup for gas sensors and filters tests.
Proceedings 01 00405 g001

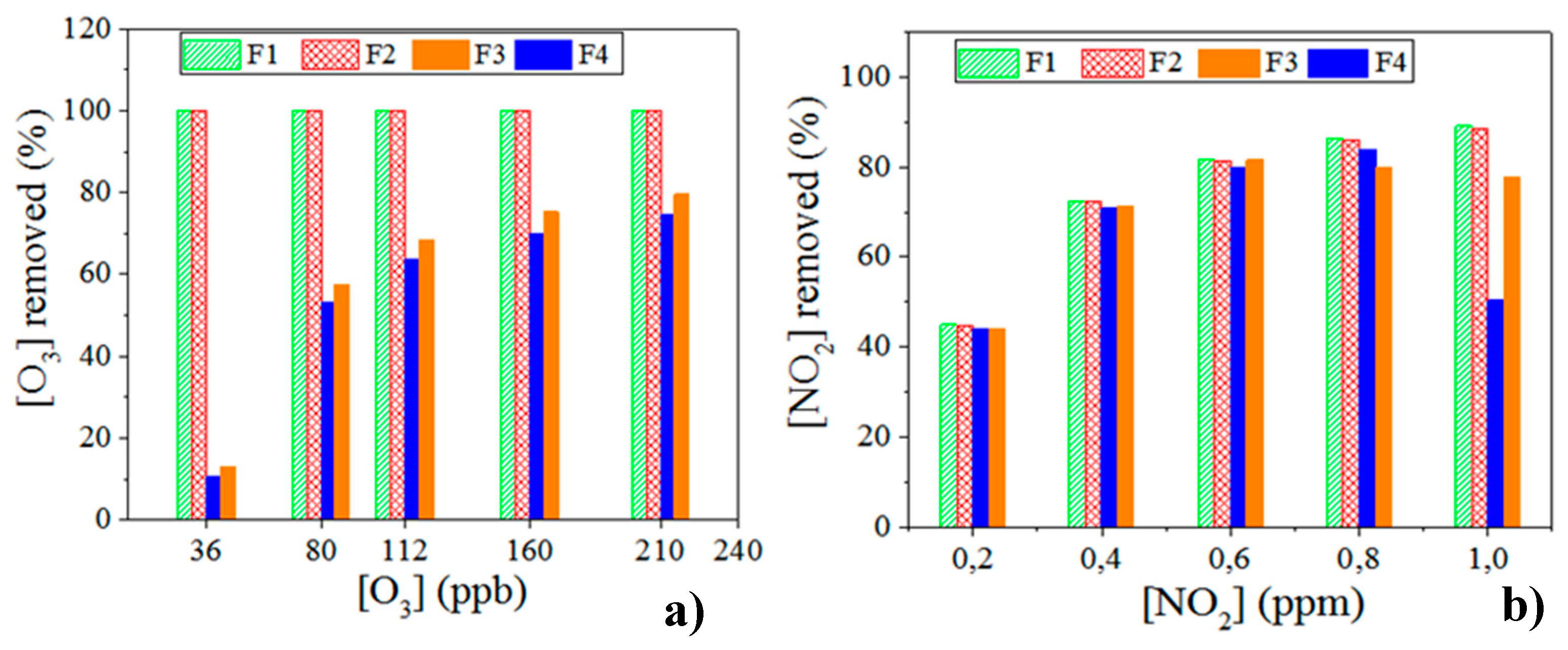

Figure 2. Amount of gas removed by the four filters F1, F2, F3 and F4 as a function of initial concentration: (a) under O3 and (b) under NO2.
