Air-Coupled Ultrasonic Ferroelectret Receiver with Additional DC Voltage ^†

Abstract

Highly sensitive air-coupled ultrasonic sensors are essential for various applications such as testing of composite materials. One of the major challenges for the development of air-coupled ultrasonic sensors is the impedance matching to air. With a lower acoustic impedance than the usual piezoelectric materials, charged cellular polypropylene film (cPP) offers better matching to air with a similar piezoelectric coefficient. The piezoelectric behaviour demonstrated by cPP comes from polarized air cells that create a permanent internal voltage. The sensitivity of the sensor varies with the application of an additional DC bias voltage. Thus, this work presents a cPP ultrasonic sensor with an improvement of up to 15 ± 1 dB on the signal-to-noise ratio.

1. Introduction

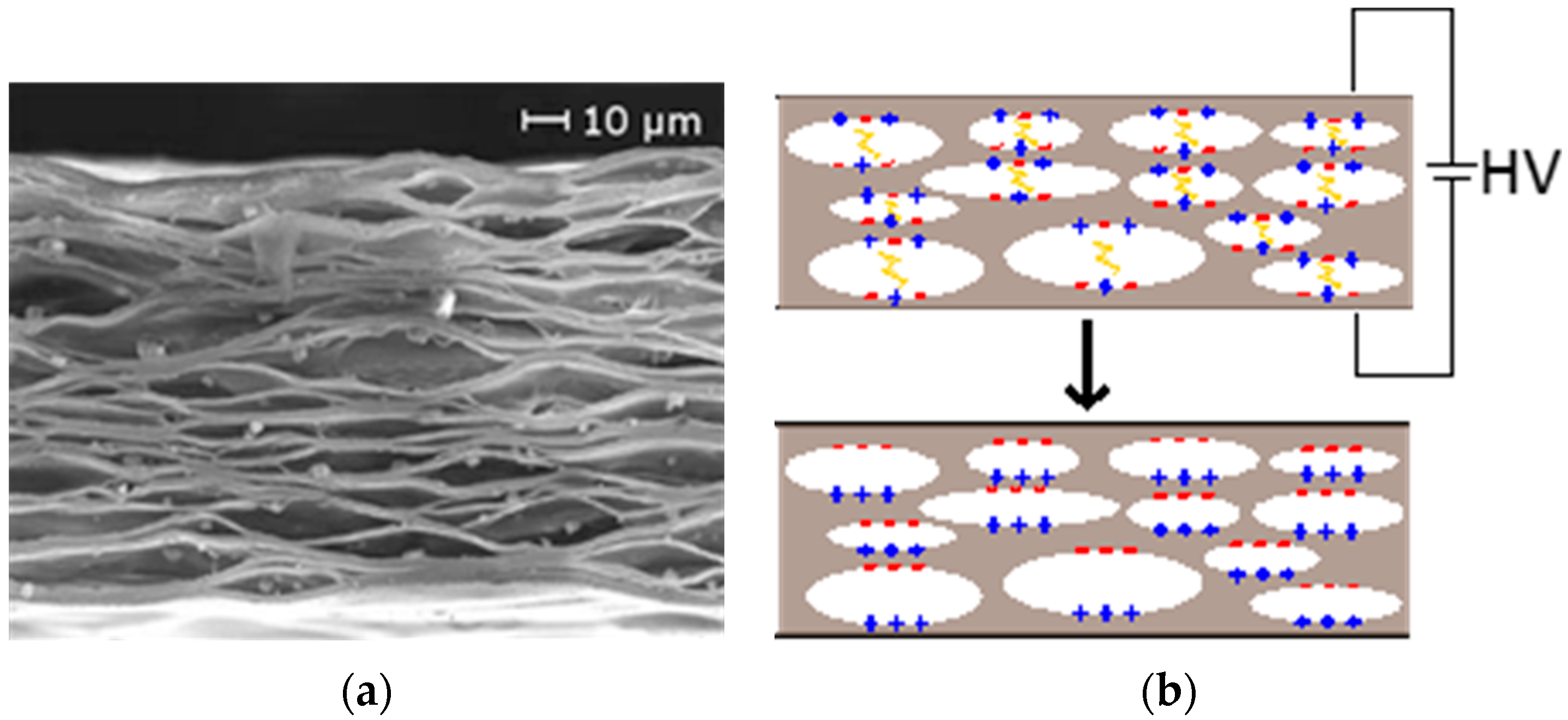

The impedance matching to air is the main challenge for air-coupled ultrasonic sensors. Ferroelectrets are materials with a low acoustic impedance making them suitable for air-coupled ultrasonic applications. They are a subtype of electrets defined as films of polarized or charged polymer foams, so that the polarization gives them piezoelectric properties. One member of this family is charged cellular polypropylene (cPP) (Figure 1) [1]. It presents a lower acoustic impedance (0.03 × 10⁶ Ns/m³) than the usual piezoelectric materials used as transducers (e.g., 30 × 10⁶ Ns/m³ for PZT) while exhibiting a similar piezoelectric constant after corona charging (about 200 pC/N) [2].

In the process of corona charging the film becomes permanently polarized showing a corresponding internal voltage which makes it applicable as an electret microphone [3]. A force applied to the surface of the film compresses the cells and moves the enclosed charge carriers in relation to each other [2]. If the cPP film is provided with electrodes, the resulting change in internal voltage can be measured as an electric signal proportional to the thickness change of the film. With a resonance frequency in the order of hundreds of kHz, the cPP film is suitable as a sensor and as an actuator for nondestructive ultrasonic testing. Other applications include pickups for musical instruments and accelerometers [4]. Stacking several layers of cPP lowers the resonance frequency of the transducers [5].

In this work, we present a cPP sensor with its sensitivity regulated by the application of an additional DC bias as in a condenser microphone or capacitive micromachined ultrasonic transducer. A DC bias voltage of 2000 V increases the sensitivity by up to 15 dB with only 1 dB increase of the noise, thus broadening the application possibilities of cPP transducers.

2. Materials and Methods

2.1. Theoretical Background

Usually cPP transducers are described within the concept of piezoelectricity. For our purpose, it is interesting to analyze them starting from the functioning principles of capacitive microphones. When a sound wave impinges a capacitive microphone, it changes the distance between the plates and therefore its capacitance. If we apply a bias voltage V_bias, the alternating voltage across the capacitor varies due to the change of capacitance. For sufficiently small sound pressure levels the voltage variation is

$$\Delta V=V_{bias}\frac{\Delta h}{h}$$

(1)

where h and Δh are the distance between the plates and its variation respectively. With electret and specifically ferroelectret microphones, the bias voltage is provided by the internal polarization of the ferroelectret. However, we can increase the sensitivity ΔV/Δh of the ferroelectret receiver by applying an additional external voltage V_dc, so that we have

$$\Delta V=\left(V_0+V_{dc}\right)\frac{\Delta h}{h}$$

(2)

There is a relation between the internal bias voltage V₀ and the piezoelectric constant d₃₃:

$$V_0=\frac{c_{33}{d}_{33}h}{\epsilon }$$

(3)

where c₃₃ is Young modulus in thickness direction, ε permittivity and h the thickness of the ferroelectret [6].

2.2. Experimental Setup

A transducer based on cPP was developed. A low-noise high-voltage module was developed to provide additional DC bias voltage to the cPP film. It was integrated into a system composed of a previously developed ultrasonic sensor and a pre-amplifier (Figure 2). To evaluate the relation between the bias voltage and the film sensitivity, a through-transmission setup consisting of an ultrasonic transmitter and a DC-biased cPP sensor was used. The amplitude of the received signal was measured in dependence on varying DC voltage while the transmitting signal was kept constant. Transducers with stacked layers were investigated as well. In these transducers, up to four layers of cPP were glued together, in order to increase the thickness of the transducer, and, thus, change its resonance frequency and its internal voltage V₀.

3. Results

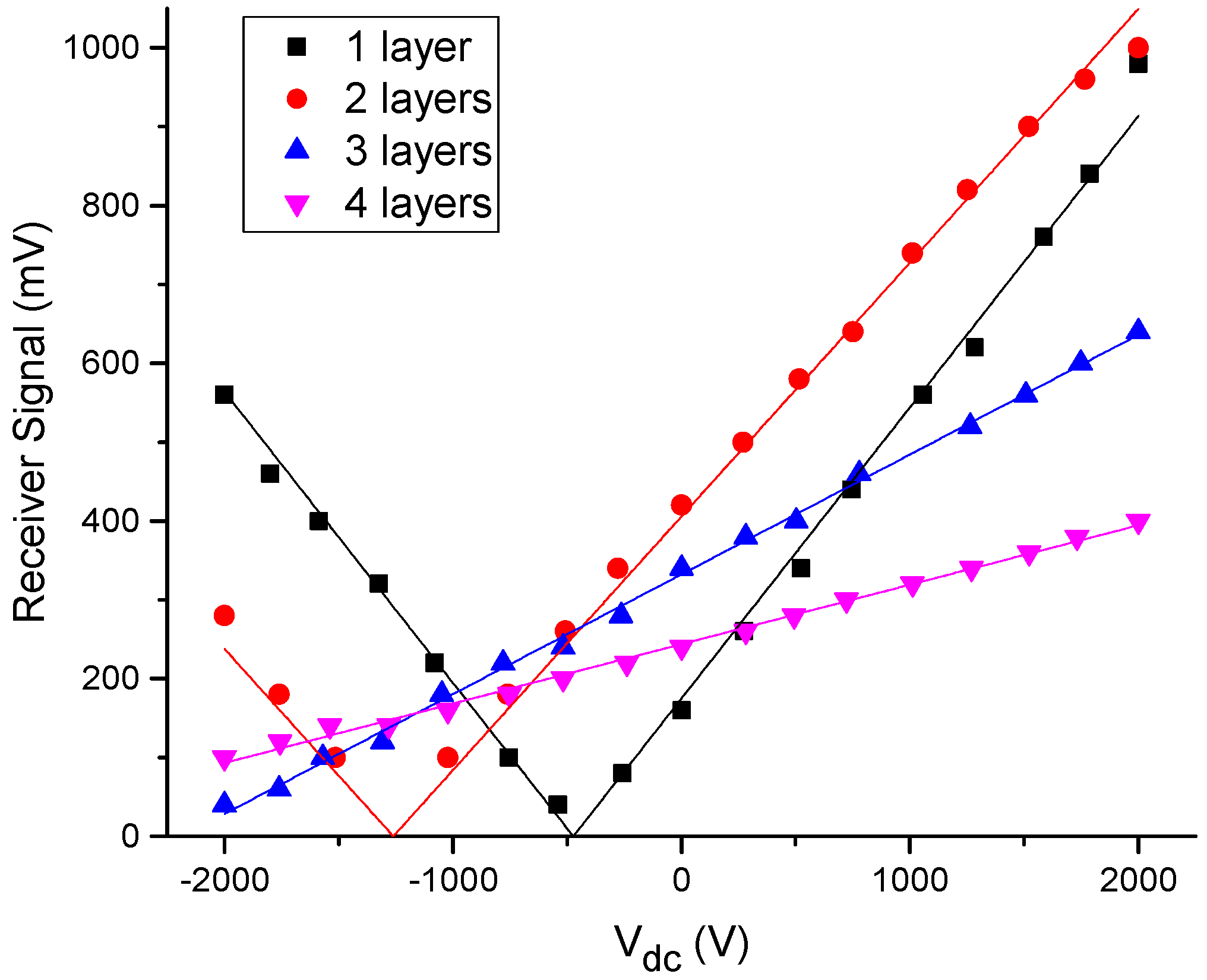

Bias voltage of 2000 V increased the sensitivity of the single layer sensor by 15 dB. The noise level increased only by 1 dB (Figure 2b). The amplitude of the received ultrasonic signal depends linearly on the applied bias voltage V_dc (Figure 3), as predicted in Equation (2). Applying a bias voltage of the same magnitude as the internal voltage, but of opposite sign, renders the film insensitive. This is used to determine the internal voltage as the intercept of the fitted straight lines. For the single-layer cPP sensor, the internal voltage was 473 V with ±16 V tolerance, while for stacked layer sensors the internal voltage grew with the number of layers: for two layers 1261 ± 25 V, three layers 2186 ± 29 V, and four layers 3233 ± 56 V.

Equation (2) shows us that the slopes of the straight lines in Figure 3 are equal to the effective strain of the sensor. The term “effective strain” should be used because of viscoelastic inhomogeneity of cPP and inhomogeneous sound field so that the measured signal is a result of an integration over the whole sensor aperture. This strain was 369 ± 4, 322 ± 5, 152 ± 2 and 75 ± 1 [× 10⁻⁶] for sensors with 1, 2, 3 and 4 layers, respectively.

4. Discussion

The internal voltage V₀ grows faster than proportional with the increasing number of cPP layers. This may indicate that the internal voltage varies from layer to layer within the same transducer. This may be the consequence of electrode deposition, which may alter the properties of the outer layer due to thermal load. The reduction of strain with the number of layers has several causes. Not only the construction of the sensor, but also the parameters of the transmitter and the geometrical parameters (e.g., distance) also affect the sound pressure and thus the strain of the receiver. With an increasing number of layers in a sensor, the benefit of using bias voltage V_dc decreases, because the internal electric field coming from V_dc decreases.

The implementation of V_dc leads to the most sensitive ultrasonic transmission system for non-destructive testing. This opens new possibilities for inspection of more difficult components. The determination of internal voltage in ferroelectrets is an application of scientific value. Beyond non-destructive testing, other applications are possible. An example is the construction of extremely sensitive air-coupled ultrasonic receivers.
