Correction

Correction: Panchal et al. 3D FEM Simulation and Analysis of Fractal Electrode-Based FBAR Resonator for Tetrachloroethene (PCE) Gas Detection. Fractal Fract. 2022, 6, 491

by
Bhargav Panchal
1,2,*,
Avanish Bhadauria
1,* and
Soney Varghese
2
1
Council of Scientific and Industrial Research–Central Electronics Engineering Research Institute (CSIR–CEERI), Pilani 333031, India
2
Nanomaterials & Devices Research Laboratory, National Institute of Technology, Calicut 673601, India
*
Authors to whom correspondence should be addressed.
Fractal Fract. 2024, 8(1), 36; https://doi.org/10.3390/fractalfract8010036
Submission received: 13 December 2023 / Accepted: 21 December 2023 / Published: 4 January 2024

Avanish Bhadauria from the Council of Scientific and Industrial Research–Central Electronics Engineering Research Institute (CSIR–CEERI), India, was not included as an author in the original publication [1]. The corrected Author Contributions statement appears here:
  • Author Contributions: Conceptualization, B.P., A.B. and S.V.; methodology, B.P.; software, B.P.; validation, S.V., A.B. and B.P.; formal analysis, B.P., A.B. and S.V.; investigation, B.P., A.B. and S.V.; resources, B.P. and A.B.; data curation, B.P.; writing—original draft, B.P.; writing—review and editing, A.B. and S.V.; visualization, B.P.; supervision, A.B. and S.V.; project administration, A.B. and S.V. All authors have read and agreed to the published version of the manuscript.
In the original publication, there was a mistake in Figure 2. It has been changed into a single port to align with the simulation. The correct Figure 2 appears below:
In Section 3.2.3, page 7, the dimension was changed from 50 μm × 50 μm to 49 μm × 49 μm as the fractal electrode with a width of 1 μm which was implanted on the top electrode of FBAR. A correction has been made as follows:
A 49 μm × 49 μm area was selected for its high resonance frequency of 2.52 GHz and maximum sensitivity of 4.83 kHz/ppm.
Also, changes on units were made from kHz/ppb to kHz/ppm throughout Section 3.2.4. In Table 6 of Section 4, the unit in Column 5, Row 1 (Present Work) was changed from kHz/ppb to kHz/ppm.
The authors state that the scientific conclusions are unaffected. This correction was approved by the Academic Editors and the Editor-in-Chief. The original publication has also been updated.

Reference

  1. Panchal, B.; Bhadauria, A.; Varghese, S. 3D FEM Simulation and Analysis of Fractal Electrode-Based FBAR Resonator for Tetrachloroethene (PCE) Gas Detection. Fractal Fract. 2022, 6, 491. [Google Scholar] [CrossRef]

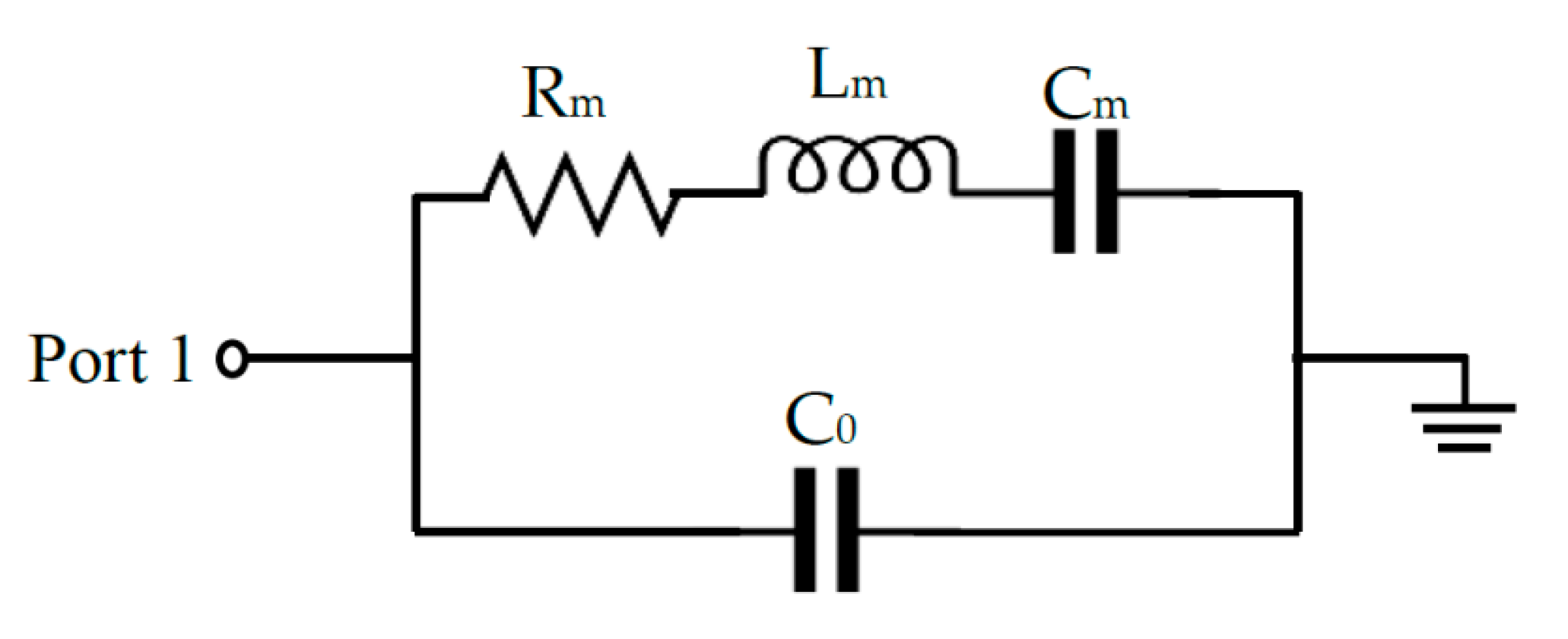

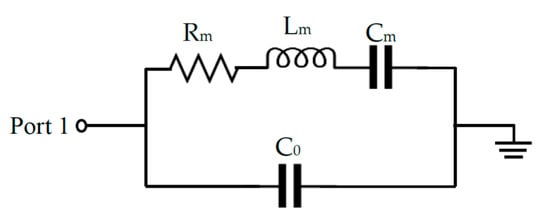

Figure 2. Butterworth–Vandyke (BVD) Equivalent circuit of FBAR.
Figure 2. Butterworth–Vandyke (BVD) Equivalent circuit of FBAR.
Fractalfract 08 00036 g002
