The Importance of AI Data Governance in Large Language Models

Abstract

AI data governance is a crucial framework for ensuring that data are utilized in the lifecycle of large language model (LLM) activity, from the development process to the end-to-end testing process, model validation, secure deployment, and operations. This requires the data to be managed responsibly, confidentially, securely, and ethically. The main objective of data governance is to implement a robust and intelligent data governance framework for LLMs, which tends to impact data quality management, the fine-tuning of model performance, biases, data privacy laws, security protocols, ethical AI practices, and regulatory compliance processes in LLMs. Effective data governance steps are important for minimizing data breach activity, enhancing data security, ensuring compliance and regulations, mitigating bias, and establishing clear policies and guidelines. This paper covers the foundation of AI data governance, key components, types of data governance, best practices, case studies, challenges, and future directions of data governance in LLMs. Additionally, we conduct a comprehensive detailed analysis of data governance and how efficient the integration of AI data governance must be for LLMs to gain a trustable approach for the end user. Finally, we provide deeper insights into the comprehensive exploration of the relevance of the data governance framework to the current landscape of LLMs in the healthcare, pharmaceutical, finance, supply chain management, and cybersecurity sectors and address the essential roles to take advantage of the approach of data governance frameworks and their effectiveness and limitations.

1. Introduction

As a current trend, large language models such as GPT-3 and GPT-4 in software development cycles are widely used for different task activities, such as responding to complex queries and writing and interpreting code [1]. The impact of current LLM trends, nowadays in customer service chat, is gaining momentum across various industries such as e-commerce, finance, healthcare, and travel sectors [2,3]. LLM breakthroughs are rapidly advancing medical artificial intelligence, which are advancing trends in the medical domain [4] and enhance the examination of medical records by managing massive amounts of medical data [5,6] (e.g., unstructured clinical notes, diverse data types of medical images, hospital guides, telehealth, and electronic health records (EHRs)). The LLM integration approach (GPT-4 and BERT) in the medical system handles a large amount of healthcare data and improves patient care outcomes, diagnosis, treatment, and clinical support [7]. In this context, various types of clinical and biomedical specialized LLMs and multimodal LLMs [8] are present to improve the quality of healthcare, such as ClinicalBERT [9], BioBERT [10], PathologyBERT [11], and Med42-v2 [12].

Meanwhile, the evolution of LLMs across many industries is gaining importance, such as in the financial sector where there are various financial-based LLMs present to handle the complexities of financial tasks, such as BloombergGPT [13], FinBERT [14], and FinGPT [15], which need a large amount of data and benchmarks to train with a powerful infrastructure. There are studies that highlight LLM-based financial sentiment analysis (FSA) built on LLaMA2 [16], a synthesized LLM multiagent system [17], and the multi-document financial question and answer [18], which improves the completion of complex financial tasks. Studies have also demonstrated that LLMs focus on the travel mode choice task (TourLLM [19] and Tourism Recommender Systems (TRS) using an LLM-based RAG pipeline [20]), designed to improve travel choice modeling, enhance general public transport services, and forecast tasks related to human mobility and traffic [21,22,23,24]. However, while LLMs offer reasonable explanations and predictions, there are instances where they may hallucinate and violate logical consistency, particularly in personalized travel suggestions, which can impact the fairness of travel planning recommendations. To overcome challenges in various domains (finance [25,26,27], healthcare [28,29], and e-commerce [30,31]), the fairness of techniques, policy guidelines, and data security are the must-have priorities required as part of data governance technologies in LLMs.

1.1. How Are Data Crucial to Build LLM Performance?

Data are a fundamental and crucial component in training the millions or billions of parameters of LLMs to evaluate their performance. A recent study by Yin et al. [32] concluded that selecting the right data for training LLMs (redundancy, contradiction, and prioritizing data subsets with a low compression ratio) plays a vital role in improving model performance. The study by Kumar et al. emphasizes [33] the importance of high-quality data preparations (deduplications on crawl data) and that effective tokenization optimization strategies play an important role in Indic LLM performance. Keer et al. [34] introduce DataSculpt, a novel data management framework for long-context training data to enhance model performance (scalability and flexibility in training) and effective data management. Choe et al. [35] developed a popular gradient-based data valuation method to enhance the scalability of the data valuation process in LLMs. Jiao et al. [36] enhance the open-source PandaLLM with the use of an instruction-tuning approach based on training data factors (quantity, quality, and linguistic distribution) that affect model training. The article [37] proposed the importance of synthetic data generation that fills the gaps after LLM post-training, which tends to contribute to the better performance of LLMs. Wood et al. [38] introduce the Data Prep Kit (DPK) toolkit, built for data preparation for LLMs that enhances the performance of fine-tuning models using RAG.

In order to build and improve the performance of LLMs, data are an essential component throughout the lifecycle process. But problems like hallucinations, driven by factors like data misuse, data breaches, improper data for training (redundancy in data, biasness in data (e.g., cultural biases), and data security issues) are common challenges in modern LLMs. As a result of these difficulties, LLM performance and reliability are significantly impacted. Hence, a robust data governance system based on artificial intelligence (AI) is necessary to solve these problems. Listed below are the most important issues and consequences that could arise from not having a strong data governance structure in place for LLMs. In this paper, we leverage the framework and concepts of data governance that play a vital role in LLMs:

• The main issues in the absence of strong data governance in LLMs are “Hallucination” while performing the output response based on the input query.
• The other vital issue is “Data misuse”, which creates a big issue due to ethical violations (unclear and unauthorized data usage policies).
• “Biasness in data” is a major concern that leads to creating biased approaches in LLMs.
• A lack of a data governance framework leads to “Data breach and lack of data security (security concern)” activity, which increases the risk of various adversarial attacks (backdoor attacks, data poisoning attacks, model inversion attacks, transfer-based black box attacks, etc.).
• Also, it impacts “Ethical implications and legal concerns” in LLMs due to the lack of data governance frameworks.
• The failure of LLMs, while deploying in a production pipeline, requires a strong LLMOps pipeline with the assistance of a solid data governance approach.

Avoiding data misuse, a biased nature, hallucinations, deployment issues, a lack of data security, ethical challenges, and misinformation tends to require strong regulatory compliance, guidelines, and robust data governance frameworks that we define in the following sections in detail for the use of solid data governance framework and its impacts on the performance and validation of LLMs.

1.2. Addressing Data Misuse, Biases, and Ethical Challenges in the Digital Era of LLMs

The emergence of LLMs in this digital era of the current world marks a transformative shift in automation in various domains (healthcare, financial, e-commerce, and others), and the generation of the output response based on text, image, video, and audio is fascinating and unimaginable. However, this digital era of LLMs has potential challenges in terms of data misuse, biases, and ethical challenges. Addressing critical issues and understanding the various factors and the implementation of robust data governance frameworks are crucial steps. Hence, given below are the impacted behaviors of LLMs that need to be enhanced and provide a more potential solution for the foundation of the data governance framework mentioned in

Table 1. Impacted behavior and challenges of LLMs due to lack of data governance framework.

Application	References
(Cultural, algorithmic) biases in LLMs	[39,40,41]
Data privacy and security concerns	[42,43,44]
Hallucination in LLMs	[45,46,47,48]
Ethical implications and misinformation	[49,50,51]
Failure deployment of LLMs	[52,53,54,55]
Regulatory compliance and legal concerns	[56,57,58]
Unintended destructive outputs	[59,60,61]
Lack of data validation and data quality control	[62,63,64,65]
Data evolution and drift create a lack of performance	[66,67,68,69]

.

1.3. Problem Statement

Unregulated data practice flows and inadequate governance frameworks with newly discovered technologies across various sectors such as healthcare, finance, education, and others by leveraging LLMs create a risk factor. Hence, an effective data governance system plays a vital role.

The absence of data governance in healthcare creates a larger privacy and security issue (unauthorized access to patient information, non-compliance, and regulation). Due to the absence of data governance, this mismanagement can have an impact on financial loss, patient safety, and legal liabilities, and without structured policies, there is a large risk of data misuse [42,43]. This paper discussed hallucination detection in LLMs, a problem that often arises due to the absence of data governance, resulting in insufficient data quality control during LLM training and evaluation [45]. The lack of data governance frameworks in LLMs, which causes an issue with the unintended destructive output generation of LLMs called data dysphoria (due to poor data quality and validity) [59], and a lack of defining clear policies and defined roles can result in a mismanagement of data assets (such as data integrity, data quality, and data security) [62]. Regulatory compliance is a crucial step, as formal requirements for data storage, data sharing, and data collection with the absence of data governance frameworks can lead to legal and ethical sequences [70] and organization struggle to meet regulations like the General Data Protection Regulation (GDPR) and California Consumer Privacy Act (CCPA), which are requirements for data privacy in Information Technology (IT) audits [58]. The scalable and flexible governance model adapts regulations like the GDPR and CCPA. It is best practice to adapt the framework to protect safe data and resources in a cloud environment [71]. The author discussed data contamination occurring in LLMs that affects the overestimation of model performance and the importance of the data governance framework that encourages the detection of this problem using audit tools (to detect and address data contamination) [72]. The article [73] presented a detailed review of key challenges in LLMs such as misleading information, duplication of content, and personal information through the web-mined corpus. It requires a proper methodology (e.g., data cleaning and bias detection) to mitigate the issues in LLMs. The paper [74] focuses on the urgent need to provide a solid dynamic auditing system, which requires transparency in the implementation of the LLM as it’s a crucial step for distinct ethical challenges (privacy and fairness, hallucination, verifiable accountability, and decoding censorship complexity in LLMs). The article [75] focuses on securing LLMs as the most vital step to avoid prompt attacks (e.g., jailbreak attacks and adversarial attacks as a prompt injection) and focuses on accuracy and bias issues. As they are growing impressively across various fields, a defense mechanism and safeguarding are needed.

1.4. Objectives of the Survey

AI-driven data governance is a robust framework that involves various policies, regulatory and compliance monitoring, and standard practices to ensure responsibility for the development of AI (basically from the initial phase to the end phase) until the implementation of the cycle. Figure 1 describes the essential key pillars of AI data governance for LLMs. It encompasses the management of data for quality control and data privacy, regulatory compliance, the mitigation of biases, risk for the successful deployment of LLMs, ethical challenges, and security and privacy concerns. Hence, these five key main things are needed for effective AI data governance for large language models (LLMs) to work well. The mitigation of bias and fairness ensures that the data and results are equal for all groups of people (which builds trust in AI systems and helps with laws and rules against discrimination, which assists with a trustworthy AI framework). When an ethical model is deployed, clear rules are established to prevent misuse and stop mistreatment, ensuring the system comes with built-in rules and safety features that make sure it is used correctly and keep users safe from harm, bias, or unfair treatment (e.g., maintaining faith in the technology, keeping patients safe from inadequate output, and preventing biased or unfair diagnoses are essential steps in robust data governance). Security and privacy methods protect private data throughout the lifecycle of the model by allowing continuous monitoring and auditing, ensuring safe data storage, and stopping data leaks. Data validation and quality control ensure that they are correct and consistent, and legal compliance and data sourcing ensure that licensing and government standards are met. All of these five factors of the pillars work together to support responsible and trustworthy LLM growth.

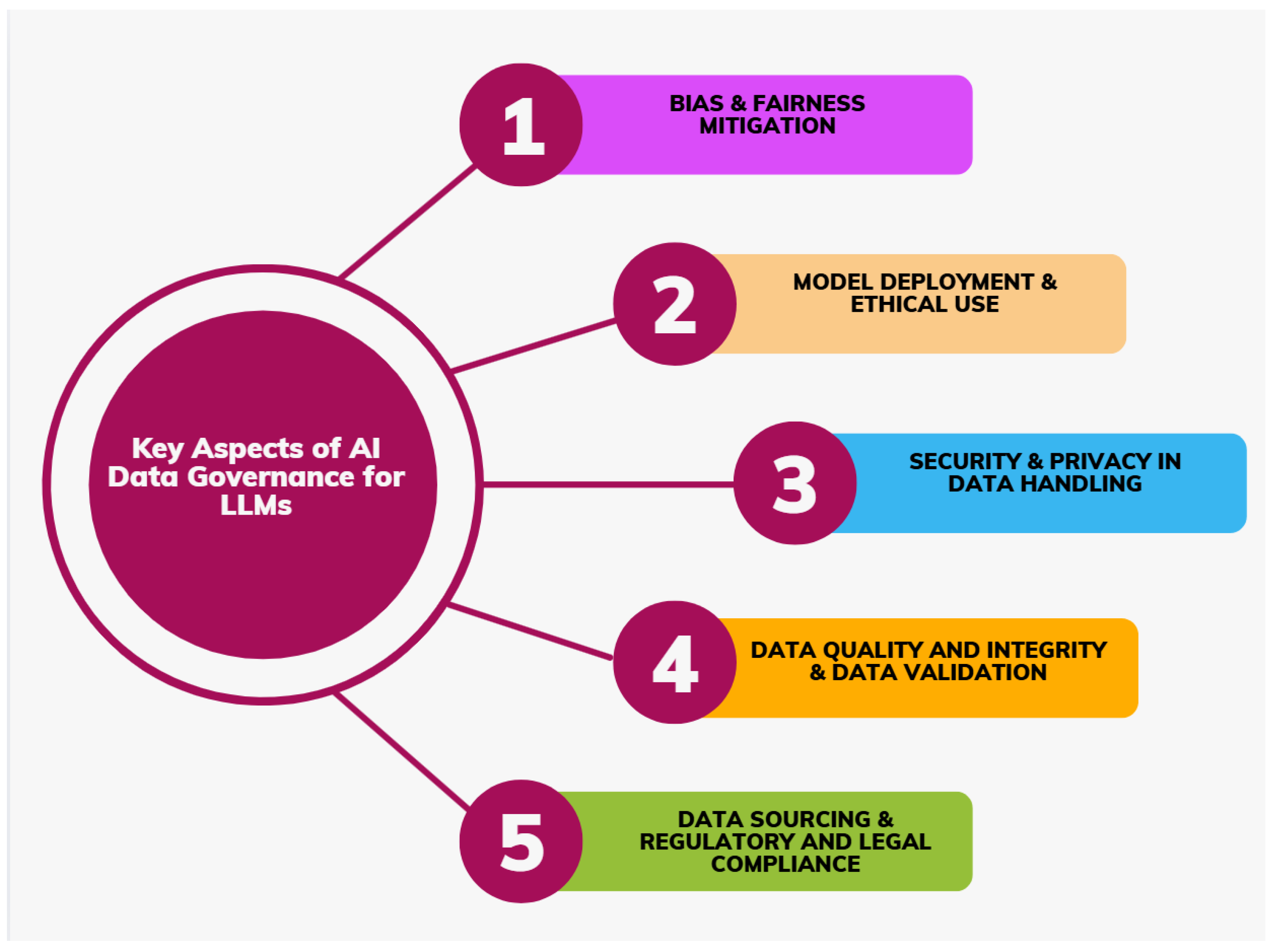

A list of various key aspects that leverage AI-driven data governance that involves LLMs is mentioned below. Uses in various sectors like healthcare, finance, e-commerce, and travel are given below, where it is essential to use this methodology:

• One paper proposed the use of an AI data governance framework in the context of LLMs to improve the detection of suspicious transactions (money laundering and anomaly detection in financial transactions) [76].
• The use of an AI-driven intelligent data framework that substantially improves operational efficiency, compliance accuracy, and data integrity for the future development of AI-based work [77].
• One author provides a critique of the use of centering the implementation of AI data governance in LLMs, which is more effective for model performance [78].
• One study recommends the use of a robust data governance framework in the AI-enabled healthcare system, which addresses ethical challenges and privacy concerns (builds trust among users of healthcare services) [79].
• The use of AI data governance frameworks automates the process of managing data quality in the banking sector to improve model performance [80].
• The use of data-centric governance throughout the model learning lifecycle, responsible for the deployment of an AI system which reduces the risk of deployment failure, reduces the deployment process, and increases the solution design approach [81].
• The integration of an AI-driven data governance framework with a banking system that enhances data accurately, reliably, and securely, which creates trust and accountability in the financial sector [82].
• As AI is evolving very rapidly in daily life, lots of manual tasks are being reduced due to automation capabilities. Therefore, trust in the AI system is needed, which needs to be addressed through co-governance implementation techniques such as regulation, standards, and principles. The use of data governance frameworks improves AI maturity [83].

As AI is rapidly evolving a wide range of applications, a trustable AI approach needs to be established to have a secure and efficient approach. Hence, the integration of an intelligent data governance framework approach is needed that leverages many aspects such as the security and privacy data handling process, bias and fairness mitigation, regulator and legal compliance, and safeguarding an ethical approach. The scope of AI data governance is examined through various main elements outlined in

Table 2. Scope of AI data governance.

Aspect	Description
Data lifecycle management	Use of intelligent data governance across the AI model throughout the end-to-end lifecycle from development phase to end of deployment phase.
Regulatory compliance and legal frameworks	The scalable and flexible governance model adapts the global regulation like GDPR, CCAA, HIPAA, AI Act, and AIRMF.
Ethical and fair AI practices	The implementation of AI data governance ensures that AI models and systems operate with transparency and fairness without any discriminatory metrics (e.g., regardless of race, gender, religion, age, and others).
Data privacy and security	The implementation of an intelligence of data governance leverages the data privacy and encrypted mechanism to mitigate data breach activity. Also prevents various cyber threats and several attacks (e.g., adversarial, model inversion, inference, data poisoning, and others).
Data quality, integrity, and validation	Data quality, integrity, and validation are essential elements of data governance. These three factors directly impact the quality of trustworthiness in AI models.
Data lineage and traceability	Data lineage and traceability are the vital components of data governance methodology, which assist auditors in tracing data usage and assist with debugging the issue for root cause analysis.
More secure end-to-end model deployment	The use of this data governance approach assists with secure and confident deployment of AI model via various pipelines (DevOps, MLOps, and LLMOps) from initial phase, robust model training, testing and validation, deployment phase, and post-deployment phase.

.

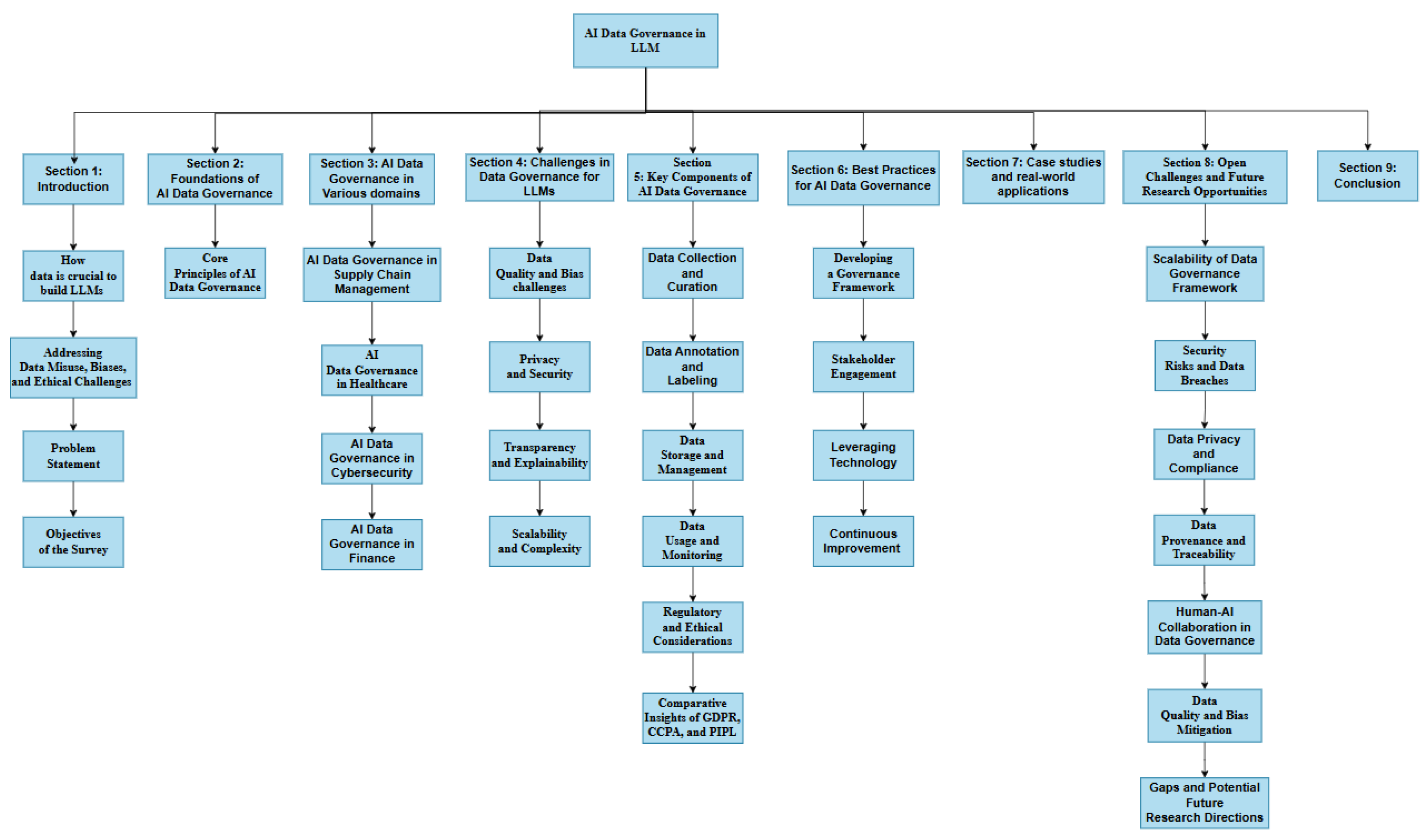

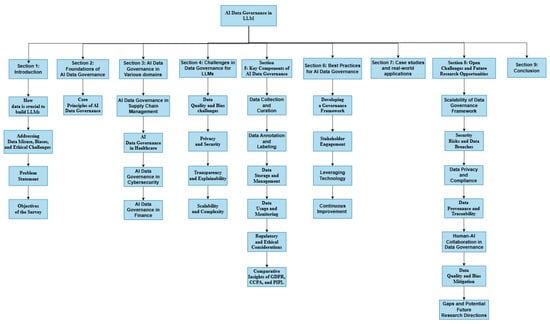

As illustrated in Figure 2, this paper explores several core areas of AI data governance in LLMs, including data sourcing, privacy, fairness, accountability, and regulatory frameworks. The remainder of this article is structured as follows: Section 2 presents the foundations of AI data governance. In Section 3, the AI data governance methodology is discussed in various domains. Section 4 gives challenges in data governance for LLMs. Section 5 provides key components of data governance, and regulatory and ethical considerations are discussed. Section 6 outlines best practices for the AI data governance methodology. Section 7 describes case studies on the implementation of data governance in LLMs. Section 8 presents open issues and future directions, emerging technologies, and interdisciplinary research to address AI governance. The conclusions are described in Section 9.

2. Foundations of AI Data Governance

The foundations of AI data governance frameworks are the most crucial steps in the digital era of AI during the building of a model. These steps are a core part of the process to ensure the responsible development and management of the AI model lifecycle. The focus of model building using the data-centric governance approach develops the dynamic capabilities to adapt technology advancement in a more secure and flexible way. In addition, it makes AI systems ethical and effective for legal compliance and regulatory processes. Nowadays, building an LLM-based application to gain trustworthiness, secure data, obtain ethical and fair answers, and prevent various attacks is needed.

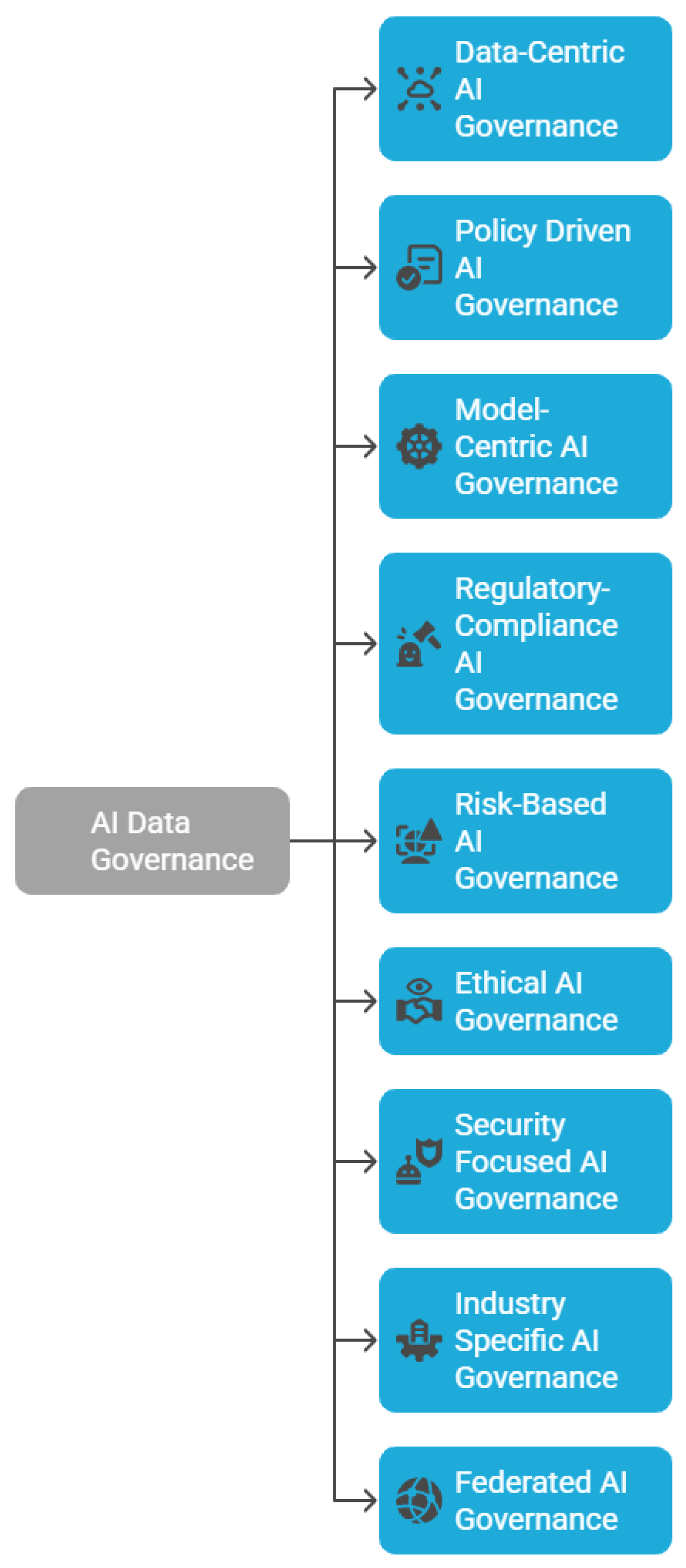

There are various frameworks of AI data governance categorized as data-centric AI governance, policy-driven AI governance, model-centric AI governance, regulatory-compliance AI governance, risk-based AI governance, ethical AI governance, security focus, industry-specific, and federated AI governance. Each governance type implementation is applied according to the scope of the process, the development of the model, and the technical requirements of the design. As shown in Figure 3 mentioned in the following, the model is related to various types of AI data governance categorizations, whereas

Table 3. Types of AI data governance, focus, and key aspects for LLMs.

Types of AI Governance	Focus	Key Aspects	References
Policy-driven governance	Regulations and compliance: focus on various policies and data protection law	GDPR, HIPAA, AI Act, and CCPA	[84,85]
Data-centric governance	Data quality and integrity: ensure data fairness, accuracy, and bias mitigation approach	Master data management, data encryption, and third-party data sharing policies	[78,81,86]
Model-centric governance	Model explainability: focus on model’s lifecycle from initial phase to secure deployment phase	Model lifecycle management (MLOps and LLMOps) and model performance and accuracy	[86,87,88]
Risk-based governance	AI risk management: identifies potential AI risk (e.g., algorithmic bias, data privacy breaches, and security vulnerabilities) and applies data governance controls	Financial and operational risk, security and cyber risk management, and algorithmic risk management	[89,90]
Federated AI governance	Decentralized AI systems: AI model training with secure confidential data (e.g., train AI model without sharing confidential patient data)	Decentralized model governance and accountability, security and trust in federated systems, and decentralized model governance and accountability	[91,92]
Regulatory-compliance governance	Adherence to laws: ensure models do not break rights, privacy, and laws	Healthcare AI must comply with HIPAA regulations	[93,94]
Ethical AI governance	Fairness and bias prevention: identifies biased, unfair, and other discriminatory metrics	Transparency and explainability, ethical guidelines and frameworks (e.g., OECD AI principles), and safety and robustness	[95,96]
Security-focused governance	AI cybersecurity and attacks: to prevent models from experiencing various attacks (e.g., model inversion and prompt injection)	Model security and integrity, Cybersecurity Act (e.g., NIST and ENISA), and secure AI model development and post-deployment security	[97,98,99,100]
Industry-specific governance	Domain-based AI rules: ensure compliance is aligned with domain-specific regulation (e.g., pharma and healthcare domain)	AI-driven drug discovery follows FDA, healthcare AI must go with HIPAA, and finance with GDPR regulation	[101,102,103]

outlines the detailed key aspects of various types of AI data governance.

2.1. Core Principles of AI Data Governance Relevance to LLMs

As LLMs are widely used in various domains (e.g., healthcare and pharmaceutical [104,105,106], by analyzing and training a large number of clinical datasets, a genomic analysis of biological data, reshaping molecular biology, and drug development are possible. ShennongGPT [107] is trained in a distilled drug database and makes human-like decisions to personalize drug advice and prevent adverse drug reactions in patients. Overall, LLMs in the healthcare sector must avoid biases and inaccuracies in generated output, enhance data security, and cover privacy concerns (e.g., patient data privacy), so the robustness of AI data governance is needed to understand the capabilities and limitations of the models in healthcare applications.

In finance [108,109,110], by contrast, LLMs are reshaping financial market analysis, risk assessments, and investment decision making based on vast amounts of financial data (e.g., FinLLM [111], KemenkeuGPT [112], BloombergGPT [13], and FinGPT [15]). In addition to cybersecurity [113,114,115,116], they are providing cyber threat intelligence (CTI) analysis, the ability to automate threat detection, the ability to mitigate approaches to random threats, and vulnerability assessments. However, future research is needed to safeguard data, ensure social ethics, ensure robust encryption, and enhance authentication methods and legal norms to defend LLMs against adversarial attacks and perform token manipulation [117,118]. Currently, the benefits of the integration of the AI data governance approach are of great importance for security and reliability against malicious activities in LLMs.

The use of LLMs in supply chain management and the integration of data governance significantly impact business operations (e.g., inventory management, supply chain optimization, avoiding supply chain risk, early detection of vulnerabilities in software supply chains, automating contract renewal, etc.) [119,120,121]. In personalizing recommendations and enhancing the ability to work on a large-scale, multidimensional dataset (e.g., e-commerce chatbots [122,123,124] for personalized recommendations based on users’ historical data and a conversational recommender system (CRS) [125]), education is transforming the new digital era via an intelligent tutoring system by us for LLMs [126,127,128] as well as several areas that effectively shape industry operations. Hence, the role of AI data governance is the crucial step in creating an AI model that is used to train LLMs with billions/millions of parameters, which is responsible for creating various content generation outputs such as text-to-multimedia content generation [129,130] that encompasses various outputs (image-to-video, video-to-image, audio-to-image, or cross model content generation). To obtain refined LLM outputs, it needs fairness, reliability, transparency, compliance, trustworthiness, unbias, safety, the prevention of adversarial threats, and alignment with ethical AI standards.

Therefore, effective integrations of AI data governance frameworks are needed to mitigate risks. The main core principles of AI data governance are listed below, which are key parts of the process to ensure that LLMs gain the ability to build the trust of the end user with the AI-driven decision-making process.

2.2. Core Principles of AI Data Governance

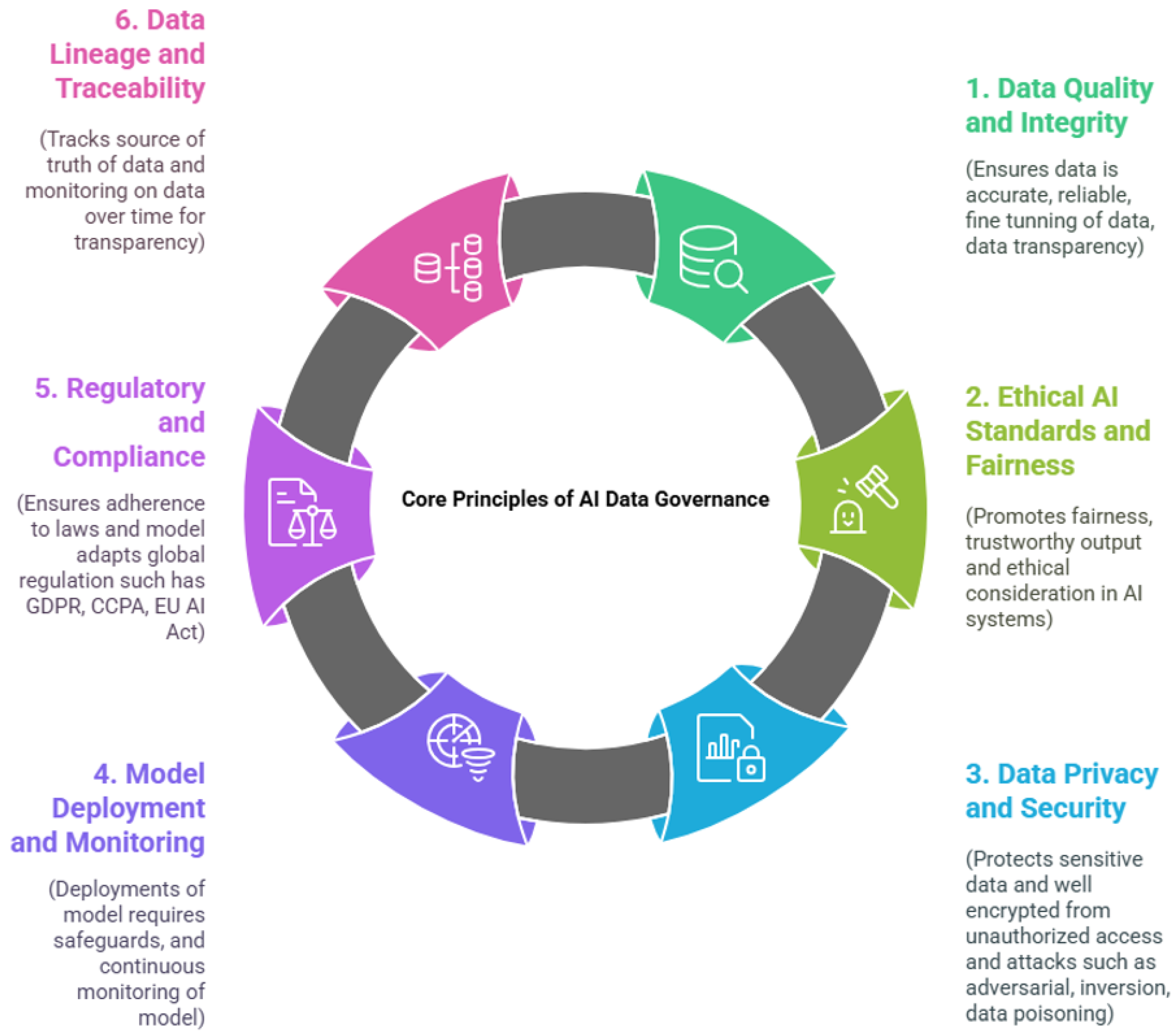

Figure 4 provides an overview of various core principles of AI data governance that set standards throughout the data lifecycle to ethically build and deploy large language models. Accurate, complete, and consistent training data and impartial outcomes require data quality and integrity, whereas data management follows fairness and ethical AI principles to minimize discrimination and promote transparent, equitable model behavior. The GDPR and HIPAA require encryption, confidentiality, and access limits to protect sensitive data. Data governance prevents the misuse and degradation of LLMs through performance tracking, auditing, and human-in-the-loop techniques. Regulatory and compliance concepts integrate legal, industry, and ethical norms to reduce risk and promote accountability. Finally, data lineage and traceability demonstrate how data flow and impact outputs, providing explainability, debugging, and confidence. These six core principles enable safe, fair, and reliable LLM systems. The details of various components are mentioned below.

2.2.1. Data Quality and Integrity

Data quality is critical for a reliable LLM performance. For training corpora, Yao et al. [131] proposed methods that can mitigate the undesired data properties during the generation, cleaning, and training of the data to improve the data quality for LLMs. One of the key aspects of a large language model is pre-training on vast data and subsequent fine-tuning tailored to the specific domains and industries by using specialized training datasets that can improve the data quality, which can mitigate problems like hallucinations and data inconsistency, which can ultimately increase trust in the LLM outputs. The paper by Nazi and Peng [132] mentioned pre-training the model on diverse datasets, which will enable the model to acquire knowledge from a broad spectrum of linguistic instances. Within healthcare settings, data quality is imperative to develop evaluation frameworks. Some models are not publicly available, and this can possibly give rise to data transparency issues, which is a crucial factor in the healthcare domain and which can hinder the process of thoroughly examining the data quality and integrity while examining the results of the model.

2.2.2. Ethical AI Standards and Fairness

LLM development is going through a rapid transformation and is showing great signs of great potential for various applications in all industries. However, it also comes with substantial associated risks, including ethical standards and intellectual property [133]. LLMs can be biased based on their training data, which raises ethical concerns. Carefully documented datasets can increase ethical AI standards and fairness rather than simply ingesting everything on the Internet into the model. It is likely that there is already misinformation on the Internet, and this can be reinforced if we do not set ethical standards. Using alignment techniques, Liu et al. [134] mentioned that LLMs can be more reliable, safe, fair, and attuned to human values that will foster greater trust among their users. Notable general guidelines, namely the “HHH” principle, advocate alignment that is helpful, honest, and harmless.

2.2.3. Data Privacy and Security

If the LLMs are trained with user personal information and proprietary data (name, emails, phone numbers, etc.), there is a risk of exposing or leaking those data. Without safeguards, LLMs can inadvertently violate data confidentiality. To protect sensitive data, the model can be trained on decentralized data sources (user devices, private servers, etc.) where the raw data do not leave their source. Carlini et al. [135] shared how LLMs are vulnerable to numerous privacy attacks if they are not trained in privacy-preserving algorithms. Training data extraction attacks have been limited to small LLMs under artificial training setups or in cases where the adversary has prior knowledge of the data they want to extract. Pan et al. [136] observed that general-purpose language models tend to capture sensitive information in sentence embeddings, which can lead to a data breach by the adversary. If the adversary can access it, they can reverse engineer it to disclose sensitive information.

2.2.4. Model Deployment and Monitoring

Especially in the framework of machine learning (ML) systems, model deployment and monitoring are essential elements of data governance. Once LLM training is concluded, deploying the model in real life requires several safeguards. LLMs are discovered to be vulnerable to prompt injection assaults, and there is a need for continuous evaluation throughout the LLM lifecycle using the integration of LLMOps and MLOps with a data governance approach [52,137]. One study suggests using an MLOps pipeline to automatically set up machine learning models and keep an eye on certain measures to make sure that predictions are very accurate. It focuses on constant improvement by using automatic model management and changing based on new data. Adding AutoML makes tracking the speed even easier and helps with ongoing system optimization [138]. Multidimensional evaluation techniques must be used to measure technical performance, data privacy, input stability, calibration, and output alignment, and to find out about possible restrictions and how to meet legal requirements and compliance [139].

One paper discusses MLOps as a way to set up and keep an eye on machine learning models automatically. It talks about how important it is to keep an eye on things throughout the development process and to connect the development and production environments [140]. Another study focuses on a complete model monitoring framework that uses Grafana (analyzes data from various sources across various domains [141]) and Dynatrace (a real-time software intelligence platform that detects model drifts, data quality issues [142]) to ensure that ML models work well, keep an eye on KPIs, find problems, and control model drift. This improves data governance and reliability in machine learning applications that are currently in use, thus improving the trustworthiness of the model [143].

2.2.5. Regulatory and Compliance

The GDPR, CCPA, LGPD (Brazil’s general data protection law), and HIPAA are very strict laws on data safety (ensuring data safety, data integrity, and privacy and security regarding data access [144,145]). Data governance is a key part of making sure that regulatory and compliance rules are followed. Companies need strong governance systems to protect private data and handle compliance risks as they rely more on data-driven strategies.

There are strict rules about data privacy for LLMs because they might have access to personal information. Hence, worldwide practice regulations are being used; examples are the GDPR (General Data Protection Regulation) and California Consumer Privacy Act (CCPA) regulations imposed to meet the requirements for ML models. Users must agree to the use of their personal data, have the right to have them deleted, and be aware of how LLMs use their data to follow the rules (MemoAnalyzer in LLMs enables the user to delete and modify sensitive information, leading to increased user awareness [146]). Data privacy rules are being pushed to their limits by the speed with which LLMs are being built. Information about people who can be identified (PII) is used to train the LLM (the adaptive PII framework can be used for LLMs to mitigate the risk of personal identifiable information to meet with compliance [147]). If the right security measures are not in place, these data could be memorized and private information could be shared (hence, control over memory management in LLMs is essential to modify and delete sensitive information as an essential part to be added in data governance work).

2.2.6. Data Lineage and Traceability

Data lineage and traceability are critical components of data governance to be able to track and trace the flow of data movement and closely monitor the source of the truth of data from various sources throughout the data management lifecycle process. Hence, leveraging the data lineage traceability approach inside the data governance framework assists the organization in meeting regulatory requirements.

A lack of data lineage, a lack of knowledge of exactly the sources of the training data, and various other scenarios could make it difficult to address any problem. One method is to apply IDs or hashes to the data samples for dataset training for data traceability (HashGraph [148]). The adoption of a new data version and control systems would be helpful in tracking the state of the dataset and documenting changes [149]. Mirchandani et al. [150] assessed LLMs as pattern machines that are categorized into three areas: sequence transformation, sequence completion, and sequence improvement. If an LLM produces an inappropriate output, the lineage tools can trace it back to the training data, and the lineage also supports attribution, which can give credit to its contributors. Chen et al. [151] mentioned that keeping track of the data is essential for data flow vision; hence, the use of data lineage graphs (DLGs) makes it easy to see all the data assets and how they are connected. DLGs can learn new skills that help them better handle data and come up with new business ideas. Hence, DLGs are an essential part to integrate into the data governance framework to track and trace data flow.

3. Use of AI Data Governance in Various Domains

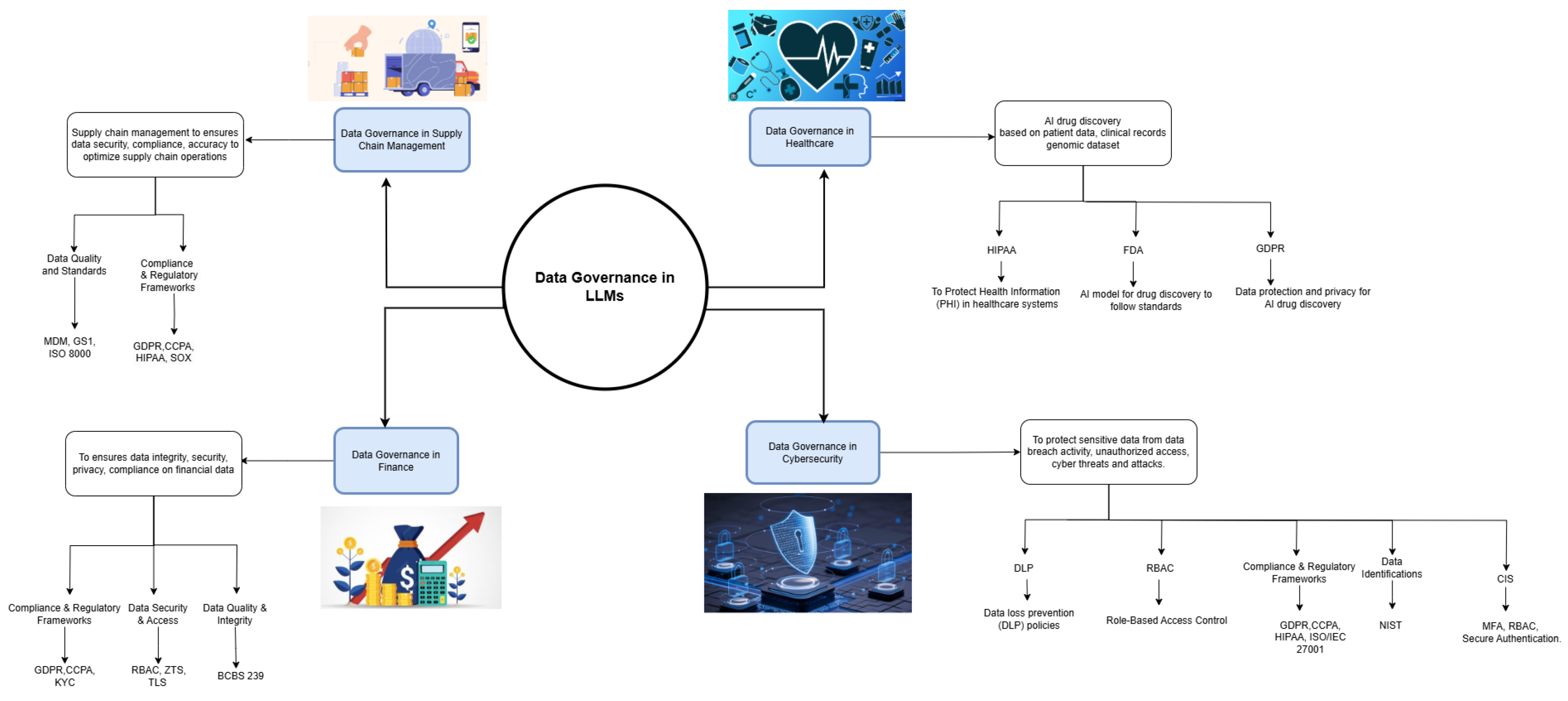

Figure 5 illustrates that the use of an implementation of AI data governance is crucial across multiple sectors, including supply chain management, cybersecurity, healthcare, and finance, to maintain data integrity, security, and compliance. The governance framework ensures that AI systems operate in compliance with regulatory standards, maintain data privacy, and safeguard sensitive information while improving decision-making capabilities. Implementing data governance principles enables firms to achieve dependable and transparent AI outcomes, fostering responsibility and reducing risks, and below are the detailed subsections for various domains.

3.1. AI Data Governance in Supply Chain Management

Organizations are progressively adopting AI technologies, making AI data governance in supply chain management essential for ensuring compliance, accountability, and efficiency. This paper proposes the implementation of AI data governance in supply chain management to mitigate compliance risks. It requires a comprehensive strategy that assesses risks throughout the AI implementation process of the robust framework, thus guaranteeing adherence to data privacy laws and the preservation of quality and safety standards [152]. One study proposes a regulatory framework for AI data governance in the supply chain that is intended to mitigate vulnerabilities in the AI data supply chain. In order to improve transparency, accountability, and safety, this framework prioritizes mechanisms such as mandatory reporting, KYC regulations, and dataset verification [153]. Another article introduces a “Data Bill of Materials” (DataBOM) to enhance AI data governance in supply chains by ensuring traceability, verifiability, and reproducibility through blockchain technology. This method addresses the challenges of accountability among a variety of stakeholders in the field of data management [154]. Robust data governance is essential for the successful incorporation of AI and machine learning in supply chain management. It ensures data quality, addresses ethical concerns such as privacy and bias, and enables scalable solutions, therefore improving efficiency and sustainability in supply chain operations [155].

3.2. AI Data Governance in Healthcare

As AI technologies progress rapidly, the need for robust governance structures is crucial to ensure patient safety, data privacy, and accountability. A wide variety of frameworks and approaches have been proposed to address these challenges, highlighting the need for tailored tactics for various healthcare settings. One article outlines seven critical areas of AI governance in healthcare, including organizational structure and external product assessment, and presents the AI governance readiness assessment of healthcare (HAIRA) to help organizations assess and improve their AI governance capabilities based on available resources [156]. The governance of AI data in healthcare is crucial for addressing ethical and regulatory issues. It ensures the proper, ethical, and secure use of AI tools, promoting equity, fairness, inclusion, and accountability while safeguarding human dignity and fundamental rights in healthcare services [157]. One study analyzed the imperative for an AI governance framework in healthcare to address the challenges in the installation and acceptance of AI systems, ensuring the secure integration of AI technology into practical applications that improve operational efficiency and improve patient outcomes [158]. Another study stresses the importance of comprehensive data governance frameworks in AI-driven healthcare, emphasizing obstacles such as privacy issues and regulatory limitations. It promotes more transparency, public knowledge, and adaptable regulatory frameworks to cultivate trust and ethical AI implementation [79]. The governance of AI data in healthcare involves creating frameworks for the ethical application of AI, ensuring rigorous clinical validation, and adhering to WHO standards. Countries are in varying stages, with specific recommendations emerging particularly in regions such as Singapore and Rwanda [159]. One article outlines a six-stage governance framework for AI healthcare research, focusing on ethical principles such as transparency, accountability, and inclusion, while addressing data acquisition, privacy, and ongoing quality control to ensure equitable and effective AI healthcare systems in South Korea [160]. The report analyzes the structure of the EU Artificial Intelligence Act on the governance of AI data in healthcare, focusing on ethical oversight, risk classification, and compliance with existing medical standards, in order to improve the safety, legality, and protection of fundamental rights in the use of health data [161].

3.3. AI Data Governance in Cybersecurity

The governance of AI data in cybersecurity is essential to improve security protocols and maintain compliance with regulatory standards. The integration of AI data governance technology into cybersecurity protocols enhances threat detection and response while simultaneously dealing with governance, risk, and compliance (GRC) concerns. The governance of AI data in cybersecurity is crucial due to recognized threats and legal inadequacies. One study highlights the importance of robust compliance frameworks, governance flexibility, and integration of AI automation with human oversight to enhance security effectiveness in high-risk environments [162]. The work highlights the importance of resilient governance frameworks in AI-enhanced cybersecurity, guaranteeing adherence to data protection regulations such as the GDPR and CCPA. It emphasizes the necessity for algorithmic transparency and ethical data use to cultivate consumer trust and mitigate hazards [163]. Artificial intelligence improves data governance in cybersecurity by helping organizations develop robust security policies, track compliance metrics, and refine incident response. The design automates the monitoring and auditing procedures, ensuring a continuous assessment of systems to effectively meet regulatory compliance requirements [164]. Another document emphasizes governance and risk management within its AI-enhanced Cyber-Resilient IT Project Management Framework, focusing on proactive risk assessment, real-time threat detection, and automated incident responses to improve data security and cybersecurity strategies across various sectors [165]. AI-enhanced security enhances cybersecurity by increasing the speed and precision of threat detection, automating responses, and reducing human error. However, ethical governance, data privacy, and transparency issues require strong regulatory frameworks for the proper implementation of AI in public sector security systems [166]. One article emphasizes the imperative of aligning data governance regulations with AI standards to respect rights, such as the AU Convention on Cybersecurity, to ensure the reliable implementation of AI in Africa, highlighting the importance of protecting personal data and promoting accountability [167]. The data governance of AI in cybersecurity involves the implementation of security protocols and efficient data management to protect against digital attacks. It emphasizes the importance of secure data access management to mitigate issues associated with data mining, analytics, and blockchain technology [168].

3.4. AI Data Governance in Finance

Data governance in finance is essential for providing compliance, security, and the appropriate management of data as a strategic asset. Financial institutions face different issues related to regulatory mandates and the complicated process of integrating data from multiple sources. An effective data governance structure mitigates risks while improving operational efficiency and decision-making capabilities. Data governance in finance involves establishing frameworks to ensure regulatory compliance, data integrity, and consistency in various contexts. One article highlights AI-driven solutions for real-time monitoring, automated metadata management, and intelligent classification, crucial to managing complex financial data in hybrid cloud settings [169]. Another article addressed data governance in finance, which involves establishing frameworks to ensure compliance, security, and data integrity in projects that integrate data from several sources. It mitigates risks such as data breaches and regulatory non-compliance, fostering a culture of compliance and employing innovative technology for improved capabilities [170]. Building data governance in finance emphasizes the imperative of rigorous policies, procedures, and stakeholder participation to ensure optimal data quality, privacy, and security. It addresses regulatory compliance challenges and uses technology to effectively manage risks and enhance data assets within the sector [171].

3.5. Domain-Specific Strategies and Challenges in LLM Data Governance

Table 4. Domain-specific governance strategies, outcomes, and challenges in LLM deployment.

Domain	Governance Strategy	Outcomes	Challenges	References
Supply chain	Enforcement of data quality such as inventory levels, ensuring logistics data are accurate, transparency (e.g., routing optimizations), and model monitoring (e.g., drift and hallucination)	Better processes and fewer mistakes	Managing different data sources and keeping track of data history	[172,173,174]
Healthcare	Ethical data management/ stewardship (e.g., EHRs, medical images, and clinical notes), privacy controls (e.g., personally identifiable information), and continuous monitoring of medical chatbots	Enhanced patient safety and reduced errors in diagnoses	Keeping data private and reducing bias in medical data	[175,176]
Cybersecurity	Security protocols, continued risk assessment, and transparency mechanism (e.g., maintaining audit trails)	Early detection of threats and better reaction to disasters	Evolving threats, balancing security and privacy	[177,178]
Finance	Regulatory accountability, audit trails, and working together with stakeholders	Better fraud identification and compliance with regulations	Taking care of complicated legislation and stopping unfair credit scoring	[179,180]

presents a comparison of domain-specific data governance strategies in the deployment of LLMs. It shows how different sectors (e.g., supply chain, healthcare, cybersecurity, and finance) implement tailored governance practices to address their unique data needs and regulatory environments. The table shows the specific governance strategies adopted, the positive outcomes achieved (e.g., improved accuracy, safety, or compliance), and the sector-specific challenges encountered, including issues such as data privacy, evolving threats, and regulatory complexity.

4. Challenges in Data Governance for LLMs

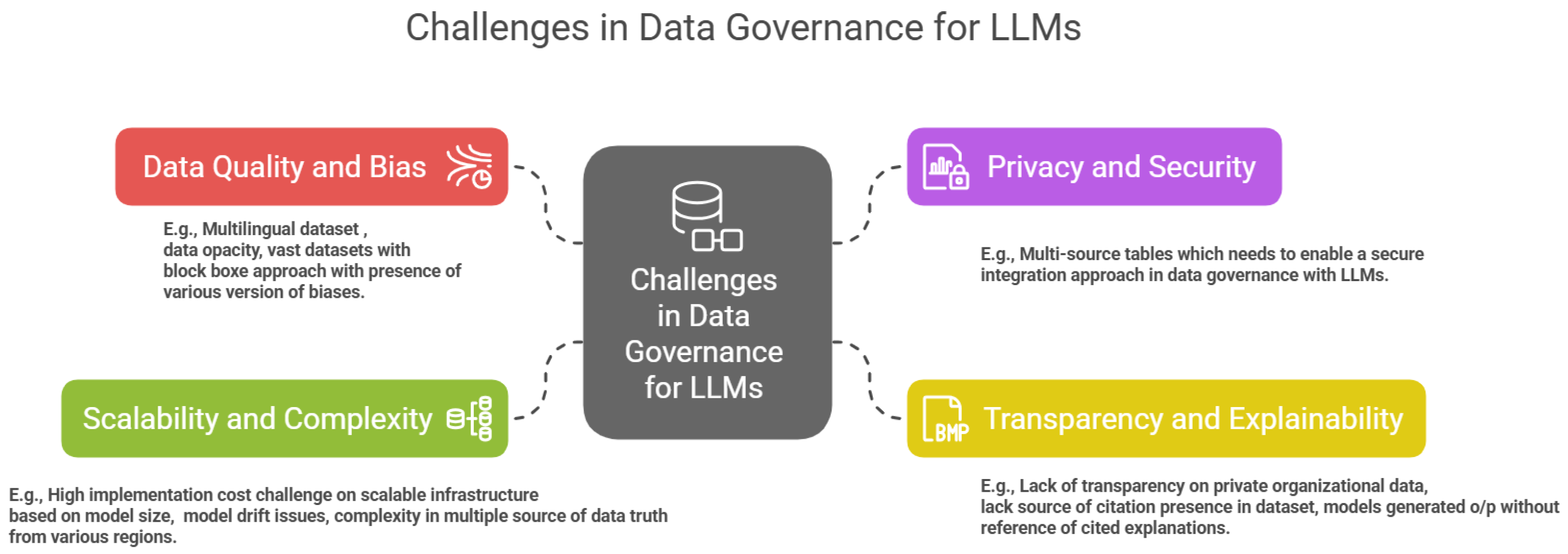

Figure 6 defines the various challenges in data governance for LLMs such as data quality and bias, scalability and complexity, privacy and security, and transparency and explainability, which are mentioned in detail below. As LLMs train on millions/billions of parameters, they need a high computational load with the powerful infrastructure requirements of GPUs/TPUs (high-performance computing clusters are needed for the data parallelism process). The main issue with integrating data governance with LLMs is the high operational costs associated with running this integration pattern implementation approach.

Zhou et al. [181] proposed a design in LLMDB (a general framework for developing and utilizing LLM-used data management programs) to enhance the data management platform to address the limitations of existing LLMs, consisting of hallucinations, high operational costs, and a low performance in complex tasks. As LLMs train on vast amounts of datasets from multiple public, open-source data (the web, articles, etc.) and private domains (e.g., billions of tokens from various sources), it is difficult to track the data sourcing and ownership issues. Hence, it has an impact on legal actions on copyright data and challenges related to ethical concerns over data ownership issues to suit data governance frameworks. In general, the leverage of data governance to provide a desired solution and a balance act for ethical consideration, bias and fairness, data quality, ownership issues, and transparency to act sensibly are the biggest challenges due to vagueness. The following are several challenges in data governance with the use of LLMs.

4.1. Data Quality and Bias

Data quality, which has a diversity of data sources and bias present in the dataset, is a significant challenge in data governance for LLMs. The quality of the data used to train LLMs has inherent biases from the dataset that can lead to misinformation about the results and ethical concerns. The study [182] reveals that LLMs trained in diverse datasets inherit and amplify societal biases from training data, causing an impact on data quality and extreme versions of biases (e.g., stereotypes and content moderation) within the data governance framework. Using a data governance approach to analyze and optimize LLM training dataset curation leads to biased and low-quality content output from models that impacts performance [183]. The context of non-English datasets that have less information about the source (e.g., a Chinese or Korean context) creates hurdles for data governance to ensure data scarcity, accuracy, unclear ideas about the fairness of the data, and trusted source issues, which impact model performance as well [184]. LLMs trained on multilingual datasets are considered “black boxes”, which means difficult-to-understand datasets and expected outputs of the models [185].

4.2. Privacy and Security

LLMs train on vast amounts of data (e.g., millions and billions of parameters) in various domains, and data are a crucial part of tuning the model behavior. As this large model trains on huge data, privacy and security play a key role. To prevent this extensive information, maintaining compliance with global data protection laws plays a crucial role as a part of the data governance framework. However, there are challenges in data governance related to privacy and security, which are mentioned below.

LLMs have the ability to train on large datasets and can mistakenly memorize the data and regenerate information from personal sensory data such as patient details, medical records, financial information, and others (e.g., data poisoning attacks) [186]. It also targeted inference attacks, where malicious attacks can impact the vector database and can pull private data using queries, which is a massive security concern with various malicious attacks (e.g., privacy breaches in model training and prediction phases, membership inference attacks, and model inference attacks) [187]. The strict guidelines and regulations of RBAC prevent access roles for these models based on user profiles; if an untrained person obtains access to write and retrieve data, this will create an issue of data exposure risk [188,189]. Due to a rapid increase in data volumes, implementation is a big challenge for LLMs in a data governance framework, as data come from multisource tables which need to enable a secure integration approach [190].

4.3. Transparency and Explainability

LLM integration with a data governance framework consists of significant challenges related to transparency and explainability; as it is difficult to trust models, the justification of answers from models, mitigation of bias, and regulatory compliance are the main concerns since, as it is trained on large data sources, it is difficult to trace the source of the truth of the data, which comes from several tables (e.g., dark data, data opacity, data gaps, and algorithmic bias).

Most LLMs are trained on private organizational enterprise data; hence, most of these data are dark data, not accessible to the public. This is vague when it comes to gaining trust in the source of the data and model output, which creates challenges in transparency, regulation, and trust [191]. Financial chatbots trained on a historical financial market data analysis (e.g., stock prices, forex, etc.) and various corporate reports (e.g., balance sheets, income statements, etc.) with a lack of a source of citations raises large concerns about data transparency [192,193,194]. Healthcare chatbots for patient recommendations are trained on public healthcare datasets, research papers, the medical literature (PubMed and WHO guidelines), and EHRs. However, this chatbot model cannot provide insight into the output result reference that makes a model decision opaque [195]. LLMs like GPT-4, BERT, and others remain the black box of the system (e.g., trained on billions or millions of parameters and the model generates an output without citing source details), which tends to create a very big challenge when implementing the data governance framework approach as, for example, the EU AI Act and US AI bill of rights need transparency and explainability behind each decision [196,197,198].

4.4. Scalability and Complexity

Regarding LLM integration with a data governance framework approach, it is a big concern to keep track of the enterprise data ecosystem. As this large model replies based on vast, diverse domains and unstructured data (e.g., image, video, and audio), this makes it difficult to manage and govern these diverse, scalable, and complex data patterns.

LLMs need high infrastructure components for a safer deployment of AI models. This leads to a higher implementation cost based on the scalability of the architecture pattern and the size of the model, which makes it harder to implement a data governance approach at the enterprise level [199]. The LLMs are continuously learning and logging memory data and evolving efficiently with a learn-and-evolve approach. Models are consistently growing as a model drift, which creates a challenge for implementing a data governance framework [200,201]. The model generates the output based on training with large training datasets that come from multiple sources of data from various regions (e.g., the US region, Europe region, and others). However, each region has its own specific AI regulation laws, such as cross-border data compliance, creating a pertinent challenge to implementing a data governance methodology [202,203].

5. Key Components of AI Data Governance for LLMs

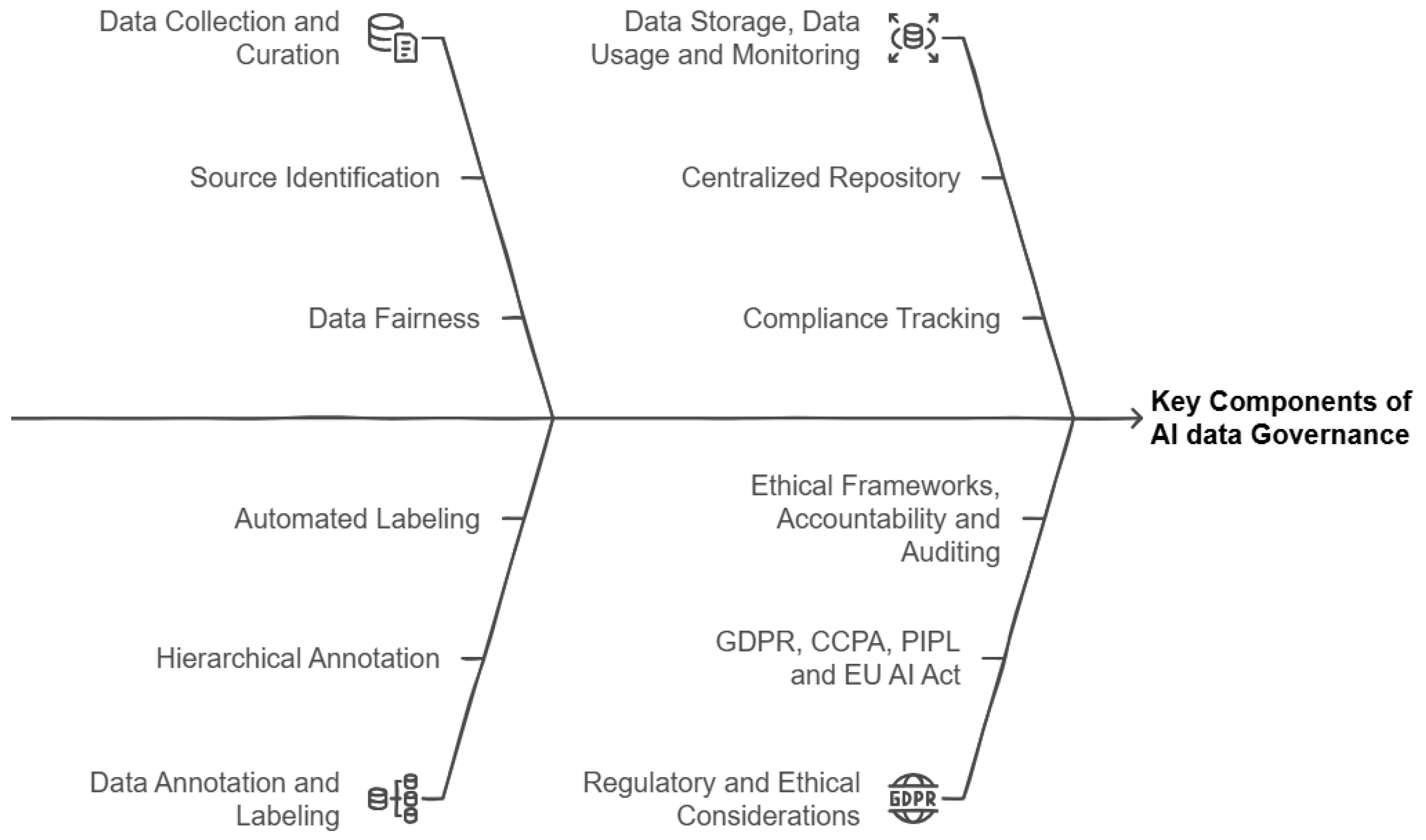

AI data governance is a vital step in implementing the robust framework approach to ensure that LLMs are developed, trained, and tested securely. This ensures several key components, such as privacy, security, and the ethical use of data, to gain the trust of the user. Figure 7 presents key components of AI data governance, which gives high data quality, data annotation, data storage and management, data usage, regulatory and ethical considerations and frameworks, and accountability and auditing in AI applications. Below are the key components of AI data governance for LLMs.

5.1. Data Collection and Curation

Source identification: Effective governance to ensure that the data used for training and the data source that is used for fine-tuning come with high quality [172]; ensuring diversity to select data samples that enhance model training [204]; requiring data to have ethical sources that comply with data protection laws (e.g., the GDPR, HIPAA, CCPA, and others) [205]; using human-curated data, which indicates high quality [206,207]; and ensuring data fairness are important steps as part of the core components of data governance for LLMs. The role of data cataloging ensures data lineage tracking and the use of a metadata management approach [208].

5.2. Data Annotation and Labeling

LLMs using enterprise data can benefit from using hierarchical annotations of structured data, where instead of using a single label, they are classified at multiple levels based on label granularity. Instead of using a single label, a tree structure benefits LLMs to improve scalability and a better performance output [191]. Hence, leveraging hierarchical annotations allows for the identification of complex relationships and patterns within the dataset. Regarding AI data governance for LLMs, automated labeling is a crucial component, as it deals with dynamic label schema integration techniques to improve the ability to understand and classify data with high precision [209]. Dynamic label schemas allow labels to evolve based on data input and requirements, allowing the system to adjust automatically and labels to remain accurate without manual efforts [210].

5.3. Data Storage and Management

Data storage is a crucial step in determining the impact of AI data governance in terms of maintaining data quality, data integrity, and data storage and management, which plays a significant role in securing data storage with a centralized data repository to manage a vast dataset [211] to minimize the risk of data leakage, and this helps to maintain data security using the central data approach. One study emphasizes the impact of the data governance framework on a secure data leak mitigation approach via the centralization of the data repository for vast datasets, transforming enterprise data management through the unified data governance methodology [212]. Another paper proposed a qualified compliance to align ISO/IEC 5259 [213] standards with the EU AI Act, Article 10. This process is a key component of data governance to improve data management and compliance tracking and facilitate organizations in demonstrating compliance with both legal and technical standards [214]. The current research discusses how AI data governance can help with data management by keeping an eye on compliance, making data more effective, and handling risk with a mitigation approach [215]. Using advanced machine learning technologies can enhance data governance capabilities with multisource data integration patterns by using reference tools for data quality checks, data profiling, data cleaning, and continuous monitoring [216].

5.4. Data Usage and Monitoring

Data usage and monitoring are critical components to implement AI data governance frameworks to mitigate the risk of data misuse and allow data compliance with the regulations and guidelines that apply. Effective data governance impacts the data filtering and data monitoring approach during training and testing to secure the AI deployment pipeline of large models [153]. Recommendations for the data governance mechanism based on the detection of unauthorized data requires the protection of patient data in healthcare by closely monitoring the process through transparency and accountability to prevent harm; therefore, data encryption, masking, and hashing can protect patient health information within the use of a conceptual data governance framework [217]. The OECD recommendation on the governance of health data underlines the need to establish national governance frameworks that protect personal health data while facilitating their use for public policy purposes. It encompasses measures to identify unwanted data access to protect patient data security and privacy [218]. Data protection regulation policies such as the GDPR and CCPA reshape data usage in a way that enhances customer trust. Due to the importance of regulation-aware datasets (e.g., C3A), they are managed effectively to comply with relevant regulations, policy standards, and ethical guidelines [219].

5.5. Regulatory and Ethical Considerations

Global Regulatory Landscape

The global regulatory landscape for data protection laws is spread out across various regions throughout the globe (e.g., Europe, the United States, China, etc.) to utilize the regulatory frameworks to enhance data privacy and security standards. The following is a list of widely used regulatory frameworks.

The General Data Protection Regulation (GDPR): The GDPR sets a high standard for data protection laws by the European Union to mitigate data privacy and security vulnerability. This regulation sets strict requirements for organizations related to data handling, data processing, data breach notifications, and data storage to ensure transparency and accountability.

The key components of the GDPR are data protection rights, breach notifications, lawful processing, extraterritorial reach, and data subject rights (e.g., the Right to Access and Right to Rectifications) [220,221]. Integrating the GDPR and EU AI Act within the global regulatory landscape enhances compliance strategies and strengthens data protection and trustworthy AI systems [222].

The California Consumer Privacy Act (CCPA): The CCPA represents privacy laws that govern data collection, data sharing, and letting customers control their data. It gives people in California certain rights over their personal information, such as the right to know what information is being collected, the right to see and delete that information, and the right not to have their information sold [223,224]. The CCPA protects specific groups of people, with a focus on customer rights when it comes to data sales. It has made a lot of advances in protecting privacy, showing different ways of handling privacy problems in the digital world today [225]. This law was subsequently revised and expanded by the California Privacy Rights Act (CPRA), which introduced enhanced consumer protections and enforcement mechanisms [226].

China’s Personal Information Protection Law (PIPL): The PIPL is a comprehensive framework and a significant step in China for data protection, data classification, and user rights within digital platforms [227]. The main components of the PIPL are informed consent, data classification, and user rights. This framework in China is used for the protection of personal data, which emphasizes informed consent, the classification of data, and remedies for data violations, and is based on the principle of proportionality to improve data security and privacy rights [228]. It is designed to regulate the use of personal data by digital platforms, with a focus on the state’s authority over user data control and privacy practices [229].

5.6. Comparative Insights of GDPR, CCPA, and PIPL in Practice for LLM Governance

Table 5. Comparative insights of GDPR, CCPA, and PIPL for LLM governance.

Aspect	GDPR (EU)	CCPA (CA, USA)	PIPL (Beijing, China)
Consent requirements	Requires clear, educated consent	An opt-out approach for selling data and permission for sensitive data	Needs clear, informed, and willing permission, especially for private information
Impact on LLM governance	A lot of focus on rights and reduction in data along with being able to explain	Pay attention to customer rights, limits on data sales, and limited explanations	Focuses on data localization, clear permission, and state oversight
Cross-border data transfers	Restricted: needs to be adequate or have safety measures like SCCs (Standard Contractual Clauses)	No strict rules about crossing borders	Large-scale transfers need to be approved by the government and subject to security checks
Data localization	Not required: open to assessment of competency	Not required	Strong rules for localizing important or private data
Jurisdiction scope	Apply to all organizations that handle data about EU people	For companies that deal with personal information of California residents	This rule applies to all handling of personal data about people in China
Automated decision making	Must give a good reason, allow people to help, and defend rights	There are no clear rights when it comes to automated choices	Needs to be clear, have an explanation, and give people the right to refuse fully automated choices

presents a comparison of the three main data protection regulations laws for LLM governance: the GDPR (EU), CCPA (CA, USA), and PIPL (Beijing, China) based on various key aspects. It outlines key regulatory aspects like consent requirements, impact on LLM operations, cross-border data transfer rules, data localization mandates, jurisdictional scope, and the treatment of automated decision making. The table highlights how each regulation differs in its approach to data protection and oversight, which shapes how LLMs are developed, deployed, and governed across jurisdictions.

5.6.1. Ethical Frameworks

An ethical framework and AI data protection and regulations are vital steps to ensure ethical data practices by various stakeholders (e.g., government regulations, researchers, developers, organizations, and businesses) with the principle of responsible AI development (e.g., transparency, fairness, a human-centric approach, etc.).

Stakeholder engagement in ensuring ethical data practices: The roles of stakeholders are critical in ethical data practices to mitigate data risk assessments using government and regulatory involvement to foster trust by implementing various regulatory frameworks (e.g., the CCPA, GDPR, EU AI Act, and others) and to implement sustainable development [230]. The use of stakeholder participation is critical by participating in brainstorming sessions, consultations to clarify ethical responsibilities, and addressing ethical conflicts [231]. Ethical considerations in data analysis are the best practices for the researcher and developer to implement an ethical AI model with fairness, fostering trust throughout the lifecycle of model development [232]. The use of the enhanced enterprise data ethics framework fosters strategic decision making and legitimate engagement in higher education data management by emphasizing transparency, fairness, accountability, and a centric approach between stakeholders [233].

The fundamental principles of responsible AI development: These principles must guide the end-to-end machine learning lifecycle of AI development that builds securely with ethical safeguards of model deployment, prevents bias in the model, and ensures a non-discriminatory and ethical approach throughout the life of the model iteration. A comprehensive framework and data protection laws are important for responsible AI development that includes fairness, transparency, privacy, security, accountability, and system robustness [234]. This report highlights the importance of stakeholder participation, comprehensive monitoring systems, and structured ethical frameworks as fundamental principles for responsible AI development. These components guarantee that technological advances are consistent with ethical principles and human values, ultimately resolving issues such as accountability and algorithmic bias with the requirements of responsible AI governance [235]. The main idea of this paper is to show a complete approach to creating a trustworthy ethical framework of AI that builds morals, ethics, and requirements in the AI systems and rules that are responsible. A strong set of laws, morals, and ethical standards is used throughout the lifecycle of the AI system to ensure responsibility and the general well-being of society [236].

5.6.2. Accountability and Auditing

To gain trust in various sectors with the use of emerging AI technologies like LLMs, it is crucial to have a mechanism for auditing data practices. The integration of robust auditing mechanisms and accountability is important to improve efficiency and precision in AI applications with real-time AI monitoring [237]. It is crucial to uphold public confidence in data practices through the implementation of both internal and external audits. Research underscores the importance of comprehensive auditing, which, together with stakeholder participation and digital transformation, improves transparency and accountability in public sector accounting [238]. One study indicates that internal audits conduct periodic self-assessments to ensure adherence to data protection regulations in the implementation of the GDPR to ensure compliance with data protection measures [239,240]. In order to improve the quality of national statistics and data curation, another paper stresses the necessity of establishing robust data governance frameworks that are based on widely accepted standards. These cybersecurity frameworks may include internationally recognized standards such as ISO 27001 [241] (an international standard for information security management systems), SOC 2, and NIST to ensure accountability and a rigorous auditing process [242].

6. Best Practices for AI Data Governance in LLMs

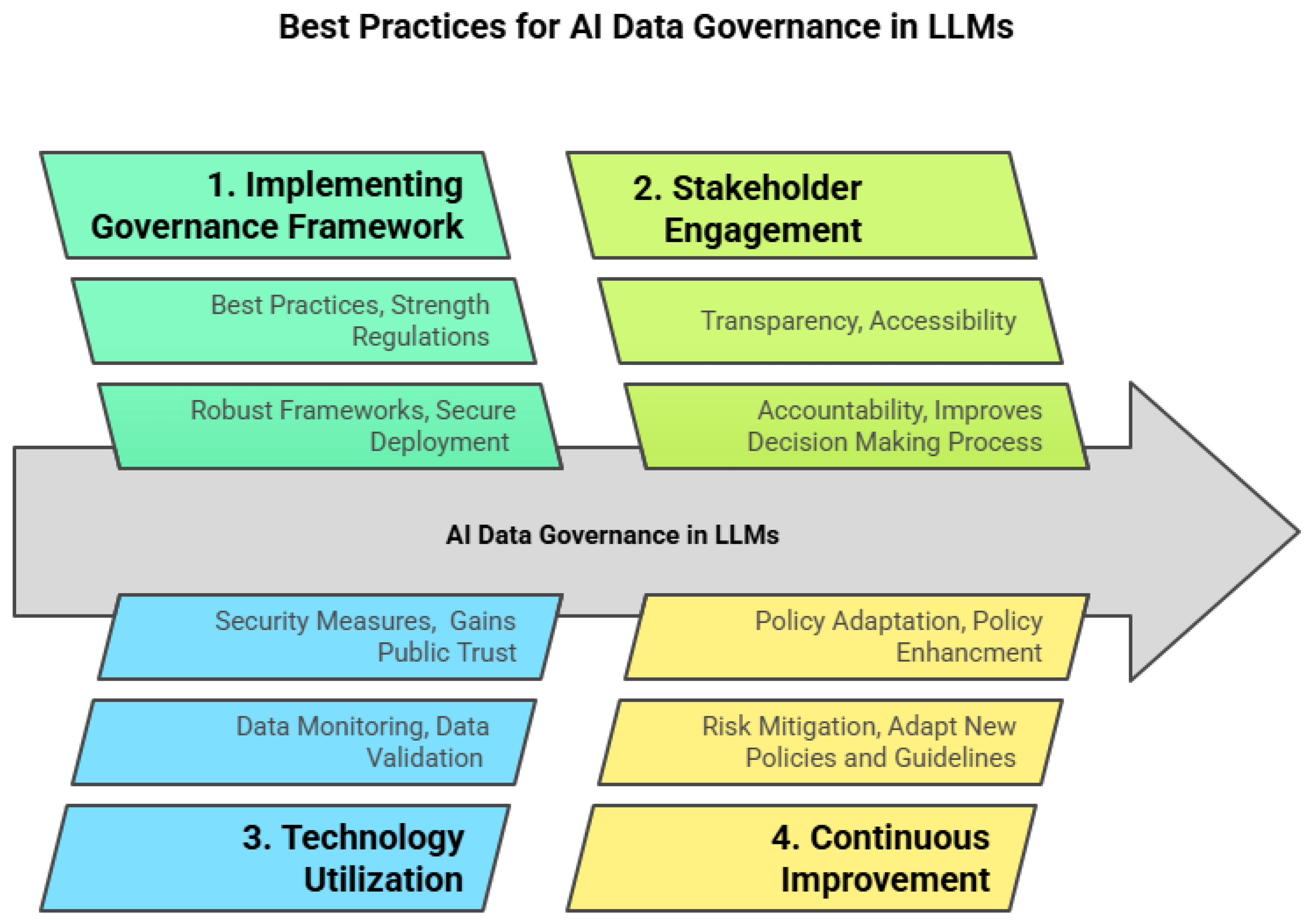

AI data governance plays an important role in LLMs, providing strong guidelines and regulatory authority for data management via end-to-end lifecycle management in LLMs to ensure compliance, regulations, security, an auditing methodology, and an ethical approach. The best practices of effective data governance involve implementing robust data governance frameworks, leveraging valuable technology for data monitoring and security, engaging stakeholders for transparency and accountability, and consistently enhancing governance policies to accommodate advancements in AI and evolving regulations based on requirements. Hence, implementing the best practices of data governance assists organizations in minimizing risk, providing trustworthiness in AI applications from the user’s side, maintaining data integrity, securing data against adversarial attacks, and continuously monitoring data pipelines for anomalies. As shown in Figure 8, an overview of best practices for AI data governance at a high level and the key components are outlined below.

6.1. Developing a Governance Framework

A well-structured governance framework played a crucial role in protecting sensitive information in a data quality management-based approach [243] that enhances decision making and facilitates the compliance approach. It implemented the integration of the data governance framework that strengthens the compliance and regulations that build trust between the user and AI applications [244]. The research cited in one study states that strong information governance guidelines are important (i.e., strong governance standards are needed). Trust in AI systems can be built by making sure that they are open and teaching users how to use them [245]. In every step of LLM lifecycle management, data ownership, transparency, accountability, and secure deployment are keys to the success of LLMs, defined as a clear role using data governance [246]. Another study offers a data governance framework suited for blockchain, IoT, and AI technologies and uses three main core pillars such as data integrity, security and privacy, and ethical considerations to adapt to evolving technologies [247].

6.2. Stakeholder Engagement

Stakeholder involvement, which includes early input from all participants (e.g., AI engineers, compliance officers, data scientists, and a regularity audience), gives an important knowledge exchange between the research team and the data owners, which helps identify potential risks and ethical concerns prior to the development phase and ensures a diversity of perspectives in AI development [248,249]. One paper demonstrates the importance of ongoing stakeholder engagement, particularly in the design of generative AI tools, with an especially strong focus on older adults. This participatory approach guarantees that AI applications, such as LLMs, are effective and useful to their intended users by addressing usability and accessibility. In addition, they assist in brainstorming various concerns to be addressed and improve the decision-making process [250,251].

6.3. Leveraging Technology

As LLMs on a large scale utilize and perform complex operations, in this case, the use of technology within the data governance methodology plays a critical role. The use of advanced technologies such as AI-driven tools can lend itself to an automation approach to audit and monitor the regulation approach with respect to maintaining data integrity. An AI-driven data analysis enhances the identification of trends and patterns and assists in policy-making criteria, policy evaluation, improved transparency, and public trust in governance [252]. However, using an automated data validation approach, a data validation document (DVD)-based approach reduces the risk of human error, allows for the close tracking of data, and facilitates compliance and regulatory standards. Overall use of AI-driven technology improves operation processes and supports large-scale data-driven governance.

6.4. Continuous Improvement

LLMs use fine-tuning mechanisms (which allow LLMs to take advantage of both labeled and unlabeled data [253]) to adapt to a specific task and evolve performance and applicability. AI data governance uses an iterative approach to assist with the iteration and feedback-based mechanism and requires a continuous monitoring and refinement approach to LLMs as it continues to evolve. As LLMs are trained on large datasets and integrated with various applications, data governance practices adapt the process accordingly. Regular updates to policies and regulations help mitigate the risk associated with data bias, model inaccuracies, and security breaches [254]. Hence, a continuous improvement approach in a data governance framework plays a critical role in aligning with current processes and future process updates.

6.5. Tools and Metrics for Auditing Governance Quality in LLM Pipelines with Lifecycle Phases

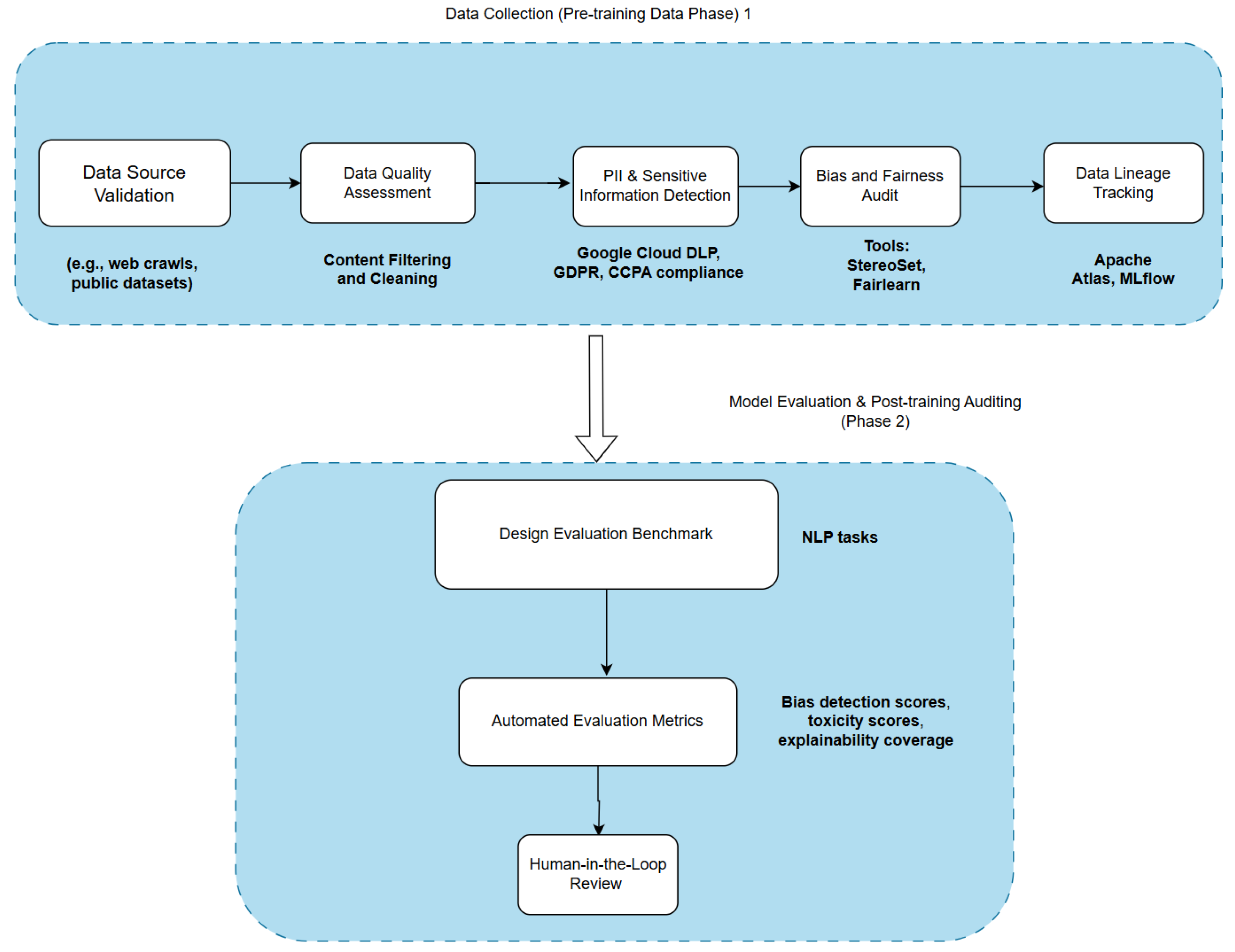

As can be seen in Figure 9, there are two phases. Phase 1 consists of the data collection approach using the data source, the data quality assessment with a filtering mechanism, PII detection tools, bias and fairness audits, StereoSet, Fairlearn tools, and data lineage and tracking (e.g., Apache Atlas and MLflow). However, phase 2 has model evaluation and benchmarks and concentrates on verifying LLM outcomes for equity and security through benchmarks, bias/toxicity evaluations, and human assessments. Governance technologies such as Truera and MLflow provide audit tracking and enhancements informed by feedback.

Table 6. Overview of tools and metrics used to audit governance in LLM pipelines.

Category	Tools/Framework	Key Aspects and Metrics	References
Bias and fairness auditing	StereoSet, Fairlearn, and Aequitas	Bias detection score, stereotype preference ratio (based on region, gender, race, and profession), demographic parity, disparate impact, false discovery rate, and false omission rate	[255,256,257,258]
Model monitoring and drift	Truera and WhyLabs	Date drift detection score, fairness metrics, and stability score	[259,260]
Audit logging and traceability	MLflow and Apache Atlas	Performance metrics (F1-score, BLEU (for NLP), and custom metrics logging)	[261,262]
Data quality and lineage	DataHub, Alation, and Datafold	Accuracy and traceability score	[263,264,265,266]
Privacy and compliance	Google Cloud DLP	PII detection score, risk re-identification index, and compliance ratings	[267,268]

gives the various tools and metrics that are often used to check and rate governance quality in large language model pipelines (LLMs).

7. Case Studies and Real-World Applications on Implementing Data Governance in LLMs

Many companies at the enterprise level are using data governance frameworks in data security to manage master data management (MDM), such as customer data management, product master data management, and vendor master data management [269]. Google was the first in the industry to leverage data governance in generative AI to protect AI/ML privacy commitments, providing higher security over customer data stored in the cloud [270]. Microsoft Azure implements new opportunities for modern AI data governance to integrate LLMs with transparency, accountability, security, and a focus on fairness in AI’s decision-making abilities [271,272].

The proposed framework in the financial industry (e.g., IBM watsonx.governance [273]) with the implementation of AI governance in LLMs is the main impact behind the use of the human-controlled AI-regulated task together with the automation pipeline to process models using MLOps and LLMOps. This along with high-level design and methodologies to manage organization in the blueprinting phase and end-to-end model development guidelines with the use of guidance and regulation throughout the LLM lifecycle from the design to the development, testing and validation, deployment, monitoring, and enhancement of models are crucial in the advancement of ethical and responsible AI. One author proposed Nickerson’s framework [274] development process that captured the scope of building a model (the data, model, system, people targets and scope, and organizational scope and targets), outline, governance mechanism (structural, procedural, and relational), model targets (e.g., RAG), antecedents, consequences (risk management and performance effects), and mitigation risk while integrating GenAI. The author of this research recommended differential governance, supervision, controls, and procedures incorporating generative AI. The first step was differential privacy, enabling financial institutions to detect fraud while protecting customer privacy rights and regulatory obligations [76]. The author of intelligent data governance has proposed a modern framework [77] built on a modular microservice architecture deployed on a scalable cloud infrastructure. This method, with the use of this architecture and design pattern (e.g., modular microservices and scalable cloud infrastructure), provides organizations with the ability to rapidly adapt to evolving data governance requirements, providing unparalleled scalability, integration, and flexibility. One researcher proposed [275] blueprinting for auditing LLMs using a three-layered approach such as governance audit, model audit, and application audit, and the adoption of this AI governance model in LLMs collectively addresses ethical, legal, and technical challenges, as shown in Figure 10.

Another paper addresses Telecom Knowledge Governance (TKG) for LLMs and describes how a high-quality telecom corpus and an automated Q&A dataset were generated to improve model performance in telecom industry apps such as customer service and data search [276]. The paper talks about real-life case studies that show how AI can be used successfully in data governance. It emphasizes automating compliance evaluation, improving data quality, and managing risk [215]. The paper presents case studies highlighting the significant challenges in LLMs related to privacy and security concerns, and hence it needs to implement the GDPR and CCPA data protection laws. In this work, the author proposed a framework referred to as the OneShield Privacy Guard. This framework is intended to mitigate the privacy risks associated with user inputs and outputs produced by LLMs in open-source and enterprise environments [277]. The system that leverages AI regulation successfully assists in tackling legal queries with variable precision by utilizing GPT-3.5 and GPT-4 to interact with EU legislation (a system of laws and legal frameworks enacted by the European Union). The potential of LLMs in governance applications was demonstrated by integrating the use of augmented retrieval generation (RAG), which improved the functionality of this system [278].

8. Open Challenges and Future Research Opportunities

Data governance frameworks are vital to the process of their integration with LLMs. Although there is an emerging trend of adapting the digital landscape of the data governance base, there are still open items that need to be addressed, which are mentioned below.

8.1. Scalability of Data Governance Framework

As LLMs scale up, they are trained on millions or billions of parameters based on the complexity and enhancement of the model. A solid, scalable, and robust approach is required in the data governance integration pattern for a large dataset training process. Furthermore, with the given scale of LLMs, the new data governance framework must be adaptable, continuously monitored with the ability to provide real-time updates, and ensure clear and refined data governance compliance and regulation.

There are not any scalable governance models that can handle the huge amounts and different types of data used in LLM training and rollout right now. Researchers should work on making flexible real-time governance models that can always verify compliance in very large datasets that are constantly changing.

8.2. Security Risks and Data Breaches

As large language models are deployed in production instances, which require secure LLMOps pipelines to deploy AI models, they need an encrypted, robust mechanism within the data governance framework to avoid data breach activity while delivering the AI model in a production instance. However, it needs a multilayer approach in data governance frameworks, which will assist in handling the AI model deployment logging activity from the initial phase to the deployment phase and the maintenance phase of the model by embedding security and compliance protocols.

As of now, there are not many strong, comprehensive security tools that are made exclusive for LLMOps processes. There should be complete encryption, log-in, and compliance processes built in from the start of training through model maintenance. These will keep data safe and stop breaches.

8.3. Data Privacy and Compliance

Cross-border data transfer has a language barrier in various regions, as different countries have different data protection regulation laws in their native language, e.g., LGPD (Brazil), the CCPA (California), and the EU AI Act (Europe), which creates a vague understanding and implementation of data governance rules. As a result, the establishment of a unified compliance strategy will be an extremely difficult task. Hence, companies must develop multilingual compliance frameworks and automated translation tools as prospective actions to overcome this challenge in data governance frameworks.

8.4. Data Provenance and Traceability

It is challenging to determine the source of the truth of the data, which is derived from multiple tables (e.g., dark data, data opacity, data gaps, and algorithmic bias), as LLMs are trained on large data sources and the data are constantly cleaned and refreshed. Hence, tracking large datasets and maintaining the data lineage from various pipelines are unique challenges in tracking and tracing data in the AI governance landscape. Therefore, the implementation of robust mechanisms for data traceability and continuous data auditing is necessary as this framework adapts and evolves.

Furthermore, an evolving landscape of AI regulations is needed as AI technology has evolved rapidly. Hence, there is a need for global coordination to address regulatory gaps, and there is potential to change AI regulations to mitigate the risk of fostering innovation [279]. A new policy mandate is essential for AI developers to enhance the model for more detailed transparency and explainability in critical sectors such as healthcare, finance, and autonomous systems that need explainable artificial intelligence to promote ethical uses of AI [280]. In the coming years, stronger data protection laws will be required for the automated decision-making output of the model. In cross-border data governance, due to multilingual data, uniform data regulation bodies and strict policies are needed with each local privacy law to fill the gaps between various languages based on data regulation.

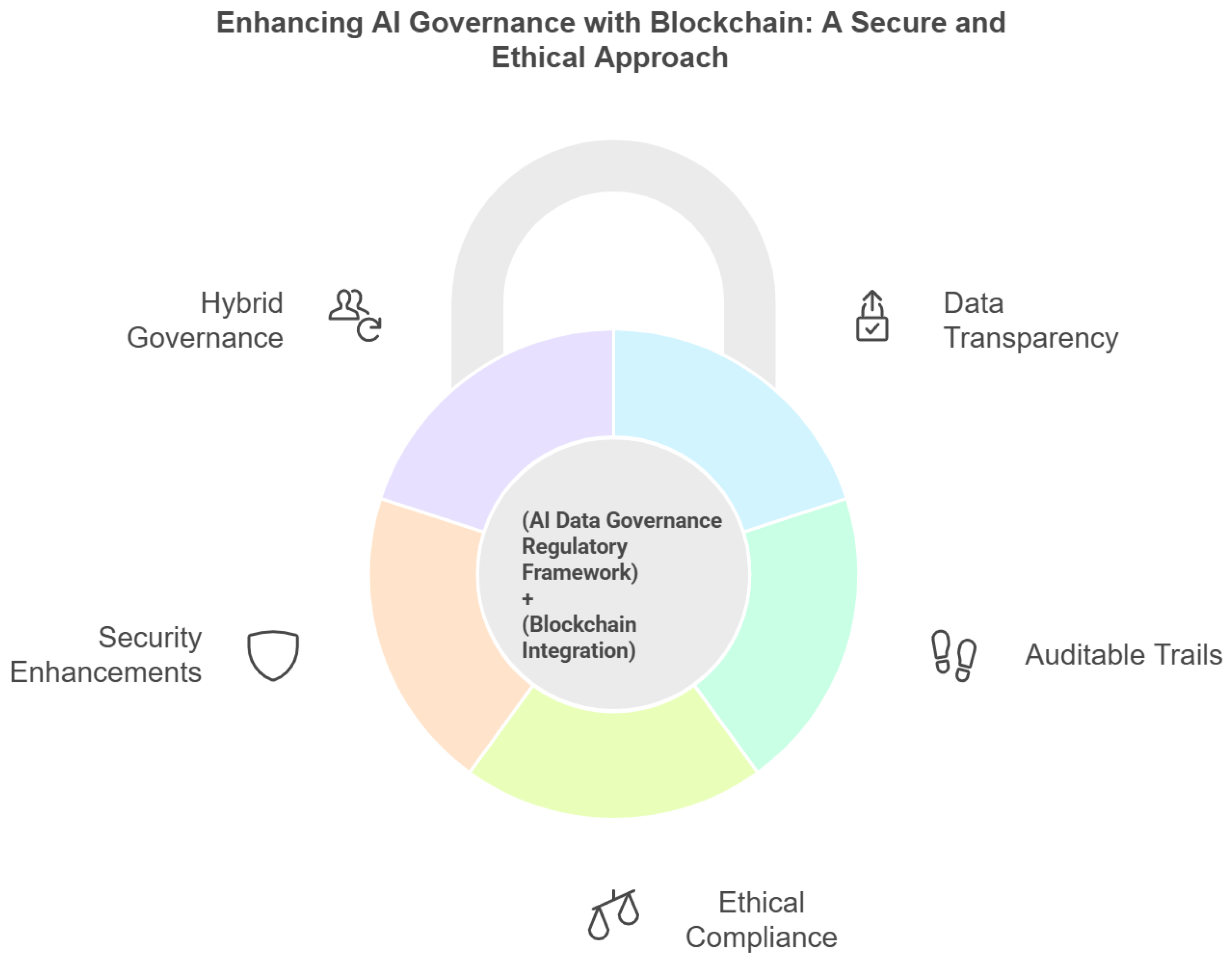

However, existing research is being conducted to finalize a new integration pattern between blockchain and AI data governance for secure and auditable data governance. As shown in Figure 11, blockchain technology with the use of a new integration approach (a conceptual framework) with a data governance framework will help, offering a transparent track of all transactions and data interactions, which is essential for monitoring AI algorithms, ensuring the integrity and transparency of data, obtaining an auditable trail of transactions, implementing a hybrid governance approach, and ensuring adherence to ethical standards [247,281].

The blockchain-driven regulatory framework is an essential part of protecting the digital ecosystem against AI-generated content, which has addressed security concerns in the digital ecosystem; however, this existing framework improves audit qualification and efficiency through deep data mining and the security of audit problem clues [282,283]. More discovery is needed in the hybrid AI data regulation process with a multilayer approach in the governance data framework. Furthermore, promoting interdisciplinary research on AI governance is essential for creating extensive and effective regulatory frameworks (e.g., the ETHOS framework [284] and decentralized governance innovation framework, which offers scalability and prompting trust) while addressing the significant gaps between the evolving AI technologies in LLMs and the existing legal framework (e.g., combining legal principles, ethical considerations, technological advancements, and sociological insights to create comprehensive frameworks for AI governance) [285].

How to find the start, changes, and lineage of very big and different datasets is hard and has not been solved yet. We need to move forward with ongoing audits and clear data traceability tools to make sure that LLM administration is responsible and that the data are correct.

8.5. Human–AI Collaboration in Data Governance

The necessity of human–AI collaboration in data management is becoming more widely acknowledged as a critical factor in the maintenance of ethical standards, data fairness, data accuracy, and the improvement in decision-making processes with the use of human–AI collaboration in the data governance framework. In an effort to resolve obstacles such as ethical dilemmas and cognitive inaccuracies in data management and mitigate misinformation risks from AI-automated systems, this collaboration leverages the strengths of both human cognitive abilities and machine-computational AI capacity. Through human oversight, cognitive biases that may arise as a consequence of automated systems can be mitigated and enhance the quality of decisions and increase public trust [203,286]. Future research steps are important to investigate human-in-the-loop governance models, which require collaborations between human review and AI systems to ensure responsible AI utilization. This approach will balance automatically generated output with human judgment and refine the escalation, mitigate the risk of misinformation, and uphold ethical standards. We need to create good person-in-the-loop governance models that integrate the smarts of AI with the right decisions made by people. To reduce false information, cognitive biases, and ethical problems, as well as to increase trust and responsibility, frameworks for adding human oversight should be studied.

8.6. Data Quality and Bias Mitigation

LLMs frequently develop biases from their training data, which can result in ethical and impartiality concerns. One study demonstrates that LLMs exhibit performance disparities as a consequence of US-centric training data, revealing biases influenced by sociodemographic factors [287,288]. It emphasizes the importance of diverse training data and impartiality metrics in order to address ethical concerns and ensure that the models perform fairly, and it needs to ensure data quality and data reparation by applying pre-processing techniques and utilizing post-processing corrections, which are vital steps in curating diverse datasets and a bias mitigation approach [64,206]. The authors of one study show a way to remove bias by choosing datasets that are balanced between cultures. This reduces visual bias and makes the models more fair. By making sure everyone is treated equally, this method increases the number of true positives for underrepresented groups without lowering general accuracy. It shows that fixing data bias where it starts makes model results more fair and useful [289].

Another author introduces the parity benchmark, which checks for flaws in large language models (LLMs) based on things like race, gender, and disability. It tests models such as GPT-4, Claude 3.5 Sonnet, and Llama 3. It shows differences in success and emphasizes the need for ongoing strategies to reduce bias [290].

Additional research is required to develop adaptive models that dynamically evaluate and correct biases throughout the end-to-end AI lifecycle (e.g., identifying the unknown bias pattern, data opacity alert mechanism, adaptive bias correction approach, etc.), ensuring transparency and accountability in the decision-making process of the LLM. Biases can have a significant impact on society, which is why future research methods are crucial to ensure impartiality and accountability in AI systems across various domains (e.g., healthcare, finance, pharmaceutical, and others). Biases that come from training data that are not uniform are still a big problem. Scientists should come up with ways to find and fix adaptive bias that work all the time, no matter how long an AI resides. This would make AI more fair and easy to understand for a wider range of people and uses.

8.7. Gaps and Potential Future Research Directions

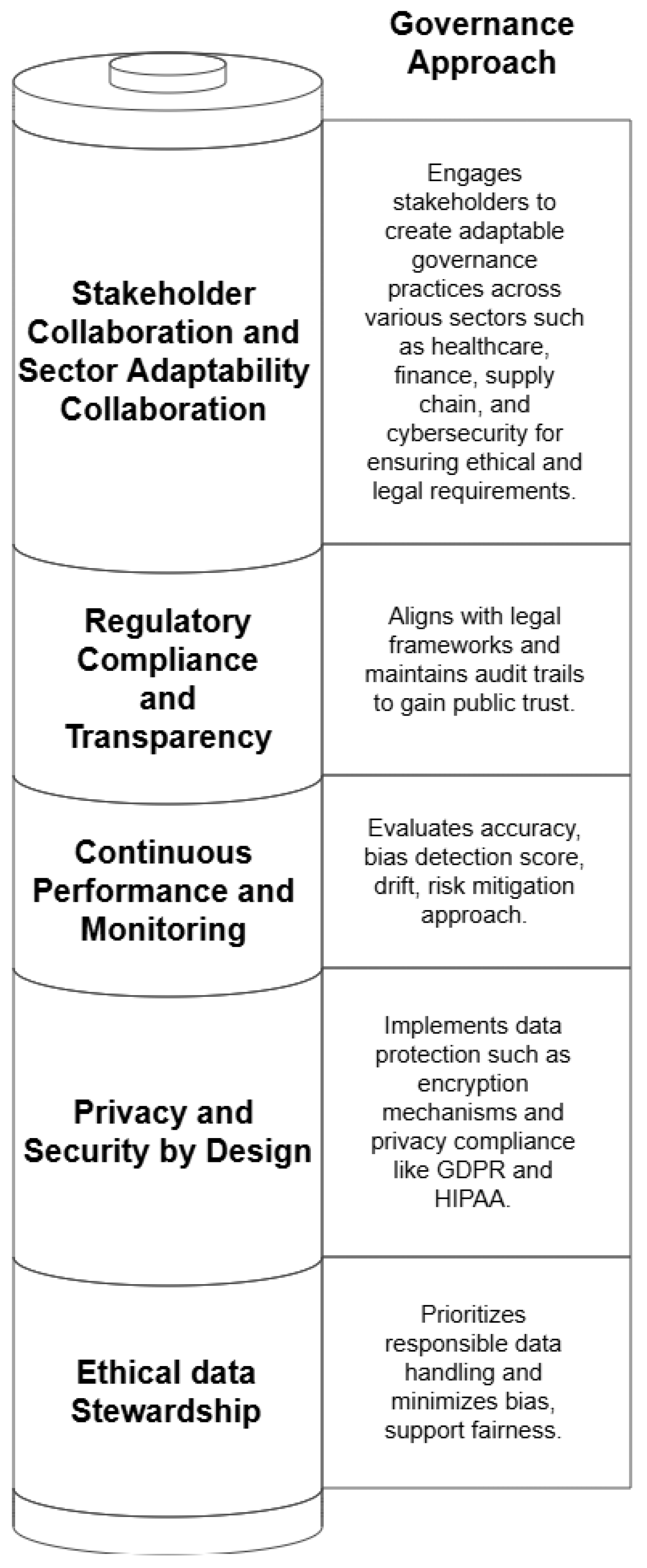

The illustration below in Figure 12 provides the five important things that must be in place for large language models (LLMs) to be responsibly governed, such as ethical data stewardship accountable for data collection and usage to enhance fairness and minimize biases, privacy, and security by design to ensure data security via encryption, anonymization, and privacy compliance, such as in accordance with the GDPR, HIPAA, and others. Among others, continuous performance and risk monitoring are related to ongoing checks for accuracy, bias detection scores, possible errors with human oversight, and a mitigation approach. Moreover, regulatory compliance and transparency make sure that laws are followed, that there are clear reporting trails, and ensure stakeholder collaboration, adaptability, and that experts and users are involved to make governance fit for different businesses in various sectors. Together, all of these parts work to ensure that LLMs are responsible, follow the law, perform well, and can be trusted in a wide range of areas.

All in all, the current landscape of AI data governance for LLMs is marked by several critical shortcomings. These include the lack of standardized global frameworks, limited transparency and explainability, insufficient mechanisms for detecting and mitigating bias, and challenges in ensuring data lineage, traceability, and real-time auditing. Existing governance models often fail to scale effectively alongside the growing complexity of LLMs, particularly in federated or cross-border environments where regulatory requirements vary significantly. Future research should prioritize the development of standardized, scalable AI governance methods that incorporate principles of Explainable AI, enable dynamic auditing and adaptive bias correction, and improve systems for tracking data provenance. Moreover, exploring federated governance frameworks, harmonizing international legal and ethical standards, and building trustworthy data marketplaces could play a significant role in advancing the secure, equitable, and accountable deployment of LLMs across diverse domains.

9. Conclusions

LLMs are growing rapidly, and to foster the trustworthiness of AI models from the user’s side, it is essential to integrate LLMs with a robust data governance framework to ensure ethical data management, ensure a good model performance, avoid biases, follow privacy laws, follow regulatory compliance, have a robust impact on data privacy, and avoid security breaches and hallucinations in AI models. In this article, we explored the core importance of the data governance framework, including various rules and regulations on AI governance and the challenges of implementing data governance in LLMs. We also provided the importance of stakeholder collaboration in shaping policies for the ethical data approach. Moving forward, it is essential that the data governance framework continues to be refined and adapted to various sectors of LLM-based AI applications, such as healthcare, pharmaceutical, finance, supply chain, and cybersecurity, to adapt the robust ethical approach and to ensure legal requirements are consistently met. There is a future necessity to create adaptable and scalable data governance frameworks that can accommodate various LLM scalability adapting methodologies. Moreover, efficient human-in-the-loop governance frameworks are crucial for integrating AI capabilities with educated human judgment, consequently mitigating misinformation, cognitive biases, and ethical dilemmas.
