Review of Swift Heavy Ion Irradiation Effects in CeO₂

Abstract

Cerium dioxide (CeO₂) exhibits complex behavior when irradiated with swift heavy ions. Modifications to this material originate from the production of atomic-scale defects, which accumulate and induce changes to the microstructure, chemistry, and material properties. As such, characterizing its radiation response requires a wide range of complementary characterization techniques to elucidate the defect formation and stability over multiple length scales, such as X-ray and neutron scattering, optical spectroscopy, and electron microscopy. In this article, recent experimental efforts are reviewed in order to holistically assess the current understanding and knowledge gaps regarding the underlying physical mechanisms that dictate the response of CeO₂ and related materials to irradiation with swift heavy ions. The recent application of novel experimental techniques has provided additional insight into the structural and chemical behavior of irradiation-induced defects, from the local, atomic-scale arrangement to the long-range structure. However, future work must carefully account for the influence of experimental conditions, with respect to both sample properties (e.g., grain size and impurity content) and ion-beam parameters (e.g., ion mass and energy), to facilitate a more direct comparison of experimental results.

1. Introduction

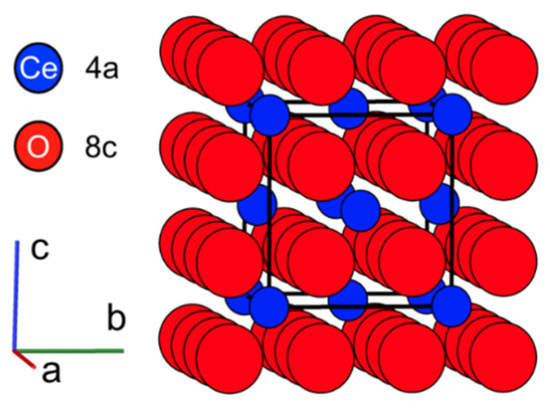

Under ambient conditions, cerium dioxide (CeO₂) adopts the fluorite structure (space group Fm-3m), common to a variety of dioxides such as UO₂, ThO₂, PuO₂, and doped ZrO₂ [1,2]. In this phase, Ce cations arrange in a face-centered cubic array on 4a Wyckoff sites with a simple cubic substructure of oxygen anions occupying 8c sites (Figure 1). The flexibility of cerium’s electronic structure allows for extensive transitions between the nominal 4f⁰–Ce⁴⁺ oxidation state and a 4f¹–Ce³⁺ state without loss of the long-range fluorite structure. This transition is so prevalent over a wide range of conditions that materials containing cerium (including oxides) with monovalent Ce⁴⁺ cations are difficult to fabricate [3].

The reduction in cation charge state is coupled to the production of oxygen vacancies (V_O) in the system; for every positively charged $V_O^{..}$, two Ce³⁺ cations are necessary for charge compensation. Under reducing conditions, oxygen vacancy formation is expressed in Kröger-Vink notation as:

$$2C{e}_{Ce}+O_O\to \frac{1}{2}{O}_2{}_{\left(gas\right)}+V_O^{..}+2e^{/}+2C{e}_{Ce}$$

(1)

The two excess electrons ($e^{/}$) liberated by the formation of molecular oxygen can subsequently be captured by surrounding cerium atoms, causing a reduction in the oxidation state of tetravalent cations {Ce(IV) → Ce(III)} as expressed in:

$$2C{e}_{Ce}+V_O^{..}+2e^{/}\to V_O^{..}+2C{e}_{Ce}^{/}$$

(2)

The accommodation of these $V_O^{..}$ and Ce³⁺ defects in the fluorite structure yields an average expansion of the unit cell, due to the larger cationic radius of Ce³⁺ cations compared with Ce⁴⁺ cations (1.14 Å and 0.97 Å, respectively [4]) and local distortions around the V_O and aliovalent cations [5,6]. As these $C{e}_{Ce}^{3+}–V_O$ defect complexes accumulate to sufficiently large concentrations, the oxygen vacancies begin to order and arrange themselves according to Pauling’s 1st and 2nd rules [7,8]. This leads to transformations into various trigonal fluorite-derivative phases such as Ce₁₁O₂₀ and Ce₇O₁₂ as a function of decreasing oxygen content [9,10].

The flexibility of the fluorite structure and the complex redox behavior of cerium oxide compounds make them attractive for use in a number of engineering applications, such as oxygen sensors [11], catalysts in chemical processes [12], and electrolyte materials in solid oxide fuel cells [13]. Being isostructural with the nuclear fuel materials UO₂, ThO₂, and PuO₂, CeO₂ is also an important analogue for studies of radiation effects in actinide oxides, as it obviates the need for handling of radioactive or highly regulated compounds. Due to these applications involving operation under extreme conditions, CeO₂ has been studied in great detail in recent decades, particularly focusing on its behavior in harsh chemical environments, as well as during exposure to high temperature and intense irradiation. Perhaps the most extreme and least understood of these conditions is high energy heavy ion irradiation.

Swift heavy ions (SHIs), having energies >0.5 MeV/u, can be produced at large accelerator facilities and are used for a wide range of applications. The highly transient energy deposition associated with swift heavy ion irradiation leads to far-from-equilibrium material conditions, similar to those induced in nuclear fuels by the slowing down of energetic fission fragments. SHIs are therefore used to study radiation effects in nuclear materials under well-controlled experimental conditions [14]. SHIs are also used to mimic the effects of galactic cosmic rays in electronic materials [15], to study degradation mechanisms in accelerator components [16], and for medical treatment purposes [17]. Finally, SHIs can be harnessed to tailor materials by inducing modifications to their structures and properties that are not attainable by conventional processing techniques. Examples include the production of nanostructures [18,19,20,21] and the tuning of optical properties [22] for engineering applications.

Highly energetic heavy ions deposit energy to a material’s electrons primarily via excitation and ionization processes [23]. This energy dissipates radially in the electronic subsystem and is then transferred to the atomic system through electron–phonon coupling, leading to high energy densities on the order of eV/atom. This results in rapid heating in the material over picosecond time scales [24,25] within a nanoscale region around the ion path (1–10 nm in the radial direction), which causes a thermal spike and possibly localized melting, followed by rapid quenching [26]. These processes result in complex structural and chemical modifications along the ion path, leaving behind cylindrical damage zones with radii of a few nm and lengths of 10 s of μm, known as ion tracks. The type of irradiation damage that is induced within ion tracks depends on the target material and can include the formation of defects [27], disorder [28], amorphization [29], and crystalline-to-crystalline phase transitions [30].

Fluorite-structured binary oxide materials are generally resistant to the structural modifications induced by swift heavy ion irradiation. Irradiation-induced defect formation is commonly limited to isolated point defects and extended defect clusters. This is often accompanied by the build-up of heterogeneous microstrain and, at sufficiently large defect concentrations, longer-range material modifications such as unit cell swelling. Still the long-range fluorite structure is commonly maintained.

As ion tracks accumulate with increasing ion fluence, the swelling and microstrain typically increase in a linear fashion at relatively low fluences, then saturate at higher fluences when tracks eventually overlap. This behavior is described by the so-called single impact mechanism [31]. The mathematical description of this mechanism is shown in Equation (3) for the increase in unit cell parameter as a function of increasing ion fluence:

$$\frac{\Delta a}{a_0}=\frac{a\left(\varphi \right)-a_0}{a_0}=\frac{a_{sat}-a_0}{a_0} \left(1-e^{-\sigma \varphi }\right)$$

(3)

where a is the measured unit cell parameter at a given ion fluence ϕ, a₀ is the reference unit cell parameter of the unirradiated material, a_sat is the saturation value of the unit cell parameter at high ion fluence, and σ is the cross-sectional ion track area.

Understanding the intermediate mechanisms by which electronic excitation and the subsequent atomic displacement yield changes to the long-range structure and chemistry of CeO₂ is critical to its performance in various engineering applications. However, these processes are complex, multiscale, and difficult to fully characterize. To bridge the gaps between SHI irradiation-induced electronic excitation, atomic displacement, defect production, and bulk material modification, we review here in detail the unique response of CeO₂ to swift heavy ion irradiation, as revealed by a wide range of characterization techniques. After initially summarizing the most important characterization techniques, this article first reviews work investigating the fundamental structural and electronic modifications induced by swift heavy ions that lead to the formation of ion tracks in CeO₂. This is followed by a description of how these radiation effects are influenced by the irradiation conditions (ion energy, ion stopping power, temperature, and pressure) and sample characteristics (chemical composition and microstructure). The manuscript concludes with a brief comparison of swift heavy ion effects in CeO₂ with those in related fluorite-derivative oxides, followed by a summary and outlook.

2. Methods

2.1. Irradiation Conditions

The controlled production of SHIs requires large, dedicated user facilities, rather than the more prevalent and accessible laboratory-based tandem ion accelerators. SHI irradiation of CeO₂ materials has been performed at several large accelerator facilities worldwide [23]. However, these facilities cover different ranges of ion species and energies. The energy deposited in a material per unit length (known as energy loss, dE/dx) depends on ion mass and energy and is a key parameter in SHI irradiation experiments. For highly energetic ions, energy is deposited primarily to a material’s electronic subsystem (electronic energy loss, dE/dx_e), with only minor contributions from nuclear collisions (nuclear energy loss, dE/dx_n).

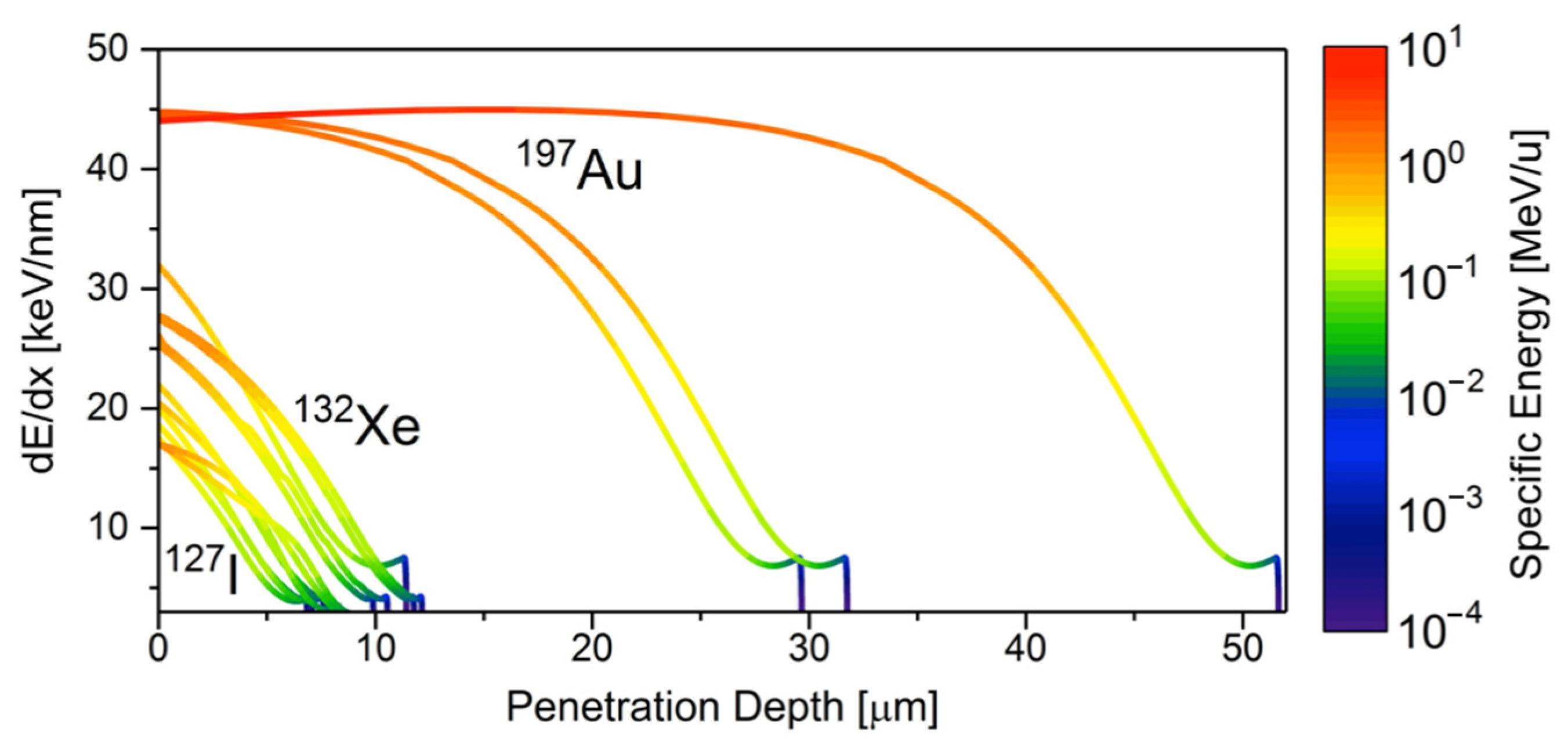

The effects of SHI energy deposition parameters on the induced structural modifications in CeO₂ has been investigated over a broad dE/dx range between 15 and 45 keV/nm, as shown in Figure 2. Ions of specific energy ranging from 0.5–30 MeV/u (with u being the number of nucleons) and species ranging from ¹²⁷I–²³⁸U have been utilized in these experiments [32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56]. The strong dependence of the energy loss on the ion energy leads to continuous change in dE/dx along the ion’s penetration path in the material (Figure 2), which must be considered for characterization in order to accurately relate irradiation effects to the specific dE/dx within the volume probed by a particular characterization technique [57].

Other experimental parameters that are typically controlled in SHI irradiation studies include the ion flux, fluence, irradiation angle relative to the sample surface, and in situ environmental conditions (e.g., temperature and pressure). The many irradiation studies previously conducted on CeO₂ differ also with respect to sample properties. For example, various microstructures have been employed, ranging from single crystals [58] to polycrystalline pellets [32] to loose powder compacts [14]. As this review will show, all of these parameters greatly influence the response of CeO₂ to SHI irradiation. To gain further insight into radiation damage mechanisms, the impact of all ion-beam conditions and sample properties on the induced structural and chemical modifications must be understood at a holistic level.

2.2. Characterization

A wide range of characterization techniques have been employed to investigate the complex structural and chemical effects induced in CeO₂ by SHI irradiation. Such measurements are performed either ex situ (after ion irradiation) or in situ (directly at accelerator beamlines with various dedicated characterization infrastructures). Analytical methods used in prior work include various forms of scattering, spectroscopy, calorimetry, and electron microscopy. Some of these techniques provide direct insight into the damage structure within individual ion tracks (e.g., electron microscopy), while others are based on net damage accumulation and fluence-dependent measurements (e.g., X-ray diffraction). Characterization is commonly performed on materials after irradiation at ambient conditions to study damage formation, yet select works on irradiation at high temperatures and post-irradiation thermal annealing provide insight into damage recovery and defect dynamics. The following section gives a brief overview of the most prevalent characterization techniques used to investigate SHI irradiation effects in CeO₂ and other fluorite-structured oxide materials.

Scattering techniques provide information on the short-and long-range structural modifications to materials following SHI irradiation. Highly penetrating X-ray and neutron probes are commonly used for this purpose. X-ray scattering, which is sensitive to changes in the cation sublattice, is performed with either laboratory-based diffractometers or at large synchrotron facilities. Neutron probes are useful for investigating the structure of light (low-Z) atomic constituents in a material (e.g., O in CeO₂) because, unlike X-rays, neutrons scatter efficiently on atoms of low atomic mass (Z of the atomic constituent).

Two scattering techniques have been most extensively used in the study of irradiated CeO₂: diffraction and total scattering. Diffraction experiments allow for quantification of the long-range volumetric changes (unit cell swelling) caused by the production of defects [14,36,38,39,41,45,46,47,52,54,56,59,60], as well as heterogeneous microstrain and phase transformations, should they occur. Total scattering experiments are used to study the local defect structure using real-space analysis. Recently, intense spallation neutrons have become available for materials research at dedicated facilities, such as the Nanoscale Ordered Materials Diffractometer (NOMAD) at the Spallation Neutron Source, Oak Ridge National Laboratory (ORNL). High-resolution pair distribution function (PDF) analysis is utilized at NOMAD [61] to investigate short-range structural changes associated with irradiation-induced defects, which are inaccessible to conventional long-range diffraction methods [50,53].

Spectroscopic techniques provide insight into the local damage structure and changes to the chemistry of irradiated materials. X-ray absorption spectroscopy (XAS) has been used to probe cation oxidation state changes in irradiated CeO₂ and associated modifications to the local bonding environment [35,46,54,60]. X-ray photoelectron spectroscopy (XPS) provides insight into the electronic structure of cations by X-ray induced electron excitation and the consequent emission of characteristic photons during de-excitation [34,35,51,58]. Both XAS and XPS are valuable characterization tools for CeO₂ due to its tendency to chemically reduce under highly ionizing irradiation. Raman spectroscopy reveals the impact of defects on correlated atomic vibrations [38,49,55]. Structural modifications in fluorite-structured materials lead to a breakdown of selection rules and the appearance of so-called Raman forbidden modes in the spectra. Quantitative analysis of these forbidden modes provides information on defect concentrations. Raman spectroscopy further reveals the formation of Ce–V_O defect complexes in irradiated CeO₂ [62]; thus, this technique is also useful for studying the material’s redox response under SHI irradiation.

Electron microscopy (EM) is a powerful tool for the analysis of radiation effects in materials, as it provides direct imaging of the damage structure and its spatial distribution. High-resolution transmission electron microscopy (HRTEM), using state-of-the-art microscopes, has recently provided valuable insight into the atomic-scale nature of defects in irradiated CeO₂ [32,33,37,40,42,44,48]. This technique has provided new information on the size and damage morphology of individual SHI tracks. In modern microscopes, imaging capabilities are often coupled with other modes of operation such as electron diffraction and spectroscopy, which are utilized to determine complementary structural and electronic defect properties. Finally, heating stages in electron microscopes are useful to monitor changes in the damage structure and defect recovery as a function of increasing temperature.

Thermodynamic techniques like differential scanning calorimetry (DSC) provide information on the heat capacity of a material through comparison of its thermal behavior with that of an unirradiated reference sample under a precisely controlled high-temperature environment. With respect to irradiated samples, DSC is used to quantify the stored defect energy [53], providing insight into the nature of the initial defects and their kinetics during thermally induced recovery processes. When DSC is used in concert with complementary structural characterization techniques, the structure–energetics relationship of defects can be directly established. For example, in situ scattering measurements show how the defect structure recovers at high temperature, while DSC measurements yield the associated energetics of these processes [53].

3. Radiation Effects in CeO₂ Induced by Swift Heavy Ions

3.1. Impact on Structure and Chemistry

DSC measurements on SHI irradiated CeO₂ by Shelyug et al. [53] revealed that only ~1% of the energy deposited by ions is subsequently stored in irradiation-induced defects within the structure. XRD measurements of irradiated samples display distinct changes in Bragg peak position, intensity, and width in CeO₂ after SHI irradiation, indicative of unit cell expansion and an increase in structural distortions around defects (microstrain) (Figure 3a) [14,36,38,39,41,45,46,47,52,54,56,59,60]. The original fluorite structure peaks are retained, and no diffuse scattering is apparent, indicating a very high resistance to irradiation-induced amorphization. The observed changes in the XRD patterns are consistent with the formation of point defects and defect clusters. HRTEM measurements suggest that oxygen Frenkel pairs are the primary defect produced following SHI irradiation [42], a finding supported by molecular dynamics simulations [63]. Dislocation loops have been observed in SHI irradiated CeO₂ above a threshold stopping power of 12 keV/nm [40].

XAS and XPS measurements on SHI irradiated CeO₂ reveal that structural changes are accompanied by partial reduction of nominally Ce⁴⁺ cations to Ce³⁺ [34,39,46,51,54,58]. XAS spectra show a shift in the K-edge absorption energy of approximately −2 eV (Figure 3b), which suggests a partial reduction to the trivalent state rather than the transition of all cerium cations to the trivalent state, which corresponds to a shift of −7 eV [64]. This evidence of SHI irradiation-induced reduction is corroborated by magnetic measurements that display ferromagnetism in SHI irradiated CeO₂, indicative of the magnetic moments produced by the 4f electrons in Ce³⁺ cations [39,56]. Iwase et al. [34] observed a saturation of this redox behavior at a Ce³⁺/Ce⁴⁺ ratio of ~12% at a maximum fluence of 6 × 10¹³ ions/cm² using 200 MeV ¹³²Xe ions. Coupled XRD and XAS measurements by Tracy et al. [46,59] revealed that the observed redox changes are directly linked with unit cell swelling and microstrain buildup, as the fluorite structure must distort to accommodate larger trivalent cations (1.14 Å versus 0.97 Å of initial tetravalent cations), as well as oxygen vacancies [4]. In certain cases, irradiation induced reduction occurs to a sufficient extent that the formation of a secondary phase is observed at high fluences [43,46,52]. This hypostoichiometric trigonal Ce₁₁O₂₀ phase consists of Ce⁴⁺ and Ce³⁺ cations along with ordered oxygen vacancies.

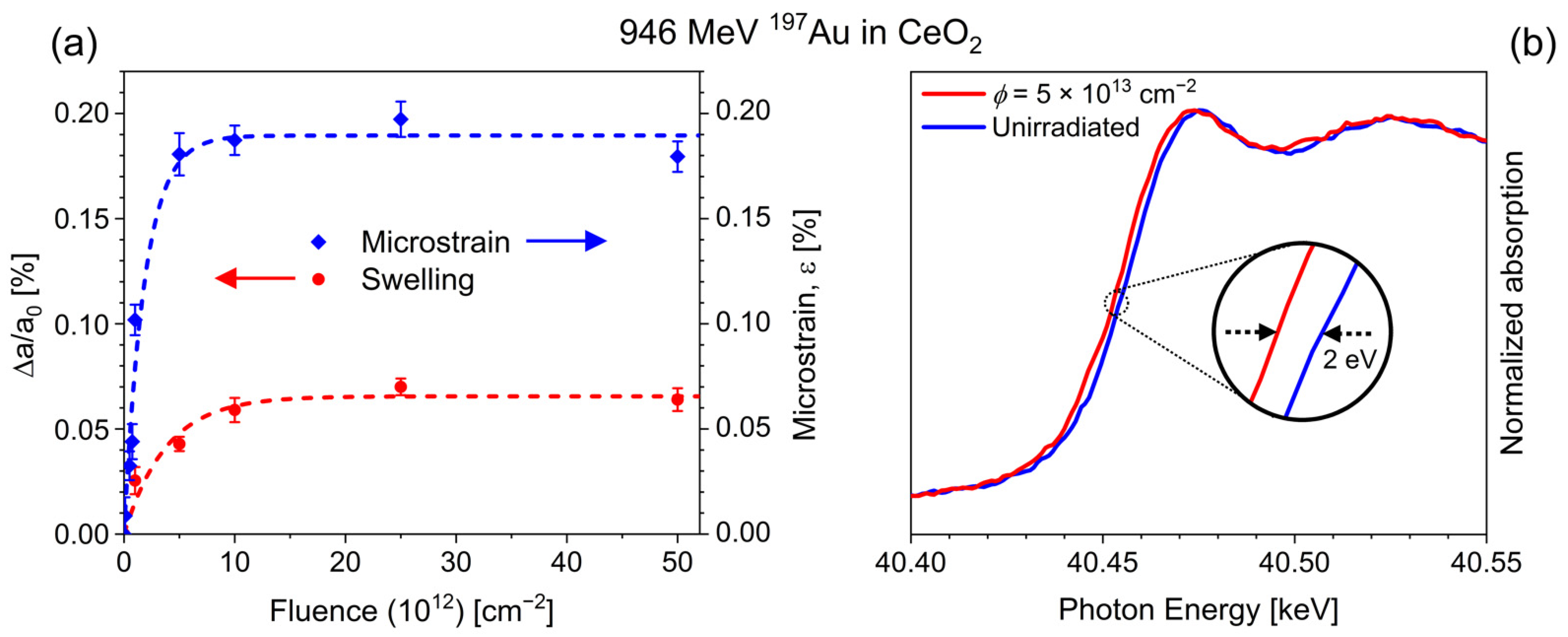

While changes in unit cell parameter and microstrain of CeO₂ (Figure 3a) follow a behavior that is consistent with a single impact model [31,46] (Equation (3)), it remains unclear whether or not the induced redox changes follow the same trend. XPS data from Iwase et al. [34] suggest a single impact mechanism for redox effects, based on the increase in Ce³⁺ cations as a function of ion fluence. Still, additional research is needed to accurately monitor the structural and chemical changes over a range of irradiation conditions, ideally using coupled XRD and XAS measurements to better understand the formation and accumulation of Frenkel-type defects (linked to structural changes) and redox-type defects (linked to chemical change).

3.2. Defect Formation and Ion Track Morphology

Irradiation induced unit cell expansion and the accumulation of heterogeneous microstrain are typically studied with XRD experiments designed to track net damage accumulation in a series of samples irradiated to increasing ion fluences. This is useful for the determination of ion track cross sections and effective track diameters, but provides no direct insight into the morphology of individual ion tracks. Electron microscopy, on the other hand, allows for direct imaging of tracks.

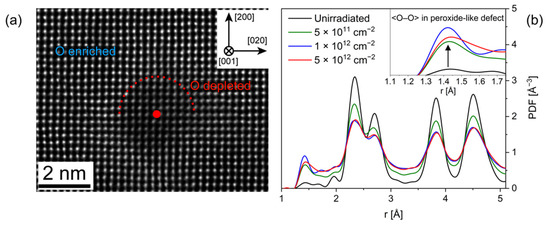

A recent HRTEM investigation by Takaki et al. [42] provided detailed insight into the size and damage morphology of 200 MeV ¹³²Xe ion tracks in CeO₂. This provides the basis for more fundamental understanding of the defect mechanisms leading to the formation of SHI tracks. A core-shell track morphology was observed, wherein the interior of the track is oxygen deficient and the annular shell oxygen rich (Figure 4a). This suggests that SHI traversal and associated energy deposition causes the radial expulsion of oxygen from the ion path region. Since cerium’s electronic structure is flexible, the oxygen vacancies within a core region are stabilized by charge compensation from partial cation reduction (Ce⁴⁺ to Ce³⁺). These measurements also showed that oxygen anions are displaced up to 17 nm from the center of the ion track [42]. Neutron total scattering measurements of CeO₂ irradiated with 2000 MeV ¹⁹⁷Au ions showed that a fraction of the displaced oxygen atoms form peroxide-like defect clusters (Figure 4b) [50]. These defect clusters may act as a structural and chemical compensation mechanism to balance the oxygen interstitials with their counterpart oxygen vacancies stabilized through cation reduction.

A combination of the results from XRD and EM measurements provides more comprehensive information on SHI tracks in CeO₂, including size, morphology, and internal damage structure. The areal extent of changes in unit cell parameters and microstrain within a single ion track can be deduced from the fitting of fluence-dependent XRD data (single-impact model, Equation (3)). The comparison of effective track diameters reveals a systematic discrepancy between those determined from unit cell expansion (3.9–5.8 nm) and microstrain (4.6–10.5 nm) over a range of irradiation conditions (¹³²Xe and ¹⁹⁷Au ions of 167 and 946 MeV energies) [46,52]. Relating these XRD-based results with diameters obtained by HRTEM investigation of SHI tracks (core diameter: ~4 nm and core + shell: ~17 nm) suggests that most of the swelling induced in CeO₂ occurs in the core region, since this matches well with the track diameter determined from analysis of unit cell expansion data. Thus, the unit cell expansion can be attributed to defects within the track core, which are predominantly oxygen vacancies and reduced Ce³⁺ cations. Microstrain can instead be attributed to distortions arising from all defects within the core and shell, such that the effective diameter associated with the region of increased microstrain represents the total ion track size, including both the core and shell periphery.

Besides complex ion tracks, SHIs have been shown to also induce interesting surface damage morphologies in CeO₂, as described by Ishikawa et al. [44]. For ions incident in oblique directions relative to sample surfaces, the formation of hillocks was observed. These hillocks are spherical in shape and crystalline, with an ideal fluorite structure of similar atomic spacing to that of the unirradiated matrix. The spherical hillocks are located above ion tracks and have a mean diameter of 10.6 ± 1.3 nm for irradiation with 200 MeV ¹⁹⁷Au ions. Currently, CeO₂ and Gd₂Zr₂O₇ are the only materials in which SHI irradiation-induced hillocks have been shown to exhibit a fully crystalline structure with no amorphous component [44,65]. This is consistent with the exceptionally high radiation tolerance of CeO₂.

The spherical, droplet-like shapes of these hillocks imply the influence of surface tension in a liquid phase, such that the observation of hillocks on the surface of SHI irradiated CeO₂ supports the conclusion that a thermal spike and localized melting occur within ion tracks. In this scenario, all atoms are displaced from their original sites over picosecond time frames, with oxygen anions moving further away from the location of the original ion path than cerium cations. Rapid quenching restores the initial crystal structure, but some defects and defect clusters remain. The core-shell damage morphology is therefore a remnant of these highly transient processes, and the separation of oxygen anions from the track core and incomplete recovery result in the observed oxygen defect clusters and cation oxidation state reduction. This is supported by the molecular dynamics modeling of Devanathan et al. [63], who showed that the rapid increase in temperature within ion tracks in CeO₂ and the subsequent quenching process do not result in complete restoration of the initial atomic arrangement.

4. Effects of Varying Irradiation Conditions

The types of modifications that are induced in CeO₂ by SHI irradiation depend on a number of parameters that are individually adjusted in each irradiation experiment. These can be grouped into (i) ion beam settings: ion species, energy, energy loss, fluence, and flux; (ii) environmental conditions: irradiation temperature and pressure; and (iii) sample properties: grain size and impurity content. The following sections briefly summarize the effects that each parameter can have on the radiation response of CeO₂.

4.1. Ion Beam Conditions

The irradiation response of CeO₂ has been studied using a wide range of ion species (¹²⁷I–²³⁸U), energies (0.5–30 MeV/u), dE/dx (~15–45 keV/nm), ion fluxes (10–10¹⁰ ions/cm²s), and ion fluences (10¹¹–10¹⁶ ions/cm²) [32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56]. The ion energy and energy loss strongly influence the induced structural damage as seen in unit cell parameter changes with increasing fluence for various irradiation conditions (Figure 5a). For SHI irradiations within the electronic dE/dx regime, there typically exists a material dependent energy loss threshold above which ion tracks will form [23]. Track formation has been documented by TEM in SHI irradiated CeO₂ for an energy loss of ~16 keV/nm [37], which suggests a lower threshold when compared with other fluorite-structured materials. For example, UO₂ exhibits a threshold between ~22–29 keV/nm [66]. However, the dE/dx threshold for track formation has not been accurately determined for CeO₂ over a wide range of ion species and energies; this should be the subject of future research.

The energy loss governs the nature and extent of the radiation damage induced in a material. In most cases, a higher energy loss induces a higher energy density within the track region, which produces more defects and results in the formation of defect clusters [53]. Sonoda et al. [37] demonstrated that the track size increases with increasing dE/dx in CeO₂, which agrees well with thermal spike calculations [67] based on the Szenes model [68], indicative of a quadratic relation between track diameter and dE/dx value. While the amount and type of defects, as well as track size, show a clear dependence on energy loss, redox changes of the cerium cations appear to be only weakly dependent on the dE/dx (Figure 5b). This behavior is not well understood, and it remains unclear if cation reduction also has a critical dE/dx threshold akin to track formation and whether or not they are the same.

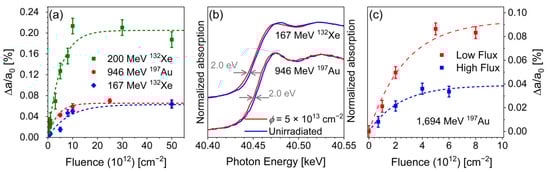

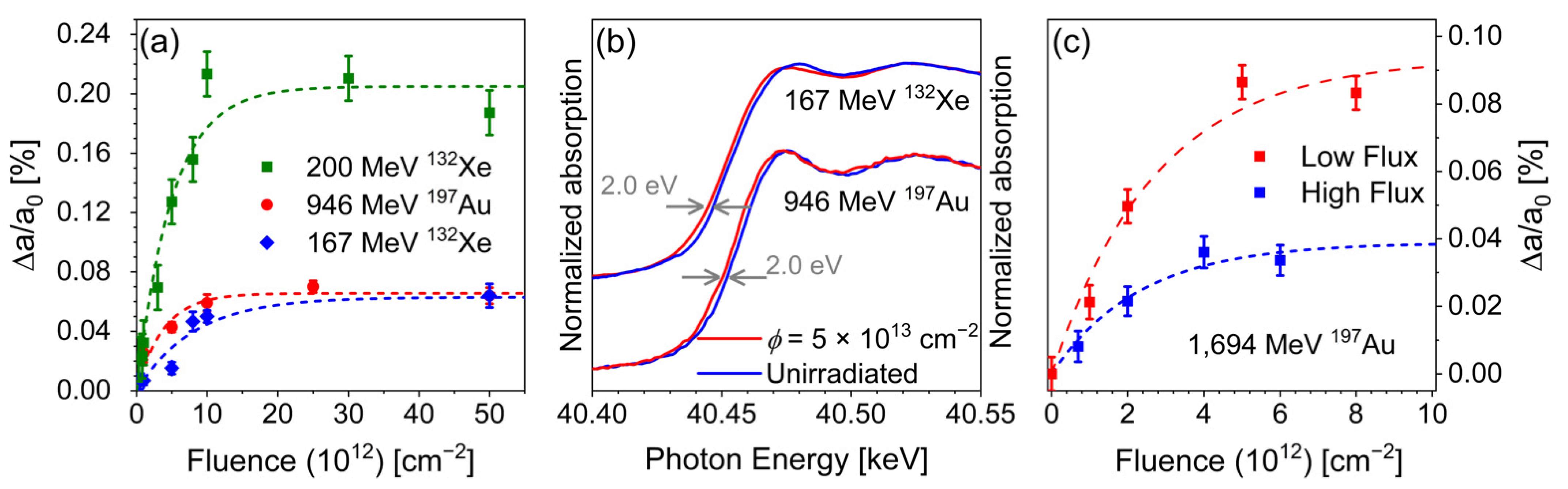

The energy loss alone cannot fully explain the observed radiation behavior, as demonstrated by the large change in unit cell parameter values in CeO₂ (Figure 5a) induced by two different ion irradiation experiments using nearly the same dE/dx (~27 keV/nm for both 167 MeV ¹³²Xe and 200 MeV ¹³²Xe ions). This is explained by the additional impact of ion energy, also known as the velocity effect [23,69]. SHIs lose their energy to the electron subsystem by collisions with electrons, exciting them to high-energy states that are sometimes sufficient for ionization from the target atoms. The maximum energy imparted to these so-called delta electrons is determined by the ion velocity: higher velocity ions yield electrons with higher kinetic energies, allowing them to travel further away from their initial positions. For irradiations with comparable energy loss values, ions with higher velocities (kinetic energies) will deposit their energy over a larger volume. This results in larger ion tracks, but lower energy densities within those tracks, yielding less pronounced in-track material modifications (Figure 5b) [46,54].

Differential scanning calorimetry measurements by Shelyug et al. [53] further illustrated this velocity effect. A comparison of the enthalpy of radiation damage (the energetic difference between pristine and irradiated samples) in CeO₂ irradiated with 1100 and 2200 MeV ¹⁹⁷Au ions revealed that the higher velocity ions produced tracks with lower defect concentrations, although the track diameters were larger than those produced by the lower velocity ions. These results were corroborated by neutron total scattering measurements and fitting of a single impact model to the measured damage accumulation. To date, no dedicated studies of the velocity effect have been performed on CeO₂. Future research should further investigate the influence of SHI velocity on the induced damage structure.

In addition to ion mass and energy (i.e., dE/dx), as well as ion velocity, the ion flux on the sample has a substantial effect on the observed radiation response. Irradiation-induced material modifications are often studied in CeO₂ by irradiation to high fluences, at which ion tracks overlap (e.g., ~10¹³ ions/cm²). To reach these fluence values within reasonable irradiation times, high ion fluxes (fluence per unit time, given in ions/cm²/s) are often used. The flux used in a given experiment also depends on the accelerator and the beam mode utilized (e.g., pulsed versus continuous); these can vary greatly among facilities.

During irradiation with a high ion flux, relatively large amounts of energy are deposited in the sample over a short time interval. For sufficiently high fluxes, the resulting increase in thermal energy can outrace its dissipation, yielding high sample temperatures. As shown in Section 4.3, the irradiation temperature can influence the radiation behavior in insulators like CeO₂. In contrast, a lower ion flux allows more time for the dissipation of thermal energy, and therefore produces less bulk sample heating and reduced mobilities of irradiation induced defects. This impedes the recovery processes, yielding higher defect concentrations and more extensive material modifications. This is demonstrated by the swelling behavior of CeO₂ irradiated with 1694 MeV Au ions at two different fluxes but otherwise identical irradiation conditions (Figure 5c). The higher flux irradiation leads to a faster unit cell parameter increase as a function of ion fluence, consistent with a larger ion track (ion track size is proportional to the slope of the initial linear region). However, the saturation value of swelling, which is caused by the concentration of defects within tracks, is greatly reduced compared to the low-flux irradiation (Figure 5c). This shows that the ion-beam flux is an important parameter that must be considered when comparing results from different irradiation experiments. It remains unclear how ion-matter interactions are impacted over a large range of fluxes, whether there is an effect beyond the increase in temperature, and whether or not there is a critical flux value below which thermal effects can be neglected. Systematic studies are needed to quantify the effect of ion-beam flux on defect formation and recovery processes.

4.2. Sample Microstructure

Swift heavy ion irradiation of CeO₂ has been performed on samples produced by various synthesis and processing procedures, resulting in a range of microstructures with grain sizes from the nm-scale to bulk. The microstructure of a material influences its properties, including mechanical behavior, transport properties, and radiation response. For example, grain boundaries serve as defect sinks during irradiation with low-energy ions, leading to an enhanced radiation tolerance of nanocrystalline materials due to their high grain boundary densities [70]. This is in contrast to the reduced stability of nanocrystalline CeO₂ reported for SHI irradiation experiments [43]. Tracy et al. [46] and Cureton et al. [52] have shown that upon irradiation with 946 MeV ¹⁹⁷Au ions, nanocrystalline CeO₂ (grain size: 20 nm) exhibits greater unit cell swelling [52] (Figure 6a) and redox changes [46] compared with microcrystalline CeO₂ (grain size: 2 μm).

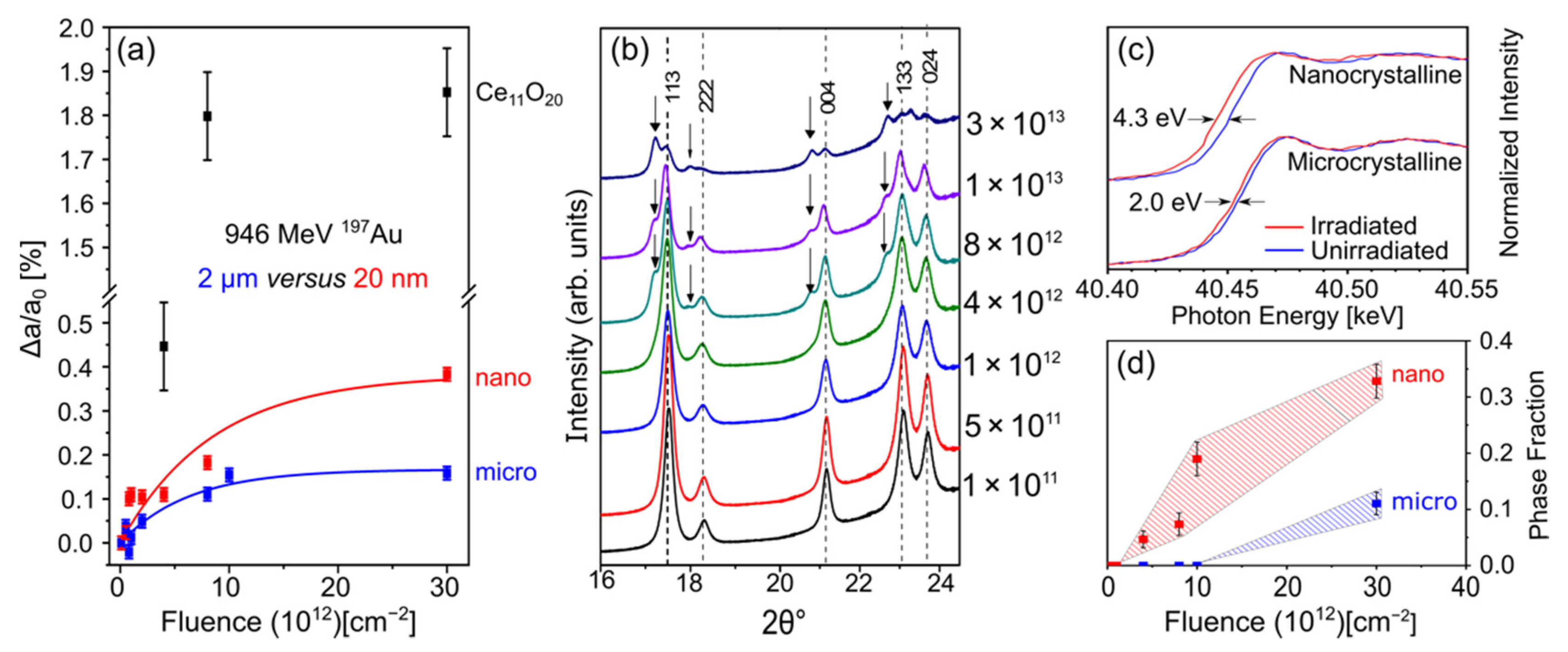

The grain size also has an influence on the phase stability of ceria. The irradiation-induced formation of hypostoichiometric Ce₁₁O₂₀ has been observed for both micro- and nanocrystalline materials, but to a much larger extent for the latter (Figure 6b,d) [43,46,52]. This phase transition is linked to the reduction of cerium cations and associated oxygen expulsion processes described in Section 3.2 [52]. The unit cell parameter in Ce₁₁O₂₀ is larger than that of the initial fluorite phase and further increases with ion fluence, indicating that defects continue to accumulate in this hypostoichiometric phase (Figure 6a). The phase transition is apparent in nanocrystalline CeO₂ at much lower fluences, and Ce₁₁O₂₀ grows at a faster rate compared with microcrystalline CeO₂ (Figure 6d).

The greater unit cell swelling in nanocrystalline CeO₂ (Figure 6a) can be explained by the ion-track formation mechanism discussed in Section 3.2. SHI tracks form in CeO₂ via expulsion of oxygen anions in the radial direction, away from the ion path. This causes reduction of cerium cations in the track core where oxygen is depleted, while the track shell is enriched with oxygen point defects and small defect clusters. As shown by Takaki et al. [42], oxygen can be expelled by tens of nm, which corresponds to the grain size of samples used in the study shown in Figure 6. During quenching of the excited track region, some of the oxygen will diffuse back to the core and recombine with oxygen vacancies, eliminating defects and decreasing the number of reduced cerium cations. In nano-ceria, however, the fraction of oxygen that diffuses back can be assumed to be reduced due to losses to grain boundaries. For a given fluence, this leads to a larger unit cell increase as compared with microcrystalline CeO₂. This scenario is supported by previous X-ray absorption measurements (Figure 6c) [46], revealing increased redox changes in nanocrystalline ceria (edge shift of 4.3 eV compared with 2.0 eV in the microcrystalline material). It further explains the enhanced formation of hypostoichiometric Ce₁₁O₂₀ in nano-ceria. This discussion shows that the microstructure of CeO₂ must be considered when comparing results from different SHI irradiation experiments. Systematic research is needed to quantify the swelling and redox changes of CeO₂ as a function of grain size, particularly in the 1 nm–1 μm range, for which oxygen diffusion may control the radiation response.

4.3. High-Temperature Conditions

Irradiation temperature is a key parameter to consider for cerium dioxide as an analogue for nuclear fuels. Nuclear light water reactor (LWR) fuel operating conditions range from room temperature at reactor startup to a typical maximum of ~1200 °C under normal operation. In general, increased temperature enhances defect recovery due to higher defect mobility, but it might also enhance defect production and promote more complex defects due to higher initial temperatures within an ion-induced thermal spike. The profound effect of irradiation temperature on defect production in CeO₂ is demonstrated by the flux effect discussed in Section 4.1 (Figure 5c). During ion-beam experiments, high temperatures are typically achieved by mounting samples on stages with resistive coils that heat the material.

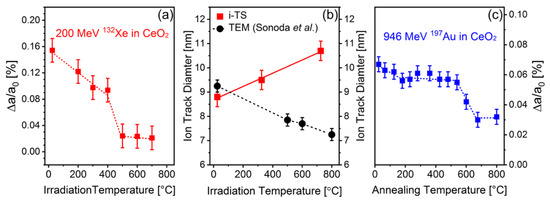

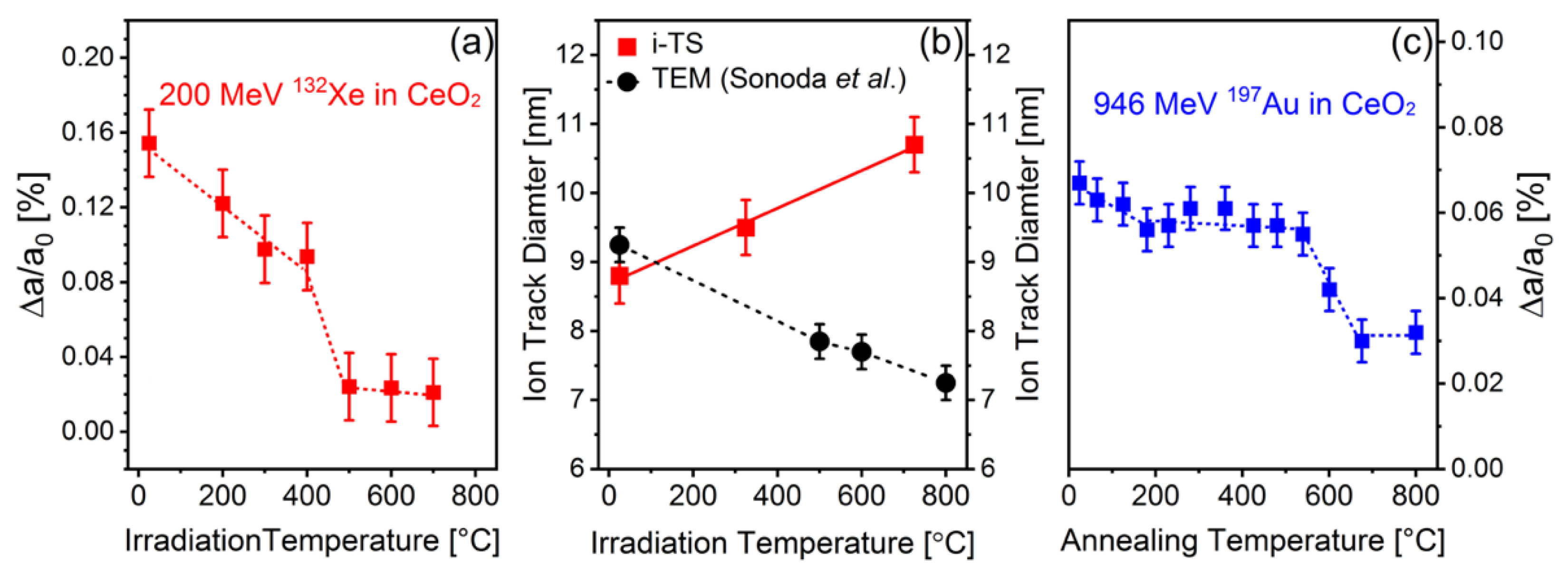

Prior SHI irradiation studies of CeO₂ have demonstrated a systematic decrease in the saturation level of swelling [54] and the ion track diameter [32,33] with increasing irradiation temperature (Figure 7a,b). Both changes are consistent with thermally-driven defect recovery due to enhanced defect mobility; however, a more comprehensive understanding is provided by consideration of the thermal-spike model of track formation. This mathematical model describes the interaction of swift heavy ions with a material in terms of a rapid increase in temperature over picosecond timescales induced by the high energy deposition within a nm-sized track region, followed by rapid quenching that freezes in structural damage [67,71]. The initial sample temperature is an input parameter in the thermal-spike model [49] that is added to the transient temperature spike and affects the final track diameter; higher temperatures typically yield larger ion tracks.

In CeO₂, the thermal spike model predicts an increase in track diameter as a function of increasing irradiation temperature up to 700 °C [54] (Figure 7b). This prediction is not supported by TEM characterization, which shows an opposite trend [32,33]. This discrepancy either indicates that the thermal-spike model does not fully capture all aspects of ion-matter interactions at elevated temperatures, or that the model and experiment describe two different track regions. The thermal spike approach accounts for the entire track region (i.e., the full range of delta electron pathways and associated electron-phonon coupling), and the deduced track diameter represents the size of the track core plus the shell (see Section 3.2). TEM characterization, on the other hand, is sensitive to changes in electron density, and the measured track diameter mostly represents the smaller track core, which is enriched in (high-Z) cerium cation defects [32,33]. Under these assumptions, the discrepancy between TEM data and thermal spike calculations could indicate that the track core shrinks with increasing irradiation temperature, while the shell thickness increases. This is consistent with XRD results and the reported reduced unit cell expansion at higher irradiation temperature, since the track core is primarily responsible for ion-induced swelling (oxygen vacancies and associated Ce³⁺ cations). Systematic ion-beam studies over a range of temperatures (including cryogenic) are required to gain further insight into the manner in which track formation is modified by increases in the irradiation temperature. For example, conventional scanning transmission EM imaging (which is more sensitive to changes at cation sublattice) coupled with annular bright-field (ABF) imaging (which more sensitive to changes at anion sublattice) could reveal changes in ion track core and shell sizes at various irradiation temperatures.

In addition to the in situ heating experiments described above, where temperature is applied during ion-beam exposure, samples can be thermally annealed after irradiation to elucidate defect kinetics and damage recovery mechanisms [45]. Synchrotron XRD measurements of CeO₂ irradiated with 946 MeV ¹⁹⁷Au ions and subsequently annealed within a hydrothermal diamond anvil cell [14] revealed a two-step defect recovery mechanism with corresponding activation energies of 1.0 and 2.1 eV (Figure 7c). These activation energies were attributed to O-interstitial migration and Ce-vacancy migration, respectively, but the reoxidation of Ce³⁺ to Ce⁴⁺ after oxygen vacancy annihilation was not considered [72]. Unlike isostructural ThO₂, the damage recovery in ceria remained incomplete up to 800 °C, with a unit cell parameter increase of ~0.03% relative to an unirradiated reference sample remaining at this highest achieved temperature [45]. This suggests that defect clusters with relatively high binding energies, such as 2Ce³⁺–V_O²⁻ complexes, are stable up to 800 °C and require higher annealing temperatures for recovery.

High-temperature calorimetry measurements of previously irradiated CeO₂ (using 1100 MeV and 2200 MeV ¹⁹⁷Au ions) revealed that defect recovery is enhanced within an oxygen atmosphere compared with heating in an inert environment [53]. This suggests that recovery processes related to the reoxidation of ion induced Ce³⁺ cations to Ce⁴⁺ play an important role in the annealing of SHI damage in CeO₂ and must be considered [53]. Thus, ex situ annealing experiments are useful for identifying and characterizing the different defects that form in CeO₂ during SHI irradiation.

4.4. Combined Pressure and Ion Irradiation

Pressure is another parameter which can be adjusted during SHI irradiation. While irradiation is typically carried out in vacuum conditions, a limited number of investigations have focused on the combined effects of ion irradiation and high pressure. The use of SHIs, as opposed to ions of lower energies, is essential in such efforts, as energies on the order of 200 MeV/u are required to penetrate the mm-thick anvils of a conventional high-pressure cell. The synergistic effects of pressure and ion irradiation often yield material modifications that cannot be obtained otherwise [73].

The high-pressure response of CeO₂, in the absence of irradiation, is characterized by a sluggish phase transformation above ~30 GPa to the PbCl₂-type cotunnite phase [74,75]. This transformation is typical of fluorite-structured materials, and in ceria it reaches completion at ~50 GPa. When irradiation is conducted at high pressure, this transformation is modified. Figure 8 illustrates the effects of separate and coupled pressure and irradiation, revealing that pressure significantly modifies the response of CeO₂ to SHI irradiation and vice versa.

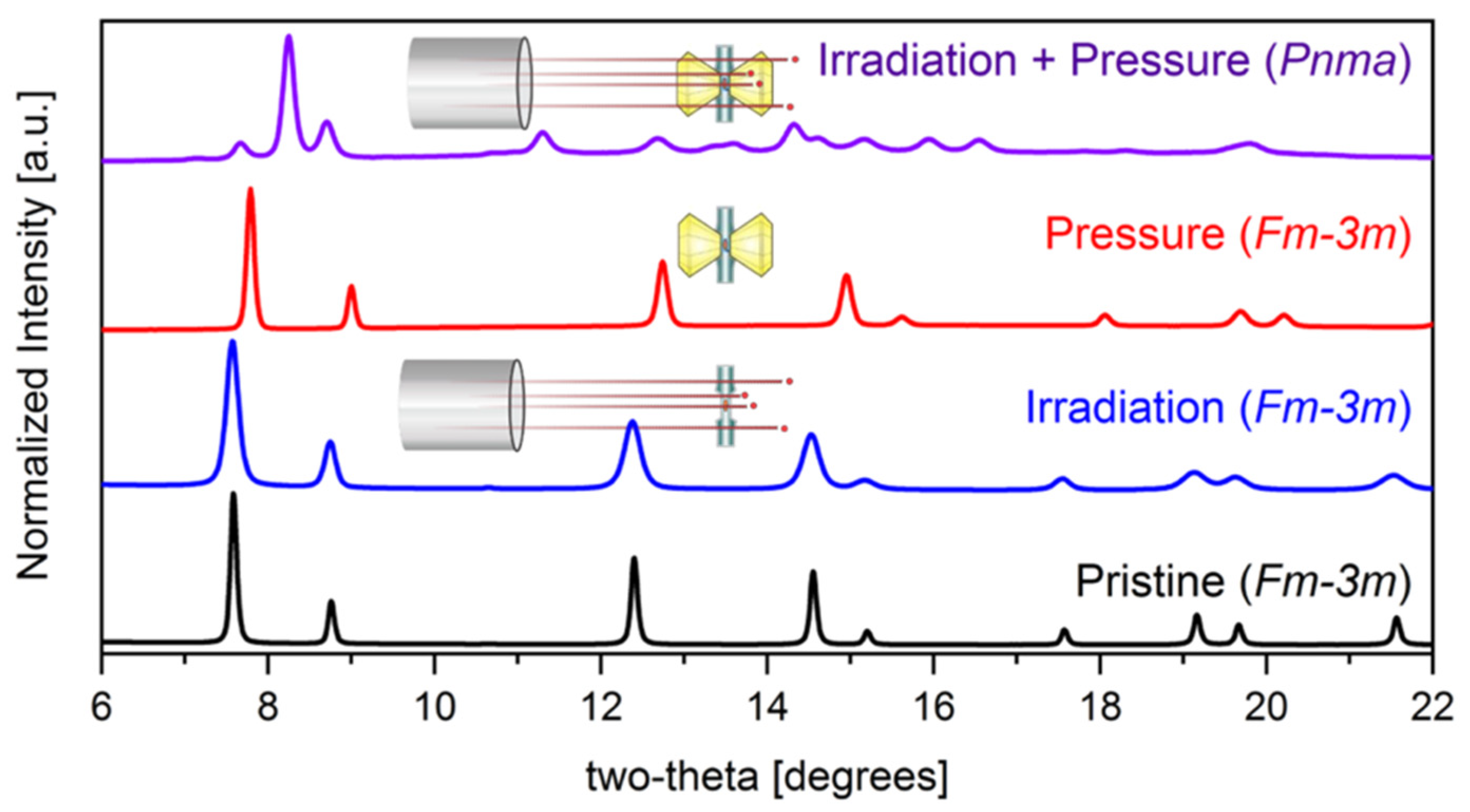

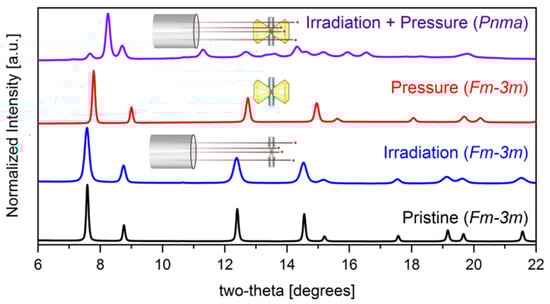

Irradiation with 7100 MeV ²³⁸U ions to a fluence of 4 × 10¹² ions/cm² at a pressure of only 21.8 GPa (roughly 10 GPa below the typical transformation onset pressure) triggers a complete fluorite-to-cotunnite transformation. The highly localized and dense electronic excitations produced by SHIs provide a means of overcoming the energy barrier for cotunnite high-pressure phase formation. According to ab initio calculations, hyper- and hypo-stoichiometry increase and decrease, respectively, the critical phase transition pressure in fluorite-structured oxides [76,77]. The hypostoichiometry observed in CeO₂ ion track cores might therefore explain the transformation to the cotunnite phase at a lower-than-expected pressure. Moreover, the formation of the cotunnite phase is proposed to proceed through buckling of the (111) cation planes into adjacent anion planes in the fluorite structure, effectively increasing cation coordination [76]. Expelling anions from the track core during SHI irradiation at high pressure should reduce the resistance of cation-plane buckling and enhance the efficiency of cotunnite formation. An interplay of thermal and dynamic pressure effects during the highly transient ion irradiation process could also play a role in the observed transformation behavior. This was supported by compression experiments on pre-irradiated ceria samples that did not find any evidence of an accelerated fluorite-to-cotunnite transformation. More systematic research is needed to fully understand the effects of coupled extremes of irradiation, pressure, and temperature.

5. Effects of Chemical Composition

This review has so far focused on SHI irradiation effects in pure CeO₂ having ideal or near-ideal stoichiometry. However, the study of related materials that deviate from this ideal composition can also provide valuable insight into its radiation response. First, swift heavy ion irradiation has been shown to induce local nonstoichiometry in CeO₂, such that later ion impacts will interact not with ideal CeO₂, but rather with a nonstoichiometric phase. Second, since CeO₂ is used as a surrogate for nuclear fuel materials, doping with different atomic species (mimicking the accumulation of fission products) is an important aspect to consider in SHI irradiations. Finally, because the redox chemistry of Ce appears to play a key role in the radiation response of CeO₂, a comparative study of structurally-related materials featuring cations with distinct redox behavior can help to isolate the effects of cation chemistry on the response of this material to SHI irradiation.

5.1. Effects of Doping

In addition to trivalent cerium cations, CeO₂ can incorporate a number of dopant species while maintaining the fluorite structure [78]. To date, only a few studies have focused on the effects of doping on the response of CeO₂ to ion irradiation. These studies investigated CeO₂ doped with trivalent lanthanide cations, given their similarity to the lanthanide Ce. Doping with the lanthanide sesquioxides Gd₂O₃ and Er₂O₃ has been shown to enhance irradiation-induced swelling and structural disorder in CeO₂ irradiated with 200 MeV ¹³²Xe ions, compared with an undoped reference sample [60,79,80,81]. This was explained in terms of defect stabilization by localized strain fields around the dopant cations, but changes to the redox behavior of the cerium cations by chemical doping were not considered.

Ab initio modeling by Lucid et al. showed that incorporation of dopants alters the energetics of cerium cation redox processes in CeO₂, with certain dopants inhibiting reduction (e.g., Sm) while others (e.g., Eu) facilitate it [82]. Since redox behavior plays a crucial role in SHI induced material modifications (particularly in nanocrystalline ceria), doping with certain lanthanide sesquioxides may provide a means of tuning ion-matter interactions and radiation stability. This should be addressed in future studies by comparing, for example, SHI induced unit cell changes in CeO₂ containing a range of dopant species (e.g., varying dopant sizes, masses, charge states, and redox energetics).

5.2. Dependence of Radiation Response on the A-Site Cation Species

As CeO₂ is utilized as an analogue to study radiation effects in nuclear fuel materials (e.g., UO₂ and ThO₂), it is particularly important to compare the SHI irradiation responses of these materials. Despite all three having the same fluorite structure, each A-site cation has a distinct electronic structure, resulting in varying behavior under highly ionizing irradiation. As mentioned previously, the track formation is very different between CeO₂ and UO₂, with the latter exhibiting no observable ion tracks after irradiation with fission fragments (dE/dx ~18–22 keV/nm) [66]. This suggests that UO₂ is able to dissipate the energy deposited by a SHI much more efficiently than CeO₂ under similar irradiation conditions. This behavior may be related to differences in the types of defects formed, as suggested by a molecular dynamics (MD) investigation [64]. In MD simulations 99% of SHI irradiation-induced defects were produced on the oxygen sublattice in UO₂, in contrast to CeO₂, where cerium and oxygen defects are produced in stoichiometric quantities after ion impact (redox changes not considered). The production of appreciable quantities of both cation and anion defects in CeO₂ led to a larger quantity of surviving defects after track quenching [64].

While the radiation responses of ThO₂ and CeO₂ are more similar, with both exhibiting a core-shell type track morphology, the extent of structural changes within individual ion tracks differs between these materials due to the accessible cation valence states (monovalent Th⁴⁺ versus Ce⁴⁺/Ce³⁺) [83]. The formation of Ce³⁺ cations with larger ionic radius and the correspondingly complex oxygen defect structure in CeO₂ yields more pronounced swelling and microstrain build-up in this material, relative to ThO₂, for which this redox-driven defect mechanism is inactive (Figure 9) [46,52,83]. Instead, the SHI radiation response of ThO₂ appears to be based solely on the accumulation of point defects and small, simple defect clusters [83]. The situation is more complex in UO₂, given its multiple accessible U cation oxidation states (U³⁺, U⁴⁺, U⁵⁺, and U⁶⁺), enabling cation reduction or oxidation. Raman spectroscopy and XRD measurements have shown that UO₂ undergoes some oxidation during SHI irradiation, which causes minor unit cell contraction (Figure 9) [52].

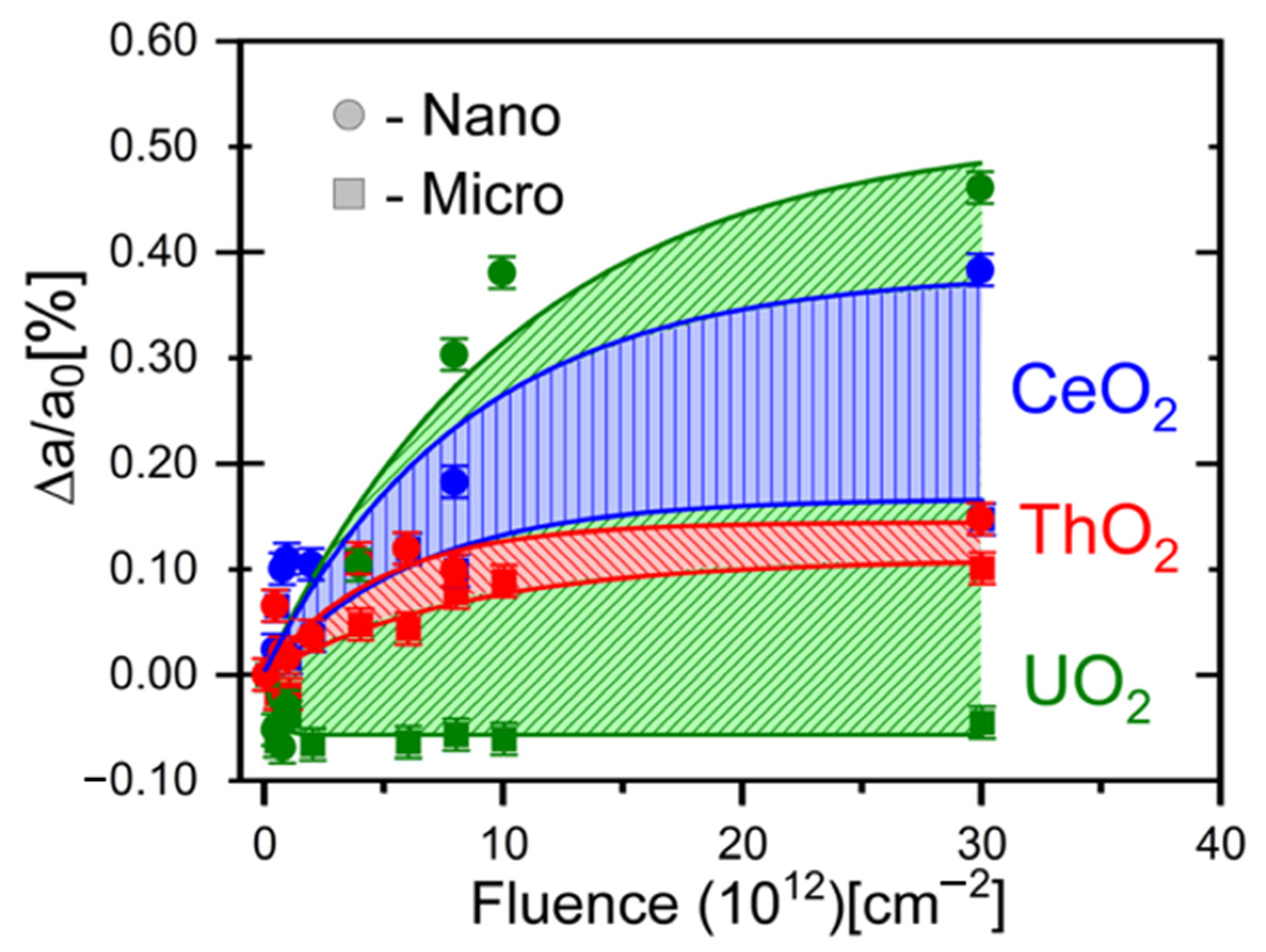

Changes in radiation behavior among CeO₂, ThO₂, and UO₂ are particularly evident when structural modifications are compared between microcrystalline and nanocrystalline materials. As shown in Figure 6c, ion-induced redox processes are more efficient in nanocrystalline CeO₂ (as discussed in Section 4.2), leading to a larger saturation level of swelling at high ion fluences (Figure 9). Since such redox effects are absent in ThO₂, its overall swelling behavior is very similar for both nano- and microcrystalline materials. The largest discrepancy in unit cell parameter changes after SHI irradiation is found in microcrystalline and nanocrystalline UO₂ (Figure 9). The former oxidizes under SHI irradiation, yielding unit cell contraction, while the latter exhibits a significant degree of swelling. Characterization by X-ray diffraction and Raman spectroscopy suggest that the increase in structural disorder in nanocrystalline UO₂ results from oxygen loss to grain boundaries, implying that pronounced redox changes are induced during SHI irradiation [53].

These results highlight the manner in which the electronic structure of the cation dramatically changes the response of fluorite-structured oxides to swift heavy ion irradiation. This raises concerns about the use of CeO₂ as an analogue material for UO₂ in radiation-damage studies, at least for swift heavy ion (or fission-fragment) irradiation. The data shown in Figure 10 again emphasize that the grain size of a material plays a crucial role in ion-matter interactions, with its specific effects showing a strong dependence on composition.

5.3. Radiation Effects in Structurally-Related Lanthanide Oxides

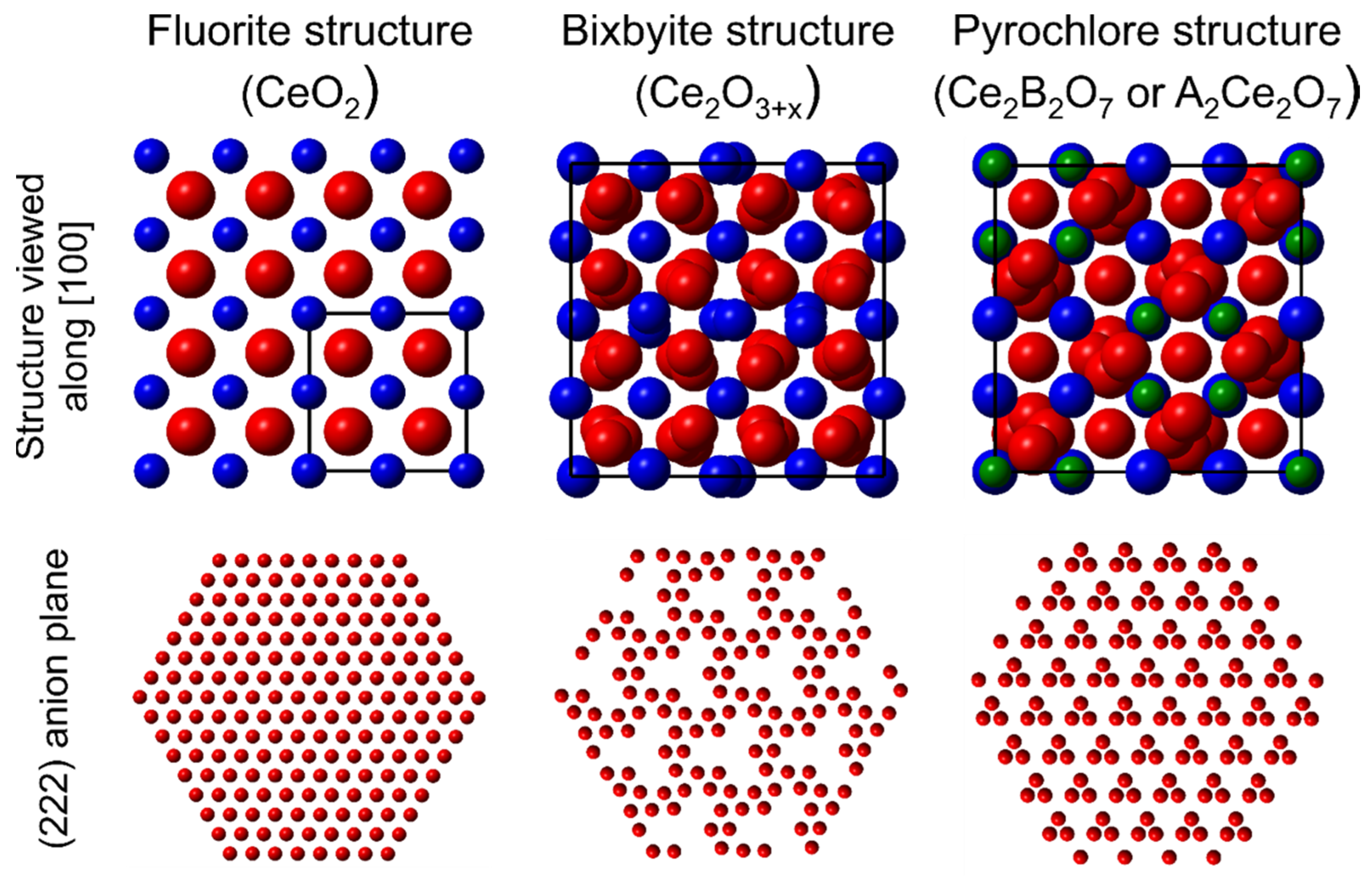

If aliovalent dopants are added to CeO₂ in sufficiently high concentrations, ordering of these new cations can occur alongside ordering of the defects produced on the anion sublattice to maintain charge neutrality. Even in undoped CeO₂, defects can order and change the symmetry of the material if they accumulate in large quantities. Thus, dopant and defect ordering can yield new fluorite-derivative structures [84], with bixbyite-structured lanthanide sesquioxides and pyrochlore-structured lanthanide/transition metal oxides being two commonly-studied examples. These materials can be considered as defect-rich (sesquioxides) and heavily doped (pyrochlores) variants of CeO₂, and both exhibit anion-deficient fluorite-derivative structures (Figure 10) [85]. The following section summarizes the main SHI irradiation effects observed in these materials, which provide further insight into the radiation response of CeO₂.

The bixbyite structure is characteristic of most lanthanide oxides for which the lanthanide element is in the trivalent oxidation state (Ln³⁺). This structure is a derivative of the fluorite structure, but with ordered constitutional vacancies replacing ¼ of the anion sites and the remaining atoms relaxed towards these vacant sites (Figure 10) [86]. The responses of bixbyite materials to SHI irradiation have been characterized using a range of ion energies and masses [30,87,88,89,90]. This prior work revealed a strong dependence of the radiation response on the cation ionic radius. The magnitude of the induced structural changes generally increases with cation size (and therefore decreases with cation mass, due to the contraction that occurs across the lanthanide series). Sesquioxides with small cations tend to retain their bixbyite structures under swift heavy ion irradiation, those with medium cations tend to undergo transformations to high temperature polymorphs, and those with large cations tend to amorphize. These modifications, which are generally proportional in magnitude to dE/dx, are attributed to the displacement of anions into constitutional vacancies which, when sufficiently extensive, can yield collective atomic relaxation to form accessible polymorphic or amorphous structures [30].

These processes provide insight into the likely behavior of anion-deficient CeO_2−x materials under irradiation. While Ce₂O₃ preferentially adopts a hexagonal structure, unlike most of the lanthanide sesquioxides, it is stable in cubic bixbyite-like phases starting at slightly higher oxygen contents [91,92]. Radiation damage mechanisms similar to those observed in the lanthanide sesquioxides have been reported for CeO₂, with the displacement of oxygen being a dominant mode of defect production (see Section 3.2) [50]. To date, the response of Ce₂O₃ to swift heavy ion irradiation has not been characterized. However, based on the ionic radius of Ce, which is large among the lanthanides, amorphization is expected to be the dominant response of this material. This suggests that cerium reduction and the concomitant introduction of oxygen vacancies will reduce the radiation tolerance of CeO₂ by making possible the oxygen displacement-driven transformation mechanisms previously observed in several lanthanide sesquioxides. To clarify this behavior, a detailed study of the swift heavy ion irradiation response of CeO_2−x materials as a function of x would be useful.

Like the bixbyite-structured oxides, the responses of pyrochlore-structured materials to SHI irradiation have been extensively studied, due in large part to their potential applications in the immobilization of nuclear wastes [93]. These materials exhibit the general formula A₂B₂O₇, where A is a large trivalent cation and B is a smaller tetravalent cation [94]. While Ce most often occupies the A-site position due to its relatively large ionic radius, it can occupy the B-site if paired with a larger A-site cation such as La [95]. Pyrochlore materials adopt a fluorite-derivative superstructure, differing from the fluorite structure in that two cations are ordered on the face-centered cubic cation sublattice, while 1/8 of the anions are replaced with constitutional vacancies, and the remaining anions are relaxed towards these vacant sites (Figure 10). The potential utility of these materials for nuclear waste immobilization arises, in large part, from their chemical flexibility, since a wide range of aliovalent cations of various sizes can be incorporated onto the two cation sites. Due to this compositional variability, research on the radiation responses of pyrochlore materials proves instructive with respect to the possible effects of extensive chemical doping on the radiation responses of cerium oxides.

Pyrochlore materials show clear compositional trends in radiation tolerance. Like the lanthanide sesquioxides, cation ionic radii are the primary determinant of these trends [28,96,97,98,99]. For pyrochlore materials the ratio of the A- and B-site cation radii, r_A/r_B, governs radiation tolerance. When this ratio is large, due to the inclusion of relatively large A-site cations or small B-site cations, the energy of cation antisite defect formation is large and the irradiation-induced disorder on the cation sublattice cannot easily be incorporated into the material’s crystalline structure [100]. This typically yields amorphization in response to SHI irradiation. In contrast, for materials with small cation radius ratios, cation antisite defects are relatively easily accommodated by the structure and disordering to a highly radiation tolerant defect-fluorite structure is typical [100]. This order-disorder transformation entails the mixing of A- and B-site cations onto a single face-centered cubic cation site and the mixing of oxygen and constitutional vacancies onto a fluorite-like anion sublattice.

Since Ce is relatively large among the lanthanides, pyrochlore materials that include this element on the A-site usually feature large cation ionic radius ratios, making amorphization a likely response to swift heavy ion irradiation. This indicates that doping of CeO₂ with additional cations, particularly smaller transition metal elements, such as the fission fragments found in nuclear fuels and nuclear wastes, might reduce the radiation tolerance of this material. This doping, if sufficiently extensive, could make accessible irradiation-induced phase transformation pathways to amorphous phases, as well as short-range structural modifications resulting from local defect ordering [98,101,102]. Thus, deviation from the ideal CeO₂ chemical composition due to the introduction of other atomic species appears likely to have a deleterious effect on radiation tolerance in this system.

5.4. Implications for CeO₂

Comparison of the SHI irradiation response of CeO₂ to those of closely-related fluorite and fluorite-derivative materials suggests that deviation from the ideal fluorite chemistry and crystallography tends to reduce the radiation tolerance of cerium oxides. Both Ce-bearing, bixbyite-structured materials (which can be considered anion-deficient fluorite derivatives) and Ce-bearing, pyrochlore-structured materials (which can be considered heavily doped, anion-deficient fluorite derivatives) are susceptible to irradiation-induced amorphization, a radiation response that has not previously been observed in pristine CeO₂. Likewise, doping with relatively low levels of lanthanide cations has been shown to reduce the radiation tolerance of CeO₂.

Substantial alterations in chemistry and crystallography are likely to occur in many of the harsh nuclear environments in which the use of CeO₂ has been proposed. For example, use of this material as a nuclear fuel matrix will necessarily entail the introduction of new cation species, including a diverse array of fission fragment elements. The accompanying exposure to highly ionizing radiation of fission fragments will induce redox changes and modification from ideal stoichiometry. As discussed in Section 5.2, substitution of Ce with Th or U greatly alters the redox response under SHI irradiation, and therefore impacts the induced structural changes. Similarly, doping with cation species that modify the energetics of redox processes [82] may yield a radiation response that is strongly dependent on the electronic structure of the dopant element.

6. Summary and Outlook

Fluorite-structured CeO₂ is generally resistant to structural modification by SHI irradiation. Defect production accompanied by unit cell expansion and microstrain constitute the dominant observable radiation responses. Ion tracks with core-shell morphologies are observed in this material, a remnant of the induced atomic-scale structural and chemical changes. The highly transient conditions along the SHI path lead to oxygen movement in radial directions. This results in an oxygen-depleted core region, where Ce⁴⁺ cations are partially reduced to Ce³⁺. This core is surrounded by an oxygen rich shell that contains small peroxide-like oxygen defect clusters.

These redox driven processes under SHI irradiation are an important characteristic of CeO₂ and are very sensitive to alterations in sample microstructure and chemistry (grain size, stoichiometry, and dopants), as well as ion-beam parameters (ion mass, energy, fluence, flux, irradiation temperature, and pressure). This makes CeO₂ a suitable model material to study fundamental aspects of ion-matter interactions over a wide range of conditions. On the other hand, this complex behavior poses a challenge in terms of disentangling the individual contributions of each parameter and comparing results from different research groups and experiments.

Future ion irradiation studies should systematically examine the radiation response of CeO₂ under a wide range of experimental conditions, including coupled effects that are of relevance for nuclear applications. Such efforts should also cover the mostly unexplored irradiation regime between low energy ions (predominately nuclear dE/dx) and swift heavy ions (predominately electronic dE/dx) to gain insight into the material response under simultaneous contributions from both types of energy deposition.
